Langerhans cell histiocytosis in an adult patient with upper jaw and pulmonary involvement: A case report

Yingjie Xiong; Fei Xu

doi:10.1515/biol-2022-1022

Article Open Access

Langerhans cell histiocytosis in an adult patient with upper jaw and pulmonary involvement: A case report

Yingjie Xiong and Fei Xu

Published/Copyright: March 28, 2025

Published by

Become an author with De Gruyter Brill

Submit Manuscript Author Information Explore this Subject

From the journal Open Life Sciences Volume 20 Issue 1

Abstract

Langerhans cell histiocytosis (LCH) is characterized by proliferative histiocyte-like cells. LCH lesions exhibit diverse and nonspecific clinical features, often leading to misdiagnosis and delayed treatment. Primary LCH lesions in the oral cavity remain rare. We report a case of a 27-year-old man with rare adult-onset LCH presenting with progressive mobility of the posterior teeth. The patient experienced increasing tooth mobility and subsequent loss in the upper and lower jaw despite undergoing periodontal treatment. A biopsy of oral mucosal tissue confirmed the Langerhans cell origin. High-resolution computed tomography imaging revealed pulmonary involvement. After undergoing systemic chemotherapy with prednisolone, vinblastine, and etoposide, the patient exhibited favourable follow-up outcomes. This case underscores the value of early diagnosis to prevent disease progression and highlights the need for dentists to be aware of LCH.

Keywords: Langerhans cell histiocytosis; oral cavity; pulmonary involvement; case report

1 Introduction

Langerhans cell histiocytosis (LCH) is a rare disorder characterized by the accumulation of pathological dendritic histiocytes known as Langerhans cells. It can manifest at any age but is more common in children [1,2]. The clinical presentation of LCH varies widely, from mild cases with self-healing solitary lesions to severe multisystem disease with potentially fatal dissemination. Localized disease is classified as single-system LCH (SS-LCH), whereas disease affecting multiple systems is classified as multisystem LCH (MS-LCH). SS-LCH accounts for over 60% of cases and primarily affects the bone, skin, and lymph nodes, whereas MS-LCH involves organs such as the liver, spleen, and bone marrow [3].

LCH exhibits a notable predilection for the head and neck region, with reported morbidity rates ranging from 55 to 80% [4]. Clinically, oral manifestations of LCH can affect various structures, presenting as osteolytic lesions, pathological jaw fractures, masses, gingival inflammation or recession, excessive tooth mobility or loss, malocclusion, and ulceration [5,6,7]. Specifically, osteolytic lesions tend to more frequently affect the mandibular molar region compared with the maxillary region [8]. However, primary lesions within the oral cavity are relatively uncommon. Among oral soft tissues, the gingiva and hard palate mucosa are most involved [9]. We report a case of an adult with LCH, involving the upper jaw and pulmonary regions, and summarize the clinical manifestations, histopathologic characteristics, and differential diagnosis.

2 Case presentation

A 27-year-old Chinese man presented with progressive mobility of the posterior teeth. Symptoms began 6 years back with the left mandibular first molar, followed by consecutive loss of the left posterior teeth at a rate of one tooth per year. Despite undergoing periodontal treatment, the patient experienced no improvement in tooth mobility. Two months prior to diagnosis, the patient experienced gingival swelling in the left maxillary posterior region, accompanied by severe pain. Intraoral examination revealed complete tooth loss from teeth 25–28 and teeth 35–38, along with diffuse mucosal erosion in the upper left posterior area. Extraoral examination identified multiple painless and movable enlarged lymph nodes bilaterally in the submandibular region (Figure 1). The patient had a 10-year history of smoking and had been chewing betel nuts for 9 years. Cone-beam computed tomography (CT) revealed a poorly demarcated radiolucent area on the left mandibular ramus and complete resorption of the alveolar ridge in regions centred on teeth 25–28. Additionally, extensive bone loss was observed around teeth 16, 46, and 47, resulting in a “floating-in-the-air” appearance of these teeth (Figure 2).

Figure 1

Pretreatment intraoral photographs showing (a) frontal occlusion, (b) right occlusion, (c) left occlusion, (d) maxillary occlusion, (e) mandibular occlusion, and (f) dehiscent gingiva.

Figure 2

Pretreatment 3D-reconstruction images showing severe bone destruction of (a) maxillary sinus, (b) maxilla (red array), and (c) mandible. The baseline CBCT shows (d) the characteristic “floating teeth” appearance (yellow array).

Samples collected from the eroded mucosa in the upper left posterior tooth area underwent histological and immunohistochemical examination using an automated immunohistochemistry stainer (Ventana Benchmark XT; Ventana Medical Systems, Tucson, AZ, USA). Histological analysis revealed dense infiltrates of Langerhans cells interspersed with eosinophilic inflammatory cells (Figure 3a). Histochemical staining revealed no evidence of malignancy or tuberculosis infection (Figure 3b–d). Immunohistochemically, the Langerhans cells exhibited immunoreactivity to CD1a (mouse monoclonal anti-CD1a antibody; MBL Beijing Biotech Co., Ltd, Beijing, China), Langerin (mouse monoclonal anti-Langerin antibody; MBL Beijing Biotech Co., Ltd) and S100 proteins (rabbit polyclonal antiS100 protein antibody; Zymed Laboratories, San Francisco, CA, USA). The Ki67 (mouse monoclonal anti-Ki67 antibody; MBL Beijing Biotech Co., Ltd) positive index was 20% (Figure 4). Oral and neck magnetic resonance imaging (MRI) scans depicted T2-weighted hyperintense and inhomogeneous contrast-enhancing lesions with a width of up to 0.5 cm in the left posterior maxilla (Figure 5). High-resolution CT (HRCT) examination revealed multiple cysts and nodules in both lungs (Figure 6). Combining the histological analysis of eroded mucosa and HRCT, the patient was diagnosed with LCH involving oral and pulmonary regions. The patient received eight cycles of vinblastine–etoposide–prednisone chemotherapy (4 mg of vinblastine on day 1, 300 mg of etoposide on day 1, 10 mg of prednisone on days 1–5). After systemic chemotherapy, the patient was lost to follow-up.

Figure 3

Photomicrographs showing (a) histiocytic infiltrates (Hematoxylin and Eosin stain), (b) PAS stain (−), (c) digestive PAS stain (−), and (d) acid-fast stain (−). The green arrows represent eosinophilic cells, and red arrows represent Langerhans cells.

Figure 4

Immunohistochemical staining showing reactivity for (a) Langerin, (b) CD1a, (c) S-100, and (d) a positive index of 20% for Ki67.

Figure 5

MRI scans showing (a) maxillary sinus, (b) maxillary, and (c) mandibular involvement.

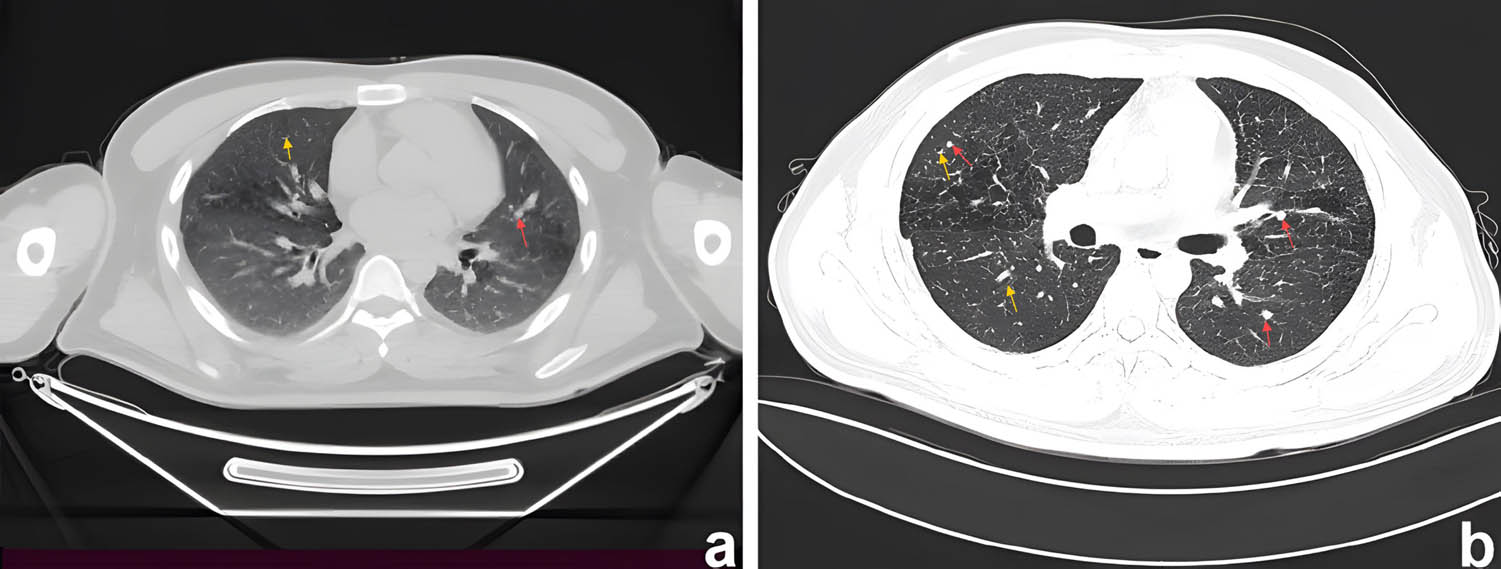

Figure 6

Computed tomography of chest showing nodules (red arrows)/cyst (yellow arrows) in both lungs. (a) CT axial view shows cysts of varying sizes in the upper lobes of both lungs. (b) Thin-section CT showed nodules with unclear boundaries, mainly located in the middle lobes of both lungs. Some nodules had clear centres, indicating that they would become cystic.

Informed consent: Informed consent has been obtained from all individuals included in this study.
Ethical approval: The research related to human use has been complied with all the relevant national regulations, institutional policies and in accordance with the tenets of the Helsinki Declaration, and has been approved by the authors’ institutional review board or equivalent committee.

3 Discussion

The clinical manifestations of LCH are diverse. Pulmonary involvement is observed in up to 40% of patients, typically presenting as nodular or reticular patterns on chest radiographs. As a result, chest CT scans are often pivotal in diagnosis. The formation of early-stage granulomas in the lung is easy to observe. However, detecting nodule formation in solid organs is challenging through imaging, despite the lesions’ similar nature [10]. Therefore, the diagnosis of LCH requires a comprehensive approach, integrating clinical, radiological, pathological, and immunophenotypic analyses. Among these, the immunophenotypic detection of CD1a and CD207 expression in lesional histiocytes is of paramount importance [11].

LCH rarely affects oral regions, often presenting with symptoms resembling periodontal disease, lymphoma, or osteomyelitis, resulting in misdiagnosis and delayed treatment [12]. Periodontal diseases clinically manifest as inflammation of the gums, leading to gum redness, swelling, bleeding, bad breath, receding gums, and loose teeth. Similarly, periodontal manifestations of LCH include periodontal pockets, recession, furcation involvement, gingival bleeding, and tooth mobility. In this case, the patient experienced excessive molar mobility and tooth loss, initially resembling chronic periodontitis. However, conventional periodontal treatment proved ineffective, and the bone destruction extended beyond the alveolar bone, involving the left mandibular ramus and the interior walls of the left maxillary sinus. Given the rapid progression of periodontal destruction, particularly in a relatively young patient, suspicion of systemic factors was warranted, prompting a biopsy and immunohistochemical test, which confirmed LCH. Further CT and MRI scans revealed involvement in the jaws and lungs.

Although treatment modalities for paediatric LCH have been extensively described, no gold standard exists for adult LCH treatment. Various regimens have been used, encompassing surgical excision, radiotherapy, systemic chemotherapy, and targeted therapy. Clinical evidence demonstrates that the 3-year overall survival is 94.4% for SS-LCH and 54.7% for MS-LCH in adults [13]. For patients with SS-LCH, surgical excision and radiotherapy are considered curative [14]. Low-risk patients with MS-LCH are typically managed with vinblastine and prednisone [8], whereas high-risk patients with MS-LCH may benefit from mercaptopurine, vinblastine, and prednisone [15]. A previous study determined that intense treatment with 6-mercaptopurine followed by prednisone and vinblastine significantly increased the response and reduced mortality in MS-LCH with the risk of organ involvement [16]. Additionally, a study indicated that the involvement of organs and being over 50 years predicted a less favourable outcome. However, receiving cytarabine-based therapy has had favourable outcomes, suggesting that a cytarabine-based regimen could be considered a first-line treatment for adult patients with LCH [13].

Targeted therapy represents a promising emerging approach to treatment. Additionally, BRAF inhibitors (e.g., vemurafenib and dabrafenib) have exhibited efficacy in refractory MS-LCH. However, their use is associated with severe side effects, including squamous cell carcinoma and lesion relapse. In cases with extensive maxillofacial involvement, as in this case, surgery is not the primary option because of the potential negative impacts on masticatory function, aesthetics, and the complexity of reconstructing the stomatognathic system. Once oral lesions achieve remission and periodontal conditions stabilize, post-systemic chemotherapy, dental treatments such as implant-supported prostheses, or partial dentures become appropriate.

4 Conclusion

In this case, LCH remained unrecognized and untreated for 6 years, leading to rapid jawbone destruction, tooth loss and subsequent lung involvement. Early recognition and a multidisciplinary treatment approach are crucial. Further research and clinical guidelines are needed to manage adult-onset LCH effectively.

tel: +86 0731-84327495

Funding information: This work was supported by the National Natural Science Foundation of China (grant number 82100987) and the Natural Science Foundation of Hunan Province (grant number 2022JJ30973).
Author contributions: All authors have accepted responsibility for the entire content of this manuscript and consented to its submission to the journal, reviewed all the results, and approved the final version of the manuscript. XF and XYJ designed the research and carried them out. XYJ wrote the manuscript and XF performed critical revision of the work.
Conflict of interest: Authors state no conflict of interest.
Data availability statement: The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.

References

[1] Bielamowicz K, Dimitrion P, Abla O, Bomken S, Campbell P, Collin M, et al. Langerhans cell histiocytosis: NACHO update on progress, chaos, and opportunity on the path to rational cures. Cancer. 2024;130(14):2416–39. 10.1002/cncr.35301. Search in Google Scholar PubMed PubMed Central

[2] Sconocchia T, Foßelteder J, Sconocchia G, Reinisch A. Langerhans cell histiocytosis: current advances in molecular pathogenesis. Front Immunol. 2023;14:1275085. 10.3389/fimmu.2023.1275085.Search in Google Scholar PubMed PubMed Central

[3] Hamdan M, Qiao JC, Fikfak V. Adult-onset perianal Langerhans cell histiocytosis presenting as pruritus ani: A case report and review of the literature. J Med Case Rep. 2021;15(1):357. 10.1186/s13256-021-02924-0.Search in Google Scholar PubMed PubMed Central

[4] Bagnasco F, Zimmermann SY, Egeler RM, Nanduri VR, Cammarata B, Donadieu J, et al. Langerhans cell histiocytosis and associated malignancies: A retrospective analysis of 270 patients. Eur J Cancer. 2022;172:138–45. 10.1016/j.ejca.2022.03.036.Search in Google Scholar PubMed

[5] Sanjay CJ, Patil K, Hegde U, Panda R. Adult-onset Langerhans cell histiocytosis - A Trojan horse of oral cavity: A case report with rare clinical presentation. J Oral Maxillofac Pathol. 2023;27(Suppl 1):S98–103. 10.4103/jomfp.jomfp_131_22.Search in Google Scholar PubMed PubMed Central

[6] Zhang Q, Wu X, Wang X, Pan E, Ying L. Molecular and oral manifestations of langerhans cell histiocytosis preceding acute myeloid leukemia. BMC Oral Health. 2022;22(1):386. 10.1186/s12903-022-02410-z.Search in Google Scholar PubMed PubMed Central

[7] Neckel N, Lissat A, von Stackelberg A, Thieme N, Doueiri MS, Spors B, et al. Primary oral manifestation of langerhans cell histiocytosis refractory to conventional therapy but susceptible to BRAF-specific treatment: A case report and review of the literature. Ther Adv Med Oncol. 2019;11:1758835919878013. 10.1177/1758835919878013.Search in Google Scholar PubMed PubMed Central

[8] Luz J, Zweifel D, Hüllner M, Bühler M, Rücker M, Stadlinger B. Oral manifestation of langerhans cell histiocytosis: A case report. BMC Oral Health. 2018;18(1):106. 10.1186/s12903-018-0568-5.Search in Google Scholar PubMed PubMed Central

[9] Hicks J, Flaitz CM. Langerhans cell histiocytosis: Current insights in a molecular age with emphasis on clinical oral and maxillofacial pathology practice. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2005;100(2 Suppl):S42–66. 10.1016/j.tripleo.2005.06.016.Search in Google Scholar PubMed

[10] Cong CV, Ly TT, Duc NM. Multisystem Langerhans cell histiocytosis: Literature review and case report. Radiol Case Rep. 2022;17(5):1407–12. 10.1016/j.radcr.2022.02.024.Search in Google Scholar PubMed PubMed Central

[11] Abla O, Egeler RM, Weitzman S. Langerhans cell histiocytosis: Current concepts and treatments. Cancer Treat Rev. 2010;36(4):354–9. 10.1016/j.ctrv.2010.02.012.Search in Google Scholar PubMed

[12] Hwang DS, Lee JS, Kim UK, Park HR, Ryu MH, Lee JH, et al. Langerhans cell histiocytosis of the mandible: Two case reports and literature review. J Korean Assoc Oral Maxillofac Surg. 2019;45(3):167–72. 10.5125/jkaoms.2019.45.3.167.Search in Google Scholar PubMed PubMed Central

[13] Cao XX, Duan MH, Zhao AL, Cai H, Chen J, Gao XM, et al. Treatment outcomes and prognostic factors of patients with adult Langerhans cell histiocytosis. Am J Hematol. 2022;97(2):203–8. 10.1002/ajh.26412.Search in Google Scholar PubMed

[14] Panis V, Nikitakis N, Daskalopoulos A, Maragkou T, Tsiklakis K, Sklavounou A. Langerhans cell histiocytosis mimicking aggressive periodontitis: Challenges in diagnosis and management. Quintessence Int. 2016;47(9):731–8. 10.3290/j.qi.a36568.Search in Google Scholar PubMed

[15] Krooks J, Minkov M, Weatherall AG. Langerhans cell histiocytosis in children: diagnosis, differential diagnosis, treatment, sequelae, and standardized follow-up. J Am Acad Dermatol. 2018;78(6):1047–56. 10.1016/j.jaad.2017.05.060.Search in Google Scholar PubMed

[16] Gadner H, Grois N, Pötschger U, Minkov M, Aricò M, Braier J, et al. Histiocyte Society. Improved outcome in multisystem Langerhans cell histiocytosis is associated with therapy intensification. Blood. 2008;111(5):2556–62. 10.1182/blood-2007-08-106211.Search in Google Scholar PubMed

Received: 2024-05-10

Revised: 2024-10-28

Accepted: 2024-11-25

Published Online: 2025-03-28

This work is licensed under the Creative Commons Attribution 4.0 International License.
