Recent research progress on the stimuli-responsive smart membrane: A review

3.1 Temperature-responsive smart membrane

Generally, the synthetic materials of smart temperature-responsive membranes include NIPAM, PNIPAAm, and other materials [65]. In addition, temperature-responsive membranes respond quickly when the external environment stimulation suddenly changes. The polymer PNIPAAm was first reported in 1956, but it did not attract the attention of scholars at that time [60]. In recent years, temperature-responsive smart membranes have been widely used with the progress of intelligent research.

In 1999, Pang et al. [81] studied a smart track membrane to control the membrane aperture switch (Figure 6). The membrane grafted NIPAM (thermosensitive materials) onto the membrane surface. The synthesis technology used in this membrane was peroxide pre-irradiation grafting technology. The base membrane used in this membrane was a polycarbonate nuclear track microporous membrane. When the temperature was higher than lower critical solution temperature (LCST), the deswelling reaction occurred and the pore size of the smart membrane increased. When it was lower than LCST, the swelling reaction occurred and water was absorbed, with the pore size of the smart membrane shrinking or even completely closed. This membrane has a very thin thermosensitive layer and submicrometer nuclear track, which makes its switch response more sensitive. However, there was a lack of research on the anti-pollution [82,83], salting out [84,85], and universality of the membrane [86].

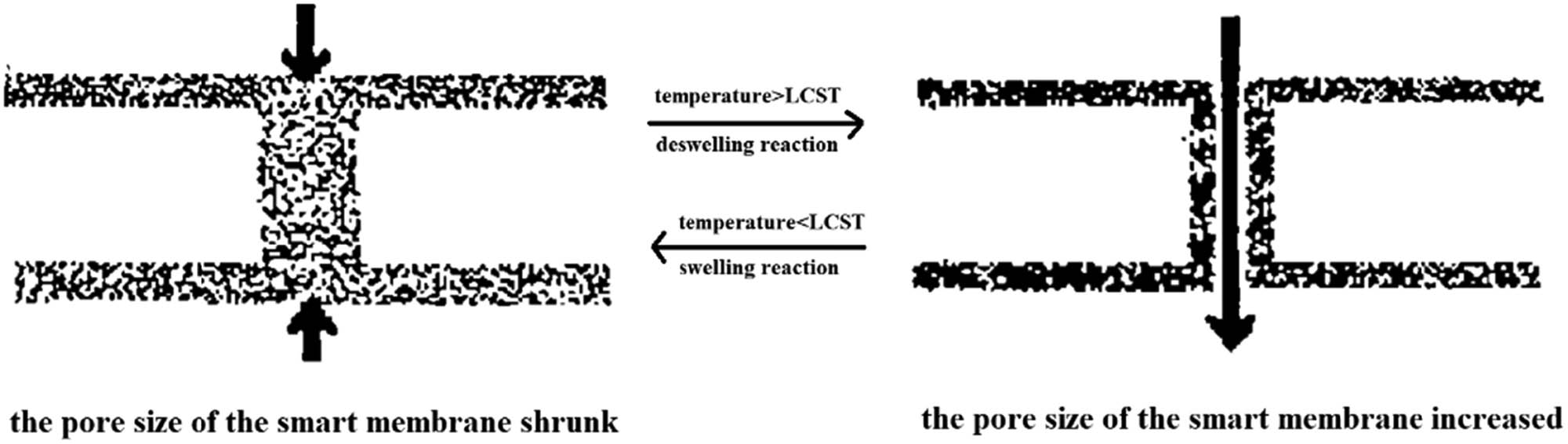

Figure 6

Action principle of the smart track membrane (TsINM) [81].

To study the anti-pollution performance of smart membranes, Wu [82] synthesized a kind of aromatic polyamide-RO membrane, which was prepared by dip coating process and has temperature responsiveness. The surface modifier used in the membrane was the copolymer of NIPAM and acrylamide (Am) (Figure 7). In the mechanism of anti-pollution, the hydrophilicity of the membrane is enhanced at a low temperature, which weakens the contact between pollutants and the membrane surface. However, the solution consisted of NaCl and bovine serum albumin (BSA). Only when the ion concentration in the solution is lower and the pH value from the isoelectric point of BSA is farther, the anti-pollution effect of the membrane will be better.

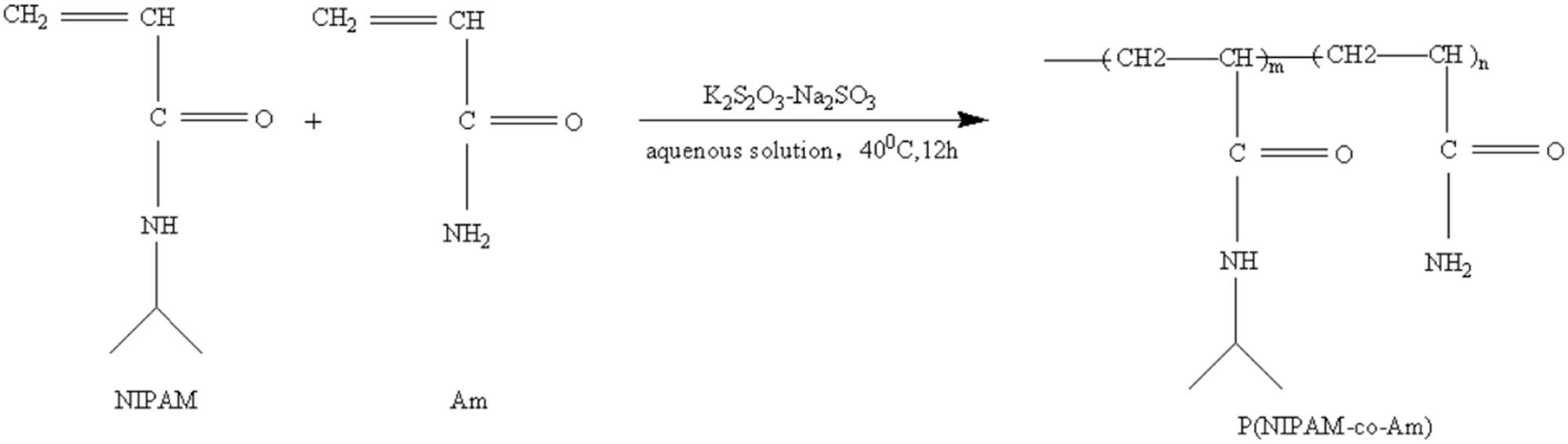

Figure 7

Synthesis route of copolymer P(NIPAAm-co-Am) [82].

Although the aromatic polyamide-RO membrane had good anti-pollution effect, it required a stricter external environment. Dong [83] successfully prepared a thermosensitive polysulfone (PSF) switch membrane (Figure 8). PNIPAAm was grafted on the surface of a chloromethylated polysulfone membrane via surface-initiated atom transfer radical polymerization (SI-ATRP). Experiments showed that the rejection rate of the membrane at room temperature was higher than that at 40°C, which was because at room temperature, the PNIPAAm polymer chains grafted on the surface of the switching membrane exhibited an irregular elongation, which would fill the membrane pore spaces and increase the BSA rejection of the switching membrane. At 40°C, the PNIPAAm polymer chain presented a curled cluster structure, which would release membrane pore spaces and reduce the BSA rejection rate of the switch membrane. The switch membrane can intercept BSA at room temperature. The interception process does not require energy consumption to change the temperature or ion concentration of the solution.

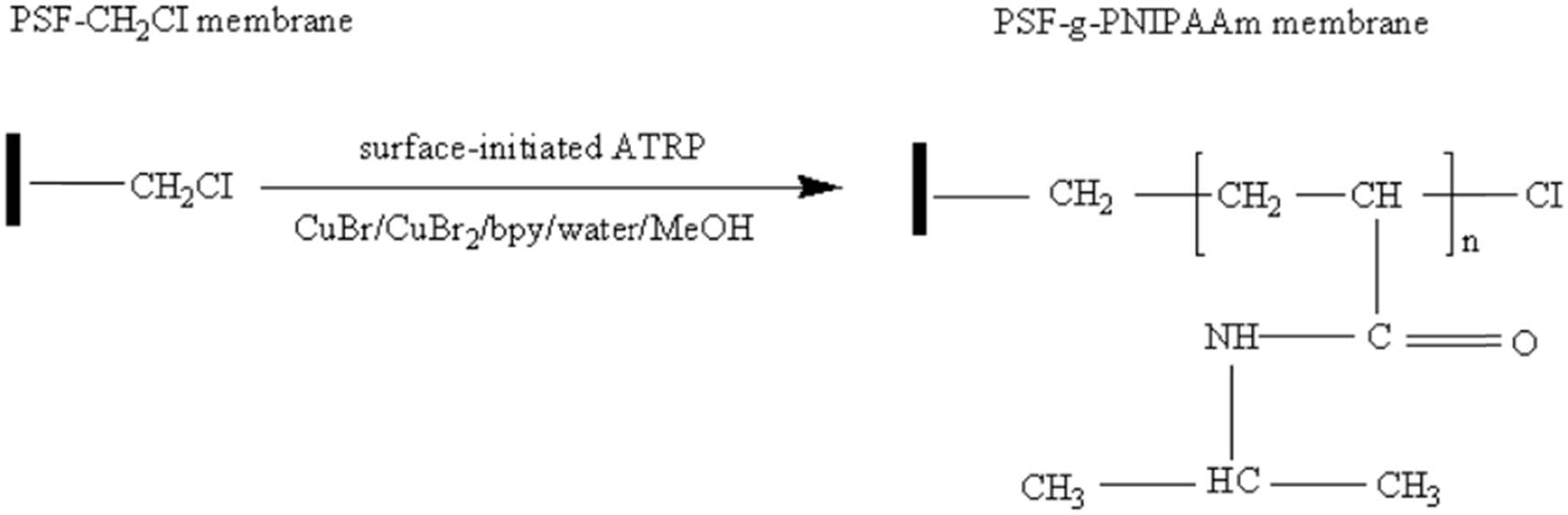

Figure 8

Preparation of thermal responsive PSF membrane [83].

In addition to anti-pollution research, some scholars have also developed temperature-sensitive membranes with good salting out and universality. Moribe et al. [84] used PNIPAAm, poly(ethylene glycol) diacrylate, acrylic acid, N-tert-butylacrylamide, N-[3-(dimethylamino)propyl] methacrylamide, and other materials to polymerize temperature-responsive hydrogel membranes. At low temperatures, those membranes absorbed salts, while at high temperatures, they released salts. Hydrogel membranes absorb and release salts by controlling swelling ratio or particle size, which can be regenerated through low-temperature waste heat of factories or thermal power plants and can be applied to the energy-saving desalination of seawater. In addition, Yu et al. [85] did more in-depth research on rapid salt-capture using a temperature-responsive hydrogel smart membrane consisting of thermosensitive PNIPAAm NPs (Figure 9a). At high temperatures, acids and alkali “imprint” in NPs, so they cannot capture counterions or components. At low temperatures, NPs swell and denature from imprinted structures, providing counterions to absorb salts. When acids and alkali regenerate during the heating process, the absorbed salts are released (Figure 9b). During heating and cooling cycles, the membrane captured up to 468 μmol/g of NaCl, which could then be used to almost completely desalt the solution (>90%). Such membranes can be used to solve the problem of serious water shortage in the world.

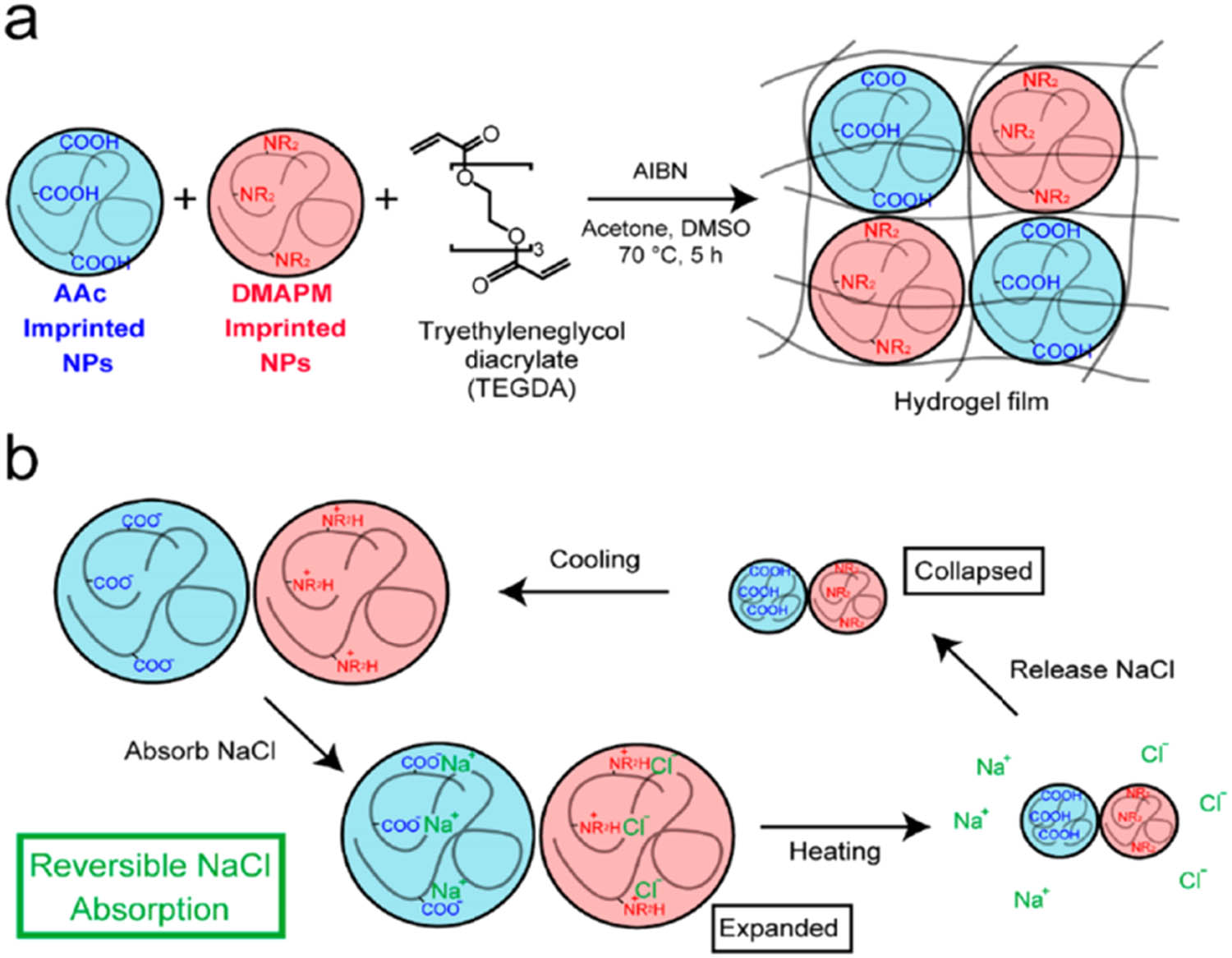

Figure 9

(a) Experimental schematic diagram of membrane; (b) proposed mechanism for reversible NaCl absorption by the membrane [85].

In other fields, Ding et al. [86] developed a temperature-responsive plasma membrane. PNIPAAm was transplanted onto a gold mirror through an ionic body membrane and the scattered gold nano-ions were placed on top. When the temperature rose above the critical hydration temperature, PNIPAAm shrank rapidly (up to 90%) and was completely reversible throughout the phase transition. That is, as the temperature drops, the volume of PNIPAAm will expand rapidly. Then, the NPs were separated from the mirror through the ionic membrane using the phase transition characteristics of PNIPAAm, so that the plasma membrane showed a strong color change. Such membranes can quickly change color, which can be applied to large-area wallpapers, video walls, and sensors.

In short, temperature-sensitive membranes have a high degree of intelligence, whose difference with other forms of smart membranes is that they can respond rapidly to temperature changes, so as to achieve the purpose of real-time monitoring. At present, research on temperature-sensitive smart membranes is about the following three points: enhance their antifouling ability by modifying the membranes; use NPs to improve the salt evolution of the membranes; use color change to expand their application fields. Temperature-responsive smart membranes have also been applied to membrane filtration [87], energy-saving regeneration, and catalytic reactions [88]. However, most of the temperature-sensitive materials used in the experiment are relatively monolithic. It is recently suggested to strengthen research on poly(N,N-dimethyl acrylamide) (PDMA) and polyacrylamide (PAM).

3.2 Light-responsive smart membrane

The molecular conformation and morphology of light-responsive smart membranes will change under illumination with different wavelengths. The photosensitive components of the membranes are composed of azo derivatives, peptides, spiropyran, and triphenylmethane derivatives. The membranes can adjust air humidity, reduce carbon emissions, and reduce energy consumption. In addition, the permeability and humidity performance of those light-responsive membranes can be changed by controlling the luminous flux of light.

Earlier, Park et al. [89] synthesized the primary light-responsive smart membrane using methyl methacrylate, which was replaced by spiropyran and grafted on the surface of a porous glass filter (Figure 10). The glass filter was cultured in 0.1 M HNO₃ at 70°C for 3 h, washed several times with distilled water, and then dried in vacuum at 140°C for 6 h. After being irradiated with UV light, the graft chain would shrink, the pores would open in the surface of the glass filter, and then the permeability would be increased. If visible light is used, the graft chain will extend, covering the pores of the glass filter and reducing the permeability, which is because the photoisomerization of photochromic molecules will cause structural changes in the macromolecular chains when combined with them. Smart membranes are used in the development of optical modulation devices now. However, their light sensitivity is low, so their application range will be limited.

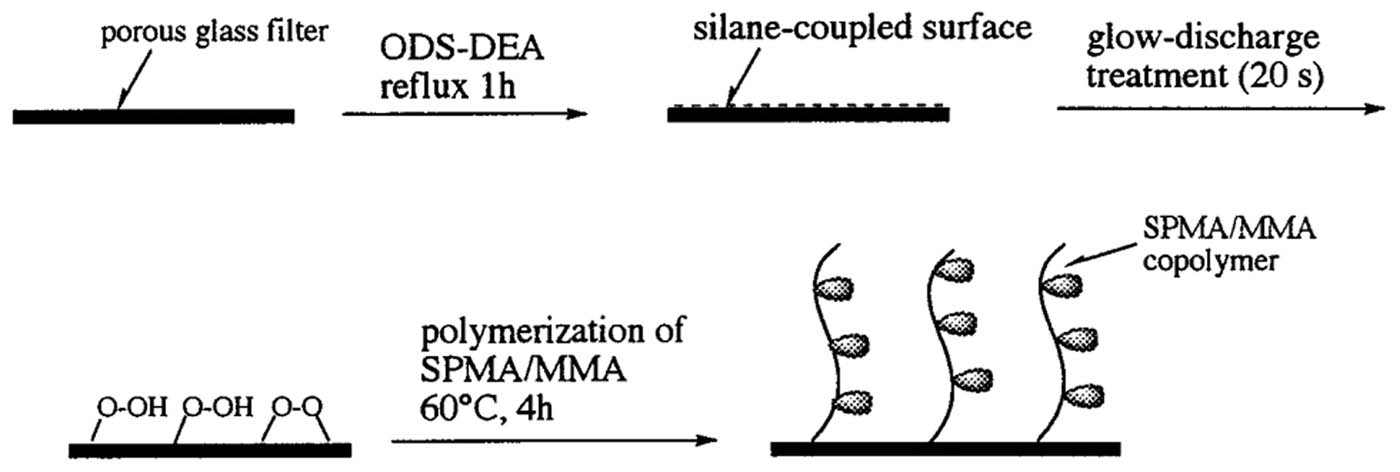

Figure 10

Preparation scheme of glass filter [89].

In order to solve the problem of low photosensitivity and poor response performance of the above smart membranes, Liu et al. [90] developed a kind of light-responsive smart membrane (Figure 11), which was made by attaching azo derivatives to porous silicon pores. 4-(3-triethoxysilylpropylureido)azobenzene (TSUA) was synthesized using triethoxysilylpropyl isocyanate and 4-phenylazoaniline. Brij56(C16H33(OCH2CH2)nOH, n ∼ 10) (0.27 g) and TSUA (0.26 g) were dissolved in ethylalcohol containing tetraethyl orthosilicate, then ultrasonic treatment was completed with HCl for 3 min, aged in mixed sol for 30 min, and the membrane was prepared through impregnation method at room temperature. Under UV irradiation, azo derivatives were efficiently converted into cis isomers; while without it, the azo derivatives can be completely and reversibly converted into trans isomers. In the smart membrane, the characteristics of azo derivatives were utilized to realize the optical control of pore size, which could be applied to light-regulated mass transport.

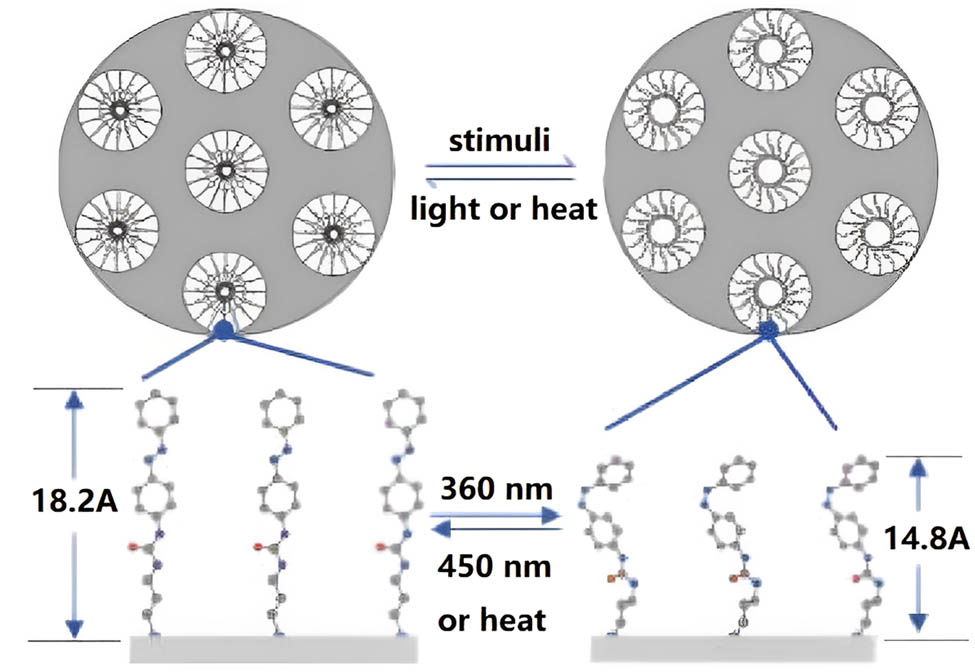

Figure 11

Schematic diagram of preparation of membrane composites [90].

In addition, some scholars had also made a specific division of the photosensitive range of smart membranes. For example, Guo et al. [91] prepared a Ga₂O₃:Cr vermicular nanowire membrane on an a-Al₂O₃(0001) substrate via pulsed laser deposition. The experiment showed that the photocurrent of the membrane under 365 nm UV irradiation was lower than that under 254 nm UV irradiation, which was because there were many oxygen vacancies in the nanostructure of the membranes in the defect state. Under 365 nm UV irradiation, the electrons trapped in the defect state will jump to the conduction band (CB). However, under 254 nm UV irradiation, they will jump from the valence band (VB) to the CB. After turning off the illumination, electrons at the CB will annihilate rapidly. Such membranes have deep ultraviolet photoelectric responses and can be used in the field of magnetic-optical-electric multifunctional nanodevices. Further, they also have the room temperature anisotropic ferromagnetic behavior and the characteristics of easy axes perpendicular to the plane characteristics of membranes.

In addition to the research on primary and specific optical responses, some scholars also studied the energy conversion and large-scale manufacturing methods of light-responsive smart membranes. For example, Jia et al. [92] prepared a (Y₂O₃:Yb–Er)/Bi₂S₃ composite membrane under near-infrared light excitation using SILAR (continuous ion layer adsorption) and electrodeposition (Figure 12a). The membrane was composed of uniform Y₂O₃ crystal particles and covered by Bi₂S₃ NPs. Under the excitation of 980 nm laser, photons were converted into visible light emission at the Y₂O₃:Yb–Er membrane layer through up-conversion. Then, the covered Bi₂S₃ NPs absorbed visible light and produced photoelectrons (Figure 12b). This smart membrane not only had light-response performance, but could also convert light into energy. Being important for breaking the Shockley–Queisser limit (solar energy conversion efficiency limit), the membrane was used to collect near-infrared radiation of photocatalysts, solar cells, and infrared photoelectric detectors.

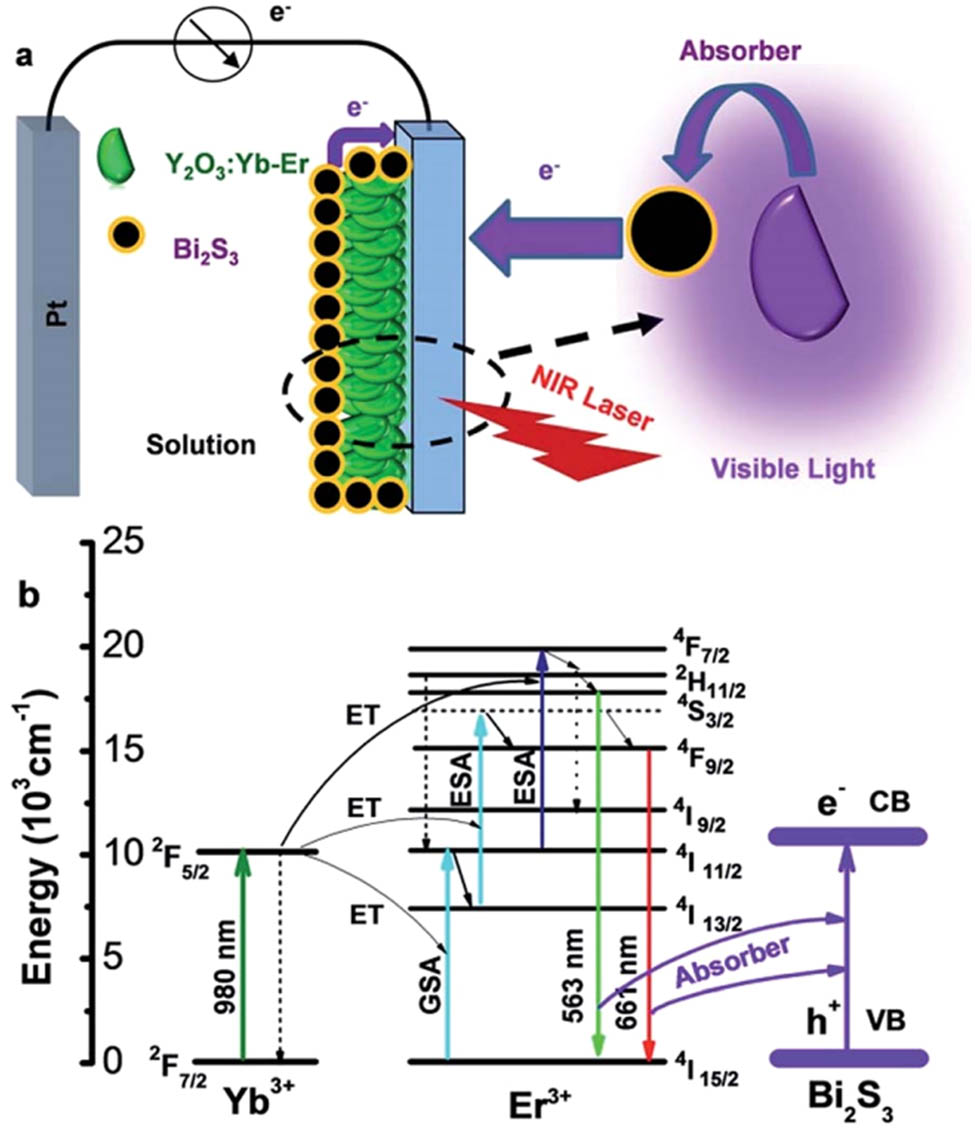

Figure 12

(a) Schematic representation of the fabrication process for the thin composite membrane; (b) energy diagram of the energy transfer process and emission process of the composite membrane [92].

In order to realize the large-scale production of the photosensitive membranes, Li et al. [93] used electrospinning technology to make a light-responsive N-carboxy spiropyran (SP–COOH)/PAN smart fiber membrane. The SP–COOH was mixed with PAN (mass fraction of 15%) (Figure 13). Based on the photoisomerization characteristics of spiropyran, the wettability and surrounding humidity of the electrospun membrane were reversibly adjusted by alternating UV-visible light irradiation. Experiments showed that the wettability of the fiber membrane surface was positively correlated with the surrounding humidity under alternate irradiation. When the doping amount of SP–COOH was 10%, its surface wettability changed by about 16° and the humidity adjustment range was about ±6%. Such membranes can be produced on a large scale through electrospinning technology, which have the potential to widely control air humidity.

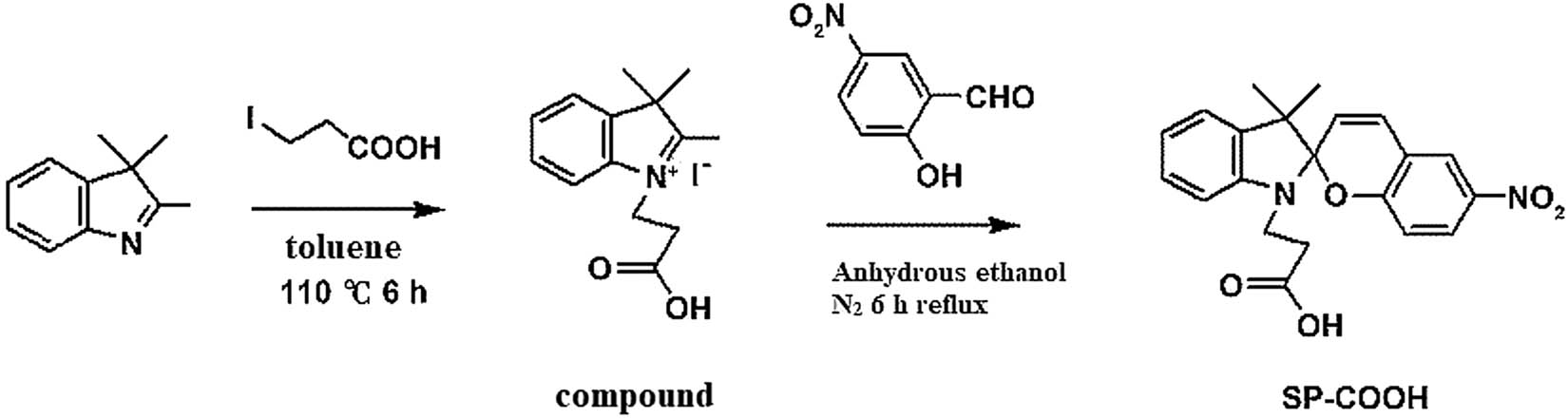

Figure 13

Synthesis route of SP–COOH [93].

In addition to the above progress, light-responsive smart membranes have also been applied to anti-counterfeiting materials [94,95], biological imaging [96], optoelectronic micro-/nanodevices [97], and sensors [94,98,99,100]. For example, Tian et al. [100] studied the gold nanocarbon-based membrane with high luminescence properties. The smart material used in the membrane was gold nanoclusters, which was a new type of fluorescent nanomaterial. The discrete electronic energy and direct electronic transition make this smart material have excellent optical properties, whose application has potential prospects in photoluminescence and electrochemiluminescence temperature sensors. Ma et al. [99] studied the organic–inorganic hybrid ultrathin membrane, whose key materials were fluorescent brightener BBU and Mg–Al layered double-hydroxide nanosheets. This membrane had reversible luminescence responses to nitroaromatic explosive compounds, which, moreover, could also be applied to the other two color luminescence systems. When these systems interact with explosives, the luminescence intensity and proportional fluorescence will change. Such membranes can be used as novel selective solid-state luminescent sensors for nitroaromatic compounds.

In recent years, related research on light-responsive membranes has been a hot topic. Three progresses have been made in a short time, namely, the discovery of a primary light-responsive membrane, the completion of its energy conversion, and the realization of large-scale manufacturing of such light-responsive membranes. Light-responsive smart membranes can store large-capacity information with a low transmission loss, which are not susceptible to electromagnetic interferences. It is possible to apply them on a large scale for optical information storage and optical switch. In addition, light-responsive smart membranes have been applied to recognition sites [101] and protein interception and self-cleaning [102], which have broad market prospects.

3.3 Electric-field-responsive smart membrane

Under the action of the electric field, electric-field-responsive smart membranes change the conformation of conductive materials, and their properties will also be changed. In recent years, most research results have been applied to membrane fouling [103], biosensors, protein separation [104], and other fields.

To solve the problem of membrane fouling, Xu et al. [105] synthesized a poly(2-acrylamide-2-methyl-1-propanesulfonic acid) (PAMPSA)-doped polyaniline (PANI) membrane using phase inversion method. Conductive PANI was used as the membrane material and PAMPSA was introduced into its molecular chain structure. The rejection rate of the membrane to polyethylene glycol (neutral substance) in the electric field was reduced by about 10%, and the BSA concentration in the cleaning solution increased from 4.97 × 10⁻³ g/L in 30 min to 5.39 × 10⁻² g/L in 120 min, and the recovery rate of membrane flux was 46.6% (Figure 14), which was because the applied voltage could change the structure of the molecular chain of the membrane materials, resulting in a change in the free space inside the membrane. The applied electric field would change the properties of the membrane materials and the charge on the membrane surface, so that the interactions between the membrane and the pollutants would be changed. Then, membrane fouling was removed from the conductive PANI membrane surface by changing electric field. In this smart membrane, membrane materials are combined with the electric field, so that it can change the selective permeability under the action of the electric field. Therefore, the membrane can be used as an anti-pollution material for new types of membrane bioreactors.

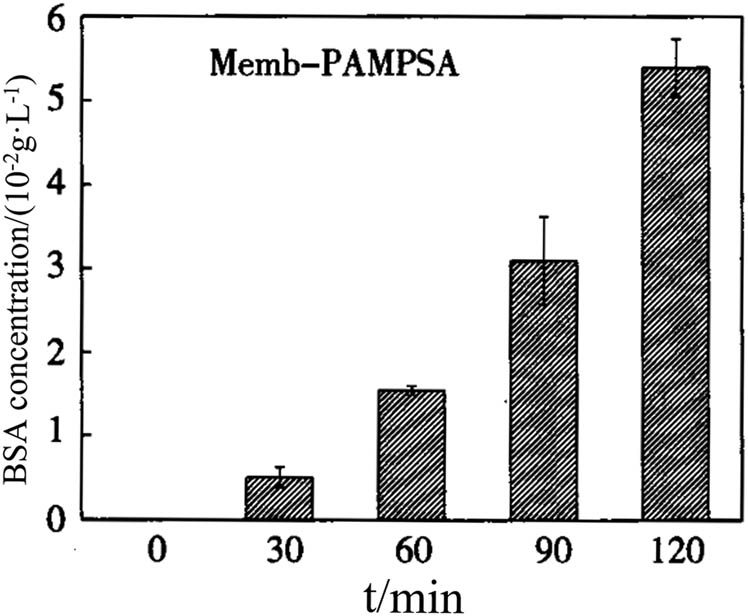

Figure 14

BSA concentration in the wash solution of Memb-PAMPSA with time [105].

In addition to the above membrane fouling problems, other scholars also studied the selective permeability of membranes. Hung et al. [106] prepared an electrically responsive smart membrane with materials such as PVDF and graphene. Experiments showed that when a voltage was applied, the flux of MeOH decreased significantly, but as the voltage was further increased, it tended to remain unchanged. When the voltage was removed, the performance of the smart membrane was restored, which was because the β-phase PVDF expanded and deformed mainly through electric drive, thereby forming adjustable nanochannels at the interface between organic and inorganic materials. With the voltage applied on graphene, the free volume of electroactive PVDF would increase, causing defects at the interface to begin decreasing, so that the size of the nanochannels could only allow water to pass through. The membrane shows excellent performance in methanol dehydration.

Widakdo et al. [107] synthesized an electrically responsive smart membrane with piezoelectric properties using materials such as ionic liquid (IL), PVDF, and graphene. By applying electrical stimulation, the permeability of the smart membrane to CO₂ increased by about three times, but when the voltage was removed, it almost returned to the initial value, which was because the nanochannels of PVDF and graphene were filled with ILs. IL is a material that can promote CO₂ transport, which is a neutral combination of charged ions. After applying a voltage, anions and cations will move, thereby changing the spatial distribution of ions, whose movement alters the vacancies among them and further regulates the activity of CO₂. Although after the application of an electric field, with the increase in the free volume of PVDF, O₂, N₂, and other gases in the field also show an increasing trend in permeability. But as the voltage increases, the permeability does not change significantly. The permeability of the membrane increases with the increase in selectivity, which can be selectively applied to gas separation and sensors, providing alternative ideas for the future development of active separation membranes.

Compared with the most deeply studied pH and temperature response directions, electric-field-responsive smart membranes have a faster response speed and less influence on the properties of the main solution. Electric-field-responsive membranes have a wider response range than a light-sensitive system. A material with electrical stimulation response characteristics is used to make such membranes, which not only inherits the advantages of traditional membrane materials, but can also respond to external voltages.

3.4 Magnetic-field-responsive smart membrane

So far, there is little research on magnetic-field-responsive smart membranes. To fill the vacancy, Lin et al. [108] made a kind of novel magneto-hydrogel pore-filled composite membrane through in situ reactive pore filling (Figure 15). Magnetic nanoparticles (MNPs) were used as a localized heater, which could be excited by a high-frequency alternating magnetic field (AMF), and a PNIPAAm hydrogel network was used as the sieving medium as well as the actuator. Polyethylene terephthalate was used as the carrier to functionalize the reactive pore filling of magnetic nanofilms. This kind of smart membrane manipulated the external AC magnetic field to control remotely, and the membrane could be used in biomedical and microfluidic fields in the future [109]. Zheng et al. [110] synthesized a magnetically responsive and flexible superhydrophobic photothermal membrane using carbonyl iron, polydimethylsiloxane (PDMS), carbonyl iron (Fe), and candle soot, which could be perfectly adsorbed by all types of substrates under the action of a magnetic field without requiring any adhesive. This is because carbonyl iron (Fe) particles are ferromagnetic materials that can be magnetized rapidly in a magnetic field. The carbonyl iron is uniformly coated on the substrate of a membrane, so that the membrane has a magnetic response and super hydrophobicity. Spherical carbonyl iron (Fe) will be wrapped with PDMS and aggregated into micron-sized papillae on the membrane surface, granting the membrane surface an ultra-high roughness. A rough membrane surface will make a membrane stay in the Cassie–Baxter metastable state, and show up its super hydrophobic properties. The fact that such membranes can be adsorbed through high-voltage transmission lines provides ideas for solving the icing problem of transmission lines. Although the research progress of magnetic-response smart membranes is slow, it is still further concerned and valued because of its significant economic value. Such membranes will enter a period of rapid development in theory and practice.

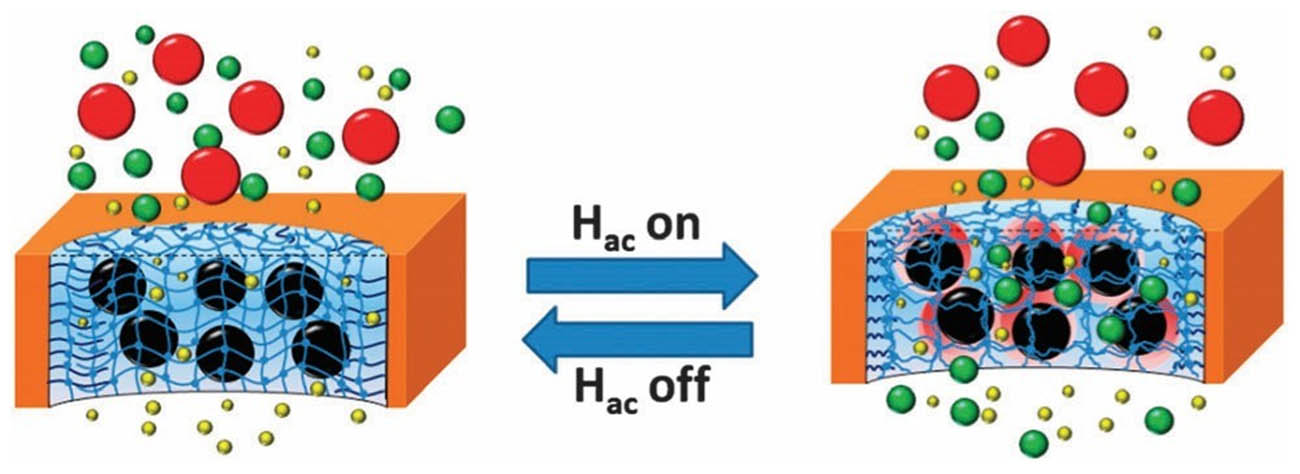

Figure 15

Schematic diagram of new magnetic hydrogel porous composite membrane [108].

As a new kind of functional membrane, excellent achievement has been made on physical-stimuli-responsive smart membranes in recent years. At present, in addition to the abovementioned most widely used smart membranes, use of other types of physical-stimulus-responsive smart membranes are also increasing year by year. For example, humidity-responsive smart membranes respond to the stimulation of the external environment through humidity-responsive fluorescence) [111,112]. Physical-stimuli-responsive smart membranes can rapidly change their performance according to external physical stimuli, which have a wide range of types in favor of adapting to various complex environments. This kind of membranes effectively solve problems including a poor adaptability to the environment, high prices, unfavorable production, and environmental pollution caused by conventional membranes. It can be seen from Tables 3 and 4 that physical-stimuli-responsive smart membranes have a wide range of applications, whose performance is altered according to the stimuli such as temperature, light, electric field, and magnetic field, considerably improving their use efficiency. However, some smart membranes are still insufficient in material types, technical research and practical application.

4.1 pH-responsive smart membrane

pH-responsive smart membranes are a kind of functional membranes, on whose pore surface or pore path surface polyelectrolyte switches are constructed [113]. A polyelectrolyte switch contains ionizable weak acid or alkali groups. The configuration of smart membranes changes with the strength of pH, which results in changes in their water flux and hydrophilicity. Therefore, pH-responsive smart membranes have become a research direction for scholars.

Jiang and Wu [114] prepared a pH-responsive microporous membrane. The copolymer EC0.4-g-PDEAEMA47 was synthesized through ATRP, and pH-responsive functional segments were added to ethyl cellulose. Experiments showed that when the pH was 2.0, the water flow of the microporous membrane was almost 0, but when the pH was 6.0, it was greatly improved. When pH was 10.0, the water flux further increased, which was because when the pH began increasing, PDEAEMA would gradually protonate, and the chain segments would gradually curl up. The micropore area will gradually increase, making the water flux of the membrane increase. Responsive functional segments are added to natural polymers through the membrane, which is an approach of great significance in expanding the application fields of chitosan (CS) and cellulose. But a disadvantage of this membrane is that its pH sensitivity is affected by many factors such as chain length, density, and porosity. In addition, the method of introducing responsive forging chains is complex and the requirements for the process are high. At present, researchers have not yet obtained suitable process parameters, which are not conducive to industrial production.

Given the above difficulties in industrial production, Ma et al. [115] invented a method to prepare pH-responsive polymer membranes on metal surfaces. Thioacetal molecules containing halogen at the α-position of the terminal group were assembled on a clean metal substrate surface (Figure 16), which was placed in a monomer solution containing catalysts at a concentration of 1 μM. After washing with anhydrous ethanol and drying with nitrogen, a metal substrate with pH-responsive polymer membranes was prepared. When the pH value of the solution was greater than a certain value, the polymer membrane showed no obvious change. When it was less than a certain value, the polymer membrane could quickly desorb from the metal surface. This phenomenon proves that such smart membranes can be used as a carrier material for targeted delivery, which can be applied to drug delivery and histological engineering. The invention is completed through the process manufacturing method, which is beneficial to industrial production, but the pertinence of this membrane is poor.

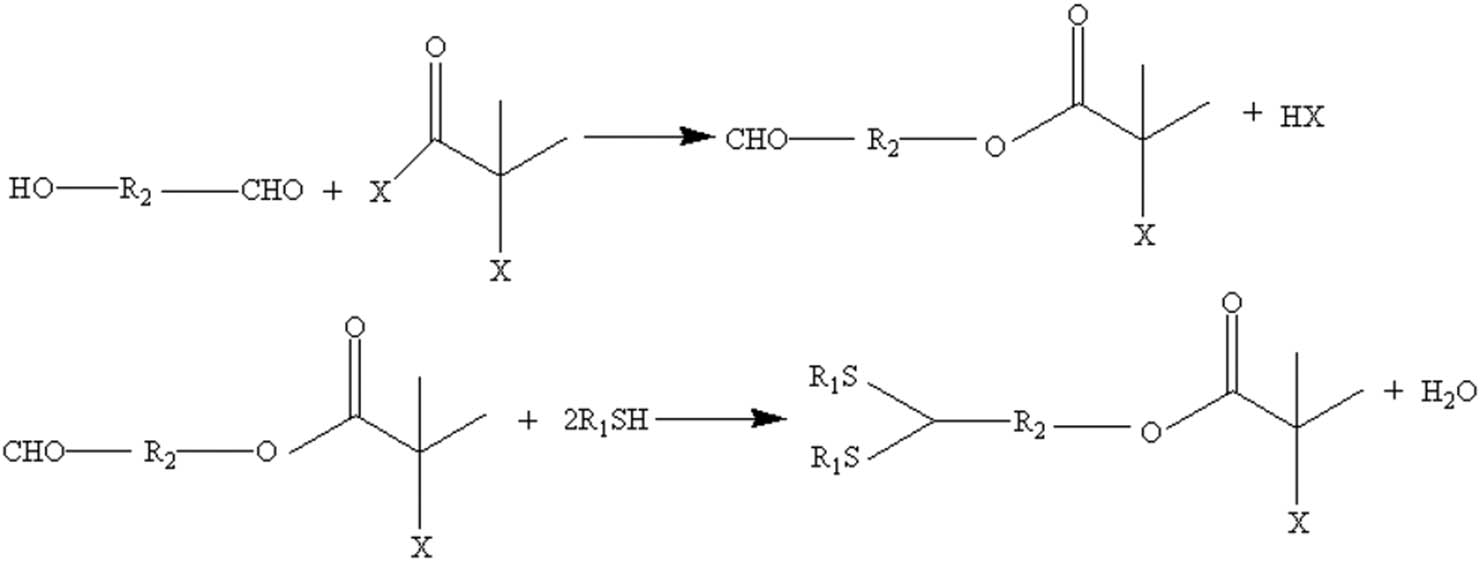

Figure 16

Preparation method of halogen-containing thioacetal molecules at terminal α position [115].

In order to solve the problem of poor pertinence of smart membranes, Piyal et al. [116] prepared a pH-responsive PSF membrane using phase inversion technology (Figure 17), which was hydrophilic and pH-responsive by mixing humic acid (HA) and polyethylene glycol methyl ether, making it specifically used to recover H₂SO₄. When the pH value was 4–12, the pure water flux (PWF) of the membrane was 113.8–46.8 L/m² h, and its water absorption rate was 25.9–6.8%, which was because at a low pH, carboxyl ions (–COO–) present in HA were protonated to –COOH groups, increasing the hydrophobic interaction, causing the membrane surface to shrink, leading to an increase in pore size. However, a higher pH results in a higher charge density on the polymers, which leads to the dissociation of carboxyl groups into carboxylate –COO– and H⁺ ions, prompting the membrane skin layer to expand, resulting in a decrease in pore size. The highest recovery of H₂SO₄ was 76.57 ± 1.5% at a pH of 8.4 with 0.32 M NaCl and 0.5 M KHCO₃, which was because the pore size expanded at a low pH, while a large pore size promoted the penetration of all molecules. At a high pH, the average pore size decreases, so that H₂SO₄ with the smallest average particle size can quickly pass through. However, NaCl and KHCO₃ with larger average particle sizes cannot permeate such membranes, but they can alleviate the ecological pollution caused by industrial wastewater to a certain extent.

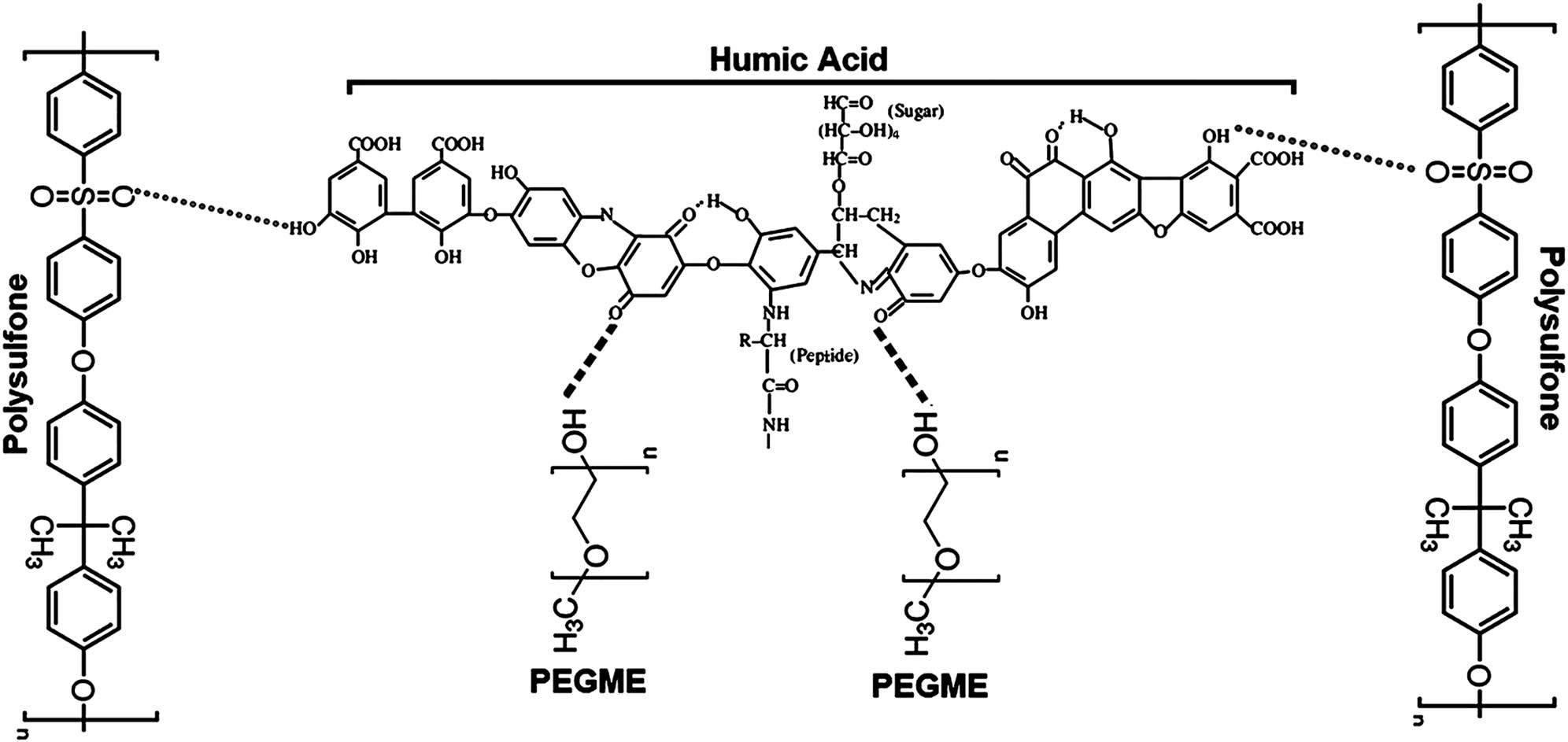

Figure 17

Reaction mechanism diagram of pH-responsive membrane prepared by the bonding of PSF with (2:1, polyethylene glycol:HA) [116].

In addition to the above single response, pH is often combined with temperature or voltage. The above smart membranes have a dual response. Liu [117] prepared a smart switching membrane with temperature and pH response (Figure 18). PVDF was taken as the substrate material. A dual-response P4VP core/NIPAM shell microgel was prepared through secondary free radical polymerization. The microgel was uniformly embedded on the surface and pore surface of the membrane. Results showed that the water flux of the membrane increased with the increase in temperature and pH, which was because the temperature and pH response performance of the membrane was mainly controlled by the microgels on its pores. As the temperature increases, intermolecular hydrogen bonds are formed between the amide group and the carboxyl group. The hydrophobicity of the PNIPAM group is enhanced, which results in the volume shrinkage of microgels and the opening of membrane pores. When the temperature decreases, hydrogen bonds are formed between amide group and water molecules, resulting in the volume expansion of microgels and the closure of membrane pores. When the pH increases, the pyridine group is deprotonated, resulting in the shrinkage of the microgel volume and the opening of membrane pores. When the pH decreases, the protonation of N atoms on the pyridine causes an electrostatic repulsion among the polymer chains, resulting in an increase in the volume of microgels and the closure of membrane pores. The membrane has a dual response to temperature and pH, which can be applied to the experimental design of polymer phase separation and self-assembly.

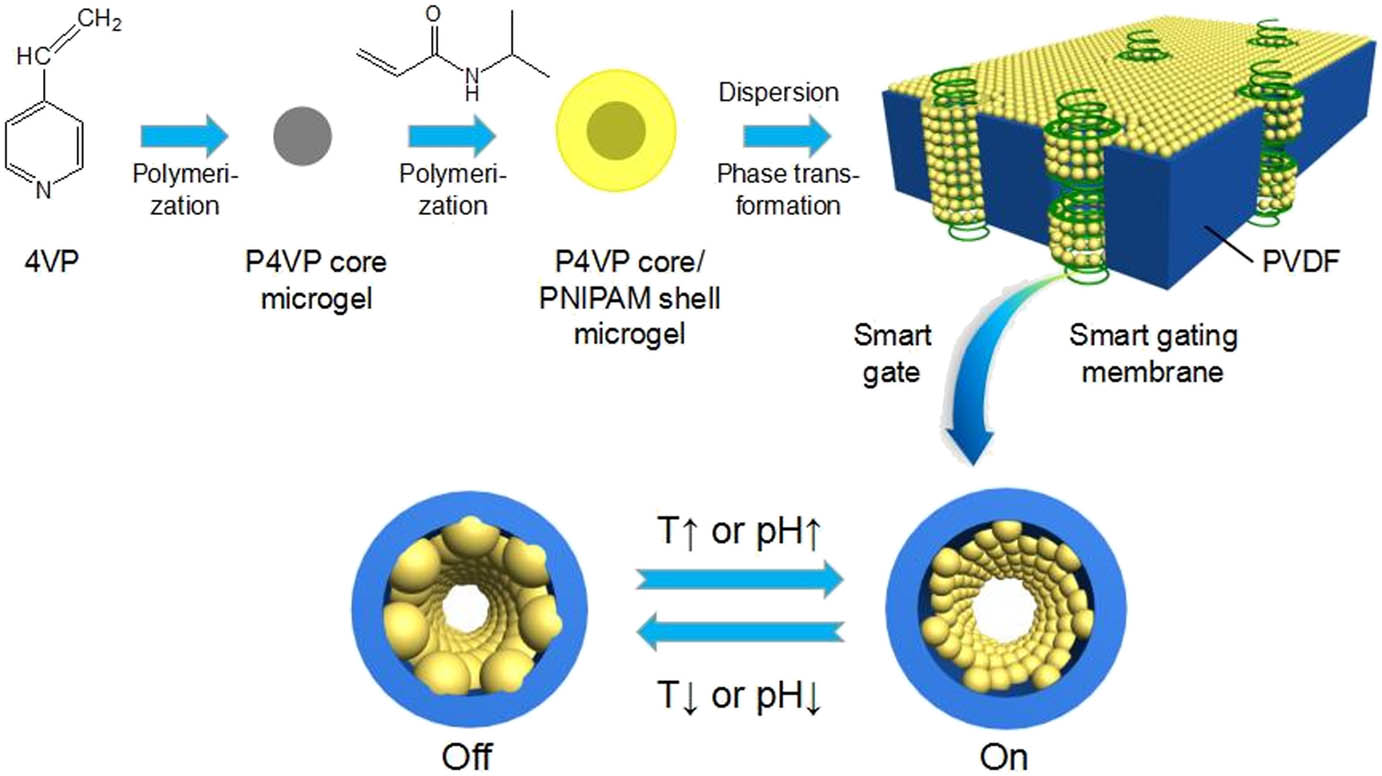

Figure 18

Fabrication strategy of thermo- and pH-responsive smart gating membranes [117].

Yang et al. [118] studied the phenomenon that biological cell membranes controlled ion flow after the implantation of nuclear pore complexes, who then developed a nanopore etching membrane with pH- and voltage-reversible gating. According to experimental results, when the pH value was 7.9, the nanopores were closed at various voltages, and the ion flux was close to 0. When the pH value was 5.3, the nanopores were opened, and the ion flux approximately increased quadratically with an increase in the voltage. When the pH increased, the DNA chains were negatively charged, and the repulsive interaction among the chains would extend them to the center of the nanogate. Subsequently, DNA strands are connected through hydrogen bonding interactions, a DNA strand network is constructed, and the nanopores are closed. On the contrary, when pH decreases, the number of negatively charged phosphate groups decreases by tens of times. In addition, there is no hydrogen bond formation, thus various chains cannot be connected, and the nanopores are opened. By increasing the voltage at this time, the movement of the ion current increases. This smart membrane, modified by DNA chains, has a high selectivity and more easily meets various application requirements than other smart membranes.

As one of the many kinds of smart membranes, pH-responsive smart membranes have unique advantages in fine control, which are applied to polymer phase separation, self-assembly, and nano-scale control by combining temperature with voltage. At present, other scholars have obtained corresponding research results in the field of packaging materials [119,120], material separation [121], anti-pollution [122], and drug-controlled release [123].

4.2 Specific molecular recognition-responsive smart membrane

Specific molecular recognition-responsive smart membranes can change their structure to cope with changes in the external environment, which can not only realize the control and release of substances, the “start/stop” control of chemical reactions, as well as the rapid detection and separation of substances, but also has a low energy consumption and a high efficiency in the process of identifying specific molecules. Therefore, such membranes have attracted the attention of researchers.

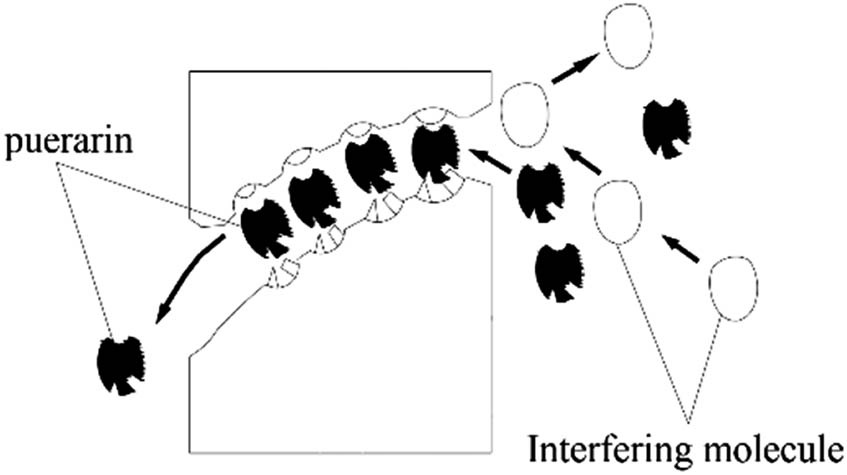

Zhang [66] invented a molecular recognition-responsive smart switch membrane (Figure 19). The functional silica sol was dip-coated on the support for 20 s. Before heat treatment, it was dried in closed water vapor at 50°C for 15 h and dried naturally for 24 h. Then, the puerarin in the functional silica sol was eluted with 80% ethanol solution to obtain the switch membrane. Experiments showed that the amount of puerarin solution passing through the switch membrane with the same content was higher than that of rutin solution. The permeation amount of puerarin solution and rutin solution through a blank membrane was basically the same (Figure 20), which was because upon the elution of puerarin, a recognition site featuring a functional group would be created through the colloidal particles at the position of puerarin, whose size and shape matched with puerarin. A large number of recognition sites are superimposed to form channels, whose entrances are the membrane surface pores. The volume of pores on the membrane surface is the same as that of puerarin. Moreover, there will be a strong ionic reaction between puerarin and complementary functional groups at the recognition sites. Under the action of pressure difference, a bonding–dissociation–rebonding process will be formed with puerarin when passing through the channels. Therefore, the puerarin solution can be efficiently and accurately separated by the membrane, which can be widely used in the preparation of sensors and novel membrane reactors as well as the separation of chiral drugs, etc.

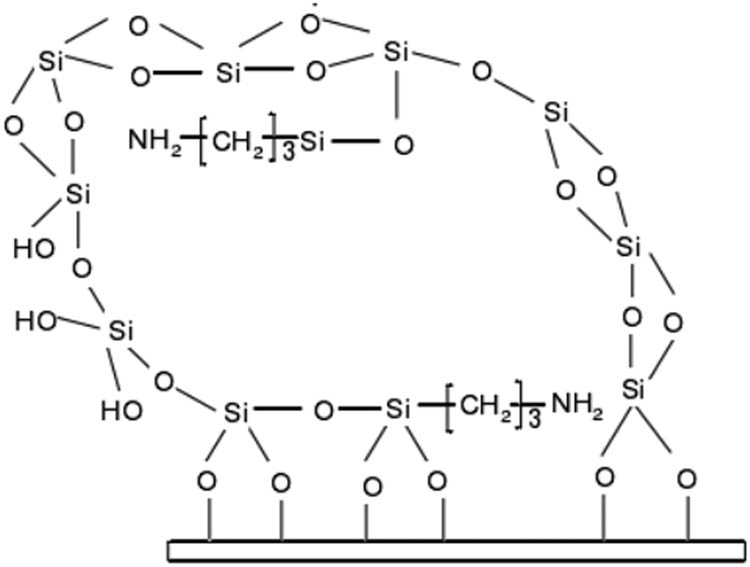

Figure 19

Structural diagram of separation membrane [66].

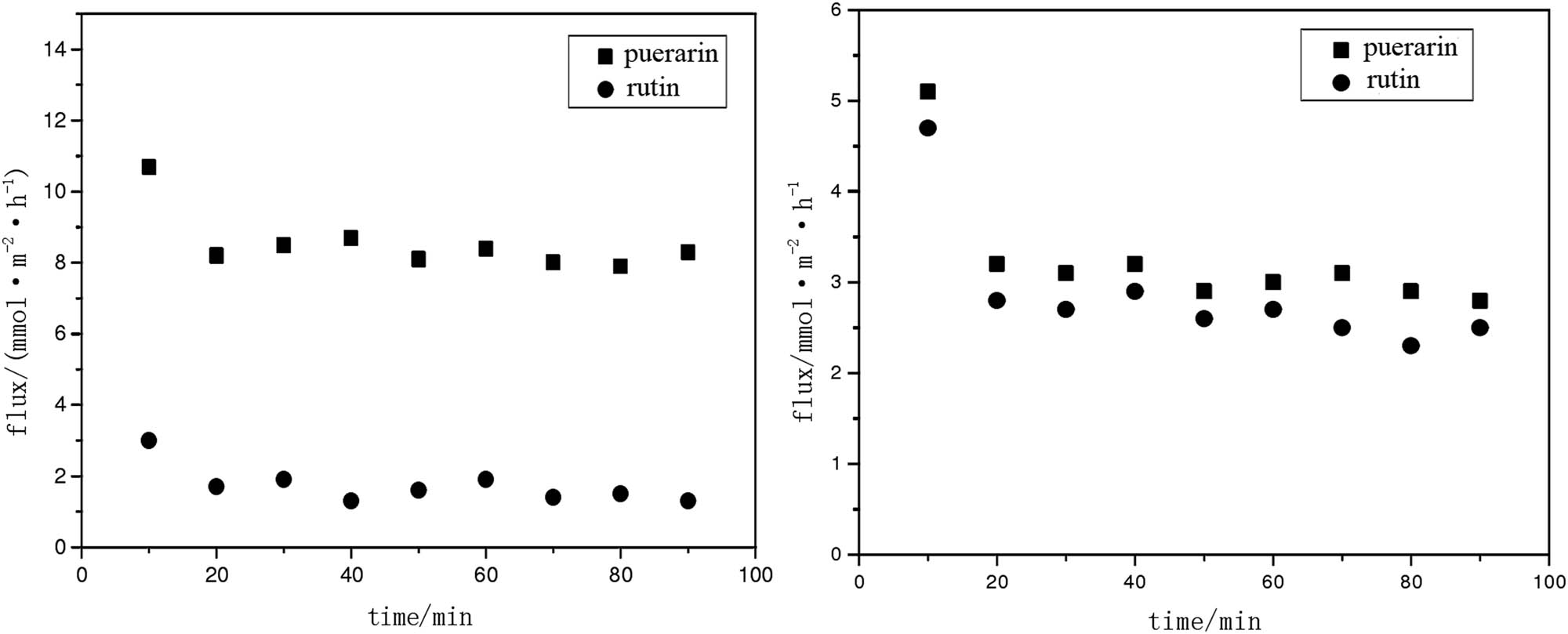

Figure 20

Comparison diagram of permeability of puerarin solution and rutin solution in switch membrane and blank membrane [66].

By observing the aggregation phenomenon of DNA-PNIPAM, Sugawara et al. [124] prepared a DNA-PNIPAM molecular recognition-gated membrane (Figure 21), on which a conjugated polymer composed of thrombin binding aptamer (TBA) and PNIPAM was grafted onto the pore surface. The pores of the membrane opened and closed by controlling the expansion and contraction of the grafted polymer. In the initial state, double-stranded DNA (dsDNA) contains a large number of negative charges. Due to the strong electrostatic repulsion among DNA chains, the grafted PNIPAM expands and the membrane pores are closed. When thrombin binds to the TBA, dsDNA is dissociated into single-stranded DNA, whose charge is relatively less than that of dsDNA, and then the grafted PNIPAM shrinks and the pores are opened. Through the smart membrane, thrombin molecules are specifically recognized by TBA (Figure 22), which can be used as a sensor and drug delivery system in environmental and medical applications.

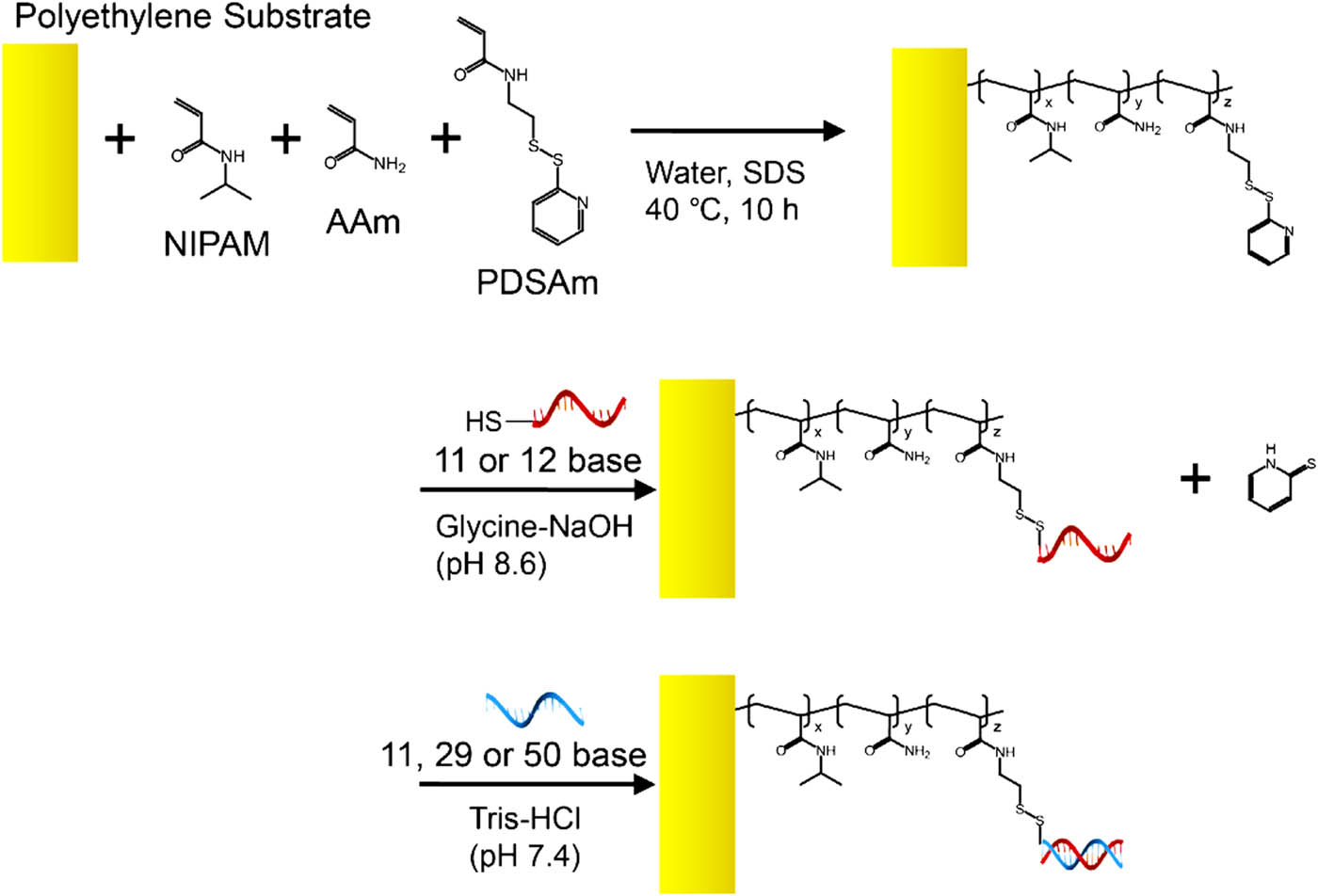

Figure 21

Preparation process of gating membrane [124].

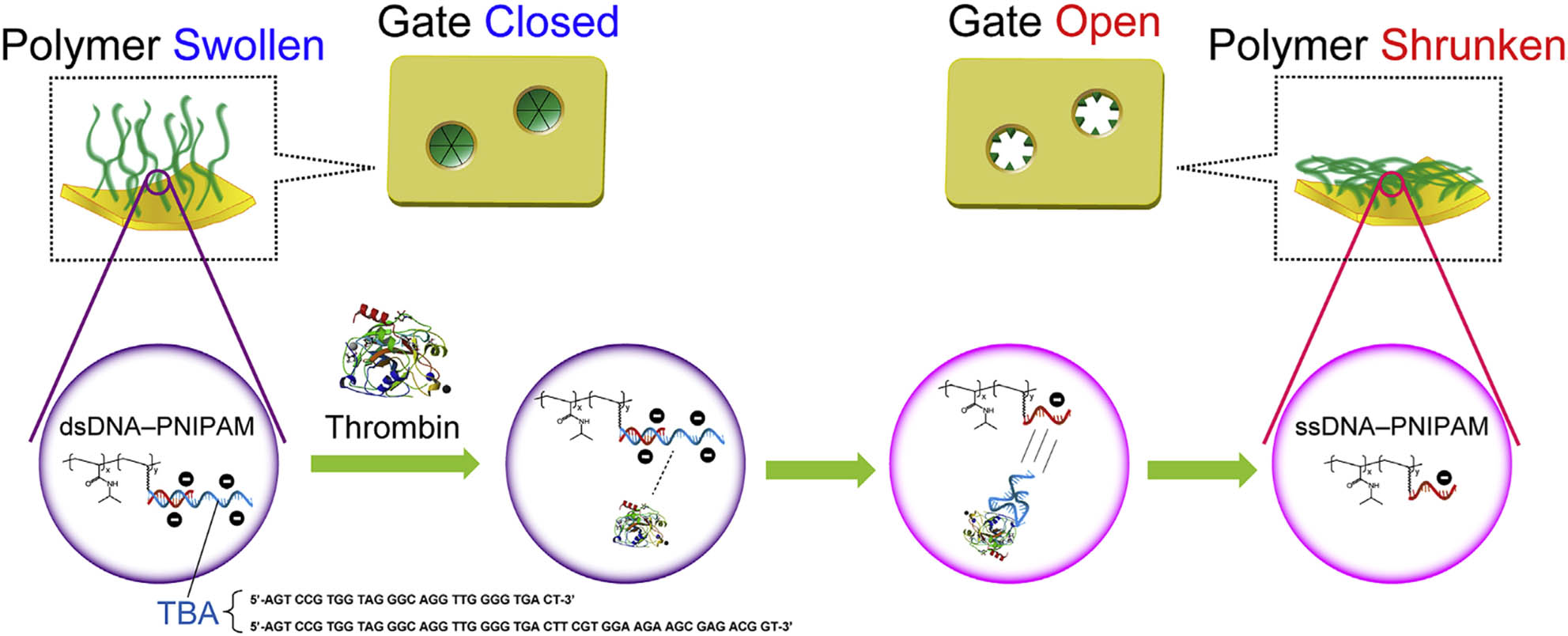

Figure 22

Schematic of molecular recognition gating membrane using DNA aptamer [124].

In addition to the research results of the above scholars, Teng et al. [125] also developed a specific molecular-recognition membrane with a gradual microchannel (Figure 23), which was for the specific molecular recognition and separation of phenols and aniline compounds. PVDF was taken as the skeleton. Functional hyperbranched polyether amine (hPEA) was coated on the membrane surface through the combination of crystallization and diffusion, and then well-arranged and interconnected zigzag holes were formed on this membrane. Experiments showed that by introducing amphiphilic hPEA polymer chains, the water permeability of the smart membrane increased by 3.2 times, while the contact angle was reduced by about 4 times. Through the strong interaction between hPEA and aromatic compound functional groups, the membrane has a high sensitivity recognition and separation characteristics in terms of phenols and anilines. The smart membrane can be used to separate carcinogenic and mutagenic toxic components, which is suitable for drug engineering or medical applications.

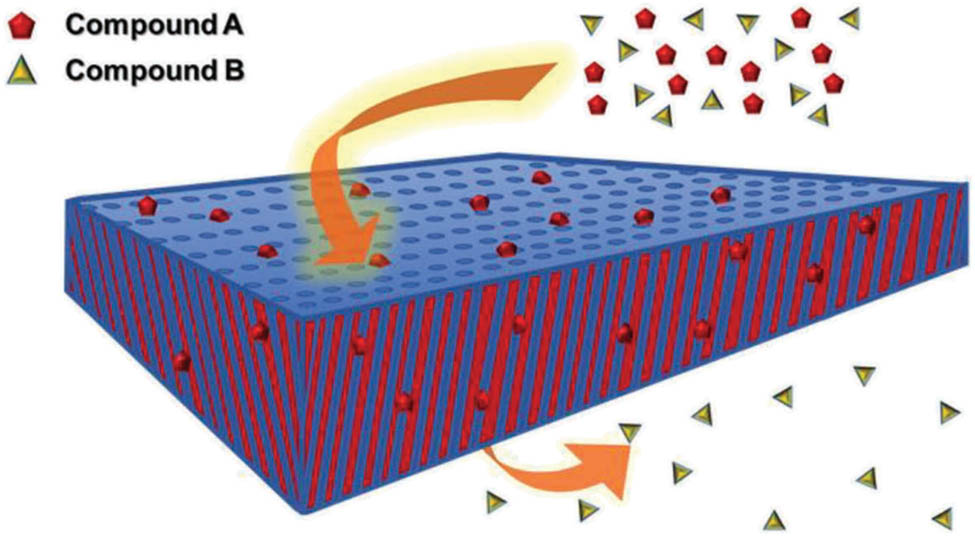

Figure 23

Filtration diagram of molecular recognition membrane [125].

To solve the problem of CO₂ separation, Zhang et al. [126] synthesized a PVDF/PVDF-g-PDMAEMA-blended ultrafiltration membrane with CO₂ stimulus responsiveness, whose main raw materials were PVDF and PDMAEMA. The results showed that the PWF of the membrane in a CO₂ atmosphere was less than 10% of the maximum value in an N₂ atmosphere, which was because poly PDMAEMA was a CO₂-responsive polymer material. When CO₂ was introduced into the system, the PDMAEMA segments in the membrane pores underwent a protonation reaction and exhibited an extended state, causing the membrane pore size to shrink, resulting in a reduced water flux. When N₂ was introduced, N₂ would completely discharge CO₂, which reacted with PDMAEMA. The PDMAEMA chains inside the membrane pores underwent deprotonation, resulting in a collapsed state of the chains, which would lead to an increase in membrane pore size and membrane flux. This membrane can be used to effectively clean protein fouling on membrane surface by alternately aerating N₂/CO₂ and converting the hydrophilicity/hydrophobicity of PVDF/PVDF-g-PDMAEMA membranes.

Borgohain and Mandal [127] conducted a more in-depth study on the separation of CO₂/N₂ using amine-based biopolymers. A methyl chitosan/polyamine-specific molecular membrane was prepared with carboxymethyl chitosan (CMC) as the main material (Figure 24). The experimental results showed that when the purge/feed flow ratio of 10 wt% dendrimer was 2.33 and 1.67 at 90°C, the CO₂ transmittance was 100 GPU and the CO₂/N₂ selectivity was 149, which was because CMC, as a fixed carrier, was distributed in the pores. During the separation of CO₂/N₂, CO₂ would react with adjacent CMC along the channel under the action of driving force to form a complex until it was released. Polyamidoamine can provide a large number of primary and tertiary amine groups. Through the reaction of CO₂ with amine, a carbamate cross-linked polymer will be formed, thereby inhibiting the penetration of N₂. The tertiary amine groups can react with CO₂ to form bicarbonate ions, which helps to transport CO₂. This kind of smart membranes can be used to effectively separate CO₂, which can solve the problem of energy shortage and global warming.

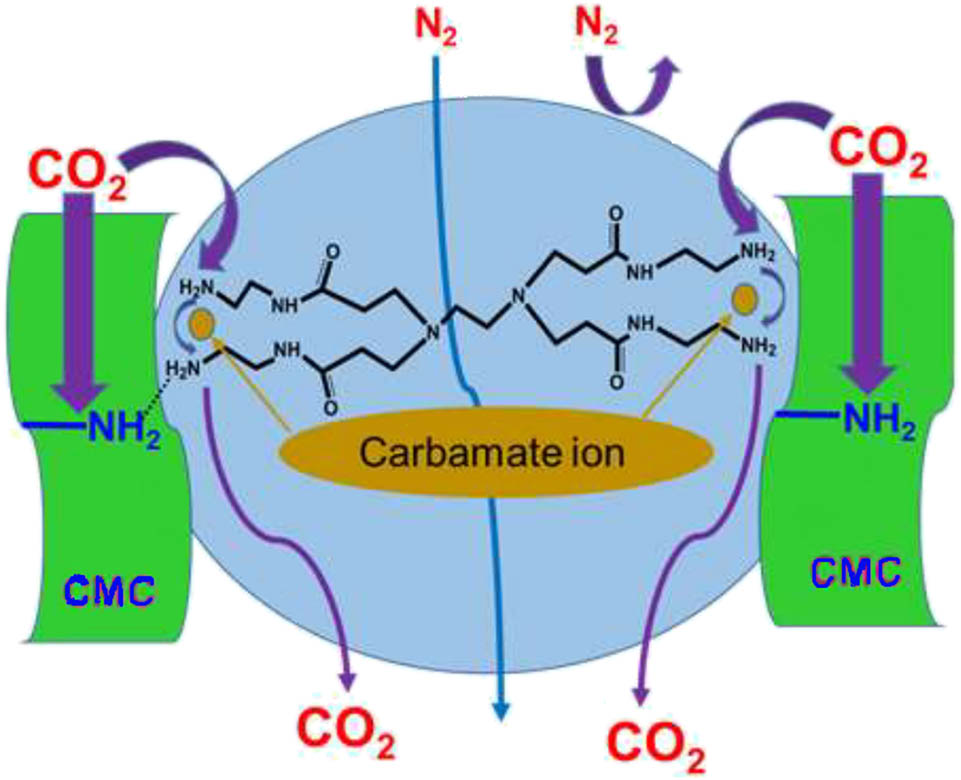

Figure 24

Overall CO₂ transport mechanism in membrane [127].

As one of the hotspots in the field of membrane science, specific molecular recognition-responsive smart membranes have the “intelligence” of integrating chemical information perception, information processing, and response execution. At present, the universal results developed by researchers can be applied to the preparation of sensors and new membrane reactors, the resolution of chiral drugs [128], drug delivery, as well as other aspects. Moreover, smart membranes are developing rapidly in the field of molecular separation [129], drug release [130], drug delivery, and histological engineering [52]. However, the materials and technologies for specific molecular recognition-responsive smart membranes in the world are still at the basic stage of development, which need to be further improved to be widely used in industries or clinics.

4.3 Ion-responsive smart membrane

Ion-responsive membranes are a kind of functional membranes that can respond to the changes in ion type and concentration in the environment. Such functional membranes can be used to quickly identify and respond to specific ions, especially toxic heavy metal ions, which are widely used in water detection [131], drug-controlled release [132,133], and other fields. Therefore, ion-responsive smart membranes have gradually attracted the attention of various technical and professional fields.

In order to realize the detection of lead ions under normal pressure conditions, Wang et al. [134] provided a lead-ion-responsive smart membrane composed of poly(N-isopropylacrylamide-co-benzo-18-crown-6-acrylamide) (PNB) nanospheres at a mass ratio of (12–17):100 with a polyethersulfone membrane substrate. When separating other solutions, the nanospheres in the membrane pores shrank and the membrane pores were opened. When the lead ion solution was detected, the 18-crown-6 group of PNB selectively complexed the lead ions and an electrically-charged complex was formed. The electrostatic repulsion among the charged complex groups will cause the extension of polymer chains, which will cause volume swelling of the nanospheres and make the membrane pores to close. The membrane can be used to detect lead ions in water samples by monitoring the flux change of solution. The pore size of the membrane is micron-sized, which has an interconnected structure. It can be used to detect whether the lead concentration in drinking water, industrial wastewater, and other water samples meets the national standard, effectively preventing and controlling lead ion pollution, which is of great significance to human health and environmental protection.

For the conflicts between flux and response characteristics, that is, the more nano-polymers there are on membrane pores, the better the response characteristics will be, but the effective pore size will become smaller and the flux across the membrane will be reduced. For this reason, Wang et al. [135] developed a new smart membrane with ion-recognizable nanogels as gates, in which three-dimensional interconnected pores were formed via vapor-induced phase separation (VIPS), and PNB nanogel was immobilized on the surface of the membrane pores (Figure 25a and b). When the lead ion solution flows through the membrane pores, a host–guest complex is formed in the nanogels with lead ions. A point repulsive force will appear among the charged composites, resulting in a swelling reaction of the nanogels, which will reduce the pore size of the membrane, resulting in a decrease in its flux (Figure 25c). The nanogels of the membrane are fixed on its pore surface during the formation of interconnected porous structures. Therefore, with the immobilization of membrane nanogels, the effective pore size of membrane pores is not reduced. This unique structure is adopted to obtain high-throughput and lead ion response characteristics for the membrane, through which lead ions in water can be quickly detected with a detection limit of as low as 10 mol/L. The above membrane is suitable for the real-time monitoring of drinking water safety, but its detection ability is relatively simple and mercury in wastewater cannot be detected.

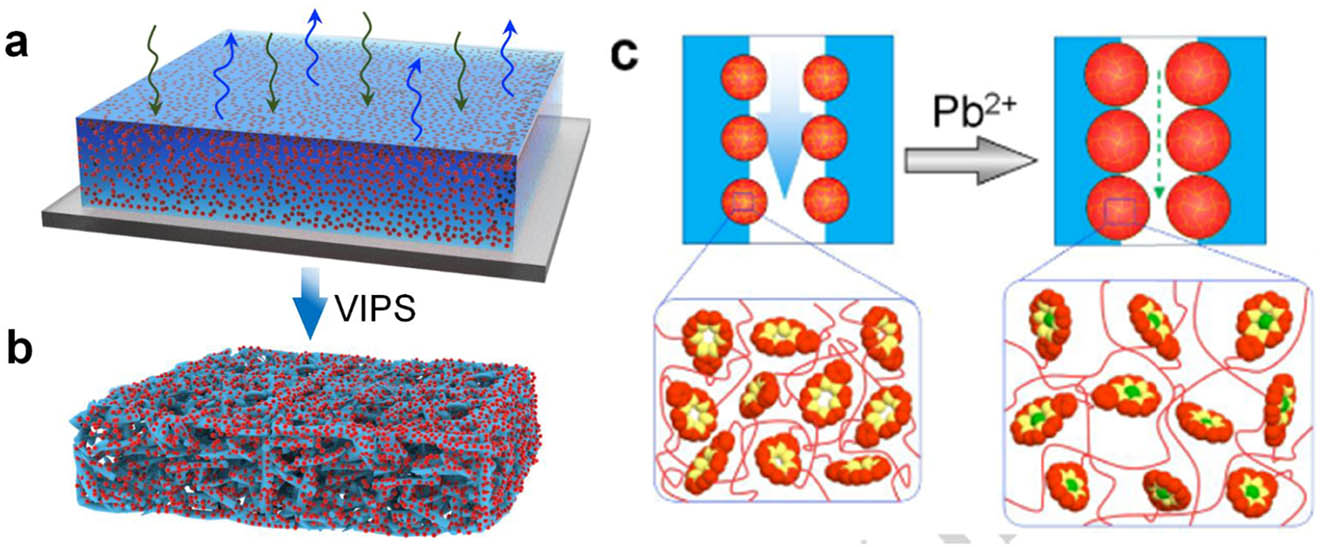

Figure 25

(a and b) Fabrication of membrane with three-dimensionally interconnected porous structure; (c) the PNB nanogels on the membrane pore surfaces exhibit isothermal swelling after recognizing Pb²⁺ and form 18-crown-6/Pb²⁺ host–guest complexes, resulting in the decrease in trans-membrane flux [135].

To deal with mercury in industrial wastewater, Esmali et al. [136] synthesized a polyethersulfone-based ion-imprinted membrane (IIM). Ion-imprinted polymer particles were synthesized using acrylamide, acrylonitrile, and ethyl ethylene glycol dimethacrylate free radicals. The polymer particles reacted with bathophenanthroline (BPh) with Hg(ii) ions as the template. After washing the template ion mercury, a three-dimensional recognition site was left on the membrane. The membrane adsorbed mercury ions when they encountered again. The mercury removal capacity and PWF of the IIM were optimized through central composite design and response surface methodology, whose removal rate and PWF reached 98.1% and 37.5 kg/m² h, and its maximum adsorption capacity was 432 mg/m² (or 21.6 mg/g), which was approximately four times that of a non-imprinted membrane (5.25 mg/g), meanwhile the Hg(ii) ions could be effectively recovered by at least six times (Figure 26). The smart membrane has a good hydrophilicity and mercury removal performance, which can be used to treat industrial wastewater with different salt contents.

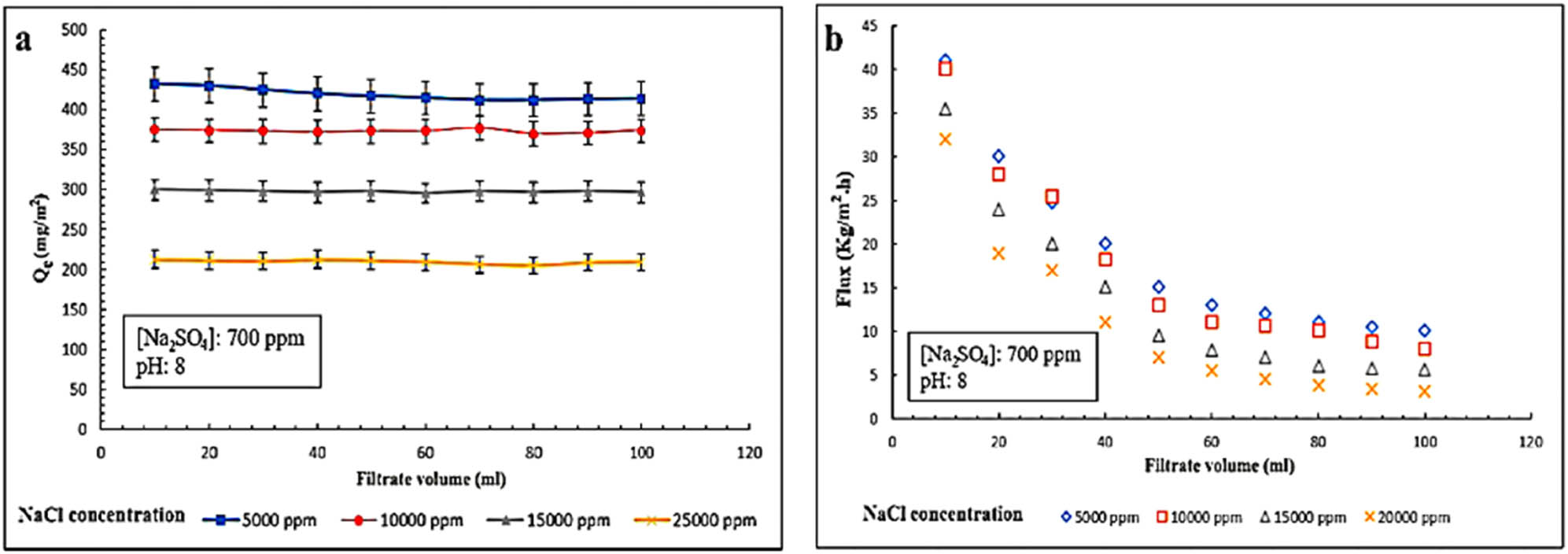

Figure 26

Adsorption capacity and flux data for stimulated samples of Hg(ii) [136].

In addition to the detection of lead ions and the treatment of mercury ions, some scholars have also developed smart membranes that can identify multiple ion types. Bakangura et al. [ 137 ] prepared QDA-IL/HBA membranes using quaternary ammonium poly(2-dimethylaminoethanol-N-2,3-dimethylphenyl oxide) (QDAPPO) as the main matrix (Figure 27), whose zwitterionic pores were formed via the electrostatic ion repulsion between the imidazole group on organosilane and the carboxylic acid group of 4-(hydroxymethyl) benzoic acid. Colloid swelling or shrinkage was controlled by the side hydroxyl groups on QDAPPO and 4-(hydroxymethyl) benzoic acid. The experiment showed that the proton diffusion coefficient of the membrane was 0.0386 m/h at 25°C, but when it increased with the zwitterionic pores, the diffusion of ferrous ions occurred, because the pores were more critical for a high selectivity. It is suggested to strengthen studies on membrane pore size, balance the number of charged groups in pores and membrane matrix as well as optimize the selectivity of the membrane.

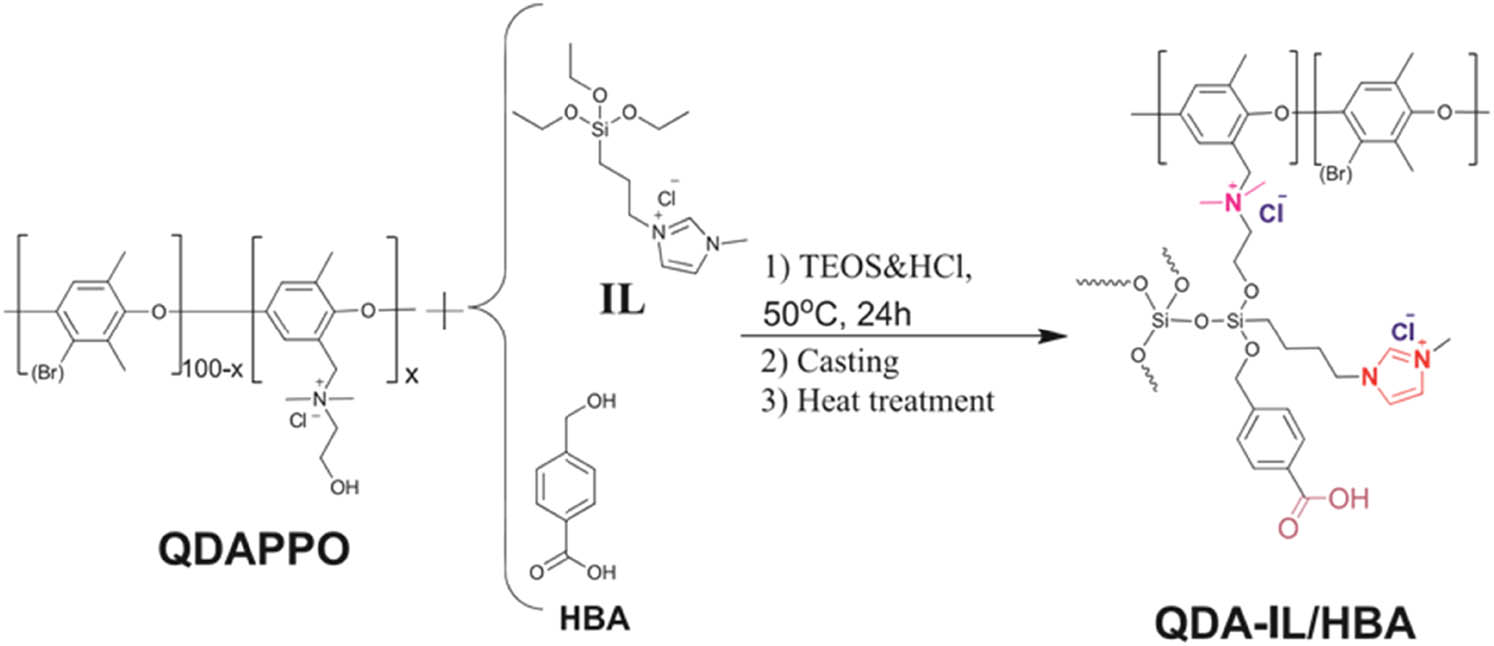

Figure 27

Preparation method of QDA-IL/HBA membrane [137].

Zhang et al. [138] developed a poly(ionic liquid) (PIL)-modified polyethersulfone membrane via in situ crosslinking copolymerization. Ion exchange occurred when the membrane came in contact with different types of anions, causing a change in its PWF. The initial water flux of the membrane was 20 mL/m² mmHg. After an ion exchange with KPF₆, NaBF₄, and KSCN, the PWF of the membrane increased to 75, 35, and 50 mL/m² mmHg respectively. There was an electrostatic repulsion among the molecular chains of functional materials in pure water, which would diffuse in pure water, resulting in the volume expansion of crosslinked polymers in the membrane, thus reducing the permeability of the membrane and narrowing its pores. When pure water was replaced by solutions such as KPF₆, NaBF₄, and KSCN, the electrostatic repulsion among molecular chains was shielded by anions and the molecular chains curled, resulting in volume shrinkage of the polymers, increasing membrane pores and permeability. The smart membrane has a strong ability in ion recognition and strong development prospects in chemical/biomedical separation as well as purification.

The development of ion-responsive smart membranes is mainly for the detection of lead ions, while that of smart membranes for identification of other heavy metal ions is relatively backward. It is suggested to increase the detection of other heavy metal ions, so that cadmium, nickel, and other toxic heavy metals can be monitored.

There are a variety of types of chemical-stimuli-responsive smart membranes, which are more widely used in medicine and water resource treatment as well as other fields compared with physical-stimuli-responsive smart membranes. For example, the various types of chemical-stimuli-responsive smart membranes are summarized in Tables 5 and 6. By focusing on smart membranes, their performance can be changed according to the changes in pH, molecules, and ions, so that they can be applied to drug delivery and water detection. With the development of membrane technology, chemical-stimuli-responsive smart membranes need to be improved in nano-control and industrial production.

5.1 Environmental protection

Industrialization and urbanization have brought serious water pollution problems. Wastewater treatment and water detection have become important projects among environmental protection projects. Smart membranes can be used to deeply purify sewage, which, compared with traditional membranes, have not only a higher purification efficiency, but also a better self-cleaning ability. In addition, smart membranes can also be used to detect the pollution components inside water sources, playing an early warning role. For example, proteins, heavy metals, and other pollutants often appear in urban wastewater. For this reason, Su et al. [54] prepared a PAN-based zwitterionic membrane. When the NaCl concentration was lower than 0.04 mol/L, proteins would be adsorbed on the membrane surface or the pore wall, making the membrane channels narrow; when it was higher than 0.05 mol/L, the electrostatic interaction between proteins and sulfobetaine dipoles was weakened, making the hydrophilicity of the membrane enhanced; meanwhile, the adsorption of proteins was weakened, and the membrane channels were opened. The membrane could be used to separate proteins by changing the concentration of NaCl, which played an important role in wastewater treatment. For water detection, smart membranes with ion recognition nanogels can be used as the gate to quickly detect lead ions in water, whose detection limit can reach 10 mol/L [135]. IIMs can be used to effectively recover mercury ions by six times compared with non-imprinted membranes [136]. These two kinds of membranes can be used to detect whether the concentration of lead or mercury ions in water meets the standards, which is of great significance to environmental protection.

5.2 Medicine

Targeted transport and drug separation are the main research directions of smart membranes in medical applications. Researchers have used smart membranes to achieve targeted transport of drugs, proteins, and other substances. The transport of traditional drugs is subject to body fluid circulation, making it difficult to accurately treat the lesion areas. Through smart membranes, not only the substances can be transported to make the drugs reach target positions accurately, but they can also be used to accurately identify the cells or biological macromolecules, so as to achieve drug separation. For example, Hiroto et al. [53] introduced molecular recognition receptors into the submicron-sized pores of a membrane to prepare a biomolecular recognition-gated membrane, which could perform multi-point recognition of target biomolecules, forming cross-linking, thereby controlling the opening and closing of membrane pores. The membrane could be used in antigen-polyclonal antibody systems. DNA-PNIPAM molecular recognition-gating membranes can be used to specifically recognize thrombin molecules through TBA, so that the grafted PNIPAM shrinks and finally the membrane pores open. The membrane can also be used as a drug delivery system in the medical field [124]. For drug separation, puerarin is extracted from the legume Pueraria lobata, with antipyretic, sedative, and expansion of coronary arteries as well as other effect. Molecular recognition-responsive intelligent switch membranes can be used to efficiently and accurately separate puerarin solutions as well as widely used in the separation of chiral drugs [66].

5.3 Food industries

Food safety and food waste are two important challenges in the food industry. There are differences between the shelf life and the actual shelf life of a product. Some food, in the process of storage, may develop microorganisms internally due to some external factors, such as extrusion, perforation, and other reasons. This food decay can affect the health of consumers. Smart membranes can present obvious color changes according to the freshness of food. Compared with traditional packaging, which can only play the role of hygiene and barrier, a smart membrane can more accurately judge the freshness of food [73]. For example, microorganisms produce metabolites that change the pH value of the internal environment of packaging in the process of food spoilage. Water-soluble natural pigment anthocyanins can show different color changes as pH changes. Therefore, Li et al. [72] dispersed purple tomato anthocyanin (PTA) into a CS solution to prepare a PTA/CS composite membrane. The main raw materials used in the membrane were anthocyanins and CS, which were natural materials, and the membrane had a good pH sensitivity and mechanical properties, which could be used as an environmentally friendly packaging material. Due to the unstable nature of anthocyanins, they are susceptible to factors such as temperature, light, oxygen, and metal ions, among which oxygen is the most important factor affecting the performance of anthocyanins. To this end, Zou et al. [139] used mulberry anthocyanin as an indicator, took gellan gum and anthocyanin to form an indicator inner-layer membrane, formed an outer-layer membrane using CS and PVA, and used layer-by-layer assembly technology to prepare a double-layer indicator membrane. Through the membranes, the oxidation of anthocyanins was reduced by isolating oxygen, with their stability improved. The membranes can be used as a freshness indicator for salmon. Compared with monolayer membranes, those membranes have better mechanical properties and a lower water vapor permeability, which can not only reduce the oxidation of anthocyanins to improve their stability, but can also be used for the indication of salmon freshness, which has a good application potential.
