Home Physical Sciences Mechanical performance of date palm fiber-reinforced concrete modified with nano-activated carbon
Article Open Access

Mechanical performance of date palm fiber-reinforced concrete modified with nano-activated carbon

  • Musa Adamu EMAIL logo , Yasser E. Ibrahim , Omar Shabbir Ahmed and Qasem A. Drmosh
Published/Copyright: July 10, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Nanotechnology Reviews
From the journal Nanotechnology Reviews Volume 12 Issue 1

Abstract

Date palm fiber (DPF) is an easily processed, low cost, and accessible natural fiber. It has mostly been used in composites for non-structural applications. For DPF to be utilized in cementitious composites for structural applications, ways to reduce its harmful effect on compressive strength must be devised. Therefore, in this study, nano-activated carbon (NAC), due to its filler effects, was used as an additive to produce the DPF-reinforced concrete (DPFRC). To produce the DPFRC, 0, 1, 2, and 3% by cement weight of DPF and NAC were added. The fresh properties, strength, and microstructure of the concrete were examined. The findings revealed that DPF decreased the consistency, density, and compressive strength. Additionally, it increases the porosity in the concrete microstructure. The addition of up to 1% NAC significantly improved the compressive, flexural, and split tensile strengths of the concrete, while it decreased the harmful impact of up to 2% DPF on the DPFRC’s strength. The split tensile and flexural strengths of the concrete were enhanced with the addition of up to 2% DPF without any NAC. The addition of up to 2% NAC densified the DPFRC’s microstructure by refining and filling the pores generated by the DPF. The multivariable statistical models developed to estimate the mechanical properties of the DPFRC containing DPF and NAC were very significant with a very high degree of precision.

Keywords: natural fiber; date palm fiber; nano-activated carbon; mechanical properties

1 Introduction

One of the best ways to achieve sustainability is by proper utilization of waste materials and natural resources for building and construction applications. In terms of the consumption of natural resources, the construction industry is the foremost. With concrete being the major construction material, which is believed to be the second most used material after water, its production involves huge quantities of material resources [1,2,3]. Concrete possesses excellent compressive strength but poor tensile strength and strain properties, and easily cracks when subjected to tensile or bending stresses. Methods have been devised to address this shortcoming of concrete by using reinforcement to form a composite structure called reinforced concrete. As steel reinforcement is an expensive material, the cost of buildings and construction are increased. Hence, innovations to boost the tensile and strain characteristics of the concrete were derived by several researchers, using admixtures, fibers, and supplementary cementitious materials to the concrete [4,5,6,7]. This will decrease the amount of reinforcement needed to produce a reinforced concrete structure and hence reduce the overall cost of construction [2,8]. Fibers are added to cementitious composites as the main or secondary reinforcement [9,10]. In terms of main reinforcement, fibers are added to thin-sheet products where normal steel reinforcements cannot be used. This type of thin-sheet product contains a high amount of cement with no coarse aggregate in the matrix. The fibers are used to enhance the toughness, impact resistance, and tensile strengths, and prevent crack development and propagation. When used as a secondary reinforcement, fibers are added for controlling crack development and its propagation induced by temperature changes or humidity increases the post-cracking load resistance caused by spalling or overload [11,12]. Different types of fibers ranging from natural fibers and man-made (synthetic) fibers have been added to cementitious composites in a variety of sizes. The choice of fibers depends on the availability, cost, type of cementitious composites, and the need for enhancement of the composite properties. Some of the commonly used synthetic fibers include polypropylene fiber, polyethylene fiber, polyvinyl alcohol fiber, polyvinyl chloride fiber, steel fiber, glass fiber, and carbon fibers [12]. For natural fibers, they are sourced from natural resources like plants, vegetation, trees, and animals. Some of their attributes include low elasticity and high tensile strength [8,13]. Furthermore, natural fibers have some superior benefits when compared to synthetic and other fibers. These include environmental sustainability, low to zero cost, easy accessibility, lower density and abrasiveness, better resistance to alkalinity, and better thermal and acoustic properties [14,15]. Conversely, when compared to synthetic fibers, natural fibers have meager wettability and high absorption, and poor bonding with the cement matrix due to their hydrophilic nature [8,11].

Date palm fiber (DPF) is obtained from the tree of date palm. The date tree is one of the most common trees available in the Middle East countries like the Kingdom of Saudi Arabia [9]. The processed DPF can be used as a natural fiber in concrete. The DPF has been reported to enhance thermal insulation and acoustic properties and decrease the density of the composites [16,17]. Furthermore, the DPF was found to boost the toughness, tensile strength, impact, and crack resistance of the composites [8,11,18]. On the contrary, the key shortcoming of adding DPF in the cementitious composite is that it led to a decrease in the compressive strength, triggered by the hydrophilicity of the fiber, which reduced its bonding with the cement matrix and decreased the strength. DPF also increases the porosity in the microstructure of the composites due to air entrainment on its surface during mixing. DPF also decreased the consistency of the composites, which results in balling effects of the fiber in the fresh composite, triggering increased pore volume in the cement matrix [8,16]. Different procedures have been used to counteract the detrimental impacts of the DPF on the strength and porosity of the composites. Khelifa et al. [19] treated the DPF with an alkali (NaOH) before incorporating it into the mortar. The treatment procedure involved using three combinations of NaOH concentrations and immersion times. The NaOH concentrations were 1, 2, and 3%, while the immersion times were 2, 8, and 14 h. The optimum treatment was found to be a 5% NaOH solution with an immersion time of 8 h. They reported that the addition of 1% DPF treated with 5% NaOH for 8 h resulted in the enhancement of the compressive strength and modulus of elasticity of the mortar by 46.6 and 36.3%, respectively, when compared to the mortar in which 1% untreated DPF was added. They attributed the enhancement in strength and modulus to the improvement in the surface roughness and removal of impurities from the DPF, which led to better bonding between the mortar matrix and DPF and hence improved the strength. In a similar study, Ozerkan et al. [11] treated the DPF using Ca(OH)2 and NaOH before utilizing it in concrete. They observed an increase in the compressive strength of the concrete when Ca(OH)2-treated DPF was added in a dosage of up to 2%. However, Ibrahim et al. [8] used a pozzolanic material in the concrete produced with DPF. They replaced cement with silica fume at dosages of 5, 10, and 15% by volume of cement in the concrete containing 1, 2, and 3% DPF. They concluded that the incorporation of up to 10% silica fume as a replacement to cement led to the total mitigation of loss in the compressive strength due to the undesirable impact of the addition of 1 and 2% DPF in the concrete.

Activated carbon (AC) is obtained from materials of carbonaceous sources, such as wood, coir, rick husk, coconut husk, coal, petroleum pitch, and lignite, and it is produced from either chemical or physical activation processes. There are several types of ACs, including granular, extruded, bead, powdered, polymer coated, and impregnated ACs. Powdered AC is processed from granular AC that has a large surface area and is very porous to be able to absorb chemical components like mercury [20,21]. ACs were used as cement additives in industrial applications as early as 1952 for the prevention of the contamination of oil-well linings when in contact with drilling muds [22,23]. ACs in powdered and granular form were used for different engineering applications: (a) as additives to cementitious materials in concrete for absorption of nitrogen oxides and other volatile organic compounds formed from combustion in parking garages and roadway tunnels; (b) as aggregates for production of lightweight concrete; (c) for the prevention of microbial-induced corrosion in concrete sewer pipelines; and (d) in self-healing concrete for the transport of bacteria to aid the self-healing process [23,24,25,26,27,28]. Powdered ACs due to their high porosity at the nanoscale and larger surface area make them good materials for the densification of the microstructure at nano levels [29]. AC in powdered form has been used as additives in concrete and mortar. Na et al. [30] reported improvement in the strength of mortar with the addition of up to 1.5% powdered AC. They also detected an increase in the strength hardening process with the inclusion of powdered AC, which led to the reduction in curing time. They found that 0.5% nano-activated carbon (NAC) significantly improved the early strength while 1.5% powdered AC improved the strength better at 28 days. Zheng et al. [31] also reported an increase in the compressive strength of fly ash mortar with the addition of NAC; from the microstructural analysis, they observed that powdered AC acted as a filler and densified the mortar microstructure, hence improving the strength. Wang et al. [32] added different proportions of powdered AC, between 0.5 and 2.0% by binder weight, in conventional cement mortar and mortar containing fly ash as a partial substitute to cement. They reported that the powdered AC had a very good dispersing ability in the cement matrix. The pore volume of the mortar with or without fly ash decreased with the addition of NAC due to its filler effect. Furthermore, the strength of the mortar increased while its water absorption decreased with the addition of powdered AC.

DPF is one of the cheapest and most easily processed natural fibers for use in cementitious composites, which is readily available, especially in the middle-east countries. DPF has been found to improve some properties of cementitious composites such as thermal insulation, acoustic properties, ductility, and energy absorption capacity. However, the primary impediment to utilizing DPF in cementitious composites is an increase in porosity and a decrease in the strengths of the composites. This led to its shortcomings when used in concrete, especially for structural applications. Different methods have been used to mitigate the adverse impact of the DPF in mortar and concrete, with some methods being ineffective and other methods being effective but expensive. With AC in powdered form, a cheaper material has been found to improve the mechanical strengths of concrete and mortar by densifying the microstructure and reducing the pore volume. However, even with a series of advantages listed, AC in powdered form has not been used in DPF-reinforced concrete (DPFRC) as there are scanty or no available studies that utilized powdered AC in DPFRC to minimize the adverse influence of the DPF. Therefore, in this study, powdered AC in nano size was used as an additive to the DPFRC to mitigate the negative effects of the DPF on the porosity and mechanical strengths of the concrete.

2 Materials and methods

2.1 Materials

In this research, ordinary Portland cement (OPC) was utilized as the main binder material. The OPC was of Type I and the chemical compositions are given in Table 1, which conformed with the standard requirements of ASTM C150/150M [33]. The cement has a specific gravity (SG) and bulk density of 3.15 and 1,440 kg/m3, respectively. The AC used was obtained in commercial quantity from the BMS factory in Saudi Arabia. The AC was obtained in a granular form and then ground using a miller that is capable of grinding the AC up to sizes less than 38 µm. After grinding, the AC was sieved through a 38 µm (No. 400) sieve to obtain the powdered AC. The powdered AC was further subjected to dry milling to reduce it to nanoscale size. Milling was done using a Pulverisette 7 Premium planetary ball milling machine. The NAC has a mean pore diameter, bulk density, and specific surface area of 2.14 nm, 0.5 g/cm3, and 3,000 m2/g, respectively. Additionally, the iodine number of the NAC was found to be 950 mg/g and its ash content was 10%. Figure 1 shows the used AC in granular and nano forms.

Table 1

Chemical compositions of cement

Oxides Compositions (%) NAC
CaO 65.18 0.53
Al2O3 5.39 0.64
Fe2O3 3.4 0.60
SiO2 19.17 1.57
MgO 0.91 —
TiO2 0.24 0.06
Na2O 0.17 —
K2O 1.22 0.06
P2O5 0.09 0.15
SO3 3.51 —
MnO 0.18 —
Carbon — 91
Loss of ignition 2.38
Figure 1 AC: (a) granular AC and (b) ground AC.
Figure 1

AC: (a) granular AC and (b) ground AC.

A clean and dust-free natural river sand was employed as the fine aggregate. The fine aggregate has a fineness modulus, bulk density, and SG of 2.26, 1,565 kg/m3, and 2.63 respectively. Moreover, the aggregate was found to have water absorption and mud content of 1.87 and 1.1%, respectively. Figure 2 depicts the gradation curve of the fine aggregate, which was found to be within the specified range of ASTM C33 [34]. For the coarse aggregate, crushed granite was used. The aggregate was thoroughly washed in clean water to remove any form of impurity and dust. The aggregate has a maximum nominal size, SG, and bulk density of 19 mm, 2.67, and 1,455 kg/m3, respectively. The gradation curve for the aggregate, as shown in Figure 2, is within the range required for coarse aggregate in concrete by ASTM C33 [34].

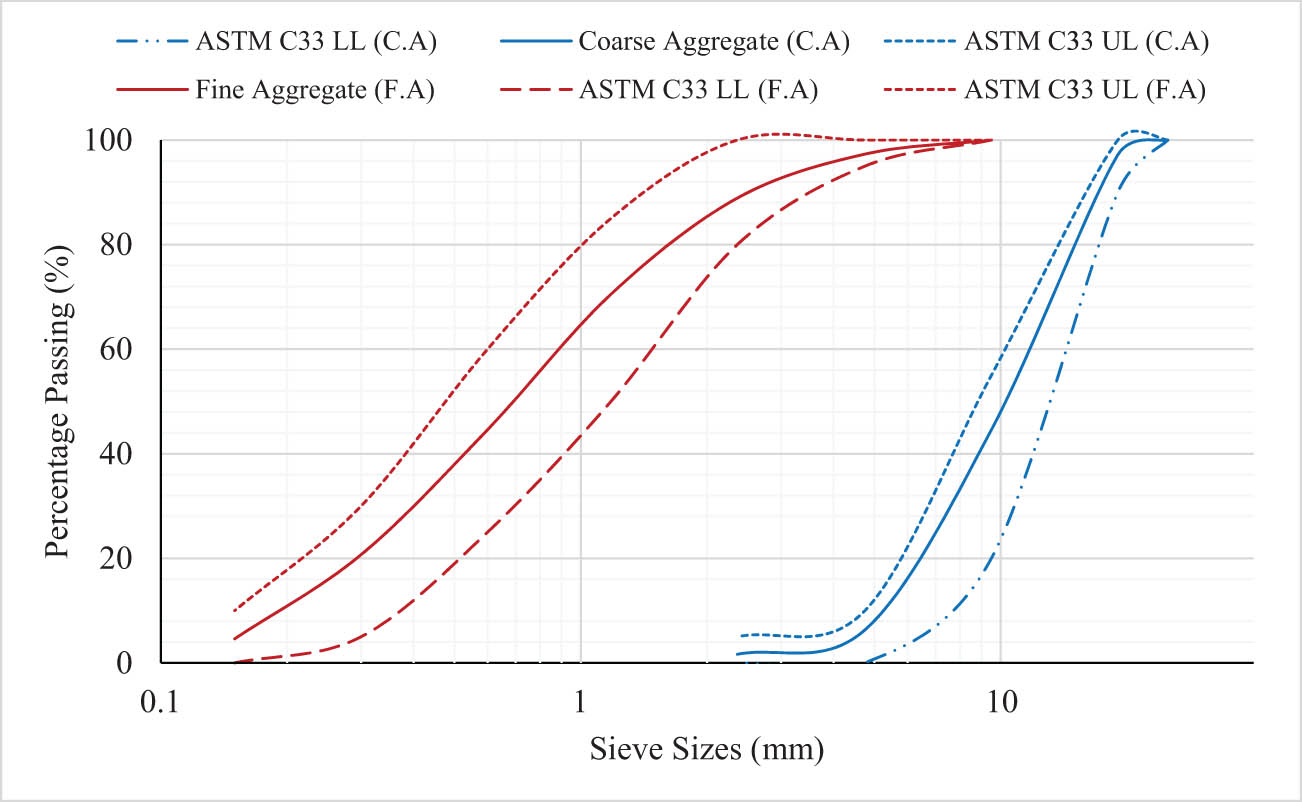

Figure 2 Particle size gradations of aggregates.
Figure 2

Particle size gradations of aggregates.

DPF was obtained from the mesh of the date palm tree in raw forms. The mesh was in interwoven form of length varying between 300 and 500 mm and width between 200 and 300 mm. The raw mesh was processed and reduced to single DPFs by carrying out the following steps: The mesh was separated by hand and then submerged in clean water and washed thoroughly. Then, the washed mesh was immersed in 3% NaOH solution for about 3 h to remove all forms of impurities and dirt. After that, the fiber mesh was thoroughly washed with clean water and then separated into single fibers of length varying from 20 to 30 mm and diameters from 0.2 to 1.0 mm. The single fibers were allowed to dry completely in the air for about 48 h before adding to the concrete. The fiber mesh and single fibers are shown in Figure 3, and the properties of the DPF are illustrated in Table 2.

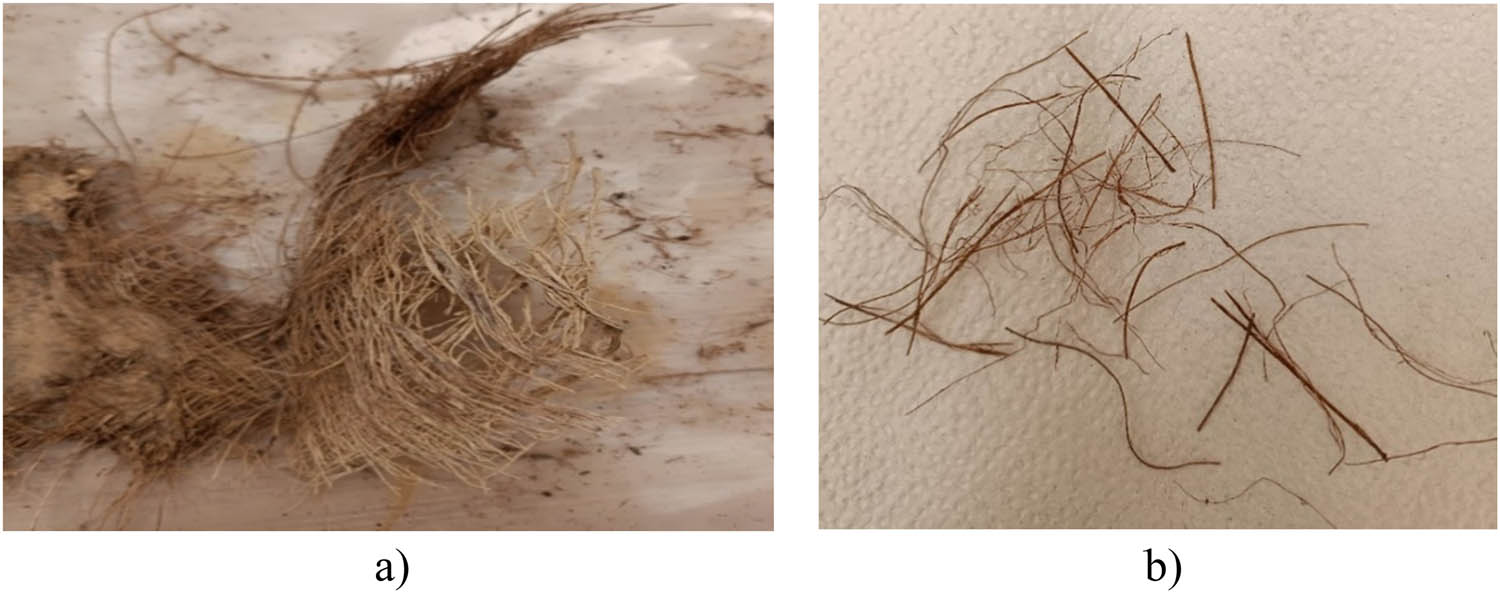

Figure 3 (a) DPF mesh and (b) single DPF.
Figure 3

(a) DPF mesh and (b) single DPF.

Table 2

Properties of DPF

Properties Units Values
Fiber length mm 20–30
DPF diameter mm 0.2–1.0
Bulk density kg/m3 877.43 ± 4.8
Elastic modulus GPa 3.35 ± 1.5
Tensile strength MPa 203.24 ± 30
Elongation at failure % 13.5 ± 2
Saturated water absorption % 102.65 ± 3.3
Natural moisture content % 10.2 ± 0.4

2.2 Mixture proportions

The ACI 211.1R procedure [35] was followed for designing the concrete to obtain the constituent materials for the control mix. The volume of the superplasticizer was kept at 1% (by wt) to counteract the effects of variations in the w/c ratio throughout the mixes. The DPF was incorporated into the mixes at varying proportions of 1, 2, and 3% (by wt) of the binder. The NAC was used as an additive in the DPFRC and was incorporated at proportions of 1, 2, and 3% (by cement weight). Sixteen mixes including the control were obtained using different combinations of DPF and NAC, as presented in Table 3. Each of the mixes in Table 3 is designated a distinctive ID. Mix M1F1A is a mix with 1% DPF and 1% NAC; mix M0F2A is a mix with 0% DPF and 2% NAC; and mix M1F3A is a mix with 1% DPF and 3% NAC.

Table 3

Mixture proportions

Mix no. Quantities for 1 kg/m3 (kg/m3)
Cement DPF NAC Fine aggregate Coarse aggregate Water SP
Control 480 0.0 0.0 730 890 180 4.8
M1F0A 480 0.0 0 730 890 180 4.8
M2F0A 480 4.8 0 730 890 180 4.8
M3F0A 480 9.7 0 730 890 180 4.8
M0F1A 480 14.5 4.8 730 890 180 4.8
M1F1A 480 4.8 4.8 730 890 180 4.8
M2F1A 480 9.7 4.8 730 890 180 4.8
M3F1A 480 14.5 4.8 730 890 180 4.8
M0F2A 480 0.0 9.6 730 890 180 4.9
M1F2A 480 4.9 9.6 730 890 180 4.9
M2F2A 480 9.8 9.6 730 890 180 4.9
M3F2A 480 14.7 9.6 730 890 180 4.9
M0F3A 480 0.0 14.4 730 890 180 4.9
M1F3A 480 4.9 14.4 730 890 180 4.9
M2F3A 480 9.9 14.4 730 890 180 4.9
M3F3A 480 14.8 14.4 730 890 180 4.9

2.3 Sample preparation

The developed mix proportions were produced in the laboratory for testing. Each of the constituent materials for the mix under consideration was weighed. The batching, mixing, and casting of the concrete samples were accomplished following the procedures outlined in ASTM C192/C192M [21]. To avert the absorption of some portion of the mixing water by the aggregates, they were brought to a saturated surface dried condition before mixing. The cement used was also ensured to be free from agglomeration, impurity, and lumps. The mixing was carried out in a rotating drum concrete mixer, as shown in Figure 4a. The fine aggregate, NAC, and cement were emptied into the mixer and were then thoroughly mixed for about 45 s. The DPF and part of the mixing water combined with the superplasticizer were added gradually during mixing. The coarse aggregate and the remaining part of water combined with superplasticizer were added. The mixing progressed and was stopped after a completely homogenous mix was obtained. Instantly following the mixing, the slump and fresh density of the fresh concrete were determined. The fresh concrete was then cast in the designated molds and kept in the laboratory for 24 h to settle and harden, as shown in Figure 4b. After hardening, they were removed from the molds and submerged in clean water for curing.

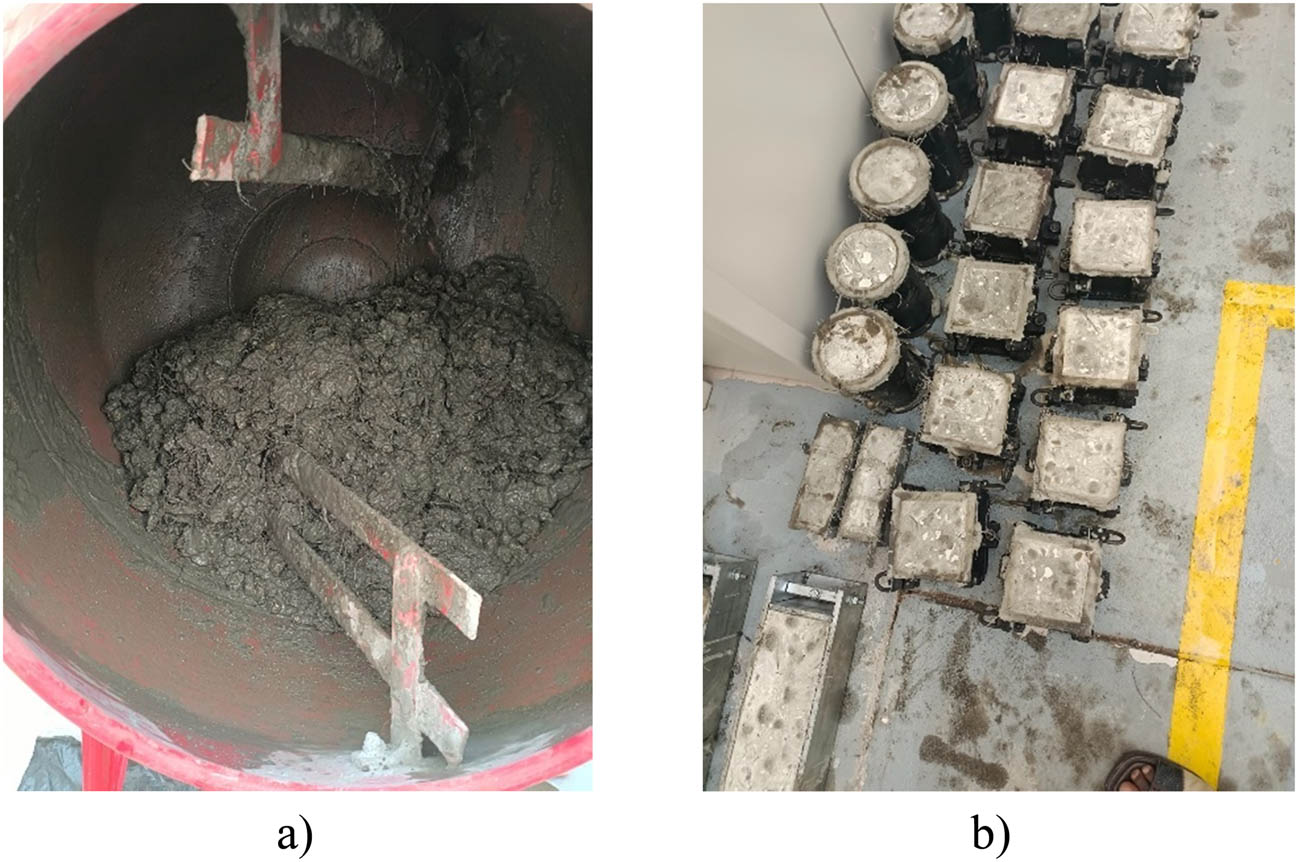

Figure 4 Preparation of samples [8,36]: (a) mixing fresh concrete and (b) hardened samples.
Figure 4

Preparation of samples [8,36]: (a) mixing fresh concrete and (b) hardened samples.

2.4 Test methods

The slump test was employed to measure the workability of the fresh concrete immediately after casting in accordance with ASTM C143/C143M [37] specifications. Afterward, the fresh density was measured following the guidelines listed in ASTM C138/C138M [38].

For testing the hardened properties, the compressive strength was measured after curing ages of 3, 7, and 28 days. Cubical samples of 100 mm sizes were produced and used for the testing in accordance with BS EN 12390-3 [39] specifications. The testing was done with the aid of a universal testing machine (UTM) of 2,000 kN capacity, as shown in Figure 5a. Similarly, the split tensile strength testing was done using the same UTM. Cylindrical samples of 200 mm height and 100 mm diameter were manufactured and subjected to curing for 3, 7, and 28 days before testing. Methods defined in BS EN 12390-6 [25] were adopted for the tensile strength testing. The test setup for the split tensile strength is shown in Figure 5b. The flexural strength testing was executed by adopting the procedures listed in ASTM C78/C78M [40]. Prismatic samples of 100 mm width, 100 mm height, and 500 mm length were manufactured and preserved for 7 and 28 days in water before testing. The flexural strength test was carried out using a UTM of 3,000 kN, as shown in Figure 5c. The water absorption test was done by following the methods explained in ASTM C78/C78M [40]. Cubical-shaped specimens of 100 mm dimensions were made and subjected to 28 days curing period before testing. Prior to testing, the samples were oven-dried for 24 h at 110°C as shown in Figure 5d. After oven drying, the weights of the samples were recorded and then the samples were completely immersed in clean water for another 24 h. The weights of the samples after immersion in water were recorded. The two measured weights were used to compute the water absorption.

Figure 5 Testing methods: (a) compressive strength; (b) split tensile strength; (c) flexural strength; and (d) oven drying samples.
Figure 5

Testing methods: (a) compressive strength; (b) split tensile strength; (c) flexural strength; and (d) oven drying samples.

The microstructural analysis was carried out on some selected samples. The microstructural morphology of the DPFRC was examined using a field emission scanning electron microscope (FESEM). Fractions of the concrete samples were obtained from the mixes after 28 days of curing. The fraction was completely dried and cleansed before coating with a thin gold film. The coated sample was inserted into the FESEM, and the morphology was captured using a high-resolution computer system. The morphology was captured at various resolutions between 1,000 and 10,000 magnifications and the best magnification was reported. The X-ray diffraction (XRD) test was carried out on some selected samples to determine the changes in the chemical composition, crystallinity, and structure of the DPFRC when NAC was added. An X’Pert3 MRD was used for the XRD test. Paste samples were extruded from the representative mixes after 28 days of curing. The pastes were then completely dried and cleaned before grinding to a fine nano form. The nanopaste samples were then placed in the machine, and the results were obtained from the high-resolution computer system attached to the machine.

3 Results and discussion

3.1 Workability

The outcomes of the slump test for the DPFRC are presented in Figure 6. The slump values for all the mixes range between 84 and 50 mm. The addition of NAC caused a decrease in the slump values of the concrete. The slump values of mixes M0F1A, M0F2A, and M0F3A are 80, 65, and 55 mm, respectively, lower than that of the control, which has a slump value of 84 mm. The decrease in slump values with the addition of NAC is because of its larger surface area, it absorbs more water to form a consistent paste and consequently reduces the workability. The high porosity of the NAC is owing to its larger surface area, which causes more friction in the fresh concrete mix, hence resulting in lower consistency [41]. The high loss of ignition of the NAC is owing to the carbon-based material, which also causes much absorption of mixing water thereby decreasing the fluidity and workability of the concrete. Similar outcomes have been observed by Rashad et al. [42] whereby they reported a decrease in flowability by up to 35% with the addition of up to 3.5% NAC to the alkali-activated paste. Lekkam et al. [41] also reported a decrease in the fluidity of the cement paste with the addition of 2% NAC. Zaid et al. [43] also reported that the workability of steel fiber-reinforced concrete decreased with the addition of graphene oxide to the concrete due to the larger surface area of the graphene material. The addition of DPF to the mixes containing different proportions of NAC caused a further decrease in the slump values as indicated in Figure 6. The slump values of M1F1A, M2F1A, and M3F1A were 78, 74, and 68 mm, respectively, compared to that for the mix M0F1A, which has a slump of 80 mm. The further decrease in the slump value with the addition of DPF is ascribed to the high hydrophilicity, porous structure, and lignocellulose and hemicellulose contents of the fiber, causing it to absorb parts of the mixing water and hence reducing the consistency of the fresh concrete mix [8,16,44]. From Figure 6, it is evident that the control mix has the highest slump of 84 mm, and the mix containing 3% DPF and 3% NAC (M3F3A) has the lowest slump of 50 mm. Therefore, to use both DPF and NAC in concrete it is recommended to add more amount of water-reducing admixtures like superplasticizers to counteract the decrease in consistency in the mix.

Figure 6 Results of the slump test.
Figure 6

Results of the slump test.

3.2 Density

The densities of the fresh and hardened mixes are presented in Figure 7. The density of the concrete slightly increased with the addition of up to 2% NAC. The fresh densities of mixes M0F1A and M0F2A were higher by 0.7 and 1.1%, respectively, compared with the control. Comparable result trends can be seen for the density of the hardened mix also. The increase in density might be because NAC can serve as a filler material in the mix as a result of its large surface area, hence densifying the fresh mix and leading to an increase in density. Additionally, as NAC is used as an additive, it, therefore, increases the amount of constituent materials in the mix, which consequently increases the density/unit weight [45]. On the other hand, the addition of 3% NAC caused a decrease in the density of both the concretes, and this might be due to a great decrease in consistency, which cause agglomeration of the NAC leading to air entrainment and consequently a decrease in density. Incorporating up to 2% DPF into the concrete mixes containing up to 2% NAC led to an increase in the density of fresh and hardened mixes. For instance, in mixes consisting of 1% NAC in comparison to the control mix, the fresh densities of mixes M0F1A, M1F1A, and M2F1A were higher by 0.7, 1.1, and 1.5%, respectively. A similar result trend can be observed for the hardened mix. Equally, mixes containing 2% NAC have higher fresh density compared to the control mix by 1.1, 1.3, and 1.8% for mixes M0F2A, M1F2A, and M2F2A, respectively. The increase might be because DPF increases the volume of constituent materials in the mix, hence leading to higher density. Furthermore, the NAC due to its finer sizes fills the pores created by the DPF in the cement matrix, hence densifying the paste which results in improved density. Though the addition of DPF to the concrete mixes containing 3% NAC caused a decrease in the fresh density. The fresh densities of the mixes with 3% NAC, i.e., M0F3A, M1F3A, M2F3A, and M3F3A, were lower by 3.9, 5.3, 6,1, and 8.6%, respectively comparable to the control. This decrease in density might be due to the poor consistency of the mix, which causes agglomeration of the NAC and balling effects of the DPF, which causes a lot of air to be entrained in the fresh mix and consequently decrease in the density.

Figure 7 Results of densities of the fresh and hardened mixes.
Figure 7

Results of densities of the fresh and hardened mixes.

3.3 Compressive strength

Figure 8 depicts the compressive strengths for the DPFRC. The compressive strength decreases with the increase in the percentage of DPF added at all ages. Compared to the control at 7 days, the compressive strengths of mixes M1F0A, M2F0A, and M3F0A were lower by 6.54, 10.67, and 27.82%, respectively. Similarly, at 28 days, the compressive strengths of mixes M1F0A, M2F0A, and M3F0A were lower by about 5.48, 9.36, and 23.83%, respectively, compared to the control mix. The decrease in compressive strength with the addition of DPF was reported by other studies [8,46,47]. The decrease in the compressive strength was caused by the hydrophilic nature of the DPF, causing it to absorb part of the mixing water and decreasing the consistency of the mix. This led to the formation n of honeycombs and porosity in the composite matrix and consequently leading to premature failure and a decrease in strength. Moreover, the poor adhesion between the cement paste and DPF also contributed to the decrease in strength [8,46,47].

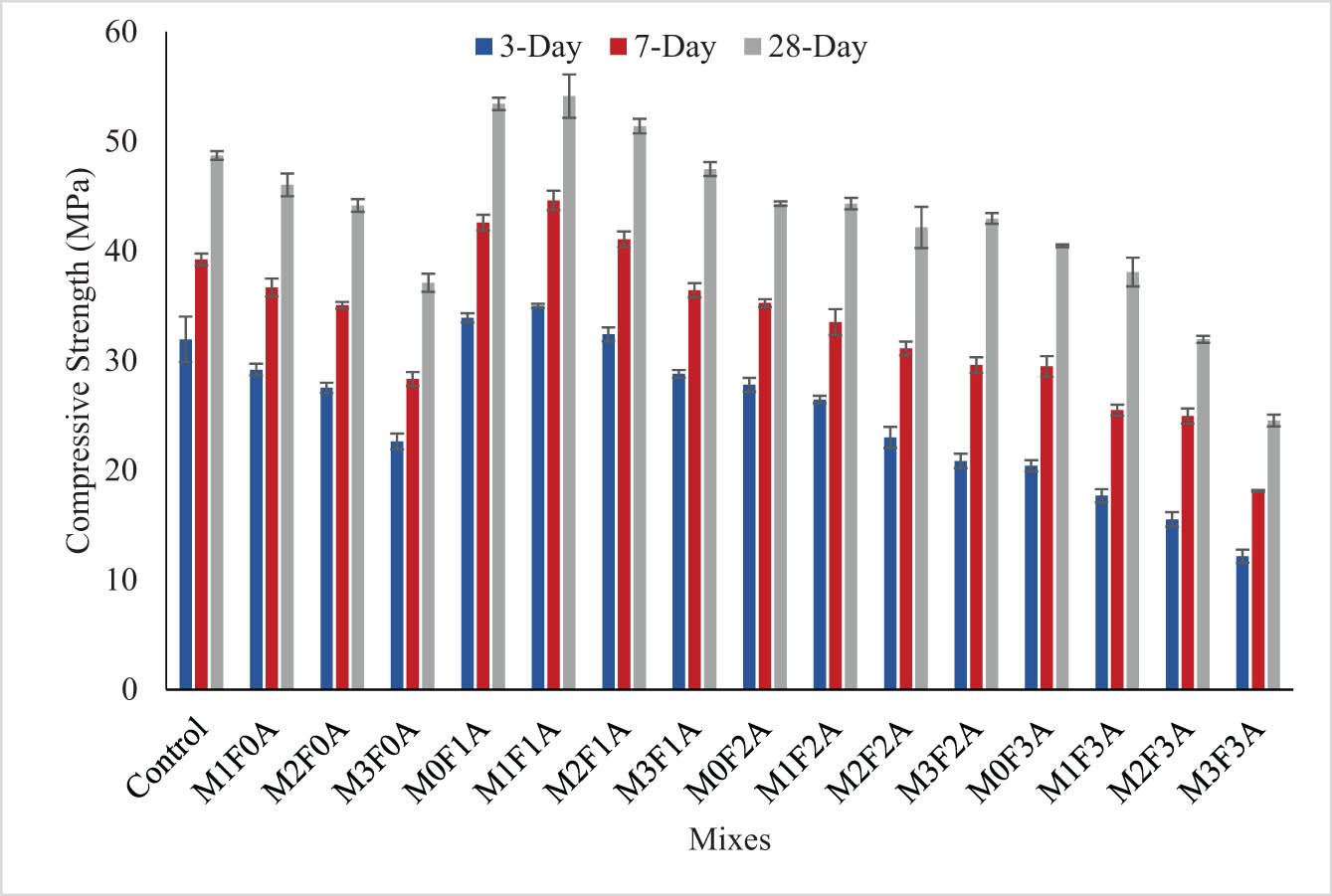

Figure 8 Compressive strength results.
Figure 8

Compressive strength results.

The addition of NAC to the DPFRC improved its compressive strength. For the mix containing 0% DPF, the addition of 1% NAC improved its compressive strength at all ages, where the compressive strengths of M0F1A improved at 3, 7, and 28 days by 6.15%, 8.53%, and 5.48% respectively, when compared with that of the control mixes at same ages. For the mixes with DPF, 1% NAC addition was successful in alleviating the loss in the compressive strength when 1 and 2% DPF were incorporated. For instance, the compressive strengths of mix M1F1A were superior to the control mix by 9.55, 13.7, and 11.12% at 3, 7, and 28 days, respectively. Similarly, the compressive strengths of mix M2F1A were more than that of the control mix by 1.44, 4.69, and 5.5%, at 3, 7, and 28 days, respectively. These results are consistent with the outcomes of previous studies where they reported an increase in compressive strength when 0.5% NAC [41] and up to 1.5% NAC was added [30,42]. The increase in the compressive strength of DFPRC with the addition of NAC was ascribed to the larger surface area and filler ability of the NAC, thereby filling the pores and air voids triggered by the DPF and densifying the concrete matrix and hence increasing the strength [42]. Another reason for the increase in strength might be due to the acceleration of the strength hardening process in the cement matrix by the NAC [30]. In a similar study, Maglad et al. [48] also reported that graphene oxide acted as a filler due to its larger surface area and increased compressive strength of the geopolymer concrete.

The addition of more than 1% NAC to the concrete with or without any DPF resulted in a decrease in the compressive strength at all ages. For the mixes without DPF, the compressive strengths of mix M0F2A were lower by 12.97, 10.16, and 9.01% at 3, 7, and 28 days, respectively, compared to the control mixes. Likewise, for the M0F3A mix, its compressive strengths were lower by 36.08, 24.88, and 16.9% at 3, 7, and 28 days, respectively, compared to the control. The decrease in the compressive strength is due to the interruption in the hydration of tricalcium aluminates by lowering its hydrolysis and formation of ettringites caused by the retarding effects of the carbon. Additionally, the impurities present in the NAC from its high iodine number, unburnt carbon, and other elements formed in the AC during its production might attenuate the hydration process and cause a decrease in its strength [41]. Furthermore, the finer sizes of NAC make it absorb some portion of the mixing water and decrease the workability of the fresh concrete. This led to poor compaction and balling effects of the fibers, increasing the pore volume in the hardened concretes’ microstructure. This creates many weak paths for premature failure with load applications and consequently lower compressive strength.

3.4 Flexural strength

Figure 9 presents the flexural strengths for the DPFRC produced with different proportions of DPF and NAC. The flexural strength increased with the increase in the volume of DPF. In comparison to their respective control mixes, the flexural strength of mix M1F0A improved by 3.6 and 8.5% at 7 and 28 days, respectively, while for mix M2F0A its flexural strength improved by 8.9 and 15.6% at 7 and 28 days, respectively, likewise for mix M3F0A its flexural strength enhanced by 13.3 and 17.7%, respectively. The enhancement in flexural strength was credited to the fibrous nature of the DPF, resulting in the prevention and prolonging of crack spread and improving the bending resistance even after the first crack has occurred. Similar findings have been reported by previous studies [8,49].

Figure 9 Flexural strength results.
Figure 9

Flexural strength results.

The addition of 1% NAC to the mixes without DPF improved its flexural strength, where the strength of mix M0F1A enhanced by 2.44 and 8.3% at 7 and 28 days, respectively, compared to the control. The pore-filling effects of the NAC might be the reason for the upgrading in flexural strength [32]. The addition of 1% NAC further enhanced the flexural strengths of the DFPRC containing 1, 2, and 3% fibers. This is testified by comparing the flexural strengths of mixes M1F1A, M2F1A, and M3F1A with the control or respective mixes M1F0A, M2F0A, and M3F0A. The flexural strength of mixes M1F1A improved by 6.4 and 11.2% at 7 and 28 days, respectively, when match with the control mix. Similar result trends can be seen for mixes M2F1A and M3F1A. The addition of 2% NAC only enhanced the flexural strength of the mix with 1% DPF. This can be seen by comparing the flexural strength of mix M1F2A with that of the control, where the former has higher strength by 3.8 and 5.6% at 7 and 28 days, respectively, comparable to the former. The upgrade can be due to the combination of crack bridging ability by the fiber and pore filling ability of the NAC. Conversely, the addition of 2% NAC to DPFRC containing 2 and 3% DPF resulted in a decrease in flexural strength as seen in Figure 9. Furthermore, the addition of 3% NAC to DPFRC containing 1, 2, and 3% DPF also led to a decrease in flexural strength. From all the mixes, the concrete with 3% DPF and 3% NAC (M3F3A) has the lowest flexural strength, where its strength decreased by 30.3 and 25.8% at 7 and 28 days, respectively, when compared with the control. The decrease in flexural strength with the addition of NAC to the DPF concrete was credited to the reduction in consistency which caused fiber balling in the fresh concrete. After the DPFRC has hardened, this lower consistency caused an increase in pore volume and air voids in the microstructure. This weakens the cement paste and creates a lot of weak paths for easy crack initiation and propagation and consequently resulting in a decrease in flexural strength.

3.5 Splitting tensile strength

Figure 10 summarizes the results of the split tensile strength for the DPFRC. The addition of up to 2% DPF led to an increase in tensile strength at all periods. Mix M1F0A has superior tensile strengths of about 5.8, 3.6, and 5.9% at 3, 7, and 28 days respectively, compared to the control. Similarly, mix M2F0A has greater tensile strengths at 3, 7, and 28 days by 7.7, 10.1, and 10.9%, respectively, compared to the control. The reason for the improvement in tensile strengths with the addition of DPF may be due to the enhancement in the crack bridging effect and energy transfer mechanism by the fiber, which improved the post-crack failure resistance and increased the tensile strength [8].

Figure 10 Results of splitting tensile strengths.
Figure 10

Results of splitting tensile strengths.

The effect of NAC on the splitting tensile strength of the DPFRC is shown in Figure 10. The addition of 1% NAC to the plain concrete (without DPF) increased its splitting tensile strength at all ages. For instance, the tensile strength of M0F1A was superior to that of the control by 3.5, 4.3, and 8.6% at 3, 7, and 28 days, respectively. The increase in the tensile strength might be due to the decrease in the pore volume and air voids in the concrete’s microstructure with the addition of NAC due to its filler ability. This consequently led to better gluing between the cement matrix and aggregate and thus improved the tensile strength. The addition of up to 2% NAC to the concrete containing 1 and 2% DPF led to further augmentation in the tensile strength. In comparison to the control, M1F1A has superior tensile strength by 7.9, 9.3, and 11.1% at 3, 7, and 28 days, respectively. Similarly, M2F1A has improved tensile strength by 9.5, 11.5, and 19.5% at 3, 7, and 28 days, respectively, when compared with the control. Finally, M1F2A has its tensile strength improved at 3, 7, and 28 days by 4.9, 3.1, and 5.1%, respectively, when compared with the control. This further increase in the tensile strength with the addition of NAC to the DPFRC is due to the combined influence of both the DPF and NAC. The NAC filled the pores generated by the DPF and consolidated the concrete’s microstructure, thereby enriching the bonding between the fiber and paste, which resulted in increased tensile strength. However, the addition of 2 and 3% NAC led to a decrease in the split tensile strength of both the plain concrete (without DPF) and the DPFRC. For instance, the split tensile strengths of mix M0F2A at 3, 7, and 28 days were lower by 7.5, 6.1, and 6.2%, respectively, comparable to the control. Also, the tensile strengths of M0F3A at 3, 7, and 28 days were lower by 21.7, 19, and 17.5%, respectively. A further decrease can be seen with the addition of 2 and 3% NAC to the DPFRC with different proportions of DPF. At 3 days, the split tensile strengths of mixes M2F2A, M3F2A, M1F3A, M2F3A, and M3F3A were lower by 13, 19.3, 24.1, 28.8, and 34.6%, respectively, when compared to the control (at 3 days). However, at 28 days, the split tensile strengths of M2F2A, M3F2A, M1F3A, M2F3A, and M3F3A were lower by 8.2, 14.1, 18.9, 24.1, and 27%, respectively, compared to the control at the same age. The decrease in the tensile strength with the addition of NAC is caused by the significant decrease in consistency of the fresh concrete where both DPF and NAC absorb part of the mixing water. This instigated poor compaction and dispersion of the fibers in addition to balling effects of the fiber. This affected the hardened cement matrix by increasing the poor volume and air voids. Therefore, untimely failure arises through the weak paths and hence a decrease in the tensile strength.

3.6 Relationship between compressive strength and split tensile/flexural strengths

The relationships between compressive strength and split tensile strengths of the DPFRC containing different proportions of DPF and NAC are presented in Figure 11, while the relationship between the compressive strengths and flexural strengths is shown in Figure 12. In the figures, Ƈ represents compressive strengths, $ represents split tensile strengths, and Ʈ represents flexural strengths. A good correlation exists between the compressive strength and split tensile strength at 3, 7, and 28 days, as shown in Figure 11, as the strength relationships at all ages have a degree of correlations (R 2) greater than 0.7, with the relationship at 3 days having the best correlation. For the relationship between the compressive strengths and flexural strengths of the concrete at 7 and 28 days, as seen in Figure 12, a fair correlation existed as the strength relationships have R 2 values greater than or equal to 0.5, with the relationship at 28 days having the best degree of correlation. The splitting tensile strengths and flexural strengths at all ages were found to be directly proportional to their corresponding compressive strengths at the same ages.

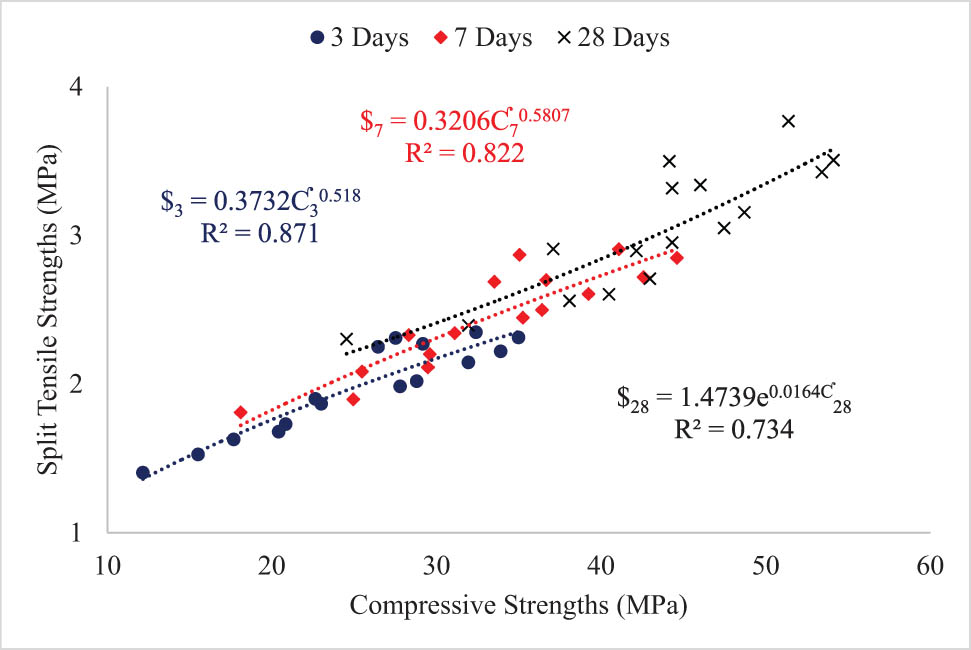

Figure 11 Relationship between compressive and split tensile strengths of DPFRC.
Figure 11

Relationship between compressive and split tensile strengths of DPFRC.

Figure 12 Relationship between compressive and flexural strengths of DPFRC.
Figure 12

Relationship between compressive and flexural strengths of DPFRC.

Power relationships, which were proposed by ACI 318 [50] for the relationships between compressive strength and split tensile/flexural strengths of concrete, were developed and are presented in Figure 13 for the 28 day strengths. All the strength relationships have excellent correlations, as both the compressive strength – split tensile strength and compressive strength – and flexural strength models have R 2 values greater than 0.99. Therefore, the power model is the best fit for predicting the split tensile and flexural strengths of the DPFRC using its compressive strengths compared to the other models developed in Figures 11 and 12. The power models developed in this study between the 28 days compressive strength and 28 days split tensile strengths were compared with already existing modes from ACI 318 [50], CEB-FIB [51], ACI 363 [52], and Hesami et al. [53], as shown in Table 4. Similarly, the developed model for the relationship between the 28-day compressive strength and the 28-day flexural strength was compared with the already existing models from ACI 318 [50], BS 8110, and Ahmed et al. [54], as shown in Table 4. The developed relationship between the compressive strength and split tensile strength of the DPFRC is close to the model proposed by ACI 318 [50], while the developed model for the compressive–flexural strengths relationship for the DPFRC is closer or similar to the model proposed by Ahmed et al. [54].

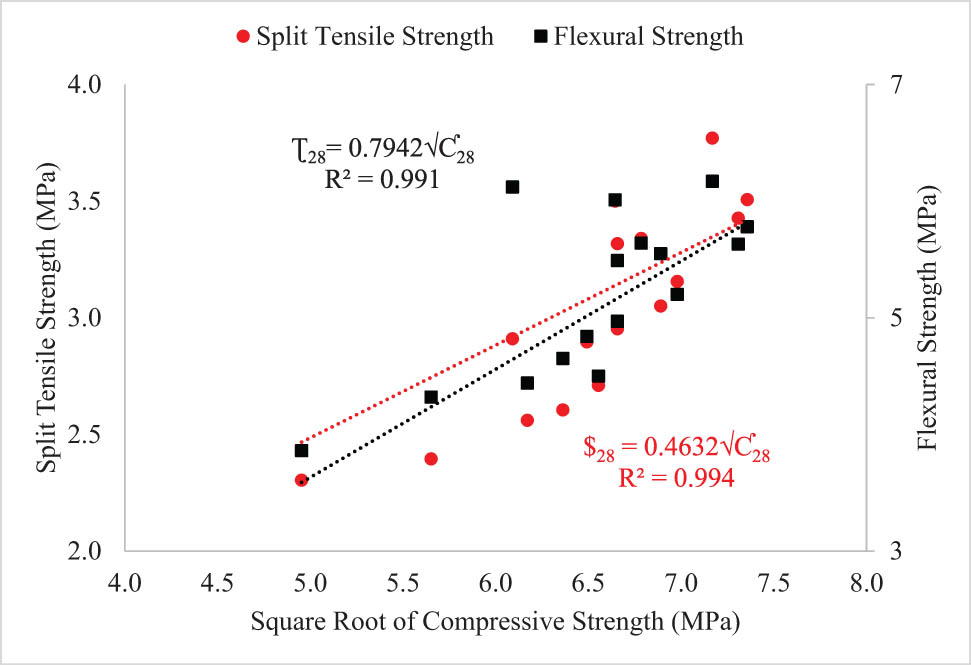

Figure 13 Power relationship between compressive strength and split tensile/flexural strengths.
Figure 13

Power relationship between compressive strength and split tensile/flexural strengths.

Table 4

Comparison between the predicted strengths and existing models

Compressive strength Split tensile strength Flexural strength
This study ACI 318 [50] CEB-FIB [51] Hesami et al. [53] This study ACI 318 [50] BS 8110 [55] Ahmed et al. [54]
$ = 0.56 Ƈ $ = 0.3Ƈ 0.66 $ = 0.5 Ƈ Ʈ = 0.62 Ƈ Ʈ = 0.6 Ƈ 0.45Ƈ 2/3
48.71 3.16 3.91 3.90 3.49 5.20 4.33 4.19 6.00
46.04 3.34 3.80 3.76 3.39 5.64 4.21 4.07 5.78
44.15 3.50 3.72 3.65 3.32 6.01 4.12 3.99 5.62
37.10 2.91 3.41 3.26 3.05 6.12 3.78 3.65 5.01
53.42 3.43 4.09 4.14 3.65 5.63 4.53 4.39 6.38
54.13 3.51 4.12 4.18 3.68 5.78 4.56 4.41 6.44
51.39 3.77 4.01 4.04 3.58 6.17 4.44 4.30 6.22
47.48 3.05 3.86 3.83 3.45 5.55 4.27 4.13 5.90
44.32 2.95 3.73 3.66 3.33 4.97 4.13 3.99 5.64
44.32 3.32 3.73 3.66 3.33 5.49 4.13 3.99 5.64
42.15 2.90 3.64 3.54 3.25 4.84 4.03 3.90 5.45
42.96 2.71 3.67 3.59 3.28 4.50 4.06 3.93 5.52
40.48 2.60 3.56 3.45 3.18 4.65 3.94 3.82 5.31
38.09 2.56 3.46 3.31 3.09 4.44 3.83 3.70 5.09
31.95 2.39 3.17 2.95 2.83 4.32 3.50 3.39 4.53
24.53 2.30 2.77 2.48 2.48 3.86 3.07 2.97 3.80

3.7 Water absorption

Figure 14 displays the water absorption results for the DPFRC containing different proportions of NAC and DPF. The water absorption increased with the increase in DPF. The water absorption values of mixes M1F0A, M2F0A, and M3F0A were higher by 6.6, 14.2, and 25.6%, respectively, when compared with that of the control. The related outcomes were reported by Bamaga [56] and Ibrahim et al. [8]. The increase in water absorption was attributed to the hydrophilicity of the DPF owing to its high lignocellulose contents, which makes it absorb water during mixing. After the concrete dries, this creates excess pores in the hardened cement paste and thus increases absorption [8,57]. The addition of up to 2% NAC to the plain concrete (without DPF) led to a decrease in its water absorption. The water absorption values of M0F1A and M0F2A were lower by 20 and 9.9%, respectively, when compared to that of the control. The decrease in water absorption is attributed to the densification of the cement matrix by the finer particles of the NAC. The addition of up to 2% NAC lowered the water absorption of the DFFRC containing 1% DPF only. That is, the addition of up to 2% NAC cushioned the detrimental effect of 1% DPF addition on the water absorption of DPFRC. The water absorption values for M1F1A and M1F2A were lower by 12.1 and 7.9%, respectively, when compared to that of the control. The decrease in water absorption is due to the densification of the microstructure with the addition of NAC and reducing its porosity generated due to DPF inclusion, hence lowering its water absorption. On the contrary, the addition of more than 2% NAC led to a further increase in the water absorption of the plain concrete (without DPF) and the DPFRC. This was attributed to the adverse influence of the NAC on the consistency and fluidity of the fresh DPFRC, which resulted in difficult compaction and dispersal of the fiber, and hence intensified the porosity and air voids in the concrete’s microstructure. This led to an increase in porosity and water absorption in the DPFRC.

Figure 14 Water absorption results.
Figure 14

Water absorption results.

3.8 Microstructural evaluation

3.8.1 FESEM

The influence of NAC as an additive and DPF on the microstructural properties of the DPFRC was examined using an SEM. Figure 15 presents the microstructural morphologies of the control mix and some mixes containing DPF and NAC. Scattered pores and microcracks can be detected on the concrete mix’s surface as depicted in Figure 15a, with the microstructure relatively densified due to cement hydration. The scattered pores on the microstructure of the control might be due to air bubbles entrapped during mixing which dries up and creates voids in the matrix. As shown in Figure 15b, the microstructural morphology of mix M2F0A is the least densified and most porous. This is due to the adverse effect of the DPF resulting from its hydrophilic nature, whereby it absorbs water during mixing and entrains air on its surface. Drying, thereafter, led to more porosity in the microstructure [8]. The addition of NAC to the DPFRC densified its microstructure and filled up the surplus pores generated by the DPF. For instance, the microstructure of mix M1F1A is the most densified as seen in Figure 15c, followed by that of mix M2F2A. Furthermore, comparing Figure 15b and d, all of which contain 2% DPF, the microstructure of the latter is most densified and homogenous with fewer pores compared to that of the former. This densification is due to the filler ability of the NAC. Another reason is that it serves as a nucleation site effect for polymerization products beyond dissolution [42].

Figure 15 SEM images of DPFRC mixes. (a) Control, (b) M2F0A, (c) M1F1A, and (d) M2F2A.
Figure 15

SEM images of DPFRC mixes. (a) Control, (b) M2F0A, (c) M1F1A, and (d) M2F2A.

3.8.2 XRD analysis

XRD was conducted to examine the influence of the addition of NAC on the hydration reactions of cement paste in the DPFRC. Selective mixes containing different proportions of DPF and NAC were chosen and tested using XRD. The results of the XRD analysis are presented in Figure 16a–c. In the XRD results, Q represents quartz (SiO2), C denotes calcite (CaCO3), P denotes Portlandites, i.e., Ca(OH)2, and E represents ettringites. In all the figures, broad amorphous humps can be seen due to the formation of calcium silicate hydrate (C–S–H), which is accountable for the strength development and densification of the microstructure. The XRD patterns of all the mixes were similar showing alike peak patterns, with the main hydration products being silica, Portlandites, calcites, and alumina. A very faint peak of ettringite was traced on some of the mixes at lower 2θ degrees. In the control, the main hydration product is Ca(OH)2, which has the highest peak intensity and several other peaks at different 2θ values, followed by silica and calcite. The presence of the Ca(OH)2 peak in the control is due to the hydration reaction between the cement compound (CaO) and water to form Ca(OH)2 as a by-product. Comparable outcomes have been reported by previous studies [58]. The calcite in the control XRD might be due to the carbonization effect occurring during cement hydration [58,59]. For the mixes containing NAC, the main hydration product is the calcite (CaCO3), which has the highest peak intensity and occurs at several 2θ degrees. This is occurring due to the presence of a high proportion of carbon in the NAC; the carbon reacts with the CaO in cement to form calcium carbonate. The addition of the NAC decreased the Portlandite content in the concrete, which can be seen by comparing the peaks of Ca(OH)2 in the control with the peaks of Ca(OH)2 in the mixes with NAC (Figure 16b and c). The mix with the highest NAC content (M3F3A) has the highest peak intensity for CaCO3. As part of the CaO in the cement is reacting with the carbon from NAC, this led to the reduction in the generation of unreacted Ca(OH)2. This might be one of the reasons for the improvements in the strengths of the concrete with the addition of NAC.

Figure 16 XRD pattern of DPFRC mixes. (a) Control, (b) mix M2F2A, and (c) M3F3A.
Figure 16

XRD pattern of DPFRC mixes. (a) Control, (b) mix M2F2A, and (c) M3F3A.

3.9 Statistical modeling using multivariable regression

Statistical modeling using multivariable regression analysis (MRA) was conducted to establish mathematical equations for the prediction of the properties of the DPFRC containing DPD and NAC as variables. Based on the experimental results, prediction models for the slump, fresh density, strengths, and water absorption were established.

The basic globalized MRA equation is expressed in the form of a linear equation as shown in Eq. (1) [60]:

(1) y ( x 1 , x 2 , x 3 , … , x n ) = ψ + δ 1 x 1 + δ 2 x 2 + δ 3 x 3 + … + δ n x n ,

where y denotes the response/output, ψ is the coefficient of the intercept, and ẟ is the linear regression coefficient.

However, as most of the relationships between the responses/outputs and variables contain some curvature, a non-linear multi-variable regression analysis using second-order polynomials will improve the prediction accuracy and reduce the errors in the models. The global second-order non-linear MRA equation is expressed as Eq. (2) [60]:

(2) y = ∑ i = 1 n δ i x i + ∑ i = 1 n − 1 ∑ j = i + 1 n δ ij x i x j + ψ ,

where y represents the response/output, x represents the independent variables, ẟ i and ẟ ij represent the coefficients of the first- and second-order polynomials, respectively, n is the number of input variables, and ψ is the constant of regression.

Therefore, in this study, non-linear MRA was adopted for the establishment of the model equations. The developed MRA equations for the fresh and hardened properties of the DPFRC are expressed as Eqs. (3)–(11):

(3) S = 86 − 7 . 64 × P − 2 . 20 × D + 0 . 60 × P × D − 1 . 0 × P 2 + 0 . 42 × D 2 ,

(4) D = 2453 . 63 + 134 . 82 × P + 19 . 15 × D − 3 . 50 × P × D − 54 . 25 × P 2 − 11 . 67 × D 2 ,

(5) Ƈ 7 = 41 . 11 − 1 . 35 × P + 2 . 82 × D − 1 . 19 × P × D − 1 . 86 × P 2 + 0 . 93 × D 2 ,

(6) Ƈ 28 = 49 . 85 + 3 . 10 × P + 3 . 94 × D − 2 . 01 × P × D − 2 . 18 × P 2 − 0 . 83 × D 2 ,

(7) $ 7 = 2 . 65 + 0 . 16 × P + 0 . 25 × D − 0 . 04 × P × D − 0 . 12 × P 2 − 0 . 09 × D 2 ,

(8) $ 28 = 3 . 26 + 0 . 20 × P + 0 . 37 × D − 0 . 04 × P × D − 0 . 15 × P 2 − 0 . 13 × D 2 ,

(9) Ʈ 7 = 4 . 39 + 0 . 11 × P + 0 . 55 × D − 0 . 16 × P × D − 0 . 11 × P 2 − 0 . 11 × D 2 ,

(10) Ʈ 28 = 5 . 39 + 0 . 12 × P + 0 . 76 × D − 0 . 19 × P × D − 0 . 13 × P 2 − 0 . 17 × D 2 ,

(11) WA = 3 . 25 − 1 . 01 × P + 0 . 32 × D − 0 . 05 × P × D + 0 . 44 × P 2 − 0 . 03 × D 2 ,

where S is the slump in mm; D is the fresh density in kg/m3; Ƈ 7 and Ƈ 28 are the 7- and 28-compressive strengths, respectively, in MPa; $7 and $28 are the 7- and 28-day split tensile strengths, respectively, in MPa; Ʈ7 and Ʈ28 are the 7- and 28-flexural strengths, respectively, in MPa; WA is the water absorption in % and P and D represent NAC and DPF, respectively, in %.

Table 5 highlights the ANOVA for all the models established for the estimation of the DPFRC’s properties. Using the level of significance (P < 0.05), the statistical significance for all the models was checked. All the models were found to be statistically significant based on the significance test (P < 0.05), as their P-values are less than 0.05. Hence, the statistical null hypotheses for all the models were false and rejected. In the established models, scripts D and A represent DPF and NAC, respectively. Using P < 0.05, the statistical significance of each of the models was tested. Higher values of R 2 implied a high degree of correlation of the models with the experimental results and hence high predicting accuracy. As shown in Table 5, all models have excellent R 2 scores of ≥0.9. Therefore, the developed equations can be used to estimate the properties of the DPFRC with high precision.

Table 5

ANOVA summary for multivariable regression models

Output/model SS MS SE F-value P-value Adj R 2 Pearson’s R R 2
Slump (mm) 1493.939 298.788 2.25 59.234 0.000014 0.960 0.988 0.977
Fresh density (kg/m3) 78589.51 15717.9 32.60 14.789 0.00133 0.852 0.956 0.913
7-day compressive strength (MPa) 679.962 135.992 2.34 24.799 0.00026 0.908 0.973 0.947
28-day compressive strength (MPa) 803.312 160.662 2.62 23.317 0.000314 0.903 0.971 0.943
7-day split tensile strength (MPa) 1.435 0.287 0.11 22.450 0.000355 0.899 0.970 0.941
28-day split tensile strength (MPa) 2.175 0.435 0.20 11.152 0.00314 0.809 0.943 0.90
7-day flexural strength (MPa) 3.316 0.663 0.15 28.279 0.000167 0.919 0.976 0.952
28-day flexural strength (MPa) 4.903 0.981 0.27 13.292 0.00185 0.837 0.951 0.905
Water absorption (%) 5.754 1.151 0.15 50.829 0.000024 0.954 0.987 0.973

The predicted responses against the experimental (actual) data were plotted to explain and show the predicting accuracy and correlation of the models graphically (Figure 17a–i). All the models have a very good correlation with the experimental results, as shown by the data points fitting well along the straight trend lines. The plots between the predicted responses (properties) and the experimental (actual) data for all the models have R 2 values ranging between 99.9 and 97.4%. The plots only between 0.1 and 2.6% of the data points were not fully correlated for all the models. The plot for fresh density has the highest correlation of 99.9%, while the plots for 28-day split tensile strength have the lowest correlation of 97.4%.

Figure 17 Predicted versus experimental (actual) plots for (a) Slump, (b) Density, (c) 7-day Compressive Strength, (d) 28-day Compressive Strength, (e) 7-day Split Tensile Strength, (f) 28-day Split Tensile Strength, (g) 7-day Flexural Strength, (h) 28-day Flexural Strength and (i) Water absorption models.
Figure 17

Predicted versus experimental (actual) plots for (a) Slump, (b) Density, (c) 7-day Compressive Strength, (d) 28-day Compressive Strength, (e) 7-day Split Tensile Strength, (f) 28-day Split Tensile Strength, (g) 7-day Flexural Strength, (h) 28-day Flexural Strength and (i) Water absorption models.

4 Conclusions

In this research, the impact of DPF and NAC on the fresh and hardened properties of DPFRC was examined. The derived conclusions are as follows:

  1. The addition of both DPF and NAC to the DPFRC concrete led to a reduction in the workability of the concrete, which was measured using the slump test. Hence, DPF and NAC decreased the consistency of the concrete.

  2. The addition of DPF to the DPFRC resulted in a decrease in its densities at both fresh and hardened states. On the other hand, the addition of up to 2% NAC by cement weight to the DPFRC resulted in an increase in its densities at both fresh and hardened states.

  3. The addition of DPF to the DPFRC led to a decrease in its compressive strength at all ages, where the decrease in strength was more significant with the addition of higher content of DPF.

  4. The addition of 1% NAC by cement weight enhanced the DPFRC’s compressive strength with or without DPF. Moreover, 1% NAC was successful in mitigating the loss in the compressive strength in the DPFRC with up to 2% fiber volume.

  5. The incorporation of up to 2% DPF led to improvements in the flexural and split tensile strengths of the DPFRC.

  6. The addition of up to 1% NAC led to further enrichment in the split tensile and flexural strengths of the DPFRC. Further, 1% NAC mitigated the loss in tensile and flexural strengths due to the addition of 3% DPF to the DPFRC.

  7. The rate of water absorption of the DPFRC increased with the increase in the DPF volume. The addition of up to 2% NAC led to a decrease in the water absorption of the DPFRC.

  8. The addition of up to 2% NAC densified the microstructure of the DPFRC by refining and filling the pores generated by the DPF.

  9. The multi-variable statistical models developed to estimate the mechanical properties of the DPFRC containing DPF and NAC were very significant with a superb degree of precision.

Acknowledgments

The authors wish to acknowledge the support of the Structures and Materials Laboratory (S&M Lab) of the College of Engineering, Prince Sultan University, Riyadh, Saudi Arabia, for their vital support. The authors also wish to acknowledge the support of Prince Sultan University for paying the Article Processing Charges (APC) of this publication.

  1. Funding information: The support of Prince Sultan University for paying the Article Processing Charges (APC).

  2. Author contributions: Musa Adamu: conceptualization, methodology, investigation, formal analysis, writing – original draft; Yasser E. Ibrahim: resources, supervision, writing – review and editing; Omar Shabbir Ahmed: methodology, investigation, resources, writing – review and editing; Qasem A. Drmosh: methodology, investigation, analysis, writing – review and editing. All authors have accepted responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

References

[1] Al-Oqla FM, Sapuan S. Natural fiber reinforced polymer composites in industrial applications: feasibility of date palm fibers for sustainable automotive industry. J Clean Prod. 2014;66:347–54.10.1016/j.jclepro.2013.10.050Search in Google Scholar

[2] Makul N. Advanced smart concrete-A review of current progress, benefits and challenges. J Clean Prod. 2020;274:122899.10.1016/j.jclepro.2020.122899Search in Google Scholar

[3] Gagg CR. Cement and concrete as an engineering material: An historic appraisal and case study analysis. Eng Fail Anal. 2014;40:114–40.10.1016/j.engfailanal.2014.02.004Search in Google Scholar

[4] Chun B, Shin W, Jang YS, Yoo D-Y. Developing strain-hardening ultra-rapid-hardening mortar containing high-volume supplementary cementitious materials and polyethylene fibers. J Mater Res Technol. 2021;13:1934–45.10.1016/j.jmrt.2021.05.093Search in Google Scholar

[5] Aslam F, Zaid O, Althoey F, Alyami SH, Qaidi SM, de Prado Gil J, et al. Evaluating the influence of fly ash and waste glass on the characteristics of coconut fibers reinforced concrete. Struct Concr. 2022;24(2):2440–59.10.1002/suco.202200183Search in Google Scholar

[6] Zaid O, Ahmad J, Siddique MS, Aslam F, Alabduljabbar H, Khedher KM. A step towards sustainable glass fiber reinforced concrete utilizing silica fume and waste coconut shell aggregate. Sci Rep. 2021;11(1):1–14.10.1038/s41598-021-92228-6Search in Google Scholar PubMed PubMed Central

[7] Zaid O, Ahmad J, Siddique MS, Aslam F. Effect of incorporation of rice husk ash instead of cement on the performance of steel fibers reinforced concrete. Front Mater. 2021;8:665625.10.3389/fmats.2021.665625Search in Google Scholar

[8] Ibrahim YE, Adamu M, Marouf ML, Ahmed OS, Drmosh Q, Malik MA. Mechanical performance of date-palm-fiber-reinforced concrete containing silica fume. Buildings. 2022;12(10):1642.10.3390/buildings12101642Search in Google Scholar

[9] Adamu M, Alanazi F, Ibrahim YE, Alanazi H, Khed VC. A comprehensive review on sustainable natural fiber in cementitious composites: The date palm fiber case. Sustainability. 2022;14(11):6691.10.3390/su14116691Search in Google Scholar

[10] Danish A, Mosaberpanah MA, Salim MU, Amran M, Fediuk R, Ozbakkaloglu T, et al. Utilization of recycled carbon fiber reinforced polymer in cementitious composites: A critical review. J Build Eng. 2022;53:104583.10.1016/j.jobe.2022.104583Search in Google Scholar

[11] Ozerkan NG, Ahsan B, Mansour S, Iyengar SR. Mechanical performance and durability of treated palm fiber reinforced mortars. Int J Sustain Built Environ. 2013;2(2):131–42.10.1016/j.ijsbe.2014.04.002Search in Google Scholar

[12] Bentur A, Mindess S. Fibre reinforced cementitious composites. New York, United States of America: CRC Press; 2006.10.1201/9781482267747Search in Google Scholar

[13] Li Z, Wang X, Wang L. Properties of hemp fibre reinforced concrete composites. Compos part A: Appl Sci Manuf. 2006;37(3):497–505.10.1016/j.compositesa.2005.01.032Search in Google Scholar

[14] Kalia S, Avérous L, Njuguna J, Dufresne A, Cherian BM. Natural fibers, bio-and nanocomposites. Int J Polym Sci. 2011;2011. https://doi.org/10.1155/2011/735932.10.1155/2011/735932Search in Google Scholar

[15] Faruk O, Bledzki AK, Fink H-P, Sain M. Biocomposites reinforced with natural fibers: 2000–2010. Prog Polym Sci. 2012;37(11):1552–96.10.1016/j.progpolymsci.2012.04.003Search in Google Scholar

[16] Bamaga S. A review on the utilization of date palm fibers as inclusion in concrete and mortar. Fibers. 2022;10(4):35.10.3390/fib10040035Search in Google Scholar

[17] Lahouioui M, Ben Arfi R, Fois M, Ibos L, Ghorbal A. Investigation of fiber surface treatment effect on thermal, mechanical and acoustical properties of date palm fiber-reinforced cementitious composites. Waste Biomass Valoriz. 2020;11(8):4441–55.10.1007/s12649-019-00745-3Search in Google Scholar

[18] Kriker A, Debicki G, Bali A, Khenfer M, Chabannet M. Mechanical properties of date palm fibres and concrete reinforced with date palm fibres in hot-dry climate. Cem Concr Compos. 2005;27(5):554–64.10.1016/j.cemconcomp.2004.09.015Search in Google Scholar

[19] Khelifa H, Bezazi A, Boumediri H, del Pino GG, Reis PN, Scarpa F, et al. Mechanical characterization of mortar reinforced by date palm mesh fibers: Experimental and statistical analysis. Constr Build Mater. 2021;300:124067.10.1016/j.conbuildmat.2021.124067Search in Google Scholar

[20] Mahoutian M, Lubell AS, Bindiganavile VS. Effect of powdered activated carbon on the air void characteristics of concrete containing fly ash. Constr Build Mater. 2015;80:84–91.10.1016/j.conbuildmat.2015.01.019Search in Google Scholar

[21] Moses MT, Thomas LB, Scaria J, Dev GV. Prospective benefits of using activated carbon in cement composites - An overview. Technology. 2019;10(4):946–53.10.34218/IJARET.10.3.2019.027Search in Google Scholar

[22] Morgan B, Dumbauld G. Use of activated charcoal in cement to combat effects of contamination by drilling muds. J Pet Technol. 1952;4(9):225–32.10.2118/952225-GSearch in Google Scholar

[23] Justo-Reinoso I, Srubar WV III, Caicedo-Ramirez A, Hernandez MT. Fine aggregate substitution by granular activated carbon can improve physical and mechanical properties of cement mortars. Constr Build Mater. 2018;164:750–9.10.1016/j.conbuildmat.2017.12.181Search in Google Scholar

[24] Horgnies M, Dubois-Brugger I, Gartner E. NOx de-pollution by hardened concrete and the influence of activated charcoal additions. Cem Concr Res. 2012;42(10):1348–55.10.1016/j.cemconres.2012.06.007Search in Google Scholar

[25] Krou N, Batonneau-Gener I, Belin T, Mignard S, Horgnies M, Dubois-Brugger I. Mechanisms of NOx entrapment into hydrated cement paste containing activated carbon – Influences of the temperature and carbonation. Cem Concr Res. 2013;53:51–8.10.1016/j.cemconres.2013.06.006Search in Google Scholar

[26] Erşan YÇ, Da Silva FB, Boon N, Verstraete W, De Belie N. Screening of bacteria and concrete compatible protection materials. Constr Build Mater. 2015;88:196–203.10.1016/j.conbuildmat.2015.04.027Search in Google Scholar

[27] Resheidat M, Al-Araji N, Ghanma M, editors. Effect of charcoal on the porosity and the properties of concrete. Innovations and Developments in Concrete Materials and Construction: Proceedings of the International Conference held at the University of Dundee, Scotland, UK on 9–11 September 2002. Thomas Telford Publishing; 2002.Search in Google Scholar

[28] Krou N, Batonneau-Gener I, Belin T, Mignard S, Javierre I, Dubois-Brugger I, et al. Reactivity of volatile organic compounds with hydrated cement paste containing activated carbon. Build Environ. 2015;87:102–7.10.1016/j.buildenv.2015.01.025Search in Google Scholar

[29] Elmouwahidi A, Zapata-Benabithe Z, Carrasco-Marín F, Moreno-Castilla C. Activated carbons from KOH-activation of argan (Argania spinosa) seed shells as supercapacitor electrodes. Bioresour Technol. 2012;111:185–90.10.1016/j.biortech.2012.02.010Search in Google Scholar PubMed

[30] Na S, Lee S, Youn S. Experiment on activated carbon manufactured from waste coffee grounds on the compressive strength of cement mortars. Symmetry. 2021;13(4):619.10.3390/sym13040619Search in Google Scholar

[31] Zheng C, Liu Z, Xu J, Li X, Yao Y. Compressive strength and microstructure of activated carbon-fly ash cement composites. Chem Eng Trans. 2017;59:475–80.Search in Google Scholar

[32] Wang Y, Ge Y, Wang X, Chen X, Li Q. The effect of powder activated carbon on mechanical properties and pore structures of cement-based mortars. Constr Build Mater. 2022;316:125798.10.1016/j.conbuildmat.2021.125798Search in Google Scholar

[33] ASTM C150/150M. Standard specification for Portland cement. West Conshohocken, PA, USA: ASTM International; 2015.Search in Google Scholar

[34] ASTM C33. Standard specification for concrete aggregates. West Conshohocken, PA, USA: ASTM International; 2018.Search in Google Scholar

[35] ACI 211.1R. Standard practice for selecting proportions for normal, heavyweight, and mass concrete. Michigan, USA: American Concrete Institute; 2002.Search in Google Scholar

[36] Adamu M, Ibrahim YE, Abdel daiem MM, Alanazi H, Elalaoui O, Ali NM. Optimization and modelling the mechanical performance of date palm fiber-reinforced concrete incorporating powdered activation carbon using response surface methodology. Materials. 2023;16(8):2977.10.3390/ma16082977Search in Google Scholar PubMed PubMed Central

[37] ASTM C143/C143M. Standard test method for slump of hydraulic-cement concrete. West Conshohocken, PA, USA: ASTM International; 2012.Search in Google Scholar

[38] ASTM C138/C138M. Standard test method for density (Unit Weight), yield, and air content (Gravimetric) of concrete. West Conshohocken, PA, USA: ASTM International; 2017.Search in Google Scholar

[39] BS EN 12390-3. Testing hardened concrete. Compressive strength of test specimens. London, United Kingdom: British Standards Institution; 2009.Search in Google Scholar

[40] ASTM C78/C78M. Standard test method for flexural strength of concrete (Using Simple Beam with Third-Point Loading). West Conshohocken, PA, USA: ASTM International; 2015.Search in Google Scholar

[41] Lekkam M, Benmounah A, Kadri E-H, Soualhi H, Kaci A. Influence of saturated activated carbon on the rheological and mechanical properties of cementitious materials. Constr Build Mater. 2019;198:411–22.10.1016/j.conbuildmat.2018.11.257Search in Google Scholar

[42] Rashad AM, Said N, Abdel-Gawwad HA. An initial study about the effect of activated carbon nano-sheets from residual biomass of olive trees pellets on the properties of alkali-activated slag pastes. J Build Eng. 2021;44:102661.10.1016/j.jobe.2021.102661Search in Google Scholar

[43] Zaid O, Hashmi SRZ, Aslam F, Abedin ZU, Ullah A. Experimental study on the properties improvement of hybrid graphene oxide fiber-reinforced composite concrete. Diam Relat Mater. 2022;124:108883.10.1016/j.diamond.2022.108883Search in Google Scholar

[44] Ali-Boucetta T, Ayat A, Laifa W, Behim M. Treatment of date palm fibres mesh: Influence on the rheological and mechanical properties of fibre-cement composites. Constr Build Mater. 2021;273:121056.10.1016/j.conbuildmat.2020.121056Search in Google Scholar

[45] Adamu M, Trabanpruek P, Jongvivatsakul P, Likitlersuang S, Iwanami M. Mechanical performance and optimization of high-volume fly ash concrete containing plastic wastes and graphene nanoplatelets using response surface methodology. Constr Build Mater. 2021;308:125085.10.1016/j.conbuildmat.2021.125085Search in Google Scholar

[46] Kriker A, Bali A, Debicki G, Bouziane M, Chabannet M. Durability of date palm fibres and their use as reinforcement in hot dry climates. Cem Concr Compos. 2008;30(7):639–48.10.1016/j.cemconcomp.2007.11.006Search in Google Scholar

[47] Boumhaout M, Boukhattem L, Hamdi H, Benhamou B, Nouh FA. Thermomechanical characterization of a bio-composite building material: Mortar reinforced with date palm fibers mesh. Constr Build Mater. 2017;135:241–50.10.1016/j.conbuildmat.2016.12.217Search in Google Scholar

[48] Maglad AM, Zaid O, Arbili MM, Ascensão G, Șerbănoiu AA, Grădinaru CM, et al. A study on the properties of geopolymer concrete modified with nano graphene oxide. Buildings. 2022;12(8):1066.10.3390/buildings12081066Search in Google Scholar

[49] Benaniba S, Driss Z, Djendel M, Raouache E, Boubaaya R. Thermo-mechanical characterization of a bio-composite mortar reinforced with date palm fiber. J Engineered Fibers Fabr. 2020;15:1558925020948234.10.1177/1558925020948234Search in Google Scholar

[50] Committee A, editor. Building code requirements for structural concrete (ACI 318-08) and commentary. American Concrete Institute; 2008.Search in Google Scholar

[51] Béton CE-Id. CEB-FIP model code 1990: Design code. Thomas Telford Publishing; 1993.Search in Google Scholar

[52] ACI 363. Report on high-strength concrete. Michigan, USA: American Concrete Institute; 2010.Search in Google Scholar

[53] Hesami S, Modarres A, Soltaninejad M, Madani H. Mechanical properties of roller compacted concrete pavement containing coal waste and limestone powder as partial replacements of cement. Constr Build Mater. 2016;111:625–36.10.1016/j.conbuildmat.2016.02.116Search in Google Scholar

[54] Ahmed M, Hadi KME, Hasan MA, Mallick J, Ahmed A. Evaluating the co-relationship between concrete flexural tensile strength and compressive strength. Int J Struct Eng. 2014;5(2):115–31.10.1504/IJSTRUCTE.2014.060902Search in Google Scholar

[55] BS 8110-1. Structural use of concrete - Code of practice for design and construction. London, United Kingdom: British Standard Institution; 1997.Search in Google Scholar

[56] Bamaga S. Physical and mechanical properties of mortars containing date palm fibers. Mater Res Express. 2022;9(1):015102.10.1088/2053-1591/ac48b7Search in Google Scholar

[57] Benmansour N, Agoudjil B, Gherabli A, Kareche A, Boudenne A. Thermal and mechanical performance of natural mortar reinforced with date palm fibers for use as insulating materials in building. Energy Build. 2014;81:98–104.10.1016/j.enbuild.2014.05.032Search in Google Scholar

[58] Liu S, Yan P. Effect of limestone powder on microstructure of concrete. J Wuhan Univ Technol-Mater Sci Ed. 2010;25(2):328–31.10.1007/s11595-010-2328-5Search in Google Scholar

[59] Adamu M, Ibrahim YE, Al-Atroush ME, Alanazi H. Mechanical properties and durability performance of concrete containing calcium carbide residue and nano silica. Materials. 2021;14(22):6960.10.3390/ma14226960Search in Google Scholar PubMed PubMed Central

[60] Liu B, Shi J, Zhou F, Shen S, Ding Y, Qin J. Effects of steam curing regimes on the capillary water absorption of concrete: Prediction using multivariable regression models. Constr Build Mater. 2020;256:119426.10.1016/j.conbuildmat.2020.119426Search in Google Scholar
Received: 2023-02-18
Revised: 2023-05-09
Accepted: 2023-06-05
Published Online: 2023-07-10

© 2023 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Preparation of CdS–Ag2S nanocomposites by ultrasound-assisted UV photolysis treatment and its visible light photocatalysis activity
  3. Significance of nanoparticle radius and inter-particle spacing toward the radiative water-based alumina nanofluid flow over a rotating disk
  4. Aptamer-based detection of serotonin based on the rapid in situ synthesis of colorimetric gold nanoparticles
  5. Investigation of the nucleation and growth behavior of Ti2AlC and Ti3AlC nano-precipitates in TiAl alloys
  6. Dynamic recrystallization behavior and nucleation mechanism of dual-scale SiCp/A356 composites processed by P/M method
  7. High mechanical performance of 3-aminopropyl triethoxy silane/epoxy cured in a sandwich construction of 3D carbon felts foam and woven basalt fibers
  8. Applying solution of spray polyurea elastomer in asphalt binder: Feasibility analysis and DSR study based on the MSCR and LAS tests
  9. Study on the chronic toxicity and carcinogenicity of iron-based bioabsorbable stents
  10. Influence of microalloying with B on the microstructure and properties of brazed joints with Ag–Cu–Zn–Sn filler metal
  11. Thermohydraulic performance of thermal system integrated with twisted turbulator inserts using ternary hybrid nanofluids
  12. Study of mechanical properties of epoxy/graphene and epoxy/halloysite nanocomposites
  13. Effects of CaO addition on the CuW composite containing micro- and nano-sized tungsten particles synthesized via aluminothermic coupling with silicothermic reduction
  14. Cu and Al2O3-based hybrid nanofluid flow through a porous cavity
  15. Design of functional vancomycin-embedded bio-derived extracellular matrix hydrogels for repairing infectious bone defects
  16. Study on nanocrystalline coating prepared by electro-spraying 316L metal wire and its corrosion performance
  17. Axial compression performance of CFST columns reinforced by ultra-high-performance nano-concrete under long-term loading
  18. Tungsten trioxide nanocomposite for conventional soliton and noise-like pulse generation in anomalous dispersion laser cavity
  19. Microstructure and electrical contact behavior of the nano-yttria-modified Cu-Al2O3/30Mo/3SiC composite
  20. Melting rheology in thermally stratified graphene-mineral oil reservoir (third-grade nanofluid) with slip condition
  21. Re-examination of nonlinear vibration and nonlinear bending of porous sandwich cylindrical panels reinforced by graphene platelets
  22. Parametric simulation of hybrid nanofluid flow consisting of cobalt ferrite nanoparticles with second-order slip and variable viscosity over an extending surface
  23. Chitosan-capped silver nanoparticles with potent and selective intrinsic activity against the breast cancer cells
  24. Multi-core/shell SiO2@Al2O3 nanostructures deposited on Ti3AlC2 to enhance high-temperature stability and microwave absorption properties
  25. Solution-processed Bi2S3/BiVO4/TiO2 ternary heterojunction photoanode with enhanced photoelectrochemical performance
  26. Electroporation effect of ZnO nanoarrays under low voltage for water disinfection
  27. NIR-II window absorbing graphene oxide-coated gold nanorods and graphene quantum dot-coupled gold nanorods for photothermal cancer therapy
  28. Nonlinear three-dimensional stability characteristics of geometrically imperfect nanoshells under axial compression and surface residual stress
  29. Investigation of different nanoparticles properties on the thermal conductivity and viscosity of nanofluids by molecular dynamics simulation
  30. Optimized Cu2O-{100} facet for generation of different reactive oxidative species via peroxymonosulfate activation at specific pH values to efficient acetaminophen removal
  31. Brownian and thermal diffusivity impact due to the Maxwell nanofluid (graphene/engine oil) flow with motile microorganisms and Joule heating
  32. Appraising the dielectric properties and the effectiveness of electromagnetic shielding of graphene reinforced silicone rubber nanocomposite
  33. Synthesis of Ag and Cu nanoparticles by plasma discharge in inorganic salt solutions
  34. Low-cost and large-scale preparation of ultrafine TiO2@C hybrids for high-performance degradation of methyl orange and formaldehyde under visible light
  35. Utilization of waste glass with natural pozzolan in the production of self-glazed glass-ceramic materials
  36. Mechanical performance of date palm fiber-reinforced concrete modified with nano-activated carbon
  37. Melting point of dried gold nanoparticles prepared with ultrasonic spray pyrolysis and lyophilisation
  38. Graphene nanofibers: A modern approach towards tailored gypsum composites
  39. Role of localized magnetic field in vortex generation in tri-hybrid nanofluid flow: A numerical approach
  40. Intelligent computing for the double-diffusive peristaltic rheology of magneto couple stress nanomaterials
  41. Bioconvection transport of upper convected Maxwell nanoliquid with gyrotactic microorganism, nonlinear thermal radiation, and chemical reaction
  42. 3D printing of porous Ti6Al4V bone tissue engineering scaffold and surface anodization preparation of nanotubes to enhance its biological property
  43. Bioinspired ferromagnetic CoFe2O4 nanoparticles: Potential pharmaceutical and medical applications
  44. Significance of gyrotactic microorganisms on the MHD tangent hyperbolic nanofluid flow across an elastic slender surface: Numerical analysis
  45. Performance of polycarboxylate superplasticisers in seawater-blended cement: Effect from chemical structure and nano modification
  46. Entropy minimization of GO–Ag/KO cross-hybrid nanofluid over a convectively heated surface
  47. Oxygen plasma assisted room temperature bonding for manufacturing SU-8 polymer micro/nanoscale nozzle
  48. Performance and mechanism of CO2 reduction by DBD-coupled mesoporous SiO2
  49. Polyarylene ether nitrile dielectric films modified by HNTs@PDA hybrids for high-temperature resistant organic electronics field
  50. Exploration of generalized two-phase free convection magnetohydrodynamic flow of dusty tetra-hybrid Casson nanofluid between parallel microplates
  51. Hygrothermal bending analysis of sandwich nanoplates with FG porous core and piezomagnetic faces via nonlocal strain gradient theory
  52. Design and optimization of a TiO2/RGO-supported epoxy multilayer microwave absorber by the modified local best particle swarm optimization algorithm
  53. Mechanical properties and frost resistance of recycled brick aggregate concrete modified by nano-SiO2
  54. Self-template synthesis of hollow flower-like NiCo2O4 nanoparticles as an efficient bifunctional catalyst for oxygen reduction and oxygen evolution in alkaline media
  55. High-performance wearable flexible strain sensors based on an AgNWs/rGO/TPU electrospun nanofiber film for monitoring human activities
  56. High-performance lithium–selenium batteries enabled by nitrogen-doped porous carbon from peanut meal
  57. Investigating effects of Lorentz forces and convective heating on ternary hybrid nanofluid flow over a curved surface using homotopy analysis method
  58. Exploring the potential of biogenic magnesium oxide nanoparticles for cytotoxicity: In vitro and in silico studies on HCT116 and HT29 cells and DPPH radical scavenging
  59. Enhanced visible-light-driven photocatalytic degradation of azo dyes by heteroatom-doped nickel tungstate nanoparticles
  60. A facile method to synthesize nZVI-doped polypyrrole-based carbon nanotube for Ag(i) removal
  61. Improved osseointegration of dental titanium implants by TiO2 nanotube arrays with self-assembled recombinant IGF-1 in type 2 diabetes mellitus rat model
  62. Functionalized SWCNTs@Ag–TiO2 nanocomposites induce ROS-mediated apoptosis and autophagy in liver cancer cells
  63. Triboelectric nanogenerator based on a water droplet spring with a concave spherical surface for harvesting wave energy and detecting pressure
  64. A mathematical approach for modeling the blood flow containing nanoparticles by employing the Buongiorno’s model
  65. Molecular dynamics study on dynamic interlayer friction of graphene and its strain effect
  66. Induction of apoptosis and autophagy via regulation of AKT and JNK mitogen-activated protein kinase pathways in breast cancer cell lines exposed to gold nanoparticles loaded with TNF-α and combined with doxorubicin
  67. Effect of PVA fibers on durability of nano-SiO2-reinforced cement-based composites subjected to wet-thermal and chloride salt-coupled environment
  68. Effect of polyvinyl alcohol fibers on mechanical properties of nano-SiO2-reinforced geopolymer composites under a complex environment
  69. In vitro studies of titanium dioxide nanoparticles modified with glutathione as a potential drug delivery system
  70. Comparative investigations of Ag/H2O nanofluid and Ag-CuO/H2O hybrid nanofluid with Darcy-Forchheimer flow over a curved surface
  71. Study on deformation characteristics of multi-pass continuous drawing of micro copper wire based on crystal plasticity finite element method
  72. Properties of ultra-high-performance self-compacting fiber-reinforced concrete modified with nanomaterials
  73. Prediction of lap shear strength of GNP and TiO2/epoxy nanocomposite adhesives
  74. A novel exploration of how localized magnetic field affects vortex generation of trihybrid nanofluids
  75. Fabrication and physicochemical characterization of copper oxide–pyrrhotite nanocomposites for the cytotoxic effects on HepG2 cells and the mechanism
  76. Thermal radiative flow of cross nanofluid due to a stretched cylinder containing microorganisms
  77. In vitro study of the biphasic calcium phosphate/chitosan hybrid biomaterial scaffold fabricated via solvent casting and evaporation technique for bone regeneration
  78. Insights into the thermal characteristics and dynamics of stagnant blood conveying titanium oxide, alumina, and silver nanoparticles subject to Lorentz force and internal heating over a curved surface
  79. Effects of nano-SiO2 additives on carbon fiber-reinforced fly ash–slag geopolymer composites performance: Workability, mechanical properties, and microstructure
  80. Energy bandgap and thermal characteristics of non-Darcian MHD rotating hybridity nanofluid thin film flow: Nanotechnology application
  81. Green synthesis and characterization of ginger-extract-based oxali-palladium nanoparticles for colorectal cancer: Downregulation of REG4 and apoptosis induction
  82. Abnormal evolution of resistivity and microstructure of annealed Ag nanoparticles/Ag–Mo films
  83. Preparation of water-based dextran-coated Fe3O4 magnetic fluid for magnetic hyperthermia
  84. Statistical investigations and morphological aspects of cross-rheological material suspended in transportation of alumina, silica, titanium, and ethylene glycol via the Galerkin algorithm
  85. Effect of CNT film interleaves on the flexural properties and strength after impact of CFRP composites
  86. Self-assembled nanoscale entities: Preparative process optimization, payload release, and enhanced bioavailability of thymoquinone natural product
  87. Structure–mechanical property relationships of 3D-printed porous polydimethylsiloxane films
  88. Nonlinear thermal radiation and the slip effect on a 3D bioconvection flow of the Casson nanofluid in a rotating frame via a homotopy analysis mechanism
  89. Residual mechanical properties of concrete incorporated with nano supplementary cementitious materials exposed to elevated temperature
  90. Time-independent three-dimensional flow of a water-based hybrid nanofluid past a Riga plate with slips and convective conditions: A homotopic solution
  91. Lightweight and high-strength polyarylene ether nitrile-based composites for efficient electromagnetic interference shielding
  92. Review Articles
  93. Recycling waste sources into nanocomposites of graphene materials: Overview from an energy-focused perspective
  94. Hybrid nanofiller reinforcement in thermoset and biothermoset applications: A review
  95. Current state-of-the-art review of nanotechnology-based therapeutics for viral pandemics: Special attention to COVID-19
  96. Solid lipid nanoparticles for targeted natural and synthetic drugs delivery in high-incidence cancers, and other diseases: Roles of preparation methods, lipid composition, transitional stability, and release profiles in nanocarriers’ development
  97. Critical review on experimental and theoretical studies of elastic properties of wurtzite-structured ZnO nanowires
  98. Polyurea micro-/nano-capsule applications in construction industry: A review
  99. A comprehensive review and clinical guide to molecular and serological diagnostic tests and future development: In vitro diagnostic testing for COVID-19
  100. Recent advances in electrocatalytic oxidation of 5-hydroxymethylfurfural to 2,5-furandicarboxylic acid: Mechanism, catalyst, coupling system
  101. Research progress and prospect of silica-based polymer nanofluids in enhanced oil recovery
  102. Review of the pharmacokinetics of nanodrugs
  103. Engineered nanoflowers, nanotrees, nanostars, nanodendrites, and nanoleaves for biomedical applications
  104. Research progress of biopolymers combined with stem cells in the repair of intrauterine adhesions
  105. Progress in FEM modeling on mechanical and electromechanical properties of carbon nanotube cement-based composites
  106. Antifouling induced by surface wettability of poly(dimethyl siloxane) and its nanocomposites
  107. TiO2 aerogel composite high-efficiency photocatalysts for environmental treatment and hydrogen energy production
  108. Structural properties of alumina surfaces and their roles in the synthesis of environmentally persistent free radicals (EPFRs)
  109. Nanoparticles for the potential treatment of Alzheimer’s disease: A physiopathological approach
  110. Current status of synthesis and consolidation strategies for thermo-resistant nanoalloys and their general applications
  111. Recent research progress on the stimuli-responsive smart membrane: A review
  112. Dispersion of carbon nanotubes in aqueous cementitious materials: A review
  113. Applications of DNA tetrahedron nanostructure in cancer diagnosis and anticancer drugs delivery
  114. Magnetic nanoparticles in 3D-printed scaffolds for biomedical applications
  115. An overview of the synthesis of silicon carbide–boron carbide composite powders
  116. Organolead halide perovskites: Synthetic routes, structural features, and their potential in the development of photovoltaic
  117. Recent advancements in nanotechnology application on wood and bamboo materials: A review
  118. Application of aptamer-functionalized nanomaterials in molecular imaging of tumors
  119. Recent progress on corrosion mechanisms of graphene-reinforced metal matrix composites
  120. Research progress on preparation, modification, and application of phenolic aerogel
  121. Application of nanomaterials in early diagnosis of cancer
  122. Plant mediated-green synthesis of zinc oxide nanoparticles: An insight into biomedical applications
  123. Recent developments in terahertz quantum cascade lasers for practical applications
  124. Recent progress in dielectric/metal/dielectric electrodes for foldable light-emitting devices
  125. Nanocoatings for ballistic applications: A review
  126. A mini-review on MoS2 membrane for water desalination: Recent development and challenges
  127. Recent updates in nanotechnological advances for wound healing: A narrative review
  128. Recent advances in DNA nanomaterials for cancer diagnosis and treatment
  129. Electrochemical micro- and nanobiosensors for in vivo reactive oxygen/nitrogen species measurement in the brain
  130. Advances in organic–inorganic nanocomposites for cancer imaging and therapy
  131. Advancements in aluminum matrix composites reinforced with carbides and graphene: A comprehensive review
  132. Modification effects of nanosilica on asphalt binders: A review
  133. Decellularized extracellular matrix as a promising biomaterial for musculoskeletal tissue regeneration
  134. Review of the sol–gel method in preparing nano TiO2 for advanced oxidation process
  135. Micro/nano manufacturing aircraft surface with anti-icing and deicing performances: An overview
  136. Cell type-targeting nanoparticles in treating central nervous system diseases: Challenges and hopes
  137. An overview of hydrogen production from Al-based materials
  138. A review of application, modification, and prospect of melamine foam
  139. A review of the performance of fibre-reinforced composite laminates with carbon nanotubes
  140. Research on AFM tip-related nanofabrication of two-dimensional materials
  141. Advances in phase change building materials: An overview
  142. Development of graphene and graphene quantum dots toward biomedical engineering applications: A review
  143. Nanoremediation approaches for the mitigation of heavy metal contamination in vegetables: An overview
  144. Photodynamic therapy empowered by nanotechnology for oral and dental science: Progress and perspectives
  145. Biosynthesis of metal nanoparticles: Bioreduction and biomineralization
  146. Current diagnostic and therapeutic approaches for severe acute respiratory syndrome coronavirus-2 (SARS-COV-2) and the role of nanomaterial-based theragnosis in combating the pandemic
  147. Application of two-dimensional black phosphorus material in wound healing
  148. Special Issue on Advanced Nanomaterials and Composites for Energy Conversion and Storage - Part I
  149. Helical fluorinated carbon nanotubes/iron(iii) fluoride hybrid with multilevel transportation channels and rich active sites for lithium/fluorinated carbon primary battery
  150. The progress of cathode materials in aqueous zinc-ion batteries
  151. Special Issue on Advanced Nanomaterials for Carbon Capture, Environment and Utilization for Energy Sustainability - Part I
  152. Effect of polypropylene fiber and nano-silica on the compressive strength and frost resistance of recycled brick aggregate concrete
  153. Mechanochemical design of nanomaterials for catalytic applications with a benign-by-design focus
https://doi.org/10.1515/ntrev-2022-0564
Keywords for this article
natural fiber; date palm fiber; nano-activated carbon; mechanical properties
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Articles
  2. Preparation of CdS–Ag2S nanocomposites by ultrasound-assisted UV photolysis treatment and its visible light photocatalysis activity
  3. Significance of nanoparticle radius and inter-particle spacing toward the radiative water-based alumina nanofluid flow over a rotating disk
  4. Aptamer-based detection of serotonin based on the rapid in situ synthesis of colorimetric gold nanoparticles
  5. Investigation of the nucleation and growth behavior of Ti2AlC and Ti3AlC nano-precipitates in TiAl alloys
  6. Dynamic recrystallization behavior and nucleation mechanism of dual-scale SiCp/A356 composites processed by P/M method
  7. High mechanical performance of 3-aminopropyl triethoxy silane/epoxy cured in a sandwich construction of 3D carbon felts foam and woven basalt fibers
  8. Applying solution of spray polyurea elastomer in asphalt binder: Feasibility analysis and DSR study based on the MSCR and LAS tests
  9. Study on the chronic toxicity and carcinogenicity of iron-based bioabsorbable stents
  10. Influence of microalloying with B on the microstructure and properties of brazed joints with Ag–Cu–Zn–Sn filler metal
  11. Thermohydraulic performance of thermal system integrated with twisted turbulator inserts using ternary hybrid nanofluids
  12. Study of mechanical properties of epoxy/graphene and epoxy/halloysite nanocomposites
  13. Effects of CaO addition on the CuW composite containing micro- and nano-sized tungsten particles synthesized via aluminothermic coupling with silicothermic reduction
  14. Cu and Al2O3-based hybrid nanofluid flow through a porous cavity
  15. Design of functional vancomycin-embedded bio-derived extracellular matrix hydrogels for repairing infectious bone defects
  16. Study on nanocrystalline coating prepared by electro-spraying 316L metal wire and its corrosion performance
  17. Axial compression performance of CFST columns reinforced by ultra-high-performance nano-concrete under long-term loading
  18. Tungsten trioxide nanocomposite for conventional soliton and noise-like pulse generation in anomalous dispersion laser cavity
  19. Microstructure and electrical contact behavior of the nano-yttria-modified Cu-Al2O3/30Mo/3SiC composite
  20. Melting rheology in thermally stratified graphene-mineral oil reservoir (third-grade nanofluid) with slip condition
  21. Re-examination of nonlinear vibration and nonlinear bending of porous sandwich cylindrical panels reinforced by graphene platelets
  22. Parametric simulation of hybrid nanofluid flow consisting of cobalt ferrite nanoparticles with second-order slip and variable viscosity over an extending surface
  23. Chitosan-capped silver nanoparticles with potent and selective intrinsic activity against the breast cancer cells
  24. Multi-core/shell SiO2@Al2O3 nanostructures deposited on Ti3AlC2 to enhance high-temperature stability and microwave absorption properties
  25. Solution-processed Bi2S3/BiVO4/TiO2 ternary heterojunction photoanode with enhanced photoelectrochemical performance
  26. Electroporation effect of ZnO nanoarrays under low voltage for water disinfection
  27. NIR-II window absorbing graphene oxide-coated gold nanorods and graphene quantum dot-coupled gold nanorods for photothermal cancer therapy
  28. Nonlinear three-dimensional stability characteristics of geometrically imperfect nanoshells under axial compression and surface residual stress
  29. Investigation of different nanoparticles properties on the thermal conductivity and viscosity of nanofluids by molecular dynamics simulation
  30. Optimized Cu2O-{100} facet for generation of different reactive oxidative species via peroxymonosulfate activation at specific pH values to efficient acetaminophen removal
  31. Brownian and thermal diffusivity impact due to the Maxwell nanofluid (graphene/engine oil) flow with motile microorganisms and Joule heating
  32. Appraising the dielectric properties and the effectiveness of electromagnetic shielding of graphene reinforced silicone rubber nanocomposite
  33. Synthesis of Ag and Cu nanoparticles by plasma discharge in inorganic salt solutions
  34. Low-cost and large-scale preparation of ultrafine TiO2@C hybrids for high-performance degradation of methyl orange and formaldehyde under visible light
  35. Utilization of waste glass with natural pozzolan in the production of self-glazed glass-ceramic materials
  36. Mechanical performance of date palm fiber-reinforced concrete modified with nano-activated carbon
  37. Melting point of dried gold nanoparticles prepared with ultrasonic spray pyrolysis and lyophilisation
  38. Graphene nanofibers: A modern approach towards tailored gypsum composites
  39. Role of localized magnetic field in vortex generation in tri-hybrid nanofluid flow: A numerical approach
  40. Intelligent computing for the double-diffusive peristaltic rheology of magneto couple stress nanomaterials
  41. Bioconvection transport of upper convected Maxwell nanoliquid with gyrotactic microorganism, nonlinear thermal radiation, and chemical reaction
  42. 3D printing of porous Ti6Al4V bone tissue engineering scaffold and surface anodization preparation of nanotubes to enhance its biological property
  43. Bioinspired ferromagnetic CoFe2O4 nanoparticles: Potential pharmaceutical and medical applications
  44. Significance of gyrotactic microorganisms on the MHD tangent hyperbolic nanofluid flow across an elastic slender surface: Numerical analysis
  45. Performance of polycarboxylate superplasticisers in seawater-blended cement: Effect from chemical structure and nano modification
  46. Entropy minimization of GO–Ag/KO cross-hybrid nanofluid over a convectively heated surface
  47. Oxygen plasma assisted room temperature bonding for manufacturing SU-8 polymer micro/nanoscale nozzle
  48. Performance and mechanism of CO2 reduction by DBD-coupled mesoporous SiO2
  49. Polyarylene ether nitrile dielectric films modified by HNTs@PDA hybrids for high-temperature resistant organic electronics field
  50. Exploration of generalized two-phase free convection magnetohydrodynamic flow of dusty tetra-hybrid Casson nanofluid between parallel microplates
  51. Hygrothermal bending analysis of sandwich nanoplates with FG porous core and piezomagnetic faces via nonlocal strain gradient theory
  52. Design and optimization of a TiO2/RGO-supported epoxy multilayer microwave absorber by the modified local best particle swarm optimization algorithm
  53. Mechanical properties and frost resistance of recycled brick aggregate concrete modified by nano-SiO2
  54. Self-template synthesis of hollow flower-like NiCo2O4 nanoparticles as an efficient bifunctional catalyst for oxygen reduction and oxygen evolution in alkaline media
  55. High-performance wearable flexible strain sensors based on an AgNWs/rGO/TPU electrospun nanofiber film for monitoring human activities
  56. High-performance lithium–selenium batteries enabled by nitrogen-doped porous carbon from peanut meal
  57. Investigating effects of Lorentz forces and convective heating on ternary hybrid nanofluid flow over a curved surface using homotopy analysis method
  58. Exploring the potential of biogenic magnesium oxide nanoparticles for cytotoxicity: In vitro and in silico studies on HCT116 and HT29 cells and DPPH radical scavenging
  59. Enhanced visible-light-driven photocatalytic degradation of azo dyes by heteroatom-doped nickel tungstate nanoparticles
  60. A facile method to synthesize nZVI-doped polypyrrole-based carbon nanotube for Ag(i) removal
  61. Improved osseointegration of dental titanium implants by TiO2 nanotube arrays with self-assembled recombinant IGF-1 in type 2 diabetes mellitus rat model
  62. Functionalized SWCNTs@Ag–TiO2 nanocomposites induce ROS-mediated apoptosis and autophagy in liver cancer cells
  63. Triboelectric nanogenerator based on a water droplet spring with a concave spherical surface for harvesting wave energy and detecting pressure
  64. A mathematical approach for modeling the blood flow containing nanoparticles by employing the Buongiorno’s model
  65. Molecular dynamics study on dynamic interlayer friction of graphene and its strain effect
  66. Induction of apoptosis and autophagy via regulation of AKT and JNK mitogen-activated protein kinase pathways in breast cancer cell lines exposed to gold nanoparticles loaded with TNF-α and combined with doxorubicin
  67. Effect of PVA fibers on durability of nano-SiO2-reinforced cement-based composites subjected to wet-thermal and chloride salt-coupled environment
  68. Effect of polyvinyl alcohol fibers on mechanical properties of nano-SiO2-reinforced geopolymer composites under a complex environment
  69. In vitro studies of titanium dioxide nanoparticles modified with glutathione as a potential drug delivery system
  70. Comparative investigations of Ag/H2O nanofluid and Ag-CuO/H2O hybrid nanofluid with Darcy-Forchheimer flow over a curved surface
  71. Study on deformation characteristics of multi-pass continuous drawing of micro copper wire based on crystal plasticity finite element method
  72. Properties of ultra-high-performance self-compacting fiber-reinforced concrete modified with nanomaterials
  73. Prediction of lap shear strength of GNP and TiO2/epoxy nanocomposite adhesives
  74. A novel exploration of how localized magnetic field affects vortex generation of trihybrid nanofluids
  75. Fabrication and physicochemical characterization of copper oxide–pyrrhotite nanocomposites for the cytotoxic effects on HepG2 cells and the mechanism
  76. Thermal radiative flow of cross nanofluid due to a stretched cylinder containing microorganisms
  77. In vitro study of the biphasic calcium phosphate/chitosan hybrid biomaterial scaffold fabricated via solvent casting and evaporation technique for bone regeneration
  78. Insights into the thermal characteristics and dynamics of stagnant blood conveying titanium oxide, alumina, and silver nanoparticles subject to Lorentz force and internal heating over a curved surface
  79. Effects of nano-SiO2 additives on carbon fiber-reinforced fly ash–slag geopolymer composites performance: Workability, mechanical properties, and microstructure
  80. Energy bandgap and thermal characteristics of non-Darcian MHD rotating hybridity nanofluid thin film flow: Nanotechnology application
  81. Green synthesis and characterization of ginger-extract-based oxali-palladium nanoparticles for colorectal cancer: Downregulation of REG4 and apoptosis induction
  82. Abnormal evolution of resistivity and microstructure of annealed Ag nanoparticles/Ag–Mo films
  83. Preparation of water-based dextran-coated Fe3O4 magnetic fluid for magnetic hyperthermia
  84. Statistical investigations and morphological aspects of cross-rheological material suspended in transportation of alumina, silica, titanium, and ethylene glycol via the Galerkin algorithm
  85. Effect of CNT film interleaves on the flexural properties and strength after impact of CFRP composites
  86. Self-assembled nanoscale entities: Preparative process optimization, payload release, and enhanced bioavailability of thymoquinone natural product
  87. Structure–mechanical property relationships of 3D-printed porous polydimethylsiloxane films
  88. Nonlinear thermal radiation and the slip effect on a 3D bioconvection flow of the Casson nanofluid in a rotating frame via a homotopy analysis mechanism
  89. Residual mechanical properties of concrete incorporated with nano supplementary cementitious materials exposed to elevated temperature
  90. Time-independent three-dimensional flow of a water-based hybrid nanofluid past a Riga plate with slips and convective conditions: A homotopic solution
  91. Lightweight and high-strength polyarylene ether nitrile-based composites for efficient electromagnetic interference shielding
  92. Review Articles
  93. Recycling waste sources into nanocomposites of graphene materials: Overview from an energy-focused perspective
  94. Hybrid nanofiller reinforcement in thermoset and biothermoset applications: A review
  95. Current state-of-the-art review of nanotechnology-based therapeutics for viral pandemics: Special attention to COVID-19
  96. Solid lipid nanoparticles for targeted natural and synthetic drugs delivery in high-incidence cancers, and other diseases: Roles of preparation methods, lipid composition, transitional stability, and release profiles in nanocarriers’ development
  97. Critical review on experimental and theoretical studies of elastic properties of wurtzite-structured ZnO nanowires
  98. Polyurea micro-/nano-capsule applications in construction industry: A review
  99. A comprehensive review and clinical guide to molecular and serological diagnostic tests and future development: In vitro diagnostic testing for COVID-19
  100. Recent advances in electrocatalytic oxidation of 5-hydroxymethylfurfural to 2,5-furandicarboxylic acid: Mechanism, catalyst, coupling system
  101. Research progress and prospect of silica-based polymer nanofluids in enhanced oil recovery
  102. Review of the pharmacokinetics of nanodrugs
  103. Engineered nanoflowers, nanotrees, nanostars, nanodendrites, and nanoleaves for biomedical applications
  104. Research progress of biopolymers combined with stem cells in the repair of intrauterine adhesions
  105. Progress in FEM modeling on mechanical and electromechanical properties of carbon nanotube cement-based composites
  106. Antifouling induced by surface wettability of poly(dimethyl siloxane) and its nanocomposites
  107. TiO2 aerogel composite high-efficiency photocatalysts for environmental treatment and hydrogen energy production
  108. Structural properties of alumina surfaces and their roles in the synthesis of environmentally persistent free radicals (EPFRs)
  109. Nanoparticles for the potential treatment of Alzheimer’s disease: A physiopathological approach
  110. Current status of synthesis and consolidation strategies for thermo-resistant nanoalloys and their general applications
  111. Recent research progress on the stimuli-responsive smart membrane: A review
  112. Dispersion of carbon nanotubes in aqueous cementitious materials: A review
  113. Applications of DNA tetrahedron nanostructure in cancer diagnosis and anticancer drugs delivery
  114. Magnetic nanoparticles in 3D-printed scaffolds for biomedical applications
  115. An overview of the synthesis of silicon carbide–boron carbide composite powders
  116. Organolead halide perovskites: Synthetic routes, structural features, and their potential in the development of photovoltaic
  117. Recent advancements in nanotechnology application on wood and bamboo materials: A review
  118. Application of aptamer-functionalized nanomaterials in molecular imaging of tumors
  119. Recent progress on corrosion mechanisms of graphene-reinforced metal matrix composites
  120. Research progress on preparation, modification, and application of phenolic aerogel
  121. Application of nanomaterials in early diagnosis of cancer
  122. Plant mediated-green synthesis of zinc oxide nanoparticles: An insight into biomedical applications
  123. Recent developments in terahertz quantum cascade lasers for practical applications
  124. Recent progress in dielectric/metal/dielectric electrodes for foldable light-emitting devices
  125. Nanocoatings for ballistic applications: A review
  126. A mini-review on MoS2 membrane for water desalination: Recent development and challenges
  127. Recent updates in nanotechnological advances for wound healing: A narrative review
  128. Recent advances in DNA nanomaterials for cancer diagnosis and treatment
  129. Electrochemical micro- and nanobiosensors for in vivo reactive oxygen/nitrogen species measurement in the brain
  130. Advances in organic–inorganic nanocomposites for cancer imaging and therapy
  131. Advancements in aluminum matrix composites reinforced with carbides and graphene: A comprehensive review
  132. Modification effects of nanosilica on asphalt binders: A review
  133. Decellularized extracellular matrix as a promising biomaterial for musculoskeletal tissue regeneration
  134. Review of the sol–gel method in preparing nano TiO2 for advanced oxidation process
  135. Micro/nano manufacturing aircraft surface with anti-icing and deicing performances: An overview
  136. Cell type-targeting nanoparticles in treating central nervous system diseases: Challenges and hopes
  137. An overview of hydrogen production from Al-based materials
  138. A review of application, modification, and prospect of melamine foam
  139. A review of the performance of fibre-reinforced composite laminates with carbon nanotubes
  140. Research on AFM tip-related nanofabrication of two-dimensional materials
  141. Advances in phase change building materials: An overview
  142. Development of graphene and graphene quantum dots toward biomedical engineering applications: A review
  143. Nanoremediation approaches for the mitigation of heavy metal contamination in vegetables: An overview
  144. Photodynamic therapy empowered by nanotechnology for oral and dental science: Progress and perspectives
  145. Biosynthesis of metal nanoparticles: Bioreduction and biomineralization
  146. Current diagnostic and therapeutic approaches for severe acute respiratory syndrome coronavirus-2 (SARS-COV-2) and the role of nanomaterial-based theragnosis in combating the pandemic
  147. Application of two-dimensional black phosphorus material in wound healing
  148. Special Issue on Advanced Nanomaterials and Composites for Energy Conversion and Storage - Part I
  149. Helical fluorinated carbon nanotubes/iron(iii) fluoride hybrid with multilevel transportation channels and rich active sites for lithium/fluorinated carbon primary battery
  150. The progress of cathode materials in aqueous zinc-ion batteries
  151. Special Issue on Advanced Nanomaterials for Carbon Capture, Environment and Utilization for Energy Sustainability - Part I
  152. Effect of polypropylene fiber and nano-silica on the compressive strength and frost resistance of recycled brick aggregate concrete
  153. Mechanochemical design of nanomaterials for catalytic applications with a benign-by-design focus
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2026 De Gruyter Brill
Downloaded on 21.1.2026 from https://www.degruyterbrill.com/document/doi/10.1515/ntrev-2022-0564/html
Scroll to top button
