Abstract

This work studies the chaotic behaviors and solitary wave propagations for the M-fractional longitudinal wave equation (M-fLWE). Here, we explain some assertions of the M-fractional derivative. Initially, we employ bifurcation theory to examine the chaotic behaviors that arise from the incorporation of diverse perturbation terms. We depict the phase portraits using three-dimensional (3D) and two-dimensional (2D) representations, Poincaré diagrams, and time-series plots. Furthermore, we utilize an enhanced modified F-expansion method to examine ion acoustic waves in the fLWE. The derived solutions manifest as trigonometric, exponential, and hyperbolic functions. In the numerical discussion, we present novel phenomena not observed in previous studies. For particular values of the free parameters, we discern luminous and obscure bell-shaped waves, periodic waves, periodic bell-shaped rogue waves, periodic rogue waves featuring singular solitons, periodic rogue waves, and interactions between periodic rogue waves and kink-shaped formations. Additionally, we juxtapose our results with the current literature to emphasize unique attributes in 2D, 3D, and density-based representations. This research provides significant insights into the intricate behaviors and varied waveforms of the governing model via a thorough investigation. This study enhances the comprehension of real-world physical phenomena through the examination of waveform attributes, bifurcation analysis, chaotic dynamics, and solitary waves.

Keywords: M-fractional derivative; electromagnetic; longitudinal waves; extended modified F-expansion technique

1 Introduction

Nonlinear evolution equations (NLEEs) play a pivotal role in understanding and modeling the dynamics of complex systems across various scientific and engineering disciplines [1,2,3,4,5,6,7,8,9,10]. Unlike linear equations, NLEEs can describe interactions where the effect is not directly proportional to the cause, thus capturing the essence of many natural and engineered processes. This nonlinearity is fundamental in explaining phenomena such as solitons in fiber optics, rogue waves in the ocean, and shock waves in aerodynamics. One of the most significant aspects of NLEEs is their ability to model systems that exhibit chaotic behavior. Chaos theory, a branch of mathematics that studies the behavior of dynamical systems that are highly sensitive to initial conditions, often relies on NLEEs to predict and understand chaotic systems. This has profound implications in fields such as weather forecasting, where small changes in initial conditions can lead to vastly different outcomes. In fluid dynamics, NLEEs such as the Navier–Stokes equations describe the flow of incompressible fluids. Solving these equations is critical for understanding turbulence, which has applications in everything from aeronautical engineering to environmental science. In plasma physics, NLEEs help in understanding the behavior of ionized gases, which is essential for advancements in fusion energy research.

The significance of NLEEs extends to the development of numerical methods and computational techniques. The solutions to NLEEs often exhibit rich structures and patterns, providing insights into the underlying physical processes. Techniques for analyzing NLEEs, such as modified approach [11], modified G ' G -expansion techniques [12], homogeneous balance method [13], new extended auxiliary equation method [14], SE technique [15], Jacobi elliptic function method [16], Hirota technique [17], tanh method [18], Wronskian’s technique [19], enhanced modified simple equation method technique [20,21], unified technique [22,23], generalized exponential rational function (GERF) method, and the generalized Kudryashov method [24], exp ( − ϕ ( ξ ) ) -expansion, and new form of modified Kudryashov’s schemes [25–30], have advanced significantly, leading to practical applications in engineering, meteorology, and materials science. Their ability to describe real-world systems with high accuracy makes NLEEs indispensable in both theoretical research and practical problem-solving.

The propagation of longitudinal waves in a cylindrical rod made of a material with elastic, electromagnetic, and magneto-electric properties is governed by the longitudinal wave equation [31,32] in magneto-electro-elastic circular rod. This equation is based on the core principles of continuum mechanics and electromagnetism. The main objective of this work is to present multiple invariant solitary wave solutions for the time Mf-LWE:

(1) D M , t 2 Θ , N Q − l 2 Q x x − l 2 2 Q 2 + m D M , t 2 Θ , N Q x x = 0 ,

where D M , t 2 Θ , N is the M-fractional operator, Q represents the wave function, while l and m are the constants related to the material properties of the medium. The term l 2 Q x x represents the spatial variation of the wave, with Q x x being the second spatial derivative of Q , indicating how the wave’s shape changes along the rod. The expression l 2 2 Q 2 + m D M , t 2 Θ , N Q x x combines both nonlinear and additional derivative effects. The term l 2 2 Q 2 introduces nonlinearity, which can describe phenomena such as wave steepening or the formation of solitary waves. exp ( − φ ( ξ ) ) expansion function process [31], the extended trial equation process [32], auxiliary equation mapping and direct algebraic process [33], Bernoulli sub-equation technique [34], mapping method [35], modified (P′/P)-expansion method [36], improved modified extended tanh-function method [37], sine-Gordon process [38], ansatz functions method [39], ansatz method [40], unified method [41], GERF method [42], Super convergent finite element technique [43] dual G ' G , 1 G -expansion method [44], modified auxiliary equation method technique and Adomian decomposition method technique [45], unified Riccati equation expansion (UREE) and new Kudryashov method process [46], the extended sinh-Gordon equation expansion technique [47], harmonic balance technique [48], improved modified extended tanh function method [49], GERF technique [50], modified Sadar sub-equation method technique [51], Φ⁶-model expansion method [52], and so on [53,54]. The motivation of this work is to examine the chaotic nature and solitary wave solution of the M-fractional longitudinal wave equation (M-fLWE) equation. To obtain the solitary wave solution, we use a novel modified F-expansion technique and also analyze the influence of the M-fractional operator on the obtained solutions. Additionally, we do a comprehensive investigation of the chaotic behaviors resulting from the introduction of various perturbation terms for the first time. The examination of chaos in these systems is crucial for comprehending the shift from regular to irregular wave dynamics, which holds considerable significance for disciplines such as plasma physics, nonlinear optics, and fluid mechanics. To thoroughly illustrate these dynamics, we create phase portraits utilizing three-dimensional (3D) and two-dimensional (2D) representations, Poincaré diagrams, and time-series plots. These graphical representations not only corroborate our analytical results but also offer profound insights into the complex dynamics of the system.

The organization of this work is as follows:

Section 2 discusses the characteristics and properties of the truncated M-fractional derivative, along with the extended modified F-expansion technique.
Section 3 explores the mathematical analysis of the M-fractional longitudinal wave equation (LWE) equation.
Section 4 examines the chaotic behaviors and solitary wave propagation in the M-fractional LWE equation.
Section 5 focuses on applying the extended modified F-expansion technique.
Section 6 presents and analyzes graphs, emphasizing the effects of the fractional parameter.
Section 7 compares this research with other published studies.
Finally, Section 8 summarizes the conclusions.

2 Methodology

2.1 M-fractional derivative

Definition: consider χ : ( 0 , ∞ ) → ℝ the TMD of χ with order n exhibit as

D M , t Θ , N χ ( t ) = lim h → 0 χ ( t H n ( h t 1 − Θ ) ) − χ ( t ) h ; 0 < Θ < 1 , N > 0 ,where H n ( . ) is a truncated Mittag–Leffler function of one parameter that defined as [47]

H n ( z ) = ∑ j = 0 i z j Γ ( n j + 1 ) .

Characteristics:

Suppose 0 < Θ < 1 , N > 0 , a , b ∈ ℜ and χ , ϕ , Θ − differentiable at a point t > 0 , then

D M , t Θ , N ( a χ ( t ) + b ϕ ( t ) ) = a D M , t Θ , N χ ( t ) + b D M , t Θ , N ϕ ( t ) .
D M , t Θ , N ( χ ( t ) ϕ ( t ) ) = χ ( t ) D M , t Θ , N ϕ ( t ) + ϕ ( t ) D M , t Θ , N χ ( t ) .
D M , t Θ , N χ ( t ) ϕ ( t ) = χ ( t ) D M , t Θ , N ϕ ( t ) + ϕ ( t ) D M , t Θ , N χ ( t ) ϕ ( t ) 2 .
D M , t Θ , N ( c ) = 0 , where χ ( t ) = c .
D M , t Θ , N χ ( t ) = t 1 − Θ Γ ( n + 1 ) d χ ( t ) d t .

2.2 Extended modified F-expansion method

In this section, we explain a new technique, namely, the extended modified F-expansion technique [55,56], which is the combination of the modified F-expansion technique and the modified Kudryashov technique. Consider the M-fractional nonlinear model:

(2) ψ ( D M , t μ , γ Q x , Q Q x x , D M , t 2 μ , γ Q , Q x x x ) = 0 ,

where D M , t μ , γ is the M-fractional operator, Q = Q ( x , t ) is the wave function, and ψ is the function Q and its partial derivative.

Step-01: At first, we use a transformation variable in the following form:

(3) Q ( x , t ) = Q ( φ ) ; φ = C 1 x − v Γ ( γ + 1 ) μ t μ ,

where C 1 is the wave frequency, v is the wave speed, and μ is the order of fractional derivative.

To convert Eq. (2) into the ordinary differential equation (ODE) form, we insert Eq. (3) into Eq. (2):

(4) ψ 1 ( C 1 v Q φ φ , C 2 Q Q φ , v 2 Q φ φ , C 2 3 Q φ φ φ ) = 0 ,

where Eq. (4) is the ODE form of Eq. (2).

Now, consider a trial solution of Eq. (4) in the following form [57]:

(5) χ = ∑ i = 0 n a i ( H ( φ ) ) i ∑ j = 0 m b i ( H ( φ ) ) j ; a n , b m ≠ 0 ,

where m , and n are the integer numbers. By balancing the highest-order derivative and nonlinear term in Eq. (4), we obtain the values of m , and n by using the following formula:

d P Q d φ P = ( n − m ) + P ; Q q d P Q d φ P g = q ( n − m ) + g ( ( n − m ) + P ) ,

where H ( φ ) satisfied the auxiliary equation [58],

(6) d H ( φ ) d φ = R 1 + R 2 H ( φ ) + R 3 H ( φ ) 2 .

Insert Eq. (5) with Eq. (6) into Eq. (4), then we achieve a system of equations after considering the co-efficient of ( ℘ ( θ ) ) ∓ i equal to zero. If we solve the obtained system of equations, then we obtain the destinations of Eq. (3):

For R 1 = 0 , R 2 = 1 , R 3 = − 1 ; H ( φ ) = 1 2 + 1 2 tanh φ 2 .

For R 1 = 0 , R 2 = 1 , R 3 = − 1 ; H ( φ ) = 1 2 − 1 2 coth φ 2 .

For R 1 = 1 2 , R 2 = 0 , R 3 = − 1 2 ; H ( φ ) = coth ( φ ) ± cosceh ( φ ) .

For R 1 = 1 , R 2 = 0 , R 3 = − 1 ; H ( φ ) = tanh ( φ ) , coth ( φ ) .

For R 1 = 1 2 , R 2 = 0 , R 3 = 1 2 ; H ( φ ) = sec ( φ ) + tan ( φ ) .

For R 1 = − 1 2 , R 2 = 0 , R 3 = − 1 2 ; H ( φ ) = sec ( φ ) − tan ( φ ) .

For R 1 = R 2 = 0 ; H ( φ ) = 1 R 3 φ + δ .

For R 2 = R 3 = 0 ; H ( φ ) = R 1 φ .

For R 1 = 0 , R 2 > 0 , R 3 < 0 ; H ( φ ) = R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) .

For R 1 = 0 , R 2 < 0 , R 3 > 0 ; H ( φ ) = − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) .

For R 3 = 0 ; H ( φ ) = − R 1 + e R 2 φ R 2 .

2.3 Flow chart of extended modified F-expansion method

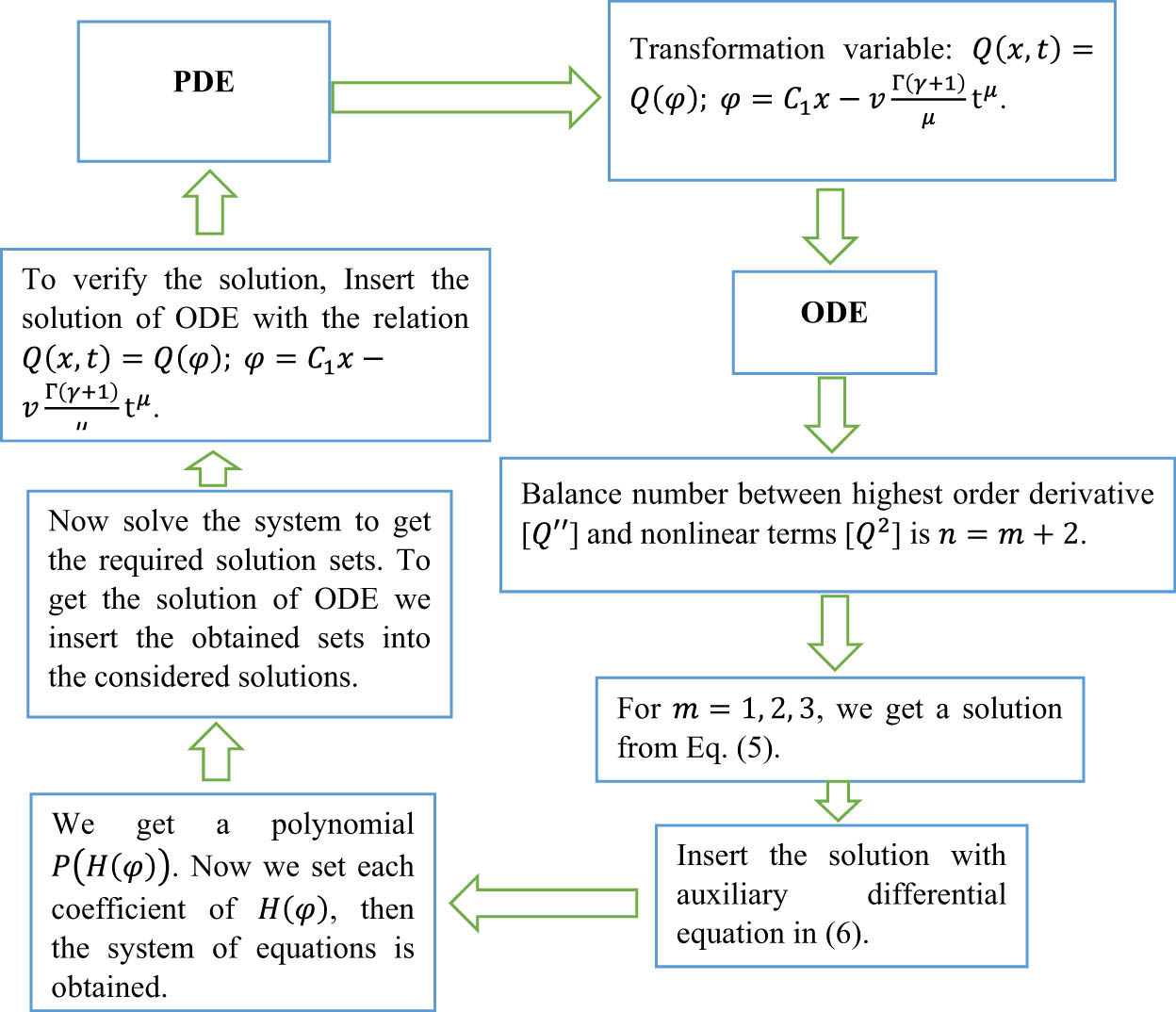

In this subsection, we make a flow chart of the extended modified F-expansion (EMFE) method to solve the time M-fractional longitudinal wave equation.

3 Mathematical analysis

The time M-fLWE equation can be written as

(7) D M , t 2 Θ , N Q − l 2 Q x x − l 2 2 Q 2 + m D M , t 2 Θ , N Q x x = 0 .

Consider the relation

(8) φ = k x − λ Γ ( N + 1 ) t Θ Θ ; H ( x , t ) = H ( φ ) .

If we substitute Eq. (8) into Eq. (7), then the obtained form is

(9) k 2 λ 2 m Q i v + ( l 2 k 2 − λ 2 ) Q '' + l 2 k 2 2 ( Q 2 ) '' = 0 .

Now we integrate Eq. (9), and then we obtain

(10) k 2 λ 2 m Q '' + ( l 2 k 2 − λ 2 ) Q + l 2 k 2 2 Q 2 = 0 .

4 Chaotic analysis

Partial differential equation solutions can have chaotic dynamics due to bifurcations, which appear random and complex. In the preceding section, chaos was absent in the planar dynamical structure (10). However, the chaotic feature is only observed when an external perturbation term is included. This perturbed form of the planar dynamical structure (10) can be expressed as follows:

(11) d Q dφ = G , d G dφ = − ( l 2 k 2 − λ 2 ) Q − l 2 k 2 2 Q 2 k 2 λ 2 m + P ( φ ) ,

where P ( φ ) is the added perturbation terms. Following are some perturbation terms that can be used to explain chaotic nature:

Trigonometric form: If P ( φ ) = 1.5 cos ( 3.9 φ ) , then Figure 1 shows the phase portrait of Eq. (11), and Figure 2 shows the multistability of Eq. (11) for k = λ = m = 1 , and l = 2 .

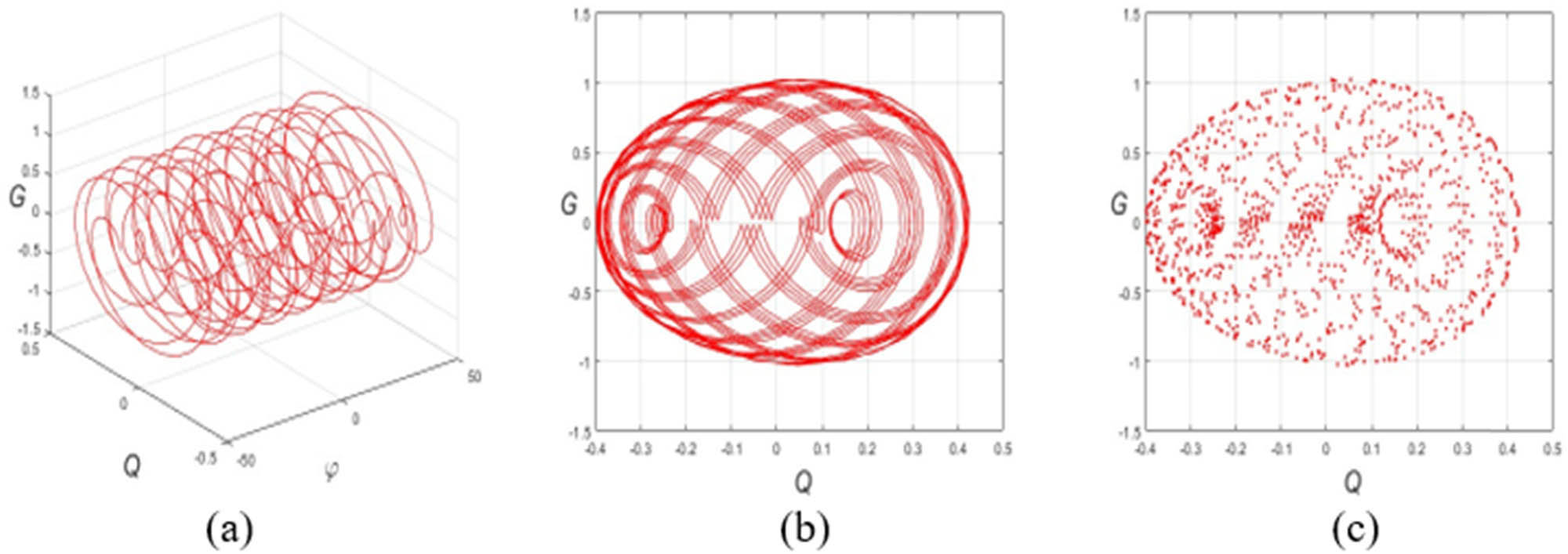

$Figure 1 Diagram of the perturbed form Eq. (11) for P ( φ ) = 1.5 cos ( 3.9 φ ) P(\text{φ})=1.5\text{cos}(3.9\varphi ) with beginning condition ( Q ( 0 ) , G ( 0 ) ) = ( 0.1 , 0.1 ) (Q(0),G(0))=(0.1,\hspace{.25em}0.1) . (a) 3D phase shape. (b) 2D phase shape. (c) Poincare plot.$

Figure 1

Diagram of the perturbed form Eq. (11) for P ( φ ) = 1.5 cos ( 3.9 φ ) with beginning condition ( Q ( 0 ) , G ( 0 ) ) = ( 0.1 , 0.1 ) . (a) 3D phase shape. (b) 2D phase shape. (c) Poincare plot.

$Figure 2 Multistability of the perturbed form Eq. (11) with P ( φ ) = 1.5 cos ( 3.9 φ ) P(\text{φ})=1.5\text{cos}(3.9\varphi ) . (a) 2D phase shape. (b) Poincare plot. (c) Time-series diagram.$

Figure 2

Multistability of the perturbed form Eq. (11) with P ( φ ) = 1.5 cos ( 3.9 φ ) . (a) 2D phase shape. (b) Poincare plot. (c) Time-series diagram.

Gaussian form: If P ( φ ) = 3.5 exp − ( 0.12 φ ) 2 2 , then Figure 3 shows the phase portrait of Eq. (11) and Figure 4 shows the multistability of Eq. (11).

$Figure 3 Diagram of the perturbed form Eq. (11) for P ( φ ) = 3.5 exp − ( 0.12 φ ) 2 2 P(\text{φ})=3.5\text{exp}\left(\phantom{\rule[-0.75em]{}{0ex}},-\frac{{(0.12\varphi )}^{2}}{2}\right) with beginning condition ( Q ( 0 ) , G ( 0 ) ) = ( 0.2 , 0.2 ) (Q(0),G(0))=(0.2,\hspace{.25em}0.2) . (a) 3D phase shape. (b) 2D phase shape. (c) Poincare plot.$

Figure 3

Diagram of the perturbed form Eq. (11) for P ( φ ) = 3.5 exp − ( 0.12 φ ) 2 2 with beginning condition ( Q ( 0 ) , G ( 0 ) ) = ( 0.2 , 0.2 ) . (a) 3D phase shape. (b) 2D phase shape. (c) Poincare plot.

$Figure 4 Multistability of the perturbed form Eq. (11) with P ( φ ) = 3.5 exp − ( 0.12 φ ) 2 2 P(\text{φ})=3.5\text{exp}\left(\phantom{\rule[-0.75em]{}{0ex}},-\frac{{(0.12\varphi )}^{2}}{2}\right) . (a) 2D phase shape. (b) Poincare plot. (c) Time-series diagram.$

Figure 4

Multistability of the perturbed form Eq. (11) with P ( φ ) = 3.5 exp − ( 0.12 φ ) 2 2 . (a) 2D phase shape. (b) Poincare plot. (c) Time-series diagram.

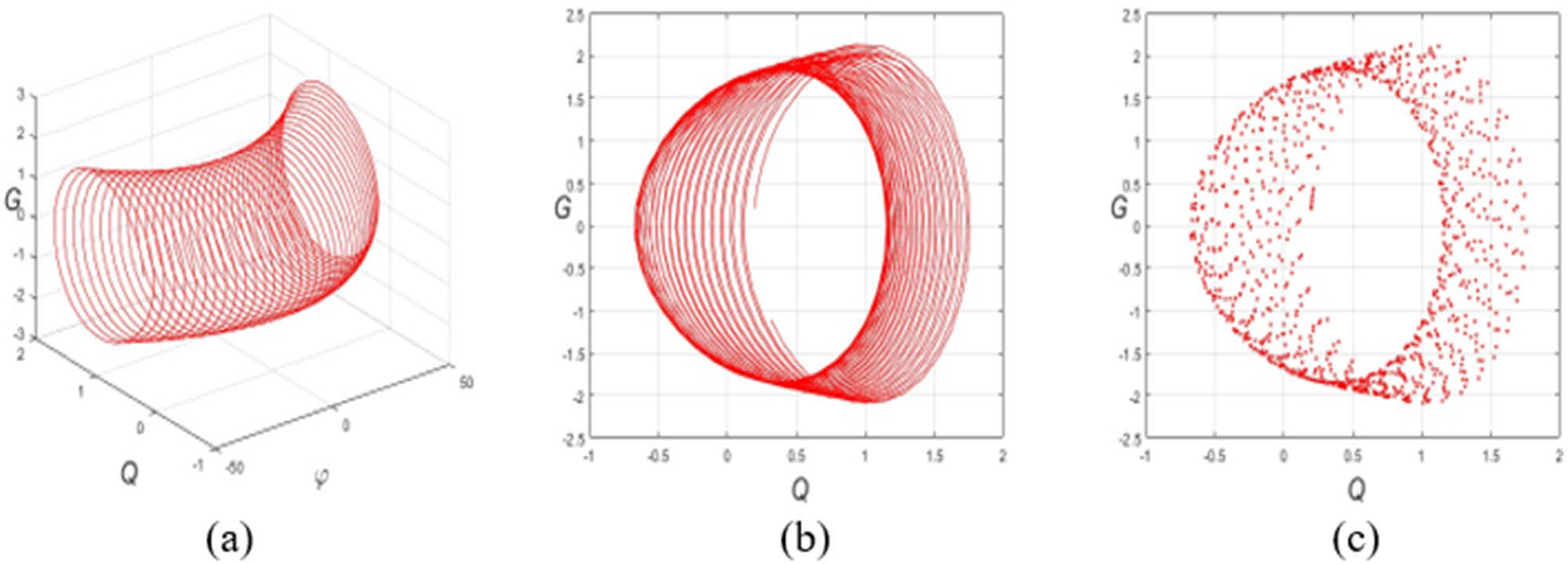

Hyperbolic form: If P ( φ ) = 1.4 cosh ( 0.04 φ ) , then Figure 5 shows the phase portrait of Eq. (11) and Figure 6 shows the multistability of Eq. (11) for k = λ = m = 1 , and l = 2 .

$Figure 5 Diagram of the perturbed form Eq. (11) for P ( φ ) = 1.4 cosh ( 0.04 φ ) P(\text{φ})=1.4\text{cosh}(0.04\varphi ) with beginning condition ( Q ( 0 ) , G ( 0 ) ) = ( 0.2 , 0.2 ) (Q(0),G(0))=(0.2,\hspace{.25em}0.2) . (a) 3D phase shape. (b) 2D phase shape. (c) Poincare plot.$

Figure 5

Diagram of the perturbed form Eq. (11) for P ( φ ) = 1.4 cosh ( 0.04 φ ) with beginning condition ( Q ( 0 ) , G ( 0 ) ) = ( 0.2 , 0.2 ) . (a) 3D phase shape. (b) 2D phase shape. (c) Poincare plot.

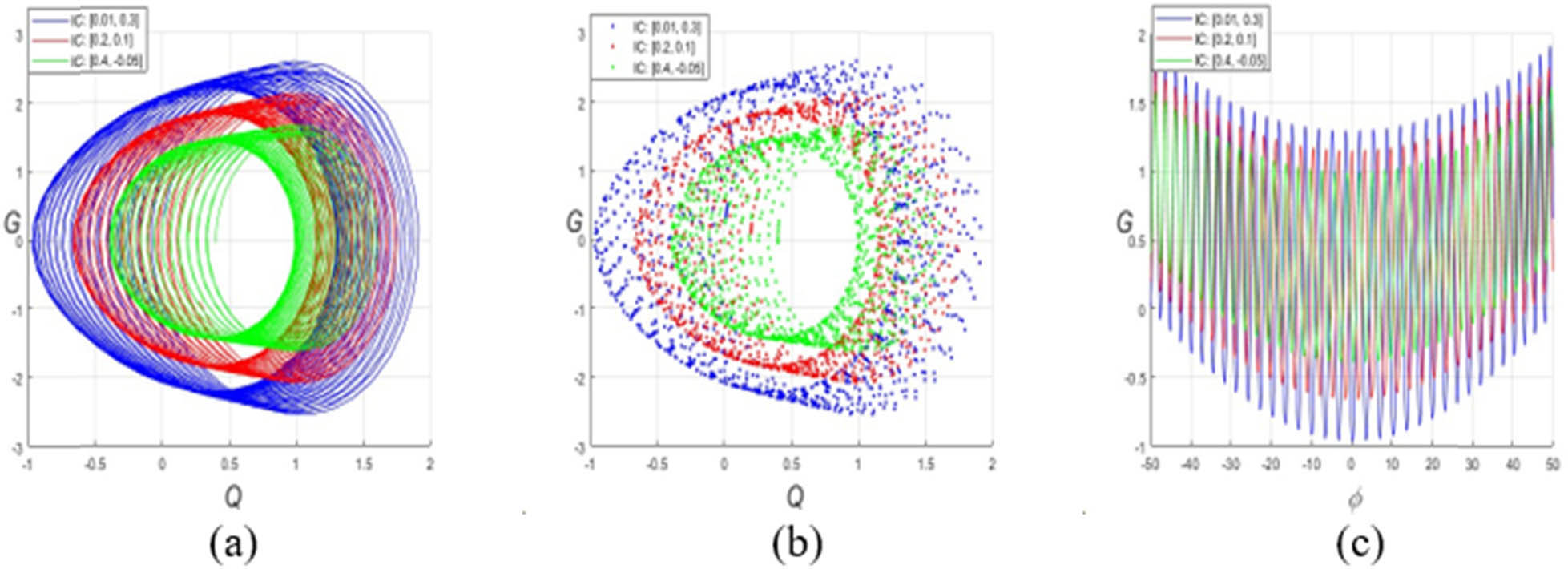

$Figure 6 Multistability of the perturbed form Eq. (11) with P ( φ ) = 1.4 cosh ( 0.04 φ ) P(\text{φ})=1.4\text{cosh}(0.04\varphi ) . (a) 2D phase shape. (b) Poincare plot. (c) Time-series diagram.$

Figure 6

Multistability of the perturbed form Eq. (11) with P ( φ ) = 1.4 cosh ( 0.04 φ ) . (a) 2D phase shape. (b) Poincare plot. (c) Time-series diagram.

5 Solitary wave solution of M-fractional LW model

In this section, we implement the EMFE technique to investigate the solitary wave pattern of the time M-fLWE model. According to the EMFE technique, the trial solution is the following form:

(12) Q ( φ ) = β 0 + β 1 H ( φ ) + β 2 H ( φ ) 2 + β 3 H ( φ ) 3 γ 0 + γ 1 H ( φ ) .

If we substitute Eq. (12) and Eq. (6) into Eq. (10), then the following solution sets obtain:

k = − β 3 ( 4 m β 3 R 1 R 3 − m β 3 R 2 2 + 12 m γ 1 R 3 2 ) , λ = l R 3 − β 3 12 m γ 1 , β 0 = ( β 2 R 3 − β 3 R 2 ) R 1 R 3 2 , β 1 = β 2 R 2 R 3 + β 3 R 1 R 3 − β 3 R 2 2 R 3 2 , γ 0 = γ 1 ( β 2 R 3 − β 3 R 2 ) β 3 R 3 .

k = − 1 ( 4 λ 2 m R 1 R 3 − λ 2 m R 2 2 − l 2 ) λ , β 0 = − 12 λ 2 m R 1 R 3 γ 0 l 2 , β 1 = − 12 λ 2 m R 3 ( γ 0 R 2 + γ 1 R 1 ) l 2 , β 2 = − 12 λ 2 m R 3 ( γ 0 R 3 + γ 1 R 2 ) l 2 , β 3 = − 12 λ 2 m γ 1 R 3 2 l 2 .

Case 01: k = − β 3 ( 4 m β 3 R 1 R 3 − m β 3 R 2 2 + 12 m γ 1 R 3 2 ) , λ = l R 3 − β 3 12 m γ 1 , β 0 = ( β 2 R 3 − β 3 R 2 ) R 1 R 3 2 , β 1 = β 2 R 2 R 3 + β 3 R 1 R 3 − β 3 R 2 2 R 3 2 , γ 0 = γ 1 ( β 2 R 3 − β 3 R 2 ) β 3 R 3 .

For, R 1 = 0 , R 2 = 1 , R 3 = − 1 ;

(13) Q ( x , t ) = β 0 + β 1 1 2 + 1 2 tanh φ 2 + β 2 1 2 + 1 2 tanh φ 2 2 + β 3 1 2 + 1 2 tanh φ 2 3 γ 0 + γ 1 1 2 + 1 2 tanh φ 2 .

For R 1 = 0 , R 2 = 1 , R 3 = − 1 .

(14) Q ( x , t ) = β 0 + β 1 1 2 − 1 2 coth φ 2 + β 2 1 2 − 1 2 coth φ 2 2 + β 3 1 2 − 1 2 coth φ 2 3 γ 0 + γ 1 1 2 − 1 2 coth φ 2 .

For R 1 = 1 2 , R 2 = 0 , R 3 = − 1 2 .

(15) Q ( x , t ) = β 0 + β 1 ( coth ( φ ) ± cosceh ( φ ) ) + β 2 ( coth ( φ ) ± cosceh ( φ ) ) 2 + β 3 ( coth ( φ ) ± cosceh ( φ ) ) 3 γ 0 + γ 1 ( coth ( φ ) ± cosceh ( φ ) ) .

For R 1 = 1 , R 2 = 0 , R 3 = − 1

(16) Q ( x , t ) = β 0 + β 1 ( tanh ( φ ) , ) + β 2 ( tanh ( φ ) , ) 2 + β 3 ( tanh ( φ ) , ) 3 γ 0 + γ 1 ( tanh ( φ ) , ) .

For R 1 = 1 2 , R 2 = 0 , R 3 = 1 2 .

(17) Q ( x , t ) = β 0 + β 1 ( sec ( φ ) + tan ( φ ) ) + β 2 ( sec ( φ ) + tan ( φ ) ) 2 + β 3 ( sec ( φ ) + tan ( φ ) ) 3 γ 0 + γ 1 ( sec ( φ ) + tan ( φ ) ) .

For R 1 = − 1 2 , R 2 = 0 , R 3 = − 1 2 .

(18) Q ( x , t ) = β 0 + β 1 ( sec ( φ ) − tan ( φ ) ) + β 2 ( sec ( φ ) − tan ( φ ) ) 2 + β 3 ( sec ( φ ) − tan ( φ ) ) 3 γ 0 + γ 1 ( sec ( φ ) − tan ( φ ) ) .

For R 1 = R 2 = 0 ; H ( φ ) = 1 R 3 φ + δ .

(19) Q ( x , t ) = β 0 + β 1 1 R 3 φ + δ + β 2 1 R 3 φ + δ 2 + β 3 1 R 3 φ + δ 3 γ 0 + γ 1 1 R 3 φ + δ .

For R 2 = R 3 = 0 .

(20) Q ( x , t ) = β 0 + β 1 ( R 1 φ ) + β 2 ( R 1 φ ) 2 + β 3 ( R 1 φ ) 3 γ 0 + γ 1 ( R 1 φ ) .

For R 1 = 0 , R 2 > 0 , R 3 < 0 .

(21) Q ( x , t ) = β 0 + β 1 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) + β 2 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) 2 + β 3 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) 3 γ 0 + γ 1 R 2 e x p ( R 2 ( φ + δ ) ) 1 − R 3 e x p ( R 2 ( φ + δ ) ) .

For R 1 = 0 , R 2 < 0 , R 3 > 0 .

(22) Q ( x , t ) = β 0 + β 1 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) + β 2 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) 2 + β 3 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) 3 γ 0 + γ 1 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) ,

where φ = − β 3 ( 4 m β 3 R 1 R 3 − m β 3 R 2 2 + 12 m γ 1 R 3 2 ) × − l R 3 − β 3 12 m γ 1 Γ ( N + 1 ) t Θ Θ

for, R 3 = 0 .

The solution is rejected.

Case 02: k = − 1 ( 4 λ 2 m R 1 R 3 − λ 2 m R 2 2 − l 2 ) λ , β 0 = − 12 λ 2 m R 1 R 3 γ 0 l 2 , β 1 = − 12 λ 2 m R 3 ( γ 0 R 2 + γ 1 R 1 ) l 2 , β 2 = − 12 λ 2 m R 3 ( γ 0 R 3 + γ 1 R 2 ) l 2 , β 3 = − 12 λ 2 m γ 1 R 3 2 l 2 .

For R 1 = 0 , R 2 = 1 , R 3 = − 1 ;

(23) Q ( x , t ) = β 1 1 2 + 1 2 tanh φ 2 + β 2 1 2 + 1 2 tanh φ 2 2 + β 3 1 2 + 1 2 tanh φ 2 3 γ 0 + γ 1 1 2 + 1 2 tanh φ 2 .

For R 1 = 0 , R 2 = 1 , R 3 = − 1 .

(24) Q ( x , t ) = β 1 1 2 − 1 2 coth φ 2 + β 2 1 2 − 1 2 coth φ 2 2 + β 3 1 2 − 1 2 coth φ 2 3 γ 0 + γ 1 1 2 − 1 2 coth φ 2 .

For R 1 = 1 2 , R 2 = 0 , R 3 = − 1 2 .

(25) Q ( x , t ) = β 0 + β 1 ( coth ( φ ) ± cosceh ( φ ) ) + β 2 ( coth ( φ ) ± cosceh ( φ ) ) 2 + β 3 ( coth ( φ ) ± cosceh ( φ ) ) 3 γ 0 + γ 1 ( coth ( φ ) ± cosceh ( φ ) ) .

For R 1 = 1 , R 2 = 0 , R 3 = − 1

(26) Q ( x , t ) = β 0 + β 1 ( tanh ( φ ) , ) + β 2 ( tanh ( φ ) , ) 2 + β 3 ( tanh ( φ ) , ) 3 γ 0 + γ 1 ( tanh ( φ ) , ) .

For R 1 = 1 2 , R 2 = 0 , R 3 = 1 2 .

(27) Q ( x , t ) = β 0 + β 1 ( sec ( φ ) + tan ( φ ) ) + β 2 ( sec ( φ ) + tan ( φ ) ) 2 + β 3 ( sec ( φ ) + tan ( φ ) ) 3 γ 0 + γ 1 ( sec ( φ ) + tan ( φ ) ) .

For R 1 = − 1 2 , R 2 = 0 , R 3 = − 1 2 .

(28) Q ( x , t ) = β 0 + β 1 ( sec ( φ ) − tan ( φ ) ) + β 2 ( sec ( φ ) − tan ( φ ) ) 2 + β 3 ( sec ( φ ) − tan ( φ ) ) 3 γ 0 + γ 1 ( sec ( φ ) − tan ( φ ) ) .

For R 1 = R 2 = 0 ; H ( φ ) = 1 R 3 φ + δ .

(29) Q ( x , t ) = β 1 1 R 3 φ + δ + β 2 1 R 3 φ + δ 2 + β 3 1 R 3 φ + δ 3 γ 0 + γ 1 1 R 3 φ + δ .

For R 2 = R 3 = 0 .

(30) Q ( x , t ) = β 1 ( R 1 φ ) + β 2 ( R 1 φ ) 2 γ 0 + γ 1 ( R 1 φ ) .

For R 1 = 0 , R 2 > 0 , R 3 < 0 .

(31) Q ( x , t ) = β 1 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) + β 2 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) 2 + β 3 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) 3 γ 0 + γ 1 R 2 exp ( R 2 ( φ + δ ) ) 1 − R 3 exp ( R 2 ( φ + δ ) ) .

For R 1 = 0 , R 2 < 0 , R 3 > 0 .

(32) Q ( x , t ) = β 1 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) + β 2 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) 2 + β 3 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) 3 γ 0 + γ 1 − R 2 exp ( R 2 ( φ + δ ) ) 1 + R 3 exp ( R 2 ( φ + δ ) ) ,

where φ = − 1 ( 4 λ 2 m R 1 R 3 − λ 2 m R 2 2 − l 2 ) λ x − λ Γ ( N + 1 ) t Θ Θ .

For R 3 = 0 .

The solution is rejected.

6 Figure analysis

In this section, we explore various wave phenomena of the M-fractional LWE equation using the extended modified F-expansion technique. Two-dimensional plots illustrate the impact of M-fractional parameters. The solutions derived in this study are crucial for advancing magneto-electro-elastic (MEE) materials and devices, which have important applications in areas such as vibration control, structural health monitoring, and energy harvesting. Understanding the dynamics of these waves can enhance the efficiency and functionality of MEE systems. This research highlights the roles of different waveforms in affecting wave propagation and energy transfer within the material. Bright soliton is a localized energy pulse that preserves its form, essential for energy transmission, signal enhancement, and mechanical wave propagation in intelligent materials. Dark soliton is a localized depression in the wave field, advantageous for wave attenuation, energy flow regulation, and vibration mitigation in engineered MEE systems. Kink wave is a mobile transition between two equilibrium states, crucial for phase transformations, domain wall dynamics, and nonlinear material responses. Periodic wave is a continuous oscillation pattern crucial for resonance analysis, vibration control, and wave-based sensing applications. These wave structures are fundamental in smart materials, energy harvesting, and wave-based communication systems, enhancing the understanding of nonlinear wave dynamics in coupled MEE environments. The complex phenomena are analyzed in real, imaginary, and absolute forms using 3D and 2D diagrams. In the 3D diagrams, we show the effect of fractional parameters for Θ = 0.5 and compare it with the classical (original) form of the LWE model. In 2D diagram, we have shown the effect of M-fractional parameters for Θ = 0.1 , 0.5 , 0.9 . Figure 7 provides the diagram of bright bell-shaped for the solution Eq. (13) for the values m = 0.5 , l = 0.5 , β 3 = − 1 , β 2 = 0.1 , γ 1 = 0.5 , N = 1.5 . For β 3 γ 1 < 0 and m > 0 , the solution Eq. (13) is a real-valued function and always represents bright solitary wave such as in Figure 7. Figure 8 represents the dark bell-shaped wave of the solution Eq. (13) for the values m = − 0.5 , l = 0.5 , β 3 = 1 , β 2 = 0.1 , γ 1 = 0.5 , N = 1.5 . For β 3 γ 1 > 0 and m < 0 , the solution Eq. (13) is a real-valued function and always represents the dark solitary wave such as in Figure 8. Figure 9 provides the periodic wave solutions of the solution Eq. (17) for the values m = − 0.5 , l = 0.5 , β 3 = − 1 , β 2 = 0.1 , γ 1 = − 0.5 , N = 1.5 . For β 3 γ 1 < 0 and m < 0 or β 3 γ 1 > 0 and m > 0 , the solution Eq. (17) is a complex-valued function. The real part of the solution Eq. (17) represents the periodic rogue wave with bell shape (in Figure 10), and the imaginary part represents the periodic rogue wave with singular soliton (in Figure 10). Figure 10 provides the diagram of the solution Eq. (17) for the values m = 1 , l = − 2 , β 3 = 2 , β 2 = 1 , γ 1 = 0.5 , N = 1.5 . For β 3 γ 1 < 0 and m < 0 or β 3 γ 1 > 0 and m > 0 , the solution Eq. (17) is a complex-valued function. Figure 11 illustrates the periodic rogue wave of the solution Eq. (22) for the values R 2 = − 4 , R 3 = 1 , m = − 3 , l = 0.5 , β 3 = 2 , β 2 = 1 , γ 1 = 0.5 , δ = 0.33 , N = 1.5 . For ( 4 λ 2 m R 1 R 3 − λ 2 m R 2 2 − l 2 ) > 0 , the solution Eq. (23) is a complex-valued function, and for ( 4 λ 2 m R 1 R 3 − λ 2 m R 2 2 − l 2 ) < 0 , the solution Eq. (23) is a real-valued function. The real part of the solution Eq. (23) represents the kinky periodic rogue wave (in Figure 12), and the imaginary part represents the periodic rogue wave (in Figure 12). Figure 12 provides the diagram of the solution Eq. (23) for the values λ = − 0.5 , m = − 3 , l = 0.05 , γ 0 = 1 , γ 1 = 0.5 , N = 1.5 . Figure 13 illustrates the periodic wave of the solution Eq. (32) for the values R 2 = − 1 , R 3 = 1 , δ = − 0.1 , λ = 0.5 , m = − 1 , l = 0.33 , γ 0 = 1 , γ 1 = 0.167 , N = 1.5 .

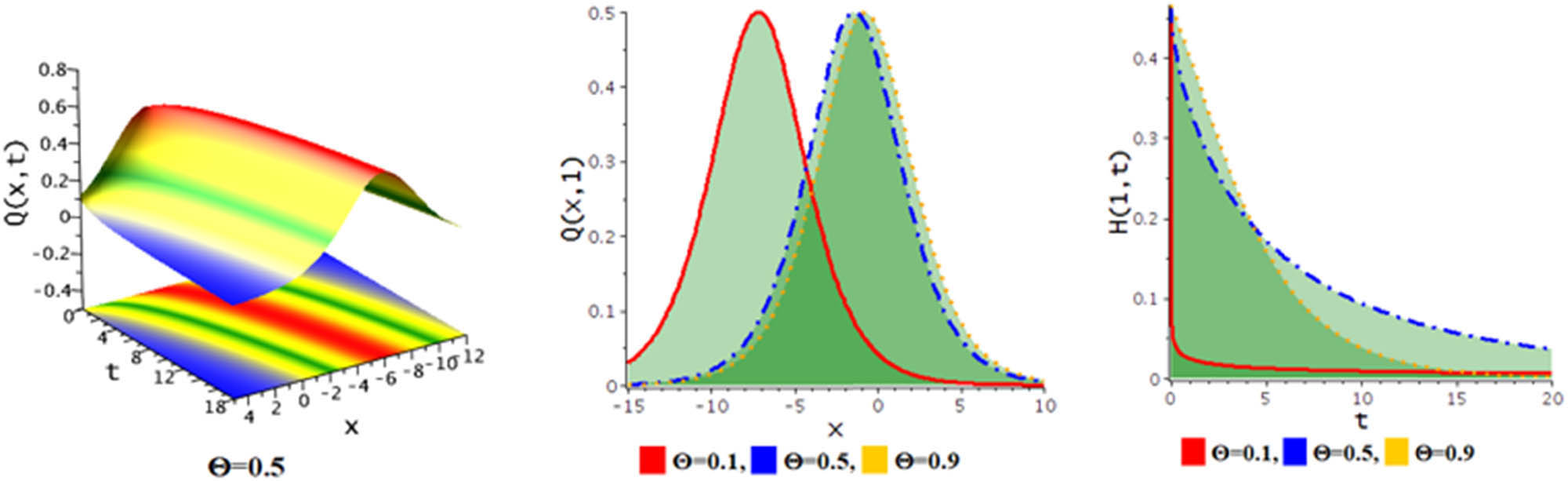

$Figure 7 Diagram of bright bell soliton of the solution Eq. (13) for the values m = 0.5 , l = 0.5 , β 3 = − 1 , β 2 = 0.1 , γ 1 = 0.5 , N = 1.5 m=0.5,\hspace{.25em}l=0.5,\hspace{.25em}{\beta }_{3}=-1,{\beta }_{2}=0.1,\hspace{.25em}{\gamma }_{1}=0.5,N=1.5 .$

Figure 7

Diagram of bright bell soliton of the solution Eq. (13) for the values m = 0.5 , l = 0.5 , β 3 = − 1 , β 2 = 0.1 , γ 1 = 0.5 , N = 1.5 .

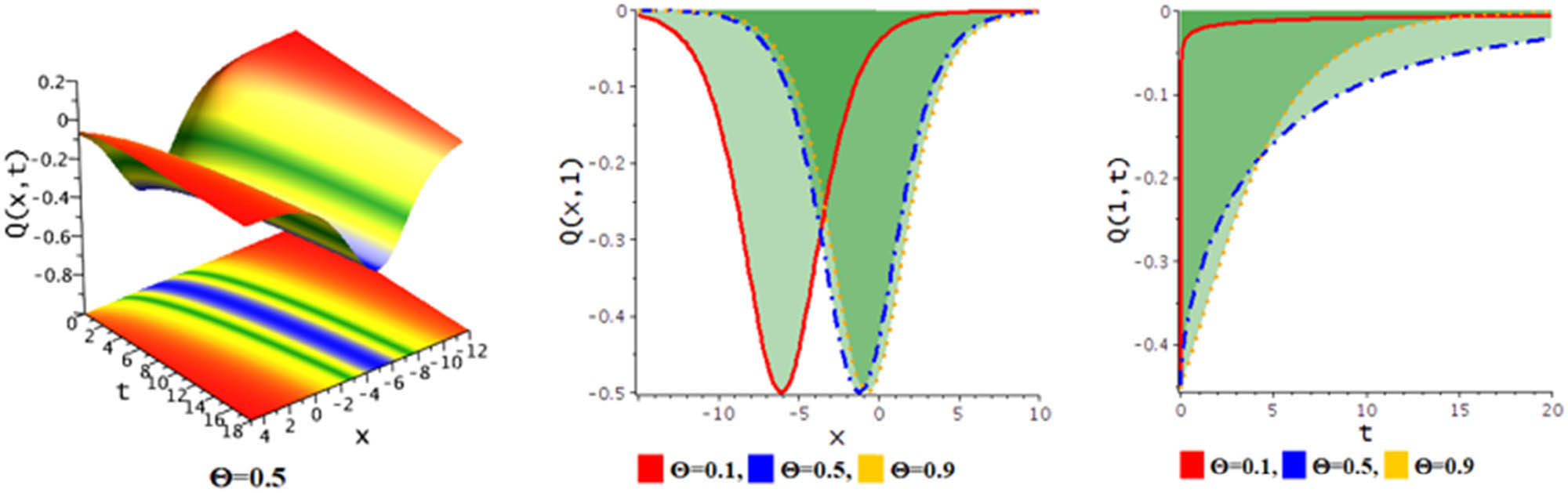

$Figure 8 Diagram of dark bell soliton of the solution Eq. (13) for the values m = − 0.5 , l = 0.5 , β 3 = 1 , β 2 = 0.1 , γ 1 = 0.5 , N = 1.5 m=-0.5,\hspace{.25em}l=0.5,\hspace{.25em}{\beta }_{3}=1,{\beta }_{2}=0.1,\hspace{.25em}{\gamma }_{1}=0.5,N=1.5 .$

Figure 8

Diagram of dark bell soliton of the solution Eq. (13) for the values m = − 0.5 , l = 0.5 , β 3 = 1 , β 2 = 0.1 , γ 1 = 0.5 , N = 1.5 .

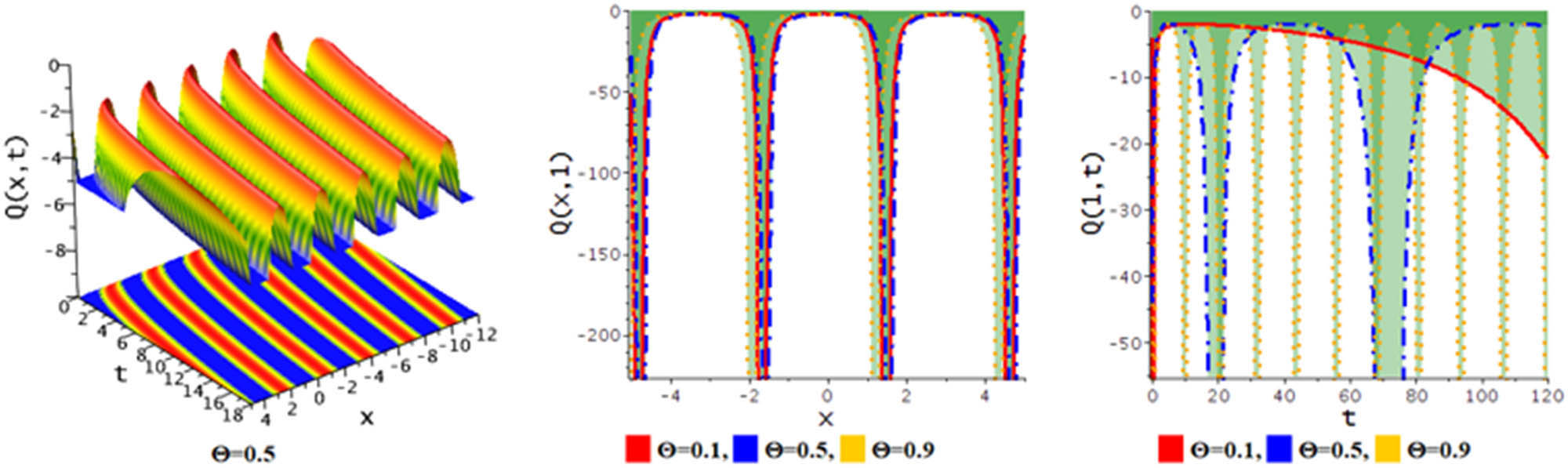

$Figure 9 Diagram of bright periodic soliton of the solution Eq. (17) for the values m = − 0.5 , l = 0.5 , β 3 = − 1 , β 2 = 0.1 , γ 1 = − 0.5 , N = 1.5 m=-0.5,\hspace{.25em}l=0.5,\hspace{.25em}{\beta }_{3}=-1,{\beta }_{2}=0.1,\hspace{.25em}{\gamma }_{1}=-0.5,N=1.5 .$

Figure 9

Diagram of bright periodic soliton of the solution Eq. (17) for the values m = − 0.5 , l = 0.5 , β 3 = − 1 , β 2 = 0.1 , γ 1 = − 0.5 , N = 1.5 .

$Figure 10 Diagram of the periodic lump wave of the solution Eq. (17) for the values m = 1 , l = − 2 , β 3 = 2 , β 2 = 1 , γ 1 = 0.5 , N = 1.5 m=1,\hspace{.25em}l=-2,\hspace{.25em}{\beta }_{3}=2,{\beta }_{2}=1,\hspace{.25em}{\gamma }_{1}=0.5,N=1.5 .$

Figure 10

Diagram of the periodic lump wave of the solution Eq. (17) for the values m = 1 , l = − 2 , β 3 = 2 , β 2 = 1 , γ 1 = 0.5 , N = 1.5 .

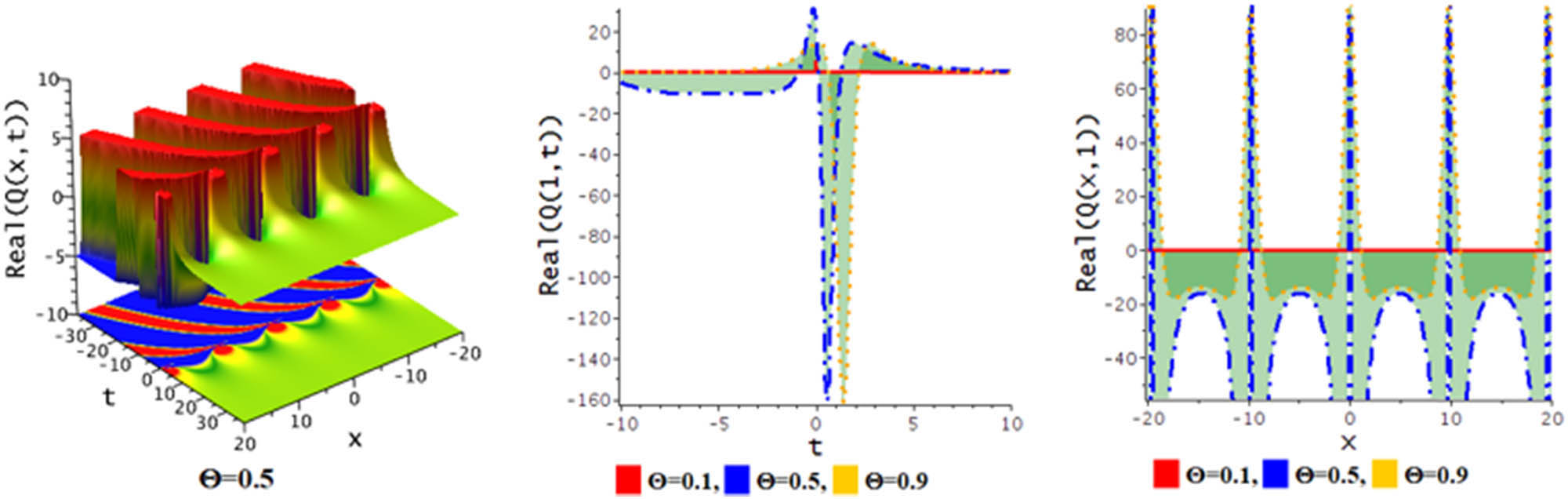

$Figure 11 Diagram of the periodic lump wave of solution Eq. (22) for the values R 2 = − 4 , R 3 = 1 , {R}_{2}=-4,\hspace{.25em}{R}_{3}=1, m = − 3 , l = 0.5 , β 3 = 2 , m=-3,\hspace{.25em}l=0.5,\hspace{.25em}{\beta }_{3}=2, β 2 = 1 , γ 1 = 0.5 , {\beta }_{2}=1,\hspace{.25em}{\gamma }_{1}=0.5, δ = 0.33 , \delta =0.33, N = 1.5 N=1.5 .$

Figure 11

Diagram of the periodic lump wave of solution Eq. (22) for the values R 2 = − 4 , R 3 = 1 , m = − 3 , l = 0.5 , β 3 = 2 , β 2 = 1 , γ 1 = 0.5 , δ = 0.33 , N = 1.5 .

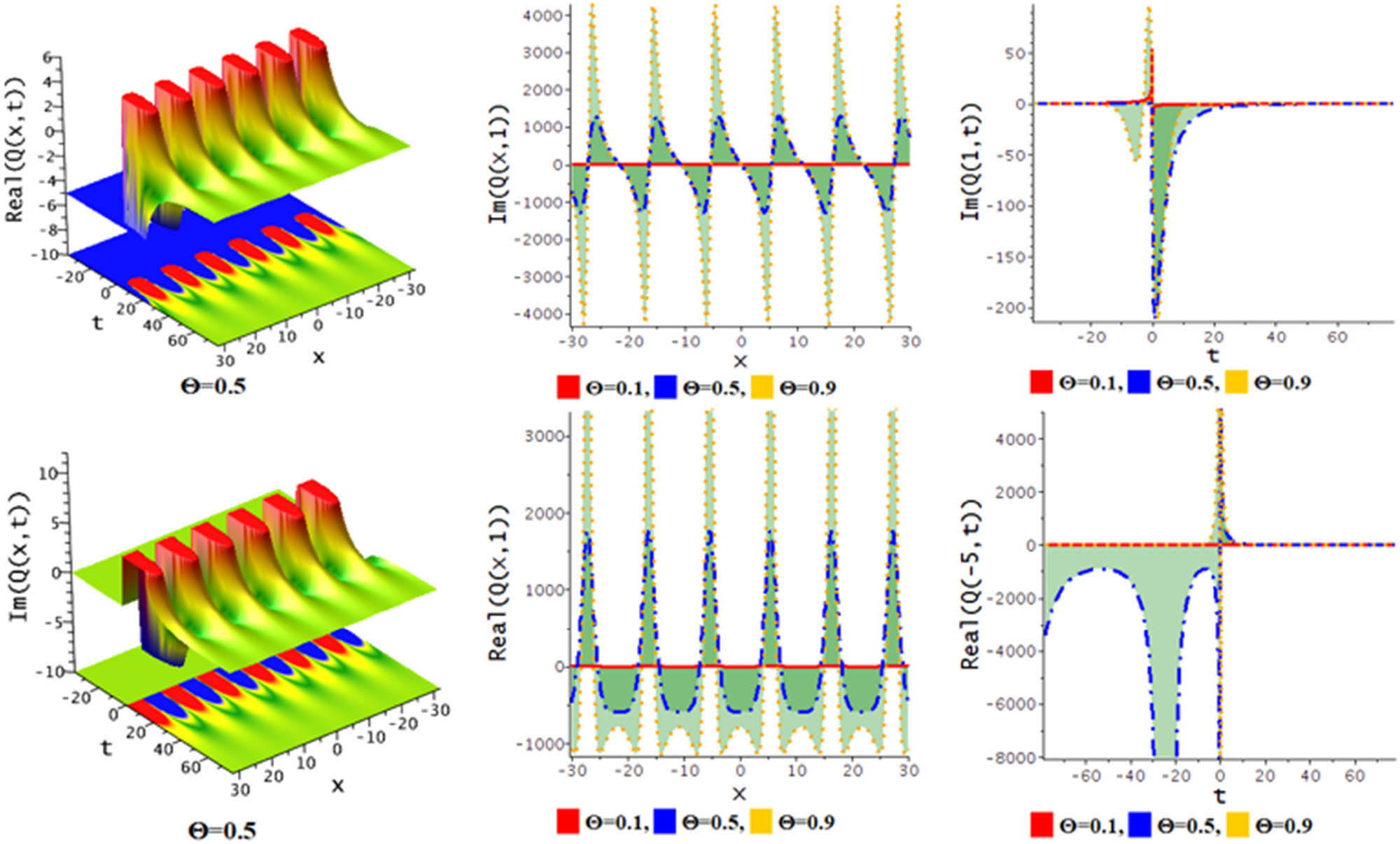

$Figure 12 Diagram of the kinky-periodic lump wave of solution Eq. (23) for the values λ = − 0.5 , m = − 3 , l = 0.05 , γ 0 = 1 , γ 1 = 0.5 , N = 1.5 \lambda =-0.5,m=-3,\hspace{.25em}l=0.05,\hspace{.25em}{\gamma }_{0}=1,{\gamma }_{1}=0.5,N=1.5 .$

Figure 12

Diagram of the kinky-periodic lump wave of solution Eq. (23) for the values λ = − 0.5 , m = − 3 , l = 0.05 , γ 0 = 1 , γ 1 = 0.5 , N = 1.5 .

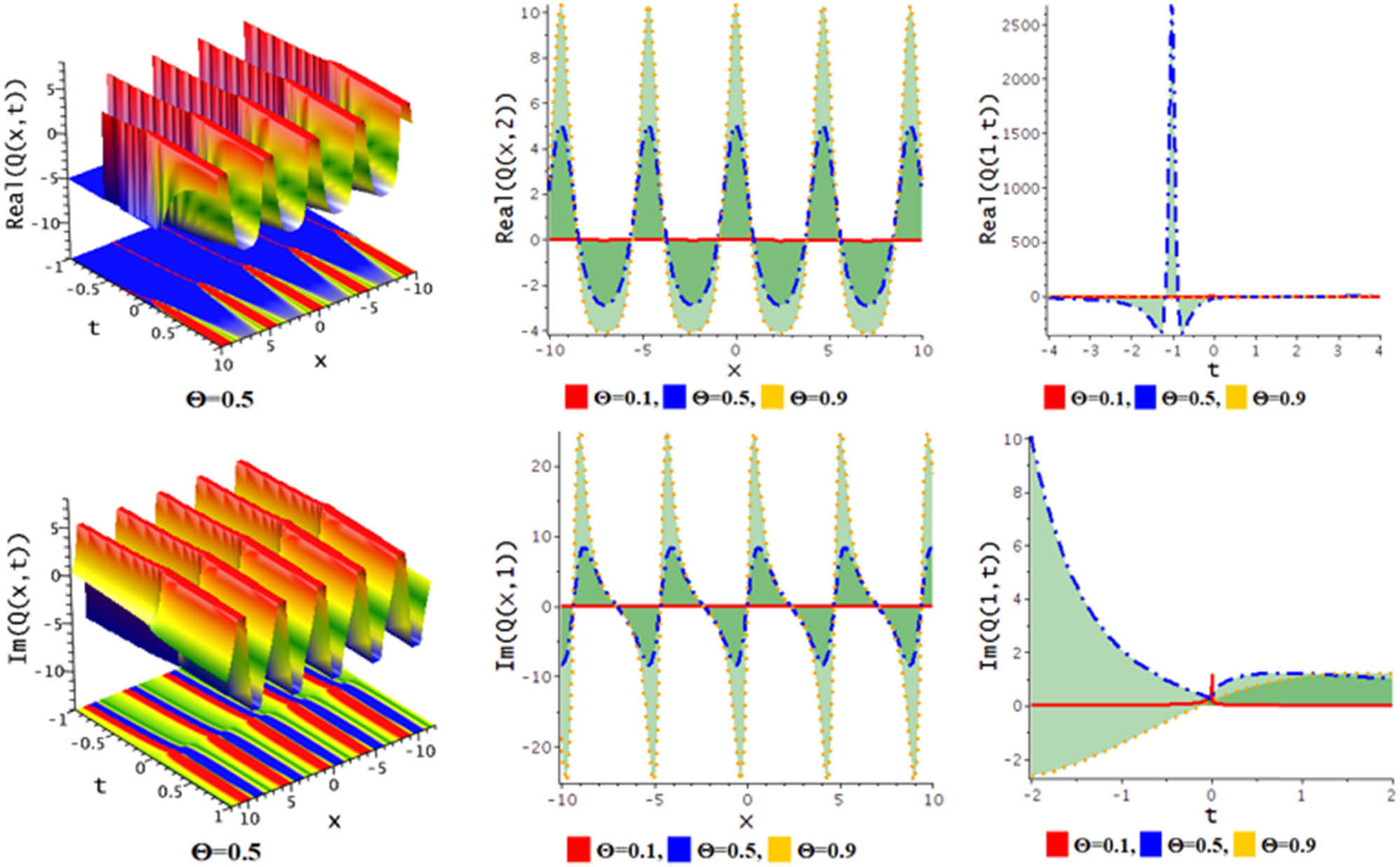

$Figure 13 Diagram of the bright periodic of the solution Eq. (32) for the values R 2 = − 1 , {R}_{2}=-1, R 3 = 1 , δ = − 0.1 , {R}_{3}=1,\delta =-0.1, λ = 0.5 , m = − 1 , \lambda =0.5,m=-1, l = 0.33 , γ 0 = 1 , l=0.33,\hspace{.25em}{\gamma }_{0}=1, γ 1 = 0.167 , {\gamma }_{1}=0.167, N = 1.5 N=1.5 .$

Figure 13

Diagram of the bright periodic of the solution Eq. (32) for the values R 2 = − 1 , R 3 = 1 , δ = − 0.1 , λ = 0.5 , m = − 1 , l = 0.33 , γ 0 = 1 , γ 1 = 0.167 , N = 1.5 .

7 Comparison and novelty

Usman Younas solved the longitudinal wave equation using the modified Sardar sub-equation method [35], showcasing solitons such as bright, dark, singular, bright-dark, bright-singular, complex, and their combinations. Recently, Amit Kumar presented a systematic strategy to uncover the underlying dynamics by deriving solitary wave solutions for LWE using two powerful techniques: the unified method and the UREE method [37] . They provided graphic representations of dynamic wave structures, including traveling waves, mixed periodic waves, solitary solitons, W-shaped waves, kink waves, and interactions between breather waves and kink waves. Onur Alp Ilhan investigated the solitary wave solutions for the (1+1)-dimensional LWE using the sine-Gordon expansion method [39], graphically presenting bell-shaped waves, singular solitons, and periodic wave solutions. Aly R. Seadawy applied the extended trial equation method [40] to exactly solve the LWE, obtaining dark solitons, bright solitons, solitary waves, and periodic solitary wave solutions from the LWE model. In this manuscript, we applied the effective methods: extended modified F-expansion technique to solve the M-fractional LWE equation. For the first time, we expressed the obtained solitary wave solution in terms of logarithmic functions, as well as hyperbolic, trigonometric, and exponential forms. In the numerical discussion section, we presented novel phenomena not found in previous studies. For specific values of the free parameters, we illustrated bright and dark bell-shaped waves, periodic waves, periodic rogue waves with a bell shape, periodic rogue waves with singular soliton, periodic rogue waves, and the interaction of periodic rogue wave and kink shapes. Overall, the applied techniques are simple and effective for finding unique solitary wave solutions, and this manuscript introduces novel phenomena of the M-fractional LWE equation.

8 Conclusion

This work has succeeded in studying the LWE equation with the M-fractional operator. This model describes the propagation of longitudinal waves in a cylindrical rod composed of a material exhibiting elastic, electromagnetic, and magneto-electric. At first, we successfully applied the bifurcation theory and analyze the revealed chaotic behaviors by introducing trigonometric form, Gaussian form, and hyperbolic form perturbations term. We analyze the multistability of the proposed model. To explore the chaotic behavior of the LWE model, we illustrate some diagrams such as phase portraits with 3D, 2D, Poincare, and 2D time-series diagrams. Second, we applied an extended modified F-expansion technique to investigate the solitary wave for the LWE equation with the M-fractional operator. The solutions are in the trigonometric, exponential, and hyperbolic functions form. In the numerical discussion section, we presented novel phenomena not found in previous studies. For specific values of the free parameters, we presented bright and dark bell-shaped waves, periodic waves, periodic rogue waves with a bell shape, periodic rogue waves with singular soliton, periodic rogue waves, and interaction of periodic rogue waves and kink shape. Overall, the applied techniques are simple and effective for finding unique solitary wave solutions, and this manuscript introduces novel phenomena of the M-fLWE equation.

Acknowledgments

Thanks to the editor, reviewers, and Khalifa university for procedural support.

Funding information: The authors state no funding involved.
Author contributions: Md. Mamunur Roshid: resources, acquisition, wrote the original draft, writing – review and editing, validation, methodology; Mohammad Safi Ullah: writing – review and editing, visualization, investigation, formal analysis, validation; Alrazi Abdeljabbar: resources, writing – review and editing, acquisition, methodology, formal analysis, validation. All authors have accepted responsibility for the entire content of this manuscript and approved its submission.
Conflict of interest: The authors state no conflict of interest.
Data availability statement: All data generated or analyzed during this study are included in this published article.

References

[1] Butt AR, Alaoui MK, Raza N, Baleanu D. Breather waves, periodic cross-lump waves and complexiton type solutions for the (2 + 1)-dimensional Kadomtsev-Petviashvili equation in dispersive media. Phys Lett A. 2024;501:129373.10.1016/j.physleta.2024.129373Search in Google Scholar

[2] Akter MA, Mostafa G, Uddin M, Roshid MM, Roshid HO. Simulation of optical wave propagation of perturbed nonlinear Schrödinger’s equation with truncated M-fractional derivative. Opt Quantum Electron. 2024;56(7):1255.10.1007/s11082-024-07172-2Search in Google Scholar

[3] Roshid MM, Rahman MM. Bifurcation analysis, modulation instability and optical soliton solutions and their wave propagation insights to the variable coefficient nonlinear Schrödinger equation with fractional derivative. Nonlinear Dyn. 2024;112:16355–77.10.1007/s11071-024-09872-6Search in Google Scholar

[4] Adel M, Aldwoah K, Alharbi F, Osman MS. Dynamic properties of non-autonomous femtosecond waves modeled by the generalized derivative NLSE with variable coefficients. Crystals. 2022;12(11):1627.10.3390/cryst12111627Search in Google Scholar

[5] Almalahi MA, Aldwoah KA, Shah K, Abdeljawad T. Stability and numerical analysis of a coupled system of piecewise Atangana–Baleanu fractional differential equations with delays. Qual Theory Dyn Syst. 2024;23(3):105.10.1007/s12346-024-00965-6Search in Google Scholar

[6] Ma WX, Osman MS, Arshed S, Raza N, Srivastava HM. Practical analytical approaches for finding novel optical solitons in the single-mode fibers. Chin J Phys. 2021;72:475–86.10.1016/j.cjph.2021.01.015Search in Google Scholar

[7] Roshid MM, Uddin M, Mostafa G. Dynamical structure of optical soliton solutions for M− fractional paraxial wave equation by using unified technique. Results Phys. 2023;51:106632.10.1016/j.rinp.2023.106632Search in Google Scholar

[8] Yao SW, Behera S, Inc M, Rezazadeh H, Virdi JPS, Mahmoud W, et al. Analytical solutions of conformable Drinfel’d–Sokolov–Wilson and Boiti Leon Pempinelli equations via sine-cosine method. Results Phys. 2022;42:105990.10.1016/j.rinp.2022.105990Search in Google Scholar

[9] Wazwaz A-M. Multiple soliton solutions and multiple complex soliton solutions for two distinct Boussinesq equations. Nonlinear Dyn. 2016;85:731–7.10.1007/s11071-016-2718-0Search in Google Scholar

[10] Roshid MM, Rahman MM, Roshid HO, Bashar MH. A variety of soliton solutions of time M-fractional: Non-linear models via a unified technique. PLoS One. 2024;19(4):e0300321.10.1371/journal.pone.0300321Search in Google Scholar PubMed PubMed Central

[11] Alquran M, Jaradat HM, Syam MI. A modified approach for a reliable study of new nonlinear equation: two-mode Korteweg-de Vries-Burgers equation. Nonlinear Dyn. 2018;91:1619–26.10.1007/s11071-017-3968-1Search in Google Scholar

[12] Moumen A, Aldwoah KA, Suhail M, Kame A. Investigation of more solitary wave solutions of the stochastic Benjamin-Bona-Mahony equation under beta operator. AIMS Math. 2024;9(10):27403–17.10.3934/math.20241331Search in Google Scholar

[13] Jafari H, Tajadodi H, Baleanu D. Application of a homogeneous balance method to exact solutions of nonlinear fractional evolution equations. J Comput Nonlinear Dyn. 2014;9(2):021019.10.1115/1.4025770Search in Google Scholar

[14] Mathanaranjan T, Hashemi MS, Rezazadeh H, Akinyemi L, Bekir A. Chirped optical solitons and stability analysis of the nonlinear Schrödinger equation with nonlinear chromatic dispersion. Commun Theor Phys. 2023;75(8):85005.10.1088/1572-9494/ace3b0Search in Google Scholar

[15] Roshid MM, Alam MN, İlhan OA, Rahim MA, Tuhin MMH, Rahman MM. Modulation instability and comparative observation of the effect of fractional parameters on new optical soliton solutions of the paraxial wave model. Opt Quantum Electron. 2024;56(6):1010.10.1007/s11082-024-06921-7Search in Google Scholar

[16] Tarla S, Ali KK, Yilmazer R, Osman MS. New optical solitons based on the perturbed Chen-Lee-Liu model through Jacobi elliptic function method. Opt Quant Electron. 2022;54(2):131.10.1007/s11082-022-03527-9Search in Google Scholar

[17] Wazwaz A-M. A two-mode modified KdV equation with multiple soliton solutions. Appl Math Lett. 2017;70:1–6.10.1016/j.aml.2017.02.015Search in Google Scholar

[18] Wazwaz A-M. The tanh method for traveling wave solutions of nonlinear equations. Appl Math Comput. 2004;154(3):713–23.10.1016/S0096-3003(03)00745-8Search in Google Scholar

[19] Ma WX. Wronskians, generalized Wronskians and solutions to the Korteweg-de Vries equation. Chaos Solitons Fract. 2004;19:163–70.10.1016/S0960-0779(03)00087-0Search in Google Scholar

[20] Hossain S, Roshid MM, Uddin M, Ripa AA, Roshid HO. Abundant time-wavering solutions of a modified regularized long wave model using the EMSE technique. Partial Differ Eqn Appl Math. 2023;8:100551.10.1016/j.padiff.2023.100551Search in Google Scholar

[21] Roshid MM, Rahman MM, Roshid HO. Effect of the nonlinear dispersive coefficient on time-dependent variable coefficient soliton solutions of the Kolmogorov-Petrovsky-Piskunov model arising in biological and chemical science. Heliyon. 2024;10(11):e31294.10.1016/j.heliyon.2024.e31294Search in Google Scholar PubMed PubMed Central

[22] Osman MS, Ali KK, Gómez-Aguilar JF. A variety of new optical soliton solutions related to the nonlinear Schrödinger equation with time-dependent coefficients. Optik. 2020;222:165389.10.1016/j.ijleo.2020.165389Search in Google Scholar

[23] Osman MS, Korkmaz A, Rezazadeh H, Mirzazadeh M, Eslami M, Zhou Q. The unified method for conformable time fractional Schrödinger equation with perturbation terms. Chin J Phys. 2018;56(5):2500–6.10.1016/j.cjph.2018.06.009Search in Google Scholar

[24] Kumar S, Kumar A. Abundant closed-form wave solutions and dynamical structures of soliton solutions to the (3+1)-dimensional BLMP equation in mathematical physics. J Ocean Eng Sci. 2022;7(2):178–87.10.1016/j.joes.2021.08.001Search in Google Scholar

[25] Roshid MM, Hossain MM, Hasan MS, Munshi MJH, Sajib AH. Dynamical structure of truncated M-fractional Klein–Gordon model via two integral schemes. Results Phys. 2023;46:106272.10.1016/j.rinp.2023.106272Search in Google Scholar

[26] Ahmad S, Mahmoud EE, Saifullah S, Ullah A, Ahmad S, Akgül A, et al. New wave solutions of a nonlinear Landau–Ginzburg–Higgs equation: The Sardar-sub-equation and energy balance approaches. Results Phys. 2023;51:106736.10.1016/j.rinp.2023.106736Search in Google Scholar

[27] Khaliq S, Ullah A, Ahmad S, Akgül A, Yusuf A, Sulaiman TA. Some novel analytical solutions of a new extended (2 + 1)-dimensional Boussinesq equation using a novel method. J Ocean Eng Sci. 2022.10.1016/j.joes.2022.04.010Search in Google Scholar

[28] Hamza AE, Suhail M, Alsulami A, Mustafa A, Aldwoah K, Saber H. Exploring soliton solutions and chaotic dynamics in the (3+1)-dimensional Wazwaz–Benjamin–Bona–Mahony equation: A generalized rational exponential function approach. Fract Fract. 2024;8(10):592.10.3390/fractalfract8100592Search in Google Scholar

[29] Gassem F, Osman O, Alqarni F, Aldwoah K, Birkea FMO, Hleili M. A novel approach to construct optical soliton solutions of complex Ginzburg–Landau equation with five distinct forms of nonlinearities. Alex Eng J. 2025;113:551–64.10.1016/j.aej.2024.11.019Search in Google Scholar

[30] Baber MZ, Ahmed N, Xu C, Iqbal MS, Sulaiman TA. A computational scheme and its comparison with optical soliton solutions for the stochastic Chen–Lee–Liu equation with sensitivity analysis. Mod Phys Lett B. 2025;39(1):2450376.10.1142/S0217984924503767Search in Google Scholar

[31] Baskonus HM, Bulut H, Atangana A. On the complex and hyperbolic structures of the longitudinal wave equation in a magneto-electro-elastic circular rod. Smart Mater Struct. 2016;25:035022.10.1088/0964-1726/25/3/035022Search in Google Scholar

[32] Seadawy AR, Manafian J. New soliton solution to the longitudinal wave equation in a magneto-electro-elastic circular rod. Results Phys. 2018;8:1158–67.10.1016/j.rinp.2018.01.062Search in Google Scholar

[33] Iqbal M, Seadawy AR, Lu D. Applications of nonlinear longitudinal wave equation in a magneto-electro-elastic circular rod and new solitary wave solutions. Mod Phys Lett B. 2019;3:1950210.10.1142/S0217984919502105Search in Google Scholar

[34] Baskonus HM, Gomez-Aguilar JF. New singular soliton solutions to the longitudinal wave equation in a magneto-electro-elastic circular rod with M-derivative. Mod Phys Lett B. 2019;33:1950251.10.1142/S0217984919502518Search in Google Scholar

[35] Sajid N, Akram G. Solitary dynamics of longitudinal wave equation arises in magneto-electro-elastic circular rod. Mod Phys Lett B. 2021;35:2150086.10.1142/S021798492150086XSearch in Google Scholar

[36] Ma X, Pan Y, Chang L. Explicit travelling wave solutions in a magneto-electro-elastic circular rod. Int J Comput Sci Issues. 2013;10(1):62–8.Search in Google Scholar

[37] Darwish A, Seadawy AR, Ahmed HM, Elbably AL, Shehab MF, Arnous AH. Study on soliton solutions of the longitudinal wave equation and magneto-electro-elastic circular rod dynamical model. Int J Mod Phys B. 2021;35:2150168.Search in Google Scholar

[38] Ilhan OA, Bulut H, Sulaiman TA, Baskonus HM. On the new wave behavior of the Magneto-Electro-Elastic (MEE) circular rod longitudinal wave equation. Int J Optim Control Theor Appl. 2020;10:1–8.10.11121/ijocta.01.2020.00837Search in Google Scholar

[39] Rizvi STR, Seadawy AR, Ahmed S, Ashraf F. Novel rational solitons and generalized breathers for (1+1)-dimensional longitudinal wave equation. Int J Mod Phys B. 2023;23:50269.10.1142/S0217979223502697Search in Google Scholar

[40] Younis M, Ali S. Bright, dark, and singular solitons in magneto-electro-elastic circular rod. Waves Random Complex Media. 2015;25(4):549–55.10.1080/17455030.2015.1058993Search in Google Scholar

[41] Kumar A, Kumar S, Bohra N. Exploring soliton solutions and interesting wave-form patterns of the (1 + 1)-dimensional longitudinal wave equation in a magnetic-electro-elastic circular rod. Opt Quantum Electron. 2024;56:1029.10.1007/s11082-024-06901-xSearch in Google Scholar

[42] Noufe HA, Reham GA, Seadawy AR. Stability analysis and soliton solutions for the longitudinal wave equation in magneto-electro-elastic circular rod. Results Phys. 2021;26:104329.10.1016/j.rinp.2021.104329Search in Google Scholar

[43] Gopalakrishnan S, Raut MS. Longitudinal wave propagation in one-dimensional waveguides with sinusoidally varying depth. J Sound Vib. 2019;463:114945.10.1016/j.jsv.2019.114945Search in Google Scholar

[44] Miah MM, Iqbal MA, Osman MS. A study on stochastic longitudinal wave equation in a magneto-electro-elastic annular bar to find the analytical solutions. Commun Theor Phys. 2023;75:085008.10.1088/1572-9494/ace155Search in Google Scholar

[45] Aisha A, Attia Raghda A, Alzaidi Jameel AM, Dianchen FL, Khater MA. Analytical and semi-analytical wave solutions for longitudinal wave equation via modified auxiliary equation method and Adomian decomposition method. Therm Sci. 2019;23(6):1943–57.10.2298/TSCI190221355ASearch in Google Scholar

[46] Ozdemir N, Secer A, Bayram M. Extraction of soliton waves from the longitudinal wave equation with local M-truncated derivatives. Opt Quantum Electron. 2023;55:313.10.1007/s11082-023-04570-wSearch in Google Scholar

[47] Bulut H, Sulaiman TA, Baskonus HM. On the solitary wave solutions to the longitudinal wave equation in MEE circular rod. Opt Quantum Electron. 2018;50:87.10.1007/s11082-018-1362-ySearch in Google Scholar

[48] Wang K, Zhou J, Xu D, Ouyang H. Lower band gaps of longitudinal wave in a one-dimensional periodic rod by exploiting geometrical nonlinearity. Mech Syst Signal Process. 2019;124:664–78.10.1016/j.ymssp.2019.02.008Search in Google Scholar

[49] Darwish A, Seadawy AR, Hamdy MA, Elbably AL, Shehab MF, Arnous AH. Study on soliton solutions of the longitudinal wave equation and magneto-electro-elastic circular rod dynamical model. Int J Mod Phys B. 2021;35:2150168.10.1142/S021797922150168XSearch in Google Scholar

[50] hanbari B, Kumar D, Singh J. Exact solutions of local fractional longitudinal wave equation in a magneto-electro-elastic circular rod in fractal media. Indian J Phys. 2022;96:787–94.10.1007/s12648-021-02043-ySearch in Google Scholar

[51] Younas U, Sulaiman TA, Ren J. On the optical soliton structures in the magneto-electro-elastic circular rod modeled by nonlinear dynamical longitudinal wave equation. Opt Quantum Electron. 2022;54:688.10.1007/s11082-022-04104-wSearch in Google Scholar

[52] Seadawy AR, Rehman SU, Younis M, Rizvi STR, Althobaiti S, Makhlouf MM. Modulation instability analysis and longitudinal wave propagation in an elastic cylindrical rod modeled with Pochhammer-Chree equation. Phys Scr. 2021;96:045202.10.1088/1402-4896/abdcf7Search in Google Scholar

[53] Djaouti AM, Roshid MM, Abdeljabbar A, Al-Quran A. Bifurcation analysis and solitary wave solution of fractional longitudinal wave equation in magneto-electro-elastic (MEE) circular rod. Results Phys. 2024;64:107918.10.1016/j.rinp.2024.107918Search in Google Scholar

[54] Roshid MM, Uddin M, Hossain MM, Roshid HO. Investigation of rogue wave and dynamic solitary wave propagations of the M-fractional (1+1)-dimensional longitudinal wave equation in a magnetic-electro-elastic circular rod. Indian J Phys. 2024;99:1787–803.10.1007/s12648-024-03409-8Search in Google Scholar

[55] Roshid MM. Exploring the chaotic behavior and ion acoustic wave of the generalized perturbed Korteweg-de Vries equation with a fractional operator. Partial Differ Equ Appl Math. 2024;13:101042.10.1016/j.padiff.2024.101042Search in Google Scholar

[56] Roshid MM, Rahman M, Uddin M, Roshid HO. Modulation instability, analytical, and numerical studies for integrable time fractional nonlinear model through two explicit methods. Adv Math Phys. 2024;2024(1):6420467.10.1155/2024/6420467Search in Google Scholar

[57] Hosseini K, Mayeli P, Kumar D. New exact solutions of the coupled sine-Gordon equations in nonlinear optics using the modified Kudryashov method. J Mod Opt. 2018;65:361–4.10.1080/09500340.2017.1380857Search in Google Scholar

[58] Ozisik M, Secer A, Bayram M On solitary wave solutions for the extended nonlinear Schrödinger equation via the modified F‑expansion method. Opt Quantum Electron. 2023; 55:215.10.1007/s11082-022-04476-zSearch in Google Scholar

Received: 2024-11-09

Revised: 2025-02-15

Accepted: 2025-03-10

Published Online: 2025-06-26

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

https://doi.org/10.1515/nleng-2025-0115

Keywords for this article

M-fractional derivative; electromagnetic; longitudinal waves; extended modified F-expansion technique

Creative Commons

BY 4.0
