Inductive 3D numerical modelling of the tibia bone using MRI to examine von Mises stress and overall deformation

  • Samer A. Kokz EMAIL logo , Ali M. Mohsen , Khaldoon Khalil Nile and Zainab B. Khaleel
Published/Copyright: March 4, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Open Engineering
From the journal Open Engineering Volume 14 Issue 1

Abstract

As the main load bearer throughout the gait cycle, the tibia is a crucial bone in the lower leg that distributes ground reaction forces with each stride. Comprehending the distribution of stress inside the tibia is essential for both avoiding fractures and developing efficient methods of redistributing load to promote healing and biomechanical correction. The study examined the stress, strain, and deformation encountered by the tibia over a 7-s walking cycle using an ANSYS workbench software, using tibia bone under a period of force applied to the boundary condition at intervals of 0.2 s. The tibia encounters stress levels varying from 0 to 1,400 N, exhibiting a regular pattern that aligns with the loading attributes often associated with traditional walking. The research conducted in this study identified the occurrence of maximum stress levels, measuring 25.45 MPa. Additionally, related peak elastic strains and deformations were observed, measuring 2.19 × 10−3 and 2.43 mm, respectively. The patterns that have been seen indicate that there is an initial contact of the foot with the ground, followed by the bearing of weight and subsequently the toe-off. These observed patterns closely resemble the natural motion of the foot during the act of walking. Temporal fluctuations in elastic strain through the tibia throughout a gait cycle reveal that the strain is mostly cantered at the medial surface of the tibia. Additional investigation into the elastic properties and overall deformations of the tibia yielded valuable observations on prospective areas of interest within the bone’s structure. These findings are of utmost importance for biomechanical assessments and the identification of potential injury hazards in subsequent research endeavours.

Keywords: tibia bone; magnetic resonance imaging; finite element analysis (FEA)

1 Introduction

The discipline of Orthopaedics with a particular emphasis on the biomechanics of the tibial bone has seen substantial growth due to developments in medical imaging technologies and computing capacities. The integration of computed tomography (CT) and finite element analysis (FEA) has yielded unprecedented insights into the internal structure and biomechanical characteristics of the tibia bone. A comprehensive comprehension of the tibia’s response to various levels of pressure and distribution of weight is vital due to its pivotal role as the major weight-bearing bone in the lower leg. Visualization of the tibia can be carried out with CT scanning, by creating detailed three-dimensional models for FEA [1,2]. Such models are used to investigate the distribution of pressure and weight-bearing regions in the tibia [3,4].

FEA is widely used to evaluate the stability of tibial shaft fixation by examining the length of the plate, the integrity of the fibula, and the position of the plate in relation to the overall stability of the fixation. This approach facilitates the comprehension of intricate phenomena, such as the impact of intramedullary nailing and double-locking plates in addressing proximal tibial fractures, along with the results of placing tibial cutting guide pins in unicompartmental knee arthroplasty [5].

Numerous studies have been reported to explore various factors, including torsion, the interplay between the Achilles tendon and the kinematic coupling among tarsal bones, the biomechanical repercussions of a lateral hinge fracture, and the effects of Tai Chi movements on knee structures [6,7,8,9]. The use of FEA in the field of biomechanics has greatly enhanced our comprehension of the variables that impact tibial pressure and weight distribution. Aluminium plates, serving as ballistic shields in aviation and light vehicles, were analysed using the Johnson–Cook model with variable impact velocities of 25 to 55 m/s and angles of 0° to 45° [10]. Results showed that penetration occurred at velocities exceeding 25 m/s, with perforation at 35 m/s and an impact angle of 15, and further perforation at 45 m/s with an impact angle of up to 30°. Decker et al. [11] discussed the significance of high quality and durability in the production of semi-trailer axles, crucial components in the road transport industry. Through macroscopic observations and dynamic FEA, the study analysed damage to the rear axle, identifying cases where the yield point is exceeded and the strength limit is reached, emphasizing the heightened risk of damage to the suspension system on challenging road conditions. Quantitative study was carried out to assess the fatigue of polymer–ceramic dental composites, comparing commercial (Filtek Z550) and experimental (Ex-nano (G), Ex-flow (G)) materials [12]. Results indicated that composites with higher inorganic particle content exhibit greater strength after ageing, but experimental composites show significantly lower residual strength after thermocycles compared to commercial counterparts.

Often encountered obstacle in finite element studies is the intrinsic complexity involved in effectively replicating the specific circumstances and features of human tissues [13,14,15]. However, considerable progress has been made in improving the accuracy of finite element models. The correctness of their finite element model was effectively confirmed by Wang et al., as shown by their study on the tibia impacted by osteogenesis imperfecta [16]. The researchers focused considerable importance on considering the influence of imperfect bone while creating models [13].

The employment of CT has expanded beyond its original imaging purpose due to technological advancements. The incorporation of this tool has been essential in the creation of complex and personalized models for FEA [2,3,17]. Mehta and Rajani and Tan et al. applied specific methodologies in their individual investigations to investigate the biomechanical effects of arthroscopic ankle arthrodesis and the progressive degradation of the posterolateral complex of the knee joint [18,19].

The integration of FEA with CT scans has played a pivotal role in the investigation of stress distribution and fusion efficacy in the subtalar joint [17], the evaluation of contact stress experienced by the hip joint during a gait cycle [20], and the exploration of potential methods for reconstructing bone defects after tumour excision in the distal tibia [21]. The use of CT imaging is crucial in properly depicting the complex anatomy of the tibia bone and other components of the lower leg, hence augmenting the authenticity of the modelling process.

The use of CT and FEA methodologies has shown notable benefits in the examination of the biomechanical characteristics of the tibial bone. Employing such technologies provides a potent tool for studying the effect of many variables on the pressure and weight-bearing regions of the tibia, thereby augmenting our comprehension of its physiological function and pathological transformations. However, the ongoing advancement of these technologies indicates the continuous need for further research to fully exploit their capabilities and improve their accuracy in the analysis of tibial biomechanics.

This study aimed to provide an analysis of the aforementioned advancements pertaining to the pressure and weight-bearing region in the tibia and evaluate the outcomes derived from these advancements. The main goal is to examine the tibia bone’s strength and responsiveness to body weight throughout the gait cycle. Gaining insight into the behaviour of the tibia bone under stress provides medical care providers with vital views on the bone’s biomechanics. Such knowledge is essential for avoiding fractures, especially in situations such as osteoporosis. Furthermore, it assists in the correction of bone architecture, ensuring that patients’ weight is distributed appropriately, hence reducing possible difficulties.

2 Materials and methods

The present work used magnetic resonance imaging (MRI) data obtained from a patient as shown in Table 1. These data were utilized to generate a precise three-dimensional (3D) representation of various tissues via the utilization of sophisticated image processing software known as Mimics. The subsequent use of 3-Matic software was used to perform further image processing operations, including the segmentation of distinctly various kinds of tissues, resulting in the generation of an enhanced three-dimensional model, as shown in Figure 1.

Table 1

Anthropometric parameters of a patient’s tibia bone at the Al Amin Al Hussain Hospital, Iraq

Patient name Patient name (SG)
Patient age 38 years
Gender Male
Side of tibia Right
Weight of patient 73 kg

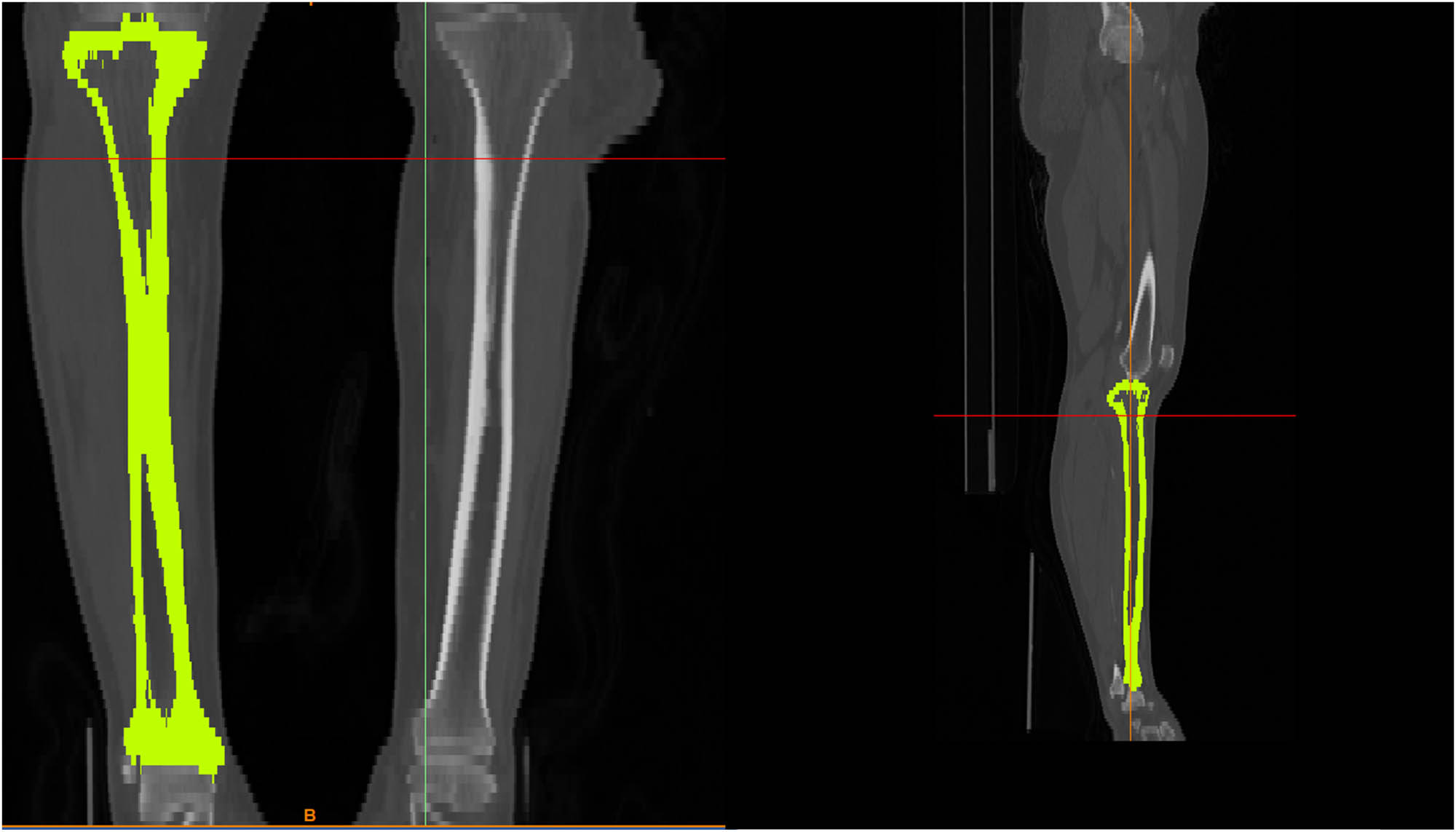

Figure 1 Tibia bone undergoes a process of segmentation and treatment in order to facilitate the creation of a 3D module.
Figure 1

Tibia bone undergoes a process of segmentation and treatment in order to facilitate the creation of a 3D module.

The model was refined by removing unnecessary data and reducing noise using 3-Matic, a software tool optimized for intricate geometric manipulations as shown in Figure 2(a). Additionally, a finite element mesh was generated to further enhance the model in Figure 2(b) and (c). Material properties were allocated to the 3D model by considering tissue types and bone density. The bone’s density was used to establish material properties, such as modulus of elasticity, and Poisson’s ratio of 0.3 in order to accurately replicate the mechanical characteristics of the bone, as shown in Figure 3.

Figure 2 3-Matic Medial software used to enhance the mimics module (a) and generate volume meshes (b, c).
Figure 2

3-Matic Medial software used to enhance the mimics module (a) and generate volume meshes (b, c).

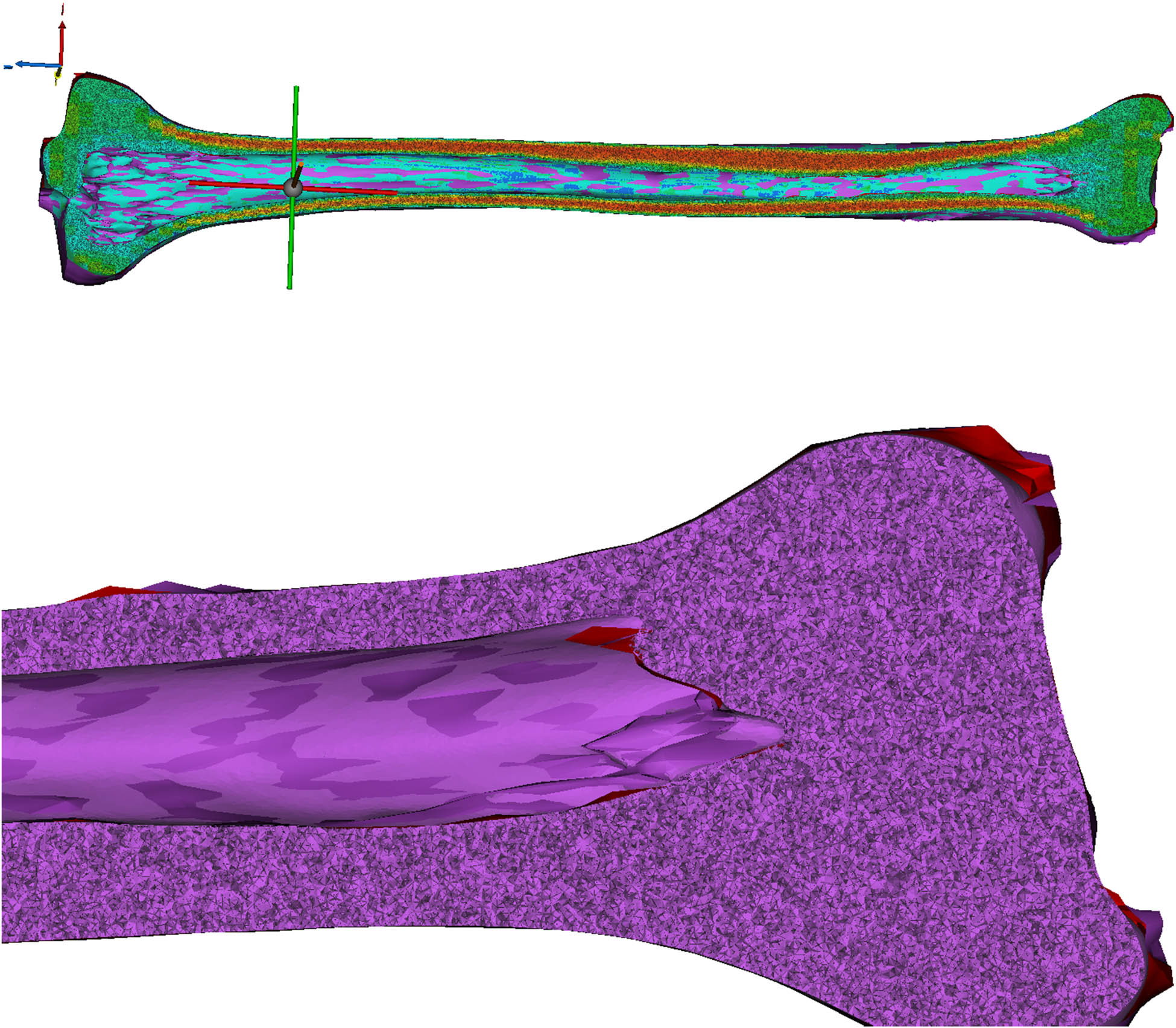

Figure 3 Incorporating material attributes based on tibia bone densities and MRI is essential for achieving an identical density to that of genuine tibia bone layers.
Figure 3

Incorporating material attributes based on tibia bone densities and MRI is essential for achieving an identical density to that of genuine tibia bone layers.

Subsequently, the model was imported to Ansys Workbench software, a complete software platform used for engineering simulation, specifically for the purpose of conducting FEA. The model was enhanced by the implementation of a more precise mesh in regions of specific significance. Additionally, mesh convergence analyses were performed to verify the independence of the obtained outcomes from the mesh density. The total number of nodes and elements are 2232878 and 1193060, respectively. The boundary conditions were established based on the particular characteristics of the physical scenario being simulated [16], as shown in Figure 4, aiming to recreate the real-pressure disruption circumstances on the tibia bone in which the model runs. The weight of the patient was 73 kg but during the simulation, we consider the patient in different batten interim to reflect the real load that might distribute in the tibia bone during the gait cycle. By using the tablature data in Ansys workbench to increasing the load over the tibia model gradually from zero to maximum load, the loads were applied on Figure 4(a) and (c) was considered as a supporting area as shown in Figure 4. The loads were varying from 600 to 1,400 N; this is because the load on the human body limb segments is increased according to the speed of the person based on the following equation:

(1) F = m * g + m * a ,

where F is the normal (reaction) force, g is the gravitational force (or the weight of the person), m is the mass of the person, and a is the acceleration due to gravity (approximately 9.81 m/s near the surface of the Earth).

Figure 4 Applying the boundary conditions on tibia model bone, (a) the application of forces on the internal and exterior condylar surfaces at knee joint, (b) the fixed inferior articular surfaces of the tibia bone.
Figure 4

Applying the boundary conditions on tibia model bone, (a) the application of forces on the internal and exterior condylar surfaces at knee joint, (b) the fixed inferior articular surfaces of the tibia bone.

The inclusion of this particular stage had a pivotal role in the entire process, as it exerted a substantial influence on the outcomes of the analysis. The module after meshing consisted of 22,32,878 nodes and 11,93,060 elements.

The model that has been verified in our study has the capability to accurately forecast biomechanical responses across different situations. This valuable tool contributes to the comprehension of diseased states and facilitates the enhancement of treatment approaches. The strategy used in this study aligns with other investigations in the field of orthopaedics using FEA and offers a novel methodology for modelling and examining patient-specific data. The model has the potential for extensive use in the examination of many situations and circumstances, hence serving as a helpful instrument for both clinicians and researchers.

3 Results

The tibia seems to experience varying stresses, ranging from 0 to 1,400 N, which may be influenced by the gait cycle. Commencing and concluding with zero load (0 N) implies a complete step cycle that initiates and terminates with the foot in an elevated position.

The duration of the analysis is 7 s, during which stress data are collected at regular intervals of 0.2 s as shown in Figure 5. During this temporal period, there is an elevation in stress inside the tibia bone, reaching its maximum point, followed by a subsequent decline down to a neutral state. This pattern mirrors the loading characteristics seen in a conventional gait cycle.

Figure 5 Temporal stress variations inside the tibia during a gait cycle lasting 7 s while subjecting the bone to forces ranging from 600 to 1,400 N.
Figure 5

Temporal stress variations inside the tibia during a gait cycle lasting 7 s while subjecting the bone to forces ranging from 600 to 1,400 N.

The observed minimum stress values exhibit a significant diminution, approaching zero at zero loaded during the initial heel Strick (heel contact), across all temporal instances. This phenomenon raises the possibility that these values may be attributable to numerical aberrations stemming from the FEA calculation or correspond to locations within the model where no external load has been applied. The maximum stress values exhibit a consistent upward trend until the 6 s interval, after which they show a subsequent decline. This phenomenon is often seen when the tibia is subjected to maximal stress and then decreased when the step is completed. The calculation of average stress values offers a comprehensive perspective on the distribution of stress inside the tibia. The observed pattern aligns with that of maximum stress, suggesting a consistent distribution of stress throughout the loading process.

During the first phase, which spans from 0 to 3 s, there is a noticeable increase in the load exerted on the tibia. This is evident by the constant upward trend seen in both maximum and average stresses. Moreover, during the middle phase, which typically lasts between 3 to 6 s, the load attains its maximum magnitude and afterward starts a gradual decline. Stress levels reach their maximum and thereafter start a drop. In the last phase, which lasts around 6–7 s (Figure 5), the load is swiftly and abruptly eliminated, resulting in a significant reduction in stresses to a value of zero. At the time interval of 6 s, the tibia undergoes a peak maximum stress of around 25.455 MPa, as shown in Figure 6. This data point would have significant importance, particularly in the context of evaluating the mechanical qualities of the tibia, such as its yield strength. In the event that the applied stress exceeds the yield strength of the bone material, there exists a potential for damage or fracture.

Figure 6 Temporal stress variations inside the tibia during a gait cycle show the equivalent von Mises stress concentrated at the medial surface of the tibia.
Figure 6

Temporal stress variations inside the tibia during a gait cycle show the equivalent von Mises stress concentrated at the medial surface of the tibia.

The observed loading pattern, characterized by loads ranging from 0 to 1,200 N and returning to 0 N, seems to resemble a conventional gait cycle associated with walking or running. During this cycle, the foot establishes contact with the ground, assumes the whole-body weight (perhaps augmented by additional loads), and afterwards disengages from the ground surface.

Strain is a quantification of the extent of distortion experienced by a material under the influence of applied stress. In this particular instance, it exemplifies the manner in which the tibia bone undergoes deformation as a result of the stresses exerted upon it during the act of walking. For each time step, the corresponding elastic strain is recorded and the maximum, minimum, and average values are shown in Figure 7.

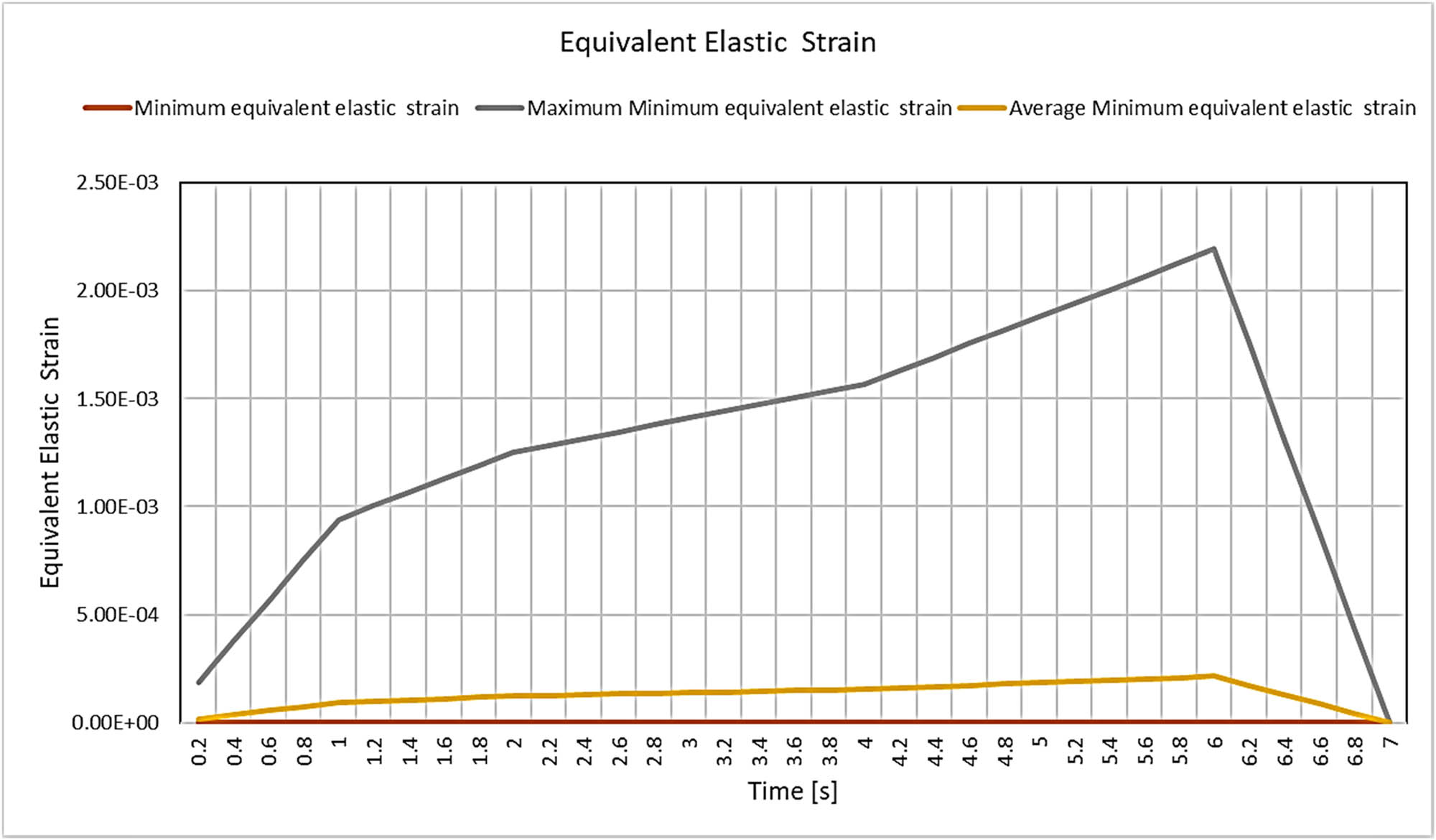

Figure 7 Corresponding elastic strain is recorded and the maximum, minimum, and average values.
Figure 7

Corresponding elastic strain is recorded and the maximum, minimum, and average values.

During the first phase, which spans from 0 to 3 s, it can be seen that when the load on the tibia rises, there is a linear increase in the corresponding elastic strain. The bone is undergoing compression, and the strain levels correspond to this deformation. During the middle phase, which spans from 3 to 6 s, the load attains its greatest magnitude, and the corresponding elastic strain continues to escalate, culminating in its highest value at the 6-s mark. During the last phase, which lasts around 6–7 s, the load is swiftly eliminated, resulting in a significant reduction in the corresponding elastic strain until it reaches zero. This phenomenon signifies the bone’s relaxing in response to the removal of a load.

Points of interest refer to certain locations or attractions that are of particular significance or interest to individuals. These points of interest may vary greatly and may include landmarks and historical sites. At the time interval of 6 s, the maximal equivalent elastic strain reaches a value of roughly 2.19 × 10−3, as shown in Figure 8. The comprehension of the elastic characteristics of the bone enables one to ascertain the extent of deformation occurring at the maximum point of stress. The research reveals that the minimal equivalent elastic strains have values that are in close proximity to zero, indicating the presence of insignificant amounts of tension.

Figure 8 Temporal fluctuations in elastic strain through tibia throughout a gait cycle reveal that the strain is mostly centred at the medial surface of the tibia.
Figure 8

Temporal fluctuations in elastic strain through tibia throughout a gait cycle reveal that the strain is mostly centred at the medial surface of the tibia.

Gaining comprehension of the strain response shown by the tibia in the presence of these loads may provide valuable insights into the operational characteristics of the tibia when subjected to typical gait loads. Furthermore, it can help identify possible areas of concern if the strain surpasses certain tolerance thresholds. The elastic strain was 0.002193 at the medial surface of the tibia.

Deformation refers to the alteration in the geometric configuration or dimensions (or both) of an entity as a consequence of the application of an external force. Within this particular context, the data serve as a representation of the changes in the structural configuration of the tibia bone in response to the various mechanical stresses experienced during the act of walking. The presented data include the highest, lowest, and average total deformations for each timestamp. During the first phase, which spans from 0 to 3 s, the overall deformation exhibits a linear rise as shown in Figure 9. This observation suggests a persistent and progressive force exerted on the tibia in the early stage of the walking cycle. At the time interval of 3 s, the highest deformation of the object is seen to be around 1.56 mm.

Figure 9 Total deformation of the tibia during the gait cycle after applying varying loads.
Figure 9

Total deformation of the tibia during the gait cycle after applying varying loads.

During the middle phase, which spans from 3 to 6 s, the overall deformation of the material continues to progress, although at a reduced rate compared to the first phase. This deceleration suggests a gradual decrease in the rate of load increment. The maximum deformation is seen during a time of 6 s, with a magnitude of roughly 2.43 mm. During the last phase, which lasts around 6–7 s, there is a notable and rapid reduction in deformation. This reduction is indicative of the load being removed from the tibia as the gait cycle reaches completion. The minimum deformation constantly stays at zero, indicating that some regions of the tibia do not undergo any deformation over the whole of the gait cycle (Figure 8).

Figure 10 Total deformation of the tibia after applying a series of forces on the condylar surface.
Figure 10

Total deformation of the tibia after applying a series of forces on the condylar surface.

The average deformation of the tibia offers a comprehensive perspective on the collective response of the whole bone, hence facilitating comprehension of the bone’s average deformation. Gaining an understanding of the deformation characteristics shown under these loads may provide valuable insights into the functional aspects of the tibia when subjected to normal gait loads. Furthermore, it can help identify possible areas of concern if deformation surpasses certain tolerance thresholds. Regions characterized by significant deformation may need attention, particularly if they surpass the biomechanical thresholds of the tibia, possibly resulting in the occurrence of stress fractures or other types of injuries.

4 Discussion

The results suggest that the tibia undergoes a diverse spectrum of stress levels, ranging from 0 to 1,400 N, for the whole of a gait cycle. The stress distribution pattern found in the tibia throughout the gait cycle reflects the loading parameters observed in a typical walking or running cycle. The tibia experiences a gradual escalation in stress as it bears the whole of the body’s weight, often compounded by supplementary burdens. The tension reaches its maximum level at around the 6 s mark, followed by a quick decline to zero when the foot becomes detached from the ground surface. In the present study, it is shown that the tibia undergoes a notable peak maximum stress of around 25.455 MPa. This particular data has significant importance in the assessment of the mechanical properties of the tibia, including its yield strength. In the event that the applied stress surpasses the yield strength of the bone material, there exists a possible hazard of experiencing damage or fracture.

The analysis of the tibial strain response under these specific pressures offers significant insights into the functional properties of the bone when exposed to normal walking loads. Strain is a quantifiable parameter that characterizes the degree of deformation encountered by a material when subjected to an externally applied force or stress. In the current scenario, the phenomenon under consideration pertains to the structural alteration of the tibia bone resulting from the mechanical strains encountered throughout the locomotion process. The strain levels are directly associated with the deformation, exhibiting a linear relationship where strain progressively increases as the weight on the tibia escalates. The greatest equivalent elastic strain is around 2.19 × 10−3, and this data may be used to determine the magnitude of deformation at the location of maximum stress in the structure of tibia bone as shown in (Figure 10).

The data shown in Figure 9 provide further support for the notion that the tibia undergoes a complete deformation during the gait cycle. The data demonstrats a consistent and gradual increase in deformation over the course of 0 to 3 s, suggesting the presence of a sustained and advancing force applied to the tibia during the first phase of walking. The peak distortion is seen at around 6 s, after which there is a rapid decrease as the gait cycle reaches its conclusion. The minimal deformation constantly stays at zero, suggesting that some areas of the tibia remain undeformed over the whole gait cycle. The module may be fabricated by the use of a 3D printer or casting method in order to get a prototype. Subsequently, mechanical parameters such as tensile strength, compression strength, and bending strength can be determined using appropriate testing procedures [22]. The experiential analysis of mechanical properties for the tibia bone is essential to understand the behaviour of the tibia bone under the weight of the individual during the gait cycle.

5 Conclusion

This research facilitates comprehension of the distribution of stress inside the tibia bone during a walking cycle. To conduct a comprehensive evaluation, the maximum stresses experienced by the bone are compared with established tolerance levels and strengths. This comparison enabled the determination of whether the applied loads are within safe limits. Moreover, gaining knowledge of the precise places within the tibia where these maximal stresses manifest might provide valuable insights into prospective fracture sites or areas of particular concern.

The findings demonstrate a distinct correlation between strain and the applied loads throughout the gait cycle. The reaction of the tibia bone is characterized by a progressive compression phase followed by a relaxation phase, which aligns with the anticipated biomechanical patterns seen during activities such as walking or running. It is observed that during the gait cycle, elastic strain fluctuations in the tibia are largely localized to the medial surface. This distortion reaches its apex at the 6 s point, coinciding with the late stance phase. This critical discovery emphasizes that the greatest weight-bearing and, as a result, the greatest stress on the tibia occur at this time, which is critical for commencing the push-off phase. These results have implications for understanding load distribution in the tibia, which might be critical for designing targeted therapies to reduce injury risks or improve prosthetic limb development. The results demonstrate a distinct pattern of deformation in response to the applied stresses during a gait cycle. The overall deformation of the tibia bone exhibits a pattern of augmentation while the foot is placed, culminating in its maximum value, followed by a decline when the foot is raised from the ground.

The research provides information to assist in understanding the weight distribution on the tibia and provide amputees with appropriate prostheses to enhance walking and minimize energy consumption during the amputation. It also helps in correcting the definitions of the tibia bone in order to change the ground response forces during the ambulator.

  1. Funding information: Authors declare that the manuscript was done depending on the personal effort of the author, and there is no funding effort from any side or organization.

  2. Conflict of interest: The authors state no conflict of interest.

  3. Data availability statement: Most datasets generated and analysed in this study are comprised in this submitted manuscript. The other datasets are available on a reasonable request from the corresponding author with the attached information.

References

[1] Pan D, Tianye L, Peng Y, Jingli X, Hongzhu L, Heran Z, et al. Effects of proximal fibular osteotomy on stress changes in mild knee osteoarthritis with varus deformity: A finite element analysis. J Orthop Surg Res. 2020;15(1):1–10.10.1186/s13018-020-01894-1Search in Google Scholar PubMed PubMed Central

[2] Yuan CS, Sun JJ, Wu SY, Jing GQ, Xie MM, Tang KL. Analysis of the stress distribution of the subtalar joint and fusion efficacy after double-screw insertion. J Orthop Surg Res. 2019;14(1):1–9.10.1186/s13018-018-1034-4Search in Google Scholar PubMed PubMed Central

[3] Shepherd DET, Seedhom BB. Thickness of human articular cartilage in joints of the lower limb. Ann Rheum Dis. 1999;58(1):27–34.10.1136/ard.58.1.27Search in Google Scholar PubMed PubMed Central

[4] Fan C, Niu Y, Wang F. Local torsion of distal femur is a risk factor for patellar dislocation. J Orthop Surg Res. 2023;18(1):1–7. 10.1186/s13018-023-03646-3.Search in Google Scholar PubMed PubMed Central

[5] Yang H, Liao L, Xue F, Li Y, Hu G. Anatomical observation, classification, fracture and finite element analysis of the posterior process of the Asian adult talus. J Orthop Surg Res. 2022;17(1):1–10. 10.1186/s13018-022-03345-5.Search in Google Scholar PubMed PubMed Central

[6] Xie W, Lu H, Zhan S, Liu Y, Quan Y, Xu H, et al. Establishment of a finite element model and stress analysis of intra-articular impacted fragments in posterior malleolar fractures. J Orthop Surg Res. 2022;17(1):2–7. 10.1186/s13018-022-03043-2.Search in Google Scholar PubMed PubMed Central

[7] Zaffagnini S, Grassi A, Zocco G, Rosa MA, Signorelli C, Muccioli GMM. The patellofemoral joint: From dysplasia to dislocation. EFORT Open Rev. 2017;2(5):204–14.10.1302/2058-5241.2.160081Search in Google Scholar PubMed PubMed Central

[8] Chui ECS, Lau LCM, Kwok CKB, Ng JP, Hung YW, Yung PSH, et al. Tibial cutting guide (resector) holding pins position and subsequent risks of periprosthetic fracture in unicompartmental knee arthroplasty: A finite element analysis study. J Orthop Surg Res. 2021;16(1):1–7.10.1186/s13018-021-02308-6Search in Google Scholar PubMed PubMed Central

[9] Wu CC, Ye LM, Li XF, Shi LJ. Sequential damage assessment of the posterolateral complex of the knee joint: A finite element study. J Orthop Surg Res. 2022;17(1):1–9. 10.1186/s13018-022-03034-3.Search in Google Scholar PubMed PubMed Central

[10] Nieoczym A, Kazimierz D. Fractographic assessment and FEM energy analysis of the penetrability of a 6061-T aluminum ballistic panel by a fragment simulating projectile. Adv Sci Technol Res J. 2021;15(1):50–7. 10.12913/22998624/129951.Search in Google Scholar

[11] Decker Ž, Rudzinskas V, Drozd K, Caban J, Tretjakovas J, Nieoczym A, et al. Analysis of the vehicle chassis axle fractures. Materials. 2023;16(2):806. 10.3390/ma16020806.Search in Google Scholar PubMed PubMed Central

[12] Pieniak D, Przystupa K, Walczak A, Niewczas AM, Krzyzak A, Bartnik G, et al. Hydro-thermal fatigue of polymer matrix composite biomaterials. Materials. 2019;12(22):3650. 10.3390/ma12223650.Search in Google Scholar PubMed PubMed Central

[13] Totoribe K, Chosa E, Yamako G, Hamada H, Ouchi K, Yamashita S, et al. Finite element analysis of the tibial bone graft in cementless total knee arthroplasty. J Orthop Surg Res. 2018;13(1):1–7.10.1186/s13018-018-0830-1Search in Google Scholar PubMed PubMed Central

[14] Ibitoye MO, Hamzaid NA, Ahmed YK. Effectiveness of FES-supported leg exercise for promotion of paralysed lower limb muscle and bone health - A systematic review. Biomed Tech. 2023;68(4):329–50. 10.1515/bmt-2021-0195.Search in Google Scholar PubMed

[15] Korkmaz İ, Kaymaz İ, Yıldırım Ö, Murat F, Kovacı H. Designing and in vitro testing of a novel patient-specific total knee prosthesis using the probabilistic approach. Biomed Eng/Biomedizinische Technik. 2022;67(4):295–305. 10.1515/bmt-2021-0136.Search in Google Scholar PubMed

[16] Wang Y, Yan S, Zeng J, Zhang K. The biomechanical effect of different posterior tibial slopes on the tibiofemoral joint after posterior-stabilized total knee arthroplasty. J Orthop Surg Res. 2020;15(1):1–10.10.1186/s13018-020-01851-ySearch in Google Scholar PubMed PubMed Central

[17] Kang KT, Koh YG, Lee JA, Lee JJ, Kwon SK. Biomechanical effect of a lateral hinge fracture for a medial opening wedge high tibial osteotomy: Finite element study. J Orthop Surg Res. 2020;15(1):1–10.10.1186/s13018-020-01597-7Search in Google Scholar PubMed PubMed Central

[18] Mehta BV, Rajani S. Finite element analysis of the human tibia. WIT Transactions on Biomedicine and Health. Vol. 2. Department of Mechanical Engineering, Ohio University, Press WIT; 1995. 10.2495/BIO950361.Search in Google Scholar

[19] Tan SL, Mat Som MH, Basaruddin KS, Sulaiman AR, Aziz Safar MJ, Amin Megat Ali MS. Finite element analysis on tibia with osteogenesis imperfecta: The influence of incomplete bone in model reconstruction. 2020 IEEE Symp Ind Electron Appl ISIEA 2020; No. 4, 2020. p. 137–42.10.1109/ISIEA49364.2020.9188155Search in Google Scholar

[20] Li Y, Wang K, Wang L, Chang T, Zhang S, Niu W. Biomechanical analysis of the meniscus and cartilage of the knee during a typical Tai Chi movement—brush-knee and twist-step. Math Biosci Eng. 2019;16(2):898–908.10.3934/mbe.2019042Search in Google Scholar PubMed

[21] Cao Y, Zhang Y, Huang L, Huang X. The impact of plate length, fibula integrity and plate placement on tibial shaft fixation stability: A finite element study. J Orthop Surg Res. 2019;14(1):1–7.10.1186/s13018-019-1088-ySearch in Google Scholar PubMed PubMed Central

[22] Mahmood AA, Kokz SA, Mohsen AM. The influence of ultrasonic impact peening (Uip) on the mechanical properties and fatigue life of the Aa1100 alloy. J Appl Eng Sci. 2023;21(2):384–91.10.5937/jaes0-38125Search in Google Scholar
Received: 2023-09-14
Revised: 2023-11-28
Accepted: 2023-12-04
Published Online: 2024-03-04
