Abstract

Fe-deposits in Thailand are mostly located along the Loei Fold Belt in Central Thailand. The study areas, Khao Lek (KL) and Khao Thab Kwai (KTK), have Fe-deposits hosted in contact metamorphized Permian limestone and Permo-Triassic volcanic rocks. Magnetite forms over a wide range of geological conditions and incorporates various trace elements into its cubic spinel structure. The KL and KTK Fe-skarn deposits are mainly composed of massive magnetite. The main discriminator elements for magnetite are characterized by the distribution of Mg, Al, Si, Ca, Ti, V, Cr, Mn, Co, Ni, and Cu. Thus, this study focused on the chemical characteristics of magnetite to identify the origins of the iron ore deposits. This study investigated the trace element chemistry of the magnetite using laser ablation inductively coupled plasma mass spectrometry. The high Ca + Al + Mn and low Ti + V and Ni/Cr + Mn contents of hydrothermal magnetite in the KL and KTK deposits support a typical skarn origin, and the textural and trace element features of the KL and KTK magnetite are analogous to those of typical calcic-Fe skarn deposits worldwide.

Graphical abstract

Keywords: Fe-deposit; iron skarn; trace element; hydrothermal magnetite; magmatic magnetite

1 Introduction

The potential for mineral deposits in Thailand is high, especially along the Loei Fold Belt (LFB) (Figure 1), which contains Au, Cu, and Fe ores. In 2022, the Fe ore industry in Thailand produced about 5.32 Mt of Fe ore [1]. Worldwide, skarn deposits are predominantly Fe-skarns, and several deposits contain more than 300 million tons of Fe ore [2]. Fe ores are predominantly composed of magnetite, with minor silicate gangue minerals [2,3]. In Thailand, the Khao Lek (KL) and Khao Thab Kwai (KTK) Fe deposits are important Fe-skarns that have been mined [4,5].

Figure 1

(a) The index map presents the location of the study areas; and representative of the geological map of (b) the Khao Lek deposit, Nakhon Sawan Province, and (c) the KTK deposit, Lop Buri Province, located along the LFB, Central Thailand.

The KL Fe ore in Nong Bua, Nakhon Sawan Province, Central Thailand, has a reserve of 300,000 metric tons. It consists of 50–70% Fe [6], of which magnetite (Fe₃O₄) is the main mineral. In addition, within the study area, sulfide minerals are commonly found, including pyrite (FeS₂), chalcopyrite (CuFeS₂), and sphalerite (ZnS) [7]. The mineral deposits in the study area are related to skarn metamorphism, which produces Fe-rich garnet, pyroxene, and magnetite. The KTK Fe–Cu ore deposit is located in Lop Buri Province in the southern part of Nakorn Sawan along the LFB. This deposit is the largest Fe deposit in Thailand, containing 720,000 metric tons of ore, with 48–66% Fe [4]. The main ore minerals are hematite (Fe₂O₃) and magnetite (Fe₃O₄). Secondary minerals are also observed in fractures, including malachite Cu₂(CO)₃(OH)₂ and azurite (Cu₃(CO₃)₂(OH)₂) [8].

However, magnetite can occur under a variety of geological conditions including iron oxide–copper–gold, iron oxide–apatite, iron skarn, banded iron formation, and magmatic Fe–Ti oxide [9,10,11,12,13,14,15], and its cubic spinel structure includes a variety of trace elements [9,16,17]. For example, divalent Co, Ni, Zn, and Mn; trivalent Al, V, and Cr; and tetravalent Ti cations often isomorphically substitute for Fe ions (Fe³⁺ and Fe²⁺) in magnetite without affecting the spinel structure [9]. Since trace elements of magnetite are resistant to mechanical breakdown and chemical change, they can be used to determine the origin of ore deposits. While many studies on the geology and mineralogy of the KL and KTK deposits have been undertaken [5,7,8,18], studies on their mineral chemistry have not been conducted. The composition of magnetite from these deposits can provide insights into the compositional variability of the magnetite and information about regional mineralization.

Trace element distribution in magnetite is characterized by 25 elements (i.e., Mg, Al, Si, P, Ca, Sc, Ti, V, Cr, Mn, Co, Ni, Cu, Zn, Ga, Ge, Y, Zr, Nb, Mo, Sn, Hf, Ta, W, and Pb). This trace element signature of magnetite can be used as a provenance indicator for mineral exploration [10]. However, the geochemistry of magnetite in the KL and KTK deposits is poorly understood. This study focuses on the chemical characteristics of KL and KTK magnetite to identify their origins and controlling factors.

2 Geological setting

2.1 KL Fe deposit

The KL Fe deposit is located in LFB (Figure 1a). This iron deposit is hosted by Permian limestone (Tak Fa Formation) and Late Permian–Early Triassic volcanic rocks, ranging from basaltic andesite to basalt [5,19] (Figure 1b). The Permian limestone, metamorphosed to calc-silicates and marble, hosts better-developed skarns than the Late Permian–Early Triassic volcanic rocks. Spatially, skarn zonation in the limestone protolith, also known as exoskarn, comprises garnet, pyroxene, garnet–pyroxene, and pyroxene–wollastonite skarns, while the volcanic rocks protholith or endoskarn only consisting of pyroxene skarns [5]. Diorite dikes, up to a few meters wide, are observed in the limestone-hosted skarns. In the eastern zone, the garnet skarns contain reddish-brown to yellowish-green garnet with pyroxene, while the garnet skarns in the western zone contain dark brown medium-grained to coarse-grained garnet with calcite.

During skarn formation, there are two stage occurrences including prograde metamorphism (metasomatism) and retrograde metamorphism (retrograde alteration). Prograde skarn formation or metasomatism leads to the formation of skarn mineral assemblages, such as garnet, pyroxene, and wollastonite [5]. After metasomatism, retrograde skarn formation took place, resulting in the replacement of prograde minerals (e.g., garnet and pyroxene) by retrograde minerals, such as epidote, chlorite, tremolite-actinolite, hornblende, calcite, and quartz [5]. During the late stage of retrograde skarn, hydrothermal fluid was dominant, leading to the formation of magnetite and sulfides in a process known as hydrothermal mineralization including iron mineralization and sulfide mineralization [5,20]. Magnetite orebody mainly replaced in endoskarn [5,19]. Sulfide minerals, including pyrite and chalcopyrite, were formed after the iron mineralization stage as quartz-chlorite-sulfide veinlets. Finally, epidote-chlorite ± calcite and calcite vein/veinlets are formed [5]. It can be noticed that malachite and azurite are found as secondary minerals [20]. Mineral chemistry suggested that the composition of the garnets, which varies from spessartine–grossularite–andradite to andradite, was influenced by the protolith fluid type and the distance from the source intrusion [20]. This variation is similar to that of the pyroxene, which occurs as diopside in the volcanic protoliths and ferroaugite in the limestone protoliths [20]. The KL Fe deposit is classified as a calcite skarn based on its mineralogy and a Fe ± Cu skarn based on its dominant metals: Cu, Au, Pb–Zn, Fe, Mo, W, and Sn [5].

2.2 KTK Fe deposit

The KTK Fe deposit is located in the LFB as well as the KL Fe deposit (Figure 1a). This deposit is situated in the same mountain range with the Khao Phra Ngam skarn deposit (also known as the Khao Phra Ngam range), and the skarn formation is formed in a contact zone between the Triassic diorite and Permian limestone of the Khao Khad Formation as well [18] (Figure 1c). Spatially, the zonation of the deposit from distal to proximal intrusive rock occurred as marble with minor diopsidic marble, wollastonite skarn, garnet-clinopyroxene skarn, garnet skarn, and plagioclase-hornblende skarn [18]. However, there are no reports on endoskarn and exoskarn.

In this area, three stages of skarn formation, including isochemical metamorphic stage, prograde metamorphic stage (metasomatism stage), and retrograde metamorphic stage (retrograde alteration), were observed by Intayot [18]. The isochemical metamorphic stage is formed by heat transfer from igneous intrusion to carbonate country rocks. Limestone was metamorphosed to marble, diopsidic marble, and reaction skarn rimming (bimetasomatism) chert nodules or beds. This was followed by a prograde metamorphic or metasomatic stage, which was represented by wollastonite, garnet–clinopyroxene, garnet, and plagioclase–hornblende skarns. The final stage was retrograde alteration, characterized by the major development of hydrous minerals (e.g., epidote, chlorite, and tremolite) with quartz and calcite [18]. Quartz and calcite replacement of high-temperature mineral assemblages (prograde minerals) occurred during this stage. Ore minerals, including chalcopyrite, bornite, covellite, and sphalerite, with magnetite, are also developed in this stage. The retrograde skarn was probably the result of the declining temperature with meteoric-magmatic hydrothermal fluid. The skarn deposit at KTK is classified as a calcic Fe ± Cu skarn [18].

3 Methodology

Magnetite samples were collected from the KL deposit (seven samples) and the KTK deposit (six samples) as shown in Figure 1b and c. Polished sections were prepared and examined using a reflected light microscope to identify minerals and textures. Mapping elements (Si, Al, Ti, Ca, and Mg) were analyzed by an electron probe microanalyzer (EPMA) (JXA-8530F Plus Hyper Probe; JOEL) at the NAWI Graz Geocenter, Institute of Earth Sciences, University of Graz. The measurement conditions were a 15 kV acceleration voltage, a 10 nA beam current, and a beam diameter of c. 1 μm. A range of natural and synthetic mineral standards (i.e., garnet, augite, dolomite) was used for the element calibration. Trace elements were analyzed using a laser ablation (LA) system (NWR193; ESI) coupled with inductively coupled plasma mass spectrometry (ICP-MS) (7800x; Agilent) at the NAWI Graz Geocenter, Graz University of Technology. The analysis was undertaken using a fluence of 9.8 J/cm² with a spot size of 50 μm to ablate the sample surfaces for about 30 s after monitoring a gas blank for 20 s. Twenty-seven isotopes were analyzed: ²⁹Si, ⁴⁹Ti, ²⁷Al, ⁵⁶Fe, ⁵⁵Mn, ²⁴Mg, ⁴³Ca, ³¹P, ⁴⁵Sc, ⁵¹V, ⁵³Cr, ⁵⁹Co, ⁶⁰Ni, ⁶³Cu, ⁶⁶Zn, ⁷¹Ga, ⁷⁴Ge, ⁸⁹Y, ⁹⁰Zr, ⁹³Nb, ⁹⁵Mo, ¹¹⁸Sn, ¹⁸¹Ta, ¹⁸²W, ²⁰⁸Pb, ²³²Th, and ²³⁸U. External reference materials NIST610, G1, and BCR2 were used to calibrate.

4 Results

4.1 Petrography

4.1.1 KL

The most common minerals in the KL deposits are magnetite, chalcopyrite, and pyrite, with some silicate minerals, including quartz, pyroxene, and garnet. The texture of the magnetite is strongly idiomorphic. The KL magnetite can be divided into Type-I euhedral massive magnetite (Figure 2a, c and d) and Type-II anhedral massive magnetite (Figure 2b). Type-I magnetite mostly occurs as subhedral to euhedral grains (0.1–0.5 mm). Some large euhedral massive magnetite grains are characterized by triple junctions (120°) (Figure 2c), while porous and inhomogeneous textures are present in some magnetite grains (Figure 2a). The Type-II magnetite is predominantly fine grained (<0.05 mm) (Figure 2b and d). Subhedral to anhedral magnetite grains occur with anhedral mineral sulfides, including pyrite and chalcopyrite, as seen in sample KL3 (Figure 2c). Some samples contain subhedral magnetite crosscut by fine-grained magnetite. Coarse-grained garnet (0.5–3 mm) is observed in hand specimens containing both Type-I and Type-II magnetite.

Figure 2

(a)–(d) Subhedral to euhedral grains of Khao Lek magnetite: (a), (c), and (d) Type-I massive magnetite (euhedral) and (b) and (d) Type-II anhedral massive magnetite. (c) Subhedral magnetite grains occur with anhedral pyrite and some marcasite and chalcopyrite. (e)–(h) The KTK magnetite was divided into two types: (1) massive Type-I, where (e) euhedral massive magnetite occurs after euhedral garnet, and (f) it is intergrown with chalcopyrite replaced by covellite along cracks (magnetite laths are also found in Type-I magnetite, (g); and Type-II, (h) where the KTK magnetite is completely replaced by garnet grains. Mt: magnetite, Py: pyrite, Mcc: marcasite, Cpy: chalcopyrite, Cv: covellite, TJ: triple junction (120°).

4.1.2 KTK

The Fe–Cu KTK deposits are mainly composed of magnetite, hematite, pyrite, and chalcopyrite, with minor covellite, calcite, and other silicate minerals, such as garnet, pyroxene, and quartz. Similarly, KTK magnetite can be divided into two types: euhedral massive magnetite (Type-I) (samples KTK1 and KTK3) and anhedral massive magnetite (Type-II) (sample KTK5). Type-I KTK euhedral/subhedral massive magnetite occurs after euhedral garnet (Figure 2e), and it is intergrown with chalcopyrite replaced by covellite along cracks (Figure 2f). Magnetite laths were also found in KTK Type-I magnetite (Figure 2g). The rims of abundant euhedral pyrite grains are replaced by magnetite (Figure 2g). The KTK Type-II magnetite is completely replaced by garnet grains (Figure 2h).

4.2 Trace elements

The LA-ICP-MS data from 53 analyses are listed in Table 1. All magnetite from the KL deposit contains a very high concentration of Si (up to 1.8 wt.%), Al (up to 0.5 wt.%), and Mn (>600 ppm). The euhedral massive magnetite (KL1) had the highest content of Ni (average = 38.39 ppm) and V (average = 6.27) (Figure 3d and b), and the lowest content of Al (average = 711 ppm), Y (average = 0.03 ppm), and Nb (average = 0.03 ppm) (Figure 3n–o). The trace element composition of the anhedral magnetite (KL6) is significantly enriched in Al (1,245–5,396 ppm), Sn (24.39–111.54 ppm), Y (0.76–6.79 ppm), Cu (3.42–8.55 ppm), and Zn (78.95–438.53 ppm) (Figure 3) and depleted in Ni (0.13–0.38 ppm) (Figure 3d). Anhedral magnetite (KL4) is characterized by lower Ga, Ti, and V compared with that in KL1 and KL6, with average concentrations of 2.33, 21, and 1.10 ppm, respectively (Table 1).

Table 1

Analytical results (ppm) of the LA inductively coupled plasma mass spectrometry of magnetite from the KL and KTK deposits

Sample	Form	ppm	Si	Ti	Al	Mn	Mg	Ca	Co	Cr	Cu	Ga	Ge	Nb	Ni	Pb	Sn	V	Y	Zn
KL1 (n = 11)	Euhedral	Av.	3,082	69	711	687	151	322	39	n.d.	1.62	5.03	1.73	0.03	38.39	0.20	2.53	6.27	0.03	43.65
		Min	2,241	54	285	587	72	79	37	n.d.	0.22	4.69	1.25	0.02	25.78	0.04	0.33	4.19	0.01	33.74
		Max	3,980	75	938	735	197	895	43	n.d.	5.87	5.21	2.34	0.06	53.97	0.95	5.78	9.77	0.07	53.75
KL4 (n = 5)	Anhedral	Av.	12,303	21	1,477	1,323	320	1,275	58	1.04	0.21	2.33	1.08	0.07	1.89	0.79	1.62	1.10	0.36	25.14
		Min	4,555	12	735	1,261	60	677	54	0.88	0.21	1.92	0.79	0.05	1.72	0.05	0.14	1.05	0.08	14.84
		Max	17,918	33	2,094	13,79	675	2,137	66	1.36	0.21	2.71	1.48	0.10	2.34	1.86	2.85	1.18	0.82	47.10
KL6 (n = 13)	Anhedral	Av.	8,388	72	4,114	1,341	876	343	64	0.85	5.99	9.15	1.23	0.09	0.27	0.45	77.14	3.79	3.23	286.00
		Min	2,478	13	1,245	696	104	68	33	0.69	3.42	8.21	1.01	0.07	0.13	0.05	24.39	0.76	0.38	78.95
		Max	11,013	142	5,396	1,765	1,558	634	84	1.06	8.55	9.93	1.55	0.11	0.38	0.90	111.54	6.79	5.59	438.53
KL6 (n = 5)	Euhedral	Av.	17,358	81	640	389	467	922	55	1.23	1.04	9.08	1.36	0.01	1.28	0.67	8.66	9.02	0.37	17.77
		Min	2,935	65	310	308	99	466	17	0.85	0.64	7.63	0.94	0.01	1.03	0.34	1.98	6.50	0.08	11.03
		Max	64,621	117	1,083	452	1,307	1,567	198	1.60	1.45	11.05	2.16	0.01	1.72	0.93	24.67	11.47	0.91	23.61
KTK1 (n = 4)	Euhedral	Av.	3,763	76	782	703	264	1,890	50	0.74	40.78	4.99	2.22	0.02	54.45	0.69	0.69	7.66	0.12	120.08
		Min	3,364	64	396	656	217	127	39	0.72	0.65	4.81	1.94	0.02	46.18	0.07	0.15	6.59	0.02	50.10
		Max	4,044	96	1,158	748	334	6,554	77	0.76	98.30	5.36	2.53	0.03	61.57	2.07	1.07	8.64	0.31	266.89
KTK3 (n = 10)	Euhedral	Av.	21,332	103	4,088	615	1,535	1,672	50	5.45	4,775	3.55	3.45	0.16	500.00	31.85	1.87	42.06	1.15	1563.70
		Min	8,019	37	1,567	478	464	555	29	0.53	455	2.54	1.71	0.05	173.37	2.04	0.24	9.38	0.14	253.96
		Max	43,247	199	11,391	681	4,723	6,749	88	10.36	11,687	5.31	5.90	0.34	1194.69	108.39	8.16	82.73	3.89	3659.36
KTK5 (n = 5)	Anhedral	Av.	7,089	51	3,744	281	925	952	15	2.88	1,056	15.01	1.39	0.52	1.75	1.95	0.90	24.22	0.12	78.93
		Min	6,606	27	2,842	8	52	668	3	1.86	624	14.77	0.84	0.33	1.00	1.24	0.48	17.82	0.03	1.44
		Max	7,871	79	4,350	912	3,293	1,812	36	4.36	1,382	15.23	3.44	0.78	3.31	2.55	1.16	29.61	0.44	209.31

n.d.: not detected.

Figure 3

Box and whisker plots of important minor and trace elements (ppm) in the magnetite grouped by deposit site. The data are plotted on a logarithmic scale in order of increasing median concentrations. The upper and lower margins of the boxes represent the upper and lower 50th percentiles, respectively, of the data. The whiskers represent the upper and lower threshold values (the 95th percentiles of the data). Median values are shown as solid black lines, and mean values are shown as solid black circles.

Compared to the other KTK samples, the magnetite in sample KTK3 contains the highest contents of Si (average = 2 wt.%), Al (average = 0.4 wt.%), Cu (average = 4,775 ppm), Zn (average = 1,564 ppm), Ni (average = 500 ppm), Pb (average = 32 ppm), and V (average = 42 ppm) (Figure 3). Trace element concentrations in KTK1 were similar to those in KL1 from the KL deposit. KTK1 contains high concentrations of Mn (average = 615 ppm) and Ca (average = 1,890 ppm), and KTK5 (anhedral magnetite) contains the highest Nb content (average = 0.378 ppm) (Table 1).

Binary plots of some of the analyzed trace elements in the KL and KTK magnetites indicated that Mg is positively correlated with Si, Al, Mn, and Co (Figure 4). Mg and V plots were used to distinguish the skarn deposit types (Figure 4). Magnetite in the KTK deposit contains high concentrations of V and Mg, especially KTK3 and KTK5. In the case of Mn, KL6 (anhedral magnetite), and KL4 are significantly different from the other samples.

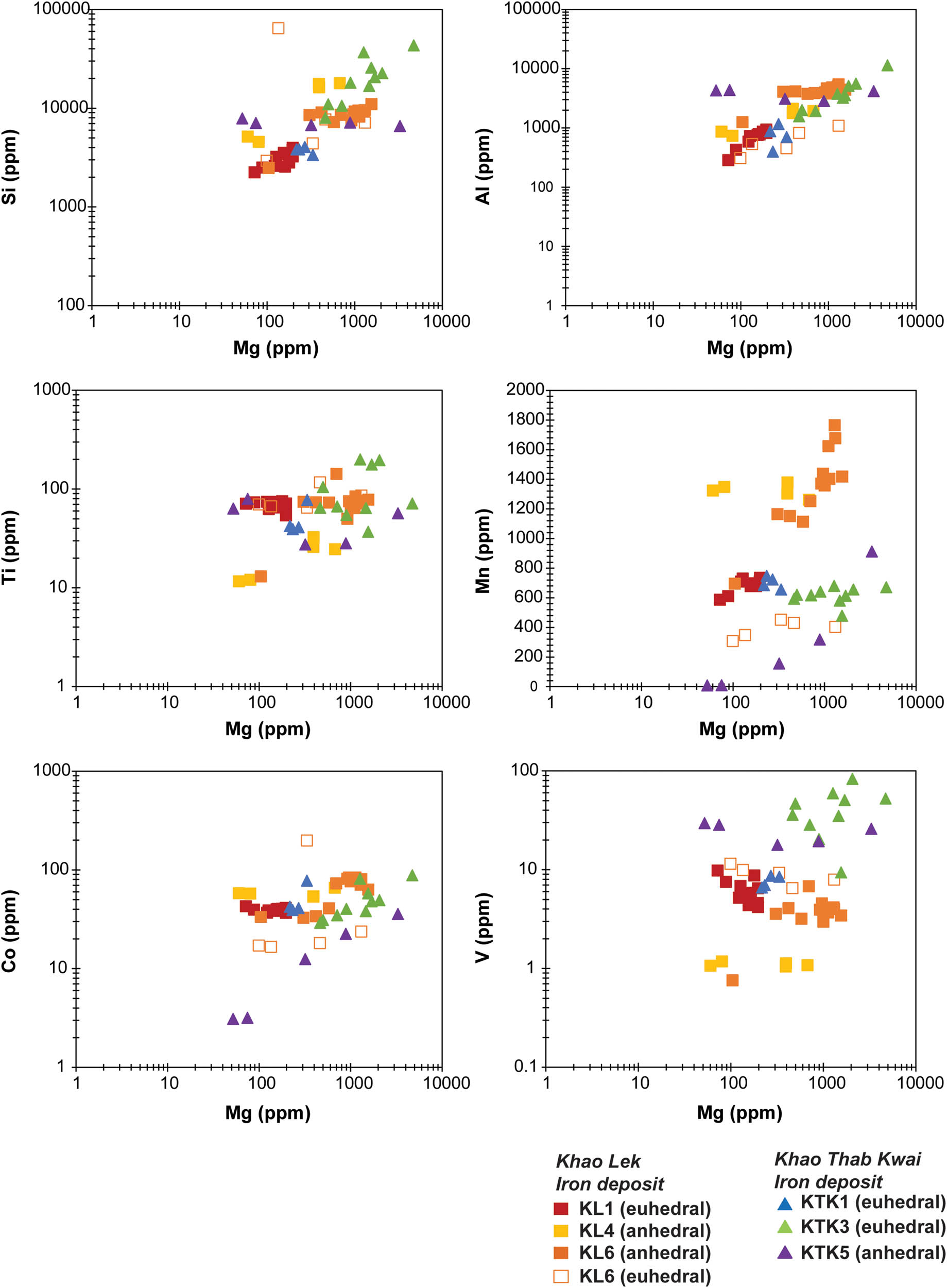

Figure 4

Binary plots of Mg versus other trace elements.

Mapping was used to determine the elemental distribution of Type-I magnetite (KL1) (Figure 5). The results verified by the EPMA analysis suggested that some mobile elements, such as Si, Al, and Mg, decrease from the core to the rim. Moreover, there are referred to the dark gray zones are characterized by higher Si, Al, and Mg contents than in light gray zones (Figure 3c). The euhedral magnetite exhibited characteristic oscillatory Si (Figure 5b) and Mg (Figure 5d) zoning that represents the fluctuation hydrothermal fluid.

Figure 5

(a)–(l) Mapping of magnetite grains in Type-I euhedral magnetite. (d) Mg zoning related to Si and Ca concentrations.

5 Discussion

5.1 Trace element behavior and genesis of magnetite

Geochemical studies are used to classify magnetite deposit types based on major and trace element compositions, and magnetite can be used to study mineral precipitation. Much previous research has suggested that magnetite can be derived from either hydrothermal or magmatic fluids [11,16,17,21,22]. In this study, based on mineral assemblages, magnetite in the KL and KTK deposits was commonly coprecipitated with retrograde minerals (e.g., biotite, tremolite, hornblende, and quartz) and sulfide minerals (e.g., pyrite and chalcopyrite), suggesting a hydrothermal source [21,22].

Moreover, Dare et al. [16] and Nadoll et al. [23] suggested that hydrothermal and magmatic origins produce different magnetite compositions, expressed as the specific ranges of individual elements. Ti and V are key elements for such discrimination, with high Ti and V contents indicating magmatic magnetite, and their depletion suggesting hydrothermal magnetite [16,17,23]. Although the euhedral magnetite in KL1 had higher concentrations of Ti and V compared to the anhedral magnetite, the Ti–V diagram modified from Nadoll et al. [23] and Knipping et al. [11] indicates that the magnetite from KL and KTK is hydrothermal magnetite (Figure 6a). In addition, the Ni/Cr ratio of almost all the magnetite is typically >0.1; therefore, the Ti versus Ni/Cr diagram [16,21] also indicates that the origin of the magnetite was a hydrothermal environment (Figure 6b). Cr is an important element commonly incorporated into magnetite, especially in ultramafic and mafic host rocks [9,16,24]; however, in this study, the magnetite contained very low concentrations of Cr (or lower than the detection limit), indicating hydrothermal skarn deposition, which was supported by Nadoll et al. [23]. This indicates that both the KL and KTK magnetite are associated with hydrothermal skarns (Figure 6c) [23]. In addition, the magnetite plots in the skarn field of the Ti + V versus Ca + Al + Mn discrimination diagram [9] (Figure 6d). The magnetite from both the KL and KTK Fe deposits contains high levels of Mn and Mg, which also indicates a skarn system [17]. The Mn content in the euhedral and anhedral massive magnetite ranged from 308 to 748 ppm and from 8 to 1,765 ppm, respectively, and the Mg content of the euhedral and anhedral massive magnetite ranged from 72 to 4,723 ppm and 60 to 3,293 ppm, respectively.

Figure 6

Magnetite discrimination diagrams. (a) Plot of Ti versus V concentrations [11]. Based on Nadoll et al.’s data set [17], the red field is igneous (magmatic) magnetite, and the green field is hydrothermal magnetite. (b) Ti versus Ni/Cr [16]. (c) Ti + V versus Ni/(Cr + Mn) discrimination diagram [9]. (d) Magnetite Ti + V versus Ca + Al + Mn discrimination diagram [9].

Furthermore, two models for the origin of magnetite triple boundary junctions, as observed in the subhedral to euhedral magnetite grains from the KL deposit (Figure 2c), have been suggested: (1) high-temperature annealing in a closed system (i.e., magmatic magnetite) [25] and (2) fluid-assisted recrystallization/replacement in an open system (i.e., quartz) [26,27]. In this study, the calcite observed filling open spaces within crack-seal textures in equilibrium with the precipitation of the euhedral magnetite was probably derived from fluid-assisted recrystallization/replacement in an open system. In addition, the low Ti content (12–199 ppm; Table 1) observed in both types of magnetite in this study also indicates a nonmagmatic origin [16].

5.2 Multi-element variation diagrams

The data for the trace element composition of the magnetite were summarized using multi-element variation diagrams. The elements were normalized using the bulk continental crust data presented by Rudnick et al. [28] because the interaction of hydrothermal fluids with crustal rocks is likelier than the interaction with primitive mantle [16]. Thus, the multi-element variation diagram for magnetite trace elements can be applied to genetic and provenance studies of ore deposits [9,16,17]. Magnetite from both deposits exhibited patterns similar to those of magnetite observed in calcic Fe-skarn deposits from Vegas Peledas, Argentina [29] and the Beiya skarn deposit [22] (Figure 8). As discussed in Section 5.1, most of the hydrothermal magnetite from the KL and KTK Fe deposits plots in the skarn fields of the discrimination diagrams developed by Dupuis and Beaudoin [9] and Nadoll et al. [23] (Figure 6c and d), which implies that the origin of the skarn magnetite deposits is hydrothermal.

Figure 7

Ti + V versus Al + Mn diagram of temperature ranges [9,16].

5.3 Oxygen fugacity and temperature of magnetite mineralization

Vanadium exhibits various oxidation states (e.g., V³⁺, V⁴⁺, and V⁵⁺) in magnetite resulting from oxygen fugacity (f _O2) [17]. With increasing f _O2, V³⁺ converts to V⁴⁺, which results in a reduction in the concentration of V in magnetite [16]. Furthermore, at high f _O2, V⁵⁺ is incompatible Therefore, V content is significant for determining f _O2 [17].

The magnetite in the KL deposit contains lower concentrations of V (1.05–11.47 ppm) than the magnetite in the KTK deposit (6.59–82.73 ppm) (Table 1). Therefore, the f _O2 of the KTK deposit may have been lower compared to the KL deposit. In the KL deposit, the euhedral magnetite, including that in KL1 (4.19–9.77 ppm) and KL6 (6.50–11.47 ppm), contains significantly higher concentrations of V than the anhedral massive magnetite (KL4 1.05–1.18 ppm and KL6 0.76–6.79 ppm). Therefore, the euhedral massive magnetite may have been formed in more reducing conditions than the anhedral massive magnetite. In the KTK deposit, the V content of the magnetite varied according to the textural features of the magnetite. Euhedral magnetite in KTK1 has the lowest V concentration (6.59–8.64 ppm) compared to euhedral magnetite in KTK3 (9.38–82.73 ppm) and anhedral massive magnetite in KTK5 (17.82–29.61 ppm). The V content of the euhedral massive magnetite in KTK3 is the highest of all the samples, which suggests that the KTK3 magnetite was formed in the highest reducing condition.

The temperature dependence of Ti, V, Al, Mn, and Ga can distinguish between low- and high-temperature mineral systems [17]. A Ti + V versus Al + Mn discrimination diagram [30] shows that all the magnetite precipitation temperatures ranged between 200 and 300°C (Figure 7). In the KL deposit, plot of euhedral magnetite (KL1 and KL6 euhedral) is separated from anhedral massive magnetite (KL4 and KL6 anhedral) (see Figure 7). According to the Ti + V versus Al + Mn diagram [30], magnetite containing low concentrations of these elements implies relatively lower temperatures. Therefore, the euhedral magnetite from the KL deposit was precipitated at relatively low temperatures compared to the anhedral massive magnetite, and most of the magnetite from the KTK deposit was deposited at higher temperatures compared to the KL deposit. However, no relationship was observed between the textural features (e.g., euhedral and anhedral textures) and the formation temperatures of the magnetite in these deposits (Figure 7).

Figure 8

Multi-element variation diagrams for the (a) Khao Lek and (b) KTK deposits normalized to upper continental crust (values from Rudnick et al. [28]). The light blue shading represents Beiya skarn magnetite [22], and the light pink shading represents magnetite in calcic Fe-skarns from Vegas Peledas, Argentina [29].

6 Conclusion

The petrographic and chemical characteristics of euhedral and anhedral massive magnetite from the KL and KTK Fe-skarn deposits suggest that they have hydrothermal origins. The LA-ICP-MS determination of the magnetite trace elements demonstrated that magnetite is a sensitive indicator of mineralization in skarn deposits. All the magnetite types are mostly consistent with low-temperature hydrothermal magnetite. Both the KL and KTK deposits are classified by their chemical characteristics as skarn/calcic skarn deposits, characterized by higher Al and Mn and lower Ti, with V being a signature of a skarn deposit. In the KL Fe deposit, the composition of the fluids and host rocks controlled the concentration of Mn and Mg, and the temperature in this deposit ranged from 200 to 300°C.

Acknowledgments

This research project was supported by grants for the development of new faculty staff from the Ratchadaphiseksomphot Fund, Chulalongkorn University. The first author gratefully acknowledges financial support from the ASEA-UNINET One-Month Research Scholarship, Austria. Moreover, we would like to thank Dr. Dominik Sorger for the EPMA data analysis and Mr. Phakorn Intassingha for their help with the preparation of some of the diagrams in the manuscript.

Funding information: This study supported by the development of new faculty staff from the Ratchadaphiseksomphot Fund, Chulalongkorn University and the ASEA-UNINET One-Month Research Scholarship, Austria.
Author contributions: TA designed conceptualization, designed experiments, and prepared the main manuscript. KH collected and invested the sample. SK wrote and edited the manuscript. CS reviewed the manuscript. CH prepared a laboratory investigation and reviewed the manuscript. PK prepared the manuscript.
Conflict of interest: This study was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Data availability statement: The data that support the findings of this study are available from the corresponding author upon a reasonable request.
