Startseite Enhancement of the mechanical properties of HDPE mineral nanocomposites by filler particles modulation of the matrix plastic/elastic behavior
Artikel Open Access

Enhancement of the mechanical properties of HDPE mineral nanocomposites by filler particles modulation of the matrix plastic/elastic behavior

  • Yousef Murtaja , Lubomír Lapčík EMAIL logo , Harun Sepetcioglu , Jakub Vlček , Barbora Lapčíková , Martin Ovsík und Michal Staněk
Veröffentlicht/Copyright: 5. Januar 2022
Veröffentlichen auch Sie bei De Gruyter Brill

Abstract

Two different nanosized mineral fillers (nano calcium carbonate and nanoclay) were used in the high density poly(ethylene) (HDPE) composites pilot plant production. Structural and mechanical properties of the prepared composites were examined in this study. The homogenous filler distribution was confirmed in the tested samples by scanning electron microscopy, transmission electron microscopy, and energy dispersive spectroscopy analyses. The fillers’ fortifying effect on polymer composites’ mechanical performance was confirmed as indicated by the increased elastic modulus and indentation modulus. Additionally, the possible modulation of the plastic-elastic mechanical behavior was confirmed by the type of the filler as well as its concentration used in the final composites testing articles.

1 Introduction

The study of the effect of the nano/microsized mineral fillers blended in the high density poly(ethylene) (HDPE) composite matrix on the mechanical properties of the prepared composites gained excessive attraction in the past 10 years due to their wide application in automotive, aerospace industries [1,2], formulation engineering [3], sound damping materials [4], highly conductive polymeric nanocomposites [5], dielectric material applications [6], etc. Semi-crystalline polymers exhibit, in general, a free-phase continuum system with the crystalline and amorphous phases separated with interphase. The crystalline part is formed with mutually connected spherulites consisting of crystalline lamellae dispersed in the amorphous phase [7]. The type, shape, and size of the mineral filler have a strong impact on the mechanical properties of the thermoplastic-polymer-based composites as well as on their melting behavior and crystallization kinetics [8]. Furthermore, the nature and the quality of the mutual adhesion between the filler and the polymer matrix [9], filler particle size, shape, and particle size distribution have a paramount effect on the final composite application performance [10,11]. This study offers the mechanical testing of the composites prepared from the commercial fillers compounded with HDPE in industrial-scale semi-pilot conditions. The main aim was to confirm the large-scale processability and reproducibility of the manufacturing steps during composites production.

2 Materials

HDPE of HD8100M grade used in our entire experiment was supplied by Polymer Marketing Company Limited (Thailand). The density of the resin was 0.952 g/cm3 with a melt flow index of 0.25 g/10 min. The nano calcium carbonate (CaCO3) particles, also known as adaCAL-N1-C, were received from Adacal Co. (Turkey) and were treated with stearic acid prior to further processing. Particles’ average size d 50 was of 0.05 µm as obtained from scanning electron microscopy (SEM) measurements. Nanoclay particles (i.e., EsanNANO 1-140) were supplied by EczacıbasıEsan (Turkey). Particles’ average size d 50 was of 2.7 µm as obtained from laser diffractometer measurements. SEM and transmission electron microscopy (TEM) images of the prepared samples showed that the nanofillers were homogeneously dispersed within the HDPE matrix (Figure 1). This fact was confirmed also by the energy dispersive spectroscopy (EDS) mapping study.

Figure 1
               TEM images of the fillers used in this study: Nanoclay and nano CaCO3.
Figure 1

TEM images of the fillers used in this study: Nanoclay and nano CaCO3.

The chemical compositions and physical properties of the used nano calcium carbonate as well as that of the nanoclay are given in Table 1 and are also available in refs [12,13].

Table 1

Physicochemical properties of applied fillers: nanoclay and nano CaCO3

Filler type Color Density (g/cm3) Surface area (g/m2) Particle size (μm)
Nanoclay Ultra white 1.98 19 2–20
Nano CaCO3 Ultra white 2.95 28 0.05–0.10

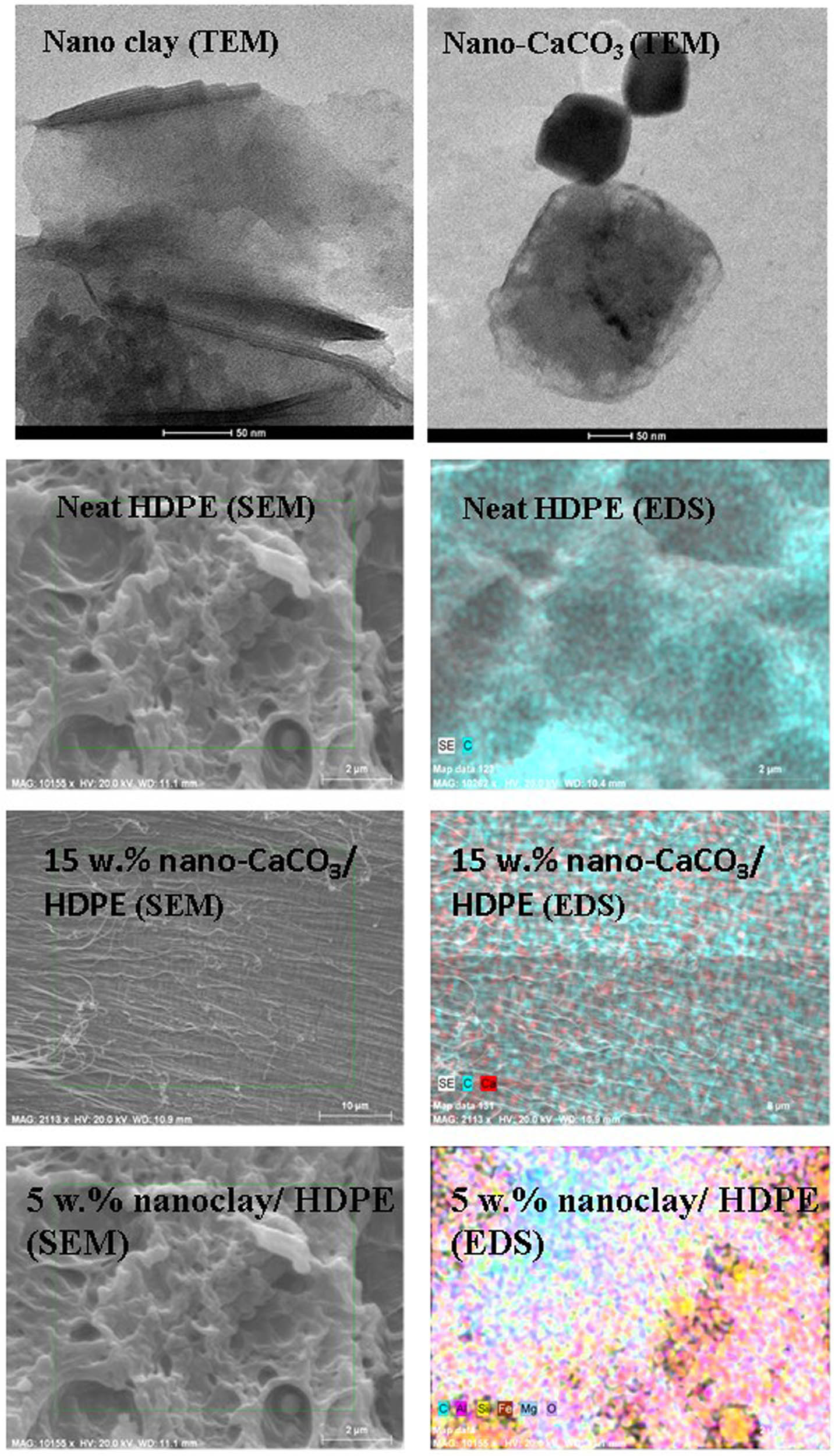

Images of both fillers captured by TEM are shown in Figure 1. For testing, the set of samples of different filler concentrations were prepared and labelled as CC for nano calcium carbonate and NC for nanoclay.

Nanoclay/HDPE nanocomposites were prepared by melt mixing system composed of Banbury mixer, single screw extruder, and granule cutting unit allowing semi-pilot production in 100 kg scale. The processing temperature in the mixer was kept at 180°C and the temperature was reached in 15 min after filling the mixer chamber with both the HDPE granules and the filler [14]. The apparatus was then followed by the extruder with a conveyor belt and the cutting unit. Single screw extruder was operating at 330 rpm screw speed with five barrel temperature profiles of 200, 190, 190, 190, and 220°C. Nanoclay/HDPE nanocomposite hot mixtures were cut in water into the shape of granules. Then, they were molded as tensile and impact test specimens using a PS40E5ASE injection molding machine with a melt temperature of 210°C, mold temperature of 65°C, and injection pressure of 50 MPa [14]. Similarly, the nano CaCO3/HDPE nanocomposites were prepared by the melt mixing method as well by use of the same compounder system and the processing parameters as mentioned above in the case of nanoclay/HDPE composites preparation. For both fillers, the weight ratios of the HDPE and the fillers were maintained to obtain the samples of the given filler weight concentration such as 1, 3, 5, 10, and 15 wt% for CC/HDPE composites and 1, 2, 3, 4, and 5 wt% for NC/HDPE composites.

Millipore water (USA) with a conductivity of 0.06 µS/cm, ethylene glycol p.a., (Lach-Ner, Czechia), and 99% pure diiodomethane of ACS reagent grade (Sigma Aldrich, Germany) were used as wetting liquids for contact angle measurements.

3 Methods

3.1 SEM and TEM

TEM (FEI Tecnai G2 Spirit Biotwin model, FEI Company, USA) was used to characterize the shape and morphology of the filler particles. TEM images were taken by placing nanofiller samples on a standard 400 grid copper mesh. Dispersions of acetone fillers were ultrasonicated for 15 min and were casted on the copper mesh and air dried. TEM measurements were performed at 120 kV accelerating voltage. Nano CaCO3 and nanoclay’s distributions in HDPE matrix were analyzed by TEM. An ultra-thin section of about 100 nm thickness were cut from filled samples using a microtome device (CM1950) supplied by Leica Microsystems Inc. (Buffalo Grove, USA) in a low-temperature environment. For further examination of the distribution of nanofillers, the composites were characterized by SEM using a Zeiss EvoLS10 equipped with an energy-dispersive X-ray detector (Germany).

3.2 Thermal analysis

Differential scanning calorimetry (DSC) experiments were performed according to ASTM E1356 by using a TA Instrument S10 model (Waters, USA) at a nitrogen flow rate of 50 mL/min. Virgin HDPE and its nanocomposites’ glass transition temperatures (T g) were determined from DSC curves by means of the midpoint method at 10°C/min heating rate from 30 to 300°C [13,15].

3.3 Uniaxial tensile testing

Universal Testing Machine Autograph AGS-100 Shimadzu (Japan) and Zwick 1456 multipurpose tester (Germany) equipped with Compact Thermostatic Chamber TCE Series were used for tensile testing of injection-molded specimens. All data ptwere recorded as per CSN EN ISO 527-1 and CSN EN ISO 527-2 standards taking the tested gauge length of 8 cm. All experiments were performed at room temperature up to break with 50, 100, and 200 mm/min deformation rates. Strength at break, Young’s modulus, and strain at break were obtained from the stress-strain dependence plot(s). Each experiment was repeated 10×, and the mean values and standard deviations were calculated. All experiments were performed at the laboratory ambient conditions of 25°C temperature.

3.4 Charpy impact testing

Impact tests were carried out using Zwick 513 Pendulum Impact Tester (Germany) according to the CSN EN ISO 179-2 standard, allowing 25 J energy drop. Each experiment was repeated 10×, and the mean values and standard deviations were calculated. All experiments were performed at the laboratory ambient conditions of 25°C temperature.

3.5 Surface free energy (SFE) characterization

The SFE of the studied composites and pure HDPE was determined by the static contact angle of wetting measurements based on axisymmetric drop shape analysis. All measurements were performed at 23°C and repeated 7× with a Krüss DSA 30 (Krüss, Germany). The Owens, Wendt, Rabel, and Kaelble extended Fowkes theory was used to calculate the SFE of the tested composites and pure HDPE from the average static contact angles for water, ethylene glycol, and diiodomethane [16,17].

3.6 Micro hardness

Micro-indentation tests were performed on a micro-indentation tester (Micro Combi Tester, Anton Paar, Austria), according to the CSN EN ISO 14577 standard. The applied diamond tip was of the cube corner shape (Vickers, Anton Paar, Austria). Measurement parameters were set as follows: maximum load of 3 N, loading rate (unloading rate) of 6 N/min, and holding time of 90 s. All experiments were performed according to the depth-sensing indentation method, allowing simultaneous measurement of the acting force on the indentor and the displacement of the indentor’s tip. The indentation hardness (H IT) was calculated as the maximum load (F max) on the projected area of the hardness impression (A p). Indentation modulus (E IT) was calculated from the plane strain modulus of elasticity (E*) using an estimated Poisson’s ratio (ν) of the samples (0.3–0.4 [18,19]):

(1) H IT = F max A p ,

(2) E IT = E ( 1 ν 2 ) .

Each measurement was repeated 10×, and mean values and standard deviations were calculated. All experiments were performed at the laboratory ambient conditions of 25°C temperature.

4 Results and discussion

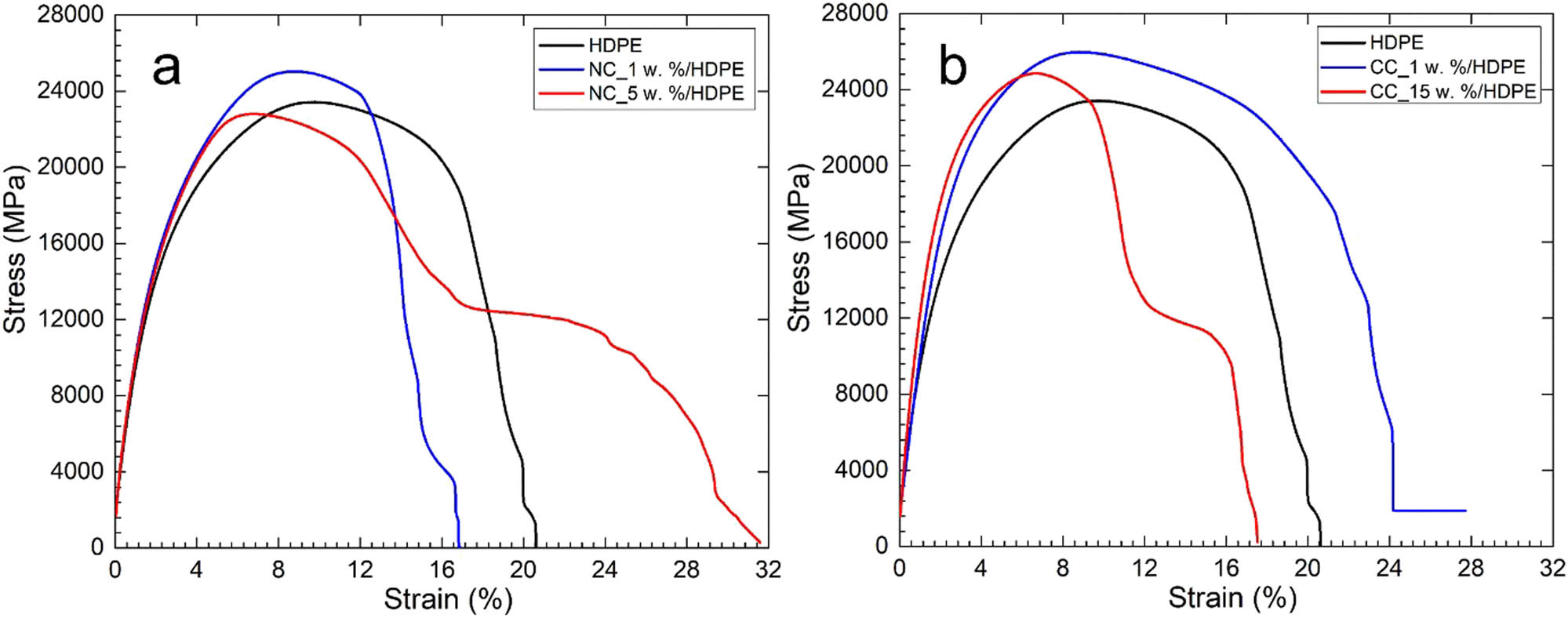

Results of the tensile testing experiments of the studied composites are shown in Figure 2. Obtained stress vs strain deformation dependencies exhibited typical patterns corresponding to the elastic region (does not exceed 3% strain for small deformations), elastic-plastic transition region (does not exceed 10% strain for small deformations), and the stress plateau draw region occurred for 5 wt% nanoclay/HDPE composites and 15 wt% for CC/HDPE composites at strains exceeding 18% (NC/HDPE composites) and 12% (CC/HDPE composites), respectively [20]. Similar dependencies were found in our previous studies for industrial HDPE mineral composites at the same deformation rate [13,15]. Pure HDPE exhibited more stiff tensile deformation behavior in the absence of the stress plateau draw region. In contrary to that CC/HDPE composites, were characteristic of more elasto-plastic behavior as reflected for 1 wt% filler concentration (Figure 1b). In the case of NC/HDPE composites, there is a significant influence of elastic-plastic properties. With increasing filler concentration, greater plastic behavior was observed, as reflected by the increased stress plateau draw region, as shown in Figure 2b. The abovementioned behavior was also accompanied by the corresponding increase in the Young’s modulus of elasticity with increasing filler concentration for both mineral fillers, as shown in Figure 3. Such behavior was confirmed for all applied deformation rates, as given in Table 2. For example, the absolute value of the modulus of elasticity of 970.1 ± 111.7 MPa for original HDPE was increased to 1470.0 ± 54.7 MPa by about 51.5% in the case of CC/HDPE composites with 5 wt% filler concentration. For the NC/HDPE composites, the modulus E was increased by about 34.5% to the absolute value of 1304.9 ± 83.7 MPa with 4 wt% filler concentration. These corresponded very well with previously published data that stiff mineral filler particles were responsible for the observed steady increase in the modulus of elasticity of polymer-based composites with increasing filler content [21,22].

Figure 2
               (a) General mechanical behavior of NC/HDPE and (b) CC/HDPE composites with different filler concentrations from tensile testing experiments as obtained for 50 mm/min deformation rates at ambient temperature expressed as stress vs strain dependencies.
Figure 2

(a) General mechanical behavior of NC/HDPE and (b) CC/HDPE composites with different filler concentrations from tensile testing experiments as obtained for 50 mm/min deformation rates at ambient temperature expressed as stress vs strain dependencies.

Figure 3

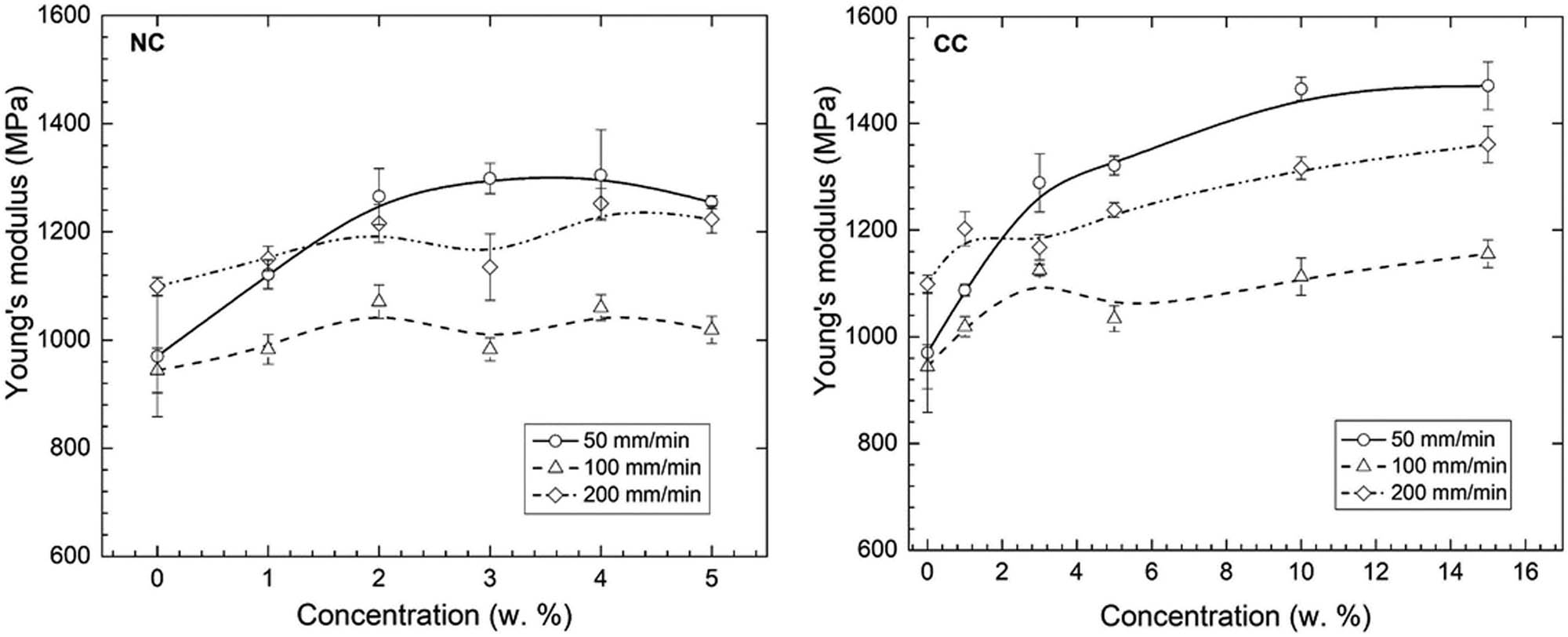

               Young’s modulus and filler concentration dependencies of the CC/HDPE and NC/HDPE composites obtained with tensile testing experiments for different deformation rates.
Figure 3

Young’s modulus and filler concentration dependencies of the CC/HDPE and NC/HDPE composites obtained with tensile testing experiments for different deformation rates.

Table 2

Results of the tensile testing experiments of the studied HDPE composites at 50, 100, and 200 mm/min deformation rates. Filler concentrations indicated in the sample description are given in wt%

Sample Young’s modulus (MPa) Upper yield (MPa) Strain at break (%) Fracture toughness (kJ/m2)
Rate (mm/min) Rate (mm/min) Rate (mm/min)
50 100 200 50 100 200 50 100 200
HDPE 970.1 ± 111.7 943.8 ± 142.2 1,099.2 ± 16.2 24.5 ± 1.1 24.8 ± 1.1 25.6 ± 0.4 20.5 ± 0.1 25.8 ± 5.0 16.6 ± 0.6 36.69 ± 5.15
CC_1% 837.5 ± 10.8 648.2 ± 419 1,202.7 ± 32.1 25.4 ± 0.6 24.3 ± 1.1 25.1 ± 0.5 30.8 ± 3.1 33.2 ± 6.7 19.8 ± 0.3 31.48 ± 2.43
CC_3% 1,288.9 ± 54.7 1,368 ± 2.5 1,167.7 ± 23.7 24.4 ± 0.4 25.0 ± 0.2 24.7 ± 0.8 22.0 ± 0.8 19.8 ± 1.0 22.9 ± 1.5 17.26 ± 0.92
CC_5% 1,322 ± 10.8 1,034.3 ± 299 1,237.9 ± 13.7 23.6 ± 0.5 25.4 ± 3.4 25.0 ± 1.1 25.0 ± 3.0 28.5 ± 14.7 17.2 ± 3.1 26.29 ± 1.04
CC_10% 1,465.1 ± 12.3 1,112.8 ± 273 1,316.4 ± 0.4 24.3 ± 1.3 25.2 ± 1.0 26.3 ± 0.7 18.6 ± 2.3 20.5 ± 7.4 14.1 ± 0.4 28.69 ± 3.4
CC_15% 1,470 ± 54.7 1155 ± 255 1,360.7 ± 1.7 24.6 ± 0.2 25.3 ± 1.1 28.1 ± 2.8 20.1 ± 2.6 19.7 ± 6.9 11.2 ± 2.2 31.79 ± 3.94
NC_1% 1,121.4 ± 26.8 982.9 ± 217 1,150.5 ± 23.0 23.6 ± 1.5 26.5 ± 0.5 27.4 ± 2.4 32.8 ± 15.9 19.3 ± 4.6 16.4 ± 6.0 29.21 ± 2.21
NC_2% 1,265.4 ± 51.9 1,070.9 ± 303 1,215.6 ± 48.8 25.8 ± 3.2 27.4 ± 2.2 30.0 ± 2.8 21.2 ± 8.7 20.5 ± 10.5 12.1 ± 0.6 24.37 ± 1.0
NC_3% 1,248.7 ± 28.1 982.7 ± 213 1,134.9 ± 61.2 27.3 ± 1.9 23.9 ± 1.6 22.4 ± 0.4 19.8 ± 3.2 31.1 ± 11.2 26.6 ± 2.2 28.44 ± 0.09
NC_4% 1,304.9 ± 83.7 1,060.1 ± 240 1,328.3 ± 78.0 23.3 ± 0.1 23.9 ± 0.3 27.9 ± 2.5 27.6 ± 2.2 35.7 ± 7.2 14.4 ± 5.9 23.35 ± 0.27
NC_5% 1,255 ± 11.9 1,018.8 ± 246 1,223.3 ± 25.0 23 ± 0.2 23.5 ± 0.2 24.7 ± 0.2 28.9 ± 2.7 32.88 ± 10 20.5 ± 2.1 22.06 ± 1.42

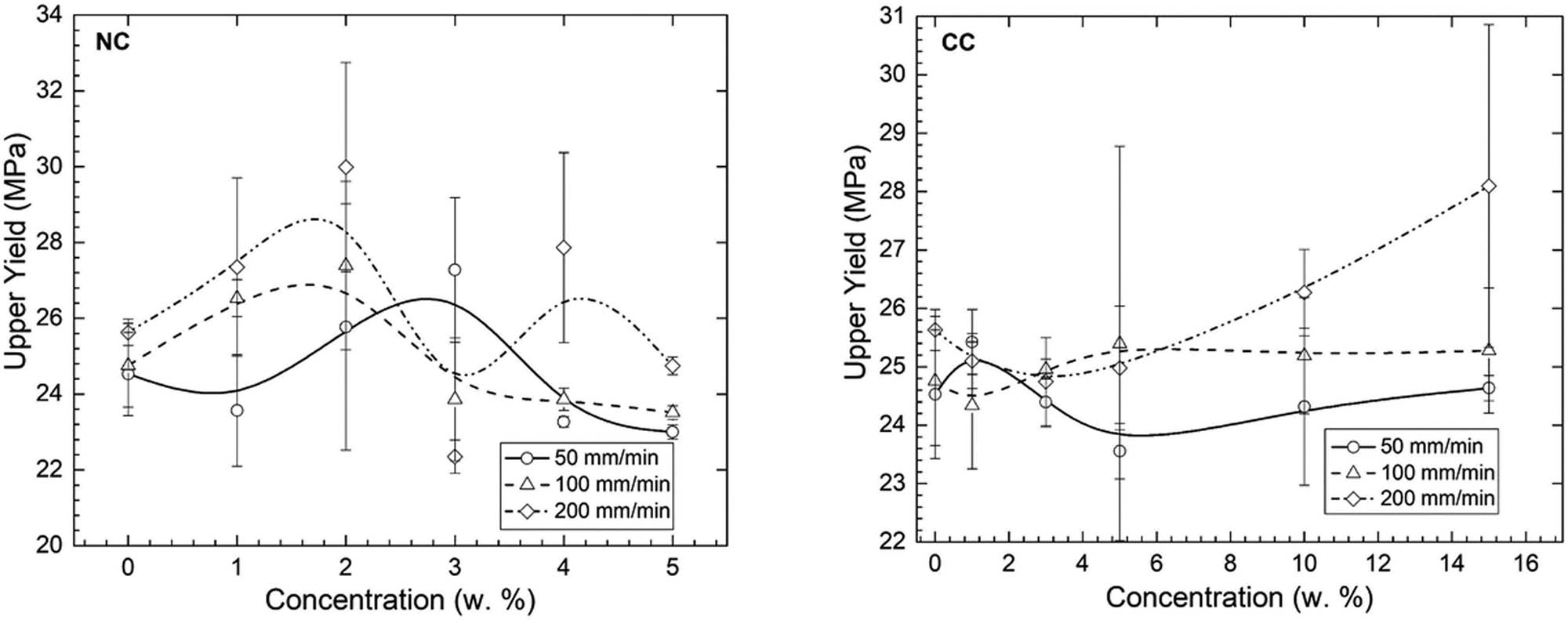

Upper yield vs filler concentration dependencies of the HDPE composites are shown in Figure 4. They are typical non-linear patterns for both fillers under study (nanoclay and nano calcium carbonate). However, in the case of CC/HDPE composites, the significant changes in the upper yield with increasing filler concentration were not observed with the exception of the composites with 4 and 5 wt% filler concentration for the 200 mm/min deformation rate, where the original values of 25.6 ± 0.4 MPa were increasing up to 26.3 ± 0.7 MPa and up to 28.1 ± 2.8 MPa, respectively.

Figure 4
               Upper yield and filler concentration dependencies of the CC/HDPE and NC/HDPE composites obtained with tensile testing experiments for different deformation rates.
Figure 4

Upper yield and filler concentration dependencies of the CC/HDPE and NC/HDPE composites obtained with tensile testing experiments for different deformation rates.

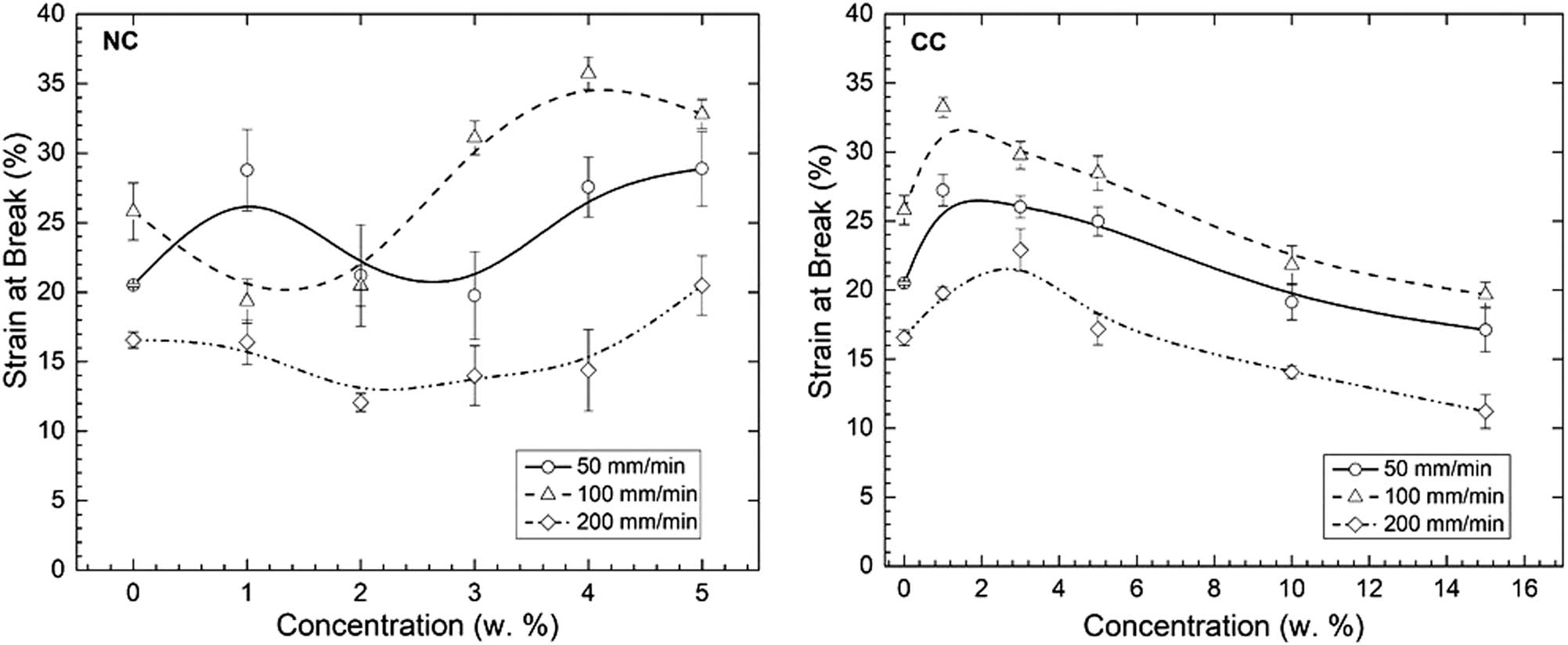

The results of the filler concentration strain at break dependencies measured at different deformation rates are shown in Figure 5. In the case of CC/HDPE composites, observed trend was such that the strain at break was decreased with increasing filler concentration, thus reflecting the loss of plastic behavior, indicating more brittle-like mechanical behavior. This fact fits very well with the well-known theory that polymers with higher crystallinity exhibit higher elastic properties than amorphous systems, which exhibit more plastic behavior [22]. However, the opposite trend was observed for the NC/HDPE composites, where the increased strain at break with increasing filler concentration was found. This was most probably due to the preferential orientation of the individual platelet shape like nanoclay filler particles in the polymer macromolecular chains interphase induced during sample injection molding processing [20]. The comparison of the obtained magnitudes of the elongation at break parameter for 5 wt% nanocomposite filler concentrations (both the nano-clay as well as of the nano-calcium carbonate) confirmed higher plasticity of the composite matrix composed from the nanoclay flat like filler particles for all applied deformation rates. This finding was also in agreement with the mutual comparison of the observed magnitudes of the Young’s modulus of elasticity, where the CC/HDPE samples exhibited higher modulus of elasticity than the NC/HDPE samples.

Figure 5
               Strain at break and filler concentration dependencies of the CC/HDPE and NC/HDPE composites obtained with tensile testing experiments for different deformation rates.
Figure 5

Strain at break and filler concentration dependencies of the CC/HDPE and NC/HDPE composites obtained with tensile testing experiments for different deformation rates.

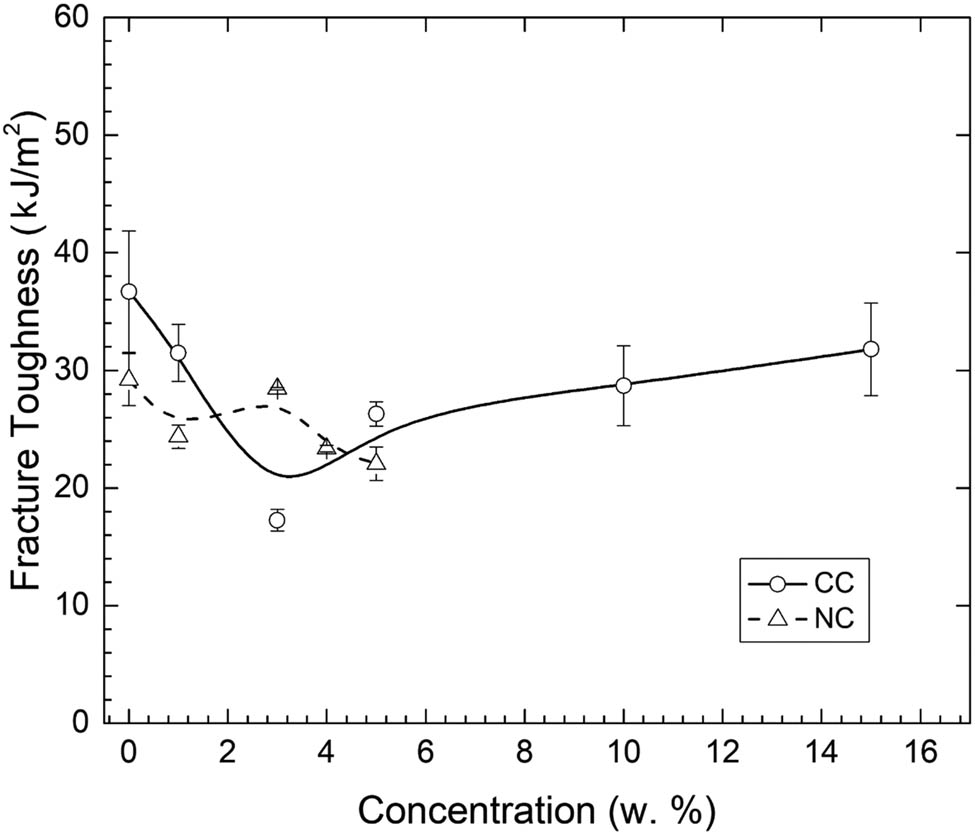

Observed fracture toughness vs filler concentration dependencies of the tested composites are shown in Figure 6. A decrease in the fracture toughness was found for all the composites studied in comparison with the virgin polymer (HDPE). The most significant decrease of about 52.96% was found for the composites containing nano CaCO3 of 3 wt% filler concentration. For NC/HDPE composites, the observed fracture toughness was decreased to 22.06 ± 1.42 kJ/m2 magnitude, which was about 39.87% decrease compared to the virgin HDPE. These results clearly demonstrate the higher brittle character of the composites in comparison to the virgin HDPE.

Figure 6
               Fracture toughness and filler concentration dependencies of the CC/HDPE and NC/HDPE composites as obtained with Charpy impact testing.
Figure 6

Fracture toughness and filler concentration dependencies of the CC/HDPE and NC/HDPE composites as obtained with Charpy impact testing.

It was found by DSC thermal analysis that the HDPE filled with nano CaCO3 exhibited higher thermal stability in comparison with the virgin HDPE as reflected by increasing T g from 103.9°C (virgin HDPE) to 126.6°C for 15 wt% CC/HDPE composites. These results were in excellent agreement with the published data of Viljoen and Labuschagné [23]. Similarly, the T g increased with increasing nano-clay content in the nano-clay/HDPE composites to 128.2°C, thus confirming that the fillers enhanced interaction with the base HDPE matrix.

Results of the SFE calculations are given in Table 3. Obtained results indicated that both fillers (CaCO3 as well as nanoclay) contributed to the observed decrease in the originally more polar character of the virgin HDPE to less polar one as indicated by the observed increase in the dispersive part of SFE from 4.19 ± 0.81 mJ/m2 (virgin HDPE) to 39.51 ± 0.63 mJ/m2 (5 wt% CC/HDPE composites) and to 32.86 ± 2.42 mJ/m2 (3 wt% NC/HDPE composites). The magnitude of the total SFE was increased from 19.48 ± 2.91 mJ/m2 (virgin HDPE) by about 103.8% up to 39.70 ± 1.09 mJ/m2 (5 wt% CC/HDPE composites) and by about 69.18% up to 32.95 ± 2.58 mJ/m2 (3 wt% NC/HDPE composite). Observed results indicate further improvement in the composites interface’s adhesive properties, for example, suitable for coating or adhesive joints technical applications.

Table 3

Total SFEs and their components (polar and dispersive) of the studied HDPE composites calculated by Owens, Wendt, Rabel, and Kaelble approach from contact angle measurements performed by means of the axisymmetric drop shape analysis (measured at 23°C temperature)

Sample SFE (mJ/m2)
Total Polar Dispersive
HDPE 19.48 ± 2.91 15.29 ± 2.10 4.19 ± 0.81
CC_1% 36.51 ± 33.80 15.61 ± 14.82 15.61 ± 14.82
CC_3% 36.49 ± 14.86 11.84 ± 7.77 24.65 ± 7.08
CC_5% 39.70 ± 1.09 0.19 ± 0.46 39.51 ± 0.63
CC_10% 23.45 ± 4.41 0.01 ± 0.07 23.44 ± 4.34
CC_15% 26.19 ± 0.05 0.41 ± 0.01 25.78 ± 0.03
NC_1% 30.44 ± 1.04 0.12 ± 0.04 30.32 ± 1.00
NC_2% 30.28 ± 0.92 1.19 ± 0.15 29.09 ± 0.76
NC_3% 32.95 ± 2.58 00.08 ± 0.16 32.86 ± 2.42
NC_4% 29.22 ± 0.66 0.22 ± 0.13 29.00 ± 0.53
NC_5% 23.45 ± 4.41 0.01 ± 0.07 23.44 ± 4.34

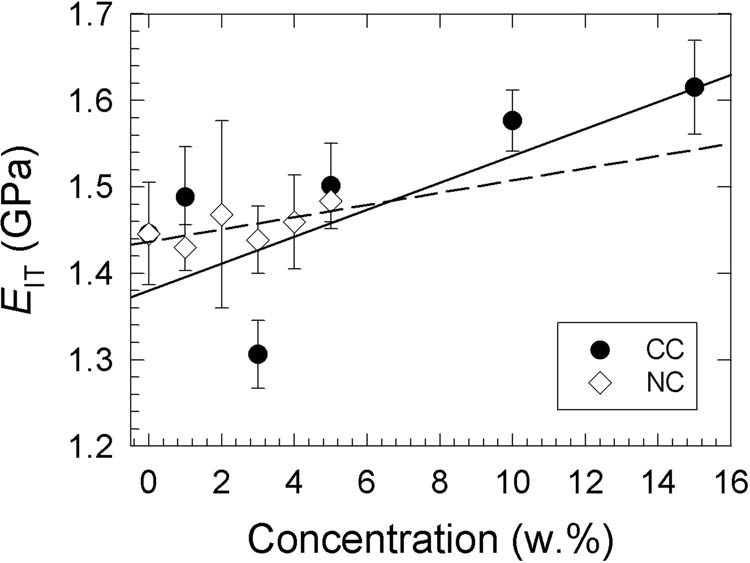

The composites micro-indentation testing results are shown in Figure 7 where indentation modulus E IT vs filler concentration patterns are shown. These were characteristic with the gradual increase in the indentation modulus with increasing concentrations of both fillers, confirming the fortification effect of the fillers on the mechanical properties of the tested samples.

Figure 7
               Indentation modulus (EIT) vs filler concentration dependencies. Filler type: full circle – Nano CaCO3 and empty diamond – Nanoclay. *Point omitted for linear regression.
Figure 7

Indentation modulus (EIT) vs filler concentration dependencies. Filler type: full circle – Nano CaCO3 and empty diamond – Nanoclay. *Point omitted for linear regression.

5 Conclusion

Two different nano-sized mineral fillers (nano CaCO3 and nanoclay) were used in the HDPE composites pilot plant production. The structural as well as mechanical properties of the prepared composites were studied. The fortifying effect of the fillers on the polymer composite’s mechanical performance was confirmed as indicated by the increased elastic modulus and the indentation modulus. For example, the absolute value of the modulus of elasticity 970.1 ± 111.7 MPa for original HDPE was increased by about 51.5% to 1470.0 ± 54.7 MPa in the case of nano CC/HDPE composites with 5 wt% filler concentration. For the NC/HDPE composites, the modulus of elasticity was increased by about 34.5% to the absolute value of 1304.9 ± 83.7 MPa with 4 wt% of filler concentration. Additionally, there was confirmed possible modulation of the plastic-elastic mechanical behavior by the type of the filler as well as its concentration used in the final composites testing articles, as confirmed by the increased stress plateau draw region that occurred during the tensile testing and decreased elongation at break with increasing filler concentration. From the practical point of view, the 5 wt% filler concentration seems to be the most favorable one for both CC/HDPE as well as nano-clay/HDPE composites. Simultaneously, the higher thermal stability was found for both nanocomposites in comparison to the virgin HDPE, thus confirming that the fillers enhanced interaction with the HDPE matrix. Based on the abovementioned conclusions, it seems to be advantageous for the application of the latter nanocomposites as the structural elements in the complex product designs offering combined elasto-plastic mechanical behavior in the relatively wide deformation rates regimes accompanied with the higher thermal stability.

  1. Funding information: Financial support from the internal grants of Palacky University in Olomouc (project number IGA_PrF_2021_031) and of Tomas Bata University in Zlin (project numbers IGA/FT/2021/004 and IGA/FT/2021/005) are gratefully acknowledged. Financial support to the author YM by Fischer scholarship of the Faculty of Science, Palacky University in Olomouc in 2021 year is gratefully acknowledged as well.

  2. Author contributions: All authors have accepted responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

References

[1] Lapčík L, Ruszala MJA, Vašina M, Lapčíková B, Vlček J, Rowson NA, et al. Hollow spheres as nanocomposite fillers for aerospace and automotive composite materials applications. Compos B Eng. 2016;106:74–80.10.1016/j.compositesb.2016.09.031Suche in Google Scholar

[2] Lapcik L, Vasina M, Lapcikova B, Hui D, Otyepkova E, Greenwood RW, et al. Material characterization of advanced fillers for composites engineering applications. Nanotechnol Rev. 2019;8:503–12.10.1515/ntrev-2019-0045Suche in Google Scholar

[3] Lapcik L, Vasina M, Lapcikova B, Otyepkova E, Waters KE. Investigation of advanced mica powder nanocomposite filler materials: surface energy analysis, powder rheology and sound absorption performance. Compos B Eng. 2015;77:304–10.10.1016/j.compositesb.2015.03.056Suche in Google Scholar

[4] Lapcik L, Vasina M, Lapcikova B, Stanek M, Ovsik M, Murtaja Y. Study of the material engineering properties of high-density poly(ethylene)/perlite nanocomposite materials. Nanotechnol Rev. 2020;9:1491–9.10.1515/ntrev-2020-0113Suche in Google Scholar

[5] Huang X, Zeng L, Li R, Xi Z, Li Y. Manipulating conductive network formation via 3D T-ZnO: a facile approach for a CNT-reinforced nanocomposite. Nanotechnol Rev. 2020;9:534–42.10.1515/ntrev-2020-0043Suche in Google Scholar

[6] Ali SFA, Elsad RA, Mansour SA. Enhancing the dielectric properties of compatibilized high-density polyethylene/calcium carbonate nanocomposites using high-density polyethylene-g-maleic anhydride. Polym Bull. 2021;78:1393–405.10.1007/s00289-020-03164-wSuche in Google Scholar

[7] Drozdov AD, Christiansen Jd. Thermo-viscoelastic and viscoplastic behavior of high-density polyethylene. Int J Solids Struct. 2008;45:4274–88.10.1016/j.ijsolstr.2008.03.008Suche in Google Scholar

[8] Abareshi M, Zebarjad SM, Goharshadi EK. Effect of milling time and clay content on the thermal stability of polyethylene-clay nanocomposite. J Vinyl Addit Technol. 2016;22:285–92.10.1002/vnl.21443Suche in Google Scholar

[9] Said M, Seif S, Challita G. Development of blown film linear low-density polyethylene-clay nanocomposites: Part A: manufacturing process and morphology. J Appl Polym Sci. 2020;137:48589.10.1002/app.48589Suche in Google Scholar

[10] Escocio VA, Visconte LLY, da Silva Nazareth AL, de Sousa AMF, Pacheco EB. Permeability, melt flow index, mechanical, and morphological properties of green HDPE composites: effect of mineral fillers. Macromolecular symposia. Vol. 381. Weinheim: Wiley-VCH GmbH; 2018. UNSP 1800127.10.1002/masy.201800127Suche in Google Scholar

[11] Chan JX, Wong JF, Hassan A, Mohamad Z, Othman N. Mechanical properties of wollastonite reinforced thermoplastic composites: a review. Polym Compos. 2020;41:395–429.10.1002/pc.25403Suche in Google Scholar

[12] Sepet H, Aydemir B, Tarakcioglu N. Evaluation of mechanical and thermal properties and creep behavior of micro-and nano-CaCO(3) particle-filled HDPE nano- and microcomposites produced in large scale. Polym Bull. 2020;77:3677–95.10.1007/s00289-019-02922-9Suche in Google Scholar

[13] Se pet H, Tarakcioglu N, Misra RDK. Investigation of mechanical, thermal and surface properties of nanoclay/HDPE nanocomposites produced industrially by melt mixing approach. J Composite Mater. 2016;50:3105–16.10.1177/0021998315615653Suche in Google Scholar

[14] Sepetcioglu H. The effect of nanoclay on the nonlinear viscoelastic behavior of high-density polyethylene. Polym Compos. 2021;42:3481.10.1002/pc.26072Suche in Google Scholar

[15] Sepet H, Tarakcioglu N, Misra RDK. Determination of the mechanical, thermal and physical properties of nano-CaCO3 filled high-density polyethylene nanocomposites produced in an industrial scale. J Composite Mater. 2016;50:3445–56.10.1177/0021998315621371Suche in Google Scholar

[16] Kwok D. The usefulness of the Lifshitz-van der Waals/acid-base approach for surface tension components and interfacial tensions. Colloid Surf A-Physicochem Eng Asp. 1999;156:191–200.10.1016/S0927-7757(99)00070-9Suche in Google Scholar

[17] Gajdosikova R, Lapcikova B, Lapcik L. Surface phenomena and wetting of porous solids. Phys Chem: Indian J. 2011;6:146–62.Suche in Google Scholar

[18] Oliver W, Pharr G. Measurement of hardness and elastic modulus by instrumented indentation: advances in understanding and refinements to methodology. J Mater Res. 2004;19:3–20.10.1557/jmr.2004.19.1.3Suche in Google Scholar

[19] Manas D, Mizera A, Manas M, Ovsik M, Hylova L, Sehnalek S, et al. Mechanical properties changes of irradiated thermoplastic elastomer. Polymers. 2018;10:87.10.3390/polym10010087Suche in Google Scholar PubMed PubMed Central

[20] Lapcik L, Manas D, Lapcikova B, Vasina M, Stanek M, Cepe K, et al. Effect of filler particle shape on plastic-elastic mechanical behavior of high density poly(ethylene)/mica and poly(ethylene)/wollastonite composites. Compos Pt B-Eng. 2018;141:92–9.10.1016/j.compositesb.2017.12.035Suche in Google Scholar

[21] Lapčík L, Maňas D, Vašina M, Lapčíková B, Řezníček M, Zádrapa P. High density poly(ethylene)/CaCO3 hollow spheres composites for technical applications. Compos Pt B-Eng. 2017;113:218–24.10.1016/j.compositesb.2017.01.025Suche in Google Scholar

[22] Bucknall CB. Toughened plastics. Dordrecht: Springer Science + Business Media, B.V.; 1977.10.1007/978-94-017-5349-4Suche in Google Scholar

[23] Viljoen WD, Labuschagne FJWJ. The thermal stability of highly filled high-density polyethylene quaternary composites: interactive effects and improved measures. Polym Test. 2020;85:106424.10.1016/j.polymertesting.2020.106424Suche in Google Scholar

Received: 2021-09-20
Revised: 2021-11-15
Accepted: 2021-11-26
Published Online: 2022-01-05

© 2022 Yousef Murtaja et al., published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Artikel in diesem Heft

  1. Research Articles
  2. Theoretical and experimental investigation of MWCNT dispersion effect on the elastic modulus of flexible PDMS/MWCNT nanocomposites
  3. Mechanical, morphological, and fracture-deformation behavior of MWCNTs-reinforced (Al–Cu–Mg–T351) alloy cast nanocomposites fabricated by optimized mechanical milling and powder metallurgy techniques
  4. Flammability and physical stability of sugar palm crystalline nanocellulose reinforced thermoplastic sugar palm starch/poly(lactic acid) blend bionanocomposites
  5. Glutathione-loaded non-ionic surfactant niosomes: A new approach to improve oral bioavailability and hepatoprotective efficacy of glutathione
  6. Relationship between mechano-bactericidal activity and nanoblades density on chemically strengthened glass
  7. In situ regulation of microstructure and microwave-absorbing properties of FeSiAl through HNO3 oxidation
  8. Research on a mechanical model of magnetorheological fluid different diameter particles
  9. Nanomechanical and dynamic mechanical properties of rubber–wood–plastic composites
  10. Investigative properties of CeO2 doped with niobium: A combined characterization and DFT studies
  11. Miniaturized peptidomimetics and nano-vesiculation in endothelin types through probable nano-disk formation and structure property relationships of endothelins’ fragments
  12. N/S co-doped CoSe/C nanocubes as anode materials for Li-ion batteries
  13. Synergistic effects of halloysite nanotubes with metal and phosphorus additives on the optimal design of eco-friendly sandwich panels with maximum flame resistance and minimum weight
  14. Octreotide-conjugated silver nanoparticles for active targeting of somatostatin receptors and their application in a nebulized rat model
  15. Controllable morphology of Bi2S3 nanostructures formed via hydrothermal vulcanization of Bi2O3 thin-film layer and their photoelectrocatalytic performances
  16. Development of (−)-epigallocatechin-3-gallate-loaded folate receptor-targeted nanoparticles for prostate cancer treatment
  17. Enhancement of the mechanical properties of HDPE mineral nanocomposites by filler particles modulation of the matrix plastic/elastic behavior
  18. Effect of plasticizers on the properties of sugar palm nanocellulose/cinnamon essential oil reinforced starch bionanocomposite films
  19. Optimization of nano coating to reduce the thermal deformation of ball screws
  20. Preparation of efficient piezoelectric PVDF–HFP/Ni composite films by high electric field poling
  21. MHD dissipative Casson nanofluid liquid film flow due to an unsteady stretching sheet with radiation influence and slip velocity phenomenon
  22. Effects of nano-SiO2 modification on rubberised mortar and concrete with recycled coarse aggregates
  23. Mechanical and microscopic properties of fiber-reinforced coal gangue-based geopolymer concrete
  24. Effect of morphology and size on the thermodynamic stability of cerium oxide nanoparticles: Experiment and molecular dynamics calculation
  25. Mechanical performance of a CFRP composite reinforced via gelatin-CNTs: A study on fiber interfacial enhancement and matrix enhancement
  26. A practical review over surface modification, nanopatterns, emerging materials, drug delivery systems, and their biophysiochemical properties for dental implants: Recent progresses and advances
  27. HTR: An ultra-high speed algorithm for cage recognition of clathrate hydrates
  28. Effects of microalloying elements added by in situ synthesis on the microstructure of WCu composites
  29. A highly sensitive nanobiosensor based on aptamer-conjugated graphene-decorated rhodium nanoparticles for detection of HER2-positive circulating tumor cells
  30. Progressive collapse performance of shear strengthened RC frames by nano CFRP
  31. Core–shell heterostructured composites of carbon nanotubes and imine-linked hyperbranched polymers as metal-free Li-ion anodes
  32. A Galerkin strategy for tri-hybridized mixture in ethylene glycol comprising variable diffusion and thermal conductivity using non-Fourier’s theory
  33. Simple models for tensile modulus of shape memory polymer nanocomposites at ambient temperature
  34. Preparation and morphological studies of tin sulfide nanoparticles and use as efficient photocatalysts for the degradation of rhodamine B and phenol
  35. Polyethyleneimine-impregnated activated carbon nanofiber composited graphene-derived rice husk char for efficient post-combustion CO2 capture
  36. Electrospun nanofibers of Co3O4 nanocrystals encapsulated in cyclized-polyacrylonitrile for lithium storage
  37. Pitting corrosion induced on high-strength high carbon steel wire in high alkaline deaerated chloride electrolyte
  38. Formulation of polymeric nanoparticles loaded sorafenib; evaluation of cytotoxicity, molecular evaluation, and gene expression studies in lung and breast cancer cell lines
  39. Engineered nanocomposites in asphalt binders
  40. Influence of loading voltage, domain ratio, and additional load on the actuation of dielectric elastomer
  41. Thermally induced hex-graphene transitions in 2D carbon crystals
  42. The surface modification effect on the interfacial properties of glass fiber-reinforced epoxy: A molecular dynamics study
  43. Molecular dynamics study of deformation mechanism of interfacial microzone of Cu/Al2Cu/Al composites under tension
  44. Nanocolloid simulators of luminescent solar concentrator photovoltaic windows
  45. Compressive strength and anti-chloride ion penetration assessment of geopolymer mortar merging PVA fiber and nano-SiO2 using RBF–BP composite neural network
  46. Effect of 3-mercapto-1-propane sulfonate sulfonic acid and polyvinylpyrrolidone on the growth of cobalt pillar by electrodeposition
  47. Dynamics of convective slippery constraints on hybrid radiative Sutterby nanofluid flow by Galerkin finite element simulation
  48. Preparation of vanadium by the magnesiothermic self-propagating reduction and process control
  49. Microstructure-dependent photoelectrocatalytic activity of heterogeneous ZnO–ZnS nanosheets
  50. Cytotoxic and pro-inflammatory effects of molybdenum and tungsten disulphide on human bronchial cells
  51. Improving recycled aggregate concrete by compression casting and nano-silica
  52. Chemically reactive Maxwell nanoliquid flow by a stretching surface in the frames of Newtonian heating, nonlinear convection and radiative flux: Nanopolymer flow processing simulation
  53. Nonlinear dynamic and crack behaviors of carbon nanotubes-reinforced composites with various geometries
  54. Biosynthesis of copper oxide nanoparticles and its therapeutic efficacy against colon cancer
  55. Synthesis and characterization of smart stimuli-responsive herbal drug-encapsulated nanoniosome particles for efficient treatment of breast cancer
  56. Homotopic simulation for heat transport phenomenon of the Burgers nanofluids flow over a stretching cylinder with thermal convective and zero mass flux conditions
  57. Incorporation of copper and strontium ions in TiO2 nanotubes via dopamine to enhance hemocompatibility and cytocompatibility
  58. Mechanical, thermal, and barrier properties of starch films incorporated with chitosan nanoparticles
  59. Mechanical properties and microstructure of nano-strengthened recycled aggregate concrete
  60. Glucose-responsive nanogels efficiently maintain the stability and activity of therapeutic enzymes
  61. Tunning matrix rheology and mechanical performance of ultra-high performance concrete using cellulose nanofibers
  62. Flexible MXene/copper/cellulose nanofiber heat spreader films with enhanced thermal conductivity
  63. Promoted charge separation and specific surface area via interlacing of N-doped titanium dioxide nanotubes on carbon nitride nanosheets for photocatalytic degradation of Rhodamine B
  64. Elucidating the role of silicon dioxide and titanium dioxide nanoparticles in mitigating the disease of the eggplant caused by Phomopsis vexans, Ralstonia solanacearum, and root-knot nematode Meloidogyne incognita
  65. An implication of magnetic dipole in Carreau Yasuda liquid influenced by engine oil using ternary hybrid nanomaterial
  66. Robust synthesis of a composite phase of copper vanadium oxide with enhanced performance for durable aqueous Zn-ion batteries
  67. Tunning self-assembled phases of bovine serum albumin via hydrothermal process to synthesize novel functional hydrogel for skin protection against UVB
  68. A comparative experimental study on damping properties of epoxy nanocomposite beams reinforced with carbon nanotubes and graphene nanoplatelets
  69. Lightweight and hydrophobic Ni/GO/PVA composite aerogels for ultrahigh performance electromagnetic interference shielding
  70. Research on the auxetic behavior and mechanical properties of periodically rotating graphene nanostructures
  71. Repairing performances of novel cement mortar modified with graphene oxide and polyacrylate polymer
  72. Closed-loop recycling and fabrication of hydrophilic CNT films with high performance
  73. Design of thin-film configuration of SnO2–Ag2O composites for NO2 gas-sensing applications
  74. Study on stress distribution of SiC/Al composites based on microstructure models with microns and nanoparticles
  75. PVDF green nanofibers as potential carriers for improving self-healing and mechanical properties of carbon fiber/epoxy prepregs
  76. Osteogenesis capability of three-dimensionally printed poly(lactic acid)-halloysite nanotube scaffolds containing strontium ranelate
  77. Silver nanoparticles induce mitochondria-dependent apoptosis and late non-canonical autophagy in HT-29 colon cancer cells
  78. Preparation and bonding mechanisms of polymer/metal hybrid composite by nano molding technology
  79. Damage self-sensing and strain monitoring of glass-reinforced epoxy composite impregnated with graphene nanoplatelet and multiwalled carbon nanotubes
  80. Thermal analysis characterisation of solar-powered ship using Oldroyd hybrid nanofluids in parabolic trough solar collector: An optimal thermal application
  81. Pyrene-functionalized halloysite nanotubes for simultaneously detecting and separating Hg(ii) in aqueous media: A comprehensive comparison on interparticle and intraparticle excimers
  82. Fabrication of self-assembly CNT flexible film and its piezoresistive sensing behaviors
  83. Thermal valuation and entropy inspection of second-grade nanoscale fluid flow over a stretching surface by applying Koo–Kleinstreuer–Li relation
  84. Mechanical properties and microstructure of nano-SiO2 and basalt-fiber-reinforced recycled aggregate concrete
  85. Characterization and tribology performance of polyaniline-coated nanodiamond lubricant additives
  86. Combined impact of Marangoni convection and thermophoretic particle deposition on chemically reactive transport of nanofluid flow over a stretching surface
  87. Spark plasma extrusion of binder free hydroxyapatite powder
  88. An investigation on thermo-mechanical performance of graphene-oxide-reinforced shape memory polymer
  89. Effect of nanoadditives on the novel leather fiber/recycled poly(ethylene-vinyl-acetate) polymer composites for multifunctional applications: Fabrication, characterizations, and multiobjective optimization using central composite design
  90. Design selection for a hemispherical dimple core sandwich panel using hybrid multi-criteria decision-making methods
  91. Improving tensile strength and impact toughness of plasticized poly(lactic acid) biocomposites by incorporating nanofibrillated cellulose
  92. Green synthesis of spinel copper ferrite (CuFe2O4) nanoparticles and their toxicity
  93. The effect of TaC and NbC hybrid and mono-nanoparticles on AA2024 nanocomposites: Microstructure, strengthening, and artificial aging
  94. Excited-state geometry relaxation of pyrene-modified cellulose nanocrystals under UV-light excitation for detecting Fe3+
  95. Effect of CNTs and MEA on the creep of face-slab concrete at an early age
  96. Effect of deformation conditions on compression phase transformation of AZ31
  97. Application of MXene as a new generation of highly conductive coating materials for electromembrane-surrounded solid-phase microextraction
  98. A comparative study of the elasto-plastic properties for ceramic nanocomposites filled by graphene or graphene oxide nanoplates
  99. Encapsulation strategies for improving the biological behavior of CdS@ZIF-8 nanocomposites
  100. Biosynthesis of ZnO NPs from pumpkin seeds’ extract and elucidation of its anticancer potential against breast cancer
  101. Preliminary trials of the gold nanoparticles conjugated chrysin: An assessment of anti-oxidant, anti-microbial, and in vitro cytotoxic activities of a nanoformulated flavonoid
  102. Effect of micron-scale pores increased by nano-SiO2 sol modification on the strength of cement mortar
  103. Fractional simulations for thermal flow of hybrid nanofluid with aluminum oxide and titanium oxide nanoparticles with water and blood base fluids
  104. The effect of graphene nano-powder on the viscosity of water: An experimental study and artificial neural network modeling
  105. Development of a novel heat- and shear-resistant nano-silica gelling agent
  106. Characterization, biocompatibility and in vivo of nominal MnO2-containing wollastonite glass-ceramic
  107. Entropy production simulation of second-grade magnetic nanomaterials flowing across an expanding surface with viscidness dissipative flux
  108. Enhancement in structural, morphological, and optical properties of copper oxide for optoelectronic device applications
  109. Aptamer-functionalized chitosan-coated gold nanoparticle complex as a suitable targeted drug carrier for improved breast cancer treatment
  110. Performance and overall evaluation of nano-alumina-modified asphalt mixture
  111. Analysis of pure nanofluid (GO/engine oil) and hybrid nanofluid (GO–Fe3O4/engine oil): Novel thermal and magnetic features
  112. Synthesis of Ag@AgCl modified anatase/rutile/brookite mixed phase TiO2 and their photocatalytic property
  113. Mechanisms and influential variables on the abrasion resistance hydraulic concrete
  114. Synergistic reinforcement mechanism of basalt fiber/cellulose nanocrystals/polypropylene composites
  115. Achieving excellent oxidation resistance and mechanical properties of TiB2–B4C/carbon aerogel composites by quick-gelation and mechanical mixing
  116. Microwave-assisted sol–gel template-free synthesis and characterization of silica nanoparticles obtained from South African coal fly ash
  117. Pulsed laser-assisted synthesis of nano nickel(ii) oxide-anchored graphitic carbon nitride: Characterizations and their potential antibacterial/anti-biofilm applications
  118. Effects of nano-ZrSi2 on thermal stability of phenolic resin and thermal reusability of quartz–phenolic composites
  119. Benzaldehyde derivatives on tin electroplating as corrosion resistance for fabricating copper circuit
  120. Mechanical and heat transfer properties of 4D-printed shape memory graphene oxide/epoxy acrylate composites
  121. Coupling the vanadium-induced amorphous/crystalline NiFe2O4 with phosphide heterojunction toward active oxygen evolution reaction catalysts
  122. Graphene-oxide-reinforced cement composites mechanical and microstructural characteristics at elevated temperatures
  123. Gray correlation analysis of factors influencing compressive strength and durability of nano-SiO2 and PVA fiber reinforced geopolymer mortar
  124. Preparation of layered gradient Cu–Cr–Ti alloy with excellent mechanical properties, thermal stability, and electrical conductivity
  125. Recovery of Cr from chrome-containing leather wastes to develop aluminum-based composite material along with Al2O3 ceramic particles: An ingenious approach
  126. Mechanisms of the improved stiffness of flexible polymers under impact loading
  127. Anticancer potential of gold nanoparticles (AuNPs) using a battery of in vitro tests
  128. Review Articles
  129. Proposed approaches for coronaviruses elimination from wastewater: Membrane techniques and nanotechnology solutions
  130. Application of Pickering emulsion in oil drilling and production
  131. The contribution of microfluidics to the fight against tuberculosis
  132. Graphene-based biosensors for disease theranostics: Development, applications, and recent advancements
  133. Synthesis and encapsulation of iron oxide nanorods for application in magnetic hyperthermia and photothermal therapy
  134. Contemporary nano-architectured drugs and leads for ανβ3 integrin-based chemotherapy: Rationale and retrospect
  135. State-of-the-art review of fabrication, application, and mechanical properties of functionally graded porous nanocomposite materials
  136. Insights on magnetic spinel ferrites for targeted drug delivery and hyperthermia applications
  137. A review on heterogeneous oxidation of acetaminophen based on micro and nanoparticles catalyzed by different activators
  138. Early diagnosis of lung cancer using magnetic nanoparticles-integrated systems
  139. Advances in ZnO: Manipulation of defects for enhancing their technological potentials
  140. Efficacious nanomedicine track toward combating COVID-19
  141. A review of the design, processes, and properties of Mg-based composites
  142. Green synthesis of nanoparticles for varied applications: Green renewable resources and energy-efficient synthetic routes
  143. Two-dimensional nanomaterial-based polymer composites: Fundamentals and applications
  144. Recent progress and challenges in plasmonic nanomaterials
  145. Apoptotic cell-derived micro/nanosized extracellular vesicles in tissue regeneration
  146. Electronic noses based on metal oxide nanowires: A review
  147. Framework materials for supercapacitors
  148. An overview on the reproductive toxicity of graphene derivatives: Highlighting the importance
  149. Antibacterial nanomaterials: Upcoming hope to overcome antibiotic resistance crisis
  150. Research progress of carbon materials in the field of three-dimensional printing polymer nanocomposites
  151. A review of atomic layer deposition modelling and simulation methodologies: Density functional theory and molecular dynamics
  152. Recent advances in the preparation of PVDF-based piezoelectric materials
  153. Recent developments in tensile properties of friction welding of carbon fiber-reinforced composite: A review
  154. Comprehensive review of the properties of fly ash-based geopolymer with additive of nano-SiO2
  155. Perspectives in biopolymer/graphene-based composite application: Advances, challenges, and recommendations
  156. Graphene-based nanocomposite using new modeling molecular dynamic simulations for proposed neutralizing mechanism and real-time sensing of COVID-19
  157. Nanotechnology application on bamboo materials: A review
  158. Recent developments and future perspectives of biorenewable nanocomposites for advanced applications
  159. Nanostructured lipid carrier system: A compendium of their formulation development approaches, optimization strategies by quality by design, and recent applications in drug delivery
  160. 3D printing customized design of human bone tissue implant and its application
  161. Design, preparation, and functionalization of nanobiomaterials for enhanced efficacy in current and future biomedical applications
  162. A brief review of nanoparticles-doped PEDOT:PSS nanocomposite for OLED and OPV
  163. Nanotechnology interventions as a putative tool for the treatment of dental afflictions
  164. Recent advancements in metal–organic frameworks integrating quantum dots (QDs@MOF) and their potential applications
  165. A focused review of short electrospun nanofiber preparation techniques for composite reinforcement
  166. Microstructural characteristics and nano-modification of interfacial transition zone in concrete: A review
  167. Latest developments in the upconversion nanotechnology for the rapid detection of food safety: A review
  168. Strategic applications of nano-fertilizers for sustainable agriculture: Benefits and bottlenecks
  169. Molecular dynamics application of cocrystal energetic materials: A review
  170. Synthesis and application of nanometer hydroxyapatite in biomedicine
  171. Cutting-edge development in waste-recycled nanomaterials for energy storage and conversion applications
  172. Biological applications of ternary quantum dots: A review
  173. Nanotherapeutics for hydrogen sulfide-involved treatment: An emerging approach for cancer therapy
  174. Application of antibacterial nanoparticles in orthodontic materials
  175. Effect of natural-based biological hydrogels combined with growth factors on skin wound healing
  176. Nanozymes – A route to overcome microbial resistance: A viewpoint
  177. Recent developments and applications of smart nanoparticles in biomedicine
  178. Contemporary review on carbon nanotube (CNT) composites and their impact on multifarious applications
  179. Interfacial interactions and reinforcing mechanisms of cellulose and chitin nanomaterials and starch derivatives for cement and concrete strength and durability enhancement: A review
  180. Diamond-like carbon films for tribological modification of rubber
  181. Layered double hydroxides (LDHs) modified cement-based materials: A systematic review
  182. Recent research progress and advanced applications of silica/polymer nanocomposites
  183. Modeling of supramolecular biopolymers: Leading the in silico revolution of tissue engineering and nanomedicine
  184. Recent advances in perovskites-based optoelectronics
  185. Biogenic synthesis of palladium nanoparticles: New production methods and applications
  186. A comprehensive review of nanofluids with fractional derivatives: Modeling and application
  187. Electrospinning of marine polysaccharides: Processing and chemical aspects, challenges, and future prospects
  188. Electrohydrodynamic printing for demanding devices: A review of processing and applications
  189. Rapid Communications
  190. Structural material with designed thermal twist for a simple actuation
  191. Recent advances in photothermal materials for solar-driven crude oil adsorption
Heruntergeladen am 5.11.2025 von https://www.degruyterbrill.com/document/doi/10.1515/ntrev-2022-0023/html?lang=de
Button zum nach oben scrollen
