The effect of graphene nano-powder on the viscosity of water: An experimental study and artificial neural network modeling

  • Saeed Alqaed , Jawed Mustafa EMAIL logo , Mohsen Sharifpur EMAIL logo and Goshtasp Cheraghian EMAIL logo
Published/Copyright: August 14, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Nanotechnology Reviews
From the journal Nanotechnology Reviews Volume 11 Issue 1

Abstract

Viscosity shifts the flow features of a liquid and affects the consistency of a product, which is a primary factor in demonstrating forces that should be overcome when fluids are transported in pipelines or employed in lubrication. In carbon-based materials, due to their extensive use in industry, finding the simple and reliable equations that can predict the rheological behavior is essential. In this research, the rheological nature of graphene/aqueous nanofluid was examined. Fourier transform infrared spectroscopy, dynamic light scattering, energy-dispersive X-ray spectroscopy, and X-ray powder diffraction were used for analyzing the phase and structure. Transmission electron microscopy and field emission scanning electron microscopy were also employed for micro and nano structural-study. Moreover, nanofluid stability was examined via zeta-potential measurement. Results showed that nanofluid has non-Newtonian nature, the same as the power-law form. Further, from 25 to 50°C, at 12.23 s−1, viscosity decreased by 56.9, 54.9, and 38.5% for 1.0, 2.0, and 3.5 mg/mL nanofluids, respectively. From 25 to 50°C, at 122.3 s−1, viscosity decreased by 42.5, 42.3, and 33.3% for 1.0, 2.0, and 3.5 mg/mL nanofluids, respectively. Besides, to determine the viscosity of nanofluid in varied temperatures and mass concentrations, an artificial neural network via R 2 = 0.999 was applied. Finally, the simple and reliable equations that can predict the rheological behavior of graphene/water nanofluid are calculated.

Keywords: graphene nano-powder; viscosity; correlation; artificial neural network; flake graphite

1 Introduction

Nanofluids are modern coolants that have been introduced as an alternative to conventional heat transfer fluids and have earned plenty of recognition because of their remarkable thermal characteristics [1,2,3,4,5]. Nanofluids are composed of nanoparticles (NPs) suspended in base fluids, and in fact, the appearance of NPs with a high heat transfer rate has improved the cooling performance of nanofluids [6,7,8]. So far, many nanofluids have been synthesized, and their thermophysical properties have been measured [9,10,11]. Also, the cooling performance of these nanofluids in various applications has been investigated both experimentally and numerically [12,13,14,15,16]. It has often been noted that the nanofluids improved heat transfer than conventional coolants; however, it cannot be conclusively said that the general hydrothermal efficiency of nanofluids is better than base fluids [17,18,19].

Some of the nanofluid applications are enhancement in wear and friction behavior of varied lubricating oils after adding varied nano additives [20]; alumina-titania Therminol-55 hybrid nanofluid is a heat transfer fluid used in concentrating solar collectors [21]; synergism of graphene (G) with titania increase tribological features and provide a greener and efficient lubrication methodology in turning of M2 steel employing a minimum quantity lubrication method [22].

Aside from the many benefits, nanofluids are not without drawbacks. For example, the NPs enhancement in the base fluid enlarges its viscosity, and therefore, the pumping power required for the flow of nanofluids into a device is often larger than the base fluid [23]. This increase is sometimes so significant that the general hydrothermal efficiency of nanofluid is poorer than base fluid. In such cases, the use of nanofluids is not recommended at all [24]. Commercial obstacles of nanofluid usage in thermal energy application are detected by Alagumalai et al. [25]. According to the before consultation, it could be established that viscosity is one of the highest critical attributes of nanofluids that should be considered. Measurements have shown that many nanofluids are non-Newtonian, meaning that their viscosity at a given temperature is not a fixed number and is a shear rate’s (SR) function [26,27]. Considering these types of nanofluids, rheological behavior must be investigated.

Graphene, a carbon-based material, is a two-dimensional form of carbon that contains atoms located in a single layer [28,29]. Graphene has several applications, some of the most important of which are roll-up and wearable electronics, stimulated aside flexibility, energy depository substances, and polymer formation [30].

Gulzar et al. [21] experimentally studied the rheological features of Therminol-55-Alumina/TiO2 nanofluid. They evaluated the influence of nanoparticle mass fraction (0–0.5%) and temperature (20–60°C) on the outcomes. It was depicted that the nanofluid viscosity rises by boosting nanoparticle fraction and temperature reduction. Aghahadi et al. [31] experimentally examined the rheological features of engine oil-WO2-carbon nanotube (CNT) nanofluid. The impact of NPs volume fraction (0–0.6%) and temperature (20–60°C). They developed a mathematical model to determine the rheological features of nanofluid. Esfe and Rostamian [32] experimentally assessed the change in the viscosity of ethylene glycol–CNT/TiO2 nanofluid via SR, temperature, and NPs vol% parameters. The results showed that nanofluid at low concentrations has Newtonian nature, but increasing the vol% leads to the non-Newtonian nature of nanofluid. Kazemi et al. [33] tested and compared the rheological nature of aqueous–graphene, water–silica, and water–graphene (30%)/silica (70%) nanofluids. It was revealed that all three nanofluids have non-Newtonian behavior and the most severe non-Newtonian behavior belongs to the water–graphene nanofluid. In an empirical contribution, Ma et al. [34] considered the surfactant impact on the rheological behavior of aqueous alumina–CuO and alumina–TiO2 nanofluids. The considered surfactants were sodium dodecyl sulfate, polyvinyl pyrrolidone, and hexadecyltrimethylammonium bromide. Lee et al. [35] explored the temperature impact on the rheological features of carbon-based nanofluids. It was observed that the dynamic viscosity of the examined nanofluid specimen is inferior to the base fluid. While Dalkılıç et al. [36] tested the viscosity aspects of water-based silica–graphite hybrid nanofluids, Sekhar and Sharma [37] also Studied the viscosity and specific heat capacity aspects of water-based alumina nanofluids at minimum particle volume fractions. However, Bahrami et al. [38] did an empirical research on the rheological manner of hybrid nanofluids made of copper/iron oxide in water/ethylene glycol, whose results revealed a non-Newtonian behavior. Zhao et al. [39] did an artificial neural networking (ANN) analysis for entropy/heat generation in the flow of non-Newtonian fluid. Afrand et al. [40] also predicted the viscosity of CNTs/water nanofluid by expanding a desirable ANN based on their empirical data. Moreover, Nguyen et al. [41] studied the efficiency of joined ANN and genetic algorithms on the impact of concentration/temperature in ethanol-based nanofluid.

In many industrial applications, if there are relationships that can anticipate the nanofluid’s thermophysical characteristics with acceptable accuracy, there is no need to measure these properties, which are both time-consuming and costly. This issue has been considered by many researchers, and after measuring the desired property or properties, they have used various techniques to provide an accurate predictive model for that property [42]. One of the methods that have been widely used in the research literature for this mean is the ANN [43,44].

Wahab et al. [45] reported an exergy performance of 14.62% gathered at 0.1% volume fraction and 40 L/m by working liquids of water and graphene nanofluid with 0.05–0.15% volume fractions for the hybrid photovoltaic thermal system. Zheng et al. [46] experimentally evaluated the rheological manner of ethylene glycol–graphene nanofluid at a temperature range of 5–65°C, the mass fraction of NPs of 0–5%, and SR of (0–90 s−1). Hamze et al. [47] investigated shear flow manner of graphene-based nanofluids and also the impact of shearing, and shearing period and temperature on viscosity. Bakhtiari et al. [48] examined the readiness of stable titania–graphene/water nanofluids and developed an equation for heat transfer. Nadooshan et al. [49] measured the rheological manner of magnetite–CNT/ethylene glycol nanofluid to find heat transfer rate, and the results revealed Newtonian behavior for minimum volume fraction and non-Newtonian behavior for maximum volume fraction. Also, Malekahmadi et al. [50] focused on the CNT additive impact on the heat transfer rate of hydroxyapatite/water for dental operations. Shahsavani et al. [51] studied the rheological manner of water–EG/functionalized multi walled CNTs.

As for the research gap, the mentioned studies, and other published papers related to the viscosity of carbon-based materials, did not find the exact correlation for water-based nanofluid containing graphene NPs. Also, the importance of the synthesis process in the viscosity behavior was not mention.

As for the importance, viscosity shifts the flow features of a liquid and affects the consistency of a product; this data is critical in most production steps. Also, viscosity is a primary factor in demonstrating the forces that should be overcome when fluids are transported in pipelines or employed in lubrication. It leads the fluid flow in surface coating, injection molding, and spraying. Viscosity measurement is needed in choosing the antifreeze with minimum viscosity, employed in car engines. Thus, to solve the relevant problems in this regard, we need to measure the viscosity of nanofluids under different conditions, such as SRs, mass concentrations, and temperatures to find the behavior of the fluid. Moreover, we can find out which nanofluid is a better choice for our goal.

As for the key objectives, in the carbon-based materials, especially graphene, due to its extensive use in industry, the exact correlation with the least uncertainty is needed for the scientists to reduce the costs of experiments and the costs in industries. Thus, in this research, after experimental examinations, the numerical study by training ANN models was done to find simple and reliable equations that can predict the rheological manner of water-based nanofluid containing graphene as carbon-based material.

In this study, graphene nanofluid was formed by applying a two-step approach. For this purpose, first, graphene NPs are synthesized by applying the top-down approach. Then, they are dispersed in water at mass concentrations of 1.0–3.5 mg/mL. After preparing the nanofluid samples, their rheological behavior in different mass concentration values and temperatures is measured. Eventually, the ANN technique is selected to obtain a predictive model for the rheological manner of the water–graphene nanofluid.

2 Materials and methods

2.1 Materials

From KaraPA-Iran, graphite in flake form was prepared at 99.8% purity. Moreover, additional materials consumed in the synthesis had purity above 99% and was of analytical grade. Figure 1 displays G/flake graphite (FG) three-dimensional structure design. Further, base fluid and nanomaterial properties are shown in Table 1.

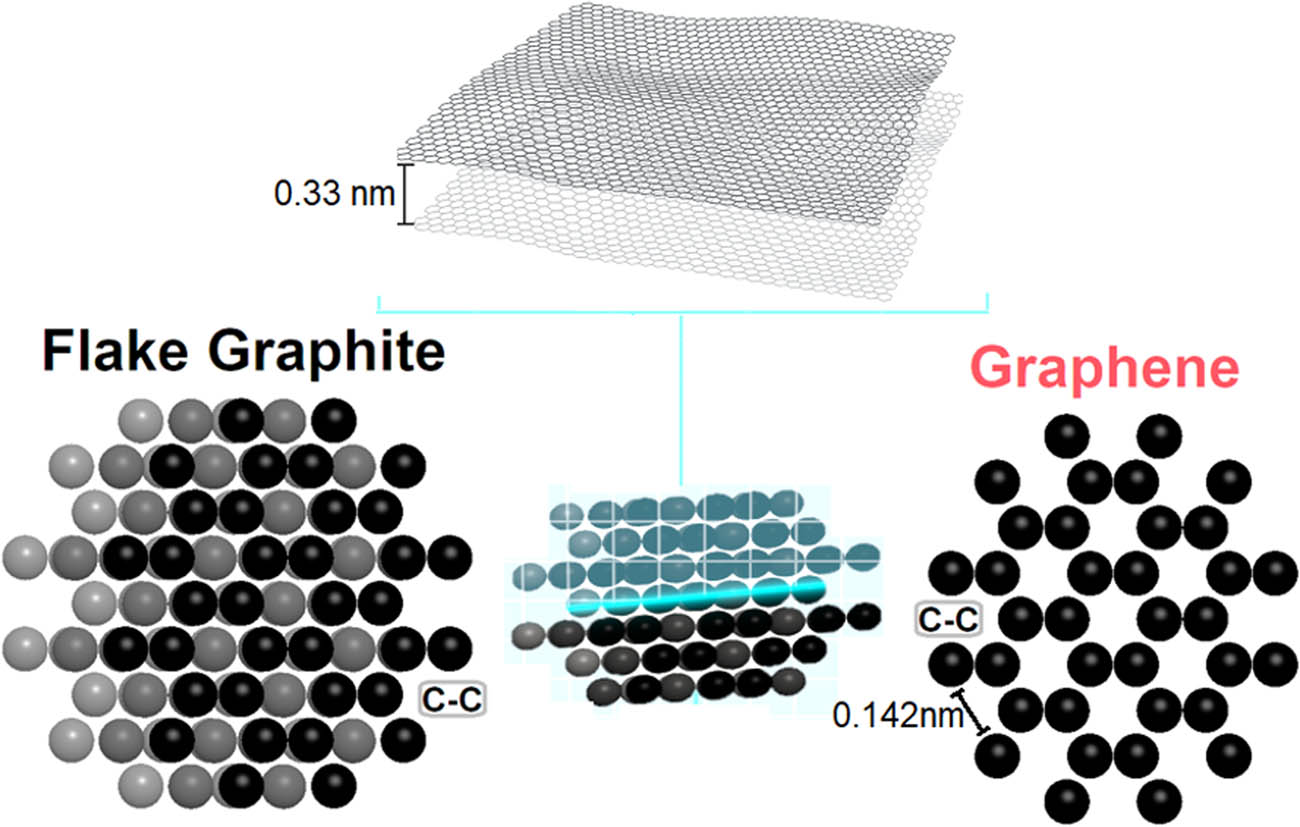

Figure 1 3D-schematic design of graphene and flake graphite.
Figure 1

3D-schematic design of graphene and flake graphite.

Table 1

Base fluid and nanoparticle profile table [33,52]

Properties Graphene–C (Np) Water–H2O (Bf)
Molar mass (g/mol) –12.0 –18.0
Density (g/m3) –2.16 0.997
Boiling point (°C) 4200.0 100.0
Melting point (°C) 3670.0 0.0

2.2 Methods

2.2.1 Solid/nanofluid formation

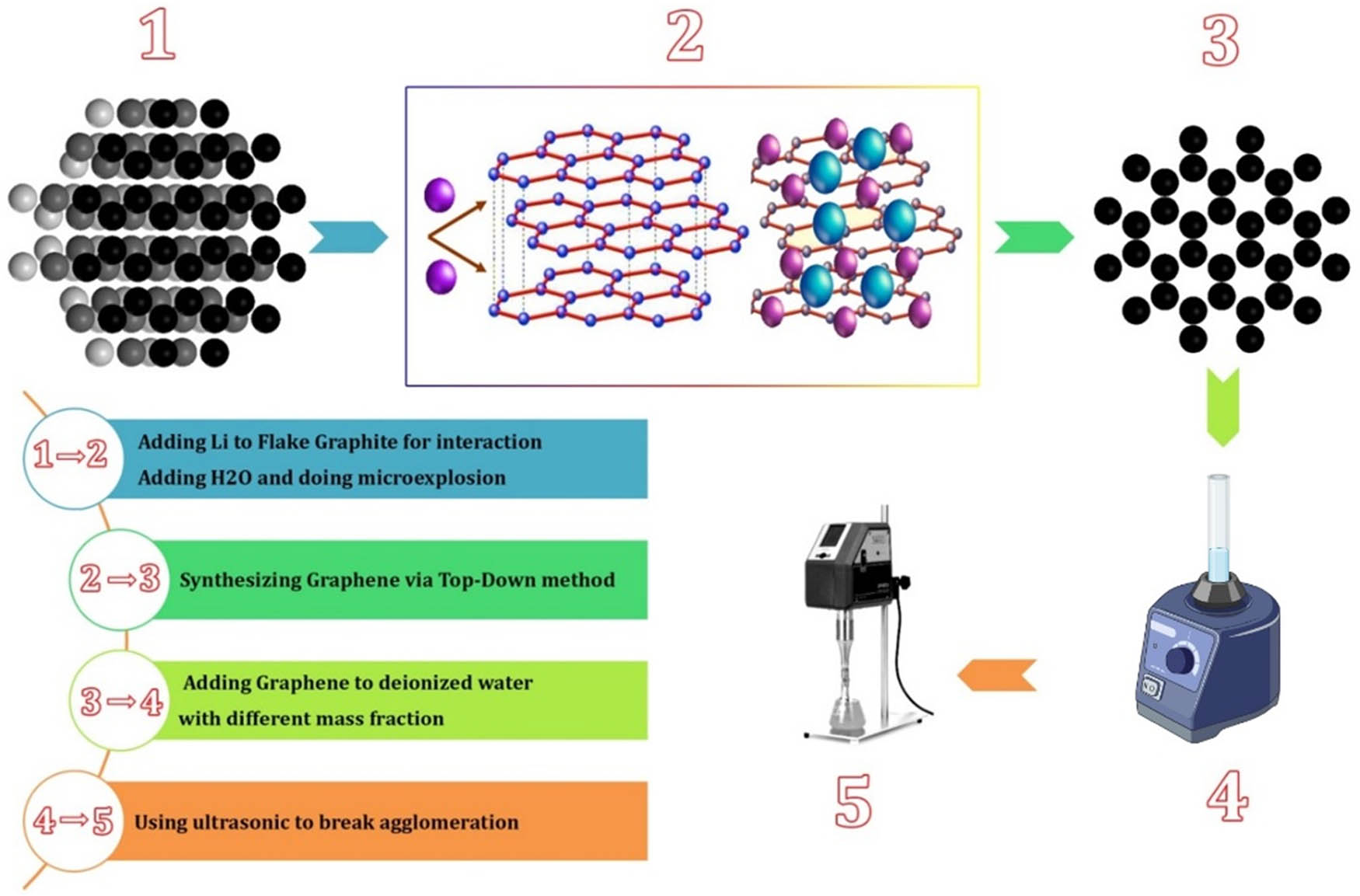

Figure 2 shows graphene powder and nanofluid synthesis and preparation steps. Graphene could be produced by exfoliation of bulk graphite containing direct liquid-phase exfoliation of FG/FG intercalation compound aside from the help of ultrasonication (Figure 2). Lithium is the lightest solid/metal element. In Figure 2, in steps 1 to 2, lithium is employed to be placed between graphite sheets. This helps the micro-explosion between graphite sheets by adding H2O. Further, in steps 2 to 3, when the micro-explosion is completed, the mono-layer sheets of graphene are obtained.

Figure 2 Synthesis steps of powder (schematic diagram from flake graphite to graphene) and preparation steps of nanofluid.
Figure 2

Synthesis steps of powder (schematic diagram from flake graphite to graphene) and preparation steps of nanofluid.

X-ray diffraction (XRD) was examined via a D8 ADVANCE X-ray diffractometer (Bruker-USA). Moreover, to prove XRD results, energy-dispersive X-ray spectroscopy (EDX) was used. Further, dynamic light scattering (DLS) was tested by a VASCO NP size analyzer (Cordouan Technologies, France). Also, Fourier transform infrared spectroscopy (FTIR) spectra was reported using FP-6300 (JASCO, JAPAN). Then, to detect sample morphology, field emission scanning electron microscopy (FESEM) was used (Nova NanoSEM 450; FEI, USA) [51].

To measure the thermophysical properties, nanofluid must be prepared first. Graphene must be added to deionized water. Overall mass concentration of graphene consumed in nanofluid can be calculated via equation (1). First, graphene mass is determined via weighing balance in the laboratory, and then the two-stage process is used to prepare the nanofluid. Nanofluids were prepared at mass concentrations of 1.0, 1.5, 2.0, 2.5, 3.5 mg/mL. In this method, NPs are mixed in base fluid via an appropriate dispersion method, but here, agglomeration is the biggest problem. To achieve good dispersion and avoid agglomeration, 90 min of magnetic stirring and 30 min of sonication are performed via 400 W, 24 kHz UP400St Ultrasonicator (Hielscher, Germany) to prepare a stable suspension [36].

(1) ϕ = w ρ G w ρ G + w ρ Water ⁎ 100 .

where mass fraction percentage and density are denoted by φ and ρ, respectively. Mass is indicated by “m.”

2.3 Viscosity measurement

In this research, via DV2T viscometer (AMETEK Brookfield, USA), G-distilled water (DW) rheological behavior was determined with 5% uncertainty [52,53]. LV spindle (1–6 MPa s/1–200 RPM) is used to measure rheological behavior [53]. Initially, at room temperature, DV2T was scaled via DW. For every rheological behavior study, tests were repeated 3 times for 25–50°C temperatures at different SRs, independently [54].

3 Result and discussion

3.1 Solid formation

3.1.1 Structural/phase study

3.1.1.1 X-Ray diffraction

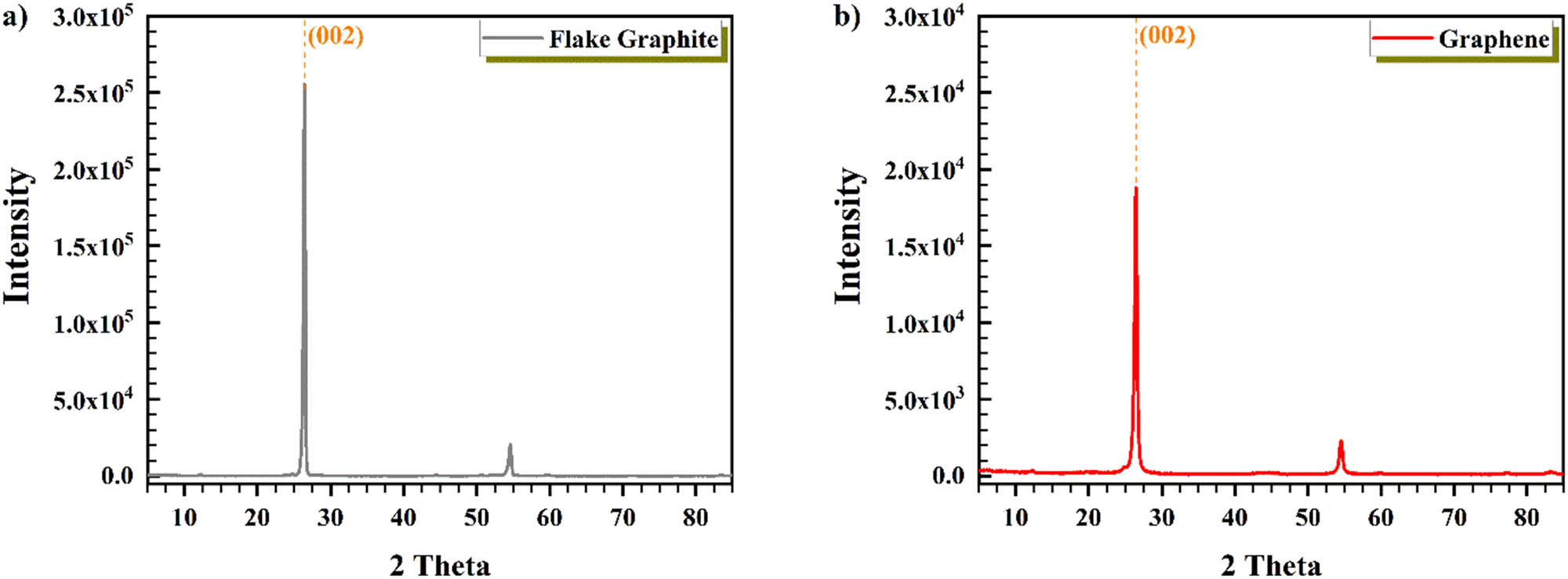

Figure 3 shows the XRD spectra for FG and graphene with a peaked point in (002) surface at 2θ = 26.469°. Low-intensity peaks and (002)-main peak were displayed in the pattern. D-spacing was around 3.362 Ǻ for FG and around 3.363 Ǻ for graphene (Bragg’s law) [55].

Figure 3 XRD pattern of (a) flake graphite and (b) graphene.
Figure 3

XRD pattern of (a) flake graphite and (b) graphene.

3.1.1.2 DLS

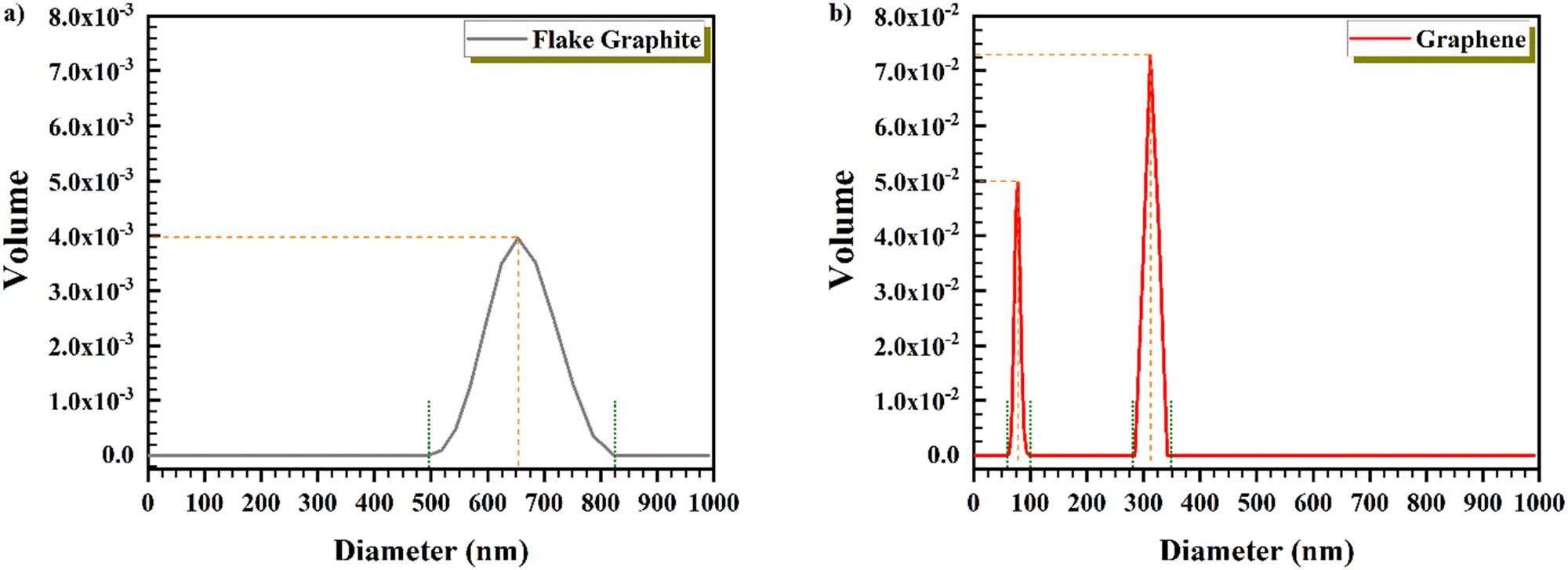

Size distribution for graphite and graphene (water dispersion) was determined by DLS. Graphene has a two-dimensional structure, and a dimension is at the nanoscale. Nevertheless, DLS measured the size of two other dimensions (which are in microscale) alongside its thickness. Figure 4 displays that graphene (49.49 vol% at 76.196 nm and 72.66 vol% at 311.21 nm) has fewer vol% compared to the flake graphite (39.48 vol% at 653.488 nm) [56]. Since graphene has only one dimension in the nanoscale, it is logical that two other dimensions which are in the microscale affect the outcome of DLS and increase the size by more than 100 nm. However, the obtained results also showed that those two dimensions are less than 400 nm which is acceptable.

Figure 4 DLS of (a) flake graphite and (b) graphene.
Figure 4

DLS of (a) flake graphite and (b) graphene.

3.1.1.3 FTIR

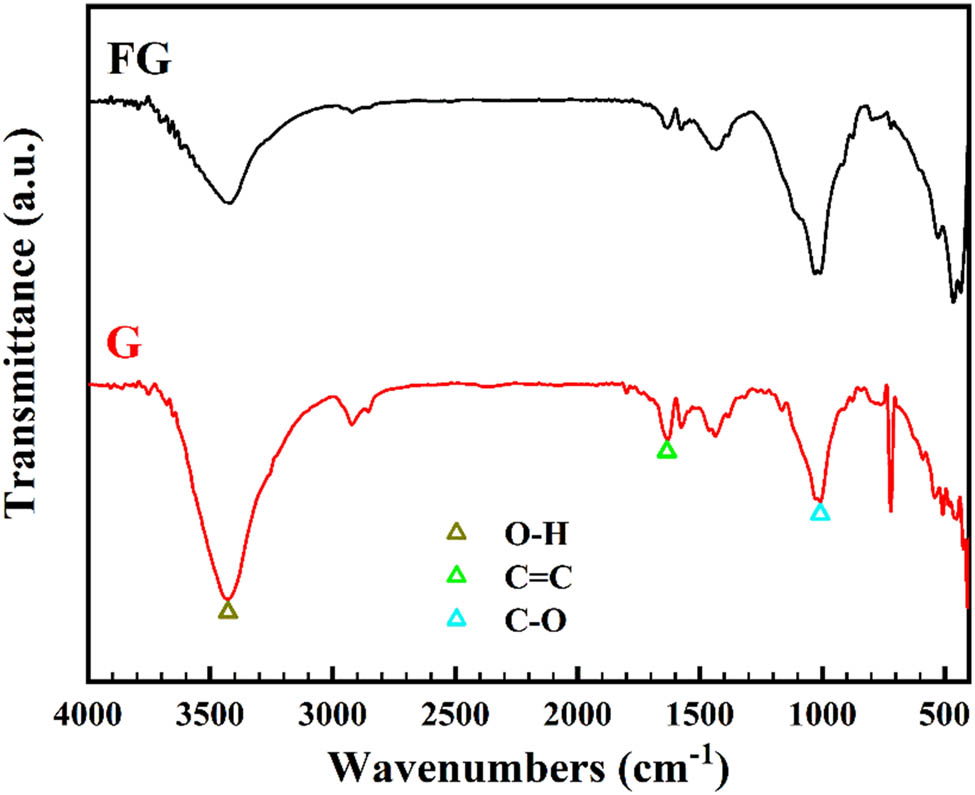

FTIR spectroscopy was used to study the FG and graphene structure alongside the functional groups. A large peak from 3,000 to 3,732 cm−1 shown in Figure 5 in a large-frequency field is related to the O–H groups of molecules of water for graphene. Likewise, C═C unique peak is shown in 1634.38 cm−1. FG and graphene FTIR in Figure 5, showed that the O–H peak domain has less depth for FG. Aromatic C═C group point at 1624.64 cm−1 in the FG and at 1634.38 cm−1 in graphene. For the FG specimen, C–O has higher intensity (1008.59 cm−1 for G and 1010.99 cm−1 for FG) [57].

Figure 5 FTIR for graphene and flake graphite.
Figure 5

FTIR for graphene and flake graphite.

3.1.2 Micro-nano formative study

3.1.2.1 FESEM and EDX analyzer

FESEM image of amorphous and disordered two-dimensional graphene is shown in Figure 6 [58]. Graphene thickness is lesser than 100 nm with layer structure. In graphene, folded sections are on top of each other. Flake diameter for graphene layers is reported as 0.5–3.5 µm [58]. Hence, the morphology approved DLS results and showed that all of the dimensions of graphene are less than 400 nm. Also, the one dimension of graphene which is in the nanoscale has less than 100 nm thickness. Two points energy dispersive X-ray spectroscopy examined for graphite and graphene. Figure 7 and Table 2 show that FG has about 90.48 at% C, 7.29 at% O, and 2.23 at% Si + N + Al. Nevertheless, graphene is pure at 100 at% C.

Figure 6 FESEM image for graphene and flake graphite.
Figure 6

FESEM image for graphene and flake graphite.

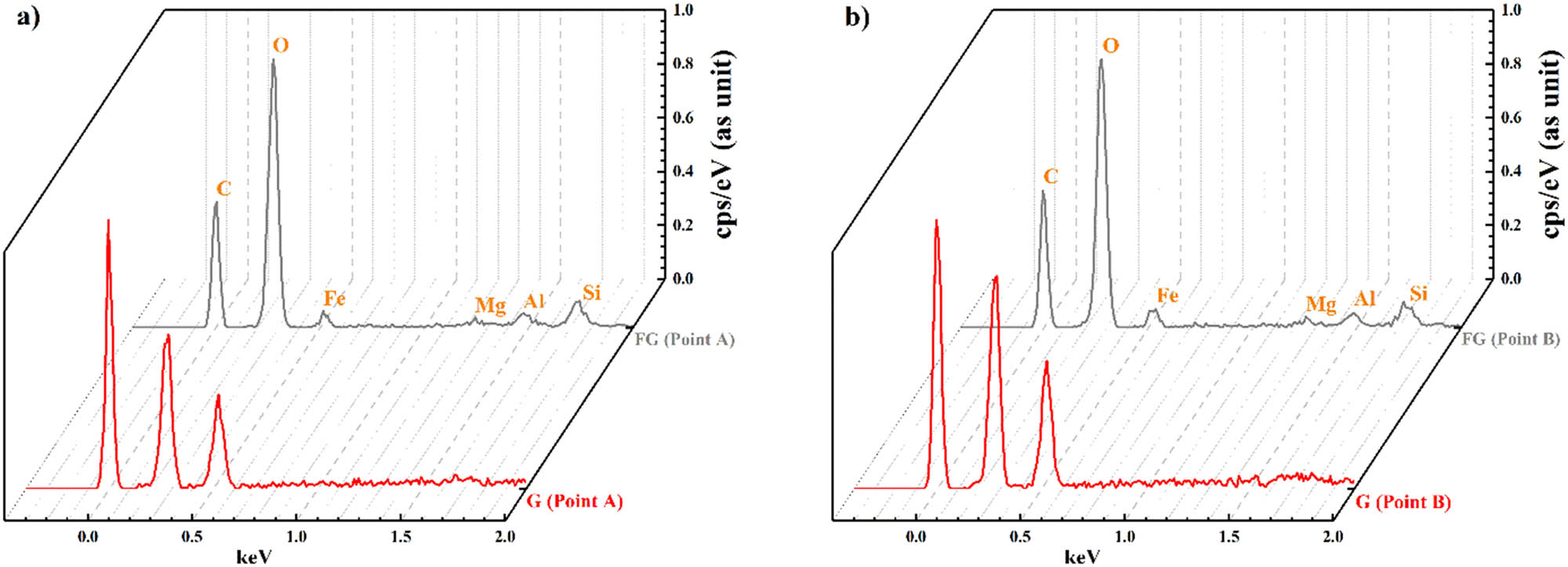

Figure 7 EDX pattern of flake graphite and graphene for (a) point A and (b) point B.
Figure 7

EDX pattern of flake graphite and graphene for (a) point A and (b) point B.

Table 2

EDX elemental composition for flake graphite and graphene

Flake graphite – point A Graphene – point A
El AN series unn. C norm. C atom. C error (1 Sigma) El AN series unn. C norm. C atom. C error (1 Sigma)
[wt%] [wt%] [at%] [wt%] [wt%] [wt%] [at%] [wt%]
C 86.78 86.78 90.48 14.29 C 97.97 97.97 98.38 16.70
O 9.32 9.32 7.29 4.14 O 1.26 1.26 0.95 1.84
Si 1.78 1.78 0.79 0.16 N 0.77 0.77 0.67 2.34
Al 1.08 1.08 0.50 0.13
N 1.04 1.04 0.94 1.95
Total 100 100 100 100 100 100
Flake graphite – point B Graphene – point B
El AN series unn. C norm. C atom. C error (1 Sigma) El AN series unn. C norm. C atom. C error (1 Sigma)
[wt%] [wt%] [at%] [wt%] [wt%] [wt%] [at%] [wt%]
C 100.00 100.00 100.00 16.47 C 100.00 100.00 100.00 17.05
Total 100 100 100 100 100 100
3.1.2.2 Transmission electron microscopy (TEM)

To support that graphene thickness is below 100 nm, TEM was used. For image-making in the TEM method, the electron beam was transferred thru a sample. Figure 8 shows that graphene thickness is lesser than 40 nm with a two-dimensional layer structure [58]. These results were also consistent with that of DLS and FESEM. As can be seen, the thickness of graphene is less than 100 nm.

Figure 8 TEM of graphene.
Figure 8

TEM of graphene.

3.2 Nanofluids formation

3.2.1 Stability of nanofluid

3.2.1.1 Zeta potential

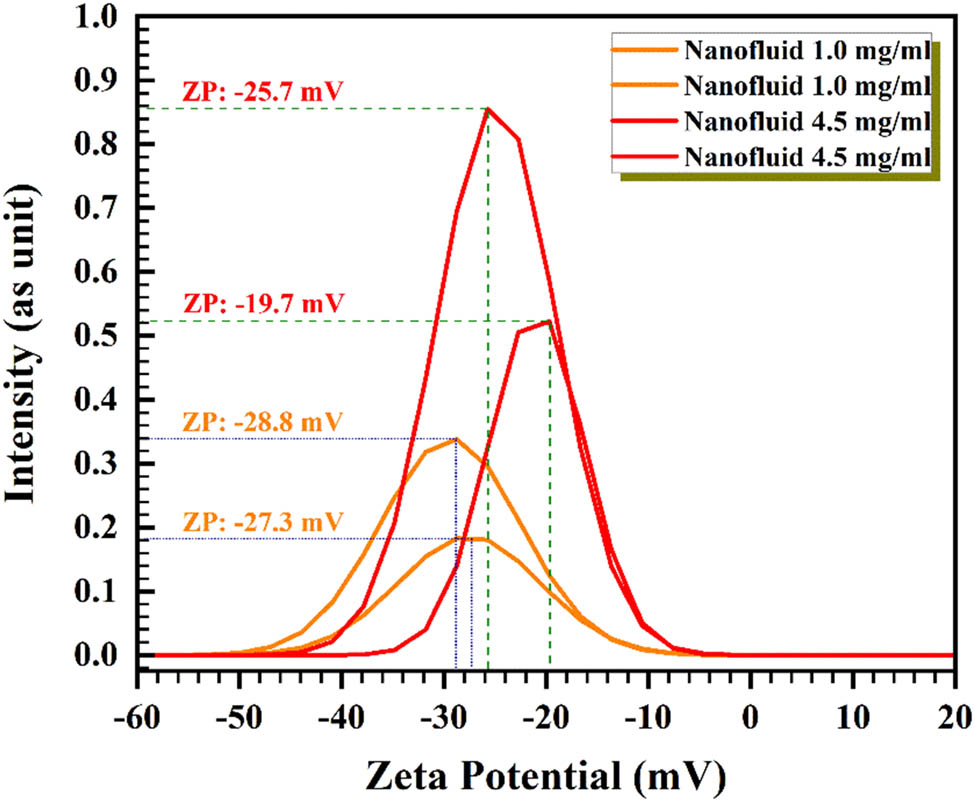

The zeta potential (ZP) of graphene is shown in Figure 9 at mass concentrations of 4.5 and 1.0 mg/mL. The colloid mixture of graphene liquid at the 2–4 pH range shows negative ZP. As announced via ASTM, the absolute zeta potential of 20–30 mV are rather stable, and >±30 mV is extremely stable. ZPs for 1.0 mg/mL, are –28.8 mV (electrophoretic mobility [EM] of –0.000229 cm2/Vs) and –27.3 mV (EM of –0.000214 cm2/Vs), while for 4.5 mg/mL, are –25.7 (EM of –0.000190 cm2/Vs) and –19.7 (EM of –0.000178 cm2/Vs). These amounts show nanomaterial’s moderate stability in water. It can be seen by these values that by increasing the mass concentration, graphene has aggregation behavior [59,60].

Figure 9 ZP pattern of graphene at mass concentrations of 1 and 4.5 mg/mL.
Figure 9

ZP pattern of graphene at mass concentrations of 1 and 4.5 mg/mL.

3.2.2 Rheological behavior study

3.2.2.1 Validation

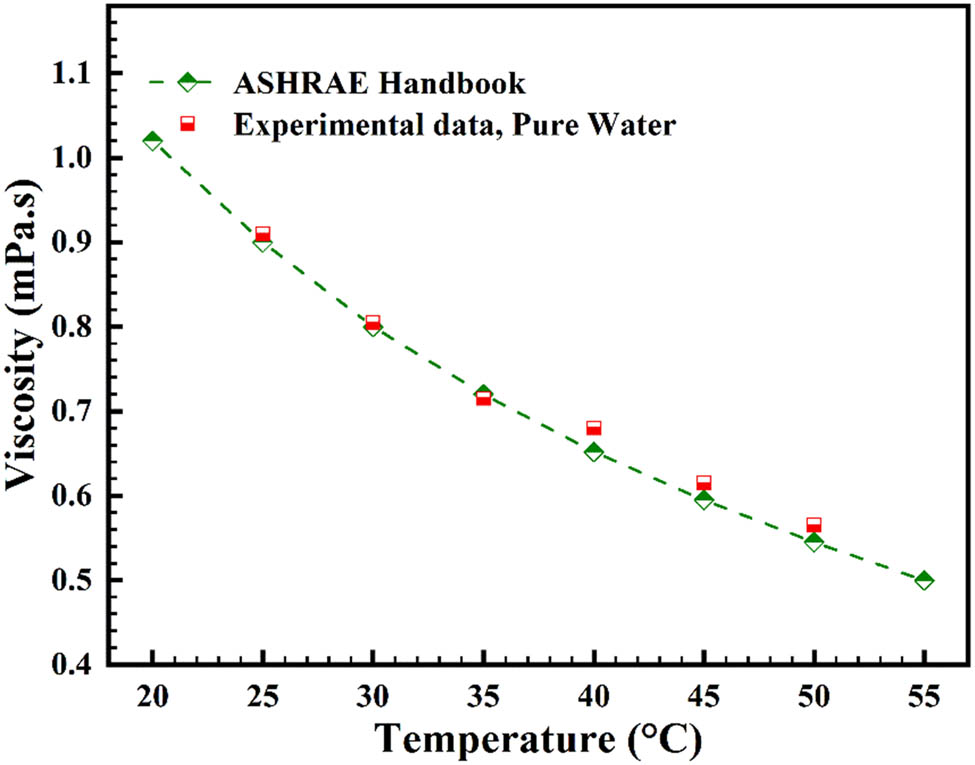

DV2T apparatus validity was determined and related to the ASHRAE handbook [53] to affirm the apparatus correctness. Regarding manual, apparatus uncertainty was satisfying (lesser that 5%) at T = 25°C. Figure 10 displays the maximum error of 4.29% (at T = 40°C) [53].

Figure 10 Viscosity vs distilled water temperature compared to that in ASHRAE handbook [53].
Figure 10

Viscosity vs distilled water temperature compared to that in ASHRAE handbook [53].

3.2.2.2 Mass concentration and temperature effect

An important stage in determining the nanofluid’s viscosity is to measure it at different mass concentrations and temperatures, to determine whether it exhibits Newtonian/non-Newtonian behavior [61]. For varied temperatures, Figure 11 exhibits viscosity corresponding to mass concentration in 12.23 and 122.3 SRs [62]. At different mass concentrations, Figure 12 exhibits viscosity corresponding to temperature in 12.23 and 122.3 s−1 SRs [63]. On increasing the mass concentration and temperature, there is an increase and decrease in viscosity, respectively. As can be seen, in the 12.23 s−1 SR, from mass concentration of 0.0 to 2.0 mg/mL, the viscosity increment is relatively smooth; but after 2.0–3.5 mg/mL, the enhancement of viscosity is more steep. This is due to the surface tension increment at low speed for the agglomerations. However, this slope increment cannot be seen in the 122.3 s−1 SR, which reveals that with speed increment, the agglomerations are broken, and thus, the friction is decreased. Also, temperature increment causes a decrement in agglomerations, and again, friction is decreased at 45°C.

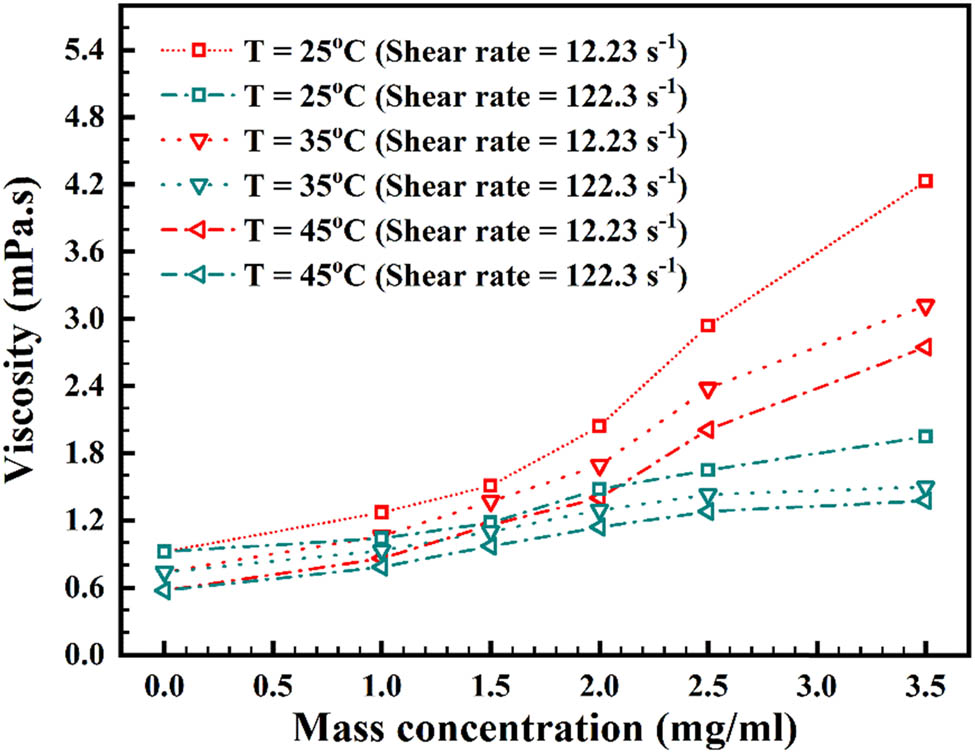

Figure 11 Change in rheological behavior corresponding to mass concentration at varied temperatures.
Figure 11

Change in rheological behavior corresponding to mass concentration at varied temperatures.

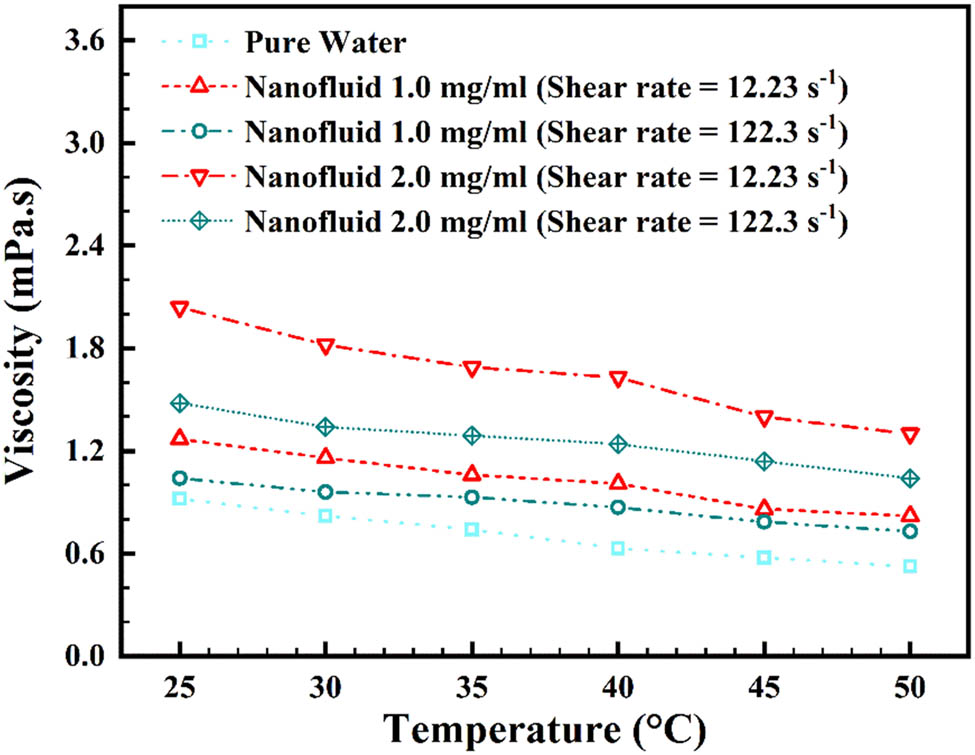

Figure 12 Change in rheological behavior corresponding to temperature at varied mass concentrations.
Figure 12

Change in rheological behavior corresponding to temperature at varied mass concentrations.

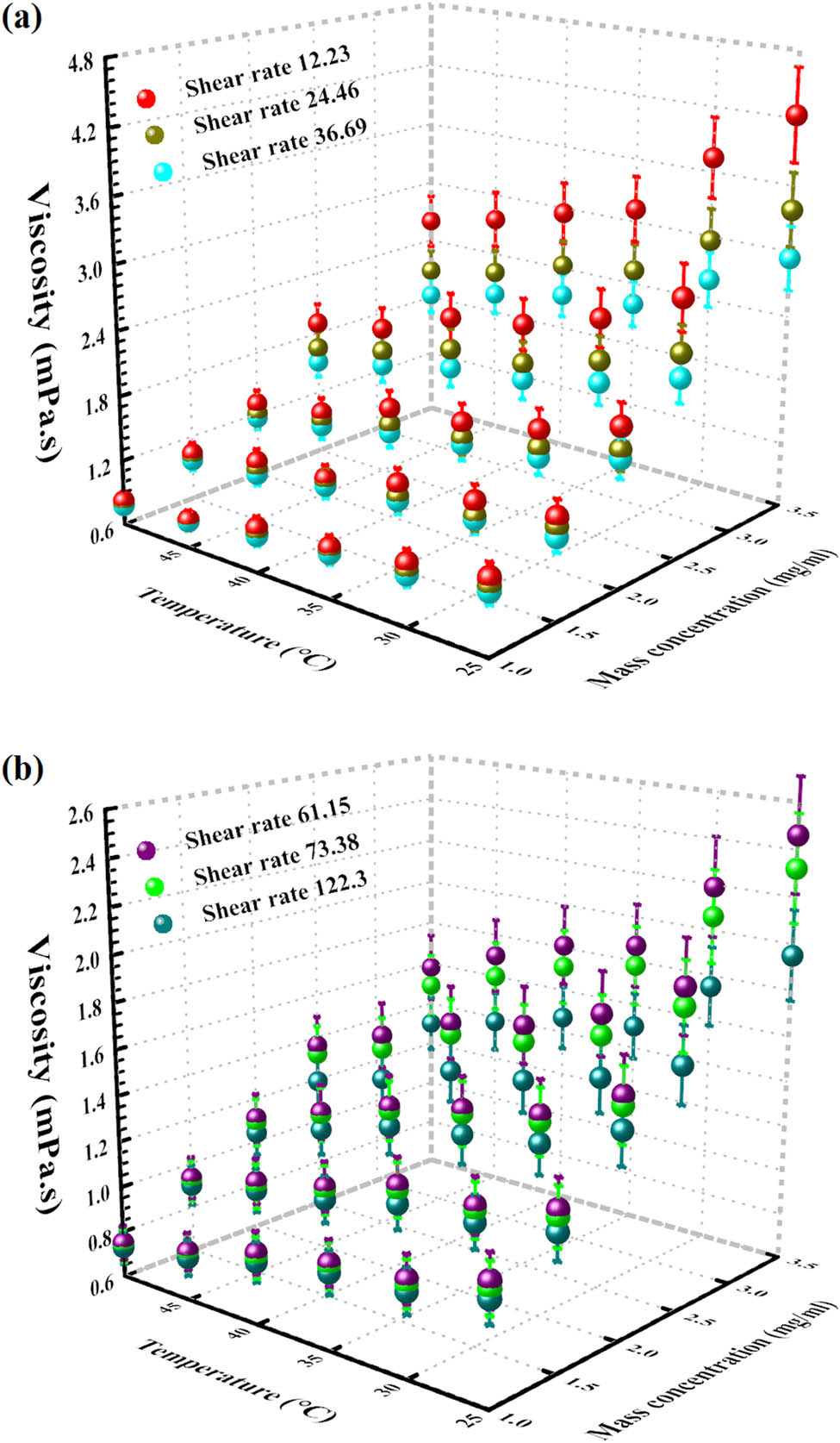

Figure 13 exhibits the rheological behavior 3D data corresponding to various mass concentrations and temperatures from 122.3–12.23 SRs [64]. Viscosity at varied mass concentrations and temperatures is reported in Table 3. As can be seen, with temperature enhancement, there was a decrease in viscosity. Also, the addition of graphene caused an enhancement in viscosity. The viscosity trend is dependent on two variables, temperature and concentration. However, these variables have a different effect on viscosity. To find which one has greater impact, first, a comparison between the minimum and maximum values is needed.

Figure 13 The 3D factual outcome of viscosity at dissimilar temperatures and mass concentrations.
Figure 13

The 3D factual outcome of viscosity at dissimilar temperatures and mass concentrations.

Table 3

Viscosity at varied temperatures and mass concentrations

Shear rate (s−1) T = 25°C (MPa s) T = 50°C (MPa s)
Nanofluid 1.0 mg/mL
12.23 1.27 0.82
122.3 1.04 0.73
Nanofluid 2.0 mg/mL
12.23 2.04 1.30
122.3 1.48 1.04
Nanofluid 3.5 mg/mL
12.23 4.23 2.60
122.3 1.95 1.30

When the temperature is constant, the mass concentration impact can be measured. For 25°C which is in the room-temperature domain, viscosity for 1.0 mg/mL graphene was 1.27 MPa s (12.23 s−1 SR) and 1.04 MPa s (122.3 s−1 SR), while it reached to 2.04 MPa s (12.23 s−1 SR) and 1.48 MPa s (122.3 s−1 SR) for 2.0 mg/mL graphene, then it reached to 4.23 MPa s (12.23 s−1 SR) and 1.95 MPa s (122.3 s−1 SR) for 3.5 mg/mL graphene. This means by adding more graphene, from 1.0 to 3.5 mg/mL, viscosity increment was 233.07% (12.23 s−1 SR) and 87.50% (122.3 s−1 SR).

For 50°C, which is in the heating domain, viscosity for 1.0 mg/mL graphene was 0.82 MPa s (12.23 s−1 SR) and 0.73 MPa s (122.3 s−1 SR), while it reached to 1.30 MPa s (12.23 s−1 SR) and 1.04 MPa s (122.3 s−1 SR) for 2.0 mg/mL graphene, then it reached to 2.60 MPa s (12.23 s−1 SR) and 1.30 MPa s (122.3 s−1 SR) for 3.5 mg/mL graphene. This means by adding more graphene, from 1.0 to 3.5 mg/mL, viscosity increment was 217.07% (12.23 s−1 SR) and 78.08% (122.3 s−1 SR).

When the mass concentration is constant, the temperature impact can be measured. For 1.0 mg/mL graphene/water nanofluid, viscosity at 25°C was 1.27 MPa s (12.23 s−1 SR) and 1.04 MPa s (122.3 s−1 SR), while it decreased to 0.82 MPa s (12.23 s−1 SR) and 0.73 MPa s (122.3 s−1 SR) on increasing the temperature to 50°C. This means by increasing the temperature, and on reaching the heating domain, from 25–50°C, viscosity decrement was 35.43% (12.23 s−1 SR) and 29.81% (122.3 s−1 SR).

For 2.0 mg/mL graphene/water nanofluid, viscosity at 25°C was 2.04 MPa s (12.23 s−1 SR) and 1.48 MPa s (122.3 s−1 SR), while it decreased to 1.30 MPa s (12.23 s−1 SR) and 1.04 MPa s (122.3 s−1 SR) on increasing the temperature to 50°C. This means by increasing the temperature, and on reaching the heating domain, from 25–50°C, viscosity decrement was 36.27% (12.23 s−1 SR) and 29.73% (122.3 s−1 shear rate).

For 3.5 mg/mL graphene/water nanofluid, viscosity at 25°C was 4.23 MPa s (12.23 s−1 SR) and 1.95 MPa s (122.3 s−1 SR), while it decreased to 2.60 MPa s (12.23 s−1 SR) and 1.30 MPa s (122.3 s−1 SR) on increasing the temperature to 50°C. This means that by increasing the temperature and on reaching the a heating domain, from 25°C–50°C, viscosity decrement was 38.53% (12.23 s−1 SR) and 33.33% (122.3 s−1 SR). This means that temperature caused a decrement in viscosity; however, in 3.5 mg/mL graphene, this decrement was more. Further, the rheological behavior of water became as non-Newtonian after adding graphene to water.

3.2.2.3 Non-Newtonian behavior

Figure 14 displays the viscosity–shear stress (SS) of nanofluid corresponding to SR for temperatures of 25–50°C and mass concentrations of 1.0–3.5 mg/mL. Nanofluid’s rheological behavior indicated a non-Newtonian manner. Categorizations for non-Newtonian manner are time self-reliant (shear thinning/shear thickening) and time reliant [65]. In G–DW, power is less than one (in the equation of power-law), which causes the shear-thinning (pseudoplastic) [66]. Power law:

(2) τ = m ϒ ̇ n ,

where n (dimensionless) is the power law index, m (Pa S n ) is the flow consistency index, and τ(Pa) denotes SS, and ϒ ̇ (s−1) denotes shear rate.

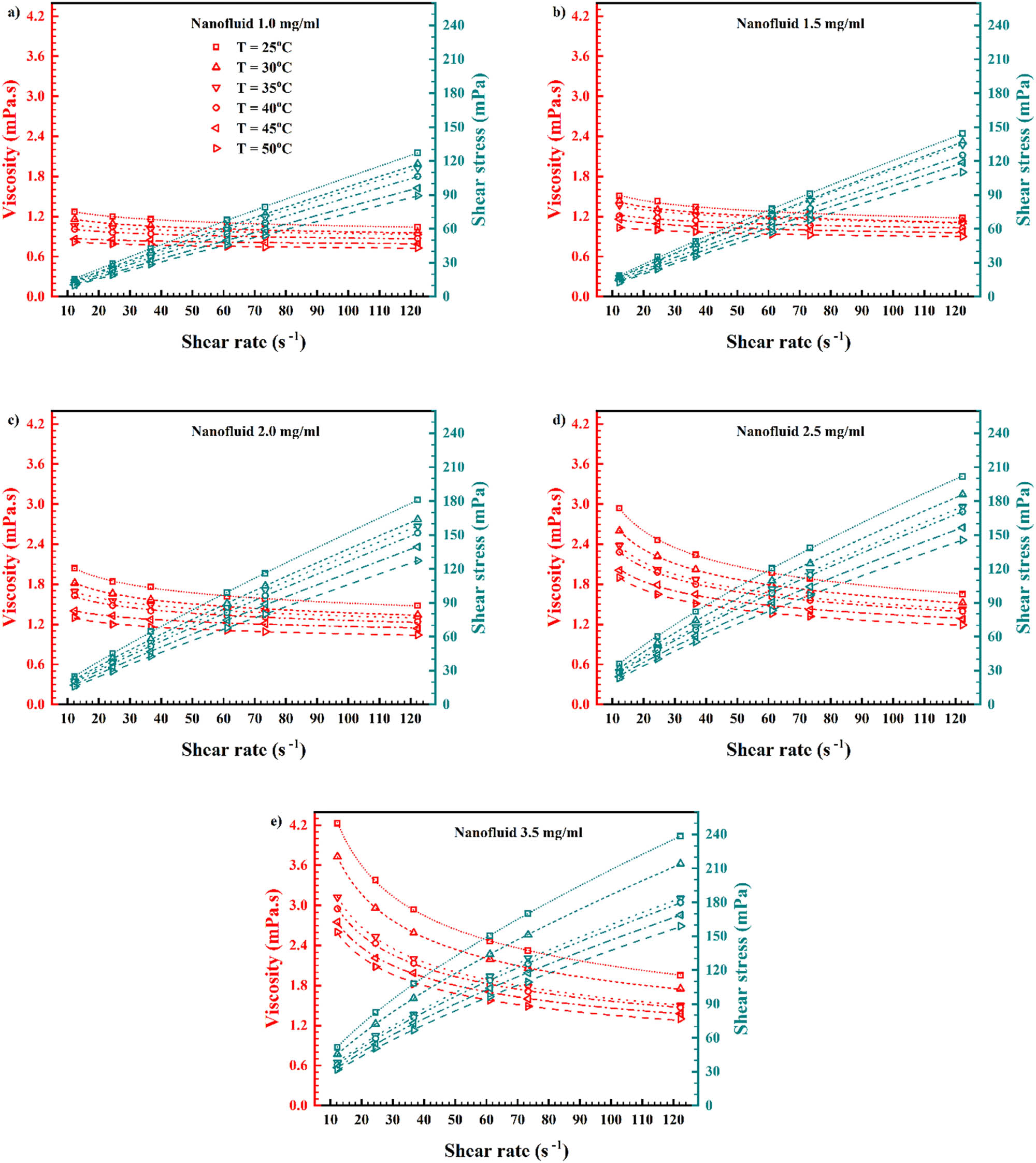

Figure 14 Viscosity and shear stress values against SR for different mass concentrations and temperatures.
Figure 14

Viscosity and shear stress values against SR for different mass concentrations and temperatures.

Hence, equation (3) estimates the viscosity:

(3) μ = m ϒ ̇ n − 1 ,

where “µ” denotes viscosity [67].

The trend for viscosity – SS by SR is non-linear. Therefore, concluding based on the patterns, SS is a variable of temperature and mass concentration. Hence, n or m with varied temperature or mass concentration could be estimated using curve-fitting plus equation (4).

(4) τ = μ ϒ ̇ .

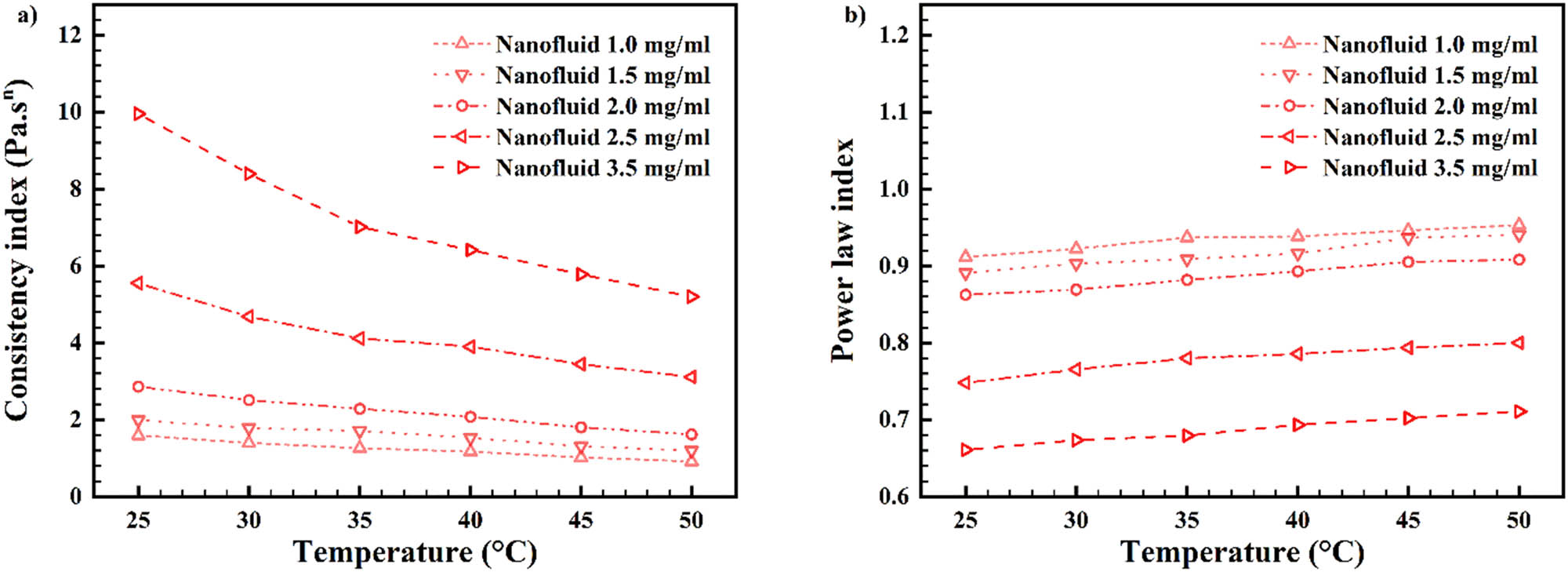

In Figure 15, m (consistency index) and n (power-law index) variations are made known concerning nanofluid’s non-Newtonian nature and Figure 14 data. Figure 15a exhibits consistency index; in conclusion, mass concentration increment caused the “m” increment, but temperature increment for each wt% caused the “m” decrement [68]. Figure 15b exhibits power-law index (n); in conclusion, mass concentration increment caused the “n” decrement, but temperature increment for each wt% caused the “n” increment [69]. This happened because the viscosity decreased after temperature increment, which caused the nanofluid to act the same way as the Newtonian nature of DW base fluid.

Figure 15 Consistency index “m” (a) and power-law index “n” (b) against temperature for various mass concentrations.
Figure 15

Consistency index “m” (a) and power-law index “n” (b) against temperature for various mass concentrations.

3.2.3 Statistical view

3.2.3.1 Recommended equation

G–DW nanofluid correlation is recommended for estimating viscosity via curve-fitting (equations (5)–(10)). These correlations have R 2 ∼ 0.99 [70]. Three-dimensional fitted correlation on empirical input of 12.23–122.3 SRs is displayed in Figure 16.

(5) Viscosity 12.23 = ( 1.13936 ) ⁎ ( ( T / T 0 ) ( − 0.66909 ) ) ⁎ ( w t ( 1.01453 ) ) .

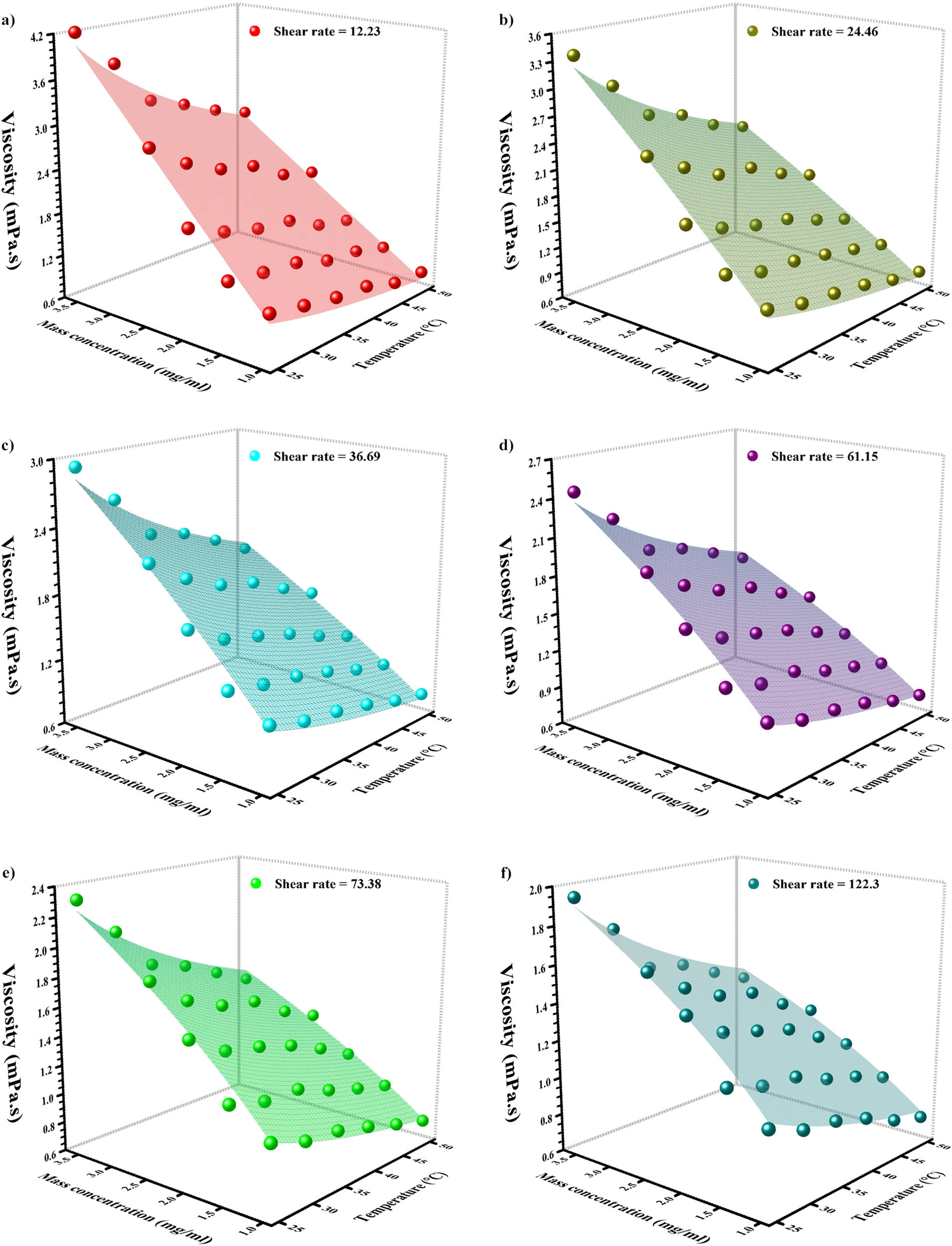

Figure 16 Confirmation of recommended correlation with original measurements; Viscosity via mass concentration and nanofluid temperature for varied SRs.
Figure 16

Confirmation of recommended correlation with original measurements; Viscosity via mass concentration and nanofluid temperature for varied SRs.

Reduced Chi-Square: 0.00622, R 2 (Coefficient of determination): 0.99687, and adjusted R 2 : 0.99664,

(6) Viscosity 24.46 = ( 1.11064 ) ⁎ ( ( T / T 0 ) ( − 0.61507 ) ) ⁎ ( w t ( 0.85601 ) ) .

Reduced Chi-Square: 0.00909, R 2 : 0.97995, and adjusted R 2 : 0.97847,

(7) Viscosity 36.69 = ( 1.11072 ) ⁎ ( ( T / T 0 ) ( − 0.58931 ) ) ⁎ ( w t ( 0.74706 ) ) .

Reduced Chi-Square: 0.00616, R 2 : 0.98006, and adjusted R 2 -Square: 0.97859,

(8) Viscosity 61.15 = ( 1.09064 ) ⁎ ( ( T / T 0 ) ( − 0.54171 ) ) ⁎ ( w t ( 0.62346 ) ) .

Reduced Chi-Square: 0.00362, R 2 : 0.98062, and adjusted R 2 : 0.97918,

(9) Viscosity 73.38 = ( 1.08272 ) ⁎ ( ( T / T 0 ) ( − 0.52778 ) ) ⁎ ( w t ( 0.58263 ) ) .

Reduced Chi-Square: 0.00323, R 2 : 0.97934, and adjusted R 2 : 0.97781,

(10) Viscosity 122.3 = ( 1.07025 ) ⁎ ( ( T / T 0 ) ( − 0.49058 ) ) ⁎ ( w t ( 0.45972 ) ) .

Reduced Chi-Square: 0.0019, R 2 : 0.99872, and adjusted R 2 : 0.99863,

where “T” and “wt” are temperature and mass concentration, respectively, and “T 0” is 25°C, and viscosity is in centipoise [71].

The recommended equation could be confirmed by the original viscosity information. Equation (11) is employed to correlate deviation. The highest deviation of margin exhibited in Figure 17, which quantified 1.8% (for 10 RPM) and 0.96% (for 100 RPM), exhibits such original equation with significant accuracy [71].

(11) Dev = μ Exp − μ Pred μ Pred ⁎ 100 .

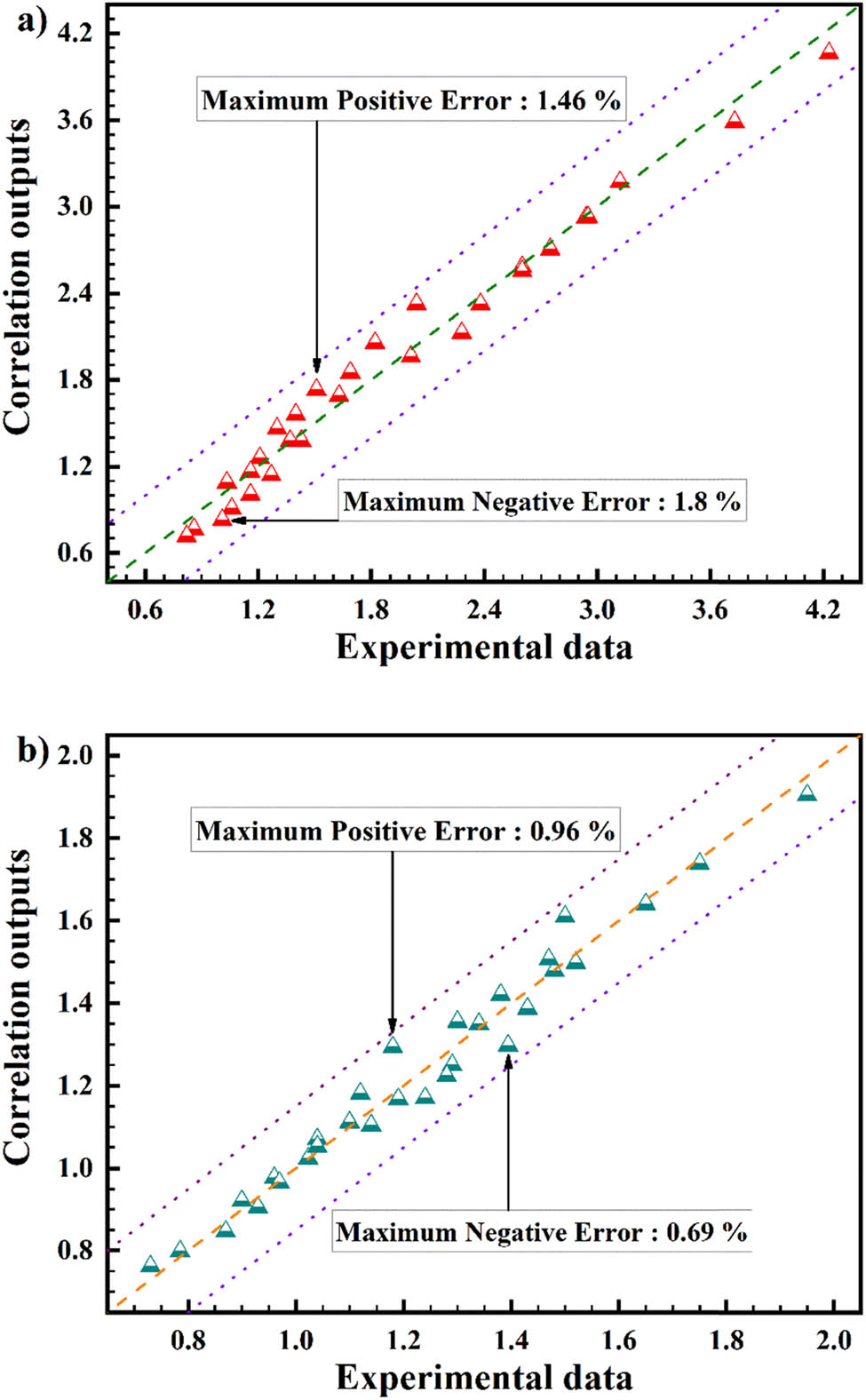

Figure 17 Affirmation of original correlation with from factual data for (a) 10 RPM and (b) 100 RPM.
Figure 17

Affirmation of original correlation with from factual data for (a) 10 RPM and (b) 100 RPM.

3.2.3.2 ANN

In this study, viscosity for each SR (12.23, 24.46, 36.69, 61.15, 73.38, and 122.3 s−1), in 5 mass concentrations (1.0, 1.5, 2.0, 2.5, and 3.5 mg/mL), and 6 temperatures (25, 30, 35, 40, 45, and 50°C) were measured. This means that for each SR, 30 data (5 mass concentrations for 6 temperatures) were measured. However, the gap between the measured values is unknown.

To cut down the data-gathering cost and to find all the data for each mass concentration or temperature, ANN modeling was done with an acceptable margin of deviation. Thus, any researcher who wants to calculate the viscosity of graphene/water at any mass concentration or temperature can use the original equations in this study.

Graphene viscosity was modeled in this study. There are three inputs for this model: SR, mass concentration, and temperature. Also, Output for this model is viscosity [71]. Thus, an ANN was applied. ANN has the output and hidden layers. The output layer has a linear transfer function, while 16 sigmoid neurons are in the hidden layer. For the training algorithm, the Bayesian regularization backpropagation is engaged [72–74]. A model trained for 122.3–12.23 (1/s). Figure 18 displays the main data contour as dashed lines, while the trained data contour is shown as solid lines. It is noticeable that SR critically affects foretoken viscosity. Further, it is detected that viscosity increases with mass concentration increment. However, it decreases with the temperature increment. Also, mass concentration has a major impact [75–77]. ANN is successful in predicting behaviors of the nanofluid stand on viscosity’s analytical variations, which gained in non-modeled temperature, SR, and wt%. The optimum hidden neurons number is 2/3 the size of the input layer plus the size of the output layer. Equations (12) and (13) are the ANN equations set on the empirical viscosity data.

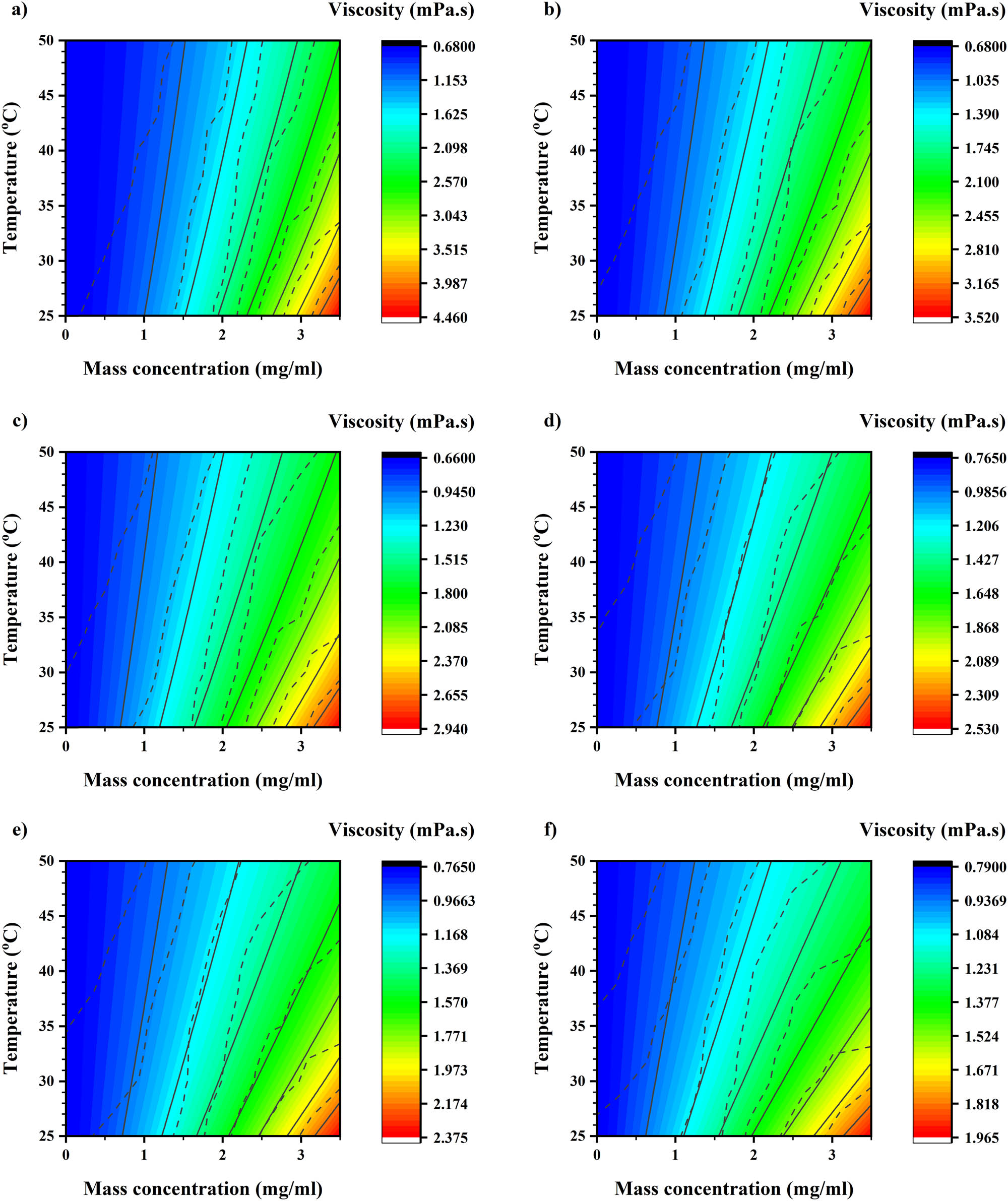

Figure 18 Main outcome (dashed lines) and trained outcome (solid lines) contour at (a) 10, (b) 20, (c) 30, (d) 50, (e) 60, and (f) 100 RPM.
Figure 18

Main outcome (dashed lines) and trained outcome (solid lines) contour at (a) 10, (b) 20, (c) 30, (d) 50, (e) 60, and (f) 100 RPM.

For 12.23 s−1:

(12) Vis = 0.61638 + 0.8301 ⁎ exp ( − 0 . 5 ⁎ pow ( ( log ( wt / 4 .0 3 0 49 ) / ( − 0 . 4398 ) ) , 2 ) ) + 2 . 25745 ⁎ exp ( − 0 . 5 ⁎ pow ( ( log ( ( T / T 0 ) / 0 . 1 00 84 ) / 1 . 45263 ) , 2 ) ) + 7 . 78167 ⁎ × exp − 0 . 5 ⁎ pow ( ( log ( wt / 4 .0 3 0 49 ) / ( − 0 . 4398 ) ) , 2 ) + pow ( ( log ( ( T / T 0 ) / 0 . 1 00 84 ) / 1 . 45263 ) , 2 ) , R - s q u a r e : 0 . 999 9 .

And for 122.3 s−1:

(13) Vis = 16 .00 977 + ( − 18 . 16831 ) ⁎ exp ( − 0 . 5 ⁎ pow ( ( log ( wt / ( 5 . 53936 × 10 − 10 ) ) / ( − 37 . 41451 ) ) , 2 ) ) + 4 0 . 73228 ⁎ × exp ( − 0 . 5 ⁎ pow ( ( log ( ( T / T 0 ) / 0 . 48682 ) / 0 . 95364 ) , 2 ) ) + ( − 47 . 22344 ) ⁎ exp − 0 . 5 ⁎ pow ( ( log ( wt / ( 5 . 53936 × 10 − 10 ) ) / ( − 37 . 41451 ) ) , 2 ) + pow ( ( log ( ( T / T 0 ) / 0 . 48682 ) / 0 . 95364 ) , 2 ) , R - s q u a r e : 0 . 9999 .

where “T” and “wt” are temperature and mass concentration, respectively, “T 0” is 25°C, and viscosity is in centipoise [71].

4 Conclusion

In this research, graphene, a two-dimensional material, was produced via the top-down technique while a homogeneous and stable nanofluid was made. Then, graphene–water nanofluid dynamic viscosity at a temperature range of 25–50°C and mass concentration range of 1.0–3.5 mg/mL was measured. Newtonian behavior appeared in the base fluid, but though graphene was dispersed in DW, nanofluid demonstrated the non-Newtonian (pseudoplastic behavior).

Viscosity shifts the flow features of a liquid which is a primary factor in demonstrating forces that should be overcome when fluids are transported in pipelines or employed in lubrication. Thus, the following results conclude which temperature and which concentration should be used:

  • For 1.0 mg/mL nanofluid, from 25–50°C at 10 RPM, viscosity decreased by 56.9% and at 100 RPM, viscosity decreased by 42.5%.

  • For 2.0 mg/mL nanofluid, from 25–50°C at 10 RPM, viscosity decreased by 54.9% and at 100 RPM, viscosity decreased by 42.3%.

  • For 3.5 mg/mL nanofluid, from 25–50°C at 10 RPM, viscosity decreased by 38.5% and at 100 RPM, viscosity decreased by 33.3%.

Finally, the simple and reliable equations that can predict the rheological behavior of graphene/water nanofluid are calculated with R 2 = 0.99 (deviation).

For future works, the viscosity of other carbon-based materials instead of graphene can be compared with this study. Also, the water can be replaced by oil, ethylene glycol, propylene glycol, etc., and the results can be compared with this work.

Acknowledgments

The authors are thankful to the Deanship of Scientific Research at Najran University for funding this work under the Research Collaboration Funding program grant code (NU/RC/SERC/11/9). Also, the authors gratefully acknowledge financial support from the German Research Foundation (DFG).

  1. Funding information: Research funded by the Deanship of Scientific Research at Najran University under the Research Collaboration Funding program grant code (NU/RC/SERC/11/9). Also, the authors gratefully acknowledge financial support from the German Research Foundation (DFG).

  2. Author contributions: All authors have accepted responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

References

[1] Said Z, Hachicha AA, Aberoumand S, Yousef BA, Sayed ET, Bellos E. Recent advances on nanofluids for low to medium temperature solar collectors: energy, exergy, economic analysis and environmental impact. Prog Energy Combust Sci. 2021;84:100898. 10.1016/j.pecs.2020.100898.Search in Google Scholar

[2] Asadi A, Aberoumand S, Moradikazerouni A, Pourfattah F, Żyła G, Estellé P, et al. Recent advances in preparation methods and thermophysical properties of oil-based nanofluids: A state-of-the-art review. Powder Technol. 2019;352:209–26. 10.1016/j.powtec.2019.04.054.Search in Google Scholar

[3] Chu YM, Nazir U, Sohail M, Selim MM, Lee JR. Enhancement in thermal energy and solute particles using hybrid nanoparticles by engaging activation energy and chemical reaction over a parabolic surface via finite element approach. Fractal Fract. 2021;5(3):119. 10.3390/fractalfract5030119.Search in Google Scholar

[4] Alqaed S, Mustafa J, Sharifpur M, Cheraghian G. Using nanoparticles in solar collector to enhance solar-assisted hot process stream usefulness. Sustain Energy Technol Assess. 2022;52(4):101992. 10.1016/j.seta.2022.101992.Search in Google Scholar

[5] Almehmadi FA, Alqaed S, Mustafa J, Jamil B, Sharifpur M. Combining an active method and a passive method in cooling lithium-ion batteries and using the generated heat in heating a residential unit. J Energy Storage. 2022;49:104181. 10.1016/j.est.2022.104181.Search in Google Scholar

[6] Ma M, Zhai Y, Yao P, Li Y, Wang H. Synergistic mechanism of thermal conductivity enhancement and economic analysis of hybrid nanofluids. Powder Technol. 2020;373:702–15. 10.1016/j.powtec.2020.07.020.Search in Google Scholar

[7] Mustafa J, Almehmadi FA, Alqaed S. A novel study to examine dependency of indoor temperature and PCM to reduce energy consumption in buildings. J Build Eng. 2022;51(6):104249.10.1016/j.jobe.2022.104249Search in Google Scholar

[8] Alqaed S, Mustafa J, Almehmadi FA. The effect of using phase change materials in a solar wall on the number of times of air conditioning per hour during day and night in different thicknesses of the solar wall. J Build Eng. 2022;51(A):104227.10.1016/j.jobe.2022.104227Search in Google Scholar

[9] Cakmak NK, Said Z, Sundar LS, Ali ZM, Tiwari AK. Preparation, characterization, stability, and thermal conductivity of rGO-Fe3O4-TiO2 hybrid nanofluid: An experimental study. Powder Technol. 2020;372:235–45. 10.1016/j.powtec.2020.06.012.Search in Google Scholar

[10] Mustafa J, Alqaed S, Sharifpur M. Incorporating nano-scale material in solar system to reduce domestic hot water energy demand. Sustain Energy Technol Assess. 2022;49(3):101735.10.1016/j.seta.2021.101735Search in Google Scholar

[11] Amirahmad A, Maglad AM, Mustafa J, Cheraghian G. Loading PCM into buildings envelope to decrease heat gain-performing transient thermal analysis on nanofluid filled solar system. Front Energy Res. 2021;9:727011.10.3389/fenrg.2021.727011Search in Google Scholar

[12] Bretado-de los Rios MS, Rivera-Solorio CI, Nigam KD. An overview of sustainability of heat exchangers and solar thermal applications with nanofluids: A review. Renew Sustain Energy Rev. 2021;142:110855. 10.1016/j.rser.2021.110855.Search in Google Scholar

[13] Ma J, Shahsavar A, Al-Rashed AA, Karimipour A, Yarmand H, Rostami S. Viscosity, cloud point, freezing point and flash point of zinc oxide/SAE50 nanolubricant. J Mol Liq. 2020;298:112045. 10.1016/j.molliq.2019.112045.Search in Google Scholar

[14] Nazeer M, Hussain F, Khan MI, El-Zahar ER, Chu YM, Malik MY. Theoretical study of MHD electro-osmotically flow of third-grade fluid in micro channel. Appl Math Comput. 2022;420:126868. 10.1016/j.amc.2021.126868.Search in Google Scholar

[15] Chu YM, Shankaralingappa BM, Gireesha BJ, Alzahrani F, Khan MI, Khan SU. Combined impact of Cattaneo-Christov double diffusion and radiative heat flux on bio-convective flow of Maxwell liquid configured by a stretched nano-material surface. Appl Math Comput. 2022;419:126883. 10.1016/j.amc.2021.126883.Search in Google Scholar

[16] Wang F, Khan MN, Ahmad I, Ahmad H, Abu-Zinadah H, Chu YM. Numerical solution of traveling waves in chemical kinetics: time-fractional fishers equations. Fractals. 2022;2240051. 10.1142/S0218348X22400515.Search in Google Scholar

[17] Alsarraf J, Shahsavar A, Khaki M, Ranjbarzadeh R, Karimipour A, Afrand M. Numerical investigation on the effect of four constant temperature pipes on natural cooling of electronic heat sink by nanofluids: a multifunctional optimization. Adv Powder Technol. 2020;31(1):416–32. 10.1016/j.apt.2019.10.035.Search in Google Scholar

[18] Niknejadi M, Afrand M, Karimipour A, Shahsavar A, Isfahani AH. Experimental investigation of the hydrothermal aspects of water–Fe3O4 nanofluid inside a twisted tube. J Therm Anal Calorim. 2020;143:1–10. 10.1007/s10973-020-09271-0.Search in Google Scholar

[19] Mustafa J, Alqaed S, Kalbasi R. Challenging of using CuO nanoparticles in a flat plate solar collector- Energy saving in a solar-assisted hot process stream. J Taiwan Inst Chem Eng. 2021;124(2):258–65.10.1016/j.jtice.2021.04.003Search in Google Scholar

[20] Ashraf A, Shafi WK, Ul Haq MI, Raina A. Dispersion stability of nano additives in lubricating oils–an overview of mechanisms, theories and methodologies. Tribol-Mater Surf Interfaces. 2022;16(1):34–56. 10.1080/17515831.2021.1981720.Search in Google Scholar

[21] Gulzar O, Qayoum A, Gupta R. Experimental study on stability and rheological behaviour of hybrid Al2O3-TiO2 Therminol-55 nanofluids for concentrating solar collectors. Powder Technol. 2019;352:436–44, https://www.sciencedirect.com/science/article/abs/pii/S0032591019303080.10.1016/j.powtec.2019.04.060Search in Google Scholar

[22] Anand R, Raina A, Irfan Ul Haq M, Mir MJ, Gulzar O, Wani MF. Synergism of TiO2 and graphene as nano-additives in bio-based cutting fluid – An experimental investigation. Tribol Trans. 2021;64(2):350–66. 10.1080/10402004.2020.1842953.Search in Google Scholar

[23] Alshayji A, Asadi A, Alarifi IM. On the heat transfer effectiveness and pumping power assessment of a diamond-water nanofluid based on thermophysical properties: an experimental study. Powder Technol. 2020;373:397–410. 10.1016/j.powtec.2020.06.068.Search in Google Scholar

[24] Maghrabie HM, Attalla M, Mohsen AA. Performance assessment of a shell and helically coiled tube heat exchanger with variable orientations utilizing different nanofluids. Appl Therm Eng. 2021;182:116013. 10.1016/j.applthermaleng.2020.116013.Search in Google Scholar

[25] Alagumalai A, Qin C, Vimal KE, Solomin E, Yang L, Zhang P, et al. Conceptual analysis framework development to understand barriers of nanofluid commercialization. Nano Energy. 2022;92:106736. 10.1016/j.nanoen.2021.106736.Search in Google Scholar

[26] Yan SR, Kalbasi R, Nguyen Q, Karimipour A. Rheological behavior of hybrid MWCNTs-TiO2/EG nanofluid: a comprehensive modeling and experimental study. J Mol Liq. 2020;308:113058. 10.1016/j.molliq.2020.113058.Search in Google Scholar

[27] Tian XX, Kalbasi R, Jahanshahi R, Qi C, Huang HL, Rostami S. Competition between intermolecular forces of adhesion and cohesion in the presence of Graphene nanoparticles: Investigation of Graphene nanosheets/ethylene glycol surface tension. J Mol Liq. 2020;311:113329. 10.1016/j.molliq.2020.113329.Search in Google Scholar

[28] Chen J, Li Y, Huang L, Li C, Shi G. High-yield preparation of Graphene oxide from small graphite flakes via an improved Hummers method with a simple purification process. Carbon. 2015;81:826–34. 10.1016/j.carbon.2014.10.033.Search in Google Scholar

[29] Fu C, Zhao G, Zhang H, Li S. Evaluation and characterization of reduced Graphene oxide nanosheets as anode materials for lithium-ion batteries. Int J Electrochem Sci. 2013;8 (5):6269–80.10.1016/S1452-3981(23)14760-2Search in Google Scholar

[30] Alam SN, Sharma N, Kumar L. Synthesis of Graphene oxide (GO) by modified hummers method and its thermal reduction to obtain reduced Graphene oxide (rGO). Graphene. 2017;6(1):1–18. 10.4236/Graphene.2017.61001.Search in Google Scholar

[31] Aghahadi MH, Niknejadi M, Toghraie D. An experimental study on the rheological behavior of hybrid Tungsten oxide (WO3)-MWCNTs/engine oil Newtonian nanofluids. J Mol Structure. 2019;1197:497–507. 10.1016/j.molstruc.2019.07.080.Search in Google Scholar

[32] Esfe MH, Rostamian SH. Rheological behavior characteristics of MWCNT-TiO2/EG (40%–60%) hybrid nanofluid affected by temperature, concentration, and shear rate: An experimental and statistical study and a neural network simulating. Phys A Stat Mech Its Appl. 2020;553:124061. 10.1016/j.physa.2019.124061.Search in Google Scholar

[33] Kazemi I, Sefid M, Afrand M. A novel comparative experimental study on rheological behavior of mono & hybrid nanofluids concerned Graphene and silica nano-powders: characterization, stability and viscosity measurements. Powder Technol. 2020;366:216–29. 10.1016/j.powtec.2020.02.010.Search in Google Scholar

[34] Ma M, Zhai Y, Yao P, Li Y, Wang H. Effect of surfactant on the rheological behavior and thermophysical properties of hybrid nanofluids. Powder Technol. 2021;379:373–83. 10.1016/j.powtec.2020.10.089.Search in Google Scholar

[35] Lee J, Chen Y, Liang H, Kim S. Temperature-dependent rheological behavior of nanofluids rich in carbon-based nanoparticles. J Mol Liq. 2021;325:114659. 10.1016/j.molliq.2020.114659.Search in Google Scholar

[36] Dalkılıç AS, Açıkgöz Ö, Küçükyıldırım BO, Eker AA, Lüleci B, Jumpholkul C, et al. Experimental investigation on the viscosity characteristics of water based SiO2-graphite hybrid nanofluids. Int Commun Heat Mass Transf. 2018;97:30–8. 10.1016/j.icheatmasstransfer.2018.07.007.Search in Google Scholar

[37] Sekhar YR, Sharma KV. Study of viscosity and specific heat capacity characteristics of water-based Al2O3 nanofluids at low particle concentrations. J Exp Nanosci. 2015;10(2):86–102. 10.1080/17458080.2013.796595.Search in Google Scholar

[38] Bahrami M, Akbari M, Karimipour A, Afrand M. An experimental study on rheological behavior of hybrid nanofluids made of iron and copper oxide in a binary mixture of water and ethylene glycol: non-Newtonian behavior . Exp Therm Fluid Sci. 2016;79:231–7. 10.1016/j.expthermflusci.2016.07.015.Search in Google Scholar

[39] Zhao TH, Khan MI, Chu YM. Artificial neural networking (ANN) analysis for heat and entropy generation in flow of non‐Newtonian fluid between two rotating disks. Math Methods Appl Sci. 2021. 10.1002/mma.7310.Search in Google Scholar

[40] Afrand M, Nadooshan AA, Hassani M, Yarmand H, Dahari M. Predicting the viscosity of multi-walled carbon nanotubes/water nanofluid by developing an optimal artificial neural network based on experimental data. Int Commun Heat Mass Transf. 2016;77:49–53. 10.1016/j.icheatmasstransfer.2016.07.008.Search in Google Scholar

[41] Nguyen Q, Ghorbani P, Bagherzadeh SA, Malekahmadi O, Karimipour A. Performance of joined artificial neural network and genetic algorithm to study the effect of temperature and mass fraction of nanoparticles dispersed in ethanol. Math Methods Appl Sci. 2020. 10.1002/mma.6688.Search in Google Scholar

[42] Shahsavar A, Khanmohammadi S, Afrand M, Goldanlou AS, Rosatami S. On evaluation of magnetic field effect on the formation of nanoparticles clusters inside aqueous magnetite nanofluid: An experimental study and comprehensive modeling. J Mol Liq. 2020;312:113378. 10.1016/j.molliq.2020.113378.Search in Google Scholar

[43] Çolak AB. A novel comparative analysis between the experimental and numeric methods on viscosity of zirconium oxide nanofluid: Developing optimal artificial neural network and new mathematical model. Powder Technol. 2021;381:338–51. 10.1016/j.powtec.2020.12.053.Search in Google Scholar

[44] Sodeifian G, Niazi Z. Prediction of CO2 absorption by nanofluids using artificial neural network modeling. Int Commun Heat Mass Transf. 2021;123:105193. 10.1016/j.icheatmasstransfer.2021.105193.Search in Google Scholar

[45] Wahab A, Khan MA, Hassan A. Impact of Graphene nanofluid and phase change material on hybrid photovoltaic thermal system: Exergy analysis. J Clean Prod. 2020;277:123370. 10.1016/j.jclepro.2020.123370.Search in Google Scholar

[46] Zheng Y, Zhang X, Shahsavar A, Nguyen Q, Rostami S. Experimental evaluating the rheological behavior of ethylene glycol under Graphene nanosheets loading. Powder Technol. 2020;367:788–95. 10.1016/j.powtec.2020.04.039.Search in Google Scholar

[47] Hamze S, Cabaleiro D, Maré T, Vigolo B, Estellé P. Shear flow behavior and dynamic viscosity of few-layer Graphene nanofluids based on propylene glycol-water mixture. J Mol Liq. 2020;316:113875. 10.1016/j.molliq.2020.113875.Search in Google Scholar

[48] Bakhtiari R, Kamkari B, Afrand M, Abdollahi A. Preparation of stable TiO2-Graphene/Water hybrid nanofluids and development of a new correlation for thermal conductivity. Powder Technol. 2021;385:466–77. 10.1016/j.powtec.2021.03.010.Search in Google Scholar

[49] Nadooshan AA, Eshgarf H, Afrand M. Measuring the viscosity of Fe3O4-MWCNTs/EG hybrid nanofluid for evaluation of thermal efficiency: Newtonian and non-Newtonian behavior. J Mol Liq. 2018;253:169–77. 10.1016/j.molliq.2018.01.012.Search in Google Scholar

[50] Malekahmadi O, Kalantar M, Nouri-Khezrabad M. Effect of carbon nanotubes on the thermal conductivity enhancement of synthesized hydroxyapatite filled with water for dental applications: experimental characterization and numerical study. J Therm Anal Calorim. 2021;144(6):2109–26. 10.1007/s10973-021-10593-w.Search in Google Scholar

[51] Shahsavani E, Afrand M, Kalbasi R. Experimental study on rheological behavior of water–ethylene glycol mixture in the presence of functionalized multi-walled carbon nanotubes. J Therm Anal Calorim. 2018;131(2):1177–85. 10.1007/s10973-017-6711-8.Search in Google Scholar

[52] Abidi A, Jokar Z, Allahyari S, Sadigh FK, Sajadi SM, Firouzi P, et al. Improve thermal performance of Simulated-Body-Fluid as a solution with an ion concentration close to human blood plasma, by additive Zinc Oxide and its composites: ZnO/Carbon Nanotube and ZnO/Hydroxyapatite. J Mol Liq. 2021;342:117457. 10.1016/j.molliq.2021.117457.Search in Google Scholar

[53] Ibrahim M, Saeed T, Chu, YM, Ali HM, Cheraghian G, Kalbasi R. Comprehensive study concerned graphene nano-sheets dispersed in ethylene glycol: Experimental study and theoretical prediction of thermal conductivity. Powder Technol. 2021;386(9):51–9. 10.1016/j.powtec.2021.03.028.Search in Google Scholar

[54] García A, Culebras M, Collins MN, Leahy JJ. Stability and rheological study of sodium carboxymethyl cellulose and alginate suspensions as binders for lithium ion batteries. J Appl Polym Sci. 2018;135(17):46217. 10.1002/app.46217.Search in Google Scholar

[55] Phuoc TX, Massoudi M, Chen RH. Viscosity and thermal conductivity of nanofluids containing multi-walled carbon nanotubes stabilized by chitosan. Int J Therm Sci. 2011;50(1):12–8. 10.1016/j.ijthermalsci.2010.09.008.Search in Google Scholar

[56] Shahsavar A, Salimpour MR, Saghafian M, Shafii MB. Effect of magnetic field on thermal conductivity and viscosity of a magnetic nanofluid loaded with carbon nanotubes. J Mech Sci Technol. 2016;30(2):809–15. 10.1007/s12206-016-0135-4.Search in Google Scholar

[57] Alsarraf J, Malekahmadi O, Karimipour A, Tlili I, Karimipour A, Ghashang M. Increase thermal conductivity of aqueous mixture by additives Graphene nanoparticles in water via an experimental/numerical study: Synthesise, characterization, conductivity measurement, and neural network modeling. Int Commun Heat Mass Transf. 2020;118:104864. 10.1016/j.icheatmasstransfer.2020.104864.Search in Google Scholar

[58] Sun C, Taherifar S, Malekahmadi O, Karimipour A, Karimipour A, Bach QV. Liquid paraffin thermal conductivity with additives tungsten trioxide nanoparticles: synthesis and propose a new composed approach of fuzzy logic/artificial neural network. Arab J Sci Eng. 2021;46:2543–52. 10.1007/s13369-020-05151-9.Search in Google Scholar

[59] Bhattacharjee S. DLS and zeta potential–what they are and what they are not? J Controlled Rel. 2016;235:337–51. 10.1016/j.jconrel.2016.06.017.Search in Google Scholar PubMed

[60] ASHRAE. 2015 Ashrae handbook; 2015.Search in Google Scholar

[61] Jeong J, Li C, Kwon Y, Lee J, Kim SH, Yun R. Particle shape effect on the viscosity and thermal conductivity of ZnO nanofluids. Int J Refrig. 2013;36(8):2233–41. 10.1016/j.ijrefrig.2013.07.024.Search in Google Scholar

[62] Namburu PK, Kulkarni DP, Misra D, Das DK. Viscosity of copper oxide nanoparticles dispersed in ethylene glycol and water mixture. Exp Therm Fluid Sci. 2007;32(2):397–402. 10.1016/j.expthermflusci.2007.05.001.Search in Google Scholar

[63] Sundar LS, Singh MK, Sousa AC. Investigation of thermal conductivity and viscosity of Fe3O4 nanofluid for heat transfer applications. Int Commun Heat Mass Transf. 2013;44:7–14. 10.1016/j.icheatmasstransfer.2013.02.014.Search in Google Scholar

[64] Yu W, Xie H, Chen L, Li Y. Investigation of thermal conductivity and viscosity of ethylene glycol based ZnO nanofluid. Thermochim Acta. 2009;491(1–2):92–6. 10.1016/j.tca.2009.03.007.Search in Google Scholar

[65] Bashirnezhad K, Bazri S, Safaei MR, Goodarzi M, Dahari M, Mahian O, et al. Viscosity of nanofluids: a review of recent experimental studies. Int Commun Heat Mass Transf. 2016;73:114–23. https://doi.org/10.1016/j.icheatmasstransfer.2016.02.005.Search in Google Scholar

[66] Ahammed N, Asirvatham LG, Wongwises S. Effect of volume concentration and temperature on viscosity and surface tension of Graphene–water nanofluid for heat transfer applications. J Therm Anal Calorim. 2016;123(2):1399–409. 10.1007/s10973-015-5034-x.Search in Google Scholar

[67] Khodadadi H, Toghraie D, Karimipour A. Effects of nanoparticles to present a statistical model for the viscosity of MgO-Water nanofluid. Powder Technol. 2019;342:166–80. 10.1016/j.powtec.2018.09.076.Search in Google Scholar

[68] Nguyen Q, Rizvandi R, Karimipour A, Malekahmadi O, Bach QV. A novel correlation to calculate thermal conductivity of aqueous hybrid graphene oxide/silicon dioxide nanofluid: synthesis, characterizations, preparation, and artificial neural network modeling. Arab J Sci Eng. 2020;45(11):9747–58. 10.1007/s13369-020-04885-w.Search in Google Scholar

[69] Karimipour A, Ghasemi S, Darvanjooghi MH, Abdollahi A. A new correlation for estimating the thermal conductivity and dynamic viscosity of CuO/liquid paraffin nanofluid using neural network method. Int Commun Heat Mass Transf. 2018;92:90–9. 10.1016/j.icheatmasstransfer.2018.02.002.Search in Google Scholar

[70] Shahsavar A, Khanmohammadi S, Karimipour A, Goodarzi M. A novel comprehensive experimental study concerned synthesizes and prepare liquid paraffin-Fe3O4 mixture to develop models for both thermal conductivity & viscosity: a new approach of GMDH type of neural network. Int J Heat Mass Transf. 2019;131:432–41. 10.1016/j.ijheatmasstransfer.2018.11.069.Search in Google Scholar

[71] Toghraie D, Sina N, Jolfaei NA, Hajian M, Afrand M. Designing an Artificial Neural Network (ANN) to predict the viscosity of Silver/Ethylene glycol nanofluid at different temperatures and volume fraction of nanoparticles. Phys A Stat Mech Appl. 2019;534:122142. 10.1016/j.physa.2019.122142.Search in Google Scholar

[72] Du C, Nguyen Q, Malekahmadi O, Mardani A, Jokar Z, Babadi E, et al. Thermal conductivity enhancement of nanofluid by adding multiwalled carbon nanotubes: Characterization and numerical modeling patterns. Math Methods Appl Sci. 2020. 10.1002/mma.6466.Search in Google Scholar

[73] Li Y, Moradi I, Kalantar M, Babadi E, Malekahmadi O, Mosavi A. Synthesis of new dihybrid nanofluid of TiO2/MWCNT in water–ethylene glycol to improve mixture thermal performance: preparation, characterization, and a novel correlation via ANN based on orthogonal distance regression algorithm. J Therm Anal Calorim. 2021;144(6):2587–603. 10.1007/s10973-020-10392-9.Search in Google Scholar

[74] Karimipour A, Malekahmadi O, Karimipour A, Shahgholi M, Li Z. Thermal conductivity enhancement via synthesis produces a new hybrid mixture composed of copper oxide and multi-walled carbon nanotube dispersed in water: experimental characterization and artificial neural network modeling. Int J Thermophys. 2020;41(8):116. 10.1007/s10765-020-02702-y.Search in Google Scholar

[75] Jabbari F, Rajabpour A, Saedodin S. Viscosity of carbon nanotube/water nanofluid. J Therm Anal Calorim. 2019;135(3):1787–96. 10.1007/s10973-018-7458-6.Search in Google Scholar

[76] Cheraghian G, Afrand M. Nanotechnology for drilling operations. In Emerging nanotechnologies for renewable energy. Amsterdam, Netherlands: Elsevier; 2021. p. 135–48. 10.1016/B978-0-12-821346-9.00008-0.Search in Google Scholar

[77] Alqaed S, Almehmadi FA, Mustafa J, Husain S, Cheraghian G. Effect of nano phase change materials on the cooling process of a triangular lithium battery pack. J Energy Storage. 2022;51(9):104326. 10.1016/j.est.2022.104326.Search in Google Scholar
Received: 2022-02-15
Revised: 2022-06-03
Accepted: 2022-06-20
Published Online: 2022-08-14

© 2022 Saeed Alqaed et al., published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Theoretical and experimental investigation of MWCNT dispersion effect on the elastic modulus of flexible PDMS/MWCNT nanocomposites
  3. Mechanical, morphological, and fracture-deformation behavior of MWCNTs-reinforced (Al–Cu–Mg–T351) alloy cast nanocomposites fabricated by optimized mechanical milling and powder metallurgy techniques
  4. Flammability and physical stability of sugar palm crystalline nanocellulose reinforced thermoplastic sugar palm starch/poly(lactic acid) blend bionanocomposites
  5. Glutathione-loaded non-ionic surfactant niosomes: A new approach to improve oral bioavailability and hepatoprotective efficacy of glutathione
  6. Relationship between mechano-bactericidal activity and nanoblades density on chemically strengthened glass
  7. In situ regulation of microstructure and microwave-absorbing properties of FeSiAl through HNO3 oxidation
  8. Research on a mechanical model of magnetorheological fluid different diameter particles
  9. Nanomechanical and dynamic mechanical properties of rubber–wood–plastic composites
  10. Investigative properties of CeO2 doped with niobium: A combined characterization and DFT studies
  11. Miniaturized peptidomimetics and nano-vesiculation in endothelin types through probable nano-disk formation and structure property relationships of endothelins’ fragments
  12. N/S co-doped CoSe/C nanocubes as anode materials for Li-ion batteries
  13. Synergistic effects of halloysite nanotubes with metal and phosphorus additives on the optimal design of eco-friendly sandwich panels with maximum flame resistance and minimum weight
  14. Octreotide-conjugated silver nanoparticles for active targeting of somatostatin receptors and their application in a nebulized rat model
  15. Controllable morphology of Bi2S3 nanostructures formed via hydrothermal vulcanization of Bi2O3 thin-film layer and their photoelectrocatalytic performances
  16. Development of (−)-epigallocatechin-3-gallate-loaded folate receptor-targeted nanoparticles for prostate cancer treatment
  17. Enhancement of the mechanical properties of HDPE mineral nanocomposites by filler particles modulation of the matrix plastic/elastic behavior
  18. Effect of plasticizers on the properties of sugar palm nanocellulose/cinnamon essential oil reinforced starch bionanocomposite films
  19. Optimization of nano coating to reduce the thermal deformation of ball screws
  20. Preparation of efficient piezoelectric PVDF–HFP/Ni composite films by high electric field poling
  21. MHD dissipative Casson nanofluid liquid film flow due to an unsteady stretching sheet with radiation influence and slip velocity phenomenon
  22. Effects of nano-SiO2 modification on rubberised mortar and concrete with recycled coarse aggregates
  23. Mechanical and microscopic properties of fiber-reinforced coal gangue-based geopolymer concrete
  24. Effect of morphology and size on the thermodynamic stability of cerium oxide nanoparticles: Experiment and molecular dynamics calculation
  25. Mechanical performance of a CFRP composite reinforced via gelatin-CNTs: A study on fiber interfacial enhancement and matrix enhancement
  26. A practical review over surface modification, nanopatterns, emerging materials, drug delivery systems, and their biophysiochemical properties for dental implants: Recent progresses and advances
  27. HTR: An ultra-high speed algorithm for cage recognition of clathrate hydrates
  28. Effects of microalloying elements added by in situ synthesis on the microstructure of WCu composites
  29. A highly sensitive nanobiosensor based on aptamer-conjugated graphene-decorated rhodium nanoparticles for detection of HER2-positive circulating tumor cells
  30. Progressive collapse performance of shear strengthened RC frames by nano CFRP
  31. Core–shell heterostructured composites of carbon nanotubes and imine-linked hyperbranched polymers as metal-free Li-ion anodes
  32. A Galerkin strategy for tri-hybridized mixture in ethylene glycol comprising variable diffusion and thermal conductivity using non-Fourier’s theory
  33. Simple models for tensile modulus of shape memory polymer nanocomposites at ambient temperature
  34. Preparation and morphological studies of tin sulfide nanoparticles and use as efficient photocatalysts for the degradation of rhodamine B and phenol
  35. Polyethyleneimine-impregnated activated carbon nanofiber composited graphene-derived rice husk char for efficient post-combustion CO2 capture
  36. Electrospun nanofibers of Co3O4 nanocrystals encapsulated in cyclized-polyacrylonitrile for lithium storage
  37. Pitting corrosion induced on high-strength high carbon steel wire in high alkaline deaerated chloride electrolyte
  38. Formulation of polymeric nanoparticles loaded sorafenib; evaluation of cytotoxicity, molecular evaluation, and gene expression studies in lung and breast cancer cell lines
  39. Engineered nanocomposites in asphalt binders
  40. Influence of loading voltage, domain ratio, and additional load on the actuation of dielectric elastomer
  41. Thermally induced hex-graphene transitions in 2D carbon crystals
  42. The surface modification effect on the interfacial properties of glass fiber-reinforced epoxy: A molecular dynamics study
  43. Molecular dynamics study of deformation mechanism of interfacial microzone of Cu/Al2Cu/Al composites under tension
  44. Nanocolloid simulators of luminescent solar concentrator photovoltaic windows
  45. Compressive strength and anti-chloride ion penetration assessment of geopolymer mortar merging PVA fiber and nano-SiO2 using RBF–BP composite neural network
  46. Effect of 3-mercapto-1-propane sulfonate sulfonic acid and polyvinylpyrrolidone on the growth of cobalt pillar by electrodeposition
  47. Dynamics of convective slippery constraints on hybrid radiative Sutterby nanofluid flow by Galerkin finite element simulation
  48. Preparation of vanadium by the magnesiothermic self-propagating reduction and process control
  49. Microstructure-dependent photoelectrocatalytic activity of heterogeneous ZnO–ZnS nanosheets
  50. Cytotoxic and pro-inflammatory effects of molybdenum and tungsten disulphide on human bronchial cells
  51. Improving recycled aggregate concrete by compression casting and nano-silica
  52. Chemically reactive Maxwell nanoliquid flow by a stretching surface in the frames of Newtonian heating, nonlinear convection and radiative flux: Nanopolymer flow processing simulation
  53. Nonlinear dynamic and crack behaviors of carbon nanotubes-reinforced composites with various geometries
  54. Biosynthesis of copper oxide nanoparticles and its therapeutic efficacy against colon cancer
  55. Synthesis and characterization of smart stimuli-responsive herbal drug-encapsulated nanoniosome particles for efficient treatment of breast cancer
  56. Homotopic simulation for heat transport phenomenon of the Burgers nanofluids flow over a stretching cylinder with thermal convective and zero mass flux conditions
  57. Incorporation of copper and strontium ions in TiO2 nanotubes via dopamine to enhance hemocompatibility and cytocompatibility
  58. Mechanical, thermal, and barrier properties of starch films incorporated with chitosan nanoparticles
  59. Mechanical properties and microstructure of nano-strengthened recycled aggregate concrete
  60. Glucose-responsive nanogels efficiently maintain the stability and activity of therapeutic enzymes
  61. Tunning matrix rheology and mechanical performance of ultra-high performance concrete using cellulose nanofibers
  62. Flexible MXene/copper/cellulose nanofiber heat spreader films with enhanced thermal conductivity
  63. Promoted charge separation and specific surface area via interlacing of N-doped titanium dioxide nanotubes on carbon nitride nanosheets for photocatalytic degradation of Rhodamine B
  64. Elucidating the role of silicon dioxide and titanium dioxide nanoparticles in mitigating the disease of the eggplant caused by Phomopsis vexans, Ralstonia solanacearum, and root-knot nematode Meloidogyne incognita
  65. An implication of magnetic dipole in Carreau Yasuda liquid influenced by engine oil using ternary hybrid nanomaterial
  66. Robust synthesis of a composite phase of copper vanadium oxide with enhanced performance for durable aqueous Zn-ion batteries
  67. Tunning self-assembled phases of bovine serum albumin via hydrothermal process to synthesize novel functional hydrogel for skin protection against UVB
  68. A comparative experimental study on damping properties of epoxy nanocomposite beams reinforced with carbon nanotubes and graphene nanoplatelets
  69. Lightweight and hydrophobic Ni/GO/PVA composite aerogels for ultrahigh performance electromagnetic interference shielding
  70. Research on the auxetic behavior and mechanical properties of periodically rotating graphene nanostructures
  71. Repairing performances of novel cement mortar modified with graphene oxide and polyacrylate polymer
  72. Closed-loop recycling and fabrication of hydrophilic CNT films with high performance
  73. Design of thin-film configuration of SnO2–Ag2O composites for NO2 gas-sensing applications
  74. Study on stress distribution of SiC/Al composites based on microstructure models with microns and nanoparticles
  75. PVDF green nanofibers as potential carriers for improving self-healing and mechanical properties of carbon fiber/epoxy prepregs
  76. Osteogenesis capability of three-dimensionally printed poly(lactic acid)-halloysite nanotube scaffolds containing strontium ranelate
  77. Silver nanoparticles induce mitochondria-dependent apoptosis and late non-canonical autophagy in HT-29 colon cancer cells
  78. Preparation and bonding mechanisms of polymer/metal hybrid composite by nano molding technology
  79. Damage self-sensing and strain monitoring of glass-reinforced epoxy composite impregnated with graphene nanoplatelet and multiwalled carbon nanotubes
  80. Thermal analysis characterisation of solar-powered ship using Oldroyd hybrid nanofluids in parabolic trough solar collector: An optimal thermal application
  81. Pyrene-functionalized halloysite nanotubes for simultaneously detecting and separating Hg(ii) in aqueous media: A comprehensive comparison on interparticle and intraparticle excimers
  82. Fabrication of self-assembly CNT flexible film and its piezoresistive sensing behaviors
  83. Thermal valuation and entropy inspection of second-grade nanoscale fluid flow over a stretching surface by applying Koo–Kleinstreuer–Li relation
  84. Mechanical properties and microstructure of nano-SiO2 and basalt-fiber-reinforced recycled aggregate concrete
  85. Characterization and tribology performance of polyaniline-coated nanodiamond lubricant additives
  86. Combined impact of Marangoni convection and thermophoretic particle deposition on chemically reactive transport of nanofluid flow over a stretching surface
  87. Spark plasma extrusion of binder free hydroxyapatite powder
  88. An investigation on thermo-mechanical performance of graphene-oxide-reinforced shape memory polymer
  89. Effect of nanoadditives on the novel leather fiber/recycled poly(ethylene-vinyl-acetate) polymer composites for multifunctional applications: Fabrication, characterizations, and multiobjective optimization using central composite design
  90. Design selection for a hemispherical dimple core sandwich panel using hybrid multi-criteria decision-making methods
  91. Improving tensile strength and impact toughness of plasticized poly(lactic acid) biocomposites by incorporating nanofibrillated cellulose
  92. Green synthesis of spinel copper ferrite (CuFe2O4) nanoparticles and their toxicity
  93. The effect of TaC and NbC hybrid and mono-nanoparticles on AA2024 nanocomposites: Microstructure, strengthening, and artificial aging
  94. Excited-state geometry relaxation of pyrene-modified cellulose nanocrystals under UV-light excitation for detecting Fe3+
  95. Effect of CNTs and MEA on the creep of face-slab concrete at an early age
  96. Effect of deformation conditions on compression phase transformation of AZ31
  97. Application of MXene as a new generation of highly conductive coating materials for electromembrane-surrounded solid-phase microextraction
  98. A comparative study of the elasto-plastic properties for ceramic nanocomposites filled by graphene or graphene oxide nanoplates
  99. Encapsulation strategies for improving the biological behavior of CdS@ZIF-8 nanocomposites
  100. Biosynthesis of ZnO NPs from pumpkin seeds’ extract and elucidation of its anticancer potential against breast cancer
  101. Preliminary trials of the gold nanoparticles conjugated chrysin: An assessment of anti-oxidant, anti-microbial, and in vitro cytotoxic activities of a nanoformulated flavonoid
  102. Effect of micron-scale pores increased by nano-SiO2 sol modification on the strength of cement mortar
  103. Fractional simulations for thermal flow of hybrid nanofluid with aluminum oxide and titanium oxide nanoparticles with water and blood base fluids
  104. The effect of graphene nano-powder on the viscosity of water: An experimental study and artificial neural network modeling
  105. Development of a novel heat- and shear-resistant nano-silica gelling agent
  106. Characterization, biocompatibility and in vivo of nominal MnO2-containing wollastonite glass-ceramic
  107. Entropy production simulation of second-grade magnetic nanomaterials flowing across an expanding surface with viscidness dissipative flux
  108. Enhancement in structural, morphological, and optical properties of copper oxide for optoelectronic device applications
  109. Aptamer-functionalized chitosan-coated gold nanoparticle complex as a suitable targeted drug carrier for improved breast cancer treatment
  110. Performance and overall evaluation of nano-alumina-modified asphalt mixture
  111. Analysis of pure nanofluid (GO/engine oil) and hybrid nanofluid (GO–Fe3O4/engine oil): Novel thermal and magnetic features
  112. Synthesis of Ag@AgCl modified anatase/rutile/brookite mixed phase TiO2 and their photocatalytic property
  113. Mechanisms and influential variables on the abrasion resistance hydraulic concrete
  114. Synergistic reinforcement mechanism of basalt fiber/cellulose nanocrystals/polypropylene composites
  115. Achieving excellent oxidation resistance and mechanical properties of TiB2–B4C/carbon aerogel composites by quick-gelation and mechanical mixing
  116. Microwave-assisted sol–gel template-free synthesis and characterization of silica nanoparticles obtained from South African coal fly ash
  117. Pulsed laser-assisted synthesis of nano nickel(ii) oxide-anchored graphitic carbon nitride: Characterizations and their potential antibacterial/anti-biofilm applications
  118. Effects of nano-ZrSi2 on thermal stability of phenolic resin and thermal reusability of quartz–phenolic composites
  119. Benzaldehyde derivatives on tin electroplating as corrosion resistance for fabricating copper circuit
  120. Mechanical and heat transfer properties of 4D-printed shape memory graphene oxide/epoxy acrylate composites
  121. Coupling the vanadium-induced amorphous/crystalline NiFe2O4 with phosphide heterojunction toward active oxygen evolution reaction catalysts
  122. Graphene-oxide-reinforced cement composites mechanical and microstructural characteristics at elevated temperatures
  123. Gray correlation analysis of factors influencing compressive strength and durability of nano-SiO2 and PVA fiber reinforced geopolymer mortar
  124. Preparation of layered gradient Cu–Cr–Ti alloy with excellent mechanical properties, thermal stability, and electrical conductivity
  125. Recovery of Cr from chrome-containing leather wastes to develop aluminum-based composite material along with Al2O3 ceramic particles: An ingenious approach
  126. Mechanisms of the improved stiffness of flexible polymers under impact loading
  127. Anticancer potential of gold nanoparticles (AuNPs) using a battery of in vitro tests
  128. Review Articles
  129. Proposed approaches for coronaviruses elimination from wastewater: Membrane techniques and nanotechnology solutions
  130. Application of Pickering emulsion in oil drilling and production
  131. The contribution of microfluidics to the fight against tuberculosis
  132. Graphene-based biosensors for disease theranostics: Development, applications, and recent advancements
  133. Synthesis and encapsulation of iron oxide nanorods for application in magnetic hyperthermia and photothermal therapy
  134. Contemporary nano-architectured drugs and leads for ανβ3 integrin-based chemotherapy: Rationale and retrospect
  135. State-of-the-art review of fabrication, application, and mechanical properties of functionally graded porous nanocomposite materials
  136. Insights on magnetic spinel ferrites for targeted drug delivery and hyperthermia applications
  137. A review on heterogeneous oxidation of acetaminophen based on micro and nanoparticles catalyzed by different activators
  138. Early diagnosis of lung cancer using magnetic nanoparticles-integrated systems
  139. Advances in ZnO: Manipulation of defects for enhancing their technological potentials
  140. Efficacious nanomedicine track toward combating COVID-19
  141. A review of the design, processes, and properties of Mg-based composites
  142. Green synthesis of nanoparticles for varied applications: Green renewable resources and energy-efficient synthetic routes
  143. Two-dimensional nanomaterial-based polymer composites: Fundamentals and applications
  144. Recent progress and challenges in plasmonic nanomaterials
  145. Apoptotic cell-derived micro/nanosized extracellular vesicles in tissue regeneration
  146. Electronic noses based on metal oxide nanowires: A review
  147. Framework materials for supercapacitors
  148. An overview on the reproductive toxicity of graphene derivatives: Highlighting the importance
  149. Antibacterial nanomaterials: Upcoming hope to overcome antibiotic resistance crisis
  150. Research progress of carbon materials in the field of three-dimensional printing polymer nanocomposites
  151. A review of atomic layer deposition modelling and simulation methodologies: Density functional theory and molecular dynamics
  152. Recent advances in the preparation of PVDF-based piezoelectric materials
  153. Recent developments in tensile properties of friction welding of carbon fiber-reinforced composite: A review
  154. Comprehensive review of the properties of fly ash-based geopolymer with additive of nano-SiO2
  155. Perspectives in biopolymer/graphene-based composite application: Advances, challenges, and recommendations
  156. Graphene-based nanocomposite using new modeling molecular dynamic simulations for proposed neutralizing mechanism and real-time sensing of COVID-19
  157. Nanotechnology application on bamboo materials: A review
  158. Recent developments and future perspectives of biorenewable nanocomposites for advanced applications
  159. Nanostructured lipid carrier system: A compendium of their formulation development approaches, optimization strategies by quality by design, and recent applications in drug delivery
  160. 3D printing customized design of human bone tissue implant and its application
  161. Design, preparation, and functionalization of nanobiomaterials for enhanced efficacy in current and future biomedical applications
  162. A brief review of nanoparticles-doped PEDOT:PSS nanocomposite for OLED and OPV
  163. Nanotechnology interventions as a putative tool for the treatment of dental afflictions
  164. Recent advancements in metal–organic frameworks integrating quantum dots (QDs@MOF) and their potential applications
  165. A focused review of short electrospun nanofiber preparation techniques for composite reinforcement
  166. Microstructural characteristics and nano-modification of interfacial transition zone in concrete: A review
  167. Latest developments in the upconversion nanotechnology for the rapid detection of food safety: A review
  168. Strategic applications of nano-fertilizers for sustainable agriculture: Benefits and bottlenecks
  169. Molecular dynamics application of cocrystal energetic materials: A review
  170. Synthesis and application of nanometer hydroxyapatite in biomedicine
  171. Cutting-edge development in waste-recycled nanomaterials for energy storage and conversion applications
  172. Biological applications of ternary quantum dots: A review
  173. Nanotherapeutics for hydrogen sulfide-involved treatment: An emerging approach for cancer therapy
  174. Application of antibacterial nanoparticles in orthodontic materials
  175. Effect of natural-based biological hydrogels combined with growth factors on skin wound healing
  176. Nanozymes – A route to overcome microbial resistance: A viewpoint
  177. Recent developments and applications of smart nanoparticles in biomedicine
  178. Contemporary review on carbon nanotube (CNT) composites and their impact on multifarious applications
  179. Interfacial interactions and reinforcing mechanisms of cellulose and chitin nanomaterials and starch derivatives for cement and concrete strength and durability enhancement: A review
  180. Diamond-like carbon films for tribological modification of rubber
  181. Layered double hydroxides (LDHs) modified cement-based materials: A systematic review
  182. Recent research progress and advanced applications of silica/polymer nanocomposites
  183. Modeling of supramolecular biopolymers: Leading the in silico revolution of tissue engineering and nanomedicine
  184. Recent advances in perovskites-based optoelectronics
  185. Biogenic synthesis of palladium nanoparticles: New production methods and applications
  186. A comprehensive review of nanofluids with fractional derivatives: Modeling and application
  187. Electrospinning of marine polysaccharides: Processing and chemical aspects, challenges, and future prospects
  188. Electrohydrodynamic printing for demanding devices: A review of processing and applications
  189. Rapid Communications
  190. Structural material with designed thermal twist for a simple actuation
  191. Recent advances in photothermal materials for solar-driven crude oil adsorption
https://doi.org/10.1515/ntrev-2022-0155
Keywords for this article
graphene nano-powder; viscosity; correlation; artificial neural network; flake graphite
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Articles
  2. Theoretical and experimental investigation of MWCNT dispersion effect on the elastic modulus of flexible PDMS/MWCNT nanocomposites
  3. Mechanical, morphological, and fracture-deformation behavior of MWCNTs-reinforced (Al–Cu–Mg–T351) alloy cast nanocomposites fabricated by optimized mechanical milling and powder metallurgy techniques
  4. Flammability and physical stability of sugar palm crystalline nanocellulose reinforced thermoplastic sugar palm starch/poly(lactic acid) blend bionanocomposites
  5. Glutathione-loaded non-ionic surfactant niosomes: A new approach to improve oral bioavailability and hepatoprotective efficacy of glutathione
  6. Relationship between mechano-bactericidal activity and nanoblades density on chemically strengthened glass
  7. In situ regulation of microstructure and microwave-absorbing properties of FeSiAl through HNO3 oxidation
  8. Research on a mechanical model of magnetorheological fluid different diameter particles
  9. Nanomechanical and dynamic mechanical properties of rubber–wood–plastic composites
  10. Investigative properties of CeO2 doped with niobium: A combined characterization and DFT studies
  11. Miniaturized peptidomimetics and nano-vesiculation in endothelin types through probable nano-disk formation and structure property relationships of endothelins’ fragments
  12. N/S co-doped CoSe/C nanocubes as anode materials for Li-ion batteries
  13. Synergistic effects of halloysite nanotubes with metal and phosphorus additives on the optimal design of eco-friendly sandwich panels with maximum flame resistance and minimum weight
  14. Octreotide-conjugated silver nanoparticles for active targeting of somatostatin receptors and their application in a nebulized rat model
  15. Controllable morphology of Bi2S3 nanostructures formed via hydrothermal vulcanization of Bi2O3 thin-film layer and their photoelectrocatalytic performances
  16. Development of (−)-epigallocatechin-3-gallate-loaded folate receptor-targeted nanoparticles for prostate cancer treatment
  17. Enhancement of the mechanical properties of HDPE mineral nanocomposites by filler particles modulation of the matrix plastic/elastic behavior
  18. Effect of plasticizers on the properties of sugar palm nanocellulose/cinnamon essential oil reinforced starch bionanocomposite films
  19. Optimization of nano coating to reduce the thermal deformation of ball screws
  20. Preparation of efficient piezoelectric PVDF–HFP/Ni composite films by high electric field poling
  21. MHD dissipative Casson nanofluid liquid film flow due to an unsteady stretching sheet with radiation influence and slip velocity phenomenon
  22. Effects of nano-SiO2 modification on rubberised mortar and concrete with recycled coarse aggregates
  23. Mechanical and microscopic properties of fiber-reinforced coal gangue-based geopolymer concrete
  24. Effect of morphology and size on the thermodynamic stability of cerium oxide nanoparticles: Experiment and molecular dynamics calculation
  25. Mechanical performance of a CFRP composite reinforced via gelatin-CNTs: A study on fiber interfacial enhancement and matrix enhancement
  26. A practical review over surface modification, nanopatterns, emerging materials, drug delivery systems, and their biophysiochemical properties for dental implants: Recent progresses and advances
  27. HTR: An ultra-high speed algorithm for cage recognition of clathrate hydrates
  28. Effects of microalloying elements added by in situ synthesis on the microstructure of WCu composites
  29. A highly sensitive nanobiosensor based on aptamer-conjugated graphene-decorated rhodium nanoparticles for detection of HER2-positive circulating tumor cells
  30. Progressive collapse performance of shear strengthened RC frames by nano CFRP
  31. Core–shell heterostructured composites of carbon nanotubes and imine-linked hyperbranched polymers as metal-free Li-ion anodes
  32. A Galerkin strategy for tri-hybridized mixture in ethylene glycol comprising variable diffusion and thermal conductivity using non-Fourier’s theory
  33. Simple models for tensile modulus of shape memory polymer nanocomposites at ambient temperature
  34. Preparation and morphological studies of tin sulfide nanoparticles and use as efficient photocatalysts for the degradation of rhodamine B and phenol
  35. Polyethyleneimine-impregnated activated carbon nanofiber composited graphene-derived rice husk char for efficient post-combustion CO2 capture
  36. Electrospun nanofibers of Co3O4 nanocrystals encapsulated in cyclized-polyacrylonitrile for lithium storage
  37. Pitting corrosion induced on high-strength high carbon steel wire in high alkaline deaerated chloride electrolyte
  38. Formulation of polymeric nanoparticles loaded sorafenib; evaluation of cytotoxicity, molecular evaluation, and gene expression studies in lung and breast cancer cell lines
  39. Engineered nanocomposites in asphalt binders
  40. Influence of loading voltage, domain ratio, and additional load on the actuation of dielectric elastomer
  41. Thermally induced hex-graphene transitions in 2D carbon crystals
  42. The surface modification effect on the interfacial properties of glass fiber-reinforced epoxy: A molecular dynamics study
  43. Molecular dynamics study of deformation mechanism of interfacial microzone of Cu/Al2Cu/Al composites under tension
  44. Nanocolloid simulators of luminescent solar concentrator photovoltaic windows
  45. Compressive strength and anti-chloride ion penetration assessment of geopolymer mortar merging PVA fiber and nano-SiO2 using RBF–BP composite neural network
  46. Effect of 3-mercapto-1-propane sulfonate sulfonic acid and polyvinylpyrrolidone on the growth of cobalt pillar by electrodeposition
  47. Dynamics of convective slippery constraints on hybrid radiative Sutterby nanofluid flow by Galerkin finite element simulation
  48. Preparation of vanadium by the magnesiothermic self-propagating reduction and process control
  49. Microstructure-dependent photoelectrocatalytic activity of heterogeneous ZnO–ZnS nanosheets
  50. Cytotoxic and pro-inflammatory effects of molybdenum and tungsten disulphide on human bronchial cells
  51. Improving recycled aggregate concrete by compression casting and nano-silica
  52. Chemically reactive Maxwell nanoliquid flow by a stretching surface in the frames of Newtonian heating, nonlinear convection and radiative flux: Nanopolymer flow processing simulation
  53. Nonlinear dynamic and crack behaviors of carbon nanotubes-reinforced composites with various geometries
  54. Biosynthesis of copper oxide nanoparticles and its therapeutic efficacy against colon cancer
  55. Synthesis and characterization of smart stimuli-responsive herbal drug-encapsulated nanoniosome particles for efficient treatment of breast cancer
  56. Homotopic simulation for heat transport phenomenon of the Burgers nanofluids flow over a stretching cylinder with thermal convective and zero mass flux conditions
  57. Incorporation of copper and strontium ions in TiO2 nanotubes via dopamine to enhance hemocompatibility and cytocompatibility
  58. Mechanical, thermal, and barrier properties of starch films incorporated with chitosan nanoparticles
  59. Mechanical properties and microstructure of nano-strengthened recycled aggregate concrete
  60. Glucose-responsive nanogels efficiently maintain the stability and activity of therapeutic enzymes
  61. Tunning matrix rheology and mechanical performance of ultra-high performance concrete using cellulose nanofibers
  62. Flexible MXene/copper/cellulose nanofiber heat spreader films with enhanced thermal conductivity
  63. Promoted charge separation and specific surface area via interlacing of N-doped titanium dioxide nanotubes on carbon nitride nanosheets for photocatalytic degradation of Rhodamine B
  64. Elucidating the role of silicon dioxide and titanium dioxide nanoparticles in mitigating the disease of the eggplant caused by Phomopsis vexans, Ralstonia solanacearum, and root-knot nematode Meloidogyne incognita
  65. An implication of magnetic dipole in Carreau Yasuda liquid influenced by engine oil using ternary hybrid nanomaterial
  66. Robust synthesis of a composite phase of copper vanadium oxide with enhanced performance for durable aqueous Zn-ion batteries
  67. Tunning self-assembled phases of bovine serum albumin via hydrothermal process to synthesize novel functional hydrogel for skin protection against UVB
  68. A comparative experimental study on damping properties of epoxy nanocomposite beams reinforced with carbon nanotubes and graphene nanoplatelets
  69. Lightweight and hydrophobic Ni/GO/PVA composite aerogels for ultrahigh performance electromagnetic interference shielding
  70. Research on the auxetic behavior and mechanical properties of periodically rotating graphene nanostructures
  71. Repairing performances of novel cement mortar modified with graphene oxide and polyacrylate polymer
  72. Closed-loop recycling and fabrication of hydrophilic CNT films with high performance
  73. Design of thin-film configuration of SnO2–Ag2O composites for NO2 gas-sensing applications
  74. Study on stress distribution of SiC/Al composites based on microstructure models with microns and nanoparticles
  75. PVDF green nanofibers as potential carriers for improving self-healing and mechanical properties of carbon fiber/epoxy prepregs
  76. Osteogenesis capability of three-dimensionally printed poly(lactic acid)-halloysite nanotube scaffolds containing strontium ranelate
  77. Silver nanoparticles induce mitochondria-dependent apoptosis and late non-canonical autophagy in HT-29 colon cancer cells
  78. Preparation and bonding mechanisms of polymer/metal hybrid composite by nano molding technology
  79. Damage self-sensing and strain monitoring of glass-reinforced epoxy composite impregnated with graphene nanoplatelet and multiwalled carbon nanotubes
  80. Thermal analysis characterisation of solar-powered ship using Oldroyd hybrid nanofluids in parabolic trough solar collector: An optimal thermal application
  81. Pyrene-functionalized halloysite nanotubes for simultaneously detecting and separating Hg(ii) in aqueous media: A comprehensive comparison on interparticle and intraparticle excimers
  82. Fabrication of self-assembly CNT flexible film and its piezoresistive sensing behaviors
  83. Thermal valuation and entropy inspection of second-grade nanoscale fluid flow over a stretching surface by applying Koo–Kleinstreuer–Li relation
  84. Mechanical properties and microstructure of nano-SiO2 and basalt-fiber-reinforced recycled aggregate concrete
  85. Characterization and tribology performance of polyaniline-coated nanodiamond lubricant additives
  86. Combined impact of Marangoni convection and thermophoretic particle deposition on chemically reactive transport of nanofluid flow over a stretching surface
  87. Spark plasma extrusion of binder free hydroxyapatite powder
  88. An investigation on thermo-mechanical performance of graphene-oxide-reinforced shape memory polymer
  89. Effect of nanoadditives on the novel leather fiber/recycled poly(ethylene-vinyl-acetate) polymer composites for multifunctional applications: Fabrication, characterizations, and multiobjective optimization using central composite design
  90. Design selection for a hemispherical dimple core sandwich panel using hybrid multi-criteria decision-making methods
  91. Improving tensile strength and impact toughness of plasticized poly(lactic acid) biocomposites by incorporating nanofibrillated cellulose
  92. Green synthesis of spinel copper ferrite (CuFe2O4) nanoparticles and their toxicity
  93. The effect of TaC and NbC hybrid and mono-nanoparticles on AA2024 nanocomposites: Microstructure, strengthening, and artificial aging
  94. Excited-state geometry relaxation of pyrene-modified cellulose nanocrystals under UV-light excitation for detecting Fe3+
  95. Effect of CNTs and MEA on the creep of face-slab concrete at an early age
  96. Effect of deformation conditions on compression phase transformation of AZ31
  97. Application of MXene as a new generation of highly conductive coating materials for electromembrane-surrounded solid-phase microextraction
  98. A comparative study of the elasto-plastic properties for ceramic nanocomposites filled by graphene or graphene oxide nanoplates
  99. Encapsulation strategies for improving the biological behavior of CdS@ZIF-8 nanocomposites
  100. Biosynthesis of ZnO NPs from pumpkin seeds’ extract and elucidation of its anticancer potential against breast cancer
  101. Preliminary trials of the gold nanoparticles conjugated chrysin: An assessment of anti-oxidant, anti-microbial, and in vitro cytotoxic activities of a nanoformulated flavonoid
  102. Effect of micron-scale pores increased by nano-SiO2 sol modification on the strength of cement mortar
  103. Fractional simulations for thermal flow of hybrid nanofluid with aluminum oxide and titanium oxide nanoparticles with water and blood base fluids
  104. The effect of graphene nano-powder on the viscosity of water: An experimental study and artificial neural network modeling
  105. Development of a novel heat- and shear-resistant nano-silica gelling agent
  106. Characterization, biocompatibility and in vivo of nominal MnO2-containing wollastonite glass-ceramic
  107. Entropy production simulation of second-grade magnetic nanomaterials flowing across an expanding surface with viscidness dissipative flux
  108. Enhancement in structural, morphological, and optical properties of copper oxide for optoelectronic device applications
  109. Aptamer-functionalized chitosan-coated gold nanoparticle complex as a suitable targeted drug carrier for improved breast cancer treatment
  110. Performance and overall evaluation of nano-alumina-modified asphalt mixture
  111. Analysis of pure nanofluid (GO/engine oil) and hybrid nanofluid (GO–Fe3O4/engine oil): Novel thermal and magnetic features
  112. Synthesis of Ag@AgCl modified anatase/rutile/brookite mixed phase TiO2 and their photocatalytic property
  113. Mechanisms and influential variables on the abrasion resistance hydraulic concrete
  114. Synergistic reinforcement mechanism of basalt fiber/cellulose nanocrystals/polypropylene composites
  115. Achieving excellent oxidation resistance and mechanical properties of TiB2–B4C/carbon aerogel composites by quick-gelation and mechanical mixing
  116. Microwave-assisted sol–gel template-free synthesis and characterization of silica nanoparticles obtained from South African coal fly ash
  117. Pulsed laser-assisted synthesis of nano nickel(ii) oxide-anchored graphitic carbon nitride: Characterizations and their potential antibacterial/anti-biofilm applications
  118. Effects of nano-ZrSi2 on thermal stability of phenolic resin and thermal reusability of quartz–phenolic composites
  119. Benzaldehyde derivatives on tin electroplating as corrosion resistance for fabricating copper circuit
  120. Mechanical and heat transfer properties of 4D-printed shape memory graphene oxide/epoxy acrylate composites
  121. Coupling the vanadium-induced amorphous/crystalline NiFe2O4 with phosphide heterojunction toward active oxygen evolution reaction catalysts
  122. Graphene-oxide-reinforced cement composites mechanical and microstructural characteristics at elevated temperatures
  123. Gray correlation analysis of factors influencing compressive strength and durability of nano-SiO2 and PVA fiber reinforced geopolymer mortar
  124. Preparation of layered gradient Cu–Cr–Ti alloy with excellent mechanical properties, thermal stability, and electrical conductivity
  125. Recovery of Cr from chrome-containing leather wastes to develop aluminum-based composite material along with Al2O3 ceramic particles: An ingenious approach
  126. Mechanisms of the improved stiffness of flexible polymers under impact loading
  127. Anticancer potential of gold nanoparticles (AuNPs) using a battery of in vitro tests
  128. Review Articles
  129. Proposed approaches for coronaviruses elimination from wastewater: Membrane techniques and nanotechnology solutions
  130. Application of Pickering emulsion in oil drilling and production
  131. The contribution of microfluidics to the fight against tuberculosis
  132. Graphene-based biosensors for disease theranostics: Development, applications, and recent advancements
  133. Synthesis and encapsulation of iron oxide nanorods for application in magnetic hyperthermia and photothermal therapy
  134. Contemporary nano-architectured drugs and leads for ανβ3 integrin-based chemotherapy: Rationale and retrospect
  135. State-of-the-art review of fabrication, application, and mechanical properties of functionally graded porous nanocomposite materials
  136. Insights on magnetic spinel ferrites for targeted drug delivery and hyperthermia applications
  137. A review on heterogeneous oxidation of acetaminophen based on micro and nanoparticles catalyzed by different activators
  138. Early diagnosis of lung cancer using magnetic nanoparticles-integrated systems
  139. Advances in ZnO: Manipulation of defects for enhancing their technological potentials
  140. Efficacious nanomedicine track toward combating COVID-19
  141. A review of the design, processes, and properties of Mg-based composites
  142. Green synthesis of nanoparticles for varied applications: Green renewable resources and energy-efficient synthetic routes
  143. Two-dimensional nanomaterial-based polymer composites: Fundamentals and applications
  144. Recent progress and challenges in plasmonic nanomaterials
  145. Apoptotic cell-derived micro/nanosized extracellular vesicles in tissue regeneration
  146. Electronic noses based on metal oxide nanowires: A review
  147. Framework materials for supercapacitors
  148. An overview on the reproductive toxicity of graphene derivatives: Highlighting the importance
  149. Antibacterial nanomaterials: Upcoming hope to overcome antibiotic resistance crisis
  150. Research progress of carbon materials in the field of three-dimensional printing polymer nanocomposites
  151. A review of atomic layer deposition modelling and simulation methodologies: Density functional theory and molecular dynamics
  152. Recent advances in the preparation of PVDF-based piezoelectric materials
  153. Recent developments in tensile properties of friction welding of carbon fiber-reinforced composite: A review
  154. Comprehensive review of the properties of fly ash-based geopolymer with additive of nano-SiO2
  155. Perspectives in biopolymer/graphene-based composite application: Advances, challenges, and recommendations
  156. Graphene-based nanocomposite using new modeling molecular dynamic simulations for proposed neutralizing mechanism and real-time sensing of COVID-19
  157. Nanotechnology application on bamboo materials: A review
  158. Recent developments and future perspectives of biorenewable nanocomposites for advanced applications
  159. Nanostructured lipid carrier system: A compendium of their formulation development approaches, optimization strategies by quality by design, and recent applications in drug delivery
  160. 3D printing customized design of human bone tissue implant and its application
  161. Design, preparation, and functionalization of nanobiomaterials for enhanced efficacy in current and future biomedical applications
  162. A brief review of nanoparticles-doped PEDOT:PSS nanocomposite for OLED and OPV
  163. Nanotechnology interventions as a putative tool for the treatment of dental afflictions
  164. Recent advancements in metal–organic frameworks integrating quantum dots (QDs@MOF) and their potential applications
  165. A focused review of short electrospun nanofiber preparation techniques for composite reinforcement
  166. Microstructural characteristics and nano-modification of interfacial transition zone in concrete: A review
  167. Latest developments in the upconversion nanotechnology for the rapid detection of food safety: A review
  168. Strategic applications of nano-fertilizers for sustainable agriculture: Benefits and bottlenecks
  169. Molecular dynamics application of cocrystal energetic materials: A review
  170. Synthesis and application of nanometer hydroxyapatite in biomedicine
  171. Cutting-edge development in waste-recycled nanomaterials for energy storage and conversion applications
  172. Biological applications of ternary quantum dots: A review
  173. Nanotherapeutics for hydrogen sulfide-involved treatment: An emerging approach for cancer therapy
  174. Application of antibacterial nanoparticles in orthodontic materials
  175. Effect of natural-based biological hydrogels combined with growth factors on skin wound healing
  176. Nanozymes – A route to overcome microbial resistance: A viewpoint
  177. Recent developments and applications of smart nanoparticles in biomedicine
  178. Contemporary review on carbon nanotube (CNT) composites and their impact on multifarious applications
  179. Interfacial interactions and reinforcing mechanisms of cellulose and chitin nanomaterials and starch derivatives for cement and concrete strength and durability enhancement: A review
  180. Diamond-like carbon films for tribological modification of rubber
  181. Layered double hydroxides (LDHs) modified cement-based materials: A systematic review
  182. Recent research progress and advanced applications of silica/polymer nanocomposites
  183. Modeling of supramolecular biopolymers: Leading the in silico revolution of tissue engineering and nanomedicine
  184. Recent advances in perovskites-based optoelectronics
  185. Biogenic synthesis of palladium nanoparticles: New production methods and applications
  186. A comprehensive review of nanofluids with fractional derivatives: Modeling and application
  187. Electrospinning of marine polysaccharides: Processing and chemical aspects, challenges, and future prospects
  188. Electrohydrodynamic printing for demanding devices: A review of processing and applications
  189. Rapid Communications
  190. Structural material with designed thermal twist for a simple actuation
  191. Recent advances in photothermal materials for solar-driven crude oil adsorption
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 2.12.2025 from https://www.degruyterbrill.com/document/doi/10.1515/ntrev-2022-0155/html
Scroll to top button
