Impact of electrode geometry on force generation during functional electrical stimulation

  • Jan C. Loitz EMAIL logo , Aljoscha Reinert , Dietmar Schroeder and Wolfgang H. Krautschneider
Published/Copyright: September 12, 2015
Download Article (PDF)
Become an author with De Gruyter Brill
Author Information Explore this Subject
Current Directions in Biomedical Engineering
From the journal Current Directions in Biomedical Engineering Volume 1 Issue 1

Abstract

The goal of functional electrical stimulation is to restore lost movements by excitation of motor axons inner-vating the target muscle. For optimal electrode placement and geometry the distribution and spatial orientation of the desired motor axons has to be known. In this study, the response of motor axons with different orientations to electrical stimulation was simulated. Three electrode geometries with the same area were used. The simulated axon activation was compared to experimental force measurements and showed good agreements. It is now assumed that optimal electrode geometry does strongly depend on motor axon orientation, which can vary from one subject to the other. Lack of knowledge about the dominant motor axon orientation makes the use of square, round or multi-pad electrodes favorable.

Keywords: Functional electrical stimulation; electrodes; force; simulation

1 Introduction

Functional electrical stimulation (FES) is a way to restore lost movements, e.g. grasping, and can be used to help people suffering from spinal cord injury or stroke [1, 2]. Multi-pad electrodes could be one way to solve several problems regarding FES. They could help reducing fatigue by excitation of different motor axons within one muscle as well as easing the process of finding the best spot and electrode shape for stimulation [3, 4].

Modeling and simulation studies can be a great assistance in developing and improving systems for FES, especially for future multi-pad systems, since they are not commercially available right now and need to be custom made for research activities. That is why it makes sense to spend time on simulation studies before expensive prototypes are developed.

In this study, the goal was to determine the impact of electrode geometry on electrical stimulation. Therefore, a simulation study was performed to get insights on how axon activation is influenced by both axon alignment and electrode geometry. To validate these results, experiments with two subjects were performed to measure the force, generated by electrical stimulation of the finger flexor muscles.

2 Methods

2.1 Simulation

A two-step approach was used to simulate the outcome of FES. In COMSOL Multiphysics a 3D finite element (FE) model was created (see Figure 1). This simple model of the human forearm consisted of a skin and a fat layer, surrounding the muscle tissue. Inside the muscle tissue the ulnar and radial were placed. Besides the bones an elliptic cylinder was defined in which the motor axons, responsible for muscle activation, are located. This cylinder will from now on be referred to as the motor axon volume (MAV). It was located 1.5 mm under the fat layer, had a height of 16 mm, a width of 24 mm and was 30 mm long. The size of the MAV was estimated with regards to the results of Lieber et al. [5, 6] and El-Din Safwat et al. [7]. The idea behind the MAV was to represent the way of the motor axons from the nerve entry point in the muscle to the motor endplates and was inspired by Gomez-Tames et al. [8]. It was assumed that there is one dominant axon orientation. Three angles between the MAV and the longitudinal direction of the forearm were investigated (0°, 30° and 60°, see Figure 2b).

Two electrodes were placed on the surface of the skin. Thereby, the distal and bigger electrode was the indifferent and the electrode placed on top of the MAV was the active electrode. Three different active electrodes with the same area were considered in simulations and experiments: a longitudinal electrode (2 × 4 cm2), a transversal electrode (4 x 2 cm2) and a square electrode with an area of 8 cm2(see Figure 2a).

The electric potential caused by the electrical stimulation in the MAV was saved and exported to MATLAB to calculate the response of the motor axons. For the simulation a current of 20 mA with a duration of 150 µs was used. The parameters used for the FE model can be seen in Table 1.

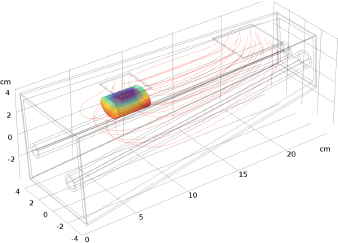

Figure 1 Simple 3D model of the human forearm. The red lines represent the current flow between the two electrodes, the multicolored volume illustrates the potential in the MAV.
Figure 1

Simple 3D model of the human forearm. The red lines represent the current flow between the two electrodes, the multicolored volume illustrates the potential in the MAV.

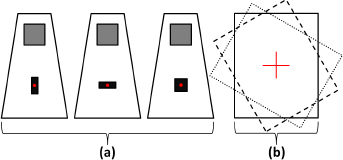

Figure 2 (a) Shows the three different electrode geometries used for both simulation and experiments. The grey square illustrates the indifferent electrode, the black rectangles/square the active electrode and the red dot the center of both, the electrode and the MAV lying underneath. (b) Shows the rotations of the MAV around the center of the stimulation electrode used for the simulation. The black line represents a rotation of 0°, the dashed line a rotation of 30° and the dotted line a rotation of 60°. The red cross illustrates the center of rotation under the active electrode.
Figure 2

(a) Shows the three different electrode geometries used for both simulation and experiments. The grey square illustrates the indifferent electrode, the black rectangles/square the active electrode and the red dot the center of both, the electrode and the MAV lying underneath. (b) Shows the rotations of the MAV around the center of the stimulation electrode used for the simulation. The black line represents a rotation of 0°, the dashed line a rotation of 30° and the dotted line a rotation of 60°. The red cross illustrates the center of rotation under the active electrode.

In MATLAB the electric potential was computed along homogeneously distributed parallel lines. Each line represented the extracellular potential along one axon. A random distribution of axon diameters, similar to [8] was associated to the potential lines of the MAV. The axon membrane potential was calculated according to McNeal [10] by solving

(1)dVndt=1Cm[Ga(Vn−1−2Vn+Vn+1+Ve,n−1                               −2Ve,n+Ve,n+1)−GmVn].
Table 1

Parameters used for the 3D FE model. The conductivity σ and permittivity ∊r are taken from Kuhn [9]. The geometry of the tissue was estimated.

Materialσ [S/m]∊rThickness [mm]
Electrode-skin interface1/30011
Skin1/70060001
Fat1/33250003
Muscle (longitudinal)1/3120000240
Muscle (transvers)1/94000072-42
Cortical bone1/5030002
Bone marrow2/2510000ca. 9
Figure 3 Cross section of the MAV. Red circles show activated axons, where the membrane potential surpassed the threshold potential. Yellow circles are non-activated axons. The diameter of the circles corresponds to the axon diameter. It can be seen that deep and small axons are less likely to be activated by FES compared to superficial and big axons.
Figure 3

Cross section of the MAV. Red circles show activated axons, where the membrane potential surpassed the threshold potential. Yellow circles are non-activated axons. The diameter of the circles corresponds to the axon diameter. It can be seen that deep and small axons are less likely to be activated by FES compared to superficial and big axons.

If the membrane potential exceeded a certain threshold potential, activation of this particular axon was assumed. Figure 3 shows the cross section of the MAV with activated and non-activated axons. A passive calculation of the membrane potential was chosen since in this study the time depended behavior of specific ion channels was not of interest and the spatial behavior should not be affected by active membrane properties.

Since relatively short axons were investigated, particular attention had to be paid to the first and last node of Ranvier. The membrane potential of the first node of Ran-vier was chosen to stay at resting potential. For the end of the axon, which is approaching the motor endplate, it was assumed that there is no myelin sheath between the last and the second last node of Ranvier. The parameters for the axon model are listed in Table 2.

Table 2

Overview of the used nerve parameters. With these values the axon conductance Ga = πd2/4ρidx, the membrane conductance Gm = πdLgL and the membrane capacitance Cm = πdLcm can be determined.

ParameterValueReference
internodal distance Δx2 mm-
node length L2.5 μm[10]
axon diameter d7-17 μm[8]
spezific axon resitance ρi0.7 Ωm[9]
membrane conductance/unit area gL30.4 mS/cm2[10]
membrane capacitance/unit area cm2 μF/cm2[10]
resting potential Vr-70 mV[10]
resting potential Vs-55 mV-
Figure 4 Experimental setup: The fingers are attached with a wire and a spring to the force gauge.
Figure 4

Experimental setup: The fingers are attached with a wire and a spring to the force gauge.

2.2 Experiments

The number of activated axons is supposed to correlate with the produced force. Therefore, force measurements were performed with two young and healthy subjects in order to validate the simulation results. Both subjects had been seated on a comfortable chair with the force measurement setup on a table in front of them. The ring, middle and index finger were attached to a wire, which was connected via a spring to a force gauge (PCE-FG 20SD, PCE Instruments, Germany). This way the tensile force caused by finger flexion could be measured (see Figure 4).

The electrical stimulation was delivered using the Motionstim8 (Medel, Germany). Electrodes were placed according to the simulations. The indifferent electrode was placed distal, close to the wrist, and the active electrode was placed on the motor point (the most sensible point for electrical stimulation) for finger flexion. The motor point had been searched carefully in advance with a pen electrode. The electrode dimensions were the same as in the simulation study.

For stimulation biphasic rectangular pulses with a frequency of 35 Hz and a pulse width of 150 µs were used. The amplitude was chosen to produce a strong contraction while not becoming uncomfortable (15 mA for subject 1 and 12 mA for subject 2).

For each of the three different electrode geometries the same procedure was performed: 5 s of stimulation followed by 20 s of rest until five stimulations were reached. Between changing electrodes there was a five minute break to avoid fatigue altering the results. The peak force value, which corresponds to the biggest magnitude of motion, for each stimulation phase was noted and out of all five stimulation phases the median force was determined.

3 Results

To compare the simulated with the experimental results the data had to be normalized. For subject 1 and subject 2 the achieved force level for each electrode geometry was normalized to the maximum force level. This way the electrode geometry which produced the highest force equals 100 %. For the simulation results the number of activated axons for each electrode geometry was normalized by the maximum achieved number of activated axons. As with the experimental results this way the electrode geometry which produced the highest number of activated axons equals 100 %. This had been done for all three MAV rotations. At the end the results of experiments with two subjects were compared to three different simulation outcomes.

Figure 5 shows the comparison of the results. It is obvious that there is a strong variation between the two subjects and also within the three different MAV orientations. Nevertheless, the experimental results coincide well with individual MAV orientation in simulation. The force generation behavior of subject 1 correlates to a MAV rotation between 0° and 30°. For subject 2 a 60° rotation shows good accordance between measured and simulated behavior.

Figure 5 Comparison of the experimental with the simulated results. For subject 1 and 2 the normalized generated force is plotted, for the simulations the normalized number of activated axons.
Figure 5

Comparison of the experimental with the simulated results. For subject 1 and 2 the normalized generated force is plotted, for the simulations the normalized number of activated axons.

4 Conclusion

In this study it could be shown that simulated axon activation correlates well with measured force. Thus the concept of a MAV seems to be promising for modeling force generation by electrical stimulation. Simulations as well as experiments showed that the optimal electrode geometry can vary from one subject to another and does probably depend on the dominant motor axon orientation. It could also be seen that square electrodes always performed well compared to rectangular electrodes. Gomez-Tames et al. [11] showed in a simulation study that there is no significant difference between square and round electrodes, which agrees with our experience. Therefore, using square or round electrodes is recommendable if the dominant axon orientation is unknown. The results of this study also show the potential of electrode arrays, where the stimulation electrode shape can be more or less changed freely.

In the future different movements, especially finger extension, should be investigated as well. It is also possible to simulate the impact of electrode misplacement and compare this to experimental results. This way it should be possible to characterize MAV size and orientation. It should also be considered that there may be more than one MAV for one movement due to multiple nerve entry points per muscle or co-contraction of neighboring muscles.

Funding: The authors gratefully acknowledge the support of this work by a grant from the Federal Ministry of Education and Research (BMBF, ESiMed [16 M3201]).

Author’s Statement

  1. Conflict of interest: Authors state no conflict of interest. Material and Methods: Informed consent: Informed consent has been obtained from all individuals included in this study. Ethical approval: The research related to human use has been complied with all the relevant national regulations, institutional policies and in accordance the tenets of the Helsinki Declaration, and has been approved by the authors’ institutional review board or equivalent committee.

References

[1] Rupp R, Kreilinger A, Rohm M, Kaiser V, Müller-Putz GR. Development of a non-invasive, multifunctional grasp neuropros-thesis and its evaluation in an individual with a high spinal cord injury. 34th Annual International Conference of the IEEE EMBS San Diego, California USA, 28 August - 1 September, 2012: 1835–183810.1109/EMBC.2012.6346308Search in Google Scholar

[2] Knutson JS, Harley MY, Hisel TZ, Chae J. Improving Hand Function in Stroke Survivors: A Pilot Study of Contralaterally Controlled Functional Electric Stimulation in Chronic Hemiplegia. Arch Phys Med Rehabil Vol. 88, April 2007: 513–52010.1016/j.apmr.2007.01.003Search in Google Scholar

[3] Maleŝević MN, Popović Maneski LZ, Ilić V. A multi-pad electrode based functional electrical stimulation system for restoration of grasp. Journal of NeuroEngineering and Rehabilitation 2012: 9:6610.1186/1743-0003-9-66Search in Google Scholar

[4] Popović Maneski L, Kostić M, Bijelić G, et al. Multi-Pad Electrode for Effective Grasping: Design. IEEE Transactions on Neural Systems and Rehabilitation Engineering, Vol. 21, No. 4, July 2013: 648–65410.1109/TNSRE.2013.2239662Search in Google Scholar

[5] Lieber RL, Fazeli BM, Botte MJ. Architecture of selected wrist flexor and extensor muscles. The Journal of Hand Surgery, Vol. 15A, No. 2, March 1990: 244–25010.1016/0363-5023(90)90103-XSearch in Google Scholar

[6] Lieber RL, Jacobsen MD, Fazeli BM, Abrams RA, Botte MJ. Architecture of selected muscles of the arm and forearmml: Anatomy and implications for tendon transfer. The Journal of Hand Surgery, Vol. 17A, No. 5, September 1992: 787–79810.1016/0363-5023(92)90444-TSearch in Google Scholar

[7] El-Din Safwat MD, Abdel-Meguid EM. Distribution of terminal nerve entry points to the flexor and extensor groups of forearm muscles: an anatomical study. Folia Morphol., Vol. 66, No. 2, 2007: 83–93Search in Google Scholar

[8] Gomez-Tames JD, Gonzalez J, Nakamura S, Yu W. Simulation of the Muscle Recruitment by Transcutaneous Electrical Stimulation in a Simplified Semitendinosus Muscle Model. Converging Clinical and Engineering Research on Neurorehabilitation Biosystems & Biorobotics Vol. 1, 2013: 449–45310.1007/978-3-642-34546-3_73Search in Google Scholar

[9] Kuhn A. Modeling Transcutaneous Electrical Stimulation. Diss. ETH No. 17948, 2008Search in Google Scholar

[10] McNeal DR. Analysis of a Model for Excitation of Myelinated Nerve. IEEE Transactions on Biomedical Engineering, Vol. BME.23, No. 4, July 1976: 329–337.10.1109/TBME.1976.324593Search in Google Scholar

[11] Gomez-Tames JD, Gonzalez J, Yu W. A Simulation Study: Effect of the Inter-Electrode Distance, Electrode Size and Shape in Transcutaneous Electrical Stimulation. 34th Annual International Conference of the IEEE EMBS San Diego, California USA, 28. August - 1. September, 2012: 3576–357910.1109/EMBC.2012.6346739Search in Google Scholar PubMed
