Abstract

The present study investigates the heat transfer for the unsteady, incompressible, two-dimensional mixed convective copper–water nanofluid flow in a lid-driven square cavity in the presence of the magnetic field. The lid-driven square cavity’s top and bottom walls are assumed to be adiabatic. The nanofluid model is developed in ANSYS-FLUENT using Boussinesq approximation. A pressure-based solver with a Semi-Implicit Method for Pressure-Linked Equations algorithm is used to simulate the governing equations of the model. The results obtained from the developed fluid model are examined for the different influential physical parameters to enhance heat transfer from the cavity to the flowing fluid. Qualitative and quantitative results for nanofluid concentration, magnetic field parameter, and Reynolds number are analyzed. A noteworthy observation is that the velocity of the nanofluid reduces with improvement in the magnetic field strength. The findings of the attempt provide the capability of nanofluids in heat transfer, which aids in creating innovative geometries with improved and regulated heat transfer due to applied magnetic fields. This attempt holds potential applications in solar collectors, electrical devices, and the medical field manageable due to the slower fluid flow (nanofluid).

Keywords: mixed convection; nanofluids; square cavity; heat transfer; magnetic field

Nomenclature

α

thermal diffusivity

β

thermal expansion coefficient

C

concentration of fluid

Gr

Grashof number

K

thermal conductivity

μ

kinematic viscosity

ϕ

volume fraction

p m

Prandtl number

Re

Reynolds number

ρ

density

( ρ C p ) s

heat capacitance of metallic nanoparticle

( ρ C p ) f

base fluid heat capacity

( ρ C p ) nf

nanofluid heat capacity

t

time

T

temperature of fluid

T 1

temperature of upper wall of tube

U, V

velocity components in the ( X , Y ) direction

V p

velocity of moving lid

Subscripts and superscripts

c

cold wall

eff

effective

f

fluid

h

hot wall

nf

nanofluid

s

solid

0

reference value

1 Introduction

Mixed convective heat transfer in a lid-driven cavity finds extensive applications in various fields, ranging from cooling electronic devices to building high-performance insulation, nuclear reactors for multi-shield structures, solar power collectors, float glass production, furnaces, and drying technologies [1–5]. Mixed convective flows in heat transfer, where both forced and natural convection mechanisms coexist, offer several advantages in various engineering applications. Mixed convective flows often result in higher heat transfer rates than pure forced or natural convection. Mixed convective flows are adaptable to different flow configurations, geometries, and boundary conditions. Mixed convective flows promote temperature uniformity in the fluid or around a heated surface and are particularly effective in enclosed spaces or confined geometries. The synergistic effect of forced and natural convection in mixed convective flows improves energy efficiency. Mixed convective flows exhibit adaptability to changing operating conditions, making them a valuable consideration in designing and optimizing heat transfer systems in various engineering applications. Numerous studies have analyzed convective heat transfers within different cavity shapes, such as triangular, trapezoidal, cylindrical, wavy, and square. These investigations are critical for developing a comprehensive understanding of fluid dynamics inside cavities, contributing to thermal enhancement and optimization. Researchers have proposed various strategies to improve specific properties and enhance heat transfer within cavities, which include introducing multiple fins utilizing nanofluids into the cavity [6,7]. A noteworthy study by Kumawat et al. [8] on the flow of power-law nanofluid blood two-phase simulations with an intensity of magnetic field through a curved overlapping stenosed artery. Gandhi et al. [9] examined the time-variant flow of blood through an artery multi-stenotic mediated by hybrid nanoparticles. In a bifurcated artery with gyrotactic microorganisms, Sharma et al. [10] explored entropy formation in a ternary hybrid nanofluid. Additionally, Sharma et al. [11] investigated the radiative heat transfer for hybrid nanofluids in solar collectors. Kumar et al. [12] focused on the heat transfer analysis for magnetohydrodynamics (MHD) Jeffrey hybrid nanofluid flow in conjunction with a bioconvection mechanism in radiative solar collectors. These studies contribute to the knowledge surrounding mixed convection flow and heat transfer, offering insights into optimization techniques and strategies for enhancing the thermal performance of various applications.

Research on mixed convective flows from the enclosures has attracted significant attention, primarily due to its expanding applications. However, a noticeable gap exists in the investigation of mixed convective heat transfer from enclosures with nanofluids despite the acknowledged potential of incorporating nanoparticles into a fluid to address various heat transfer challenges. Copper (Cu)–water nanofluids, consisting of Cu nanoparticles dispersed in water, have gained significant attention in heat transfer augmentation due to several advantages. Copper nanoparticles have high thermal conductivity, and when dispersed in water, they effectively increase the overall thermal conductivity of the fluid. The presence of Cu nanoparticles in the fluid promotes better heat transfer between the fluid and the surrounding surfaces. This increased heat transfer coefficient enhances the efficiency of various industrial and electronic applications. The nanoparticles tend to agitate and disrupt the fluid flow, promoting better mixing and convective heat transfer. Cu nanoparticles generally exhibit good thermal stability, maintaining their properties at elevated temperatures, which makes them suitable for applications with high-temperature stability electronic systems. This reduces energy consumption and operational costs in applications, which makes Cu–water nanofluids promising candidates for various heat transfer applications across different industries. Introducing nanoparticles alters the fluid’s thermo-physical properties, adding complexity to mixed convection dynamics by involving intricate interactions among inertia, viscous, and buoyancy forces. Chaudhary et al. [13] explored the radiation effect in MHD mixed convective flow with Ohmic heating, considering both thermal and mass diffusion effects. Muthtamilselvan et al. [14] discussed using Cu-water nanofluids to increase heat transmission in a lid-driven enclosure. Valipour and Ghadi [15] specifically examined the nanofluid flow, focusing on the impact of nanoparticle volume fraction on flow patterns. Their findings highlighted observable changes in minimum velocity and recirculation length with an escalation in nanofluid concentration. Sharma et al. [16] investigated the minimization of entropy formation in MHD mixed convective flow with endothermic/exothermic catalytic reaction. Additionally, Sharma et al. [17] studied the combined effects of thermophoretic diffusion and Brownian motion across an inclined stretched surface with a chemical reaction in mixed convective flow. These studies contribute to understanding mixed convection in nanofluid-filled enclosures, considering various factors such as radiation, nanofluid heat transfer enhancement, and chemical reactions.

Investigations into heat transfer under unsteady regimes with different geometries offer several advantages in understanding and optimizing thermal systems. Unsteady heat transfer is prevalent in many real-world applications, such as transient heating or cooling processes, startup and shutdown of equipment, and rapid changes in environmental conditions. Unsteady regimes often involve transient phenomena, where temperatures, velocities, and thermal gradients change rapidly. Incorporating unsteady heat transfer into predictive models allows for more accurate simulations and predictions of system behavior. Heat transfer studies contribute to the intensification of industrial processes. By optimizing heat transfer under dynamic conditions, it becomes possible to enhance the efficiency of processes like chemical reactions, material processing, and crystallization, leading to improved productivity and resource utilization. Sarkar et al. [18] examined the water-Cu nanofluid’s mixed convective heat transmission through the cylinder. Their observations revealed the enhancement in Strouhal number with the rise in nanofluid concentration, reducing vortex shedding. In a study by Gorla and Hossain [19], mixed convection flows with nanofluids past a vertical cylinder were explored, highlighting enhanced heat and mass transmission with increased buoyancy ratio parameters. Valipour et al. [20] simulated Al 2 O 3 -water nanofluid in a forced convective fluid flow with heat transmission about a square-shaped cylinder. Increments in drag coefficient, Nusselt number, recirculation length, and pressure coefficient are noted with rising nanofluid concentration. Pourmahmoud et al. [21] explored mixed convection heat transmission using nanofluid in a lid-driven cavity, while Bovand et al. [22] analyzed the impact of an Al 2 O 3 -water nanofluid on heat transfer and fluid flow across the equilateral triangled obstacle with varying orientations. In another study by Sharma et al. [23], unsteady MHD mixed convection fluid flow with non-uniform heat source/sink and Joule heating was examined. These investigations contribute to understanding mixed convection fluid flows with nanofluids, addressing factors such as unsteady regimes with different geometries.

Magnetic fields influence heat transfer in certain materials through MHD. MHD studies the influences of magnetic fields on electrical conductive fluids. The magnetic field generates Lorentz force in the electrical conductive fluids, which changes the flow patterns due to the magnetic field induced by electric currents. MHD convection alters the temperature distribution within the fluid, impacting heat transfer processes. In this process, a magnetic field changes a material’s magnetic entropy, causing it to absorb or release heat. As the magnetic field is varied, the material undergoes a cyclic process of magnetization and demagnetization, leading to changes in temperature. The study of a magnetic field in fluid dynamics for augmenting system performance has become a burgeoning area of research. Several studies have discussed thermal boundary conditions in conjunction with a magnetic field on natural/mixed convection [24–29]. Rashidia et al. [30] specifically investigated the unsteady Al 2 O 3 -water MHD nanofluid flow about a triangled obstacle. Their findings revealed that the higher strength of the magnetic field minimizes the recirculation wake and stabilizes the nanofluid flow. Zhao et al. [31] conducted a computational study on on-chip viscoelasticity sensor for biological fluids. Sharma et al. [32] introduced the heat transfer characteristics of nanofluids passing over the wall of a heated square cylinder, explicitly altering the front stagnation point by introducing nanofluids. In a numerical study, Sharma et al. [33] analyzed entropy generation for blood flow through a curve-shaped artery with the hall effect for power-law MHD fluid. Kumar et al. [34] discussed the electromagnetohydrodynamic (EMHD) Jeffrey nanofluid flow in Cu-polyvinyl alcohol/water fluid with an exponential heat source. Khanduri et al. [35] conducted a sensitivity analysis using response surface optimization of electroosmotic MHD fluid flow through a curve-shaped stenotic artery. Furthermore, Sharma et al. [36] investigated the radiative heat transfer for EMHD Jeffrey nanofluid flow with Joule heating.

In recent years, nanofluids have gained significant attention in heat transfer studies due to their enhanced thermal conductivity compared to conventional fluids. Cu nanoparticles have the potential for improving heat transfer, especially in configurations involving mixed convection, where both forced and natural convection phenomena are present. External magnetic fields influence the nanofluid flow control, as magnetic fields dampen fluid motion by affecting heat transfer. Previous studies have examined nanofluid behavior in various configurations, such as channels and cavities, but often without sufficient focus on the combined effects of magnetic fields and lid-driven cavities. This study addresses these gaps by investigating heat transfer behavior in an unsteady, incompressible, two-dimensional Cu-water nanofluid flowing through a lid-driven square cavity under the influence of a magnetic field. A computational model was developed to simulate this complex flow system using the Boussinesq approximation in ANSYS-FLUENT. A pressure-based solver with the Semi-Implicit Method for Pressure-Linked Equations (SIMPLE) algorithm was applied to simulate the governing equations. Flow parameters like nanofluid concentration, magnetic field strength, and Reynolds number are analyzed, affecting the cavity’s heat transfer and flow velocity.

1.1 Novelty and originality

The unique contribution of this study lies in its examination of how magnetic fields modulate heat transfer in nanofluid systems, specifically for the lid-driven square cavity geometry. This focus on magnetic field applications provides insight into the potential use of nanofluids for controlled heat transfer in practical settings like solar collectors, electronic cooling systems, and medical applications. The research demonstrates the application of magnetic fields that regulate the nanofluid flow, leading to applications that require precise thermal management, thus providing a basis for innovative heat transfer solutions in technology and medicine.

Understanding the intricacies of heat transfer in nanofluids is crucial for optimizing thermal performance in various applications. One such application that stands out is the biomedical field, where the manipulation of blood flow during surgeries is a critical factor. The observed reduction in nanofluid velocity under a magnetic field could revolutionize surgical procedures, offering a controlled and manageable environment for medical interventions. The primary objective of this attempt is to advance the current understanding of fluid flow associated with heat transfer phenomena about a bluff body, employing nanofluid. The research involves a numerical exploration of mixed convective heat transmission for Cu-water nanofluid within a lid-driven square-shaped cavity subjected to the influence of an external magnetic field. The investigation explicitly emphasizes nanoparticle concentration’s impact on the fluid dynamic characteristics and the heat transmission aspects within the square cavity. By elucidating the interplay of these factors, the objective is to identify conditions that maximize heat transfer from the cavity to the surrounding nanofluid under varying mass fractions and magnetic field parameters.

2 Physical assumptions

Consider a square cavity featuring two-sided lids driven by motion consisting of nanofluid, as depicted in Figure 1. The nanofluid consists of a water-based fluid with Cu nanoparticles. The nanofluid is a homogeneous mixture made from the dispersion of Cu nanoparticles in water. The physical properties of Cu nanoparticles and the water base fluid are assumed to be constant. All physical properties of the nanofluid for the respective concentrations are outlined in Table 1. The cavity is bounded by four walls, with the top and bottom walls taken to be insulated, non-conductive, and resistant to mass transmission. The side wall temperatures are considered constant, as illustrated in Figure 1. In Scenario I, the left wall (cold) moves upward, while the right (hot) moves downward. In Scenario II, the left wall moves downward, while the right one moves upward. In Scenario III, both walls move upward. It is important to note that the moving walls share the same speed in all three scenarios, and the direction of gravitational force is parallel to the moving walls. The schematic diagram of the whole setup is depicted in Figure 1. The investigation incorporates the application of continuity, momentum, and energy equations to elucidate the dynamics of an unsteady, two-dimensional flow involving a Newtonian fluid characterized by a constant Fourier property. Moreover, the study posits the negligible influence of radiation heat transfer between surfaces associated with the other heat transfer modes. The following assumptions underlie the analysis:

  • The nanofluid inside the enclosure is assumed to be a two-dimensional incompressible Newtonian fluid flow in a laminar pattern.

  • Assumptions include uniformity in shape and size for the nanoparticles, nanofluid concentration is taken as constant with various defaults, and the nanofluid mixture is also assumed to be homogeneous.

  • Both the fluid and nanoparticle phases are assumed to be in the same phase of thermal equilibrium, flowing with the same momentum and dispersed uniformly in the base fluid.

  • The physical properties of the nanofluid remain constant, excluding density variation in the buoyancy force, which is modeled using the Boussinesq approximation.

  • Negligible radiation heat transfer is considered from the sides compared to other heat transfer modes.

Figure 1 Schematic diagrams for the different cases of the square cavity with two-sided lids and moving side walls filled with nanofluid: (a) left wall moves upward and right wall moves downward, (b) left wall moves downward and right wall moves upward, and (c) both left and right walls move upward.
Figure 1

Schematic diagrams for the different cases of the square cavity with two-sided lids and moving side walls filled with nanofluid: (a) left wall moves upward and right wall moves downward, (b) left wall moves downward and right wall moves upward, and (c) both left and right walls move upward.

Table 1

Physical properties of nanofluids and their components with respective mass fraction

Properties Water (base fluid) Copper 0% (mass fraction) 1% (mass fraction) 2% (mass fraction)
Density 998.2 8,978 998.2 1796.18 2594.16
Specific heat 4,182 381 4,182 2282.11 1023.4
Thermal conductivity 0.6 387.6 0.6 0.8 1.047
Viscosity 0.001003 — 0.001003 0.00131 0.00175

The Lorentz force easily controls the dynamics of conducting fluids due to a magnetic field, and it has a significant role in heat and mass transfer. The Lorentz force F L is exerted on a charged particle due to electric and magnetic fields when applied to a continuum (such as MHD in a conducting fluid), introduced in the momentum equations that account for the electromagnetic forces.

2.1 Derivation of Lorentz force term

The Lorentz force F L for a conducting fluid in the presence of an electric field E → and a magnetic field B → is given by:

F → L = J → × B → ,

where J → is the current density vector, B → is the magnetic field vector. Relationship between current density and electric field using Ohm’s law for a conductive fluid, the current density J → can be expressed as

J → = σ ( E → + u → × B → ) ,

where σ is the electrical conductivity of the fluid, u → is the fluid’s velocity field. Substituting J → in the Lorentz force expression, the Lorentz force per unit volume can be written as

F → L = σ ( E → + u → × B → ) × B → .

However, for fluid flows with high conductive properties, a small magnetic field can produce a significant Lorentz force that can control the flow dynamics easily; therefore, there is no need for an electric field. In this case, the Lorentz force produced due to the applied magnetic field is

F → L = σ ( u → × B → ) × B → .

Based on the above considerations, the governing equations for continuity, momentum, and thermal energy in the laminar pattern are expressed as

(1) ∂ U ∂ X + ∂ V ∂ Y = 0 ,

(2) ∂ U ∂ t + ∂ U U ∂ X + ∂ U V ∂ Y = − 1 ρ nf , 0 ∂ P ∂ X + μ eff ρ nf , 0 × ∂ 2 U ∂ X 2 + ∂ 2 U ∂ Y 2 + μ 0 M ∂ H ¯ ∂ X − σ nf B Y 2 U + σ nf B X B Y V ,

(3) ∂ V ∂ t + ∂ U V ∂ X + ∂ V V ∂ Y = − 1 ρ nf , 0 ∂ P ∂ Y + μ eff ρ nf , 0 ∂ 2 V ∂ Y 2 + ∂ 2 V ∂ X 2 + 1 ρ nf , 0 [ ϕ ρ s , 0 β p + ( 1 − ϕ ) ρ f , 0 β f ] g ( T − T c ) + μ 0 M ∂ H ¯ ∂ Y − σ nf B X 2 V + σ nf B X B Y U

(4) ∂ T ∂ t + ∂ U T ∂ X + ∂ T V ∂ X = α nf ∂ 2 T ∂ X 2 + ∂ 2 T ∂ Y 2 ,

where α nf = K eff ( ρ C p ) nf , 0 , U and V are the horizontal and vertical velocity components, respectively, T is the temperature, g is the gravity, P is the pressure, μ eff is the dynamic viscosity, ρ nf is the nanofluid density, β is the thermal expansion coefficient, suffixes p and f denote the nanoparticle and heat transfer fluid, respectively, and ( ρ C p ) nf is the nanofluid heat capacity. In cases where the various properties of both the metal nanoparticles suspended and base fluid are known, it becomes necessary to compute the physical properties of the nanofluid. The subsequent equations facilitate this calculation. The symbol n f denotes the nanofluid’s effective properties, derived based on the nanoparticle concentration in the base fluid. The nanofluid dynamic viscosity is determined using the Brinkmann model [37], while the thermal conductivity is computed using the Maxwell model [38–40]. The expressions employed to evaluate the nanofluid properties are discussed below.

The relationship for effective viscosity in this context, as provided by Brinkman [37], is utilized and expressed as follows:

μ nf = μ f ( 1 − ϕ ) 2.5 .

The mathematical expression for the nanofluid density is

ρ nf = ( 1 − ϕ ) ρ f + ϕ ρ p .

And the specific heat capacity is evaluated by the relation

( ρ C p ) nf = ( 1 − ϕ ) ( ρ C p ) f + ϕ ( ρ C p ) p ,

as presented by Xuan and Li [7].

The determination of the thermal conductivity of a nanofluid involves the application of Maxwell-Garnett’ approximation model (MG model). Specifically designed for a two-component system comprising nanoparticles with a spherical shape, the MG model provides the following expression:

K nf K f = ( K p + 2 K f ) − 2 ϕ ( K f − K p ) ( K p + 2 K f ) + ϕ ( K f − K p ) .

For the above assumptions, the boundary conditions of the fluid model are

(5) I . U = 0 , V = 1 ( or − 1 ) for X = 0 , 0 ≤ Y ≤ 1 . I I . U = 0 , V = 1 ( or − 1 ) for X = 1 , 0 ≤ Y ≤ 1 . I I I . U = 0 , V = 1 for X = 0 , 0 ≤ Y ≤ 1 ; ∂ T ∂ Y = 0 for Y = 0 , 0 ≤ X ≤ 1 . I V . U = 0 , V = 0 for X = 0 , 0 ≤ Y ≤ 1 ; ∂ T ∂ Y = 0 for Y = 1 , 0 ≤ X ≤ 1 .

2.2 Heat transfer

The heat transfer is calculated by the Nusselt number along the heated wall of the cavity

Nu = h nf H k f ,

where h nf is the heat transfer coefficient formulated as

h nf = q T H − T c .

Here, q is the wall heat flux per unit area given by

q = − k nf ( T H − T c ) H ∂ T ∂ X X = 0 .

As a result,

Nu = − k nf k f ∂ T ∂ X .

3 Numerical procedure

The numerical procedure utilized an advanced computational framework, ANSYS-FLUENT software, which leverages the Finite Volume Method (FVM), a suite of sophisticated techniques for simulating nanofluid flow. ANSYS-FLUENT is a renowned commercial CFD software known for its versatility and robust capabilities in handling complex flow problems to solve the governing equations, typically the Navier-Stokes equations, which follow the conservation of mass, momentum, and energy within a fluid. The steps involving modeling the fluid model and the solution process are presented with the help of a Flowchart as shown in Figure 2.

Figure 2 Flow Chart presenting the modeling and solution procedure.
Figure 2

Flow Chart presenting the modeling and solution procedure.

The spatial discretization aspect of the methodology is achieved by applying the second-order upwind scheme to enhance accuracy by considering the directional characteristics of fluid flow. The coupling of velocity and pressure is fundamental in fluid flow simulations. A pressure-based solver is employed in this numerical procedure, and the coupling is managed using the SIMPLE algorithm. The SIMPLE algorithm is an iterative approach that alternates between solving for velocity and pressure fields, ensuring a consistent and physically meaningful solution. This iterative process is critical for capturing the intricacies of the pressure-velocity coupling, which is essential for accurately representing fluid dynamics. Convergence criteria play a pivotal role in determining the accuracy and reliability of the numerical solution. The specified error tolerances of 1 0 − 7 for the continuity and momentum equations and 1 0 − 8 for the energy equation act as thresholds for the iterative solution process. Convergence is declared when the changes in these variables lie below the stipulated tolerance values. This meticulous convergence control is crucial for affirming the stability and accuracy of the obtained solution. This numerical procedure combines the computational power of ANSYS-FLUENT with the precision of the FVM second-order upwind scheme, and the sophistication of the SIMPLE algorithm for pressure-velocity coupling. The stringent convergence criteria ensure that the simulation results meet high accuracy standards and provide a reliable and physically meaningful representation of fluid flow phenomena. This comprehensive approach is essential for tackling complex fluid dynamics problems in various engineering and scientific applications.

3.1 Validation

After implementing the methodology mentioned above, the numerical outcomes obtained for the current investigation are validated with the existing attempt of Alsabery et al. [41] from the available literature. The numerical results are validated by neglecting the extra assumptions and parameters of the study of Alsabery et al. [41]. The novel assumptions and parameters that differ from the existing attempt are considered zero for validation purposes. The numerical outcomes for the Nusselt number are validated and are shown in Figure 3, which reveals that the outcomes agree with the validation. Then, the simulations proceeded further to perform the parametric analysis of the article.

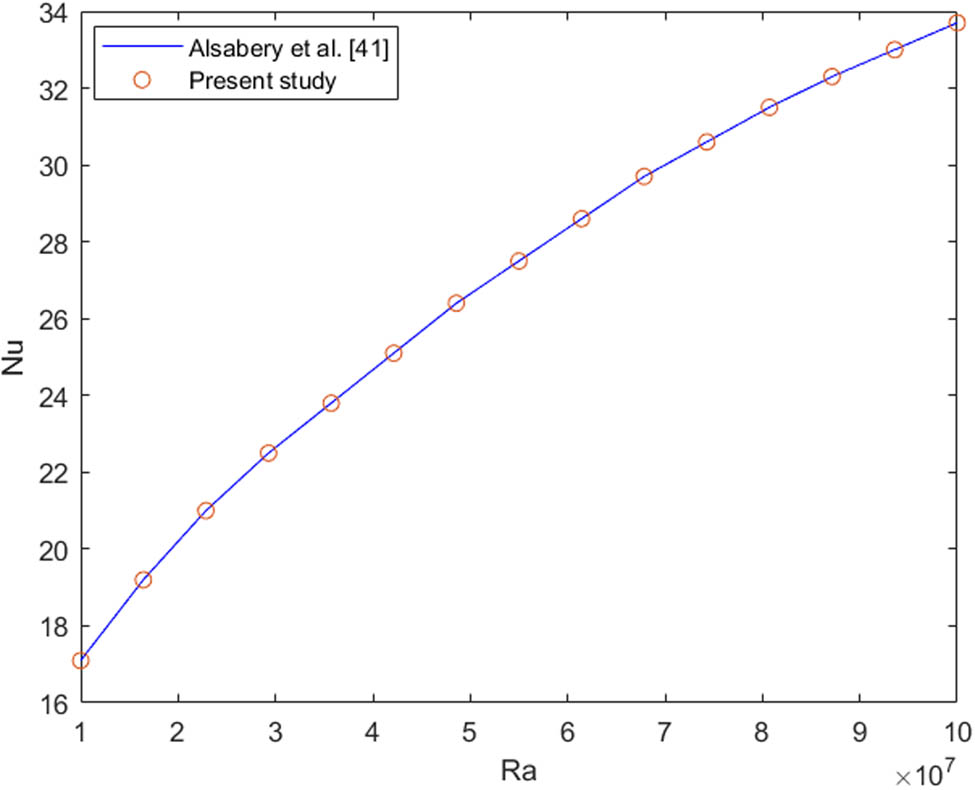

Figure 3 Validation plot for the numerical outcomes of the current investigation with existing literature by Alsabery et al. [41].
Figure 3

Validation plot for the numerical outcomes of the current investigation with existing literature by Alsabery et al. [41].

4 Graphical results

The investigation encompasses a range of parameters crucial for understanding heat transfer characteristics in the nanofluid-filled cavity. The nanofluid concentration, magnetic field parameter, and Reynolds number are key variables. The Nusselt number, a fundamental indicator of heat transfer by convection, is analyzed concerning these parameters to quantify the system’s thermal performance. This section shows the numerical findings related to the mixed convective fluid flow and characteristics of heat transfer for Cu–water nanofluid within a lid-driven square cavity subjected to an applied magnetic field. The analysis pertains to the third scenario, wherein both vertical walls move upward, resulting in the synergy of buoyancy and shear forces along the right wall. In contrast, the left wall experiences the contrary effect. Consequently, it is anticipated that the predominant circulation will occur on the right side of the cavity. The defaults of the considered influential physical parameters are Ri = 0.1, Gr = 1 0 4 , Pr = 0.67, ϕ = 0, 1, 2%. The graphs for the same have been shown below.

The velocity profile for various mass fractions is illustrated in Figure 4. As the intensity of the applied magnetic field increases, the velocity decreases for each mass fraction. Notably, this effect is most pronounced when the mass fraction of Cu is at its highest value. This implies that a stronger magnetic field corresponds to a more significant decrease in velocity. Also, the velocity of the nanofluid decreases with an increase in the nanofluid concentration. This is due to the effect of viscosity influenced by the concentration of the nanoparticles. A higher concentration of the nanoparticles enhances the viscosity of the nanofluid, and highly viscous fluid exhibits lesser momentum in the fluid flow.

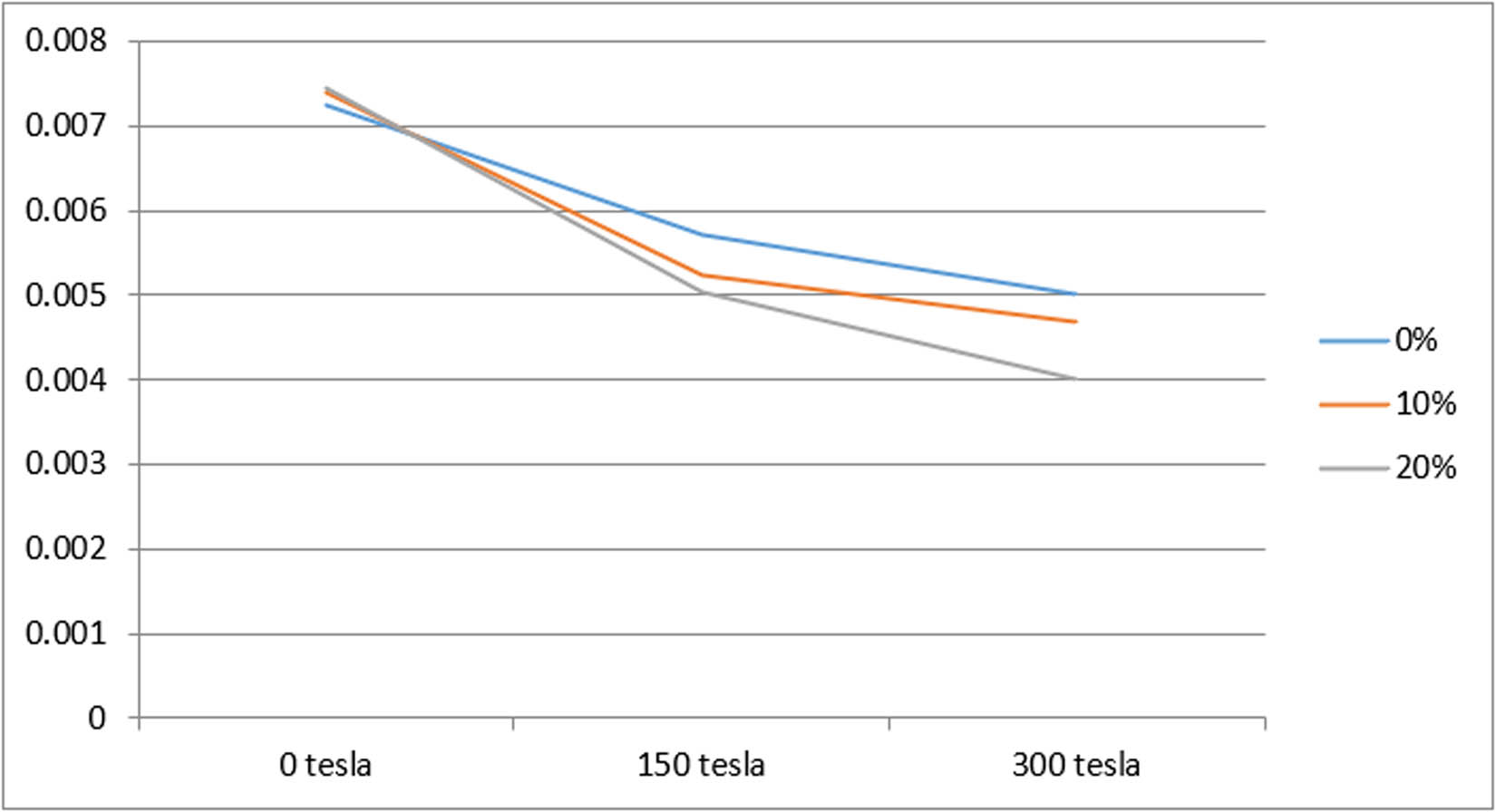

Figure 4 Velocity profile for different values of mass fractions.
Figure 4

Velocity profile for different values of mass fractions.

Additionally, Figure 5 displays the velocity trend for all cases studied. The observed outcome can be readily understood, as the left wall’s upward and the right wall’s downward motion result in a gradual shift of fluid velocity in the y-direction from positive to negative as we traverse from x = 0 m to x = 0.5 m. Moving on to a pivotal aspect of the current investigation, we delve into the variation in heat transfer rate concerning mass fraction and magnetic field. The depicted trend illustrates the change in the Nusselt number within the square cavity, a direct indicator of the heat transfer rate. A more significant Nusselt number corresponds to a greater heat transfer coefficient, indicative of increased heat transfer. The behavior of the Nusselt number for different input parameters is presented in Figure 6. The Figure reveals that the magnetic field to the enclosure supresses the velocity profile due to the Lorentz force, which results in a notable decrease in convection intensity. Consequently, the Nusselt number shows a declining trend with the magnetic field parameter enhancement. The escalation in the thermal boundary layer due to mass fraction is attributed to the higher thermal conductivity of the nanofluid. Increased thermal conductivity corresponds to higher thermal diffusivity, leading to reduced temperature gradients and an enlargement of the boundary thickness. Although the escalating thermal boundary layer thickness drops the Nusselt number, it is important to note that the Nusselt number is the product of the temperature gradient and the heat transfer coefficient. It is observed that the lesser thermal gradients due to the presence of nanoparticles are significantly smaller than the thermal conductivity ratio-consequently, an increase in mass fraction results in a reduction in the Nusselt number.

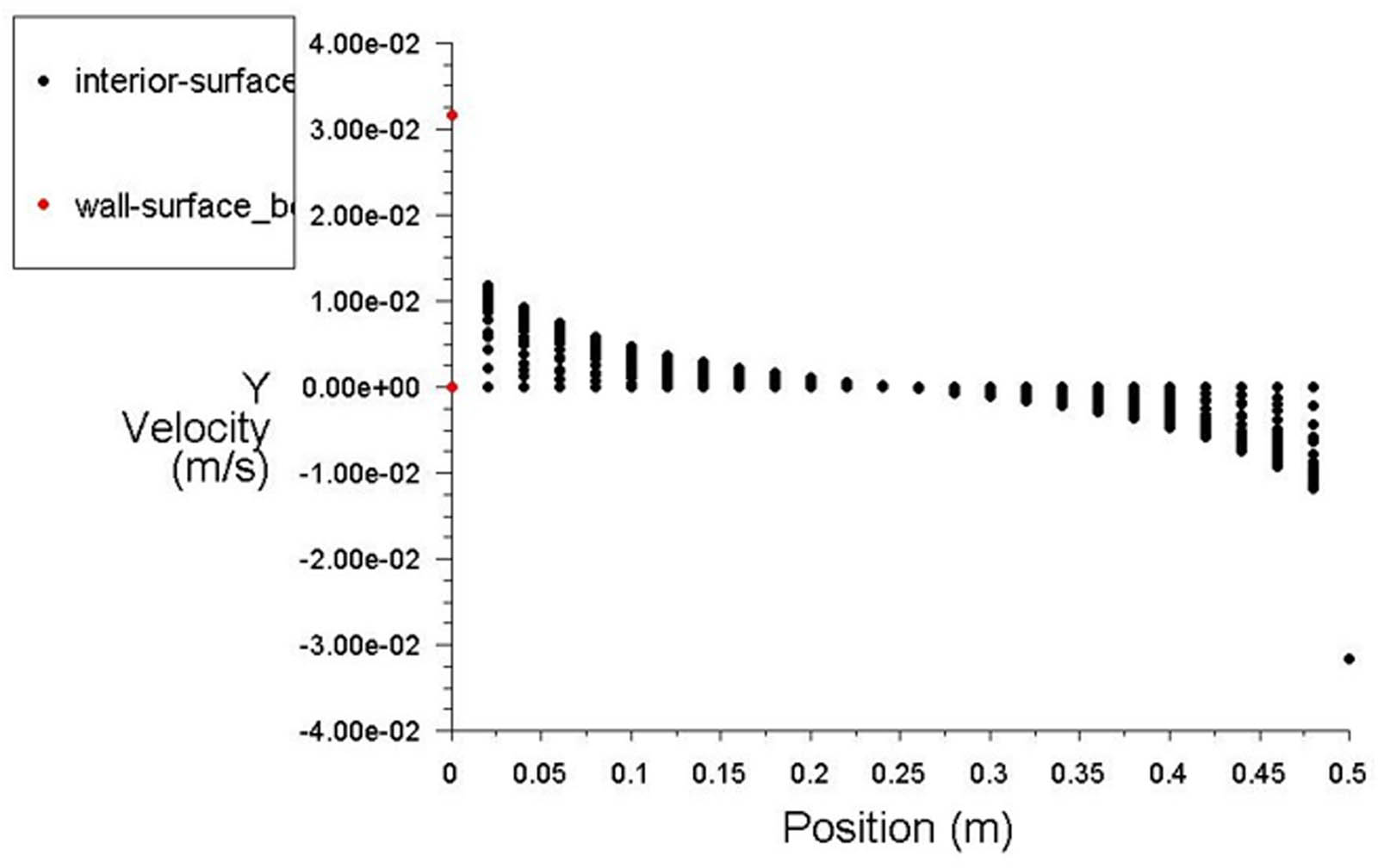

Figure 5 Y-velocity trend for different mass fractions.
Figure 5

Y-velocity trend for different mass fractions.

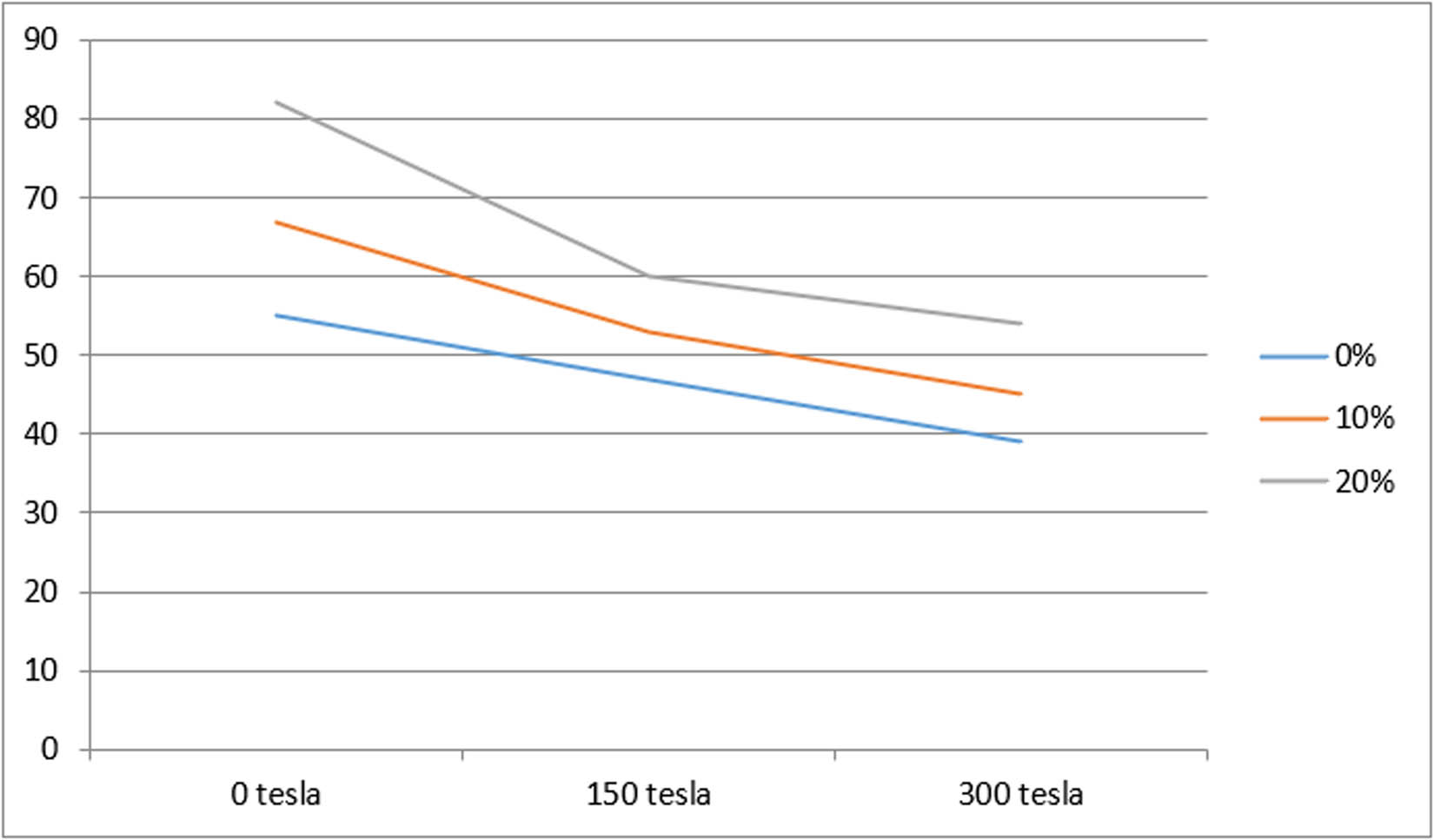

Figure 6 Nusselt number variation with mass fraction and magnetic field.
Figure 6

Nusselt number variation with mass fraction and magnetic field.

Figures 7, 8, 9 depict velocity contours corresponding to various levels of magnetic field strength. The magnetic field intensity values considered are 0, 150, and 300 T, accompanied by 0% mass fraction. Notably, a discernible reduction in fluid velocity is observed with the augmentation of the magnetic field. This observation aligns with existing literature, validating the consistency of the simulation outcomes with prior research. The phenomenon can be elucidated as follows: as water possesses diamagnetic properties, it inherently resists the influence of the applied magnetic field, resulting in a gradual decrease in velocity as the magnetic field strength escalates.

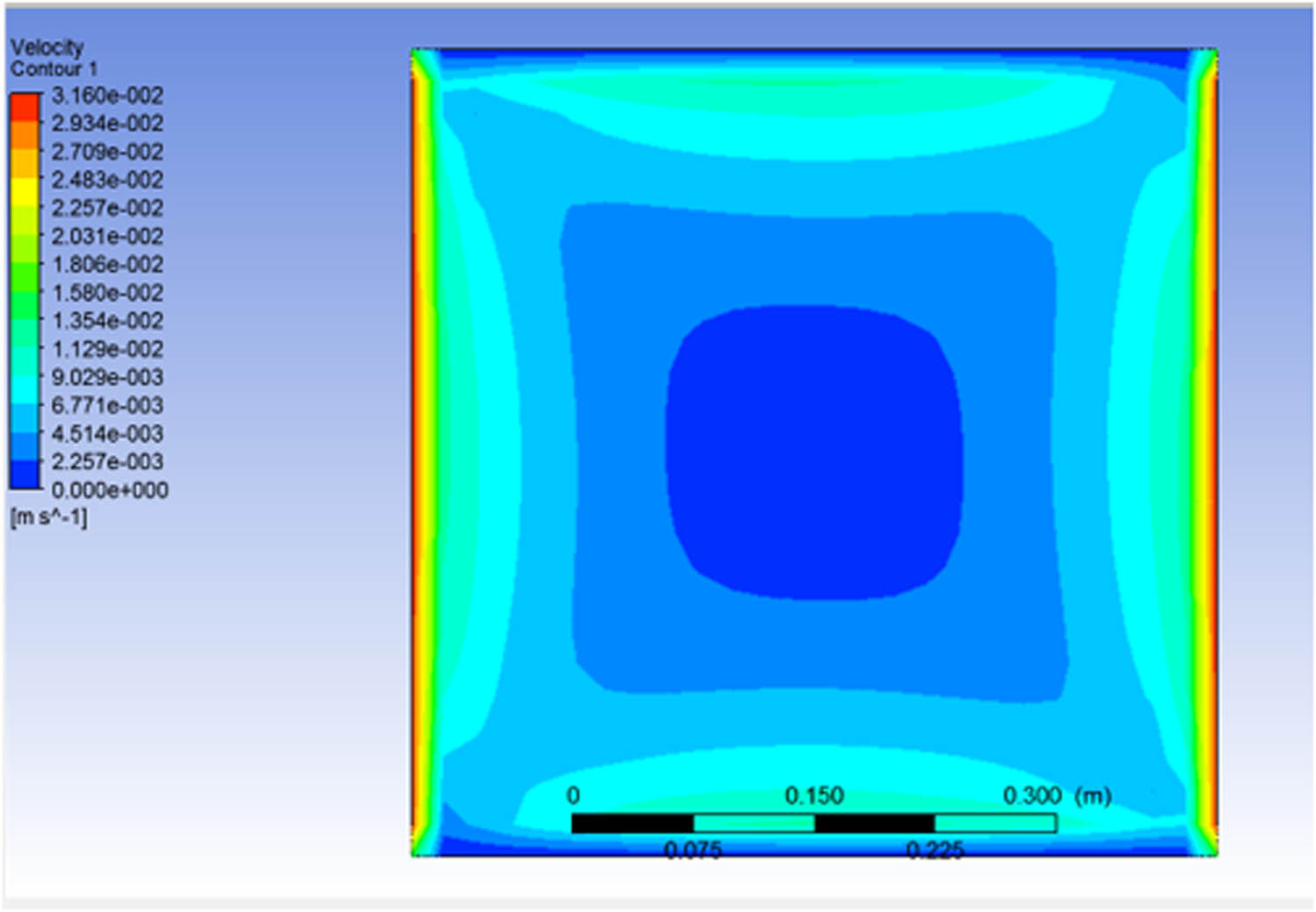

Figure 7 Velocity contour for mass fraction 0% and magnetic field 0 T.
Figure 7

Velocity contour for mass fraction 0% and magnetic field 0 T.

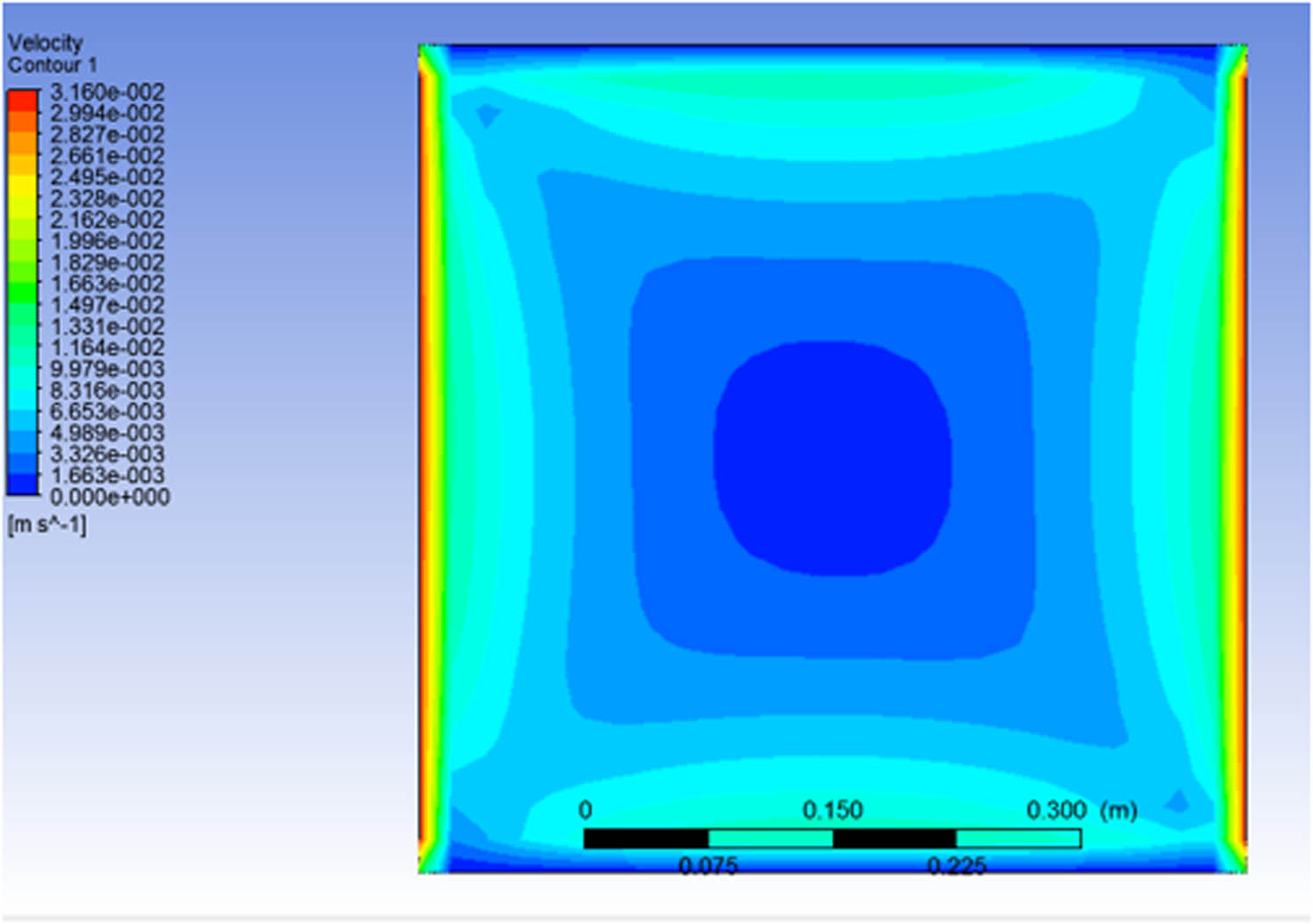

Figure 8 Velocity contour for mass fraction 0% and magnetic field 150 T.
Figure 8

Velocity contour for mass fraction 0% and magnetic field 150 T.

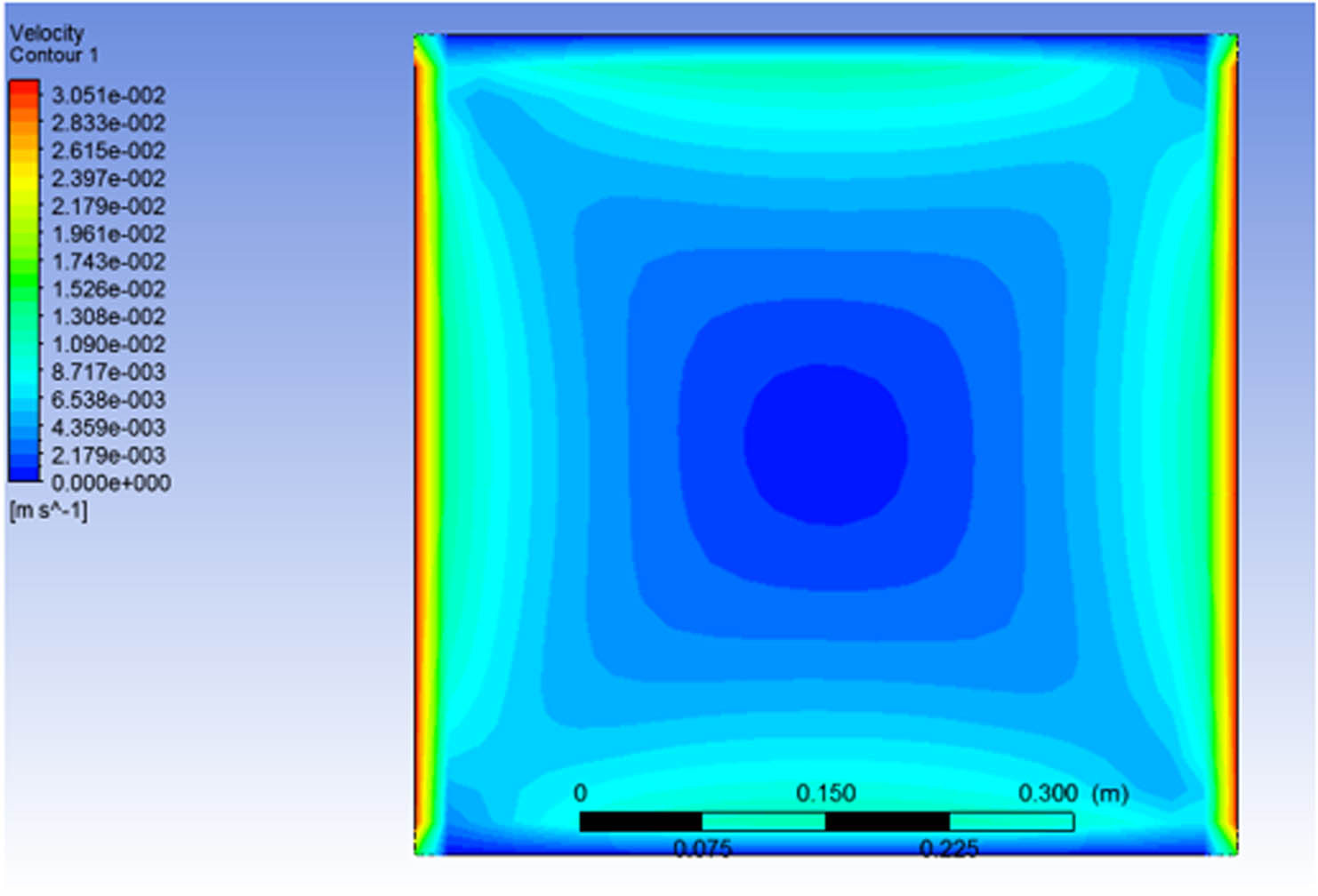

Figure 9 Velocity contour for mass fraction 0% and magnetic field 300 T.
Figure 9

Velocity contour for mass fraction 0% and magnetic field 300 T.

The findings about a 1% mass fraction of Cu nanofluid are elucidated in Figures 10, 11, 12, incorporating velocity contours. The flow velocity at each instance is explicitly delineated, with specific reference to the movement of the left vertical wall (hot, 343 K) in the positive y direction at a rate of 0.00316 m/s, and the right vertical wall (cold, 300 K) in the negative y direction, also at a speed of 0.00316 m/s. The velocity contour analysis reveals a predominant clockwise recirculating eddy encompassing a significant portion of the cavity. Concurrently, a secondary eddy manifests in a counter-clockwise direction at the right corner of the bottom. With an escalation in magnetic field intensity, the secondary eddy gradually enlarges while the primary eddy diminishes in size. Isotherm representations indicate that the magnetic field exerts a suppressive influence on the convective heat transfer mechanism. This is attributed to the emergence of uniformly distributed isotherms within the cavity, particularly at the bottom.

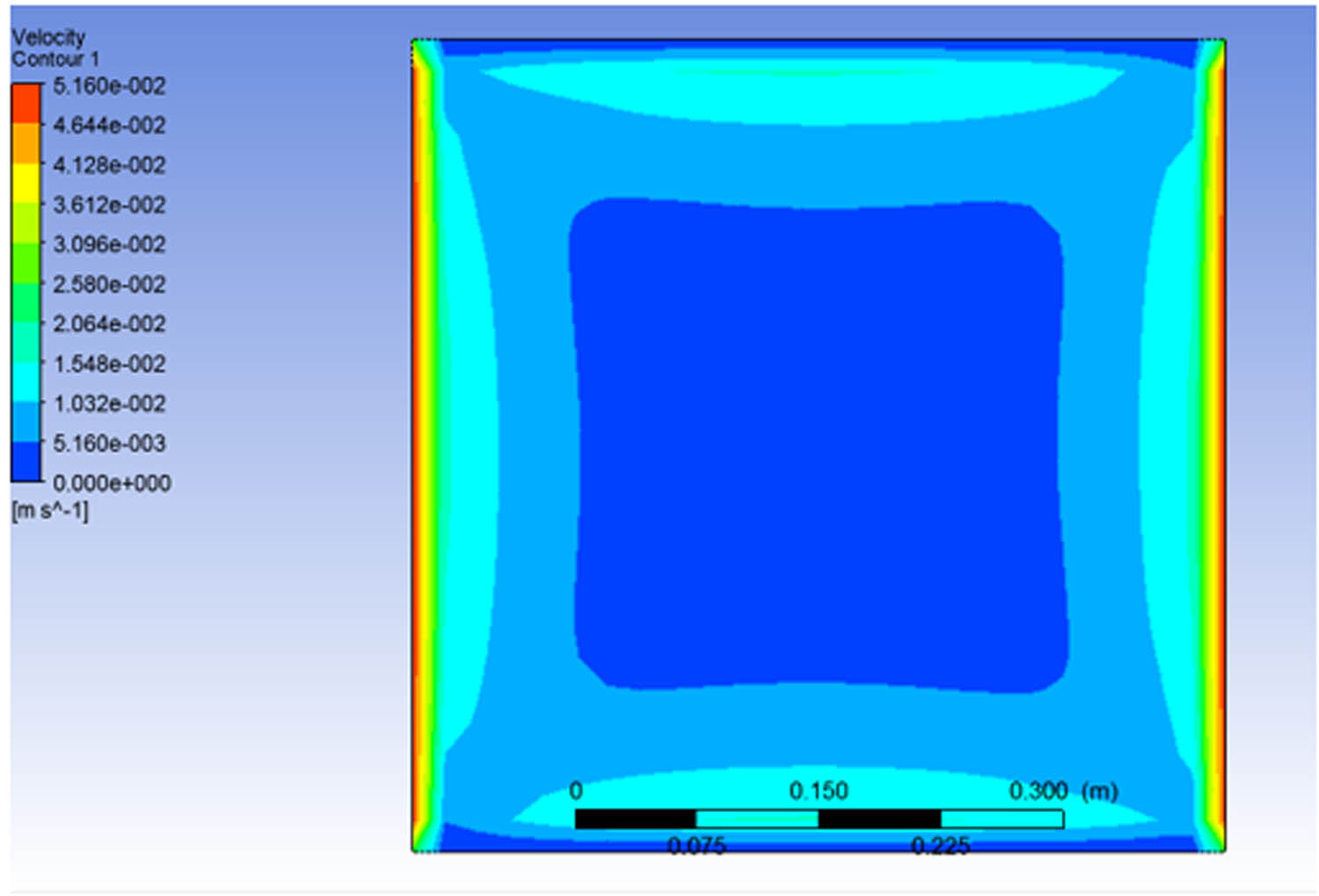

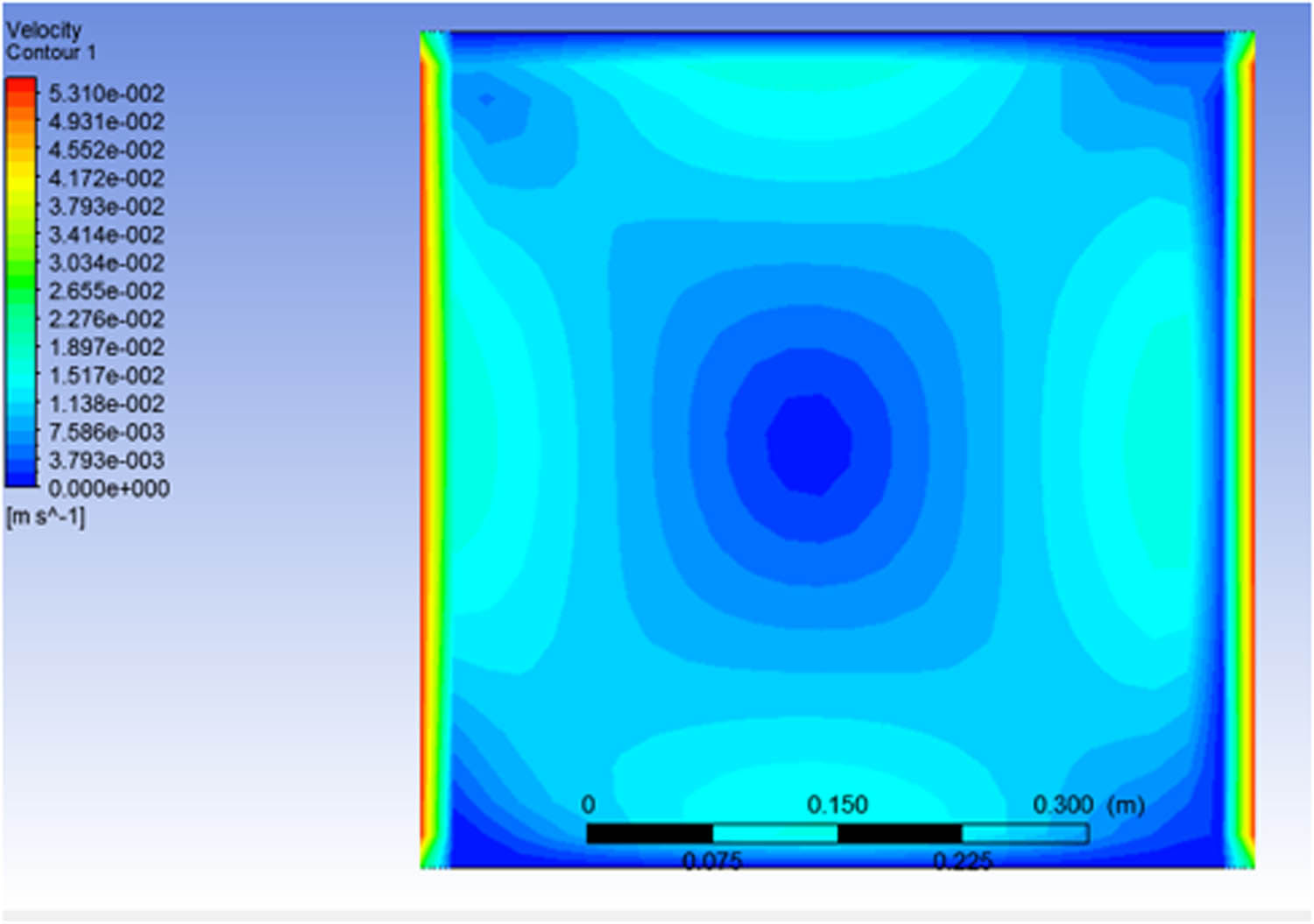

Figure 10 Velocity contour for mass fraction 10% and magnetic field 0 T.
Figure 10

Velocity contour for mass fraction 10% and magnetic field 0 T.

Figure 11 Velocity contour for mass fraction 10% and magnetic field 150 T.
Figure 11

Velocity contour for mass fraction 10% and magnetic field 150 T.

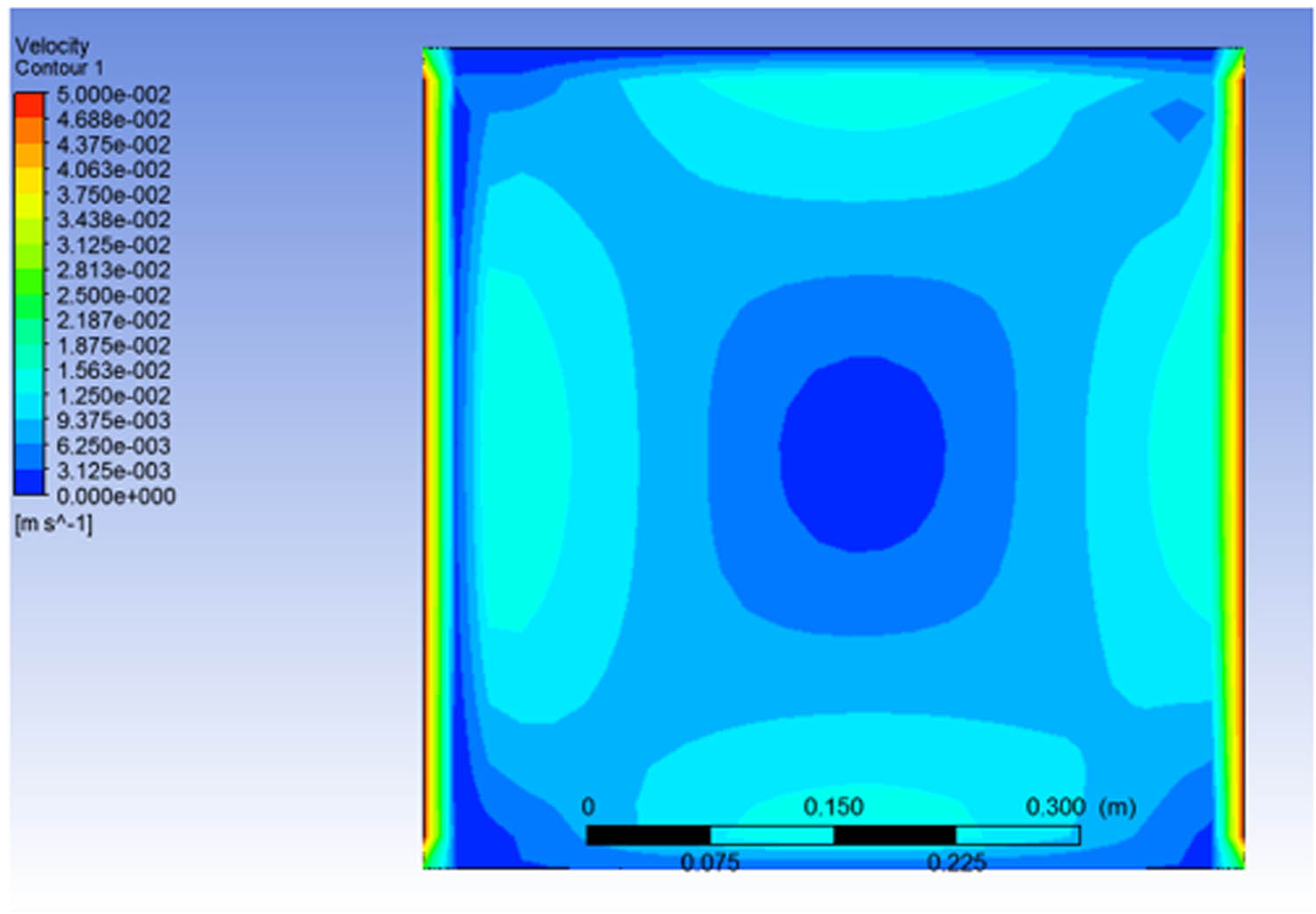

Figure 12 Velocity contour for mass fraction 10% and magnetic field 300 T.
Figure 12

Velocity contour for mass fraction 10% and magnetic field 300 T.

The velocity contours for a nanofluid with a mass concentration of 2% under varying magnetic field strengths are illustrated in Figures 13, 14, 15. The contours depict a prevalence of shear effects attributed to the motion of the upper lid without a magnetic field. A predominant clockwise recirculating eddy characterizes the fluid flow at 0 T, indicating that the flow is primarily propelled downward by the movement of the top lid. With the introduction of a magnetic field (150 T), the primary recirculating eddy shifts its position, moving closer to the moving wall while gaining strength. Upon further increase in the magnetic field to 300 T, a counter-clockwise recirculating eddy emerges along the bottom wall. The observed reduction in nanofluid velocity for varying magnetic fields opens up avenues for innovative applications in the medical field. Controlled blood flow during surgeries is critical for ensuring precision and minimizing risks. The findings of this study, if validated experimentally, could contribute to the development of advanced medical devices and procedures, making surgeries more manageable and enhancing patient outcomes.

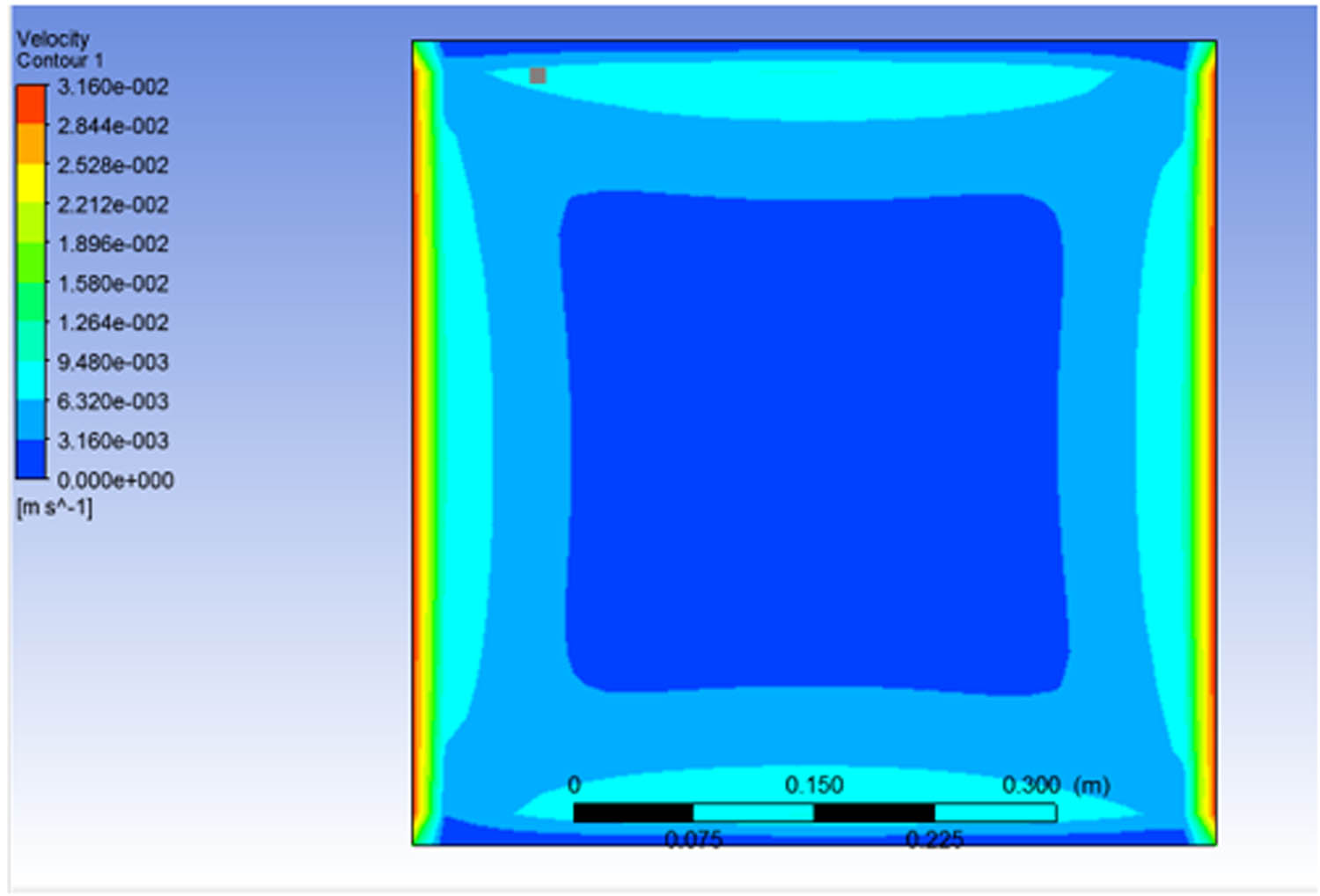

Figure 13 Velocity contour for mass fraction 2% and magnetic field 0 T.
Figure 13

Velocity contour for mass fraction 2% and magnetic field 0 T.

Figure 14 Velocity contour for mass fraction 2% and magnetic field 150 T.
Figure 14

Velocity contour for mass fraction 2% and magnetic field 150 T.

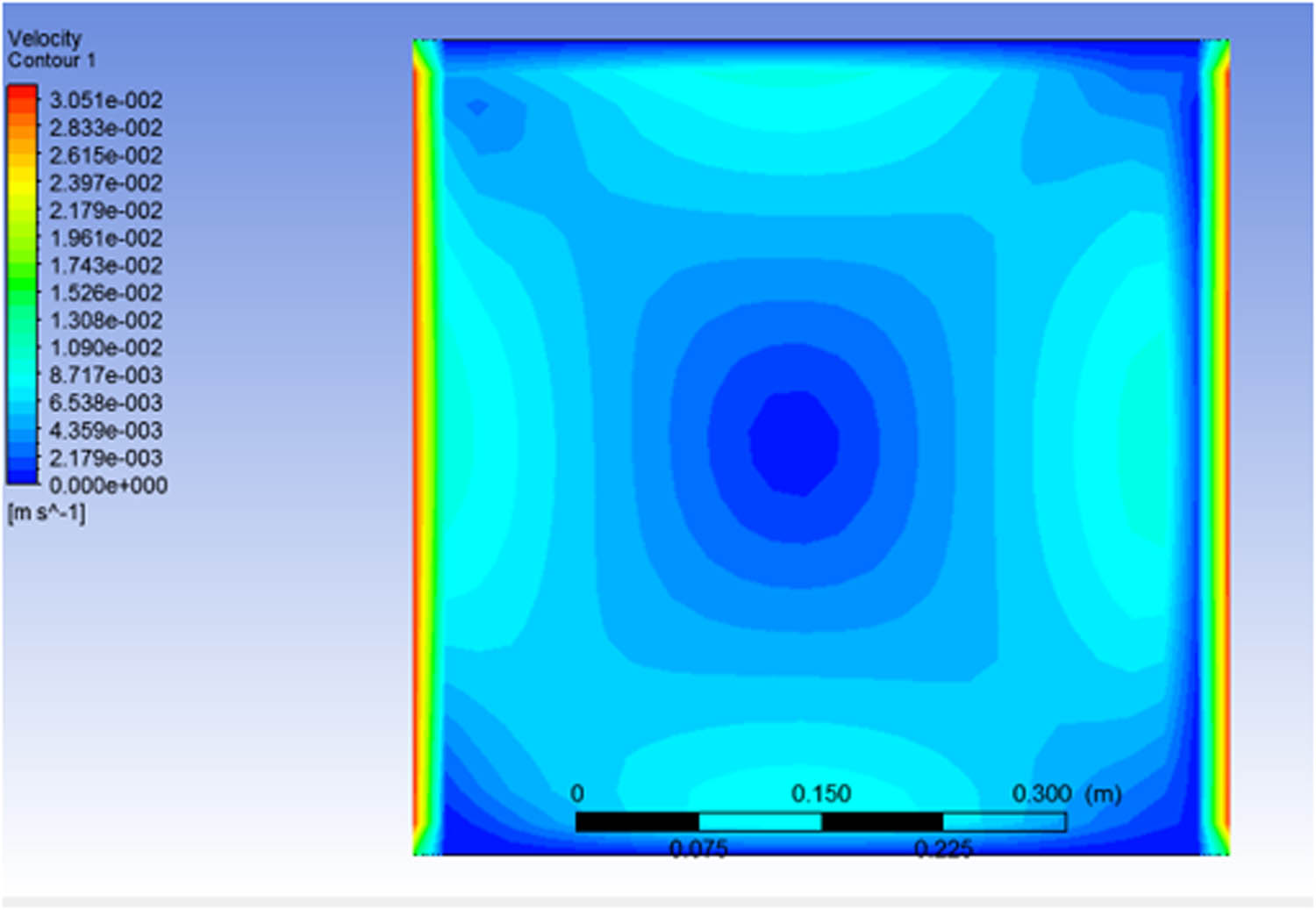

Figure 15 Velocity contour for mass fraction 2% and magnetic field 300 T.
Figure 15

Velocity contour for mass fraction 2% and magnetic field 300 T.

5 Conclusion

The current attempt investigates the heat transmission for the unsteady, incompressible, two-dimensional mixed convective Cu–water nanofluid flow with the influence of a magnetic field over a lid-driven square cavity. By comprehensively examining the impact of mass fraction, magnetic fields, and Reynolds number, the study provides a holistic understanding of the factors shaping convective heat transfer in Cu–water nanofluids. These insights are pivotal for developing novel geometries to harness enhanced and controlled heat transfer, with applications in diverse fields such as solar collectors and electronic devices. The model is developed using ANSYS-FLUENT for a lid-driven square cavity, and the key findings are summarized as follows:

  • The enhancement of Rayleigh number escalates the Nusselt number, i.e., heat transfer rates.

  • An escalation in the magnetic field’s intensity reduces the velocity profiles for constant mass fractions.

  • The fluid velocity reduces with augmenting the mass fraction of the nanofluid.

  • Fluid temperature increases with an escalation in the nanofluid concentration.

  • The magnetic field absence dominates the shear effect in contour plots.

  • Nusselt number diminishes with an improvement in magnetic field strength for all mass fraction ratios.

  • Nusselt number drops with an increase in nanoparticle concentration in the nanofluid.

The results of this investigation provide crucial information about the behavior of nanofluids in heat transfer. These findings can be instrumental in making novel geometries to achieve controlled and improved heat transfer, particularly for applications in solar collectors and electronic devices. This research endeavors to advance our understanding of mixed convection heat transmission in a lid-driven square cavity with Cu–water nanofluids under the effect of a magnetic field. The findings have potential implications in biomedical applications, offering a novel avenue for the controlled manipulation of nanofluid flow. Furthermore, the study contributes to the broader field of nanofluid research by providing valuable insights that can inform the design of innovative geometries for enhanced and controlled heat transfer in various technological applications.

  1. Funding information: D.L. acknowledges partial financial support from Centre of Excellence with BASAL/ANID financing, AFB220001 and FONDECYT 1231020. The research was supported by Researchers Supporting Project number (RSP2025R158), King Saud University, Riyadh, Saudi Arabia. The author B.K.S. expresses his sincere thanks to DST-SERB, New Delhi (Award letter No: MTR/2022/000315) under the MATRICS scheme.

  2. Author contributions: Madhu Sharma: conceptualization, methodology, and writing – original draft. Bhupendra K. Sharma: formal analysis, investigation, and methodology, software. Anup Kumar: methodology, validation, and writing – original draft. Bandar Almohsen: formal analysis, supervision, and funding acquisition. David Laroze: funding acquisition, supervision, writing – review and editing, Kamil Urbanowicz: supervision, funding acquisition, and writing – review and editing. All authors have accepted responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

  4. Data availability statement: The data that support the findings of this study are available from the corresponding author upon reasonable request.

References

[1] Poulikakos D, Bejan A. Natural convection experiments in a triangular enclosure. J Heat Transfer. 1983;105:652–5. 10.1115/1.3245635Search in Google Scholar

[2] Peric M, Natural convection in trapezoidal cavities. Numer Heat Transfer Part A. 1993;24:213–9. 10.1080/10407789308902614Search in Google Scholar

[3] Mao Z, Hosoya N, Maeda S. Flexible electrohydrodynamic fluid-driven valveless water pump via immiscible interface. J Cyborg Bionic Syst. 2024;5:0091. 10.34133/cbsystems.0091Search in Google Scholar PubMed PubMed Central

[4] Borjigin S, Zhao W, Fu W, Liang W, Bai S, Ma J, et al. Review of plate heat exchanger utilized for gases heat exchange. J Renew Sustain Energy Rev. 2025;210:115224. 10.1016/j.rser.2024.115224Search in Google Scholar

[5] Mahmud S, Das PK, Hyder N. Laminar natural convection around an isothermal square cylinder at different orientations. Int Commun Heat Mass Transf. 2002;29:993–1003. 10.1016/S0735-1933(02)00419-0Search in Google Scholar

[6] Li N, Morozov I, Fu L, Deng W. Unified nonlinear elasto-visco-plastic rheology for bituminous rocks at variable pressure and temperature. J Geophys Res Solid Earth. 2025;130(3):e2024JB029295. 10.1029/2024JB029295Search in Google Scholar

[7] Xuan Y, Li Q. Heat transfer enhancement of nanofluids Int J Heat Fluid Flow. 2000;21:58–64. 10.1016/S0142-727X(99)00067-3Search in Google Scholar

[8] Kumawat C, Sharma BK, Muhammad T, Ali L. Computer simulation of two phase power-law nanofluid of blood flow through a curved overlapping stenosed artery with induced magnetic field: entropy generation optimization. Int J Numer Methods Heat Fluid Flow. 2023;34(2):741–72. 10.1108/HFF-04-2023-0195Search in Google Scholar

[9] Gandhi R, Sharma BK, Al-Mdallal QM, Mittal HVR. Entropy generation and shape effects analysis of hybrid nanoparticles (Cu-Al2O3/blood) mediated blood flow through a time-variant multi-stenotic artery. Int J Thermofluids. 2023;18:100336. 10.1016/j.ijft.2023.100336Search in Google Scholar

[10] Sharma BK, Khanduri U, Gandhi R, Muhammad T. Entropy generation analysis of a ternary hybrid nanofluid (Au-CuO-GO/blood) containing gyrotactic microorganisms in bifurcated artery. Int J Numer Methods Heat Fluid Flow. 2024;34(2):980–1020. 10.1108/HFF-07-2023-0439Search in Google Scholar

[11] Sharma BK, Kumar A, Almohsen B, Fernandez-Gamiz U. Computational analysis of radiative heat transfer due to rotating tube in parabolic trough solar collectors with Darcy Forchheimer porous medium. Case Stud Therm Eng. 2023;51:103642. 10.1016/j.csite.2023.103642Search in Google Scholar

[12] Kumar A, Sharma BK, Bin-Mohsen B, Fernandez-Gamiz U. Statistical analysis of radiative solar trough collectors for MHD Jeffrey hybrid nanofluid flow with gyrotactic microorganism: entropy generation optimization. Int J Numer Meth Heat Fluid Flow. 2024;34(2):948–79. 10.1108/HFF-06-2023-0351Search in Google Scholar

[13] Chaudhary R, Sharma BK, Jha AK. Radiation effect with simultaneous thermal and mass diffusion in MHD mixed convection flow from a vertical surface with Ohmic heating. Rom J Phys. 2006;51(7/8):715. Search in Google Scholar

[14] Muthtamilselvan M, Kandaswamy P, Lee J. Heat transfer enhancement of Cu-water nanofluids in a lid-driven enclosure. Commun Nonlinear Sci Numer Simulat. 2010;15(6):1501–10. 10.1016/j.cnsns.2009.06.015Search in Google Scholar

[15] Valipour MS, Ghadi AZ. Numerical investigation of fluid flow and heat transfer around a solid circular cylinder utilizing nanofluid. Int Comm Heat Mass Transfer. 2011;38:296–1304. 10.1016/j.icheatmasstransfer.2011.06.007Search in Google Scholar

[16] Sharma BK, Gandhi R, Mishra NK, Al-Mdallal QM Entropy generation minimization of higher-order endothermic/exothermic chemical reaction with activation energy on MHD mixed convective flow over a stretching surface. Sci Rep. 2022;12(1):17688. 10.1038/s41598-022-22521-5Search in Google Scholar PubMed PubMed Central

[17] Sharma BK, Khanduri U, Mishra NK, Mekheimer KS. Combined effect of thermophoresis and Brownian motion on MHD mixed convective flow over an inclined stretching surface with radiation and chemical reaction. Int J Modern Phys B. 2023;37(10):2350095. 10.1142/S0217979223500959Search in Google Scholar

[18] Sarkar S, Ganguly S, Biswas G. Mixed convective heat transfer of nanofluids past a circular cylinder in cross flow in unsteady regime. Int J Heat Mass Transfer. 2012;55:4783–99. 10.1016/j.ijheatmasstransfer.2012.04.046Search in Google Scholar

[19] Gorla RSR, Hossain A. Mixed convective boundary layer flow over a vertical cylinder embedded in a porous medium saturated with a nanofluid. Int J Numer Methods Heat Fluid Flow. 2013;23(9):1393–405. 10.1108/HFF-03-2012-0064Search in Google Scholar

[20] Valipour MS, Masoodi R, Rashidi S, Bovand M, Mirhosseini M. A numerical study on convection around a square cylinder using Al2O3-H2O nanofluid. Therm Sci. 2014;18(4):1305–14. 10.2298/TSCI121224061VSearch in Google Scholar

[21] Pourmahmoud N, Ghafouri A, Mirzaee I. Numerical study of mixed convection heat transfer in lid-driven cavity utilizing nanofluid effect of type and model of nanofluid. Therm Sci. 2015;19(5):1575–90. 10.2298/TSCI120718053PSearch in Google Scholar

[22] Bovand M, Rashidi S, Esfahani JA. Enhancement of heat transfer by nanofluids and orientations of the equilateral triangular obstacle. Energy Convers Manag. 2016;97:212–23. 10.1016/j.enconman.2015.03.042Search in Google Scholar

[23] Sharma BK, Gandhi R. Combined effects of Joule heating and non-uniform heat source/sink on unsteady MHD mixed convective flow over a vertical stretching surface embedded in a Darcy Forchheimer porous medium. Propuls Power Res. 2022;11(2):276–92. 10.1016/j.jppr.2022.06.001Search in Google Scholar

[24] Chaudhary RC, Sharma BK. Combined heat and mass transfer by laminar mixed convection flow from a vertical surface with induced magnetic field. J Appl Phys. 2006;99:034901. 10.1063/1.2161817. Search in Google Scholar

[25] Sharma BK, Jha AK, Chaudhary RC. MHD forced flow of a conducting viscous fluid through a porous medium induced by an impervious rotating disk. Rom J Phys. 2007;52(1/2):73–84. Search in Google Scholar

[26] Pirmohammadi M, Ghassemi M, Sheikhzadeh GA. Effect of a magnetic field on buoyancy-driven convection in differentially heated square cavity. IEEE Trans Magn. 2009;45(1):407–11. 10.1109/TMAG.2008.2008685Search in Google Scholar

[27] Sharma BK, Sharma PK, Chand T, Chaudhary RC. Analytical investigation of the hydromagnetic flow in a porous medium due to periodically heated oscillating plate. Int J Appl Mech Eng. 2012;17(4):1367–75. Search in Google Scholar

[28] Aghaei A, Khorasanizadeh H, Sheikhzadeh G, Abbaszadeh M. Numerical study of magnetic field on mixed convection and entropy generation of nanofluid in a trapezoidal enclosure. J Magn Magn Mater. 2016;403:133–45. 10.1016/j.jmmm.2015.11.067Search in Google Scholar

[29] Mishra A, Sharma BK. MHD mixed convection flow in a rotating channel in the presence of an inclined magnetic field with the Hall effect. Thermo Phys. 2017;90(6):1563–74. 10.1007/s10891-017-1710-ySearch in Google Scholar

[30] Rashidia S, Bovandb M, Esfahania JA. Opposition of MHD and AL2O3-water nanofluid flow around a vertex facing triangular obstacle. J Mol Liq. 2016;215:276–84. 10.1016/j.molliq.2015.12.034Search in Google Scholar

[31] Zhao Q, Yan S, Zhang B, Fan K, Zhang J, Li W. An on-chip viscoelasticity sensor for biological fluids. J Cyborg Bionic Syst. 2023;4:0006. 10.34133/cbsystems.0006Search in Google Scholar PubMed PubMed Central

[32] Sharma S, Maiti DK, Alam MM, Sharma BK. Nanofluid flow over a heated square cylinder near a wall under the incident of Couette flow. J Mech Sci Tech. 2018;32(2):659–70. 10.1007/s12206-018-0113-5Search in Google Scholar

[33] Sharma BK, Kumawat C, Khanduri U, Mekheimer KS. Numerical investigation of the entropy generation analysis for radiative MHD power-law fluid flow of blood through a curved artery with hall effect. Waves Random Complex Media. 2023;1–38. 10.1080/17455030.2023.2226228Search in Google Scholar

[34] Kumar A, Sharma BK, Gandhi R, Mishra NK, Bhatti MM. Response surface optimization for the electromagnetohydrodynamic Cu-polyvinyl alcohol/water Jeffrey nanofluid flow with an exponential heat source. J Magn Magn Mater. 2023;576:170751. 10.1016/j.jmmm.2023.170751Search in Google Scholar

[35] Khanduri U, Sharma BK, Sharma M, Mishra NK, Saleem N. Sensitivity analysis of electroosmotic magnetohydrodynamics fluid flow through the curved stenosis artery with thrombosis by response surface optimization. Alexandr Eng J. 2023;75:1–27. 10.1016/j.aej.2023.05.054Search in Google Scholar

[36] Sharma BK, Kumar A, Mishra NK, Albaijan I, Fernandez-Gamiz U. Computational analysis of melting radiative heat transfer for solar riga trough collectors of Jeffrey hybrid-nanofluid flow: A new stochastic approach. Case Studies Thermal Eng. 2023;52:103658. 10.1016/j.csite.2023.103658Search in Google Scholar

[37] Brinkman HC. The viscosity of concentrated suspensions and solutions. J Chem Phys. 1952;20:571–81. 10.1063/1.1700493Search in Google Scholar

[38] Maxwell-Garnett J. Colours in metal glasses and in metallic films. Philos Trans R Soc London Ser A. 1904;203:385–420. 10.1098/rsta.1904.0024Search in Google Scholar

[39] Hamilton RL, Crosser OK. Thermal conductivity of heterogeneous two-component systems. Ind Eng Chem Fundamen. 1962;1:187–91. 10.1021/i160003a005Search in Google Scholar

[40] Das PK, Li X, Liu ZS. Effective transport coefficients in PEM fuel cell catalyst and gas diffusion layers: Beyond Bruggeman approximation. Appl Energy 2010;87:2785–96. 10.1016/j.apenergy.2009.05.006Search in Google Scholar

[41] Alsabery AI, Tayebi T, Kadhim HT, Ghalambaz H, Hashim I, Chamkha AJ. Impact of two-phase hybrid nanofluid approach on mixed convection inside wavy lid-driven cavity having localized solid block. J Adv Res. 2021;30:63–74. Elsevier. 10.1016/j.jare.2020.09.008Search in Google Scholar PubMed PubMed Central

Received: 2024-09-11
Revised: 2024-12-07
Accepted: 2025-01-03
Published Online: 2025-08-19

© 2025 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Single-step fabrication of Ag2S/poly-2-mercaptoaniline nanoribbon photocathodes for green hydrogen generation from artificial and natural red-sea water
  3. Abundant new interaction solutions and nonlinear dynamics for the (3+1)-dimensional Hirota–Satsuma–Ito-like equation
  4. A novel gold and SiO2 material based planar 5-element high HPBW end-fire antenna array for 300 GHz applications
  5. Explicit exact solutions and bifurcation analysis for the mZK equation with truncated M-fractional derivatives utilizing two reliable methods
  6. Optical and laser damage resistance: Role of periodic cylindrical surfaces
  7. Numerical study of flow and heat transfer in the air-side metal foam partially filled channels of panel-type radiator under forced convection
  8. Water-based hybrid nanofluid flow containing CNT nanoparticles over an extending surface with velocity slips, thermal convective, and zero-mass flux conditions
  9. Dynamical wave structures for some diffusion--reaction equations with quadratic and quartic nonlinearities
  10. Solving an isotropic grey matter tumour model via a heat transfer equation
  11. Study on the penetration protection of a fiber-reinforced composite structure with CNTs/GFP clip STF/3DKevlar
  12. Influence of Hall current and acoustic pressure on nanostructured DPL thermoelastic plates under ramp heating in a double-temperature model
  13. Applications of the Belousov–Zhabotinsky reaction–diffusion system: Analytical and numerical approaches
  14. AC electroosmotic flow of Maxwell fluid in a pH-regulated parallel-plate silica nanochannel
  15. Interpreting optical effects with relativistic transformations adopting one-way synchronization to conserve simultaneity and space–time continuity
  16. Modeling and analysis of quantum communication channel in airborne platforms with boundary layer effects
  17. Theoretical and numerical investigation of a memristor system with a piecewise memductance under fractal–fractional derivatives
  18. Tuning the structure and electro-optical properties of α-Cr2O3 films by heat treatment/La doping for optoelectronic applications
  19. High-speed multi-spectral explosion temperature measurement using golden-section accelerated Pearson correlation algorithm
  20. Dynamic behavior and modulation instability of the generalized coupled fractional nonlinear Helmholtz equation with cubic–quintic term
  21. Study on the duration of laser-induced air plasma flash near thin film surface
  22. Exploring the dynamics of fractional-order nonlinear dispersive wave system through homotopy technique
  23. The mechanism of carbon monoxide fluorescence inside a femtosecond laser-induced plasma
  24. Numerical solution of a nonconstant coefficient advection diffusion equation in an irregular domain and analyses of numerical dispersion and dissipation
  25. Numerical examination of the chemically reactive MHD flow of hybrid nanofluids over a two-dimensional stretching surface with the Cattaneo–Christov model and slip conditions
  26. Impacts of sinusoidal heat flux and embraced heated rectangular cavity on natural convection within a square enclosure partially filled with porous medium and Casson-hybrid nanofluid
  27. Stability analysis of unsteady ternary nanofluid flow past a stretching/shrinking wedge
  28. Solitonic wave solutions of a Hamiltonian nonlinear atom chain model through the Hirota bilinear transformation method
  29. Bilinear form and soltion solutions for (3+1)-dimensional negative-order KdV-CBS equation
  30. Solitary chirp pulses and soliton control for variable coefficients cubic–quintic nonlinear Schrödinger equation in nonuniform management system
  31. Influence of decaying heat source and temperature-dependent thermal conductivity on photo-hydro-elasto semiconductor media
  32. Dissipative disorder optimization in the radiative thin film flow of partially ionized non-Newtonian hybrid nanofluid with second-order slip condition
  33. Bifurcation, chaotic behavior, and traveling wave solutions for the fractional (4+1)-dimensional Davey–Stewartson–Kadomtsev–Petviashvili model
  34. New investigation on soliton solutions of two nonlinear PDEs in mathematical physics with a dynamical property: Bifurcation analysis
  35. Mathematical analysis of nanoparticle type and volume fraction on heat transfer efficiency of nanofluids
  36. Creation of single-wing Lorenz-like attractors via a ten-ninths-degree term
  37. Optical soliton solutions, bifurcation analysis, chaotic behaviors of nonlinear Schrödinger equation and modulation instability in optical fiber
  38. Chaotic dynamics and some solutions for the (n + 1)-dimensional modified Zakharov–Kuznetsov equation in plasma physics
  39. Fractal formation and chaotic soliton phenomena in nonlinear conformable Heisenberg ferromagnetic spin chain equation
  40. Single-step fabrication of Mn(iv) oxide-Mn(ii) sulfide/poly-2-mercaptoaniline porous network nanocomposite for pseudo-supercapacitors and charge storage
  41. Novel constructed dynamical analytical solutions and conserved quantities of the new (2+1)-dimensional KdV model describing acoustic wave propagation
  42. Tavis–Cummings model in the presence of a deformed field and time-dependent coupling
  43. Spinning dynamics of stress-dependent viscosity of generalized Cross-nonlinear materials affected by gravitationally swirling disk
  44. Design and prediction of high optical density photovoltaic polymers using machine learning-DFT studies
  45. Robust control and preservation of quantum steering, nonlocality, and coherence in open atomic systems
  46. Coating thickness and process efficiency of reverse roll coating using a magnetized hybrid nanomaterial flow
  47. Dynamic analysis, circuit realization, and its synchronization of a new chaotic hyperjerk system
  48. Decoherence of steerability and coherence dynamics induced by nonlinear qubit–cavity interactions
  49. Finite element analysis of turbulent thermal enhancement in grooved channels with flat- and plus-shaped fins
  50. Modulational instability and associated ion-acoustic modulated envelope solitons in a quantum plasma having ion beams
  51. Statistical inference of constant-stress partially accelerated life tests under type II generalized hybrid censored data from Burr III distribution
  52. On solutions of the Dirac equation for 1D hydrogenic atoms or ions
  53. Entropy optimization for chemically reactive magnetized unsteady thin film hybrid nanofluid flow on inclined surface subject to nonlinear mixed convection and variable temperature
  54. Stability analysis, circuit simulation, and color image encryption of a novel four-dimensional hyperchaotic model with hidden and self-excited attractors
  55. A high-accuracy exponential time integration scheme for the Darcy–Forchheimer Williamson fluid flow with temperature-dependent conductivity
  56. Novel analysis of fractional regularized long-wave equation in plasma dynamics
  57. Development of a photoelectrode based on a bismuth(iii) oxyiodide/intercalated iodide-poly(1H-pyrrole) rough spherical nanocomposite for green hydrogen generation
  58. Investigation of solar radiation effects on the energy performance of the (Al2O3–CuO–Cu)/H2O ternary nanofluidic system through a convectively heated cylinder
  59. Quantum resources for a system of two atoms interacting with a deformed field in the presence of intensity-dependent coupling
  60. Studying bifurcations and chaotic dynamics in the generalized hyperelastic-rod wave equation through Hamiltonian mechanics
  61. A new numerical technique for the solution of time-fractional nonlinear Klein–Gordon equation involving Atangana–Baleanu derivative using cubic B-spline functions
  62. Interaction solutions of high-order breathers and lumps for a (3+1)-dimensional conformable fractional potential-YTSF-like model
  63. Hydraulic fracturing radioactive source tracing technology based on hydraulic fracturing tracing mechanics model
  64. Numerical solution and stability analysis of non-Newtonian hybrid nanofluid flow subject to exponential heat source/sink over a Riga sheet
  65. Numerical investigation of mixed convection and viscous dissipation in couple stress nanofluid flow: A merged Adomian decomposition method and Mohand transform
  66. Effectual quintic B-spline functions for solving the time fractional coupled Boussinesq–Burgers equation arising in shallow water waves
  67. Analysis of MHD hybrid nanofluid flow over cone and wedge with exponential and thermal heat source and activation energy
  68. Solitons and travelling waves structure for M-fractional Kairat-II equation using three explicit methods
  69. Impact of nanoparticle shapes on the heat transfer properties of Cu and CuO nanofluids flowing over a stretching surface with slip effects: A computational study
  70. Computational simulation of heat transfer and nanofluid flow for two-sided lid-driven square cavity under the influence of magnetic field
  71. Irreversibility analysis of a bioconvective two-phase nanofluid in a Maxwell (non-Newtonian) flow induced by a rotating disk with thermal radiation
  72. Hydrodynamic and sensitivity analysis of a polymeric calendering process for non-Newtonian fluids with temperature-dependent viscosity
  73. Exploring the peakon solitons molecules and solitary wave structure to the nonlinear damped Kortewege–de Vries equation through efficient technique
  74. Modeling and heat transfer analysis of magnetized hybrid micropolar blood-based nanofluid flow in Darcy–Forchheimer porous stenosis narrow arteries
  75. Activation energy and cross-diffusion effects on 3D rotating nanofluid flow in a Darcy–Forchheimer porous medium with radiation and convective heating
  76. Insights into chemical reactions occurring in generalized nanomaterials due to spinning surface with melting constraints
  77. Influence of a magnetic field on double-porosity photo-thermoelastic materials under Lord–Shulman theory
  78. Soliton-like solutions for a nonlinear doubly dispersive equation in an elastic Murnaghan's rod via Hirota's bilinear method
  79. Analytical and numerical investigation of exact wave patterns and chaotic dynamics in the extended improved Boussinesq equation
  80. Nonclassical correlation dynamics of Heisenberg XYZ states with (x, y)-spin--orbit interaction, x-magnetic field, and intrinsic decoherence effects
  81. Exact traveling wave and soliton solutions for chemotaxis model and (3+1)-dimensional Boiti–Leon–Manna–Pempinelli equation
  82. Unveiling the transformative role of samarium in ZnO: Exploring structural and optical modifications for advanced functional applications
  83. On the derivation of solitary wave solutions for the time-fractional Rosenau equation through two analytical techniques
  84. Analyzing the role of length and radius of MWCNTs in a nanofluid flow influenced by variable thermal conductivity and viscosity considering Marangoni convection
  85. Advanced mathematical analysis of heat and mass transfer in oscillatory micropolar bio-nanofluid flows via peristaltic waves and electroosmotic effects
  86. Exact bound state solutions of the radial Schrödinger equation for the Coulomb potential by conformable Nikiforov–Uvarov approach
  87. Some anisotropic and perfect fluid plane symmetric solutions of Einstein's field equations using killing symmetries
  88. Nonlinear dynamics of the dissipative ion-acoustic solitary waves in anisotropic rotating magnetoplasmas
  89. Review Article
  90. Examination of the gamma radiation shielding properties of different clay and sand materials in the Adrar region
  91. Special Issue on Fundamental Physics from Atoms to Cosmos - Part II
  92. Possible explanation for the neutron lifetime puzzle
  93. Special Issue on Nanomaterial utilization and structural optimization - Part III
  94. Numerical investigation on fluid-thermal-electric performance of a thermoelectric-integrated helically coiled tube heat exchanger for coal mine air cooling
  95. Special Issue on Nonlinear Dynamics and Chaos in Physical Systems
  96. Analysis of the fractional relativistic isothermal gas sphere with application to neutron stars
  97. Abundant wave symmetries in the (3+1)-dimensional Chafee–Infante equation through the Hirota bilinear transformation technique
  98. Successive midpoint method for fractional differential equations with nonlocal kernels: Error analysis, stability, and applications
https://doi.org/10.1515/phys-2025-0153
Keywords for this article
mixed convection; nanofluids; square cavity; heat transfer; magnetic field
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Articles
  2. Single-step fabrication of Ag2S/poly-2-mercaptoaniline nanoribbon photocathodes for green hydrogen generation from artificial and natural red-sea water
  3. Abundant new interaction solutions and nonlinear dynamics for the (3+1)-dimensional Hirota–Satsuma–Ito-like equation
  4. A novel gold and SiO2 material based planar 5-element high HPBW end-fire antenna array for 300 GHz applications
  5. Explicit exact solutions and bifurcation analysis for the mZK equation with truncated M-fractional derivatives utilizing two reliable methods
  6. Optical and laser damage resistance: Role of periodic cylindrical surfaces
  7. Numerical study of flow and heat transfer in the air-side metal foam partially filled channels of panel-type radiator under forced convection
  8. Water-based hybrid nanofluid flow containing CNT nanoparticles over an extending surface with velocity slips, thermal convective, and zero-mass flux conditions
  9. Dynamical wave structures for some diffusion--reaction equations with quadratic and quartic nonlinearities
  10. Solving an isotropic grey matter tumour model via a heat transfer equation
  11. Study on the penetration protection of a fiber-reinforced composite structure with CNTs/GFP clip STF/3DKevlar
  12. Influence of Hall current and acoustic pressure on nanostructured DPL thermoelastic plates under ramp heating in a double-temperature model
  13. Applications of the Belousov–Zhabotinsky reaction–diffusion system: Analytical and numerical approaches
  14. AC electroosmotic flow of Maxwell fluid in a pH-regulated parallel-plate silica nanochannel
  15. Interpreting optical effects with relativistic transformations adopting one-way synchronization to conserve simultaneity and space–time continuity
  16. Modeling and analysis of quantum communication channel in airborne platforms with boundary layer effects
  17. Theoretical and numerical investigation of a memristor system with a piecewise memductance under fractal–fractional derivatives
  18. Tuning the structure and electro-optical properties of α-Cr2O3 films by heat treatment/La doping for optoelectronic applications
  19. High-speed multi-spectral explosion temperature measurement using golden-section accelerated Pearson correlation algorithm
  20. Dynamic behavior and modulation instability of the generalized coupled fractional nonlinear Helmholtz equation with cubic–quintic term
  21. Study on the duration of laser-induced air plasma flash near thin film surface
  22. Exploring the dynamics of fractional-order nonlinear dispersive wave system through homotopy technique
  23. The mechanism of carbon monoxide fluorescence inside a femtosecond laser-induced plasma
  24. Numerical solution of a nonconstant coefficient advection diffusion equation in an irregular domain and analyses of numerical dispersion and dissipation
  25. Numerical examination of the chemically reactive MHD flow of hybrid nanofluids over a two-dimensional stretching surface with the Cattaneo–Christov model and slip conditions
  26. Impacts of sinusoidal heat flux and embraced heated rectangular cavity on natural convection within a square enclosure partially filled with porous medium and Casson-hybrid nanofluid
  27. Stability analysis of unsteady ternary nanofluid flow past a stretching/shrinking wedge
  28. Solitonic wave solutions of a Hamiltonian nonlinear atom chain model through the Hirota bilinear transformation method
  29. Bilinear form and soltion solutions for (3+1)-dimensional negative-order KdV-CBS equation
  30. Solitary chirp pulses and soliton control for variable coefficients cubic–quintic nonlinear Schrödinger equation in nonuniform management system
  31. Influence of decaying heat source and temperature-dependent thermal conductivity on photo-hydro-elasto semiconductor media
  32. Dissipative disorder optimization in the radiative thin film flow of partially ionized non-Newtonian hybrid nanofluid with second-order slip condition
  33. Bifurcation, chaotic behavior, and traveling wave solutions for the fractional (4+1)-dimensional Davey–Stewartson–Kadomtsev–Petviashvili model
  34. New investigation on soliton solutions of two nonlinear PDEs in mathematical physics with a dynamical property: Bifurcation analysis
  35. Mathematical analysis of nanoparticle type and volume fraction on heat transfer efficiency of nanofluids
  36. Creation of single-wing Lorenz-like attractors via a ten-ninths-degree term
  37. Optical soliton solutions, bifurcation analysis, chaotic behaviors of nonlinear Schrödinger equation and modulation instability in optical fiber
  38. Chaotic dynamics and some solutions for the (n + 1)-dimensional modified Zakharov–Kuznetsov equation in plasma physics
  39. Fractal formation and chaotic soliton phenomena in nonlinear conformable Heisenberg ferromagnetic spin chain equation
  40. Single-step fabrication of Mn(iv) oxide-Mn(ii) sulfide/poly-2-mercaptoaniline porous network nanocomposite for pseudo-supercapacitors and charge storage
  41. Novel constructed dynamical analytical solutions and conserved quantities of the new (2+1)-dimensional KdV model describing acoustic wave propagation
  42. Tavis–Cummings model in the presence of a deformed field and time-dependent coupling
  43. Spinning dynamics of stress-dependent viscosity of generalized Cross-nonlinear materials affected by gravitationally swirling disk
  44. Design and prediction of high optical density photovoltaic polymers using machine learning-DFT studies
  45. Robust control and preservation of quantum steering, nonlocality, and coherence in open atomic systems
  46. Coating thickness and process efficiency of reverse roll coating using a magnetized hybrid nanomaterial flow
  47. Dynamic analysis, circuit realization, and its synchronization of a new chaotic hyperjerk system
  48. Decoherence of steerability and coherence dynamics induced by nonlinear qubit–cavity interactions
  49. Finite element analysis of turbulent thermal enhancement in grooved channels with flat- and plus-shaped fins
  50. Modulational instability and associated ion-acoustic modulated envelope solitons in a quantum plasma having ion beams
  51. Statistical inference of constant-stress partially accelerated life tests under type II generalized hybrid censored data from Burr III distribution
  52. On solutions of the Dirac equation for 1D hydrogenic atoms or ions
  53. Entropy optimization for chemically reactive magnetized unsteady thin film hybrid nanofluid flow on inclined surface subject to nonlinear mixed convection and variable temperature
  54. Stability analysis, circuit simulation, and color image encryption of a novel four-dimensional hyperchaotic model with hidden and self-excited attractors
  55. A high-accuracy exponential time integration scheme for the Darcy–Forchheimer Williamson fluid flow with temperature-dependent conductivity
  56. Novel analysis of fractional regularized long-wave equation in plasma dynamics
  57. Development of a photoelectrode based on a bismuth(iii) oxyiodide/intercalated iodide-poly(1H-pyrrole) rough spherical nanocomposite for green hydrogen generation
  58. Investigation of solar radiation effects on the energy performance of the (Al2O3–CuO–Cu)/H2O ternary nanofluidic system through a convectively heated cylinder
  59. Quantum resources for a system of two atoms interacting with a deformed field in the presence of intensity-dependent coupling
  60. Studying bifurcations and chaotic dynamics in the generalized hyperelastic-rod wave equation through Hamiltonian mechanics
  61. A new numerical technique for the solution of time-fractional nonlinear Klein–Gordon equation involving Atangana–Baleanu derivative using cubic B-spline functions
  62. Interaction solutions of high-order breathers and lumps for a (3+1)-dimensional conformable fractional potential-YTSF-like model
  63. Hydraulic fracturing radioactive source tracing technology based on hydraulic fracturing tracing mechanics model
  64. Numerical solution and stability analysis of non-Newtonian hybrid nanofluid flow subject to exponential heat source/sink over a Riga sheet
  65. Numerical investigation of mixed convection and viscous dissipation in couple stress nanofluid flow: A merged Adomian decomposition method and Mohand transform
  66. Effectual quintic B-spline functions for solving the time fractional coupled Boussinesq–Burgers equation arising in shallow water waves
  67. Analysis of MHD hybrid nanofluid flow over cone and wedge with exponential and thermal heat source and activation energy
  68. Solitons and travelling waves structure for M-fractional Kairat-II equation using three explicit methods
  69. Impact of nanoparticle shapes on the heat transfer properties of Cu and CuO nanofluids flowing over a stretching surface with slip effects: A computational study
  70. Computational simulation of heat transfer and nanofluid flow for two-sided lid-driven square cavity under the influence of magnetic field
  71. Irreversibility analysis of a bioconvective two-phase nanofluid in a Maxwell (non-Newtonian) flow induced by a rotating disk with thermal radiation
  72. Hydrodynamic and sensitivity analysis of a polymeric calendering process for non-Newtonian fluids with temperature-dependent viscosity
  73. Exploring the peakon solitons molecules and solitary wave structure to the nonlinear damped Kortewege–de Vries equation through efficient technique
  74. Modeling and heat transfer analysis of magnetized hybrid micropolar blood-based nanofluid flow in Darcy–Forchheimer porous stenosis narrow arteries
  75. Activation energy and cross-diffusion effects on 3D rotating nanofluid flow in a Darcy–Forchheimer porous medium with radiation and convective heating
  76. Insights into chemical reactions occurring in generalized nanomaterials due to spinning surface with melting constraints
  77. Influence of a magnetic field on double-porosity photo-thermoelastic materials under Lord–Shulman theory
  78. Soliton-like solutions for a nonlinear doubly dispersive equation in an elastic Murnaghan's rod via Hirota's bilinear method
  79. Analytical and numerical investigation of exact wave patterns and chaotic dynamics in the extended improved Boussinesq equation
  80. Nonclassical correlation dynamics of Heisenberg XYZ states with (x, y)-spin--orbit interaction, x-magnetic field, and intrinsic decoherence effects
  81. Exact traveling wave and soliton solutions for chemotaxis model and (3+1)-dimensional Boiti–Leon–Manna–Pempinelli equation
  82. Unveiling the transformative role of samarium in ZnO: Exploring structural and optical modifications for advanced functional applications
  83. On the derivation of solitary wave solutions for the time-fractional Rosenau equation through two analytical techniques
  84. Analyzing the role of length and radius of MWCNTs in a nanofluid flow influenced by variable thermal conductivity and viscosity considering Marangoni convection
  85. Advanced mathematical analysis of heat and mass transfer in oscillatory micropolar bio-nanofluid flows via peristaltic waves and electroosmotic effects
  86. Exact bound state solutions of the radial Schrödinger equation for the Coulomb potential by conformable Nikiforov–Uvarov approach
  87. Some anisotropic and perfect fluid plane symmetric solutions of Einstein's field equations using killing symmetries
  88. Nonlinear dynamics of the dissipative ion-acoustic solitary waves in anisotropic rotating magnetoplasmas
  89. Review Article
  90. Examination of the gamma radiation shielding properties of different clay and sand materials in the Adrar region
  91. Special Issue on Fundamental Physics from Atoms to Cosmos - Part II
  92. Possible explanation for the neutron lifetime puzzle
  93. Special Issue on Nanomaterial utilization and structural optimization - Part III
  94. Numerical investigation on fluid-thermal-electric performance of a thermoelectric-integrated helically coiled tube heat exchanger for coal mine air cooling
  95. Special Issue on Nonlinear Dynamics and Chaos in Physical Systems
  96. Analysis of the fractional relativistic isothermal gas sphere with application to neutron stars
  97. Abundant wave symmetries in the (3+1)-dimensional Chafee–Infante equation through the Hirota bilinear transformation technique
  98. Successive midpoint method for fractional differential equations with nonlocal kernels: Error analysis, stability, and applications
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 12.10.2025 from https://www.degruyterbrill.com/document/doi/10.1515/phys-2025-0153/html
Scroll to top button
