Home Calcium-, magnesium-, and yttrium-doped lithium nickel phosphate nanomaterials as high-performance catalysts for electrochemical water oxidation reaction
Article Open Access

Calcium-, magnesium-, and yttrium-doped lithium nickel phosphate nanomaterials as high-performance catalysts for electrochemical water oxidation reaction

  • Mehwish Huma Nasir , Hajira Niaz , Naila Yunus , Urooj Ali , Safia Khan , Tehmeena Maryum Butt , Hina Naeem , Hu Li , Mohamed A. Habila and Naveed Kausar Janjua EMAIL logo
Published/Copyright: February 13, 2024
Become an author with De Gruyter Brill

Abstract

Electrochemical water oxidation reaction (WOR) lies among the most forthcoming approaches toward eco-conscious manufacturing of green hydrogen owing to its environmental favors and high energy density values. Its vast commoditization is restricted by high-efficiency and inexpensive catalysts that are extensively under constant research. Herein, calcium, magnesium, and yttrium doped lithium nickel phosphate olivines (LiNi1−x M x PO, LNMP; x = 0.1–0.9; M = Ca2+, Mg2+, and Y3+) were synthesized via non-aqueous sol-gel method and explored for catalytic WOR. Lithium nickel phosphates (LNP) and compositions were characterized via Fourier transform infrared, scanning electron microscopy, X-ray diffraction, and energy dispersive X-ray diffraction techniques for the structural and morphological analyses. Glassy carbon electrode altered with the LNMPs when studied in a standard redox system of 5 mM KMnO4, displayed that yttrium doped LNP, i.e. LNYP-3 exhibits the highest active surface area (0.0050 cm2) displaying the lowest average crystallite size (D avg) i.e. ∼7 nm. Electrocatalytic behavior monitored in KOH showed that LNMP-2 offers the highest rate constant “k o,” value, i.e. 3.9 10−2 cm s−1 and the largest diffusion coefficient “D o,” i.e. 5.2 × 10−5 cm2 s−1. Kinetic and thermodynamic parameters demonstrated the facilitated electron transfer and electrocatalytic properties of proposed nanomaterials. Water oxidation peak current density values were indicative of the robust catalysis and facilitated water oxidation process besides lowering the Faradic onset potential signifying the transformation of less LNP into more conducive LNMP toward water oxidation.

Graphical abstract

Electrochemical water oxidation over high-efficiency (Ca, Mg, or Y) doped lithium metal (Ni) phosphate electrocatalysts

Nomenclature

LNP

lithium nickel phosphate

LNMP

lithium nickel metal phosphate

CV

cyclic voltammetry

ASA

active surface area

WOR

water oxidation reaction

DMFC

direct methanol fuel cell

ORR

oxygen reduction reaction

HER

hydrogen evolution reaction

XRD

X-ray diffraction

FTIR

Fourier transform infrared

SEM

scanning electron microscopy

EDS

energy dispersive spectroscopy

GCE

glassy carbon electrode

ΔG

change in Gibbs free energy

ΔH

change in enthalpy

ΔS

change in entropy

D avg

average crystallite size

D o

diffusion coefficient

k o

heterogeneous rate constant

m T

mass transport coefficient

1 Introduction

Undue consumption of fossil fuels is a major contributing factor that has increased pollution and greenhouse gases that led to global warming and ozone depletion by emitting hazardous carbon compounds as major concerned outcomes [1,2]. To overcome these drawbacks, efficient and green energy production technology is necessitated to meet the decarbonized energy goals, thereby minimizing global climate changes [2,3]. Green energy includes clean power sources, e.g. solar power, biomass, wind, hydropower, and geothermal. Green energy technology is a collaborative strategy that combines conventional fossil fuel systems and updated renewable technologies in terms of accessibility, efficiency, energy security, equity, and economic sustainability [4,5]. Keeping in view the significance of clean energy and low carbon environment, findings of alternative energy resources are key research areas nowadays [6]. Pollution-free, clean, and green energy is produced by renewable energy sources but for sustainable energy supply, electrochemical energy is the economical storage system [7]. Electrochemical methods like hydrogen evolution reaction (HER), oxygen evolution reaction (OER), and oxygen reduction reaction (ORR) are used for the production of viable energy [8]. HER and OER in alkaline media are usually slow reactions that need the use of an electrocatalyst to increase their efficiency and potentiality. Electrocatalysis takes place at the electrode-solution interface where the electrode is modified by a catalyst at its surface [9,10]. The development of nonprecious metal-based electrocatalysts and new electrolytic systems toward water oxidation is an active research area that still needs further improvement and perfection [11,12]. Among multiple energy conversion means, direct methanol fuel cell (DMFC) possesses various advantages including the adoption of nonprecious electrocatalysts such as CeO2, NiCu-CO2O4, green synthesized catalysts, zeolite base catalysts, algal based catalysts, and SeO2 [13,14]. Risks of corrosion of carbon and catalysts are predominantly diminished. The performance of alkaline DMFC mainly depends on the electrocatalytic responses of electrocatalysts at the surface of the electrode, electrode/electrolyte interface, and the ion and electron transfer rate in the electrode [15,16]. So, the development of novel electrocatalysts with enhanced stability and electroactivity is a prerequisite for such high-efficiency conversion technologies [17]. Various electrocatalysts for water oxidation include perovskites, halides, selenides, layered double hydroxides and nickel, cobalt-based oxide, algal membranes, each having their recompenses and drawbacks. Perovskite oxides show the deviation from the ideal stoichiometry due to the substitution of A/B-sites leading to electrochemical stability [18]. Doping and modifications in material alter the stoichiometry and create defects in the crystal structure of the material. A larger number of defect insertion points offer more oxygen vacancies and hence the active sites [19]. Doping in A-site with alkaline metal ions and B-site with transition metal ions creates defects in the arrangement of crystal [20]. In water oxidation, oxygen is produce OER, and reduction reaction produces a hydrogen evolution reaction (HER). Water oxidation is a single-step reaction due to which large overpotentials are produced, and to overcome this, large overpotential efficient electrocatalysts are needed. Overpotential is the difference in equilibrium/thermodynamic potential of a reaction and the real potential where the catalyst actually initiates the reaction at a specific current under control conditions. Low-overpotential WOR is required for progressed energy conversion technology [21,22]. The best catalysts so far used for OER are Pt and Ir oxide but these are expensive and less abundant [23].

Nickel-incorporated nanomaterials, being used in supercapacitors, electrocatalysts, battery materials and sensors, have earned particular emphasis from researchers owing to their abundance, low cost, and environment friendliness [24,25]. Owing to its large redox potentials i.e. >4.5 V vs Li+/Li, high energy and voltage, nickel-derived olivine (LNP) has acquired greater emphasis among the olivine phosphates (800 W h g1) [26]. Olivine edifices are constructed with MO6 sharing octahedral sides and tetrahedral anions of phosphates at corners where octahedral holes are exchanged by lithium ions [27]. LiNiPO4 as an electrocatalyst possesses some general properties such as high thermal stability, durable potentials, unique electrochemical properties, inexpensive, environmentally friendly, and excellent cycling performance [28,29]. The drawback of WOR is the reversibility of reaction, by recombination of electrons and holes which may slow down the reaction. A sacrificial agent is used for preventing this drawback which acts as an electron donor molecule by reacting with the holes. Through this method, the production of O2 and H2 increased by using methanol, glucose, ethanol, cyanide, and formaldehyde as a sacrificial agent [30]. Methanol is reported as a sacrificing agent/facilitating agent/co-catalyst for WOR by our group that boosted the charge transfer through the electrode and decreased the onset potential [31]. Sacrificial agents are basically the electron donors or hole scavengers that boost up the H2 production by anchoring on the electrocatalyst’s surface [32]. A co-catalyst involved mechanism is also an uphill WOR; however, the onset potential is comparatively less [33].

In this work, a cost-effective non-aqueous sol–gel synthesis approach is adapted for the preparation of LNP and PNMP (LiNi1−x M x PO4) where M can be Mg, Ca, and Y in the perovskite structure. Physiochemical characterization is accomplished via XRD, FTIR, SEM, EDS, and CV for investigating the phase purity, particle size, surface area, and electronic properties. The voltammetric profile is established in KOH as the electrolyte because protons produced in WOR can be facilely removed in an alkaline medium, thereby restoring the catalyst’s original pristine state [34]. WOR is studied on different metal-doped LiNiPO4 in KOH using glucose as the facilitating agent for the first time.

2 Experimental section

2.1 Materials

Precursors include metal nitrate of lithium (LiNO3·3H2O), nickel (Ni(NO3)2·6H2O), magnesium (Mg(NO3)2·3H2O), Calcium (Ca(NO3)2·4H2O), yttrium (Y(NO3)3·6H2O), phosphoric acid (H3PO4), and ethylene glycol. All the chemicals are bought from Sigma–Aldrich. Solutions were prepared in deionized water.

2.2 Synthesis

Non-aqueous wet-chemical sol–gel method is employed to manufacture the olivine orthophosphate, LiNiPO4, and metal-doped (Ca, Mg, and Y) lithium nickel phosphate composites [35,36]. The preparation technique comprises of heating of metalloorganic gel precursors. The non-aqueous mixture was organized by stoichiometric ratio of 1:1:1 of the lithium and nickel nitrate in ethylene glycol while the (H3PO4,) was added dropwise under the continuous stirring of the solution for 2 h at 200°C. The obtained gel precursors were heated to produce the powder of nanomaterials. Synthesized powders were calcined in the furnace at 850°C temperature for 12 h under air atmosphere and cooled at room temperature. For the synthesis of the doped composition of lithium nickel phosphate, a stoichiometric amount of the magnesium, calcium, yttrium nitrate, and nickel nitrate were added to obtain the metal-doped lithium nickel phosphate where mole % of dopants ranges 0–9%.

Furthermore, mechanical ball milling was performed for all calcined powders using zirconia balls (100 g) of different diameters. Zirconia balls are used for their large mass/volume ratio; producing course-sized particles of catalyst powder [37,38]. It is a grinding phenomenon utilized to produce a homogeneous particle size of the sample [39,40]. Milling media (acetone) are filled according to the specific ratio of the sample and ball, which means the mass of the ball is one-fourth times greater than the weight of the samples [41]. Acetone is preferred in dry-milling as the material does not stick to the balls and can be isolated feasibly [42]. The ball milling was sustained for 2 h under 300 rpm, and afterward, the mixture was placed in the oven for 5 h for drying. Sample simplified representation into codes is presented in Table 1.

Table 1

Coding of samples into simpler abbreviations LiNi1−x M x PO4 [M = Mg, Ca, and Y]

Mol% of dopants Samples codes Chemical formula
0 LNP LiNiPO4
1 LNMP-1 LiNi0.99M0.01PO4
3 LNMP-2 LiNi0.97M0.03PO4
5 LNMP-3 LiNi0.95M0.05PO4
7 LNMP-4 LiNi0.93M0.07PO4
9 LNMP-5 LiNi0.91M0.09PO4

2.3 Physical characterization

Different analytical techniques were utilized for investigating the physical and chemical composition of synthesized materials. For the determination of the crystal assembly and phase concentration of prepared materials, powder XRD (D5005 diffractometer, Siemens) was pragmatized. All the XRD measurements were done with a sol X detector employing a Cu kα radiation source with the 1.54 Å wavelength in the 10°–80° range for a widespread and deep understanding of the physical picture of material at the ambient temperature. FTIR analysis was carried out to measure the intensity of infrared radiation as a function of wavelength. A small portion of the sample was sandwiched in KBr for FTIR evaluation, and spectra were then collected as an average of five examinations by means of the OPUS Software Package for data gaining. SEM has been accomplished to obtain the texture and particle size of composites. A field-emission scanning electron microscope (Supra55. Zeiss) with a 10 kV quickening voltage was set to obtain micrographs for the SEM. Electrochemical Gamry 1000 interface instrument was used for the electroanalytical analysis of materials through cyclic voltammetry.

2.4 Electrode fabrication and electrochemical characterization

For electrochemical application, a three-electrode cell assembly is used which consists of three electrodes, i.e. glassy carbon electrode (GCE) as the working electrode, silver wire as the counter electrode, and Ag/AgCl as the reference electrode. GCE was modified by a conventional drop-casting technique [31,43]. In this technique, the working electrode was polished on the felt paper by using an alumina slurry and then rinsed with deionized water before the modification. Polishing and ultrasonication are completed in ethanol for 2 min for the removal of any impurity present on the electrode surface. The electrode surface was wet with 2 µL of ethanol and 0.1 mg of the synthesized powder was placed on it, resulting in the drop-casting 2 µL 0.5% of Nafion (co-polymer of sulfonated tetrafluoroethylene) acting as a binder [43]. All produced nanomaterials were investigated to examine their behavior toward water oxidation in 0.1 and 0.5 M KOH used as a supporting electrolyte, and 0.05 (3.2 μM) glucose was also utilized as a sacrificial agent. The full potential range voltammogram showed only an OER peak, and no other peak appeared. Thus, it is suggested that a short window range (0–1.5, 1.6) is better for the further working of the catalyst. Cyclic voltammetry is implicated as the analytical tool to investigate the electrochemical potentials of the prepared olivine materials toward water oxidation reaction.

3 Results and discussion

Material’s physiochemical characterization and catalytic studies are presented in this section. To analyze the high-efficiency LNPs, deep-rooted material investigation was carried out earlier than the electroanalytical research. To understand the simultaneous analysis of electrode engineering and material properties, synthesized materials were tested electrochemically. LNPs were synthesized under an air atmosphere at 850°C and ball milled for smooth narration. Electrochemical tests were first performed with LiNiPO4 powder. For the authentication of doping in the prepared sample and to study the accuracy of the structural features, morphology, and thermal stability of the samples, various experimental techniques were also employed. The redox and electrocatalytic properties of all the prepared samples were examined via CV. The crystal structure of electrode materials was studied via XRD. Diffraction patterns for LNP and its Ca-, Mg-, and Y-doped analogues are shown in Figure 1(a). Peaks clearly designated the orthorhombic structure of olivine with the Pnma phase group and displayed the desired agreement with reference card JCPDS card No. 81-1528 [44]. There are no peak shifts observed by the addition of external new metal as its content percentage is in traces. However, the peak intensity is altered suggesting the formation of crystal structure and extent of crystallinity. The basic structure is not significantly changed but the catalytic efficiency is enhanced by defect formations. High-intensity peaks evidences the decidedly crystalline morphology, whereas the peaks shown by ball-milled samples exposed great widths owing to smaller crystallite sizes calculated using Debye Scherrer equation shown by equation (1) [45].

(1) D avg = k λ / β Cos θ .

Figure 1
               (a) XRD spectra of LNCP-1 (i), LNMP-2 (ii), and LNYP-3 (iii), respectively. (b) SEM micrographs of LNCP-1, (c) LNMP-2, and (d) LNYP-3.
Figure 1

(a) XRD spectra of LNCP-1 (i), LNMP-2 (ii), and LNYP-3 (iii), respectively. (b) SEM micrographs of LNCP-1, (c) LNMP-2, and (d) LNYP-3.

Peak positions are not altered, hence signifying the integrity of crystalline structure. D avg of LNP and its Ca-, Mg-, and Y-doped analogues are represented in Table 1, respectively. The range of D avg is from 9.24 to 10.5, 9.04 to 9.58, and 7.0 to 11.3 nm for Ca-, Mg-, and Y-doped materials, respectively. Morphological studies of the samples have been accomplished via SEM, and the micrographs are shown in Figure 1(b–d) where particles preserved the distinguishable grain boundaries and smooth surface structure. Spherical particles increase the surface area of the interface, however, show the agglomeration of the particles due to their smooth and steamy nature. Moreover, the elemental composition of LNP and its doped analogues were expounded by EDX as given in Table 2, and respective spectra are displayed in Figure 2. The determined elemental composition is about similar to the predictable ratios of elements, hence suggesting it is an adaptable synthesis route.

Table 2

Calculated crystallite sizes and EDX analysis of LNP and its Ca-, Mg-, and Y-doped analogues

Sample D avg (nm) wt% of O(exp) wt% of P(exp) wt% of Ni(exp) wt% of dopant(exp) wt% of dopant(Theo)
LNP 9.2 62.6 15.6 21.8 0.00 0.00
LNMP-2 9.0 44.6 20.2 33.8 1.24 1.38
LNCP-1 9.2 46.7 23.7 23.7 0.95 0.99
Figure 2
               EDS spectra of LNCP-1 (spectrum 1) and LNMP-2 (spectrum 2).
Figure 2

EDS spectra of LNCP-1 (spectrum 1) and LNMP-2 (spectrum 2).

FTIR vibrational spectrum of LNP is shown in Figure 3(a) which reveals the presence of various functional groups. LNP showed three fundamental vibrations consisting of stretching modes [46]. Symmetric stretching appeared due to internal vibration of the P–O single bond at 971 cm−1. Owing to the asymmetric stretching, a triplet has appeared in the region of the 1,055–1,150 cm−1. The peak was observed, in the region between 400 and 700 cm−1 due to the transition metal ions. The peak at 646 cm−1 may also be due to asymmetric stretching vibrations of Ni–O bonds in the NiO6 octahedron. WOR catalysis proceeds at NiO6 edges of the metal oxides, and a high catalytic efficiency is perceived [47]. These observations suggested the presence of major functional groups related to Ni and (PO4)3−. Metal can accept diverse structures exhibiting different orientations of phosphate groups present in the crystal. Tunable coordination of PO 4 group can stabilize the transition state of metal by feasible modifications in its local positions; hence, a robust redox reaction can occur on the TM surface [48]. The vibrational spectra of LNCP-1, LNMP-2, and LP-3 are shown in Figure 3(b), and respective specific peaks are addressed in Table 3.

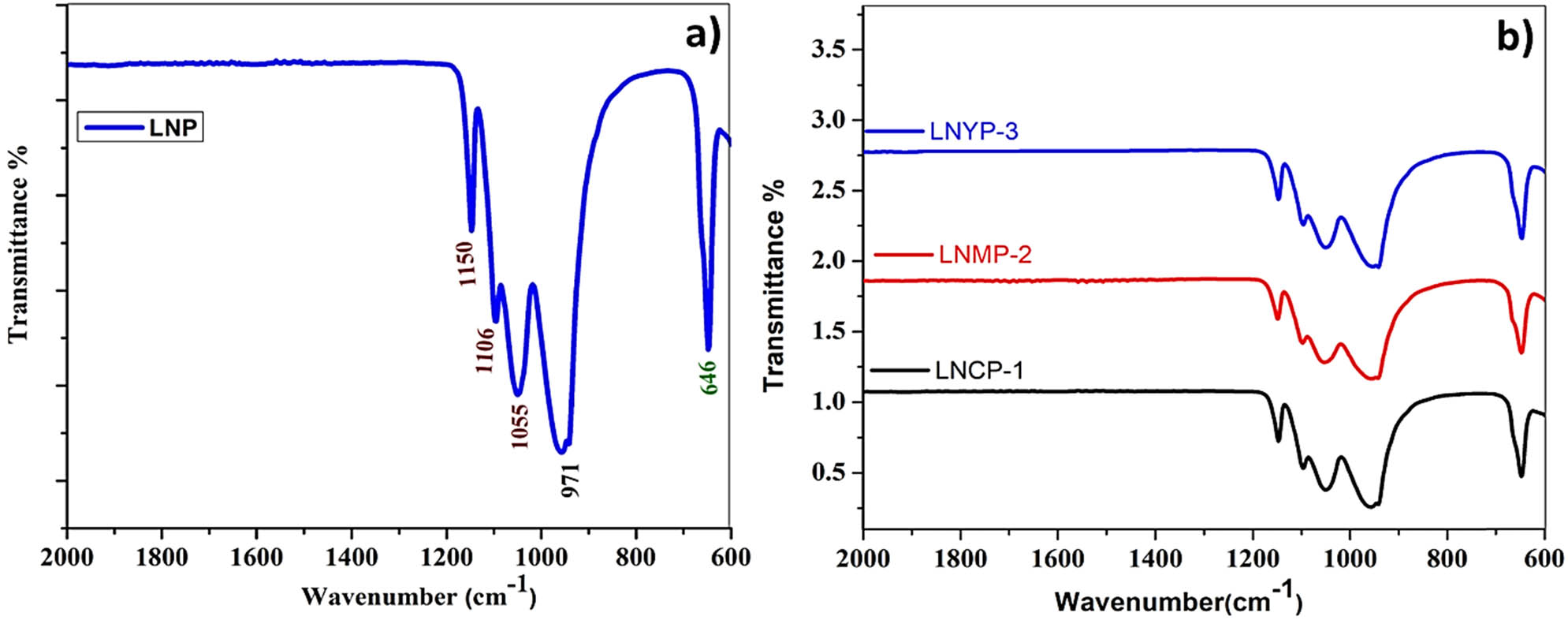

Figure 3
               (a) FTIR spectrum of LNP; (b) FTIR spectrum of LNCP-1, LNMP-2 AND LNYP-3.
Figure 3

(a) FTIR spectrum of LNP; (b) FTIR spectrum of LNCP-1, LNMP-2 AND LNYP-3.

Table 3

Band assignment and wavenumber of FTIR spectra of LNP

Wave number (cm−1) Assignment
646 M–O
971 v 1(PO4)3−
(1,056–1,150) v 3(PO4)3−

Employing cyclic voltammetry as the analytical tool, electroanalysis was performed with the potentials window of 0–1.6 V using 0.1 and 0.5 M potassium hydroxide as electrolyte and 0.05 M glucose as a sacrificial agent [49]. Conducive properties of synthesized samples are analyzed by using potassium ferricyanide and potassium chloride. Potassium ferricyanide has a known diffusion coefficient which provides information about catalytic performance. Voltammetric cycling for all modified electrodes was performed by employing 5 mM K3[Fe(CN)6] and 3 M KCl to estimate the active surface area of the modified electrodes [50,51]. The potential window for all modified electrodes to measure the surface area ranges from −0.2 to 1 as shown in Figure 4. A cyclic voltammogram for Fe2+/Fe3+ redox system depicts the reversible electron transfer process. Corresponding to observed CV profiles showing a significant difference and described that doping caused the enhancement in the electrical behavior. The Randles–Sevcik equation given by equation (2) was employed to evaluate the ECSA of fabricated electrodes [52].

(2) I pa = 2.69 × 10 5 n 3 / 2 A D 1 / 2 υ 1 / 2 C ,

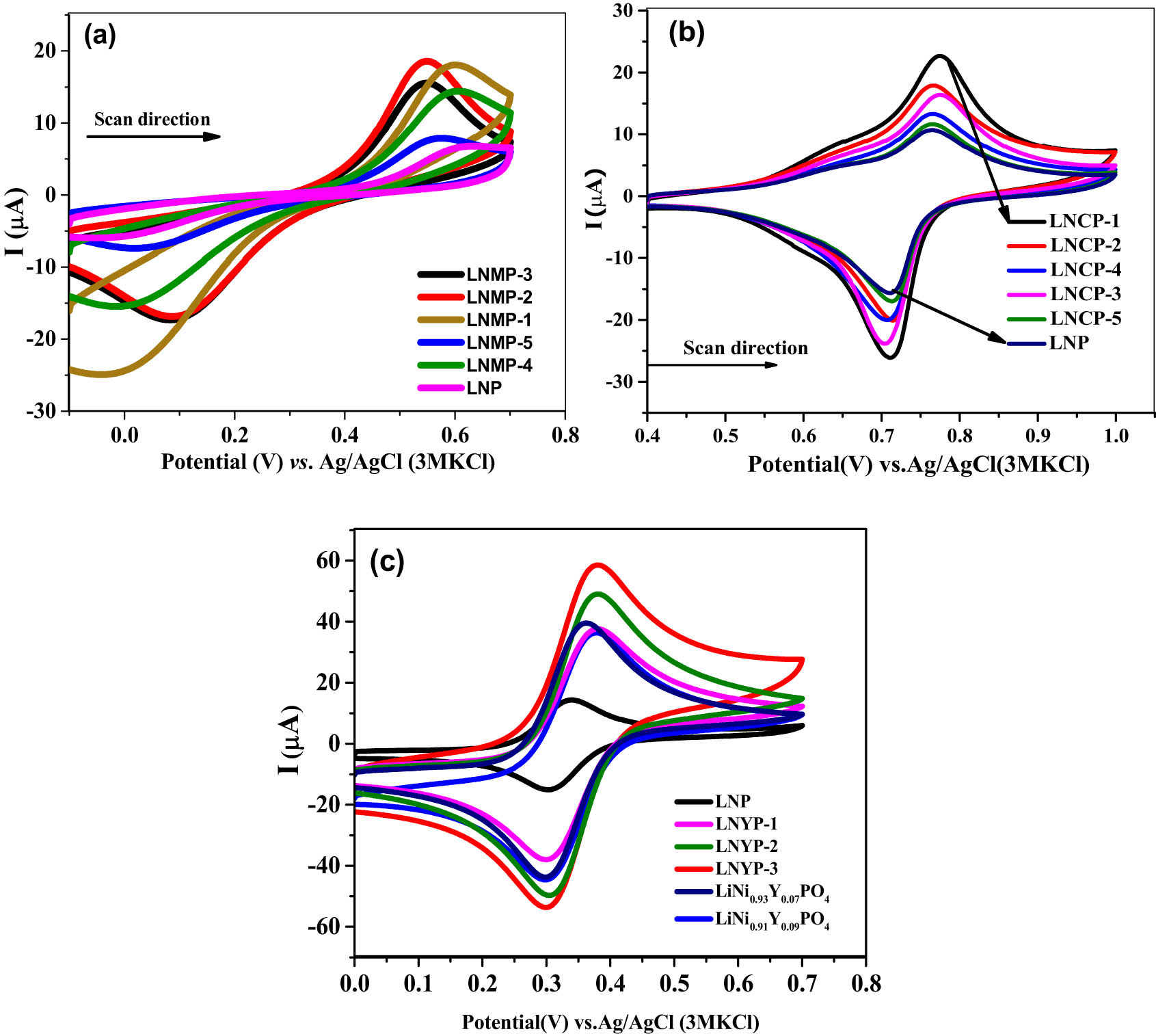

Figure 4
               Cyclic voltammograms of synthesized samples in 5 mM K3[Fe(CN)6] redox system (a) LNMP, (b) LNCP and (c) LNYP at 100 mV s−1.
Figure 4

Cyclic voltammograms of synthesized samples in 5 mM K3[Fe(CN)6] redox system (a) LNMP, (b) LNCP and (c) LNYP at 100 mV s−1.

where I pa represents the anodic peak current of each catalyst in (μA), n indicates the number of electrons transferred (1 in this case), A shows the active surface area (cm2), D denotes the diffusion coefficient (0.76 × 10−5 cm2 s−1, 25°C), υ stands for scan rate (100 mV s−1), and C is the analyte concentration (5 mM). Estimated ASA are listed in Table 4.

Table 4

Estimated active surface area for all synthesized samples

Samples Active surface area (cm2) Samples Active surface area (cm2)
LNP 0.0005 LNCP-3 0.0011
LNMP-1 0.0015 LNCP-4 0.0013
LNMP-2 0.0016 LNCP-5 0.0010
LNMP-3 0.0012 LNYP-1 0.0032
LNMP-4 0.0011 LNYP-2 0.0041
LNMP-5 0.0006 LNYP-3 0.0050
LNCP-1 0.0018 LNYP-4 0.0034
LNCP-2 0.0015 LNYP-5 0.0030

ECSA stands for the electrochemical surface area active for the reaction. The larger the ECSA exhibited by a catalytic material, a more facile reaction and boosted catalysis output is anticipated [50,53]. Values of active surface area range from 0.0012 to 0.0050 cm2. By comparing the value of the active surface area of metal ion-doped phosphate, it is deduced that a vivid difference exists between these series. From the calcium-doped series, LNCP-1 showed the highest value of ASA. From magnesium-doped series, LNMP-2 attained the maximum value of ASA. While in the yttrium-doped series, LNYP-3 depicted the highest value of ASA. The higher active surface area corresponds to the better catalytic activity of nanomaterials.

WOR has been studied by modifying the electrode with the samples at room temperature, and resultant cyclic voltammograms showed a single peak; i.e. only an anodic peak was observed. The electrocatalytic potential of lithium nickel phosphate and metal-doped LNP-fabricated GCE was determined using 0.1 and 0.5 M KOH as electrolyte and 0.05 M glucose between 0 and 1.6 V potential window, and an irreversible oxidation peak has been witnessed in the resultant voltammograms. CV profiles displayed in Figure 5 were recorded at fixed 100 mV s−1 for the various synthesized materials. By adding different concentrations of glucose, the peak profiles showed an increase in the peak current of OER, which is the anodic half-reaction. As glucose concentration increases, the corresponding value of OER current increases indicating glucose-favored OER process [54]. Among all the series LNCP-1, LNMP-2, and LNYP-3 showed the highest peak current in their respective analogues. Reinmuth equation displayed by equation (3) was used to estimate the rate constants for the prepared materials [55]. Values of k o can be calculated from the slope by plotting a graph between I p vs [glucose]. Values of the rate constant quantified the reversibility and irreversibility of the process going on the interface [56].

(3) I p = 0.227 n F A C k o ,

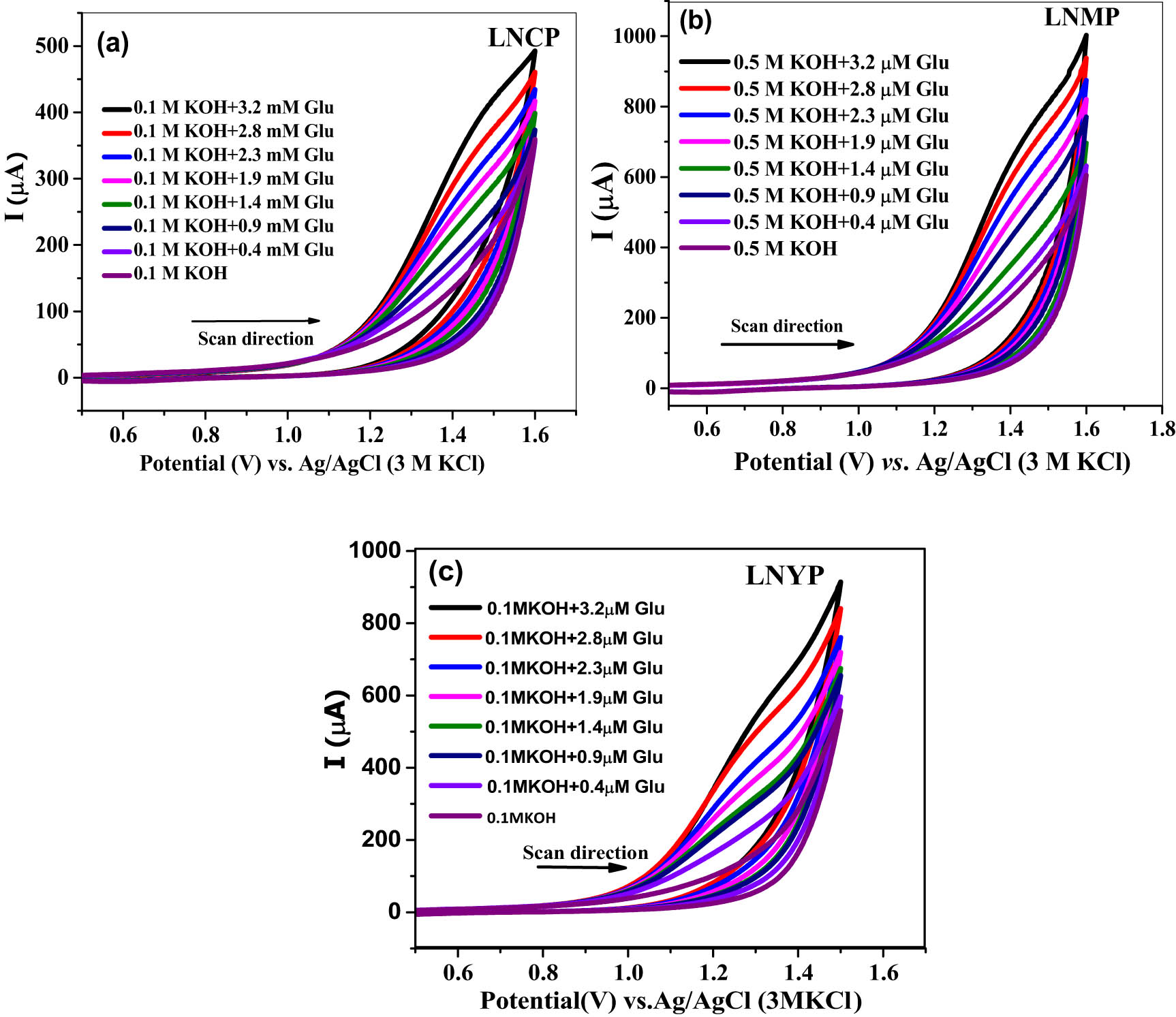

Figure 5
               Cyclic voltammetric curves of LNCP-1-, LNMP-2-, and LNYP-3-modified electrode in 0.1 M KOH with different glucose concentrations at 100 mV s−1.
Figure 5

Cyclic voltammetric curves of LNCP-1-, LNMP-2-, and LNYP-3-modified electrode in 0.1 M KOH with different glucose concentrations at 100 mV s−1.

where I p is the anodic peak current in (A), F is Faraday’s constant in (C/mole), A is an area of the electrode in (cm2), C is the concentration of glucose (mol cm3), and k o is the heterogeneous rate constant in (cm s−1). The k o as shown in Table 5 for the WOR describes the capability of electron transfer at the electrode–electrolyte interface and the reaction kinetics of the materials.

Table 5

Calculated values of heterogeneous rate constant, diffusion, and mass transport coefficients

Sample Heterogeneous rate constant k o (10−2 cm s−1) Diffusion coefficient D o/10−5 (cm2 s−1) Mass transport coefficient m T/10−3 (cm s−1)
LNP 1.1 0.3 0.8
LNCP-1 1.9 1.4 1.9
LNMP-2 3.9 5.2 3.6
LNYP-3 3.2 4.8 3.5

According to the values of the k o, the insulating and conductive behavior of the materials can be distinguished. The lowest value of k o thus indicates the insulating behavior of the LNP due to the slowest electrocatalytic property. The heterogeneous rate constant value for lithium nickel phosphate and metal ion-doped phosphate-modified GC electrode increased in the following order.

LNP < LNCP 1 < LNYP 3 < LNMP 2

Doping of magnesium resulted in the highest value of the rate constant which proved it to be a good scheme of the catalysts.

The electroactivity of synthesized material was tested using cyclic voltammetry in the presence of 0.5 M KOH and 0.7 ml of glucose (facilitating agent), which equates to 0.05 molarity of glucose. The scan rate was varied from 20 to 100 mV s−1 within the potential window (0–0.5, and 1.6 V) at room temperature. The CV responses of LNCP-1, LNMP-2, and LNYP-3 for OER are presented in Figure 6. Voltammograms for OER using various synthesized samples at different scan rates showed the responsive increase in the peak current gradually as the scan rate was varied from 20 to 100 mV s−1. It was also inferred that the electroactivity of the synthesized material was better in the presence of 0.05 M glucose than that in KOH solution only. Analyzing the overall voltammetric profiles for all samples, LNCP-1 LNMP-2, and LNMP-3 showed the best results from all doped LNP analogues.

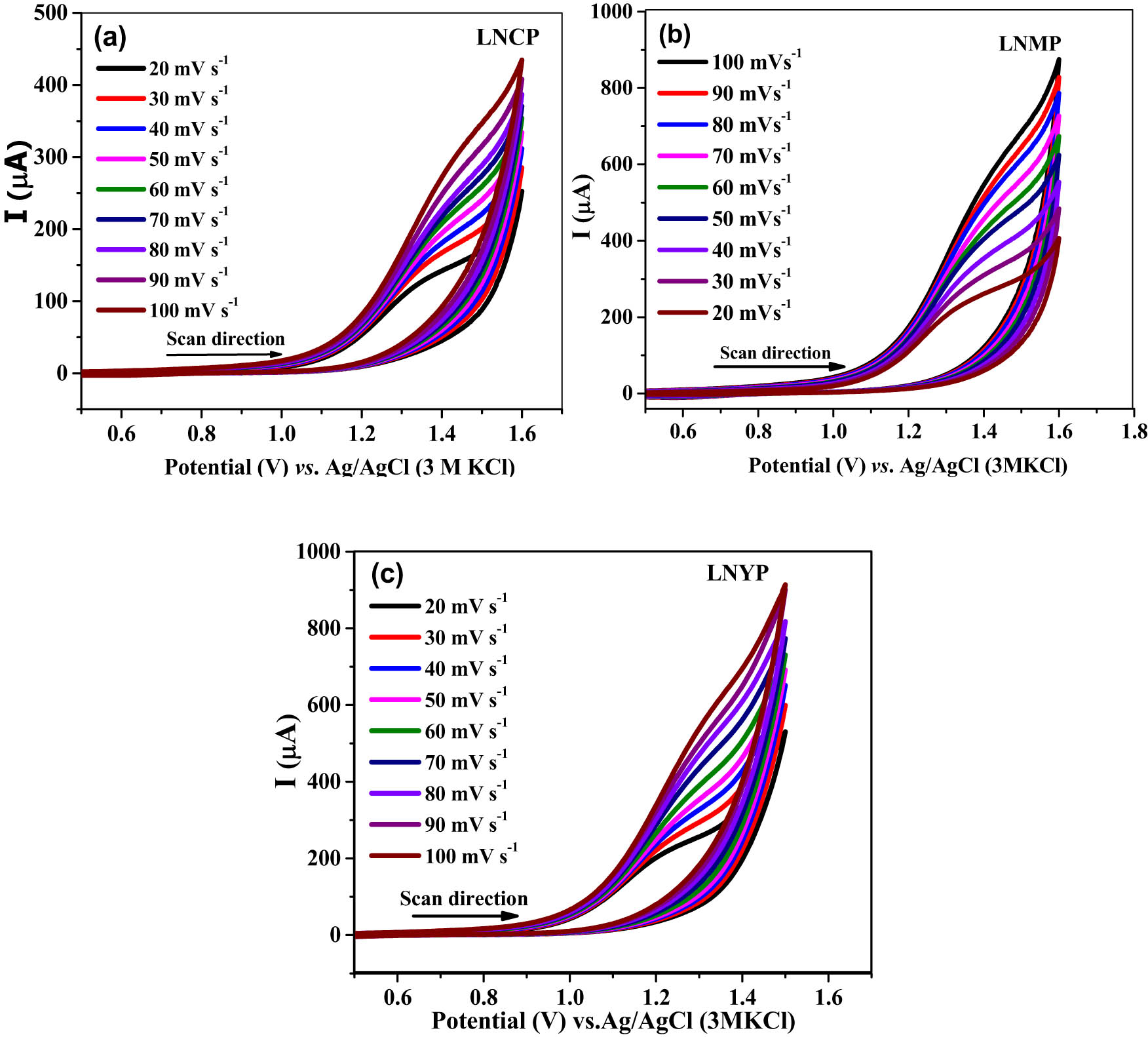

Figure 6
               Cyclic voltammetric responses at LNC1-, LNMP-2-, and LNYP-3-modified electrode in 0.5 M KOH + 3.27 μM glucose at 20–100 mV s−1.
Figure 6

Cyclic voltammetric responses at LNC1-, LNMP-2-, and LNYP-3-modified electrode in 0.5 M KOH + 3.27 μM glucose at 20–100 mV s−1.

Furthermore, to enhance the understanding of the electrocatalytic potential of LNMPs, the diffusion coefficient “D o” was calculated using the Randles-Sevcik equation for irreversible processes. Electrocatalytic property of the materials gives information on facile electron transfer process by the electrochemical response. By using the equation (4), the mass transport coefficient is calculated [57].

(4) m T = [ D o ( RT / F υ ) ] ½ .

Mass transport coefficient tells the electron transferability of the analyte. The kinetics of redox reactions occurring at the electrode-analyte contact are determined by the m T value. The values of D o and m T are a clear indication of the irreversible nature of the electrode process and the smallest for LNP, indicating it to be less efficient for OER electrocatalysis. The trend for the optimized samples is as follows:

LNP < LNCP-1 < LNYP-3 < LNMP-2

Magnesium doping shows an increase in the value of the D o due to the fast electron transfer process. LNMP-2 shows the highest values of both D o and k o, which indicates these materials to be the better catalyst as compared to the other prepared samples.

To analyze the effect of the temperature on the electroactivity of the prepared pure lithium nickel phosphate catalyst and its doped analogues, the temperature was varied from 20 to 40°C at 100 mV s−1 scan rate in 0.5 M KOH in the presence of 3.27 μM optimal glucose concentration, and the CV responses were observed for each composition. At elevated temperatures, the kinetics of water-splitting was facilitated, and Figure 7 shows the enhancement in the current by increasing the temperature for three optimized samples.

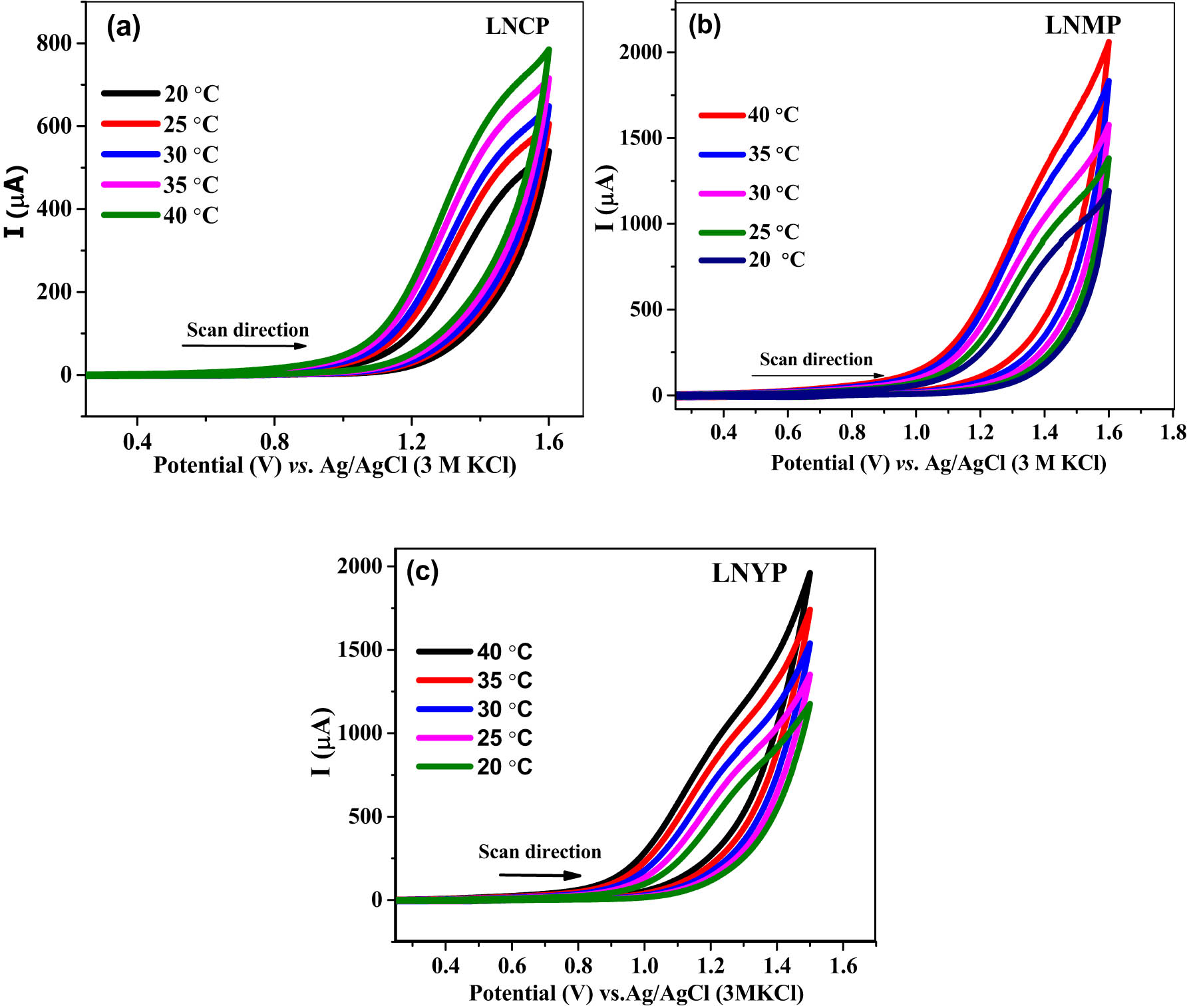

Figure 7
               Cyclic voltammetric responses of LNCP-1, LNMP-2, and LNYP-3 in 0.1 M KOH + 3.2 μM glucose at 20–40°C and 100 mV s−1 scan rate.
Figure 7

Cyclic voltammetric responses of LNCP-1, LNMP-2, and LNYP-3 in 0.1 M KOH + 3.2 μM glucose at 20–40°C and 100 mV s−1 scan rate.

By increasing the temperature, active sites of the electrode are free from the adsorbed CO, due to this reason high temperature is required for the water oxidation for such materials. The maximum current was observed for the LNMP-2 composition, i.e. 1.33 mA for water oxidation at 40°C.

To calculate the thermodynamic parameters, the Marcus equation (equation (5)) is used [58].

(5) k s = Z het exp [ Δ G / R T ] .

A more simplified form of the Marcus equation is given in equation (6).

(6) ln ( k s / Z het ) = Δ H / R T + Δ S / R ,

where Z het is the collision frequency and can be calculated at any temperature with the help of the following relation shown in equation (7).

(7) Z het = ( R T / 2 π M ) 1 / 2 ,

where M is the molar mass of glucose and G is the Gibbs free energy.

Respective ΔH* and ΔS* values were obtained from the slope and the intercept of the Marques Equation plots. ΔH* and ΔS* values were retrieved by plotting the graphs between the ln (k s/Z het) vs 1/T. The values of activation energies were calculated by using the following relation in equation (8).

(8) Δ G = Δ H T Δ S .

where ΔH* and ΔG* showed a positive value, which specifies that water oxidation in the presence of glucose is an activation-controlled process. Also, the reaction is endothermic in nature, and the spontaneous flow of the reaction takes place in forward direction [59]. Hence, on operating the electrochemical cells at higher temperatures, the functions of electrocatalysts are effectively improved due to an increase in the catalytic activities. Minimum value of activation energy as observed in Table 6 was observed for the LiNi0.97Mg0.03PO4 (LNMP-2) composition; therefore, it is suggested as the best electrocatalyst among all other analogues.

Table 6

Thermodynamic parameters of LNP and its doped series in 0.5 M KOH + 3.27 μM glucose at 100 mV s−1 scan rate and 20–40°C

Samples ΔG (kJ mol−1) ΔH (kJ mol−1)
LNP 26.8 18.2
LNCP-1 24.4 12.1
LNMP-2 23.1 14.0
LNYP-3 23.6 10.5

Furthermore, different groups of compounds have been employed as water oxidation electrocatalysts. A comparative analysis presented in Table 7 with electrochemical parameters indicate that the presented LNMP-based composites are superior catalysts for WOR owing to the developed electronic and transport properties of the materials. In this way, particularly effective and firm WOR electrocatalysts are anticipated for future energy bids. Increase in number of active sites by tuning the structure of the electrocatalyst and enhancement in inherent activity of active sites by modifying their atomic and electronic states. Such flexibility of LMNPs makes them available as proficient catalysts for future electronic devices [60].

Table 7

Literature comparison with recently reported catalysts for WOR

Catalysts D o (cm2 s−1) k o (cm s−1) Ref.
Ag2O/γ-Al2O3 6.5 × 10−6 2.4 × 10−4 [61]
(Fe, Al, Mg, Cd, Cr, Mn)3O4 2.74 × 10−8 3.04 × 10−4 [31]
(Fe, Al, Mg, Cu, Ni, Co)3O4 9.31 × 10−8 7.05 × 10−4 [31]
Ag2O–PrO2/γ–Al2O3 1.92 × 10−6 7.40 × 10−3 [62]
LNCP-1 1.9 × 10−5 1.4 × 10−2 This work
LNMP-2 3.9 × 10−5 5.2 × 10−2 This work
LNYP-3 3.2 × 10−5 4.8 × 10−2 This work

4 Conclusions

In this study, the non-aqueous sol–gel method was used to successfully synthesize the single-phase LNP and doped LNMP nanoparticles calcined at 850°C in an air atmosphere. XRD for pristine LNP and magnesium doped LNP patterns with intact phases according to the peak analysis ensured the stability of the material. Single-phase orthorhombic crystalline structure was obtained for LNP and magnesium doped analogs, suggesting the appropriateness of doping into the crystal lattice of lithium nickel phosphate. Average crystallite sizes determined using XRD were found to lie in the 7–10 nm range. FTIR spectra indicated the corresponding peaks of phosphate ion and metal oxide in lithium nickel oxide. No extra band appeared in the doped analogs thus conforming to the purity of synthesized samples. SEM micrographs showed nanoparticles to be nearly spherical in shape with a homogeneous distribution of particles. The EDX results showed that the stoichiometric amount of magnesium added was in good agreement with the theoretical values. The maximum ASA and the highest peak current were associated with LNMP-2 composition. All materials showed potential applications in the WOR catalysis and electrocatalysis the oxygen evolution reaction in 0.5 M KOH and glucose. In a basic medium, all the prepared samples responded to water oxidation, but LNMP-2 produced the best results, with the highest D o (5.2 × 10−5 cm2 s−1) and k o value (3.2 × 10−2 cm s−1) for WOR. LiNi0.95Y0.05PO4 i.e. LNYP-3 is found to be the optimum catalyst among its series. For LNMP-2, the high peak current value and low onset potential (0.90 V vs Ag/AgCl) demonstrated the catalyst’s potential for the water oxidation reaction. In conclusion, all electrocatalysts have a strong electrocatalytic potential for WOR and high-performance DMFCs. The synthesized catalysts can be recommended as promising candidates for further electroanalytical research.

  1. Funding information: The experimental work has been accomplished at Fuel Cell Lab, Department of Chemistry, QAU, Islamabad. This work was funded by the Researchers Supporting Project Number (RSP2024R441), King Saud University, Riyadh, Saudi Arabia. We are highly thankful to HEC Pakistan for Project 2014 4768 for the Gamry instrument.

  2. Author contributions: Synthesis and electrochemical studies: Mehwish Huma Nasir, Hajra Niaz, Naila Yunus, and Urooj Ali; manuscript preparation: Safia Khan and Tehmeena Maryum Butt; data analysis: Mehwish Huma Nasir; Manuscript proofreading/editing: Hina Naeem, Hu Li and Mohamed A. Habila; Supervision: Naveed Kausar Janjua. All authors have accepted responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

References

[1] Rehman A, Ulucak R, Murshed M, Ma H, Işık C. Carbonization and atmospheric pollution in China: The asymmetric impacts of forests, livestock production, and economic progress on CO2 emissions. J Environ Manag. 2021;294:113059.10.1016/j.jenvman.2021.113059Search in Google Scholar PubMed

[2] Zhou Y, Li R, Lv Z, Liu J, Zhou H, Xu C. Green hydrogen: A promising way to the carbon-free society. Chin J Chem Eng. 2022;43:2–13.10.1016/j.cjche.2022.02.001Search in Google Scholar

[3] Paska J, Surma T. Electricity generation from renewable energy sources in Poland. Renew Energy. 2014;71:286–94.10.1016/j.renene.2014.05.011Search in Google Scholar

[4] Tan H, Li J, He M, Li J, Zhi D, Qin F, et al. Global evolution of research on green energy and environmental technologies: A bibliometric study. J Environ Manag. 2021;297:113382.10.1016/j.jenvman.2021.113382Search in Google Scholar PubMed

[5] Oncel SS. Green energy engineering: Opening a green way for the future. J Clean Prod. 2017;142:3095–100.10.1016/j.jclepro.2016.10.158Search in Google Scholar

[6] Diffenbaugh NS, Burke M. Global warming has increased global economic inequality. Proc Natl Acad Sci. 2019;116:9808–13.10.1073/pnas.1816020116Search in Google Scholar PubMed PubMed Central

[7] McLaren JA, Mullendore S, Laws ND, Anderson KH. Valuing the resilience provided by solar and battery energy storage systems. National Renewable Energy Lab. (NREL); 2018.Search in Google Scholar

[8] Fang Y-H, Liu Z-P. Mechanism and tafel lines of electro-oxidation of water to oxygen on RuO2 (110). J Am Chem Soc. 2010;132:18214–22.10.1021/ja1069272Search in Google Scholar PubMed

[9] Braunchweig B, Hibbitts D, Neurock M, Wieckowski A. Electrocatalysis: A direct alcohol fuel cell and surface science perspective. Catal Today. 2013;202:197–209.10.1016/j.cattod.2012.08.013Search in Google Scholar

[10] Wieckowski A, Neurock M. Contrast and synergy between electrocatalysis and heterogeneous catalysis. Adv Phys Chem. 2011;11:1–11.10.1155/2011/907129Search in Google Scholar

[11] Shen L, Ying J, Ozoemena KI, Janiak C, Yang XY. Confinement effects in individual carbon encapsulated nonprecious metal‐based electrocatalysts. Adv Funct Mater. 2022;32:2110851.10.1002/adfm.202110851Search in Google Scholar

[12] Kim J-S, Han JW, Lee B-J. Alloying non-precious metals into Ni-based electrocatalysts for enhanced hydrogen oxidation reaction in alkaline media: A computational study. Appl Surf Sci. 2021;554:149627.10.1016/j.apsusc.2021.149627Search in Google Scholar

[13] Chen F, Sun Y, Li H, Li C. Review and development of anode electrocatalyst carriers for direct methanol fuel cell. Energy Technol. 2022;10:2101086.10.1002/ente.202101086Search in Google Scholar

[14] Chai Z, Zhang C, Wang H, Bi X, Bai P, Wang X. Increased interface effects of PtFe alloy/CeO2/C with PtFe selective loading on CeO2 for superior performance in direct methanol fuel cell. Int J Hydrog Energy. 2019;44:4794–808.10.1016/j.ijhydene.2019.01.016Search in Google Scholar

[15] Vecchio CL, Lyu X, Gatto I, Zulevi B, Serov A, Baglio V. Performance investigation of alkaline direct methanol fuel cell with commercial PGM-free cathodic materials. J Power Sources. 2023;561:232732.10.1016/j.jpowsour.2023.232732Search in Google Scholar

[16] Mehrotra S, Kumar VK, Gajalakshmi S, Pathak B. Bioelectrogenesis from ceramic membrane-based algal-microbial fuel cells treating dairy industry wastewater. Sustain Energy Technol Assess. 2021;48:101653.10.1016/j.seta.2021.101653Search in Google Scholar

[17] Lide DR. CRC handbook of chemistry and physics. USA: CRC Press; 2004.Search in Google Scholar

[18] Kim U, Lee S, Koo D, Choi Y, Kim H, Son E, et al. Crystal facet and electronic structure modulation of perovskite oxides for water oxidation. ACS Energy Lett. 2023;8:1575–83.10.1021/acsenergylett.3c00145Search in Google Scholar

[19] Ateia EE, AL-Hamzi A, Hussein B. Synthesis and characterization of non-stoichiometric cobalt nanoferrites for multifunctional applications. J Mater Sci: Mater Electron. 2022;33:20642–55.10.1007/s10854-022-08876-5Search in Google Scholar

[20] Oliveira LC, Venâncio R, de Azevedo PV, Anchieta CG, Nepel TC, Rodella CB, et al. Reviewing perovskite oxide sites influence on electrocatalytic reactions for high energy density devices. J Energy Chem. 2023;81:1–19.10.1016/j.jechem.2023.02.013Search in Google Scholar

[21] Yu J, Cao Q, Li Y, Long X, Yang S, Clark JK, et al. Defect-rich NiCeOx electrocatalyst with ultrahigh stability and low overpotential for water oxidation. ACS Catal. 2019;9:1605–11.10.1021/acscatal.9b00191Search in Google Scholar

[22] Liu Y, Han Y, Zhang Z, Zhang W, Lai W, Wang Y, et al. Low overpotential water oxidation at neutral pH catalyzed by a copper (II) porphyrin. Chem Sci. 2019;10:2613–22.10.1039/C8SC04529ASearch in Google Scholar PubMed PubMed Central

[23] Lei Z, Wang T, Zhao B, Cai W, Liu Y, Jiao S, et al. Recent progress in electrocatalysts for acidic water oxidation. Adv Energy Mater. 2020;10:2000478.10.1002/aenm.202000478Search in Google Scholar

[24] Angeles-Olvera Z, Crespo-Yapur A, Rodríguez O, Cholula-Díaz JL, Martínez LM, Videa M. Nickel-based electrocatalysts for water electrolysis. Energies. 2022;15:1609.10.3390/en15051609Search in Google Scholar

[25] Liu X, Wang X, Yuan X, Dong W, Huang F. Rational composition and structural design of in situ grown nickel-based electrocatalysts for efficient water electrolysis. J Mater Chem A. 2016;4:167–72.10.1039/C5TA07047CSearch in Google Scholar

[26] Mauger A, Julien CM. Olivine positive electrodes for Li-ion batteries: Status and perspectives. Batteries. 2018;4:39.10.3390/batteries4030039Search in Google Scholar

[27] Boyadzhieva T, Koleva V, Stoyanova R. Crystal chemistry of Mg substitution in NaMnPO 4 olivine: concentration limit and cation distribution. Phys Chem Chem Phys. 2017;19:12730–9.10.1039/C7CP01947ESearch in Google Scholar

[28] Gershinsky Y, Zysler M, Shokhen V, Stone Y, Zitoun D. Dual alkaline ion route to chemical de-insertion in oxygen evolution olivine electrocatalysts. ACS Catal. 2019;9:8355–63.10.1021/acscatal.9b02532Search in Google Scholar

[29] Janjua NK, Mumtaz M, Yaqub A, Sabahat S, Mujtaba A. Electrocatalytic activity of LiNiPO4 and the copper doped analogues towards oxygen reduction. Nucl. 2014;51:109–15.10.71330/thenucleus.2014.727Search in Google Scholar

[30] Indra A, Menezes PW, Schwarze M, Driess M. Visible light driven non-sacrificial water oxidation and dye degradation with silver phosphates: multi-faceted morphology matters. New J Chem. 2014;38:1942–5.10.1039/C3NJ01012KSearch in Google Scholar

[31] Asim M, Hussain A, Khan S, Arshad J, Butt TM, Hana A, et al. Sol-gel synthesized high entropy metal oxides as high-performance catalysts for electrochemical water oxidation. Molecules. 2022;27:5951.10.3390/molecules27185951Search in Google Scholar PubMed PubMed Central

[32] Kumaravel V, Imam MD, Badreldin A, Chava RK, Do JY, Kang M, et al. Photocatalytic hydrogen production: role of sacrificial reagents on the activity of oxide, carbon, and sulfide catalysts. Catalysts. 2019;9:276.10.3390/catal9030276Search in Google Scholar

[33] Lakhera SK, Rajan A, Rugma T, Bernaurdshaw N. A review on particulate photocatalytic hydrogen production system: Progress made in achieving high energy conversion efficiency and key challenges ahead. Renew Sustain Energy Rev. 2021;152:111694.10.1016/j.rser.2021.111694Search in Google Scholar

[34] Ren P, Zhang T, Jain N, Ching HV, Jaworski A, Barcaro G, et al. An atomically dispersed Mn-photocatalyst for generating hydrogen peroxide from seawater via the water oxidation reaction (WOR). J Am Chem Soc. 2023;145(30):16584–96.10.1021/jacs.3c03785Search in Google Scholar PubMed

[35] Priyadharsini N, Kasturi PR, Shanmugavani A, Surendran S, Shanmugapriya S, Selvan RK. Effect of chelating agent on the sol-gel thermolysis synthesis of LiNiPO4 and its electrochemical properties for hybrid capacitors. J Phys Chem Solids. 2018;119:183–92.10.1016/j.jpcs.2018.03.004Search in Google Scholar

[36] Mumtaz M, Janjua NK, Yaqub A, Sabahat S. Microwave assisted non-aqueous sol–gel synthesis of LiNiPO 4 and its copper doped analogues. J Sol-Gel Sci Technol. 2014;72:56–62.10.1007/s10971-014-3423-4Search in Google Scholar

[37] Ahmad A, Khan S, Tariq S, Luque R, Verpoort F. Self-sacrifice MOFs for heterogeneous catalysis: Synthesis mechanisms and future perspectives. Mater Today. 2022;55:137–69.10.1016/j.mattod.2022.04.002Search in Google Scholar

[38] Wu Q, Sang S, Wang G, Wang Q, Huang L, Zhu T, et al. Enhanced near-and mid-infrared radiation property of MgCr2O4 by doping with Cu ions. Ceram Int. 2023;49:17008–17.10.1016/j.ceramint.2023.02.063Search in Google Scholar

[39] Mahmoud AED, Stolle A, Stelter M. Sustainable synthesis of high-surface-area graphite oxide via dry ball milling. ACS Sustain Chem Eng. 2018;6:6358–69.10.1021/acssuschemeng.8b00147Search in Google Scholar

[40] Nasir MH, Janjua NK, Santoki J. Electrochemical performance of carbon modified LiNiPO4 as Li-ion battery cathode: A combined experimental and theoretical study. J Electrochem Soc. 2020;167:130526.10.1149/1945-7111/abb83dSearch in Google Scholar

[41] Enayati M, Aryanpour G, Ebnonnasir A. Production of nanostructured WC–Co powder by ball milling. Int J Refract Met Hard Mater. 2009;27:159–63.10.1016/j.ijrmhm.2008.06.005Search in Google Scholar

[42] Peterson SC, Jackson MA, Kim S, Palmquist DE. Increasing biochar surface area: Optimization of ball milling parameters. Powder Technol. 2012;228:115–20.10.1016/j.powtec.2012.05.005Search in Google Scholar

[43] Khan S, Shah SS, Yurtcan AB, Bahajjaj AAA, Zafar A, Janjua NK. Electrooxidation of ammonia at high-efficiency RuO2-ZnO/Al2O3 and PdO-ZnO/Al2O3 mesoporous catalysts; an innovative strategy towards clean fuel technology. Fuel. 2023;347:128446.10.1016/j.fuel.2023.128446Search in Google Scholar

[44] Tao Y, Zhu B. Yttrium ion doping effect on electrochemical performance of LiNiPO4 materials. Ionics. 2021;27:2909–14.10.1007/s11581-021-04089-8Search in Google Scholar

[45] Hulbert BS, Kriven WM. Specimen-displacement correction for powder X-ray diffraction in Debye–Scherrer geometry with a flat area detector. J Appl Crystallogr. 2023;56:160–6.10.1107/S1600576722011360Search in Google Scholar PubMed PubMed Central

[46] Salah AA, Jozwiak P, Garbarczyk J, Benkhouja K, Zaghib K, Gendron F, et al. Local structure and redox energies of lithium phosphates with olivine-and Nasicon-like structures. J Power Sources. 2005;140:370–5.10.1016/j.jpowsour.2004.08.029Search in Google Scholar

[47] Yoshida M, Mitsutomi Y, Mineo T, Nagasaka M, Yuzawa H, Kosugi N, et al. Direct observation of active nickel oxide cluster in nickel–borate electrocatalyst for water oxidation by in situ O K-edge X-ray absorption spectroscopy. J Phys Chem C. 2015;119:19279–86.10.1021/acs.jpcc.5b06102Search in Google Scholar

[48] Kim H, Park J, Park I, Jin K, Jerng SE, Kim SH, et al. Coordination tuning of cobalt phosphates towards efficient water oxidation catalyst. Nat Commun. 2015;6:8253.10.1038/ncomms9253Search in Google Scholar PubMed PubMed Central

[49] Wang Y, Yan W, Ni M, Zhu C, Du H. Surface valence regulation of cobalt–nickel foams for glucose oxidation-assisted water electrolysis. Chem Commun. 2023;59:2485–8.10.1039/D2CC05270ASearch in Google Scholar

[50] Khan S, Shah SS, Anjum MAR, Khan MR, Janjua NK. Electro-oxidation of ammonia over copper oxide impregnated γ-Al2O3 nanocatalysts. Coatings. 2021;11:313.10.3390/coatings11030313Search in Google Scholar

[51] Khan S, Shah SS, Ahmad A, Yurtcan AB, Jabeen E, Alshgari RA, et al. Ruthenium and palladium oxide promoted zinc oxide nanoparticles: Efficient electrocatalysts for hydrazine oxidation reaction. J Electroanal Chem. 2022;917:116422.10.1016/j.jelechem.2022.116422Search in Google Scholar

[52] Hamzah IH, Abd Manaf A, Sidek O. A study on characteristic and reliability of fabricated microfluidic three electrodes sensor based on Randle-Sevcik equation. 2010 IEEE Asia Pacific Conference on Circuits and Systems. IEEE; 2010. p. 816–9.10.1109/APCCAS.2010.5774816Search in Google Scholar

[53] Khan S, Shah SS, Ahmad A, Yurtcan AB, Katubi KM, Janjua NK. γ-Alumina supported copper oxide nanostructures promoted with ruthenium oxide (RuO2-CuO/Al2O3) and palladium oxide (PdO-CuO/Al2O3): Efficient electrodes for heterogeneous catalysis of ammonia electrooxidation. J Electrochem Soc. 2022;169:076512.10.1149/1945-7111/ac81fbSearch in Google Scholar

[54] Wang W, Zhang L, Tong S, Li X, Song W. Three-dimensional network films of electrospun copper oxide nanofibers for glucose determination. Biosens Bioelectron. 2009;25:708–14.10.1016/j.bios.2009.08.013Search in Google Scholar PubMed

[55] Janjua NK, Jabeen M, Islam M, Yaqub A, Sabahat S, Mehmood S, et al. Electrochemical properties of barium cerate doped with zinc for methanol oxidation. J Chem Soc Pak. 2015;37:11–26.Search in Google Scholar

[56] Butt TM, Erum S, Mujtaba A, Medvedev D, Janjua NK. Nickel-doped lanthanum cerate nanomaterials as highly active electrocatalysts. Front Chem. 2022;10:1064906.10.3389/fchem.2022.1064906Search in Google Scholar PubMed PubMed Central

[57] Parthasarathy A, Srinivasan S, Appleby AJ, Martin CR. Pressure dependence of the oxygen reduction reaction at the platinum microelectrode/nafion interface: electrode kinetics and mass transport. J Electrochem Soc. 1992;139:2856.10.1149/1.2068992Search in Google Scholar

[58] Khan ASA, Ahmed R, Mirza ML. Comparison of catalytic activities of carbon supported pt and pt-ru catalysts for methanol oxidation in neutral and basic media by cyclic voltammetry. Turk J Chem. 2008;32:743–53.Search in Google Scholar

[59] Khan ASA. Evaluation of thermodynamic parameters of cadmium adsorption on sand from Temkin adsorption isotherm. Turk J Chem. 2012;36:437–43.10.3906/kim-1108-34Search in Google Scholar

[60] Guo T, Li L, Wang Z. Recent development and future perspectives of amorphous transition metal‐based electrocatalysts for oxygen evolution reaction. Adv Energy Mater. 2022;12:2200827.10.1002/aenm.202200827Search in Google Scholar

[61] Butt TM, Ullah A, Janjua NKJ. Electrokinetic analysis of water oxidation on alumina supported silver oxide nanopowders. J Electroanal Chem. 2022;907:116053.10.1016/j.jelechem.2022.116053Search in Google Scholar

[62] Khan M, Janjua NK, Ahmad A, Luque R, Al‐Kahtani AA, Tighezza AM. Highly effective bi‐functional electrochemical activity of Ag2O‐PrO2/γ‐Al2O3 electrocatalysts towards OER and ORR. Int J Energy Res. 2022;46:14161–73.10.1002/er.8133Search in Google Scholar

Received: 2023-10-10
Revised: 2023-11-14
Accepted: 2023-11-16
Published Online: 2024-02-13

© 2024 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Tension buckling and postbuckling of nanocomposite laminated plates with in-plane negative Poisson’s ratio
  3. Polyvinylpyrrolidone-stabilised gold nanoparticle coatings inhibit blood protein adsorption
  4. Energy and mass transmission through hybrid nanofluid flow passing over a spinning sphere with magnetic effect and heat source/sink
  5. Surface treatment with nano-silica and magnesium potassium phosphate cement co-action for enhancing recycled aggregate concrete
  6. Numerical investigation of thermal radiation with entropy generation effects in hybrid nanofluid flow over a shrinking/stretching sheet
  7. Enhancing the performance of thermal energy storage by adding nano-particles with paraffin phase change materials
  8. Using nano-CaCO3 and ceramic tile waste to design low-carbon ultra high performance concrete
  9. Numerical analysis of thermophoretic particle deposition in a magneto-Marangoni convective dusty tangent hyperbolic nanofluid flow – Thermal and magnetic features
  10. Dual numerical solutions of Casson SA–hybrid nanofluid toward a stagnation point flow over stretching/shrinking cylinder
  11. Single flake homo p–n diode of MoTe2 enabled by oxygen plasma doping
  12. Electrostatic self-assembly effect of Fe3O4 nanoparticles on performance of carbon nanotubes in cement-based materials
  13. Multi-scale alignment to buried atom-scale devices using Kelvin probe force microscopy
  14. Antibacterial, mechanical, and dielectric properties of hydroxyapatite cordierite/zirconia porous nanocomposites for use in bone tissue engineering applications
  15. Time-dependent Darcy–Forchheimer flow of Casson hybrid nanofluid comprising the CNTs through a Riga plate with nonlinear thermal radiation and viscous dissipation
  16. Durability prediction of geopolymer mortar reinforced with nanoparticles and PVA fiber using particle swarm optimized BP neural network
  17. Utilization of zein nano-based system for promoting antibiofilm and anti-virulence activities of curcumin against Pseudomonas aeruginosa
  18. Antibacterial effect of novel dental resin composites containing rod-like zinc oxide
  19. An extended model to assess Jeffery–Hamel blood flow through arteries with iron-oxide (Fe2O3) nanoparticles and melting effects: Entropy optimization analysis
  20. Comparative study of copper nanoparticles over radially stretching sheet with water and silicone oil
  21. Cementitious composites modified by nanocarbon fillers with cooperation effect possessing excellent self-sensing properties
  22. Confinement size effect on dielectric properties, antimicrobial activity, and recycling of TiO2 quantum dots via photodegradation processes of Congo red dye and real industrial textile wastewater
  23. Biogenic silver nanoparticles of Moringa oleifera leaf extract: Characterization and photocatalytic application
  24. Novel integrated structure and function of Mg–Gd neutron shielding materials
  25. Impact of multiple slips on thermally radiative peristaltic transport of Sisko nanofluid with double diffusion convection, viscous dissipation, and induced magnetic field
  26. Magnetized water-based hybrid nanofluid flow over an exponentially stretching sheet with thermal convective and mass flux conditions: HAM solution
  27. A numerical investigation of the two-dimensional magnetohydrodynamic water-based hybrid nanofluid flow composed of Fe3O4 and Au nanoparticles over a heated surface
  28. Development and modeling of an ultra-robust TPU-MWCNT foam with high flexibility and compressibility
  29. Effects of nanofillers on the physical, mechanical, and tribological behavior of carbon/kenaf fiber–reinforced phenolic composites
  30. Polymer nanocomposite for protecting photovoltaic cells from solar ultraviolet in space
  31. Study on the mechanical properties and microstructure of recycled concrete reinforced with basalt fibers and nano-silica in early low-temperature environments
  32. Synergistic effect of carbon nanotubes and polyvinyl alcohol on the mechanical performance and microstructure of cement mortar
  33. CFD analysis of paraffin-based hybrid (Co–Au) and trihybrid (Co–Au–ZrO2) nanofluid flow through a porous medium
  34. Forced convective tangent hyperbolic nanofluid flow subject to heat source/sink and Lorentz force over a permeable wedge: Numerical exploration
  35. Physiochemical and electrical activities of nano copper oxides synthesised via hydrothermal method utilising natural reduction agents for solar cell application
  36. A homotopic analysis of the blood-based bioconvection Carreau–Yasuda hybrid nanofluid flow over a stretching sheet with convective conditions
  37. In situ synthesis of reduced graphene oxide/SnIn4S8 nanocomposites with enhanced photocatalytic performance for pollutant degradation
  38. A coarse-grained Poisson–Nernst–Planck model for polyelectrolyte-modified nanofluidic diodes
  39. A numerical investigation of the magnetized water-based hybrid nanofluid flow over an extending sheet with a convective condition: Active and passive controls of nanoparticles
  40. The LyP-1 cyclic peptide modified mesoporous polydopamine nanospheres for targeted delivery of triptolide regulate the macrophage repolarization in atherosclerosis
  41. Synergistic effect of hydroxyapatite-magnetite nanocomposites in magnetic hyperthermia for bone cancer treatment
  42. The significance of quadratic thermal radiative scrutinization of a nanofluid flow across a microchannel with thermophoretic particle deposition effects
  43. Ferromagnetic effect on Casson nanofluid flow and transport phenomena across a bi-directional Riga sensor device: Darcy–Forchheimer model
  44. Performance of carbon nanomaterials incorporated with concrete exposed to high temperature
  45. Multicriteria-based optimization of roller compacted concrete pavement containing crumb rubber and nano-silica
  46. Revisiting hydrotalcite synthesis: Efficient combined mechanochemical/coprecipitation synthesis to design advanced tunable basic catalysts
  47. Exploration of irreversibility process and thermal energy of a tetra hybrid radiative binary nanofluid focusing on solar implementations
  48. Effect of graphene oxide on the properties of ternary limestone clay cement paste
  49. Improved mechanical properties of graphene-modified basalt fibre–epoxy composites
  50. Sodium titanate nanostructured modified by green synthesis of iron oxide for highly efficient photodegradation of dye contaminants
  51. Green synthesis of Vitis vinifera extract-appended magnesium oxide NPs for biomedical applications
  52. Differential study on the thermal–physical properties of metal and its oxide nanoparticle-formed nanofluids: Molecular dynamics simulation investigation of argon-based nanofluids
  53. Heat convection and irreversibility of magneto-micropolar hybrid nanofluids within a porous hexagonal-shaped enclosure having heated obstacle
  54. Numerical simulation and optimization of biological nanocomposite system for enhanced oil recovery
  55. Laser ablation and chemical vapor deposition to prepare a nanostructured PPy layer on the Ti surface
  56. Cilostazol niosomes-loaded transdermal gels: An in vitro and in vivo anti-aggregant and skin permeation activity investigations towards preparing an efficient nanoscale formulation
  57. Linear and nonlinear optical studies on successfully mixed vanadium oxide and zinc oxide nanoparticles synthesized by sol–gel technique
  58. Analytical investigation of convective phenomena with nonlinearity characteristics in nanostratified liquid film above an inclined extended sheet
  59. Optimization method for low-velocity impact identification in nanocomposite using genetic algorithm
  60. Analyzing the 3D-MHD flow of a sodium alginate-based nanofluid flow containing alumina nanoparticles over a bi-directional extending sheet using variable porous medium and slip conditions
  61. A comprehensive study of laser irradiated hydrothermally synthesized 2D layered heterostructure V2O5(1−x)MoS2(x) (X = 1–5%) nanocomposites for photocatalytic application
  62. Computational analysis of water-based silver, copper, and alumina hybrid nanoparticles over a stretchable sheet embedded in a porous medium with thermophoretic particle deposition effects
  63. A deep dive into AI integration and advanced nanobiosensor technologies for enhanced bacterial infection monitoring
  64. Effects of normal strain on pyramidal I and II 〈c + a〉 screw dislocation mobility and structure in single-crystal magnesium
  65. Computational study of cross-flow in entropy-optimized nanofluids
  66. Significance of nanoparticle aggregation for thermal transport over magnetized sensor surface
  67. A green and facile synthesis route of nanosize cupric oxide at room temperature
  68. Effect of annealing time on bending performance and microstructure of C19400 alloy strip
  69. Chitosan-based Mupirocin and Alkanna tinctoria extract nanoparticles for the management of burn wound: In vitro and in vivo characterization
  70. Electrospinning of MNZ/PLGA/SF nanofibers for periodontitis
  71. Photocatalytic degradation of methylene blue by Nd-doped titanium dioxide thin films
  72. Shell-core-structured electrospinning film with sequential anti-inflammatory and pro-neurogenic effects for peripheral nerve repairment
  73. Flow and heat transfer insights into a chemically reactive micropolar Williamson ternary hybrid nanofluid with cross-diffusion theory
  74. One-pot fabrication of open-spherical shapes based on the decoration of copper sulfide/poly-O-amino benzenethiol on copper oxide as a promising photocathode for hydrogen generation from the natural source of Red Sea water
  75. A penta-hybrid approach for modeling the nanofluid flow in a spatially dependent magnetic field
  76. Advancing sustainable agriculture: Metal-doped urea–hydroxyapatite hybrid nanofertilizer for agro-industry
  77. Utilizing Ziziphus spina-christi for eco-friendly synthesis of silver nanoparticles: Antimicrobial activity and promising application in wound healing
  78. Plant-mediated synthesis, characterization, and evaluation of a copper oxide/silicon dioxide nanocomposite by an antimicrobial study
  79. Effects of PVA fibers and nano-SiO2 on rheological properties of geopolymer mortar
  80. Investigating silver and alumina nanoparticles’ impact on fluid behavior over porous stretching surface
  81. Potential pharmaceutical applications and molecular docking study for green fabricated ZnO nanoparticles mediated Raphanus sativus: In vitro and in vivo study
  82. Effect of temperature and nanoparticle size on the interfacial layer thickness of TiO2–water nanofluids using molecular dynamics
  83. Characteristics of induced magnetic field on the time-dependent MHD nanofluid flow through parallel plates
  84. Flexural and vibration behaviours of novel covered CFRP composite joints with an MWCNT-modified adhesive
  85. Experimental research on mechanically and thermally activation of nano-kaolin to improve the properties of ultra-high-performance fiber-reinforced concrete
  86. Analysis of variable fluid properties for three-dimensional flow of ternary hybrid nanofluid on a stretching sheet with MHD effects
  87. Biodegradability of corn starch films containing nanocellulose fiber and thymol
  88. Toxicity assessment of copper oxide nanoparticles: In vivo study
  89. Some measures to enhance the energy output performances of triboelectric nanogenerators
  90. Reinforcement of graphene nanoplatelets on water uptake and thermomechanical behaviour of epoxy adhesive subjected to water ageing conditions
  91. Optimization of preparation parameters and testing verification of carbon nanotube suspensions used in concrete
  92. Max-phase Ti3SiC2 and diverse nanoparticle reinforcements for enhancement of the mechanical, dynamic, and microstructural properties of AA5083 aluminum alloy via FSP
  93. Advancing drug delivery: Neural network perspectives on nanoparticle-mediated treatments for cancerous tissues
  94. PEG-PLGA core–shell nanoparticles for the controlled delivery of picoplatin–hydroxypropyl β-cyclodextrin inclusion complex in triple-negative breast cancer: In vitro and in vivo study
  95. Conduction transportation from graphene to an insulative polymer medium: A novel approach for the conductivity of nanocomposites
  96. Review Articles
  97. Developments of terahertz metasurface biosensors: A literature review
  98. Overview of amorphous carbon memristor device, modeling, and applications for neuromorphic computing
  99. Advances in the synthesis of gold nanoclusters (AuNCs) of proteins extracted from nature
  100. A review of ternary polymer nanocomposites containing clay and calcium carbonate and their biomedical applications
  101. Recent advancements in polyoxometalate-functionalized fiber materials: A review
  102. Special contribution of atomic force microscopy in cell death research
  103. A comprehensive review of oral chitosan drug delivery systems: Applications for oral insulin delivery
  104. Cellular senescence and nanoparticle-based therapies: Current developments and perspectives
  105. Cyclodextrins-block copolymer drug delivery systems: From design and development to preclinical studies
  106. Micelle-based nanoparticles with stimuli-responsive properties for drug delivery
  107. Critical assessment of the thermal stability and degradation of chemically functionalized nanocellulose-based polymer nanocomposites
  108. Research progress in preparation technology of micro and nano titanium alloy powder
  109. Nanoformulations for lysozyme-based additives in animal feed: An alternative to fight antibiotic resistance spread
  110. Incorporation of organic photochromic molecules in mesoporous silica materials: Synthesis and applications
  111. A review on modeling of graphene and associated nanostructures reinforced concrete
  112. A review on strengthening mechanisms of carbon quantum dots-reinforced Cu-matrix nanocomposites
  113. Review on nanocellulose composites and CNFs assembled microfiber toward automotive applications
  114. Nanomaterial coating for layered lithium rich transition metal oxide cathode for lithium-ion battery
  115. Application of AgNPs in biomedicine: An overview and current trends
  116. Nanobiotechnology and microbial influence on cold adaptation in plants
  117. Hepatotoxicity of nanomaterials: From mechanism to therapeutic strategy
  118. Applications of micro-nanobubble and its influence on concrete properties: An in-depth review
  119. A comprehensive systematic literature review of ML in nanotechnology for sustainable development
  120. Exploiting the nanotechnological approaches for traditional Chinese medicine in childhood rhinitis: A review of future perspectives
  121. Twisto-photonics in two-dimensional materials: A comprehensive review
  122. Current advances of anticancer drugs based on solubilization technology
  123. Recent process of using nanoparticles in the T cell-based immunometabolic therapy
  124. Future prospects of gold nanoclusters in hydrogen storage systems and sustainable environmental treatment applications
  125. Preparation, types, and applications of one- and two-dimensional nanochannels and their transport properties for water and ions
  126. Microstructural, mechanical, and corrosion characteristics of Mg–Gd–x systems: A review of recent advancements
  127. Functionalized nanostructures and targeted delivery systems with a focus on plant-derived natural agents for COVID-19 therapy: A review and outlook
  128. Mapping evolution and trends of cell membrane-coated nanoparticles: A bibliometric analysis and scoping review
  129. Nanoparticles and their application in the diagnosis of hepatocellular carcinoma
  130. In situ growth of carbon nanotubes on fly ash substrates
  131. Structural performance of boards through nanoparticle reinforcement: An advance review
  132. Reinforcing mechanisms review of the graphene oxide on cement composites
  133. Seed regeneration aided by nanomaterials in a climate change scenario: A comprehensive review
  134. Surface-engineered quantum dot nanocomposites for neurodegenerative disorder remediation and avenue for neuroimaging
  135. Graphitic carbon nitride hybrid thin films for energy conversion: A mini-review on defect activation with different materials
  136. Nanoparticles and the treatment of hepatocellular carcinoma
  137. Special Issue on Advanced Nanomaterials and Composites for Energy Conversion and Storage - Part II
  138. Highly safe lithium vanadium oxide anode for fast-charging dendrite-free lithium-ion batteries
  139. Recent progress in nanomaterials of battery energy storage: A patent landscape analysis, technology updates, and future prospects
  140. Special Issue on Advanced Nanomaterials for Carbon Capture, Environment and Utilization for Energy Sustainability - Part II
  141. Calcium-, magnesium-, and yttrium-doped lithium nickel phosphate nanomaterials as high-performance catalysts for electrochemical water oxidation reaction
  142. Low alkaline vegetation concrete with silica fume and nano-fly ash composites to improve the planting properties and soil ecology
  143. Mesoporous silica-grafted deep eutectic solvent-based mixed matrix membranes for wastewater treatment: Synthesis and emerging pollutant removal performance
  144. Electrochemically prepared ultrathin two-dimensional graphitic nanosheets as cathodes for advanced Zn-based energy storage devices
  145. Enhanced catalytic degradation of amoxicillin by phyto-mediated synthesised ZnO NPs and ZnO-rGO hybrid nanocomposite: Assessment of antioxidant activity, adsorption, and thermodynamic analysis
  146. Incorporating GO in PI matrix to advance nanocomposite coating: An enhancing strategy to prevent corrosion
  147. Synthesis, characterization, thermal stability, and application of microporous hyper cross-linked polyphosphazenes with naphthylamine group for CO2 uptake
  148. Engineering in ceramic albite morphology by the addition of additives: Carbon nanotubes and graphene oxide for energy applications
  149. Nanoscale synergy: Optimizing energy storage with SnO2 quantum dots on ZnO hexagonal prisms for advanced supercapacitors
  150. Aging assessment of silicone rubber materials under corona discharge accompanied by humidity and UV radiation
  151. Tuning structural and electrical properties of Co-precipitated and Cu-incorporated nickel ferrite for energy applications
  152. Sodium alginate-supported AgSr nanoparticles for catalytic degradation of malachite green and methyl orange in aqueous medium
  153. An environmentally greener and reusability approach for bioenergy production using Mallotus philippensis (Kamala) seed oil feedstock via phytonanotechnology
  154. Micro-/nano-alumina trihydrate and -magnesium hydroxide fillers in RTV-SR composites under electrical and environmental stresses
  155. Mechanism exploration of ion-implanted epoxy on surface trap distribution: An approach to augment the vacuum flashover voltages
  156. Nanoscale engineering of semiconductor photocatalysts boosting charge separation for solar-driven H2 production: Recent advances and future perspective
  157. Excellent catalytic performance over reduced graphene-boosted novel nanoparticles for oxidative desulfurization of fuel oil
  158. Special Issue on Advances in Nanotechnology for Agriculture
  159. Deciphering the synergistic potential of mycogenic zinc oxide nanoparticles and bio-slurry formulation on phenology and physiology of Vigna radiata
  160. Nanomaterials: Cross-disciplinary applications in ornamental plants
  161. Special Issue on Catechol Based Nano and Microstructures
  162. Polydopamine films: Versatile but interface-dependent coatings
  163. In vitro anticancer activity of melanin-like nanoparticles for multimodal therapy of glioblastoma
  164. Poly-3,4-dihydroxybenzylidenhydrazine, a different analogue of polydopamine
  165. Chirality and self-assembly of structures derived from optically active 1,2-diaminocyclohexane and catecholamines
  166. Advancing resource sustainability with green photothermal materials: Insights from organic waste-derived and bioderived sources
  167. Bioinspired neuromelanin-like Pt(iv) polymeric nanoparticles for cancer treatment
  168. Special Issue on Implementing Nanotechnology for Smart Healthcare System
  169. Intelligent explainable optical sensing on Internet of nanorobots for disease detection
  170. Special Issue on Green Mono, Bi and Tri Metallic Nanoparticles for Biological and Environmental Applications
  171. Tracking success of interaction of green-synthesized Carbopol nanoemulgel (neomycin-decorated Ag/ZnO nanocomposite) with wound-based MDR bacteria
  172. Green synthesis of copper oxide nanoparticles using genus Inula and evaluation of biological therapeutics and environmental applications
  173. Biogenic fabrication and multifunctional therapeutic applications of silver nanoparticles synthesized from rose petal extract
  174. Metal oxides on the frontlines: Antimicrobial activity in plant-derived biometallic nanoparticles
  175. Controlling pore size during the synthesis of hydroxyapatite nanoparticles using CTAB by the sol–gel hydrothermal method and their biological activities
  176. Special Issue on State-of-Art Advanced Nanotechnology for Healthcare
  177. Applications of nanomedicine-integrated phototherapeutic agents in cancer theranostics: A comprehensive review of the current state of research
  178. Smart bionanomaterials for treatment and diagnosis of inflammatory bowel disease
  179. Beyond conventional therapy: Synthesis of multifunctional nanoparticles for rheumatoid arthritis therapy
Downloaded on 25.11.2025 from https://www.degruyterbrill.com/document/doi/10.1515/ntrev-2023-0166/html
Scroll to top button
