Home Study on the mechanical properties and microstructure of recycled concrete reinforced with basalt fibers and nano-silica in early low-temperature environments
Article Open Access

Study on the mechanical properties and microstructure of recycled concrete reinforced with basalt fibers and nano-silica in early low-temperature environments

  • Wang Yonggui , Wu Jiangjiang and Zhang Juan EMAIL logo
Published/Copyright: May 8, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Nanotechnology Reviews
From the journal Nanotechnology Reviews Volume 13 Issue 1

Abstract

The effects of basalt fibers (BF) and nano-silica (NS) on the mechanical properties and microstructure of recycled concrete (RC) in early low-temperature environments were investigated by placing the BF and NS modified RC specimens in the environments of −20, −10, 0, and 25°C for curing for 6 h, followed by standardized maintenance. The damage morphology and mechanical properties of modified RC were analyzed in such environments. The formulae for the compressive strength of RC, which was affected by BF and NS, were fitted using statistical product and service solutions, and a micromorphological analysis of the modified RC was conducted using scanning electron microscope. The mechanical properties of RC decreased owing to the influence of early low temperatures, among which 0°C caused the largest damage crack and the most serious effects. In the early low-temperature environments, the physical properties of RC generally increased and then decreased with the increase in BF dosage; however, increasing NS dosages improved its mechanical properties. The composite doping of BF and NS was more obvious than the single doping of BF or NS to enhance the performance of RC, and the internal pore structure was considerably improved. The preferred doping amounts were 3 kg m−3 of BF and 2% NS.

Keywords: recycled concrete; nano-silica; mechanical properties

1 Introduction

In the twenty-first century, construction development moved to a new stage. Green sustainability has gained importance, and the disposal of waste concrete produced by the construction and demolition of buildings has become a major problem. One of the solutions is to utilize waste concrete as a recycled aggregate (RA) instead of natural aggregate (NA) in construction [1,2]. According to statistics, the annual building growth in China is approximately 3.182 billion square meters, and the output of structural waste is as high as 460 million tons [3]. Malaysia produces approximately 26,000 tons of construction waste per day with a recycling rate of only 15%, which is considerably lower than that in developed countries such as Singapore and Germany [4]. Studies have shown that the strength of recycled concrete (RC) is 88.4% that of ordinary concrete [5]. Consequently, the preparation of high-performance RC has become a realistic requirement, and admixtures have been added to prepare high-performance RC [6].

According to a previous study, fibers can significantly improve RC performance [7]. Basalt fibers (BF) are a new type of inorganic fiber produced by melting volcanic rocks and are superior to other fibers in terms of lower cost and material properties [8]. The correct amount of BF was evenly dispersed in the concrete without agglomeration [9]. Yuan et al. [10] tested the length and amount of BF, and the results indicated that the toughness of the matrix was significantly correlated with the BF length and dosage. Zheng et al. [11] analyzed the effect of nano-silica (NS) and BF on the mechanical properties of RC and found that BF significantly affected the connection between various matrices inside RC, whereas NS effectively increased its compactness with an optimal concentration of 2%. Fang et al. [12] analyzed the elastic modulus and physical properties of RC with different BF doping levels and found that BF increased the toughness of RC with optimal BF volume fractions of 0.2 and 0.1%. The BF analysis of sea sand concrete conducted by Yang et al. [13] showed that it effectively enhanced its bending and compression properties. Zheng et al. [14] controlled the length and content of BF to analyze the influence of BF on the physical properties of RC and observed that the increase in compressive strength of RC with the BF length was slightly lower. However, a BF length of 12 mm was conducive to the cleavage tensile and bending properties. Chen et al. [15] analyzed the impact of BF on the durability of concrete in seawater and observed that BF effectively reduced the tensile strength of seawater by bridging the aggregates in concrete. Zhang et al. [16] used scanning electron microscopy (SEM) to analyze the interfacial microanalysis of RC with BF. They observed that BF significantly improved the interface of RC when RC was replaced at 50%, as it effectively prevented RC from cracking and slowed crack development. Wang et al. [17] demonstrated that modifying BF with NS improved its surface roughness, which is more conducive to the influence of BF on RC structures.

Modern technological innovations provide more possibilities for improving RC, in which nanomaterials, such as NS [18], nano-TiO2 [19], nano-Ca2CO3 [20], and nano-Al2O3 [21], have various applications. Yan et al. [22] used NS to prepare high-performance nano-concrete and demonstrated that NS improved the toughness of concrete and reduced its initial stiffness. Mukharjee and Barai [23] analyzed an RC interface admixed with NS using the Vickers microscope hardness test and backscattered SEM, indicating that the microstructure of RC doped with NS was effectively reduced, and more hydration products filled the pores. Said et al. [24] analyzed the impact of various NS dosages on the overall performance and observed that the incorporation of NS significantly improved the compactness of concrete and reduced porosity. Further, a more refined pore architecture was obtained at 6% NS. Nazari and Riahi [25] analyzed the mechanism of NS in reforming the attributes of concrete. The results indicated that NS acts as an infilling agent to fill the voids, and NS as a nanomaterial has high activity and a volcanic ash effect that accelerates the hydration reaction, resulting in smaller Ca(OH)2 crystals. Zhang and Zhu [26] demonstrated that the reaction between NS and Ca(OH)2 in concrete promoted the generation of hydration products and enhanced mortar adhesion. Rezaei et al. [27] showed that 4.5% NS effectively reduced the proportion of large pores in concrete, which significantly affected the compressive properties. Xu et al. [28] showed that NS improved the interface transition zone (ITZ) and microstructure by reducing the internal defects in concrete through the filling effect and promoting the hydration reaction. Vijayan et al. [29] mixed NS with silica fume into concrete to assay the bond intensity, and compressive intensity, and analyzed it microscopically using SEM and X-ray (CT) diffraction. The results showed that the intensity mixed with NS with the ITZ interface exceeded that of the silica fume and the bond intensity of the ITZ improved more than the compressive intensity with NS content. Wang et al. [30] mixed BF and NS with RC and demonstrated that NS favored the bonding of BF with cement and increased the ITZ properties of RC.

Most of the test environment of concrete was approximately at 20°C, which differed from that in the north or inland areas with large climate change. Yi et al. [31] analyzed the reasons for the decline in compressive intensity at low temperatures in the early stages and showed that the water on the concrete surface penetrated the interior through pores between the aggregates to form ice lenses. Thus, the water in the pores transforms from liquid to solid, leading to a decrease in water content in the slurry and the formation of small pores, which affects the development of strength and is related to the stress generated by the volume expansion of ice crystals inside the concrete. Xia et al. [32] analyzed the effect of NS on the early mechanical properties of concrete during winter construction and showed that NS promoted the early hydration of cement and effectively improved the properties of cementitious materials. Zhang et al. [33] analyzed the deformation law at low temperatures and designed a non-contact deformation test device used at negative temperatures; the results indicated that the transformation law of concrete at low temperatures was divided into six stages. Dong et al. [34] analyzed the relationship between the microstructure and micromechanical function of concrete at different negative temperatures and showed that the temperature decreased for pre-curing, sparser construction of the cement paste leading to a reduction in pore sizes to less than 20 nm, as well as the compressive strength. Dai et al. [35] studied the concrete at low temperatures and measured its mass loss and peak stress-strain before and after it was subjected to low temperatures. The results showed that low-temperature curing hindered the hydration reaction, forming frost heave cracks between the mortar and aggregate. Thus, its physical properties declined, and a high water-cement ratio severely affected the concrete at low temperatures. To study the microscopic mechanism of concrete damage and reveal the causes of its cracking, the development of microscopic crack porosity within the concrete was analyzed by SEM [14], mercury intrusion porosimetry [36], and CT [37].

The aforementioned examples indicate that research on early low-temperature concrete has primarily focused on freeze–thaw cycles [38,39] and the freeze–thaw damage caused by low-temperature curing after the final setting [40,41]. However, the current research on RC in low-temperature environments focuses on the frost resistance analysis of RC under the influence of low temperatures after the maintenance cycle and the effect of freeze–thaw cycles on its mechanical properties. The mechanical properties of RC in the early stage when it is cast and subjected to low temperatures have not been adequately researched. The application of RC has also expanded in recent years, and construction and demolition waste have been gradually recycled and reused. However, during the alternation of seasons, such as from fall to winter or early spring, the sudden temperature drops and frost phenomena affect the physical properties of RC to varying degrees. Meanwhile, considering the excellent performance of BF and NS based on previous studies, this study improves RC with BF and NS and examines its physical properties at four temperatures, namely, 25, 0, −10, and −20°C in the early stage, and analyzes its micro-morphology using SEM.

2 Test survey

2.1 Materials

P.O. 42.5 silicate cement manufactured by Jiaozuo Qianye Cement Co. Ltd was used in the experiment. The initial and final setting times were 2.5 and 4 h, respectively. The specific chemical composition is shown in Table 1. The performance indexes of the cement were determined using Ordinary Silicate Cement (GB 178-2007). The aggregates comprised NAs and RAs, which were crushed and sieved using a jaw crusher after pouring the C40 concrete and maintaining for 28 days. Its physical properties are listed in Table 2, while the appearance of RA is shown in Figure 1. The fine aggregate used in the experiment was natural river sand with a fineness modulus of 2.86; its physical properties are shown in Table 3, and the particle size distribution curve is shown in Figure 1.

Table 1

Chemical composition of the cement

Oxide CaO SiO2 Al2O3 MgO Fe2O3 SO3
Mass (%) 65.40 21.00 21.00 3.40 2.80 2.00
Table 2

Physical properties of the coarse aggregate

Aggregate type Particle size (mm) Apparent density (kg m−3) Bulk density (kg m−3) Water absorption (%) Crushing value (%)
NA 5–20 2,743 1,486 1.52 9.4
RA 5–20 2,537 1,325 5.85 16.4
Figure 1 Particle size distribution.
Figure 1

Particle size distribution.

Table 3

Physical performances of the fine aggregate

Performance index Particle size (mm) Apparent density (kg m−3) Water absorption (%)
Specification requirements <4.75 ≥2,500 ≤2.0
Fine aggregate <4.75 2,768 1.3

The dopants used in these tests were BF and NS. The BF was provided by Jiangsu Nong Chaoer Composite Materials Co., Ltd. Its physical properties are listed in Table 4, while its appearance and morphology are shown in Figure 2. NS was selected from the NS dispersion of YC-SI01J produced by Xinan Chemical New Materials Co. Ltd. It had a PH of 9, solid content of 30%, and particle size of 10 nm. Tap water from Jiaozuo city was used.

Table 4

Physical properties of BF

Length (mm) Diameter (µm) Density (g cm−3) Modulus of elasticity (GPa) Tensile strength (MPa) Fracture elongation (%)
12 13 2.64 91–110 3,000–4,800 2.6–3.3

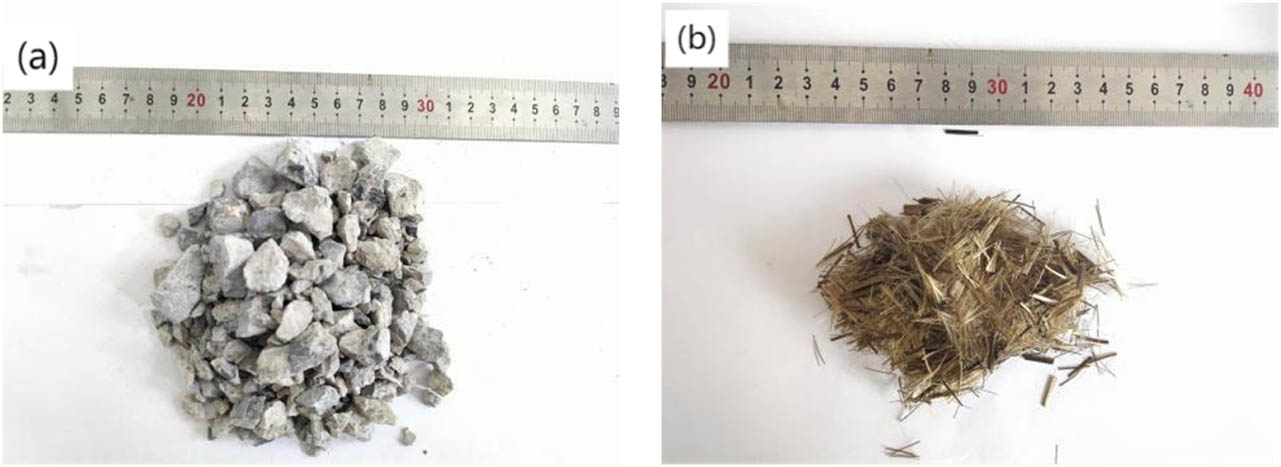

Figure 2 Images of (a) RA and (b) BF.
Figure 2

Images of (a) RA and (b) BF.

2.2 Mixing design

For the experimental concrete ratios, the RA substitution rate and BF and NS admixtures were selected as the project alternating quantities. The RA substitution rates were 0 and 100%, while the BF admixtures were 0, 3, and 6 kg m−3. The NS solid design was used in 0, 1, and 2% of the cases. Ten sets of working condition ratios were designed based on the above variables and the specific ratios are presented in Table 5.

Table 5

Mix ratio (kg m−3)

Specimen Water Cement NA RA Sand MBF NS
NC 185 462.5 1255.7 0 576.8 0 0
RC 185 462.5 0 1139.6 536.3 0 0
B0N1 174.21 457.87 0 1139.6 536.3 0 15.42
B0N2 163.41 453.25 0 1139.6 536.3 0 30.83
B3N0 185 462.5 0 1139.6 536.3 3 0
B3N1 174.21 457.87 0 1139.6 536.3 3 15.42
B3N2 163.41 453.25 0 1139.6 536.3 3 30.83
B6N0 185 462.5 0 1139.6 536.3 6 0
B6N1 174.21 457.87 0 1139.6 536.3 6 15.42
B6N2 163.41 453.25 0 1139.6 536.3 6 30.83

Note: NS content is the nano-silica dispersion mass.

To ensure a uniform distribution of BF and NS within the RC, the concrete was mixed using the segmental release method shown in Figure 3, as proposed by Ji [42]. The coarse aggregate was soaked in water for 24 h before mixing, and then removed and dried to surface dryness before mixing with the RC.

Figure 3 RC mixing process.
Figure 3

RC mixing process.

2.3 Sample preparation

The poured RC was placed into a 100 mm × 100 mm × 100 mm plastic test piece on a vibrating table for 2 min. The specimen was then smoothed and placed in constant-temperature box for curing. To study the performance of concrete at low temperatures in the early stage, four temperatures (25, 0, −10, and −20°C) were selected as the early curing temperatures. The freshly poured test block was cured at the above temperature for 6 h, and then removed and cured in a standard room (20 ± 2°C, 95% relative humidity) for 7, 14, and 28 days. The cubic compression and splitting tensile tests were conducted according to GB/T 50081-2019 [43].

2.4 Test scheme

This study primarily involved testing the physical properties and studying the SEM microstructure of RC.

2.4.1 Mechanical performance test

A 600 kN electro-hydraulic servo press was used for testing. The trial procedure and data processing were performed according to GB/T 50081-2019 [43]. The mean value of three test blocks from each group was used for the analysis. A microcomputer was used to command the load-on rates of 0.5 and 0.05 MPa s−1 during the cubic compressive and splitting tensile tests, respectively.

2.4.2 SEM microscopic test

The samples used in the test in this study were concrete, which underwent six steps before SEM studies, namely, sampling, cleaning, dehydration, drying, sticking samples, and spraying gold. Samples containing BF and possessing obvious interfaces were selected, and converted into 1 cm3 specimens to ensure that the bottom was flat. The surface of the specimen was cleaned with distilled water, dehydrated with ethanol, and placed in a natural environment to allow the ethanol to evaporate completely and dry the specimen. After drying, the specimens were glued to the sample stage and coated with metal. The surface morphology of the sample was studied using field-emission electron microscope (Hitachi SU8220) to observe the microstructure of the bonding surface between the mortar and BF under various magnifications.

3 Test results and analysis

3.1 Experimental phenomena

3.1.1 Cubic compression test

The compressive damage corresponding to different BF dosages for 28 days in the early 0°C environment is shown in Figure 4. At 0 kg m−3 BF, cracks gradually appear on the surface of the RC test block with continued loading, finally leading to damage owing to penetrating cracks. The overall damage is severe, with the surface collapsing from the interior, and the aggregate and mortar separating. At 3 kg m−3 BF, the failure mode of B3N0 improved, and the surface layer of the test block detached; however, no aggregate separation and fragmentation occurred inside. The BF connected the aggregate and mortar, which weakened the influence of external forces on the test block. This is consistent with the results reported by Shatarat et al. [44]. At 6 kg m−3 BF, the improvement in the failure mode of B6N0 is the most significant, and no overall collapse is observed. The connection between the aggregates is good, and the widths and number of cracks are effectively reduced. Furthermore, the overall shape of the test block is maintained in good condition.

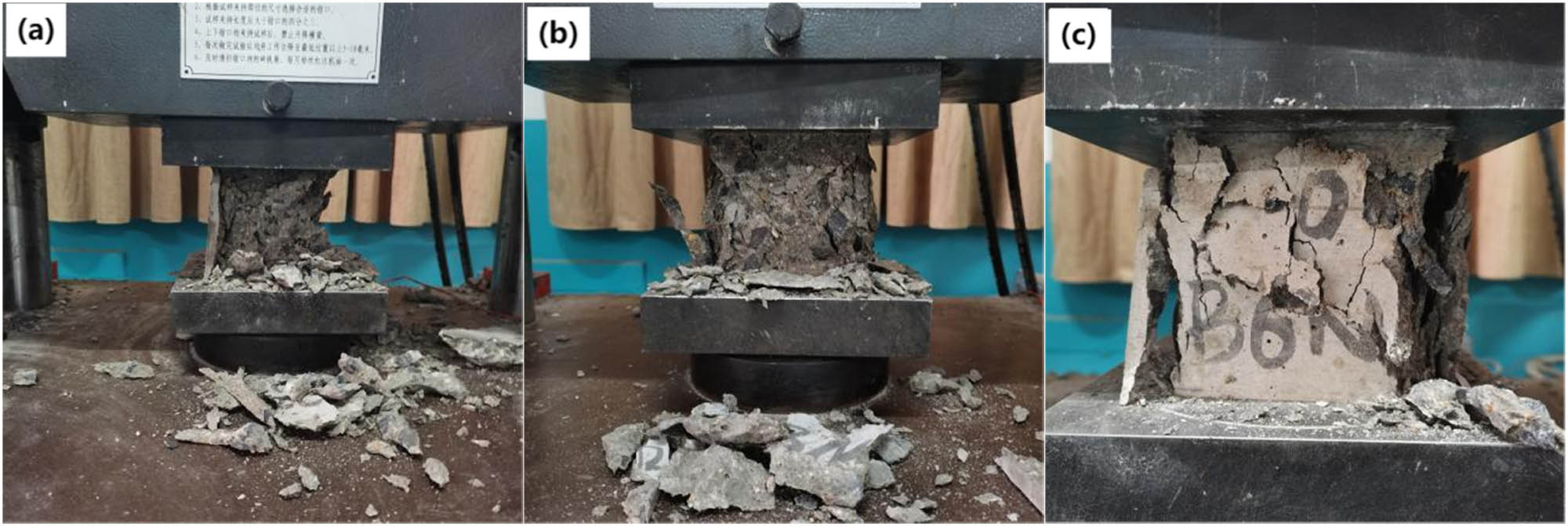

Figure 4 Compressive failure mode for different BF contents: (a) RC, (b) B3N0, and (c) B6N0.
Figure 4

Compressive failure mode for different BF contents: (a) RC, (b) B3N0, and (c) B6N0.

The compressive damages for different NS dosages at early −20°C for 28 days are shown in Figure 5. In the case of 0% NS, large diagonal penetration cracks appear inside the RC, accompanied by severe overall damage and a large amount of aggregate shedding. At 1% NS, the damage morphology of B0N1 improves; however, owing to the severe damage to the edges of the test block, collapse and vertical cracks occur. However, the overall internal morphology was relatively good, and there was no separation of the aggregate and mortar. At 2% NS, the overall shape of B0N2 is the best when damaged, with some surface parts damaged and cracks appearing. However, the number and width of cracks are effectively reduced. During compression failure, no large amount of aggregate shedding or holes was observed, which significantly improved the failure morphology compared with that corresponding to 0% NS. This was more consistent with the results reported by Nigam and Verma [45].

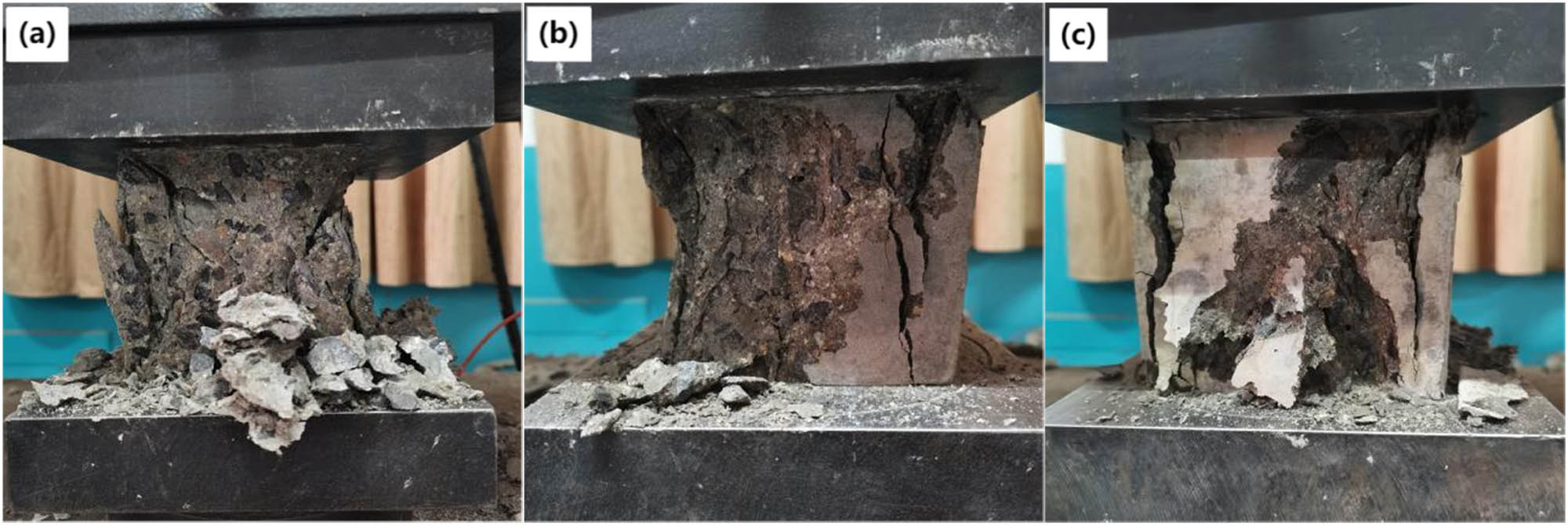

Figure 5 Compressive failure mode for various NS contents: (a) RC, (b) B0N1, and (c) B0N2.
Figure 5

Compressive failure mode for various NS contents: (a) RC, (b) B0N1, and (c) B0N2.

3.1.2 Splitting tensile test

A comparison of the splitting and tensile damage patterns of the specimens revealed the obvious effect of BF. The damage to RC with different BF dosages at an early temperature of −10°C for 28 days is shown in Figure 6. At 0 kg m−3 BF, the RC exhibits brittle damage with wide cracks. At 3 kg m−3 BF, B3N0 exhibits splitting tensile damage, the fibers on the intermediate fracture surface are pulled out by the external force, and the fracture surface is relatively intact without much damage. At 6 kg m−3 BF, the crack width on the rupture face of B6N0 decreases and the fiber-connected aggregate improves the overall damage pattern. As the BF doping increased, the integrity of the RC improved and the crack width reduced, improving the toughening performance of the RC. In the splitting tensile test, the specimen was subjected to tensile stress concentrated on the middle-damaged surface. The fibers in the middle region acted as crack-blocking agents, which reduced the tensile stress inside the RC and improved its splitting tensile properties.

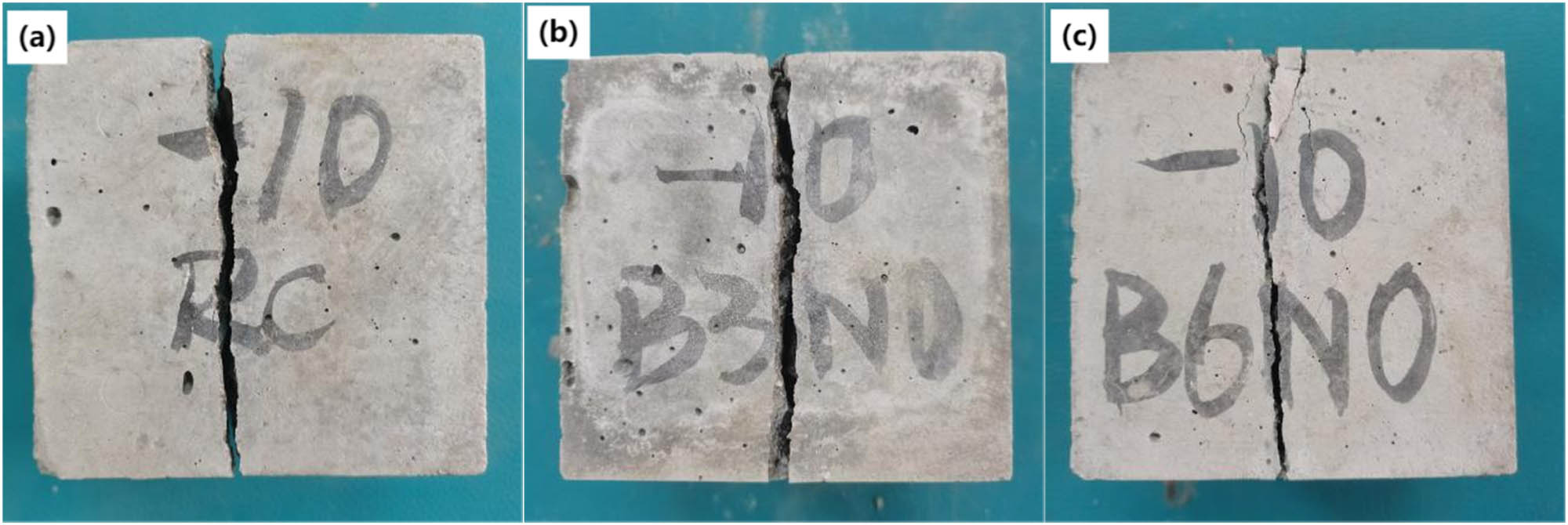

Figure 6 Splitting tensile failure mode: (a) RC, (b) B3N0, and (c) B6N0.
Figure 6

Splitting tensile failure mode: (a) RC, (b) B3N0, and (c) B6N0.

3.2 Analysis of mechanical properties

3.2.1 Cubic compressive strength

The mechanical performances of the test blocks in early low-temperature environments and the cubic compressive strength are listed in Table 6. NC was used as the test control group and its strength reached 39.48 MPa after 28 days of room temperature curing. The strength of the RC with a substitution rate of 100% was only 36.9 MPa after 28 days at 25°C, and its overall strength was lower than that of NC. This was consistent with the findings of Adessina et al. [46]. After crushing and screening, the aggregate was damaged; additionally, the old mortar on the appearance of the RA affected the physical properties of RC.

Table 6

Compressive strength (MPa)

Specimens 7 days 14 days 28 days
25°C 0°C −10°C −20°C 25°C 0°C −10°C −20°C 25°C 0°C −10°C −20°C
NC 27.36 25.43 26.69 25.89 31.52 29.64 30.22 29.86 39.48 33.22 37.18 34.68
RC 27.34 24.02 26.42 25.29 30.23 26.96 28.99 28.39 36.69 32.29 35.84 34.49
B0N1 28.53 25.08 27.86 26.3 31.13 28.19 30.86 29.32 37.52 34.41 37.03 36.32
B0N2 29.34 26.51 28.79 27.38 31.76 29.35 31.43 30.35 37.64 35.04 37.52 37.04
B3N0 28.89 25.27 27.26 26.25 32.23 28.18 31.45 29.2 38.53 33.87 36.72 35.22
B3N1 30.51 27.53 29.56 29.09 32.53 29.94 31.25 30.35 39.08 35.65 38.03 37.56
B3N2 31.34 27.89 30.05 29.86 33.68 30.88 32.37 31.91 39.74 36.75 38.08 37.66
B6N0 27.66 25.74 26.86 25.76 31.05 27.93 29.48 29.19 37.01 34.55 36.25 34.86
B6N1 28.94 26.17 27.69 26.75 31.89 28.96 30.45 29.53 37.95 35.32 37.44 36.83
B6N2 29.95 26.47 28.86 28.05 32.07 29.95 30.87 30.02 38.34 36.36 37.86 37.22

According to Table 6, which presents the changes in the cubic compressive strength in the early low-temperature environment, an early temperature of 0°C has the greatest impact on the compressive strength. The compressive strength affected the degree of cement hydration, at 0°C, when the water inside the concrete was not completely frozen in the state of ice-water mixture, can still be hydrated with the cement, but the hydration reaction inhibited by the inhibition of the initial setting time is delayed, after the initial setting of the low-temperature environment caused by the damage to the concrete internal part cannot be repaired, which led to the internal damage of the concrete in varying degrees, leading to the reverse of the cubic compressive strength. After curing at 0°C for 6 h and removing the specimens for standard curing, the unhydrated cement particles inside the concrete maintained the hydration reaction, and the strength of the concrete improved. Subsequently, the compressive strength increased with a decrease in the early ambient temperature. For example, in the early −10°C low-temperature environment, the compressive strength of the cube surpassed that of the early low-temperature environment at 0°C. This is because the negative temperature resulted in the conversion of water into ice inside the concrete, thereby preventing the occurrence of excessive hydration reaction at low temperatures standard maintenance, RC internal ice melting step-by-step, and the conversion of free water inside the concrete into ice caused by the damage to a certain extent of the repair. A lower curing temperature before the initial setting of concrete reduced the hydration reaction and delayed the initial setting time. As the temperature decreased to −20°C, the compressive strength of the concrete decreased compared to that at −10°C. The reason was analyzed primarily to be because of the existence of a large amount of water inside the freshly poured concrete. The water inside the concrete rapidly transformed into ice at low temperatures, which stopped the hydration reaction. Ice crystals appeared inside the concrete, and ice crystals from the adjacent pore space absorbed water to expand constantly. This increased the pore pressure inside the concrete, which coupled with the effect of the mortar and other fine aggregate led to the emergence and development of micro-cracks after the initial setting, and finally, reduced the cubic compressive strength of the concrete. In an early low-temperature environment of −20°C, the conversion of water into ice was accelerated, and the formation of ice crystals increased the expansion pressure over the early tensile strength of concrete. However, the damage caused by frost was more serious. The concrete was then transferred for standard curing, before the initial set of damage repairs, but most of the damage cannot be repaired to form permanent damage, resulting in the internal structure of the loosening. With the increase in pressure during the cubic compression test, the presence of small internal cracks exacerbated the crack development at the aggregate interface.

Table 6 further shows that a BF of 3 kg m−3 enhances the compressive strength of RC most significantly. At early ambient temperatures of 25, 0, −10, and −20°C, the 28 days compressive strength of B3N0 was enhanced by 5.0, 4.9, 2.5, and 2.1%, respectively, compared with those of RC. BF forms a spatial lattice structure, which helps improve RC. An appropriate amount of BF can enhance the densification of RC, which further improves the overall performance of RC. The compressive strength of RC decreases owing to overdoping of BF. At the early ambient temperatures of 25, 0, −10, and −20°C, the 28 days compressive strength of B6N0 increased by 0.9, 7, 1.1, and 1, respectively, compared to those of RC, which is consistent with the analysis of Dilbas and Çakır [47]. This indicates that enhancing the compressive performance of RC by mixing large amounts of BF is undesirable. Under excessive BF doping, agglomeration occurs easily inside the RC, which is not conducive to the bonding between the aggregate and mortar because the coarse aggregate is unable to bear the pressure during the compression of cubic, and more defects appear locally.

Figure 7 shows the comparison of early strength development, and the compressive strength ratios of 7/28 days and 14/28 days with different BF dosages. The compressive strengths of the RC at 7 and 14 days reached approximately 70 and 80%, respectively, of the strengths at 28 days. The compressive strength was generally more rapidly developed at 7 days at 3 kg m−3 BF than at 0 and 6 kg m−3. The early strength development of RC is influenced by temperature, and the optimum development of the physical properties of RC occurs at 25°C, which attains a maximum strength of 78.9% at 28 days. An early ambient temperature of −20°C has the greatest effect on the 7 days compressive strength of RC as the free water inside the RC transforms from liquid to solid and back again. The early hydration of RC is delayed, which hinders strength enhancement. With increased BF doping, the increase in the compressive strength at 7 days for early −20°C was insignificant, and the BF doping of 3 kg m−3 vs 6 kg m−3 increased by only 3.8 and 1.9% for B3N0 and B6N0 over RC.

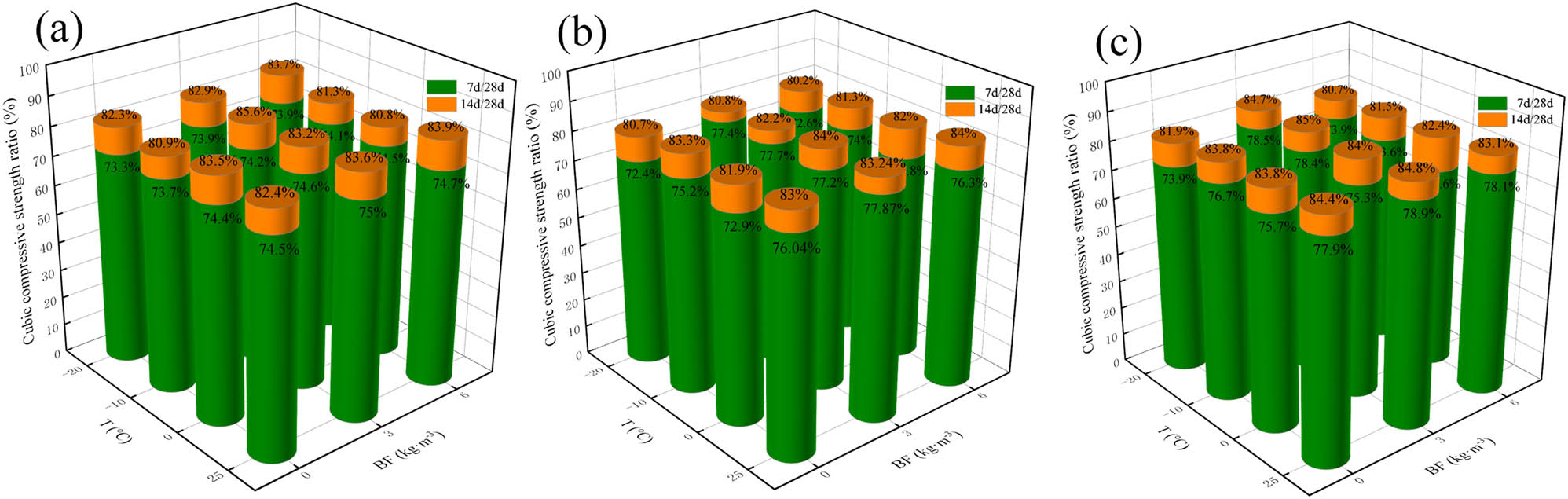

Figure 7 Relative compressive strength ratios for various BF contents: (a) 0% NS, (b) 1% NS, and (c) 2% NS.
Figure 7

Relative compressive strength ratios for various BF contents: (a) 0% NS, (b) 1% NS, and (c) 2% NS.

As shown in Table 6, the compressive strength of the RC increases with the NS content, which agrees with the findings of Mukharjee and Barai [23]. As the NS nanoparticles were dispersed between the pores within the concrete as a filler to fill the pores, the RC specimens became denser. The Ca(OH)2 crystals in the RC caused adverse effects during compression damage, and the volcanic ash effect of NS accelerated the hydration reaction to generate hydrated calcium silicate, which reduced the presence of Ca(OH)2 crystals, as shown in equation (1). This phenomenon was confirmed by Roy et al. [48]. Therefore, the compressive strength of NS-doped RC was significantly improved.

(1) SiO 2 + m H 2 O + n Ca(OH) 2 → n CaO ⋅ SiO 2 ⋅ ( m + n ) H 2 O .

As the temperature decreased to a negative value, the NS-doped RC exhibited improved compressive strength. At negative temperatures, the water freezes, and NS cannot exert its effect when transferred to the standard curing room. The ice gradually melted, and the temperature effect of NS became evident, which promoted the hydration of the cement. The concrete developed from the initial to the final set repaired the damage of the concrete caused by the negative temperature before the initial set and avoided the large number of micro cracks within the RC that degraded the compressive properties. Figure 8 shows the ratio of compressive strength at 7/28 days vs 14/28 days when NS doping is present. With the increase in NS doping, the early strength of the RC improved significantly and showed a general increasing trend. In the early environment of 25°C, the 7 days compressive strengths of B0N1 and B0N2 grew by 4.4 and 7.3%, respectively. The 7 days compressive strengths of B0N2 at 0, −10, and −20°C decreased by 9.6%, respectively, compared with that obtained at 25°C for BF doping of 0 kg m−3, 1.9, and 6.7%. The volcanic ash effect of NS was mainly affected by the low temperature in the early stage, and it was gradually exerted when the RC was transferred for standard maintenance. However, the effect was not obvious. The hydration reaction of NS continued, RC densification increased, and physical properties improved.

Figure 8 Relative compressive strength ratios for different NS contents: (a) 0 kg m−3 BF, (b) 3 kg m−3 BF, and (c) 6 kg m−3 BF.
Figure 8

Relative compressive strength ratios for different NS contents: (a) 0 kg m−3 BF, (b) 3 kg m−3 BF, and (c) 6 kg m−3 BF.

Table 6 shows that the combined doping using BF with NS is more favorable for improving the RC compressive strength than single doping. This was consistent with the findings of Harish et al. [49]. The highest cubic compressive strength of RC was obtained when 3 kg m−3 BF and 2% NS were compounded. For 0°C, the compressive strengths of B3N0 and B0N2 were enhanced by 4.7 and 8.5%, respectively, over that of RC for single doping of 3 kg m−3 BF with 2% NS, and the compressive strengths of B3N2 were enhanced by 13.8% over that of RC for double doping of 3 kg m−3 BF with 2% NS. This is because the filling and volcanic ash effects of NS increased the internal compactness of RC and reduced the number of internal defects, which supported the realization of the bridge effect of BF and stronger ITZ performance. Excessive BF increased the internal defect content of the RC and lowered the final compressive strength.

3.2.2 Splitting tensile strength

The splitting tensile strength at different temperatures is shown in Table 7.

Table 7

Splitting tensile strength (MPa)

Specimens 7 days 14 days 28 days
25°C 0°C −10°C −20°C 25°C 0°C −10°C −20°C 25°C 0°C −10°C −20°C
NC 3.02 2.24 3.01 2.76 3.21 2.94 3.16 3.01 3.52 3.28 3.48 3.45
RC 2.83 2.16 2.8 2.7 2.96 2.47 2.88 2.81 3.12 2.97 3.07 2.99
B0N1 2.75 2.41 2.67 2.63 3.19 2.99 3.15 3.08 3.38 3.06 3.28 3.15
B0N2 3.02 2.38 2.93 2.81 3.10 2.94 3.01 3.13 3.37 3.07 3.29 3.35
B3N0 3.01 2.44 2.96 2.77 3.25 2.99 3.04 3.2 3.42 3.24 3.48 3.27
B3N1 2.99 2.55 2.95 3.2 3.29 3.03 3.12 3.02 3.55 3.49 3.52 3.67
B3N2 2.97 2.58 2.87 2.98 3.36 3.02 3.14 3.09 3.62 3.35 3.57 3.43
B6N0 2.96 2.36 2.67 2.45 3.02 2.66 2.98 2.86 3.25 3.05 3.15 3.09
B6N1 2.82 2.39 2.63 2.56 3.12 2.68 3.03 2.96 3.48 3.19 3.47 3.25
B6N2 2.93 2.46 2.85 2.63 3.11 2.76 3.02 2.84 3.56 2.98 3.41 3.02

According to Table 7, the early 0°C environment has the most influence on the splitting strength. The 28 days splitting strength of RC decreases by 5.1% in the 0°C early low-temperature environment compared with that observed for 25°C. However, at −10 and −20°C, the splitting strength improves by 3.4 and 0.7%, respectively, compared with the value at 0°C. The low-temperature environment deeply affected the hydration reaction of cement, which internally damaged the concrete. This agrees with the phenomenon reported by Zhang et al. [50]. In the early environment of 0°C, the 7, 14, and 28 days splitting tensile strengths of B3N0 increased by 13, 21, and 9.1%, respectively, compared with those of RC when 3 kg m−3 BF was doped alone. The 7, 14, and 28 days splitting tensile strengths of B6N0 increased by 4.6, 7.7, and 2.7%, respectively, compared with those of RC when 6 kg m−3 BF was doped alone. These results show that a moderate amount of BF favors RC reform. During the early stage of loading, most of the load was borne by the aggregate mortar, and as the loading progressed, the microcracks gradually expanded the tensile stress to be transferred to the BF. Thus, the splitting tensile strength improved; however, excessive BF reduced the RC splitting tensile strength because it increased the amount of defects in the RC. This agrees with the results of Zhu et al. [51], who studied the effect of fibers on the RC splitting tensile strength.

Table 7 shows that although NS improves the splitting tensile strength of RC, the increase is smaller than that obtained using BF. In the early environments of 0 and −10°C, the 28 days splitting tensile strengths of B0N1 increase only by 3 and 6.8%, respectively, which is much smaller than that of BF on the cubic compressive strength. The influence of splitting tensile properties was more significant when BF and NS were doped together in RC. For example, in the early −10°C environment, the splitting tensile strength of B3N2 with 3 kg m−3 BF and 2% NS increased by 16.3% compared with that of normal RC, indicating that BF and NS have a better synergistic influence on the mechanical properties of RC.

4 Statistical product and service solutions (SPSS) analysis

Khodair et al. [52] developed a linear regression model using a statistical analysis software (SPSS) to derive an equation for the compressive strength of the RA replacement ratio, silica fume, mineral powder, and fly ash, as shown in equation (2).

(2) f cu = A 0 + A 1 X RAC + A 2 X FA + A 3 X SL + A 4 X SF .

where f cu is the compressive strength; A 0, A 1, A 2, A 3, and A 4 are the parameters; X RCA is the RA substitution rate; and X FA, X SL, and X SF are the dosages of fly ash, mineral powder, and silica fume, respectively. Based on the above theoretical formula for the compressive strength, combined with the test data, the formula for the compressive strength of RC incorporating BF and NS doping in an early low-temperature environment was derived using SPSS, as shown in equation (3).

(3) f cu , 28 = A 0 + A 1 X BF + A 2 X NS + A 3 X BF 2 + A 4 X NS 2 .

where f cu,28 is the 28 days cubic compressive strength, while X BF and X NS are the dosages of BF and NS, respectively. The nonlinear regression model of SPSS was used to obtain the formula for the RC compressive strength under different early temperature environments along with the analysis of variance, as shown in Table 8. The corresponding results are shown in Figure 9.

Table 8

Compression regression model

T (°C) Compression model R 2
25 f cu , 28 = 36.74 + 1.13 X BF + 0.93 X NS ‒ 0.18 X BF 2 ‒ 0.19 X NS 2 0.9684
0 f cu , 28 = 32.57 + 0.76 X BF + 1.87 X NS ‒ 0.08 X BF 2 ‒ 0.32 X NS 2 0.9176
‒10 f cu , 28 = 35.87 + 0.47 X BF + 1.67 X NS ‒ 0.07 X BF 2 ‒ 0.46 X NS 2 0.9766
‒20 f cu , 28 = 35.12 + 0.32 X BF + 2.27 X NS ‒ 0.05 X BF 2 ‒ 0.62 X NS 2 0.8165

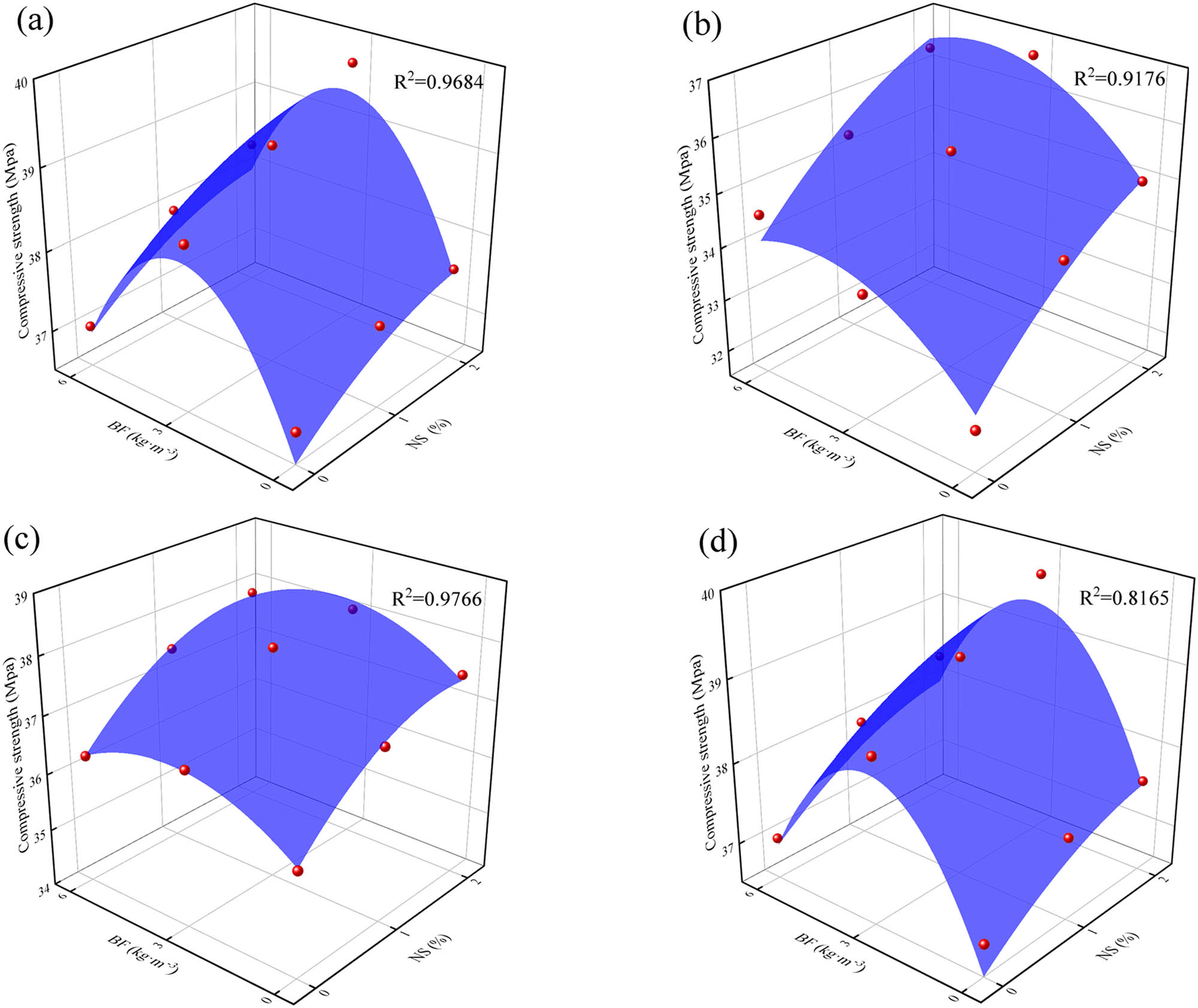

Figure 9 Data fitting of compressive strengths at different early temperatures: (a) 25°C, (b) 0°C, (c) −10°C, and (d) −20°C.
Figure 9

Data fitting of compressive strengths at different early temperatures: (a) 25°C, (b) 0°C, (c) −10°C, and (d) −20°C.

Table 8 shows that the test data are in better agreement with the regression analysis data, and the correlation coefficient is large. Therefore, Table 8 can be used to predict the compressive strengths of the BF and NS composite-modified RC at different ambient temperatures.

The relationship between the splitting tensile strength and compressive strength of concrete [12] indicates that the splitting tensile strength can be converted from the compressive strength. The conversion equation between the concrete splitting tensile strength and cubic compressive strength is provided in GB 50010-2010 [53] and analyzed using SPSS software, as shown in equation (4). The test data and fitting results are shown in Figure 10.

(4) f ts = 0.07 f cu 1.08 , R 2 = 0.5682 .

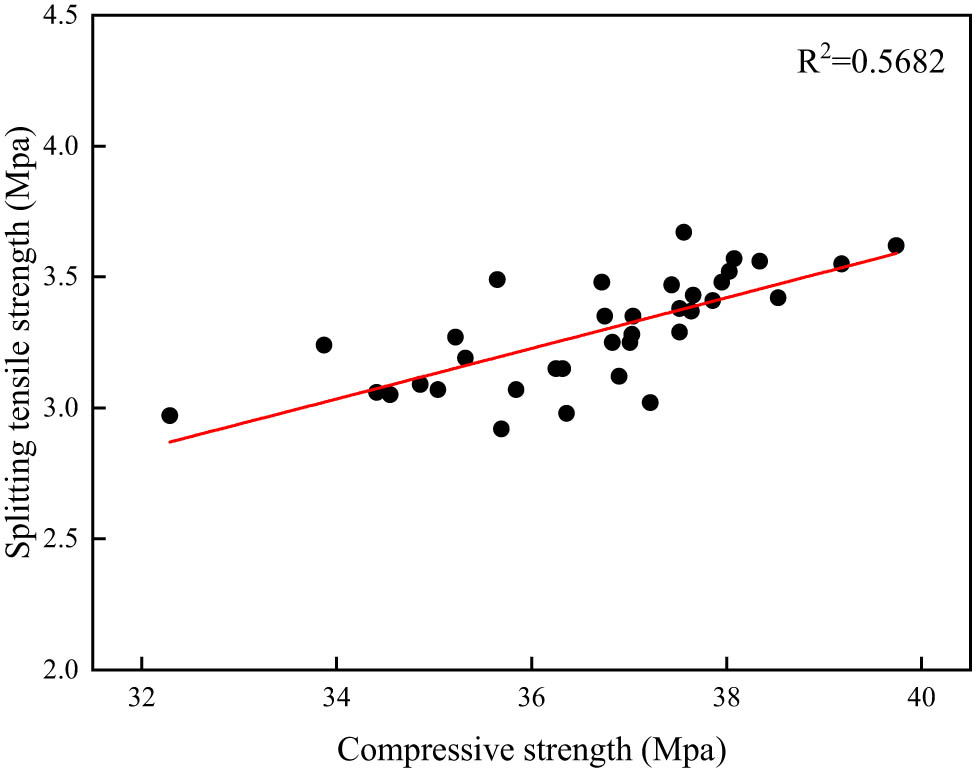

Figure 10 Relationship between the compression and splitting tensile strengths.
Figure 10

Relationship between the compression and splitting tensile strengths.

Figure 10 shows that the test data are consistent with the regression analysis data, indicating that the 28 days splitting tensile strength of RC subjected to early low-temperature environments can be predicted from the compressive strength using equation (4).

5 Microstructure

SEM helps in understanding the internal microscopic morphology of concrete and determining the crack extension. Figure 11 shows the SEM micrograph of RC under curing at 25°C. Under an electron microscope, the structure of the RC appears loose and obvious holes are observed. The three microcracks marked 1, 2, and 3 in the figure accelerate the damage development of the RC when it is damaged by force. The microcracks inside the RA and shrinkage cracks generated during the specimen casting and curing processes contribute to the low performance of the RC.

Figure 11 Image of RC under 25°C.
Figure 11

Image of RC under 25°C.

Combined with the results of the mechanical tests, four temperatures (−20, −10, 0, and 25°C) of B3N2 in the early stage were selected for SEM microanalysis, as shown in Figure 12. Figure 12a shows the RC micrographs of B3N2 in the early stage of 25°C maintenance. A comparison with Figure 11 indicates that BF and NS significantly improve the pores of RC. BF and free water in RC formed hydrogen bonds, and hydration products strengthened the connection between the fibers and substrate. The larger surface area and high reactivity of NS accelerated the hydration reaction. Numerous pores and microcracks existed inside the RC, and the NS suspension with the aggregate in the high-speed mixing was uniformly dispersed in the specimen as filler to fill the pores and cracks. Thus, the compactness of RC increased. Additionally, the volcanic ash effect, large specific surface area, and high reactivity of NS accelerated the hydration reaction of the cement and promoted the generation of hydration products C–S–H. This was dispersed as a matrix between the pores and cracks of RC and reduced its internal defects. Therefore, BF and NS reform the porosity of RC and improve its overall mechanical properties. A comparison between Figure 12a and b reveals that B3N2 causes serious damage in the 0°C low-temperature environment. Cracks appear in parts 1 and 2 in Figure 12b, and defects occur in the elliptical part. When subjected to external forces, the RC interior rapidly developed defects to the surface and eventually became damaged. Figure 12c shows the micrograph of B3N2 at −10°C, where three microcracks are labeled in the figure. The crack width is smaller than that at 0°C but larger than those at 25 and −10°C. The lowered temperature transformed water to ice in the B3N2. The expansion stress caused by freezing was not large, and the mortar and fibers of the bond between the fiber offset some of the stresses, while the NS filling of pore space and the hydration reactions promote the development of early strength, and prevented the development of the BF. The presence of NS mitigated the damage caused to RC by early low-temperatures. The presence of BF and NS alleviated the damage to the RC caused by low temperatures, and SEM results also verified the change in transformation in the macroscopic mechanical test. The micrograph of B3N2 at early −20°C (Figure 12d) shows that although BF is distributed in the RC, the cracks between the fibers and mortar are generated by the excessive freezing and expansion stress caused by the −20°C low-temperature environment. At −20°C, the water froze and could not participate in the hydration reaction, and the filling effect of NS was weakened by the expansion stress. Overall, the role of NS in RC in low-temperature environments was not obvious. When the temperature reached −20°C, frost expansion damage to early B3N2 occurred, and although some damage was repaired after transferring to the standard maintenance room, most of it was permanent. Therefore, the crack width of B3N2 at early −20°C shown in Figure 12d was higher than that caused by freezing and expansion in the early environment of −10°C, but lower than that caused by the environment of 0°C. Under external loading, the pores between the fibers served as the primary damage points and caused overall damage.

Figure 12 SEM images of B3N2 at various early temperatures: (a) 25°C, (b) 0°C, (c) −10°C, and (d) −20°C.
Figure 12

SEM images of B3N2 at various early temperatures: (a) 25°C, (b) 0°C, (c) −10°C, and (d) −20°C.

6 Conclusion

In this study, the changes in the mechanical properties and micromorphology of BF and NS modified RC in early low-temperature environments were investigated, and the main conclusions are as follows:

  1. The RC was severely damaged, when subjected to external loading and an overall collapse was observed. BF and NS significantly improved the damage pattern of RC under compression, except for the shedding of the surface layer. The internal connection between the various parts did not suffer major damage, and the overall integrity improved.

  2. Early low-temperature environments degraded the physical properties of RC. For example, 0°C had the greatest impact on the early physical properties; the mechanical properties first increased and then decreased with the temperature. The physical properties of RC at different early temperatures in descending order were: 25°C > −10°C > −20°C > 0°C.

  3. BF effectively improved the physical properties of RC in the early low-temperature environment. The physical properties of RC first increased and then decreased with BF doping. When the BF doping was 3 kg m−3, the compressive strength and splitting tensile strength of RC were the largest, and they reduced when the BF was 6 kg m−3.

  4. The doping of NS improved the performance of RC. The compressive strength and splitting tensile strength of RC increased with NS doping, and its compressive strength and splitting tensile strength at 2% NS doping improved by up to 10.4 and 19%, respectively, compared with those at 0% NS.

  5. Owing to the good synergistic effects of BF and NS, the physical properties of RC were improved by compound doping of BF and NS. The compressive strength and splitting tensile strength increased to 18.1 and 22.3%, respectively, with the optimal dosages of 3 kg m−3 BF and 2% NS. This significantly reduced the internal defects of RC, strengthened the tight connection in the internal matrix of RC, and improved the overall density.

  6. An expression for the 28 days compressive strength of RC was fitted using SPSS software.

  7. BF and NS can reduce the number of pores in RC, and as the early ambient temperature decreased, the BF and mortar bond first decreased, then increased, and then decreased again. The 0°C low-temperature environment caused the largest damage cracks.

  1. Funding information: This project was supported by the National Natural Science Foundation (51608179).

  2. Author contributions: All authors have accepted the responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

References

[1] Klepa RB, Medeiros MF, Franco MAC, Tamberg ET, Farias TMDB, Paschoalin Filho JA, et al. Reuse of construction waste to produce thermoluminescent sensors for use in highway traffic control. J Clean Prod. 2019;209:250–8.10.1016/j.jclepro.2018.10.225Search in Google Scholar

[2] Tang Y, Wang Y, Wu D, Chen M, Pang L, Sun J, et al. Exploring temperature-resilient recycled aggregate concrete with waste rubber: An experimental and multi-objective optimization analysis. Rev Adv Mater Sci. 2023;62(1):20230347.10.1515/rams-2023-0347Search in Google Scholar

[3] Xiao J, Shen J, Bai M, Gao Q, Wu Y. Reuse of construction spoil in China: Current status and future opportunities. J Clean Prod. 2021;290:125742.10.1016/j.jclepro.2020.125742Search in Google Scholar

[4] Esa MR, Halog A, Rigamonti L. Strategies for minimizing construction and demolition wastes in Malaysia. Resour Conserv Recycl. 2017;120:219–29.10.1016/j.resconrec.2016.12.014Search in Google Scholar

[5] Zhao Y, Gao J, Chen F, Liu C, Chen X. Utilization of waste clay bricks as coarse and fine aggregates for the preparation of lightweight aggregate concrete. J Clean Prod. 2018;201:706–15.10.1016/j.jclepro.2018.08.103Search in Google Scholar

[6] Behera M, Bhattacharyya SK, Minocha AK, Deoliya R, Maiti S. Recycled aggregate from C&D waste & its use in concrete a breakthrough towards sustainability in construction sector: A review. Constr Build Mater. 2014;68:501–16.10.1016/j.conbuildmat.2014.07.003Search in Google Scholar

[7] Lee H, Choi MK, Kim B. Structural and functional properties of fiber reinforced concrete composites for construction applications. J Ind Eng Chem. 2023;125:38–49.10.1016/j.jiec.2023.05.019Search in Google Scholar

[8] Algin Z, Ozen M. The properties of chopped basalt fibre reinforced self-compacting concrete. Constr Build Mater. 2018;186:678–85.10.1016/j.conbuildmat.2018.07.089Search in Google Scholar

[9] Li Z, Shen A, Zeng G, Chen Z, Guo Y. Research progress on properties of basalt fiber-reinforced cement concrete. Mater Today Commun. 2022;33:104824.10.1016/j.mtcomm.2022.104824Search in Google Scholar

[10] Yuan J, Shen D, Xu Z, Li M, Wen C, Zong D. Effect of bond length on bond behavior between basalt fiber-reinforced polymer sheet and concrete. Constr Build Mater. 2023;392:131586.10.1016/j.conbuildmat.2023.131586Search in Google Scholar

[11] Zheng Y, Zhuo J, Zhang Y, Zhang P. Mechanical properties and microstructure of nano-SiO2 and basalt-fiber reinforced recycled aggregate concrete. Nanotechnol Rev. 2022;11(1):2169–89.10.1515/ntrev-2022-0134Search in Google Scholar

[12] Fang S, Hong H, Zhang P. Mechanical property tests and strength formulas of basalt fiber reinforced recycled aggregate concrete. Materials (Basel). 2018;11(10):1851.10.3390/ma11101851Search in Google Scholar PubMed PubMed Central

[13] Yang Y, Fang S, Feng W, Wan S, Li L, Tang Y. Flexural and compressive performance of BFRP-reinforced geopolymer sea-sand concrete beams and columns: Experimental and analytical investigation. Compos Struct. 2023;318:117089.10.1016/j.compstruct.2023.117089Search in Google Scholar

[14] Zheng Y, Zhuo J, Zhang P, Ma M. Mechanical properties and meso-microscopic mechanism of basalt fiber-reinforced recycled aggregate concrete. J Clean Prod. 2022;370:133555.10.1016/j.jclepro.2022.133555Search in Google Scholar

[15] Chen Z, Yu J, Nong Y, Yang Y, Zhang H, Tang Y. Beyond time: Enhancing corrosion resistance of geopolymer concrete and BFRP bars in seawater. Compos Struct. 2023;322:117439.10.1016/j.compstruct.2023.117439Search in Google Scholar

[16] Zhang C, Wang Y, Zhang X, Ding Y, Xu P. Mechanical properties and microstructure of basalt fiber-reinforced recycled concrete. J Clean Prod. 2021;278:123252.10.1016/j.jclepro.2020.123252Search in Google Scholar

[17] Wang Y, Cheng J, Wang J. Flexural performance of recycled concrete beam reinforced with modified basalt fiber and nano-silica. Case Stud Constr Mater. 2023;18:e02022.10.1016/j.cscm.2023.e02022Search in Google Scholar

[18] Borja W, Adarmouch M, El Hafiane Y, Daafi Y, Tamraoui Y, Alami J. Synthesis of nano-silica as a promising route of recycling phosphate waste rocks and its incorporation in mortars. Sustain Mater Technol. 2023;37:e00684.10.1016/j.susmat.2023.e00684Search in Google Scholar

[19] Li S, Hu M, Chen X, Sui S, Jin L, Geng Y, et al. The performance and functionalization of modified cementitious materials via nano titanium-dioxide: A review. Case Stud Constr Mater. 2023;19:e02414.10.1016/j.cscm.2023.e02414Search in Google Scholar

[20] Ali L, Ouni MHE, Raza A, Janjua S, Ahmad Z, Ali B, et al. Experimental investigation on the mechanical and fracture evaluation of carbon Fiber-reinforced cementitious composites with nano-calcium carbonate. Constr Build Mater. 2021;308:125095.10.1016/j.conbuildmat.2021.125095Search in Google Scholar

[21] Xavier CSB, Rahim A. Nano aluminium oxide geopolymer concrete: An experimental study. Mater Today: Proc. 2022;56:1643–7.10.1016/j.matpr.2021.10.070Search in Google Scholar

[22] Yan Y, Xing Z, Chen X, Xie Z, Zhang J, Chen Y. Axial compression performance of CFST columns reinforced by ultra-high-performance nano-concrete under long-term loading. Nanotechnol Rev. 2023;12(1):20220537.10.1515/ntrev-2022-0537Search in Google Scholar

[23] Mukharjee BB, Barai SV. Influence of incorporation of nano-silica and recycled aggregates on compressive strength and microstructure of concrete. Constr Build Mater. 2014;71:570–8.10.1016/j.conbuildmat.2014.08.040Search in Google Scholar

[24] Said AM, Zeidan MS, Bassuoni MT, Tian Y. Properties of concrete incorporating nano-silica. Constr Build Mater. 2012;36:838–44.10.1016/j.conbuildmat.2012.06.044Search in Google Scholar

[25] Nazari A, Riahi S. The role of SiO2 nanoparticles and ground granulated blast furnace slag admixtures on physical, thermal and mechanical properties of self compacting concrete. Mater Sci Eng A. 2011;528(4–5):2149–57.10.1016/j.msea.2010.11.064Search in Google Scholar

[26] Zhang Y, Zhu X. Effect of nano-silica on the mechanical performance and microstructure of silicon-aluminum based internal cured concrete. J Build Eng. 2023;65:105735.10.1016/j.jobe.2022.105735Search in Google Scholar

[27] Rezaei F, Memarzadeh A, Davoodi M, Dashab M, Nematzadeh M. Mechanical features and durability of concrete incorporating recycled coarse aggregate and nano-silica: Experimental study, prediction, and optimization. J Build Eng. 2023;73:106715.10.1016/j.jobe.2023.106715Search in Google Scholar

[28] Xu Z, Bai Z, Wu J, Long H, Deng H, Chen Z, et al. Microstructural characteristics and nano-modification of the interfacial transition zone in concrete: A review. Nanotechnol Rev. 2022;11(1):2078–100.10.1515/ntrev-2022-0125Search in Google Scholar

[29] Vijayan DS, Devarajan P, Sivasuriyan A. A review on eminent application and performance of nano based silica and silica fume in the cement concrete. Sustain Energy Technol Assess. 2023;56:103105.10.1016/j.seta.2023.103105Search in Google Scholar

[30] Wang Y, Hughes P, Niu H, Fan Y. A new method to improve the properties of recycled aggregate concrete: Composite addition of basalt fiber and nano-silica. J Clean Prod. 2019;236:117602.10.1016/j.jclepro.2019.07.077Search in Google Scholar

[31] Yi S, Pae S, Kim J. Minimum curing time prediction of early-age concrete to prevent frost damage. Constr Build Mater. 2011;25(3):1439–49.10.1016/j.conbuildmat.2010.09.021Search in Google Scholar

[32] Xia W, Cui S, Zhu L, Li W, Woody Ju J, Wang X. Effects of nano-silica modification on early age hydration process in winter construction of tunnel engineering. Constr Build Mater. 2023;408:133804.10.1016/j.conbuildmat.2023.133804Search in Google Scholar

[33] Zhang G, Yu H, Li H, Yang Y. Experimental study of deformation of early age concrete suffering from frost damage. Constr Build Mater. 2019;215:410–21.10.1016/j.conbuildmat.2019.04.187Search in Google Scholar

[34] Dong S, Feng D, Jiang S, Zhu W. Effect of freezing temperature on the microstructure of negative temperature concrete. Adv Mat Res. 2013;663:343–8.10.4028/www.scientific.net/AMR.663.343Search in Google Scholar

[35] Dai J, Wang Q, Zhang B. Frost resistance and life prediction of equal strength concrete under negative temperature curing. Constr Build Mater. 2023;396:132278.10.1016/j.conbuildmat.2023.132278Search in Google Scholar

[36] Mohan MK, Rahul AV, Van Stappen JF, Cnudde V, De Schutter G, Van Tittelboom K. Assessment of pore structure characteristics and tortuosity of 3D printed concrete using mercury intrusion porosimetry and X-ray tomography. Cem Concr Compos. 2023;140:105104.10.1016/j.cemconcomp.2023.105104Search in Google Scholar

[37] Wang Y, Yang S, Luo Q, Li Q, Sun G. Experimental characterization of impact damage in foam-core sandwich structures using acoustic emission, optical scanning and X-ray computed tomography techniques. Compos Part B: Eng. 2023;265:110919.10.1016/j.compositesb.2023.110919Search in Google Scholar

[38] Li G, Chen X, Zhang Y, Zhuang Z, Lv Y. Studies of nano-SiO2 and subsequent water curing on enhancing the frost resistance of autoclaved PHC pipe pile concrete. J Build Eng. 2023;69:106209.10.1016/j.jobe.2023.106209Search in Google Scholar

[39] Chen C, Lu C, Lu C, Wei S, Guo Z, Zhou Q, et al. Synergetic effect of fly ash and ground-granulated blast slag on improving the chloride permeability and freeze–thaw resistance of recycled aggregate concrete. Constr Build Mater. 2023;365:130015.10.1016/j.conbuildmat.2022.130015Search in Google Scholar

[40] Cai Y, Zhang Y, Liu Y, Li J. Predictive method for the macroscopic mechanical properties of concrete at ultra-low temperatures. Constr Build Mater. 2022;357:129276.10.1016/j.conbuildmat.2022.129276Search in Google Scholar

[41] Wang D, Lu C, Zhu Z, Zhang Z, Liu S, Ji Y, et al. Mechanical performance of recycled aggregate concrete in green civil engineering: Review. Case Stud Constr Mater. 2023;19:2384.10.1016/j.cscm.2023.e02384Search in Google Scholar

[42] Ji T. Preliminary study on the water permeability and microstructure of concrete incorporating nano-SiO2. Cem Concr Res. 2005;35(10):1943–7.10.1016/j.cemconres.2005.07.004Search in Google Scholar

[43] Standardization administration of China, Standard for test methods of physical and mechanical properties of concrete, GB/T 50081-2019. Beijing: China Construction Industry Press; 2019.Search in Google Scholar

[44] Shatarat N, Katkhuda H, Ayyoub M, Al-Hunaiti Y, Abdel Jaber MS. Improving bond strength of recycled coarse aggregate concrete using chopped basalt fibers. Case Stud Constr Mater. 2022;17:1449.10.1016/j.cscm.2022.e01449Search in Google Scholar

[45] Nigam M, Verma M. Effect of nano-silica on the fresh and mechanical properties of conventional concrete. Forces Mech. 2023;10:100165.10.1016/j.finmec.2022.100165Search in Google Scholar

[46] Adessina A, Fraj AB, Barthélémy J. Improvement of the compressive strength of recycled aggregate concretes and relative effects on durability properties. Constr Build Mater. 2023;384:131447.10.1016/j.conbuildmat.2023.131447Search in Google Scholar

[47] Dilbas H, Çakır Ö. Influence of basalt fiber on physical and mechanical properties of treated recycled aggregate concrete. Constr Build Mater. 2020;254:119216.10.1016/j.conbuildmat.2020.119216Search in Google Scholar

[48] Roy C, Mohanty T, Kumar Bera D. Effectiveness of nano silica on properties of self-compacting concrete. Mater Today: Proc. 2023;7:273.10.1016/j.matpr.2023.07.273Search in Google Scholar

[49] Harish BA, Hanumesh BM, Venkata Ramana N, Gnaneswar K. Assessment of mechanical properties of recycled coarse aggregate concrete incorporating basalt and polypropylene fiber. Mater Today: Proc. 2023;6:196.10.1016/j.matpr.2023.06.196Search in Google Scholar

[50] Zhang H, Ji S, Wang L, Jin C, Liu X, Li X. Study on dynamic splitting tensile damage characteristics of basalt fiber reinforced concrete based on AE and DSCM. J Build Eng. 2022;57:104905.10.1016/j.jobe.2022.104905Search in Google Scholar

[51] Zhu L, Wen T, Tian L. Size effects in compressive and splitting tensile strengths of polypropylene fiber recycled aggregate concrete. Constr Build Mater. 2022;341:127878.10.1016/j.conbuildmat.2022.127878Search in Google Scholar

[52] Khodair Y, Bommareddy B. Self-consolidating concrete using recycled concrete aggregate and high volume of fly ash, and slag. Constr Build Mater. 2017;153:307–16.10.1016/j.conbuildmat.2017.07.063Search in Google Scholar

[53] Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Design code for concrete structures: GB 50010-2010. Beijing: China Building Industry Press; 2010.Search in Google Scholar
Received: 2023-10-02
Revised: 2023-11-29
Accepted: 2023-12-20
Published Online: 2024-05-08

© 2024 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Tension buckling and postbuckling of nanocomposite laminated plates with in-plane negative Poisson’s ratio
  3. Polyvinylpyrrolidone-stabilised gold nanoparticle coatings inhibit blood protein adsorption
  4. Energy and mass transmission through hybrid nanofluid flow passing over a spinning sphere with magnetic effect and heat source/sink
  5. Surface treatment with nano-silica and magnesium potassium phosphate cement co-action for enhancing recycled aggregate concrete
  6. Numerical investigation of thermal radiation with entropy generation effects in hybrid nanofluid flow over a shrinking/stretching sheet
  7. Enhancing the performance of thermal energy storage by adding nano-particles with paraffin phase change materials
  8. Using nano-CaCO3 and ceramic tile waste to design low-carbon ultra high performance concrete
  9. Numerical analysis of thermophoretic particle deposition in a magneto-Marangoni convective dusty tangent hyperbolic nanofluid flow – Thermal and magnetic features
  10. Dual numerical solutions of Casson SA–hybrid nanofluid toward a stagnation point flow over stretching/shrinking cylinder
  11. Single flake homo p–n diode of MoTe2 enabled by oxygen plasma doping
  12. Electrostatic self-assembly effect of Fe3O4 nanoparticles on performance of carbon nanotubes in cement-based materials
  13. Multi-scale alignment to buried atom-scale devices using Kelvin probe force microscopy
  14. Antibacterial, mechanical, and dielectric properties of hydroxyapatite cordierite/zirconia porous nanocomposites for use in bone tissue engineering applications
  15. Time-dependent Darcy–Forchheimer flow of Casson hybrid nanofluid comprising the CNTs through a Riga plate with nonlinear thermal radiation and viscous dissipation
  16. Durability prediction of geopolymer mortar reinforced with nanoparticles and PVA fiber using particle swarm optimized BP neural network
  17. Utilization of zein nano-based system for promoting antibiofilm and anti-virulence activities of curcumin against Pseudomonas aeruginosa
  18. Antibacterial effect of novel dental resin composites containing rod-like zinc oxide
  19. An extended model to assess Jeffery–Hamel blood flow through arteries with iron-oxide (Fe2O3) nanoparticles and melting effects: Entropy optimization analysis
  20. Comparative study of copper nanoparticles over radially stretching sheet with water and silicone oil
  21. Cementitious composites modified by nanocarbon fillers with cooperation effect possessing excellent self-sensing properties
  22. Confinement size effect on dielectric properties, antimicrobial activity, and recycling of TiO2 quantum dots via photodegradation processes of Congo red dye and real industrial textile wastewater
  23. Biogenic silver nanoparticles of Moringa oleifera leaf extract: Characterization and photocatalytic application
  24. Novel integrated structure and function of Mg–Gd neutron shielding materials
  25. Impact of multiple slips on thermally radiative peristaltic transport of Sisko nanofluid with double diffusion convection, viscous dissipation, and induced magnetic field
  26. Magnetized water-based hybrid nanofluid flow over an exponentially stretching sheet with thermal convective and mass flux conditions: HAM solution
  27. A numerical investigation of the two-dimensional magnetohydrodynamic water-based hybrid nanofluid flow composed of Fe3O4 and Au nanoparticles over a heated surface
  28. Development and modeling of an ultra-robust TPU-MWCNT foam with high flexibility and compressibility
  29. Effects of nanofillers on the physical, mechanical, and tribological behavior of carbon/kenaf fiber–reinforced phenolic composites
  30. Polymer nanocomposite for protecting photovoltaic cells from solar ultraviolet in space
  31. Study on the mechanical properties and microstructure of recycled concrete reinforced with basalt fibers and nano-silica in early low-temperature environments
  32. Synergistic effect of carbon nanotubes and polyvinyl alcohol on the mechanical performance and microstructure of cement mortar
  33. CFD analysis of paraffin-based hybrid (Co–Au) and trihybrid (Co–Au–ZrO2) nanofluid flow through a porous medium
  34. Forced convective tangent hyperbolic nanofluid flow subject to heat source/sink and Lorentz force over a permeable wedge: Numerical exploration
  35. Physiochemical and electrical activities of nano copper oxides synthesised via hydrothermal method utilising natural reduction agents for solar cell application
  36. A homotopic analysis of the blood-based bioconvection Carreau–Yasuda hybrid nanofluid flow over a stretching sheet with convective conditions
  37. In situ synthesis of reduced graphene oxide/SnIn4S8 nanocomposites with enhanced photocatalytic performance for pollutant degradation
  38. A coarse-grained Poisson–Nernst–Planck model for polyelectrolyte-modified nanofluidic diodes
  39. A numerical investigation of the magnetized water-based hybrid nanofluid flow over an extending sheet with a convective condition: Active and passive controls of nanoparticles
  40. The LyP-1 cyclic peptide modified mesoporous polydopamine nanospheres for targeted delivery of triptolide regulate the macrophage repolarization in atherosclerosis
  41. Synergistic effect of hydroxyapatite-magnetite nanocomposites in magnetic hyperthermia for bone cancer treatment
  42. The significance of quadratic thermal radiative scrutinization of a nanofluid flow across a microchannel with thermophoretic particle deposition effects
  43. Ferromagnetic effect on Casson nanofluid flow and transport phenomena across a bi-directional Riga sensor device: Darcy–Forchheimer model
  44. Performance of carbon nanomaterials incorporated with concrete exposed to high temperature
  45. Multicriteria-based optimization of roller compacted concrete pavement containing crumb rubber and nano-silica
  46. Revisiting hydrotalcite synthesis: Efficient combined mechanochemical/coprecipitation synthesis to design advanced tunable basic catalysts
  47. Exploration of irreversibility process and thermal energy of a tetra hybrid radiative binary nanofluid focusing on solar implementations
  48. Effect of graphene oxide on the properties of ternary limestone clay cement paste
  49. Improved mechanical properties of graphene-modified basalt fibre–epoxy composites
  50. Sodium titanate nanostructured modified by green synthesis of iron oxide for highly efficient photodegradation of dye contaminants
  51. Green synthesis of Vitis vinifera extract-appended magnesium oxide NPs for biomedical applications
  52. Differential study on the thermal–physical properties of metal and its oxide nanoparticle-formed nanofluids: Molecular dynamics simulation investigation of argon-based nanofluids
  53. Heat convection and irreversibility of magneto-micropolar hybrid nanofluids within a porous hexagonal-shaped enclosure having heated obstacle
  54. Numerical simulation and optimization of biological nanocomposite system for enhanced oil recovery
  55. Laser ablation and chemical vapor deposition to prepare a nanostructured PPy layer on the Ti surface
  56. Cilostazol niosomes-loaded transdermal gels: An in vitro and in vivo anti-aggregant and skin permeation activity investigations towards preparing an efficient nanoscale formulation
  57. Linear and nonlinear optical studies on successfully mixed vanadium oxide and zinc oxide nanoparticles synthesized by sol–gel technique
  58. Analytical investigation of convective phenomena with nonlinearity characteristics in nanostratified liquid film above an inclined extended sheet
  59. Optimization method for low-velocity impact identification in nanocomposite using genetic algorithm
  60. Analyzing the 3D-MHD flow of a sodium alginate-based nanofluid flow containing alumina nanoparticles over a bi-directional extending sheet using variable porous medium and slip conditions
  61. A comprehensive study of laser irradiated hydrothermally synthesized 2D layered heterostructure V2O5(1−x)MoS2(x) (X = 1–5%) nanocomposites for photocatalytic application
  62. Computational analysis of water-based silver, copper, and alumina hybrid nanoparticles over a stretchable sheet embedded in a porous medium with thermophoretic particle deposition effects
  63. A deep dive into AI integration and advanced nanobiosensor technologies for enhanced bacterial infection monitoring
  64. Effects of normal strain on pyramidal I and II 〈c + a〉 screw dislocation mobility and structure in single-crystal magnesium
  65. Computational study of cross-flow in entropy-optimized nanofluids
  66. Significance of nanoparticle aggregation for thermal transport over magnetized sensor surface
  67. A green and facile synthesis route of nanosize cupric oxide at room temperature
  68. Effect of annealing time on bending performance and microstructure of C19400 alloy strip
  69. Chitosan-based Mupirocin and Alkanna tinctoria extract nanoparticles for the management of burn wound: In vitro and in vivo characterization
  70. Electrospinning of MNZ/PLGA/SF nanofibers for periodontitis
  71. Photocatalytic degradation of methylene blue by Nd-doped titanium dioxide thin films
  72. Shell-core-structured electrospinning film with sequential anti-inflammatory and pro-neurogenic effects for peripheral nerve repairment
  73. Flow and heat transfer insights into a chemically reactive micropolar Williamson ternary hybrid nanofluid with cross-diffusion theory
  74. One-pot fabrication of open-spherical shapes based on the decoration of copper sulfide/poly-O-amino benzenethiol on copper oxide as a promising photocathode for hydrogen generation from the natural source of Red Sea water
  75. A penta-hybrid approach for modeling the nanofluid flow in a spatially dependent magnetic field
  76. Advancing sustainable agriculture: Metal-doped urea–hydroxyapatite hybrid nanofertilizer for agro-industry
  77. Utilizing Ziziphus spina-christi for eco-friendly synthesis of silver nanoparticles: Antimicrobial activity and promising application in wound healing
  78. Plant-mediated synthesis, characterization, and evaluation of a copper oxide/silicon dioxide nanocomposite by an antimicrobial study
  79. Effects of PVA fibers and nano-SiO2 on rheological properties of geopolymer mortar
  80. Investigating silver and alumina nanoparticles’ impact on fluid behavior over porous stretching surface
  81. Potential pharmaceutical applications and molecular docking study for green fabricated ZnO nanoparticles mediated Raphanus sativus: In vitro and in vivo study
  82. Effect of temperature and nanoparticle size on the interfacial layer thickness of TiO2–water nanofluids using molecular dynamics
  83. Characteristics of induced magnetic field on the time-dependent MHD nanofluid flow through parallel plates
  84. Flexural and vibration behaviours of novel covered CFRP composite joints with an MWCNT-modified adhesive
  85. Experimental research on mechanically and thermally activation of nano-kaolin to improve the properties of ultra-high-performance fiber-reinforced concrete
  86. Analysis of variable fluid properties for three-dimensional flow of ternary hybrid nanofluid on a stretching sheet with MHD effects
  87. Biodegradability of corn starch films containing nanocellulose fiber and thymol
  88. Toxicity assessment of copper oxide nanoparticles: In vivo study
  89. Some measures to enhance the energy output performances of triboelectric nanogenerators
  90. Reinforcement of graphene nanoplatelets on water uptake and thermomechanical behaviour of epoxy adhesive subjected to water ageing conditions
  91. Optimization of preparation parameters and testing verification of carbon nanotube suspensions used in concrete
  92. Max-phase Ti3SiC2 and diverse nanoparticle reinforcements for enhancement of the mechanical, dynamic, and microstructural properties of AA5083 aluminum alloy via FSP
  93. Advancing drug delivery: Neural network perspectives on nanoparticle-mediated treatments for cancerous tissues
  94. PEG-PLGA core–shell nanoparticles for the controlled delivery of picoplatin–hydroxypropyl β-cyclodextrin inclusion complex in triple-negative breast cancer: In vitro and in vivo study
  95. Conduction transportation from graphene to an insulative polymer medium: A novel approach for the conductivity of nanocomposites
  96. Review Articles
  97. Developments of terahertz metasurface biosensors: A literature review
  98. Overview of amorphous carbon memristor device, modeling, and applications for neuromorphic computing
  99. Advances in the synthesis of gold nanoclusters (AuNCs) of proteins extracted from nature
  100. A review of ternary polymer nanocomposites containing clay and calcium carbonate and their biomedical applications
  101. Recent advancements in polyoxometalate-functionalized fiber materials: A review
  102. Special contribution of atomic force microscopy in cell death research
  103. A comprehensive review of oral chitosan drug delivery systems: Applications for oral insulin delivery
  104. Cellular senescence and nanoparticle-based therapies: Current developments and perspectives
  105. Cyclodextrins-block copolymer drug delivery systems: From design and development to preclinical studies
  106. Micelle-based nanoparticles with stimuli-responsive properties for drug delivery
  107. Critical assessment of the thermal stability and degradation of chemically functionalized nanocellulose-based polymer nanocomposites
  108. Research progress in preparation technology of micro and nano titanium alloy powder
  109. Nanoformulations for lysozyme-based additives in animal feed: An alternative to fight antibiotic resistance spread
  110. Incorporation of organic photochromic molecules in mesoporous silica materials: Synthesis and applications
  111. A review on modeling of graphene and associated nanostructures reinforced concrete
  112. A review on strengthening mechanisms of carbon quantum dots-reinforced Cu-matrix nanocomposites
  113. Review on nanocellulose composites and CNFs assembled microfiber toward automotive applications
  114. Nanomaterial coating for layered lithium rich transition metal oxide cathode for lithium-ion battery
  115. Application of AgNPs in biomedicine: An overview and current trends
  116. Nanobiotechnology and microbial influence on cold adaptation in plants
  117. Hepatotoxicity of nanomaterials: From mechanism to therapeutic strategy
  118. Applications of micro-nanobubble and its influence on concrete properties: An in-depth review
  119. A comprehensive systematic literature review of ML in nanotechnology for sustainable development
  120. Exploiting the nanotechnological approaches for traditional Chinese medicine in childhood rhinitis: A review of future perspectives
  121. Twisto-photonics in two-dimensional materials: A comprehensive review
  122. Current advances of anticancer drugs based on solubilization technology
  123. Recent process of using nanoparticles in the T cell-based immunometabolic therapy
  124. Future prospects of gold nanoclusters in hydrogen storage systems and sustainable environmental treatment applications
  125. Preparation, types, and applications of one- and two-dimensional nanochannels and their transport properties for water and ions
  126. Microstructural, mechanical, and corrosion characteristics of Mg–Gd–x systems: A review of recent advancements
  127. Functionalized nanostructures and targeted delivery systems with a focus on plant-derived natural agents for COVID-19 therapy: A review and outlook
  128. Mapping evolution and trends of cell membrane-coated nanoparticles: A bibliometric analysis and scoping review
  129. Nanoparticles and their application in the diagnosis of hepatocellular carcinoma
  130. In situ growth of carbon nanotubes on fly ash substrates
  131. Structural performance of boards through nanoparticle reinforcement: An advance review
  132. Reinforcing mechanisms review of the graphene oxide on cement composites
  133. Seed regeneration aided by nanomaterials in a climate change scenario: A comprehensive review
  134. Surface-engineered quantum dot nanocomposites for neurodegenerative disorder remediation and avenue for neuroimaging
  135. Graphitic carbon nitride hybrid thin films for energy conversion: A mini-review on defect activation with different materials
  136. Nanoparticles and the treatment of hepatocellular carcinoma
  137. Special Issue on Advanced Nanomaterials and Composites for Energy Conversion and Storage - Part II
  138. Highly safe lithium vanadium oxide anode for fast-charging dendrite-free lithium-ion batteries
  139. Recent progress in nanomaterials of battery energy storage: A patent landscape analysis, technology updates, and future prospects
  140. Special Issue on Advanced Nanomaterials for Carbon Capture, Environment and Utilization for Energy Sustainability - Part II
  141. Calcium-, magnesium-, and yttrium-doped lithium nickel phosphate nanomaterials as high-performance catalysts for electrochemical water oxidation reaction
  142. Low alkaline vegetation concrete with silica fume and nano-fly ash composites to improve the planting properties and soil ecology
  143. Mesoporous silica-grafted deep eutectic solvent-based mixed matrix membranes for wastewater treatment: Synthesis and emerging pollutant removal performance
  144. Electrochemically prepared ultrathin two-dimensional graphitic nanosheets as cathodes for advanced Zn-based energy storage devices
  145. Enhanced catalytic degradation of amoxicillin by phyto-mediated synthesised ZnO NPs and ZnO-rGO hybrid nanocomposite: Assessment of antioxidant activity, adsorption, and thermodynamic analysis
  146. Incorporating GO in PI matrix to advance nanocomposite coating: An enhancing strategy to prevent corrosion
  147. Synthesis, characterization, thermal stability, and application of microporous hyper cross-linked polyphosphazenes with naphthylamine group for CO2 uptake
  148. Engineering in ceramic albite morphology by the addition of additives: Carbon nanotubes and graphene oxide for energy applications
  149. Nanoscale synergy: Optimizing energy storage with SnO2 quantum dots on ZnO hexagonal prisms for advanced supercapacitors
  150. Aging assessment of silicone rubber materials under corona discharge accompanied by humidity and UV radiation
  151. Tuning structural and electrical properties of Co-precipitated and Cu-incorporated nickel ferrite for energy applications
  152. Sodium alginate-supported AgSr nanoparticles for catalytic degradation of malachite green and methyl orange in aqueous medium
  153. An environmentally greener and reusability approach for bioenergy production using Mallotus philippensis (Kamala) seed oil feedstock via phytonanotechnology
  154. Micro-/nano-alumina trihydrate and -magnesium hydroxide fillers in RTV-SR composites under electrical and environmental stresses
  155. Mechanism exploration of ion-implanted epoxy on surface trap distribution: An approach to augment the vacuum flashover voltages
  156. Nanoscale engineering of semiconductor photocatalysts boosting charge separation for solar-driven H2 production: Recent advances and future perspective
  157. Excellent catalytic performance over reduced graphene-boosted novel nanoparticles for oxidative desulfurization of fuel oil
  158. Special Issue on Advances in Nanotechnology for Agriculture
  159. Deciphering the synergistic potential of mycogenic zinc oxide nanoparticles and bio-slurry formulation on phenology and physiology of Vigna radiata
  160. Nanomaterials: Cross-disciplinary applications in ornamental plants
  161. Special Issue on Catechol Based Nano and Microstructures
  162. Polydopamine films: Versatile but interface-dependent coatings
  163. In vitro anticancer activity of melanin-like nanoparticles for multimodal therapy of glioblastoma
  164. Poly-3,4-dihydroxybenzylidenhydrazine, a different analogue of polydopamine
  165. Chirality and self-assembly of structures derived from optically active 1,2-diaminocyclohexane and catecholamines
  166. Advancing resource sustainability with green photothermal materials: Insights from organic waste-derived and bioderived sources
  167. Bioinspired neuromelanin-like Pt(iv) polymeric nanoparticles for cancer treatment
  168. Special Issue on Implementing Nanotechnology for Smart Healthcare System
  169. Intelligent explainable optical sensing on Internet of nanorobots for disease detection
  170. Special Issue on Green Mono, Bi and Tri Metallic Nanoparticles for Biological and Environmental Applications
  171. Tracking success of interaction of green-synthesized Carbopol nanoemulgel (neomycin-decorated Ag/ZnO nanocomposite) with wound-based MDR bacteria
  172. Green synthesis of copper oxide nanoparticles using genus Inula and evaluation of biological therapeutics and environmental applications
  173. Biogenic fabrication and multifunctional therapeutic applications of silver nanoparticles synthesized from rose petal extract
  174. Metal oxides on the frontlines: Antimicrobial activity in plant-derived biometallic nanoparticles
  175. Controlling pore size during the synthesis of hydroxyapatite nanoparticles using CTAB by the sol–gel hydrothermal method and their biological activities
  176. Special Issue on State-of-Art Advanced Nanotechnology for Healthcare
  177. Applications of nanomedicine-integrated phototherapeutic agents in cancer theranostics: A comprehensive review of the current state of research
  178. Smart bionanomaterials for treatment and diagnosis of inflammatory bowel disease
  179. Beyond conventional therapy: Synthesis of multifunctional nanoparticles for rheumatoid arthritis therapy
https://doi.org/10.1515/ntrev-2023-0185
Keywords for this article
recycled concrete; nano-silica; mechanical properties
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Articles
  2. Tension buckling and postbuckling of nanocomposite laminated plates with in-plane negative Poisson’s ratio
  3. Polyvinylpyrrolidone-stabilised gold nanoparticle coatings inhibit blood protein adsorption
  4. Energy and mass transmission through hybrid nanofluid flow passing over a spinning sphere with magnetic effect and heat source/sink
  5. Surface treatment with nano-silica and magnesium potassium phosphate cement co-action for enhancing recycled aggregate concrete
  6. Numerical investigation of thermal radiation with entropy generation effects in hybrid nanofluid flow over a shrinking/stretching sheet
  7. Enhancing the performance of thermal energy storage by adding nano-particles with paraffin phase change materials
  8. Using nano-CaCO3 and ceramic tile waste to design low-carbon ultra high performance concrete
  9. Numerical analysis of thermophoretic particle deposition in a magneto-Marangoni convective dusty tangent hyperbolic nanofluid flow – Thermal and magnetic features
  10. Dual numerical solutions of Casson SA–hybrid nanofluid toward a stagnation point flow over stretching/shrinking cylinder
  11. Single flake homo p–n diode of MoTe2 enabled by oxygen plasma doping
  12. Electrostatic self-assembly effect of Fe3O4 nanoparticles on performance of carbon nanotubes in cement-based materials
  13. Multi-scale alignment to buried atom-scale devices using Kelvin probe force microscopy
  14. Antibacterial, mechanical, and dielectric properties of hydroxyapatite cordierite/zirconia porous nanocomposites for use in bone tissue engineering applications
  15. Time-dependent Darcy–Forchheimer flow of Casson hybrid nanofluid comprising the CNTs through a Riga plate with nonlinear thermal radiation and viscous dissipation
  16. Durability prediction of geopolymer mortar reinforced with nanoparticles and PVA fiber using particle swarm optimized BP neural network
  17. Utilization of zein nano-based system for promoting antibiofilm and anti-virulence activities of curcumin against Pseudomonas aeruginosa
  18. Antibacterial effect of novel dental resin composites containing rod-like zinc oxide
  19. An extended model to assess Jeffery–Hamel blood flow through arteries with iron-oxide (Fe2O3) nanoparticles and melting effects: Entropy optimization analysis
  20. Comparative study of copper nanoparticles over radially stretching sheet with water and silicone oil
  21. Cementitious composites modified by nanocarbon fillers with cooperation effect possessing excellent self-sensing properties
  22. Confinement size effect on dielectric properties, antimicrobial activity, and recycling of TiO2 quantum dots via photodegradation processes of Congo red dye and real industrial textile wastewater
  23. Biogenic silver nanoparticles of Moringa oleifera leaf extract: Characterization and photocatalytic application
  24. Novel integrated structure and function of Mg–Gd neutron shielding materials
  25. Impact of multiple slips on thermally radiative peristaltic transport of Sisko nanofluid with double diffusion convection, viscous dissipation, and induced magnetic field
  26. Magnetized water-based hybrid nanofluid flow over an exponentially stretching sheet with thermal convective and mass flux conditions: HAM solution
  27. A numerical investigation of the two-dimensional magnetohydrodynamic water-based hybrid nanofluid flow composed of Fe3O4 and Au nanoparticles over a heated surface
  28. Development and modeling of an ultra-robust TPU-MWCNT foam with high flexibility and compressibility
  29. Effects of nanofillers on the physical, mechanical, and tribological behavior of carbon/kenaf fiber–reinforced phenolic composites
  30. Polymer nanocomposite for protecting photovoltaic cells from solar ultraviolet in space
  31. Study on the mechanical properties and microstructure of recycled concrete reinforced with basalt fibers and nano-silica in early low-temperature environments
  32. Synergistic effect of carbon nanotubes and polyvinyl alcohol on the mechanical performance and microstructure of cement mortar
  33. CFD analysis of paraffin-based hybrid (Co–Au) and trihybrid (Co–Au–ZrO2) nanofluid flow through a porous medium
  34. Forced convective tangent hyperbolic nanofluid flow subject to heat source/sink and Lorentz force over a permeable wedge: Numerical exploration
  35. Physiochemical and electrical activities of nano copper oxides synthesised via hydrothermal method utilising natural reduction agents for solar cell application
  36. A homotopic analysis of the blood-based bioconvection Carreau–Yasuda hybrid nanofluid flow over a stretching sheet with convective conditions
  37. In situ synthesis of reduced graphene oxide/SnIn4S8 nanocomposites with enhanced photocatalytic performance for pollutant degradation
  38. A coarse-grained Poisson–Nernst–Planck model for polyelectrolyte-modified nanofluidic diodes
  39. A numerical investigation of the magnetized water-based hybrid nanofluid flow over an extending sheet with a convective condition: Active and passive controls of nanoparticles
  40. The LyP-1 cyclic peptide modified mesoporous polydopamine nanospheres for targeted delivery of triptolide regulate the macrophage repolarization in atherosclerosis
  41. Synergistic effect of hydroxyapatite-magnetite nanocomposites in magnetic hyperthermia for bone cancer treatment
  42. The significance of quadratic thermal radiative scrutinization of a nanofluid flow across a microchannel with thermophoretic particle deposition effects
  43. Ferromagnetic effect on Casson nanofluid flow and transport phenomena across a bi-directional Riga sensor device: Darcy–Forchheimer model
  44. Performance of carbon nanomaterials incorporated with concrete exposed to high temperature
  45. Multicriteria-based optimization of roller compacted concrete pavement containing crumb rubber and nano-silica
  46. Revisiting hydrotalcite synthesis: Efficient combined mechanochemical/coprecipitation synthesis to design advanced tunable basic catalysts
  47. Exploration of irreversibility process and thermal energy of a tetra hybrid radiative binary nanofluid focusing on solar implementations
  48. Effect of graphene oxide on the properties of ternary limestone clay cement paste
  49. Improved mechanical properties of graphene-modified basalt fibre–epoxy composites
  50. Sodium titanate nanostructured modified by green synthesis of iron oxide for highly efficient photodegradation of dye contaminants
  51. Green synthesis of Vitis vinifera extract-appended magnesium oxide NPs for biomedical applications
  52. Differential study on the thermal–physical properties of metal and its oxide nanoparticle-formed nanofluids: Molecular dynamics simulation investigation of argon-based nanofluids
  53. Heat convection and irreversibility of magneto-micropolar hybrid nanofluids within a porous hexagonal-shaped enclosure having heated obstacle
  54. Numerical simulation and optimization of biological nanocomposite system for enhanced oil recovery
  55. Laser ablation and chemical vapor deposition to prepare a nanostructured PPy layer on the Ti surface
  56. Cilostazol niosomes-loaded transdermal gels: An in vitro and in vivo anti-aggregant and skin permeation activity investigations towards preparing an efficient nanoscale formulation
  57. Linear and nonlinear optical studies on successfully mixed vanadium oxide and zinc oxide nanoparticles synthesized by sol–gel technique
  58. Analytical investigation of convective phenomena with nonlinearity characteristics in nanostratified liquid film above an inclined extended sheet
  59. Optimization method for low-velocity impact identification in nanocomposite using genetic algorithm
  60. Analyzing the 3D-MHD flow of a sodium alginate-based nanofluid flow containing alumina nanoparticles over a bi-directional extending sheet using variable porous medium and slip conditions
  61. A comprehensive study of laser irradiated hydrothermally synthesized 2D layered heterostructure V2O5(1−x)MoS2(x) (X = 1–5%) nanocomposites for photocatalytic application
  62. Computational analysis of water-based silver, copper, and alumina hybrid nanoparticles over a stretchable sheet embedded in a porous medium with thermophoretic particle deposition effects
  63. A deep dive into AI integration and advanced nanobiosensor technologies for enhanced bacterial infection monitoring
  64. Effects of normal strain on pyramidal I and II 〈c + a〉 screw dislocation mobility and structure in single-crystal magnesium
  65. Computational study of cross-flow in entropy-optimized nanofluids
  66. Significance of nanoparticle aggregation for thermal transport over magnetized sensor surface
  67. A green and facile synthesis route of nanosize cupric oxide at room temperature
  68. Effect of annealing time on bending performance and microstructure of C19400 alloy strip
  69. Chitosan-based Mupirocin and Alkanna tinctoria extract nanoparticles for the management of burn wound: In vitro and in vivo characterization
  70. Electrospinning of MNZ/PLGA/SF nanofibers for periodontitis
  71. Photocatalytic degradation of methylene blue by Nd-doped titanium dioxide thin films
  72. Shell-core-structured electrospinning film with sequential anti-inflammatory and pro-neurogenic effects for peripheral nerve repairment
  73. Flow and heat transfer insights into a chemically reactive micropolar Williamson ternary hybrid nanofluid with cross-diffusion theory
  74. One-pot fabrication of open-spherical shapes based on the decoration of copper sulfide/poly-O-amino benzenethiol on copper oxide as a promising photocathode for hydrogen generation from the natural source of Red Sea water
  75. A penta-hybrid approach for modeling the nanofluid flow in a spatially dependent magnetic field
  76. Advancing sustainable agriculture: Metal-doped urea–hydroxyapatite hybrid nanofertilizer for agro-industry
  77. Utilizing Ziziphus spina-christi for eco-friendly synthesis of silver nanoparticles: Antimicrobial activity and promising application in wound healing
  78. Plant-mediated synthesis, characterization, and evaluation of a copper oxide/silicon dioxide nanocomposite by an antimicrobial study
  79. Effects of PVA fibers and nano-SiO2 on rheological properties of geopolymer mortar
  80. Investigating silver and alumina nanoparticles’ impact on fluid behavior over porous stretching surface
  81. Potential pharmaceutical applications and molecular docking study for green fabricated ZnO nanoparticles mediated Raphanus sativus: In vitro and in vivo study
  82. Effect of temperature and nanoparticle size on the interfacial layer thickness of TiO2–water nanofluids using molecular dynamics
  83. Characteristics of induced magnetic field on the time-dependent MHD nanofluid flow through parallel plates
  84. Flexural and vibration behaviours of novel covered CFRP composite joints with an MWCNT-modified adhesive
  85. Experimental research on mechanically and thermally activation of nano-kaolin to improve the properties of ultra-high-performance fiber-reinforced concrete
  86. Analysis of variable fluid properties for three-dimensional flow of ternary hybrid nanofluid on a stretching sheet with MHD effects
  87. Biodegradability of corn starch films containing nanocellulose fiber and thymol
  88. Toxicity assessment of copper oxide nanoparticles: In vivo study
  89. Some measures to enhance the energy output performances of triboelectric nanogenerators
  90. Reinforcement of graphene nanoplatelets on water uptake and thermomechanical behaviour of epoxy adhesive subjected to water ageing conditions
  91. Optimization of preparation parameters and testing verification of carbon nanotube suspensions used in concrete
  92. Max-phase Ti3SiC2 and diverse nanoparticle reinforcements for enhancement of the mechanical, dynamic, and microstructural properties of AA5083 aluminum alloy via FSP
  93. Advancing drug delivery: Neural network perspectives on nanoparticle-mediated treatments for cancerous tissues
  94. PEG-PLGA core–shell nanoparticles for the controlled delivery of picoplatin–hydroxypropyl β-cyclodextrin inclusion complex in triple-negative breast cancer: In vitro and in vivo study
  95. Conduction transportation from graphene to an insulative polymer medium: A novel approach for the conductivity of nanocomposites
  96. Review Articles
  97. Developments of terahertz metasurface biosensors: A literature review
  98. Overview of amorphous carbon memristor device, modeling, and applications for neuromorphic computing
  99. Advances in the synthesis of gold nanoclusters (AuNCs) of proteins extracted from nature
  100. A review of ternary polymer nanocomposites containing clay and calcium carbonate and their biomedical applications
  101. Recent advancements in polyoxometalate-functionalized fiber materials: A review
  102. Special contribution of atomic force microscopy in cell death research
  103. A comprehensive review of oral chitosan drug delivery systems: Applications for oral insulin delivery
  104. Cellular senescence and nanoparticle-based therapies: Current developments and perspectives
  105. Cyclodextrins-block copolymer drug delivery systems: From design and development to preclinical studies
  106. Micelle-based nanoparticles with stimuli-responsive properties for drug delivery
  107. Critical assessment of the thermal stability and degradation of chemically functionalized nanocellulose-based polymer nanocomposites
  108. Research progress in preparation technology of micro and nano titanium alloy powder
  109. Nanoformulations for lysozyme-based additives in animal feed: An alternative to fight antibiotic resistance spread
  110. Incorporation of organic photochromic molecules in mesoporous silica materials: Synthesis and applications
  111. A review on modeling of graphene and associated nanostructures reinforced concrete
  112. A review on strengthening mechanisms of carbon quantum dots-reinforced Cu-matrix nanocomposites
  113. Review on nanocellulose composites and CNFs assembled microfiber toward automotive applications
  114. Nanomaterial coating for layered lithium rich transition metal oxide cathode for lithium-ion battery
  115. Application of AgNPs in biomedicine: An overview and current trends
  116. Nanobiotechnology and microbial influence on cold adaptation in plants
  117. Hepatotoxicity of nanomaterials: From mechanism to therapeutic strategy
  118. Applications of micro-nanobubble and its influence on concrete properties: An in-depth review
  119. A comprehensive systematic literature review of ML in nanotechnology for sustainable development
  120. Exploiting the nanotechnological approaches for traditional Chinese medicine in childhood rhinitis: A review of future perspectives
  121. Twisto-photonics in two-dimensional materials: A comprehensive review
  122. Current advances of anticancer drugs based on solubilization technology
  123. Recent process of using nanoparticles in the T cell-based immunometabolic therapy
  124. Future prospects of gold nanoclusters in hydrogen storage systems and sustainable environmental treatment applications
  125. Preparation, types, and applications of one- and two-dimensional nanochannels and their transport properties for water and ions
  126. Microstructural, mechanical, and corrosion characteristics of Mg–Gd–x systems: A review of recent advancements
  127. Functionalized nanostructures and targeted delivery systems with a focus on plant-derived natural agents for COVID-19 therapy: A review and outlook
  128. Mapping evolution and trends of cell membrane-coated nanoparticles: A bibliometric analysis and scoping review
  129. Nanoparticles and their application in the diagnosis of hepatocellular carcinoma
  130. In situ growth of carbon nanotubes on fly ash substrates
  131. Structural performance of boards through nanoparticle reinforcement: An advance review
  132. Reinforcing mechanisms review of the graphene oxide on cement composites
  133. Seed regeneration aided by nanomaterials in a climate change scenario: A comprehensive review
  134. Surface-engineered quantum dot nanocomposites for neurodegenerative disorder remediation and avenue for neuroimaging
  135. Graphitic carbon nitride hybrid thin films for energy conversion: A mini-review on defect activation with different materials
  136. Nanoparticles and the treatment of hepatocellular carcinoma
  137. Special Issue on Advanced Nanomaterials and Composites for Energy Conversion and Storage - Part II
  138. Highly safe lithium vanadium oxide anode for fast-charging dendrite-free lithium-ion batteries
  139. Recent progress in nanomaterials of battery energy storage: A patent landscape analysis, technology updates, and future prospects
  140. Special Issue on Advanced Nanomaterials for Carbon Capture, Environment and Utilization for Energy Sustainability - Part II
  141. Calcium-, magnesium-, and yttrium-doped lithium nickel phosphate nanomaterials as high-performance catalysts for electrochemical water oxidation reaction
  142. Low alkaline vegetation concrete with silica fume and nano-fly ash composites to improve the planting properties and soil ecology
  143. Mesoporous silica-grafted deep eutectic solvent-based mixed matrix membranes for wastewater treatment: Synthesis and emerging pollutant removal performance
  144. Electrochemically prepared ultrathin two-dimensional graphitic nanosheets as cathodes for advanced Zn-based energy storage devices
  145. Enhanced catalytic degradation of amoxicillin by phyto-mediated synthesised ZnO NPs and ZnO-rGO hybrid nanocomposite: Assessment of antioxidant activity, adsorption, and thermodynamic analysis
  146. Incorporating GO in PI matrix to advance nanocomposite coating: An enhancing strategy to prevent corrosion
  147. Synthesis, characterization, thermal stability, and application of microporous hyper cross-linked polyphosphazenes with naphthylamine group for CO2 uptake
  148. Engineering in ceramic albite morphology by the addition of additives: Carbon nanotubes and graphene oxide for energy applications
  149. Nanoscale synergy: Optimizing energy storage with SnO2 quantum dots on ZnO hexagonal prisms for advanced supercapacitors
  150. Aging assessment of silicone rubber materials under corona discharge accompanied by humidity and UV radiation
  151. Tuning structural and electrical properties of Co-precipitated and Cu-incorporated nickel ferrite for energy applications
  152. Sodium alginate-supported AgSr nanoparticles for catalytic degradation of malachite green and methyl orange in aqueous medium
  153. An environmentally greener and reusability approach for bioenergy production using Mallotus philippensis (Kamala) seed oil feedstock via phytonanotechnology
  154. Micro-/nano-alumina trihydrate and -magnesium hydroxide fillers in RTV-SR composites under electrical and environmental stresses
  155. Mechanism exploration of ion-implanted epoxy on surface trap distribution: An approach to augment the vacuum flashover voltages
  156. Nanoscale engineering of semiconductor photocatalysts boosting charge separation for solar-driven H2 production: Recent advances and future perspective
  157. Excellent catalytic performance over reduced graphene-boosted novel nanoparticles for oxidative desulfurization of fuel oil
  158. Special Issue on Advances in Nanotechnology for Agriculture
  159. Deciphering the synergistic potential of mycogenic zinc oxide nanoparticles and bio-slurry formulation on phenology and physiology of Vigna radiata
  160. Nanomaterials: Cross-disciplinary applications in ornamental plants
  161. Special Issue on Catechol Based Nano and Microstructures
  162. Polydopamine films: Versatile but interface-dependent coatings
  163. In vitro anticancer activity of melanin-like nanoparticles for multimodal therapy of glioblastoma
  164. Poly-3,4-dihydroxybenzylidenhydrazine, a different analogue of polydopamine
  165. Chirality and self-assembly of structures derived from optically active 1,2-diaminocyclohexane and catecholamines
  166. Advancing resource sustainability with green photothermal materials: Insights from organic waste-derived and bioderived sources
  167. Bioinspired neuromelanin-like Pt(iv) polymeric nanoparticles for cancer treatment
  168. Special Issue on Implementing Nanotechnology for Smart Healthcare System
  169. Intelligent explainable optical sensing on Internet of nanorobots for disease detection
  170. Special Issue on Green Mono, Bi and Tri Metallic Nanoparticles for Biological and Environmental Applications
  171. Tracking success of interaction of green-synthesized Carbopol nanoemulgel (neomycin-decorated Ag/ZnO nanocomposite) with wound-based MDR bacteria
  172. Green synthesis of copper oxide nanoparticles using genus Inula and evaluation of biological therapeutics and environmental applications
  173. Biogenic fabrication and multifunctional therapeutic applications of silver nanoparticles synthesized from rose petal extract
  174. Metal oxides on the frontlines: Antimicrobial activity in plant-derived biometallic nanoparticles
  175. Controlling pore size during the synthesis of hydroxyapatite nanoparticles using CTAB by the sol–gel hydrothermal method and their biological activities
  176. Special Issue on State-of-Art Advanced Nanotechnology for Healthcare
  177. Applications of nanomedicine-integrated phototherapeutic agents in cancer theranostics: A comprehensive review of the current state of research
  178. Smart bionanomaterials for treatment and diagnosis of inflammatory bowel disease
  179. Beyond conventional therapy: Synthesis of multifunctional nanoparticles for rheumatoid arthritis therapy
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 5.9.2025 from https://www.degruyterbrill.com/document/doi/10.1515/ntrev-2023-0185/html
Scroll to top button
