Application of nonlinear adaptive technology in GPS positioning trajectory of ship navigation

1 Introduction

A ship trajectory tracking control system is a complex multi-input–multi-output uncertain nonlinear system. It is one of the important topics in nonlinear control system research to design a controller to realize ship trajectory tracking. This has attracted considerable attention from scholars at home and abroad [1]. In fact, nonlinear behavior is inherent in the ship. Using non-model-based intelligent control technology, a fuzzy-proportional integral and derivative (PID) track control automatic tracking controller is proposed, and a neural network track tracking controller is designed. With the development of control theory and the improvement of ship track tracking performance requirements, the nonlinear control technology developed on the basis of a higher-precision nonlinear ship motion mathematical model has achieved remarkable results. A dynamic positioning system is not limited by water depth, high positioning accuracy, strong mobility, etc. It is widely used in supply ships, pipe-laying ships, rescue ships, and oil drilling platforms [2,3,4]. There are obvious uncertainties in ship dynamics and environmental disturbances due to frequent changes in ship operating conditions and marine environment [5]. The major marine elements are involved in the workflow of dynamic positioning control are depicted in Figure 1.

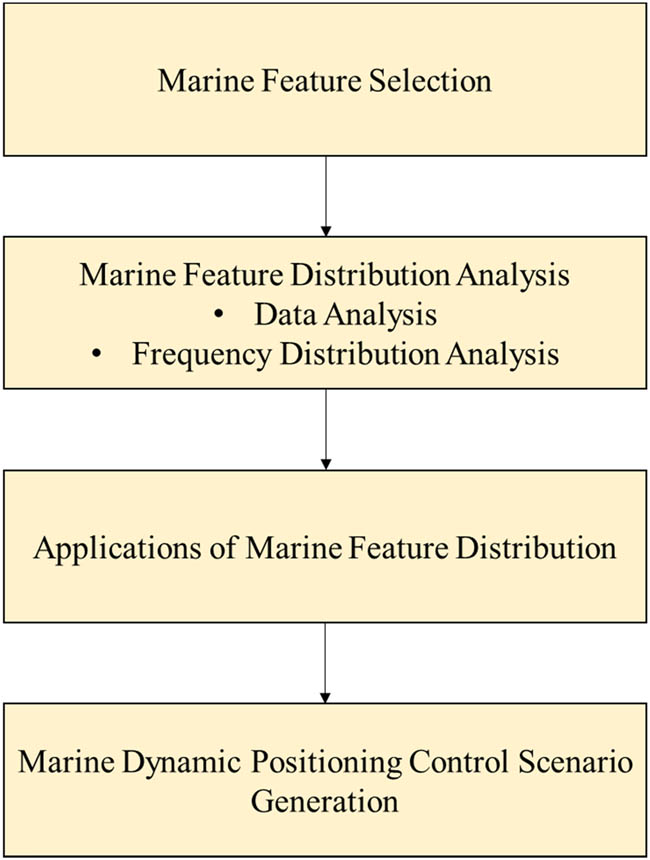

Figure 1

Elements of dynamic positioning control.

2 Literature review

At present, considerable achievements have been made in the research of ship trajectory tracking control with the rapid development of nonlinear control theory. The inversion method proposed by Gao et al. can effectively avoid linearization of the ship model. It decomposes a complex nonlinear system into subsystems of no more than system order. The control law is designed, and the global exponential stability of the closed-loop system is obtained. However, the traditional inversion method needs to know the model parameters accurately, while the external environmental disturbances suffered by the actual system are often unknown. There may be an uncertainty of model parameters or completely unknown model parameters. Due to its strong robustness to unknown terms, sliding mode control has been widely used in various control problems [6]. Chen et al. adopted the exponential approach law to design the sliding mode controller and obtained accurate tracking of the ship’s straight and circular trajectory. However, this method is a little complicated to construct model transformation. The combination of sliding mode and inversion can enhance the robustness of the system and expand the application scope of inversion [7]. Yan et al. realized track tracking control of surface ships [8]. This assumption is too conservative, given the environment in which the ship is actually navigating. In addition, the sliding mode control needs to use symbolic functions and compensate for unknown terms by switching gain, which will inevitably cause a control jitter and damage system equipment [9]. To eliminate this conservative assumption, in the case of unknown terms and unknown bounds in the system, the robustness of the control system can be improved by using adaptive methods to estimate the bounds of unknown terms before designing the controller [10]. The chattering problem caused by sliding mode control can be effectively solved by using the boundary layer, filter, observer, and intelligent control methods. In the traditional boundary layer method, if the boundary layer thickness is small, then the control effect is good, but the chattering is large. However, if the boundary layer thickness is large, the opposite is true. Naglic et al. designed an improved integral boundary layer sliding mode surface. It can not only effectively prevent integral saturation, but also reduce the steady-state error and obtain a good control effect [11]. The hyperbolic tangent function is used to replace the traditional sign function of sliding mode to eliminate chattering effectively and realize the attitude tracking control of spacecraft. Through the low-pass filter at the output end of the controller, the high-frequency flutter signal of the controller is eliminated, and the chattering problem is effectively solved. The global exponential stability of the system is realized. The sliding mode buffeting problem is caused by the switching action to compensate for the unknown term of the system. The switching action can be avoided, thus avoiding the chattering problem [12]. El-Sabagh believed that the basic work for discovering abnormal ship trajectories is the prediction of the ship’s navigation dynamics. Through the prediction of the ship’s navigation trajectory, the changes in the ship’s trajectory can be found in time, which is conducive to the effective monitoring of ships. This method is also effective for the supervision of marine traffic, which is of great significance in the navigation domain. The nonlinear disturbance observer is designed, and the trajectory tracking control is realized by combining the inversion method and Lyapunov theory. The method approaches the switching part of the sliding mode controller to make the discontinuous control signals continuous to effectively reduce the chattering of the sliding mode [13].

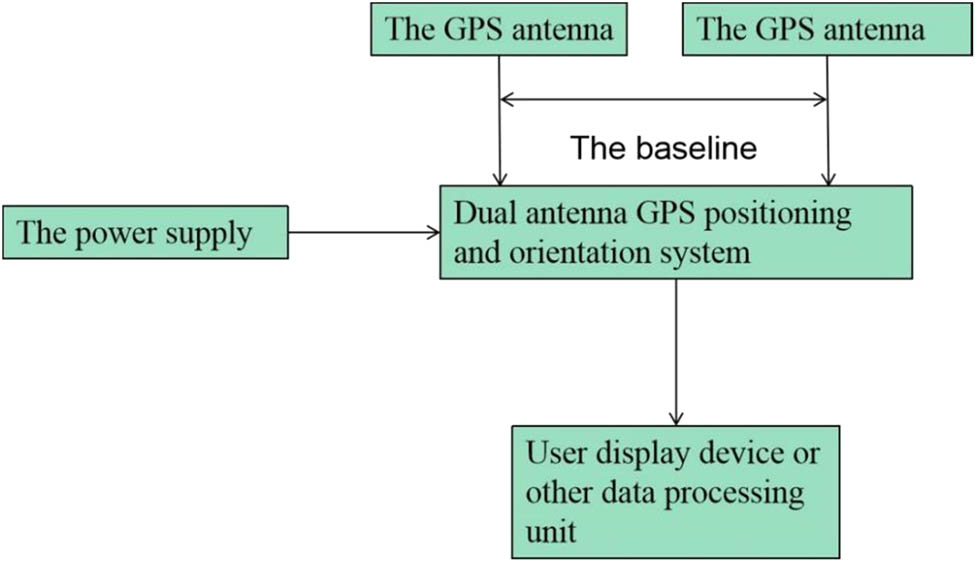

Based on the current research, nonlinear adaptive technology is proposed to design the dynamic positioning filter. The system flowchart is depicted in Figure 2.

Figure 2

System working chart.

The control index model is positioned according to the experimental results. It was observed that the improved control performance is obtained for the proposed dynamic positioning model. The proposed model has strong stability and accuracy.

3 Research methods

4 Results and analysis

In the ship dynamic positioning control, the ship model can be linearly transformed, and the mathematical model can be constructed with the help of the MPC algorithm to play the role of the controller. This section provides the parameter initialization and outcome computation for the ship’s dynamic positioning control.

Assuming that the hull construction mass is uniform and the hull coordinate system is located at the center of the hull, the mass center of the hull is regarded as the origin of the reference coordinate system. See Figure 3 for details.

Figure 3

Ship motion reference coordinate system based on dynamic positioning control.

The coordinate system is the plane coordinate system, the X-axis is perpendicular to the transverse section, the Y-axis is perpendicular to the longitudinal section, and the Z-axis is perpendicular to the horizontal plane. The research of the power controller needs to consider the ship as a rigid body, introduce the theory of mechanics and kinematics. It is necessary not only to analyze the current position and heading state of the ship from the geometric point of view. In addition, in order to study the relationship between the force and the change of ship motion direction under the influence of external factors from the perspective of mechanics, the law of moving ships in navigation is analyzed.

Under the influence of external factors, the motion law of the ship during navigation is shown in Figure 4.

Figure 4

The distribution of high- and low-frequency superposition motion of ships.

It can be seen that ship motion is actually a combination of high-frequency motion and low-frequency motion [16]. In high-frequency motion, the environmental disturbance will generate wave force on the ship motion, and affect the fuel consumption and performance of the ship’s dynamic positioning controller. However, it will not affect the position of the ship. In the control of high-frequency motion, filter can be used for control. For low-frequency motion, the wind force and the thrust of the hull are the main reasons for the low-frequency motion of the hull. Thus, in the case of dynamic positioning, the ship should be kept at a low motion level to ensure the effectiveness of dynamic positioning control.

MPC obtains the optimal solution in rolling optimization and outputs the optimal solution as a component in the system to obtain the next measured value. Then, the above operation for the measured value is repeated to perform rolling optimization. Ship’s dynamic positioning control is affected by the environment, its power, regional scope and other factors. In this simulation, nonlinear adaptive technology is used to verify the effectiveness of dynamic positioning control.

Parameter:

Take T = diag(1 × 10³, 1 × 10³, 1 × 10³) and φ = diag(1 × 10², 1 × 10², 1 × 10³).

Select the initial condition as η(0) = [20 m, 20 m, 10°] ^T , υ(0) = [0 n/s, 0 n/s, 0° n/s] ^T , b(0) = [10 kN, 10 kN, 100 kN m] ^T , δ ˆ ( 0 ) = 10 and θ ˆ 1 ( 0 ) = θ ˆ 2 ( 0 ) = θ ˆ 3 ( 0 ) = 0 20 × 1 .

Dead zone breakpoint b ₁ = b ₂ = 8 × 10⁻³ and b ₃ = 5 × 10⁻⁴.

The neural network θ ˆ i T β ( ς ) ( i = 1 , 2 , 3 ) contains 20 nodes, the center is evenly distributed on [−2.20] × [−2.20] × [−0.1, 0.2] × [−2, 1] × [−2, 1] × [−0.02, 0.01], the width of the h _j = 5, select ρ = 1 × 10³, γ ₁ = 3 × 10⁴, γ ₂ = 5 × 10⁻⁸, σ ₁ = σ ₂ = 1 × 10⁻⁵, σ ₃ = 1 × 10⁻⁸, Γ₁ = Γ₂ × 1 × 10² I _20×20, Γ₃ × 1 × 10⁴ I _20×20, K ₁ = diag(1.2 × 10⁻², 1.5 × 10⁻², 2.0 × 10⁻²), and K ₂ = diag(1 × 10⁶, 2 × 10⁶, 2 × 10⁹).

The designed DP control law makes the ship overcome the impact of marine environment disturbance after about 142 s, so it is positioned at the expected value η _d = [0 m, 0 m, 0°] ^T , and the control signals τ ₁, τ ₂, and τ ₃ are in line with the reality [20].

Let us say the initial position of the ship is (0, 0, 0), and the desired position is (100, 100, 0). The operation ranges are –0.6 × 10⁷ to 0.6 × 10⁷, –0.4 × 10⁷ to 0.4 × 10⁷, and –5.6 × 10⁸ to 5.6 × 10⁸. The range of motion is –150 to 150, –130 to 130, and –5 to 5. The wind disturbance force is 8 m/s, the wave disturbance force is 1 m/s, and the wind is 90 degrees. The MATLAB simulation platform is mainly used, and the simulation results are shown in Figures 5 and 6.

Figure 5

Change of ship movement and position under the dynamic positioning control model.

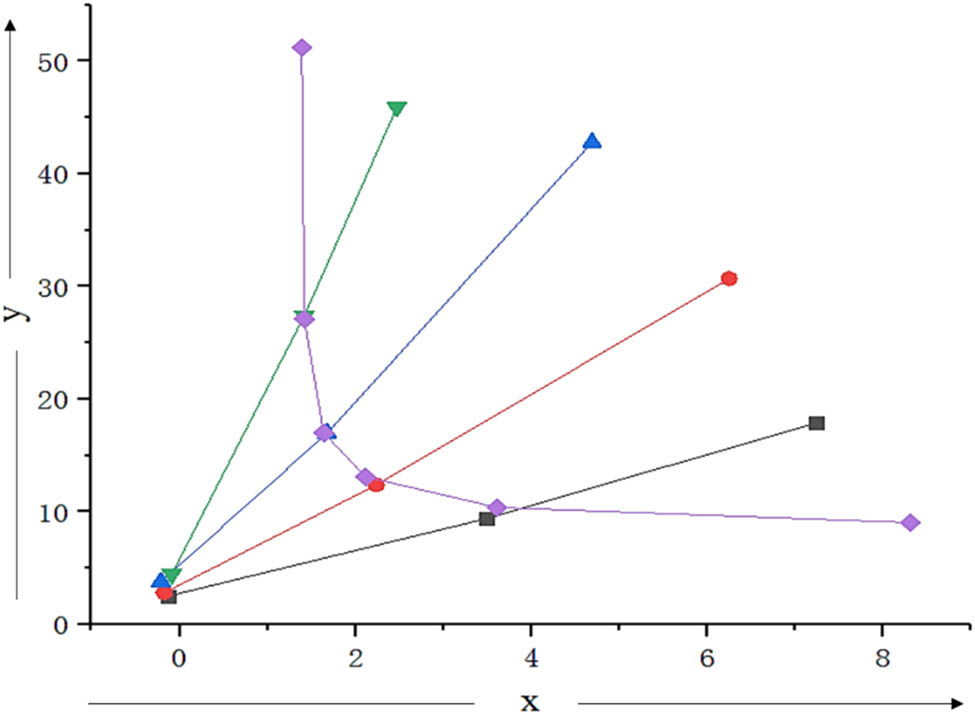

Figure 6

Change of heading angle under the dynamic positioning control.

It can be seen that, disturbed by environmental factors, the proposed dynamic positioning control model based on nonlinear adaptive technology can meet the requirements of ship dynamic positioning and enable the ship to reach the target position smoothly from the starting position [21,22,23]. Although there is some deviation, the deviation is small, within the allowable range [24,25]. After 90 s, the ship can basically achieve stable operation when the environmental disturbance is controlled within the error range. It shows that the proposed dynamic positioning model has strong stability.

5 Conclusions

In this paper, the ship’s state, reference coordinate system, mathematical model, and environmental dynamic model in ship’s dynamic positioning control are analyzed. The application of nonlinear adaptive technology in dynamic positioning control is proposed, and the simulation analysis is carried out. The control index model is located by the experimental data, and the improved control performance shows that the dynamic positioning model proposed in this paper has strong stability and accuracy. The article designs a robust nonlinear control law for dynamic positioning with the fault-tolerant capability of the ship propeller. The command of the designed dynamic positioning control law is the ship’s surge control force, roll control force, and bow rolling control moment, and the actual command signal executed by the ship is the command signal of the propeller. This paper considers the low-frequency motion mathematical model; the design of the control law ignores the high-frequency environmental disturbance. The influence of these factors on the system stability is discussed. The degree of impact and finding ways to effectively overcome these impacts are challenging research directions. In the subsequent research, the ship route can be predicted by combining the factors that affect the navigation, so that the trajectory of the ship can be predicted more accurately. The future direction for this work is to assess the abnormal navigation; the reasons can be analyzed in terms of time delay and saturation constraints of the control variables time to avoid shipping accidents that may occur in the process. Further, the research in the future can focus on designing reasonable performance evaluation indexes by considering the ship’s energy conservation and emission reduction and safe navigation. This will be beneficial for the optimization of command control force distribution and torque to give the command signal of each propeller.
