Construction of optical solitons of Radhakrishnan–Kundu–Lakshmanan equation in birefringent fibers

Naeem Ullah; Muhammad Imran Asjad; Hamood Ur Rehman; Ali Akgül

doi:10.1515/nleng-2022-0010

Article Open Access

Construction of optical solitons of Radhakrishnan–Kundu–Lakshmanan equation in birefringent fibers

Naeem Ullah , Muhammad Imran Asjad , Hamood Ur Rehman and Ali Akgül

Published/Copyright: March 24, 2022

Published by

Become an author with De Gruyter Brill

Submit Manuscript Author Information

From the journal Nonlinear Engineering Volume 11 Issue 1

Abstract

In this article, we are attracted to discover the multiple-optical soiltons in birefringent fibers for Radhakrishnan–Kundu–Lakshmanan equation (RKLE) by applying the Sardar-subequation method (SSM) and the new extended hyperbolic function method (EHFM). We construct the solutions in the form of exponential, trigonometric, and hyperbolic functions solitons solutions like mixed complex solitons and multiple-optical solitons solutions. In addition, singular periodic wave solutions are constructed, and the restraint conditions for the presence of soliton solutions are also defined. Moreover, the physical interpretation of the obtained solutions is disclosed in forms of 3D and 2D plots for different suitable parameters. The attained results indicate that the implemented computational scheme is straight, proficient, and brief and can be applied in more complex phenomena with the associate of representative computations. We have obtained several sorts of new solutions.

Keywords: Sardar-subequation method; Radhakrishnan–Kundu–Lakshmanan equation; extended hyperbolic function method; optical solitons

1 Introduction

NLPDEs are utilized as a governing model to illuminate the complexity of the physical phenomena in science and engineering arenas like fluid mechanics, circuit analysis, solid state physics, plasma physics, chemical physics, geochemistry, quantum field theory, geology, optical fiber, and other physical sciences. It is essential to estimate the solutions of the leading NLPDEs to understand the behavior of complex physical phenomena. Usually, the solutions of the NLPDEs are classified into three sorts: analytic solutions, exact solutions, and numerical solutions. Seeking the exact solutions of NLPDEs has the prominence to deliberate the solidity of numerical solutions. Exact solutions to NLPDEs play a vital role in non-linear science, meanwhile they can offer much physical info and extra understanding of the physical structures of the problem and thus lead to advance applications. Wave phenomena in dissipation, dispersion, reaction, convection, and diffusion are very much important.

Furthermore, many typical researchers are paying more consideration to discover and increase the optical transmission contexts using optical fibers as a substitute of birefringent fibers. Also, the transmission of soliton through optical fibers directs next-generation technology, but there are some influences in birefringent fibers as appropriate that are used to yield the soliton propagations. So, the study of optical soliton is one of the most exciting and interesting regions of investigation in nonlinear optics. There are famous powerful and computational methods to discover the exact soliton solutions of the DEs [1,2,3, 4,5,6, 7,8,9, 10,11,12, 13,14,15, 16,17,18, 19,20,21, 22,23,24, 25,26,27, 28,29,30] Thus, in this article we emphasize on creating the exact optical solitons solutions in various structures to the RKL equation [31,32,33, 34,35] for birefringent fibers in media Kerr-law nonlinearity without 4WM terms, which is called the basic case of fiber nonlinearity. Many optical fibers that have been rather popular in recent times comply with this law nonlinearity. We apply two efficient computational approaches known as Sardar-subequation method [36] and new extended hyperbolic function method [37,38,39] to discover the various sorts of soliton solutions. The restriction relationships are also witnessed during the mathematical analysis.

2 Governing model

The RKLE with Kerr law nonlinearity is given as follows [31,32,33, 34,35]:

(1) ι Ω t + α Ω x x + β ∣ Ω ∣ 2 Ω = ι λ ( ∣ Ω ∣ 2 Ω ) x − ι δ Ω x x x .

Here, Ω ( x , t ) is the dependent variable of complex-valued wave profile that have x and t two independent variables that denote spatio-temporal component, respectively. On splitting Eq. (1) for birefringent fibers into two components without 4WM [40], we attain as

(2) ι ϒ t + α 1 ϒ x x + ( β 1 ∣ ϒ ∣ 2 + γ 1 ∣ Δ ∣ 2 ) ϒ = ι ( λ 1 ( ∣ ϒ ∣ 2 ϒ ) x + θ 1 ( ∣ Δ ∣ 2 ϒ ) x ) − ι δ 1 ϒ x x x ,

(3) ι Δ t + α 2 Δ x x + ( β 2 ∣ Δ ∣ 2 + γ 2 ∣ ϒ ∣ 2 ) Δ = ι ( λ 2 ( ∣ Δ ∣ 2 Δ ) x + θ 2 ( ∣ ϒ ∣ 2 Δ ) x ) − ι δ 2 Δ x x x .

Here, ϒ ( x , t ) and Δ ( x , t ) denote the complex functions and the wave profiles, while Eqs. (2) and (3) denote the governing model for soliton transmission over birefringent fibers without 4WM. In the aforementioned joined system, the coefficients β j and γ j correspond to self-phase modulation (SPM) and the cross-phase modulation terms, respectively, for j = 1 , 2 . The coefficients λ j and θ j represent to self-steepening terms, while 4WM effect is rejected.

This article is structured as follows. The RKLE model is described in Section 2. The description of SSM is discussed in Section 3. Section 3 presents the solutions of RKLE via SSM. In Section 4, the new EHFM is described, and Section 5 consists of the solutions of RKLE by EHFM. In Section 6, results and discussion and finally conclusion of this article is given in Section 7.

2.1 Mathematical preliminaries

To solve the couple of Eqs. (2) and (3), we assume the traveling wave transformation (twt) by:

(4) ϒ ( x , t ) = χ 1 ( η ) e ι Y ,

(5) Δ ( x , t ) = χ 2 ( η ) e ι Y ,

where

(6) η = B ( x − v t ) , and Y = − k x + w t + θ 0 .

Then, we get (4)–(6) into Eqs. (2) and (3), we get real and imaginary parts, respectively, of the form

(7) B 2 ( α j + 3 k δ j ) χ j ″ − ( ω + α j k 2 + δ j k 3 ) χ j + ( β j − k λ j ) χ j 3 + γ j χ j χ j ˜ 2 − k θ j χ j χ j ˜ 2 = 0 ,

(8) B 3 δ j χ j ‴ − B ( v + 2 k α j + 3 k 2 δ j ) χ j ′ − 3 B λ j χ j ˜ 2 − θ j B χ j ′ χ j ˜ 2 − 2 θ j B χ j χ j ˜ χ j ˜ ′ = 0 .

Using the balancing rule gives (7) and (8) by using of χ j ˜ = χ j are as follows:

(9) B 2 ( α j + 3 k δ j ) χ j ″ − ( ω + α j k 2 + δ j k 3 ) χ j + ( β j − k λ j + γ j − k θ j ) χ j 3 = 0 ,

(10) B 2 δ j χ j ″ − ( v + 2 k α j + 3 k 2 δ j ) χ j − ( λ j + θ j ) χ j 3 = 0 .

We obtained

(11) ω = 8 k 3 δ j 2 + 8 k 3 α j δ j + 3 k v δ j + 2 k α j 2 + v α j δ j ,

(12) β j = − 2 k δ j θ j + 2 k δ j λ j + α j θ j + α j λ j + δ j γ j δ j ,

which yields from

(13) α j + 3 k δ j δ j = w + α j k 2 + δ j k 3 v + 2 k α j + 3 k 2 δ j = − β j − k λ j + γ j − k θ j λ j + θ j .

3 The Sardar-subequation method [36]

We consider

(14) H ( z , z t , z x , z x x , z x t , z t t , z t x , … ) = 0 .

We use next twt and obtain (14)

(15) z ( x , t ) = W ( η ) e ι Y , η = B ( x − c t ) , Y = − k x + w t + θ 0 ,

where v is nonzero constant.

Utilizing (15) into (14) yields

(16) P ( χ , χ ′ , χ ″ , … ) = 0 ,

where χ = χ ( η ) , χ ′ = d χ d η , χ ″ = d 2 χ d η 2 , … .

Consider (16) has the following solution:

(17) χ ( η ) = ∑ i = 0 N F i Φ i ( η ) ,

where F i ( 0 ≤ i ≤ N ) and

(18) ( Φ ′ ( η ) ) 2 = ε + a Φ 2 ( η ) + Φ 4 ( η ) ,

where ε and a are constants and (18) presents the solution as follows:

Case 1: Let a > 0 and ε = 0 . Then, we obtain

Φ 1 ± ( η ) = ± − a p q sech p q ( a η ) , Φ 2 ± ( η ) = ± a p q csch p q ( a η ) ,

where sech p q ( η ) = 2 p e η + q e − η , csch p q ( η ) = 2 p e η − q e − η .

Case 2: Let a < 0 and ε = 0 . Thus, we obtain

Φ 3 ± ( η ) = ± − a p q sec p q ( − a η ) , Φ 4 ± ( η ) = ± − a p q csc p q ( − a η ) ,

where sec p q ( η ) = 2 p e ι η + q e − ι η , csc p q ( η ) = 2 ι p e ι η − q e − ι η .

Case 3: Let a < 0 and ε = a 2 4 b . Therefore, we obtain

Φ 5 ± ( η ) = ± − a 2 tanh p q − a 2 η , Φ 6 ± ( η ) = ± − a 2 coth p q − a 2 η ,

Φ 7 ± ( η ) = ± − a 2 ( tanh p q ( − 2 a η ) ± ι p q sech p q ( − 2 a η ) ) , Φ 8 ± ( η ) = ± − a 2 ( coth p q ( − 2 a η ) ± p q csch p q ( − 2 a η ) ) , Φ 9 ± ( η ) = ± − a 8 tanh p q − a 8 η + coth p q − a 8 η ,

where tanh p q ( η ) = p e η − q e − η p e η + q e − η , coth p q ( η ) = p e η + q e − η p e η − q e − η .

Case 4: Let a > 0 and ε = a 2 4 . Therefore, we reach

Φ 10 ± ( η ) = ± a 2 tan p q a 2 η , Φ 11 ± ( η ) = ± a 2 cot p q a 2 η ,

Φ 12 ± ( η ) = ± a 2 ( tan p q ( 2 a η ) ± p q sec p q ( 2 a η ) ) , Φ 13 ± ( η ) = ± a 2 ( cot p q ( 2 a η ) ± p q csc p q ( 2 a η ) ) , Φ 14 ± ( η ) = ± a 8 tan p q a 8 η + cot p q a 8 η ,

where tan p q ( η ) = − ι p e ι η − q e − ι η p e ι η + q e − ι η , cot p q ( η ) = ι p e ι η + q e − ι η p e ι η − q e − ι η .

3.1 Application of the SSM

We consider

(19) χ j ( η ) = F 0 + F 1 Φ ( η ) ,

where F 0 and F 1 are constants. Then, we get

F 0 = 0 , F 1 = − 2 α j − 6 k δ j w + k 2 α j + k 3 δ j a α j + 3 k δ j β j + γ j − k θ j − k λ j , B = w + k 2 α j + k 3 δ j a α j + 3 k δ j .

Case 1: Let a > 0 and ε = 0 . Therefore, we reach

(20) ϒ 1 , 1 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ( ± − p q a sech p q ( a B ( x − v t ) ) ) × e ι Y ,

(21) ϒ 1 , 2 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ( ± p q a csch p q ( a B ( x − v t ) ) ) × e ι Y .

(22) Λ 1 , 1 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ( ± − p q a sech p q ( a B ( x − v t ) ) ) × e ι Y ,

(23) Λ 1 , 2 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ( ± p q a csch p q ( a B ( x − v t ) ) ) × e ι Y .

Case 2: When a < 0 and ε = 0 , then

(24) ϒ 1 , 3 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ( ± − p q a sec p q ( − a B ( x − v t ) ) ) × e ι Y ,

(25) ϒ 1 , 4 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ( ± − p q a csc p q ( − a B ( x − v t ) ) ) × e ι Y .

(26) Λ 1 , 3 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ( ± − p q a sec p q ( − a B ( x − v t ) ) ) × e ι Y ,

(27) Λ 1 , 4 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ( ± − p q a csc p q ( − a B ( x − v t ) ) ) × e ι Y .

Case 3: When a < 0 and ε = a 2 4 b , then

(28) ϒ 1 , 5 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± − a 2 tanh p q − a 2 B ( x − v t ) × e ι Y ,

(29) ϒ 1 , 6 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± − a 2 coth p q − a 2 B ( x − v t ) × e ι Y ,

(30) ϒ 1 , 7 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± − a 2 ( tanh p q ( − 2 a B ( x − v t ) ) ± ι p q sech p q ( − 2 a B ( x − v t ) ) ) × e ι Y ,

(31) ϒ 1 , 8 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± − a 2 ( coth p q ( − 2 a B ( x − v t ) ) ± p q csch p q ( − 2 a B ( x − v t ) ) ) × e ι Y ,

(32) ϒ 1 , 9 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± − a 8 tanh p q − a 8 B ( x − v t ) + coth p q − a 8 B ( x − v t ) × e ι Y .

(33) Λ 1 , 5 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 2 tanh p q − a 2 B ( x − v t ) × e ι Y ,

(34) Λ 1 , 6 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 2 coth p q − a 2 B ( x − v t ) × e ι Y ,

(35) Λ 1 , 7 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 2 tanh p q ( − 2 a B ( x − v t ) ) ± ι p q sech p q ( − 2 a B ( x − v t ) ) × e ι Y ,

(36) Λ 1 , 8 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 2 coth p q ( − 2 a B ( x − v t ) ) ± p q csch p q ( − 2 a B ( x − v t ) ) ) × e ι Y ,

(37) Λ 1 , 9 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 8 tanh p q − a 8 B ( x − v t ) + coth p q − a 8 B ( x − v t ) × e ι Y .

Case 4: When a > 0 and ε = a 2 4 , then

(38) ϒ 1 , 10 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± a 2 tan p q a 2 B ( x − v t ) × e ι Y ,

(39) ϒ 1 , 11 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± a 2 cot p q ( a 2 B ( x − v t ) ) × e ι Y ,

(40) ϒ 1 , 12 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± − a 2 ( tan p q ( − 2 a B ( x − v t ) ) ± p q sec p q ( − 2 a B ( x − v t ) ) ) × e ι Y ,

(41) ϒ 1 , 13 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± a 2 ( cot p q ( 2 a B ( x − v t ) ) ± p q csc p q ( 2 a B ( x − v t ) ) ) ) × e ι Y ,

(42) ϒ 1 , 14 ± ( x , t ) = − 2 α 1 − 6 k δ 1 w + k 2 α 1 + k 3 δ 1 a α 1 + 3 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 × ± a 8 tan p q a 8 B ( x − v t ) + cot p q a 8 B ( x − v t ) × e ι Y .

(43) Λ 1 , 10 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± a 2 tan p q a 2 B ( x − v t ) × e ι Y ,

(44) Λ 1 , 11 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± a 2 cot p q a 2 B ( x − v t ) × e ι Y ,

(45) Λ 1 , 12 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 2 tan p q ( − 2 a B ( x − v t ) ) ± p q sec p q ( − 2 a B ( x − v t ) ) ) × e ι Y ,

(46) Λ 1 , 13 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± − a 2 ( cot p q ( 2 a B ( x − v t ) ) ± p q csc p q ( − 2 a B ( x − v t ) ) ) × e ι Y ,

(47) Λ 1 , 14 ± ( x , t ) = − 2 α 2 − 6 k δ 2 w + k 2 α 2 + k 3 δ 2 a α 2 + 3 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 × ± a 8 tan p q a 8 B ( x − v t ) + cot p q a 8 B ( x − v t ) × e ι Y .

4 New extended hyperbolic function method

The phases of the new EHFM [28,29,30] are taken as follows:

Form 1: Let PDE as given in (1) with the wave transformation in (4)–(6) using wave transformation ODE is obtained as in (9). We consider

(48) χ j ( η ) = ∑ i = 0 N F i Φ i ( η )

and

(49) d Φ d η = Φ τ + Θ Φ 2 , τ , Θ ∈ R .

Then, we obtain

Set 1: Let τ > 0 and Θ > 0 ,

(50) Φ ( η ) = − τ Θ csch ( τ ( η + η 0 ) ) .

Set 2: When τ < 0 and Θ > 0 ,

(51) Φ ( η ) = − τ Θ sec ( − τ ( η + η 0 ) ) .

Set 3: When τ > 0 and Θ < 0 ,

(52) Φ ( η ) = τ − Θ sech ( τ ( η + η 0 ) ) .

Set 4: When τ < 0 and Θ > 0 ,

(53) Φ ( η ) = − τ Θ csc ( − τ ( η + η 0 ) ) .

Set 5: When τ > 0 and Θ = 0 ,

(54) Φ ( η ) = exp ( τ ( η + η 0 ) ) .

Set 6: When τ < 0 and Θ = 0 ,

(55) Φ ( η ) = cos ( − τ ( η + η 0 ) ) + ι sin ( − τ ( η + η 0 ) ) .

Set 7: When τ = 0 and Θ > 0 ,

(56) Φ ( η ) = ± 1 ( Θ ( η + η 0 ) ) .

Set 8: When τ = 0 and Θ < 0 ,

(57) Φ ( η ) = ± ι ( − Θ ( η + η 0 ) ) .

Form 2: We consider

(58) d Φ d η = τ + Θ Φ 2 , τ , Θ ∈ R .

Substituting (48) into (9) along with (58) with value of N , makes a set of equations with the values of F i ( i = 1 , 2 , 3 , … N ) .

Set 1: Let τ Θ > 0 ,

(59) Φ ( η ) = sgn ( τ ) τ Θ tan ( τ Θ ( η + η 0 ) ) .

Set 2: When τ Θ > 0 ,

(60) Φ ( η ) = − sgn ( τ ) τ Θ cot ( τ Θ ( η + η 0 ) ) .

Set 3: When τ Θ < 0 ,

(61) Φ ( η ) = sgn ( τ ) τ − Θ tanh ( − τ Θ ( η + η 0 ) ) .

Set 4: When τ Θ < 0 ,

(62) Φ ( η ) = sgn ( τ ) τ − Θ coth ( − τ Θ ( η + η 0 ) ) .

Set 5: When τ = 0 and Θ > 0 ,

(63) Φ ( η ) = − 1 Θ ( η + η 0 ) .

Set 6: When τ ∈ R and Θ = 0 ,

(64) Φ ( η ) = τ ( η + η 0 ) .

5 Application of the new EHFM

Form 1: We apply the new EHFM for the solutions of RKLE. Applying the balancing method in (9) gives N = 1 , so (48) yields

(65) χ j ( η ) = F 0 + F 1 Φ ( η ) ,

where F 0 and F 2 are constants. Substituting (65) into (9) and equating the coefficients polynomials of Φ ( η ) to zero, we reach a set of equations in F 0 , F 1 , τ , Θ and B .

On resolving the set of equations, we attain

F 0 = 0 , F 1 = B Θ − 2 α j − 6 k δ j β j + γ j − k θ j − k λ j ,

(66) τ = w + k 2 α j + k 3 δ j B 2 ( α j + 3 k δ j ) , Θ = Θ .

Set 1: When τ > 0 and Θ > 0 ,

(67) ϒ 1 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 − w + k 2 α 1 + k 3 δ 1 B 2 Θ ( α 1 + 3 k δ 1 ) × csch w + k 2 α 1 + k 3 δ 1 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(68) Λ 1 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 − w + k 2 α 2 + k 3 δ 2 B 2 Θ ( α 2 + 3 k δ 2 ) × csch w + k 2 α 2 + k 3 δ 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 2: When τ < 0 and Θ > 0 ,

(69) ϒ 2 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 − w + k 2 α 1 + k 3 δ 1 B 2 Θ ( α 1 + 3 k δ 1 ) × sec − w + k 2 α 1 + k 3 δ 1 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(70) Λ 2 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 − w + k 2 α 2 + k 3 δ 2 B 2 Θ ( α 2 + 3 k δ 2 ) × sec − w + k 2 α 2 + k 3 δ 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 3: When τ > 0 and Θ < 0 ,

(71) ϒ 3 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 − w + k 2 α 1 + k 3 δ 1 B 2 Θ ( α 1 + 3 k δ 1 ) × sech − w + k 2 α 1 + k 3 δ 1 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(72) Λ 3 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 − w + k 2 α 2 + k 3 δ 2 B 2 Θ ( α 2 + 3 k δ 2 ) × sech − w + k 2 α 2 + k 3 δ 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 4: When τ < 0 and Θ < 0 ,

(73) ϒ 4 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 − w + k 2 α 1 + k 3 δ 1 B 2 Θ ( α 1 + 3 k δ 1 ) × csc − w + k 2 α 1 + k 3 δ 1 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(74) Λ 4 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 − w + k 2 α 2 + k 3 δ 2 B 2 Θ ( α 2 + 3 k δ 2 ) × csc − w + k 2 α 2 + k 3 δ 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 5: When τ = 0 and Θ > 0 ,

(75) ϒ 7 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 ± 1 ( Θ ( η + η 0 ) ) × e ι Y .

(76) Λ 7 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 ± 1 ( Θ ( η + η 0 ) ) × e ι Y .

Set 6: When τ = 0 and Θ < 0 ,

(77) ϒ 8 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 ± ι ( − Θ ( η + η 0 ) ) × e ι Y ,

(78) Λ 8 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 ± ι ( − Θ ( η + η 0 ) ) × e ι Y ,

where η = B ( x − v t ) , and Y = − k x + w t + θ 0 .

Form 2:

Operating balancing rule in (9), gives N = 1 , so (48) reduces to

(79) χ j ( η ) = F 0 + F 1 Φ ( η ) ,

where F 0 and F 1 are constants. Replacing (79) into (9) and equating the coefficients of polynomials of Φ ( η ) to zero, we obtain a set of equations in F 0 , F 1 , τ , Θ , and k .

On resolving the set of equations, we reach

F 0 = 0 , F 1 = B Θ − 2 α j − 6 k δ j β j + γ j − k θ j − k λ j ,

(80) τ = w + k 2 α j + k 3 δ j 2 B 2 Θ ( α j + 3 k δ j ) , Θ = Θ .

Set 1: When τ Θ > 0 ,

(81) ϒ 9 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 Γ w + k 2 α 1 + k 3 δ 1 2 B 2 Θ 2 ( α 1 + 3 k δ 1 ) × tan w + k 2 α 1 + k 3 δ 1 2 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(82) Λ 9 ( x , t ) = B Θ − 2 α 1 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 Γ w + k 2 α 2 + k 3 δ 2 2 B 2 Θ 2 ( α 2 + 3 k δ 2 ) × tan w + k 2 α 2 + k 3 δ 2 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 2: When τ Θ > 0 ,

(83) ϒ 10 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 − Γ w + k 2 α 1 + k 3 δ 1 2 B 2 Θ 2 ( α 1 + 3 k δ 1 ) × cot w + k 2 α 1 + k 3 δ 1 2 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(84) Λ 10 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 − Γ w + k 2 α 2 + k 3 δ 2 2 B 2 Θ 2 ( α 2 + 3 k δ 2 ) × cot w + k 2 α 2 + k 3 δ 2 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 3: When τ Θ < 0 ,

(85) ϒ 11 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 Γ − w + k 2 α 1 + k 3 δ 1 2 B 2 Θ 2 ( α 1 + 3 k δ 1 ) × tanh − w + k 2 α 1 + k 3 δ 1 2 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(86) Λ 11 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 Γ − w + k 2 α 2 + k 3 δ 2 2 B 2 Θ 2 ( α 2 + 3 k δ 2 ) × tanh − w + k 2 α 2 + k 3 δ 2 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 4: When τ Θ < 0 ,

(87) ϒ 12 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 Γ − w + k 2 α 1 + k 3 δ 1 2 B 2 Θ 2 ( α 1 + 3 k δ 1 ) × coth − w + k 2 α 1 + k 3 δ 1 2 B 2 ( α 1 + 3 k δ 1 ) ( η + η 0 ) × e ι Y .

(88) Λ 12 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 Γ − w + k 2 α 2 + k 3 δ 2 2 B 2 Θ 2 ( α 2 + 3 k δ 2 ) × coth − w + k 2 α 2 + k 3 δ 2 2 B 2 ( α 2 + 3 k δ 2 ) ( η + η 0 ) × e ι Y .

Set 5: When τ = 0 and Θ > 0 ,

(89) ϒ 13 ( x , t ) = B Θ − 2 α 1 − 6 k δ 1 β 1 + γ 1 − k θ 1 − k λ 1 − 1 Θ ( η + η 0 ) × e ι Y .

(90) Λ 13 ( x , t ) = B Θ − 2 α 2 − 6 k δ 2 β 2 + γ 2 − k θ 2 − k λ 2 − 1 Θ ( η + η 0 ) × e ι Y ,

where Γ = sgn w + k 2 α j + k 3 δ j 2 B 2 Θ ( α j + 3 k δ j ) , η = B ( x − v t ) , and Y = − k x + w t + θ 0 .

6 Results and discussion

We demonstrate the simulations by the following figures. For graphical representation for (1), the absolute behavior of (20) with the suitable values of parameters a = 1.75 , v = 0.65 , p = 0.98 , q = 0.95 , A = 2.7 , B = 0.6 , α 1 = 0.75 , β 1 = 0.5 k = 0.8 , θ 1 = 5 , λ 1 = 1.6 , w = 2 , γ 1 = 1.4 , and t = 1 are shown in Figure 1, the absolute behavior of (28) with the suitable values of parameters − a = 1.7 , v = 0.66 , p = 0.98 , q = 0.95 , A = 2.9 , B = 0.5 , α 1 = 0.77 , β 1 = 0.6 k = 0.9 , θ 1 = 4 , λ 1 = 1.7 , w = 2.1 , γ 1 = 1.3 , and t = 1 are shown in Figure 2, the absolute behavior of (35) with the suitable values of parameters − a = 1.65 , v = 0.6 , p = 0.98 , q = 0.95 , A = 2.5 , B = 0.9 , α 1 = 0.72 , β 1 = 0.7 k = 0.9 , θ 1 = 4.1 , λ 1 = 1.7 , w = 2.2 , γ 1 = 1.2 , and t = 1 are shown in Figure 3, the absolute behavior of (42) with the suitable values of parameters a = 1.55 , v = 1.55 , p = 0.98 , q = 0.95 , A = 2.3 , B = 0.6 , α 1 = 0.76 , β 1 = 0.6 k = 0.9 , θ 1 = 3 , λ 1 = 1.5 , w = 2 , γ 1 = 1.5 , and t = 1 are shown in Figure 4, the absolute behavior of (67) with the suitable values of parameters a = 1.75 , v = 0.65 , p = 0.98 , q = 0.95 , A = 2.7 , B = 0.6 , α 1 = 0.75 , β 1 = 0.5 k = 0.8 , θ 1 = 5 , λ 1 = 1.6 , w = 2 , γ 1 = 1.7 , and t = 1 are shown in Figure 5, the absolute behavior of (71) with the suitable values of parameters a = 0.3 , v = − 0.65 , p = 0.98 , q = 0.95 , A = 3 , B = 0.6 , α 1 = 0.75 , β 1 = 0.7 k = 0.8 , θ 1 = − 0.4 , λ 1 = 1.7 , w = 2.4 , γ 1 = 1.2 , and t = 1 are shown in Figure 6, the absolute behavior of (81) with the suitable values of parameters a = 0.75 , v = 0.65 , p = 0.98 , q = 0.95 , A = 2.7 , B = 2.6 , α 1 = 1.75 , β 1 = 0.5 k = 2.8 , θ 1 = 5 , λ 1 = 1.6 , w = 1.22 , γ 1 = 1.1 , and t = 1 are shown in Figure 7, the absolute behavior of (83) with the suitable values of parameters a = 2.25 , v = 1.21 , p = 0.98 , q = 0.95 , A = 2.9 , B = 0.9 , α 1 = 1.75 , β 1 = 0.55 k = 0.82 , θ 1 = 3.3 , λ 1 = 1.8 , w = 2 , γ 1 = 1.2 , and t = 1 are shown in Figure 8.

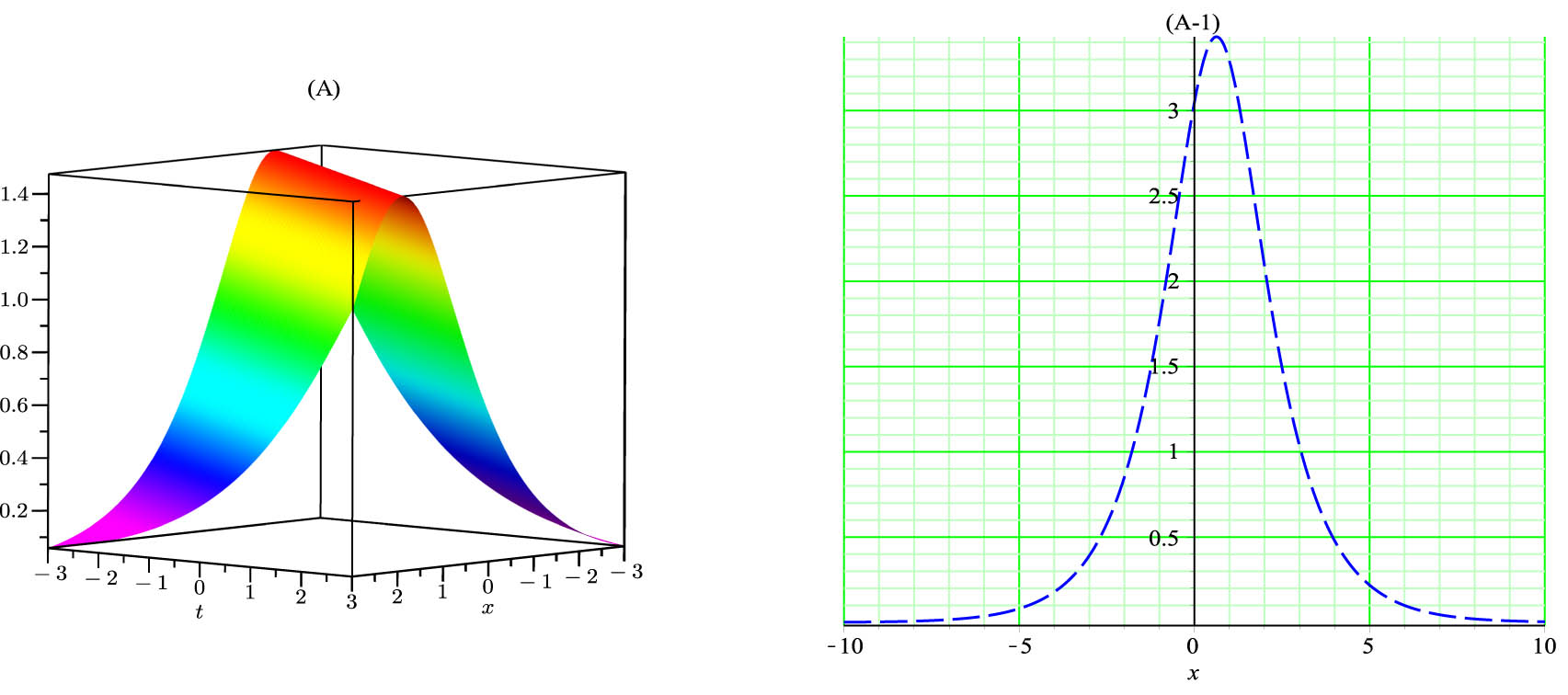

$Figure 1 (A) 3D graph of (20) with a = 1.75 a=1.75 , v = 0.65 v=0.65 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.7 A=2.7 , B = 0.6 B=0.6 , α 1 = 0.75 {\alpha }_{1}=0.75 , β 1 = 0.5 {\beta }_{1}=0.5 k = 0.8 k=0.8 , θ 1 = 5 {\theta }_{1}=5 , λ 1 = 1.6 {\lambda }_{1}=1.6 , w = 2 w=2 , γ 1 = 1.4 {\gamma }_{1}=1.4 . (A-1) 2D representation of (20) with t = 1 t=1 .$

Figure 1

(A) 3D graph of (20) with a = 1.75 , v = 0.65 , p = 0.98 , q = 0.95 , A = 2.7 , B = 0.6 , α 1 = 0.75 , β 1 = 0.5 k = 0.8 , θ 1 = 5 , λ 1 = 1.6 , w = 2 , γ 1 = 1.4 . (A-1) 2D representation of (20) with t = 1 .

$Figure 2 (B) 3D graph of (28) with − a = 1.7 -a=1.7 , v = 0.66 v=0.66 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.9 A=2.9 , B = 0.5 B=0.5 , α 1 = 0.77 {\alpha }_{1}=0.77 , β 1 = 0.6 {\beta }_{1}=0.6 k = 0.9 k=0.9 , θ 1 = 4 {\theta }_{1}=4 , λ 1 = 1.7 {\lambda }_{1}=1.7 , w = 2.1 w=2.1 , γ 1 = 1.3 {\gamma }_{1}=1.3 . (B-1) 2D representation of (28) with t = 1 t=1 .$

Figure 2

(B) 3D graph of (28) with − a = 1.7 , v = 0.66 , p = 0.98 , q = 0.95 , A = 2.9 , B = 0.5 , α 1 = 0.77 , β 1 = 0.6 k = 0.9 , θ 1 = 4 , λ 1 = 1.7 , w = 2.1 , γ 1 = 1.3 . (B-1) 2D representation of (28) with t = 1 .

$Figure 3 (C) 3D graph of (34) with − a = 1.65 -a=1.65 , v = 0.6 v=0.6 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.5 A=2.5 , B = 0.9 B=0.9 , α 1 = 0.72 {\alpha }_{1}=0.72 , β 1 = 0.7 {\beta }_{1}=0.7 k = 0.9 k=0.9 , θ 1 = 4.1 {\theta }_{1}=4.1 , λ 1 = 1.7 {\lambda }_{1}=1.7 , w = 2.2 w=2.2 , γ 1 = 1.2 {\gamma }_{1}=1.2 . (C-1) 2D representation of (34) with t = 1 t=1 .$

Figure 3

(C) 3D graph of (34) with − a = 1.65 , v = 0.6 , p = 0.98 , q = 0.95 , A = 2.5 , B = 0.9 , α 1 = 0.72 , β 1 = 0.7 k = 0.9 , θ 1 = 4.1 , λ 1 = 1.7 , w = 2.2 , γ 1 = 1.2 . (C-1) 2D representation of (34) with t = 1 .

$Figure 4 (D) 3D graph of (41) with a = 1.55 a=1.55 , v = 1.55 v=1.55 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.3 A=2.3 , B = 0.6 B=0.6 , α 1 = 0.76 {\alpha }_{1}=0.76 , β 1 = 0.6 {\beta }_{1}=0.6 k = 0.9 k=0.9 , θ 1 = 3 {\theta }_{1}=3 , λ 1 = 1.5 {\lambda }_{1}=1.5 , w = 2 w=2 , γ 1 = 1.5 {\gamma }_{1}=1.5 . (D-1) 2D representation of (41) with t = 1 t=1 .$

Figure 4

(D) 3D graph of (41) with a = 1.55 , v = 1.55 , p = 0.98 , q = 0.95 , A = 2.3 , B = 0.6 , α 1 = 0.76 , β 1 = 0.6 k = 0.9 , θ 1 = 3 , λ 1 = 1.5 , w = 2 , γ 1 = 1.5 . (D-1) 2D representation of (41) with t = 1 .

$Figure 5 (E) 3D graph of (67) with a 1 = 1.75 {a}_{1}=1.75 , v = 0.65 v=0.65 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.7 A=2.7 , B = 0.6 B=0.6 , α 1 = 0.75 {\alpha }_{1}=0.75 , β 1 = 0.5 {\beta }_{1}=0.5 k = 0.8 k=0.8 , θ 1 = 5 {\theta }_{1}=5 , λ 1 = 1.6 {\lambda }_{1}=1.6 , w = 2 w=2 , γ 1 = 1.1 {\gamma }_{1}=1.1 . (E-1) 2D representation of (66) with t = 1 t=1 .$

Figure 5

(E) 3D graph of (67) with a 1 = 1.75 , v = 0.65 , p = 0.98 , q = 0.95 , A = 2.7 , B = 0.6 , α 1 = 0.75 , β 1 = 0.5 k = 0.8 , θ 1 = 5 , λ 1 = 1.6 , w = 2 , γ 1 = 1.1 . (E-1) 2D representation of (66) with t = 1 .

$Figure 6 (F) 3D graph of (71) with a = 0.3 a=0.3 , v = − 0.65 v=-0.65 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 3 A=3 , B = 0.6 B=0.6 , α 1 = 0.75 {\alpha }_{1}=0.75 , β 1 = 0.7 {\beta }_{1}=0.7 k = 0.8 k=0.8 , θ 1 = − 0.4 {\theta }_{1}=-0.4 , λ 1 = 1.7 {\lambda }_{1}=1.7 , w = 2.4 w=2.4 , γ 1 = 1.7 {\gamma }_{1}=1.7 . (F-1) 2D representation of (71) with t = 1 t=1 .$

Figure 6

(F) 3D graph of (71) with a = 0.3 , v = − 0.65 , p = 0.98 , q = 0.95 , A = 3 , B = 0.6 , α 1 = 0.75 , β 1 = 0.7 k = 0.8 , θ 1 = − 0.4 , λ 1 = 1.7 , w = 2.4 , γ 1 = 1.7 . (F-1) 2D representation of (71) with t = 1 .

$Figure 7 (G) 3D graph of (81) with a = 0.75 a=0.75 , v = 0.65 v=0.65 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.7 A=2.7 , B = 2.6 B=2.6 , α 1 = 1.75 {\alpha }_{1}=1.75 , β 1 = 0.5 {\beta }_{1}=0.5 k = 2.8 k=2.8 , θ 1 = 5 {\theta }_{1}=5 , λ 1 = 1.6 {\lambda }_{1}=1.6 , w = 1.22 w=1.22 , γ 1 = 1.2 {\gamma }_{1}=1.2 . (G-1) 2D representation of (81) with t = 1 t=1 .$

Figure 7

(G) 3D graph of (81) with a = 0.75 , v = 0.65 , p = 0.98 , q = 0.95 , A = 2.7 , B = 2.6 , α 1 = 1.75 , β 1 = 0.5 k = 2.8 , θ 1 = 5 , λ 1 = 1.6 , w = 1.22 , γ 1 = 1.2 . (G-1) 2D representation of (81) with t = 1 .

$Figure 8 (H) 3D graph of (83) with a = 2.25 a=2.25 , v = 1.21 v=1.21 , p = 0.98 p=0.98 , q = 0.95 q=0.95 , A = 2.9 A=2.9 , B = 0.9 B=0.9 , α 1 = 1.75 {\alpha }_{1}=1.75 , β 1 = 0.55 {\beta }_{1}=0.55 k = 0.82 k=0.82 , θ 1 = 3.3 {\theta }_{1}=3.3 , λ 1 = 1.8 {\lambda }_{1}=1.8 , w = 2 w=2 , γ 1 = 1.3 {\gamma }_{1}=1.3 . (H-1) 2D representation of (83) with t = 1 t=1 .$

Figure 8

(H) 3D graph of (83) with a = 2.25 , v = 1.21 , p = 0.98 , q = 0.95 , A = 2.9 , B = 0.9 , α 1 = 1.75 , β 1 = 0.55 k = 0.82 , θ 1 = 3.3 , λ 1 = 1.8 , w = 2 , γ 1 = 1.3 . (H-1) 2D representation of (83) with t = 1 .

7 Conclusion

In this article, we positively explained the dynamics behavior of optical solitons of the RKL equation without 4WM in birefringent fibers using the Sardar-subequation method and the extended hyperbolic function method. These methods are very strong for solving NLEEs. The acquired solutions are in the form of hyperbolic, trigonometric, and exponential functions along with exact optical solitons solutions. As well, we achieved the singular, bright, periodic, and dark wave solutions. These novel families of solutions exposed the authority, efficiency, and productivity of these methods. This article provides the application of optical fibers. Furthermore, these novel solutions have many applications in physics and other branches of physical sciences. We will report these results in future research studies.

Acknowledgements

The authors thank the reviewers for their valuable comments.

Funding information: The authors state no funding involved.
Author contributions: Naeem Ullah conceived and supervised the project and ensured the completion of this manuscript. Muhammad Imran Asjad and Hamood Ur Rehman carried out the frontier molecular orbital and excitation studies and wrote part of the manuscript. Ali Akgül compiled and reviewed this manuscript.
Conflict of interest: The authors declare no conflict of interest.
Data availability statement: There are no data.

References

[1] Biswas A, Yildirim Y, Yasar E, Zhou Q, Moshokoa SP, Belic M. Optical soliton solutions to Fokas-lenells equation using some different methods. Optik. 2018;173:21–31. 10.1016/j.ijleo.2018.07.098Search in Google Scholar

[2] Biswas A, Yildirim Y, Yasar E, Zhou Q, Mahmood MF, Moshokoa SP, et al. Optical solitons with differential group delay for coupled Fokas-Lenells equation using two integration schemes. Optik. 2018;165:74–86. 10.1016/j.ijleo.2018.03.100Search in Google Scholar

[3] Biswas A, Yildirim Y, Yasar E, Zhou Q, Moshokoa SP, Belic M. Optical solitons for Lakshmanan-Porsezian-Daniel model by modified simple equation method. Optik. 2018;160:24–32. 10.1016/j.ijleo.2018.01.100Search in Google Scholar

[4] Biswas A, Yildirim Y, Yasar E, Zhou Q, Alshomrani AS, Moshokoa SP, et al. Solitons for perturbed Gerdjikov-Ivanov equation in optical fibers and PCF by extended Kudryashov’s method. Opt Quantum Electron. 2018;50(3):149. 10.1007/s11082-018-1417-0Search in Google Scholar

[5] Biswas A, Yildirim Y, Yasar E, Triki H, Alshomrani AS, Ullah MZ, et al. Optical soliton perturbation for complex Ginzburg- Landau equation with modified simple equation method. Optik. 2018;158:399–415. 10.1016/j.ijleo.2017.12.131Search in Google Scholar

[6] Younas B, Younis M. Chirped solitons in optical monomodefibres modelled with Chen-Lee-Liu equation. Pramana J Phys. 2020;94:3. 10.1007/s12043-019-1872-6. Search in Google Scholar

[7] Seadawy AR, Arshad M, Lu D. Dispersive optical solitary wave solutions of strain wave equation in microstructured solids and its applications. Physica A: Statist Mech Appl. 2020;540:123122. 10.1016/j.physa.2019.123122Search in Google Scholar

[8] Imran MA, Rehman HU, Ullah N, Akgul A. Exact solutions of (2+1)-dimensional Schrodinger’s hyperbolic equation using different techniques. Numer Meth Partial Differ Equ. 10 November 2020;2020:1–20.10.1002/num.22644Search in Google Scholar

[9] Younis M, Bilal M, Rehman S, Younas U, Rizvi STR, Investigation of optical solitons in birefringent polarization preserving fibers with four-wave mixing effect. Int J Mod Phys B. 2020;34:2050113. 10.1142/S0217979220501131Search in Google Scholar

[10] Biswas A, Yildirim Y, Yasar E, Zhou Q, Moshokoa SP, Belic M. Sub pico-second pulses in mono-mode optical fibers with Kaup-Newell equation by a couple of integration schemes. Optik. 2018;167:121–8. 10.1016/j.ijleo.2018.04.063Search in Google Scholar

[11] Biswas A, Yildirim Y, Yasar E, Zhou Q, Moshokoa SP, Belic M. Optical soliton perturbation with resonant nonlinear Schrödingeras equation having full nonlinearity by modified simple equation method. Optik. 2018;160:33–43. 10.1016/j.ijleo.2018.01.098Search in Google Scholar

[12] Biswas. A, Yildirim Y, Yasar E, Triki H, Alshomrani AS, Ullah MZ, et al. Optical soliton perturbation with full nonlinearity for Kundu-Eckhaus equation by modified simple equation method Optik. 2018;157:1376–80. 10.1016/j.ijleo.2017.12.108Search in Google Scholar

[13] Donne GD, Hubert MB, Seadawy AR, Etienne T, Betchewe G, Doka SY. Chirped soliton solutions of Fokas-Lenells equation with perturbation terms and the effect of spatio-temporal dispersion in the modulational instability analysis. Europ Phys J Plus. 2020;135(2):212. 10.1140/epjp/s13360-020-00142-zSearch in Google Scholar

[14] Rehman HU, Ullah N, Imran MA. Highly dispersive optical solitons using Kudryashovas method. Optik. 2019;199:163349. 10.1016/j.ijleo.2019.163349Search in Google Scholar

[15] Younis M, Younas U, Rehman SU, Bilal M, Waheed A, Optical bright-dark and Gaussian soliton with third order dispersion. Optik. 2017;134:233–8. 10.1016/j.ijleo.2017.01.053Search in Google Scholar

[16] Rehman HU, Saleem MS, Zubair M, Jafar S, Latif I. Optical solitons with Biswas-Arshed model using mapping method. Optik 2019;194:163091. 10.1016/j.ijleo.2019.163091Search in Google Scholar

[17] Iqbal M, Seadawy AR, Lu D, Xianwe X. Construction of a weakly nonlinear dispersion solitary wave solution for the Zakharov-Kuznetsov-modified equal width dynamical equation. Indian J Phys. 2019;94(9):1–10. 10.1007/s12648-019-01579-4Search in Google Scholar

[18] Ullah N, Rehman HU, Imran MA, Abdeljawad T. Highly dispersive optical solitons with cubic law and cubic-quintic-septic law nonlinearities. Results Phys. 2020;17:103021. 10.1016/j.rinp.2020.103021Search in Google Scholar

[19] Osman MS, Tariq KU, Bekir A, Elmoasry A, Elazab NS, Younis M. Investigation of soliton solutions with different wave structures to the (2+1)-dimensional Heisenberg ferromagnetic spin chain equation. Commun Theor Phys. 2020;72(3):035002. 10.1088/1572-9494/ab6181Search in Google Scholar

[20] Younis M, Sulaiman TA, Bilal M, Rehman SU, Younas U. Modulation instability analysis, optical and other solutions to the modified nonlinear Schrodinger equation. Commun Theor Phys, 2020;72:065001 12 p. 10.1088/1572-9494/ab7ec8Search in Google Scholar

[21] Rehman HU, Ullah N, Imran MA, Akul A. On solutions of the Newell-Whitehead-Segel equation and Zeldovich equation. Math Meth Appl Sci. 15 February 2021;44:7134–49.10.1002/mma.7249Search in Google Scholar

[22] Lu D, Seadawy AR, Ahmed I. Peregrine-like rational solitons and their interaction with kink wave for the resonance nonlinear Schrodinger equation with Kerr law of nonlinearity. Modern Phys Lett B. 2019;33(24):1950292. 10.1142/S0217984919502920Search in Google Scholar

[23] Biswas A, Yildirim Y, Yasar E, Babatin MM. Conservation laws for Gerdjikov-Ivanov equation in nonlinear fiber optics and PCF. Optik. 2017;148:209–14. 10.1016/j.ijleo.2017.08.094Search in Google Scholar

[24] Biswas A, Yildirim Y, Yasar E, Triki H, Alshomrani AS, Ullah MZ, et al. Optical soliton perturbation with Gerdjikov-Ivanov equation by modified simple equation method. Optik. 2018;157:1235–40. 10.1016/j.ijleo.2017.12.101Search in Google Scholar

[25] Seadawy AR, Abdullah A. Nonlinear complex physical models: optical soliton solutions of the complex Hirota dynamical model. Indian J Phys. 2019;95(32):1–10. 10.1007/s12648-019-01662-wSearch in Google Scholar

[26] Seadawy AR, Arshad M, Lu D. Modulation stability analysis and solitary wave solutions of nonlinear higher-order Schrodinger dynamical equation with second-order spatiotemporal dispersion. Indian J Phys. 2019;93(8):1041–9. 10.1007/s12648-018-01361-ySearch in Google Scholar

[27] Rehman HU, Ullah N, Imram MA. Optical solitons of Biswas-Arshed equation in birefringent fibers using extended direct algebraic method. Optik. 2021;226(2):165378. 10.1016/j.ijleo.2020.165378Search in Google Scholar

[28] Iqbal M, Seadawy AR, Khalil OH, Lu D. Propagation of long internal waves in density stratified ocean for the (2+1)-dimensional nonlinear Nizhnik-Novikov-Vesselov dynamical equation. Results Phys 2020;16:102838. 10.1016/j.rinp.2019.102838Search in Google Scholar

[29] Iqbal M, Seadawy AR, Lu D, Xia X. Construction of bright-dark solitons and ion-acoustic solitary wave solutions of dynamical system of nonlinear wave propagation. Modern Phys Lett A. 2019;34(37):1950309. 10.1142/S0217732319503097Search in Google Scholar

[30] Rehman HU, Imran MA, Ullah N, Akul A. Exact solutions of convective-diffusive Cahn-Hilliard equation using extended direct algebraic method. Numer Meth Partial Differ Equ. 10 November 2020;2020:1–16.10.1002/num.22622Search in Google Scholar

[31] Biswas A, Yildirim Y, Yasar E, Mahmood MF, Alshomrani AS, Zhou Q, et al. Optical soliton perturbation for Radhakrishnan–Kundu–Lakshmanan equation with a couple of integration schemes. Optik. 2018;163:126–36. 10.1016/j.ijleo.2018.02.109Search in Google Scholar

[32] Kudryashov NA, Safonova DV, Biswas A. Painleve analysis and a solution to the traveling wave reduction of the Radhakrishna-Kundu-Lakshmanan equation. Regul Chaotic Dyn. 2019;24:607–14. 10.1134/S1560354719060029Search in Google Scholar

[33] Rehman HU, Saleem MS, Sultan AM, Iftikhar M. Comments on “Dynamics of optical solitons with Radhakrishnan–Kundu–Lakshmanan model via two reliable integration schemes”. Optik. 2019;178:557–66. 10.1016/j.ijleo.2018.09.133Search in Google Scholar

[34] Sulaiman TA, Bulut H, Yel G, Atas SS. Optical solitons to the fractional perturbed Radhakrishnan–Kundu–Lakshmanan model. Opt Quant Electron. 2018;50:372. 10.1007/s11082-018-1641-7. Search in Google Scholar

[35] Sturdevant B, Lott DA, Biswas A. Topological 1-soliton solution of the generalized Radhakrishnan, Kundu, Lakshmanan equation with nonlinear dispersion. Mod Phys Lett B. 2010;24:1825–31. 10.1142/S0217984910024109. Search in Google Scholar

[36] Yildirim Y, Biswas A, Ekici M, Triki H, Gonzalez-Gaxiolah O, Alzahranic AK, et al. Optica solitons in birefringent fibers for Radhakrishna-Kund-Lakshmanan equation with five prolific integration norms. Optik. 2020;208:164550. 10.1016/j.ijleo.2020.164550Search in Google Scholar

[37] Rezazadeh H, Inc M, Baleanu D. New solitary wave solutions for variants of (3+1)-dimensional Wazwaz-Benjamin-Bona-Mahony equations. Front Phys. 2020;8:332. 10.3389/fphy.2020.00332Search in Google Scholar

[38] Shang Y. The extended hyperbolic function method and exact solutions of the long-short wave resonance equations. Chaos Solitons Fractal. 2008;36(3):762–71. 10.1016/j.chaos.2006.07.007Search in Google Scholar

[39] Shang Y, Huang Y, Yuan W. The extended hyperbolic functions method and new exact solutions to the Zakharov equations. Appl Math Comput. 2008;200(1):110–22. 10.1016/j.amc.2007.10.059Search in Google Scholar

[40] Nestor S, Houwe A, Betchewe G, Inc M, Doka SY. A series of abundant new optical solitons to the conformable space-time fractional perturbed nonlinear Schrodinger equation. Phys Scripta. 2020;95:085108.10.1088/1402-4896/ab9dadSearch in Google Scholar

Received: 2021-09-21

Revised: 2022-01-16

Accepted: 2022-02-17

Published Online: 2022-03-24

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

https://doi.org/10.1515/nleng-2022-0010

Keywords for this article

Sardar-subequation method; Radhakrishnan–Kundu–Lakshmanan equation; extended hyperbolic function method; optical solitons

Creative Commons

BY 4.0
