Measured distribution of cloud chamber tracks from radioactive decay: A new empirical approach to investigating the quantum measurement problem

1 Introduction

Measurement occupies a privileged role in the conventional formulation of quantum theory. Between measurements, a wave function evolves smoothly according to Schroedinger’s equation; but measurement itself is widely supposed to entail moments when the wave function changes discontinuously by application of random projections. This juxtaposition of smooth and discontinuous is the quantum measurement problem [1]. A solution to the problem could take the form of a demonstration that instantaneous projections are really idealized “effective representations” of more complicated processes governed entirely by smooth Schroedinger evolution. Such a solution would expose limits to projection-based formulations. Such limits could be consequential for quantum computing, in which quantum measurement is carried out on industrial scale, and for detection of events, such as proton decay, whose extreme rarity could be an intrinsic challenge for canonical measurement phenomenology.

Quantum computing and proton-decay searches use very sophisticated measurement technology. Since 2020, I have focused my own quantum-measurement research on the lower-tech cloud chamber because its underlying physics is much simpler. In a recent article [2], I explored the processes by which a cloud chamber detects single charged particles emitted by the simplest radioactive decays. I identified a mechanism to explain the origination of cloud chamber tracks without appeal to random projections and derived an emergent position-space Born rule that describes the distribution in space and time of tracks’ starting points. Deviations from this Born rule would presumably result when droplet formation in supersaturated vapors deviates from conventional idealizations. The Born distribution described in the study [2] depends on position in a very simple way and should be easier to verify experimentally than the familiar double-slit interference pattern, but I have been unable to find applicable experiments on the statistics of cloud-chamber track locations. Therefore, I have conducted a search on the Internet for videos of cloud-chamber tracks induced by radioactive decay and have measured a track distribution myself in one video to compare with a previous study [2]. The purpose of this article is to report my methodology and findings.

As will be apparent, it may be premature to draw firm conclusions from comparison between theory and measurement, but aspects of the results may suggest a modification of the position-space Born rule at extremely small wave function, although other more mundane candidate mechanisms cannot be ruled out. Such a Born rule modification could have profound implications for the detection of extremely rare processes such as proton decay. Caveats for any interpretation of our measurements arise from many uncontrolled aspects of the underlying data. Issues include uncontrolled temperature and vapor density in the cloud chamber, uncalibrated placement of the video camera, suboptimal and varying placement of the illumination source, and indeterminate thermal characteristics of the sample’s mounting fixture. These caveats are all good justifications for building an apparatus tailored to the purpose at hand, instrumented to reveal and diagnose deviations between measurement and theory. Judged against this standard, the present study is a proof of principle, a necessary first step before committing time and expense to a more rigorous experiment.

In Section 2, I review the microscopic theory of cloud chamber detection behavior developed in an earlier study [2], together with the conventional formulation of measurement in quantum mechanics. In Section 3, I recast the theory presented in an earlier study [2] into a form better matched to the data analyzed here. In Section 4, I survey cloud chamber videos available online, explain why I chose the particular video analyzed here, and list the video’s relevant technical specifications and limitations. In Section 5, I explain how I extracted track coordinates, and I graph the distribution of coordinates for direct comparison with the mathematics in Section 3. In Section 6, I compare data with modified predictions derived from two speculative Born rule refinements. Section 7 contains some concluding remarks.

2 Microscopic theory of cloud chamber behavior

An earlier study [2] addresses cloud chamber detection of slow decays in which one heavy particle transforms into another by emitting a single, spinless, nonrelativistic light charged particle. I paraphrase the gist of the earlier study [2] as follows:

A cloud chamber is an enclosure containing air supersaturated with a condensable vapor, which can be water but is more typically ethyl alcohol. The chamber is cooled from the bottom, so that supersaturation, and therefore favorability for charged-particle track formation, is greatest in a “sensitive layer” at the bottom. Conventional wisdom has it that when a charged particle passes through the chamber, it ionizes air molecules, and the ions nucleate visible vapor droplets (drive them supercritical). However, this assumes the charged-particle wave function is very collimated (so the particle can be treated as a point at one location moving in one direction), whereas the actual wave function of an emitted charged particle near the initial source is not collimated in any meaningful sense. Indeed, the wave function near the source at three-dimensional position x and time t is given by

where Y is a spherical harmonic, Ω is solid angle, we adopt the convention that x is defined relative to the location of the initial decaying particle, ∥x∥ is distance from the initial heavy particle, m is emitted particle mass, v is emitted particle speed, γ is the conventional decay e-folding rate (i.e., ln(2) divided by half-life), and we ignore an irrelevant overall phase factor exp(i[total energy]t/ħ). (In what follows, we treat Y as constant because decays in the particular data we analyze below are s-wave.) It should be noted that Eq. (1) holds outside the decay source’s interaction radius, which we can treat as zero because we are interested in length scales characteristic of the cloud chamber, whereas the interaction radius is on a nuclear scale. Eq. (1) ignores the possibility that enclosure-induced boundary conditions could modify the wave function. This requires a more careful analysis, beyond the scope of this article; however, see a related remark in Section 5. Eq. (1) also ignores the impact of multiple small-cross-section interactions with the atoms of the gas that makes up the cloud chamber medium; we will return to this point at the end of this section and again in Section 5.

By contrast with the conventional picture, the wave function of Eq. (1) interacts with an already existing vapor droplet (generated randomly due to thermal fluctuations in the most common case of diffusion cloud chambers) that is just barely subcritical. A barely subcritical droplet turns out to have a very large amplitude of interaction with the wave function of Eq. (1), so that even a very weak wave function can provoke the subcritical droplet to grow quickly in a supercritical fashion and become visible and provoke the wave function to collimate. This is so because, in the presence of a droplet that is already formed, single-molecule ionization can proceed with a very small energy loss as ion-induced potential energy due to droplet polarization can nearly balance the electron excitation energy. This near-degeneracy drives the cross section of this quantum Coulomb interaction to singularity and leads to a collimated free emitted-particle wave function in the final state.

Within this picture, I argued in an earlier study [2] that the probability per unit time and unit volume to find an emitted-particle track originating at three-dimensional position x and time t is approximately

where ρ and τ are constants characteristic of the cloud chamber medium, and A is a constant characteristic of the ionization process. Substituting Eq. (1) for ψ, and assuming small γ (slow decays), this reduces to

Eq. (2) is a Born rule, in the sense that it asserts a proportionality between a measurement probability and the squared absolute value of a wave function in a particular coordinate system. The general textbook formulation of Born’s rule holds that

1. any observable quantity corresponds to a Hermitian operator M acting on the wave function of the object to which measurement is applied,

2. any measurement of M can result only in some eigenvalue μ of M,

3. which specific eigenvalue is observed is intrinsically random, with probability |〈ψ|ψ _μ 〉|², where ψ _μ is the eigenvector of M corresponding to μ, and

4. the measurement drives the wave function to transform discontinuously into the projection

The cloud chamber provides a particularly interesting commentary on these provisions.

• Commentary on provision 1: for a cloud chamber, M is clearly the operator whose eigenstates are defined by position x, although it is not obvious that detection of an emitted particle is equivalent to position measurement in any canonical sense.

• Commentary on provision 2: the eigenvalue rule is a tautology because x is the only basis for which the cloud chamber Born rule is derived (a more formal way to say this is that this Born rule is contextual, and consequently the rigorous conclusion of Gleason’s theorem [29], that the Born rule cannot be violated, does not apply).

• Commentary on provision 3: this probability rule is clearly true for a cloud chamber if equation (2) is correct, except that the randomness is not intrinsic. Instead, randomness in this case reflects the random nature of thermal fluctuations in the underlying detecting medium.

• Commentary on provision 4: this projection rule cannot be true as stated for a cloud chamber because any emitted particle, first detected at x, immediately and rapidly flees away. An earlier study [2] explains why this projection rule does not apply in some other, more generalized sense either (again vitiating Gleason’s theorem).

The cloud chamber case suggests that the full axiomatization #1–4 goes too far, but that the narrower |ψ|² proportionality in Eq. (2) still applies, at least approximately. This study tests whether – and how much – this position-space Born rule is actually true.

Before proceeding to quantitative analysis, let us return to the earlier remark that Eq. (1) ignores multiple small-cross-section interactions between the emitted particle wave function and the gaseous cloud chamber medium. Clearly, Eq. (1) represents a steady flow of wave function square norm outward from the center at rate γ exp(−γt). Each gas atom with a nonzero interaction cross section is like an obstacle in a stream, in that it gives rise to a thin, low-square-norm wake of emitted-particle wave function on its downstream side (possibly combined with the atom promoted to an excited state). The wake is a very thin cone – opening angle λ/(4σ/π)^1/2 for emitted particle wavelength λ and cross section σ – and does not reduce the overall square norm that flows away from the center (there is no backflow). (Note this is not the strong collimation that marks the start of a visible cloud chamber track [2] and that channels nearly all the system’s square norm.) Under these circumstances, the emitted particle wave function still should look locally similar to the plane wave exp(im v·x/ħ) (v has magnitude v and points from source to the local area in question) regardless of the internal state of the gas. This is all the reasoning in the earlier study [2] that Section 4 really relies on; therefore, Eq. (2), with Eq. (1) substituted for ψ, should survive. Things get more complicated when wakes beget more wakes by encountering more obstacles: opening angles may then widen successively in a stepwise Gaussian random process. If the typical number of random steps is large enough, one can imagine the overall square-norm flow becoming disordered, departing from purely radial and threatening the viability of Eqs. (1) and (2). This requires further study, beyond the scope of this article, but we will attempt to coarsely quantify this possibility in Section 5. In any case, this underscores the importance of examining the real data.

3 Cumulative radial distribution seen in a two-dimensional image

In the scenario highlighted in the next section, the cloud chamber is a thin flat circular enclosure (Petri dish) viewed from above, with a sensitive layer of depth a beginning on the dish floor. The radioactive source is propped at height b above the floor of the chamber, so the two-dimensional density corresponding to Eq. (3) actually recorded by the camera is as follows:

where R = (x ² + y ²)^1/2 is two-dimensional distance from the decay source. As a practical matter, we will not have enough statistics to do a good job measuring D as a function of x and y, so we will default to the cumulative radial distribution proportional to the following:

where

4 Data

A Google search with terms “cloud chamber video” produces at least the 23 distinct examples in videos [3–25] (all but one referring to diffusion cloud chambers). Many of these do not apply here. Videos [3–12] show cloud chamber activity only from background radiation in the ambient environment. Videos [13,14] provide clips of only a few seconds each. Videos [15,16] show tracks from thorium rods, not point sources, and with uncontrolled viewing geometries. Videos [17–20] show tracks from lumps of material, making it impossible to look at small R. Moreover, by virtue of their nontrivial masses, they produce so many tracks that it is difficult to separate one track from another, even while running the videos in slow motion. In video [21], the lump is quite small, but the cloud chamber track footage is very brief. In videos [22–25], all use small samples mounted at the ends of needles, that is, the right physical geometry and nicely separable tracks. However, video [22] shows only 8 s of track activity, with an enclosure of indeterminate size. Video [23] also involves an enclosure of indeterminate size, as well as a variety of camera angles that complicate geometrical viewing analysis. Video [24] has the best image quality but uses three needles at the same time, so it is difficult to determine which track comes from which needle. Video [25] seems to be the closest to “just right”: the enclosure is a Petri dish, whose dimensions are standardized, and the camera is located directly above (more or less) and fixed throughout the observation, which lasts a full 1 min and 30 s.

Detailed experimental specifications and caveats for video [25] are as follows, and a sample video frame is shown in Figure 1:

• Chamber dimensions (presumed standard Petri dish): diameter 100 mm, depth 15 mm.

• Radioactive source: labeled ²¹⁰Pb, but, because of decay chain, admixed with ²¹⁰Bi and ²¹⁰Po. ²¹⁰Pb and ²¹⁰Bi are beta emitters (half-lives 22.3 years and 5.0 days, respectively), and ²¹⁰Po is an s-wave alpha emitter (138 days) [26]. Nominal source activity is 0.01 μCi (https://www.spectrumtechniques.com/products/sources/needle-sources/).

• Radioactive source fixture: eye of a needle, whose other end is stuck in a cork. (The radioactive region is about 4 mm long [R. Stevens, Spectrum Techniques Inc., private communication], treated mathematically in this article as a point. Some discussion of the impact of this point idealization can be found at the end of Section 5.) The entire assembly, including cork, is enclosed in the Petri dish.

• Location of radioactive source: xy coordinate of radioactive source not quite centered in Petri dish; vertical placement (in z) is unspecified, but Figure 1 shows that the cork has radius 13 mm at its base, narrowing to 10 mm at its far end resting on the dish floor at a distance of 20 mm, and the needle point is another 20 mm beyond that. So elementary trigonometry says the needle point is ∼3.5 mm above the floor of the Petri dish, that is, b = 3.5 mm.

• Alcohol concentration: value and horizontal-plane homogeneity uncontrolled.

• Chamber temperature: value and horizontal-plane homogeneity uncontrolled, cooled with dry ice underneath.

• Depth of supersaturated sensitive layer: the theory in an earlier study [27] suggests that sensitive-layer thickness is roughly a fixed percentage of dish depth for given boundary temperatures. That reference’s Figure 2.9 corresponds to the temperature boundary conditions in this article and indicates that the depth of the sensitive layer should be 10–20% of the dish depth, that is, 1.5–3 mm here. This range would put the needle point above the top of the sensitive layer. As we shall see later, the video [25] seems to show that the needle point must actually lie inside the sensitive layer; hence, for data analysis purposes, I expand the range of possible sensitive-layer depths for consideration to 1–4 mm.

• Source and fixture thermal characteristics: indeterminate.

• Illumination: flashlight, handheld from the side, angle and brightness variable. Shadow of needle against dish floor is clearly visible, and complicates track measurement in its vicinity.

• Video camera location: fixed, directly over top of Petri dish, pointing approximately straight down.

• Frame rate: 30 fps; when downloaded to Microsoft Video Editor, frames are labeled minute:second:hundredth, and the hundredth is always of the form multiple-of-10 plus either 0, 3, or 6. Presumably 3 and 6 are rounded from 3.33 and 6.66.

• Average rate of new track formation (see below): ∼2.5/s.

• First frame with cloud chamber tracks: 3:15:03, frame #5852.

• Last frame with cloud chamber tracks: 4:45:46, frame #8565.

• Notable anomalies: tracks once formed seem to drift in a clockwise rotation.

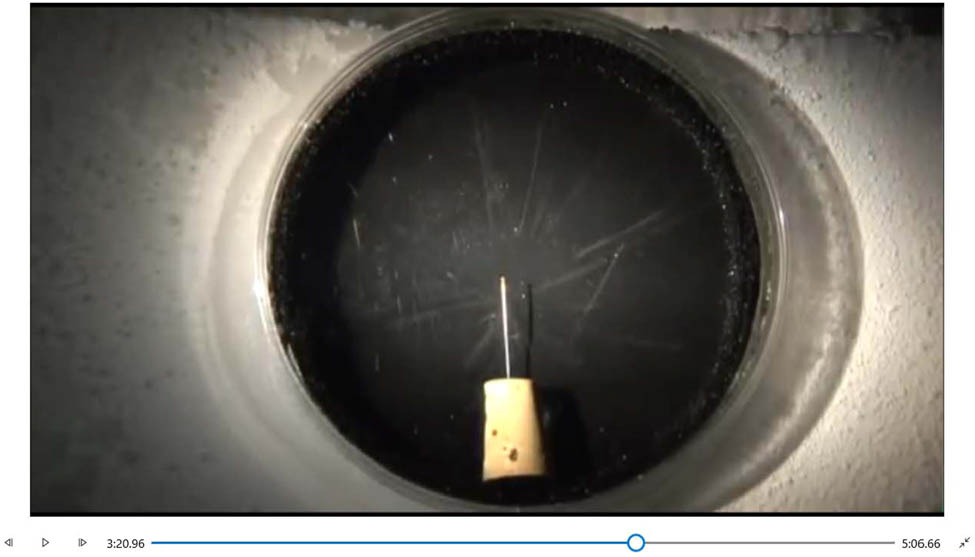

Figure 1

Frame #6030 from video [25].

5 Measurement

I downloaded the video [25] as an mp4 file onto a Dell laptop with screen resolution 1,366 × 768, and manually stepped through frames 5,852–8,565 using Microsoft Video Editor in full-screen mode. Knowing the actual Petri dish dimensions, I was able to calibrate 0.16 mm/pixel. Every time I encountered a new track that appeared to point away from the source, I put the cursor over what I thought was the track’s likely starting point, left-clicked, and read out the click pixel coordinates using the application “MacroRecorder,” (https://www.macrorecorder.com/; and note that in the y direction, pixels count from the top). I stored the coordinates in the first tab of a spreadsheet (see Supplementary Material for spreadsheet contents). For every new track, the spreadsheet shows its video time, frame number, starting-point pixel coordinates, starting-point xy coordinates in millimeters relative to the radioactive source, and two-dimensional distance R from the source. Each track is labeled short/long and diffuse/sharp based on eyeball judgments, as an aid to independent auditing. All tracks visible in this video are attributable to alpha particles (R. Schumacher, Carnegie Mellon University, private communication).

Readers are invited to check track identification directly against the actual video. It will be seen that the first appearance of a track is often difficult to discern because tracks start faint and then “develop” over time as their constituent droplets expand. When stepping through the video, it may be necessary to look over a short time period past the frame at which a new track is indicated, to see that the faint smudge at that location in that frame will in fact develop into a track. The reader will also see that track-origin identification is often made difficult and even ambiguous by the nonideal placement of camera and illumination source.

In principle, one must distinguish between alpha and beta tracks because the theory in Section 2 applies to the alpha emitter ²¹⁰Po but not to the beta emitters ²¹⁰Pb and ²¹⁰Bi. As beta decay also involves a neutrino, it is emission of two particles with an energy spectrum for the outgoing charged particle, rather than emission of a single charged particle with a unique outgoing energy. However, beta tracks are too tenuous to be seen in this video [R. Schumacher, Carnegie Mellon University, private communication].

To compare with the results in Section 3, I first put together a cumulative distribution. I sort the spreadsheet on the values of R for alpha tracks, then number the values starting at the smallest, and finally graph the pairs (R, sort index) on a scatter plot. In Figure 2a and b, I compare this (blue) directly with vertically scaled graphs (red) of equation (6) with b = 3.5 mm, and a = 2.25 mm or 4 mm. For a = 2.25 mm (when the radioactive source lies above the sensitive layer), it also seems prudent to at least consider the possibility that all tracks actually originate at the radioactive source but become visible only when they cross the roof of the sensitive layer. For this reason, Figure 2a also includes a vertically scaled cumulative radial distribution (purple) of points at which rays that exit the source cross the roof of the sensitive layer; the match to raw data is poor. I choose the overall scale of the red curve to give the best match over the broadest range of R values, and the vertical scale of the purple curve to best approximate the apparent asymptotic behavior of the raw data.

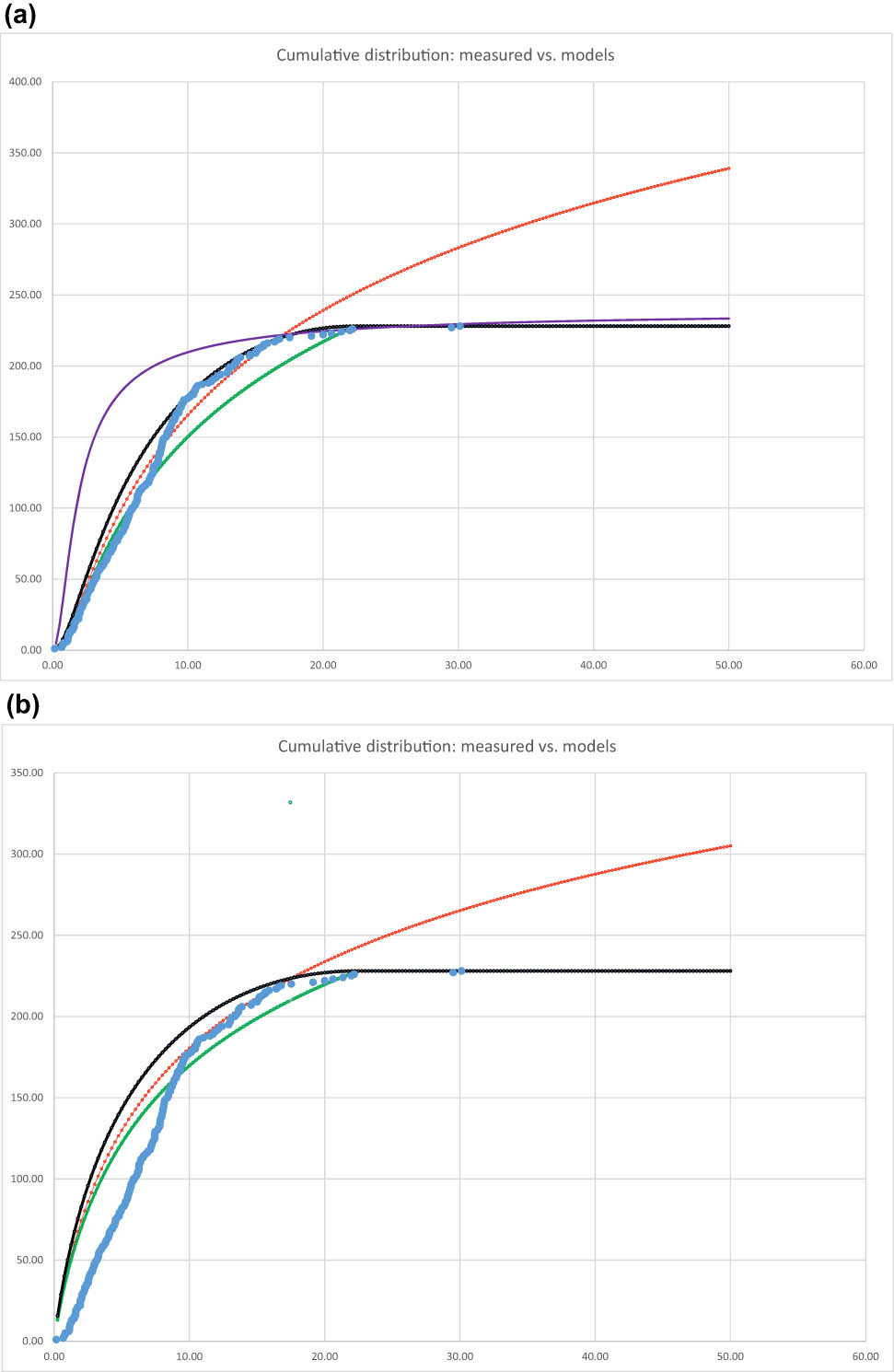

Figure 2

(a) Measured (blue) vs noncutoff (red), cutoff (green and black), and sensitive-layer-roof-crossing (purple) theoretical cumulative radial distributions (number of counts), as functions of R (in mm). The model curves assume b = 2.25 mm. Vertical scales of green and black points are set so that at the largest R (=50 mm, edge of the Petri dish) they match the blue scatter. (b) Measured (blue) vs noncutoff (red) and cutoff (green and black) theoretical cumulative radial distributions (number of counts), as functions of R (in mm). The model curves assume b = 4 mm. Vertical scales of green and black points are set so that at the largest R (=50 mm, edge of the Petri dish), they match the blue scatter. The roof-crossing curve is absent because in this case the needlepoint is inside the sensitive layer.

The blue and red data sets line up, to varying degrees, until the measured curve appears to turn over and prematurely flatten between about R = 17 mm and 22.5 mm. This means a shortfall in observed detections that originate at – rather than just pass through – large R. (According to an earlier study [2], track origination requires the presence of a vapor droplet that is subcritical but just barely so; track continuation does not). This could mean various things: (1) The theory in an earlier study [2] could be wrong. (2) The dearth of track originations for R > 22.5 mm could be a temperature periphery effect: maybe the Petri dish is warmer at its extremities, making it harder for subcritical vapor droplets to form spontaneously by thermal fluctuation. The volume outside R = 22.5 mm is about 80% of the entire Petri dish, straining the concept of “extremity,” but a more careful analysis, beyond the scope of this study, seems warranted. (3) The dearth of track originations for R > 22.5 mm could be a corollary of the simple fact that 22.5 mm is similar in order of magnitude to the stopping distance for a 5.3 MeV alpha particle in air [28]. However, coincidence seems a much more likely explanation for this similarity because track origination and termination seem like such radically different phenomena. (iv) The dearth of track originations for R > 22.5 mm could be related to the fact the 22.5 mm and the Petri dish depth, 15 mm, are of similar orders of magnitude; but I cannot come up with a physical mechanism that plays on that similarity. (v) The dearth of track originations for R > 22.5 could be related to enclosure-induced boundary conditions whose neglect we mentioned in Section 2, but it is hard to see how that could reduce the wave function by even as much as a single order of magnitude (this is the remark referred in the paragraph containing Eq. (1)). (vi) Perhaps equations (1) and (2) break down for large R because of the cumulative impact of multiple small-cross-section interactions, as first discussed at the end of Section 2. To begin to quantify this possibility, imagine a circular atomic cross section of diameter 1 Å and use the atomic (not molecular) density of air 2 × 10²⁷ m⁻³. Then in 22.5 mm, a cone formed in the wake of an alpha-atom interaction encounters (22.5 mm) × (π/4 Ų) × (2 × 10²⁷ m⁻³) ∼ 3 × 10⁵ such obstacles. Hence, referring back to the end of Section 2, the overall opening angle expands by random walk to (λ/(1 Å)) × (3 × 10⁵)^1/2. Using λ = 6 × 10⁻⁵ Å for a 5.3 MeV alpha particle, this is ∼0.03 radian –2°. This does not seem like a large number, but further study could show otherwise.

The video itself seems at odds with the idea that the needle point lies above the sensitive layer. Otherwise, the apparent length of tracks would be bounded above by some small multiplier times the distance from source to track origin (3.5/1.25–3 if b = 3.5 mm and a = 2.25 mm), but this is not seen. Therefore, I am inclined toward a = 4 mm as closer to the truth.

Perhaps, the extreme shortfall of track originations beyond R = 22.5 mm is actually a breakdown of the Born rule within the framework of the earlier study [2]: maybe, beyond R = 22.5 mm, the alpha wave function in Eq. (1) is so attenuated that the chamber simply runs out of subcritical droplets close enough to critical for such a weak wave function to push into visibility. One way to test this would be to use a different alpha emitter with roughly 1/5 the half-life of ²¹⁰Po. Then the factor γ in Eq. (1) would guarantee that the wave function would not get weak enough to fail to start tracks until R increased by a factor of ∼2.2, from 22.5 mm to beyond the full 50 mm radius of the dish, and then track originations would be seen throughout the chamber. (This assumes that t in Eq. (1) is small enough that the factor e^−γt is O(1) for both the ²¹⁰Po of video [25] and the hypothetical comparison alpha emitter.) Alternatively, one could use the inexpensive alpha emitter ²⁴¹Am with roughly 1,000 times the half-life of ²¹⁰Po. Then no track origination might be observed beyond 22.5/(1,000)^1/2 ∼ 2/3 mm.

Violation of Born’s rule here would not necessarily clash with prior supporting evidence in its favor because the wave function in this case is so tiny. According to Eq. (1) (ignoring the exponential factor and using Y = 1/(4π)^1/2), the value of |wavefunction|² at R = 22.5 mm is approximately 10⁻¹³ m⁻³ ∼ (2 × 10⁴ m)⁻³. The distance 2 × 10⁴ m is vast compared to the length scales presumably characteristic of the wave function in any laboratory double-slit experiment I am aware of. Nevertheless, even though this |wavefunction|² is very small numerically, its phenomenological impact here – between 80 and 110 track starts missing beyond 22.5 mm – is much too large to dismiss as observational noise. In any case, the phenomenology in this article and an earlier study [2] is very particular to cloud chambers, so it remains to be seen how or even if it relates to earlier searches for Born rule violations in other physical situations. These include, for example, an earlier study [30], which places an experimental limit on Born rule violation arising from hypothetical cubic interference terms in qutrit measurement.

One might have expected a track-origination deficit at small R because the radioactive source generates heat that can suppress vapor supersaturation. That might be seen in Figure 2b; however, then again maybe not because the source may be too small to generate consequential heat. Indeed, numerical calculations (unpublished) suggest that an apparent deficit at small radius is more likely an artifact that comes about because the radioactive atoms extend a few mm away from the end of the needle.

6 Cutoff models

The rollover in the blue data points suggests one modify the Born rule so that probability cuts off below some value of |ψ|² (that may depend on details of the measuring apparatus). This would be like scaling quantum efficiency by a wavefunction-dependent factor that is unity when wave function is sufficiently large, and zero when sufficiently small. I illustrate two speculative modifications in Figure 3. The green trace corresponds to a naïve hard cutoff. The black trace corresponds to an offset Born rule, that is, probability proportional to max(|ψ|²-cutoff,0).

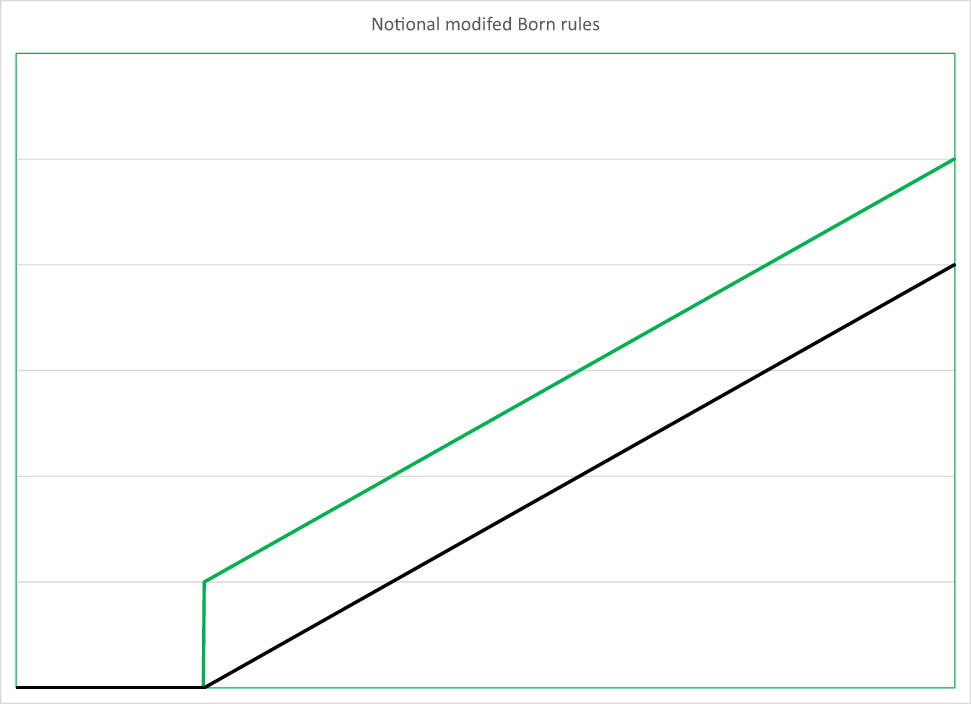

Figure 3

Notional modifications of Born rule. Horizontal axis represents |wavefunction|² and vertical axis represents probability density. Units are arbitrary. The wave function value at the cutoff would depend on particulars of the measurement system.

The hard cutoff is an arbitrary ansatz, but the offset model has a physical motivation arising from the underlying discreteness of vapor droplets made of finitely many distinct molecules. To see this, start from the development in an earlier study [2]: I argued that a cloud chamber track originates near a subcritical vapor droplet of radius R _d when the following inequality holds (R _c is critical radius)

I introduced ρ, the probability of droplet formation per unit time, unit volume, and unit interval in R _d, and then obtained Eq. (2) for the probability that inequality (8) happens per unit time and unit volume. Now suppose that, because of molecular discreteness, R _d cannot actually get closer to R _c than some minimum δ. Then inequality (8) is refined to

and the probability per unit time and unit volume must become

when the quantity in parentheses is greater than zero, and zero otherwise, that is, the offset model with cutoff δ/Avτ.

It is easy to derive modified cumulative distributions for the models in Figure 3. Suppose that, for either model, the cutoff is the value of |ψ|² corresponding to equation (1) at ∥x∥ = K for some distance K (and assume, in equation (1), that we can ignore any spread in the factor exp(−γt/2) among the ²¹⁰Po nuclei that are generated by the decay of the initial ²¹⁰Pb sample in the video [25]). Then, for K > b and >(a − b), a hard cutoff turns equation (6) into

where

An offset turns equation (6) into

where

The green and black curves in Figure 2 are the same as Eqs. (11) and (13), respectively, for K = 22.5 mm, scaled so that they match the measured data at the largest value of R. It is notable that, for b = 2.25 mm, the offset model appears to provide a more faithful match to the data, at least beyond 8 mm. For b = 4 mm, the data does not seem to favor one model over the other.

If cutoff models such as these apply to detectors beyond cloud chambers, it could have profound implications for detection of extremely rare processes such as proton decay. True probabilities of detection could be orders of magnitude smaller than expected from naïve Born rule arguments, and therefore today’s accepted bounds on the proton lifetime could be mistakenly long by orders of magnitude.

7 Concluding remarks

Using opportunistic data, I have carried out a proof of principle for a previously unappreciated, low-cost probe of quantum mechanics fundamentals. It is also a novel tabletop example of a wave function with a signature visible to the naked eye without cryogenic equipment (e.g., superconductivity) or micron-scale detectors and finely controlled coherence (e.g., double-slit interference). Aspects of the data in this study may already show violation of a position-space Born rule, although other explanations are not ruled out.

The ideal experiment tailored to this science would address the caveats identified in Section 4. It would also include the following improvements:

• Several interchangeable alpha emitters with half-lives spread over a few orders of magnitude.

• Automated track detection and classification to eliminate reliance on eyeball judgment.

• Track detection in 3D and sufficient statistics to measure three-dimensional distributions.

• Sufficient control and instrumentation to see deviations from Born rule (if we have not seen them here already for R > 22.5 mm).

• Sufficient instrumentation to probe dynamics of individual droplet formation.
