Isothermal Oxidation Behavior of Gadolinium Zirconate (Gd2Zr2O7) Thermal Barrier Coatings (TBCs) produced by Electron Beam Physical Vapor Deposition (EB-PVD) technique

  • Kadir Mert Doleker EMAIL logo , Yasin Ozgurluk , Hayrettin Ahlatci and Abdullah Cahit Karaoglanli
Published/Copyright: October 22, 2018

Abstract

Thermal Barrier Coatings (TBCs) provide thermal insulation for gas turbine components operating at high temperatures. Generally, TBCs were produced on a MCrAlY bond coat with 7-8% Yttria Stabilized Zirconia (YSZ) using Atmospheric Plasma Spray (APS) technique. In this study, Inconel 718 substrate material was coated with CoNiCrAlY bond coat using high velocity oxygen fuel (HVOF) technique. Afterward, Gd2Zr2O7 was deposited on samples using Electron Beam Physical Vapor Deposition (EB-PVD) technique. Produced TBCs were exposed to isothermal oxidation tests at 1000°C for 8 h, 24 h, 50 h and 100 h in muffle furnace. Scanning electron microscopy-energy distribution X-ray (SEM-EDX) spectroscopy was used to investigate thermally grown oxide (TGO) layer and TGO growth behavior of TBCs. In addition, X-ray Diffractometer (XRD) analysis was performed to TBCs to understand whether phase transformation occurs or not before and after oxidation.

1 Introduction

TBCs are widely used in groups of materials such as gas turbine components operating under high temperature conditions. TBCs are exposed to oxidation due to the high temperature [1,2]. Standard TBC system consists of Ni based superalloy substrate, MCrAlY contented bond coat, TGO layer formed during the oxidation and ceramic top coat layer. In TBCs, failure generally starts from TGO layer due to new oxide formations and thermal expansion mismatch. Bond coat can be produced using thermal spray techniques such as atmospheric plasma spray (APS), cold gas dynamic spray (CGDS) or high velocity oxygen fuel (HVOF) techniques. Top coat can be deposited only plasma spray (PS) techniques or electron beam physical vapor deposition (EB-PVD) due to its high melting point. HVOF and CGDS techniques provide dense and low oxide contented metallic bond coat layer in contrast to APS technique [3, 4, 5]. Laminar structured coatings with high porosity and oxide content can be obtained using APS technique [6]. Columnar structured and dense top coats can be produced using EB-PVD technique which provide high strain tolerance [7].

YSZ is a state of art top coat material for TBC systems due to its superior properties. However, it has some limitations such as low sintering resistance and its phase transformation stability up to 1200°C [8,9]. Rare earth zirconates (Re2Zr2O7) exhibit attractive properties such as lower thermal conductivity, higher operating temperature and higher sintering resistance compared to YSZ [10]. Re2Zr2O7 are stable up to 1500°C. Rare earth (Re: Gd, La, Sm, etc.)+3 elements are replaced with Zr+4. This substitution causes formation of oxygen vacancy in crystal structure. Thus, phonon scattering increase and thermal conductivity decrease. Atomic weight of Gd is higher than Y [11]. This also contributes for lower thermal conductivity. Wu et. al. [12] reported that thermal conductivity value of Gd2Zr2O7 is 1.6 W(m.K)-1 while YSZ has 2.3 W(m.K)-1 at 700°C. Gd2Zr2O7 has an ionic conductivity due to presence of oxygen vacancy in its crystal structure. However, Gd2Zr2O7 has better resistance against oxygen penetration compared to YSZ [13]. Because it has stable anion Frenkel pair defect and therefore, higher activation energy is required for the diffusion of oxygen [1,10].

In the present study, HVOF CoNiCrAlY bond-coated Gd2Zr2O7 TBCs produced by EB-PVD are subjected to 1000°C with different time periods isothermally to investigate their oxidation behavior and TGO growth.

2 Experimental Procedure

2.1 Substrate, Bond and Top Coating Production and Preparation

Grit blasted and ultrasonically cleaned disc shaped 5 mm Inconel 718 was used as substrate material. CoNiCrAlY powders (Sulzer Metco Amdry 9951, −38+5.5 μm particle size) were sprayed on substrate using HVOF technique with Table 1 parameters. Gd2Zr2O7 ingot was deposited on bond coated substrates using EB-PVD technique based on Table 1 parameters.

Table 1

Bond and top coating working parameters.

HVOF CoNiCrAlY Working Parameters
CombustionPowderPowderSprayGun speed
Gasesfeedcarrier gasdistance
O2 (250 slpm)25 g/secN2200 mm20 mm/s
C3H8 (80 slpm)(6,5 slpm)
Air (700 slpm)
EB-PVD Gd2Zr2O7 Working Parameters
TemperatureRotationVacuumCondensation
Speedratio
800±20°C25 rpm5x10-5-1x10-4Torr3,7 μm/min

2.2 Oxidation Tests and Characterization

Substrate, as-deposited bond and top coats roughness values were calculated taking from average of 5 different measurements by SJ-310, Mitutoyo instrument. Average hardness were obtained using Micro-Duromat 400E tester under 50 g load taking 5 measurements from different regions of each layers of as-deposited TBC. Image J software program was used to calculate average porosity as percentage. Average porosity measurements were obtained from 5 different cross-sectional SEM images at 1000x magnification. Table 2 shows roughness, hardness and porosity values of TBC layers.

Table 2

Roughness, hardness and porosity values of substrate and coatings.

Substrate and CoatingsRaHardnessPorosity
(μm)(GPa)(%)
Inconel-7185.383.09-
CoNiCrAlY Bond Coat5.914.382.5 ± 0.5
Gd2Zr2O7 Top Coat6.374.261.9 ± 0.3

Before the oxidation tests, TBCs were exposed to vacuum annealing at 1080°C with 2 h. Isothermal oxidation tests were performed at 1000°C with 8 h, 24 h, 50 h and 100 h in Protherm high temperature furnace (PLF 130/12). After oxidation tests, samples were cold mounted and prepared metallographically to investigate in SEM (Tescan, Maia3). Before and after oxidation tests, XRD analysis was performed to TBCs to detect phase changes.

Ethical approval: The conducted research is not related to either human or animal use.

3 Results and Discussion

Figure 1 shows cross-sectional SEM and elemental mapping images of as-deposited TBCs. According to Figure 1a top coat has a columnar structure as characteristic property of EB-PVD technique. It includes low porosity and it has columnar gaps due to surface roughness of bond coat. Surface roughness of bond coating is particularly related to unmelted particles. The thickness of top coat is approximately 200 μm. 100 μm thick bond coating has very low oxide and porosity due to the advantage of HVOF technique. Bond coat porosity content is about 2.5±0.5%. Top coat porosity content is about 1.9 ± 0.3%. Vacuum heat treatment of bond coat at 1080°C for 2h prior the oxidation test was provided formation of β-NiAl phases, stabilization of coating and thin α-Al2O3 layer which act as oxygen barrier. Similar processes have been applied in the literature [14, 15, 16]. Elemental mapping image in Figure 1b shows the formation of Al rich β-NiAl phases, γ phases rich in Co, Ni, Cr and thin Al2O3 layer due to the vacuum heat treatment as well as elemental distribution of bond and top coat.

Figure 1 Cross-sectional a) SEM and b) elemental mapping images of as-deposited TBC.
Figure 1

Cross-sectional a) SEM and b) elemental mapping images of as-deposited TBC.

In TBCs, oxidation occurs through penetration of oxygen from top coat to bond coat due to the ionic conductivity of top coat and existing porosity or voids in its structure. In addition, bond coat and interfaces can include voids and porosities. The oxygen in contact with the bond coat causes oxidation at high temperatures. Figure 2 shows the SEM cross-sectional images of oxidation periods of Gd2Zr2O7 TBC at 1000°C. In the first stage, interface only consists of Al2O3 because Al has highest affinity to oxygen compared to other bond coat elements.

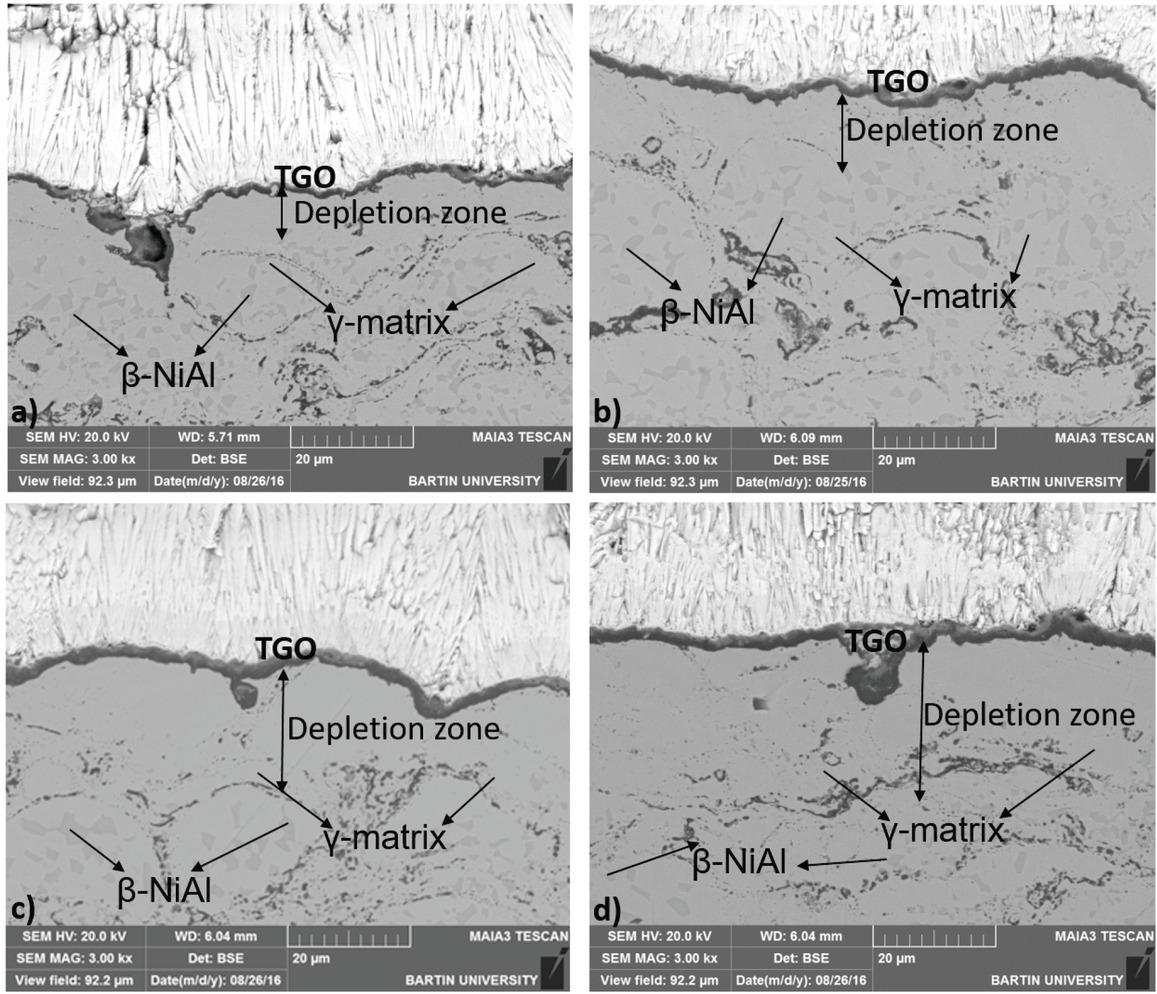

Figure 2 Cross-sectional images of a) 8 h, b) 24 h, c) 50 h and d) 100 h oxidized TBCs at 1000 .°C.
Figure 2

Cross-sectional images of a) 8 h, b) 24 h, c) 50 h and d) 100 h oxidized TBCs at 1000 .°C.

Al 2O 3 which act as oxygen barrier is the most desired phase at the interface. TGO layer thickness increase depending on time and this causes the stress increase at the interface. The thicknesses of TGO layers for each oxidation time was given in Figure 3. Dark gray phases (β-NiAl) provide diffusion of Al to interface and as a result β-NiAl phases deplete and depletion zone distance increases depending on time. When β-NiAl phases deplete or drop under a critical value, other elements diffuse to interface and mixed oxides or spinel phases which are undesired phases due to their high growth rate can form such as (Co, Ni)(Cr, Al)2O4 spinels, (Co, Ni)O or Cr2O3 [16].

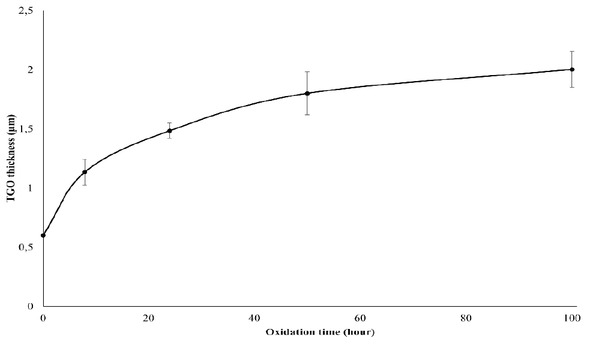

Figure 3 Variation of TGO layer thicknesses depending on the increasing time.
Figure 3

Variation of TGO layer thicknesses depending on the increasing time.

At the end of the oxidation tests, TGO layer preserved its uniformity and spallation was not observed although top coat includes visible crack formation starting from TGO layer. In Figure 4a) cracks and TGO layer can be seen. In Figure 4b) the elemental distribution of TGO layer can be seen at higher magnification. According to this elemental mapping analysis, TGO layer dominantly consists of Al2O3 and some traces of spinel or mixed oxide phases. The formation of mixed oxide phases may have been due to the initial oxidation stage or the rapid oxygen penetration that occurs with the cracking of the top coat. Crack formation can be occurred due to thermal expansion mismatch as well as growth of TGO layer. Especially, new oxides like spinel or mixed oxides can cause higher stress formation. Besides, Gd2Zr2O7 have low fracture toughness thus crack formation in high TGO thicknesses is easier than YSZ [16]. To minimize the fracture toughness and thermal expansion mismatch, double layered TBCs can be used in TBC systems [1].

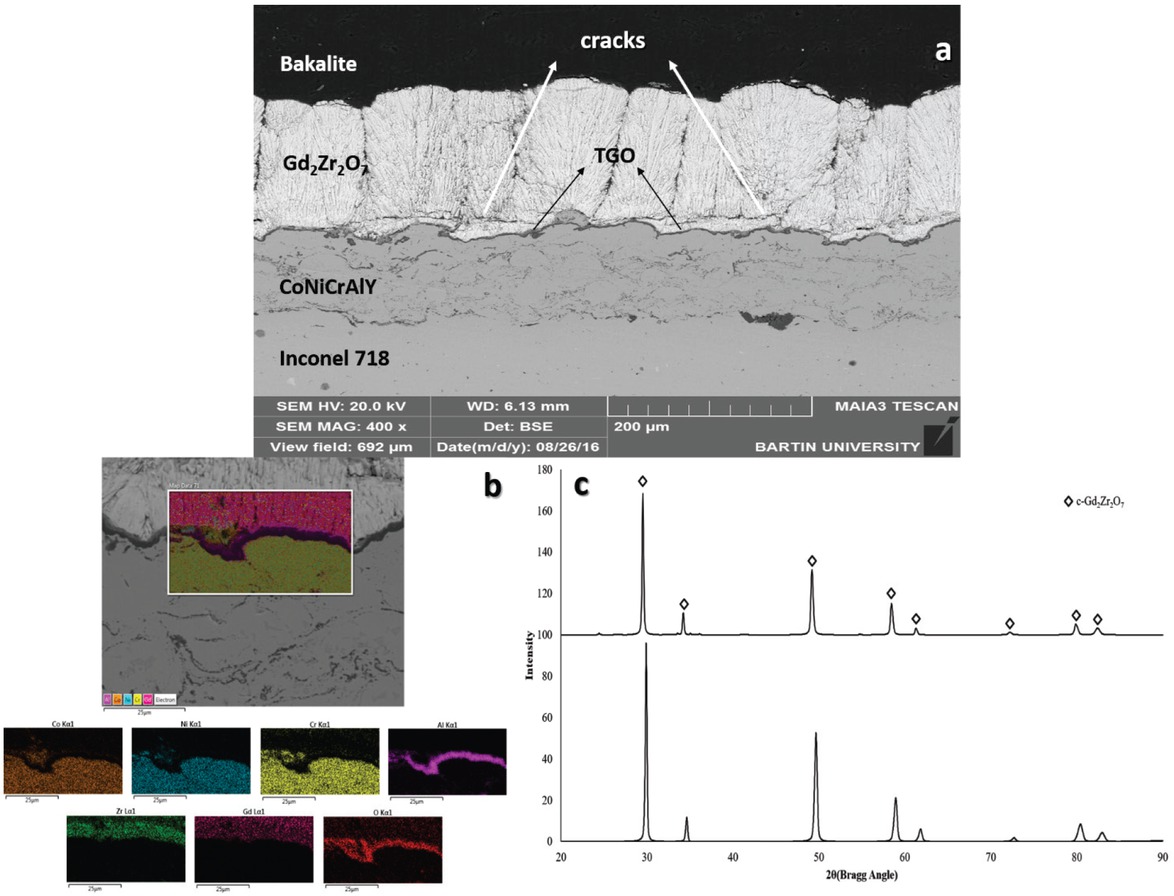

Figure 4 a) 400x SEM and b) 3000x elemental mapping image of 100 h oxidized TBC c) XRD graph of as-deposited and 100 h oxidized TBCs.
Figure 4

a) 400x SEM and b) 3000x elemental mapping image of 100 h oxidized TBC c) XRD graph of as-deposited and 100 h oxidized TBCs.

According to XRD analysis in Figure 4c as-deposited TBC system only consists of c-Gd2Zr2O7. Phase transformation was not observed at the end of the isothermal oxidation test. The absence of phase transformation has a vital importance in the TBCs because it prevents the formation of more stress in the system.

4 Conclusion

CoNiCrAlY bond coated Inconel 718 was successfully deposited using EB-PVD technique with Gd2Zr2O7. According to oxidation tests, TGO thickness increases depending on time and TGO layer is mainly composed of Al2O3 phase and very little other oxides. After the oxidation tests, TBCs still remains intact and spallation was not observed although formation of cracks occurs in 100 h. Mixed oxides or spinel phase traces were detected in 100 h oxidation test. In top coat structure, phase transformation was not detected at the end of the oxidation tests according to XRD results. An alternative top coat material to YSZ, Gd2Zr2O7, is suitable for use in TBCs because of its low thermal conductivity, high phase stability, and low oxygen penetration. However, it should be made more reliable by improving fracture toughness and thermal expansion coefficients. In the future work, Gd2Zr2O7 will be produced as composite and functionally graded, and the oxidation performances will be examined.

Acknowledgments

This investigation was financially supported by Scientific Research Projects (BAP) Coordinatorship of Karabuk University with project code of KBUBAP-17-DR-202 and the Scientific and Technological Research Council of Turkey with project code of TUBITAK, 113R049.

  1. Conflict of interest: Authors state no conflict of interest.

References

[1] Doleker K. M., Ahlatci H., Karaoglanli A. C., Investigation of Isothermal Oxidation Behavior of Thermal Barrier Coatings (TBCs) Consisting of YSZ and Multilayered YSZ/Gd2Zr2O7 Ceramic Layers. Oxid. Met., 2017, 88(1-2), 109-119.10.1007/s11085-016-9690-4Search in Google Scholar

[2] Ozgurluk Y., Doleker K. M., Karaoglanli A. C., Hot corrosion behavior of YSZ, Gd2Zr2O7 and YSZ/ Gd2Zr2O7 thermal barrier coatings exposed to molten sulfate and vanadate salt. Appl. Surf. Sci., 2017, 438, 96-113.10.1016/j.apsusc.2017.09.047Search in Google Scholar

[3] Mei H., Liu Y., Cheng L., Comparison of oxidation resistance of NiCoCrAlTaY-coated and-uncoated Mar-M247 superalloys in the air at 1150°C. J. Mater. Sci., 2012, 47(5), 2278-2283.10.1007/s10853-011-6041-3Search in Google Scholar

[4] Mori T., Kuroda S., Murakami H., Katanoda H., Sakamoto Y., Newman S., Effects of initial oxidation on β phase depletion and oxidation of CoNiCrAlY bond coatings fabricated by warm spray and HVOF processes. Surf. Coat. Techn., 2013, 221, 59-69.10.1016/j.surfcoat.2013.01.028Search in Google Scholar

[5] Han Y., Chen H., Gao D., Yang G., Liu B., Chu Y., Fan J., Gao Y., Microstructural Evolution of NiCoCrAlHfYSi and NiCoCrAlTaY Coatings Deposited by AC-HVAF and APS. J. Thermal Spray Technology, 2017, 26(8), 1758-1775.10.1007/s11666-017-0623-9Search in Google Scholar

[6] Karaoglanli A. C., Doleker K. M., Demirel B., Turk A., Varol R., Effect of shot peening on the oxidation behavior of thermal barrier coatings, Appl. Surf. Sci., 2015, 354, 314-322.10.1016/j.apsusc.2015.06.113Search in Google Scholar

[7] Karaoglanli A. C., Doleker K. M., Ozgurluk Y., State of the Art Thermal Barrier Coating (TBC) Materials and TBC Failure Mechanisms, In: Öchsner A., Altenbach H. (Eds.), Properties and Characterization of Modern Materials, Springer Singapore, 2017.10.1007/978-981-10-1602-8_34Search in Google Scholar

[8] Sampath S., Schulz U., Jarligo M. O., Kuroda S., Processing science of advanced thermal-barrier systems. MRS Bull., 2012, 37(10), 903-910.10.1557/mrs.2012.233Search in Google Scholar

[9] Chen X., Zhao Y., Fan X., Liu Y., Zou B., Wang Y., Ma H., Cao X., Thermal cycling failure of new LaMgAl11O19YSZ double ceramic top coat thermal barrier coating systems. Surf. Coat. Techn., 2011, 205(10), 3293-3300.10.1016/j.surfcoat.2010.11.059Search in Google Scholar

[10] Cao X. Q., Vassen R., Stoever D., Ceramic materials for thermal barrier coatings, J. Eur. Ceram. Soc., 2004, 24(1), 1-10.10.1016/S0955-2219(03)00129-8Search in Google Scholar

[11] Wu J., Wei X., Padture N. P., Klemens P. G., Gell M., García E., Miranzo P., Osendi M. I., Low‐thermal‐conductivity rare‐earth zirconates for potential thermal‐barrier‐coating applications, J. Am. Ceram. Soc., 2002, 85(12), 3031-3035.10.1111/j.1151-2916.2002.tb00574.xSearch in Google Scholar

[12] Lee K. N., Protective Coatings for Gas Turbines, The Gas Turbine Handbook, Section 4.4.2, U.S. Department of Energy, NETL, 2006, 419-435.Search in Google Scholar

[13] Carpio P., Salvador M. D., Borrell A., Sánchez, E. (2017). Thermal behaviour of multilayer and functionally-graded YSZ/ Gd2Zr2O7 coatings. Ceram. Inter., 2017, 43(5), 4048-4054.10.1016/j.ceramint.2016.11.178Search in Google Scholar

[14] Li X., Huang X., Yang Q., Tang Z., Effects of substrate material and TBC structure on the cyclic oxidation resistance of TBC systems, Surf. Coat. Techn., 2014, 258, 49-61.10.1016/j.surfcoat.2014.10.004Search in Google Scholar

[15] Schulz U., Bernardi O., Ebach-Stahl A., Vassen R., Sebold D., Improvement of EB-PVD thermal barrier coatings by treatments of a vacuum plasma-sprayed bond coat, Surf. Coat. Techn., 2008, 203,160–170.10.1016/j.surfcoat.2008.08.071Search in Google Scholar

[16] Doleker K. M., Karaoglanli A. C., Comparison of oxidation behavior of YSZ and Gd2Zr2O7 thermal barrier coatings (TBCs), Surf. Coat. Techn., 2017, 318,198-207.10.1016/j.surfcoat.2016.12.078Search in Google Scholar
