Abstract
Recently, enormous research passion has been devoted to reduce air pollution caused by vehicle emissions. Effective vehicle emission control method is to convert exhaust pollutants by placing catalyst in the exhaust pipe. However, the major stumbling block is that a large portion of emission occurs in the initial 20–30 s during the engine cold-start stage, before catalyst can reach its operating temperature. To address the challenge, herein we developed a catalyst utilizing Pd and Rh as active components, Ce-Zr solid solution as assistant, γ-Al2O3 as coating and Fe-Cr-Al as supporter. The catalyst component was optimized (atom ratio of Ce:Zr is 6:4, mass ratio of Pd:Rh is 8:2, total weight of Pd and Rh is 1.2 g/L, pore density is 700 pores/inch2) and high-frequency electrical heating technique was employed to decrease operating temperature from 400°C to 350°C and improve exhaust conversion efficiency by 78%.
1 Introduction
Hydrocarbons (HCs), nitrogen oxides (NOx), carbon oxides (CO), which result from vehicle exhaust and industrial combustion of fossil fuels, are major air pollutants [1,2]. They contribute to a variety of harmful environmental effects, such as smog and acid rain [3,4], and threaten people’s life [5]. It is reported that 90% of the pollutant in nine Chinese cities comes from vehicle exhaust, industrial manufacture, coal burning, and vehicle exhaust is the primary pollution source [6]. The reduction of vehicle exhaust has become one of the greatest challenges in environmental protection [7,8,9,10,11,12].
To date, scientists have developed several traditional vehicle exhaust control methods: electrical heating catalyst, second air injection system, exhaust gas recirculation and upstream catalyst [13,14], to simultaneously convert CO, HCs and NOx into CO2, H2O and N2, respectively. Among these methods, catalysts require 20–30 s to reach operating temperature (400°C), which causes the emission of 60–80% of HCs and CO [15]. Therefore, it is crucial to find a practical and effective method to shorten the time difference between engine cold-start and exhaust conversion.
Herein, we developed a catalyst utilizing Pd and Rh as active components, Ce-Zr solid solution as assistant, γ-Al2O3 as coating and Fe-Cr-Al as supporter, to decrease operating temperature and increase exhaust conversion efficiency. With the optimization of catalyst component and the employment of a high-frequency electrical heating method, the exhaust conversion efficiency was improved by 78%.
2 Experimental
2.1 Materials
Materials included Pd(NO3)2, Rh(NO3)3, HNO3, CexZr(1–x) O2, γ-Al2O3 (Sinopharm Chemical Reagent Co., Ltd, AR); Al2O3·H2O (Jiangyan Chemicals Co., Ltd, AR); Fe-Cr-Al supporter (Corning Inc.); 10% C3H8/N2, 5000 ppm NO/N2, 50% CO/N2 (Shanghai Pujiang Special Gas Industry Co., Ltd.).
Instruments included evaluation device, vacuum extraction unit (East China University of Science and Technology); induction heater (MacDZ-10/380, Shanghai OG Electrical Co., Ltd); thermal imager (Fluke Ti2, Fluke Corporation); NOx analyzer (Model 42i-HL, Thermo Fisher Scientific); gas chromatography (9790, Fuli Analytical Instrument Co., Ltd); ball miller (QM-WX04, Nanjing University); drying oven (LC-223, Shanghai Environmental Equipment Corp.); muffle furnace (KS60-63-160, Shanghai Yifeng Co., Ltd).
2.2 Methods
2.2.1 Preparation
To prepare Pd slurry, Pd(NO3)2 solution (19.2 g, in concentration of 10%), Al2O3·H2O (l8.8 g), γ-Al2O3 (115.2 g) and Ce-Zr solid solution (28.8 g) were mixed in water (100 g) and stirred (800 rpm, 30 min). HNO3 (7.4 g, in concentration of 65–68%) was slowly added to the solution until the pH reached 3–4. After adding 30.6 g water, the mixture was milled (1200 rpm, 2 h), in which the content of oxides and Pd in the slurry was 50% and 0.6%, respectively.
To prepare the Rh slurry, Rh(NO3)3 solution (9.6 g, in concentration of 10%), Al2O3·H2O (9.4 g), γ-Al2O3 (57.6 g) and Ce-Zr solid solution (14.4 g) were mixed in water (50 g) and stirred (800 rpm, 30 min). HNO3 (3.7 g) was slowly added to the solution until pH reached 3–4. After adding 15.3 g water, the mixture was milled (1200 rpm, 2 h), in which the content of the oxides and Rh was 50% and 0.6%, respectively.
Pd and Rh slurries were then mixed in a designed ratio to prepare the catalyst. Fe-Cr-Al supporter was cut into 2 cm × 2 cm × 2 cm cubes, washed with a cleaning agent, rinsed with water, annealed in air (750°C, 3 h), and then immersed in the mixed slurry (5 min, under vacuum). The slurry-supporter composite was dried (120°C, 24 h) and calcined (550°C, 3 h). The standard mass of the catalyst should be 810 ± 20 mg, and the content of oxides and metal should be ca. 100 g/L and 1.2 g/L, respectively. If mass was lower than the standard value, a second immersion was necessary. If higher, the catalyst should be discarded.
2.2.2 Instrumentation
The properties of obtained catalysts were evaluated using the instruments shown in Figure 1 (thermocouple was settled at the center of catalysts). A seal test on the pipeline joint was conducted using soap solution before the mix gas was pumped in. The exhaust gas during the engine cold-start stage is composed of CO (1%), C3H8 (1000 ppm), NOx (1000 ppm), O2 (determined based on the theoretical air-fuel ratio of 14.6), and N2 (as a supplement), with a total gas flow of 1000 mL/(min·g).

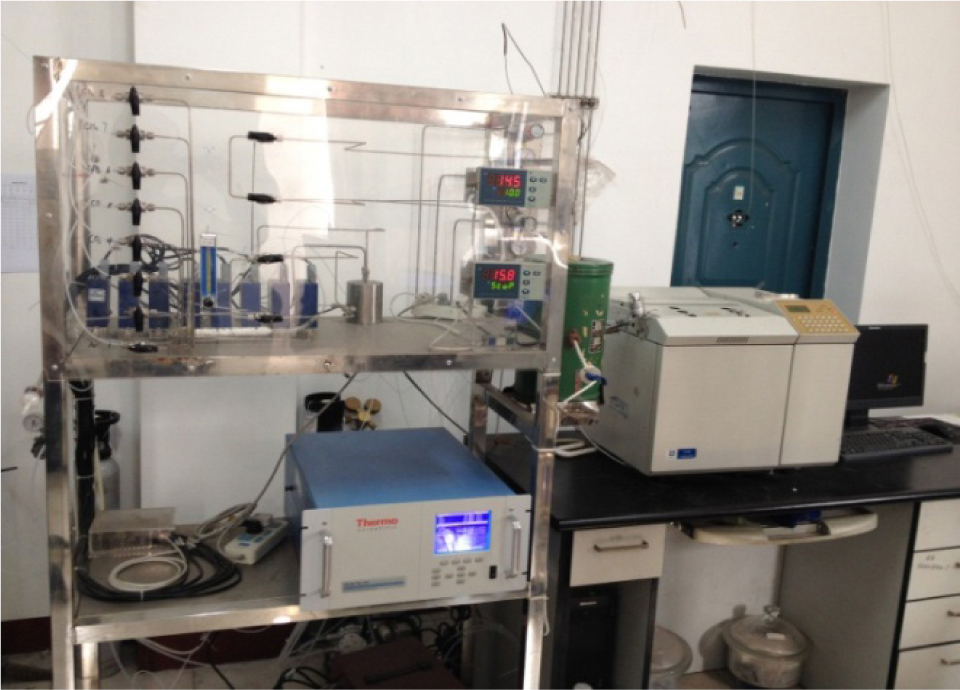

Evaluation device.
In the normal evaluation, the reactor was heated to the setting temperature by an electric furnace (5 °C/min). The catalyst was rapidly heated via magnetic heating or via electrical heating. The reactants and products were taken after the reactor and remained at a settled temperature for 20 min. The concentration of NO and NO2 was read out from NOx analyser, and the concentration of other gases could be calculated from the gas chromatography.
Ethical approval: The conducted research is not related to either human or animals use.
3 Results and discussion
3.1 Catalyst Optimization
The simulation exhaust gas during the engine cold-start stage is composed of CO (1%), C3H8 (1000 ppm), NOx (1000 ppm), O2 (determined based on the theoretical air-fuel ratio of 14.6), and N2 (as a supplement), with a total gas flow of 1000 mL/(min·g). The atom ratio of Ce:Zr, mass ratio of Pd:Rh, pore density of supporter and light-off temperature (where half of a component was transformed) was utilized to evaluate catalytic properties at low temperature (Figure 2).

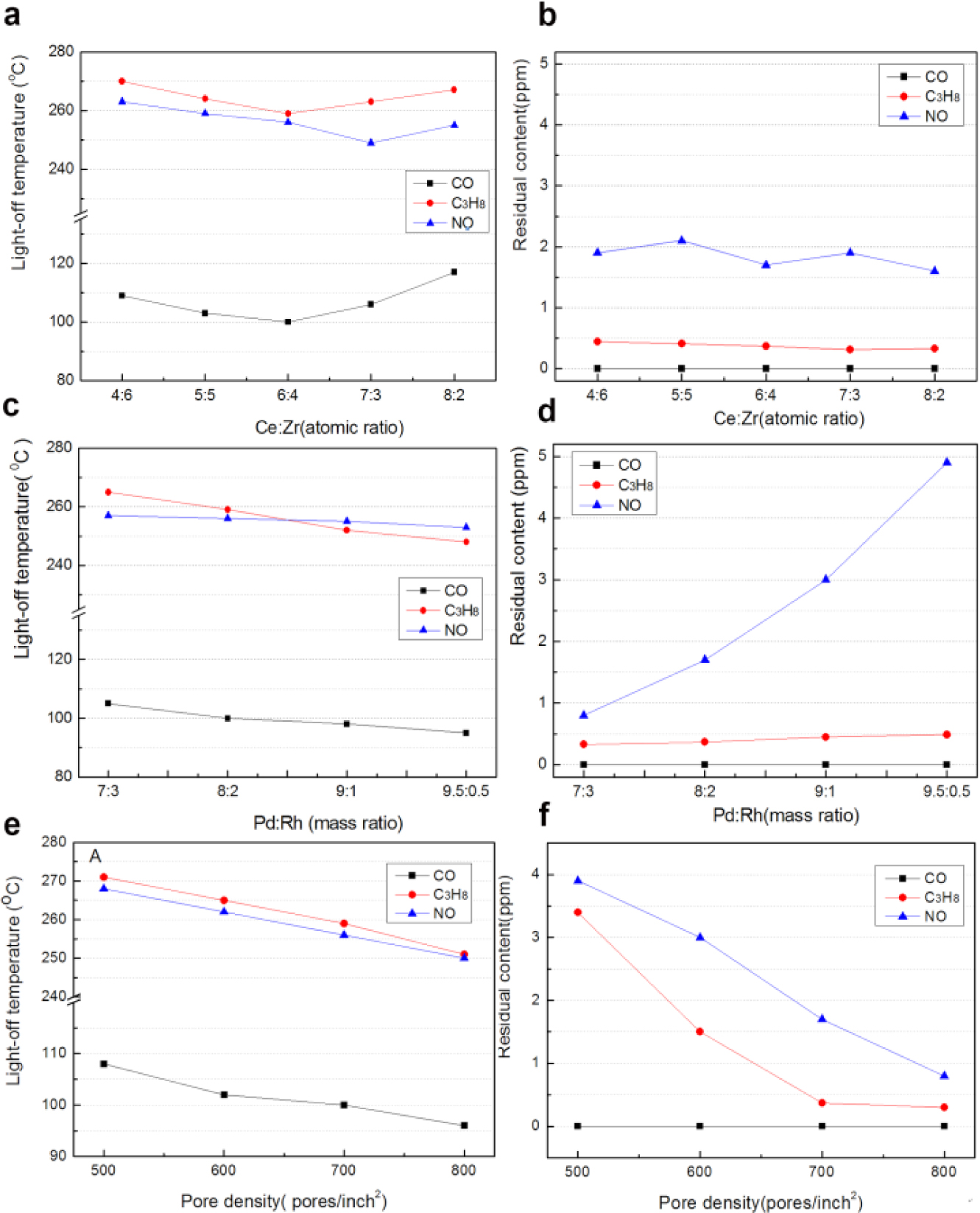

Effect of (a, b) Ce:Zr atom ratio, (c, d) Pd:Rh mass ratio, (e, f) pore density on light-off temperature and residual content.
Properties of catalysts with different atom ratios of Ce:Zr are depicted in Figure 2a and 2b. The light-off temperatures of CO, C3H8 and NO decrease initially and then increase when atom ratio of Ce:Zr increases from 4:6 to 8:2. The light-off temperatures of CO and C3H8 reach the lowest point at atom ratio of 6:4 while that of NO reaches its minimum at the atom ratio of 7:3. The results indicate that atom ratio of Ce:Zr should be around 6:4 for the catalyst with a low light-off temperature.
Figure 2c and 2d indicate influence of the mass ratio of Pd:Rh on the catalytic properties while keeping the total weight of Pd and Rh at 1.2 g/L. The light-off temperatures of the catalysts for CO, C3H8 and NO decrease when Pd content increase. This is beneficial for catalytic effect at low temperature, but the excessive increase in Pd content will reduce Rh content of the catalyst and make the concentration of residual NO exceed the legal emission limit. Therefore, the mass ratio of Pd:Rh should be in the range of 8:2 to 9:1 to both lower the light-off temperature and residual gas concentration.
Figure 2e and 2f show the effect of pore density of supporter on the catalytic property in which the mass ratio of Pd:Rh is 8:2, atom ratio of Ce:Zr is 6:4, and total weight of Pd and Rh is 1.2 g/L. The light-off temperatures of catalysts and the concentration of residual gases decrease with the increase of pore density of supporter. The increased efficiency of exhaust conversion is attributed to the increase of contact surface area between catalyst and exhaust. However, if pore density increases excessively, pores will be too small and easily blocked by soot particles. The engine consequently cannot work stably due to the high emissions resistance in the exhaust pipe. Thus, an optimal supporter is a compromise between its pore density and its light-off temperature.
With these data in hand, we managed to determine the optimized catalyst component: atom ratio of Ce:Zr is 6:4, mass ratio of Pd:Rh is 8:2, total weight of Pd and Rh is 1.2 g/L, pore density is 700 pores/inch2.
3.2 Transformation behaviour
We sought to probe the transformation behaviour of simulation exhaust gas over the optimized catalyst. Results were recorded in Table 1. The operating temperature is 350°C, lower than commercial emission control catalyst with an operating temperature of 400°C [13]. The residual concentration is CO (0 ppm), C3H8 (0.37 ppm), NO (1.7 ppm) and NO2 (1.4 ppm), which meets the strict emission requirement.
Residual concentration of simulated exhaust gases over optimized catalyst.
| Time/min | t/°C | CO/ppm | C3H8/ppm | NO/ppm | NO2/ppm |
|---|---|---|---|---|---|
| 0 | 25 | 10000.00 | 1000.00 | 1000.00 | 0.00 |
| 40 | 100 | 10000.00 | 1000.00 | 870.21 | 14.01 |
| 178 | 2.57 | 1022.74 | 642.07 | 7.11 | |
| 215 | 1.52 | 1015.85 | 698.02 | 11.01 | |
| 250 | 0.00 | 973.92 | 657.20 | 8.01 | |
| 300 | 0.00 | 98.04 | 410.30 | 6.10 | |
| 177 | 350 | 0.00 | 0.37 | 1.70 | 1.40 |
3.3 Fast heating method
While the optimization of the catalyst can, to some extent, lower the light-off temperature, it is still necessary to shorten the time difference between engine cold-start and the time when catalyst reaches its operating temperature. Therefore, we took a step further to investigate two fast heating methods: magnetic heating and electrical heating.
Magnetic heating was first employed, and the catalyst could reach 350°C within 10 s (under the current of 20 A), but there was a large temperature difference between the outer (350°C) and center (185°C) of the catalyst, due to the magnetic shielding effect. Thus, we utilized high-frequency electrical heating method instead. The heating experiment was conducted with a gas flow (setting temperature of 350°C, current of 20 A, current frequency of 21.9 KHz and air flow rate of 6000 mL/min). Results indicate that both outer and center temperatures reach 350°C in 5 s with an even distribution.
The experiment of simulated exhaust gas over optimized catalyst with high-frequency electrical heating was conducted (Table 2). Compared with Table 1, conversion time (5 s vs. 2 h 57 min) and residual concentration of harmful nitrogen oxides, NO (0.9 ppm vs. 1.7 ppm) and NO2 (1.2 ppm vs. 1.4 ppm), were significantly decreased, indicating that high-frequency electrical heating of catalyst could indeed improve exhaust conversion efficiency at engine cold-start stage. The residual concentration of NO is plotted to retention time (Figure 3), which shows that conversion efficiency increases by 78% compared with traditional techniques.
Residual concentration of simulated exhaust gases over optimized catalyst with high-frequency electrical heating.
| Time /s | touter/°C | tcenter/°C | CO/ppm | C3H8/ppm | NO/ppm | NO2/ppm |
|---|---|---|---|---|---|---|
| 0 | 9 | 9 | 10000 | 1000 | 1001 | 0 |
| 1 | 228 | 227 | — | — | 763 | 9 |
| 3 | 349 | 347 | — | — | 131 | 11 |
| 5 | 350 | 350 | 0 | 0.56 | 0.9 | 1.2 |
touter – the outer temperature of catalyst, tcenter – the center temperature of catalyst

Comparison of NO removal effect between traditional and novel catalyst at engine cold-start stage.
4 Conclusions
To summarize, we developed a novel catalyst for fast removal of pollutants from engine cold-start stage. The catalyst was optimized to the following component: atom ratio of Ce:Zr is 6:4, mass ratio of Pd:Rh is 8:2, total weight of Pd and Rh is 1.2 g/L, pore density is 700 pores/inch2 with Pd and Rh as active components, Ce-Zr solid solution as assistant, γ-Al2O3 as coating and Fe-Cr-Al as supporter. It is corroborated that modified catalyst starts to convert pollutants in 1 s, much faster than traditional catalyst which needs 20–30 s. Moreover, it can decrease operating temperature from 400°C to 350°C and improve exhaust conversion efficiency by 78% with the application of high-frequency electrical heating method. This novel catalyst is reliable and widely applicable, which provides a promising future in the advancement of exhaust conversion technique at engine cold-start stage.
Conflict of interest: Authors state no conflict of interest.
References
[1] Zhu J., Zhang L., Deng Y., Liu B., Dong L., Gao F., et al., Influence of preparation method on the catalytic activities of CuO/Ce0.67Zr0.33O2 catalysts in CO + O2 reaction, Appl. Catal. B-Environ., 2010, 96, 449–457.10.1016/j.apcatb.2010.03.003Suche in Google Scholar
[2] Twigg M.V., Progress and future challenges in controlling automotive exhaust gas emissions, Appl. Catal. B-Environ., 2007, 70, 2–15.10.1016/j.apcatb.2006.02.029Suche in Google Scholar
[3] Cheng Y., Liu Y., Huo M., Sun Q., Wang H., Chen Z., et al., Chemical characteristics of precipitation at Nanping Mangdang Mountain in eastern China during spring, J. Environ. Sci-China, 2011, 23, 1350–1358.10.1016/S1001-0742(10)60560-8Suche in Google Scholar
[4] Chen N., Hong H., Huang Q., Wu J., Atmospheric nitrogen deposition and its long-term dynamics in a southeast China coastal area, J. Environ. Manage., 2011, 92, 1663–1667.10.1016/j.jenvman.2011.01.026Suche in Google Scholar PubMed
[5] Tang E., Peng C., How does pollutant emission in waste gas impact on human mortality rates in Chinese geographical provinces level? Environ. Earth Sci., 2016, 75, 1259.10.1007/s12665-016-6064-9Suche in Google Scholar
[6] He L.Y., Qiu L.Y., Transport demand, harmful emissions, environment and health co-benefits in China, Energ. Policy, 2016, 97, 267–275.10.1016/j.enpol.2016.07.037Suche in Google Scholar
[7] Fan Z., Wang X., Qian Y., Liu X., Preparation and purifying efficiency of a new silicon carbide porous ceramics in auto exhaust emission control, Environ. Pollut. Control., 2009, 31, 63–66.Suche in Google Scholar
[8] Chu R., Zhang G., Xie H., The research of application of nanotechnology in purification automobile exhaust, Environ. Sci. Manage., 2007, 32, 111–113.Suche in Google Scholar
[9] Wang J., Chen H., Hu Z., Yao M., Li Y., A review on the Pd-based three-way catalyst, Catal. Rev., 2015, 57, 79–144.10.1080/01614940.2014.977059Suche in Google Scholar
[10] Guo Y., Lu G., Zhang Z., Zhang S., Qi Y., Liu Y., Preparation of CexZr1–x(O2 (x = 0.75, 0.62) solid solution and its application in Pd-only three-way catalysts, Catal. Today, 2007, 126, 296–302.10.1016/j.cattod.2007.06.033Suche in Google Scholar
[11] He H., Yu Y., Selective catalytic reduction of NOx over Ag/Al2O3 catalyst: from reaction mechanism to diesel engine test, Catal. Today, 2005, 100, 37–47.10.1016/j.cattod.2004.11.006Suche in Google Scholar
[12] He X., The study of low-temperature light-off catalysts for exhaust gas emission control, PhD thesis, Kunming University of Science and Technology, Yunnan, China, 2011.Suche in Google Scholar
[13] Jiang Z., Reflections on energy issues in China, J. Shanghai Jiaotong Univ. (Sci.), 2008, 13, 257–274.10.1007/s12204-008-0257-7Suche in Google Scholar
[14] Heo I., Choung J.W., Kim P.S., Nam I.S., Song Y.I., In C.B., et al., The alteration of the performance of field-aged Pd-based TWCs towards CO and C3H6 oxidation, Appl. Catal. B-Environ., 2009, 92, 114–125.10.1016/j.apcatb.2009.07.016Suche in Google Scholar
[15] Aparicio M.S.L., Canafoglia M.E., Ocsachoque M.A., Lick I.D., Botto I.L., Co-Rh modified natural zeolites as new catalytic materials to oxidize propane and naphthalene from emission sources, Open Chem., 2016, 14, 335–342.10.1515/chem-2016-0036Suche in Google Scholar
