Home Frost resistance and life prediction of recycled brick aggregate concrete with waste polypropylene fiber
Article Open Access

Frost resistance and life prediction of recycled brick aggregate concrete with waste polypropylene fiber

  • Shenao Cui , Ting Wang , Zhaochuan Zhang , Xiao Sun , Jiahui Li , Bangxiang Li , Weishen Zhang , Tian Su EMAIL logo and Fubo Cao EMAIL logo
Published/Copyright: December 14, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
REVIEWS ON ADVANCED MATERIALS SCIENCE
From the journal REVIEWS ON ADVANCED MATERIALS SCIENCE Volume 62 Issue 1

Abstract

Due to recycled aggregate concrete technology, sustainable resource utilization can be achieved, but the weak frost resistance of this type of concrete affects its application in cold regions. Using waste polypropylene fibers as reinforcing materials can improve the mechanical properties and durability of concrete. This study explores the influence of waste polypropylene fiber on the frost resistance durability and microstructure of recycled brick aggregate (RA) concrete. The results show that with the increase in freeze–thaw cycles, the mass of the concrete first increases and then decreases, while its relative dynamic elastic modulus and compressive strength gradually decrease. After 60 freeze–thaw cycles, the maximum mass loss, maximum relative dynamic elastic modulus loss, and maximum compressive strength loss of the RA concrete are 1.73, 45.1, and 73.7%, respectively. Waste fiber (WF) can improve the frost resistance of concrete, as demonstrated by the obvious reduction in mass loss, relative dynamic elasticity modulus loss, and compressive strength loss, which are 0.11, 33.0, and 64.0%, respectively, after 60 freeze–thaw cycles. The action mechanism of WF on the frost resistance of RA concrete is revealed, and the life prediction model of RA concrete with WF under freeze–thaw conditions is established.

Keywords: recycled concrete; waste fiber; relative dynamic elastic modulus; frost resistance; life prediction model

1 Introduction

In recent years, the environmental pollution caused by construction waste has become increasingly serious [1]. Recycled concrete has gradually attracted the attention of scholars for its environmentally protective and cost-saving advantages [2]. The surface of recycled aggregate is attached to old cement mortar, which makes the interface transition zone (ITZ) more complex, and some initial microcracks are generated during the crushing process of the recycled aggregate, giving recycled concrete lower mechanical properties and durability than ordinary concrete [3]. Most research on recycled concrete has mainly concentrated on recycled stone aggregate concrete [4,5]. Waste brick is also the main component of construction waste [6]. Therefore, research on recycled brick aggregate (RA) concrete is also of great significance.

Due to the lower strength of waste bricks, more serious internal damage is generated during the crushing process, resulting in more microcracks inside the brick aggregate [7]. Through studying the mechanical properties of RA concrete, it was found that when the replacement rate of brick coarse aggregate was small, its effect on compressive strength was not significant [8], and its effect on splitting tensile strength and flexural strength was negligible [9]; when the replacement rate of brick coarse aggregate was greater than a certain degree, the mechanical properties of the concrete were significantly reduced [10,11], but compared with the compressive strength, the splitting tensile strength and flexural strength changed relatively little [12]. Moreover, the effect of brick aggregate on the mechanical properties of low water/cement ratio concrete was greater than that with a high water/cement ratio [13].

In the middle and high latitudes, concrete buildings often suffer from freeze‒thaw damage [14]. The solution volume inside the concrete increases continuously after freezing. When the pore solution volume exceeds 91%, the pressure generated by the solution freezing causes damage to the concrete [15], degrading its mechanical properties and durability [16] and thereby affecting the normal use of the building [17]. After freeze–thaw cycles, the compressive strength and relative dynamic elastic modulus of concrete show a downwards trend [18]. The higher water absorption rate of recycled aggregate seriously affects the frost resistance durability of recycled concrete. After freeze–thaw cycles, the compressive strength, mass loss, and relative dynamic elastic modulus of recycled concrete decrease more than those of ordinary concrete [19], and the decrease degree increases with an increased recycled aggregate replacement rate [20,21]. Zaharieva et al. [22] found that during the freeze–thaw process, recycled aggregates discharge their internal water into the surrounding cement mortar, which is the main reason for the more severe freeze–thaw damage in recycled aggregate concrete. Hu and Wu [23] conducted a study on the salt frost resistance of recycled aggregate concrete and found that its resistance in salt water was inferior to that in fresh water. Some scholars have also found that the frost resistance of recycled aggregate concrete is equivalent to that of ordinary aggregate concrete. Yildirim et al. [24] found that when the replacement rate of recycled aggregate was 50%, the frost resistance of recycled concrete was not inferior to that of its ordinary counterpart. Richardson et al. [25] screened and washed recycled aggregates and found that the frost resistance of the concrete prepared using them was even better than that of ordinary concrete. In addition, Gokce et al. [26] found through experiments that the frost resistance of recycled concrete was significantly improved when using waste concrete containing air-entraining agents to prepare recycled aggregates. To date, scholars have carried out a great deal of research on the mechanical properties and frost resistance of recycled stone aggregate concrete [27], while research on RA concrete is relatively scarce.

Since the beginning of its industrial production, polypropylene fiber has been widely used in the field of clothing fabrics due to its light weight, high strength, and stability [28,29]. In recent years, the treatment of waste textiles with polypropylene fiber as the main raw material has also begun to attract attention. If waste fiber (WF) is added to recycled concrete as a reinforcing material [30], it can not only effectively improve the mechanical properties and durability [31], but also solve the problem of waste textile treatment. Through experimental research, it was found that fiber length and content had an impact on the mechanical properties of recycled concrete [32,33]. The compressive strength of WF recycled concrete with a fiber length of 30 mm and fiber content of 0.12% was found to be the best; the splitting tensile strength of that with a fiber length of 19 mm and fiber content of 0.12% was the best [34]. The impact of WF on the early strength of the concrete was more significant. Its compressive strength at an early age was higher than that of ordinary concrete with the same concrete mix ratio, while its 28 days compressive strength was slightly lower than that of ordinary concrete. This is due to the crack resistance effect of WF, which improves the early strength of WF recycled concrete [35]. The WF also affected the size effect of the concrete. With the increase in the WF content, the size effect phenomenon showed a trend of decreasing first and then increasing [36].

In addition, the incorporation of WF could also improve the durability of recycled concrete [37]. After adding WF, the chloride ion erosion resistance of this concrete is improved. With the increase in WF content, the chloride ion content shows a downwards trend [38]. It has also been found that adding a proper amount of WF could hinder the development of internal cracks and improve the frost resistance of recycled concrete. However, if too much WF is mixed, it would be unevenly distributed inside the concrete, increasing the number of harmful voids and weak interfaces, which would hinder the frost resistance [39].

At present, there are relatively few studies on the frost resistance of recycled concrete with WF, and most of them fail to clarify the mechanism involved. In addition, the existing research mostly focuses on the mechanical properties and durability of recycled stone aggregate concrete with WF, with research on applying WF in RA concrete being relatively scarce. Intending to improve RA concrete’s frost resistance and realize its application in cold areas, in this study, we conducted in-depth research on the frost resistance durability of such concrete with WF, exploring the influence and action mechanism of this fiber on the concrete’s frost resistance and microstructure through microstructure analysis. Based on the Weibull distribution theory, a life prediction model of WF RA concrete under freeze–thaw conditions was established. This study provides a new idea for improving the frost resistance of this type of concrete through the addition of WFs, and it could provide a theoretical basis and technical support for applying such concrete in cold regions and promoting the widespread application of recycled concrete in practical engineering.

2 Experimental overview

2.1 Raw materials

P.O 42.5 Ordinary Portland Cement applied in this study met the requirements of GB175-2007 [40]. The specific surface area of the cement was 344 m−2·kg; the 3 days and 28 days compressive strengths were 22.2 and 47.3 MPa, respectively. The 3 days and 28 days flexural strengths were 4.9 and 7.8 MPa, respectively. The natural coarse aggregate (NA) was crushed stone collected from Zibo City. RA was obtained through crushing, cleaning, and grading waste bricks. The particle size of the NA and RA ranged from 5 to 25 mm; their crush index was 8.70 and 27.90%, respectively; and their water absorption was 1.10 and 16.50%, respectively. The fineness modulus of the fine aggregate used in this study was 2.9, and the water absorption was 3.1%. The waste polypropylene carpet was manually cut into 19 mm test WF, as shown in Figure 1.

Figure 1 WF.
Figure 1

WF.

2.2 Mix proportion

The concrete mix proportion is shown in Table 1. It should be noted that the RA needed to reach the saturated surface dry state before use. To ensure the uniform distribution of WFs in the concrete, the dry mixing method was adopted in this experiment: First, the sand and coarse aggregate were loaded into the mixer for dry mixing for 1 min, and then mixed with cement and WFs for 5 min. Finally, water was added and fully stirred for 5 min.

Table 1

Concrete mix design (kg·m−3)

Specimen Water Cement Sand NA RA WF
P [44] 175 350 700 1,140 0 —
B50 175 350 700 570 468 —
B100 175 350 700 0 936 —
X2B50 175 350 700 570 468 1.092
X2B100 175 350 700 0 936 1.092

where P is ordinary concrete; B is RA concrete; B50 is recycled concrete with 50% brick aggregate; and X2B50 is recycled concrete with 50% RA and 2% (volume content) WF.

2.3 Frost resistance test program

According to the GB/T 50082-2009 Standard for Test Methods of Long-term Performance and Durability of Ordinary Concrete [41], the freeze–thaw cycle test of concrete prism specimens (100 mm × 100 mm × 400 mm) and concrete cube specimens (100 mm × 100 mm × 100 mm) was carried out using a rapid freeze–thaw cycle test machine (Figure 2). For the study, three replicate test specimens were prepared under different freeze–thaw cycles. The relative dynamic elastic modulus and mass loss of the concrete prism specimens under different freeze–thaw cycles were tested with a DT-10 W dynamic elastic modulus tester (Figure 3) and an electronic scale with a maximum range of 30 kg. The compressive strength of the concrete cube specimens under different freeze–thaw cycles was tested with a microcomputer-controlled electrohydraulic servo pressure testing machine (Figure 4).

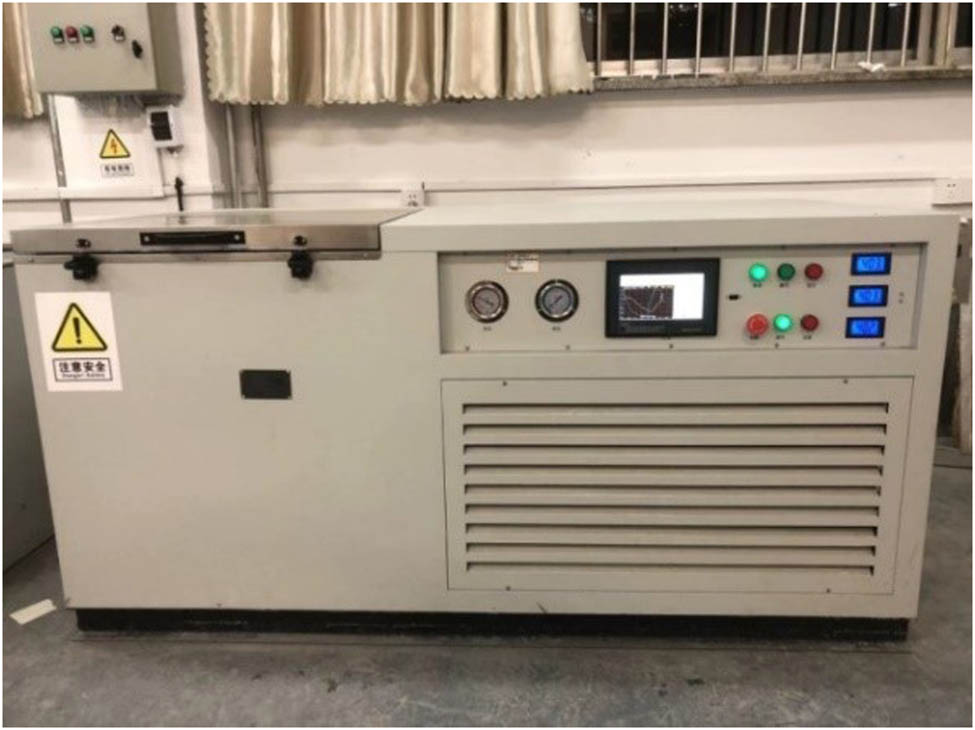

Figure 2 Freeze‒thaw cycle test machine.
Figure 2

Freeze‒thaw cycle test machine.

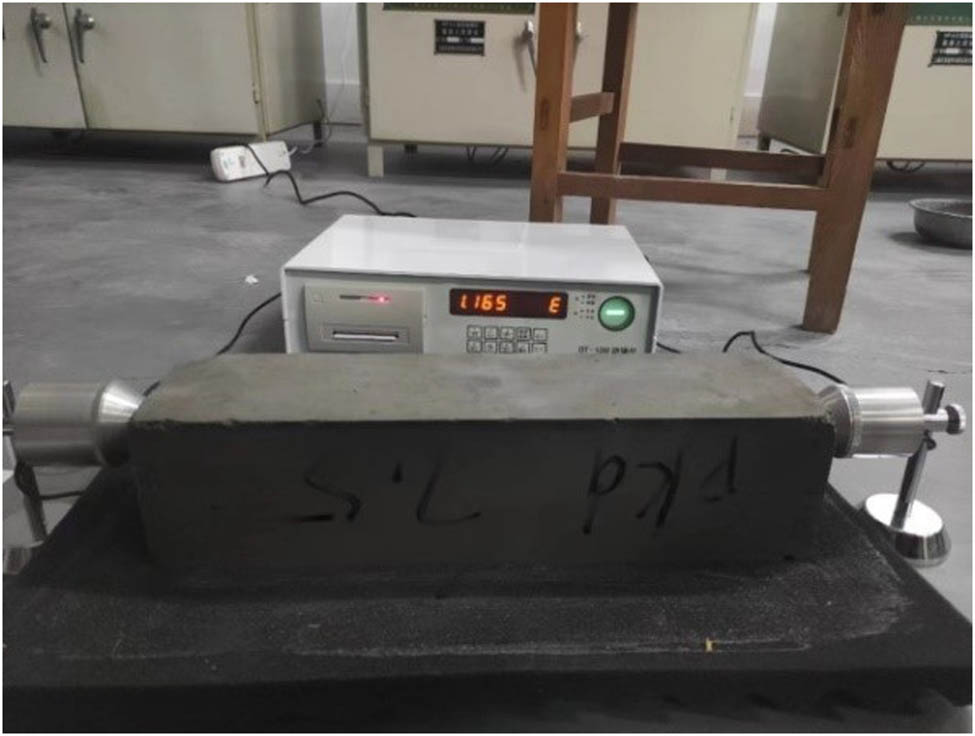

Figure 3 Dynamic elastic modulus tester.
Figure 3

Dynamic elastic modulus tester.

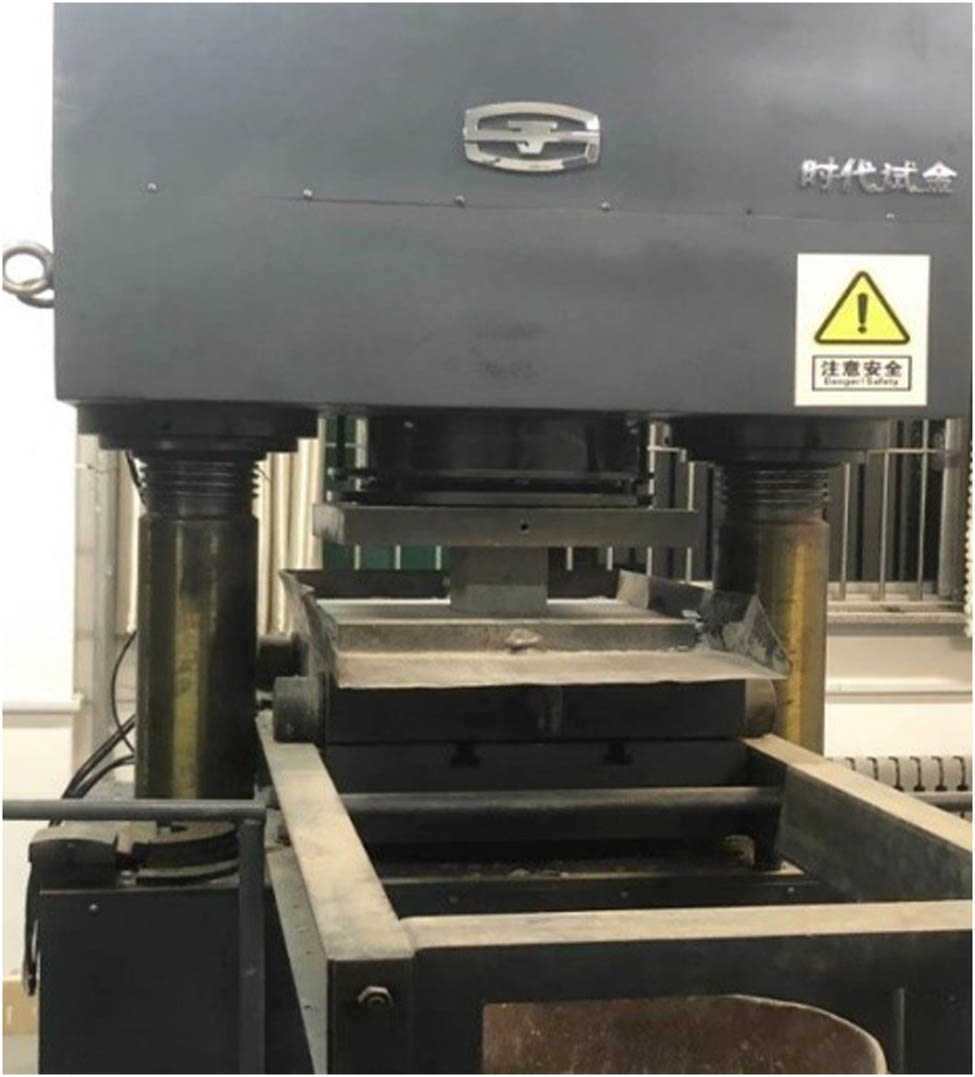

Figure 4 Electrohydraulic servo pressure testing machine.
Figure 4

Electrohydraulic servo pressure testing machine.

2.4 Microstructure test program

The concrete specimens used for microscopic tests were placed in an oven for 24 h (60°C) and then observed under a Quanta 250 FEG field emission environmental scanning electron microscope (SEM), as shown in Figure 5. The specific process was as follows: First, the RA concrete specimens to be tested with a size of 10 mm × 10 mm × 10 mm were placed under an SEM.

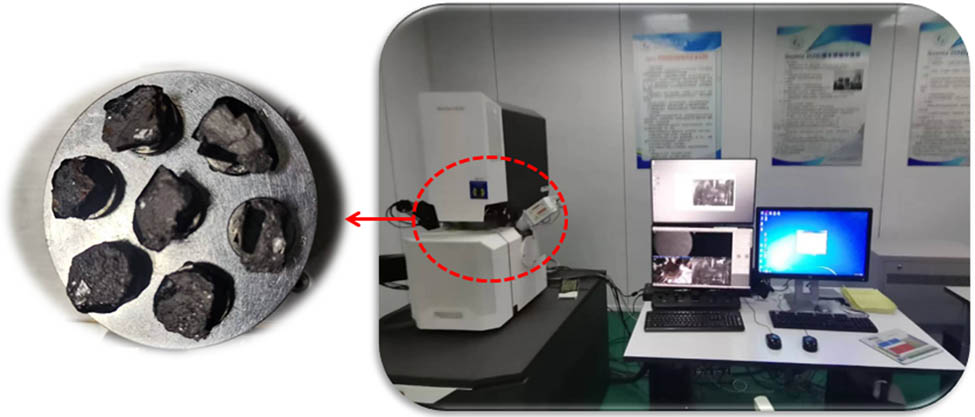

Figure 5 Microstructure test.
Figure 5

Microstructure test.

3 Results and discussion

3.1 Apparent phenomenon after freeze–thaw cycle

The apparent phenomenon and general microscope observation image of the concrete after the freeze–thaw cycle are shown in Figures 6 and 7, respectively. It can be seen that before the freeze–thaw cycle, the surface of the concrete specimen was smooth, and there was no obvious difference between each group of specimens. After ten freeze–thaw cycles, a small amount of cement mortar fell off, and there were small holes in each group. The peeling phenomenon was not significant, and the apparent phenomenon of different concrete was not significantly different. After 30 freeze–thaw cycles, the number of small holes in the ordinary concrete specimen increased, and the coarse aggregate was exposed; the surface of the recycled concrete specimen with a 50% RA replacement rate became rough with densely distributed small holes, and the amount of mortar falling off increased. The recycled concrete specimen with a 100% RA replacement rate had relatively more surface holes than that with a 50% replacement rate. After 50 freeze–thaw cycles, the apparent phenomena of the ordinary concrete and RA concrete specimens were significantly different. The aggregate exposure speed of the ordinary concrete specimens was significantly faster, while the number of small holes on the surface of the RA concrete specimens was higher. The apparent phenomena of the recycled concrete specimen with a 100% RA replacement rate were similar to those with a 50% replacement rate, but the number of small holes on the surface of the former specimen was higher. The reason why the freeze–thaw damage of ordinary concrete is more serious than that of recycled concrete may be related to the different locations of the damage. According to the theory of hydrostatic [42] and osmotic pressure [43], when the freeze–thaw cycle occurs, the large hole in the connecting hole will absorb the water from the small hole, thus squeezing the wall of the large hole. For ordinary concrete, the hole in the ITZ is large, so freeze–thaw failure occurs in the ITZ first. For RA concrete, due to its large water absorption, the water in the ITZ will enter the aggregate during the freeze–thaw cycle, relieving the pressure in this zone. Moreover, the surface of RA is rougher than that of ordinary aggregate, and many pores and cracks make the cement slurry flow into the brick aggregate and integrate, making the bond strength of the RA and cement stone better than that of ordinary aggregate and cement stone.

Figure 6 Apparent phenomena after freeze‒thaw cycle. (a) P [44], (b) B50 [44], (c) B100, (d) X2B50, and (e) X2B100.
Figure 6

Apparent phenomena after freeze‒thaw cycle. (a) P [44], (b) B50 [44], (c) B100, (d) X2B50, and (e) X2B100.

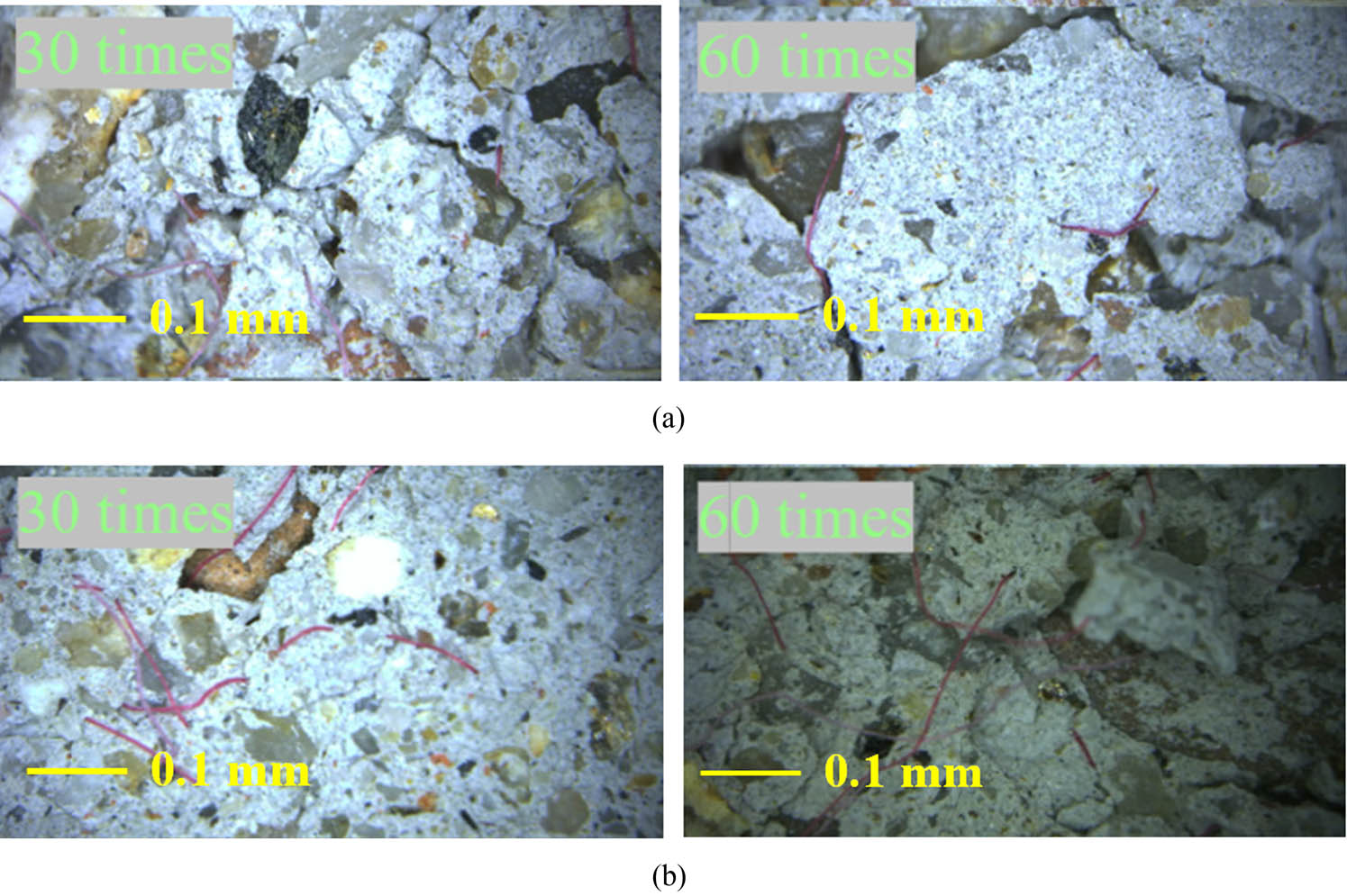

Figure 7 General microscope observation images after freeze‒thaw cycle (zoom in 100×). (a) X2B50 and (b) X2B100.
Figure 7

General microscope observation images after freeze‒thaw cycle (zoom in 100×). (a) X2B50 and (b) X2B100.

In addition, when the number of freeze–thaw cycles was small, there was no significant difference in the surface damage between the RA concrete with and without WF; after 50 freeze–thaw cycles, the phenomenon of cement mortar falling off and aggregate becoming exposed on the surface of the specimen was weaker in the RA concrete with WF. This is because the fiber forms a three-dimensional network structure after being uniformly dispersed in concrete, which can optimize the pore structure and strengthen the connection performance and overall stability of each part of the cement stone, thus enhancing the frost resistance of RA concrete. Figure 7 shows that the WF formed a three-dimensional network structure after being evenly dispersed in the concrete, forming with the cement stone a whole unit, thus preventing the stone from falling off the surface of the specimen. This greatly hindered the secondary loss caused by the expansion of freeze–thaw pores triggered by the cement stone falling off the concrete surface.

3.1.1 Mass loss

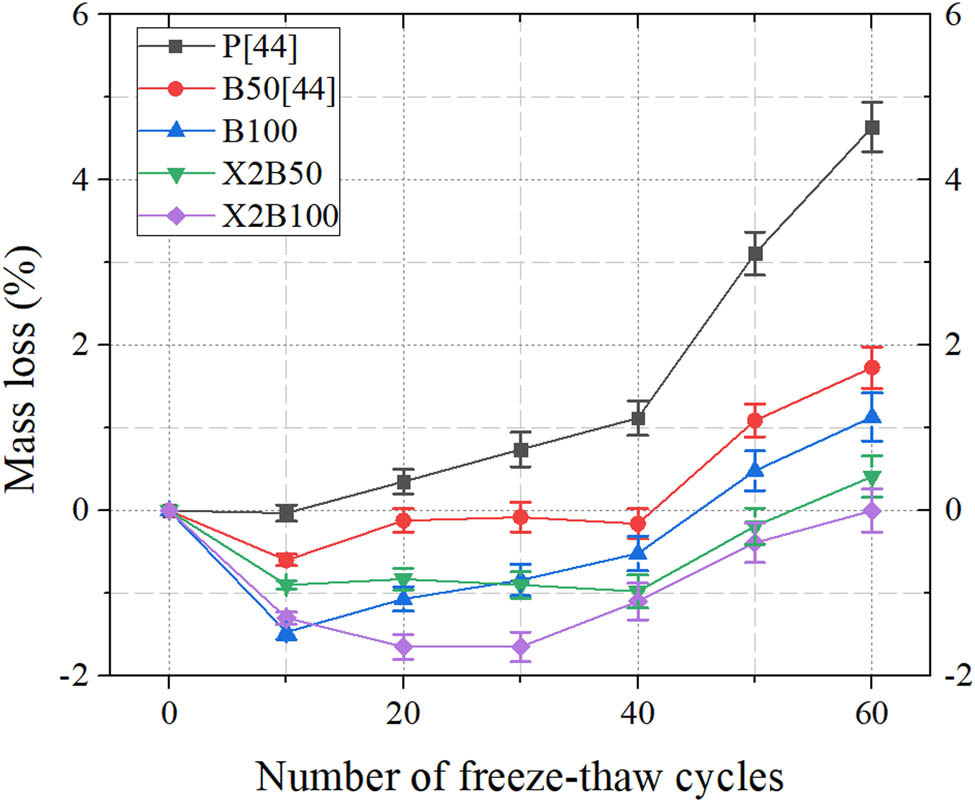

The relationship between the mass loss of concrete specimens and the number of freeze–thaw cycles is shown in Figure 8. It can be seen that the mass of the specimens first increased and then decreased; after 60 freeze–thaw cycles, the mass loss of RA concrete was 1.13–1.73%. The reasons for this increase in the early stage of the freeze–thaw cycle are as follows: When the temperature drops, the water inside the concrete specimen begins to freeze, resulting in a gradual increase in the hydrostatic and osmotic pressure inside the specimen. When the pressure stress on the inner wall of the pore reaches a certain degree, internal microcracks begin to occur. In the freeze–thaw cycle, water enters the specimen through the microcracks, increasing the mass of concrete. When the number of cycles was small, the mass of water entering the specimens was greater than their mass loss, thus increasing the specimens’ mass [45]. With the increase in the number of freeze–thaw cycles, the mortar on the surface of the concrete specimen continued to peel off, and the fine aggregate was lost, increasing the mass loss of the specimens.

Figure 8 Mass loss after freeze‒thaw cycle.
Figure 8

Mass loss after freeze‒thaw cycle.

It can also be seen from Figure 8 that after 60 freeze–thaw cycles, the mass loss of the RA concrete specimens was larger than that of its counterpart without WF, which was 0.11–0.41%. WF could improve the frost resistance of RA concrete by improving the tensile strength of the concrete [46], which could better reduce the peeling of mortar on the concrete surface and reduce the mass loss.

3.1.2 Relative dynamic elasticity modulus

The relationship between the relative dynamic elastic modulus of the concrete specimens and the number of freeze–thaw cycles is shown in Figure 9. The modulus showed a downwards trend after the freeze–thaw cycles. After 60 freeze–thaw cycles, the modulus of the ordinary aggregate concrete, 50% RA concrete, and 100% RA concrete decreased by 48.0, 40.1, and 45.1%, respectively. This is because as the number of freeze–thaw cycles increases, the freeze–thaw damage of concrete continues to increase, resulting in more loose material inside the concrete.

Figure 9 Relative dynamic elasticity modulus after freeze‒thaw cycle.
Figure 9

Relative dynamic elasticity modulus after freeze‒thaw cycle.

The relative dynamic elastic modulus loss of RA concrete with WF was lower than that of its counterpart without WF. After 60 freeze–thaw cycles, the relative dynamic elastic modulus of the 50% RA concrete specimens with WF was 17.8% higher than that of the specimens without WF; the relative dynamic elastic modulus of the 100% RA concrete specimens with WF was 21.8% higher than that of the specimens without WF. It can be seen that the WF with a 2% content can improve the frost resistance of RA concrete and slow down the decrease rate of the relative dynamic elastic modulus. The reason for this is that the appropriate amount of WF can prevent cracks, effectively control the development of microcracks, increase the air content to a certain extent, and improve the pore structure, altogether improving the frost resistance of RA concrete. This is consistent with the conclusions of Huo et al. [47] and Xue and Li [48].

3.1.3 Compressive strength

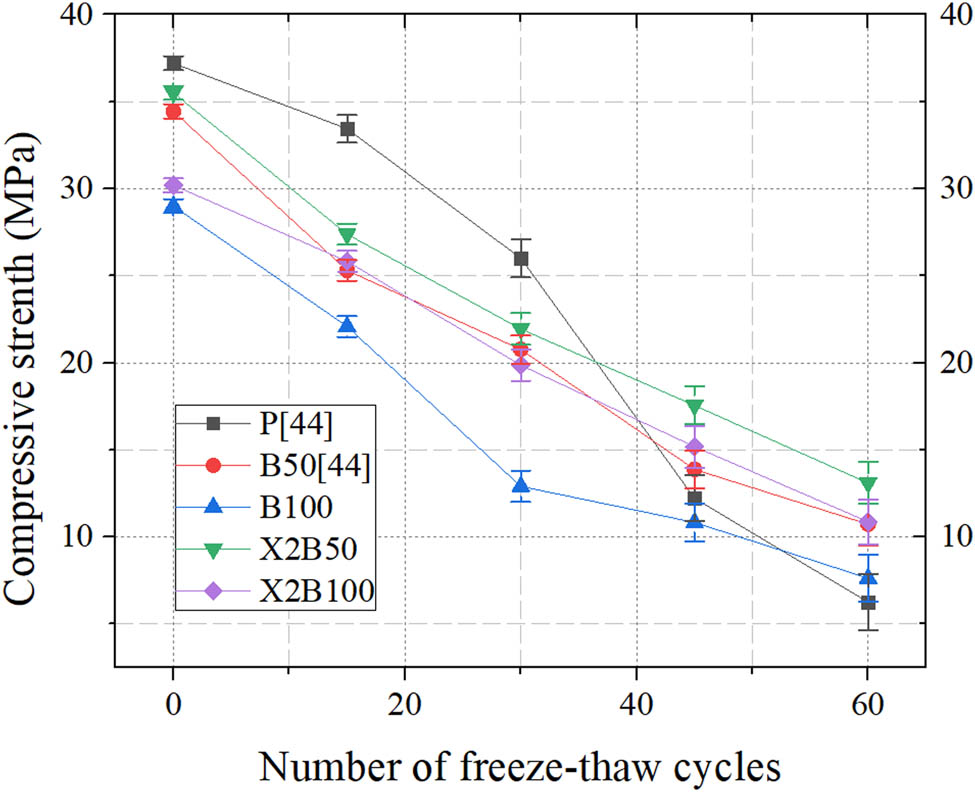

The relationship between the compressive strength of concrete specimens and the number of freeze–thaw cycles is shown in Figure 10. With the increase in the number of freeze‒thaw cycles, the compressive strength of each concrete group gradually decreased. When the number of freeze‒thaw cycles was small, the compressive strength loss of the RA concrete was larger than that of the ordinary concrete. After 30 freeze–thaw cycles, the compressive strength of the ordinary aggregate concrete, 50% RA concrete, and 100% RA concrete decreased by 30.1, 39.7, and 55.5%, respectively. With the increase in freeze–thaw cycles, the compressive strength loss of the RA concrete was lower than that of the ordinary concrete. After 60 freeze–thaw cycles, the compressive strength of the ordinary aggregate concrete, 50% RA concrete, and 100% RA concrete decreased by 83.2, 68.9, and 73.7%, respectively. The reason for this is that when the number of freeze–thaw cycles is small, the porosity of concrete plays a major role in the frost resistance of the specimen. According to the basic performance of the aggregate, the water absorption of RA was 15 times that of stone aggregate (water absorption of NA and RA were 1.10 and 16.50%, respectively), indicating that the internal porosity of RA was higher. With the continuous increase in the RA replacement rate, the total volume of concrete pores continues to increase, and the effective water/cement ratio continues to increase, which reduces the frost resistance. With the increase in freeze–thaw cycles, a large amount of cement stone falls off the concrete, while the surface of RA is rough, which can better embed with the cement stone, thus reducing the cement stone falling off and lessening the resultant secondary damage. Therefore, the appropriate amount of RA can improve the frost resistance of concrete at the later stage of the freeze–thaw cycle.

Figure 10 Concrete compressive strength after freeze‒thaw cycle.
Figure 10

Concrete compressive strength after freeze‒thaw cycle.

It can also be seen that the WF improved the compressive strength of the RA concrete after freeze–thaw cycles. After 60 freeze–thaw cycles, the compressive strength of the 50% RA concrete specimens with WF was 22.1% higher than that of specimens without WF; the compressive strength of the 100% RA concrete specimens with WF was 42.3% higher than that of specimens without WF. In addition, the compressive strength decline curve of the WF RA concrete was close to linearity. As mentioned above, the WF formed a three-dimensional network structure after being evenly dispersed in the concrete, which slowed down the secondary damage caused by cement falling off, thus slowing down the decrease in the compressive strength of the RA concrete after the freeze–thaw cycles.

3.2 Microstructure analysis

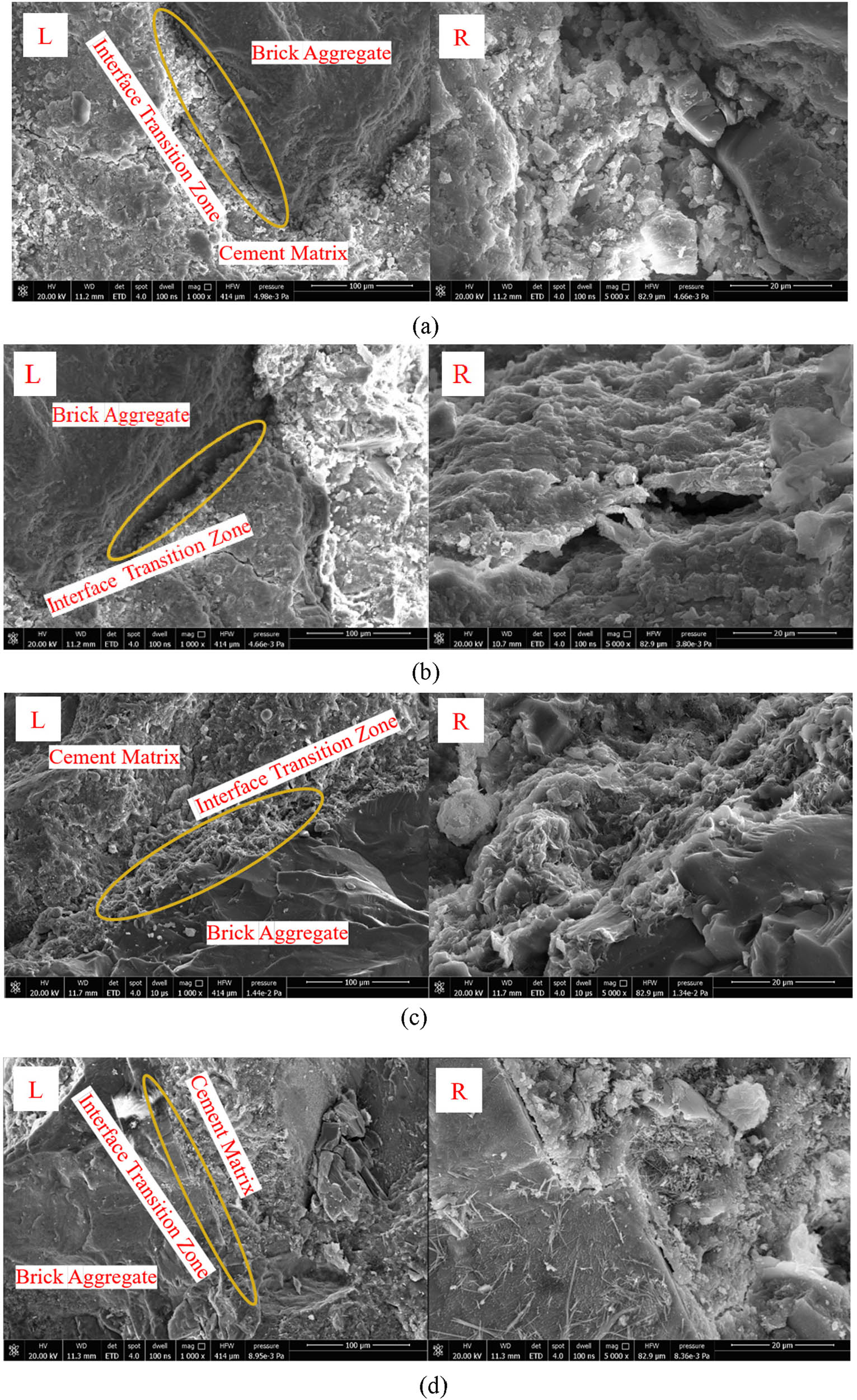

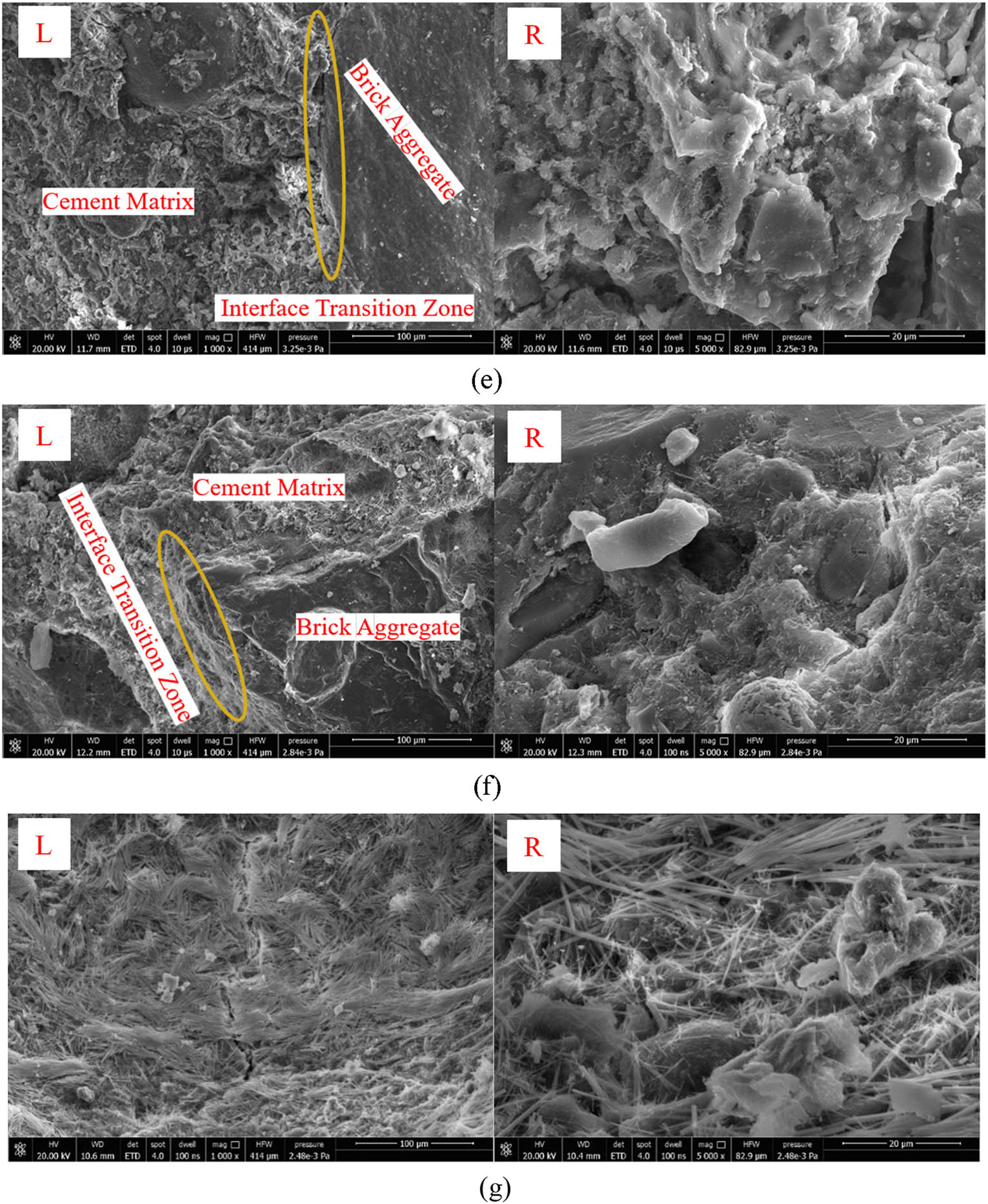

An SEM image of the concrete after the freeze–thaw cycles is shown in Figure 11 (the picture on the left side (L) mainly reflects the bonding between cement stone and aggregate in the ITZ; the picture on the right side (R) mainly reflects the development of cracks and holes in the ITZ or near the cement stone). It can be seen from Figure (a)–L and Figure (b)–L that with the increase in the number of freeze‒thaw cycles, the volume of cement stone covering the aggregate surface in ordinary concrete decreased, which reflected that the bonding ability between the cement stone and aggregate worsened. It can be seen from Figure (a)–R and Figure (b)–R that with the increase in freeze‒thaw cycles, the size of voids and cracks in the ITZ) became larger, and the filling rate of cement stone in the ITZ decreased.

Figure 11 SEM image after freeze–thaw cycle. (a) P-15, (b) P-45, (c) B50-15, (d) B50-45, (e) X2B50-15, (f) X2B50-45, and (g) X2B50-60.
Figure 11 SEM image after freeze–thaw cycle. (a) P-15, (b) P-45, (c) B50-15, (d) B50-45, (e) X2B50-15, (f) X2B50-45, and (g) X2B50-60.
Figure 11

SEM image after freeze–thaw cycle. (a) P-15, (b) P-45, (c) B50-15, (d) B50-45, (e) X2B50-15, (f) X2B50-45, and (g) X2B50-60.

Through the comparison between Figures (a)/(b) and (c)/(d), it can be seen that after the same number of freeze‒thaw cycles, the bonding between aggregate and cement stone in the ITZ of RA concrete was better. This is due to the rough and uneven surface of the RA, which makes the RA and the cement stone bond well, which reduces the cement stone shedding in the ITZ after freeze‒thaw cycles. It can be seen from Figures (c)–R and (d)–R that the boundary of the ITZ became more obvious after undergoing freeze‒thaw cycles. There was no obvious boundary in the ITZ after 15 freeze‒thaw cycles, while a clear boundary appeared after 45 freeze‒thaw cycles.

From Figure (e)–(g), it can be observed that compared to RA concrete, after the same number of freeze‒thaw cycles, fiber reinforced RA concrete with WF had no large voids in the cement stone, and the filling effect of hydration products on the pores was better, which was one of the reasons why WF improved the frost resistance of the RA concrete.

3.3 Freeze–thaw damage life prediction model

According to the principle of damage mechanics, the concrete material was gradually destroyed during the stress process, and the process of material damage could be studied according to the change in damage degree. In this study, the relative dynamic modulus of elasticity was used as an index to evaluate the damage degree. The damage degree D n was defined as:

(1) D n = E 0 − E n E 0 ,

where E 0 is the initial dynamic elastic modulus before the freeze‒thaw cycle and E n is the dynamic elastic modulus after n freeze‒thaw cycles.

In this study, a two-parameter model was used to predict the concrete life. The Weibull probability density function of concrete life (n) is as follows:

(2) f ( n ) = b a n a ( b − 1 ) exp − n a b ,

where a is the scale standard and b is the shape standard. The life probability distribution function of concrete is as follows:

(3) F ( n ) = 1 − exp − n a b .

After n 1 freeze‒thaw cycles, the failure probability of concrete is as follows:

(4) P f ( n 1 ) = 1 − exp − n 1 a b .

When the concrete reaches the freeze‒thaw life (after n n freeze‒thaw cycles), it is considered invalid, at which point P f (n 1) = 1 and D (n n ) = 1. Therefore, the following can be obtained:

(5) P f ( n 1 ) = D ( n n ) .

From the Weibull distribution function, the reliability function can be obtained as follows:

(6) R ( n ) = 1 − F ( n ) = exp − n a b = 1 − D ( n ) .

The Weibull transformation is performed on Eq. (6), and the logarithms on both sides can be obtained:

(7) ln ln 1 R n = b ( ln ( n ) − ln ( a ) ) .

Let Y = ln(ln(1/R(n))), X = ln(n), and C = −bln (a); then, Eq. (7) can be changed to Y = bX + C. If the actual concrete life conforms to the Weibull distribution, then Y and X should show a linear relationship. Through the correlation analysis of the least square method, the parameters b and C and the correlation coefficient R 2 can be obtained. If the correlation coefficient R 2 exceeds 0.9, the linear correlation between Y and X is strong; that is, the life of concrete specimens conforms to the Weibull distribution.

The actual number of freeze–thaw cycles was analyzed as an independent variable, and the Weibull distribution value of concrete life was obtained by fitting with Origin analysis software [49], as shown in Table 2. The Weibull values in Table 2 were linearly fitted to obtain the corresponding Weibull parameter values b and c, as shown in Figure 12 and Table 3. The regression relationship coefficient R 2 was greater than 0.95, indicating that the linear correlation was good; that is, the measured data satisfied the Weibull distribution. The Weibull distribution life prediction model of concrete under a freeze–thaw cycle is as follows:

Table 2

Weibull distribution values

Freeze‒thaw cycle 1/R(n) X = ln(n) Y = ln(ln(1/R(n)))
P [44] 10 1.033058 2.302585 −3.425802
20 1.075269 2.995732 −2.623194
30 1.199041 3.401197 −1.706379
40 1.538462 3.688879 −0.842151
50 1.666667 3.912023 −0.671727
60 1.923077 4.094345 −0.424760
B50 [44] 10 1.048218 2.302585 −3.055660
20 1.075269 2.995732 −2.623194
30 1.234568 3.401197 −1.557220
40 1.310616 3.688879 −1.307493
50 1.428571 3.912023 −1.030930
60 1.666667 4.094345 −0.671727
B100 10 1.041667 2.302585 −3.198534
20 1.081081 2.995732 −2.551540
30 1.282051 3.401197 −1.392468
40 1.333333 3.688879 −1.245899
50 1.5625 3.912023 −0.806793
60 1.818182 4.094345 −0.514437
X2B50 10 1.026694 2.302585 −3.636516
20 1.04712 2.995732 −3.078159
30 1.16144 3.401197 −1.899384
40 1.190476 3.688879 −1.746671
50 1.234568 3.912023 −1.557220
60 1.414427 4.094345 −1.059224
X2B100 10 1.036269 2.302585 −3.334647
20 1.06383 2.995732 −2.782633
30 1.190476 3.401197 −1.746671
40 1.219512 3.688879 −1.617213
50 1.351351 3.912023 −1.200296
60 1.492537 4.094345 −0.915098
Figure 12 Weibull distribution life linear regression line.
Figure 12

Weibull distribution life linear regression line.

Table 3

Weibull distribution results of concrete life

b c R 2
P [44] 1.78883 −7.69613 0.97472
B50 [44] 1.38057 −6.40043 0.95773
B100 1.54921 −6.88425 0.96955
X2B50 1.45034 −7.09274 0.95478
X2B100 1.39152 −6.66270 0.96751

P [44]:

(8) Y = ln ( ln ( 1 / R ( n ) ) ) = 1.78883 ln ( n ) − 7.69613 .

B50 [44]:

(9) Y = ln ( ln ( 1 / R ( n ) ) ) = 1.38057 ln ( n ) − 6.40043 .

B100:

(10) Y = ln ( ln ( 1 / R ( n ) ) ) = 1.54921 ln ( n ) − 6.88425 .

X2B50:

(11) Y = ln ( ln ( 1 / R ( n ) ) ) = 1.45034 ln ( n ) − 7.09274 .

X2B100:

(12) Y = ln ( ln ( 1 / R ( n ) ) ) = 1.39152 ln ( n ) − 6.66270 .

When the relative dynamic elastic modulus was reduced to 60%, the concrete member could be judged as a failure. By substituting “R(n) = 0.6” in Eqs. (8)–(12), it can be concluded that the ultimate freeze–thaw cycles of ordinary aggregate concrete, 50%-replacement-rate RA concrete, 100%-replacement-rate RA concrete, 50%-replacement-rate RA concrete with WF, and 100%-replacement-rate RA concrete with WF are 50, 63, 55, 83, and 74, respectively. The incorporation of RA could improve the frost resistance life of concrete, but the improvement effect decreased with the increase in the brick aggregate replacement rate. When the replacement rate of RA was 50%, the service life of concrete was increased by 26.0%. When the replacement rate of RA is 100%, the life of concrete is increased by 10.0%. In addition, WFs could improve the frost resistance life of RA concrete. The WFs with 2% content could improve the freeze–thaw damage life of 50 and 100%-replacement-rate RA concrete by 31.7 and 34.5%, respectively.

4 Conclusions

1) Before the freeze‒thaw cycle, the surface of the concrete specimen was smooth, and there was no obvious difference between each group of concrete specimens. With the increase in the number of freeze‒thaw cycles, the surface of the concrete specimen exhibited cement mortar peeling, and then the aggregate was exposed and fell off.

2) With the increase in the number of freeze‒thaw cycles, the mass of concrete first increased and then decreased, while the relative dynamic elastic modulus and compressive strength of concrete gradually decreased. After 60 freeze‒thaw cycles, the maximum mass loss, maximum relative dynamic elastic modulus loss, and maximum compressive strength loss of RA concrete were 1.73, 45.1, and 73.7%, respectively.

3) WF could improve the frost resistance of RA concrete, which was mainly manifested in the obvious reduction in cement mortar peeling and aggregate exposure and the reduction in mass loss, relative dynamic elasticity modulus loss, and compressive strength loss. After 60 freeze‒thaw cycles, the maximum mass loss, maximum compressive strength loss, and maximum relative dynamic elastic modulus loss of RA concrete with WF are 0.11, 33.0, and 64.0%, respectively.

4) WF formed a three-dimensional network structure after being evenly dispersed in the concrete, forming with the cement stone a whole unit, thus preventing the cement stone from falling off the surface of the specimen. In addition, WF could change the internal pore structure, making the filling effect of small hydration products in WF concrete specimens on pores better.

5) Based on the Weibull distribution theory, a life prediction model of WF RA concrete under a freeze‒thaw environment was established. WF could improve the freeze‒thaw damage life of 50% RA replacement rate concrete by 31.7% and improve the freeze‒thaw damage life of 100% RA replacement rate concrete by 34.5%.

According to the research results of this study, WFs can improve the frost resistance of RA concrete, and the good bond performance between concrete and steel bars is the foundation of their collaborative action. Therefore, the bond performance between WF RA concrete and steel bars in freeze–thaw environments is worthy of further research.

Acknowledgments

The study was carried out with the support of the China Postdoctoral Science Foundation (2022M723687); Doctoral Science and Technology Startup Foundation of Shandong University of Technology (420048); National Undergraduate Innovation and Entrepreneurship Training Program (202310433045); National Nature Science Foundation of China (51868061); and Natural Science Foundation of Inner Mongolia Autonomous Region (2020MS05071, 2022LHMS05011). In addition, thank Zibo Xintiansheng Concrete Co., Ltd.for the support of this research.

  1. Funding information: The study was carried out with the support of the Foundation of China Postdoctoral Science Foundation (2022M723687); Doctoral Science and Technology Startup Foundation of Shandong University of Technology (420048); National Undergraduate Innovation and Entrepreneurship Training Program (202310433045); National Nature Science Foundation of China (51868061); and Natural Science Foundation of Inner Mongolia Autonomous Region (2020MS05071, 2022LHMS05011).

  2. Author contributions: All authors have accepted responsibility for the entire content of this manuscript and approved its submission.

  3. Conflict of interest: The authors state no conflict of interest.

  4. Data availability statement: All data generated or analyzed during this study are included in this published article.

References

[1] Su, T., C. Wang, F. Cao, Z. Zou, C. Wang, J. Wang, et al. An overview of bond behavior of recycled coarse aggregate concrete with steel bar. Reviews on Advanced Materials Science, Vol. 6, No. 1, 2021, pp. 127–144.10.1515/rams-2021-0018Search in Google Scholar

[2] Yuan, J., J. Wu, T. Su, and D. Lin. Dynamic response of reinforced recycled aggregate concrete pavement under impact loading. Applied Sciences, Vol. 12, No. 17, 2022, id. 8804.10.3390/app12178804Search in Google Scholar

[3] Dimitriou, G., P. Savva, and M. F. Petrou. Enhancing mechanical and durability properties of recycled aggregate concrete. Construction and Building Materials, Vol. 158, 2018, pp. 228–235.10.1016/j.conbuildmat.2017.09.137Search in Google Scholar

[4] Peng, Q., L. Wang, and Q. Lu. Influence of recycled coarse aggregate replacement percentage on fatigue performance of recycled aggregate concrete. Construction and Building Materials, Vol. 169, 2018, pp. 347–353.10.1016/j.conbuildmat.2018.02.196Search in Google Scholar

[5] Su, T., Z. Huang, J. Yuan, Z. Zou, C. Wang, and H. Yi. Bond properties of deformed rebar in frost-damaged recycled coarse aggregate concrete under repeated loadings. Journal of Materials in Civil Engineering, Vol. 34, No. 10, 2022, id. 04022257.10.1061/(ASCE)MT.1943-5533.0004401Search in Google Scholar

[6] Xu, L., W. Su, and T. Su. Influence of recycled clay brick aggregate on the mechanical properties of concrete. Reviews on Advanced Materials Science, Vol. 61, No. 1, 2022, pp. 372–380.10.1515/rams-2022-0034Search in Google Scholar

[7] Wang, T., Q. S. Wang, S. A. Cui, H. H. Yi, T. Su, and Z. Y. Tan. Effects of nano-materials reinforced aggregate on mechanical properties and microstructure of recycled brick aggregate concrete. Materials Science (MEDŽIAGOTYRA), Vol. 29, No. 3, 2023, pp. 347–355.10.5755/j02.ms.32715Search in Google Scholar

[8] Cachim, P. B. Mechanical properties of brick aggregate concrete. Construction and Building Materials, Vol. 23, No. 3, 2009, pp. 1292–1297.10.1016/j.conbuildmat.2008.07.023Search in Google Scholar

[9] Li, W. Experimental Study on the Effect of Recycled Coarse Aggregate on the Mechanical Properties of Recycled Concrete, Hubei University of Technology, Wuhan, 2019. (in Chinese).Search in Google Scholar

[10] Zheng, C., C. Lou, G. Du, X. Li, Z. Liu, and L. Li. Mechanical properties of recycled concrete with demolished waste concrete aggregate and clay brick aggregate. Results in Physics, Vol. 9, 2018, pp. 1317–1322.10.1016/j.rinp.2018.04.061Search in Google Scholar

[11] Zhu, M. Experimental study on mix proportion and basic mechanical properties of recycled brick aggregate concrete, Xi’an University of Science and Technology, Xi’an; 2020. (in Chinese).Search in Google Scholar

[12] Zhang, L., H. Z. Li, and J. L. Ren. Experimental study on compressive strength of the concrete with 100% recycled clay brick aggregates. Concrete, Vol. 11, 2020, pp. 79–8288. (in Chinese).Search in Google Scholar

[13] Chen, H. J., T. Yen, and K. H. Chen. Use of building rubbles as recycled aggregates. Cement and Concrete Research, Vol. 33, No. 1, 2003, pp. 125–132.10.1016/S0008-8846(02)00938-9Search in Google Scholar

[14] Su, T., T. Wang, C. Wang, and H. Yi. The influence of salt-frost cycles on the bond behavior distribution between rebar and recycled coarse aggregate concrete. Journal of Building Engineering, Vol. 45, 2022, id. 103568.10.1016/j.jobe.2021.103568Search in Google Scholar

[15] Deng, X., X. Gao, R. Wang, and C. Zhao. Study on frost resistance and pore distribution change of recycled concrete. Materials Reports, Vol. 35, No. 16, 2021, pp. 16028–16034. (in Chinese).Search in Google Scholar

[16] Su, T., J. Wu, G. Yang, and Z. Zou. Bond behavior between recycled coarse aggregate concrete and steel bar after salt-frost cycles. Construction and Building Materials, Vol. 226, No. 11, 2019, pp. 673–685.10.1016/j.conbuildmat.2019.07.301Search in Google Scholar

[17] Huang, X. T., T. Su, J. X. Wang, Cao, F. B., and C. X. Wang. Bond performance of corroded steel reinforcement and recycled coarse aggregate concrete after freeze–thaw cycles. Sustainability, Vol. 15, No. 7, 2023, id. 6122.10.3390/su15076122Search in Google Scholar

[18] Zhu, H. B. and X. Li. Experiment on freezing and thawing durability characteristics of recycled aggregate concrete. Key Engineering Materials, Vol. 400, No. 10, 2009, pp. 447–452.10.4028/www.scientific.net/KEM.400-402.447Search in Google Scholar

[19] Cao, W. L., M. B. Liang, H. Y. Dong, and J. W. Zhang. Experimental study on basic mechanical properties of recycled concrete after freeze-thaw cycles. Journal of Natural Disasters, Vol. 21, No. 3, 2012, pp. 184–190. (in Chinese).Search in Google Scholar

[20] Ji, W. Y. Study on bond behavior between rebar and waste fiber recycled concrete under freeze-thaw conditions. Nanjing University of Aeronautics and Astronautics, Nanjing, 2020. (in Chinese).Search in Google Scholar

[21] Cheng, Y., X. Shang, and Y. Zhang. Experimental research on durability of recycled aggregate concrete under freeze-thaw cycles. Journal of Physics Conference Series, Vol. 870, No. 1, 2017, pp. 1–4.10.1088/1742-6596/870/1/012018Search in Google Scholar

[22] Zaharieva, R., F. Buyle-Bodin, and E. Wirquin. Frost resistance of recycled aggregate concrete. Cement and Concrete Research, Vol. 34, No. 10, 2004, pp. 1927–1932.10.1016/j.cemconres.2004.02.025Search in Google Scholar

[23] Hu, J., and J. Wu. Mechanical properties and uni-axial compression stress-strain relation of recycled coarse aggregate concrete subjected to salt-frost cycles. Construction and Building Materials, Vol. 197, No. 2, 2019, pp. 652–666.10.1016/j.conbuildmat.2018.11.213Search in Google Scholar

[24] Yildirim, S. T., C. Meyer, and S. Herfellner. Effects of internal curing on the strength, drying shrinkage and freeze-thaw resistance of concrete containing recycled concrete aggregates. Construction and Building Materials, Vol. 91, No. 8, 2015, pp. 288–296.10.1016/j.conbuildmat.2015.05.045Search in Google Scholar

[25] Richardson, A., K. Coventry, and J. Bacon. Freeze/thaw durability of concrete with recycled demolition aggregate compared to virgin aggregate concrete. Journal of Cleaner Production, Vol. 19, No. 2–3, 2011, pp. 272–277.10.1016/j.jclepro.2010.09.014Search in Google Scholar

[26] Gokce, A., S. Nagataki, T. Saeki, and M. Hisada. Freezing and thawing resistance of air-entrained concrete incorporating recycled coarse aggregate: The role of air content in demolished concrete. Cement and Concrete Research, Vol. 34, No. 5, 2004, pp. 799–806.10.1016/j.cemconres.2003.09.014Search in Google Scholar

[27] Liu, K., J. Yan, Q. Hu, Y. Sun, and C. Zou. Effects of parent concrete and mixing method on the resistance to freezing and thawing of air-entrained recycled aggregate concrete. Construction and Building Materials, Vol. 106, No. 3, 2016, pp. 264–273.10.1016/j.conbuildmat.2015.12.074Search in Google Scholar

[28] Caro, M., Y. Jemaa, S. Dirar, and A. Quinn. Bond performance of deep embedment FRP bars epoxy-bonded into concrete. Engineering Structures, Vol. 147, 2017, pp. 448–457.10.1016/j.engstruct.2017.05.069Search in Google Scholar

[29] Rezazadeh, M., and V. Carvelli. A damage model for high-cycle fatigue behavior of bond between FRP bar and concrete. International Journal of Fatigue, Vol. 111, 2018, pp. 101–111.10.1016/j.ijfatigue.2018.02.012Search in Google Scholar

[30] Islam, M., K. Islam, M. Shahjala, E. Khatun, S. Islam, and A. Razzaque. Influence of different types of fibers on the mechanical properties of recycled waste aggregate concrete. Construction and Building Materials, Vol. 337, 2022, id. 127577.10.1016/j.conbuildmat.2022.127577Search in Google Scholar

[31] Yazdanbakhsh, A. Technical and economic implications of using recycled fiber-reinforced polymer waste as aggregate in concrete. Waste and Byproducts in Cement-Based Materials, Vol. 5, 2021, pp. 139–150.10.1016/B978-0-12-820549-5.00021-8Search in Google Scholar

[32] Zheng, C., S. Li, Y. Hou, and B. Jin. Frost resistance of fiber-reinforced self-compacting recycled concrete. Reviews on Advanced Materials Science, Vol. 61, No. 1, 2022, pp. 711–725.10.1515/rams-2022-0269Search in Google Scholar

[33] You, F., S. Luo, and J. Zheng. Experimental study on residual compressive strength of recycled aggregate concrete under fatigue loading. Frontiers in Materials, Vol. 9, 2022, id. 817103.10.3389/fmats.2022.817103Search in Google Scholar

[34] Zhou, J. H., T. T. Li, and G. Z. Yang. Experimental research on mechanical properties of waste fiber recycled concrete. Concrete, Vol. 3, 2013, pp. 1–4. (in Chinese).Search in Google Scholar

[35] Wang, Y. C. Study on early age mechanical properties of waste fiber recycled concrete, Shenyang Jianzhu University, Shenyang, 2020, (in Chinese).Search in Google Scholar

[36] Yang, J. N. Size effect on strength test of waste fiber recycled concrete, Shenyang Jianzhu University, Shenyang, 2018. (in Chinese).Search in Google Scholar

[37] Yue, X. J. Experimental research on waste fiber and recycled concrete erosion resistance performance, Shenyang Jianzhu University: Shenyang, 2013. (in Chinese).Search in Google Scholar

[38] Li, H., T. Liu, X. Ding, C. Luo, and J. Mi. Ability to resist sulfate of waste fiber recycled concrete. Concrete, Vol. 10, 2019, pp. 18–21. (in Chinese).Search in Google Scholar

[39] Wu, D. Study on bond behavior between rebar and waste fiber recycled concrete under freeze-thaw conditions, Shenyang Jianzhu University, Shenyang, 2020. (in Chinese).Search in Google Scholar

[40] Common Portland Cement (GB175-2007), China Standardization Administration, Beijing, 2007. (in Chinese).Search in Google Scholar

[41] Standard for Test Method of Mechanical Properties on Ordinary Concrete (GB/T 50081-2002). China Architecture & Building Press, Beijing, 2003. (in Chinese).Search in Google Scholar

[42] Powers, T. C. A working hypothesis for further studies of frost resistance of concrete. Journal Proceedings, Vol. 41, No. 1, 1945, pp. 245–272.10.14359/8684Search in Google Scholar

[43] Powers, T. C., and R. A. Helmuth. Theory of volume changes in hardened Portland-cement paste during freezing. Highway Research Board Proceedings, Vol. 36, 1953.Search in Google Scholar

[44] Su, T., T. Wang, Z. Zhang, X. Sun, S. Gong, X. Mei, et al. Mechanical properties and frost resistance of recycled brick aggregate concrete modified by nano-SiO2. Nanotechnology Reviews, Vol. 12, No. 1, 2023, id. 20230576.10.1515/ntrev-2023-0576Search in Google Scholar

[45] Wu, S. Y. Effect of PVA modified recycled aggregate on properties of recycled concrete. Anhui University of Science and Technology, Huainan, 2019. (in Chinese).Search in Google Scholar

[46] Liu, L. J. Effect of broken brick and polypropylene fiber on mechanics impermeability and frost resistance of concrete. North China University of Water Resources and Electric Power, Zhengzhou, 2019. (in Chinese).Search in Google Scholar

[47] Huo, J., C. Wang, Y. Hou, J. Wei, and P. P. Jiang. Frost resistance and pore structure of recycled fiber concrete. Bulletin of the Chinese Ceramic Society, Vol. 37, No. 7, 2018, pp. 2141–2145. (in Chinese).Search in Google Scholar

[48] Xue, Z. and L. Li. Influence of polypropylene fiber on strength and shrinkage behaviors of concrete for pavement. Journal of Building Materials, Vol. 14, No. 1, 2011, pp. 132–135. (in Chinese).Search in Google Scholar

[49] Li, H., H. Guo, and Y. Zhang. Deterioration of concrete under the coupling action of freeze–thaw cycles and salt solution erosion. Reviews on Advanced Materials Science, Vol. 61, No. 1, 2022, pp. 322–333.10.1515/rams-2022-0025Search in Google Scholar
Received: 2023-02-13
Revised: 2023-08-11
Accepted: 2023-11-13
Published Online: 2023-12-14

© 2023 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Review Articles
  2. Progress in preparation and ablation resistance of ultra-high-temperature ceramics modified C/C composites for extreme environment
  3. Solar lighting systems applied in photocatalysis to treat pollutants – A review
  4. Technological advances in three-dimensional skin tissue engineering
  5. Hybrid magnesium matrix composites: A review of reinforcement philosophies, mechanical and tribological characteristics
  6. Application prospect of calcium peroxide nanoparticles in biomedical field
  7. Research progress on basalt fiber-based functionalized composites
  8. Evaluation of the properties and applications of FRP bars and anchors: A review
  9. A critical review on mechanical, durability, and microstructural properties of industrial by-product-based geopolymer composites
  10. Multifunctional engineered cementitious composites modified with nanomaterials and their applications: An overview
  11. Role of bioglass derivatives in tissue regeneration and repair: A review
  12. Research progress on properties of cement-based composites incorporating graphene oxide
  13. Properties of ultra-high performance concrete and conventional concrete with coal bottom ash as aggregate replacement and nanoadditives: A review
  14. A scientometric review of the literature on the incorporation of steel fibers in ultra-high-performance concrete with research mapping knowledge
  15. Weldability of high nitrogen steels: A review
  16. Application of waste recycle tire steel fibers as a construction material in concrete
  17. Wear properties of graphene-reinforced aluminium metal matrix composite: A review
  18. Experimental investigations of electrodeposited Zn–Ni, Zn–Co, and Ni–Cr–Co–based novel coatings on AA7075 substrate to ameliorate the mechanical, abrasion, morphological, and corrosion properties for automotive applications
  19. Research evolution on self-healing asphalt: A scientometric review for knowledge mapping
  20. Recent developments in the mechanical properties of hybrid fiber metal laminates in the automotive industry: A review
  21. A review of microscopic characterization and related properties of fiber-incorporated cement-based materials
  22. Comparison and review of classical and machine learning-based constitutive models for polymers used in aeronautical thermoplastic composites
  23. Gold nanoparticle-based strategies against SARS-CoV-2: A review
  24. Poly-ferric sulphate as superior coagulant: A review on preparation methods and properties
  25. A review on ceramic waste-based concrete: A step toward sustainable concrete
  26. Modification of the structure and properties of oxide layers on aluminium alloys: A review
  27. A review of magnetically driven swimming microrobots: Material selection, structure design, control method, and applications
  28. Polyimide–nickel nanocomposites fabrication, properties, and applications: A review
  29. Design and analysis of timber-concrete-based civil structures and its applications: A brief review
  30. Effect of fiber treatment on physical and mechanical properties of natural fiber-reinforced composites: A review
  31. Blending and functionalisation modification of 3D printed polylactic acid for fused deposition modeling
  32. A critical review on functionally graded ceramic materials for cutting tools: Current trends and future prospects
  33. Heme iron as potential iron fortifier for food application – characterization by material techniques
  34. An overview of the research trends on fiber-reinforced shotcrete for construction applications
  35. High-entropy alloys: A review of their performance as promising materials for hydrogen and molten salt storage
  36. Effect of the axial compression ratio on the seismic behavior of resilient concrete walls with concealed column stirrups
  37. Research Articles
  38. Effect of fiber orientation and elevated temperature on the mechanical properties of unidirectional continuous kenaf reinforced PLA composites
  39. Optimizing the ECAP processing parameters of pure Cu through experimental, finite element, and response surface approaches
  40. Study on the solidification property and mechanism of soft soil based on the industrial waste residue
  41. Preparation and photocatalytic degradation of Sulfamethoxazole by g-C3N4 nano composite samples
  42. Impact of thermal modification on color and chemical changes of African padauk, merbau, mahogany, and iroko wood species
  43. The evaluation of the mechanical properties of glass, kenaf, and honeycomb fiber-reinforced composite
  44. Evaluation of a novel steel box-soft body combination for bridge protection against ship collision
  45. Study on the uniaxial compression constitutive relationship of modified yellow mud from minority dwelling in western Sichuan, China
  46. Ultrasonic longitudinal torsion-assisted biotic bone drilling: An experimental study
  47. Green synthesis, characterizations, and antibacterial activity of silver nanoparticles from Themeda quadrivalvis, in conjugation with macrolide antibiotics against respiratory pathogens
  48. Performance analysis of WEDM during the machining of Inconel 690 miniature gear using RSM and ANN modeling approaches
  49. Biosynthesis of Ag/bentonite, ZnO/bentonite, and Ag/ZnO/bentonite nanocomposites by aqueous leaf extract of Hagenia abyssinica for antibacterial activities
  50. Eco-friendly MoS2/waste coconut oil nanofluid for machining of magnesium implants
  51. Silica and kaolin reinforced aluminum matrix composite for heat storage
  52. Optimal design of glazed hollow bead thermal insulation mortar containing fly ash and slag based on response surface methodology
  53. Hemp seed oil nanoemulsion with Sapindus saponins as a potential carrier for iron supplement and vitamin D
  54. A numerical study on thin film flow and heat transfer enhancement for copper nanoparticles dispersed in ethylene glycol
  55. Research on complex multimodal vibration characteristics of offshore platform
  56. Applicability of fractal models for characterising pore structure of hybrid basalt–polypropylene fibre-reinforced concrete
  57. Influence of sodium silicate to precursor ratio on mechanical properties and durability of the metakaolin/fly ash alkali-activated sustainable mortar using manufactured sand
  58. An experimental study of bending resistance of multi-size PFRC beams
  59. Characterization, biocompatibility, and optimization of electrospun SF/PCL composite nanofiber films
  60. Morphological classification method and data-driven estimation of the joint roughness coefficient by consideration of two-order asperity
  61. Prediction and simulation of mechanical properties of borophene-reinforced epoxy nanocomposites using molecular dynamics and FEA
  62. Nanoemulsions of essential oils stabilized with saponins exhibiting antibacterial and antioxidative properties
  63. Fabrication and performance analysis of sustainable municipal solid waste incineration fly ash alkali-activated acoustic barriers
  64. Electrostatic-spinning construction of HCNTs@Ti3C2T x MXenes hybrid aerogel microspheres for tunable microwave absorption
  65. Investigation of the mechanical properties, surface quality, and energy efficiency of a fused filament fabrication for PA6
  66. Experimental study on mechanical properties of coal gangue base geopolymer recycled aggregate concrete reinforced by steel fiber and nano-Al2O3
  67. Hybrid bio-fiber/bio-ceramic composite materials: Mechanical performance, thermal stability, and morphological analysis
  68. Experimental study on recycled steel fiber-reinforced concrete under repeated impact
  69. Effect of rare earth Nd on the microstructural transformation and mechanical properties of 7xxx series aluminum alloys
  70. Color match evaluation using instrumental method for three single-shade resin composites before and after in-office bleaching
  71. Exploring temperature-resilient recycled aggregate concrete with waste rubber: An experimental and multi-objective optimization analysis
  72. Study on aging mechanism of SBS/SBR compound-modified asphalt based on molecular dynamics
  73. Evolution of the pore structure of pumice aggregate concrete and the effect on compressive strength
  74. Effect of alkaline treatment time of fibers and microcrystalline cellulose addition on mechanical properties of unsaturated polyester composites reinforced by cantala fibers
  75. Optimization of eggshell particles to produce eco-friendly green fillers with bamboo reinforcement in organic friction materials
  76. An effective approach to improve microstructure and tribological properties of cold sprayed Al alloys
  77. Luminescence and temperature-sensing properties of Li+, Na+, or K+, Tm3+, and Yb3+ co-doped Bi2WO6 phosphors
  78. Effect of molybdenum tailings aggregate on mechanical properties of engineered cementitious composites and stirrup-confined ECC stub columns
  79. Experimental study on the seismic performance of short shear walls comprising cold-formed steel and high-strength reinforced concrete with concealed bracing
  80. Failure criteria and microstructure evolution mechanism of the alkali–silica reaction of concrete
  81. Mechanical, fracture-deformation, and tribology behavior of fillers-reinforced sisal fiber composites for lightweight automotive applications
  82. UV aging behavior evolution characterization of HALS-modified asphalt based on micro-morphological features
  83. Preparation of VO2/graphene/SiC film by water vapor oxidation
  84. A semi-empirical model for predicting carbonation depth of RAC under two-dimensional conditions
  85. Comparison of the physical properties of different polyimide nanocomposite films containing organoclays varying in alkyl chain lengths
  86. Effects of freeze–thaw cycles on micro and meso-structural characteristics and mechanical properties of porous asphalt mixtures
  87. Flexural performance of a new type of slightly curved arc HRB400 steel bars reinforced one-way concrete slabs
  88. Alkali-activated binder based on red mud with class F fly ash and ground granulated blast-furnace slag under ambient temperature
  89. Facile synthesis of g-C3N4 nanosheets for effective degradation of organic pollutants via ball milling
  90. DEM study on the loading rate effect of marble under different confining pressures
  91. Conductive and self-cleaning composite membranes from corn husk nanofiber embedded with inorganic fillers (TiO2, CaO, and eggshell) by sol–gel and casting processes for smart membrane applications
  92. Laser re-melting of modified multimodal Cr3C2–NiCr coatings by HVOF: Effect on the microstructure and anticorrosion properties
  93. Damage constitutive model of jointed rock mass considering structural features and load effect
  94. Thermosetting polymer composites: Manufacturing and properties study
  95. CSG compressive strength prediction based on LSTM and interpretable machine learning
  96. Axial compression behavior and stress–strain relationship of slurry-wrapping treatment recycled aggregate concrete-filled steel tube short columns
  97. Space-time evolution characteristics of loaded gas-bearing coal fractures based on industrial μCT
  98. Dual-biprism-based single-camera high-speed 3D-digital image correlation for deformation measurement on sandwich structures under low velocity impact
  99. Effects of cold deformation modes on microstructure uniformity and mechanical properties of large 2219 Al–Cu alloy rings
  100. Basalt fiber as natural reinforcement to improve the performance of ecological grouting slurry for the conservation of earthen sites
  101. Interaction of micro-fluid structure in a pressure-driven duct flow with a nearby placed current-carrying wire: A numerical investigation
  102. A simulation modeling methodology considering random multiple shots for shot peening process
  103. Optimization and characterization of composite modified asphalt with pyrolytic carbon black and chicken feather fiber
  104. Synthesis, characterization, and application of the novel nanomagnet adsorbent for the removal of Cr(vi) ions
  105. Multi-perspective structural integrity-based computational investigations on airframe of Gyrodyne-configured multi-rotor UAV through coupled CFD and FEA approaches for various lightweight sandwich composites and alloys
  106. Influence of PVA fibers on the durability of cementitious composites under the wet–heat–salt coupling environment
  107. Compressive behavior of BFRP-confined ceramsite concrete: An experimental study and stress–strain model
  108. Interval models for uncertainty analysis and degradation prediction of the mechanical properties of rubber
  109. Preparation of PVDF-HFP/CB/Ni nanocomposite films for piezoelectric energy harvesting
  110. Frost resistance and life prediction of recycled brick aggregate concrete with waste polypropylene fiber
  111. Synthetic leathers as a possible source of chemicals and odorous substances in indoor environment
  112. Mechanical properties of seawater volcanic scoria aggregate concrete-filled circular GFRP and stainless steel tubes under axial compression
  113. Effect of curved anchor impellers on power consumption and hydrodynamic parameters of yield stress fluids (Bingham–Papanastasiou model) in stirred tanks
  114. All-dielectric tunable zero-refractive index metamaterials based on phase change materials
  115. Influence of ultrasonication time on the various properties of alkaline-treated mango seed waste filler reinforced PVA biocomposite
  116. Research on key casting process of high-grade CNC machine tool bed nodular cast iron
  117. Latest research progress of SiCp/Al composite for electronic packaging
  118. Special Issue on 3D and 4D Printing of Advanced Functional Materials - Part I
  119. Molecular dynamics simulation on electrohydrodynamic atomization: Stable dripping mode by pre-load voltage
  120. Research progress of metal-based additive manufacturing in medical implants
https://doi.org/10.1515/rams-2023-0154
Keywords for this article
recycled concrete; waste fiber; relative dynamic elastic modulus; frost resistance; life prediction model
Creative Commons
BY 4.0

Articles in the same Issue

  1. Review Articles
  2. Progress in preparation and ablation resistance of ultra-high-temperature ceramics modified C/C composites for extreme environment
  3. Solar lighting systems applied in photocatalysis to treat pollutants – A review
  4. Technological advances in three-dimensional skin tissue engineering
  5. Hybrid magnesium matrix composites: A review of reinforcement philosophies, mechanical and tribological characteristics
  6. Application prospect of calcium peroxide nanoparticles in biomedical field
  7. Research progress on basalt fiber-based functionalized composites
  8. Evaluation of the properties and applications of FRP bars and anchors: A review
  9. A critical review on mechanical, durability, and microstructural properties of industrial by-product-based geopolymer composites
  10. Multifunctional engineered cementitious composites modified with nanomaterials and their applications: An overview
  11. Role of bioglass derivatives in tissue regeneration and repair: A review
  12. Research progress on properties of cement-based composites incorporating graphene oxide
  13. Properties of ultra-high performance concrete and conventional concrete with coal bottom ash as aggregate replacement and nanoadditives: A review
  14. A scientometric review of the literature on the incorporation of steel fibers in ultra-high-performance concrete with research mapping knowledge
  15. Weldability of high nitrogen steels: A review
  16. Application of waste recycle tire steel fibers as a construction material in concrete
  17. Wear properties of graphene-reinforced aluminium metal matrix composite: A review
  18. Experimental investigations of electrodeposited Zn–Ni, Zn–Co, and Ni–Cr–Co–based novel coatings on AA7075 substrate to ameliorate the mechanical, abrasion, morphological, and corrosion properties for automotive applications
  19. Research evolution on self-healing asphalt: A scientometric review for knowledge mapping
  20. Recent developments in the mechanical properties of hybrid fiber metal laminates in the automotive industry: A review
  21. A review of microscopic characterization and related properties of fiber-incorporated cement-based materials
  22. Comparison and review of classical and machine learning-based constitutive models for polymers used in aeronautical thermoplastic composites
  23. Gold nanoparticle-based strategies against SARS-CoV-2: A review
  24. Poly-ferric sulphate as superior coagulant: A review on preparation methods and properties
  25. A review on ceramic waste-based concrete: A step toward sustainable concrete
  26. Modification of the structure and properties of oxide layers on aluminium alloys: A review
  27. A review of magnetically driven swimming microrobots: Material selection, structure design, control method, and applications
  28. Polyimide–nickel nanocomposites fabrication, properties, and applications: A review
  29. Design and analysis of timber-concrete-based civil structures and its applications: A brief review
  30. Effect of fiber treatment on physical and mechanical properties of natural fiber-reinforced composites: A review
  31. Blending and functionalisation modification of 3D printed polylactic acid for fused deposition modeling
  32. A critical review on functionally graded ceramic materials for cutting tools: Current trends and future prospects
  33. Heme iron as potential iron fortifier for food application – characterization by material techniques
  34. An overview of the research trends on fiber-reinforced shotcrete for construction applications
  35. High-entropy alloys: A review of their performance as promising materials for hydrogen and molten salt storage
  36. Effect of the axial compression ratio on the seismic behavior of resilient concrete walls with concealed column stirrups
  37. Research Articles
  38. Effect of fiber orientation and elevated temperature on the mechanical properties of unidirectional continuous kenaf reinforced PLA composites
  39. Optimizing the ECAP processing parameters of pure Cu through experimental, finite element, and response surface approaches
  40. Study on the solidification property and mechanism of soft soil based on the industrial waste residue
  41. Preparation and photocatalytic degradation of Sulfamethoxazole by g-C3N4 nano composite samples
  42. Impact of thermal modification on color and chemical changes of African padauk, merbau, mahogany, and iroko wood species
  43. The evaluation of the mechanical properties of glass, kenaf, and honeycomb fiber-reinforced composite
  44. Evaluation of a novel steel box-soft body combination for bridge protection against ship collision
  45. Study on the uniaxial compression constitutive relationship of modified yellow mud from minority dwelling in western Sichuan, China
  46. Ultrasonic longitudinal torsion-assisted biotic bone drilling: An experimental study
  47. Green synthesis, characterizations, and antibacterial activity of silver nanoparticles from Themeda quadrivalvis, in conjugation with macrolide antibiotics against respiratory pathogens
  48. Performance analysis of WEDM during the machining of Inconel 690 miniature gear using RSM and ANN modeling approaches
  49. Biosynthesis of Ag/bentonite, ZnO/bentonite, and Ag/ZnO/bentonite nanocomposites by aqueous leaf extract of Hagenia abyssinica for antibacterial activities
  50. Eco-friendly MoS2/waste coconut oil nanofluid for machining of magnesium implants
  51. Silica and kaolin reinforced aluminum matrix composite for heat storage
  52. Optimal design of glazed hollow bead thermal insulation mortar containing fly ash and slag based on response surface methodology
  53. Hemp seed oil nanoemulsion with Sapindus saponins as a potential carrier for iron supplement and vitamin D
  54. A numerical study on thin film flow and heat transfer enhancement for copper nanoparticles dispersed in ethylene glycol
  55. Research on complex multimodal vibration characteristics of offshore platform
  56. Applicability of fractal models for characterising pore structure of hybrid basalt–polypropylene fibre-reinforced concrete
  57. Influence of sodium silicate to precursor ratio on mechanical properties and durability of the metakaolin/fly ash alkali-activated sustainable mortar using manufactured sand
  58. An experimental study of bending resistance of multi-size PFRC beams
  59. Characterization, biocompatibility, and optimization of electrospun SF/PCL composite nanofiber films
  60. Morphological classification method and data-driven estimation of the joint roughness coefficient by consideration of two-order asperity
  61. Prediction and simulation of mechanical properties of borophene-reinforced epoxy nanocomposites using molecular dynamics and FEA
  62. Nanoemulsions of essential oils stabilized with saponins exhibiting antibacterial and antioxidative properties
  63. Fabrication and performance analysis of sustainable municipal solid waste incineration fly ash alkali-activated acoustic barriers
  64. Electrostatic-spinning construction of HCNTs@Ti3C2T x MXenes hybrid aerogel microspheres for tunable microwave absorption
  65. Investigation of the mechanical properties, surface quality, and energy efficiency of a fused filament fabrication for PA6
  66. Experimental study on mechanical properties of coal gangue base geopolymer recycled aggregate concrete reinforced by steel fiber and nano-Al2O3
  67. Hybrid bio-fiber/bio-ceramic composite materials: Mechanical performance, thermal stability, and morphological analysis
  68. Experimental study on recycled steel fiber-reinforced concrete under repeated impact
  69. Effect of rare earth Nd on the microstructural transformation and mechanical properties of 7xxx series aluminum alloys
  70. Color match evaluation using instrumental method for three single-shade resin composites before and after in-office bleaching
  71. Exploring temperature-resilient recycled aggregate concrete with waste rubber: An experimental and multi-objective optimization analysis
  72. Study on aging mechanism of SBS/SBR compound-modified asphalt based on molecular dynamics
  73. Evolution of the pore structure of pumice aggregate concrete and the effect on compressive strength
  74. Effect of alkaline treatment time of fibers and microcrystalline cellulose addition on mechanical properties of unsaturated polyester composites reinforced by cantala fibers
  75. Optimization of eggshell particles to produce eco-friendly green fillers with bamboo reinforcement in organic friction materials
  76. An effective approach to improve microstructure and tribological properties of cold sprayed Al alloys
  77. Luminescence and temperature-sensing properties of Li+, Na+, or K+, Tm3+, and Yb3+ co-doped Bi2WO6 phosphors
  78. Effect of molybdenum tailings aggregate on mechanical properties of engineered cementitious composites and stirrup-confined ECC stub columns
  79. Experimental study on the seismic performance of short shear walls comprising cold-formed steel and high-strength reinforced concrete with concealed bracing
  80. Failure criteria and microstructure evolution mechanism of the alkali–silica reaction of concrete
  81. Mechanical, fracture-deformation, and tribology behavior of fillers-reinforced sisal fiber composites for lightweight automotive applications
  82. UV aging behavior evolution characterization of HALS-modified asphalt based on micro-morphological features
  83. Preparation of VO2/graphene/SiC film by water vapor oxidation
  84. A semi-empirical model for predicting carbonation depth of RAC under two-dimensional conditions
  85. Comparison of the physical properties of different polyimide nanocomposite films containing organoclays varying in alkyl chain lengths
  86. Effects of freeze–thaw cycles on micro and meso-structural characteristics and mechanical properties of porous asphalt mixtures
  87. Flexural performance of a new type of slightly curved arc HRB400 steel bars reinforced one-way concrete slabs
  88. Alkali-activated binder based on red mud with class F fly ash and ground granulated blast-furnace slag under ambient temperature
  89. Facile synthesis of g-C3N4 nanosheets for effective degradation of organic pollutants via ball milling
  90. DEM study on the loading rate effect of marble under different confining pressures
  91. Conductive and self-cleaning composite membranes from corn husk nanofiber embedded with inorganic fillers (TiO2, CaO, and eggshell) by sol–gel and casting processes for smart membrane applications
  92. Laser re-melting of modified multimodal Cr3C2–NiCr coatings by HVOF: Effect on the microstructure and anticorrosion properties
  93. Damage constitutive model of jointed rock mass considering structural features and load effect
  94. Thermosetting polymer composites: Manufacturing and properties study
  95. CSG compressive strength prediction based on LSTM and interpretable machine learning
  96. Axial compression behavior and stress–strain relationship of slurry-wrapping treatment recycled aggregate concrete-filled steel tube short columns
  97. Space-time evolution characteristics of loaded gas-bearing coal fractures based on industrial μCT
  98. Dual-biprism-based single-camera high-speed 3D-digital image correlation for deformation measurement on sandwich structures under low velocity impact
  99. Effects of cold deformation modes on microstructure uniformity and mechanical properties of large 2219 Al–Cu alloy rings
  100. Basalt fiber as natural reinforcement to improve the performance of ecological grouting slurry for the conservation of earthen sites
  101. Interaction of micro-fluid structure in a pressure-driven duct flow with a nearby placed current-carrying wire: A numerical investigation
  102. A simulation modeling methodology considering random multiple shots for shot peening process
  103. Optimization and characterization of composite modified asphalt with pyrolytic carbon black and chicken feather fiber
  104. Synthesis, characterization, and application of the novel nanomagnet adsorbent for the removal of Cr(vi) ions
  105. Multi-perspective structural integrity-based computational investigations on airframe of Gyrodyne-configured multi-rotor UAV through coupled CFD and FEA approaches for various lightweight sandwich composites and alloys
  106. Influence of PVA fibers on the durability of cementitious composites under the wet–heat–salt coupling environment
  107. Compressive behavior of BFRP-confined ceramsite concrete: An experimental study and stress–strain model
  108. Interval models for uncertainty analysis and degradation prediction of the mechanical properties of rubber
  109. Preparation of PVDF-HFP/CB/Ni nanocomposite films for piezoelectric energy harvesting
  110. Frost resistance and life prediction of recycled brick aggregate concrete with waste polypropylene fiber
  111. Synthetic leathers as a possible source of chemicals and odorous substances in indoor environment
  112. Mechanical properties of seawater volcanic scoria aggregate concrete-filled circular GFRP and stainless steel tubes under axial compression
  113. Effect of curved anchor impellers on power consumption and hydrodynamic parameters of yield stress fluids (Bingham–Papanastasiou model) in stirred tanks
  114. All-dielectric tunable zero-refractive index metamaterials based on phase change materials
  115. Influence of ultrasonication time on the various properties of alkaline-treated mango seed waste filler reinforced PVA biocomposite
  116. Research on key casting process of high-grade CNC machine tool bed nodular cast iron
  117. Latest research progress of SiCp/Al composite for electronic packaging
  118. Special Issue on 3D and 4D Printing of Advanced Functional Materials - Part I
  119. Molecular dynamics simulation on electrohydrodynamic atomization: Stable dripping mode by pre-load voltage
  120. Research progress of metal-based additive manufacturing in medical implants
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 6.9.2025 from https://www.degruyterbrill.com/document/doi/10.1515/rams-2023-0154/html
Scroll to top button
