UV aging behavior evolution characterization of HALS-modified asphalt based on micro-morphological features

2.1.1.1 70# base asphalt

The 70# base asphalt was used as the carrier asphalt to prepare the modified asphalt. The three indexes of the unaged matrix asphalt and the matrix asphalt after 305 h UV aging were tested.

2.1.1.2 HALS

HALS has certain chemical stability and high-temperature resistance. Tinuvin770 (T770) and Tinuvin622 (T622) HALS are selected as modifiers. The technical performance indexes are shown in Table 1. According to the previous research results, the application content of T770 and T622 light stabilizers is about 0.4% of the asphalt mass [12].

2.1.2.1 Preparation of modified asphalt

The specific preparation process of light stabilizer-modified asphalt: First, 70 # base asphalt was placed in an incubator at 135°C for 1.5 h. The asphalt was then poured into a clean beaker. The beaker was kept warm in an oil bath heater at 160 ± 5°C. The HALS with a mass fraction of 0.4% asphalt was prepared. Then, the light stabilizer (T770 or T622) was added to the molten asphalt. The beakers were placed in oil thermostat and heated and mixed for 10 min at a shear rate of 5,000 rad·min⁻¹. Third, the prepared modified asphalt with HALS was put into an oven at 115°C and swelled for 1.5 h to complete the preparation of modified asphalt material.

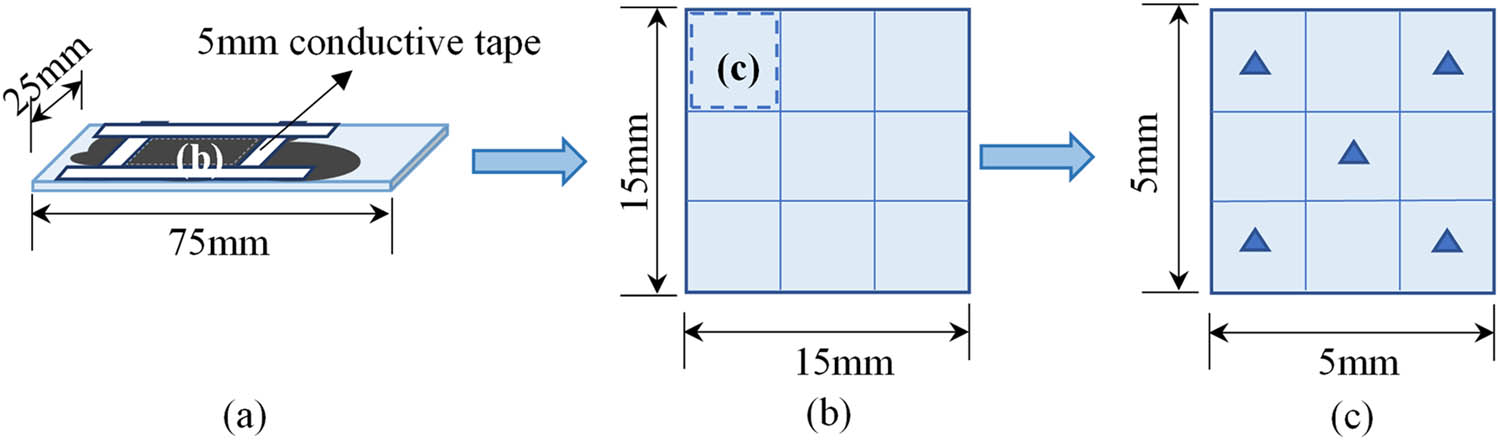

To complete the preparation of UV aging film samples, different UV aging time was set for asphalt film samples. Preparation process of UV aged film sample: First, the liquid-modified asphalt was dropped on the glass slide using an eyedropper. Wait for the asphalt to self-level at room temperature. Then, the asphalt sample was put into the UV aging test chamber for UV radiation treatment. Figure 1 shows the specific preparation process of the complete light stabilizer-modified asphalt sample.

Figure 1

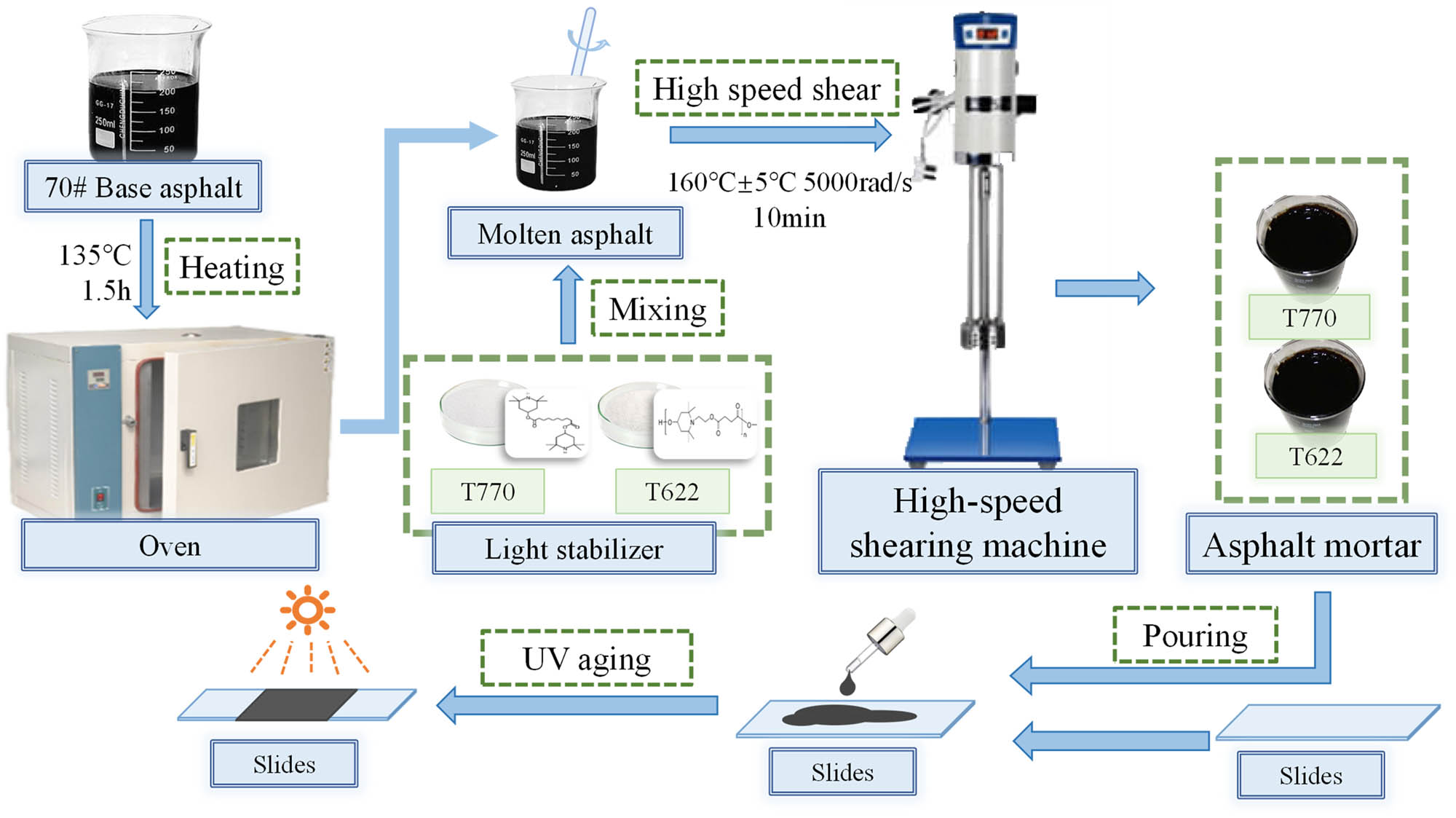

Light stabilizer modified asphalt preparation process.

2.1.2.2 UV aging disposal and sample preparation

The annual average unit radiation intensity in areas with intense UV radiation intensity was mostly 7,000 MJ·m⁻². In order to simulate the influence of UV radiation on modified asphalt pavement materials indoor, the average unit UV radiation intensity was about 420 MJ·m⁻². The UV Weatherability Test Chamber was selected as the test equipment in this study. The output power of the test equipment is about 300 W, the radiation area is 0.8 m², and its UV radiation intensity is about 375 W·m⁻². Table 2 shows the relationship between indoor aging time and application environment aging time.

2.2.1.1 SEM analysis

SEM analysis was carried out using JSM-IT100 SEM produced by JEOL Corporation of Japan. To reduce the flow problem of modified asphalt caused by emission ion beam absorption, the accelerated voltage in SEM detection is 5 kV. In SEM analysis, different sizes of micro-topography were measured, including 100×, 200×, 500×, 1,000×, and 4,000×. The preparation process of the SEM test sample is as follows. The asphalt film sample was cut on the glass slide. Then, the glass slide was placed on a gold spraying test bench with conductive adhesive, and the surface was sprayed for 90 s. After the samples have electrical conductivity, they are put into the SEM test bed for testing.

2.2.1.2 AFM analysis

The Dimension FastScan Scanning probe microscope produced by Bruker company was used to characterize the surface roughness change of UV aged modified asphalt. The scanning probe was used to scan the micro-morphology of the sample surface in ScanAsyst intelligent mode. The instrument probe was a silicon nitride cantilever probe. Checking view sizes of AFM test were selected as 80 μm × 80 μm and 30 μm × 30 μm.

3.1.1.1 Base asphalt

Figure 4 shows the UV-induced micro-morphologies of the base asphalt with different scanning multiples. From Figure 4(a) (500 μm) and Figure 4(b) (200 μm), the surface of the base asphalt showed a distinct aggregation of parallel-state cracks (marked in yellow) and a locally present closed-like fragmentation region (marked in red) after UV aging at 76.25 h. When the crack was magnified 500× (Figure 4(c)), it was found that the middle part of the fracture was straight, and the two ends were deflected at a certain angle. There is no trend of interconnection or direct connection between cracks. Further magnification of the fissures to 1,000× (Figure 4(d)) and 2,000× (Figure 4(e)) confirmed that there were no connections between the cracks, which all appeared in an independent form. When the UV aging time was extended to 152.5 h, a series of closed lumps appeared on the asphalt surface, and there was apparent common boundary between the nodes, as can be observed in Figure 4(f). When the locally closed block was magnified (Figure 4(g)), it was shown that the league boundary was not a crack but a bulge. When the border was stretched further, the morphology of the protuberant structure could be observed clearly. The bulge structure was a strip structure higher than the surrounding flat area. This convex structure was very similar to the crack appearance at 76.25 h, which may be caused by the increase in the temperature of asphalt after absorbing UV radiation, and the formation of bulge structure after filling the crack position.

Figure 4

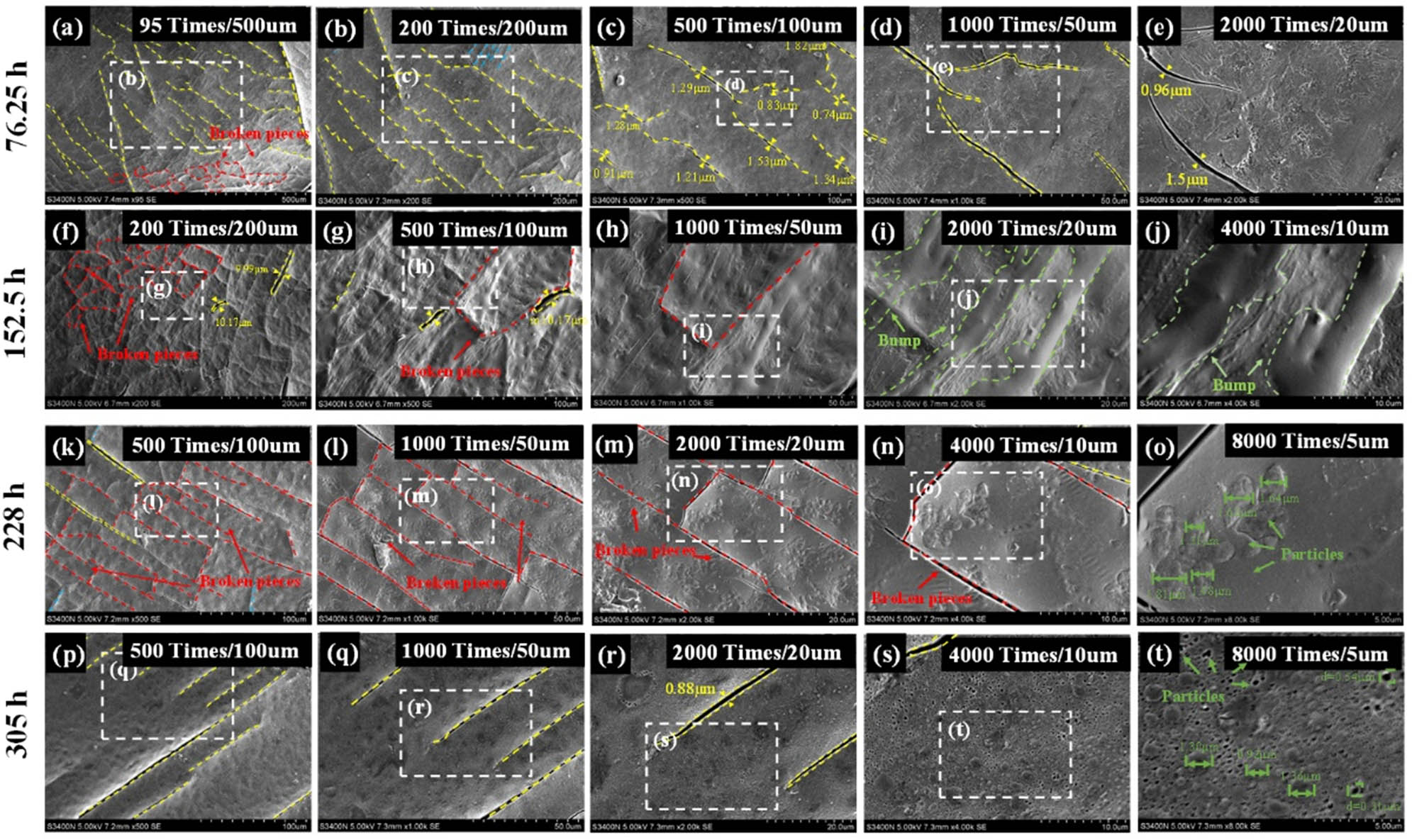

SEM morphology of base asphalt affected by UV aging. (a) 76.25 h–500 μm, (b) 76.25 h–200 μm, (c) 76.25 h–100 μm, (d) 76.25 h–50 μm, (e) 76.25 h–20 μm, (f) 152.5 h–200 μm, (g) 152.5 h–100 μm, (h) 152.5 h–50 μm, (i) 152.5 h–20 μm, (j) 152.5 h–10 μm, (k) 228 h–200 μm, (l) 228 h–100 μm, (m) 228 h–50 μm, (n) 228 h–10 μm, (o) 228 h–5 μm, (p) 305 h–100 μm, (q) 305 h–50 μm, (r) 305 h–20 μm, (s) 305 h–10 μm, and (t) 305 h–5 μm.

When the UV aging time reaches 228 h (Figure 4(k)), it can be observed that more dense parallel cracks appear again on the asphalt surface. Compared with 76.25 h, after 228 h UV aging, vertical cracks appear that intersect with parallel cracks on the asphalt surface. Vertical fractures connected the original parallel fractures and led to the appearance of closed fractures and massive fragments. When the local fractures were placed between 1,000 and 2,000× (Figure 4(l) and (m)), it was found that there were vertical fracture connections between different parallel fractures. There were obvious closed cracks in this stage, mostly rectangle-like structures. After further magnification of the rectangular frame (Figure 4(n) and (o)), a circular bulge structure with a diameter of about 1.5 μm was identified within it. The results of UV aging at 305 h are shown in Figure 4(p)–(r). It can be seen that the closed cracks on the asphalt surface disappear, parallel cracks appear, and the density and number of cracks decrease significantly. Local magnification of the fracture to 4,000- and 8,000-fold (Figure 4(s) and (t)) revealed a rounded bulge structure and holes of different diameters in the region around the fracture.

In summary, micro-crack was the main characteristic structure of morphology evolution in the micro-morphology change induced by UV, and there was a certain regularity in its transformation. The statistical analysis of the typical parameters of the cracks in the visual field was carried out based on the microscopic features. After 75.25 h UV aging, the crack width range of the base asphalt surface was 0.74–1.83 μm. After 152.5 h UV aging, the asphalt surface crack structure appeared at a certain degree of “healing.” After 228 h, the cracks increase, and the width ranges from 0.26 to 0.60 μm. When the UV aging time reaches 305 h, the crack width ranges from 0.65 to 1.92 μm.

The appearance of a cracked structure is a sign that asphalt has entered the aging stage. Based on the analysis of Figure 4 and its characteristic form, the fracture spacing is selected as an evaluation index to predict the aging process of asphalt, and its corresponding parameters have the potential to be used as quantitative standard indexes. As seen from the Figure, surface cracks can be considered disjoint (parallel) independent existence in the early stage of asphalt aging. With the increase in aging degree, the number of fracture structures increases, and the maximum spacing between parallel fractures changes. It is inferred that UV aging affects the spacing of cracks on asphalt surfaces. Statistical analysis of the micro-morphology samples found that the spacing between different cracks (labeled examples in Figure 5) was significantly correlated with UV aging time. According to the statistical results of 200 samples (about 50 pictures at each aging time point) (Figure 5), the UV aging time was extended from 76.25 to 305 h. The spacing of fracture structure decreased from 42.86 to 26.42 μm. At the same time, the micro-structure characterization results were processed by ImageJ software, and it was found that most of the crack structures existed in a parallel state at a magnification of 1,000×. Compared with the microscopic morphology at 200×, the crack structures at 1,000× are sparse, and the overlap rate is low. It has favorable conditions for measuring the spacing of fracture structures.

Figure 5

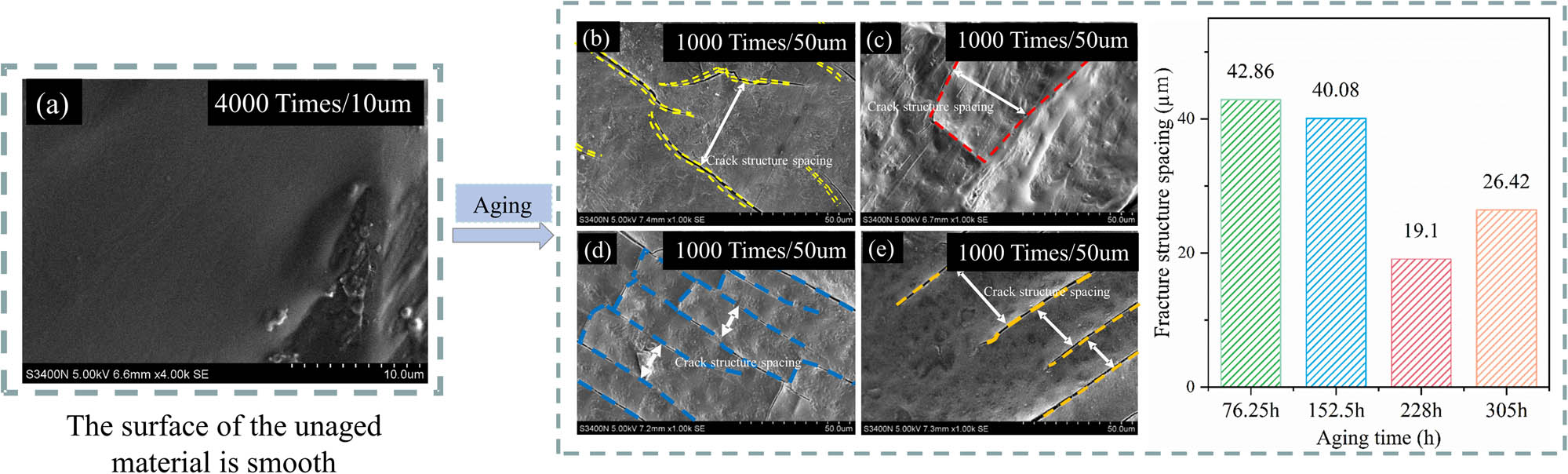

The spacing of base asphalt crack structure and the variation in crack spacing with UV aging: (a) 0 h, (b) 76.25 h, (c) 152.5 h, (d) 228 h, and (e) 305 h.

3.1.1.2 T770 light stabilizer modified asphalt

The UV-induced micro-morphology of T770-modified asphalt is shown in Figure 6. After UV aging for 76.25 h, micro-cracks with high density appeared on the surface of T770-modified asphalt. After magnification to 500× and 1,000× (Figure 6(b) and (c)), it can be seen that cracks are connected to form closed fragments with shallow cracking degrees and broad spreading areas. When amplified to 2,000× (Figure 6(d) and (e)), it is observed that the shape of the closed fragment is irregular, the width of the cracks at the boundary is large, and the surface of the piece is relatively flat. The cracks of T770-modified asphalt in the early aging stage float on the surface and do not cause deep aging. The UV aging time was further extended to 152.5 h, and the network structure composed of closed fragments could still be recognized on the surface of T770-modified asphalt. After further magnification to 500× and 1,000× (Figure 6(h) and (i)), it can be seen that the boundaries of each closed fragment structure are blurred, and the cracks are replaced by protrusions, due to the fluidity brought by rising temperature, leading to the healing of asphalt cracks. When magnified 2,000× (Figure 6(j)), the asphalt surface is rugged, which is due to the distribution of particle structure on the surface, and the particle structure size range is about 3.22–9.16 μm. It is speculated that part of the particles of the T770 light stabilizer dispersed into complete melting and emerged on the surface of the asphalt film with the flow of asphalt at high temperature.

Figure 6

SEM morphology of T770-modified asphalt affected by UV aging. (a) 76.25 h–500 μm, (b) 76.25 h–200 μm, (c) 76.25 h–100 μm, (d) 76.25 h–50 μm, (e) 76.25 h–20 μm, (f) 152.5 h–500 μm, (g) 152.5 h–200 μm, (h) 152.5 h–100 μm, (i) 152.5 h–50 μm, (j) 152.5 h–20 μm, (k) 228 h–200 μm, (l) 228 h–100 μm, (m) 228 h–50 μm, (n) 228 h–20 μm, (o) 228 h–10 μm, (p) 305 h–500 μm, (q) 305 h–100 μm, (r) 305 h–100 μm, (s) 305 h–50 μm, and (t) 305 h–2 μm.

After UV aging for 228 h, the micro-structure of T770-modified asphalt changes again, the boundary fuzzy closed fragmentation structure disappears, the convex structure changes into an apparent fold structure, and the area between the folds has a good flatness. After magnification to 1,000 and 2,000× (Figure 6(m)–(o)), a certain amount of particle structure still exists in the smooth region between folds, and the particle size is similar to that of the particle structure appearing at 152.5 h. In Figure 6(n), the maximum diameter of the “particle structure” can reach 7.51 μm. This phenomenon indicates that the photo-stabilizer is not entirely dissolved in the asphalt at this stage, so the bulge can still be seen in the enlarged micro-topography. When UV aging time was extended to 305 h, the fold structure density increased, but no apparent closed micro-structure was formed. It shows that the damage degree of the modified asphalt aging is not high, and there is no sharp crack.

In conclusion, the crack structure of T770-modified asphalt appears in the early stage of UV aging and then evolves into a fold structure under the influence of UV radiation. With the deepening of the UV aging process, the density of the fold structure increases and lasts for a long time, which may be because T770 HALS delays the UV aging process of asphalt, improves the stability of asphalt colloidal structure, and then inhibits the further aging of asphalt. In the 152.5 h stage, most of the cracks in the asphalt micro-structure have intersections, which does not meet the definition of the crack structure. After UV aging for 305 h, the fold structure on the asphalt surface was connected to a closed network. This phenomenon may be because the UV aging effect of T770-modified asphalt is mainly concentrated on the surface, and its radiation effect has not penetrated the internal structure of the asphalt.

However, the folding structure is formed by the evolution of fracture structure, and the bulge formed when the asphalt was heated flowed, and covered. The spacing of cracks mainly determines the spacing of the fold structure. Therefore, based on the definition of fracture structure, the fold structure is defined as the fracture structure with the tendency to heal. Thus, the “unbonded” fold structure can still be selected to measure the maximum spacing, and its relevant parameters can still be as the standard index for quantifying T770-modified asphalt.

Based on Figure 6 and the analysis of characteristic structure, the micro-morphology samples were analyzed statistically. The distance between different folds (Figure 7) significantly correlates with UV aging time. Based on a sample size of 200 (approximately 50 pictures per aging time point), after 305 h UV aging, the wrinkle spacing of asphalt surface increased from 44.96 to 62.3 μm. At this time, the overlap ratio of fold structure was low, and the uplift in the middle of fold was apparent.

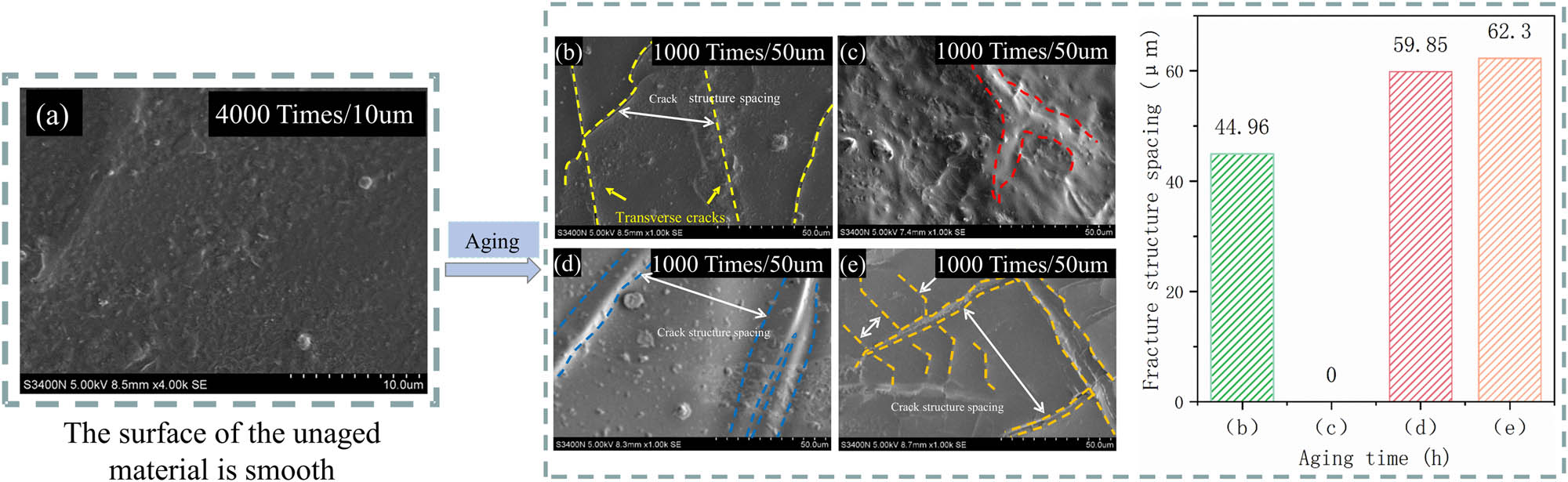

Figure 7

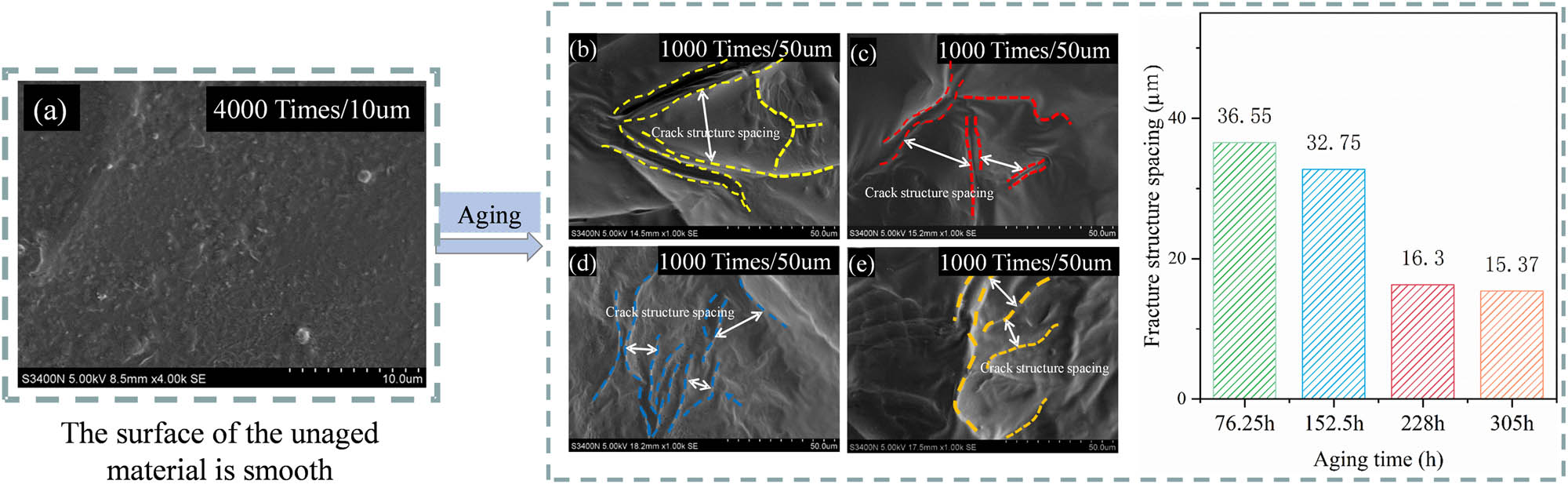

The spacing of T770-modified asphalt crack structure and the variation in crack spacing with UV aging: (a) 0 h, (b) 76.25 h, (c) 152.5 h, (d) 228 h, and (e) 305 h.

3.1.1.3 T622 modified asphalt

Figure 8 shows the UV induced morphology of T622 modified asphalt. As shown in Figure 8(a) (200 μm), a valley-shaped “fold structure” appears on the surface of the asphalt after aging for 76.25 h, and the micro-structure of the asphalt is concave in the middle and convex in the periphery (marked with yellow). The width of the structure ranges from 9.21 to 33.51 μm. At 2,000 magnification (Figure 8(d)), irregular bulges exist between fold structures. Figure 8(f) (200 μm) shows that the fold structures are more closely related and converge in the same direction. Further magnified to 2,000× and 4,000× (Figure 8(i) and (j)), the “raised” area forms a whole through interlacing, and the boundary with the fold structure becomes increasingly blurred. This may be because the asphalt was exposed to UV radiation and flowed in the high-temperature environment, filling the place of lightweight components lost during early aging. When UV aging time is extended to 228 h, it can be seen from the analysis of Figure 8(n) and (o) that the fracture structure initially formed on the asphalt surface transforms into an elongated “ridge” structure similar to the fold structure, and then gradually evolves into a tightly connected fold structure. This may be because, under continuous UV aging, the surface cracks appear briefly and then are covered with the traces left by the asphalt. Therefore, the microscopic fold structure will show a parallel state. After UV aging for 305 h (Figure 8(p)), the morphology changes again, from the original parallel “fold structure” to a potentially staggered “network” structure. The structure is irregular and massive, but the smooth area between the systems becomes more extensive, with no obvious crack boundary. This indicates that the influence of UV aging on asphalt surface morphology is more prominent, forming a potential massive cataclastic area. Further magnification of local observation (Figure 8(s) and (t)) shows that the structural interface becomes more and more blurred with the extension of aging time, and the two are closely related.

Figure 8

SEM morphology of T622-modified asphalt affected by UV aging. (a) 76.25 h–200 μm, (b) 76.25 h–100 μm, (c) 76.25 h–500 μm, (d) 76.25 h–20 μm, (e) 76.25 h–40 μm, (f) 152.5 h–200 μm, (g) 152.5 h–100 μm, (h) 152.5 h–50 μm, (i) 152.5 h–20 μm, (j) 152.5 h–10 μm, (k) 228 h–200 μm, (l) 228 h–100 μm, (m) 228 h–50 μm, (n) 228 h–20 μm, (o) 228 h–10 μm, (p) 305 h–200 μm, (q) 305 h–100 μm, (r) 305 h–50 μm, (s) 305 h–20 μm, and (t) 305 h–10 μm.

As shown in Figure 9, the most prominent evolution process in the micro-area of T622-modified asphalt surface was “fold structure.” SEM observed the development and formation of different fractures, and the change process of the distance between folds was studied for example, Figure 9. The edge of “fold structure” was evident, as shown in Figure 9(a), the width of “fold structure” was 36.55 μm. However, as the aging process deepens, the crack width becomes smaller, and the edge of the structure becomes more blurred.

Figure 9

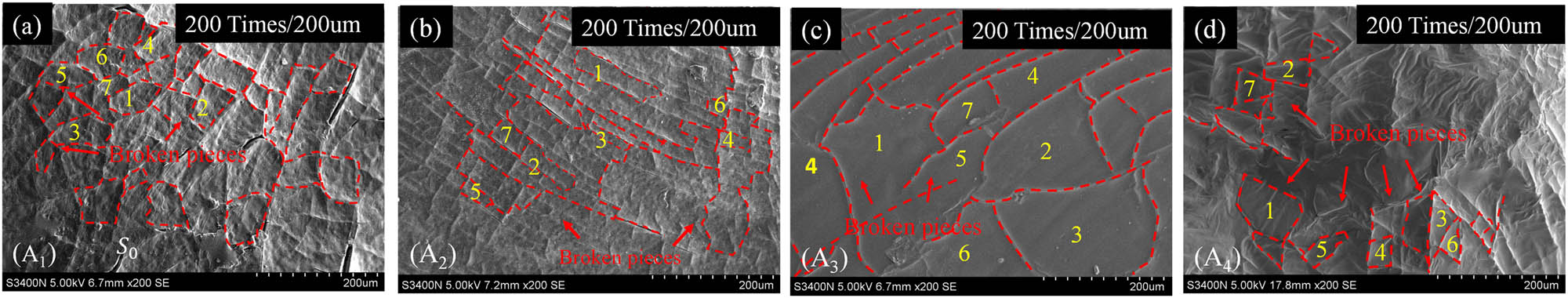

The spacing of T622 modified asphalt crack structure and the variation in crack spacing with UV aging: (a) 0 h, (b) 76.25 h, (c) 152.5 h, (d) 228 h, and (e) 305 h.

The appearance of fold structure in asphalt micro-structure may be caused by the flow of asphalt under the influence of high temperature and the filling of cracks, and the addition of T622 light stabilizer may enhance the self-healing ability of asphalt. It is inferred that the anti-aging performance of T622-modified asphalt under UV radiation might come from the self-healing performance of light stabilizer-modified asphalt and then promote crack healing to reach the anti-aging ability of UV radiation.

Based on the definition of crack structure and fold structure, the parameters related to “Crack structure” of T622-modified asphalt were selected as the quantitative standard indexes for the UV-induced typical micro-structure. Figure 9 shows that the crack interval of asphalt decreases from 36.55 to about 15.37 μm with aging time under long-term UV radiation. Comparing the crack spacing caused by UV aging of asphalt base under the same condition shows that both T622-modified asphalt and asphalt base tends to have more crack structures with aging. It was further demonstrated that T622-modified asphalt has anti-aging performance, but mainly to promote the asphalt by aging after the healing of cracks.

3.1.1.4 Analysis of the evolution process of UV induced micro-morphology of modified asphalt

As shown in Figure 10, base asphalt, T770-modified asphalt, and T622-modified asphalt exhibit different evolution processes and characteristics after exposure to UV radiation. Based on the results of SEM analysis, the evolution process of base asphalt and T622-modified asphalt was similar. After 75.25 h of aging, a few cracks appeared on the surface of the two asphalt samples. When the UV aging time reaches 152.5 h, the micro-cracks on the surface of the base asphalt expand and densify, while the T622 modified asphalt shows this trend in the folded state. When the UV aging time was extended to 228 h, the crack on the surface of the asphalt base further expanded and closed, and the connecting and connecting position appeared to obviously fragmentate. At this time, T622-modified asphalt shows a similar development trend, but because of its anti-UV aging effect, the surface of T622-modified asphalt only appears through the fold, and there was no obvious fragmentation. When the UV aging time reaches 305 h, the micro-cracks on the surface of the base asphalt intersect with each other; the surface appears as closed debris and the boundary of the debris area warps. However, with the prolonged UV aging time, the surface wrinkle structure of T622-modified asphalt becomes denser, and the breakthrough boundary structure appears.

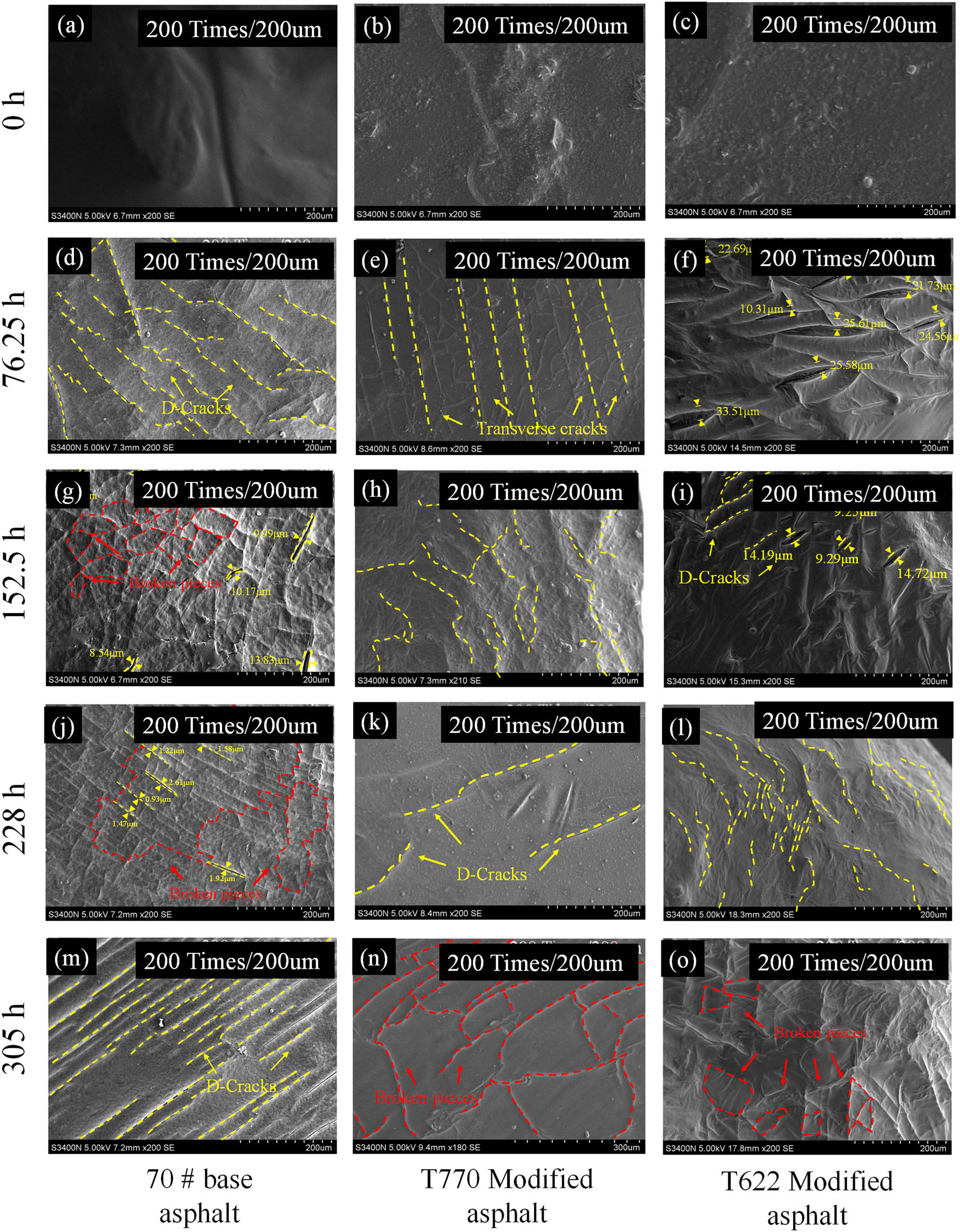

Figure 10

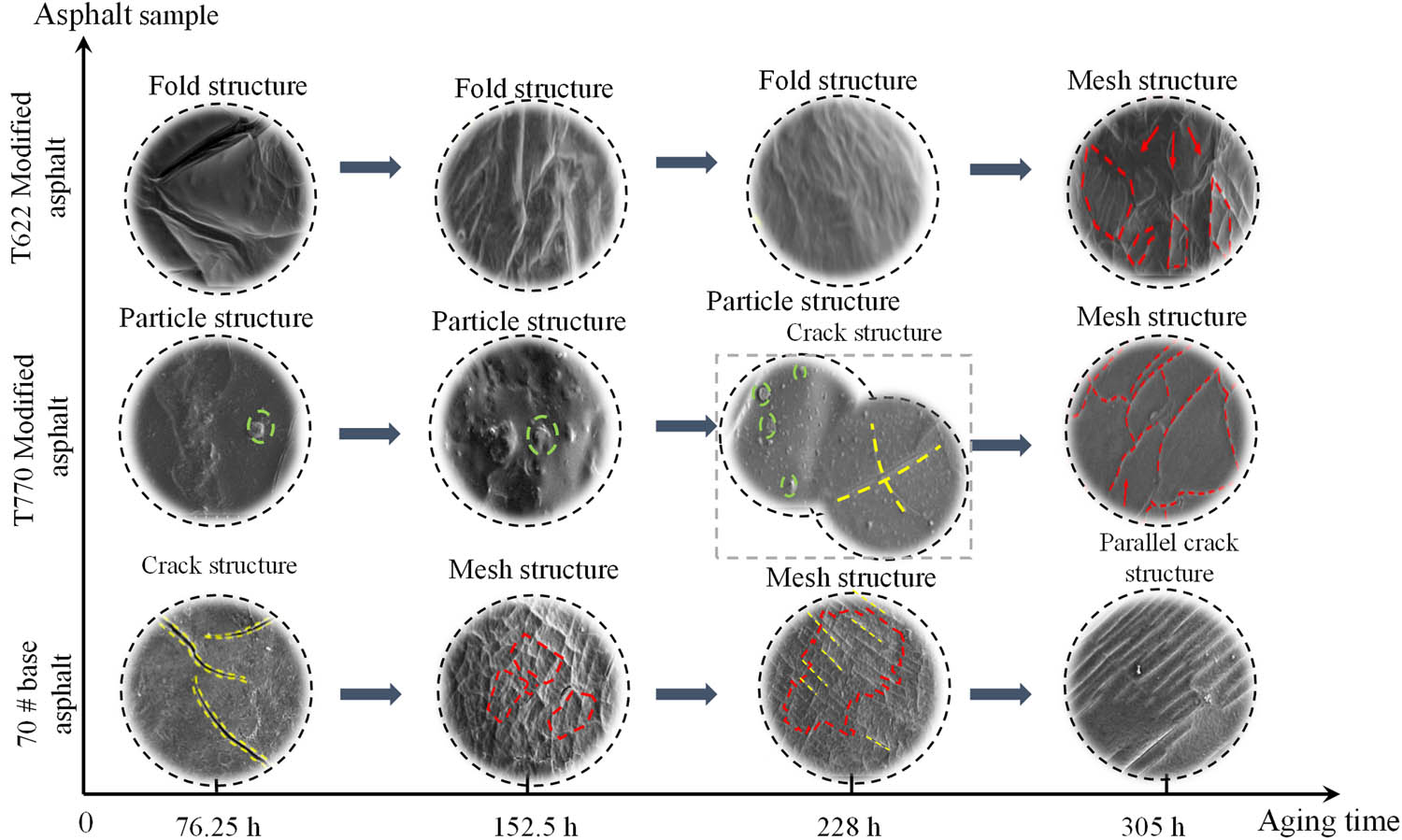

UV aging evolution of different asphalt specimens.

To sum up, the characteristic structure of base asphalt as the control group is “crack structure.” The typical evolution process of micro-morphology was: “staggered crack structure” – “through network structure” – “parallel crack structure.” The typical micro-structure of T622-modified asphalt is “fold structure,” and the evolution process of typical morphology is “fold structure” – “network fold structure.” The slow evolution of T770-modified asphalt may be due to the retarding effect of T770 on the aging of asphalt by retarded amine HALS. T770 light stabilizer improves the anti-aging performance of asphalt and prolongs the duration of each aging stage, which provides more abundant time for asphalt self-healing and thus delays the UV aging process. However, the number of “crack structures” of T770-modified asphalt at the same aging time was less. The typical evolution process of micro-morphology of T770 light stabilizer modified asphalt is “grain structure” – “crack structure” – “network structure.”

The results show that the crack width of asphalt base was large, and the degree of crack penetration and propagation was more serious than that of light-stabilized asphalt. For T770- modified asphalt, the evolution process of “crack structure” was slower, which shows that T770 light stabilizer can delay the change in morphology induced by UV in the micro-layer. For T622-modified asphalt, the interval width of the “fold structure” was used to characterize and describe the UV aging characteristics of asphalt. Under the influence of long-term UV radiation, the aging process of different types of asphalt will eventually show the same “network structure.” The addition of T770 and T622 can delay the change in asphalt micro-morphology.

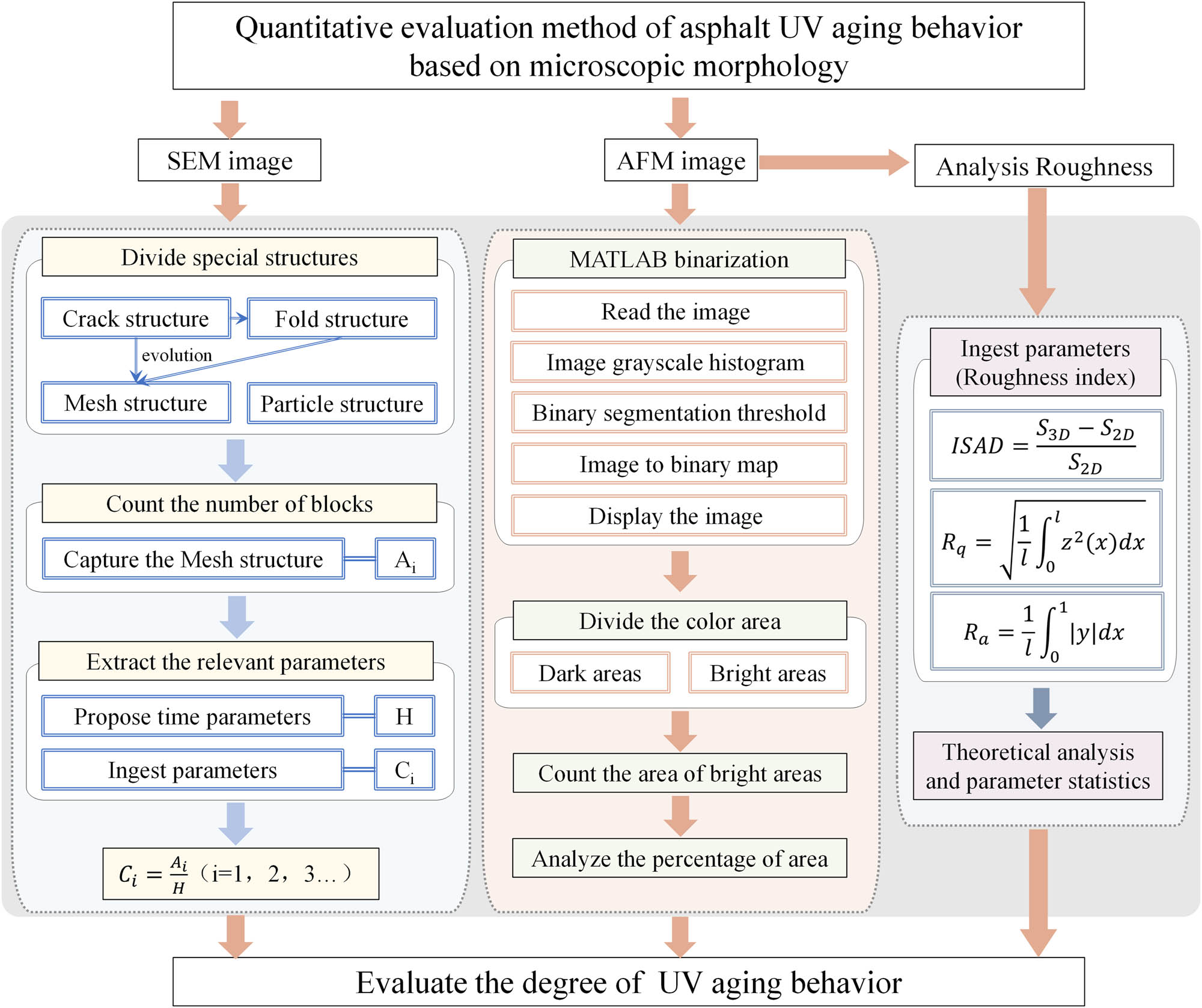

3.1.3.1 Time parameter introduction

Generally, asphalt “network structure” has a more apparent aging degree. As can be seen from Table 4, ImageJ image processing means were used to reprocess the SEM topography, count the number of “network structures,” and obtain the following results: A ₂ > A ₄ > A ₁ > A ₃. Based on this, it can be seen that base asphalt has the most significant number of Network structures in unit time at 228 h, followed by T622-modified asphalt at 305 h and base asphalt at 152.5 h. After comparison, it can be judged that after 305 h aging, T770-modified asphalt was in the aged stage of base asphalt 152.5 h, and after 305 h aging, T622-modified asphalt was in the aging location of base asphalt 152.5–228 h. To further quantify the microscopic evolution process of asphalt under the influence of UV radiation aging and the effect of HALS, the time parameter H was introduced on this basis (as shown in formula (1)). It can be seen that the asphalt aging rate from large to small was C ₂ > C ₁ > C ₄ > C ₃ after the introduction of the time factor.

These results indicate that the base asphalt has encountered a severe UV aging effect in the 228 h stage, resulting in a surge in the number of microscopic “network structures” of asphalt per unit. In contrast, the aging rate of base asphalt at the 152.5 h stage was C ₁ = 0.494 pieces per h, indicating that the aging process was faster with the extension of aging time. The aging rate of T770-modified asphalt was C ₃ = 0.043 pieces per h, which was only 0.067% of the aging rate of base asphalt in the 305 h stage and better than the aging rate of T622-modified asphalt C ₄ = 0.268 pieces per h.

Under the same aging condition, the modified asphalt with HALS enters the next aged stage later than the base asphalt. Therefore, the microscopic damage degree of T770- and T622- modified asphalt is much lower than that of base asphalt at the same aging stage. It can be further explained that HALS has good anti-aging properties. In particular, the T770 light stabilizer can effectively reduce the aging rate of asphalt.

In Table 4, S ₀ is the area of SEM view field under magnification. Under the condition that the total size of the statistical block A _i is unchanged, the existence number of the network structure are obtained statistically, which are A ₁ (base asphalt-152.5 h), A ₂ (base asphalt-228 h), A ₃ (T770-modified asphalt-305 h), and A ₄ (T622-modified asphalt-305 h), unit: block, as demonstrated in Figure 13. H is the corresponding UV aging time of different stages, unit: hours (h). The parameter C _i is the number of occurrences of the network structure in the unit aging time, unit: block.

3.1.3.2 Introduction of feature structure parameters

The above research methods and parameters were mainly based on the stable “network structure” after a long time of aging. However, the micro-structure changes of asphalt in UV aging were very complicated. When two or more characteristic structures (network structure and crack structure or fold structure) exist simultaneously, certain correction treatment was needed to improve the accuracy of analysis results. Therefore, correction coefficients were set in this work for UV aging stages with various typical characteristic structures (Table 5), as shown below.

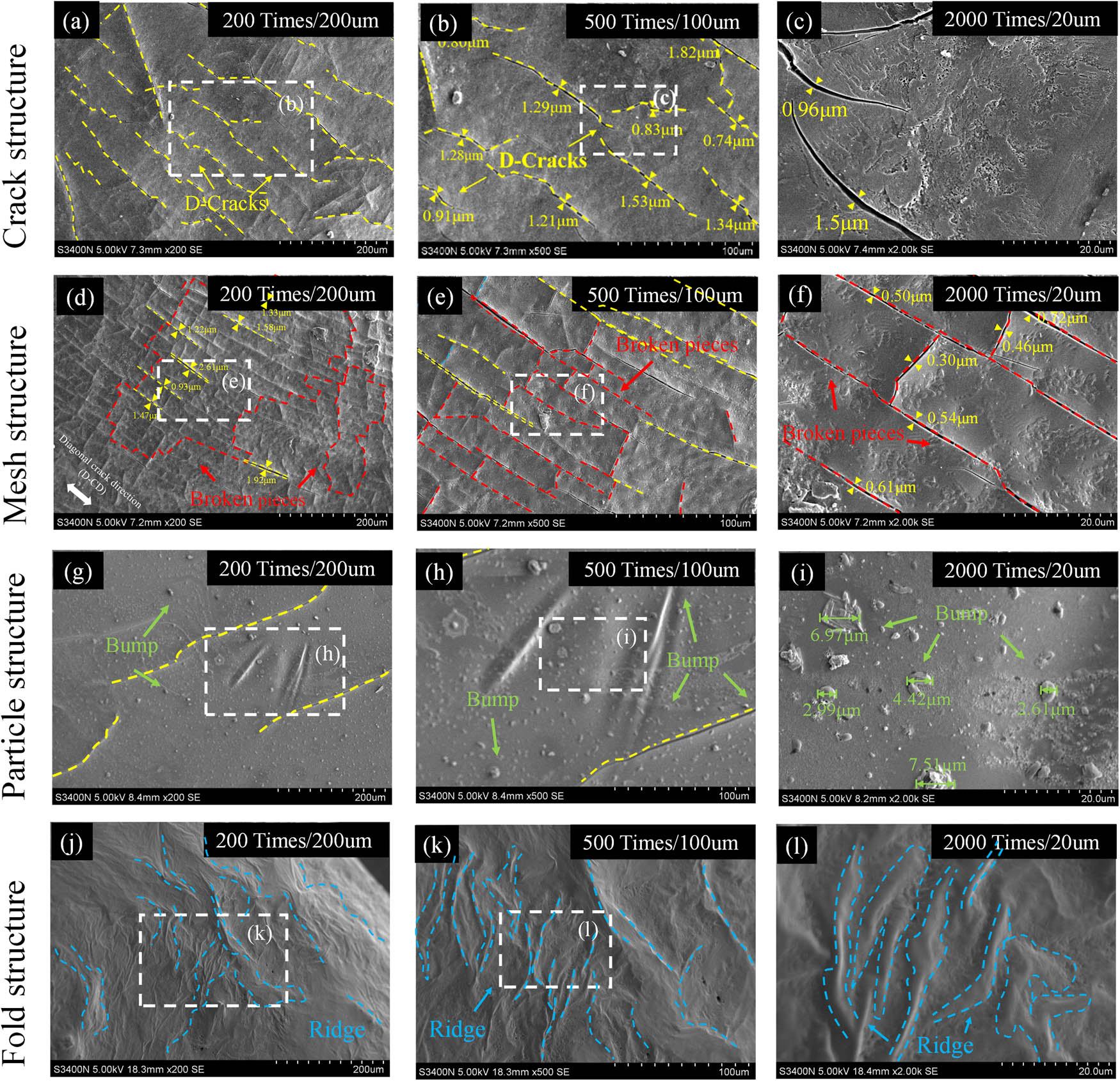

where the parameter C _i is the number of occurrences of the network structure in the unit aging time, unit: block; Statistical number of blocks A _i is the number of network structures obtained under the condition that the total area is unchanged, unit: block; It is the correction factor of the UV aging stage of a variety of typical characteristic structures. As demonstrated in Section 3.1.2, there were four characteristic structures (network structure, fold structure, particle structure, and crack structure) after UV aging. The characteristics of typical distinct structures were quantified, and the asphalt aging process was described. The quantitative analysis of the UV aging results of base asphalt showed that only the “network structure” existed in the aging stage of base asphalt-152.5 h. With the asphalt aging time advancing to 228 h, the “network structure” and parallel “crack structure” coexist in the surface micro-structure results of the base asphalt. At this time, different types of characteristic structural parameters were transformed into a unified structure for evaluation.

It was assumed that there were various characteristic structures when asphalt was aged in UV. Under the condition that the total area was unchanged, the deviation correction parameter (Table 5) was introduced into the existing number A _i of the statistically obtained network structure as the actual number of blocks B _i (Table 6). The aging rate parameter C _i was corrected again with the introduction of the characteristic structure parameters, and the results are shown in Table 7.

To sum up, it can be concluded that the time stage and duration of the “network structure” of different asphalt samples are different. The “network structure” stage of 70# base asphalt is the earliest, and the “network structure” stage of modified asphalt is later. This indicates that the aging degree of modified asphalt is lower in the same aging time stage. Further analysis shows that the aging rates of different asphalt samples are significantly different even at the same aging stage. The aging rate of T770-modified asphalt is the slowest in each UV aging stage, followed by T622 modified asphalt, which indicates that the anti-aging ability of T770 subjected to HALS is better than that of T622 subjected to HALS. Through the quantitative analysis of the characteristic structural changes in SEM characterization methods, it can be determined that the anti-aging ability in descending order is T770 > T622 > 70# base asphalt.

3.1.5.1 Base asphalt

Figures 15 and 16 show base asphalt’s AFM characterization results under different UV aging times. The unaged 70# base asphalt (Figure 15(a)) was analyzed, and it was found that the 2D topography of the base asphalt showed evident bright and dark regions, and the bright granular structure was evenly dispersed in the image. Through the observation of the roughness index, it is found that the highest value of the image is 21.1 nm, and the lowest value is −28.6 nm. Generally speaking, the asphalt surface tends to be flat on the whole.

Figure 15

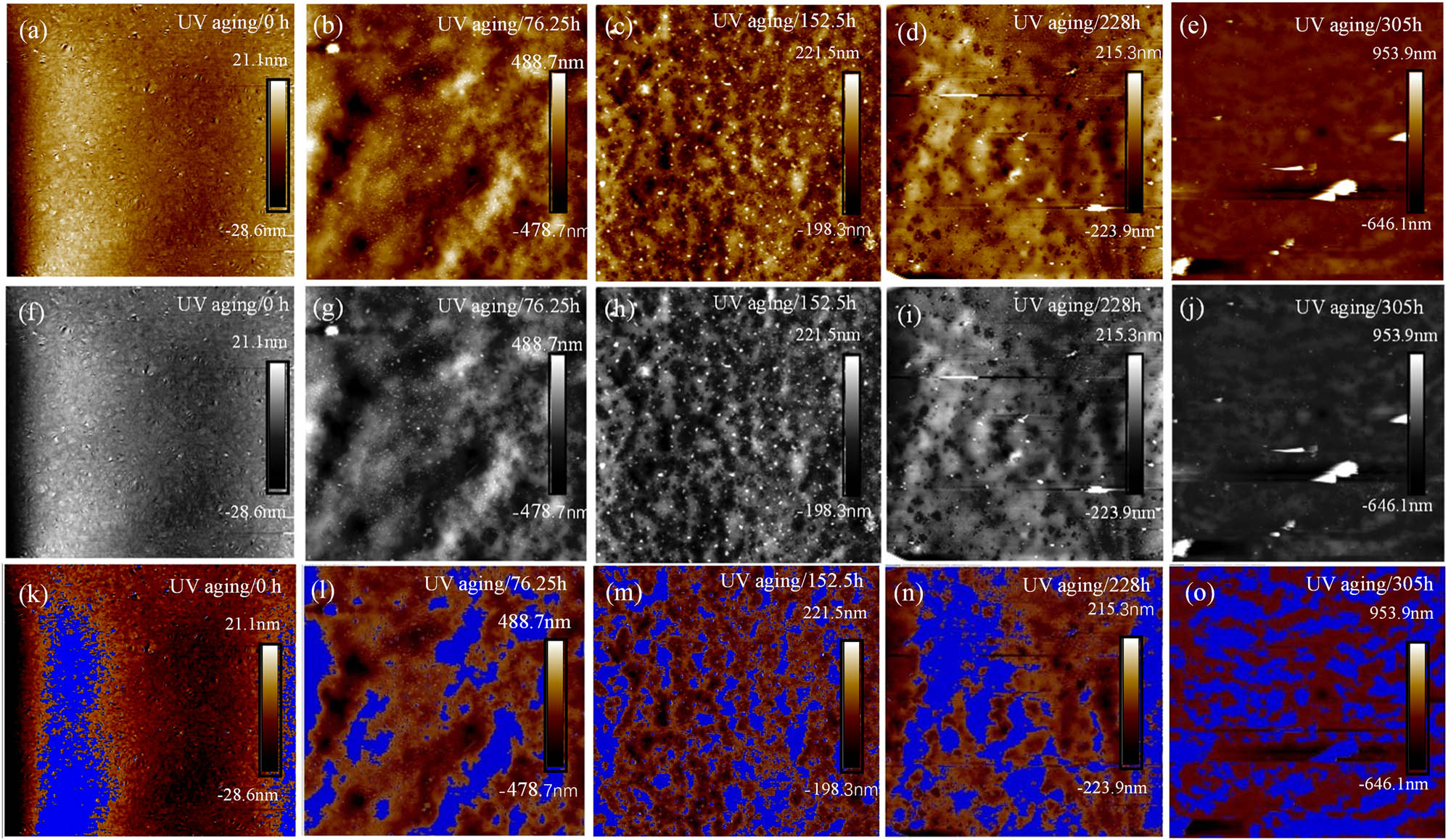

The AFM-2D characterization results and gray level images of base asphalt under different UV aging times (80 μm × 80 μm): (a) AFM-0 h, (b) AFM-76.25 h, (c) AFM-152.5 h, (d) AFM-228 h, (e) AFM-305 h, (f) Grayscale-0 h, (g) Grayscale-76.25 h, (h) Grayscale-152.5 h, (i) Grayscale-228 h, (j) Grayscale-305 h, (k) Processing chart-0 h, (l) Processing chart-76.25 h, (m) Processing chart-52.5 h, (n) Processing chart-228 h, and (o) Processing chart-305 h.

Figure 16

AFM-3D characterization of asphalt substrates with different UV aging times (80 μm × 80 μm): (a) 3D-0 h, (b) 3D-76.25 h, (c) 3D-152.5 h, (d) 3D-228 h, and (e) 3D-305 h.

However, according to the 3D analysis results (Figure 16(a)), the surface morphology of the unaged base asphalt was more prominent. It can be seen from the observation that the bright domain was manifested as a raised area, and the dark domain was manifested as a sagging area. When the UV aging time reaches 76.25 h, the overall morphology of asphalt in Figure 15(b) gradually becomes more complex, and the distribution of bright and dark domains presents obvious aggregation boundaries. The accumulation of materials on the asphalt surface forms bright domain aggregation, which was gradually reflected with increasing aging depth. At this aging stage, the surface of the base asphalt tends to flatten out, and the total height decreases, which was shown in the 3D topography map (Figure 16(b)) as evenly distributed “raised” and “sunken” areas. As the UV aging time continues to extend to 228 h (Figure 15(d)), the boundary between the bright domain and the dark domain becomes more apparent, and most of them take the bright domain as the core and spread around, and then connect into the form of the dark domain.

In addition, the 3D topography of this period (Figure 16(d)) presents a large-diameter aggregated “columnar structure.” After 305 h (Figures 15(e) and 16(e)), the bright material was clustered into peaks and was well delimited from the dark area. “Bee structure,” as the name suggests, the asphaltene content forms highly varying light and dark interleaving bee tail structure with the increase in aging.

Based on the previous findings, it was found that the base asphalt did not appear to have a “bee-like structure” in this observation, which may be caused by the flocculation and melting of asphaltene caused by UV aging, resulting in the disappearance of bee structure degradation [26,27]. The base asphalt was prolonged with UV aging time. With the increase in UV aging time, there were “needle structures” and “columnar structures” in the evolution of the surface morphology of the base asphalt. Subsequent studies show that “columnar structure” was also consistent with the change process of asphalt physicochemical properties during the formation of “bee structure.” Relevant studies have found that the formation of asphalt’s microscopic characteristic structure was influenced by the joint action of asphaltene, wax, and other components [28,29], and the change in components will accelerate the aging rate of asphalt and thus affect the change in AFM micro-structure [30,32]. It can be concluded that the morphological change in “Columnar structure” can also be used as a quantitative index to analyze the change law of asphaltene content.

The characteristic morphology was summarized by AFM characterization method to quantify the aging effect of UV radiation on asphalt binder. According to the abovementioned characteristics of AFM, it can be seen that the area percentage of “columnar structure” (bright field part) in 2D micro-structure was selected as the quantitative index of asphalt UV aging.

As is shown in the table, the area percentage of asphalt columnar structure was 25.68% after UV aging for 76.25 h. At this point, asphalt’s lightweight components have not volatilized or transformed into recombination components, and the “acicular structure” generally shows a peaceful state. With the further extension of UV aging time, the area percentage of the structure increases to 29.27%. The appearance of these data may be due to the surface depression caused by the evaporation of aromatic components in lightweight components. The other part changed from long-chain alkanes to heavy components, among which the earliest content increase was resin and part of asphaltene in the recombination component, which showed “needle structure” in the 3D figure.

When the UV aging time reaches 228 h, the asphaltenes that aggregate to form depressions and protrude due to polarity show columnar structures with different heights as shown in Figure 16(c) [31]. There were apparent depressions around the structure, which reflects that the columnar structure was formed by the accumulation of lightweight components after transformation to asphaltene. After further aging to 305 h, the aggregate area of “columnar structure” was as high as 44.33%. At this time, the area proportion of “bright field” in the image reaches the maximum.

The columnar structure has a strong correlation with the UV aging degree of asphalt. As the aging time increases, asphaltene content increases and asphaltene accumulates and aggregates to form special structures, which eventually leads to an increase in structure percentage. Based on this, the micro-structural characteristics of base asphalt can be correlated with asphalt components and asphalt aging degree.

In addition, asphaltene, as an insoluble component in asphalt, leads to a decrease in asphalt fluidity and plasticity. The internal stress of asphalt accumulates, and the stress of crack structure acts on it. Finally, the macro-morphology of asphalt pavement cracks and the asphalt viscosity increases, and the anti-low temperature performance deteriorates [24], [32–34]. Therefore, AFM characterization method can effectively evaluate the change in asphaltene content in the aging process of asphalt and then judge the UV aging degree of asphalt binder.

3.1.5.2 T770-modified asphalt

Figures 17 and 18 show the AFM-2D and 3D characterization of T770-modified asphalt under different UV aging times. The unaged T770-modified asphalt analysis shows bright and dark domains with specific limits on the asphalt surface from Figure 17(a). However, according to the observation of the corresponding three-dimensional Figure 18(a), it was found that the main reason for the area fragmentation was the uneven surface of asphalt. At this time, the bright field in the image can only indicate that there was a large area of bulge in this area. When the UV aging time was extended to 76.25 h (Figure 17(b)), many bright spots appeared at the junction of bright and dark domains. From the 3D topography (Figure 18(b)), it can be seen that the bright spots at the junction were actually “needle structures” with small diameters and dense distribution. The relatively flat asphalt surface morphology may be caused by the heat carried by UV light, which leads to the flow of asphalt components because the T770 modifier in the modified asphalt can inhibit the lightweight components in the asphalt, especially the oxidation and condensation of aromatic components, to reduce the loss of lightweight components, resulting in a low degree of asphalt aging. In short, the asphalt surface at this stage was less undulating.

Figure 17

The AFM-2D characterization results and gray level images of T770 modified asphalt under different UV aging times (80 μm × 80 μm): (a) AFM-0 h, (b) AFM-76.25 h, (c) AFM-152.5 h, (d) 2AFM-228 h, (e) AFM-305 h, (f) Grayscale-0 h, (g) Grayscale-76.25 h, (h) Grayscale-152.5 h, (i) Grayscale-228 h, (j) Grayscale-305 h, (k) Processing chart-0 h, (l) Processing chart-76.25 h, (m) Processing chart-52.5 h, (n) Processing chart-228 h, and (o) Processing chart-305 h.

Figure 18

AFM-3D characterization of asphalt substrates with different UV aging times (80 μm × 80 μm): (a) 3D-0 h, (b) 3D-76.25 h, (c) 3D-152.5 h, (d) 3D-228 h, and (e) 3D-305 h.

When UV aging time was 228 h (Figure 17(d)), it can be seen from the image that bright fields on the asphalt surface gather and connect to form a closed and irregular shape. This phenomenon may be caused by the photooxidation reaction of asphalt under the coupling effect of UV light and temperature [34–37]. When UV aging time reaches 305 h, Figure 18(e) shows that many raised structures were distributed on the asphalt surface, and the “Columnar structure” increases with the dark area. At this point, the height of columnar structure of asphalt surface is relative to the average.

Similarly, to quantify the aging degree of T770-modified asphalt under UV radiation, the aging development process was evaluated by the area percentage change of “columnar structure” (bright colored area), a quantitative index. As seen from the analysis of Tables 8 and 9, the area percentage of columnar structure increases significantly with the extension of UV aging time. The percentage of structure area was 22.42% at 76.25 h UV aging, which was smaller than that of base asphalt at the same time. This shows that T770 light stabilizer can maintain the stability of asphalt binder under UV radiation. When the UV aging reaches 152.5 h, the area percentage of columnar structure is 23.40%. While at the 228 h aging stage, the area percentage of columnar structure was 24.05%. When the UV aging time reaches 305 h, the percentage of structure area reaches 28.73%, and the percentage of structure area increases.

In conclusion, through the change in percentage of asphalt bright field area in each stage, the volatilization of lightweight components and the change process of heavy components in asphalt in the UV aging process can be seen. The change process of micro-structure of asphalt recombination components gradually aggregated with aging can further analyze the degree of asphalt affected by aging.

3.1.5.3 T622-modified asphalt

Figures 19 and 20 show the AFM-2D and 3D characterization results of T622-modified asphalt under different UV aging times. In the observation diagram of unaged modified asphalt (Figure 19(a)), the boundaries of light and dark areas were blurred. Combined with the 3D diagram (Figure 20(a)), it can be seen that the uneven surface of whole asphalt sample caused the fluctuation changes at this stage. When the UV aging time was 76.25 h (Figure 19(b)), the boundary between bright and dark areas on the surface appeared blurred, and there was a mixed distribution of light and dark areas. In general, the dark area surrounds the bright area. The 3D diagram clearly shows this situation (Figure 19(b)). In the corresponding region, the bright region was a towering convex structure with a peak shape, while the dark region was an enveloping depression, resulting in a greater height difference. When UV aging time reaches 152.5 h, it can be seen from the analysis in Figure 19(c) that the microscopic surface development of modified asphalt was complex. According to the 3D map topography in Figure 20(c), bright particles on the surface of modified asphalt were evenly distributed and accompanied by many acicular structures. In the subsidence area representing the dark region, there were also reverse “acicular structures” with small diameters and high heights. However, due to the similar fluctuation degree of the modified asphalt, the overall height distribution was uniform and the subsidence, and uplift structure, was reduced. The structure as a whole presents a gentle surface.

Figure 19

The AFM-2D characterization results and gray level images of T622 modified asphalt under different UV aging times (80 μm × 80 μm): (a) AFM-0 h, (b) AFM-76.25 h, (c) AFM-152.5 h, (d) AFM-228 h, (e) AFM-305 h, (f) Grayscale-0 h, (g) Grayscale-76.25 h, (h) Grayscale-152.5 h, (i) Grayscale-228 h, (j) Grayscale-305 h, (k) Processing chart-0 h, (l) Processing chart-76.25 h, (m) Processing chart-52.5 h, (n) Processing chart-228 h, and (o) Processing chart-305 h.

Figure 20

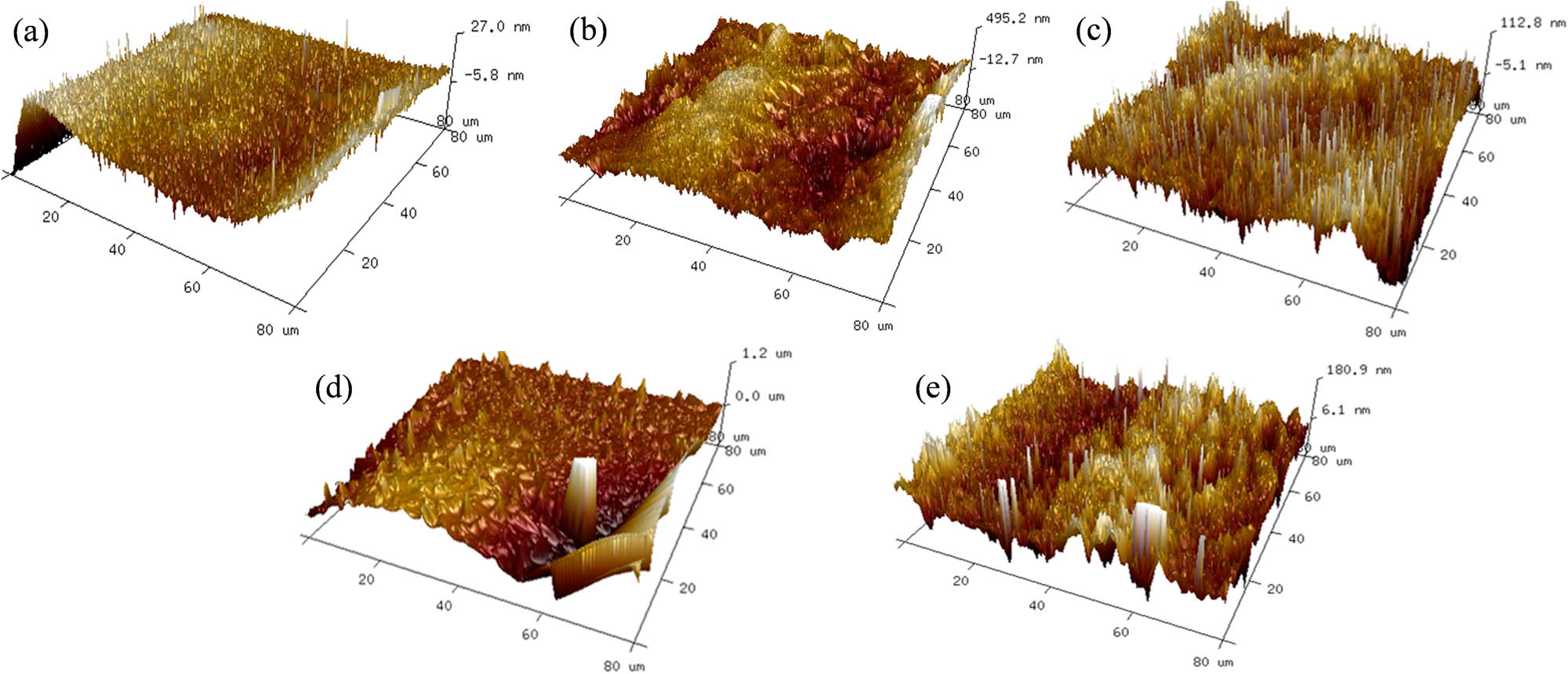

AFM-3D characterization of asphalt substrates with different UV aging times (80 μm × 80 μm): (a) 3D-0 h; (b) 3D-76.25 h; (c) 3D-152.5 h; (d) 3D-228 h; and (e) 3D-305 h.

When UV aging time reaches 228 h (Figure 19(d)), the asphalt micro-structure appears as a cluster of bright colored patch. In the 3D image (Figure 20(d)), it was shown as a “columnar structure” with a difference of 1.2 µm. When the aging time reaches 305 h, as shown in Figure 20(e), the asphalt surface shows a precise color distribution of light and dark, presenting a complex morphology of columns and valleys. Therefore, it was speculated that the source of recombination component accumulation required for columnar structure formation was provided by the lightweight components around.

The “columnar structure” in the 2D image was selected for further quantitative evaluation of the aging degree of the subsequent T622-modified asphalt, as shown in Table 10. In the whole UV aging process, the percentage of columnar structure of unaged T622-modified asphalt was 23.59%. After UV aging for 76.25 h, the area percentage of T622 modified asphalt columnar structure was 28.73%. After the aging time of 152.5 h, the proportion drops to 28.18%, which may be caused by the fact that T622 light stabilizer itself, as an additive with macromolecular structure, will cause liquidity loss in the early stage of asphalt mixing [35].

With the change in aging time, the modifier gradually decomposes and plays its role in inhibiting UV aging, reflected in the decrease in the structure percentage. The subsequent aging evaluation proved the anti-aging effect of T622 light stabilizer. When UV aging time reached 228 h, the structure percentage of T622-modified asphalt was only 88.67% of base asphalts. When UV aging time reaches 305 h, the area ratio of columnar structure was 40.82%, which was much lower than that of base asphalt (44.33%) under the same conditions. It can be seen that the photostable modifier T622 has specific anti-aging properties, and the micro-morphology change of modified asphalt was relatively complex, which was related to its complex chemical structure [35]. Therefore, the addition of a macromolecular HALS increases the viscosity of asphalt. In addition, the degradation of T622 modifier under UV light will affect the rate of asphaltene precipitation and reduce the interaction between asphalt and polymer.
