Molecular dynamics simulations of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50) and TKX-50-based PBXs with four energetic binders

  • Hu Niu EMAIL logo , Yan Xing , Shusen Chen , Shaohua Jin and Lijie Li
Published/Copyright: July 12, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
e-Polymers
From the journal e-Polymers Volume 23 Issue 1

Abstract

Four energetic binders, polyglycidyl nitrate (PGN), poly(3-nitratomethyl-3-methyloxetane) (PNIMMO), poly(bis(azidomethyl)oxetane) (PBAMO), and glycidyl azide polymer (GAP) were, respectively, mixed with dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50), forming TKX-50-based polymer bonded explosives (PBXs). Interfacial forces (binding energies) under different temperatures, mechanical properties (tensile modulus, bulk modulus, shear modulus, and Poisson’s ratio), and moldability of TKX-50-based PBXs were investigated by employing molecular dynamics simulation, the energy characteristics of TKX-50-based PBXs were calculated by Chapman–Jouguet (C–J) detonated theory. Results show that temperature has little effect on the binding energies, but the binding energies between every energetic binder and each surface of TKX-50 are different and the order of combined ability between four energetic binders and TKX-50 decrease as follows: PNIMMO > PBAMO > PGN > GAP. Compared with TKX-50, the addition of four energetic binders makes the rigidity of TKX-50-based PBXs decrease and the plasticity improve, the plastic ability rank is in the order of PGN > PNIMMO > PBAMO > GAP. In addition, the moldability of TKX-50-based PBXs is obviously improved, the increasing order is PGN > PNIMMO > PBAMO > GAP. Finally, the detonation performances indicate that compared with common binder, the addition of the energetic binder makes TKX-50-based PBXs have higher energy under the same condition.

Keywords: TKX-50; PBXs; molecular dynamics; energetic binder

1 Introduction

Developing insensitive munitions (IMs) is always the major trend in the sector of propellants and explosives (1,2,3). Therefore, up till now, a lot of IMs have been designed and prepared through great efforts of scientific researchers (4–6). Among them, dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50) is noticeable especially, because it is not only very insensitive but also highly energetic (7), which also breaks the traditional view that high energy must be accompanied with high sensitivity. Just for the special superiority of TKX-50, it is considered to be a promising candidate for a new generation of high energetic insensitive material and many properties including synthesis, decomposition mechanism, molecular structure, compatibility, and thermal behavior have been studied in recent years (8,9,10,11,12). However, as a new kind of energetic material, it is necessary to convert single explosive compound into its polymer bonded explosive (PBX) in order to promote its application, because PBXs can be widely used in military and civilian field due to their simple preparation, superior mechanics, and high safety (13,14,15). When preparing PBXs, even though the kinds of poly binders are always different, the addition of the most poly binders also weakens the energy level while reducing their sensitivity.

Thus, in our research, to obtain the insensitive PBXs with the minimum energy loss, four different energetic binders polyglycidyl nitrate (PGN), poly(3-nitratomethyl-3-methyloxetane) (PNIMMO), poly(bis(azidomethyl)oxetane) (PBAMO), and glycidyl azide polymer (GAP) were chosen to be mixed with TKX-50 (Scheme 1) due to their higher energy. TKX-50-based PBXs with the four energetic binders were established in the molecular model. The binding energies under different temperatures, mechanical properties (tensile modulus, bulk modulus, shear modulus, and Poisson’s ratio), and moldability of TKX-50-based PBXs were studied by using molecular dynamics (MD) simulation. In addition, the detonation velocity and detonation pressure were estimated by Chapman–Jouguet (C–J) detonated theory.

Scheme 1 Chemical structure of GAP, PBAMO, PGN, PNIMMO, and TKX-50.
Scheme 1

Chemical structure of GAP, PBAMO, PGN, PNIMMO, and TKX-50.

Our studies are helpful for promoting the application of TKX-50 and the results are instructional and valuable for the design and preparation of TKX-50-based PBXs.

2 Methodology

2.1 Establishment of force fields

The choice of the force field is vital in the process of MD simulation, because unsuitable force field will lead to the failing of dynamics simulation or excessive error of the simulation results. TKX-50 acts as a new energetic salt, and force fields existing in Forcite Tools of Materials Studio are not suitable for simulating. Fortunately, An et al. (16) obtained the force field parameters of TKX-50 by Quantum Mechanics calculation. Therefore, with the help of the parameters obtained by An, the DREIDING force field was recompiled for the MD simulation. In the following sections, the recompiled DREIDING force field will be called DREIDING-R for short.

2.2 Checking of the force field

The crystal parameters of TKX-50 used in our work were obtained from X-ray values. The original parameters of TKX-50-unit cell were found to be a = 5.461 Å, b = 11.612 Å, c = 6.507 Å, a = γ = 90°, and β = 95.391°. In order to make sure the reliability of DREIDING-R force field, geometry optimization (GO) was carried out by using DREIDING-R and the geometric parameters (cell length, cell angle, and density) obtained from simulation (Figure 1) and experiment were compared (Table 1). The results showed that the errors of all geometric parameters are within 6%, which met the conditions of simulation calculation. In addition, with the help of DREIDING-R force field, the crystallite shape was predicted by employing the method of growth morphology at morphology module and the simulated results was compared with the experimental result obtained by scanning electron microscopy (Figure 2). Just as shown in Figure 2, the simulated and experimental results are very similar and both of them indicate that TKX-50 is a flat and spindle shaped crystal, which demonstrate that the DREIDING-R force field is reliable.

Figure 1 The simulation results of geometric parameters of TKX-50: (a) initial crystal cell structure of TXK-50, (b) crystal cell structure of geometry optimized TKX-50, (c) the variation in cell length with optimization step, (d) the variation in cell angle with optimization step, and (e) the variation in density with optimization step.
Figure 1

The simulation results of geometric parameters of TKX-50: (a) initial crystal cell structure of TXK-50, (b) crystal cell structure of geometry optimized TKX-50, (c) the variation in cell length with optimization step, (d) the variation in cell angle with optimization step, and (e) the variation in density with optimization step.

Table 1

Comparison of simulated and experimental geometric parameters of TKX-50 cell

Geometric parameters a b c α γ β D
Experiment 5.461 11.612 6.507 90° 90° 95.391° 1.877
Simulation 5.266 11.282 6.149 90° 90° 95.189° 1.952
Error (%) 3.57 2.84 5.5 0 0 0.21 4.0

a/b/c represent the cell length, α/γ/β represent the cell angle, D represents density.

Figure 2 The simulated (a) and experimental (b) results of crystal morphology for TKX-50.
Figure 2

The simulated (a) and experimental (b) results of crystal morphology for TKX-50.

The simulated results also illustrate that there are four main crystal surfaces (010), (100), (0-11), and (101) for TKX-50, and the detailed distribution is shown in Figure 3.

Figure 3 The distribution map of different crystal surfaces for TKX-50.
Figure 3

The distribution map of different crystal surfaces for TKX-50.

2.3 Construction of polymer models

For the constructions of the four energetic binders, the weight percent of the binders in PBXs were kept at about 10%. According to their structures in Scheme 1, the repeat units for GAP, PBAMO, PGN, and PNIMMO were calculated to be 8, 5, 6, and 5, respectively. Considering the four binders are all amorphous polymers, the cell amorphous models were employed to obtain their most real form according to their actual density (1.30, 1.30, 1.46, and 1.26 g·cm−3 for GAP, PBAMO, PGN, and PNIMMO, respectively). During the process, the length and width of all the models should be determined on the basis of the lattice parameters of the TKX-50 cells to ensure that all the binder models and TKX-50 models can be easily combined. Afterward, the four binder models were counted for 100 ps NVT MD simulation at 298 K with DREIDING-R force field, in which the thermostat method is “Anderson,” and the time step is 0.5 fs. The equilibrium structures of binders can be obtained at the end of MD simulation.

2.4 Construction of TKX-50 models

Since the properties of each crystal surface for TKX-50 are different, it is essential to cut the four main crystal surfaces (010), (100), (0-11), and (101) out from TKX-50 and construct their super cells. The cutting method can be found in the “Build” toolbar in Material Studio 6.0. To make sure the ratios of energetic binder and explosive remain consistent, the number of TKX-50 molecules in each super cell was calculated to be 40. With the help of DREIDING-R, a brief MD was carried out, by which, we can obtain the initial density of each super cell. Then, the values in the direction c were modified to get the super cells with real density (1.877 g·cm−3) [7]. Finally, the four super cells were optimized by using GO and treated as the single TKX-50 models (Figure 5a) for the subsequent MD simulation.

2.5 Construction of TKX-50/binders models

Combining equilibrium structures of binders and the four super cells (010), (100), (0-11), and (101) of TKX-50 together by using “Build Layers” toolbar. To obtain the models for calculating the binding energies (E binding) between TKX-50 and binders, the space in the direction c of TKX-50/binders should be expanded by 50 Å to ensure that the binders will not be affected by the TKX-50 in the upper space. Then, TKX-50/binders were made a brief GO (about 1,000 steps) to obtain the initial models (Figure 4), which can be used to carry out MD to obtain equilibrium models. Finally, the equilibrium models can be employed to calculate the E binding values between TKX-50 and each energetic binder.

Figure 4 The initial model of TKX-50-based PBX ((010)/PNIMMO).
Figure 4

The initial model of TKX-50-based PBX ((010)/PNIMMO).

However, in order to analysis mechanical properties of TKX-50/binder by DREIDING-R force field, the combined models should be compressed in direction c to make their density close to the theoretical values (TKX-50/PNIMMO, 1.815 g·cm−3; TKX-50/PBAMO, 1.820 g cm−3; TKX-50/PGN, 1.835 g·cm−3; TKX-50/GAP, 1.819 g·cm−3). Then, TKX-50/binders models were made a brief GO (about 1,000 steps) to obtain the initial models (Figure 5b) for carrying out MD simulation. Finally, the equilibrium models of TKX-50/binder can be obtained and used to analysis the mechanical properties and moldabilities.

Figure 5 The initial models of TKX-50 (a) and TKX-50-based PBX (b) for analyzing the mechanical properties ((010)/PNIMMO).
Figure 5

The initial models of TKX-50 (a) and TKX-50-based PBX (b) for analyzing the mechanical properties ((010)/PNIMMO).

In all the MD simulations above, the single TKX-50 and TKX-50/binders were treated as isothermal-isochoric (NVT) ensemble. The initial velocities are assigned at random from a Maxwell–Boltzmann distribution. During the simulation process, a non-bond (electrostatic and van der Waals) was obtained by the Ewald and atom-based method. “Anderson” was chosen as the thermostat, and the temperatures were set as 298 K for simulations of mechanical properties and 298, 308, 318, 328, 338, and 348 K for simulations of binding energies. The time step was 1 fs and the total simulation step number was 200,000. The frame was output every 50 steps, so 4,000 frames would be saved and put out. Five frames with the minimum energy were chosen as equilibrium models to analyze their binding energies and mechanical properties.

3 Results and discussion

3.1 Binding energies

The value of binding energy (E binding) can directly show the abilities of the four energetic binders coated TKX-50 and it is defined as the negative value of the interaction energy (E inter), that is, E binding = −E inter. The molecular interaction energy can be estimated by calculating the single point total energy of each component in the equilibrium models. In terms of our research works, the values of E inter between the four energetic binders and TKX-50 can be described as the follows:

(1) E inter = E total − ( E TKX-50 + E binder )

where E total is the average total energy of PBX, E TKX-50 and E binder are the average single point energy of TKX-50 and the four energetic binders, respectively.

Only when the model reaches equilibrium, can the E binding be analyzed. We can determine whether a model is in an equilibrium stage by observing the fluctuations of temperature and energy. A model is usually considered to be a balance when its fluctuation ranges of temperature and energy are less than 10% (17,18,19). Take TKX-50(010)/PNIMMO as an example. Figure 6 presents its fluctuation curves of temperature (Figure 6a) and energy (Figure 6b) obtained from the last 100 ps molecular simulation.

Figure 6 Fluctuation curves of (a) temperature and (b) energy of (010)/PNIMMO.
Figure 6

Fluctuation curves of (a) temperature and (b) energy of (010)/PNIMMO.

From Figure 6, it can be seen that the fluctuating ranges are less than 3% for both temperature and energy. The results demonstrate that our model has reached an equilibrium stage. The other 15 TKX-50/binders can obtain their equilibrium models using the same method. The equilibrium models of (010) crystalline surface with the four energetic binders are shown in Figure 6 as an example. It can be seen that all the binders are closer to the crystal surface compared with their initial models and this may be caused by the attraction between the binder and TKX-50 crystals. In Table 2, the average energies of PBXs (E total), energetic binders (E binder) and TKX-50 (E TKX-50) of equilibrium models (Figure 7) are presented, by which, the average binding energies (E binding) of equilibrium models were calculated.

Table 2

Average energies (kJ·mol−1) of each component in PBXs and the average binding energies (kJ·mol−1) between different crystal surface and the four energetic binders at 298 K of equilibrium models

Facet Binders E total E facet E binder E binding
(010) PNIMMO −6,160.32 −7,583.29 1,510.79 87.82
PGN −5,938.52 −7,453.53 1,565.19 50.18
PBAMO −7,072.65 −7,733.04 728.19 67.8
GAP −7,219.13 −7,803.36 611.01 26.78
(0–11) PNIMMO −6,293.81 −7,800.46 1,581.93 75.28
PGN −5,726.13 −7,199.31 1,544.27 71.09
PBAMO −7,177.58 −7,887.36 744.93 35.15
GAP −7,021.94 −7,550.09 556.61 28.46
(100) PNIMMO −5,389.42 −6,875.15 1,552.64 66.91
PGN −5,710.35 −7,505.76 1,858.14 62.73
PBAMO −6,892.82 −7,502.16 657.05 47.71
GAP −6,937.63 −7,826.52 903.96 15.07
(101) PNIMMO −5,592.17 −7,098.81 1,556.82 50.18
PGN −5,571.79 −7,019.85 1,510.79 62.73
PBAMO −6,853.29 −7,572.28 749.12 30.13
GAP −6,973.14 −7,634.37 686.34 25.11
Figure 7 Equilibrium structures of (010)/binders for calculating the binding energies: (a) PNIMMO, (b) PGN, (c) PBAMO, and (d) GAP.
Figure 7

Equilibrium structures of (010)/binders for calculating the binding energies: (a) PNIMMO, (b) PGN, (c) PBAMO, and (d) GAP.

The data in Table 2 clearly show that the values of binding energies between diverse binders and the same crystal surface of TKX-50 are very different, these results may be caused by the different functional groups of binders. Generally, PNIMMO presented the stronger binding force with every crystal surface than the other three energetic binders, while the binding energies between GAP and each crystal surface of TKX-50 are the smallest among the four binders. For surface (010), its binding energy with PBAMO is larger than that of PGN; however, for the other three crystal surfaces, the values of E binding between PGN and the surfaces are higher than those of PBAMO. This illustrates that values of E binding between the same binder and different crystalline surfaces are also different, which may be caused by the different atoms on the surface of each crystalline surface of TKX-50. Furthermore, it can be found that (010) surface of TKX-50 has larger binding energies with the four energetic binders compared with the other three crystalline surfaces. Just as described in Figure 3, (010) is the largest surface among the crystalline surfaces of TKX-50. Therefore, we can conclude that when using the four energetic binders to prepare TKX-50-based PBXs, binders mainly covered on the surface of (010) and the coating effect of (010)/binder is the best.

In order to present the weighted binding effect between TKX-50 crystal and the four energetic binders, average values of E binding were calculated according to the area percentage of each crystalline surface. The results are listed in Table 3, which revealed that the binding abilities of TKX-50 with the four energetic binders were quite different, they decreased as follows: PNIMMO > PBAMO > PGN > GAP. This may be caused by different intermolecular van der Waals force and hydrogen bond between binders and TKX-50. As we know, the greater the electronegativity, the stronger the hydrogen bond force formed. The electronegativity of −ONO2 is 3.53 and –N3 is 3.04; therefore, the hydrogen bond of –ONO2 and –OH is stronger than –N3 and –OH. So, the binding ability of PGN with TKX-50 is better than GAP with TKX-50, the binding ability of PNIMMO with TKX-50 is better than PBAMO with TKX-50. In addition, the van der Waals force of PBAMO is greater than PGN. Therefore, when considering hydrogen bonding and van der Waals forces comprehensively, the result of interaction between different adhesives and TKX-50 is PNIMMO > PBAMO > PGN > GAP.

Table 3

Average values of E binding (kJ·mol−1) for TKX-50-based PBXs with the four energetic binders

System TKX-50/PGN TKX-50/PNIMMO TKX-50/PBAMO TKX-50/GAP
E binding 54.52 83.04 60.37 25.91

In order to verify the simulation result, the preparation of TKX-50-PBX was carried out by using PNIMMO, PBAMO, and TKX-50. The experiment results (Figure 8) show that TKX-50/PNIMMO is granular, indicating that PNIMMO sticks TKX-50 together and TKX-50/PBAMO is powder, indicating that PBAMO fails to stick TKX-50 together, which means that only TKX-50-PNIMMO bonded explosive can be prepared successfully, and this is consistent with our calculation result.

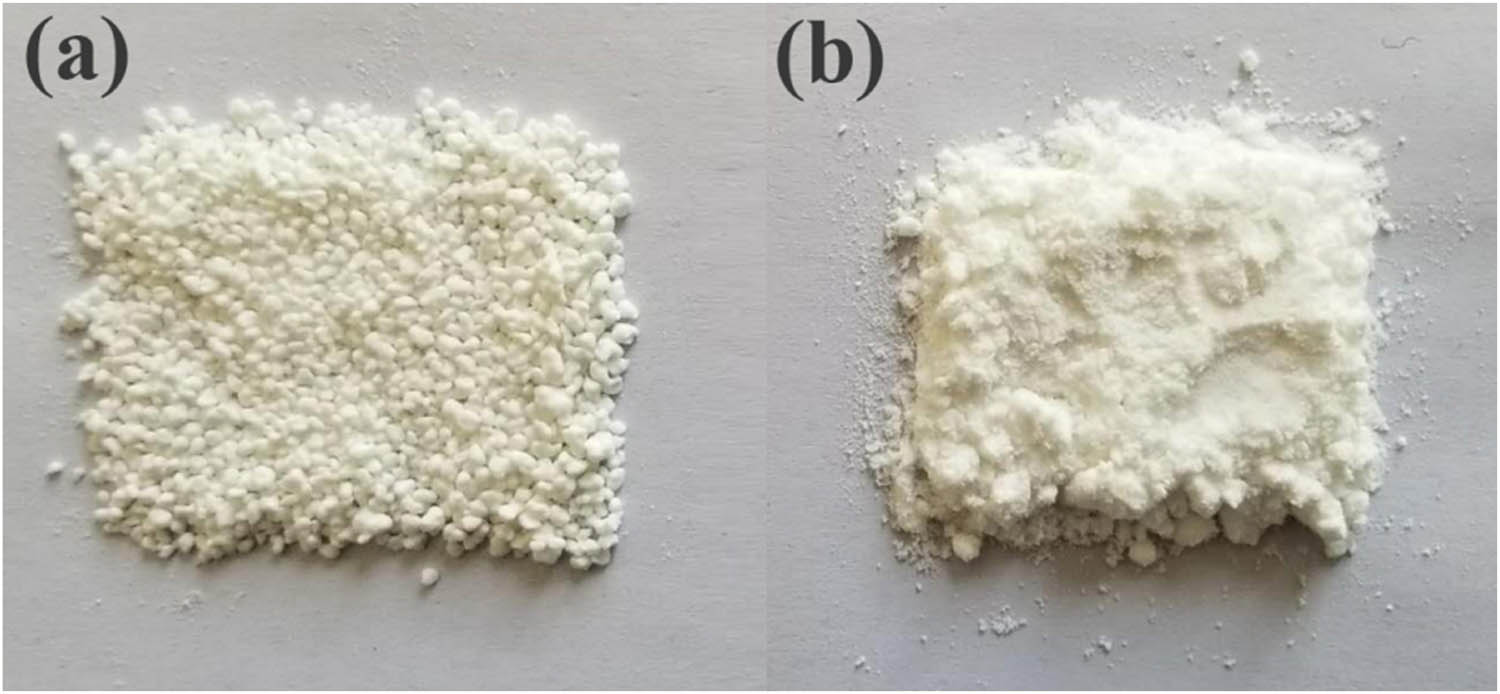

Figure 8 (a) TKX-50/PNIMMO- and (b) TKX-50/PBAMO-bonded explosives.
Figure 8

(a) TKX-50/PNIMMO- and (b) TKX-50/PBAMO-bonded explosives.

As we all know, the temperature during the preparations of PBXs is always higher than the room temperature. So, for more reference value, the effects of different temperatures (298, 308, 318, 328, 338, and 348 K) on binding energies of TKX-50/binders were studied. The simulated results are listed in Table 4 and shown in Figure 9.

Table 4

Average binding energies (kJ·mol−1) of TKX-50 with the four energetic binders at different temperatures

Systems 298 K 308 K 318 K 328 K 338 K 348 K
(010)/PNIMMO 87.82 83.64 83.64 96.19 92.00 83.64
(0-11)/PNIMMO 75.28 83.64 79.46 79.46 92.00 66.91
(100)/PNIMMO 66.91 79.46 75.28 83.64 75.28 87.82
(101)/PNIMMO 50.18 62.73 62.73 58.55 66.91 71.09
TKX-50/PNIMMO 83.04 82.58 81.64 91.58 89.69 81.33
(010)/PGN 50.18 75.28 16.73 50.18 66.91 46.00
(0-11)/PGN 71.09 54.37 75.28 58.55 71.09 46.00
(100)/PGN 62.73 46.00 54.37 50.18 50.18 50.18
(101)/PGN 62.73 71.09 71.09 62.73 62.73 79.46
TKX-50/PGN 54.52 69.70 29.74 51.71 65.84 47.45
(010)/PBAMO 67.80 65.29 70.31 72.82 62.78 70.31
(0-11)/PBAMO 35.15 35.15 37.67 40.18 32.64 40.18
(100)/PBAMO 47.71 45.20 45.20 42.69 45.20 47.71
(101)/PBAMO 30.13 32.64 37.67 35.15 35.15 32.64
TKX-50/PBAMO 60.37 58.36 62.60 64.50 56.24 63.00
(010)/GAP 26.78 23.44 30.13 18.41 25.11 26.78
(0-11)/GAP 28.46 25.11 30.13 21.76 28.46 30.13
(100)/GAP 15.07 18.41 10.04 15.07 18.41 16.74
(101)/GAP 25.11 16.74 23.44 20.09 21.76 26.78
TKX-50/GAP 25.91 23.00 28.12 18.62 24.85 26.34
Figure 9 The trend of variations in binding energy of TKX-50/binders with the change in temperature.
Figure 9

The trend of variations in binding energy of TKX-50/binders with the change in temperature.

As shown in Figure 9, the average binding energies are almost constant for TKX-50/PNIMMO, TKX-50/PBAMO, and TKX-50/GAP systems, which means that temperature has weak effect on the binding energies of the three systems. However, for TKX-50/PGN, it can be found that the value of E binding is the smallest when the temperature is 318 K, which is mainly caused when a sharp decline of E binding occurs in (010)/PGN ensemble at this temperature. Hence, it indicates that we should avoid preparing TKX-50-based PBX at 318 K when using PGN as a binder.

3.2 Mechanical properties

The mechanical properties are critical characteristics of PBX, and they can be measured by using PBX grains. In fact, the mechanical properties of PBX are presented through the binders, because the explosives in PBX are brittle materials, while binders are ductile materials, and it is the binders that can bear large deformation and transfer stress. For the PBXs, which have not been obtained via experimental method, we can predict their relationships between stress and strain by means of the generalized Hook’s law (20) as given in Eq. 2.

(2) σ x σ y σ z τ y z τ x z τ x y = C 11 C 12 C 13 C 14 C 15 C 16 C 21 C 22 C 23 C 24 C 25 C 26 C 31 C 32 C 33 C 34 C 35 C 36 C 41 C 42 C 43 C 44 C 45 C 46 C 51 C 52 C 53 C 54 C 55 C 56 C 61 C 62 C 63 C 64 C 65 C 66 ε x ε y ε z γ y z γ x z γ x y

where σ is the stress tensor, C is the elastic coefficient, and ε represents the strain tensor. Due to the existence of the strain energy, the matrix is symmetric, which means C ij = C ji . Therefore, 21 coefficients should be solved to illustrate the relationship between stress and strain for materials.

The stress tensor can be calculated by using the virial expression (21) as follows:

(3) σ = − ( 1 / V o ) ∑ i = 1 N m i ( v i v i T ) + ( ∑ i < j r i j f i j T )

where V o is the initial volume, i is the particle i in system, m and v are the mass and velocity, respectively, f and r represent the force and distance between the particles.

For a periodic cell, the strain tensor can be described as Eq. 4.

(4) ε = ( 1 / 2 ) [ ( h o T ) − 1 G h o − 1 − 1 ]

where h o is the corresponding matrix formed from the original cell vectors a o, b o, and c o, h is the matrix of deformed cell vectors a, b, and c, T denotes the matrix transpose, and G is the metric tensor h T h.

According to statistics, a heteromorphy consisting of micro-crystals with random orientation can be considered isotropic, the compliances in terms of single crystal compliances averaged over all orientations can be calculated by Reuss method (22). The effective bulk module (K) and shear (G) can be expressed by Eqs. 5 and 6, respectively, as follows:

(5) K R = [ 3 ( a + 2 b ) ] − 1

(6) G R = 5 ( 4 a − 4 b + 3 c )

where a = 1 3 (S 11 + S 22 + S 33), b = 1 3 (S 12 + S 23 + S 31), and c = 1 3 (S 44 + S 55 + S 66), R represents the Reuss average, compliance matrix S is the inverse of elastic coefficient matrix C, S = C −1. Based on the obtained K and G, the tensile module, and Poisson’s ratio (m) can be calculated as follows:

(7) E = 2 G ( 1 + u ) = 3 K ( 1 − 2 u )

Just as E binding, the discussions of isotropic mechanical properties (tensile module E, bulk module K, shear module G, and Poisson’s ratio μ) also need to be based on the equilibrium models. Using the same discrimination method as previously mentioned, the equilibrium models of (010)/binders for calculating their mechanical properties are obtained in Figure 10 and other 12 equilibrium models can be obtained in the same way.

Figure 10 Equilibrium structures of (010)/binders and (010) surface for calculating the mechanical properties: (a) PNIMMO, (b) PGN, (c) PBAMO, (d) GAP, (e) (010).
Figure 10

Equilibrium structures of (010)/binders and (010) surface for calculating the mechanical properties: (a) PNIMMO, (b) PGN, (c) PBAMO, (d) GAP, (e) (010).

According to the equilibrium models of TKX-50 and TKX-50/binders, their mechanical properties (tensile module E, bulk module K, shear module G, and Poisson’s ratio μ) were calculated by executing “Mechanical Property” task in Forcite module. The detailed data are listed in Table 5.

Table 5

Mechanical properties of TKX-50 and TKX-50-based PBXs

Facet System K (GPa) G (GPa) E (GPa) u
(010) TKX-50 10.68 7.31 17.86 0.22
TKX-50/PBAMO 9.51 4.01 10.55 0.32
TKX-50/PNIMMO 9.15 3.23 8.67 0.34
TKX-50/PGN 9.11 2.13 5.93 0.39
TKX-50/GAP 10.01 5.53 14.01 0.27
(0-11) TKX-50 11.09 6.26 15.81 0.26
TKX-50/PBAMO 9.86 3.98 10.52 0.32
TKX-50/PNIMMO 8.87 3.31 8.83 0.33
TKX-50/PGN 9.13 2.56 7.02 0.37
TKX-50/GAP 9.28 5.17 13.08 0.27
(100) TKX-50 13.77 7.12 18.22 0.28
TKX-50/PBAMO 10.83 4.79 12.52 0.31
TKX-50/PNIMMO 10.22 2.99 8.17 0.37
TKX-50/PGN 10.16 2.74 7.54 0.38
TKX-50/GAP 11.46 4.68 12.36 0.32
(101) TKX-50 12.36 6.81 17.26 0.27
TKX-50/PBAMO 9.93 4.16 10.95 0.32
TKX-50/PNIMMO 10.06 3.23 8.75 0.35
TKX-50/PGN 10.25 3.37 9.11 0.35
TKX-50/GAP 10.91 4.25 11.28 0.33

E, K, and G can be used to determine the stiffness of materials, the greater the values, the stronger the rigidity. u is usually employed to evaluate the plasticity of materials. Just as shown in Table 5, all the values (E, K, and G) of PBXs are lower than those of single TKX-50, which indicate that the addition of binders makes the rigidity to decrease and the elasticity of PBXs to increase. In addition, comparing with single TKX-50, the values of u for PBXs become larger and this means that the plasticity of PBXs is improved. Take facet (010) and tensile module as examples, the E’s value 17.86 GPa for single TKX-50 indicates the strong rigidity to resist deformation, while the values are 10.55, 8.67, 5.93, and 14.01 GPa, respectively, when tiny amounts of binders are added on (010) surface. Clearly, the mechanical properties of TKX-50/binders are related to the type of binder and the decreases in E meaning that the elasticity of PBXs are greatly enhanced. Similar results for other facets (0-11), (100), and (101) can be concluded from Table 5. Meanwhile, it can be found that when the same polymer binder is added on the different crystalline surfaces, the mechanical properties results are usually different. For instance, the value of E of TKX-50/PBAMO (010) is 10.55 GPa, while that of TKX-50/PBAMO (100) is 12.52 GPa. In short, the simulation results indicate that compared with single TKX-50, the additions of the four energetic binders improve the mechanical properties of TKX-50-based PBXs, which are matched with that of other explosions-based PBXs (23,24).

Furthermore, to investigate the four binders’ abilities to improve the mechanical properties of TKX-50-based PBXs, average values of E, K, G, and u were calculated according to the area percentage of each crystalline surface, the simulation results are shown in Figure 11, from which it can be concluded that PGN can strengthen the plasticity of TKX-50-based PBXs more significantly than the other three binders and the results are arranged in order: PGN > PNIMMO > PBAMO > GAP.

Figure 11 Mechanical properties of single TKX-50 and TKX-50-based PBXs.
Figure 11

Mechanical properties of single TKX-50 and TKX-50-based PBXs.

3.3 Moldability of PBXs

As mentioned above, the modulus G and K can describe the mechanical properties of materials, the two moduli represent two mechanical behaviors: simple shear and compression. The typical feature of shear is that during the shear process, the shape of the material is the unique variable and the volume can be kept constant. However, for compression process, the volume of the material is the main variable. According to Eq. 7, when u is 0.5, then

(8) G = E 2 ( 1 + u ) = E 3

(9) K = E 3 ( 1 − 2 u ) = ∞

Eqs. 8 and 9 illustrate that when u = 0.5, the value of K/G is very large and the shape of the material can be changed much more easily than the volume, such as rubber. Therefore, the value of K/G can be employed to evaluate the moldabilities of PBXs (25).

The values of K/G for single TKX-50 and TKX-50/binders are shown in Table 6. Generally speaking, the great value of K/G means good moldability (26). Therefore, it can be concluded that (100) surface has excellent moldability for both single TKX-50 and TKX-50/binders. In addition, it can be found that due to the addition of binders, the moldabilities of TKX-50/binders are better than that of single TKX-50.

Table 6

K/G values of single TKX-50 and TKX-50/binders

System K/G
(010) (0-11) (100) (101)
TKX-50 1.46 1.77 1.93 1.81
TKX-50/PBAMO 2.37 2.48 2.26 2.39
TKX-50/PNIMMO 2.83 2.68 3.42 3.11
TKX-50/PGN 4.28 3.57 3.71 3.04
TKX-50/GAP 1.81 1.79 2.45 2.57

In order to know about which binder can improve the moldability of TKX-50/binders to the greatest extent, the weighted average values of K/G for single TKX-50 and TKX-50/binders were obtained, the calculation results are shown in Table 7. The values of K/G indicate that the moldability of TKX-50/PGN is better than that of TKX-50/other binders and it can be ranked in order of PGN > PNIMMO > PBAMO > GAP.

Table 7

Weighted average values of K/G for single TKX-50 and TKX-50/binders

System TKX-50 TKX-50/PGN TKX-50/PNIMMO TKX-50/PBAMO TKX-50/GAP
K/G 1.56 4.09 2.87 2.38 1.89

3.4 Detonation properties

For explosives, the detonation velocity (D) and the detonation pressure (P) are usually used to evaluate its basic performance. Due to the addition of energetic binders in our simulation systems, the detonation properties should be different from the systems, in which the non-energetic binders are added. To make a comparison, Dobratz method (27) is used to calculate the detonation velocity of the mixture explosive and the related equations are defined as follows:

(10) D = ∑ ε i v i

(11) ε i = m i / ρ i ∑ m i / ρ i

where ε i is the volume friction of the i-th component, v i refers to the detonation velocity (m·s−1) of the i-th component, m i is the weight (g) of the i-th component, and ρ i presents the theoretical density (g·cm−3) of the i-th component.

According to the C–J detonation theory (28) and Eq. 10, the detonation pressure can be expressed as follows:

(12) P = 1 4 ρ D 2 × 10 − 6

Just as shown in Table 8, the differences of detonation properties for different PBXs are very small, this is because the detonation properties of PBXs are mainly determined by the single explosive in PBXs and the amounts of binders in PBXs are very small. In addition, as the energy of TKX-50 is much higher than that of binders, more binders are added, the worse the detonation properties of PBXs. Furthermore, it can be found that the detonation properties of TKX-50/binder systems in this work are better than the systems reported in our previous work (29) under the same condition, which is mainly because the energetic binders have higher energy than that of common binders. Hence, to make sure PBXs have advance detonation properties, binders which have high energies should be chosen when designing PBXs. In addition, the percentages of binders should be as small as possible under the premise that explosives can be completely coated.

Table 8

Detonation properties of TKX-50/binders with different W% of binders

W% of binder TKX-50/PGN TKX-50/PNIMMO TKX-50/PBAMO TKX-50/GAP
D (m·s−1) 3 9,102.3 9,088.7 9,093.3 9,084.2
10 8,904.6 8,862.2 8,875.8 8,848.3
P (GPa) 3 38.6 38.3 38.5 38.2
10 36.3 35.6 35.8 35.5

4 Conclusion

In the work, TKX-50 and four energetic binders are employed to build models of TKX-50-based PBXs. The binding energies, mechanical properties, moldability, and detonation properties of single TKX-50 and TKX-50-based PBXs are studies via molecular simulations. The results can be summarized as follows:

  1. The binding energies between every energetic binder and each surface of TKX-50 are different and the order of combined ability between four energetic binders and TKX-50 decrease as follows: PNIMMO > PBAMO > PGN > GAP. In addition, the simulation results also indicate that the temperature has little effect on the binding energies between TKX-50 and the four energetic binders.

  2. The influences of the four energetic binders on the mechanical properties and moldability of different crystalline surfaces of TKX-50 are different. But all in all, the additions of the binders improve the mechanical properties and moldability of single TKX-50 and the increasing order is PGN > PNIMMO > PBAMO > GAP.

  3. Since the percentages of the four energetic binders in our simulation systems are the same and small, the detonation properties for different PBXs in the work are similar. However, compared with common binders, the additions of the energetic binders improve the detonation properties significantly.

Taking the overall performances of the four energetic binders into account, PNIMMO is regarded to be a suitable binder for preparing TKX-50-based PBX due to the high binding energy, the advance mechanical properties, moldability, and detonation properties of TKX-50/PNIMMO. Therefore, PNIMMO should be given precedence as a binder when preparing TKX-50-based PBX.

  1. Funding information: We acknowledge the financial support from Qian Xuesen Youth Innovation Fund of China Aerospace Science and Technology.

  2. Author contributions: Hu Niu and Yan Xing wrote the main manuscript; Shusen Chen and Shaohua Jin prepared all the figures; Lijie Li prepared all the tables.

  3. Conflict of interest: The authors state no conflict of interest.

References

(1) Li XH, Zhang C, Ju XH. Theoretical screening of bistriazole-derived energetic salts with high energetic properties and low sensitivity. RSC Adv. 2019;9:26442–9. 10.1039/C9RA05141D.Search in Google Scholar

(2) Zhang Q, Zhang J, Qi X, Shreeve JM. Molecular design and property prediction of high density polynitro[3.3.3]-propellane-derivatized frameworks as potential high explosives. J Phys Chem A. 2014;118:10857–65. 10.1021/jp509549q.Search in Google Scholar PubMed

(3) Abraham BM. High pressure structural behaviour of 5,5′-bitetrazole-1,1′-diolate based energetic materials: A comparative study from first principles calculations. RSC Adv. 2020;10:24867–76. 10.1039/D0RA04782A.Search in Google Scholar PubMed PubMed Central

(4) Zhu Q, Xiao C, Li S, Guan L. Bioinspired fabrication of insensitive HMX particles with polydopamine coating. Prop Explos Pyrotech. 2016;41:1092–7. 10.1002/prep.201600021.Search in Google Scholar

(5) Olivares CI, Sierra-Alvarez R, Abrell L. Zebrafish embryo toxicity of anaerobic biotransformation products from the insensitive munitions compound 2,4-dinitroanisole. Environ Toxicol Chem. 2016;35:2774–81. 10.1002/etc.3446.Search in Google Scholar PubMed PubMed Central

(6) Sahin H, Narin B, Kurtulus DF. Development of a design methodology against fast cook‐off threat for insensitive munitions. Prop Explos Pyrotech. 2016;41:580–7. 10.1002/prep.201500333.Search in Google Scholar

(7) Fischer N, Fischer D, Klapotke TM, Piercey DG, Stierstorfer J. Pushing the limits of energetic materials - The synthesis and characterization of dihydroxylammonium 5,5′-bistetrazole-1,1′- diolate. J Mater Chem. 2012;22:20418–22. 10.1039/C2JM33646D.Search in Google Scholar

(8) Niu H, Chen SS, Jin SH, Shu QH, Li LJ, Shang FQ. Dissolution properties of dihydroxylammonium 5,5-bistetrazole-1,1-diolate and disodium 5,5-bistetrazole-1,1-diolate in water. J Energ Mater. 2016;34:416–25. 10.1080/07370652.2015.1114048.Search in Google Scholar

(9) Niu H, Chen SS, Jin SH, Li LJ, Jing BC, Jiang ZM, et al. Thermolysis, nonisothermal decomposition kinetics, calculated detonation velocity and safety assessment of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate. J Therm Anal Calor. 2016;126:473–80. 10.1007/s10973-016-5571-y.Search in Google Scholar

(10) Sinditskii VP, Filatov SA, Kolesov VI, Kapranova KO, Asachenkob AF, Nechaevb MS, et al. Combustion behavior and physico-chemical properties of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50). Thermochim Acta. 2015;614:85–92. 10.1016/j.tca.2015.06.019.Search in Google Scholar

(11) Xu X, Chen D, Li H, Yan M, Xiong Y, Zhao H, et al. Crystal structure evolution of an energetic compound dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate induced by solvents. RSC Adv. 2020;10:11939–44. 10.1039/D0RA01182G.Search in Google Scholar

(12) Yuan B, Yu ZJ, Bernstein ER. Initial mechanisms for the decomposition of electronically excited energetic salts: TKX-50 and MAD-X. J Phys Chem A. 2015;119:2965–81. 10.1021/jp510995z.Search in Google Scholar PubMed

(13) Yan QL, Zeman S, Sánchez Jiménez PE, Zhao FQ, Pérez-Maqueda LA, Málek J. The effect of polymer matrices on the thermal hazard properties of RDX-based PBXs by using model-free and combined kinetic analysis. J Hazard Mater. 2014;271:185–95. 10.1016/j.jhazmat.2014.02.019.Search in Google Scholar PubMed

(14) Yan QL, Zeman S, Elbeih A. Recent advances in thermal analysis and stability evaluation of insensitive plastic bonded explosives (PBXs). Thermochim Acta. 2012;537:1–12. 10.1016/j.tca.2012.03.009.Search in Google Scholar

(15) Jaw KS, Lee JS. Thermal behaviors of PETN base polymer bonded explosives. J Therm Anal Calor. 2008;93:953–7. 10.1007/s10973-006-7736-6.Search in Google Scholar

(16) An Q, Goddard WA, Zybin SV, Luo SN. Inhibition of hotspot formation in polymer bonded explosives using an interface matching low density polymer coating at the polymer–explosive interface. J Phys Chem C. 2014;118:19918–28. 10.1021/jp506501r.Search in Google Scholar

(17) Guo L, Xu H, Wu N, Yuan S, Zhou L, Wang D, et al. Molecular dynamics simulation of the effect of the thermal and mechanical properties of addition liquid silicone rubber modified by carbon nanotubes with different radii. e-Polymers. 2023;23:20228105. 10.1515/epoly-2022-8105.Search in Google Scholar

(18) Lv YL, Ruan CL. Molecular dynamics simulation of nonisothermal crystallization of a single polyethylene chain and short polyethylene chains based on OPLS force field. e-Polymers. 2022;22:136–46. 10.1515/epoly-2022-0019.Search in Google Scholar

(19) Dong G, Liu HZ, Deng L, Yu HY, Zhou X, Tang XQ, et al. Study on the interfacial interaction between ammonium perchlorate and hydroxyl-terminated polybutadiene in solid propellants by molecular dynamics simulation. e-Polymers. 2022;22:264–75. 10.1515/epoly-2022-0016.Search in Google Scholar

(20) Rice JR. Elastic-plastic fracture mechanics. Eng Fract Mech. 1973;5:1019–22. 10.1016/0013-7944(73)90068-4.Search in Google Scholar

(21) Theodorou DN, Boone TD, Dodd LR, Mansfield KF. Stress tensor in model polymer systems with periodic boundaries. Macromol Theory Simul. 1993;2:191–238. 10.1002/mats.1993.040020204.Search in Google Scholar

(22) Swenson RJ. Comments on virial theorems for bounded systems. Am J Phys. 1983;51:940–2. 10.1119/1.13390.Search in Google Scholar

(23) Ma XF, Xiao JJ, Yin KL, Xiao HM. Molecular dynamics simulation on mechanical properties of TATB/PCTFE composite material. Chin J Chem Phys. 2005;18:55–8. 10.1088/1674-0068/18/1/55-58.Search in Google Scholar

(24) Xiao JJ, Gu CG, Fang GY, Zhu W, Xiao HM. Theoretical study on binding energies and mechanical properties of TATB-based PBX. Acta Chim Sin. 2005;63(6):439–44. 10.3321/j.issn:0567-7351.2005.06.001.Search in Google Scholar

(25) Stevens LL, Eckhardt CJ. The elastic constants and related properties of B-HMX determined by Brillouin scattering. J Chem Phys. 2005;122:174701–8. 10.1063/1.1883627.Search in Google Scholar PubMed

(26) Talawar MB, Agarwal AP, Anniyappan M, Gore GM, Asthana SN, Venugopalan S. Method for preparation of fine TATB (2–5 µm) and its evaluation in plastic bonded explosive (PBX) formulations. J Hazard Mater. 2006;137:1848–52. 10.1016/j.jhazmat.2006.05.031.Search in Google Scholar PubMed

(27) Han Z, Wang BL. A new method for predicting detonation velocity of composite explosive. Explos Shock Waves. 2014;34:421–6. 10.11883/1001-1455(2014)04-0421-06.Search in Google Scholar

(28) Chen L, Lu JY, Feng CG. Experimental and theoretical investigation on laser supported detonation waves in air. Chin J High Pressure Phys. 2010;24:154–60. 10.3724/SP.J.1187.2010.00969.Search in Google Scholar

(29) Yu YH, Chen SS, Li X, Zhu JP, Liang H, Shu QH. Molecular dynamics simulations for 5,5′-bistetrazole-1,1′-diolate (TKX-50) and its PBXs. RSC Adv. 2016;6:20034–41. 10.1039/C5RA27912G.Search in Google Scholar
Received: 2023-03-29
Revised: 2023-05-20
Accepted: 2023-05-22
Published Online: 2023-07-12

© 2023 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Chitosan nanocomposite film incorporating Nigella sativa oil, Azadirachta indica leaves’ extract, and silver nanoparticles
  3. Effect of Zr-doped CaCu3Ti3.95Zr0.05O12 ceramic on the microstructure, dielectric properties, and electric field distribution of the LDPE composites
  4. Effects of dry heating, acetylation, and acid pre-treatments on modification of potato starch with octenyl succinic anhydride (OSA)
  5. Loading conditions impact on the compression fatigue behavior of filled styrene butadiene rubber
  6. Characterization and compatibility of bio-based PA56/PET
  7. Study on the aging of three typical rubber materials under high- and low-temperature cyclic environment
  8. Numerical simulation and experimental research of electrospun polyacrylonitrile Taylor cone based on multiphysics coupling
  9. Experimental investigation of properties and aging behavior of pineapple and sisal leaf hybrid fiber-reinforced polymer composites
  10. Influence of temperature distribution on the foaming quality of foamed polypropylene composites
  11. Enzyme-catalyzed synthesis of 4-methylcatechol oligomer and preliminary evaluations as stabilizing agent in polypropylene
  12. Molecular dynamics simulation of the effect of the thermal and mechanical properties of addition liquid silicone rubber modified by carbon nanotubes with different radii
  13. Incorporation of poly(3-acrylamidopropyl trimethylammonium chloride-co-acrylic acid) branches for good sizing properties and easy desizing from sized cotton warps
  14. Effect of matrix composition on properties of polyamide 66/polyamide 6I-6T composites with high content of continuous glass fiber for optimizing surface performance
  15. Preparation and properties of epoxy-modified thermosetting phenolic fiber
  16. Thermal decomposition reaction kinetics and storage life prediction of polyacrylate pressure-sensitive adhesive
  17. Effect of different proportions of CNTs/Fe3O4 hybrid filler on the morphological, electrical and electromagnetic interference shielding properties of poly(lactic acid) nanocomposites
  18. Doping silver nanoparticles into reverse osmosis membranes for antibacterial properties
  19. Melt-blended PLA/curcumin-cross-linked polyurethane film for enhanced UV-shielding ability
  20. The affinity of bentonite and WO3 nanoparticles toward epoxy resin polymer for radiation shielding
  21. Prolonged action fertilizer encapsulated by CMC/humic acid
  22. Preparation and experimental estimation of radiation shielding properties of novel epoxy reinforced with Sb2O3 and PbO
  23. Fabrication of polylactic acid nanofibrous yarns for piezoelectric fabrics
  24. Copper phenyl phosphonate for epoxy resin and cyanate ester copolymer with improved flame retardancy and thermal properties
  25. Synergistic effect of thermal oxygen and UV aging on natural rubber
  26. Effect of zinc oxide suspension on the overall filler content of the PLA/ZnO composites and cPLA/ZnO composites
  27. The role of natural hybrid nanobentonite/nanocellulose in enhancing the water resistance properties of the biodegradable thermoplastic starch
  28. Performance optimization of geopolymer mortar blending in nano-SiO2 and PVA fiber based on set pair analysis
  29. Preparation of (La + Nb)-co-doped TiO2 and its polyvinylidene difluoride composites with high dielectric constants
  30. Effect of matrix composition on the performance of calcium carbonate filled poly(lactic acid)/poly(butylene adipate-co-terephthalate) composites
  31. Low-temperature self-healing polyurethane adhesives via dual synergetic crosslinking strategy
  32. Leucaena leucocephala oil-based poly malate-amide nanocomposite coating material for anticorrosive applications
  33. Preparation and properties of modified ammonium polyphosphate synergistic with tris(2-hydroxyethyl) isocynurate for flame-retardant LDPE
  34. Thermal response of double network hydrogels with varied composition
  35. The effect of coated calcium carbonate using stearic acid on the recovered carbon black masterbatch in low-density polyethylene composites
  36. Investigation of MXene-modified agar/polyurethane hydrogel elastomeric repair materials with tunable water absorption
  37. Damping performance analysis of carbon black/lead magnesium niobite/epoxy resin composites
  38. Molecular dynamics simulations of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50) and TKX-50-based PBXs with four energetic binders
  39. Preparation and characterization of sisal fibre reinforced sodium alginate gum composites for non-structural engineering applications
  40. Study on by-products synthesis of powder coating polyester resin catalyzed by organotin
  41. Ab initio molecular dynamics of insulating paper: Mechanism of insulating paper cellobiose cracking at transient high temperature
  42. Effect of different tin neodecanoate and calcium–zinc heat stabilizers on the thermal stability of PVC
  43. High-strength polyvinyl alcohol-based hydrogel by vermiculite and lignocellulosic nanofibrils for electronic sensing
  44. Impacts of micro-size PbO on the gamma-ray shielding performance of polyepoxide resin
  45. Influence of the molecular structure of phenylamine antioxidants on anti-migration and anti-aging behavior of high-performance nitrile rubber composites
  46. Fiber-reinforced polyvinyl alcohol hydrogel via in situ fiber formation
  47. Preparation and performance of homogenous braids-reinforced poly (p-phenylene terephthamide) hollow fiber membranes
  48. Synthesis of cadmium(ii) ion-imprinted composite membrane with a pyridine functional monomer and characterization of its adsorption performance
  49. Impact of WO3 and BaO nanoparticles on the radiation shielding characteristics of polydimethylsiloxane composites
  50. Comprehensive study of the radiation shielding feature of polyester polymers impregnated with iron filings
  51. Preparation and characterization of polymeric cross-linked hydrogel patch for topical delivery of gentamicin
  52. Mechanical properties of rCB-pigment masterbatch in rLDPE: The effect of processing aids and water absorption test
  53. Pineapple fruit residue-based nanofibre composites: Preparation and characterizations
  54. Effect of natural Indocalamus leaf addition on the mechanical properties of epoxy and epoxy-carbon fiber composites
  55. Utilization of biosilica for energy-saving tire compounds: Enhancing performance and efficiency
  56. Effect of capillary arrays on the profile of multi-layer micro-capillary films
  57. A numerical study on thermal bonding with preheating technique for polypropylene microfluidic device
  58. Development of modified h-BN/UPE resin for insulation varnish applications
  59. High strength, anti-static, thermal conductive glass fiber/epoxy composites for medical devices: A strategy of modifying fibers with functionalized carbon nanotubes
  60. Effects of mechanical recycling on the properties of glass fiber–reinforced polyamide 66 composites in automotive components
  61. Bentonite/hydroxyethylcellulose as eco-dielectrics with potential utilization in energy storage
  62. Study on wall-slipping mechanism of nano-injection polymer under the constant temperature fields
  63. Synthesis of low-VOC unsaturated polyester coatings for electrical insulation
  64. Enhanced apoptotic activity of Pluronic F127 polymer-encapsulated chlorogenic acid nanoparticles through the PI3K/Akt/mTOR signaling pathway in liver cancer cells and in vivo toxicity studies in zebrafish
  65. Preparation and performance of silicone-modified 3D printing photosensitive materials
  66. A novel fabrication method of slippery lubricant-infused porous surface by thiol-ene click chemistry reaction for anti-fouling and anti-corrosion applications
  67. Development of polymeric IPN hydrogels by free radical polymerization technique for extended release of letrozole: Characterization and toxicity evaluation
  68. Tribological characterization of sponge gourd outer skin fiber-reinforced epoxy composite with Tamarindus indica seed filler addition using the Box–Behnken method
  69. Stereocomplex PLLA–PBAT copolymer and its composites with multi-walled carbon nanotubes for electrostatic dissipative application
  70. Enhancing the therapeutic efficacy of Krestin–chitosan nanocomplex for cancer medication via activation of the mitochondrial intrinsic pathway
  71. Variation in tungsten(vi) oxide particle size for enhancing the radiation shielding ability of silicone rubber composites
  72. Damage accumulation and failure mechanism of glass/epoxy composite laminates subjected to repeated low velocity impacts
  73. Gamma-ray shielding analysis using the experimental measurements for copper(ii) sulfate-doped polyepoxide resins
  74. Numerical simulation into influence of airflow channel quantities on melt-blowing airflow field in processing of polymer fiber
  75. Cellulose acetate oleate-reinforced poly(butylene adipate-co-terephthalate) composite materials
  76. Radiation shielding capability and exposure buildup factor of cerium(iv) oxide-reinforced polyester resins
  77. Recyclable polytriazole resins with high performance based on Diels-Alder dynamic covalent crosslinking
  78. Adsorption and recovery of Cr(vi) from wastewater by Chitosan–Urushiol composite nanofiber membrane
  79. Comprehensive performance evaluation based on electromagnetic shielding properties of the weft-knitted fabrics made by stainless steel/cotton blended yarn
  80. Review Articles
  81. Preparation and application of natural protein polymer-based Pickering emulsions
  82. Wood-derived high-performance cellulose structural materials
  83. Flammability properties of polymers and polymer composites combined with ionic liquids
  84. Polymer-based nanocarriers for biomedical and environmental applications
  85. A review on semi-crystalline polymer bead foams from stirring autoclave: Processing and properties
  86. Rapid Communication
  87. Preparation and characterization of magnetic microgels with linear thermosensitivity over a wide temperature range
  88. Special Issue: Biodegradable and bio-based polymers: Green approaches (Guest Editors: Kumaran Subramanian, A. Wilson Santhosh Kumar, and Venkatajothi Ramarao)
  89. Synthesis and characterization of proton-conducting membranes based on bacterial cellulose and human nail keratin
  90. Fatigue behaviour of Kevlar/carbon/basalt fibre-reinforced SiC nanofiller particulate hybrid epoxy composite
  91. Effect of citric acid on thermal, phase morphological, and mechanical properties of poly(l-lactide)-b-poly(ethylene glycol)-b-poly(l-lactide)/thermoplastic starch blends
  92. Dose-dependent cytotoxicity against lung cancer cells via green synthesized ZnFe2O4/cellulose nanocomposites
https://doi.org/10.1515/epoly-2023-0024
Keywords for this article
TKX-50; PBXs; molecular dynamics; energetic binder
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Articles
  2. Chitosan nanocomposite film incorporating Nigella sativa oil, Azadirachta indica leaves’ extract, and silver nanoparticles
  3. Effect of Zr-doped CaCu3Ti3.95Zr0.05O12 ceramic on the microstructure, dielectric properties, and electric field distribution of the LDPE composites
  4. Effects of dry heating, acetylation, and acid pre-treatments on modification of potato starch with octenyl succinic anhydride (OSA)
  5. Loading conditions impact on the compression fatigue behavior of filled styrene butadiene rubber
  6. Characterization and compatibility of bio-based PA56/PET
  7. Study on the aging of three typical rubber materials under high- and low-temperature cyclic environment
  8. Numerical simulation and experimental research of electrospun polyacrylonitrile Taylor cone based on multiphysics coupling
  9. Experimental investigation of properties and aging behavior of pineapple and sisal leaf hybrid fiber-reinforced polymer composites
  10. Influence of temperature distribution on the foaming quality of foamed polypropylene composites
  11. Enzyme-catalyzed synthesis of 4-methylcatechol oligomer and preliminary evaluations as stabilizing agent in polypropylene
  12. Molecular dynamics simulation of the effect of the thermal and mechanical properties of addition liquid silicone rubber modified by carbon nanotubes with different radii
  13. Incorporation of poly(3-acrylamidopropyl trimethylammonium chloride-co-acrylic acid) branches for good sizing properties and easy desizing from sized cotton warps
  14. Effect of matrix composition on properties of polyamide 66/polyamide 6I-6T composites with high content of continuous glass fiber for optimizing surface performance
  15. Preparation and properties of epoxy-modified thermosetting phenolic fiber
  16. Thermal decomposition reaction kinetics and storage life prediction of polyacrylate pressure-sensitive adhesive
  17. Effect of different proportions of CNTs/Fe3O4 hybrid filler on the morphological, electrical and electromagnetic interference shielding properties of poly(lactic acid) nanocomposites
  18. Doping silver nanoparticles into reverse osmosis membranes for antibacterial properties
  19. Melt-blended PLA/curcumin-cross-linked polyurethane film for enhanced UV-shielding ability
  20. The affinity of bentonite and WO3 nanoparticles toward epoxy resin polymer for radiation shielding
  21. Prolonged action fertilizer encapsulated by CMC/humic acid
  22. Preparation and experimental estimation of radiation shielding properties of novel epoxy reinforced with Sb2O3 and PbO
  23. Fabrication of polylactic acid nanofibrous yarns for piezoelectric fabrics
  24. Copper phenyl phosphonate for epoxy resin and cyanate ester copolymer with improved flame retardancy and thermal properties
  25. Synergistic effect of thermal oxygen and UV aging on natural rubber
  26. Effect of zinc oxide suspension on the overall filler content of the PLA/ZnO composites and cPLA/ZnO composites
  27. The role of natural hybrid nanobentonite/nanocellulose in enhancing the water resistance properties of the biodegradable thermoplastic starch
  28. Performance optimization of geopolymer mortar blending in nano-SiO2 and PVA fiber based on set pair analysis
  29. Preparation of (La + Nb)-co-doped TiO2 and its polyvinylidene difluoride composites with high dielectric constants
  30. Effect of matrix composition on the performance of calcium carbonate filled poly(lactic acid)/poly(butylene adipate-co-terephthalate) composites
  31. Low-temperature self-healing polyurethane adhesives via dual synergetic crosslinking strategy
  32. Leucaena leucocephala oil-based poly malate-amide nanocomposite coating material for anticorrosive applications
  33. Preparation and properties of modified ammonium polyphosphate synergistic with tris(2-hydroxyethyl) isocynurate for flame-retardant LDPE
  34. Thermal response of double network hydrogels with varied composition
  35. The effect of coated calcium carbonate using stearic acid on the recovered carbon black masterbatch in low-density polyethylene composites
  36. Investigation of MXene-modified agar/polyurethane hydrogel elastomeric repair materials with tunable water absorption
  37. Damping performance analysis of carbon black/lead magnesium niobite/epoxy resin composites
  38. Molecular dynamics simulations of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50) and TKX-50-based PBXs with four energetic binders
  39. Preparation and characterization of sisal fibre reinforced sodium alginate gum composites for non-structural engineering applications
  40. Study on by-products synthesis of powder coating polyester resin catalyzed by organotin
  41. Ab initio molecular dynamics of insulating paper: Mechanism of insulating paper cellobiose cracking at transient high temperature
  42. Effect of different tin neodecanoate and calcium–zinc heat stabilizers on the thermal stability of PVC
  43. High-strength polyvinyl alcohol-based hydrogel by vermiculite and lignocellulosic nanofibrils for electronic sensing
  44. Impacts of micro-size PbO on the gamma-ray shielding performance of polyepoxide resin
  45. Influence of the molecular structure of phenylamine antioxidants on anti-migration and anti-aging behavior of high-performance nitrile rubber composites
  46. Fiber-reinforced polyvinyl alcohol hydrogel via in situ fiber formation
  47. Preparation and performance of homogenous braids-reinforced poly (p-phenylene terephthamide) hollow fiber membranes
  48. Synthesis of cadmium(ii) ion-imprinted composite membrane with a pyridine functional monomer and characterization of its adsorption performance
  49. Impact of WO3 and BaO nanoparticles on the radiation shielding characteristics of polydimethylsiloxane composites
  50. Comprehensive study of the radiation shielding feature of polyester polymers impregnated with iron filings
  51. Preparation and characterization of polymeric cross-linked hydrogel patch for topical delivery of gentamicin
  52. Mechanical properties of rCB-pigment masterbatch in rLDPE: The effect of processing aids and water absorption test
  53. Pineapple fruit residue-based nanofibre composites: Preparation and characterizations
  54. Effect of natural Indocalamus leaf addition on the mechanical properties of epoxy and epoxy-carbon fiber composites
  55. Utilization of biosilica for energy-saving tire compounds: Enhancing performance and efficiency
  56. Effect of capillary arrays on the profile of multi-layer micro-capillary films
  57. A numerical study on thermal bonding with preheating technique for polypropylene microfluidic device
  58. Development of modified h-BN/UPE resin for insulation varnish applications
  59. High strength, anti-static, thermal conductive glass fiber/epoxy composites for medical devices: A strategy of modifying fibers with functionalized carbon nanotubes
  60. Effects of mechanical recycling on the properties of glass fiber–reinforced polyamide 66 composites in automotive components
  61. Bentonite/hydroxyethylcellulose as eco-dielectrics with potential utilization in energy storage
  62. Study on wall-slipping mechanism of nano-injection polymer under the constant temperature fields
  63. Synthesis of low-VOC unsaturated polyester coatings for electrical insulation
  64. Enhanced apoptotic activity of Pluronic F127 polymer-encapsulated chlorogenic acid nanoparticles through the PI3K/Akt/mTOR signaling pathway in liver cancer cells and in vivo toxicity studies in zebrafish
  65. Preparation and performance of silicone-modified 3D printing photosensitive materials
  66. A novel fabrication method of slippery lubricant-infused porous surface by thiol-ene click chemistry reaction for anti-fouling and anti-corrosion applications
  67. Development of polymeric IPN hydrogels by free radical polymerization technique for extended release of letrozole: Characterization and toxicity evaluation
  68. Tribological characterization of sponge gourd outer skin fiber-reinforced epoxy composite with Tamarindus indica seed filler addition using the Box–Behnken method
  69. Stereocomplex PLLA–PBAT copolymer and its composites with multi-walled carbon nanotubes for electrostatic dissipative application
  70. Enhancing the therapeutic efficacy of Krestin–chitosan nanocomplex for cancer medication via activation of the mitochondrial intrinsic pathway
  71. Variation in tungsten(vi) oxide particle size for enhancing the radiation shielding ability of silicone rubber composites
  72. Damage accumulation and failure mechanism of glass/epoxy composite laminates subjected to repeated low velocity impacts
  73. Gamma-ray shielding analysis using the experimental measurements for copper(ii) sulfate-doped polyepoxide resins
  74. Numerical simulation into influence of airflow channel quantities on melt-blowing airflow field in processing of polymer fiber
  75. Cellulose acetate oleate-reinforced poly(butylene adipate-co-terephthalate) composite materials
  76. Radiation shielding capability and exposure buildup factor of cerium(iv) oxide-reinforced polyester resins
  77. Recyclable polytriazole resins with high performance based on Diels-Alder dynamic covalent crosslinking
  78. Adsorption and recovery of Cr(vi) from wastewater by Chitosan–Urushiol composite nanofiber membrane
  79. Comprehensive performance evaluation based on electromagnetic shielding properties of the weft-knitted fabrics made by stainless steel/cotton blended yarn
  80. Review Articles
  81. Preparation and application of natural protein polymer-based Pickering emulsions
  82. Wood-derived high-performance cellulose structural materials
  83. Flammability properties of polymers and polymer composites combined with ionic liquids
  84. Polymer-based nanocarriers for biomedical and environmental applications
  85. A review on semi-crystalline polymer bead foams from stirring autoclave: Processing and properties
  86. Rapid Communication
  87. Preparation and characterization of magnetic microgels with linear thermosensitivity over a wide temperature range
  88. Special Issue: Biodegradable and bio-based polymers: Green approaches (Guest Editors: Kumaran Subramanian, A. Wilson Santhosh Kumar, and Venkatajothi Ramarao)
  89. Synthesis and characterization of proton-conducting membranes based on bacterial cellulose and human nail keratin
  90. Fatigue behaviour of Kevlar/carbon/basalt fibre-reinforced SiC nanofiller particulate hybrid epoxy composite
  91. Effect of citric acid on thermal, phase morphological, and mechanical properties of poly(l-lactide)-b-poly(ethylene glycol)-b-poly(l-lactide)/thermoplastic starch blends
  92. Dose-dependent cytotoxicity against lung cancer cells via green synthesized ZnFe2O4/cellulose nanocomposites
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 11.9.2025 from https://www.degruyterbrill.com/document/doi/10.1515/epoly-2023-0024/html
Scroll to top button
