Home Synergistic effect of thermal oxygen and UV aging on natural rubber
Article Open Access

Synergistic effect of thermal oxygen and UV aging on natural rubber

  • Meng-Zhen Zhou , Hao-Ran Wang , Xing Guo , Yan-Chan Wei and Shuangquan Liao EMAIL logo
Published/Copyright: May 31, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
e-Polymers
From the journal e-Polymers Volume 23 Issue 1

Abstract

The oxidation of natural rubber (NR) leads to a decrease in mechanical properties, even resulting in failure of NR products. Many studies focusing on this single factor have failed to fully elucidate the impact of tropical island environment on NR properties. Based on this concern, the synergistic effect of thermal oxygen and ultraviolet (UV) aging on NR was systematically studied. The results revealed that thermal oxygenation can promote UV aging, which leads to the appearance of surface cracks and deepening of color. With the extension of aging time, the mechanical properties of NR correspondingly decreased. Besides, to deeply understand the mechanism of the synergistic effect of thermal oxygen and UV aging on NR, we selected squalene to simulate and analyze the molecular structure changes in NR. Based on these results, a possible synergistic effect of thermal oxygen and UV aging mechanisms on NR could be proposed.

Keywords: natural rubber; structure; thermal oxygen aging; UV aging; mechanical properties

1 Introduction

Natural rubber (NR) has received great attention in various industries (1,2,3,4) owing to its unique elasticity, high tear strength, and excellent flexibility (5,6). The comprehensive performance of NR as a general elastomer material is better than that of synthetic rubber (7,8). The non-rubber components in NR, mainly proteins and phospholipids, are believed to be the reason why it has better comprehensive performance than synthetic rubber (9,10). So, NR and NR nanocomposites are more widely used in engineering materials (11). Engineering materials often face more stringent external environments, e.g., tropical island environment, including heat (12), oxygen (13), and ultraviolet (UV) radiation (14). However, NR has unstable double bonds, which are prone to degrade (15). NR may encounter declined physical properties and even shortened service life.

The study of thermal oxygen aging of NR has always been a hot spot in the industry. When NR is exposed to the thermal oxidative environment, polysulfide bonds are dissociated by heating to form monosulfide and disulfide bonds (16,17,18). In the process of thermal oxygenation, NR oxidized and degraded to produce carbon radicals R·, which combine with oxygen to form ROO·. The hydrogen atoms on the NR chain are trapped and converted into a more active ROO·, resulting in R· (19). The degradation of NR produces oxygen-containing functional groups, which eventually lead to chain fracture (20). Oxidation and chain breakage of bonds have negative effects on NR performance. However, the application of heating alone is not representative of the tropical island environment, including UV irradiation, which promotes oxidation processes and leads to the aging of NR (21). UV irradiation can attack double bonds to produce unstable peroxy radicals in the presence of oxygen (22). UV irradiation of NR eventually induces various oxidation products such as ketones, aldehydes, and organic acids (15,23). Both heat and UV irradiation can degrade the properties of NR, but their effects on NR aging are different (24). A more complicated aging behavior is observed when heat and UV radiation are combined. However, the existing research mainly focuses on a single aging factor, which cannot provide the most accurate service life prediction for the actual use of NR. The service life of rubber products that are designed according to a single aging factor cannot fully represent the actual service life, which inevitably leads to premature failure of the products (25,26). Based on this, Li et al. (27) observed the silicone rubber degradation process in two test conditions prepared according to real proton exchange membrane fuel cell operational conditions and analyzed the degradation mechanisms. The relation between time and concentration can be constructed to predict the lifetime of the material according to the time-temperature superposition principle. Li et al. (28) proposed a novel accelerated aging test method based on the dominant damage mechanism of rubber material caused by temperature cycle treatments. Based on this method, the long-term aging test results of rubber samples under high- and low-temperature cycle conditions can be predicted. Yang et al. (29) applied three different approaches to investigate the fatigue life of the styrene-butadiene rubber vulcanizates and established a fatigue life prediction model based on strain amplitude as the damage parameter. Understanding the thermal oxygen and UV aging synergistic mechanisms on NR, herein, is rather significant for the NR industry.

In this work, combining thermal oxygen with UV aging was performed on a dumbbell NR sample in the UV aging chamber for different aging times. The changes of molecular structure of NR before and after aging were studied by Fourier transform infrared spectroscopy (FTIR) and Raman spectroscopy. The aging degree is expressed by comparing the macroscopic mechanical properties of NR under different aging conditions. Besides, to deeply understand the mechanism of the synergistic effect of thermal oxygen and UV aging, we selected squalene to simulate and analyze the molecular structure changes in NR. The current study aims to investigate the synergistic effect of thermal oxygen and UV aging on NR. This study of aging can provide theoretical guidance on understanding the anti-aging properties of rubber products (30), as well as a data basis for product life prediction (31) and a safety guarantee for the safe use of products.

2 Experimental

2.1 Materials

NR was provided by China Hainan Rubber Industry Group Co., Ltd. Zinc oxide analytical purity of the reagent (AR), sulfur (AR), analytical purity of the reagent (AR), stearic acid (AR), and 2-mercaptobenzothiazole (AR) were obtained from Shanghai Aladdin Bio-Chem Technology Co., Ltd.

2.2 Samples preparation

About 100 phr NR were mixed via a two-roll mill, and then 3 phr sulfur, 5 phr ZnO, 0.5 phr stearic acid, and 0.7 phr 2-mercaptobenzothiazole were added to the NR on the two-roll mill at room temperature. After complete mixing, the compounds were compressed at 145°C, and the optimum curing time was determined by a vulcameter.

2.3 Aging process

UV aging tests were carried out in the HDUVA-340 UV aging chamber. UV-A radiation (315–400 nm) accounts for approximately 95% of the UV radiation reaching the Earth’s surface (32). The UV source consisted of a UV-A-340 lamp, which produced peek emission at 340 nm and UV-A irradiation with a UV intensity of 1.35 W‧m−2. The NR samples were exposed to UV radiation for 24, 48, 72, 96, and 120 h at 40°C. Thermal oxygen aging tests were carried out in the HDUVA-340 UV aging chamber. The NR samples were exposed to 80°C for 24, 48, 72, 96, and 120 h. Synergistic effect of thermal oxygen and UV aging tests were carried out in the HDUVA-340 UV aging chamber. The NR samples were exposed to 80°C for 24, 48, 72, 96, and 120 h. Synergistic effect of thermal oxygen and UV aging tests were carried out in the HDUVA-340 UV aging chamber. The NR samples were exposed to UV radiation for 24, 48, 72, 96, and 120 h at 80°C.

2.4 Characterizations

2.4.1 Scanning electron microscopy (SEM)

To compare the surface change before and after aging, microtopography imaging of specimens was performed using the S-4800 SEM at 1,000× magnifications with an applied voltage of 5 kV. Since NR is the insulating material, samples with different aging times were coated with a gold layer.

2.4.2 FTIR spectrometer

FTIR spectra were recorded on a Nicolet iS50 + Nicolet continuum FTIR spectrometer at room temperature. The wavenumber range was from 4,000 to 400 cm−1 with 16 scans. FTIR spectra could be used to obtain detailed information about the functional groups on the NR before and after aging.

2.4.3 Raman spectroscopy

Raman spectra were recorded on the inVia Qontor Raman spectrometer at room temperature. Raman spectra of the unaging NR samples were illuminated with a He–Ne laser source, selecting the red line at 785 nm. Raman spectra of the aging NR samples were illuminated with a He–Cd laser source selecting the UV at 325 nm. The Raman shift range was selected between 100 and 3,000 cm−1 with three accumulations and each acquisition time of 10 s.

2.4.4 Cross-linking density

Vulcanized NR samples of about 0.2 g (m 1) were soaked in toluene at room temperature for 7 days, and the solvent was then rapidly removed from the swollen sample surface by filter paper. The swollen samples were weighed (m 2). Cross-linking density calculated according to the classical Flory–Rehner equation (33):

(1) φ r = m 1 / ρ + m 2 / ρ s m 1 / ρ

(2) − ln ( 1 − φ r ) − φ r − χ r φ r 2 = n V 0 ( φ r 1 3 − 1 2 φ r )

(3) M c = ρ n

where φ r is the volume fraction of polymer in the swollen network, V 0 is the molar volume of the solvent (106.2 mL‧mol−1 for toluene), χ r is the Flory–Huggins polymer–solvent interaction term (0.393 for NR/toluene), n is the average number of movable chain segments per unit volume (mol‧mL−1), M c is the average mass of network chains, ρ is the density of NR (0.913 g‧mL−1 for NR), and ρ s is the density of toluene (0.866 g‧mL−1).

2.4.5 1H nuclear magnetic resonance (NMR) spectroscopy

The 500 µL squalene and 500 µL CDCl3 were mixed into a 5 mm test tube for NMR. NMR spectra were acquired on Avance 400 MHz Bruker NMR spectrometer. 1H NMR spectra were acquired by 16 accumulations and each acquisition time of 4 s.

2.4.6 Mechanical properties measurements

The mechanical property was performed on dumbbell-shaped samples (75 mm × 4 mm × 1 mm and a test length of 20 mm) by a Gotech AI-3000 universal testing machine. The measurement was performed at room temperature with a speed of 500 mm‧min−1. In this study, three specimens of each sample were measured for the tensile tests to evaluate the aging degree of NR.

3 Results and discussion

3.1 Synergistic effect of thermal oxygen and UV aging on the surface of NR

As shown in Figure 1, the initial NR surface was smooth. Some mild cracks appeared on the surface of NR, and the color of the NR surface slightly deepened after 48 h of UV aging. Nevertheless, the surface of NR remained smooth, and the color of the NR surface has not been changed after thermal oxygen aging. Some cracks occurred on the NRsurface and the color of the NR surfaceobviously deepened after 24 hsynergistic effect of thermal oxygen andUV aging. As time went by, the cracks became more obvious, and the color of the NR surface became darker. Under UV irradiation, when the temperature increased from 40°C to 80°C, the cracks appeared earlier, and the cracks became more obvious. The SEM images are shown in Figure 2. The surfaces of the NR became porous and rough after 48 h of thermal oxygen aging. This phenomenon was mainly attributed to small molecules escaping from the NR surface and generating some degraded small molecules. But no cracks appeared. Therefore, UV irradiation is the main cause of cracks of NR.

Figure 1 Surface morphology changes of NR under different aging conditions.
Figure 1

Surface morphology changes of NR under different aging conditions.

Figure 2 SEM images of NR with 48 h aging under different aging conditions: (a) pristine, (b) UV irradiation (exposed to 40°C and UV irradiation with an intensity of 1.35 W‧m−2), (c) thermal oxygen (exposed to 80°C), (d) combine effect of thermal oxygen and UV irradiation (exposed to 80°C and UV irradiation with intensity of 1.35 W‧m−2).
Figure 2

SEM images of NR with 48 h aging under different aging conditions: (a) pristine, (b) UV irradiation (exposed to 40°C and UV irradiation with an intensity of 1.35 W‧m−2), (c) thermal oxygen (exposed to 80°C), (d) combine effect of thermal oxygen and UV irradiation (exposed to 80°C and UV irradiation with intensity of 1.35 W‧m−2).

Meanwhile, these obtained results demonstrated that the synergistic effect of thermal oxygen and UV on the NR aging process was a continuous destruction process from the surface to the interior. UV irradiation caused cracks and color deepening on the surface of NR. In addition, the temperature played an important role in the synergistic effect of thermal oxygen and UV aging process.

3.2 Synergistic effect of thermal oxygen and UV aging on mechanical properties of NR

The mechanical properties of NR at different aging conditions were further investigated. The tensile strength and elongation at the break of samples show a downward trend with increasing aging time (Figure 3). Before aging, the tensile strength and elongation at break were 20.97 MPa and 825.30%. After 120 h of UV aging, the retention of tensile strength and retention of elongation at the break for NR decreased to 53.48% (11.21 MPa) and 93.22% (769.33%). After 120 h of thermal oxygen aging, the retention of tensile strength and retention of elongation at the break for NR decreased to 57.09% (11.97 MPa) and 77.18% (636.93%). After 120 h, the synergistic effect of thermal oxygen and UV aging, the retention of tensile strength, and the retention of elongation at the break for NR decreased to 32.45% (6.80 MPa) and 65.68% (542.03%). As shown in Figure 3, the tensile strength retention rate and the elongation at break retention rate of aging NR decreased with aging time, which demonstrated that the mechanical properties can decrease with aging time. Figure 3 shows that the elongation at break is very sensitive to thermal oxygen aging, and the tensile strength is very sensitive to UV aging. In addition, it was found that the retention of tensile strength and retention of elongation at break of NR after the synergistic effect of thermal oxygen and UV aging was slightly lower than the other two kinds of aging NR, suggesting that the thermal oxygen and UV irradiation intensity of the NR aging process have the function of mutual promotion.

Figure 3 (a) Tensile strength of NR under different aging conditions. (b) Elongation at break of NR under the different aging conditions. (c) The tensile strength retention rate of NR under different aging conditions. (d) Elongation at break retention rate of NR under different aging conditions.
Figure 3

(a) Tensile strength of NR under different aging conditions. (b) Elongation at break of NR under the different aging conditions. (c) The tensile strength retention rate of NR under different aging conditions. (d) Elongation at break retention rate of NR under different aging conditions.

3.3 Synergistic effect of thermal oxygen and UV aging on the molecular structure of NR

In order to monitor the change of NR functional groups after UV irradiation, attenuated total reflection Fourier transform infrared spectroscopy (ATR-FTIR) was used. Figure 4a shows ATR-FTIR spectra of the NR before and after UV aging. Before aging, the NR exhibited absorption bands at 837 cm−1, which is assigned to C═C–H out-of-plane deformation (34). The absorption bands at 1,375 and 1,452 cm−1 can be assigned to –CH3 and –CH2 deformations, respectively. The absorption bands of –CH2 symmetric, –CH2 asymmetric, and –CH3 asymmetric stretching can be observed at 2,850, 2,918, and 2,960 cm−1, respectively (35,36). After UV aging, the characteristic absorption bands at 837 cm−1 decreased in intensity, indicating that the C═C of NR was partially destroyed during the UV aging process. In addition, some new peaks can be observed, and the strong peaks at 1,645 and 1,707 cm−1 are assigned to C═O stretching vibration, which means the formation of carbonyl groups and aldehyde groups. The peak at 1,080 cm−1 is assigned to C–O–C asymmetric stretching, which means the formation of ether bonds due to the photo-oxidation at the main NR chain. The peak at 3,300 cm−1 is assigned to O–H asymmetric stretching (37). The photo-oxidation reaction led to chain scission of NR and generated various oxidized products (14), such as carbonyl groups, aldehyde groups, ether bonds, and hydroxyl groups.

Figure 4 (a) FTIR spectra of NR at UV irradiation (exposed to 40°C and UV irradiation with an intensity of 1.35 W‧m−2). (b) FTIR spectra of NR at thermal oxygen (exposed to 80°C). (c) FTIR spectra of NR at combine effect of thermal oxygen and UV irradiation (exposed to 80°C and UV irradiation with intensity of 1.35 W‧m−2). (d) Raman spectra of NR at combine effect of thermal oxygen and UV irradiation.
Figure 4

(a) FTIR spectra of NR at UV irradiation (exposed to 40°C and UV irradiation with an intensity of 1.35 W‧m−2). (b) FTIR spectra of NR at thermal oxygen (exposed to 80°C). (c) FTIR spectra of NR at combine effect of thermal oxygen and UV irradiation (exposed to 80°C and UV irradiation with intensity of 1.35 W‧m−2). (d) Raman spectra of NR at combine effect of thermal oxygen and UV irradiation.

As shown in Figure 4b, after thermal oxygen aging, the characteristic absorption bands at 837 cm−1 decreased in intensity, indicating that the C═C of NR was partially destroyed during the thermal oxygen aging process. Some new peaks can be observed; the strong peak at 1,645 cm−1 is assigned to C═O stretching vibration, which means the formation of carbonyl groups and aldehyde groups due to the thermal oxidation destroyed the main NR chain. It indicates that both thermal oxygen aging and photo-oxidation aging attack the C═C of NR and generate carbonyl groups, aldehyde groups, and hydroxyl groups.

By comparing Figure 4a and c, we observe that when the UV aging temperature increases from 40°C to 80°C, the intensity of functional groups corresponding to the oxidation products increases. These proved that high temperature can promote UV aging. Figure 4c shows ATR-FTIR spectra of the NR before and after the combine effect of thermal oxygen and UV aging. After the combine effect of thermal oxygen and UV irradiation, the characteristic absorption bands at 837 cm−1 decreased in intensity, indicating that the C═C of NR was partially destroyed. In addition, some new peaks can be observed; the strong peaks at 1,645 and 1,707 cm−1 are assigned to C═O stretching vibration, which means the formation of carbonyl groups and aldehyde groups. The peak at 1,080 cm−1 is assigned to C–O–C asymmetric stretching, which means the formation of ether bonds due to the photo-oxidation at the main NR chain. The peak at 3,300 cm−1 is assigned to O–H asymmetric stretching. Figure 4d shows the Raman spectra of the NR before and after the combine effect of thermal oxygen and UV aging. The characteristic absorption bands at 1,665 cm−1 of C═C stretching of cis-polyisoprene chain and 2,900 cm−1 of C–H stretching decreased in intensity (38,39). After the combine effect of thermal oxygen and UV irradiation, the characteristic absorption bands at 1,665 cm−1 decreased in intensity, indicating that the C═C of NR was partially destroyed during the thermal oxygen and UV aging processes. The strong peaks at 1,600 cm−1 can be observed, which means the formation of C═C–C═C during the thermal oxygen and UV aging process (40,41). According to these results, NR can be protected from thermal oxygen and UV aging by the Diels–Alder diene synthesis reaction of conjugated double bonds.

3.4 Synergistic effect of thermal oxygen and UV aging on cross-link density of NR

The vulcanized NR forms a three-dimensional cross-linking network between the rubber molecular chains, and the cross-linking degree can be expressed by the cross-linking density or the average molecular weight (M c ) between the cross-linking points. As shown in Figure 5a, during the UV aging process, the M c was decreased initially and increased at a later stage. On the contrary, the cross-link density was increased initially and decreased at a later stage. The cross-link densities of NR were 1.13 × 10−4 and 1.03 × 10−4 mol‧mL−1 before and after initial 24 h UV aging, respectively, which displayed an 8.85% difference. The chain-scission reaction played the dominant role, bringing about the reduction of cross-linking density. The UV irradiation process of NR fractures molecular bonds and cross-linking bonds, bringing about the reduction of cross-linking density. The UV irradiation process of NR fractures C–H and C═C bonds, which produce carbon radicals R·. The UV irradiation process of NR fractures cross-linking bonds, which produces free sulfur content. The cross-link density of NR was 1.13 × 10−4 mol‧mL−1 after 120 h UV aging, which decreased by 8.85%. The increase in cross-link density generally results from the cross-linking reaction of free sulfur content and carbon radicals R·, which leads to the post-curing process during the aging period (42). These phenomena indicated that NR was in the state of chain scission and cross-linking during UV aging, and its cross-linking density ultimately tended to increase. It means that the cross-linking reaction is dominant during UV aging.

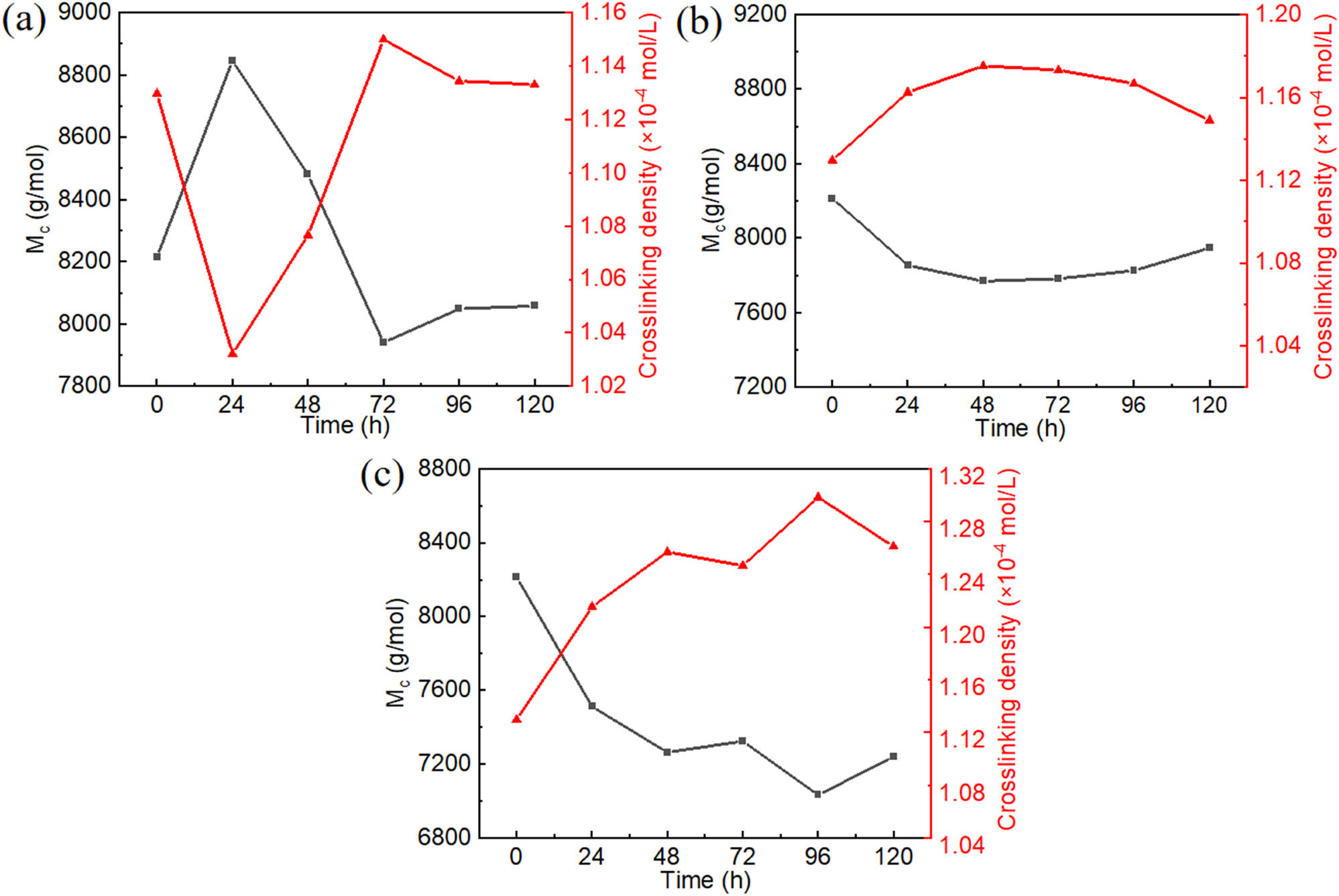

Figure 5 Cross-link density and M c of NR by different aging conditions: (a) UV irradiation (exposed to 40°C and UV radiation with an intensity of 1.35 W‧m−2), (b) thermal oxygen (exposed to 80°C), (c) thermal oxygen and UV irradiation (exposed to 80°C and UV radiation with an intensity of 1.35 W‧m−2).
Figure 5

Cross-link density and M c of NR by different aging conditions: (a) UV irradiation (exposed to 40°C and UV radiation with an intensity of 1.35 W‧m−2), (b) thermal oxygen (exposed to 80°C), (c) thermal oxygen and UV irradiation (exposed to 80°C and UV radiation with an intensity of 1.35 W‧m−2).

As shown in Figure 5b, during the thermal oxygen aging process, the cross-link density was increased initially and decreased at a later stage. The cross-link densities of NR were 1.13 × 10−4 and 1.18 × 10−4 mol‧mL−1 before and after the initial 48 h thermal oxygen aging, respectively, which displayed a 4.42% difference. The cross-link density of NR was 1.15 × 10−4 mol‧mL−1 after 120 h thermal oxygen aging, which decreased by 2.54%. Thermal oxygen aging in NR is known to be a stepwise process. The initial increase is due to the degradation of unstable polysulfide to mono- and disulfide. The decrease in the cross-link density after 48 h is due to the further decomposition of mono-, di-, and polysulfide (17).

The cross-link densities of NR before and after the combine effect of thermal oxygen and UV irradiation are shown in Figure 5a. As the aging time went by, the cross-link density of NR did not remain at a stable level; however, it showed an overall trend of increasing. The cross-link density increased initially and decreased at a later stage. The cross-link density of NR increased after the initial 96 h combine effect of thermal oxygen and UV irradiation. The cross-link densities of NR were 1.13 × 10−4 and 1.30 × 10−4 mol‧mL−1 before and after 96 h under the combine effect of thermal oxygen and UV irradiation, respectively, which increased 15.04%. The increase in cross-link density generally results from the cross-linking reaction of free sulfur content and carbon radicals R·, which leads to post-curing process during the aging period. In addition, it is due to the degradation of unstable polysulfide to mono- and disulfide. Compared with UV aging, the increase in temperature promoted the cross-linking reaction of free sulfur content and carbon radicals R·, resulting in an increase in the cross-linking density of NR after the initial 96 h combine effect of thermal oxygen and UV irradiation. The cross-link densities of NR were 1.30 × 10−4 and 1.26 × 10−4 mol‧mL−1 before and after 96 h under the combine effect of thermal oxygen and UV irradiation, respectively, which decreased 0.032%. The decrease in the cross-link density after 96 h is due to the further decomposition of mono-, di-, and polysulfide. The cross-link density of NR after the combine effect of thermal oxygen and UV irradiation decreased first may be due to the promotion of temperature to UV aging. Therefore, the cross-linking reaction tended to dominate this process.

3.5 Synergistic effect of thermal oxygen and UV on NR aging degradation mechanism

To have a deeper understanding of the mechanism of the synergistic effect of thermal oxygen and UV aging on NR, we selected squalene, a small molecule with a similar structure to NR, to analyze the molecular structure changes of NR and simulate the synergistic effect of thermal oxygen and UV aging process of NR. Figure 6a shows the FTIR spectra of the squalene before and after the combine effect of thermal oxygen and UV aging. Before aging, the squalene exhibited absorption bands at 837 cm−1, which is assigned to C═C–H out-of-plane deformation. The absorption bands at 1,375 and 1,452 cm−1 can be assigned to –CH3 and –CH2 deformations, respectively. The absorption bands of –CH2 symmetric, –CH2 asymmetric, and –CH3 asymmetric stretching can be observed at 2,850, 2,918, and 2,960 cm−1, respectively. The typical characteristic peak C–H of C═C–H at 837 cm−1 and typical characteristic peak C═C at 1,660 cm−1 for squalene gradually disappeared with increasing aging time (Figure 6a). Besides, some new peaks appeared at 1,730 and 1,073 cm−1, respectively, indicating that the double bonds in squalene were destroyed by heat and UV radiation along with the formation of C═O and C–O–C (43,44). Furthermore, the aging products of squalene after the synergistic effect of thermal oxygen and UV aging were confirmed by 1H NMR analysis (Figure 6b). This suggests that the occurrence of photochemical reactions may involve the generation of allylic radicals (45). The 1H NMR of squalene after synergistic effect of thermal oxygen and UV aging indicated that the generation of non-allylic CH2/CH3 signals at 1.2 ppm (46). This is compelling evidence that double bonds are lost in this photochemically driven process.

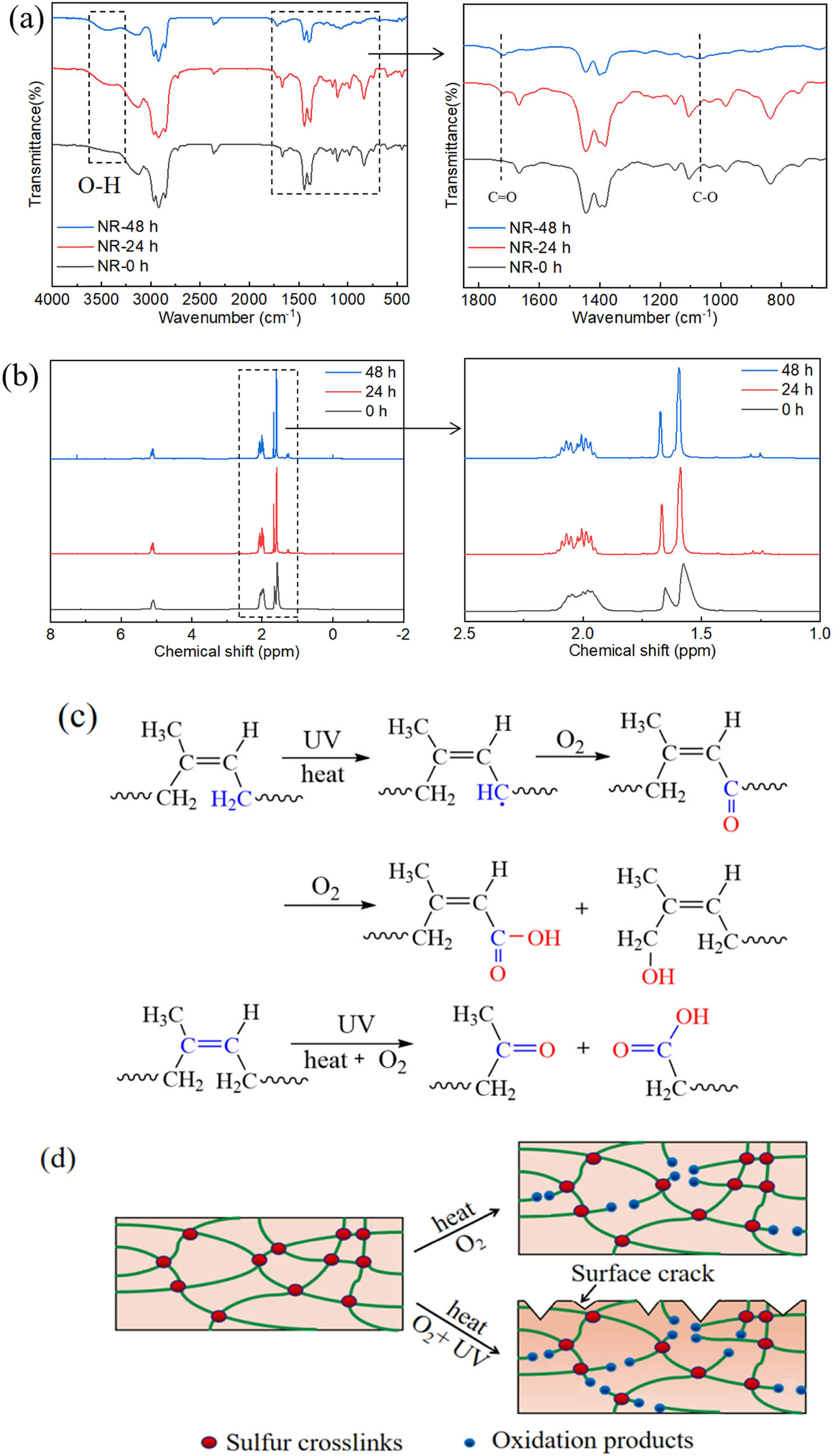

Figure 6 FTIR (a) and 1H NMR (b) spectra of squalene before and after reacting with combine effect of thermal oxygen and UV irradiation. (c) Schematic diagram of the potential mechanism for the synergistic effect of thermal oxygen and UV on NR aging. (d) A schematic diagram of the changes of cross-linking network structure for NR after aging.
Figure 6

FTIR (a) and 1H NMR (b) spectra of squalene before and after reacting with combine effect of thermal oxygen and UV irradiation. (c) Schematic diagram of the potential mechanism for the synergistic effect of thermal oxygen and UV on NR aging. (d) A schematic diagram of the changes of cross-linking network structure for NR after aging.

The macroscopic and microscopic properties of NR materials are decreased by the synergistic effect of thermal oxygen and UV aging, and complex bond breaking, cross-linking, and oxidation reactions occur on the surface of materials. For NR, the reaction as shown in Figure 6c may occur when it suffers from the combine effect of thermal oxygen and UV irradiation. The heating and UV irradiation processes of NR fracture the C–H bonds of methylene and produce carbon radicals R·, which combine with oxygen to produce aldehyde groups. The further oxidation of NR forms oxygen-containing functional groups such as carboxyl groups and hydroxyl groups, which eventually lead to chain fracture. The heating and UV irradiation process of NR fractures the C═C bonds. The further oxidation of NR forms oxygen-containing functional groups such as carbonyl groups and carboxyl groups, which eventually lead to chain fracture. The C–H bonds of methylene and C═C bonds in the NR are oxidized, which increases O–H bonds and C═O bonds in the molecule, while the content of C–H and C═C bonds decrease. In addition, the bond energies of C–H of –CH3, C–H of –CH2, and C═C are 351.6, 335.7, and 271.63 kJ‧mol−1, respectively, which are all less than the energy of the UV-A ultraviolet photon that is 352 kJ‧mol−1 (47). Thus, C–H and C═C bonds in NR molecules fracture to a certain extent, resulting in material deterioration. We come up with the potential aging process, which is shown in Figure 6d. The heating process of NR fractures the C–H bonds and C═C bonds, causing chain breakage that produces various oxidation products. Compared with thermal oxygen aging, the surface of NR appeared cracked; the color of the NR surface obviously deepened and broke more bonds after the synergistic effect of thermal oxygen and UV aging.

4 Conclusion

In this study, the synergistic effect of thermal oxygen and UV aging on NR was studied. The results show that the surface morphology, molecular structure, and mechanical properties of NR changed dramatically during the combine effect of thermal oxygen and UV irradiation. It is worth noting that thermal can promote UV aging, which leads to the appearance of surface cracks and deepening of color. The synergistic effect of thermal oxygen and UV aging of NR is a process from the surface to the inside. During this period, the size of cracks gradually increased with the aging time. With the extension of aging time, the mechanical properties of NR, such as tensile strength and elongation at break, were correspondingly reduced since the molecular chain network structures and cross-linking points of NR were destroyed. The simulated aging process of NR by squalene proved that heat and UV can destroy C═C and C–H in the molecular chain of olefins and form alkyl aldehydes, ketones, aliphatic esters, and ether compounds. Based on these results, a synergistic mechanism of thermal oxygen and UV aging on NR was proposed.

  1. Funding information: This research was supported by the Hainan Provincial Joint Project of Sanya Yazhou Bay Science and Technology City (Grant No. 520LH023), the Key-Area Research and Development Program of Guangdong Province (No. 2020B020217003), and the Hainan Provincial Natural Science Foundation (No. 521CXTD438).

  2. Author contributions: Meng-Zhen Zhou: writing – original draft, investigation, writing – review and editing, methodology, experiment, data analysis and plotting; Hao-Ran Wang: experiment, data analysis and plotting; Xing Guo: investigation, writing – review and editing; Yan-Chan Wei: methodology, data analysis, writing – review and editing; Shuangquan Liao: writing – review and editing, resources.

  3. Conflict of interest: The authors state that there is no conflict of interest.

  4. Data availability statement: The data sets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.

References

(1) Guerra NB, Sant’Ana Pegorin G, Boratto MH, de Barros NR, de Oliveira Graeff CF, Herculano RD. Biomedical applications of natural rubber latex from the rubber tree Hevea brasiliensis. Mater Sci Eng C. 2021;126:112126–43. 10.1016/j.msec.2021.112126.Search in Google Scholar PubMed

(2) Fu X, Xie Z, Wei L, Huang C, Luo M, Huang G. Detecting structural orientation in isoprene rubber/multiwall carbon nanotube nanocomposites at different scales during uniaxial deformation. Polym Int. 2018;67:258–68. 10.1002/pi.5491.Search in Google Scholar

(3) Ansari AH, Jakarni FM, Muniandy R, Hassim S, Elahi Z. Natural rubber as a renewable and sustainable bio-modifier for pavement applications: A review. J Clean Prod. 2021;289:125727–42. 10.1016/j.jclepro.2020.125727.Search in Google Scholar

(4) Duan X, Cheng S, Tao R, Zhang Z, Zhao G. Synergistically enhanced thermal control ability and mechanical properties of natural rubber for tires through a graphene/silica with a dot-face structure. Adv Compos Hybrid Mater. 2022;5:1145–57. 10.1007/s42114-022-00453-y.Search in Google Scholar

(5) Zhou Y, Kosugi K, Yamamoto Y, Kawahara S. Effect of non-rubber components on the mechanical properties of natural rubber. Polym Adv Technol. 2017;28:159–65. 10.1002/pat.3870.Search in Google Scholar

(6) Sebald G, Xie Z, Guyomar D. Fatigue effect of elastocaloric properties in natural rubber. Philos Trans A Math Phys Eng Sci. 2016;374:2074–86. 10.1098/rsta.2015.0302.Search in Google Scholar PubMed

(7) Bennacer R, Liu B, Yang M, Chen A. Refrigeration performance and the elastocaloric effect in natural and synthetic rubbers. Appl Therm Eng. 2022;204:117938. 10.1016/j.applthermaleng.2021.117938.Search in Google Scholar

(8) Soratana K, Rasutis D, Azarabadi H, Eranki PL, Landis AE. Guayule as an alternative source of natural rubber: A comparative life cycle assessment with Hevea and synthetic rubber. J Clean Prod. 2017;159:271–80. 10.1016/j.jclepro.2017.05.070.Search in Google Scholar

(9) Huang C, Zhang J, Cai X, Huang G, Wu J. The effects of proteins and phospholipids on the network structure of natural rubber: a rheological study in bulk and in solution. J Polym Res. 2020;27:158–68. 10.1007/s10965-020-02147-9.Search in Google Scholar

(10) Huang C, Huang G, Li S, Luo M, Liu H, Fu X, et al. Research on architecture and composition of natural network in natural rubber. Polymer. 2018;154:90–100. 10.1016/j.polymer.2018.08.057.Search in Google Scholar

(11) Li H, Yang L, Weng G, Xing W, Wu J, Huang G. Toughening rubbers with a hybrid filler network of graphene and carbon nanotubes. J Mater Chem A. 2015;3:22385–92. 10.1039/c5ta05836h.Search in Google Scholar

(12) Zhang Z, Sun J, Lai Y, Wang Y, Liu X, Shi S, et al. Effects of thermal aging on uniaxial ratcheting behavior of vulcanised natural rubber. Polym Test. 2018;70:102–10. 10.1016/j.polymertesting.2018.06.030.Search in Google Scholar

(13) Wei Y-C, Xie W-Y, He M-F, Zhu D, Liu S, Zhang L, et al. The role of non-rubber components acting as endogenous antioxidants on thermal-oxidative aging behavior of natural rubber. Polym Test. 2022;111:107614. 10.1016/j.polymertesting.2022.107614.Search in Google Scholar

(14) Tertyshnaya Y, Podzorova M, Moskovskiy M. Impact of water and UV irradiation on nonwoven polylactide/natural rubber fiber. Polymers. 2021;13:461–70. 10. 3390/polym13030461.Search in Google Scholar

(15) Tasakorn P, Amatyakul W. Photochemical reduction of molecular weight and number of double bonds in natural rubber film. Korean J Chem Eng. 2008;25:1532–8. 10.1007/s11814-008-0252-6.Search in Google Scholar

(16) Jiang Y, Zhang Y. Improving thermal oxidative aging resistance and anti‐reversion property of natural rubber by adding a crosslinking agent. J Appl Polym Sci. 2021;139:51882. 10.1002/app.51882.Search in Google Scholar

(17) Lee YH, Cho M, Nam JD, Lee YK. Effect of ZnO particle sizes on thermal aging behavior of natural rubber vulcanizates. Polym Degrad Stab. 2018;148:50–5. 10.1016/j.polymdegradstab.2018.01.004.Search in Google Scholar

(18) Fan R, Zhang Y, Huang C, Zhang Y, Fan Y, Sun K. Effect of crosslink structures on dynamic mechanical properties of natural rubber vulcanizates under different aging conditions. J Appl Polym Sci. 2001;81:710–8. 10.1002/app.1488.Search in Google Scholar

(19) Wang M, Wang R, Chen X, Kong Y, Huang Y, Lv Y, et al. Effect of non-rubber components on the crosslinking structure and thermo-oxidative degradation of natural rubber. Polym Degrad Stab. 2022;196:109845. 10.1016/j.polymdegradstab.2022.109845.Search in Google Scholar

(20) Chaikumpollert O, Sae-Heng K, Wakisaka O, Mase A, Yamamoto Y, Kawahara S. Low temperature degradation and characterization of natural rubber. Polym Degrad Stab. 2011;96:1989–95. 10.1016/j.polymdegradstab.2011.08.010.Search in Google Scholar

(21) Murakami K, Takasugi S. Chemorheological studies on polymer degradation. J Appl Polym Sci. 1977;21:55–63. 10.1002/app.1977.070210105.Search in Google Scholar

(22) Rooshenass P, Yahya R, Gan SN. Preparation of liquid epoxidized natural rubber by oxidative degradations using periodic acid, potassium permanganate and UV-irradiation. J Polym Environ. 2017;26:1378–92. 10.1007/s10924-017-1038-x.Search in Google Scholar

(23) Seentrakoon B, Junhasavasdikul B, Chavasiri W. Enhanced UV-protection and antibacterial properties of natural rubber/rutile-TiO2 nanocomposites. Polym Degrad Stab. 2013;98:566–78. 10.1016/j.polymdegradstab.2012.11.018.Search in Google Scholar

(24) Bhowmick AK, White JR. UV- and sunlight ageing of thermoplastic elastomeric natural rubber-polyethylene blends. J Mater Sci. 2002;37:5141–51. 10.1023/A:1021076724403.Search in Google Scholar

(25) Su C, Pan A-X, Gong Y, Yang Z-G. Failure analysis on rubber universal spherical joints for rail vehicles. Eng Fail Anal. 2021;126:105453. 10.1016/j.engfailanal.2021.105453.Search in Google Scholar

(26) Fedorko G, Molnár V, Michalik P, Dovica M, Tóth T, Kelemenová T. Extension of inner structures of textile rubber conveyor belt – Failure analysis. Eng Fail Anal. 2016;70:22–30. 10.1016/j.engfailanal.2016.07.006.Search in Google Scholar

(27) Li G, Zhu D, Jia W, Zhang F. Analysis of the aging mechanism and life evaluation of elastomers in simulated proton exchange membrane fuel cell environments. e-Polymers. 2021;21:921–9. 10.1515/epoly-2021-0078.Search in Google Scholar

(28) Li S, Ke Y, Xie L, Zhao Z, Huang X, Wang Y, et al. Study on the aging of three typical rubber materials under high- and low-temperature cyclic environment. e-Polymers. 2023;23:20208089. 10.1515/epoly-2022-8089.Search in Google Scholar

(29) Yang L, Dai X, Zhao X, Liu F, Xu Y, Wang Y. Loading conditions impact on the compression fatigue behavior of filled styrene butadiene rubber. e-Polymers. 2023;23:20208091. 10.1515/epoly-2022-8091.Search in Google Scholar

(30) Lu L, Luo K, Yang W, Zhang S, Wang W, Xu H, et al. Insight into the anti-aging mechanisms of natural phenolic antioxidants in natural rubber composites using a screening strategy based on molecular simulation. RSC Adv. 2020;10:21318–27. 10.1039/d0ra03425h.Search in Google Scholar PubMed PubMed Central

(31) Kong E, Yoon B, Nam J-D, Suhr J. Accelerated aging and lifetime prediction of graphene-reinforced natural rubber composites. Macromol Res. 2018;26:998–1003. 10.1007/s13233-018-6131-z.Search in Google Scholar

(32) Lin Y, Yin F, Liu Y, Wang L, Wu K. Influence of vulcanization factors on UV-A resistance of silicone rubber for outdoor insulators. IEEE Trans Dielectr Electr Insulation. 2020;27:296–304. 10.1109/tdei.2019.008483.Search in Google Scholar

(33) Tjahyono AP, Aw KC, Travas-Sejdic J. A novel polypyrrole and natural rubber based flexible large strain sensor. Sens Actuators B Chem. 2012;166-167:426–37. 10.1016/j.snb.2012.02.083.Search in Google Scholar

(34) Zheng T, Zheng X, Zhan S, Zhou J, Liao S. Study on the ozone aging mechanism of Natural Rubber. Polym Degrad Stab. 2021;186:109514. 10.1016/j.polymdegradstab.2021.109514.Search in Google Scholar

(35) Xie C, Jia Z, Jia D, Luo Y, You C. The effect of Dy(III) complex with 2-mercaptobenzimidazole on the thermo-oxidation aging behavior of natural rubber vulcanizates. Int J Polym Mater. 2010;59:663–79. 10.1080/00914037.2010.483210.Search in Google Scholar

(36) Luo Y, Yang C, Chen B, Xu K, Zhong J, Peng Z, et al. Thermal degradation of epoxidized natural rubber in presence of neodymium stearate. J Rare Earths. 2013;31:526–30. 10.1016/s1002-0721(12)60314-7.Search in Google Scholar

(37) Komethi M, Othman N, Ismail H, Sasidharan S. Comparative study on natural antioxidant as an aging retardant for natural rubber vulcanizates. J Appl Polym Sci. 2012;124:1490–500. 10.1002/app.35160.Search in Google Scholar

(38) Simoes RD, Job AE, Chinaglia DL, Zucolotto V, Camargo-Filho JC, Alves N, et al. Structural characterization of blends containing both PVDF and natural rubber latex. J Raman Spectrosc. 2005;36:1118–24. 10.1002/jrs.1416.Search in Google Scholar

(39) Samran J, Phinyocheep P, Daniel P, Derouet D, Buzaré J-Y. Raman spectroscopic study of non-catalytic hydrogenation of unsaturated rubbers. J Raman Spectrosc. 2004;35:1073–80. 10.1002/jrs.1256.Search in Google Scholar

(40) Barrera-Garcia VD, Chassagne D, Paulin C, Raya J, Hirschinger J, Voilley A, et al. Interaction Mechanisms between guaiacols and lignin: the conjugated double bond makes the difference. Langmuir. 2011;27:1038–43. 10.1021/la103810q.Search in Google Scholar PubMed

(41) Li K-J, Wang C, Zheng T-T, Zhao F, Luo M-C, Liao S. Towards high performance anti-aging diolefin elastomers based on structure healing strategy. Polymer. 2020;186:122076. 10.1016/j.polymer.2019.122076.Search in Google Scholar

(42) Choi S-S, Kim J-C. Lifetime prediction and thermal aging behaviors of SBR and NBR composites using crosslink density changes. J Ind Eng Chem. 2012;18:1166–70. 10.1016/j.jiec.2012.01.011.Search in Google Scholar

(43) Gan SN, Yahya R, Rooshenass P. Comparison of three different degradation methods to produce liquid epoxidized natural rubber. Rubber Chem Technol. 2016;89:177–98. 10.5254/rct.15.84878.Search in Google Scholar

(44) Yong MY, Sarih NM, Lee SY, Ang DTC. Biobased epoxy film derived from UV-treated epoxidised natural rubber and tannic acid: Impact on film properties and biodegradability. Reactive Funct Polym. 2020;156:104745. 10.1016/j.reactfunctpolym.2020.104745.Search in Google Scholar

(45) Zecchini M, Lucas RA, Robertson C, Coban T, Thatti R, Le Gresley A. Investigation of the formation of squalene oligomers exposed to ultraviolet light and changes in the exposed squalene as a potential skin model. Molecules. 2022;27:113481. 10.3390/molecules27113481.Search in Google Scholar PubMed PubMed Central

(46) Yong MY, Ang DTC, Sarih NM. Novel natural rubber-based epoxy coating. Prog Org Coat. 2019;135:105–13. 10.1016/j.porgcoat.2019.05.040.Search in Google Scholar

(47) Wang X, Fan H, Li W, Zhang Y, Shang R, Yin F, et al. Effect of ultraviolet – A radiation on alicyclic epoxy resin and silicone rubber used for insulators. Polymers. 2022;14:4889–904. 10.3390/polym14224889.Search in Google Scholar PubMed PubMed Central

Received: 2023-03-03
Revised: 2023-04-23
Accepted: 2023-04-26
Published Online: 2023-05-31

© 2023 the author(s), published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Research Articles
  2. Chitosan nanocomposite film incorporating Nigella sativa oil, Azadirachta indica leaves’ extract, and silver nanoparticles
  3. Effect of Zr-doped CaCu3Ti3.95Zr0.05O12 ceramic on the microstructure, dielectric properties, and electric field distribution of the LDPE composites
  4. Effects of dry heating, acetylation, and acid pre-treatments on modification of potato starch with octenyl succinic anhydride (OSA)
  5. Loading conditions impact on the compression fatigue behavior of filled styrene butadiene rubber
  6. Characterization and compatibility of bio-based PA56/PET
  7. Study on the aging of three typical rubber materials under high- and low-temperature cyclic environment
  8. Numerical simulation and experimental research of electrospun polyacrylonitrile Taylor cone based on multiphysics coupling
  9. Experimental investigation of properties and aging behavior of pineapple and sisal leaf hybrid fiber-reinforced polymer composites
  10. Influence of temperature distribution on the foaming quality of foamed polypropylene composites
  11. Enzyme-catalyzed synthesis of 4-methylcatechol oligomer and preliminary evaluations as stabilizing agent in polypropylene
  12. Molecular dynamics simulation of the effect of the thermal and mechanical properties of addition liquid silicone rubber modified by carbon nanotubes with different radii
  13. Incorporation of poly(3-acrylamidopropyl trimethylammonium chloride-co-acrylic acid) branches for good sizing properties and easy desizing from sized cotton warps
  14. Effect of matrix composition on properties of polyamide 66/polyamide 6I-6T composites with high content of continuous glass fiber for optimizing surface performance
  15. Preparation and properties of epoxy-modified thermosetting phenolic fiber
  16. Thermal decomposition reaction kinetics and storage life prediction of polyacrylate pressure-sensitive adhesive
  17. Effect of different proportions of CNTs/Fe3O4 hybrid filler on the morphological, electrical and electromagnetic interference shielding properties of poly(lactic acid) nanocomposites
  18. Doping silver nanoparticles into reverse osmosis membranes for antibacterial properties
  19. Melt-blended PLA/curcumin-cross-linked polyurethane film for enhanced UV-shielding ability
  20. The affinity of bentonite and WO3 nanoparticles toward epoxy resin polymer for radiation shielding
  21. Prolonged action fertilizer encapsulated by CMC/humic acid
  22. Preparation and experimental estimation of radiation shielding properties of novel epoxy reinforced with Sb2O3 and PbO
  23. Fabrication of polylactic acid nanofibrous yarns for piezoelectric fabrics
  24. Copper phenyl phosphonate for epoxy resin and cyanate ester copolymer with improved flame retardancy and thermal properties
  25. Synergistic effect of thermal oxygen and UV aging on natural rubber
  26. Effect of zinc oxide suspension on the overall filler content of the PLA/ZnO composites and cPLA/ZnO composites
  27. The role of natural hybrid nanobentonite/nanocellulose in enhancing the water resistance properties of the biodegradable thermoplastic starch
  28. Performance optimization of geopolymer mortar blending in nano-SiO2 and PVA fiber based on set pair analysis
  29. Preparation of (La + Nb)-co-doped TiO2 and its polyvinylidene difluoride composites with high dielectric constants
  30. Effect of matrix composition on the performance of calcium carbonate filled poly(lactic acid)/poly(butylene adipate-co-terephthalate) composites
  31. Low-temperature self-healing polyurethane adhesives via dual synergetic crosslinking strategy
  32. Leucaena leucocephala oil-based poly malate-amide nanocomposite coating material for anticorrosive applications
  33. Preparation and properties of modified ammonium polyphosphate synergistic with tris(2-hydroxyethyl) isocynurate for flame-retardant LDPE
  34. Thermal response of double network hydrogels with varied composition
  35. The effect of coated calcium carbonate using stearic acid on the recovered carbon black masterbatch in low-density polyethylene composites
  36. Investigation of MXene-modified agar/polyurethane hydrogel elastomeric repair materials with tunable water absorption
  37. Damping performance analysis of carbon black/lead magnesium niobite/epoxy resin composites
  38. Molecular dynamics simulations of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50) and TKX-50-based PBXs with four energetic binders
  39. Preparation and characterization of sisal fibre reinforced sodium alginate gum composites for non-structural engineering applications
  40. Study on by-products synthesis of powder coating polyester resin catalyzed by organotin
  41. Ab initio molecular dynamics of insulating paper: Mechanism of insulating paper cellobiose cracking at transient high temperature
  42. Effect of different tin neodecanoate and calcium–zinc heat stabilizers on the thermal stability of PVC
  43. High-strength polyvinyl alcohol-based hydrogel by vermiculite and lignocellulosic nanofibrils for electronic sensing
  44. Impacts of micro-size PbO on the gamma-ray shielding performance of polyepoxide resin
  45. Influence of the molecular structure of phenylamine antioxidants on anti-migration and anti-aging behavior of high-performance nitrile rubber composites
  46. Fiber-reinforced polyvinyl alcohol hydrogel via in situ fiber formation
  47. Preparation and performance of homogenous braids-reinforced poly (p-phenylene terephthamide) hollow fiber membranes
  48. Synthesis of cadmium(ii) ion-imprinted composite membrane with a pyridine functional monomer and characterization of its adsorption performance
  49. Impact of WO3 and BaO nanoparticles on the radiation shielding characteristics of polydimethylsiloxane composites
  50. Comprehensive study of the radiation shielding feature of polyester polymers impregnated with iron filings
  51. Preparation and characterization of polymeric cross-linked hydrogel patch for topical delivery of gentamicin
  52. Mechanical properties of rCB-pigment masterbatch in rLDPE: The effect of processing aids and water absorption test
  53. Pineapple fruit residue-based nanofibre composites: Preparation and characterizations
  54. Effect of natural Indocalamus leaf addition on the mechanical properties of epoxy and epoxy-carbon fiber composites
  55. Utilization of biosilica for energy-saving tire compounds: Enhancing performance and efficiency
  56. Effect of capillary arrays on the profile of multi-layer micro-capillary films
  57. A numerical study on thermal bonding with preheating technique for polypropylene microfluidic device
  58. Development of modified h-BN/UPE resin for insulation varnish applications
  59. High strength, anti-static, thermal conductive glass fiber/epoxy composites for medical devices: A strategy of modifying fibers with functionalized carbon nanotubes
  60. Effects of mechanical recycling on the properties of glass fiber–reinforced polyamide 66 composites in automotive components
  61. Bentonite/hydroxyethylcellulose as eco-dielectrics with potential utilization in energy storage
  62. Study on wall-slipping mechanism of nano-injection polymer under the constant temperature fields
  63. Synthesis of low-VOC unsaturated polyester coatings for electrical insulation
  64. Enhanced apoptotic activity of Pluronic F127 polymer-encapsulated chlorogenic acid nanoparticles through the PI3K/Akt/mTOR signaling pathway in liver cancer cells and in vivo toxicity studies in zebrafish
  65. Preparation and performance of silicone-modified 3D printing photosensitive materials
  66. A novel fabrication method of slippery lubricant-infused porous surface by thiol-ene click chemistry reaction for anti-fouling and anti-corrosion applications
  67. Development of polymeric IPN hydrogels by free radical polymerization technique for extended release of letrozole: Characterization and toxicity evaluation
  68. Tribological characterization of sponge gourd outer skin fiber-reinforced epoxy composite with Tamarindus indica seed filler addition using the Box–Behnken method
  69. Stereocomplex PLLA–PBAT copolymer and its composites with multi-walled carbon nanotubes for electrostatic dissipative application
  70. Enhancing the therapeutic efficacy of Krestin–chitosan nanocomplex for cancer medication via activation of the mitochondrial intrinsic pathway
  71. Variation in tungsten(vi) oxide particle size for enhancing the radiation shielding ability of silicone rubber composites
  72. Damage accumulation and failure mechanism of glass/epoxy composite laminates subjected to repeated low velocity impacts
  73. Gamma-ray shielding analysis using the experimental measurements for copper(ii) sulfate-doped polyepoxide resins
  74. Numerical simulation into influence of airflow channel quantities on melt-blowing airflow field in processing of polymer fiber
  75. Cellulose acetate oleate-reinforced poly(butylene adipate-co-terephthalate) composite materials
  76. Radiation shielding capability and exposure buildup factor of cerium(iv) oxide-reinforced polyester resins
  77. Recyclable polytriazole resins with high performance based on Diels-Alder dynamic covalent crosslinking
  78. Adsorption and recovery of Cr(vi) from wastewater by Chitosan–Urushiol composite nanofiber membrane
  79. Comprehensive performance evaluation based on electromagnetic shielding properties of the weft-knitted fabrics made by stainless steel/cotton blended yarn
  80. Review Articles
  81. Preparation and application of natural protein polymer-based Pickering emulsions
  82. Wood-derived high-performance cellulose structural materials
  83. Flammability properties of polymers and polymer composites combined with ionic liquids
  84. Polymer-based nanocarriers for biomedical and environmental applications
  85. A review on semi-crystalline polymer bead foams from stirring autoclave: Processing and properties
  86. Rapid Communication
  87. Preparation and characterization of magnetic microgels with linear thermosensitivity over a wide temperature range
  88. Special Issue: Biodegradable and bio-based polymers: Green approaches (Guest Editors: Kumaran Subramanian, A. Wilson Santhosh Kumar, and Venkatajothi Ramarao)
  89. Synthesis and characterization of proton-conducting membranes based on bacterial cellulose and human nail keratin
  90. Fatigue behaviour of Kevlar/carbon/basalt fibre-reinforced SiC nanofiller particulate hybrid epoxy composite
  91. Effect of citric acid on thermal, phase morphological, and mechanical properties of poly(l-lactide)-b-poly(ethylene glycol)-b-poly(l-lactide)/thermoplastic starch blends
  92. Dose-dependent cytotoxicity against lung cancer cells via green synthesized ZnFe2O4/cellulose nanocomposites
https://doi.org/10.1515/epoly-2023-0016
Keywords for this article
natural rubber; structure; thermal oxygen aging; UV aging; mechanical properties
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Articles
  2. Chitosan nanocomposite film incorporating Nigella sativa oil, Azadirachta indica leaves’ extract, and silver nanoparticles
  3. Effect of Zr-doped CaCu3Ti3.95Zr0.05O12 ceramic on the microstructure, dielectric properties, and electric field distribution of the LDPE composites
  4. Effects of dry heating, acetylation, and acid pre-treatments on modification of potato starch with octenyl succinic anhydride (OSA)
  5. Loading conditions impact on the compression fatigue behavior of filled styrene butadiene rubber
  6. Characterization and compatibility of bio-based PA56/PET
  7. Study on the aging of three typical rubber materials under high- and low-temperature cyclic environment
  8. Numerical simulation and experimental research of electrospun polyacrylonitrile Taylor cone based on multiphysics coupling
  9. Experimental investigation of properties and aging behavior of pineapple and sisal leaf hybrid fiber-reinforced polymer composites
  10. Influence of temperature distribution on the foaming quality of foamed polypropylene composites
  11. Enzyme-catalyzed synthesis of 4-methylcatechol oligomer and preliminary evaluations as stabilizing agent in polypropylene
  12. Molecular dynamics simulation of the effect of the thermal and mechanical properties of addition liquid silicone rubber modified by carbon nanotubes with different radii
  13. Incorporation of poly(3-acrylamidopropyl trimethylammonium chloride-co-acrylic acid) branches for good sizing properties and easy desizing from sized cotton warps
  14. Effect of matrix composition on properties of polyamide 66/polyamide 6I-6T composites with high content of continuous glass fiber for optimizing surface performance
  15. Preparation and properties of epoxy-modified thermosetting phenolic fiber
  16. Thermal decomposition reaction kinetics and storage life prediction of polyacrylate pressure-sensitive adhesive
  17. Effect of different proportions of CNTs/Fe3O4 hybrid filler on the morphological, electrical and electromagnetic interference shielding properties of poly(lactic acid) nanocomposites
  18. Doping silver nanoparticles into reverse osmosis membranes for antibacterial properties
  19. Melt-blended PLA/curcumin-cross-linked polyurethane film for enhanced UV-shielding ability
  20. The affinity of bentonite and WO3 nanoparticles toward epoxy resin polymer for radiation shielding
  21. Prolonged action fertilizer encapsulated by CMC/humic acid
  22. Preparation and experimental estimation of radiation shielding properties of novel epoxy reinforced with Sb2O3 and PbO
  23. Fabrication of polylactic acid nanofibrous yarns for piezoelectric fabrics
  24. Copper phenyl phosphonate for epoxy resin and cyanate ester copolymer with improved flame retardancy and thermal properties
  25. Synergistic effect of thermal oxygen and UV aging on natural rubber
  26. Effect of zinc oxide suspension on the overall filler content of the PLA/ZnO composites and cPLA/ZnO composites
  27. The role of natural hybrid nanobentonite/nanocellulose in enhancing the water resistance properties of the biodegradable thermoplastic starch
  28. Performance optimization of geopolymer mortar blending in nano-SiO2 and PVA fiber based on set pair analysis
  29. Preparation of (La + Nb)-co-doped TiO2 and its polyvinylidene difluoride composites with high dielectric constants
  30. Effect of matrix composition on the performance of calcium carbonate filled poly(lactic acid)/poly(butylene adipate-co-terephthalate) composites
  31. Low-temperature self-healing polyurethane adhesives via dual synergetic crosslinking strategy
  32. Leucaena leucocephala oil-based poly malate-amide nanocomposite coating material for anticorrosive applications
  33. Preparation and properties of modified ammonium polyphosphate synergistic with tris(2-hydroxyethyl) isocynurate for flame-retardant LDPE
  34. Thermal response of double network hydrogels with varied composition
  35. The effect of coated calcium carbonate using stearic acid on the recovered carbon black masterbatch in low-density polyethylene composites
  36. Investigation of MXene-modified agar/polyurethane hydrogel elastomeric repair materials with tunable water absorption
  37. Damping performance analysis of carbon black/lead magnesium niobite/epoxy resin composites
  38. Molecular dynamics simulations of dihydroxylammonium 5,5′-bistetrazole-1,1′-diolate (TKX-50) and TKX-50-based PBXs with four energetic binders
  39. Preparation and characterization of sisal fibre reinforced sodium alginate gum composites for non-structural engineering applications
  40. Study on by-products synthesis of powder coating polyester resin catalyzed by organotin
  41. Ab initio molecular dynamics of insulating paper: Mechanism of insulating paper cellobiose cracking at transient high temperature
  42. Effect of different tin neodecanoate and calcium–zinc heat stabilizers on the thermal stability of PVC
  43. High-strength polyvinyl alcohol-based hydrogel by vermiculite and lignocellulosic nanofibrils for electronic sensing
  44. Impacts of micro-size PbO on the gamma-ray shielding performance of polyepoxide resin
  45. Influence of the molecular structure of phenylamine antioxidants on anti-migration and anti-aging behavior of high-performance nitrile rubber composites
  46. Fiber-reinforced polyvinyl alcohol hydrogel via in situ fiber formation
  47. Preparation and performance of homogenous braids-reinforced poly (p-phenylene terephthamide) hollow fiber membranes
  48. Synthesis of cadmium(ii) ion-imprinted composite membrane with a pyridine functional monomer and characterization of its adsorption performance
  49. Impact of WO3 and BaO nanoparticles on the radiation shielding characteristics of polydimethylsiloxane composites
  50. Comprehensive study of the radiation shielding feature of polyester polymers impregnated with iron filings
  51. Preparation and characterization of polymeric cross-linked hydrogel patch for topical delivery of gentamicin
  52. Mechanical properties of rCB-pigment masterbatch in rLDPE: The effect of processing aids and water absorption test
  53. Pineapple fruit residue-based nanofibre composites: Preparation and characterizations
  54. Effect of natural Indocalamus leaf addition on the mechanical properties of epoxy and epoxy-carbon fiber composites
  55. Utilization of biosilica for energy-saving tire compounds: Enhancing performance and efficiency
  56. Effect of capillary arrays on the profile of multi-layer micro-capillary films
  57. A numerical study on thermal bonding with preheating technique for polypropylene microfluidic device
  58. Development of modified h-BN/UPE resin for insulation varnish applications
  59. High strength, anti-static, thermal conductive glass fiber/epoxy composites for medical devices: A strategy of modifying fibers with functionalized carbon nanotubes
  60. Effects of mechanical recycling on the properties of glass fiber–reinforced polyamide 66 composites in automotive components
  61. Bentonite/hydroxyethylcellulose as eco-dielectrics with potential utilization in energy storage
  62. Study on wall-slipping mechanism of nano-injection polymer under the constant temperature fields
  63. Synthesis of low-VOC unsaturated polyester coatings for electrical insulation
  64. Enhanced apoptotic activity of Pluronic F127 polymer-encapsulated chlorogenic acid nanoparticles through the PI3K/Akt/mTOR signaling pathway in liver cancer cells and in vivo toxicity studies in zebrafish
  65. Preparation and performance of silicone-modified 3D printing photosensitive materials
  66. A novel fabrication method of slippery lubricant-infused porous surface by thiol-ene click chemistry reaction for anti-fouling and anti-corrosion applications
  67. Development of polymeric IPN hydrogels by free radical polymerization technique for extended release of letrozole: Characterization and toxicity evaluation
  68. Tribological characterization of sponge gourd outer skin fiber-reinforced epoxy composite with Tamarindus indica seed filler addition using the Box–Behnken method
  69. Stereocomplex PLLA–PBAT copolymer and its composites with multi-walled carbon nanotubes for electrostatic dissipative application
  70. Enhancing the therapeutic efficacy of Krestin–chitosan nanocomplex for cancer medication via activation of the mitochondrial intrinsic pathway
  71. Variation in tungsten(vi) oxide particle size for enhancing the radiation shielding ability of silicone rubber composites
  72. Damage accumulation and failure mechanism of glass/epoxy composite laminates subjected to repeated low velocity impacts
  73. Gamma-ray shielding analysis using the experimental measurements for copper(ii) sulfate-doped polyepoxide resins
  74. Numerical simulation into influence of airflow channel quantities on melt-blowing airflow field in processing of polymer fiber
  75. Cellulose acetate oleate-reinforced poly(butylene adipate-co-terephthalate) composite materials
  76. Radiation shielding capability and exposure buildup factor of cerium(iv) oxide-reinforced polyester resins
  77. Recyclable polytriazole resins with high performance based on Diels-Alder dynamic covalent crosslinking
  78. Adsorption and recovery of Cr(vi) from wastewater by Chitosan–Urushiol composite nanofiber membrane
  79. Comprehensive performance evaluation based on electromagnetic shielding properties of the weft-knitted fabrics made by stainless steel/cotton blended yarn
  80. Review Articles
  81. Preparation and application of natural protein polymer-based Pickering emulsions
  82. Wood-derived high-performance cellulose structural materials
  83. Flammability properties of polymers and polymer composites combined with ionic liquids
  84. Polymer-based nanocarriers for biomedical and environmental applications
  85. A review on semi-crystalline polymer bead foams from stirring autoclave: Processing and properties
  86. Rapid Communication
  87. Preparation and characterization of magnetic microgels with linear thermosensitivity over a wide temperature range
  88. Special Issue: Biodegradable and bio-based polymers: Green approaches (Guest Editors: Kumaran Subramanian, A. Wilson Santhosh Kumar, and Venkatajothi Ramarao)
  89. Synthesis and characterization of proton-conducting membranes based on bacterial cellulose and human nail keratin
  90. Fatigue behaviour of Kevlar/carbon/basalt fibre-reinforced SiC nanofiller particulate hybrid epoxy composite
  91. Effect of citric acid on thermal, phase morphological, and mechanical properties of poly(l-lactide)-b-poly(ethylene glycol)-b-poly(l-lactide)/thermoplastic starch blends
  92. Dose-dependent cytotoxicity against lung cancer cells via green synthesized ZnFe2O4/cellulose nanocomposites
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 7.9.2025 from https://www.degruyterbrill.com/document/doi/10.1515/epoly-2023-0016/html
Scroll to top button
