Partition Behavior of Alloying Elements in Nickel-Based Alloys and Their Activity Interaction Parameters and Infinite Dilution Activity Coefficients

Tianhua Ju; Xueyong Ding; Yingyi Zhang; Xiangkui Chen; Weiliang Chen; Bo Wang; Xinlin Yan

doi:10.1515/htmp-2018-0120

Artikel Open Access

Partition Behavior of Alloying Elements in Nickel-Based Alloys and Their Activity Interaction Parameters and Infinite Dilution Activity Coefficients

Tianhua Ju , Xueyong Ding , Yingyi Zhang , Xiangkui Chen , Weiliang Chen , Bo Wang und Xinlin Yan

Veröffentlicht/Copyright: 20. Dezember 2018

Veröffentlicht von

Veröffentlichen auch Sie bei De Gruyter Brill

Manuskript einreichen Informationen für Autor*innen

Aus der Zeitschrift High Temperature Materials and Processes Band 38 Heft 2019

Abstract

The partition behavior of alloying elements between the γ’ and γ phases in Nickel-based alloys was investigated by using infinite dilution activity coefficient and activity interaction parameter. The results showed that the preferential partition behavior of elements in the γ’ and γ phases is related to its infinite dilution activity coefficient (lnγi0). When lnγi0≪0, the element i has a strong tendency to partition in the γ’ phase; When lnγi0 approaches to zero, the element i has preferentially partition to the matrix γ phase. In addition, the partition behavior of element i in the γ’ and γ phases is also affected by the third element j in Nickel-based alloys, and this effect can be distinguished by the sign of the second-order activity interaction parameter ρiij.

Keywords: activity interaction parameter; infinite dilution activity coefficient; elemental partition; Nickel-based alloys

Introduction

Nickel-based alloys have important applications in high-temperature fields as they can offer outstanding properties both in mechanical strength and resistance to surface degradation, even when the environment temperature approaches to 90% of their melting temperatures [1]. These extraordinary properties largely depend on the amount of the γ’ phase [1] that precipitates from the matrix γ phase by adding essential solutes such as Al, Ti, and Nb. Interestingly, the partition behavior of different alloying elements in these two phases (γ’ and γ) is significantly different [2, 3]. Understanding this behavior is very important for alloy designs [4, 5].

In the past, data on the elemental partition behavior in Nickel-based alloys have been experimentally determined [6, 7, 8, 9, 10]. In order to understand the mechanism of elemental partition behavior, researchers tried to reproduce these data using computational methods. For example, Saito [11] employed the Monte Carlo (MC) simulation method and successfully predicted the alloying element partitions in DMS4 Nickel-based alloys. Walston [10] used the neural network prediction method to predict the effect of addition of Ru and/or Co on the partition behavior of Re and obtained good agreement with experimental results. Liu [12] adopted the First-Principles (FP) calculation method and investigated the partition behavior of transition metal elements in Ni-based single crystal superalloys. However, in these methods, the neural network method is frequently mathematically indeterminate [13] and a large amount of experimental data are actually required for predictions; The MC and FP methods would consume a lot of computing resources to obtain satisfactory results [14]. Moreover, the FP method cannot get the change of element partition behavior caused by the concentration varying. In Nickel-based alloys, the elemental partition behavior is the results of a multi-component co-effect. For example, in the alloys EPM 16 and EPM 36, adding Ru [10] results in the elements Cr, W, Mo, and Re partitioning more strongly in the γ’ phase, and Al and Ta partitioning in the γ phase. A similar phenomenon was observed by Kuo [15], who found that increasing the content of Ti in the Ni-19Al-xSi-yTi alloys increased the partition tendency of Si in the γ matrix phase. Besides, the element partition behavior is also influenced by the concentration. For example, Mo and W concentrate more in the γ phase with increasing the concentrations [2, 16]. This phenomenon is difficult to simulate by the FP method.

Ordinarily, the partition behavior of an alloying element depends on the size of the chemical potential that is normally related to the compositions of the alloy at a certain temperature T and pressure P. The effect of interaction between alloying elements on the chemical potential can be represented by the activity interaction parameters which are firstly proposed by Wagner [17]. In this work, we try to use these parameters to investigate the element partition behavior in Nickel-based alloys. However, in Nickel-based alloys, the relevant experimental data are rare. Thus, we have to resort to theoretical calculation methods. In theoretical calculations, two methods are deserved to be mentioned since in which, only few physical parameters of the constituent elements are needed. One is proposed by Ding [18, 19] and the other is developed by Ueno and Waseda [20, 21]. Ding [18, 19] established a model through combining the Miedema model and geometric model as well as other thermodynamic relations to predicts the activity interaction parameter and infinite dilution activity coefficient in any metal-based melts. Ueno and Waseda [20, 21] applied the pseudo-potential formalism coupled with free energy of the hard sphere model to build up the interaction parameter model. The former we called as Ding method and the latter as Ueno method. However, the final formula of Ueno method [20, 21] still needs to be improved because it does not satisfy the Lupis reciprocal relationship [22], i.e., εij≠εji. This problem does not exist in the Ding method [18, 19]. Therefore, the Ding model [18, 19] was applied in this work.

Calculation model

In multi-component solutions, k-1–2- … -n, k is solvent, a Taylor’s expansion of lnγ1 as a function of the solutes is given by:

(1)lnγ1=lnγ10+∑i=1nxi∂lnγ1∂xi+∑i=1n(12∂2lnγ1∂xi2xi2) +∑i=1j=2n(∂2lnγ1∂xi∂xjxixj)+O(X3)

where γ1 is the activity coefficient of component 1, and γ10 is the value at infinite dilution; the xi and xj are the mole fraction of solutes i and j respectively; OX3 represents the residual term. And the activity interaction parameters are defined as follows:

(2)ε1j=∂lnγ1∂xjxk→1j=1,2,⋯n

(3)ρ11j=∂2lnγ1∂x1∂xjxk→1j=1,2,⋯n

ε1j is the first-order activity interaction parameter of j on 1, ρ11j is the second-order activity interaction parameter. According to the relationship between the activity coefficientγ1, and the partial excess Gibbs free energy of component 1 in the mixing G1E, the lnγ10, ε1j, and ρ11j can be rewritten as follows at a certain temperature T and pressure P, respectively:

(4)lnγ10=limx1→01RT(G1E)

(5)ε1j=1RT∂G1E∂xjxk→1

(6)ρ11j=1RT∂2G1E∂x1∂xjxk→1

where R is the gas constant and equal to 8.314 J/mol.

Therefore, if the partial excess Gibbs free energy of mixing G1E is obtained, the above three parameters can be achieved. In the Ding’s previous work [18, 19], models for calculating the lnγ10, ε1j, and ρ11j have been established. They are:

(7)lnγ10=1RTf1k1+u1(ϕ1−ϕk)Vk2/3

(8)ε1j=1RTA−B−C

(9)ρ11j=1RTA−B+C+D−E

where A, B, C, D, E, f1k, f1j and fjk are given as:

A=f1j[1+μ1(ϕ1−ϕj)]/Vj2/3

B=f1k[1+μ1(ϕ1−ϕk)]/Vk2/3

C=fjk[1+μj(ϕj−ϕk)]/Vk2/3

D=f1j{[(4μ1+2μj)(ϕj−ϕ1)−2−2μ1μj(ϕj−ϕ1)2]/Vj2/3 −2[1+μ1(ϕ1−ϕj)][V12/3(1+μ1(ϕ1−ϕj)) +Vj2/3(−1+μj(ϕj−ϕ1))]/(Vj2/3)2}

E=f1k{[(4μ1+2μk)(ϕk−ϕ1)−2−2μ1μk(ϕk−ϕ1)2]/Vk2/3 −2[1+μ1(ϕ1−ϕk)][V12/31+μ1(ϕ1−ϕk +Vk2/3(−1+μk(ϕk−ϕ1))]/(Vk2/3)2}

fij=2PVj2/3Vi2/3(nWS)i−1/3+(nWS)j−1/3[9.4((nWS)i1/3−(nWS)j1/3)2 −(ϕi−ϕj)2−a(rP)ij

where, Vi is the molar volume of the corresponding component i in cm³/mol at room temperature; (nWS)i is the electron density of i in electrons per (0.529 Ǻ)³; ϕi is the electronegativity of i in volts; P, uia, and r are the empirical constants and related to a specific composition. The values of above parameters for elements except for halides and chalcogenides are obtainable in Ref [23, 24], and the chalcogenides’ parameters, used in this paper, are from the literature [25].

Equations (7) and (8) were successfully employed in Fe-based [18], Cu-based [26] and Co-based [19] melts by Ding. In this work, the infinite dilution activity coefficients of solutes and their activity interaction parameters in Nickel-based melts were calculated at 1873 K. The calculation process is performed on our own developed software that is dedicated to calculating the activity coefficients and activity interaction parameters between components in metal-based melts.

Results and discussion

The infinite dilution activity coefficient lnγi0 and solutes activity interaction parameter εij

It should be noted that the activity coefficient relies on the choice of the standard state, and in our calculation a pure liquid substance is selected. However, the standard state used in literature or by other investigators may be different, hence implement the standard state conversion is required. According to the chemical potential of the component i is independent on the standard state, the activity coefficient between a pure liquid standard state and a pure solid standard state for the same component (e.g. i) can be converted mutually using: (in other standard states a similar equation to eq. (10) is used.)

(10)lnγiL=lnγiS−ui0L−ui0SRT

where, the superscripts L and S represent the pure liquid and the pure solid, respectively; R and T are the gas constant and the absolute temperature, respectively; the value of ui0L−ui0S is equal to the change of the Gibbs free energy for 1 mole pure component i from solid to liquid at the temperature T. In addition, some literature values are given at different temperatures, this can be transformed to at other temperatures by the following relation:

(11)lnγT1=T2T1lnγT2

Table 1 lists the comparison of the calculated results and the literature/experimental values for the logarithm of solutes infinite dilution activity coefficients (ln γi0). It’s easy to find that a good agreement is achieved. Only lnγO0 has a relatively large deviation, this is maybe caused by that: (1) a strong interaction exists between Oxygen and Nickel atoms, and (2) only slight rearrangements of the Nickel atoms are necessary when Oxygen atoms enter into liquid Nickel matrix as quasi-interstitials since the radius of Oxygen atom is smaller than Nickel atom. In the Ding’s model [18, 19], the second point is neglected. For the elements Pd and Sb, the signs of the calculated values are inconsistent with the data given in Ref [28]. However, the difference of their absolute values is very small.

Table 1:

Calculated results for lnγi0 of solute elements at 1873K in Nickel-based melts and the corresponding literature values.

i	lnγi0		i	lnγi0
i	This work	Literature	i	This work	Literature
B	−5.47	−4.71 [27]	Mo	−2.09	−1.53 [28]
C	−8.35	−5.83 [28]	Ru	0.14
N	−15.96		Rh	−0.26
O	−19.05	−56.29 [28]	Pd	−0.02	0.01 [28]
Al	−6.20	−8.52 [28]	Cd	0.57
Si	−6.30	−9.21 [28]	In	0.54	0.58 [28]
P	−9.68		Sn	−1.35	−0.89 [28]
S	−6.50		Sb	−0.46	0.25 [28]
Sc	−12.33		Hf	−13.11
Ti	−9.87	−8.50 [28]	Ta	−8.52	−7.15 [28]
Cr	−1.73	−1.40 [27]	W	−0.91	−0.25 [28]
Mn	−2.12	−1.75 [27]	Re	0.66
Fe	−0.41	−1.02 [28]	Os	0.37
Co	−0.06	−0.05 [28]	Ir	−0.43
Cu	0.91	1.06 [29]	Pt	−1.40
Ga	−4.42		Y	−11.09
Ge	−3.27	−2.04 [28]	Zr	−13.80	−13.02 [28]
Nb	−8.71	−7.34 [27]	V	−4.83	−4.71 [28]

Table 2 lists the comparison of the calculated results and literature/experimental values for the first-order activity interaction parameters εij of j on i in Nickel-based melts at 1873K. Basically, the first-order activity interaction parameters of j on i and i on j are identical in the same matrix since it satisfies the reciprocal relationship which given by Lups and Elliott [22], i.e.

(12)εij=εji

Table 2:

Calculated results for εij in Nickel-based melts at 1873K and the corresponding values from literatures.

i	j	εij		i	j	εij
		This work	Literature			This work	Literature
Al	Al	14.3	9.0	Cr	Cr	1.8	3.5
Al	N	2.3	0.54	Cr	Si	2.5
Au	Au	−5.7	−0.2	Cr	Mo	4.5
Ce	N	−55.6	−304.0	Cr	W	3.4
Co	Co	0.1	0	Cr	Re	0.1
Co	N	−1.2	−1.3	Cr	O	−7.5	−25.0 [30]
Cu	Cu	−1.7	−1.9	Mo	N	−5.4	−16.0
Fe	Fe	0.8	3.0	Mo	Mo	5.1
Fe	N	−3.0	−4.3	W	W	2.3
N	N	29.4	0.8	W	N	−4.1	−189.0
O	O	33.3	0.7	W	Ta	7.5
Si	Si	14.5	13.0	Zr	N	−52.7	−86.0
S	S	17.4	−3.0	Ru	Cr	−1.2
Ti	Ti	24.4	15.2 [31]	Ru	Mo	−1.8
Ti	Si	3.16		Ru	Re	−1.5
Ti	N	−37.0	−37.0	Ru	W	−1.8
Cr	Fe	1.4	2.2	Ru	Al	0.7
Cr	N	−5.9	−22.0	Ru	Ta	−2.1
Cr	Ti	9.5	11.3

Notes: the literature values are from the Ref [27]. except for otherwise indicated.

It’s easy to find from Table 2 that the calculation results are in good agreement with the literature values. Most of the data are within tolerable deviations except for some ones such as εWN, εOO, and εCeN, that have relatively large deviations. A common feature of these data is the calculated values are larger than the values given in literature. More specifically, when the interaction is attractive (εij<0), the calculated value shows a weaker attraction than the literature one; when the interaction is rejective (εij>0), the calculated value shows a stronger rejection than the literature one. It may be due to that no rearrangement of Nickel atoms in the matrix occurs when an atom with a small size enters into. On the other hand, the small solute atoms could be compressed by the matrix atoms on the lattices, which leads to a negative contribution to the activity interaction parameter. However, this extra contribution is neglected in the Ding’s model [18, 19]. Nevertheless, the calculated results are still encouraging.

The element partition behavior in the γ’and γ-phase

Figure 1 highlights the preferential partition behavior of elements into the γ’ or γ phase in Nickel-based alloys. It shows that elements located at both ends of the periodic table have preferential partitions in the γ’ phase, while at the middle region are preferentially distributed in the γ phase. Pollock [1] has used the atomic size to distinguish the partition behavior of elements in the γ’ and γ phases and obtained that, elements with similar atomic size to Nickel are preferentially distributed into the γ phase. However, this is obviously insufficient as the preferential partition behavior of elements in different phases depends on its relative magnitude of chemical potential in each phase.

Figure 1:

Alloying elements present in Nickel-based alloys (data adapted from Ref [3, 32, 33, 34]).

In Nickel-based alloys, the γ’ and γ phases are the main constituent phases with different structures. The γ phase [1, 35] is a solid solution with a face-centers cubic lattice and a random distribution of the different species of atoms, the γ’ phase [1] is intermetallic with nominal compositions Ni3X (X is Al, Ti, Nb, Ta, Hf etc.). Therefore, there must be a strong attraction between X and Ni, or exactly, X can be firmly captured by Ni in Nickel-based alloys. To some degree, this attraction can be understood from the perspective of the infinite dilution activity coefficient, since

(13)lnγi0=limxi→0(lnγi)=1RTlimxi→0(uiE)

(14)uiE=uir−uiid

where uiE is the excess chemical potential of component i in solution and is defined as the difference between the chemical potential of component i at a real state and an ideal state under the same conditions. Therefore, if lnγi0 approaches to zero, the mixture of the component i and the solvent/matrix is close to ideal; and if the lnγi0>>0, the atom of the element i may be rejected from the solvent/matrix due to the chemical potential of the element i will be increased after mixing; if the lnγi0<<0, the atom of the element i would be attracted by the solvent/matrix strongly so that an ordered intermetallic compound can be formed.

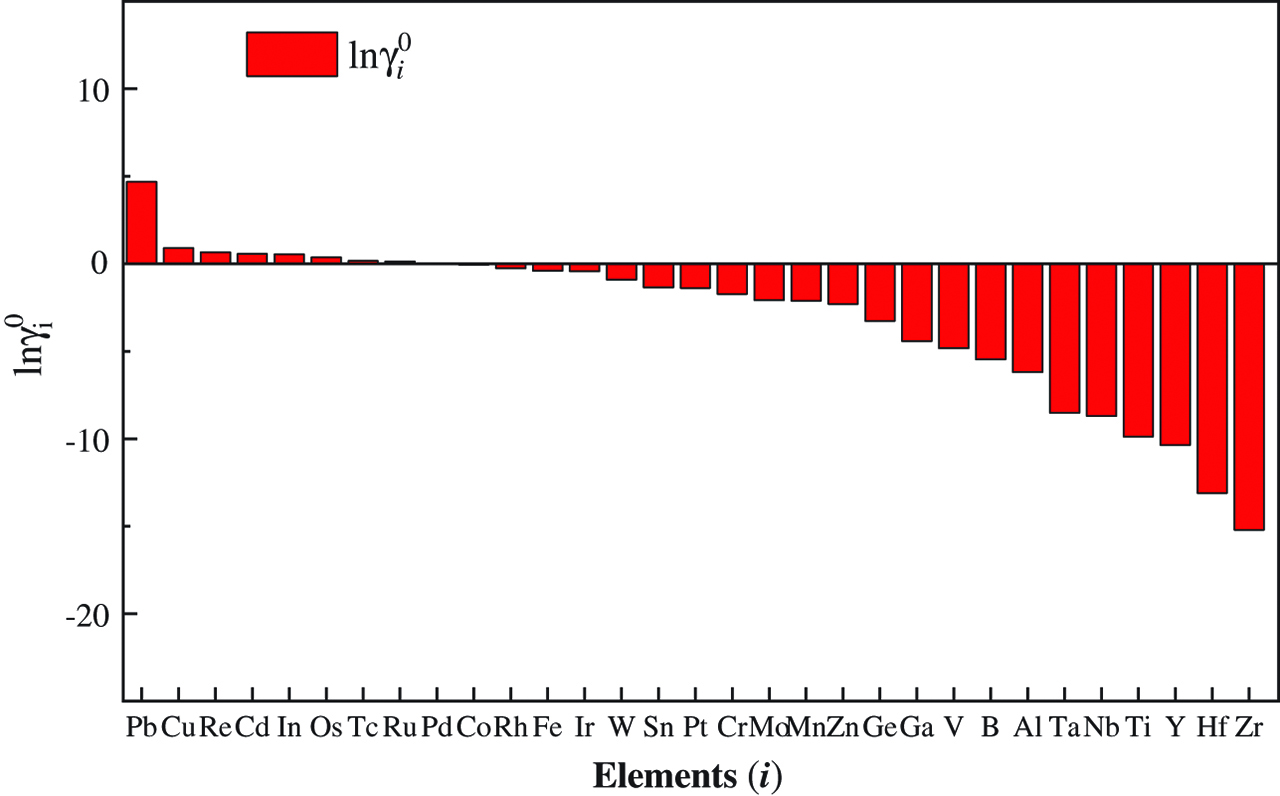

Figure 2 plots the logarithm of the infinite dilution activity coefficient (lnγi0) of different elements in Nickel-based alloys at 1873 K. Combining Figure 1, it’s easy to know that lnγi0 of almost all γ-formed elements is close to zero (except for Pb, the lnγPb0 is relatively far from zero axes with a positive sign), while for the γ’-formed elements, the lnγi0 is apparently more negative than the former. In this work, we only compared the data under 1873K, and when the temperature decreases, the difference becomes more obvious. Therefore, the preferential partition behavior of element i in the γ’ and γ phases can be well distinguished by its logarithm of the infinite dilution activity coefficients (lnγi0).

Figure 2:

The infinite dilution activity coefficients in Nickel-based alloys at 1873K.

In addition, the partition behavior of element i in the γ’ and γ phases is also affected by the third elements j and its concentration in Nickel-based alloys [5, 9, 36]. This phenomenon have been investigated by many researchers [10, 13, 37] through different methods. However, these methods are not light and convenient enough, sometimes even they are not able to explain the effects caused by the changes of concentration. According to the definition of activity interaction parameters, εij and ρiij can be rewritten as follows:

(15)εij=1RT∂uiE∂xjxk→1

(16)ρiij=1RT∂2uiE∂xi∂xjxk→1

hence, the εij represents the fact that the effect of j on the chemical potential of i in the solution at infinite dilution; and the ρiij represents that the co-effect of i and j on the chemical potential of i in the solution. And their signs imply that whether the chemical potential of i will increase or decrease after j is added. The significance of this effect is typically related to its value. Generally, the greater the chemical potential of the element i in one phase, the greater the probability it escapes from this phase. Therefore, if the sign of εij or ρiij is positive, adding j or increasing j’s concentration in the solution increases the probability of i escaping from the matrix phase, while negative implies the element i will be promoted to partition in the matrix phase.

Table 3 lists the change of partition behavior of element i caused by adding a third element j. Elements in the second and third columns in Table 3 represent that their partition behaviors are altered to the corresponding phase after adding the element in the first column. For example, at the second row, adding Ru or increasing the concentration of Ru in Nickel-based alloys promotes the Ta and Al atoms to partition preferentially into the γ phase, while Cr, Mo, W and Re to the γ’-phase.

Table 3:

The effect of adding/increasing j on the partition behavior of other elements in Nickel-based alloys.

j	-phase	γ’-phase	References
Ru	Ta, Al	Cr, Mo, W, Re	[5, 13]
Cr	Cr, W, Mo		[33, 36]
Ti	Si		[15]
Mo	Mo		[6, 7, 38]
Ta	W		[8]
W	W		[6, 7, 38]

Figure 3 plots the first-order activity interaction parameter εij for those elements from Table 3, where j and i are from the first column and second or third column in Table 3, respectively. Adding Ru promotes both Ta and Al to partition in the γ phase, however, in Figure 3, εTaRu and εAlRu are located at the two side of the zero line. This implies that the change of the partition behavior of the element i that it caused by the third element j or j’s concentration in Nickel-based alloys cannot be well separated by the sign of their first-order activity interaction parameter εij. Figure 4 plots the second-order activity interaction parameters ρiij for these elements in Nickel-based alloys. Amazingly, the second-order activity interaction parameters ρiij are effectively divided into two sides of the zero line in Figure 4, according to the difference of partition behavior for i in the γ’ or γ phase that caused by adding j in Nickel-based alloys, i.e. when ρiij<0, adding j makes i more readily to partition in the γ phase, when ρiij>0, adding j promotes i to partition in the γ’ phase. This indicates that the effect of adding j on the change of the partition behavior of element i can be well distinguished by the sign of ρiij. Of course, element eventually partition in different phases depends on its relative magnitude of chemical potential in each phase as well as the process of kinetics. In this work, we just tried to discuss the trends of this partition behavior for alloying elements at equilibrium from the thermodynamics point of view.

$Figure 3: The first-order activity interaction parameter εij\varepsilon _i^{ j} in Nickel-based alloys at 1873K.$

Figure 3:

The first-order activity interaction parameter εij in Nickel-based alloys at 1873K.

$Figure 4: The second-order activity interaction parameter ρiij\rho _i^{ij} in Nickel-based alloys at 1873K.$

Figure 4:

The second-order activity interaction parameter ρiij in Nickel-based alloys at 1873K.

Conclusions

The activity interaction parameters and infinite dilution activity coefficients have been calculated by the Ding’s model [18, 19] in Nickel-based alloys at 1873K. The partition behavior of typically alloying elements (such as Ti, Cr, Mo, W, and Re.) in Nickel-based alloys into the γ’ or γ phase was investigated by using the infinite dilution activity coefficient and activity interaction parameter. The conclusions are obtained as follows:

A good agreement is achieved between the calculated results and the literature values for solutes infinite dilution activity coefficients and their activity interaction parameters in Nickel-based alloys at 1873K.
The preferential partition behavior of elements in Nickel-based alloys in the γ’ or γ phase is related to the infinite dilution activity coefficient (lnγi0). When lnγi0 is closer to zero, the element i is easier to partition to the γ phase, when it is more negative (lnγi0<<0), it is more possible to form the γ’ phase.
The change of partition behavior of element i arising from the third element j or j’s concentration in Nickel-based alloys can be distinguished by the sign of the second-order activity interaction parameter ρiij. The first-order activity interaction parameter εij is insufficient to separate it.

Acknowledgements

This work was supported by the National Key R&D Program of China (2017YFB0603801).

References

[1] T.M. Pollock and S. Tin, J. Propul. Power., 22 (2006) 361–374.10.2514/1.18239Suche in Google Scholar

[2] M. Enomoto and H. Harada, Metall. Trans. A, 20 (1989) 649–664.10.1007/BF02667583Suche in Google Scholar

[3] C.C. Jia, K. Ishida and T. Nishizawa, Metall. Mater. Trans. A, 25 (1994) 473–485.10.1007/BF02651589Suche in Google Scholar

[4] M. Detrois, S. Antonov, R.C. Helmink, et al., JOM, 66 (2014) 2478–2485.10.1007/s11837-014-1157-ySuche in Google Scholar

[5] A. Heckl, S. Neumeier, S. Cenanovic, et al., Acta Mater., 59 (2011) 6563–6573.10.1016/j.actamat.2011.07.002Suche in Google Scholar

[6] R.C. Reed, A.C. Yeh, S. Tin, et al., Scr. Mater., 51 (2004) 327–331.10.1016/j.scriptamat.2004.04.019Suche in Google Scholar

[7] C.Y. Cui, M. Osawa, A. Sato, et al., Metall. Mater. Trans. A, 37 (2006) 355–360.10.1007/s11661-006-0005-2Suche in Google Scholar

[8] Y. Amouyal, Z. Mao and D.N. Seidman, Acta Mater., 58 (2010) 5898–5911.10.1016/j.actamat.2010.07.004Suche in Google Scholar

[9] L.Y. Kuo, Y.J. Chang and A.C. Yeh, Metall. Mater. Trans. A, 48a (2017) 3920–3926.10.1007/s11661-017-4155-1Suche in Google Scholar

[10] S. Walston, A. Cetel, R. Mackay, et al., Proceedings of the10th International Symposium on Superalloys, Septemper 19–23, 2004, Warrendale, PA, (2004), pp. 15–24.Suche in Google Scholar

[11] Y. Saito and H. Harada, Mat. Sci. Eng. a-Struct., 223 (1997) 1–9.10.1016/S0921-5093(96)10476-7Suche in Google Scholar

[12] S. Liu, M. Wen, Z. Li, et al., Mater. Des., 130 (2017) 157–165.10.1016/j.matdes.2017.05.032Suche in Google Scholar

[13] W. Sha and K.L. Edwards, Mater. Des., 28 (2007) 1747–1752.10.1016/j.matdes.2007.02.009Suche in Google Scholar

[14] S. Shi, J. Xu, Y. Cui, et al., Sci. Tech. Rev., 33 (2015) 20–30.Suche in Google Scholar

[15] L.-Y. Kuo, Y.-J. Chang and A.-C. Yeh, Metall. Mater. Trans. A, 48 (2017) 3920–3926.10.1007/s11661-017-4155-1Suche in Google Scholar

[16] W.T. Loomis, J.W. Freeman and D.L. Sponseller, Metall. Mater. Trans. B, 3 (1972) 989–1000.10.1007/BF02647677Suche in Google Scholar

[17] C. Wagner, Thermodynamics of Alloys, Addison-Wesley Press, Cambridge, Mass. (1952).Suche in Google Scholar

[18] X.Y. Ding, P. Fan and Q. Han, Acta Metall. Sin., 30 (1994) 49–60.Suche in Google Scholar

[19] X.Y. Ding, W. Wang and P. Fan, Metall. Mater. Trans. B, 30 (1999) 271–277.10.1007/s11663-999-0056-zSuche in Google Scholar

[20] Y. Waseda, High Temp. Mater. Processes, 31 (2012) 203–208.10.1515/htmp-2012-0023Suche in Google Scholar

[21] S. Ueno, Y. Waseda, K.T. Jacob, et al., Process Metallurgy, 59 (1988) 474–483.10.1002/srin.198801544Suche in Google Scholar

[22] C.H.P. Lupis and J.F. Elliott, Acta Metall., 14 (1966) 529–538.10.1016/0001-6160(66)90320-8Suche in Google Scholar

[23] A.K. Niessen, A.R. Miedema, F.R. De Boer, et al., Physica B+C, 151 (1988) 401–432.10.1016/0378-4363(88)90296-3Suche in Google Scholar

[24] A.R. Miedema, P.F. De Châtel and F.R. De Boer, Physica B+C, 100 (1980) 1–28.10.1016/0378-4363(80)90054-6Suche in Google Scholar

[25] J. Neuhausen and B. Eichler, Extension of Mediema’s Macroscopic Atom Model to the Elements of Group 16 (O, S, Se, Te, Po), PSI Report No. 03-13, 2003.Suche in Google Scholar

[26] X.Y. Ding, P. Fan and L.H. Luo, Alloy Melts Thermodynamic Model: Predictionand Software Development, Northeastern University Press, Shenyang (1998).Suche in Google Scholar

[27] G.K. Sigworth, J.F. Elliott, G. Vaughn, et al., Can. Metall. Q., 16 (2013) 104–110.10.1179/cmq.1977.16.1.104Suche in Google Scholar

[28] T. Tanaka, N. Imai, A. Kiyose, et al., Z. Metallkd., 82 (1991) 836–840.Suche in Google Scholar

[29] S. An Mey, Calphad, 16 (1992) 255–260.10.1016/0364-5916(92)90022-PSuche in Google Scholar

[30] M. Heinz, K. Koch and D. Janke, Steel Res., 60 (1989) 246–254.10.1002/srin.198901646Suche in Google Scholar

[31] A.A. Aleksandrov, V.Y. Dashevskii and L.I. Leont’ev, Steel Trans., 46 (2016) 479–483.10.3103/S0967091216070020Suche in Google Scholar

[32] T.M. Pollock and R.D. Field, Chapter 63 in Dislocations in Solids edited by F.R.N. Nabarro and M.S. Duesbery, Elsevier (2002), pp. 547–618.10.1016/S1572-4859(02)80014-6Suche in Google Scholar

[33] S. Yoshitake, V. Narayan, H. Harada, et al., ISIJ Int., 38 (1998) 495–502.10.2355/isijinternational.38.495Suche in Google Scholar

[34] A. Chiba, S. Hanada and S. Watanabe, Scr. Metall. Mater., 25 (1991) 1053–1057.10.1016/0956-716X(91)90500-ZSuche in Google Scholar

[35] E.O. Ezugwu, Z.M. Wang and A.R. Machado, J. Mater. Process. Technol., 86 (1999) 1–16.10.1016/S0924-0136(98)00314-8Suche in Google Scholar

[36] L.J. Carroll, Q. Feng, J.F. Mansfield, et al., Mat. Sci. Eng. a-Struct., 457 (2007) 292–299.10.1016/j.msea.2006.12.036Suche in Google Scholar

[37] S.H. Liu, M.R. Wen, Z. Li, et al., Mater. Des., 130 (2017) 157–165.10.1016/j.matdes.2017.05.032Suche in Google Scholar

[38] M. Enomoto, H. Harada and M. Yamazaki, Calphad, 15 (1991) 143–158.10.1016/0364-5916(91)90013-ASuche in Google Scholar

Received: 2018-07-22

Accepted: 2018-11-09

Published Online: 2018-12-20

Published in Print: 2019-02-25

This work is licensed under the Creative Commons Attribution 4.0 Public License.
