Calorimetric study on Bi-Cu-Sn alloys

  • Jolanta Romanowska EMAIL logo
Published/Copyright: December 5, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
High Temperature Materials and Processes
From the journal High Temperature Materials and Processes Volume 38 Issue 2019

Abstract

The paper presents results of calorimetric investigation of the Bi-Cu-Sn system by means of differential scanning calorimetry (DSC) at the temperature interval 25-1250∘C, Values of liquidus, solidus and invariant reactions temperatures, as well as melting enthalpies of the selected alloys were determined. Microstructure investigation of the alloys were performed by the use of a scanning electron microscope (SEM) equipped with an energy-dispersive spectrometer (EDS).

Keywords: Bi-Cu-Sn alloys; calorimetry; microstructure

1 Introduction

The toxicity of lead containing solders resulted in the EU decision to prohibit the use of lead in electronic products and the use of high-lead containing Pb-Sn solders for high temperature soldering applications. Therefore, intensive studies of prospective multicomponent lead-free systems, mainly based on tin plus bismuth or zinc are in progress. Moreover, copper substrates are commonly applied in the electronic devices. In this view, it is important to understand the interactions between these solders and the substrate which, in turn, implicates the investigations of the phase equilibria in the Bi-Cu-Sn system. The Sn-Bi are the most promising lead-free solder alloys due to the low melting temperature, good tensile strenght, creep resistance and low cost [1, 2]. The eutectic point of Sn-58Bi solder – 139∘C [3] is lower than 183∘C for the eutectic Pb-Sn solders [4]. Unfortunalely, frangibility and poor ductility limits application of these alloys [5]. Interfacial reaction kinetics between molten Sn-58Bi solder and Cu substrates was studied by Li et al. [6]. Their investigations revealed that an intermetallic layer formed at the interface between molten Sn-58Bi solder and Cu substrate includes Cu6Sn5 and Cu3Sn intermetallic compounds. The statistical thickness variations of both the Cu6Sn5 and Cu3Sn phases follow the normal distribution, except at the extreme of the cumulative probability curves. This suggests that various mechanisms play their roles relatively independently during the different stages of the interfacial reaction, with the weak interdependence between them affecting only the extrema. Cu3Sn single crystal consists of high ultimate strenght depending on the material directions and strain rate [7], whereas Cu6Sn5 fibres cause increment in tensile strenght [8]. Thermodynamic properties of liquid Bi-Cu-Sn alloys were determined by calorimetric method by Flandorfer et al. [9]. Measurementswere carried out using a Calvet type microcalorimeter and a drop calorimetric technique. Partial and integral enthalpies of mixing of liquid ternary alloys at 750∘C were determined. The data were fitted on the basis of an extended Redlich-Kister-Muggianu model for substitutional solutions. Tin activities were measured by the electromotive force measurements (e.m.f.)method by Kopyto et al. [10] for three cross-sections with constant xBi/xCu ratio equal to 1/3, 1/1 and 3/1 and for various tin contents. Bismuth activities in liquid Cu-Sn-Bi alloys were measured by Wnuk and Romanowska at 1100∘C by means of the vapour saturation method for xBi<0.15. The interaction parameters εBiCu and εBiSnwere determined by the least squares method. The experimental values of εBiCu and εBiSnwere compared with values calculated on the basis of the “central atom” theory [11]. Romanowska [12] measured bismuth activities in Bi-Cu-Sn liquid alloys by means of the vapour saturation method at 1100∘C, 1150∘C and 1200∘C. These results were coupled with the data from the literature for binary systems Bi-Cu, Bi-Sn and Cu-Sn in order to obtain a thermodynamic description of the ternary liquid alloys Bi-Cu-Sn, using the geometrical Muggianu approach [13]. Values of Redlich-Kister [14] ternary 0LBi,Cu,SnL,1LBi,Cu,SnL,2LBi,Cu,SnLparameters were estimated on the basis of experimental values. The Muggianu extension of the Redlich - Kister formula with parameters values obtained in this work [12] well describes experimental points.

This paper presents results of calorimetric investigation of the Bi-Cu-Sn system by means of differential scanning calorimetry (DSC) at the temperature interval 25-1250∘C, values of liquidus and solidus temperature, the melting enthalpy, temperatures of invariant reactions and microstructure of the selected alloys. Some microstructure analysis of the alloys was performed using a scanning electron microscope Hitachi S-3400 equipped with an energy dispersive spectroscope (EDS). The presented research is a contribution to an overall examination of Cu-Ni-X-Y systems (X,Y = Sn, Bi, Zn, Ti) in relation to development of a new lead free solders in the frame of the COST action MP0602.

2 Experiments

The investigated alloys were prepared by melting copper and tin of purity 99.999 mass percent in a vacuum furnace and saturating them by vapour bismuth at 1200∘C for 2 h under reduced argon pressure [15, 16, 17]. Chemical compositions of samples are presented in Figure 1 and Table 1. The compositions of samples were determined by weighing (the accuracy of weighing was 10−4 g) and a spectroscopic method by use of the plasma spectrometer ULTIMA 2 HORRIBA JOBIN YWON of accuracy 0.0001 mole fraction. The DSC measurements [18] were carried out using the differential scanning calorimeter [19] Setaram Set Sys Evolution under the following conditions: the argon flow 50ml/min, samples’ masses about 50 mg, the temperature interval 25-1250∘C. The heating rate was 10∘C/min and the cooling rate was 15∘C/min. Before realizing the DSC experiments the sensitivity and temperature calibration were performed by measuring the heat of melting and melting temperature of pure indium, tin, bismuth, zinc, aluminum, silver and gold using the same working conditions. Solidus and liquidus temperatures as well as enthalpies of melting were determined by the analysis of thermal effects reveled in DSC curves (see Figures 2-5). Liquidus and solidus temperatures were established as onset and offset temperatures respectively. Temperatures of invariant reactions were established as onset temperatures, whereas thermal effects of phase transitions (ΔH) were determined as the area limited by the DSC curve and the baseline divided by the mass of the sample.

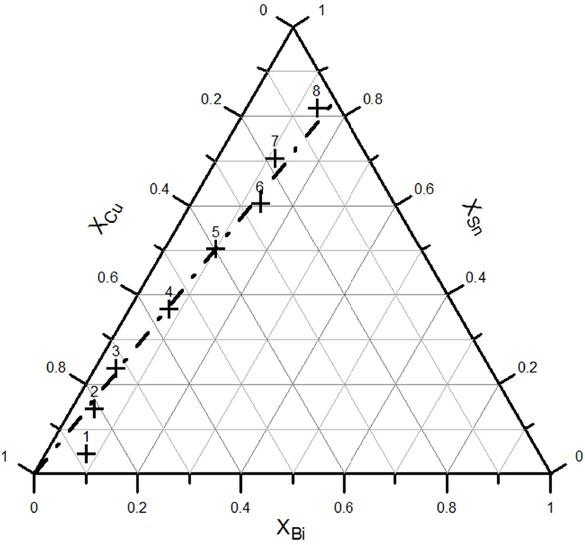

Figure 1 Chemical composition of alloys.
Figure 1

Chemical composition of alloys.

Figure 2 DSC curve of the alloy no 2.
Figure 2

DSC curve of the alloy no 2.

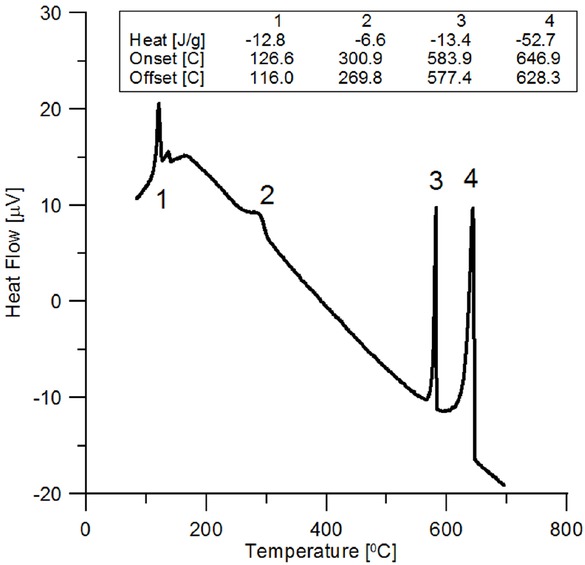

Figure 3 DSC curve of the alloy no 4.
Figure 3

DSC curve of the alloy no 4.

Figure 4 DSC curve of the alloy no 6.
Figure 4

DSC curve of the alloy no 6.

Figure 5 DSC curve of the alloy no 8.
Figure 5

DSC curve of the alloy no 8.

Table 1

Experimental temperatures and heat effects of phase transformations in Bi-Cu-Sn alloys.

Sample noxBixSnTemperature of onsett and ofset of phase transformation [∘C]Heats of phase transformations [J/g]Solidus [∘C]Liquidus [∘C]ΔHM [J/g]
10.07880.0450222.3-213.1−10.19764.2902.784.0
20.04440.1445174.6-162.0−1.7696.9690.378.3
221.4-214.9−0.8
502.8-480.1−13.6
30.04070.2351222.0-231.2−0.99669.3679.990.6
639.2-628.4−26.87
40.07710.3684126.6-116.0−12.8628.3646.852.6
300.9-269.8−6.6
583.9-577.4−13.4
50.09970.5036318.0-307.4−0.81578.9602.541.4
60.13520.6048171.2-116.4−37.6550.2533.718.1
322.2-312.9−0.6
70.11340.7065124.0-118.5−3.36480.6489.110.1
178.3-158.6−33.01
330.8-320.2−1.35
80.13810.8182120.0-124.0−2.36306.1310.03.9
179.0-173.6−46.8

3 Results and discussion

Exemplary DSC curves with thermal effects evoked by heating of the alloys are presented in Figures 2-5. Experimental temperatures and heat effects of phase transformations in Bi-Cu-Sn alloys are collected in Table 1 and compared graphically (Figures 6-8) against values of phase transitions or invariant reactions temperatures of binary alloys consituing the investigated ternary alloy, that is Bi-Cu, Bi-Sn and Cu-Sn alloys [20, 21]. Values of invariant reaction temperatures in ternary alloys were marked with dots (Figures 6-8). The number and chemical composition of ternary alloys is presented in Table 1. From the left : Figure 6 - alloys no. 1 and 2; Figure 7 - alloys no. 7 and 8; Figure 8 – alloys no. 3, 4, 5, 6 and 8. Lines in these figures refer to binary alloys [21]. Upper points in Figure 6 represent transition from one-phase region (liquid phase) to two-phase region (liquid + (Cu)), whereas lower points indicate transition from two phase region (liquid + (Cu) to another two phase region ((Cu) + (Bi)). In Figure 7 upper points represent transition from one phase region (liquid phase) to two phase region (liquid + (β-Sn)), whereas lower points indicate transition from two phase region (liquid + (β-Sn) to another two-phase region ((β-Sn) + (Bi)). In Figure 8 upper points represent transition from one phase region (liquid phase) to two phase region (liquid + (Cu3Sn)) – 2 right points, or from 2 phase region (liquid + 𝛾𝛾) to (liquid + (Cu3Sn)). Points in the middle indicate transition from two phase region (liquid + (Cu3Sn) to other two phase regions: ((Cu3Sn) + (Cu6Sn5) – left points) and ((Cu6Sn5) + liquid – right points). Whereas lower points are the evidence of transition from ((Cu6Sn5) + liquid) to (Cu6Sn5) + Sn. Values of the enthalpy of melting ΔHM are higher for alloys of higher Cu concentration, and smaller for alloys of smaller Cu concentration, but for all alloys are significantly smaller than for pure components (ΔΗCuM=208 J/gΔHSnM=60 J/g,ΔHBiM=54 J/g[21]).For an alloy no. 2, containing more than 80% at Cu, enthalpy of melting and temperatures of liquidus and solidus are significantly smaller that for pure Cu. For alloys of high Sn concentration, for instance alloy no. 8, containing more than 80% at Sn liquidus and solidus temperatures are higher than for pure tin (TM = 232∘C), but the enthalpy of melting is very small (only 3.9 J/g). For alloy no. 1 (xBi = 0.078, xSn=0.045) the reported liquidus temperature (902∘C) is lower than liquidus temperature of the binary Cu-Sn (Figure 8) and Bi-Cu alloys of similar compositions (Figure 6). The microstructure and phase analysis of alloy no. 1 and 3 (Figure 9, 10) revealed the existence of the Bi-Cu eutectic (xBi = 0.993x, Cu = 0.006). In binary Bi-Cu alloy this eutectic reaction takes place at 270∘C, whereas in the investigated ternary alloys (no. 1-3) the reaction temperatures was 222∘C (Table 1). It seems that tin decreased the liquidus and eutectic temperatures in the investigated alloys. More-over, there is a strong evidence of an invariant reaction in ternary alloys of 0.36<xSn<0.82 at the 120∘C (alloys 4– 8, Table 1). The microstructure analysis performed by the energy-dispersive spectrometer (EDS) (Figure 11, 12, 13) revealed the existence of the phase of the following composition: xSn=0.75, xBi=0.23 (alloy no. 4), xSn=0.66, xBi=0.34 (alloy no. 6) and xSn=0.69, xBi=0.31 (alloy no. 8) that corresponds to the eutectic composition of the binary Bi-Sn alloy (xSn=0.611 [19]). It may be regarded as an evidence of the eutectic reaction taking place at 120∘C, that is lower than in binary Bi-Sn alloy (138.5∘C, see Figure 7). It looks like copper decreased the temperature of the eutectic transformation in Bi-Sn alloys. Although bismuth content in the investigated alloys is low (xBi< 0.14), it significantly influences the temperatures of invariant reactions taking place in binary Cu-Sn alloys. Phases of the following compositions: xCu = 0.51, xSn = 0.49 (alloy no. 6, Figure 12) and xCu = 0.54, xSn = 0.46 (alloy no. 8, Figure 13) correspond to the Cu5Sn6 phase. This phase is formed in Cu-Sn at 186∘C, but in the investigated alloys, invariant temperatures were reported at 179∘C, (alloy no. 7, 8), and 171.1∘C and for alloy no. 6 (two peaks for Bi-Sn and Cu-Sn eutectics are between 115.9∘C and 171.1∘C) (Figure 4, 5; Table 1). Cu3Sn in binary Cu-Sn is formed at 640∘C, but in Bi-Cu-Sn at lower temperatures (from 639.2∘C to 583.9∘C), alloys no. 3, 4, Figure 8, 10. Bismuth decreased the temperature of invariant reactions, so intermetallic phases are formed in lower temperatures; the bigger the bismuth content, the lower the reaction temperature.

Figure 6 Bi-Cu phase diagram [21] with experimental points (from the left) 1 and 2, Table 1.
Figure 6

Bi-Cu phase diagram [21] with experimental points (from the left) 1 and 2, Table 1.

Figure 7 Bi-Sn phase diagram [21] with experimental points (from the left) 7 and 8, Table 1.
Figure 7

Bi-Sn phase diagram [21] with experimental points (from the left) 7 and 8, Table 1.

Figure 8 Cu-Sn phase diagram [21] with experimental points (from the left) 3,4,5,6,8 Table 1.
Figure 8

Cu-Sn phase diagram [21] with experimental points (from the left) 3,4,5,6,8 Table 1.

Figure 9 Microstructure of the alloy no 1.
Figure 9

Microstructure of the alloy no 1.

Figure 10 Microstructure of the alloy no 3.
Figure 10

Microstructure of the alloy no 3.

Figure 11 Microstructure of the alloy no 4.
Figure 11

Microstructure of the alloy no 4.

Figure 12 Microstructure of the alloy no 6.
Figure 12

Microstructure of the alloy no 6.

Figure 13 Microstructure of the alloy no 8.
Figure 13

Microstructure of the alloy no 8.

4 Conclusions

The calorimetric study has shown that small bismuth addition to Cu-Sn alloys does not influence the liquidus temperature, but enthalpies of melting of the investigated alloys are significantly smaller than for pure elements. Microstructure and chemical composition analysis of the phases revealed the same phases as in binary alloys, that is Cu3Sn, Cu5Sn6 intermetallic phases and Bi-Cu and Bi-Sn eutectics, but they are formed at lower temperatures. Addition of the third element always decreased the temperature of invariant reaction or phase formation even copper, the melting point of which is higher than other elements (1083∘C), decreased the temperature of eutectic reaction in Bi-Sn alloys. Heat effects, enthalpies of melting and liquidus and solidus temperatures determined in this study will be used in thermodynamic description of the Bi-Cu-Sn system according to the CALPHAD method in the frame of the COST Action MP0602.

Acknowledgement

This work was supported by the Polish Ministry of Science and Higher Education (Project no. N N507 44 3834). This work was conducted in the frame of the European action COST MP0602 “Advanced Solder Materials for High Temperature Application (HISOLD)”, project “Design, process and control in a multiscale domain of Cu-Ni-X-Y (X, Y = Sn, Bi, Zn, Ti) based alloys”.

References

[1] F.Yang, L.Zhang, Z.Liu. S.Zhong, J.Ma, L.Bao, Advances in Materials Science and Engineering, (2016) article ID 926519510.1155/2016/9265195Search in Google Scholar

[2] Y. Goch, A.Haseb, M.Sabri, Electrochimica Acta, 90 (2013) 26510.1016/j.electacta.2012.12.036Search in Google Scholar

[3] M.H. Roh, J.P.Jung, W.Kim, Microelectronic Reliability 54 (2014) 26510.1016/j.microrel.2013.09.016Search in Google Scholar

[4] M. Kitajima, T.Shono, Microelectronic Reliability, 45 (2005) 120810.1016/j.microrel.2004.10.011Search in Google Scholar

[5] X. Chen, F. Xue, J. Zhou, Y.Yao, Journal of Alloys and Compounds, 633 (2015) 37710.1016/j.jallcom.2015.01.219Search in Google Scholar

[6] Li, S.H. Mannan, M.P. Clode, D.C. Whalley, D.A. Hutt, Acta Materialia, 55 (2006) 290710.1016/j.actamat.2006.02.030Search in Google Scholar

[7] H.C. Heng, F.C. Yu, W.H. Chen, Journal of Materials Science, 47 (2012) 310310.1007/s10853-011-6144-xSearch in Google Scholar

[8] X. Hu, K. Li, Z. Min, Journal of Alloys and Compounds, 566 (2013) 23910.1016/j.jallcom.2013.03.034Search in Google Scholar

[9] H. Flandorfer, A. Sabbar, C. Luef, M. Rechchach, H. Ipser, Thermochimica Acta, 472 (2008) 1.10.1016/j.tca.2008.02.023Search in Google Scholar

[10] M. Kopyto, G. Garzeł, L.A. Zabdyr, J. of Mining and Metallurgy, 45 B (2009) 9510.2298/JMMB0901095KSearch in Google Scholar

[11] G. Wnuk, J. Romanowska, Arch. Metall. Mater., 51 (2006) 503Search in Google Scholar

[12] J. Romanowska, Arch. Metall. Mater. 56 (2011) 8710.2478/v10172-011-0010-3Search in Google Scholar

[13] Y.M. Muggianu, M. Gambino, J.P. Bros, J. Cnim. Phys., 72 (1975) 83Search in Google Scholar

[14] O. Redlich, T. Kister, Ind. Enging. Chem., 40 (1948) 34510.1021/ie50458a036Search in Google Scholar

[15] B. Onderka, T. Pomianek, J. Romanowska, G. Wnuk, J. Wypartowicz, Arch. Metall. Mater., 49 (2004) 143Search in Google Scholar

[16] G. Wnuk, J. Romanowska, T. Pomianek, J. Chem. Thermodyn. 35 (2003) 71110.1016/S0021-9614(02)00360-9Search in Google Scholar

[17] J. Midura, T. Pomianek, J. Chem. Thermodyn. 26 (1994) 50710.1006/jcht.1994.1060Search in Google Scholar

[18] W. Zielenkiewicz, Calorymetry, Institute of Phisical Chemistry of the Polish Academy of Sciences (2008)Search in Google Scholar

[19] A. Concustell, M. Zielińska, A. Revesz, L.K. Varga, S. Surniach, M.D. Baro, Intermetallics 12 (2004) 106310.1016/j.intermet.2004.04.023Search in Google Scholar

[20] Dinsdale, A.Watson, A. Kroupa, J. Vrestal, A. Zemanova, J. Vizdal, Atlas of Phase Diagrams for Lead-Free Solders, COST oflce 2008Search in Google Scholar

[21] Metals Handbook, AMS Handbook Committee, Metals Park Ohio, 1973.Search in Google Scholar
