Synthesis and crystal structure of bis{2-bromo-6-((E)-((4-((E)-1-(methoxy-imino)ethyl)phenyl)imino)methyl)phenolato- κ2N,O}zinc(II)-methanol(1/2), C65H60Br4N8O9Zn2

  • Xiao‐San Song ORCID logo EMAIL logo
Published/Copyright: December 14, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C65H60Br4N8O9Zn2, triclinic, P1¯ (no. 2), a = 10.5707(4) Å, b = 11.1159(5) Å, c = 15.9260(7) Å, α = 92.654(2)°, β = 104.4460(10)°, γ = 116.0400(10)°, Z = 1, V = 1601.90(12) Å3, Rgt(F) = 0.0574, wRref(F2) = 0.1284, T = 173(2) K.

CCDC no.: 2032293

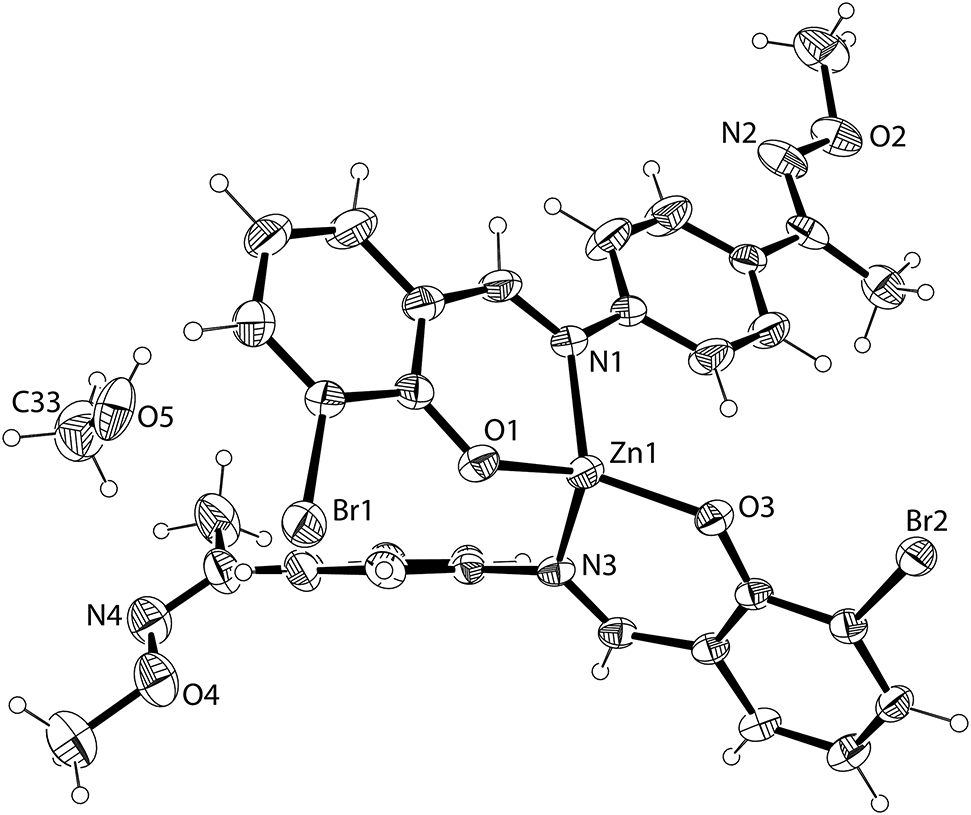

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.14 × 0.14 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.31 mm−1
Diffractometer, scan mode:Bruker D8 Venture, ω
θmax, completeness:26.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:17,933, 6290, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4763
N(param)refined:447
Programs:Bruker [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.66453 (8)0.58957 (7)0.13487 (4)0.0667 (2)
Br21.04954 (6)0.83614 (6)0.66248 (4)0.05193 (17)
Zn10.61754 (7)0.72139 (6)0.41376 (4)0.04376 (18)
O10.6101 (4)0.6336 (4)0.3059 (2)0.0480 (9)
O2a0.0544 (7)0.5668 (6)0.7866 (4)0.0772 (19)
O2Ab0.020 (3)0.485 (3)0.693 (2)0.0772 (19)
O30.7841 (4)0.7960 (3)0.5171 (2)0.0449 (9)
O4c0.3207 (11)0.9901 (10)0.0313 (5)0.086 (2)
O4Ad0.1260 (17)0.9469 (16)−0.0255 (10)0.086 (2)
O5e0.1622 (12)0.5354 (11)0.0053 (6)0.083 (3)
H5Af0.1242070.4771720.0353630.124*
H5Bf0.1822920.548611−0.0423230.124*
N10.4220 (5)0.5812 (4)0.4221 (3)0.0444 (11)
N2a0.1009 (13)0.5504 (11)0.7121 (6)0.069 (2)
N2Ab0.113 (5)0.589 (4)0.750 (3)0.069 (2)
N30.6102 (4)0.8970 (4)0.3978 (3)0.0411 (10)
N4c0.1820 (14)0.9536 (15)0.0358 (10)0.079 (3)
N4Ad0.225 (3)0.930 (3)0.0493 (18)0.079 (3)
C10.4968 (6)0.5261 (5)0.2554 (4)0.0462 (13)
C20.3675 (7)0.4461 (6)0.2791 (4)0.0595 (16)
C30.2534 (9)0.3271 (7)0.2204 (5)0.093 (3)
H30.1685330.2729020.2373110.111*
C40.2612 (9)0.2875 (8)0.1403 (5)0.094 (3)
H40.1827820.2071590.1020860.112*
C50.3862 (8)0.3669 (7)0.1152 (4)0.0706 (19)
H50.3937770.3406250.0598090.085*
C60.4973 (6)0.4822 (6)0.1709 (4)0.0498 (14)
C70.3411 (7)0.4768 (6)0.3593 (4)0.0618 (17)
H70.2518360.4116270.3675590.074*
C80.3682 (6)0.5948 (5)0.4939 (4)0.0430 (12)
C90.2246 (7)0.5218 (7)0.4936 (5)0.077 (2)
H90.1533320.4581550.4426060.093*
C100.1826 (8)0.5395 (7)0.5661 (5)0.078 (2)
H100.0819790.4871890.5633960.094*
C110.2793 (6)0.6295 (5)0.6425 (4)0.0466 (13)
C120.4218 (7)0.7038 (6)0.6418 (4)0.0664 (18)
H120.4922850.7692110.6923810.080*
C130.4661 (7)0.6862 (7)0.5692 (4)0.0691 (19)
H130.5665960.7385930.5716150.083*
C140.2325 (7)0.6449 (6)0.7209 (4)0.0573 (16)
C150.3338 (8)0.7565 (7)0.7967 (5)0.0726 (19)
H15A0.4230780.7471650.8213200.109*
H15B0.2846200.7519600.8420130.109*
H15C0.3607060.8442620.7769970.109*
C16a−0.0726 (14)0.4448 (13)0.7845 (9)0.104 (5)
H16Aa−0.1443650.4159670.7256460.156*
H16Ba−0.1169400.4606810.8282060.156*
H16Ca−0.0440670.3734060.7981380.156*
C16Ab−0.090 (6)0.407 (4)0.732 (4)0.093 (18)
H16Db−0.1727990.3315180.6876230.140*
H16Eb−0.1262610.4654080.7552370.140*
H16Fb−0.0484700.3712530.7802480.140*
C170.8602 (5)0.9242 (5)0.5540 (3)0.0385 (11)
C180.8229 (5)1.0288 (5)0.5275 (3)0.0405 (12)
C190.9117 (6)1.1639 (5)0.5737 (4)0.0494 (14)
H190.8845981.2319190.5559960.059*
C201.0354 (6)1.2000 (6)0.6430 (4)0.0562 (15)
H201.0935291.2916570.6730820.067*
C211.0747 (6)1.1002 (6)0.6688 (4)0.0489 (14)
H211.1608911.1237960.7164360.059*
C220.9895 (5)0.9679 (5)0.6257 (3)0.0413 (12)
C230.7019 (5)1.0090 (5)0.4531 (4)0.0421 (12)
H230.6875281.0863660.4433680.051*
C240.4982 (5)0.8993 (5)0.3264 (3)0.0412 (12)
C250.4059 (6)0.9493 (6)0.3415 (4)0.0495 (14)
H250.4161520.9829170.4000350.059*
C260.2983 (7)0.9509 (7)0.2718 (4)0.0572 (15)
H260.2330010.9825860.2831780.069*
C270.2847 (7)0.9074 (6)0.1864 (4)0.0556 (15)
C280.3750 (7)0.8518 (6)0.1718 (4)0.0598 (16)
H280.3640740.8169880.1133990.072*
C290.4803 (7)0.8473 (6)0.2419 (4)0.0529 (14)
H290.5401000.8082250.2315260.064*
C300.1738 (8)0.9147 (8)0.1119 (5)0.0725 (19)
C310.0297 (8)0.8923 (11)0.1202 (6)0.108 (3)
H31A−0.0233870.7999830.1312760.163*
H31B−0.0282270.9034320.0654350.163*
H31C0.0449820.9585840.1692840.163*
C32c0.3281 (19)1.0392 (18)−0.0544 (9)0.109 (4)
H32Ac0.2752510.961013−0.1029550.164*
H32Bc0.4314921.089225−0.0533500.164*
H32Cc0.2822751.099376−0.0630240.164*
C32Ad0.172 (3)0.959 (3)−0.0984 (16)0.109 (4)
H32Dd0.1153310.990072−0.1417210.164*
H32Ed0.1577660.869974−0.1239370.164*
H32Fd0.2773321.024536−0.0820290.164*
C33f0.075 (4)0.596 (4)−0.022 (2)0.119 (9)
H33Bf−0.0092630.5551280.0006680.179*
H33Af0.0405570.580138−0.0866420.179*
H33Cf0.1303170.6940480.0006680.179*
C33Af0.055 (3)0.400 (2)−0.004 (3)0.115 (10)
H33Df0.0035850.356414−0.0661520.173*
H33Ef0.1043750.3494640.0250280.173*
H33Ff−0.0169950.3986540.0250280.173*

  1. a Occupancy: 0.804(10).

  2. b Occupancy: 0.196(10).

  3. c Occupancy: 0.629(6).

  4. d Occupancy: 0.371(6).

  5. e Occupancy: 0.5.

  6. f Occupancy: 0.25.

Source of material

The Schiff base ligand, named 1-{4-[(3-bromo-2-hydroxy-benzylidene)amino]phenyl}ethanone O-methyl oxime, was prepared by a similar method reported earlier [4], [5], [6]. The prepared process of the title complex is as follows: the zinc acetate dihydrate (2.20 mg, 0.01 mmol) dissolved in methanol solution (2 mL) was added dropwise to the prepared ligand (6.95 mg, 0.02 mmol) dissolved in dichloromethane solution (4 mL) at room temperature. After stirring for about 1 h, the mixture was filtered. The filtrate was allowed to stand for 33 days at quiet environment. Several clear light yellow crystals were obtained. Anal. Calcd. for C65H60Br4N8O9Zn2: C, 50.45; H, 3.91; N, 7.24. Found: C, 50.83%; H, 4.12%; N, 7.15%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

In recent years, a great number of Zn(II) complexes have been widely investigated due to interesting properties [7,8 and many more]. For example: Zn(II) complexes are widely utilized in ion recognition [9], [10], fluorescent material [11], [12] and supramolecular constructing [13], [14], [15] fields and so on.

In the title structure Zn1 is located in a N2O2-typed coordinated environment, and formed a twisted tetrahedral geometry with coordination atoms. The Zn1–N1 bond length is 2.012(4) Å and the Zn1–N3 is 2.012(4) Å. The Zn1–O1 bond length is 1.903(4) Å and the Zn1–O3 is 1.909(4) Å. The angles of N1–Zn1–O1 is 97.30(17)°, N1–Zn1–O3 is 118.84(17)°, N3–Zn1–O1 is 110.20(17)° and O1–Zn1–O3 is 124.66(16)°, respectively. All geometric parameters are in the typical ranges [16]. This is especially true for the 2-bromo ligand used in this study [4], [17], [18].

Corresponding author: Xiao‐San Song, School of Environmental and Municipal Engineering, Lanzhou Jiaotong University, Lanzhou, 730070, PR China; and Key laboratory of Yellow River Water Environment in Gansu Province, Lanzhou, 730070, PR China, E-mail:

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

4. Ma, J. X., Wei, P., Li, Q. L., Fu, T., Zhao, J. X., Zhao, L. Crystal structure of (E)-1-(4-(((E)-2-bromo-6-hydroxybenzylidene)amino)phenyl)ethan-1-one O-methyl oxime, C16H15BrN2O2. Z. Kristallogr. NCS 2020, 235, 19–20.10.1515/ncrs-2019-0435Search in Google Scholar

5. Zhao, J. X., Zhao, L., Li, P. P., Wang, F., An, Q. Q. Crystal structure of (E)-1-(4-(((E)-5-bromo-2-hydroxybenzylidene)amino)phenyl) ethan-1-one O-methyl oxime, C16H15BrN2O2. Z. Kristallogr. NCS 2017, 232, 731–732; https://doi.org/10.1515/ncrs-2016-0407.Search in Google Scholar

6. Li, Q. L., Li, P. P., Ma, J. X., Zhao, J. X., Zhao, L. Crystal structure of bis {2-((E)-((4-((E)-1-(methoxyimino)ethyl)phenyl)imino)methyl)phenolato-k2N,O} zinc(II), C32H30N4O4Zn. Z. Kristallogr. NCS 2018, 233, 637–639; https://doi.org/10.1515/ncrs-2017-0404.Search in Google Scholar

7. Yu, B., Sun, Y. X., Yang, C. J., Guo, J. Q., Li, J. Synthesis and crystal structures of an unexpected tetranuclear zinc(II) complex and a benzoquinone compound derived from ZnII- and CdII- promoted reactivity of Schiff base ligands. Z. Anorg. Allg. Chem. 2017, 643, 689–698; https://doi.org/10.1002/zaac.201700034.Search in Google Scholar

8. Zhang, Y., Liu, L. Z., Pan, Y. Q., Dong, W. K. Structural characterized homotrinuclear ZnII bis(Salamo)–based coordination compound: Hirshfeld surfaces, fluorescent and antimicobial properties. Crystals 2018, 8, 259–273; https://doi.org/10.3390/cryst8070259.Search in Google Scholar

9. Dong, W. K., Li, X. L., Wang, L., Zhang, Y., Ding, Y. J. A new application of salamo-type bisoximes: as a relay-sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH−. Sens. Actuators, B 2016, 229, 370–378; https://doi.org/10.1016/j.snb.2016.01.139.Search in Google Scholar

10. Dong, W. K., Sunday, F. A., Zhang, Y., Sun, Y. X., Dong, X. Y. A reversible “turn-on” fluorescent sensor for selective detection of Zn2+. Sens. Actuators, B 2017, 238, 723–734; https://doi.org/10.1016/j.snb.2016.07.047.Search in Google Scholar

11. Peng, Y. D., Wang, F., Gao, L., Dong, W. K. Structurally characterized dinuclear zinc(II) bis(salamo)-type tetraoxime complex possessing square pyramidal and trigonal bipyramidal geometries. J. Chin. Chem. Soc. 2018, 65, 893–899; https://doi.org/10.1002/jccs.201800038.Search in Google Scholar

12. Zhang, L. W., Liu, L. Z., Wang, F., Dong, W. K. Unprecedented fluorescent dinuclear CoII and ZnII coordination compounds with a symmetric bis(salamo)-like tetraoxime. Molecules 2018, 23, 1141–1155; https://doi.org/10.3390/molecules23051141.Search in Google Scholar

13. Chang, J., Zhang, H. J., Jia, H. R., Sun, Y. X. Binuclear nickel(II) and zinc(II) complexes based on 2-amino-3-hydroxy-pyridine Schiff base: syntheses, supramolecular structures and spectral properties. Chin. J. Inorg. Chem. 2018, 34, 2097–2107.Search in Google Scholar

14. Peng, Y. D., Li, X. Y., Kang, Q. P., An, G. X., Zhang, Y., Dong, W. K. Synthesis and fluorescence properties of asymmetrical Salamo-type tetranuclear zinc(II) complex. Crystals 2018, 8, 107–117.10.3390/cryst8020107Search in Google Scholar

15. Hao, J., Li, L. L., Zhang, J. T., Akogun, S. F., Wang, L., Dong, W. K. Four homo- and hetero-bismetallic 3d/3d-2s complexes constructed from a naphthalenediol-based acyclic bis(salamo)-type tetraoxime ligand. Polyhedron 2017, 134, 1–10; https://doi.org/10.1016/j.poly.2017.05.060.Search in Google Scholar

16. Dong, X. Y., Akogun, S. F., Zhou, W. M., Dong, W. K. Tetranuclear Zn(II) complex based on an asymmetrical Salamo-type chelating ligand: synthesis, structural characterization, and fluorescence property. J. Chin. Chem. Soc. 2017, 64, 412–419; https://doi.org/10.1002/jccs.201600844.Search in Google Scholar

17. Fu, T., Ma, J.-X., Wei, P., Li, Q.-L., Zhao, J.-X., Zhao, L. Synthesis and crystal structure of bis{2-bromo-6-(((4-(1(methoxyimino)ethyl)phenyl)imino)methyl)phenolato-k2N,O} cobalt(II)-dichloromethane(1/1), C34H32Br2Cl4CoN4O4. Z. Kristallogr. NCS 2020, 235, 59–60; https://doi.org/10.1515/ncrs-2019-0614.Search in Google Scholar

18. Song, X. Crystal structure of bis{2-bromo-6-(((4-(1-(methoxyimino)ethyl)phenyl)imino)methyl)phenolato-κ2N,O}copper(II), C32H28Br2CuN4O4. Z. Kristallogr. NCS 2020, 235, 1145–1147.10.1515/ncrs-2020-0208Search in Google Scholar

Received: 2020-07-19
Accepted: 2020-09-16
Published Online: 2020-12-14
Published in Print: 2021-01-26
