Crystal structure of (E)-3′,6′-bis(ethylamino)-2-((quinoxalin-2-ylmethylene)amino)spiro[isoindoline-1,9′-xanthen]-3-one, C35H32N6O2

  • Shuang-Shuang Liu , Wei-Na Wu ORCID logo EMAIL logo and Yuan Wang
Published/Copyright: December 14, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C35H32N6O2, triclinic, P1‾ (no. 2), a = 10.902(2) Å, b = 12.434(2) Å, c = 13.481(4) Å, α = 102.881(5)°, β = 104.935(5)°, γ = 114.542(3)°, V = 1488.6(6) Å3, Z = 2, Rgt(F) = 0.0511, wRref(F2) = 0.1429, T = 296 K.

CCDC no.: 1473348

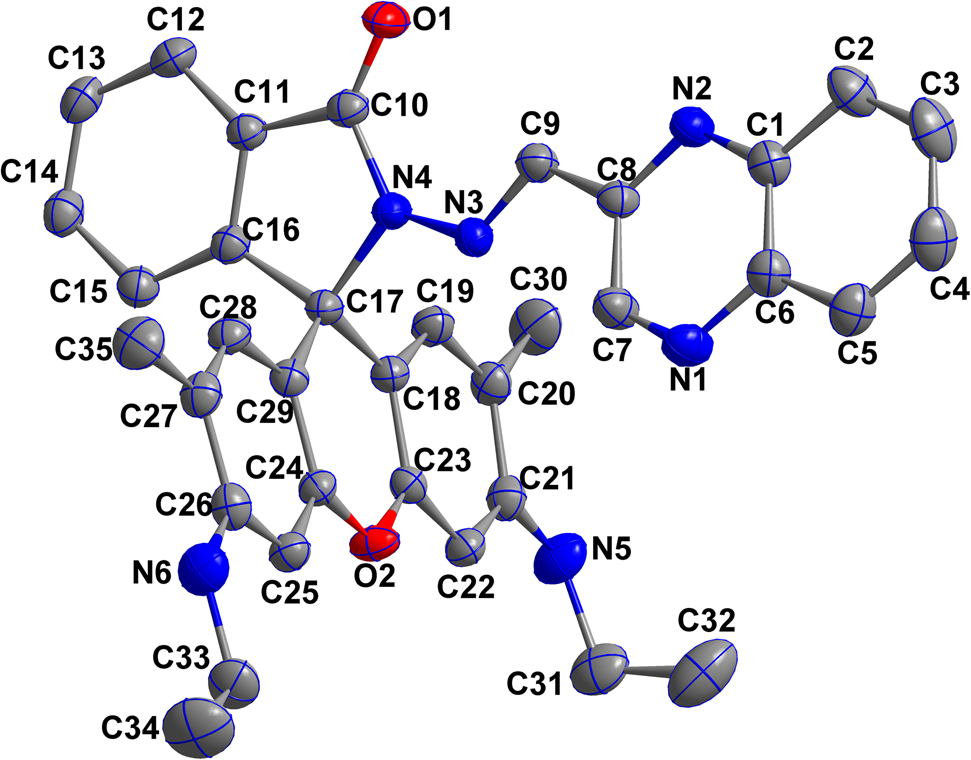

The molecular structure is shown in the Figure (Hydrogen atoms are omitted for Clarity). Table 1 contains crystallographic data, and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.20 × 0.20 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.08 mm−1
Diffractometer, scan mode:φ and ω
θmax, completeness:25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:7651, 5201, 0.024
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3198
N(param)refined:393
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.61104 (17)1.04092 (15)0.37836 (14)0.0552 (5)
O2−0.04095 (15)0.58048 (14)0.09894 (13)0.0473 (4)
N10.0233 (2)1.0580 (2)0.38800 (18)0.0578 (6)
N20.3248 (2)1.18152 (17)0.52454 (16)0.0463 (5)
N30.2911 (2)0.92721 (17)0.32126 (15)0.0413 (5)
N40.36875 (19)0.87883 (16)0.28322 (15)0.0404 (5)
N50.0054 (2)0.3414 (2)0.32119 (19)0.0640 (6)
H5A0.06200.32110.36010.077*
N6−0.1451 (2)0.7916 (2)−0.13440 (18)0.0589 (6)
H6A−0.11430.8502−0.16060.071*
C10.2344 (3)1.2219 (2)0.5523 (2)0.0456 (6)
C20.2932 (3)1.3266 (2)0.6509 (2)0.0632 (8)
H20.39311.37100.69480.076*
C30.2018 (4)1.3627 (3)0.6819 (3)0.0744 (9)
H30.24041.43190.74730.089*
C40.0517 (4)1.2976 (3)0.6170 (3)0.0718 (9)
H4−0.00871.32280.64040.086*
C5−0.0071 (3)1.1980 (3)0.5202 (2)0.0594 (7)
H5−0.10701.15610.47670.071*
C60.0835 (3)1.1585 (2)0.4860 (2)0.0470 (6)
C70.1113 (3)1.0210 (2)0.3642 (2)0.0531 (7)
H70.07320.95200.29870.064*
C80.2622 (2)1.0803 (2)0.43284 (19)0.0407 (6)
C90.3558 (3)1.0334 (2)0.40332 (19)0.0441 (6)
H90.45711.07840.44220.053*
C100.5176 (3)0.9374 (2)0.3064 (2)0.0427 (6)
C110.5340 (2)0.8499 (2)0.22454 (18)0.0401 (6)
C120.6620 (3)0.8628 (2)0.2135 (2)0.0487 (6)
H120.75330.93210.26250.058*
C130.6486 (3)0.7692 (2)0.1273 (2)0.0529 (7)
H130.73240.77470.11790.063*
C140.5120 (3)0.6669 (2)0.0543 (2)0.0516 (7)
H140.50550.6058−0.00430.062*
C150.3847 (3)0.6536 (2)0.0666 (2)0.0469 (6)
H150.29330.58410.01790.056*
C160.3981 (2)0.7468 (2)0.15363 (19)0.0394 (6)
C170.2771 (2)0.7532 (2)0.18607 (18)0.0379 (5)
C180.2031 (2)0.6464 (2)0.22364 (18)0.0368 (5)
C190.2840 (3)0.6225 (2)0.30556 (19)0.0457 (6)
H190.38550.67530.33790.055*
C200.2225 (3)0.5253 (2)0.3412 (2)0.0464 (6)
C210.0690 (3)0.4433 (2)0.2904 (2)0.0451 (6)
C22−0.0137 (3)0.4656 (2)0.20948 (19)0.0426 (6)
H22−0.11520.41290.17610.051*
C230.0542 (2)0.5662 (2)0.17795 (18)0.0367 (5)
C240.0172 (2)0.6780 (2)0.06275 (18)0.0377 (5)
C25−0.0867 (3)0.6870 (2)−0.01415 (19)0.0430 (6)
H25−0.18600.6301−0.03630.052*
C26−0.0430 (3)0.7806 (2)−0.05820 (19)0.0449 (6)
C270.1076 (3)0.8656 (2)−0.0234 (2)0.0470 (6)
C280.2059 (3)0.8520 (2)0.0520 (2)0.0456 (6)
H280.30540.90750.07350.055*
C290.1652 (2)0.7592 (2)0.09859 (18)0.0378 (5)
C300.3160 (3)0.5055 (3)0.4302 (2)0.0717 (8)
H30A0.41710.56910.45460.108*
H30B0.30420.42230.40150.108*
H30C0.28660.51240.49160.108*
C31−0.1498 (3)0.2675 (3)0.2920 (3)0.0738 (9)
H31A−0.17250.18690.30070.089*
H31B−0.20180.24900.21470.089*
C32−0.2020 (4)0.3341 (3)0.3607 (3)0.1016 (13)
H32A−0.14480.35940.43760.152*
H32B−0.30340.27780.34400.152*
H32C−0.19160.40830.34490.152*
C33−0.3008 (3)0.7090 (3)−0.1716 (2)0.0653 (8)
H33A−0.32780.7123−0.10830.078*
H33B−0.32680.6218−0.20970.078*
C34−0.3839 (4)0.7492 (4)−0.2489 (3)0.1005 (12)
H34A−0.35960.8349−0.21060.151*
H34B−0.48750.6929−0.27340.151*
H34C−0.35750.7455−0.31170.151*
C350.1575 (3)0.9693 (3)−0.0690 (2)0.0675 (8)
H35A0.26291.0167−0.03940.101*
H35B0.12131.0255−0.04850.101*
H35C0.12030.9315−0.14830.101*

Source of material

Rhodmine 6G hydrazide was condensed with equimolar 2-formylquinoxaline in boiling methanol and refluxed for 6 h, during which a white powder appeared, which was filtered off, washed with methanol/water (1:1, v/v) to product the title compound. Yield: ca. 88%. Single crystals of the title compound were obtained by slow evaporation of its methanol/DMF (1:1) solution at room temperature.

Experimental details

The structure was solved by direct methods and refined with the SHELX crystallographic software package [3]. All hydrogen atoms were placed at calculated positions and refined as riding atoms with isotropic displacement parameters.

Comment

Rhodamine derivatives have attracted much attention in the design of chemosensors or chemodosimeters for metal ions [4]. Particularly, rhodamine carbohydrazones bearing N-containing heterocycle rings, such as pyrrole, pyridine and quinoline, have been proved to be excellent fluorescent probes for Cu2+ or Hg2+ [5], [6], [7]. Herein, we report the crystal structure of the title compound derived from rhodamine 6G hydrazone and 2-formylquinoxaline.

The asymmetric unit contains a neutral molecule in a ring-closed form (see the Figure). The C10=O1 bond distance is 1.217(3) Å, indicating the keto form of the amide. The bond length of C9–N3 is 1.280(3) Å, suggesting the existence of the Schiff base C=N moiety. All bond lengths are in the expected ranges and comparable with those of 2 directly related structures [8], [9]. The dihedral angle between the least-square plane of the benzamide and quinoline is 16.06°, while the torsion angle of N2–C8–C9–N3 is 172.4(2)°, which reveals that it is difficult for title compound to form chelate complexes in this ring closed structure. As expected, there are no classical hydrogen bonds and also no obvious π–π contacts in the solid state.

Corresponding author: Wei-Na Wu, College of Chemistry and Chemical Engineering, Henan Polytechnic University, Jiaozuo, 454000, P. R. China, E-mail:

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SMART and SAINT; Bruker AXS Inc.: Madison, Wisconsin, USA, 2007.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELX. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Chen, X. Q., Pradhan, T., Wang, F., Kim, J. S., Yoon, J. Fluorescent chemosensors based on spiroring-opening of xanthenes and related derivatives. Chem. Rev. 2012, 112, 1910–1956; https://doi.org/10.1021/cr200201z.Search in Google Scholar

5. Wu, D. Y., Huang, W., Duan, C. Y., Lin, Z. H., Meng, Q. J. Highly sensitive fluorescent probe for selective detection of Hg2+ in DMF aqueous media. Inorg. Chem. 2007, 46, 1538–1540; https://doi.org/10.1021/ic062274e.Search in Google Scholar

6. Puangploy, P., Smanmoo, S., Surareungchai, W. A new rhodamine derivative-based chemosensor for highly selective and sensitive determination of Cu2+. Sens. Actuators B 2014, 193, 679–686; https://doi.org/10.1016/j.snb.2013.12.037.Search in Google Scholar

7. Huang, L., Chen, F. J., Xi, P. X., Xie, G. Q., Li, Z. P., Shi, Y. J., Xu, M., Liu, H. Y., Ma, Z. R., Bai, D. C., Zeng, Z. Z. A turn-on fluorescent chemosensor for Cu2+ in aqueous media and its application to bioimaging. Dyes Pigments 2011, 90, 265–268; https://doi.org/10.1016/j.dyepig.2011.01.003.Search in Google Scholar

8. Yuan, J., Cheng, D. Crystal structure of (E)-3′,6′-bis(ethylamino)-2′,7′-dimethyl-2-((pyridin-2-ylmethylene)amino)spiro[isoindoline-1,9′-xanthen]-3-one, C32H31N5O2. Z. Kristallogr. NCS 2019, 234, 149–151.10.1515/ncrs-2018-0239Search in Google Scholar

9. Chu, Y., Li, K., Yang, H.-H., Yuan, J. Crystal structure of (E)-3′,6′-bis(ethylamino)-2′,7′-dimethyl-2-(2-((quinolin-2-ylmethylene)amino)ethyl)spiro[isoindoline-1,9′-xanthen]-3-one, C38H37N5O2. Z. Kristallogr. NCS 2020, 235, 1175–1177.10.1515/ncrs-2020-0233Search in Google Scholar

Received: 2020-09-17
Accepted: 2020-10-16
Published Online: 2020-12-14
Published in Print: 2021-01-26
