The crystal structure of fac-tricarbonyl(4,4-dimethyl-2,2-dipyridyl-κ2N,N′)- (pyrazole-κN)rhenium(I) nitrate, C18H16O3N4Re

  • Mamolatelo J. Moremi ORCID logo EMAIL logo , Orbett T. Alexander ORCID logo , Banele Vatsha , Katlego Makgopa und Amanda-Lee E. Manicum
Veröffentlicht/Copyright: 6. November 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 1

Abstract

C18H16O3N4Re, monoclinic, P21/c (no. 14), a = 9.8409(6) Å, b = 14.0933(9) Å, c = 13.9153(9) Å, β = 90.558(2)°, V = 1929.8(2) Å3, Z = 4, Rgt(F) = 0.0266, wRref(F2) = 0.0584, T = 100(2) K.

CCDC no.: 2036274

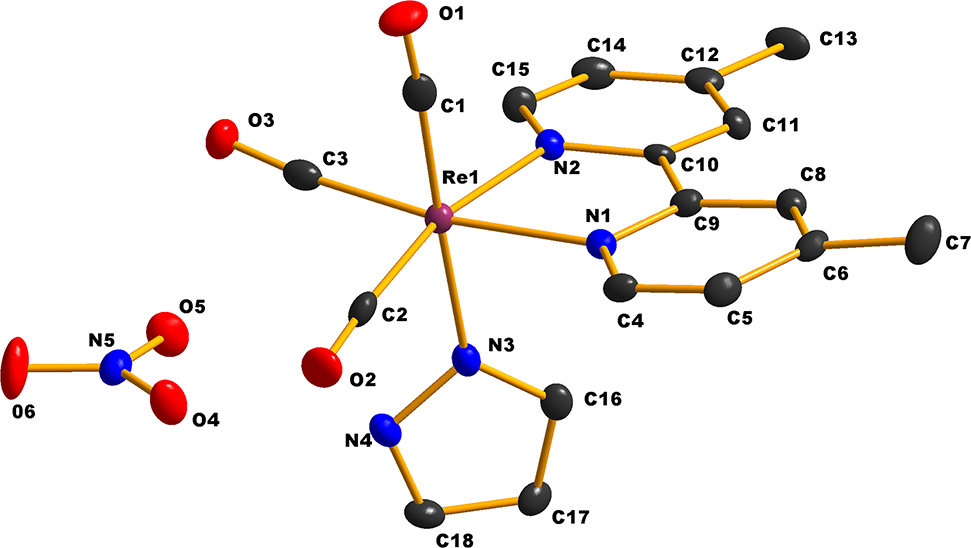

The molecular structure is shown in the Figure. Table 1 contains crystallographic data, and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.20 × 0.17 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.35 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:26.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:25,596, 3854, 0.064
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3315
N(param)refined:273
Programs:Bruker [1], SIR97 [2], Olex2 [3], SHELX [4], Diamond [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Re10.36523 (2)0.36667 (2)0.15167 (2)0.01396 (7)
O10.4160 (3)0.3151 (2)−0.0595 (2)0.0264 (7)
O20.5057 (3)0.1840 (2)0.2198 (2)0.0262 (7)
O30.6380 (3)0.4703 (2)0.1279 (2)0.0243 (7)
O40.6958 (3)0.3629 (2)0.3347 (2)0.0241 (7)
O50.6997 (3)0.5165 (2)0.3356 (2)0.0257 (7)
O60.8885 (3)0.4380 (2)0.3395 (3)0.0359 (9)
N10.1627 (3)0.3057 (2)0.1449 (2)0.0137 (7)
N20.2300 (3)0.4857 (2)0.1288 (2)0.0145 (7)
N30.3273 (3)0.4026 (3)0.3010 (2)0.0160 (7)
N40.4256 (3)0.4002 (3)0.3699 (2)0.0177 (8)
H40.5116880.3875140.3592270.021*
N50.7630 (3)0.4398 (3)0.3361 (2)0.0200 (8)
C10.3933 (4)0.3347 (3)0.0188 (3)0.0193 (10)
C20.4571 (4)0.2529 (3)0.1925 (3)0.0189 (9)
C30.5366 (4)0.4316 (3)0.1429 (3)0.0186 (10)
C40.1367 (4)0.2118 (3)0.1458 (3)0.0160 (9)
H4A0.2092680.1692520.1591360.019*
C50.0098 (4)0.1753 (3)0.1285 (3)0.0179 (9)
H5−0.0039820.1086130.1291900.021*
C6−0.0989 (4)0.2360 (3)0.1097 (3)0.0163 (9)
C7−0.2374 (4)0.1983 (3)0.0841 (3)0.0257 (11)
H7A−0.3037570.2500420.0861710.039*
H7B−0.2628910.1489500.1301380.039*
H7C−0.2357310.1712660.0192100.039*
C8−0.0722 (4)0.3320 (3)0.1119 (3)0.0152 (9)
H8−0.1444250.3758000.1019950.018*
C90.0581 (4)0.3657 (3)0.1285 (3)0.0148 (9)
C100.0936 (4)0.4671 (3)0.1268 (3)0.0118 (8)
C11−0.0010 (4)0.5396 (3)0.1253 (3)0.0152 (9)
H11−0.0952280.5250110.1238590.018*
C120.0410 (4)0.6336 (3)0.1258 (3)0.0164 (9)
C13−0.0610 (4)0.7129 (3)0.1215 (3)0.0208 (10)
H13A−0.0733960.7333840.0546240.031*
H13B−0.0281210.7664440.1601980.031*
H13C−0.1480060.6907390.1467230.031*
C140.1789 (5)0.6515 (3)0.1301 (3)0.0197 (10)
H140.2108790.7150560.1328440.024*
C150.2698 (4)0.5775 (3)0.1306 (3)0.0169 (9)
H150.3642650.5914030.1322260.020*
C160.2138 (4)0.4253 (3)0.3478 (3)0.0165 (9)
H160.1273290.4327420.3177960.020*
C170.2380 (4)0.4367 (3)0.4455 (3)0.0178 (9)
H170.1744690.4526720.4938540.021*
C180.3742 (4)0.4196 (3)0.4565 (3)0.0191 (10)
H180.4237110.4213140.5153830.023*

Source of material

The starting complex was synthesized according to a published procedure [14]: fac-[Re(Ddpy)(CO)3(H2O)]+ (30.00 mg; 0.063 mmol) was dissolved in methanol (5 ml) and pyrazole (4.316 mg, 0.063 mmol) was added; followed by refluxing for 24 h. The bright yellow solid was obtained by evaporation of the solvent, and the product was recrystallized using cold methanol.

IR (FTIR cm−1): vco = 2021.6, 1888.1, 1618.

Experimental details

All the hydrogen atoms were positioned geometrically and refined discernibly using a riding model, with fixed C-Hmethyl = 0.96 Å; C-HAromatic = 0.97 Å. The H atoms isotropic displacement parameters were fixed; Uiso(H) = 1.2Ueq(C) for aromatic and Uiso(H) = 1.5Ueq(C) for methyl, allowing them to ride on the parent atom. The graphics were obtained using the DIAMOND program with 50% probability ellipsoids. All the H-atoms on the title structure were omitted for clarity.

Comment

The applications of the fac-[M(H2O)3(CO)3]+ synthon, (M = Tc-99m, Re) and the introduction of nanotechnology merged with coordination chemistry, generally referred to as nano-medicine is a highly investigated field due to their prospective and existing applications in radiochemistry [6], [7], [8], [9]. Nanoparticles are the major system used in nano-medicine as theranostic agents because of their high molecular specificity which permit them to absorb high quantities of drugs [10], [11], [12].

The molecular structure of the title complex comprises three facial tricarbonyl ligands, a 4,4-dimethyl-2,2-dipyridyl bidentate ligand in the equatorial plane which is trans to two of the carbonyl ligands and a N-coordinated pyrazole monodentate ligand in the axial position. The complex was obtained from the [2 + 1] mixed ligand system on the fac-[M(H2O)3(CO)3]+ moiety.

The model involves the substitution of the two labile water molecules in the equatorial plane, followed by the coordination of the mono-dentate aqua ligand in the axial position; and the complex is neutralized by a nitrate counter-ion. The polyhedron geometry of the title complex reveals an octahedral distortion around rhenium(I). The distortion is evident in the angles of 167.56(14)° and 171.99(14)° for C2–Re1–N2 and C3–Re1–N1 respectively. The bite angle of the chelate ligand of 74.76(12)° from the title structure correlates well with those observed in literature reported similar structures [13], [14]. The bond distances between rhenium and the coordinated N atoms in the first coordination sphere ranges between 2.162(3) Å and 2.174(3) Å whereas the bond distances between the rhenium and the carbonyl carbon atoms ranges between 1.923(5) Å and 1.926(5) Å.

Corresponding author: Mamolatelo J. Moremi, Department of Chemistry, Tshwane University of Technology, Pretoria, 0001, South Africa, E-mail:

Funding source: National Research Foundation

Award Identifier / Grant number: 113629

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: The authors would like to express the gratitude towards NRF (Thuthuka grant specific number 113629) for financial assistance. We would also like to acknowledge Tshwane University of Technology for Institutional support.

  3. Conflict of interest: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT–Plus (Version7. 12) and SADABS (Version 2004/1); Bruker AxS Inc.: Madison, Wisconsin, USA, 2004.Suche in Google Scholar

2. Altomare, A., Burla, M. C., Camalli, M., Cascarano, G. L., Giacovazzo, C., Guagliardi, A., Moliterni, A. G. G., Polidori, G., Spagna, R. A new tool for crystal structure determination and refinement. J. Appl. Cryst. 1999, 32, 115–119; https://doi.org/10.1107/s0021889898007717.Suche in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

4. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

5. Brandenbug, K., Putz, H. DIAMOND. Visual Crystal Structure Information System. Ver. 3; 0c Crystal Impact GbR: Bonn, Germany, 2005.Suche in Google Scholar

6. Alberto, R., Schibli, R., Egi, A., Schubiger, A. P., Abram, U., Kaden, T. A. A novel organometallic aqua complex of technetium for the labelling of biomolecules: synthesis of [99Tc (OH2)(CO)3]+ from [99mTc (OH)4]− in aqueous solution and its reaction with a bifunctional ligand. J. Am. Chem. Soc. 1998, 120, 7987–7988; https://doi.org/10.1021/ja980745t.Suche in Google Scholar

7. Jurisson, S., Lydon, J. Potential technetium small molecule radiopharmaceuticals. Chem. Rev. 1999, 99, 2205–2218; https://doi.org/10.1021/cr980435t.Suche in Google Scholar PubMed

8. Manicum, A., Smith, M. S., Alexander, O. T., Twigge, L., Roodt, A., Visser, H. G. First kinetic data of the CO substitution in fac-[Re(L,L′-Bid)(CO)3(X)] complexes by tertiary phosphines PTA and PPh3: synthesis and crystal structures of water soluble rhenium(I) tri- and dicarbonyl complexes with 1,3,5-triaza-7-phosphaadamantane (PTA). Inorg. Chem. Comm. 2019, 101, 93–98; https://doi.org/10.1016/j.inoche.2019.01.014.Suche in Google Scholar

9. Bao, G., Mitragotri, S., Tong, S. Multifunctional nanoparticles for drug delivery and molecular imaging. Annu. Rev. Biomed. Eng. 2013, 15, 253–282; https://doi.org/10.1146/annurev-bioeng-071812-152409.Suche in Google Scholar PubMed PubMed Central

10. Celardo, I., Pedersen, J. Z., Traversa, E., Ghibelli, L. Pharmacological potential of cerium oxide nanoparticles. Nanoscale 2011, 3, 1411–1420; https://doi.org/10.1039/c0nr00875c.Suche in Google Scholar PubMed

11. De Jong, W. H., Borm, P. J. Drug delivery and nanoparticles: applications and hazards. Int. J. Nanomed. 2008, 3, 133–149; https://doi.org/10.2147/ijn.s596.Suche in Google Scholar PubMed PubMed Central

12. Borm, P. J., Robbins, D., Haubold, S. The potential risks of nanomaterials: a review carried out for ECETOC. Part. Fibre Toxicol. 2006, 3, 11–13; https://doi.org/10.1186/1743-8977-3-11.Suche in Google Scholar PubMed PubMed Central

13. Yazdani, A., Jansen, N., Banevicius, L., Czorny, S., Valliant, J. F. Imidazole-based [2+1] Re(I) / 99mTc complexes as isostructural nuclear and optical probes. Inorg. Chem. 2015, 54, 1728–1736; https://doi.org/10.1021/ic502663p.Suche in Google Scholar PubMed

14. Ramoba, V. L., Alexander, T. O., Visser, H. G., Manicum, A. The crystal structure of fac-tricarbonyl (1,10-phenanthroline- κ2N,N′)-(pyrazole-κN) rhenium(I)nitrate, C18H12O3N4Re. Z. Kristallogr. NCS 2020, 235, 1203–1205; https://doi.org/10.1515/ncrs-2020-0249.Suche in Google Scholar

Received: 2020-08-27
Accepted: 2020-10-12
Published Online: 2020-11-06
Published in Print: 2021-01-26

© 2020 Mamolatelo J. Moremi et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
