The crystal structure of dipentaerthritol hexanitrate, C10H16N6O19

  • Yue Zheng ORCID logo , Chen Lizhen ORCID logo , Chao Hui , Wei Chenglong , Li Zhihua and Cao Duanlin EMAIL logo
Published/Copyright: November 6, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C10H16N6O19, monoclinic, C2/c (no. 15), a = 29.980(5) Å, b = 8.4695(17) Å, c = 20.719(4) Å, β = 128.124(7)°, V = 4138.7(16) Å3, Z = 8, Rgt(F) = 0.0587, wRref(F2) = 0.1683, T = 170 K.

CCDC no.: 2033463

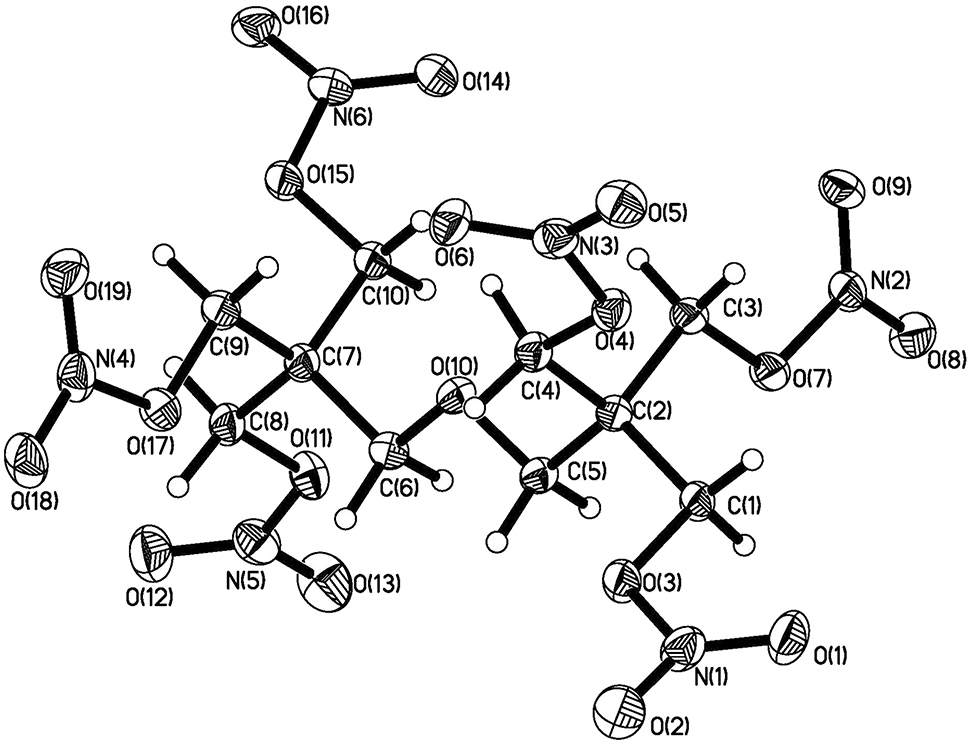

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless plate
Size:0.19 × 0.08 × 0.03 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.17 mm−1
Diffractometer, scan mode:Bruker D8 Venture, φ and ω
θmax, completeness:26.6°, 99%
N(hkl)measured, N(hkl)unique, Rint:10747, 4240, 0.082
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2391
N(param)refined:316
Programs:Bruker [1], SHELX [2], [3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.71855 (13)0.3535 (3)0.8293 (2)0.0358 (8)
H1A0.7468820.4235150.8340150.043*
H1B0.7073690.3999820.8612890.043*
C20.66656 (13)0.3332 (3)0.7391 (2)0.0321 (8)
C30.63526 (13)0.4913 (3)0.7078 (2)0.0358 (8)
H3A0.6019630.4826350.6491830.043*
H3B0.6218800.5222160.7393380.043*
C40.62441 (14)0.2145 (4)0.7296 (2)0.0361 (8)
H4A0.5881240.2175290.6731830.043*
H4B0.6399310.1060300.7414060.043*
C50.68452 (13)0.2772 (4)0.6891 (2)0.0344 (8)
H5A0.7082920.3588100.6894450.041*
H5B0.7073720.1796910.7136950.041*
C60.65204 (14)0.2026 (4)0.5581 (2)0.0351 (8)
H6A0.6754520.1056400.5805940.042*
H6B0.6749950.2876570.5588270.042*
C70.59925 (13)0.1729 (3)0.4702 (2)0.0336 (8)
C80.61710 (14)0.1192 (4)0.4190 (2)0.0384 (8)
H8A0.6369130.0163300.4388980.046*
H8B0.5835850.1080900.3606320.046*
C90.56092 (14)0.0469 (3)0.4662 (2)0.0392 (9)
H9A0.5477210.0810730.4975510.047*
H9B0.5274300.0272590.4086130.047*
C100.56507 (13)0.3269 (4)0.4367 (2)0.0368 (8)
H10A0.5537650.3613760.4703690.044*
H10B0.5875270.4119800.4362100.044*
N10.78068 (13)0.1871 (4)0.9444 (2)0.0491 (8)
N20.65123 (12)0.7602 (3)0.69566 (18)0.0402 (7)
N30.57333 (12)0.1801 (3)0.7828 (2)0.0414 (7)
N40.56583 (14)−0.2252 (3)0.49890 (19)0.0453 (8)
N50.67803 (13)0.2064 (4)0.3893 (2)0.0475 (8)
N60.48145 (12)0.4179 (3)0.3094 (2)0.0414 (7)
O10.79217 (11)0.3066 (3)0.98354 (16)0.0589 (8)
O20.79822 (12)0.0553 (3)0.96848 (18)0.0701 (9)
O30.74174 (10)0.1963 (2)0.85912 (15)0.0432 (6)
O40.61607 (9)0.2632 (2)0.78896 (14)0.0382 (6)
O50.56675 (11)0.2231 (3)0.83125 (18)0.0518 (7)
O60.54948 (10)0.0753 (3)0.73238 (17)0.0497 (7)
O70.67466 (9)0.6085 (2)0.71824 (14)0.0389 (6)
O80.68293 (10)0.8575 (3)0.70196 (17)0.0520 (7)
O90.60366 (10)0.7781 (3)0.67285 (17)0.0484 (7)
O100.63592 (8)0.2468 (2)0.60715 (13)0.0355 (5)
O110.65470 (10)0.2402 (2)0.42830 (15)0.0423 (6)
O120.66665 (12)0.0814 (3)0.35489 (19)0.0663 (9)
O130.70832 (13)0.3082 (3)0.3958 (2)0.0660 (9)
O140.49297 (10)0.5422 (3)0.34460 (16)0.0518 (7)
O150.51560 (9)0.2889 (2)0.35382 (14)0.0401 (6)
O160.44332 (10)0.3871 (3)0.23875 (16)0.0484 (7)
O170.59547 (10)−0.0943 (2)0.50216 (15)0.0422 (6)
O180.59524 (12)−0.3414 (3)0.52829 (17)0.0568 (8)
O190.51673 (12)−0.2088 (3)0.46983 (18)0.0574 (8)

Source of material

Pentaerythritol, 10.0 g, was added slowly, with stirring, to 60.0 g of 98% nitric acid which has been cooled to 10 °C. While the pentaerythritol was being introduced the temperature was maintained between 15 and 20 °C. The reaction was then stirred for 15 min at 15–20 °C. The crude product was seperated from solution by drowning over five volumes of crushed ice with stirring. Then collected by filtration. The production was washed repeatedly with water until neutral and dried at 50 °C for 2 h.

Experimental details

Hydrogen atoms were added using riding models.

Comment

Dipentaerythritol hexanitrate is one of the primary by-products at the production progress of pentaerythritol tetranitrate [5], [6]. The performance of dipentaerythritol hexanitrate, such as thermal stability and detonation property, is worse than that of pentaerythritol tetranitrate [7], [8]. The mechanical sensitivity is higher than pentaerythritol tetranitrate [5]. The dipentaerythritol hexanitrate is not commercially available because of its properties [9]. The title compound was obtained from purification progress of pentaerythritol tetranitrate. The understanding of crystal structure of dipentaerythritol hexanitrate may affect the application of pentaerythritol tetranitrate. The crystal structure of the title compound was analyzed and refined using the SHELXL program [2, 3].

As shown in the figure, the symmetric unit of the title compound is the dimer of pentaerythritol tetranitrate. The molecule structure of title compound is similar to the pentaerythritol tetranitrat [10]. C5-O10 and C6-O10 bond lengths are 1.418(6) to 1.421(4) Å, respectively. The other C-O bond lengths range from 1.445(4) to 1.458(4) Å. The C-C bond length range from 1.507(5) to 1.536(4) Å. All bond lengths and angles are in the expected ranges.

Corresponding author: Cao Duanlin, School of chemical engineering and technology, North University of China, Taiyuan, 030051, Shanxi Province, PR China, E-mail:

Acknowledgments

We thank the Center of Testing and Analysis, Shanghai Institute, for support.

  1. Research funding: None declared.

  2. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8.10.1107/S2053229614024218Search in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Search in Google Scholar

5. Bhattacharia, S. K., Maiti, A., Gee, R. H., Weeks, B. L. Sublimation properties of pentaerythritol tetranitrate single crystals doped with its homologs. Propellants Explos. Pyrotech. 2012, 37, 563–568.10.1002/prep.201100114Search in Google Scholar

6. Harvey, C. A., Meissner, R. Pentaerythritol Tetranitrate (PETN) Surveillance by HPLC–MS : Instrumental Parameters Development; Lawrence Livermore National Laboratory, 2005.10.2172/886931Search in Google Scholar

7. Om Reddy, G., Srinivasa Rao, A. Stability studies on pentaerythritol tetranitrate. Propellants Explos. Pyrotech. 1992, 17, 307–312.10.1002/prep.19920170610Search in Google Scholar

8. Urbanski, T. Chemistry and Technology of Explosives; Pergamon Press, Vol. 2, 1965; pp. 185–197.Search in Google Scholar

9. Jacob, S., Quinlin, W. T., Petn Homoiogs; Development Divisions, 1972; pp. 1–21.Search in Google Scholar

10. Nieger, M., Lehmann, J. CCDC 199339. Exp. Cryst. Struct. Determ. 2003; https://doi.org/10.5517/cc6pf9l.Search in Google Scholar

Received: 2020-08-13
Accepted: 2020-09-23
Published Online: 2020-11-06
Published in Print: 2021-01-26
