The crystal structure of butyrylferrocene, C14H16FeO

  • Eric C. Hosten ORCID logo and Richard Betz ORCID logo EMAIL logo
Published/Copyright: November 13, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C14H16FeO, orthorhombic, P212121 (no. 19), a = 5.6954(3) Å, b = 10.0307(6) Å, c = 20.4422(14) Å, V = 1167.84(12) Å3, Z = 4, Rgt(F) = 0.0267, wRref(F2) = 0.0559, T = 200 K.

CCDC no.: 2041288

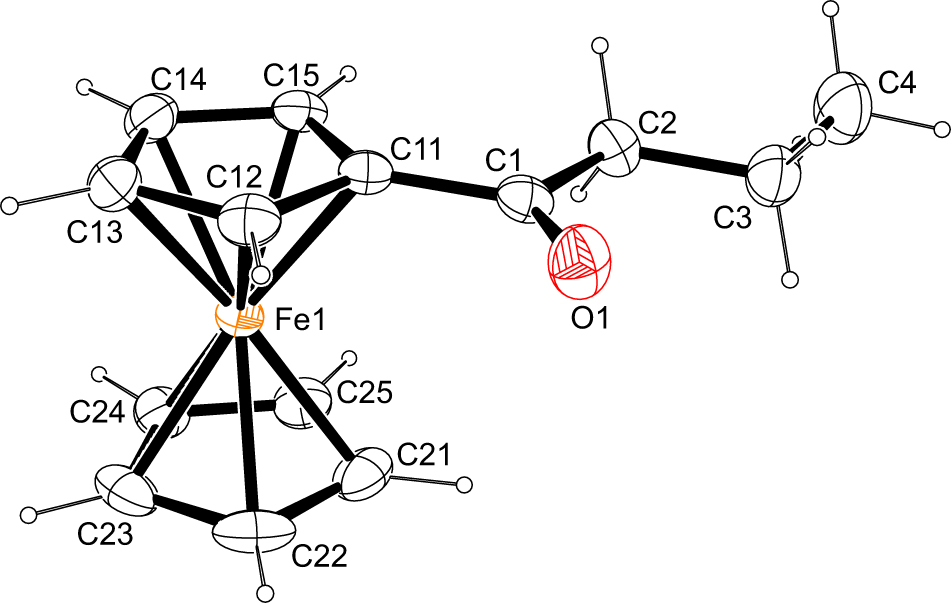

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow rods
Size:0.38 × 0.17 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.27 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:28.3°, >99 %
N(hkl)measured, N(hkl)unique, Rint:11166, 2910, 0.037
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2579
N(param)refined:147
Programs:Bruker [1], [, 2], SHELX [3], WinGX/ORTEP [4], Mercury [5], PLATON [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Fe10.42289 (6)0.62657 (3)0.33982 (2)0.02002 (9)
O10.0151 (3)0.4883 (2)0.46802 (10)0.0367 (5)
C10.2117 (5)0.5357 (3)0.47104 (12)0.0239 (6)
C20.3968 (5)0.4830 (3)0.51682 (13)0.0279 (6)
H2A0.4459230.5560980.5463570.033*
H2B0.5355850.4567170.4906790.033*
C30.3220 (5)0.3651 (3)0.55817 (13)0.0347 (6)
H3A0.2927900.2871600.5295620.042*
H3B0.1738590.3866360.5811950.042*
C40.5112 (6)0.3304 (3)0.60807 (15)0.0449 (8)
H4A0.6586260.3109040.5852950.067*
H4B0.4622070.2520240.6332450.067*
H4C0.5343070.4059490.6377730.067*
C110.2785 (4)0.6510 (2)0.42986 (11)0.0220 (5)
C120.1339 (5)0.7116 (3)0.38137 (13)0.0258 (6)
H12−0.0331180.6880350.3716850.031*
C130.2677 (5)0.8105 (3)0.34919 (13)0.0285 (6)
H130.2120710.8681650.3124060.034*
C140.4961 (5)0.8118 (3)0.37691 (13)0.0291 (6)
H140.6286600.8707890.3630700.035*
C150.5055 (5)0.7141 (3)0.42670 (12)0.0249 (6)
H150.6444460.6928520.4547280.030*
C210.4573 (5)0.4266 (3)0.32356 (14)0.0333 (7)
H210.4090750.3539990.3542600.040*
C220.3145 (5)0.4850 (3)0.27458 (15)0.0370 (7)
H220.1479090.4608060.2647170.044*
C230.4482 (5)0.5840 (3)0.24228 (13)0.0340 (7)
H230.3928980.6419610.2055580.041*
C240.6728 (5)0.5870 (3)0.27126 (14)0.0303 (6)
H240.8046960.6474770.2585710.036*
C250.6796 (5)0.4895 (3)0.32177 (14)0.0301 (6)
H250.8165940.4689950.3506500.036*

Source of material

The compound was obtained commercially (Strem Chemicals).

Experimental details

H atoms were placed in calculated positions (C–H 0.95 Å for aromatic carbon atoms, C–H 0.99 Å for methylene groups) and were included in the refinement in the riding model approximation, with U(H) set to 1.2Ueq(C). The H atoms of the methyl groups were allowed to rotate with a fixed angle around the C–C bond to best fit the experimental electron density (HFIX 137 in the SHELX program suite [3]), with U(H) set to 1.5Ueq(C).

Comment

Ferrocenes have been a busy playing ground for theoretical and synthetic chemists alike since the 1940s and 1950s which may be due to the intriguing bonding situation that opened up the field for organometallic chemistry as an exciting new field of study [7], [, 8]. Especially its behaviour typical for aromatic compounds [9] as well as its successful structure elucidation [10] gave rise to the synthesis and characterization of novel metallocene compounds [11], [, 12]. The archaetype – ferrocene itself – and its derivatives have been the subject of structure-relationship studies for several decades, and ample information is apparent in the literature (e.g. the asymmetric formyl [13] and acetyl [14] derivatives).

The structure shows the presence of the expected ferrocenyl “sandwich” with one of the two cyclopentadienyl moieties featuring a butyryl side chain. The iron atom is displaced by 1.6452(13) Å and 1.6484(14) Å from the respective center of gravity of the two cyclopentadiene rings with the shorter distance established towards the functionalized carbocycle. The stacking of the “sandwich” is close to linearity with the pertaining Cg–Fe–Cg angle measured at 178.94(7). The rings adopt an almost ecliptic conformation as becomes apparent by the planes defined by the iron atom, the ipso carbon atom as well as the carbonyl-type carbon atom on the one hand and the iron atom as well as the atoms of the CH group below the side chain intersecting at an angle of only 1.472(13). The butyryl side chain is vastly co-planar with its carrier carbocycle with the least-squares plane defined by the pertaining ten non-hydrogen atoms showing the terminal carbon atom deviating most with a value of only 0.059(3) Å. The C=O bond length was found at 1.218(3) Å which is in good agreement with other keto compounds whose metrical parameters have been deposited with the Cambridge Structural Database [15].

In the crystal, no strong interatomic interactions whose range falls below the sum of van-der-Waals radii of the atoms participating in them are observed. The only notable interaction in this regard is a potential C–H···π contact supported by a hydrogen atom of the functionalized cyclopentadiene moiety as donor and the aromatic system of the non-functionalized carbocycle in the neighbouring molecule as acceptor. While the two aromatic systems within a molecule of the title compound are found at a distance of only 3.2933(18) Å, π-Stacking between two separate molecules is not a prominent feature with the shortest pertaining distance between two centers of gravity measured at 4.6663(18) Å only.

Corresponding author: Richard Betz, Department of Chemistry, Nelson Mandela Metropolitan University, Summerstrand Campus, University Way, Summerstrand, PO Box 77000, Port Elizabeth 6031, South Africa, E-mail:

Funding source: National Research Foundation

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: National Research Foundation.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2; Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Bruker. SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Search in Google Scholar

3. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854. https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. Macrae, C. F., Bruno, I. J., Chisholm, J. A., Edgington, P. R., McCabe, P., Pidcock, E., Rodriguez-Monge, L., Taylor, R., van de Streek, J., Wood, P. A. Mercury CSD 2.0 – new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470. https://doi.org/10.1107/s0021889807067908.Search in Google Scholar

6. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155. https://doi.org/10.1107/s090744490804362x.Search in Google Scholar

7. Werner, H. At least 60 years of ferrocene: the discovery and rediscovery of the sandwich complexes. Angew. Chem. Int. Ed. 2012, 51, 6052–6058. https://doi.org/10.1002/anie.201201598.Search in Google Scholar

8. Pauson, P. L. Ferrocene – how it all began. J. Organomet. Chem. 2001, 637–639, 3–6. https://doi.org/10.1016/s0022-328x(01)01126-3.Search in Google Scholar

9. Wilkinson, G., Rosenblum, M., Whiting, M. C., Woodward, R. B. The structure of iron bis-cyclopentadienyl. J. Am. Chem. Soc. 1952, 74, 2125–2126. https://doi.org/10.1021/ja01128a527.Search in Google Scholar

10. Eiland, P. F., Pepinsky, R. X-ray examination of iron biscyclopentadienyl. J. Am. Chem. Soc. 1952, 74, 4971. https://doi.org/10.1021/ja01139a527.Search in Google Scholar

11. Fischer, E. O., Pfab, W. Zur Kristallstruktur der Di-Cyclopentadienyl-Verbindungen des zweiwertigen Eisens, Kobalts und Nickels. Z. Anorg. Allg. Chem. 1953, 274, 316–322.10.1002/zaac.19532740603Search in Google Scholar

12. Fischer, E. O., Pfab, W. Cyclopentadien–Metallkomplexe, ein neuer Typ metallorganischer Verbindungen. Z. Naturforsch. 1952, 7b, 377–379. https://doi.org/10.1515/znb-1952-0701.Search in Google Scholar

13. Lousada, C. M., Pinto, S. S., Lopes, J. N. C., da Piedade, M. F. M., Diogo, H. P., da Piedade, M. E. M. Experimental and molecular dynamics simulation study of the sublimation and vaporization energetics of iron metalocenes. crystal structures of Fe(η5-C5H4CH3)2 and Fe[(η5-(C5H5))(η5-C5H4CHO)]. J. Phys. Chem. A 2008, 112, 2977–2987. https://doi.org/10.1021/jp7107818.Search in Google Scholar

14. Sato, K., Katada, M., Sano, H., Konno, M. Studies on the phase transition near the melting point in acetylferrocene. Bull. Chem. Soc. Jpn. 1984, 57, 2361–2365. https://doi.org/10.1246/bcsj.57.2361.Search in Google Scholar

15. Allen, F. H. The Cambridge Structural Database: a quarter of a million crystal structures and rising. Acta Crystallogr. 2002, B58, 380–388. https://doi.org/10.1107/s0108768102003890.Search in Google Scholar

Received: 2020-10-03
Accepted: 2020-10-29
Published Online: 2020-11-13
Published in Print: 2021-01-26

© 2020 Eric C. Hosten and Richard Betz, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
