The crystal structure of 2-[(S)-1-(naphthalen-1-yl)ethyl]-2,3,7,7a- tetrahydro-3a,6-epoxyisoindol-1(6H)-one, C19H20NO2

  • Yi-Xia Gong ORCID logo EMAIL logo und Yi-Ding Geng ORCID logo EMAIL logo
Veröffentlicht/Copyright: 28. September 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 1

Abstract

C19H20NO2, monoclinic, P21 (no. 4), a = 6.685(5) Å, b = 8.878(7) Å, c = 13.239(9) Å, β = 97.720(2)°, V = 778.75(10) Å3, Z = 2, Rgt(F) = 0.0423, wRref(F2) = 0.0970, T = 296(2) K.

CCDC no.: 1998186

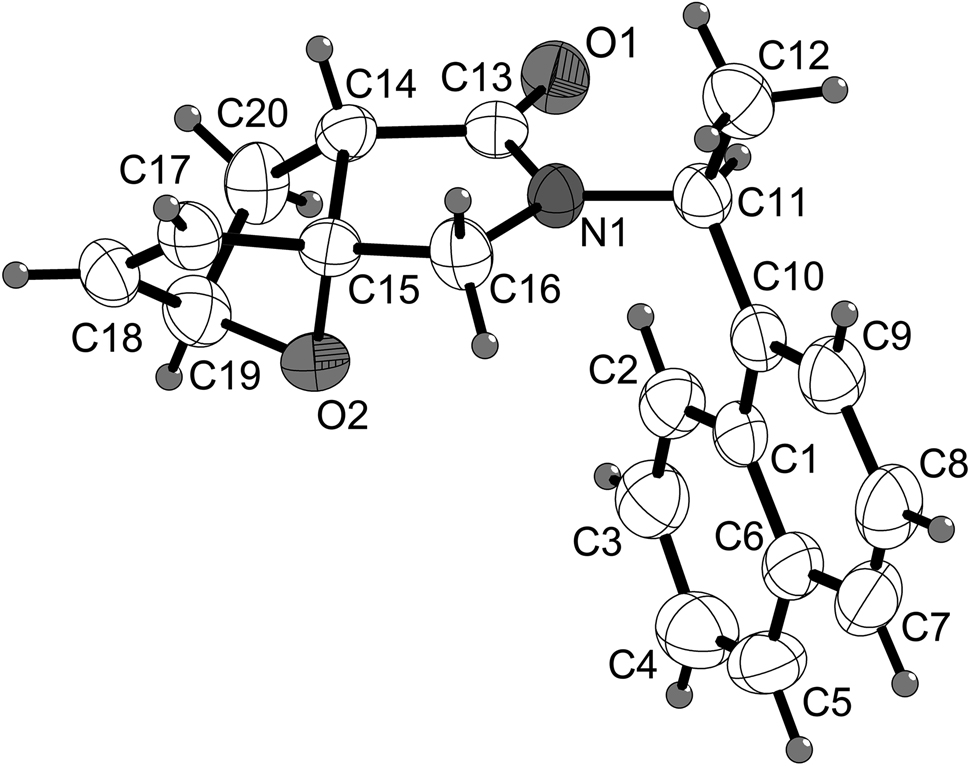

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.24 × 0.22 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.08 mm−1
Diffractometer, scan mode:Bruker, φ and ω
θmax, completeness:28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:6593, 3365, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2368
N(param)refined:222
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.9230 (4)0.3512 (4)0.34228 (19)0.0492 (7)
C20.7237 (4)0.3731 (4)0.2925 (2)0.0556 (8)
H20.68260.46910.27060.067*
C30.5911 (5)0.2560 (4)0.2761 (2)0.0678 (9)
H30.46130.27380.24340.081*
C40.6459 (6)0.1112 (5)0.3072 (3)0.0781 (10)
H40.55570.03190.29280.094*
C50.8309 (6)0.0860 (4)0.3584 (3)0.0748 (10)
H50.8654−0.01100.38090.090*
C60.9756 (5)0.2043 (4)0.3791 (2)0.0579 (8)
C71.1658 (6)0.1796 (5)0.4347 (2)0.0737 (10)
H71.19950.08420.46050.088*
C81.2999 (6)0.2917 (5)0.4514 (2)0.0740 (11)
H81.42450.27350.48980.089*
C91.2547 (5)0.4389 (5)0.4111 (2)0.0639 (9)
H91.35160.51450.42150.077*
C101.0691 (4)0.4696 (4)0.35725 (18)0.0486 (7)
C111.0170 (4)0.6283 (4)0.31796 (18)0.0464 (6)
H110.895 (4)0.660 (3)0.3462 (17)0.040 (6)*
C121.1810 (5)0.7455 (4)0.3465 (2)0.0655 (9)
H12A1.13790.84070.31670.098*
H12B1.30280.71440.32150.098*
H12C1.20580.75550.41930.098*
C130.7786 (4)0.6938 (3)0.16427 (18)0.0431 (6)
C140.7778 (4)0.6966 (3)0.05050 (18)0.0424 (6)
H140.804 (4)0.794 (4)0.032 (2)0.053 (8)*
C150.9452 (3)0.5826 (3)0.03481 (18)0.0419 (6)
C161.0856 (3)0.5801 (4)0.13347 (17)0.0504 (7)
H16A1.13700.47950.14930.061*
H16B1.19830.64850.13140.061*
C170.9991 (4)0.6064 (4)−0.07113 (19)0.0497 (7)
H171.11730.6476−0.08910.060*
C180.8429 (4)0.5564 (4)−0.1322 (2)0.0539 (8)
H180.82680.5571−0.20310.065*
C190.6949 (5)0.4976 (4)−0.0660 (2)0.0563 (8)
H190.599 (4)0.417 (4)−0.088 (2)0.059 (8)*
C200.5937 (4)0.6306 (4)−0.01717 (19)0.0579 (8)
H20A0.53510.7024−0.06800.069*
H20B0.49100.59650.02280.069*
N10.9546 (3)0.6306 (3)0.20728 (14)0.0433 (5)
O10.6447 (3)0.7393 (3)0.21102 (14)0.0581 (6)
O20.8294 (3)0.4453 (2)0.02196 (14)0.0536 (5)

Source of material

All chemicals, reagents and solvents are of analytical grade and are commercially available. Preparation of 2-((S)-1-(naphthalen-1-yl)ethyl)-2,3,7,7a-tetrahydro-3a,6-epoxyisoindol-1(6H)-one: (S)-3-chloro-N-(furan-2-ylmethyl)-N-(1-(naphthalen-1-yl)ethyl)propanamide (5 g, 14.63 mmol) was dissolved in DMF (100 mL) at room temperature, followed by potassium carbonate (6.07 g, 43.89 mmol) and tetrabutylammonium iodide (0.54 g, 1.463 mmol) in order. Then the mixture reacted under stirring at 110 °C for 2 h. Subsequently, the reaction mixture was poured into water and extracted with dichloromethane. The organic phase was dehydrated with anhydrous sodium sulfate and concentrated at reduced pressure to afford a yellow liquid. The crude mixture was purified by silica gel column chromatography, eluted with petroleum ether and ethyl acetate (5:1) to give a white solid (1.48 g, yield 82.65%). 1H NMR (400 MHz, CDCl3) δ 8.07 (d, J = 8.3 Hz, 1H), 7.93–7.66 (m, 2H), 7.47 (ddd, J = 19.9, 15.3, 7.3 Hz, 4H), 6.48–6.07 (m, 3H), 4.88 (d, J = 4.3 Hz, 1H), 3.82 (d, J = 11.6 Hz, 1H), 3.09 (d, J = 11.6 Hz, 1H), 2.47 (dd, J = 8.8, 3.5 Hz, 1H), 2.19 (dd, J = 7.9, 3.8 Hz, 1H), 1.71 (d, J = 6.9 Hz, 3H), 1.61–1.50 (m, 1H). Crystals were grown in hexane and ethyl acetate (3:1) at room temperature.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

The class of chemical compounds the title compound belongs to has members that are important intermediates for the synthesis of isoindolinone compounds and can be used to prepare fluoresce and biologically active molecules [3], [, 4]. They can participate in the synthesis of alkaloids Aspernidine A and Aspernidine B for the preparation of anticancer drugs and antiviral drugs [5], [6]. At the same time, some of them are materials for the preparation of oxanorbornene analogs useful in rubber industry [7].

The structure of the title compound was elucidated by spectroscopic methods (NMR) and X-ray diffraction. It contained one epoxyisoindol ring and one naphthyl moiety. All bond lengths and angles in the crystal structure are within the normal range [8]. The compound exhibits weak intramolecular hydrogen bonding of the C–H···O type. The packing of crystal structure is dominated by weak intermolecular interactions, and the intermolecular packing is stabilized by the van der Waals forces.

Corresponding authors: Yi-Xia Gong and Yi-Ding Geng, College of Pharmacy, Jiamusi University, Jiamusi, 154007, P. R. China, E-mail: (Y.-X. Gong), (Y.-D. Geng)

Acknowledgments

This work was supported by the Provincial Basic Scientific Research Operating Expenses Project of HeiLongJiang Province (2018-KYYWF-0950).

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Provincial Basic Scientific Research Operating Expenses Project of HeiLongJiang Province (2018-KYYWF-0950).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT SADABS: Madison, USA, 2008.Suche in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar

3. Benson, N., Suleiman, O., Odoh, S. O., Woydziak, Z. R. Pyrazole, imidazole, and isoindolone dipyrrinone analogues: pH-dependent fluorophores that red-shift emission frequencies in a basic solution. J. Org. Chem. 2019, 84, 11856–11862; https://doi.org/10.1021/acs.joc.9b01708.Suche in Google Scholar

4. Yao, C., Bao, Y. S., Lu, T., Zhou, Q. F. Stereoselective synthesis of functionalized benzooxazepino[5,4a]isoindolone derivatives via cesium carbonate catalyzed formal [5 + 2] annulation of 2(2-hydroxyphenyl) isoindoline-1,3-dione with allenoates. Org. Lett. 2018, 20, 2152–2155; https://doi.org/10.1021/acs.orglett.8b00382.Suche in Google Scholar

5. Scherlach, K., Schuemann, J., Dahse, H. M., Hertweck, C. Aspernidine A and B, prenylated isoindolinone alkaloids from the model fungus Aspergillus nidulans. J. Antibiot. 2010, 63, 375–377; https://doi.org/10.1038/ja.2010.46.Suche in Google Scholar

6. Zhang, G. J., Sun, S. W., Zhu, T. J., Lin, Z. J., Gu, J. Y., Li, D. H., Gu, Q. Q. Antiviral isoindolone derivatives from an endophytic fungus Emericella sp. associated with Aegiceras corniculatum. Phytochemistry 2011, 72, 1436–1442; https://doi.org/10.1016/j.phytochem.2011.04.014.Suche in Google Scholar

7. Minoru, I., Masato, O., Makoto, S. Synthesis and domino metathesis of functionalized 7-oxanorbornene analogs toward cis-fused heterocycles. Tetrahedron 2008, 64, 2740–2749; https://doi.org/10.1016/j.tet.2008.01.067.Suche in Google Scholar

8. Bai, Y. F., Yuan, L., Chen, Y., Wang, L. J., Wang, C., Sun, T. M. Synthesis, crystal and calculated structure, and biological activity of 2-((6-bromo-2-methoxyquinolin-3-yl) (phenyl)methyl)-2,3,7,7a-tetrahydro-3a,6-epoxyisoindol-1(6H)-one. J. Chem. Crystallogr. 2012, 42, 318–322; https://doi.org/10.1007/s10870-011-0245-x.Suche in Google Scholar

Received: 2020-08-08
Accepted: 2020-09-03
Published Online: 2020-09-28
Published in Print: 2021-01-26
