Synthesis and crystal structure of hexaaquacopper(II) 2,5-dicarboxyterephthalate, C10H16O14Cu

  • Bukunola K. Oguntade ORCID logo EMAIL logo , Siya T. Hulushe ORCID logo , Eric C. Hosten ORCID logo and Gareth M. Watkins
Published/Copyright: November 5, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C10H16O14Cu, monoclinic, I2/a (no. 15), a = 7.2407(3) Å, b = 9.7565(4) Å, c = 21.1814(10) Å, β = 93.913(2)°, V = 1492.85(11) Å3, Z = 4, Rgt(F) = 0.0198, wRref(F2) = 0.0509, T = 200 K.

CCDC no.: 1917699

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Blue block
Size:0.48 × 0.45 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.54 mm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:6519, 1835, 0.015
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1729
N(param)refined:140
Programs:Bruker [1], [2], SHELX [3], [4], PLATON [5], Mercury [6], X-Seed [7]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.2500000.29898 (2)0.5000000.01188 (7)
O10.65983 (14)0.62566 (9)0.27809 (4)0.0215 (2)
H10.6913890.6147010.2409930.026*
O20.55354 (14)0.49985 (9)0.35314 (4)0.0201 (2)
O30.83469 (15)0.07623 (10)0.40118 (4)0.0230 (2)
O40.78501 (16)−0.09129 (9)0.33210 (4)0.0272 (2)
O110.39511 (15)0.28873 (10)0.41953 (4)0.0214 (2)
O120.2500000.51463 (14)0.5000000.0233 (3)
O130.2500000.08946 (14)0.5000000.0272 (3)
O140.50179 (14)0.31353 (9)0.55718 (4)0.01793 (19)
C10.62713 (17)0.50851 (12)0.30253 (6)0.0148 (2)
C20.68793 (16)0.37840 (12)0.27096 (5)0.0128 (2)
C30.71930 (17)0.26832 (13)0.31202 (6)0.0137 (2)
H30.6974160.2811950.3553310.016*
C40.78085 (16)0.14049 (12)0.29336 (5)0.0131 (2)
C50.80471 (18)0.03509 (13)0.34617 (6)0.0164 (2)
H120.177 (2)0.5666 (13)0.5182 (8)0.038 (5)*
H11A0.434 (3)0.3561 (14)0.4001 (8)0.042 (6)*
H11B0.360 (3)0.2287 (16)0.3932 (8)0.050 (6)*
H130.281 (3)0.0390 (14)0.4706 (5)0.046 (6)*
H14A0.483 (2)0.3589 (15)0.5901 (6)0.030 (5)*
H14B0.546 (3)0.2377 (13)0.5700 (9)0.046 (6)*

Source of material

All commercially available starting materials were used without further purification. The titled compound was obtained from slow evaporation reaction of H4B4C (benzene-1,2,4,5-tetracarboxylic acid) (1 mmol), Cu(NO3)2·3H2O (1 mmol), Zn(CH3COO)2·2H2O (1 mmol) in 20 ml of MeOH–H2O (1:1, v/v) mixture. The reaction mixture was heated for 15 min while stirring. Then it was allowed to cool down. The resulting solution was filtered, covered with parafilm and kept aside in a secluded area for nine days to allow for the growth of blue crystal of the titled compound. Elemental analysis (calcd.)(%) C, 27.95 (28.34), H, 3.25 (3.81), Cu, 14.99 (14.72).

Experimental details

Carbon-bound H atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with U(H) set to 1.2 Ueq(C).

The H atom of the hydroxyl group was allowed to rotate with a fixed angle around the C–O bond to best fit the experimental electron density (HFIX 147 in the SHELX program suite (Sheldrick, 2015)), with Uiso(H) set to 1.5Ueq(O).

Comment

Pyromellitic acid (H4B4C), the most symmetrical of the three benzenetetracarboxylic acids [8] is a member of benzenepolycarboxylic acid family and has found applications in the hydrogen-bond formation. The salts of this acid [9] are also of interest in gravimetric analysis, heat stabilizers, detergent builders, catalysts and applied dyes [10]. The crystal structure of title compound is built from [Cu(H2O)6]2+ dications and doubly deprotonated pyromellitic dianions, (H2B4C)2− which are linked to each other through hydrogen bonds and ionic interactions. Similar structures such as {Co(H2O)6}{C10H4O8} [10], {M(H2O)6}{C6H2(COO)2(COOH)2} with M=Mn, Co, and Ni [11] and [Mg(H2O)6](C10H4O8) [12] have been reported.

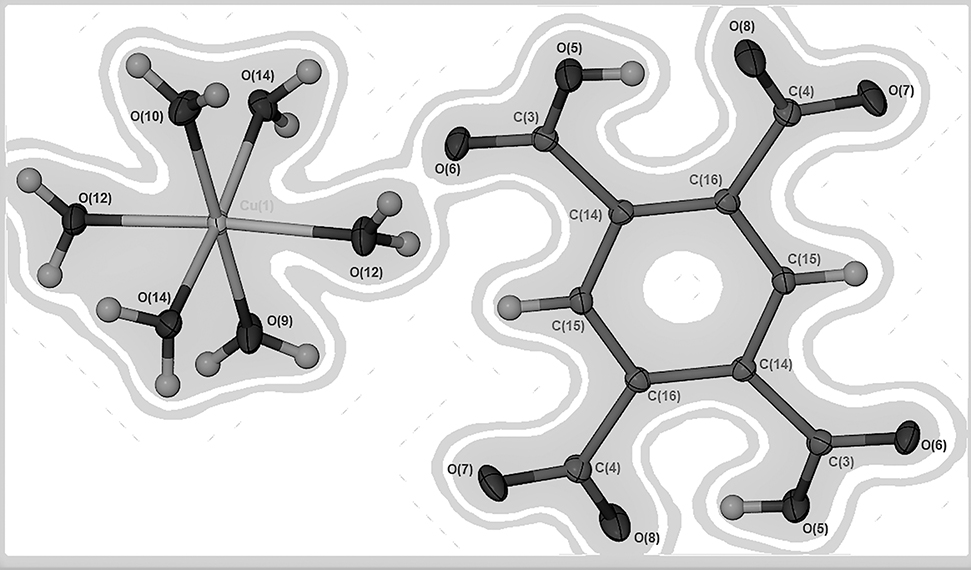

The Cu2+ in the dication is surrounded by six water ligands exhibiting an octahedral geometry. The position occupied by the Cu2+ is on a twofold axis, with a pair of O atoms on the twofold axis while the other four O atoms are related to in pairs by this same axis. The Cu–O distances are in the range 2.044(14)–2.124(9) Å and the O–Cu–O angles are between 86.17(2)° and 179(3)°. The (H2B4C)2– anion is located around a center of symmetry. The benzene ring internal angles are 117.90(11)° and 118.28(11)° for the substituted C atoms and 123.82(11)° for the unsubstituted. The exterior angles are 127.42(10)° and 114.83(10)°.

Corresponding author: Bukunola K. Oguntade, Department of Chemistry, Rhodes University, Grahamstown, 6139, South Africa, E-mail:

Funding source: Rhodes University Research Council

Funding source: Federal Government

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This research project was funded by the Rhodes University Research Council and Federal Government of Nigeria through TET fund.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT (Version 7.68A); Bruker–AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Bruker. APEXII (2011.4–1) and SADABS (Version 2008/1); Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

3. Sheldrick, G. M. SHELXT - Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.10.1107/S2053273314026370Search in Google Scholar

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.10.1107/S2053229614024218Search in Google Scholar

5. Spek, A. L. PLATON, molecular geometry program. J. Appl. Crystallogr. 2003, 36, 7–13; https://doi.org/10.1107/s0021889802022112.10.1107/S0021889802022112Search in Google Scholar

6. Macrae, C. F., Bruno, I. J., Chisholm, J. A., Edgington, P. R., McCabe, P., Pidcock, E., Rodriguez–Monge, L., Taylor, R., van de Streek, J., Wood, P. A. New features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470; https://doi.org/10.1107/s0021889807067908.10.1107/S0021889807067908Search in Google Scholar

7. Barbour, L. J. X–Seed - A software tool for supramolecular crystallogr. J. Supramol. Chem. 2001, 1, 189–191; https://doi.org/10.1016/s1472-7862(02)00030-8.10.1016/S1472-7862(02)00030-8Search in Google Scholar

8. Clegg, W., Holcroft, J. M., Martin, N. C. Copper pyromellitates: a complex story. CrystEngComm 2015, 17, 285–2871; https://doi.org/10.1039/c5ce00470e.10.1039/C5CE00470ESearch in Google Scholar

9. Diniz, R., Abreu, H. A. de, Almeida, W. B. de, Sansiviero, M. T., Fernandes, N. G. X-ray crystal structure of triaquacopper(II) dihydrogen 1,2,4,5-benzenetetracarboxylate trihydrate and raman spectra of Cu2+, Co2+, and Fe2+ salts of 1,2,4,5-benzenetetracarboxylic (pyromellitic) acid. Eur. J. Inorg. Chem. 2002, 2002, 1115–1123; https://doi.org/10.1002/1099-0682(200205)2002:5<1115::aid-ejic1115>3.0.co;2-g.10.1002/1099-0682(200205)2002:5<1115::AID-EJIC1115>3.0.CO;2-GSearch in Google Scholar

10. Ward, D. L., Luehrs, D. C. Hexaaquacobalt(II) dihydrogen 1,2,4,5-benzenetetracarboxylate, [Co(H2O)6][C10H4O8]. Acta Crystallogr. 1983, C39, 1370–1372; https://doi.org/10.1107/s0108270183008550.10.1107/S0108270183008550Search in Google Scholar

11. Rochon, F. D., Massarweh, G. Study of the aqueous reactions of metallic ions with benzenetetracarboxylate ions: part 1. crystal structures of compounds of the types [M(H2O)6][C6H2(COO)2(COOH)2] (M=Mn, Co and Ni) and Ni(H2O)5(µ-C6H2(COO)4)Ni(H2O)5·6H2O. Inorg. Chim. Acta 2000, 304, 190–198; https://doi.org/10.1016/s0020-1693(00)00086-4.10.1016/S0020-1693(00)00086-4Search in Google Scholar

12. Dale, S. H., Elsegood, M. R. J., Kainth, S. Group 2 metal salts of pyromellitic acid: [Mg(H2O)6](C10H4O8) and [Ba(C10H4O8)(H2O)5]. Acta Crystallogr. 2003, C59, m505–m508; https://doi.org/10.1107/s0108270103023175.10.1107/S0108270103023175Search in Google Scholar
