The crystal structure of bi-1,1′-cyclopentane-1,1′-diol, C10H18O2

  • Eric C. Hosten ORCID logo and Richard Betz ORCID logo EMAIL logo
Published/Copyright: November 16, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C10H18O2, monoclinic, C2/c (no. 15), a = 10.0025(5) Å, b = 18.8285(9) Å, c = 11.2384(6) Å, β = 115.327(2)°, V = 1913.11(17) Å3, Z = 8, Rgt(F) = 0.0596, wRref(F2) = 0.1606, T = 200 K.

CCDC no.: 2041285

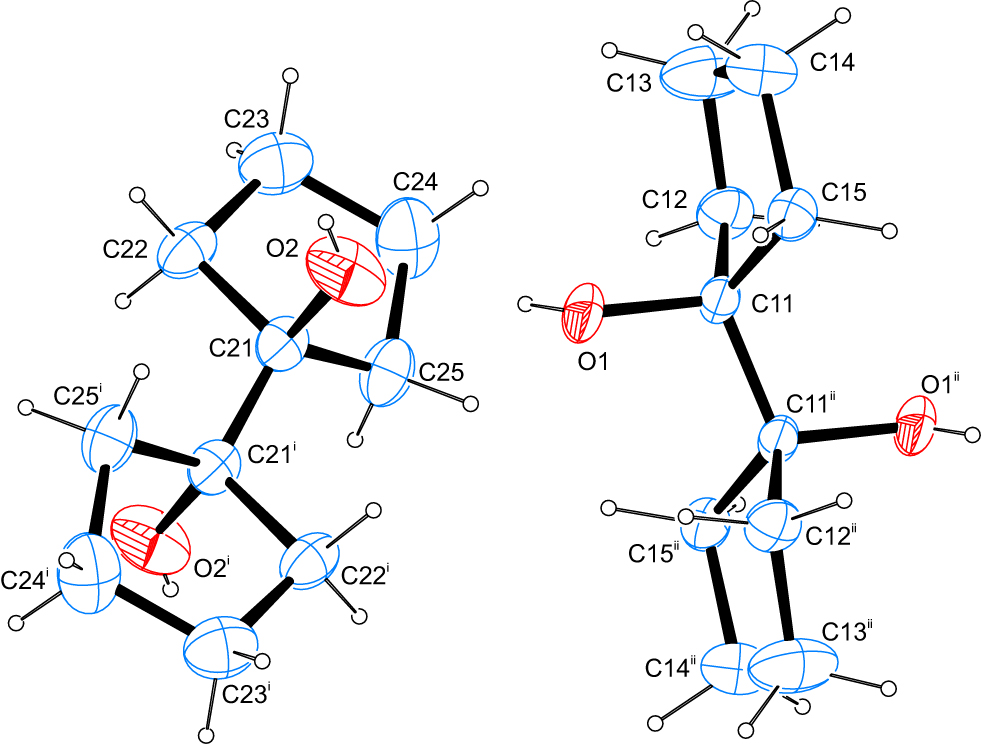

The asymmetric unit of the title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow blocks
Size:0.59 × 0.49 × 0.41 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.08 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:23032, 2394, 0.035
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2138
N(param)refined:113
Programs:Bruker [1], [, 2], SHELX [3], WinGX/ORTEP [4], Mercury [5], PLATON [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.46914 (13)0.55853 (7)0.61658 (13)0.0381 (3)
H1Aa0.5121030.5576680.6991990.046 (12)*
H1Ba0.4581210.5987320.6067090.047 (13)*
O20.41901 (16)0.70573 (8)0.61734 (16)0.0508 (4)
H2Aa0.3954960.6638100.5911270.053 (14)*
H2Ba0.4526270.7085970.6817740.041 (14)*
C110.55449 (15)0.51900 (7)0.56298 (14)0.0228 (3)
C120.66149 (18)0.56954 (8)0.54064 (16)0.0310 (3)
H12A0.7010440.5478220.4820520.037*
H12B0.6121990.6148900.5015220.037*
C130.7838 (2)0.58112 (12)0.6783 (2)0.0569 (6)
H13A0.8793060.5899350.6741390.068*
H13B0.7606280.6224960.7205040.068*
C140.7923 (2)0.51402 (11)0.75559 (19)0.0420 (4)
H14A0.7891340.5256960.8402430.050*
H14B0.8852570.4881180.7742050.050*
C150.65807 (17)0.46869 (8)0.66974 (15)0.0283 (3)
H15A0.6885370.4286010.6298620.034*
H15B0.6087220.4494340.7226620.034*
C210.33227 (18)0.75472 (8)0.51522 (15)0.0289 (3)
C220.3910 (2)0.82982 (8)0.55963 (17)0.0352 (4)
H22A0.4123780.8371270.6533020.042*
H22B0.3179990.8658130.5057950.042*
C230.5330 (2)0.83506 (12)0.5397 (2)0.0498 (5)
H23A0.5397950.8820850.5033150.060*
H23B0.6209920.8284320.6244570.060*
C240.5238 (3)0.77594 (11)0.4429 (2)0.0520 (5)
H24A0.5360370.7956800.3665240.062*
H24B0.6018510.7399940.4864020.062*
C250.3702 (2)0.74274 (9)0.39870 (18)0.0382 (4)
H25A0.2973540.7664320.3185320.046*
H25B0.3724740.6914170.3804870.046*

  1. a Occupancy: 0.5.

Source of material

The compound was synthesized upon pinacolic coupling of cyclopentanedione according to standard procedures [7]. Crystals were obtained upon free evaporation of the extracted solution of the final product.

Experimental details

Carbon-bound H atoms were placed in calculated positions (C–H 0.99 Å) and were included in the refinement in the riding model approximation, with U(H) set to 1.2Ueq(C).

All oxygen-bound H atoms were located on a difference Fourier map and refined freely. Due to their orientational disorder over two positions their site occupancy factors were set to 0.5.

Comment

Chelate ligands have found widespread use in coordination chemistry due to the increased stability of coordination compounds they can form in comparison to monodentate ligands. The stability of these compounds is enhanced further if the denticity of the ligand is increased upon incorporation of more and more potential donor sites [8]. One major factor influencing on the chelation ability of a ligand with vicinal donor sites is the interplay of the spatial pretense on the immediate backbone of the ligand next to the donor sites as well as the size and preferred coordination number and polyhedron of the central atom. A remarkable example in this context is the situation encountered for spirocyclic phenylarsoranes where the change from pinacol as chelator [9] to perfluoropinacol resulted in a completely changed coordination pattern in the resultant product [10]. In order to understand the rules behind these – sometimes drastic – changes it is advisable to explore the metrical parameters apparent for ligands to be applied in such studies. In continuation of our interest in the structures of diols [11], [12], [13], [14], [15], [16] the molecular and crystal structure of the title compound were determined.

The structure solutions shows the presence of two cyclopentane rings joined via a single bond. Both bridging carbon atoms bear a hydroxyl group. The asymmetric unit consists of two half molecules. Each molecule is located around an inversion center. The C–C bond between the two central carbon atoms in each molecule was measured at 1.541(3) Å and 1.544(3) Å which is in good agreement with other compounds featuring two connected cycloalkyl moieties [17]. A conformational analysis of the five-membered rings according to Cremer & Pople [18], [, 19] shows these to adopt a 1T2 (C11TC12) conformation in one molecule as well as a 1E (C21E) conformation in the second molecule.

In the crystal, classical hydrogen bonds of the O–H···O type are observed that appear in the form of cooperative cyclic D···A sets. In terms of graph-set analysis [20], [, 21], the descriptor for these contacts is R44(8) on the binary level. In total, the molecules are connected to a three-dimensional network in the crystal.

Corresponding author: Richard Betz, Department of Chemistry, Nelson Mandela University, Summerstrand Campus (South), University Way, Summerstrand, PO Box 77000, Port Elizabeth, 6031, South Africa, E-mail:

Funding source: National Science Foundation

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: National Research Foundation.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2; Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Bruker. SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Search in Google Scholar

3. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. Macrae, C. F., Bruno, I. J., Chisholm, J. A., Edgington, P. R., McCabe, P., Pidcock, E., Rodriguez–Monge, L., Taylor, R., van de Streek, J., Wood, P. A. Mercury CSD 2.0 – new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470; https://doi.org/10.1107/s0021889807067908.Search in Google Scholar

6. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155; https://doi.org/10.1107/s090744490804362x.Search in Google Scholar

7. Criegee, R., Vogel, E., Höger, H. Kohlenwasserstoffe mit intercyclischen Doppelbindungen. Chem. Ber. 1952, 85, 144–152; https://doi.org/10.1002/cber.19520850212.Search in Google Scholar

8. Gade, L. H. Koordinationschemie; Wiley VCH: Weinheim, 1998.10.1002/9783527663927Search in Google Scholar

9. Goldwhite, H., Teller, R. G. Structures of two spiroarsoranes and their dynamic implications. J. Am. Chem. Soc. 1978, 100, 5357–5362; https://doi.org/10.1021/ja00485a017.Search in Google Scholar

10. Betz, R., Klüfers, P. From simple diols to carbohydrate derivatives of phenylarsonic acid. Inorg. Chem. 2009, 48, 925–935; https://doi.org/10.1021/ic8014018.Search in Google Scholar

11. Betz, R., Klüfers, P. Bi-1,1′-cycloheptane-1,1′-diol. Acta Crystallogr. 2007, E63, o4752; https://doi.org/10.1107/s1600536807058345.Search in Google Scholar

12. Betz, R., Klüfers, P., Mayer, P. cis–Cycloheptane-1,2-diol. Acta Crystallogr. 2009, E65, o3271; https://doi.org/10.1107/s160053680905051x.Search in Google Scholar

13. Betz, R., Klüfers, P., Mayer, P. rac-trans–Cycloheptane-1,2-diol. Acta Crystallogr. 2007, E63, o4129. https://doi.org/10.1107/S1600536807045746.Search in Google Scholar

14. Betz, R., Herdlicka, S., Klüfers, P. 1,2–Dicyclopentylethane-1,2-diol. Acta Crystallogr. 2007, E63, o3986; https://doi.org/10.1107/s1600536807042961.Search in Google Scholar

15. Kerscher, T., Betz, R., Klüfers, P., Mayer, P. (1S*,2S*)-1,2–Di-tert-butylglycol. Acta Crystallogr. 2009, E65, o211; https://doi.org/10.1107/s1600536808043560.Search in Google Scholar

16. Betz, R., Klüfers, P., Mayer, P. (Cyclopentane-1,1-diyl)dimethanol. Acta Crystallogr. 2009, E65, o479; https://doi.org/10.1107/s1600536809001330.Search in Google Scholar

17. Allen, F. H. The Cambridge Structural Database: a quarter of a million crystal structures and rising. Acta Crystallogr. 2002, B58, 380–388; https://doi.org/10.1107/s0108768102003890.Search in Google Scholar

18. Cremer, D., Pople, J. A. General definition of ring puckering coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358; https://doi.org/10.1021/ja00839a011.Search in Google Scholar

19. Siri, D., Gaudel–Siri, A., Tordo, P. Conformational analysis of five-membered rings by molecular mechanics: application to nitroxides. J. Mol. Struct.: Theochem 2002, 582, 171–185; https://doi.org/10.1016/s0166-1280(01)00773-4.Search in Google Scholar

20. Bernstein, J., Davis, R. E., Shimoni, L., Chang, N.–L. Patterns in hydrogen bonding: functionality and graph set analysis in crystals. Angew Chem. Int. Ed. Engl. 1995, 34, 1555–1573; https://doi.org/10.1002/anie.199515551.Search in Google Scholar

21. Etter, M. C., MacDonald, J. C., Bernstein, J. Graph-set analysis of hydrogen-bond patterns in organic crystals. Acta Crystallogr. 1990, B46, 256–262; https://doi.org/10.1107/s0108768189012929.Search in Google Scholar

Received: 2020-10-03
Accepted: 2020-10-29
Published Online: 2020-11-16
Published in Print: 2021-01-26

© 2020 Eric C. Hosten and Richard Betz, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
