A new polymorph of tetrakis(dimethylammonium) catena-poly[tetrakis(μ2-sulfato-κ2O:O′)dizinc(II)], Zn2C8H32N4O16S4

  • Gaoxiang Meng EMAIL logo , Zhou Li and Yongming Yang
Published/Copyright: November 4, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

Zn2C8H32N4O16S4, triclinic, P1‾ (no. 2), a = 9.0313(9) Å, b = 9.6075(14) Å, c = 15.3044(15) Å, α = 89.933(2)°, β = 78.579(1)°, γ = 68.878(1)°, V = 1210.6(2) Å3, Z = 2, Rgt(F) = 0.0323, wRref(F2) = 0.1043, T = 100(2) K.

CCDC no: 2022017

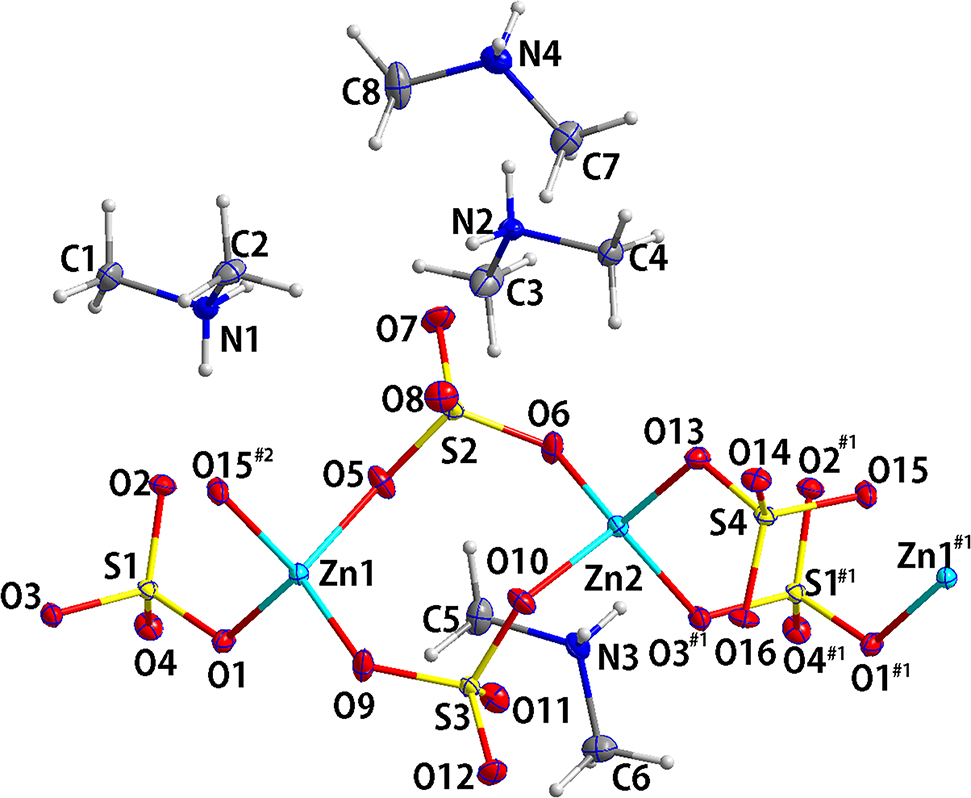

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.20 × 0.08 × 0.06 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.41 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:32.2°, 99%
N(hkl)measured, N(hkl)unique, Rint:13782, 7660, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6626
N(param)refined:339
Programs:Bruker [1], SHELX [2], [3], Diamond [4], Olex2 [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.77707 (3)0.22177 (2)0.26211 (2)0.00958 (6)
Zn20.26927 (3)0.28270 (2)0.23727 (2)0.00957 (6)
S10.96162 (6)0.31733 (5)0.38046 (3)0.00880 (9)
S20.46388 (6)0.47842 (5)0.22888 (3)0.01034 (9)
S30.57211 (6)0.03252 (5)0.26918 (3)0.00973 (9)
S40.09154 (6)0.18167 (5)0.12167 (3)0.00919 (9)
O10.88008 (18)0.21093 (16)0.36486 (9)0.0123 (3)
O20.90468 (18)0.44968 (16)0.33146 (9)0.0137 (3)
O31.14135 (17)0.23509 (16)0.34579 (9)0.0116 (3)
O40.93404 (18)0.35267 (16)0.47632 (9)0.0136 (3)
O50.58752 (18)0.40675 (17)0.28378 (10)0.0172 (3)
O60.30936 (18)0.45844 (17)0.27339 (10)0.0156 (3)
O70.4363 (2)0.63724 (17)0.23000 (11)0.0193 (3)
O80.5180 (2)0.40590 (17)0.13866 (10)0.0179 (3)
O90.73833 (18)0.03969 (16)0.24105 (11)0.0170 (3)
O100.47624 (18)0.11401 (17)0.20302 (9)0.0156 (3)
O110.49608 (19)0.10674 (17)0.35843 (10)0.0166 (3)
O120.58686 (19)−0.12316 (16)0.26399 (10)0.0168 (3)
O130.15541 (18)0.30117 (16)0.13965 (9)0.0126 (3)
O140.13229 (18)0.14370 (16)0.02524 (9)0.0131 (3)
O15−0.08988 (18)0.25040 (17)0.15091 (9)0.0141 (3)
O160.15670 (19)0.05409 (16)0.17241 (9)0.0142 (3)
N10.8129 (2)0.60289 (19)0.18058 (11)0.0131 (3)
H1A0.834 (3)0.5245 (19)0.2089 (16)0.016*
H1B0.724 (2)0.672 (2)0.2080 (16)0.016*
C10.9434 (3)0.6605 (2)0.18324 (15)0.0194 (4)
H1C1.04690.58950.14900.029*
H1D0.95190.67290.24540.029*
H1E0.91810.75740.15710.029*
C20.8016 (3)0.5700 (2)0.08817 (13)0.0180 (4)
H2A0.78830.65940.05500.027*
H2B0.70800.54040.08980.027*
H2C0.90110.48820.05860.027*
N20.2254 (2)0.89922 (19)0.32797 (11)0.0123 (3)
H2D0.310 (2)0.837 (2)0.2932 (15)0.015*
H2E0.208 (3)0.9809 (18)0.3018 (16)0.015*
C30.2471 (3)0.9055 (3)0.42067 (14)0.0232 (5)
H3A0.15060.98180.45740.035*
H3B0.34260.93100.42150.035*
H3C0.26270.80780.44470.035*
C40.0879 (3)0.8520 (2)0.32192 (14)0.0173 (4)
H4A0.11010.75100.34190.026*
H4B0.07500.85240.25980.026*
H4C−0.01210.92170.36000.026*
N30.2760 (2)0.3345 (2)0.48768 (11)0.0131 (3)
H3D0.186 (2)0.410 (2)0.4961 (18)0.016*
H3E0.286 (3)0.299 (3)0.4347 (9)0.016*
C50.4106 (3)0.3872 (3)0.48980 (15)0.0200 (4)
H5A0.39790.43050.55000.030*
H5B0.40840.46340.44690.030*
H5C0.51450.30270.47390.030*
C60.2677 (3)0.2217 (2)0.55241 (14)0.0195 (4)
H6A0.36570.13110.53610.029*
H6B0.17180.19690.55150.029*
H6C0.26020.26220.61260.029*
N40.3217 (2)0.8367 (2)−0.01619 (11)0.0158 (3)
H4D0.259 (3)0.9290 (14)−0.0149 (18)0.019*
H4E0.336 (4)0.806 (3)−0.0708 (9)0.019*
C70.2295 (3)0.7568 (3)0.03922 (14)0.0206 (4)
H7A0.20230.79600.10180.031*
H7B0.29570.64970.03420.031*
H7C0.12930.77160.01840.031*
C80.4745 (3)0.8199 (3)0.01206 (17)0.0265 (5)
H8A0.54330.71360.00770.040*
H8B0.44940.86140.07400.040*
H8C0.53190.8737−0.02680.040*

Source of material

Zn(NO3)2·6H2O (0.297 g, 1.0 mmol), 3-cyanopyridine (0.104 g, 1.0 mmol), sodium azide (0.066 g, 1.0 mmol) and deoxidized DMF (10.0 mL) were sealed in a 25.0 mL polytetrafluoroethylene reactor. The mixed solution was stirred at room temperature for 30 min and then placed in an oven at 120 °C for three days. After slow cooling to room temperature at a rate of 5 °C/min, we have unexpectedly obtained colorless block-shaped crystals of compound (I), which were very easily moisturized in air within several minutes.

Experimental details

Hydrogen atoms bonded to methyl carbon atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms with C–H = 0.98 Å and Uiso(H) = 1.5UeqC (methyl). Hydrogen atoms bonded to nitrogen atoms were initially found from the difference maps and refined with the restraint of N–H = 0.86(1) Å by using the command DFIX and their thermal factors being set 1.2 times of the parent atoms.

Comment

In recent years, the design and synthesis of ion-conductive crystalline materials has become increasingly more important [6], among which ammonium-related organic cationic compounds were seldom observed because of their large volumes and shape anisotropies. The study of the characteristics of these compounds, such as their macroscopical crystallization conditions, microscopical molecular and/or atomic arrangements is a meaningful research avenue. As part of our continuing studies on metal-tetrazole compounds [7], we have unexpectedly obtained a new polymer compound as a potential ion-conductive material, {[Zn2(SO4)4]·(C2H8N)4}n, namely catena-[tetrakis(dimethylammonium) tetrakis(μ2-sulfato)-di-zinc(II)], (I). Compound (I) is a new polymorph of an early reported compound (CSD Recode: USAKOQ). Herein, the crystal structure of (I) was reported in this paper.

The title compound crystallizes in the triclinic P1‾ space group. Its asymmetric unit is composed of two Zn(II) cations, four sulfate anions and four dimethyl ammonium cations. All the component ions are crystallographically independent. The two Zn(II) cations are bridged by two sulfate anions and the other two sulfate anions similarly link the two metal centers with the adjacent symmetry-related Zn(II) ions (c.f. the Figure). All the four sulfate groups in (I) are in the μ2-bridging mode, resulting in the basic [–(SO4)–Zn(SO4)2Zn–(SO4)–]4− unit. Both Zn(II) cations are tetra-coordinated by four oxygen atoms from four different sulfate anions with the Zn⋯O bond lengths ranging from 1.9426(15) to 1.9802(14) Å; the bond lengths in USAKOQ span from 1.953(2) to 1.962(2) Å. USAKOQ was crystallized in the monoclinic C2/m space group with only half of the component ions of (I) in its asymmetric unit. Their Zn⋯Zn distances separated by two sulfate groups in both polymorphs are also distinctively different from each other, 4.503(2)/4.632(2) Å in (I) and 4.513(2)/4.702(2) Å in USAKOQ [6]. The formation of polymorph (I) may be mainly ascribed to the crystallization condition such as the temperature [120 °C for (I) and 70 °C for USAKOQ].

In the crystal packing, Zn(II) cations are tetrahedrally coordinated by four different sulfate oxygen atoms in the μ2-bridging modes, forming a one-dimensional coordination polymer along the [100] axis. Adjacent [100] chain polymers are linked by extensive N–H⋯O hydrogen bonds, resulting the in final three-dimensional network.

Corresponding author: Gaoxiang Meng, School of Advanced Materials and Mechatronic Engineering, Hubei Minzu University, Enshi, 445000, Hubei, PR China, e-mail:

Funding source: Hubei Provincial Department of Education

Award Identifier / Grant number: B2019087

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by Hubei Provincial Department of Education (No. B2019087).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SMART SAINT and SADABS; Bruker AXS Inc.: WI, USA, 2003.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Sheldrick, G. M. Crystal refinement with SHELX. Acta Crystallogr. 2015, C71, 3–8.10.1107/S2053229614024218Search in Google Scholar

4. Brandenburg, K. DIAMOND; Crystal Impact GbR: Bonn Germany, 2006.Search in Google Scholar

5. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

6. Ogiwara, N., Inukai, M., Itakura, T., Horike, S., Kitagawa, S. Fast conduction of organic cations in metal sulfate frameworks. Chem. Mater. 2016, 28, 3968–3975; https://doi.org/10.1021/acs.chemmater.6b01284.Search in Google Scholar

7. Meng, G.-X., Li, Q., Yang, Y.-M. Crystal structure of poly[triaqua-(μ4-benzene-1,3,5-tricarboxylato-k5O1,O2:O3:O4:O5)-(μ2-5-(3-pyridyl)tetrazolato-k5N1:N3)dizinc(II)], C15H13N5O9Zn2. Z. Kristallogr. NCS 2019, 234, 809–811; https://doi.org/10.1515/ncrs-2019-0124.Search in Google Scholar

Received: 2020-08-11
Accepted: 2020-10-12
Published Online: 2020-11-04
Published in Print: 2021-01-26

© 2020 Gaoxiang Meng et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
