Crystal structure of poly[diaqua-(m3-3′,5′-dicarboxy-[1,1′-biphenyl]-3,4-dicarboxylato-K4O,O′:O″:O‴) cadmium(II)], C16H11O10Cd

  • Jie Luo EMAIL logo , Guang-Na Gu and Ying-Li Zheng
Published/Copyright: October 15, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C16H11O10Cd, monoclinic, C2/c (no. 15), a = 26.026(3) Å, b = 6.3807(6) Å, c = 19.738(5) Å, α = 90, β = 98.162(16), γ = 90, V = 3244.5(10) Å3, Z = 8, Rgt(F) = 0.0359, wRref(F2) = 0.0702, T = 293(2) K.

CCDC no.: 2032713

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.45 x 0.35 x 0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.40 mm-1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:25.5°, >99 %
N(hkl)measured, N(hkl)unique, Rint:9282, 3010, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2521
N(param)refined:247
Programs:CrysAlisPRO[1], SHELX [2,3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2)

AtomxyzUiso*/Ueq
Cd10.71693 (2)0.28960 (4)0.41166 (2)0.02573 (11)
O10.74533 (14)0.4337 (7)0.31824 (16)0.0827 (14)
H110.7426730.3443020.2852340.124*
H120.7781990.4563980.3272420.124*
O20.75421 (12)−0.0259 (4)0.39677 (13)0.0400 (8)
H210.730647−0.1200670.3854140.060*
H220.770153−0.0703140.4355150.060*
O30.69635 (11)0.6598 (4)0.47673 (14)0.0364 (7)
O40.64513 (12)0.4898 (4)0.39848 (14)0.0416 (8)
O50.38858 (11)0.3694 (4)0.39040 (13)0.0361 (7)
H50.3702250.2669980.3945130.054*
O60.32767 (11)0.4328 (4)0.30154 (13)0.0382 (8)
O70.34180 (11)1.1026 (4)0.17462 (13)0.0351 (7)
O80.41226 (12)1.3050 (4)0.20173 (14)0.0334 (7)
H80.397 (2)1.386 (8)0.174 (3)0.077 (19)*
O90.67154 (11)0.9397 (4)0.59051 (12)0.0299 (7)
O100.70490 (10)1.1428 (4)0.51627 (12)0.0224 (6)
C10.61267 (14)0.8043 (5)0.44149 (17)0.0191 (8)
C20.56459 (15)0.7792 (6)0.40077 (17)0.0236 (9)
H2A0.5584600.6578990.3747370.028*
C30.52559 (15)0.9292 (5)0.39780 (17)0.0211 (9)
C40.53595 (15)1.1127 (6)0.43528 (18)0.0257 (9)
H40.5110991.2182630.4324150.031*
C50.58311 (15)1.1392 (6)0.47691 (18)0.0240 (9)
H5A0.5890891.2613000.5025280.029*
C60.62161 (14)0.9869 (5)0.48111 (16)0.0178 (8)
C70.47467 (14)0.8905 (6)0.35460 (17)0.0213 (8)
C80.44744 (15)0.7072 (6)0.36300 (17)0.0233 (9)
H8A0.4614450.6092210.3953260.028*
C90.39956 (15)0.6676 (5)0.32390 (17)0.0215 (9)
C100.37941 (15)0.8097 (5)0.27365 (17)0.0237 (9)
H10A0.3478390.7825620.2466500.028*
C110.40640 (15)0.9915 (5)0.26384 (17)0.0208 (8)
C120.45358 (15)1.0346 (6)0.30515 (17)0.0219 (9)
H12A0.4708811.1596070.2996060.026*
C130.65441 (15)0.6435 (5)0.43950 (17)0.0212 (9)
C140.36838 (16)0.4795 (6)0.33680 (18)0.0253 (9)
C150.38340 (16)1.1384 (6)0.20916 (18)0.0247 (9)
C160.67032 (15)1.0219 (5)0.53241 (17)0.0198 (9)

Source of material

A mixture of Cd(NO3)2⋅2H2O (0.1 mmol, 0.0272 g), and 3,3′,4,5′-biphenyl tetracarboxylic acid (H4btc) (0.1 mmol, 0.0330 g), was dissolved in 10 mL H2O. Then the solution was heated in a 25 mL Teflon-lined autoclave under autogenous pressure at 443 K for 4 days. After cooling to room temperature, crystals were collected.

Experimental details

Coordinates of hydrogen atoms were positioned based on the molecular restrictions. Their Uiso values were set to 1.2 Ueq of the parent atoms.

Comment

In the last two decades, a large number of metal-organic frameworks (MOFs) have been reported. Organic aromatic multicarboxylates like the biphenyl-tetracates can yield predetermined networks and have been widely utilized to construct MOFs []. On the other hand, 3,3′,4,5′-biphenyl tetracarboxylic acid serves as bridging ligand [9], [10].

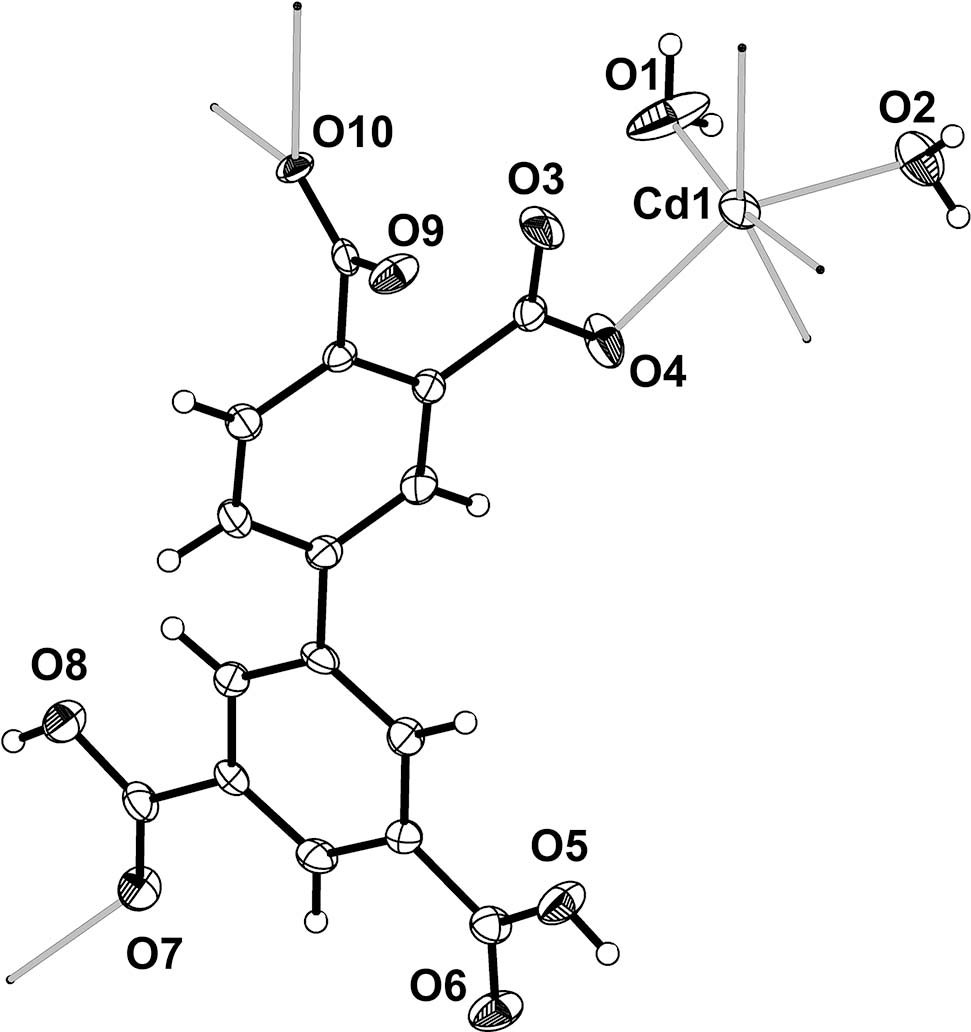

In the title complex, there are one Cd(II), two water molecules and one H2btc ligand in the asymmetric unit. The cadmium atom is six-coordinated by two water ligands, and four oxygen atoms from four H2btc ligands. The Cd–O bond lengths are all in the expected ranges.

Corresponding author: Jie Luo, School of Chemical Engineering and Pharmaceutics, Henan University of Science and Technology, Luoyang471023, PR China, E-mail:

Funding source: Key Scientific Research Project for Universities of Henan Province

Award Identifier / Grant number: 20A430012

Funding source: PhD research startup foundation of Henan University of Science and Technology

Award Identifier / Grant number: 13480070

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Funding information: The authors thank the Key Scientific Research Project for Universities of Henan Province (No. 20A430012) and PhD research startup foundation of Henan University of Science and Technology (No. 13480070) for financial support.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlisPRO Software System, (Version 1.171.35.15); Agilent Technologies UK Ltd: Oxford, UK, 2011.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Li, S. H., Zang, J., Guo, J. B. Synthesis and crystal structure of a new three-dimensional Ho(II) coordination polymer based on 5′-(4-carboxyphenyl)-[1,1′ :3′,1′′-terphenyl]-4,4′′-dicarboxylic acid. Inorg. Nano–Met. Chem. 2017, 12, 1746–1749. https://doi.org/10.1080/24701556.2017.1357627.Search in Google Scholar

5. Yao, L. P., Zhao, Y. Crystal structure of poly[diaqua-μ5-4-(3,5-dicarboxylato k3O1:O2:O2-phenoxy)phthalato-κ3O5,O7:O8(μ2-4-(1H-pyrazol-5-yl)pyridine-κ2N:N′)dicobalt(II)]. Z. Kristallogr. NCS 2016, 231, 17–19; https://doi.org/10.1515/ncrs-2014-9051.Search in Google Scholar

6. Li, S. H., Zhao, Y. Synthesis and crystal structure of a new three-dimensional Co(II) coordination polymer based on 3,3′ ,4,5′-biphenyl tetracarboxylic acid and 4,4′-bipyridine. Inorg. Nano-Met. Chem. 2017, 47, 256–259. https://doi.org/10.1080/15533174.2016.1186044.Search in Google Scholar

7. Song, W., Xu, X. L., Yang, Y. J., Li, S. H. Crystal structure of catena-poly[(μ3-5-carboxy-2-(pyridin-4-yl)benzoato-κ5O,O′ :O′ ′ ,O′′′ :O′′′) (1,10-phenanthroline-κ2N,N′)cadmium(II)]. Z. Kristallogr. NCS 2018, 233, 755–756. https://doi.org/10.1515/ncrs-2017-0299.Search in Google Scholar

8. Li, S. H., Han, M. L., Liu, G. Z., Ma, L. F., Wang, L. Y. Guest-induced single-crystal-to-single-crystal transformations of a new 4-connected 3D cadmium(II) metal-organic framework. RSC Adv. 2015, 5, 17588–17591; https://doi.org/10.1039/c5ra00621j.Search in Google Scholar

9. Yao, L. P., Zhao, Y. Crystal structure of 4,4′-bipyridin-1-ium 3,3′ ,5′-tricarboxy-[1,10-biphenyl]-2-carboxylate. Z. Kristallogr. NCS 2018, 233, 51–53. https://doi.org/10.1515/ncrs-2015-0065.Search in Google Scholar

10. Song, W., Li, S. H., Xu, X. L. Crystal structure of 4-(4′-(pyridin-4-yl)-[1,1′-biphenyl]-4-yl)pyridin-1-ium catena-poly[{5-carboxy-4′-methyl-[1,1′-biphenyl]-3-carboxylato-κ2O,O′}-(κ2-4′-methyl-[1,1′-biphenyl]-3,5-dicarboxylato-κ4O,O′:O′′,O′′′)lead(II)]. Z. Kristallogr. NCS 2018, 233, 51–53; https://doi.org/10.1515/ncrs-2017-0131.Search in Google Scholar
