Crystal structure of 1,4-bis(methylpyridinium benzene) bis(1,2-dicyanoethene-1,2-dithiolato-κ2S:S)nickel(II), C26H18N6NiS4

  • Wei-Hong Yan EMAIL logo and Hui-Yan Pan
Published/Copyright: October 9, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C26H18N6NiS4, triclinic, P1¯ (no. 2), a = 8.2947(4) Å, b = 8.9964(5) Å, c = 9.4210(5) Å, α = 70.988(1)°, β = 79.971(1)°, γ = 82.567(1)°, V = 652.52(6) Å3, Z = 1, Rgt(F) = 0.0340, wRref(F2) = 0.0643, T = 296(2) K.

CCDC no.: 2017894

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.18 × 0.16 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.09 mm−1
Diffractometer, scan mode:Bruker CCD APEX II,
θmax, completeness:25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:3709, 2285, 0.046
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1795
N(param)refined:169
Programs:SHELX [1], Bruker [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
NI11.0000000.0000000.0000000.03773 (15)
N10.9928 (3)0.3464 (3)0.3896 (3)0.0630 (7)
N20.6817 (3)−0.0201 (3)0.5746 (3)0.0620 (7)
N30.3109 (3)0.6872 (3)0.1478 (2)0.0428 (6)
S11.08528 (9)0.16969 (9)0.08286 (7)0.0507 (2)
S20.84212 (10)−0.09661 (8)0.21113 (7)0.0485 (2)
C10.9665 (3)0.1409 (3)0.2596 (3)0.0419 (7)
C20.9798 (3)0.2525 (4)0.3359 (3)0.0463 (7)
C30.8622 (3)0.0266 (3)0.3145 (3)0.0399 (7)
C40.7618 (3)0.0017 (3)0.4591 (3)0.0439 (7)
C50.2385 (4)0.5943 (4)0.0995 (3)0.0579 (8)
H50.1576490.5329010.1650140.070*
C60.2801 (5)0.5863 (4)−0.0459 (4)0.0724 (10)
H60.2297560.518930−0.0782640.087*
C70.3958 (5)0.6787 (5)−0.1409 (4)0.0778 (12)
H70.4249050.676181−0.2400250.093*
C80.4695 (4)0.7751 (5)−0.0907 (3)0.0775 (12)
H80.5488280.838877−0.1555040.093*
C90.4265 (4)0.7777 (4)0.0541 (3)0.0617 (9)
H90.4775930.8427250.0887580.074*
C100.2645 (4)0.6918 (4)0.3075 (3)0.0541 (8)
H10A0.1564060.6536630.3471800.065*
H10B0.2593750.7999670.3080790.065*
C110.3863 (3)0.5925 (3)0.4078 (3)0.0409 (7)
C120.3662 (4)0.4350 (3)0.4834 (3)0.0525 (8)
H120.2754540.3900740.4737940.063*
C130.5202 (4)0.6561 (3)0.4270 (3)0.0516 (8)
H130.5342070.7625400.3785510.062*

Source of material

All reagents and chemicals were purchased from commercial sources and used without further purification. The starting materials disodium maleonitriledithiolate and 1,4-bis(methylpyridinium benzene bromide) were synthesized following the literature procedures [3], [4]. An aqueous solution (10 mL) of 1,4-bis(methylpyridinium benzene bromide (0.0842 g, 0.2 mmol) was added slowly to an aqueous solution (15 mL) of disodium maleonitriledithiolate (0.0741 g, 0.4 mmol) and NiCl2·6H2O (0.0476 g, 0.2 mmol), and the mixture was stirred at room temperature for several minutes. A red precipitate was filtered off, washed by water and dried under vacuum. The precipitate was dissolved in DMF with ether diffusion. Two weeks later red crystals were obtained.

Experimental details

Absorption corrections were applied by using multi-scan program. Hydrogen atoms were located in difference electron density maps, and treated as riding atoms. The Uiso values of the hydrogen atoms were set to 1.2 Ueq(C).

Comment

The maleonitriledithiolate (mnt) ligand has been extensively studied in the past decades [5], [6], [7], [8], [9], [10]. Considerable interests have been focused on maleonitriledithiolate complexes because of their special structures and diversity in physical and chemical properties. The ligand possesses planar conjugate structures and high delocalization, and it shows various weak interactions. Herein, we choose 1,4-bis(methylpyridinium benzene) as organic divalent cation [1,4-BMPB]2+, to generate the new nickel(II) complex.

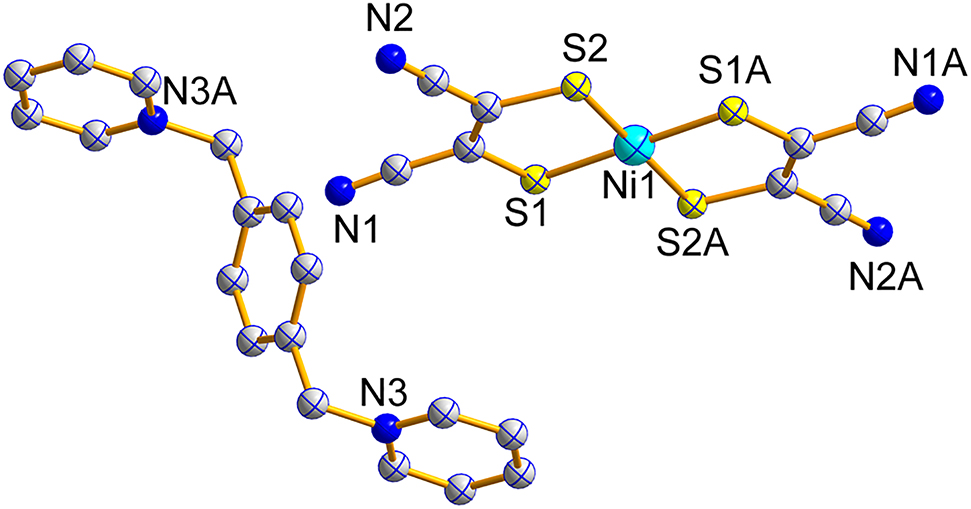

The title complex crystallizes in the triclinic space group P1¯, with one half of [Ni(mnt)2]2− dianion and one half of 1,4-bis(methylpyridinium benzene) dication in the asymmetric unit (see the Figure). Each Ni(II) ion is coordinated by four sulfur atoms, and exhibits quasi-square planar coordination geometry. The Ni1–S bond lengths and S–Ni1–S bond angles are in 2.1651(6)–2.1652(7) Å and 87.51(3)-180.0°, respectively, which are comparable to these reported for another [Ni(mnt)2]2− complex [11]. The anions and cations are forming segregated columns. The C–H···N and C–H···π interactions are observed between anions and cations [12]. The weak intermolecular interactions lead to a 3D supramolecular structure.

Corresponding author: Wei-Hong Yan, School of Biology and Chemical Engineering, Nanyang Institute of Technology, Nanyang, 473004, China, E-mail:

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21776063

Award Identifier / Grant number: U1704127

Funding source: Scientific and Technological Research Projects of Henan Province

Award Identifier / Grant number: 182102311077

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: We gratefully acknowledge the financial support by the Scientific and Technological Research Projects of Henan Province (182102311077), the National Natural Science Foundation of China (21776063, U1704127).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

2. Bruker. SMART APEX–II CCD; Bruker AXS Inc.: Madison, WI, USA, 2006.Search in Google Scholar

3. Simmons, H. E., Blomstrom, D. C., Vest, R. D. Thiacyanocarbons. II. Chemistry of disodium dimercaptomaleonitrile. J. Am. Chem. Soc. 1962, 84, 4756–4771; https://doi.org/10.1021/ja00883a029.Search in Google Scholar

4. Musilek, K., Komloova, M., Zavadova, V., Holas, O., Hrabinova, M., Pohanka, M., Dohnal, V., Nachon, F., Dolezal, M., Kuca, K., Jung, Y. S. Preparation and in vitro screening of symmetrical bispyridinium cholinesterase inhibitors bearing different connecting linkage-initial study for Myasthenia gravis implications. Bioorg. Med. Chem. Lett. 2010, 20, 1763–1766; https://doi.org/10.1016/j.bmcl.2010.01.034.Search in Google Scholar

5. Coomber, A. T., Beljonne, D., Friend, R. H., Brédas, J. L., Charlton, A., Robertson, N., Underbill, A. E., Kurmoo, M., Day, P. Intermolecular interactions in the molecular ferromagnetic NH4Ni(mnt)2·H2O. Nature 1996, 380, 144–146; https://doi.org/10.1038/380144a0.Search in Google Scholar

6. Robertson, N., Cronin, L. Metal bis-1,2-dithiolene complexes in conducting or magnetic crystalline assemblies. Coord. Chem. Rev. 2002, 227, 93–127; https://doi.org/10.1016/s0010-8545(01)00457-x.Search in Google Scholar

7. Duan, H. B., Ren, X. M., Meng, Q. J. One-dimensional (1D) [Ni(mnt)2]− based spin–Peierls-like complexes: structural, magnetic and transition properties. Coord. Chem. Rev. 2010, 254, 1509–1522; https://doi.org/10.1016/j.ccr.2009.12.021.Search in Google Scholar

8. Wang, P. Crystal structure of Mn(II)(H2O)(2,13-dimethyl-3,6,9,12,18-pentaazabicyclo[12.3.1]octadeca-1(18),2,12,14,16-pentaene)-bis-(maleonitriledithiolate)nickel(II), C23H25MnN9NiOS4. Z. Kristallogr. NCS 2012, 227, 511–512; https://doi.org/10.1524/ncrs.2012.0244.Search in Google Scholar

9. Yan, W. H., Ji, E. Y., Shen, M. L., Li, Z. Y., Li, X., Xu, X. L. Two ion-pair complexes constructed by [M(mnt)2]n− (M = Ni, Co, mnt = maleonitriledithiolate): syntheses, characterization and thermal stability. Chin. J. Struct. Chem. 2015, 34, 306–312; https://doi.org/10.14102/j.cnki.0254-5861.2011-2011-0507.Search in Google Scholar

10. Xie, Q. Y., Wang, C. L., Zhan, S. Z., Wei, X. L. The effect of oxidation state of metal on electrochemical and photochemical driven hydrogen evolution catalyzed by nickel complexes of maleonitriledithiolate ligands. Inorg. Nano-Met. Chem. 2020, 50, 521–528; https://doi.org/10.1080/24701556.2020.1720729.Search in Google Scholar

11. Ni, C. L., Zhou, J. R., Tian, Z. F., Ni, Z. P., Li, Y. Z., Meng, Q. J. A spin gap transition around 230 K observed in a new Ni(mnt)2− based molecular solid containing 1-(4′-nitrobenzyl)isoquinolinium. Inorg. Chem. Commun. 2007, 10, 880–883; https://doi.org/10.1016/j.inoche.2007.03.028.Search in Google Scholar

12. Jeffrey, G. A. Hydrogen-bonding: an update. Crystallogr. Rev. 2003, 9, 135–176; https://doi.org/10.1080/08893110310001621754.Search in Google Scholar
