Crystal structure of bis(amino(carbamothioylamino)methaniminium) 5-hydroxyisophthalate monohydrate, C12H20N8O6S2

  • Kun Chen , Yanmei Shi and Xin Zhu EMAIL logo
Published/Copyright: December 10, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C12H20N8O6S2, monoclinic, P21/c (no. 14), a = 15.8571(11) Å, b = 7.6581(5) Å, c = 16.9166(12) Å, β = 113.334(1)°, V = 1886.3(2) Å3, Z = 4, Rgt(F) = 0.0317, wRref(F2) = 0.1053, T = 298 K.

CCDC no.: 2036793

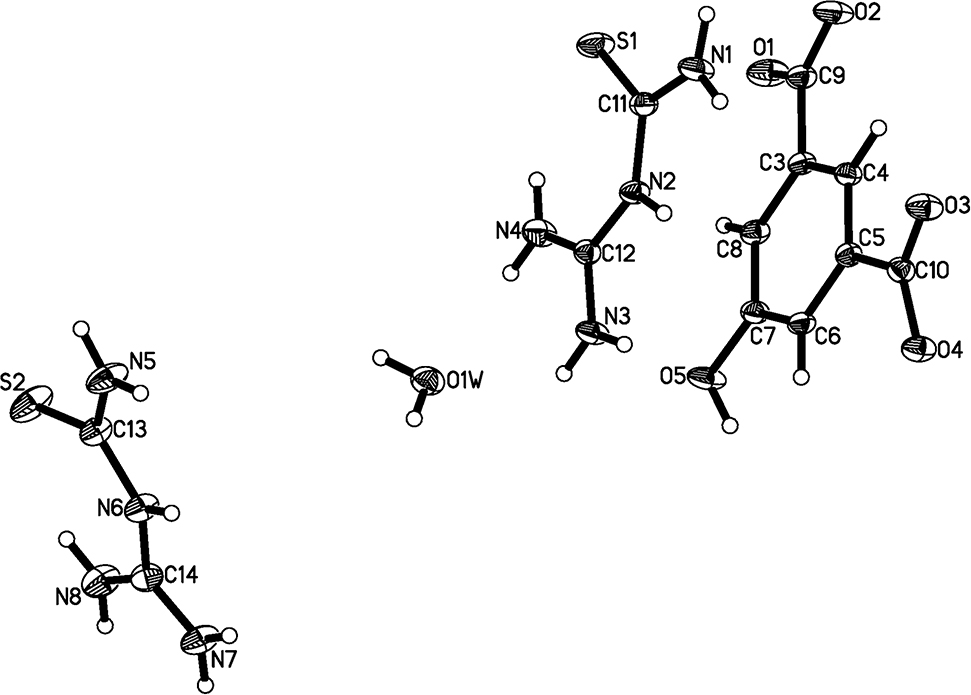

The asymmetric unit of the title crystal structure is shown in the Figure. Table 1 contains crystallographic data, and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.40 × 0.30 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.33 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:9182, 3307, 0.024
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3000
N(param)refined:263
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.33357 (3)−0.00541 (6)0.21849 (3)0.04291 (17)
O10.10189 (9)0.05052 (16)0.26704 (8)0.0454 (3)
O1W0.29233 (10)0.66884 (17)0.04495 (8)0.0426 (3)
H1WA0.2775 (17)0.622 (3)−0.0049 (9)0.064*
H1WB0.3342 (13)0.745 (3)0.0525 (16)0.064*
N10.46447 (11)0.04277 (19)0.37236 (10)0.0401 (4)
H1A0.50270.10730.41200.048*
H1B0.4620−0.06750.38070.048*
S20.89945 (3)0.71566 (7)−0.03159 (3)0.0540 (2)
O20.21117 (9)−0.07118 (16)0.37867 (8)0.0454 (3)
N20.42281 (9)0.29022 (17)0.29635 (8)0.0291 (3)
H2A0.46420.33210.34260.035*
C30.22425 (10)0.2323 (2)0.35587 (10)0.0268 (3)
O30.46600 (8)0.32013 (16)0.58223 (8)0.0402 (3)
N30.41147 (10)0.57218 (17)0.25229 (9)0.0343 (3)
H3A0.38820.65420.21530.041*
H3B0.45430.59560.30160.041*
C40.29954 (11)0.2540 (2)0.43380 (10)0.0267 (3)
H4A0.32080.16070.47170.032*
O40.43760 (8)0.60496 (15)0.56368 (7)0.0370 (3)
N40.31658 (10)0.3718 (2)0.15904 (9)0.0400 (4)
H4B0.29260.45240.12140.048*
H4C0.29780.26570.14770.048*
C50.34267 (10)0.4157 (2)0.45464 (9)0.0256 (3)
O50.20727 (9)0.66419 (15)0.26058 (8)0.0428 (3)
H50.2233 (16)0.759 (2)0.2896 (14)0.064*
N51.04724 (11)0.6640 (2)0.10754 (10)0.0498 (4)
H5B1.08760.69370.15710.060*
H5C1.05140.56460.08570.060*
C60.31186 (11)0.5537 (2)0.39685 (10)0.0275 (3)
H6A0.34110.66150.41040.033*
N60.98156 (9)0.92456 (19)0.10816 (9)0.0354 (3)
H6B1.02720.93480.15710.043*
C70.23794 (11)0.5309 (2)0.31940 (10)0.0293 (4)
N70.94029 (11)1.1896 (2)0.14213 (10)0.0439 (4)
H7A0.90581.28060.13090.053*
H7B0.98641.18090.19070.053*
C80.19361 (11)0.3709 (2)0.29857 (10)0.0290 (3)
H8A0.14360.35650.24650.035*
N80.85303 (11)1.0716 (2)0.01024 (10)0.0466 (4)
H8B0.81731.1610−0.00280.056*
H8C0.84310.9872−0.02590.056*
C90.17556 (11)0.0591 (2)0.33242 (10)0.0314 (4)
C100.42190 (11)0.4464 (2)0.54001 (10)0.0289 (3)
C110.40936 (11)0.1134 (2)0.29826 (10)0.0293 (4)
C120.38154 (10)0.4105 (2)0.23346 (9)0.0269 (3)
C130.97930 (11)0.7703 (2)0.06524 (11)0.0350 (4)
C140.92257 (11)1.0640 (2)0.08512 (11)0.0351 (4)

Source of material

Amidinothiourea (0.25 mmol, A. R.), 5-hydroxy isophthalic acid (0.25 mmol, A. R.) and tetrapropylammonium hydroxide (30% aqueous solution) were dissolved in small amount of water/ethanol (v/v, 1:2) to yield a clean solution with the molar ratio of 1:1:2. After stirring for an hour, the solution was set aside to generate colorless block crystals of the title compound after about 2 weeks. Tetrapropylammonium hydroxide was not present in the final structure.

Experimental details

Hydrogen atoms were positioned geometrically.

Comment

Amidinothiourea is the medical intermediate of famotidine that is a common acid inhibitor [4]. Also, amidinothiourea was used very early to coordinate with different metal ions to synthesize interesting compounds [5]. Noticeably, the organic adducts involving amidinothiourea were rarely reported. As a almost coplanar molecule, amidinothiourea can yield various hydrogen bonding interactions due to its N and S atoms.

In the asymmetric unit of the title compound, there are two amidinothiourea cations, one isophthalate dianion and one water molecule. Obviously, isophthalic acid loses its two carboxylic protons to become the corresponding dianion, and two N atoms derived from two amidinothiourea molecules then accept the two protons to yield the two cations mentioned above. These two cations firstly connect with each other to form a dimer by N–H…S hydrogen bonding, then the dimer interacts with isophthalate to generate a hydrogen-bonded ribbon by N–H…O contacts. The water molecule is an important linking molecule that connects the neighboring hydrogen-bonded ribbons to form the final 3-dimensional network by different N–H…O and O–H…O interactions. It is shown that amidinothiourea [6] is a good hydrogen-bonding synthon that can interact with many molecules to generate novel crystal structures.

Corresponding author: Xin Zhu, Henan University of Chinese Medicine, Zhengzhou450046, China, E-mail:

Funding source: Scientific and Technological Brainstorm Project of Henan Province

Award Identifier / Grant number: 202102310515

Funding source: Henan provincial Key Scientific Research Projects

Award Identifier / Grant number: 20B350003

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was sponsored by the Scientific and Technological Brainstorm Project of Henan Province (202102310515) and Henan provincial Key Scientific Research Projects (20B350003).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT. APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Adane, L., Bhagat, S., Arfeen, M., Bhatia, S., Sirawaraporn, R., Sirawaraporn, W., Chakraborti, A. K., Bharatam, P. V. Design and synthesis of guanylthiourea derivatives as potential inhibitors of Plasmodium falciparum dihydrofolate reductase enzyme. Bioorg. Med. Chem. Lett. 2014, A24, 613–617; https://doi.org/10.1016/j.bmcl.2013.12.009.Search in Google Scholar

5. Trimble, R. H. Comparison of the reactions of amidinourea and amidinothiourea with various metal ions. Anal. Chem. 1962, 34, 1633–1635; https://doi.org/10.1021/ac60192a037.Search in Google Scholar

6. Janczak, J. Solid-state supramolecular structure of tetrakis(1-(diaminomethylene)thiouron-1-ium) pyromellate. J. Mol. Struct. 2018, 1155, 443–449; https://doi.org/10.1016/j.molstruc.2017.11.026.Search in Google Scholar

Received: 2020-09-10
Accepted: 2020-10-13
Published Online: 2020-12-10
Published in Print: 2021-01-26

© 2020 Kun Chen et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
