Crystal structure of catena-poly[(μ2-3-amino-benzenedisulfonato-κ2N:O)-bis (3-methyl-isoquinoline-κN)silver(I)], C26H24N3O3SAg

  • Xin Liu , Han-Lin Zhao , Jin-Ke Jiang , Si-Yu Ma , Yong Li and Yu-Jie Li ORCID logo EMAIL logo
Published/Copyright: October 8, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C26H24N3O3SAg, monoclinic, P21/c (no. 14), a = 13.1936(9) Å, b = 11.0544(7) Å, c = 16.3653(9) Å, β = 99.214(6)°, V = 2356.0(3) Å3, Z = 4, Rgt(F) = 0.0495, wRref(F2) = 0.1080, T = 293(2) K.

CCDC no.: 2021354

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.20 × 0.15 × 0.11 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.98 mm−1
Diffractometer, scan mode:Xcalibur, φ and ω
θmax, completeness:29.3°, 99%
N(hkl)measured, N(hkl)unique, Rint:10,272, 5475, 0.041
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3263
N(param)refined:315
Programs:CrysAlisPRO [1], SHELX [2], [4], WinGX/ORTEP [3], Diamond [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag10.78252 (3)0.41021 (3)0.47837 (2)0.05579 (14)
S10.92810 (8)0.15306 (8)0.16332 (5)0.0391 (3)
O10.8200 (2)0.1533 (3)0.12837 (15)0.0603 (8)
N10.9456 (3)0.3536 (3)0.44953 (18)0.0429 (9)
H1A0.977 (3)0.408 (3)0.428 (2)0.051*
H1B0.976 (3)0.340 (4)0.4952 (12)0.051*
O20.9788 (3)0.2607 (3)0.14550 (15)0.0653 (9)
N20.6650 (3)0.2701 (3)0.4187 (2)0.0456 (8)
O30.9766 (3)0.0441 (3)0.14198 (16)0.0722 (10)
N30.7536 (3)0.6072 (3)0.4994 (2)0.0478 (9)
C20.9405 (3)0.2521 (3)0.31745 (19)0.0324 (8)
H20.94620.32620.29170.039*
C10.9306 (3)0.1475 (3)0.27163 (19)0.0307 (8)
C30.9418 (3)0.2468 (3)0.40205 (19)0.0342 (9)
C40.9326 (3)0.1361 (3)0.4390 (2)0.0395 (9)
H40.93290.13170.49580.047*
C60.9222 (3)0.0371 (3)0.3087 (2)0.0376 (9)
H60.9160−0.03350.27730.045*
C70.6819 (3)0.2071 (3)0.3542 (2)0.0440 (10)
H70.73750.22920.32900.053*
C80.6223 (3)0.1093 (3)0.3207 (2)0.0450 (10)
C180.7805 (3)0.7791 (3)0.5895 (2)0.0418 (10)
C50.9231 (3)0.0323 (3)0.3923 (2)0.0414 (10)
H50.9172−0.04200.41780.050*
C230.7494 (3)0.8564 (3)0.5223 (3)0.0439 (10)
C170.7815 (3)0.6560 (4)0.5726 (2)0.0467 (10)
H170.80360.60410.61660.056*
C130.5393 (3)0.0763 (4)0.3590 (3)0.0504 (11)
C190.8120 (3)0.8275 (4)0.6679 (3)0.0570 (12)
H190.83140.77630.71280.068*
C90.6449 (4)0.0423 (4)0.2520 (3)0.0562 (12)
H90.69990.06430.22610.067*
C250.7201 (4)0.6836 (4)0.4343 (2)0.0545 (11)
C220.7505 (4)0.9823 (4)0.5366 (3)0.0588 (12)
H220.72821.03470.49300.071*
C150.5823 (4)0.2392 (4)0.4545 (3)0.0547 (11)
C140.5205 (4)0.1457 (4)0.4258 (3)0.0622 (12)
H140.46420.12750.45140.075*
C200.8146 (4)0.9498 (5)0.6791 (3)0.0679 (14)
H200.83720.98200.73130.081*
C210.7832 (4)1.0271 (4)0.6120 (4)0.0659 (14)
H210.78521.11040.62000.079*
C240.7189 (4)0.8046 (4)0.4450 (3)0.0580 (12)
H240.69720.85420.39970.070*
C100.5864 (5)−0.0531 (5)0.2248 (3)0.0755 (15)
H100.6002−0.09640.17910.091*
C110.5057 (5)−0.0875 (5)0.2642 (4)0.0817 (17)
H110.4674−0.15550.24530.098*
C120.4810 (4)−0.0257 (5)0.3289 (3)0.0732 (15)
H120.4258−0.05020.35370.088*
C160.5663 (4)0.3162 (5)0.5276 (3)0.0861 (17)
H16A0.62460.30850.57060.129*
H16B0.50570.28980.54800.129*
H16C0.55840.39930.51070.129*
C260.6853 (6)0.6236 (5)0.3528 (3)0.104 (2)
H26A0.74190.58120.33580.155*
H26B0.66030.68370.31220.155*
H26C0.63130.56730.35810.155*

Source of material

The AgNO3 (0.085 g, 0.5 mmol) and 3-amino-benzenesulfonic acid (0.866 g, 0.5 mmol) were added to the distilled water (15 mL). Then 3-methyl-isoquinoline was added to the reaction system. It was stirred for 30 min in the air. The filtrate was maintained at room temperature in a dark room to produce block colorless crystals after several weeks.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions to ride on their parent atoms.

Comment

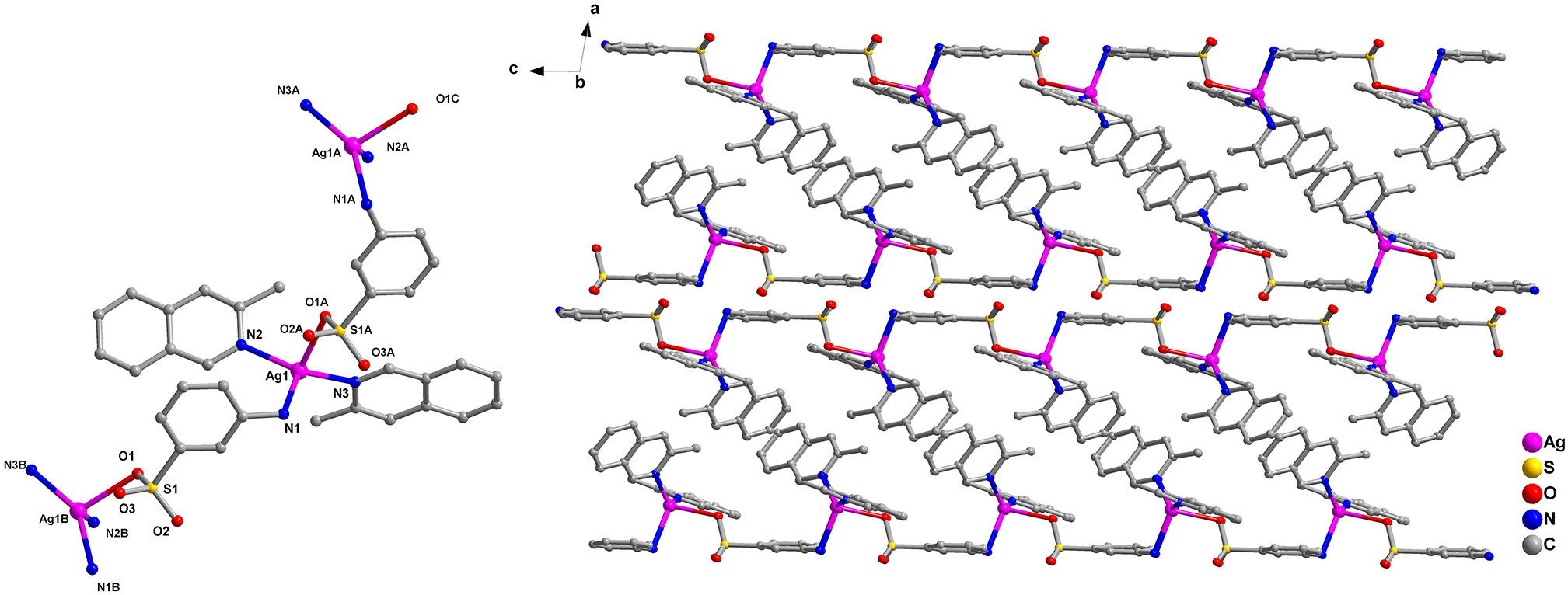

As is depicted in the left part of the picture, the Ag1 is four-coordinated by three nitrogen atoms and one oxygen atom. The two nitrogen atoms coming from two 3-methyl-isoquinoline ligands and one nitrogen atom coming from a 3-amino-benzenesulfonic acid (abeS) ligand. One oxygen atom of another abeS ligand is coordinated (left part of the figure). The bond distances of Ag–N range from 2.247(3) to 2.360(4) Å [6]. Its structure is one-dimensional chain, well known in this class of structures [7] (cf. right part of the picture). (symmetry codes: A = x, 1/2 − y, 1/2 + z; B = x, 1/2 − y, −1/2 + z; C = x, 1/2 − y, −1/2 + z).

Corresponding author: Yu-Jie Li, College of Biology and Pharmaceutical Engineering, Jilin Agricultural Science and Technology University, Jilin, 132101, Province Jilin, P. R. China, E-mail:

Xin Liu and Han-Lin Zhao contributed equally to this work.

Funding source: Jilin Agricultural Science and Technology University Students Science and Technology Innovation and Entrepreneurship Training Program Project

Award Identifier / Grant number: 202011439019

Funding source: Key Construction Disciplines of Biology, Jilin Agricultural Science and Technology University

  1. Author contribution: Xin Liu and Han-Lin Zhao contributed equally to this work. All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Funding information: This work was supported by the Jilin Agricultural Science and Technology University Students Science and Technology Innovation and Entrepreneurship Training Program Project (no. 202011439019) and Key Construction Disciplines of Biology, Jilin Agricultural Science and Technology University.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku Corporation. CrysAlisPRO; Yarnton, Oxfordshire, England, 2015.Search in Google Scholar

2. Sheldrick, G. M. SHELXT—integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

5. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 3.2.; Crystal Impact: Bonn, Germany,2012.Search in Google Scholar

6. Wu, H., Dong, X.-W., Liu, H.-Y., Ma, J.-F., Liu, Y.-Y., Liu, Y.-Y., Yang, J. Construction of a series of inorganic–organic hybrid coordination polymers based on hexamethylenetetramine and sulfonate ligands. Inorg. Chim. Acta 2011, 373, 19–26; https://doi.org/10.1016/j.ica.2011.03.041.Search in Google Scholar

7. Fan, H.-T., Ding, J., Xie, J.-P., Wang, K. Crystal structure of bis{catena-poly[(μ2-1,2-bis(4-pyridyl)ethane-k2N:N′)silver(I)]}diaqua-bis(5-(4-carboxy phenyl)pyridine-2-carboxylato-k2N:O)-(μ2-1,2-bis(4- pyridyl)ethane-k2N:N′)disilver(I) octahydrate, C31H35Ag2N4O9. Z. Kristallogr. NCS 2018, 233, 585–587; https://doi.org/10.1515/ncrs-2017-0345.Search in Google Scholar
