Crystal structure of 4-ethyl-3-phenylisoquinolin-1(2H)-one, C17H15NO

  • Hui-Mei Lin , Jia-Yin Peng , Ting-Guang Zou , Wan-Yi Xu , Yi-Wen Tao ORCID logo EMAIL logo and Bao-Long Lai EMAIL logo
Published/Copyright: October 12, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C17H15NO, monoclinic, C2/c (no. 15), a = 19.197(2) Å, b = 8.0719(8) Å, c = 16.6511(18) Å, α = 90°, β = 100.171(10)°, γ = 90°,V = 2539.6(5) Å3, Z = 8, Rgt(F) = 0.0416, wRref(F2) = 0.1107, T = 100(1) K.

CCDC no.: 2020262

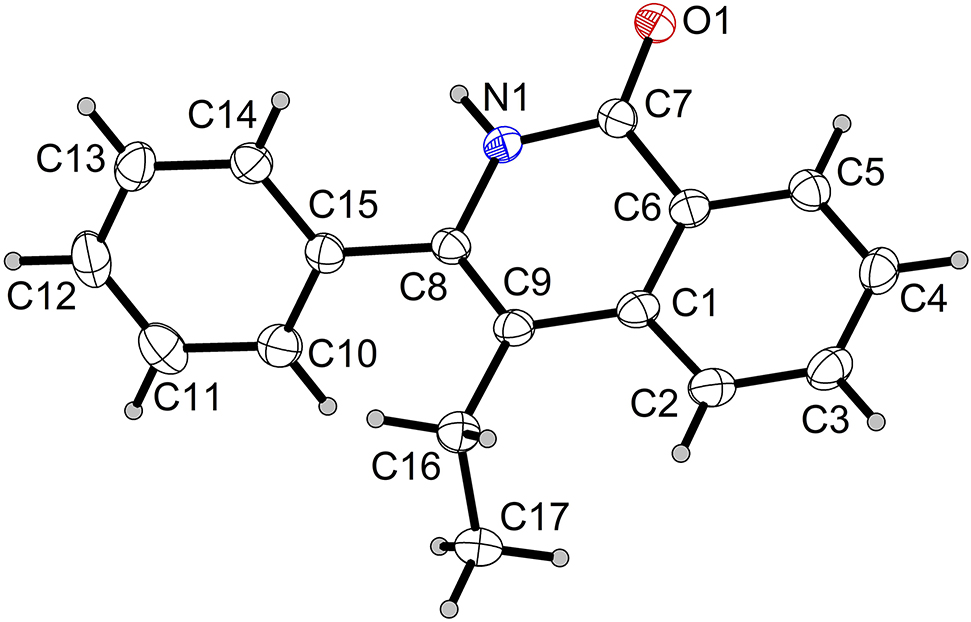

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.12 × 0.11 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.00 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:29.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:6380, 2244, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1973
N(param)refined:174
Programs:CrysAlisPRO [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.49210 (5)0.86764 (13)0.41927 (6)0.0259 (3)
N10.42616 (6)0.84912 (15)0.51924 (7)0.0209 (3)
C10.39462 (7)0.52179 (18)0.48496 (9)0.0217 (3)
H10.435620.9512380.5312480.025*
C20.38299 (8)0.35252 (19)0.46581 (10)0.0264 (4)
H20.3596080.2870550.4985750.032*
C30.40561 (8)0.28260 (19)0.39954 (10)0.0289 (4)
H30.3969690.1709450.3881110.035*
C40.44125 (8)0.37619 (19)0.34927 (10)0.0277 (4)
H40.4549930.3283750.3037070.033*
C50.45585 (7)0.53972 (19)0.36769 (9)0.0240 (4)
H50.4809840.6020270.3354780.029*
C60.43305 (7)0.61337 (18)0.43489 (9)0.0207 (3)
C70.45306 (7)0.78422 (18)0.45575 (8)0.0207 (3)
C80.38463 (7)0.76458 (18)0.56651 (8)0.0197 (3)
C90.36984 (7)0.60136 (18)0.55301 (9)0.0213 (3)
C100.28846 (8)0.88532 (19)0.63265 (10)0.0276 (4)
H100.2554210.8250610.5965890.033*
C110.26581 (9)0.9902 (2)0.68890 (11)0.0340 (4)
H110.2177871.0002150.6903660.041*
C120.31462 (9)1.0797 (2)0.74261 (10)0.0343 (4)
H120.2994671.1498930.7803290.041*
C130.38618 (9)1.06506 (19)0.74047 (9)0.0307 (4)
H130.4190111.125090.7768910.037*
C140.40882 (8)0.96117 (18)0.68415 (9)0.0245 (4)
H140.4568780.9525150.6826260.029*
C150.36025 (7)0.86946 (17)0.62972 (9)0.0215 (3)
C160.33272 (8)0.50005 (19)0.60948 (10)0.0271 (4)
H16A0.3331710.5624450.659360.032*
H16B0.3596040.3993180.6238180.032*
C170.25650 (8)0.4528 (2)0.57485 (11)0.0333 (4)
H17A0.2545850.4003580.5227540.050*
H17B0.2276070.5506040.5684670.050*
H17C0.2392690.3775810.6115050.050*

Source of material

Strain Fusarium sp. was obtained from the stem of mangrove Sonneratia apetala collected from Dongzhai Harbor, Hainan province, China, and identified by 18S RNA gene sequence [4]. The specimen was stored at Guangzhou Medical University, Guangzhou, P. R. China. The stored strain was recovered from solid culture medium and transferred aseptically to a 250 mL Erlenmeyer flask containing 100 mL liquid medium (glucose 10 g/L, peptone 2 g/L, yeast extract 1 g/L, sea salt 2 g/L). The fungus was cultured at 28 °C for 30 days [5]. The culture was filtered through cheesecloth. The mycelium was air-dried, extracted with methanol, and then dried with rotary evaporator. The extract was further fractionated by silica gel chromatography using a stepwise gradient solvent system according to the increasing polarity starting from 100% petroleum to 100% methanol. The title compound was isolated and purified from 75% petroleum/25% ethyl acetate fraction through silica gel column chromatography. Colorless block crystals were obtained from slow evaporation of the chloroform solution in the NMR tube at room temperature.

Experimental details

All hydrogen atoms were placed in calculated positions and refined using a riding model with the relative isotropic parameters. Uiso values of hydrogen atoms were set to 1.2 Ueq of the parent atoms.

Comment

The title crystal structure was elucidated by MS and NMR data [6], [7], [8], [9], [10], [11], and confirmed by X-ray crystallography (see the figure). The study on the biological activities of this compound has never been reported so far. Geometric parameters are all in the expected ranges [12].

Corresponding author: Yi-Wen Tao, Key Laboratory of Molecular Target & Clinical Pharmacology and the State Key Laboratory of Respiratory Disease, School of Pharmaceutical Sciences and the Fifth Affiliated Hospital, Guangzhou Medical University, Guangzhou, Guangdong511436, P. R. China; and Bao-Long Lai, Department of Pharmacy, The 7th Affiliated Hospital of Sun Yat-Sen University, Shenzhen, Guangdong518107, P. R. China, (Y.-W. Tao), (B.-L. Lai)
Jia-Yin Peng: Co-first author.

Funding source: Guangdong Natural Science Foundation of China

Award Identifier / Grant number: 2018A0303130201

Funding source: Guangzhou Education Bureau Yangcheng Scholars Project

Award Identifier / Grant number: 202032774

Funding source: Scientific Research Foundation of Traditional Chinese Medicine of Health and Family Planning Bureau from Guangming District

Award Identifier / Grant number: GM2019020026

Funding source: National Students Training Programs for innovation and Entrepreneurship

Award Identifier / Grant number: 202010570028

Funding source: Special Funds for Undergraduates Scientific and Technological Innovation Training Programs in Guangdong

Award Identifier / Grant number: pdjh2020b0487

Award Identifier / Grant number: S201910570075

Award Identifier / Grant number: S201910570069

Award Identifier / Grant number: 201810570078

Funding source: Undergraduate Training Programs for Innovation and Entrepreneurship in GZHMU

Award Identifier / Grant number: 2019A076

Award Identifier / Grant number: 2018A107

Award Identifier / Grant number: 2018A103

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

Research funding

This work was supported by Guangdong Natural Science Foundation of China (2018A0303130201), Guangzhou Education Bureau Yangcheng Scholars Project (202032774), Scientific Research Foundation of Traditional Chinese Medicine of Health and Family Planning Bureau from Guangming District (GM2019020026), National Students Training Programs for innovation and Entrepreneurship (202010570028), Special Funds for Undergraduates Scientific and Technological Innovation Training Programs in Guangdong (pdjh2020b0487, S201910570075, S201910570069, 201810570078), and Undergraduate Training Programs for Innovation and Entrepreneurship in GZHMU (2019A076, 2018A107, 2018A103).

References

1. Agilent Technologies. CrysAlisPRO Software System, Version 1.171.37.35; Agilent Technologies UK Ltd: Oxford, UK, 2011.Search in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

4. Tao, Y. W., Lin, Y. C., She, Z. G., Lin, M. T., Chen, P. X., Zhang, J. Y. Anticancer activity and mechanism investigation of beauvericin isolated from secondary metabolites of the mangrove endophytic fungi. Anticancer Agents Med. Chem. 2015, 15, 258–266; https://doi.org/10.2174/1871520614666140825112255.Search in Google Scholar

5. Zhang, J. Y., Lai, Z. Z., Wen, J. H., Ling, H. P., Lin, M. T., Tang, S. L., Liu, Y., Tao, Y. W. Apicidin inhibited proliferation and invasion and induced apoptosis via mitochondrial pathway in non-small cell lung cancer GLC-82 cells. Anticancer Agents Med. Chem. 2017, 17, 1374–1382; https://doi.org/10.2174/1871520617666170419120044.Search in Google Scholar

6. Yang, J., Wu, L. X., Xu, H. Y., Gao, H., Zhou, Z., Yi, W. Redox-neutral [4 + 2] annulation of N-methoxybenzamides with alkynes enabled by an osmium(II)/HOAc catalytic system. Org. Lett. 2019, 21, 9904–9908; https://doi.org/10.1021/acs.orglett.9b03827.Search in Google Scholar

7. Guo, S. H., Sun, L. C., Liu, Y. F., Ma, N. N., Zhang, X. Y., Fan, X. S. Rh(III)-catalyzed oxidative spirocyclization of isoquinolones with α-diazo-1,3-indandiones. Org. Lett. 2019, 21, 4082–4086; https://doi.org/10.1021/acs.orglett.9b01263.Search in Google Scholar

8. Yu, X. L., Chen, K. H., Guo, S., Shi, P. F., Song, C., Zhu, J. Direct access to cobalt acycles via C–H activation: N-chloroamide-enabled room-temperature synthesis of heterocycles. Org. Lett. 2017, 19, 5348–5351; https://doi.org/10.1021/acs.orglett.7b02632.Search in Google Scholar

9. Zhong, H. B., Yang, D., Wang, S. Q., Huang, J. H. Pd-catalysed synthesis of isoquinolinones and analogues via C–H and N–H bonds double activation. Chem. Commun. 2012, 48, 3236–3238; https://doi.org/10.1039/c2cc17859a.Search in Google Scholar

10. Lu, S. N., Lin, Y. F., Zhong, H. B., Zhao, K., Huang, J. H. A practical one-pot procedure for the synthesis of N–H isoquinolones. Tetrahedron Lett. 2013, 54, 2001–2005; https://doi.org/10.1016/j.tetlet.2013.02.003.Search in Google Scholar

11. Ackermann, L., Fenner, S. Ruthenium-catalyzed C–H/N–O bond functionalization: green isoquinolone syntheses in water. Org. Lett. 2011, 13, 6548–6551; https://doi.org/10.1021/ol202861k.Search in Google Scholar

12. Liu, P., Jiang, F., Huang, G., Sun, Y., Huang, L. Crystal structure of 2-butyl-6-(ethylamino)-1H-benzo[de]isoquinoline-1,3(2H)-dione, C18H20N2O2. Z. Kristallogr. NCS. 2020, 235, 147–149.10.1515/ncrs-2019-0548Search in Google Scholar

Received: 2020-08-01
Accepted: 2020-09-03
Published Online: 2020-10-12
Published in Print: 2021-01-26

© 2020 Hui-Mei Lin et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
