Crystal structure of 10-oxysophoridine, C15H22N2O2

  • Ming Yan , Huan-Yong Li , Ding Luo , Si Chen , Yu-Bo Zhang , Yao-Lan Li EMAIL logo and Guo-Cai Wang ORCID logo EMAIL logo
Published/Copyright: November 2, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 1

Abstract

C15H22N2O2, orthorhombic, P212121a = 5.27590(10) Å, b = 10.3482(3) Å, c = 23.5372(6) Å, V = 1285.04(6) Å3, Z = 4, Rgt(F) = 0.0338, wRref(F2) = 0.0852, T = 100(1) K.

CCDC no.: 1974380

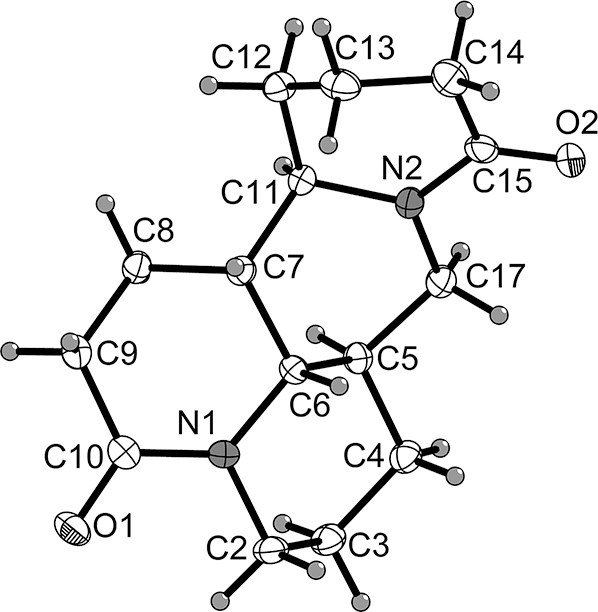

The molecular structure is shown in the Figure. Table 1 contains crystallographic data, and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.12 × 0.11 × 0.10 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:0.72 mm−1
Diffractometer, scan mode:SuperNova, Atlas S2, ω
θmax, completeness:73.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:5493, 2410, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2312
N(param)refined:172
Programs:CrysAlisPRO [1], Olex2 [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.1299 (3)0.03547 (13)0.25683 (6)0.0217 (3)
O20.5907 (3)0.54518 (14)0.50883 (6)0.0244 (4)
N10.3033 (3)0.13754 (15)0.33289 (7)0.0157 (4)
N20.5268 (3)0.47198 (15)0.41984 (7)0.0161 (4)
C20.3546 (4)0.01317 (18)0.36118 (8)0.0186 (4)
H2A0.315285−0.0573800.3355160.022*
H2B0.2477480.0047820.3945080.022*
C30.6319 (4)0.00597 (19)0.37860 (8)0.0195 (4)
H3A0.7388080.0087760.3450840.023*
H3B0.663963−0.0747430.3982820.023*
C40.6949 (4)0.11958 (19)0.41752 (8)0.0180 (4)
H4A0.8735670.1170310.4271860.022*
H4B0.5984870.1118790.4524480.022*
C50.6338 (4)0.24871 (18)0.38918 (8)0.0148 (4)
H50.7485970.2613490.3569210.018*
C60.3592 (4)0.25302 (18)0.36772 (8)0.0144 (4)
H60.2482320.2499850.4010830.017*
C70.3044 (4)0.38125 (18)0.33628 (8)0.0141 (4)
H70.1261860.4038570.3425870.017*
C80.3457 (4)0.36573 (19)0.27261 (8)0.0166 (4)
H8A0.3164830.4473950.2534690.020*
H8B0.5186780.3388670.2651770.020*
C90.1622 (4)0.26470 (18)0.25079 (8)0.0173 (4)
H9A−0.0099200.2950340.2564080.021*
H9B0.1883060.2529730.2103190.021*
C100.1951 (4)0.13650 (19)0.28051 (8)0.0162 (4)
C110.4691 (4)0.49179 (18)0.35926 (8)0.0154 (4)
H110.6299310.4903010.3384540.018*
C120.3466 (4)0.62430 (19)0.34931 (8)0.0193 (4)
H12A0.4774020.6901630.3483770.023*
H12B0.2612540.6244400.3128130.023*
C130.1571 (5)0.65614 (19)0.39581 (9)0.0228 (5)
H13A0.0293720.5889420.3981910.027*
H13B0.0732220.7373930.3875220.027*
C140.3006 (5)0.6659 (2)0.45170 (9)0.0264 (5)
H14A0.3918670.7472590.4523780.032*
H14B0.1787980.6674870.4825590.032*
C150.4862 (4)0.55779 (18)0.46229 (8)0.0184 (4)
C170.6777 (4)0.35723 (18)0.43260 (8)0.0180 (4)
H17A0.6342210.3260930.4702270.022*
H17B0.8559150.3803070.4327670.022*

Source of material

The dry roots of Sophora flavescens were purchased from Xi’an, Shanxi Province, China. Dried Powder (25.0 kg) was extracted three times with 95% ethanol at room temperature. The solution was concentrated in vacuum to get a residue (1.6 kg). The crude extract was suspended in water and adjusted pH to 4–5 with HCl, and then partitioned with chloroform. The aqueous layer was adjusted to pH 9–10 with ammonium hydroxide and extracted by chloroform. After evaporation of solvent, the chloroform soluble fraction (463 g) was obtained. This fraction was chromatographed on a silica gel column, eluted with CHCl3–CH3OH solvent system, which afforded six fractions (Fr. 1–7). The title compound was obtained from Fr.4 and crystallized in methanol.

Experimental details

Using Olex2 [2], the structure was solved with the ShelXT [3].

Comment

The plant S. flavescens belongs to Leguminosae family. It is widely distributed in western and central Asia, especially in northwest China [5]. Previous chemical investigations of S. flavescens have revealed that matrine-type alkaloids are the main chemical constituents of this plant [6], [7]. Traditionally, the seeds and roots of this plant have been used as traditional Chinese medicine for the treatment of rheumatism, fever, bacterial infection, and heart disease [8]. Because of their complex stereostructure and diverse biological effects, matrinetype alkaloids have become increasingly attractive targets for both pharmacologists and synthetic chemists.

The title compound was determined structurally as 10-oxysophoridine [9], which belongs to a class of quinolizidine alkaloids with unique 6/6/6/6 tetracyclic skeletons. It has the basic skeleton of two valerolactam and two piperidine groups. The C=O bond lengths 1.233(2)–1.234(2) Å, C-N and C-C bond lengths are within normal ranges [10].

Corresponding authors: Yao-Lan Li and Guo-Cai WangGuangdong Province Key Laboratory of Pharmacodynamic Constituents of Traditional Chinese Medicine and New Drugs Research, Institute of Traditional Chinese Medicine and Natural Products, College of Pharmacy, Jinan University, Guangzhou510632, P. R. China, E-mail: ,

Funding source: National Key R&D Program of China

Award Identifier / Grant number: 2017YFC1703800

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 81973190

Award Identifier / Grant number: 81803376

Funding source: Guangdong Basic and Applied Basic Research Foundation

Award Identifier / Grant number: 2020B1515020033

Funding source: Natural Science Foundation of Guangdong Province

Award Identifier / Grant number: 2018B030311020

Funding source: Local Innovative and Research Teams Project of Guangdong Pearl River Talents Program

Award Identifier / Grant number: 2017BT01Y036

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission. Ming Yan and Huan-Yong Li contributed equally to this work.

  2. Research funding: This work was supported by grants from the National Key R&D Program of China (No. 2017YFC1703800), National Natural Science Foundation of China (Nos. 81973190, 81803376), Guangdong Basic and Applied Basic Research Foundation (No. 2020B1515020033), Natural Science Foundation of Guangdong Province (No. 2018B030311020), and Local Innovative and Research Teams Project of Guangdong Pearl River Talents Program (2017BT01Y036).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Oxford Diffraction: CrysAlisPRO; Oxford Diffraction Ltd: Abingdon, Oxfordshire, England, 2006.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Shelxt – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

5. Wu, Z. Y. Flora of China; Science Press: Beijing, 1994; p. 80.Search in Google Scholar

6. Atta-Ur-Rahman, A. U., Choudhary, M. I., Parvez, K., Ahmed, A., Akhtar, F., Nur-e-Alam, M., Hassan, N. M. Quinolizidine alkaloids from Sophora alopecuroides. J. Nat. Prod. 2000, 63, 190–192; https://doi.org/10.1021/np990351v.Search in Google Scholar

7. Yu, Y., Ding, P., Chen, D. Determination of quinolizidine alkaloids in Sophora medicinal plants by capillary electrophoresis. Anal. Chim. Acta 2004, 523, 15–20; https://doi.org/10.1016/j.aca.2004.06.070.Search in Google Scholar

8. Song, L. R., Hong, X., Ding, X. L., Zang, Z. Y. Dictionary of Modern Medicine; People’s Medical Publishing House: Beijing, 2001; pp. 1224–1226.Search in Google Scholar

9. Zhang, Y. B., Luo, D., Yang, L., Cheng, W., He, L. J., Kuang, G. K., Li, M. M., Li, Y. L., Wang, G. C. Matrine-type alkaloids from the roots of Sophora flavescens and their antiviral activities against the Hepatitis B virus. J. Nat. Prod. 2018, 81, 2259–2265; https://doi.org/10.1021/acs.jnatprod.8b00576.Search in Google Scholar

10. Jing-Min, Ye, Hui-Qing, He, Xu-Hong, J., Zhan-Mei, L., Xing-An, C., Zhao-Chang, He. The crystal structure of a matrine derivative, 13-(4-Cl-pyrrole)-matrine, C18H26ClN4O. Z. Kristallogr. NCS 2019, 234, 785–786.10.1515/ncrs-2019-0105Search in Google Scholar
