Abstract

C20H19NO10S, triclinic, P 1 ‾ (no. 2), a = 8.3470(2) Å, b = 9.6701(2) Å, c = 12.9523(3) Å, α = 102.413(2)°, β = 103.199(2)°, γ = 97.753(2)°, V = 975.26(4) Å3, Z = 2, Rgt(F) = 0.0439, wRref(F2) = 0.1244, T = 100(1) K.

CCDC no.: 2113325

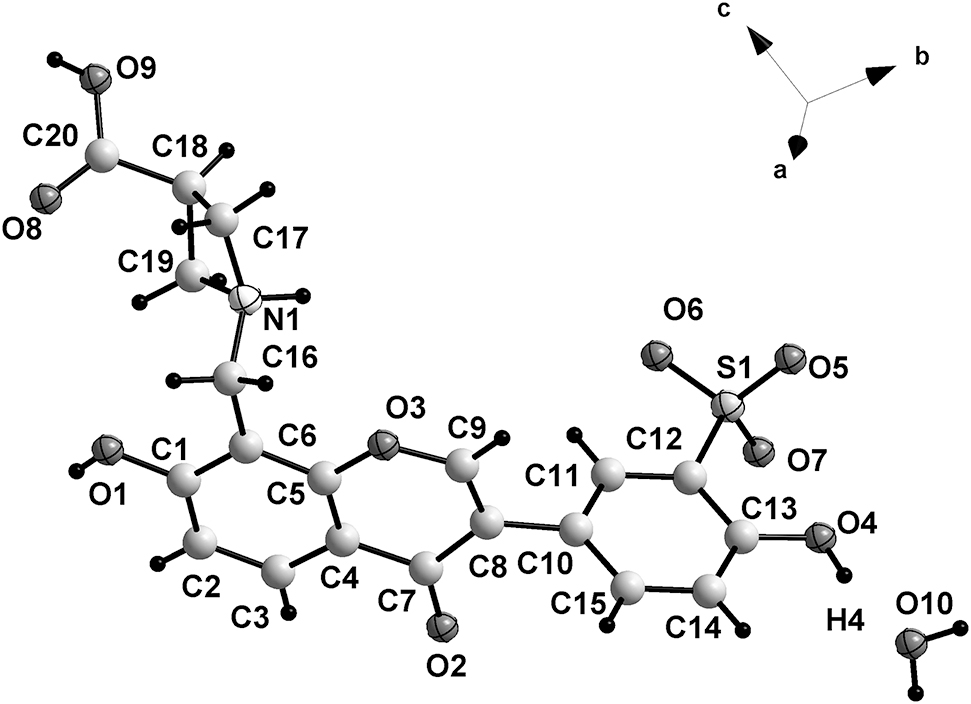

The asymmetric unit of the title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless plate
Size: 0.30 × 0.20 × 0.20 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 2.05 mm−1
Diffractometer, scan mode: ROD, ω
θmax, completeness: 75.8°, >99%
N(hkl)measured, N(hkl)unique, Rint: 10313, 3921, 0.029
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 3522
N(param)refined: 309
Programs: CrysAlisPRO [1], Diamond [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
S1 0.32952 (6) 1.02505 (6) 0.27507 (4) 0.02944 (15)
O1 0.8547 (2) 0.31935 (17) 0.70992 (13) 0.0349 (4)
H1 0.812691 0.230914 0.686191 0.052*
O2 0.7064 (2) 0.53247 (16) 0.27267 (12) 0.0345 (4)
O3 0.91535 (18) 0.74483 (15) 0.59367 (11) 0.0276 (3)
O4 0.54484 (19) 1.10244 (18) 0.13564 (13) 0.0350 (4)
H4 0.606955 1.120779 0.095664 0.052*
O5 0.36072 (19) 1.18161 (17) 0.31074 (14) 0.0354 (4)
O6 0.27614 (19) 0.95781 (17) 0.35597 (13) 0.0336 (3)
O7 0.21524 (19) 0.96833 (18) 0.16621 (13) 0.0353 (4)
C1 0.8307 (3) 0.3832 (2) 0.62611 (17) 0.0298 (4)
C2 0.7558 (3) 0.3033 (2) 0.51718 (18) 0.0303 (4)
H2 0.720157 0.201624 0.501020 0.036*
C3 0.7340 (3) 0.3724 (2) 0.43402 (18) 0.0296 (4)
H3 0.683211 0.318161 0.360512 0.035*
C4 0.7866 (2) 0.5232 (2) 0.45705 (17) 0.0267 (4)
C5 0.8598 (2) 0.5986 (2) 0.56547 (17) 0.0266 (4)
C6 0.8830 (2) 0.5328 (2) 0.65227 (17) 0.0281 (4)
C7 0.7621 (3) 0.5994 (2) 0.37095 (17) 0.0279 (4)
C8 0.8017 (2) 0.7557 (2) 0.40900 (17) 0.0274 (4)
C9 0.8767 (3) 0.8169 (2) 0.51582 (17) 0.0280 (4)
H9 0.904785 0.919306 0.538307 0.034*
C10 0.7430 (3) 0.8490 (2) 0.33547 (17) 0.0273 (4)
C11 0.5911 (3) 0.8909 (2) 0.33709 (17) 0.0283 (4)
H11 0.530742 0.861269 0.385058 0.034*
C12 0.5252 (3) 0.9753 (2) 0.27009 (17) 0.0281 (4)
C13 0.6136 (3) 1.0209 (2) 0.19941 (17) 0.0288 (4)
C14 0.7673 (3) 0.9801 (2) 0.19900 (17) 0.0296 (4)
H14 0.829442 1.011125 0.152384 0.036*
C15 0.8308 (3) 0.8950 (2) 0.26545 (18) 0.0291 (4)
H15 0.935378 0.867537 0.263397 0.035*
C16 0.9590 (3) 0.6194 (3) 0.76862 (18) 0.0328 (5)
H16Aa 1.044340 0.702711 0.771243 0.039*
H16Ba 1.014112 0.558952 0.813030 0.039*
H16Cb 1.071882 0.596747 0.791700 0.039*
H16Db 0.976312 0.722136 0.767019 0.039*
C17 0.8602 (3) 0.7436 (2) 0.93544 (18) 0.0337 (5)
H17Aa 0.868785 0.849548 0.952386 0.040*
H17Ba 0.958451 0.717166 0.980506 0.040*
H17Cb 0.945466 0.769669 1.007065 0.040*
H17Db 0.851131 0.828605 0.904998 0.040*
C18 0.6900 (3) 0.6598 (3) 0.93670 (19) 0.0366 (5)
H18c 0.599331 0.717743 0.934275 0.044*
H18Ad 0.612944 0.724971 0.914152 0.044*
C19 0.6853 (3) 0.5632 (3) 0.82590 (19) 0.0351 (5)
H19Aa 0.718724 0.469796 0.830475 0.042*
H19Ba 0.577189 0.548190 0.770036 0.042*
H19Cb 0.623800 0.594047 0.762558 0.042*
H19Db 0.645980 0.459292 0.818317 0.042*
O8c 0.7990 (3) 0.4901 (2) 1.03187 (17) 0.0393 (5)
O9c 0.6237 (2) 0.6199 (2) 1.09650 (15) 0.0320 (4)
H9Ac 0.665273 0.600332 1.155863 0.048*
N1a 0.8202 (3) 0.6712 (2) 0.81336 (18) 0.0294 (5)
H1Aa 0.768690 0.735728 0.770122 0.035*
C20c 0.7088 (3) 0.5797 (3) 1.0269 (2) 0.0292 (5)
O8Ad 0.7696 (12) 0.5924 (11) 1.0976 (9) 0.0393 (5)
H8Ad 0.733365 0.553297 1.141914 0.059*
O9Ad 0.5176 (11) 0.6564 (10) 1.0654 (7) 0.0320 (4)
N1Ab 0.8817 (10) 0.6091 (9) 0.8531 (7) 0.0294 (5)
H1AAb 0.934801 0.544207 0.895186 0.035*
C20Ad 0.6481 (14) 0.6395 (15) 1.0394 (10) 0.0292 (5)
O10 0.7320 (2) 1.19437 (18) 0.01927 (13) 0.0365 (4)
H10A 0.734750 1.144244 −0.044482 0.055*
H10B 0.724942 1.280205 0.010318 0.055*

  1. aOccupancy: 0.805(4), bOccupancy: 0.195(4), cOccupancy: 0.833(2), dOccupancy: 0.167(2).

Source of material

The title compound 5-(8-((3-carboxyazetidin-1-ium-1-yl)methyl)-7-hydroxy-4-oxo-4H-chromen-3-yl)-2-hydroxy-benzenesulfonate was synthesized via a Mannich reaction. Formaldehyde (solution, 10 mL, 37%), water (10 mL), azetidine-3-carboxylic acid (1.52 g, 0.015 mol) and sodium 2-hydroxy-5-(7-hydroxy-4-oxo-4H-chromen-3-yl)benzenesulfonate(3.56 g, 0.01 mol) were added to ethanol (150 mL, 99.5%) and stirred for 24 h at 328 K. Then the mixture was filtered and the residue was collected. The residue was dried at 383 K. Sodium 5-(8-((3-carboxyazetidin-1-yl)methyl)-7-hydroxy-4-oxo-4H-chromen-3-yl)-2-hydroxybenzenesulfonate (2.93 g) was obtained. 1H NMR (500 MHz, DMSO-d6) δ: 8.34 (s, 1H, H9), 7.92 (d, J = 8.8 Hz, 1H, H3), 7.71 (d, J = 2.3 Hz, 1H, H11), 7.39 (dd, J = 8.4, 2.3 Hz, 1H, H15), 6.95 (d, J = 8.8 Hz, 1H, H2), 6.83 (d, J = 8.4 Hz, 1H, H14), 4.03 (s, 2H, H16A, H16B), 3.63 (t, J = 8.2 Hz, 2H, H17A, H19B), 3.51 (t, J = 7.4 Hz, 2H, H17B, H19A), 3.32–3.18 (m, 1H, H18). 13C NMR (125 MHz, DMSO-d6) δ:174.67 (C7), 173.98 (C20), 162.49 (C1), 155.42 (C5), 153.19 (C13), 152.81 (C9), 131.41 (C15), 130.60 (C12), 127.73 (C3), 126.06 (C11), 122.89 (C10), 122.28 (C8), 116.20 (C4), 116.17 (C14), 115.00 (C2), 108.51 (C6), 56.38 (C17, C19), 50.32 (C16), 33.41 (C18). A mixture of sodium salt described before (0.024 g), ammonium iron(II) sulfate hexahydrate (0.039 g), concentrated nitric acid (50 μL) and water (10 mL) was sealed in a 20 mL vial and sonicated for 5 min. Then the mixture was heated at 363 K for 30 min. Colorless plate-shaped crystals of the title compound were obtained. IR spectra (potassium bromide pellet) were recorded on a Nicolet 6700. IR (v/cm−1): 3382, 3021, 2635, 1703, 1632, 1570, 1510, 1445, 1417, 1351, 1290, 1230, 1201, 1170, 1094, 1080, 1049, 1024, 916, 898, 845, 837, 814, 798, 780, 737, 727, 650, 639, 627, 557, 540, 496.

Experimental details

Carbon-bound H atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2 Ueq(C). The oxygen-bound and nitrogen-bond H atoms were located on a difference Fourier map. The carboxylic acid group and N1 atoms were disordered.

Comment

Azetidine-3-carboxylic acids are a kind of strained four-membered heterocyclic amino acid. In the past decade, azetidine-3-carboxylic acid has become an important pharmaceutical intermediate for the preparation of various medicines [5], [6], [7], [8]. Our previous investigations showed that sodium 2-hydroxy-5-(7-hydroxy-4-oxo-4H-chromen-3-yl)benzenesulfonate reacts with amino acids by Mannich reaction [9], [10], [11], [12], [13]. The reaction takes place without a catalyst. As a continuation, we synthesized the anazetidine-3-carboxylic acid derivative, sodium 5-(8-((3-carboxyazetidin-1-yl)methyl)-7-hydroxy-4-oxo-4H-chromen-3-yl)-2-hydroxybenzenesulfonate. In this paper, the title compound was obtained by reaction of the aforementioned sodium salt. Studies of the pharmacological activities of the title compound are in progress. The title compound contains one zwitterion and one water molecule in the asymmetric unit (cf. the figure). The bond distances and bond angles are in normal ranges [9], [10], [11], [12], [13]. The dihedral angle between planar rings B (C10–C15) and C (C7–C9/O3/C5/C4) is 85.89°. The nitrogen atom N1 is protonated. There exist various O–H⋯O and N–H⋯O hydrogen bonds. A two dimensional layer along the bc plane is formed by intermolecular hydrogen bonds. There are π⋯π stacking interactions between C1–C6 phenyl rings from adjacent layers. The centroid-centroid distance is 3.6746(13) Å. Together with the π⋯π stacking interactions a three-dimensional network is obtained.

Corresponding author: Xiu‑Xiang Huang, School of Chemical and Biological Engineering, Hechi University, Yizhou, Guangxi, 546300, China, E-mail:

Funding source: Foundation of Hechi University

Award Identifier / Grant number: XJ2018GKQ012

Funding source: Guangxi Natural Science Foundation of China

Award Identifier / Grant number: 2020GXNSFBA297138

Funding source: 2021 High-level Talents Scientific Research Startup Fund of Hechi University

Award Identifier / Grant number: 2021GCC021

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by the Foundation of Hechi University (No. XJ2018GKQ012), Guangxi Natural Science Foundation of China (No. 2020GXNSFBA297138) and 2021 High-level Talents Scientific Research Startup Fund of Hechi University (No. 2021GCC021).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.
