Crystal structure of methyl (E)-3-(4-acetoxyphenyl)acrylate, C12H12O4

  • Jia Gu , Xiu-Ying Song , Gui-Shu Wang , Jun Peng EMAIL logo und Xu-Liang Nie EMAIL logo
Veröffentlicht/Copyright: 31. August 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C12H12O4, monoclinic, P21/c (no. 14), a = 16.071(6) Å, b = 9.424(4) Å, c = 7.640(3) Å, β = 101.861(5)°, V = 1132.4(8) Å3, Z = 4, R gt (F) = 0.0366, wR ref (F 2) = 0.1043, T = 296(2) K.

CCDC no.: 2103394

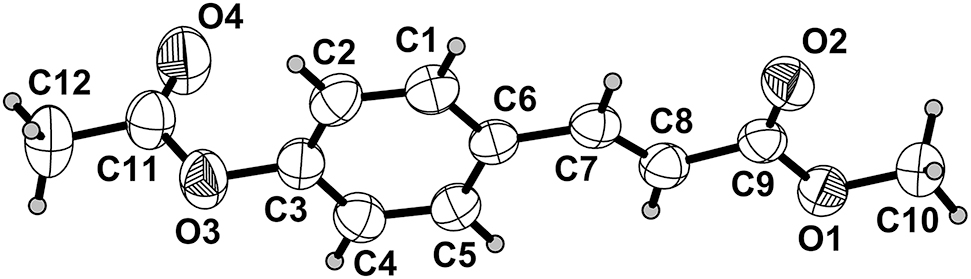

The molecular structure is shown in Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.19 × 0.17 × 0.15 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.10 mm−1
Diffractometer, scan mode: Bruker Apex-II, φ and ω
θ max, completeness: 25.5°, >99%
N(hkl)measured, N(hkl)unique, R int: 8500, 2121, 0.024
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 1743
N(param)refined: 148
Programs: Bruker [1], Shelx [2, 3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.77969 (10) 0.70368 (15) 0.41943 (18) 0.0597 (4)
H1 0.8056 0.7831 0.4795 0.072*
C2 0.69447 (10) 0.68050 (16) 0.41328 (19) 0.0641 (4)
H2 0.6632 0.7431 0.4683 0.077*
C3 0.65670 (9) 0.56314 (16) 0.32436 (18) 0.0586 (4)
C4 0.70259 (9) 0.46899 (16) 0.24450 (19) 0.0611 (4)
H4 0.6762 0.3895 0.1857 0.073*
C5 0.78802 (9) 0.49278 (15) 0.25186 (18) 0.0564 (4)
H5 0.8191 0.4286 0.1984 0.068*
C6 0.82809 (8) 0.61174 (14) 0.33844 (16) 0.0507 (3)
C7 0.91809 (9) 0.64496 (14) 0.34732 (17) 0.0544 (3)
H7 0.9386 0.7260 0.4115 0.065*
C8 0.97347 (9) 0.57423 (14) 0.27570 (19) 0.0570 (4)
H8 0.9566 0.4927 0.2094 0.068*
C9 1.06182 (9) 0.62359 (14) 0.30012 (18) 0.0543 (3)
C10 1.19626 (9) 0.57792 (18) 0.2373 (2) 0.0695 (4)
H10A 1.1987 0.6607 0.1653 0.104*
H10B 1.2272 0.5020 0.1961 0.104*
H10C 1.2212 0.5989 0.3598 0.104*
C11 0.51052 (10) 0.60018 (18) 0.2080 (2) 0.0676 (4)
C12 0.42499 (11) 0.5670 (2) 0.2429 (3) 0.0896 (6)
H12A 0.3822 0.6099 0.1522 0.134*
H12B 0.4206 0.6036 0.3580 0.134*
H12C 0.4169 0.4660 0.2412 0.134*
O1 1.10930 (6) 0.53626 (10) 0.22332 (14) 0.0655 (3)
O2 1.09026 (7) 0.72883 (11) 0.38053 (15) 0.0719 (3)
O3 0.57155 (6) 0.53325 (13) 0.32673 (14) 0.0738 (3)
O4 0.52631 (8) 0.67367 (16) 0.09311 (18) 0.0974 (5)

Source of material

The mixture of methyl (E)-3-(4-hydroxyphenyl)acrylate (1.78 g, 0.01 mol), acetic anhydride (3.06 g, 0.03 mol) was reacted at 80 °C for 2 h. After the reaction completed(monitored by TLC), colorless crystal was produced after cooled slowly. The product was filtered, and washed with water 3 times respectively. yield 88% (based on methyl (E)-3-(4-hydroxyphenyl)acrylate). Elemental Anal. Calcd. (%) for C14H12O4 (220.07): C, 65.45; H, 5.49. Found (%): C, 63.71; H, 5.64. The crystals were obtained after one week of slow volatilisation at room temperature.

Experimental details

All H atoms were included in calculated positions and refined as riding atoms, with C–H = 0.90–0.97 Å with U iso(H) = 1.5 U eq(C) for methyl H atoms and 1.2 U eq(C) for all other H atoms.

Comment

Phenolic acids are polyphenols that occur naturally in plants, which are found in a variety of plant-based foods [5]. There are many different phenolic acids found in nature, and they can be divided into two categories: benzoic acid derivatives, such as gallic acid, and cinnamic acid derivatives, including caffeic acid [6], [7], [8]. p-Coumaric acid, (E)-3-(4-hydroxyphenyl)acrylic acid, is a natural phenolic acid of cinnamic acid core structure [9]. p-Coumaric acid is mainly found in fruits, vegetables, grains, and fungi, and is also abundant in Chinese herbal medicines [10], [11], [12], [13]. The pharmacological effects of p-coumaric acid has anti-oxidant, anti-inflammatory, antitumor effects, antiplatelet aggregation, and cardiovascular protection, while the anti-oxidant activities is the important basis of other pharmacological effects [14], [15], [16]. In addition, p-coumaric acid has a certain inhibitory effect on bacteria, and also can inhibit melanin formation and delay skin aging. Because of its strong activities and its wide applications, p-coumaric acid and its derivatives was widely used in cosmetics, medicine, pesticide chemistry and organic synthesis. the synthesis and application of p-coumaric acid and its derivatives have attracted much attention [14], [15], [16], [17], [18]. We are still focused on the synthesis and antibacterial activities of preservatives. In order to the synthesis novel preservatives from natural products with bacteriostatic activity, we have designed and synthesised a series of phenolic acids derivatives [19], [20], [21]. Herein we report the synthesis and single crystals of the title compound as an important intermediate.

There is one molecule in the asymmetric unit (shown in the figure). In the molecule of the title compound bond lengths and angles are very similar to those given in the literature [21]. In the title structure, the parts of methyl p-coumaric acid were approximately planar. The dihedral angles of the C1–C6 plane, the carbon-carbon double bond group C6–C7–C8 and the carboxylate group O1–C9–O2 plane were 2.15(11)°, 0.38(5)° and 1.91(14)°, respectively. The acetyl group O3–C11–O4 plane is perpendicular to methyl p-coumaric acid and the dihedral angle is 84.3(4)°. The torsion angles of C5–C6–C7–C8, C6–C7–C8–C9, C7–C8–C9–O1 and C8–C9–O1–C10 are −177.97(15)°, −179.58(13)°, 177.91(13)° and 178.73(12)°, respectively.

Corresponding authors: Jun Peng, College of Computer and Information Engineering, Jiangxi Agricultural University, Nanchang 330045, People’s Republic of China, E-mail: ; and Xu-Liang Nie, Key Laboratory of Chemical Utilization of Plant Resources of Nanchang/Department of Chemistry, Jiangxi Agricultural University, Nanchang 330045, People’s Republic of China, E-mail:

Acknowledgements

X-ray data were collected at Instrumental Analysis Center Nanchang Hangkong University, Nanchang, 330063, People’s Republic of China

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Key Research Foundation of Educational Department of Jiangxi Province of China [GJJ200404, GJJ160382].

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Suche in Google Scholar

2. Sheldrick, G. M. A short history of Shelx. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Suche in Google Scholar

5. Kumar, N., Goel, N. Phenolic acids: natural versatile molecules with promising therapeutic applications. Biotechnol. Rep. 2019, 24, e00370; https://doi.org/10.1016/j.btre.2019.e00370.Suche in Google Scholar

6. Pandey, K. B., Rizvi, S. I. Plant polyphenols as dietary antioxidants in human health and disease. Oxid. Med. Cell Longev. 2009, 2, 270–278; https://doi.org/10.4161/oxim.2.5.9498.Suche in Google Scholar

7. Boz, H. Ferulic acid in cereals-a review. Czech J. Food Sci. 2015, 1, 1–7.10.17221/401/2014-CJFSSuche in Google Scholar

8. Wang, J. R., Ma, L., Li, W. F., Tang, X. H., Zhao, G., Peng, L. X., Zhao, J. L. Effect of trace elements on the flavonoids and phenolic acids in tartary buckwheat sprouts. Acta Agric. Univ. Jiangxiensis 2017, 39, 55–63.Suche in Google Scholar

9. Wang, D., Miao, X. Y., Guo, X. D., Zhu, J. Preparation of coumaric acid amide derivatives and their application in cosmetics. Chin. J. Chem. 2020, 61, 305–311.Suche in Google Scholar

10. Taofiq, O., González-Paramás, A. M., Barreiro, M. F., Ferreira, I. C. F. R. Hydroxycinnamic acids and their derivatives: cosmeceutical significance, challenges and future perspectives, a review. Molecules 2017, 22, 1–24; https://doi.org/10.3390/molecules22020281.Suche in Google Scholar

11. Pei, K., Ou, J., Huang, J., Ou, S. Y. p-Coumaric acid and its conjugates: dietary sources, pharmacokinetic properties and biological activities. J. Sci. Food Agric. 2016, 96, 2952–2962; https://doi.org/10.1002/jsfa.7578.Suche in Google Scholar

12. Clifford, M. N. Chlorogenic acids and other cinnamates-nature, occurrence and dietary burden. J. Sci. Food Agric. 1999, 79, 362–372; https://doi.org/10.1002/(sici)1097-0010(19990301)79:3<362::aid-jsfa256>3.0.co;2-d.10.1002/(SICI)1097-0010(19990301)79:3<362::AID-JSFA256>3.0.CO;2-DSuche in Google Scholar

13. Kim, J. S. Investigation of phenolic, flavonoid, and vitamin contents in different parts of Korean ginseng (Panax ginseng C. A. Meyer). Prev. Nutr. Food Sci. 2016, 21, 263–270; https://doi.org/10.3746/pnf.2016.21.3.263.Suche in Google Scholar

14. Chung, I. M., Lim, J. J., Ahn, M. S., Jeong, H. N., An, T. J. Comparative phenolic compound profiles and antioxidative activity of the fruit, leaves, and roots of Korean ginseng (Panax ginseng Meyer) according to cultivation years. J. Ginseng Res. 2016, 40, 68–75; https://doi.org/10.1016/j.jgr.2015.05.006.Suche in Google Scholar

15. Cheng, J., Dai, F., Zhou, B., Yang, L., Liu, Z. L. Antioxidant activity of hydroxycinnamic acid derivatives in human low density lipoprotein: mechanism and structure-activity relationship. Food Chem. 2017, 104, 132–139.10.1016/j.foodchem.2006.11.012Suche in Google Scholar

16. Camarero, S., Canas, A. I., Nousiainen, P., Record, E., Lomascolo, A., MartÍnez, M. J., MartÍnez, Á. T. p-Hydroxycinnamic acids as natural mediators for laccase oxidation of recalcitrant compounds. Environ. Sci. Technol. 2008, 42, 6703–6709; https://doi.org/10.1021/es8008979.Suche in Google Scholar PubMed

17. Li, X., Zhao, J., Liu, J. X., Li, G., Zhao, Y., Zeng, X. Systematic analysis of absorbed anti-inflammatory constituents and metabolites of Sarcandra glabra in rat plasma using ultra-high-pressure liquid chromatography coupled with linear trap quadrupole orbitrap mass spectrometry. PLoS One 2016, 11, e150063; https://doi.org/10.1371/journal.pone.0150063.Suche in Google Scholar PubMed PubMed Central

18. Shailasree, S., Venkataramana, M., Niranjana, S. R., Prakash, H. S. Cytotoxic effect of p-coumaric acid on neuroblastoma, N2a cell via generation of reactive oxygen species leading to dysfunction of mitochondria inducing apoptosis and autophagy. Mol. Neurobiol. 2015, 51, 119–130; https://doi.org/10.1007/s12035-014-8700-2.Suche in Google Scholar PubMed

19. Fang, L. M., Huang, J. P., Dai, J. C., Nie, X. L., Liu, C. X., Kang, N. Q., Huang, L. Crystal structure of methyl 4-acetoxybenzoate, C10H10O4. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 585–586.10.1515/ncrs-2018-0591Suche in Google Scholar

20. Xiong, C. L., Lan, Y. D., Song, X. Y., Xiong, W. M., Nie, X. L. Crystal structure of methyl 4-acetoxy-3,5-dimethoxybenzoate, C12H14O6. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 573–575; https://doi.org/10.1515/ncrs-2020-0632.Suche in Google Scholar

21. Guo, C. M., Yi, L. Y., Pan, L., You, Y., Nie, X. L. Crystal structure of methyl(E)-3-(4-(2-ethoxy-2-oxoethoxy)phenyl) acrylate, C14H16O5. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 569–571.10.1515/ncrs-2020-0634Suche in Google Scholar
Received: 2021-07-12
Accepted: 2021-08-16
Published Online: 2021-08-31
Published in Print: 2021-12-20

© 2021 Jia Gu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
