The crystal structure of (E)-2-((tert-butylimino)methyl)-4-chlorophenol, C11H14ClNO

  • Lin Yuan ORCID logo , Yuan-Da Li , Xu Fan und Zhong-Yan Li EMAIL logo
Veröffentlicht/Copyright: 23. September 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C11H14ClNO, monoclinic, P21/c (no. 14), a = 9.072(3) Å, b = 5.882(2) Å, c = 21.258(7) Å, β = 100.351°, V = 1115.9(7) Å3, Z = 4, R gt (F) = 0.0391, wR ref (F2) = 0.1167, T = 296(2) K.

CCDC no.: 2108707

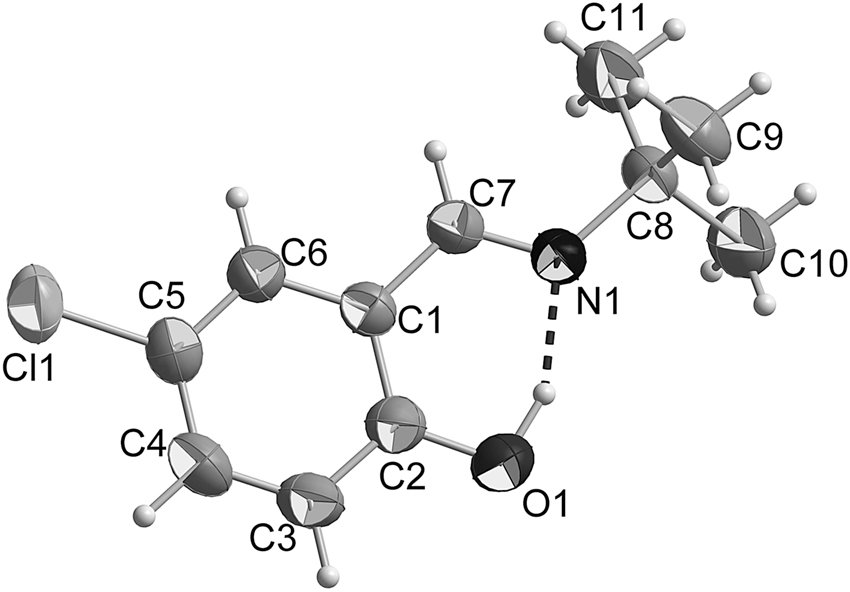

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.40 × 0.36 × 0.32 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.31 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θmax, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint: 10,033, 1951, 0.023
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1663
N(param)refined: 134
Programs: Bruker [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom X y Z Uiso*/Ueq
Cl1 0.19184 (6) 0.51912 (10) 0.26871 (2) 0.0772 (2)
O1 0.47557 (17) 1.0449 (2) 0.08837 (8) 0.0739 (4)
N1 0.66082 (14) 0.7152 (2) 0.08808 (6) 0.0497 (3)
C1 0.47057 (16) 0.7084 (3) 0.15192 (7) 0.0453 (4)
C2 0.41302 (19) 0.9225 (3) 0.13020 (8) 0.0529 (4)
C3 0.2888 (2) 1.0081 (3) 0.15245 (10) 0.0616 (5)
H3 0.250500 1.149413 0.138316 0.074*
C4 0.22181 (19) 0.8871 (3) 0.19497 (9) 0.0602 (5)
H4 0.139075 0.946261 0.209583 0.072*
C5 0.27871 (18) 0.6759 (3) 0.21588 (8) 0.0533 (4)
C6 0.40190 (18) 0.5877 (3) 0.19522 (7) 0.0495 (4)
H6 0.439690 0.446943 0.210179 0.059*
C7 0.59859 (17) 0.6114 (3) 0.12877 (7) 0.0473 (4)
H7 0.635550 0.470585 0.144086 0.057*
C8 0.78748 (18) 0.6178 (3) 0.06182 (8) 0.0508 (4)
C9 0.7200 (2) 0.4827 (4) 0.00233 (10) 0.0720 (6)
H9A 0.665110 0.355407 0.014490 0.108*
H9B 0.798782 0.429047 −0.018553 0.108*
H9C 0.653604 0.578636 −0.026389 0.108*
C10 0.8744 (2) 0.8199 (4) 0.04281 (13) 0.0831 (7)
H10A 0.808548 0.914088 0.013326 0.125*
H10B 0.954806 0.766582 0.022874 0.125*
H10C 0.914593 0.906666 0.080212 0.125*
C11 0.8897 (2) 0.4695 (4) 0.10950 (11) 0.0798 (6)
H11A 0.924668 0.554994 0.147734 0.120*
H11B 0.973729 0.421092 0.091153 0.120*
H11C 0.835149 0.338803 0.119713 0.120*
H1 0.558 (3) 0.948 (4) 0.0806 (13) 0.102 (8)*

Source of material

5-Chlorosalicylaldehyde (0.78 g, 5 mmol), tert-butylamine (0.40 g, 5.5 mmol) and ethanol (20 mL) were heated and stirred at 373 K for 6 h, then cooled to room temperature, filter and the product was recrystallized from ethanol to afford yellow crystals (0.95 g, yield 90%).

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The Uiso values of the hydrogen atoms of methyl groups were set to 1.5Ueq(C) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C).

Comment

O-hydroxy Schiff bases are an important class of organic compounds [4], [5], [6]. Because of the hydrogen bonds in the molecule, o-hydroxy Schiff base compounds have two possible tautomeric forms of phenol imine and ketoamine, which makes researchers very interested in the structure of the o-hydroxy Schiff base [7], [8], [9], [10], [11].

In the title structure, it can be clearly observed that the intra-molecular hydrogen bond is formed between the nitrogen atom of the imine and the hydrogen atom of the phenolic hydroxyl group [12]. The molecule is in the E-configuration at the C(7)–N(1) double bond (1.271(2) Å) and has a C(1)–C(7)–N(1)–C(8) torsion angle 177.73(13). The bond angle of C(7)–N(1)–C(8)is 122.73(14).

Corresponding author: Zhong-Yan Li, College of Chemistry and Bioengineering, Hunan University of Science and Engineering, Yongzhou, Hunan 425199, P. R. China, E-mail:

Funding source: Natural Science Foundation of Hunan Province

Award Identifier / Grant number: 2021JJ30291

Funding source: Undergraduate Training Program for Innovation and Entrepreneurship of Hunan Province of China

Award Identifier / Grant number: [2021]197-3585

Funding source: Undergraduate Training Program for Innovation and Entrepreneurship of Hunan University of Science and Engineering

Award Identifier / Grant number: 2021

Funding source: the construct program of applied characteristic discipline in Hunan University of Science and Engineering

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Natural Science Foundation of Hunan Province of China (2021JJ30291), Undergraduate Training Program for Innovation and Entrepreneurship of Hunan Province of China ([2021]197–3585), Undergraduate Training Program for Innovation and Entrepreneurship of Hunan University of Science and Engineering (2021), the construct program of applied characteristic discipline in Hunan University of Science and Engineering.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX3, SAINT–Plus, XPREP; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Wang, J., Li, Y., Duah, E., Paruchuri, S., Zhou, D., Pang, Y. A selective NIR-emitting zinc sensor by using Schiff base binding to turn-on excited-state intramolecular proton transfer. J. Mater. Chem. B 2014, 2, 2008–2012; https://doi.org/10.1039/c3tb21339k.Suche in Google Scholar

5. Wen, X., Fan, Z. A novel ‘turn-on’ fluorescence probe with aggregation-induced emission for the selective detection and bioimaging of Hg2+ in live cells. Sens. Actuators, B 2017, 247, 655–663; https://doi.org/10.1016/j.snb.2017.03.062.Suche in Google Scholar

6. Song, L., Yao, Y., Dong, C., Han, H., Wang, L. Synthesis of a Schiff-base fluorescence probe and its selective recognition to Zn2+. J. Anal. Sci. 2020, 36, 518–522.Suche in Google Scholar

7. Xu, T. T., Xu, X. Y., Gao, J., Liu, L. L., Ni, S. S., Lu, L. D., Yang, X. J. Synthesis, characterization and antimicrobial study of a new Schiff base paeonol-phenylpropanolamine. Chin. J. Struct. Chem. 2006, 25, 1502–1506.Suche in Google Scholar

8. Kernan, W. N., Viscoli, C. M., Brass, L. M., Broderick, J. P., Brott, T., Feldmann, E., Morgenstern, L. B., Wilterdink, J. L., Horwitz, R. I. Phenylpropanolamine and the risk of hemorrhagic stroke. N. Engl. J. Med. 2000, 343, 1826–1832; https://doi.org/10.1056/nejm200012213432501.Suche in Google Scholar

9. Li, Z.-Y., Jia, G.-K., Yuan, L., Bai, P.-F., He, H., Zhou, Q. Syntheses, crystal structures and biological activities of three new Schiff bases derived from substituted salicylaldehyde and tris base. Chin. J. Struct. Chem. 2017, 36, 1797–1802.Suche in Google Scholar

10. Yuan, L., Li, Z.-Y., Yuan, X.-Y., Zhang, M. Crystal structure of (E)-5-(diethylamino)-2-(((1,1,2-trihydroxyethyl)iminio)methyl)phenolate, C15H24N2O4. Z. Kristallogr. NCS 2017, 232, 905–907; https://doi.org/10.1515/ncrs-2017-0063.Suche in Google Scholar

11. Khosravi, I., Hosseini, F., Khorshidifard, M., Saahihi, M., Rudbari, H. A. Synthesis, characterization, crystal structure and HSA binding of two new N,O,O-donor Schiff-base ligands derived from dihydroxybenzaldehyde and tert-butylamine. J. Mol. Struct. 2016, 1119, 373–384; https://doi.org/10.1016/j.molstruc.2016.04.094.Suche in Google Scholar

12. Fernandez-G, J. M., Rodriguez-Romero, A., Panneerselvam, K., Soriano-Garcia, M. Two 2,3-naphthalenic Schiff bases. Acta Crystallogr., C Cryst. Struct. Commun. 1995, 51, 1643.10.1107/S0108270195001417Suche in Google Scholar
Received: 2021-08-09
Accepted: 2021-09-09
Published Online: 2021-09-23
Published in Print: 2021-12-20
