Crystal structure of dichlorido-bis(4-chlorophenyl-κC)-bis(triphenylarsine oxide-κO)tin(IV), C48H38As2Cl4O2Sn

  • See Mun Lee , Kong Mun Lo und Edward R. T. Tiekink ORCID logo EMAIL logo
Veröffentlicht/Copyright: 11. August 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C48H38As2Cl4O2Sn, monoclinic, P21/n (no. 14), a = 10.8019(1) Å, b = 14.6976(1) Å, c = 13.6266(1) Å, β = 90.983(1)°, V = 2163.07(3) Å3, Z = 2, R gt (F) = 0.0199, wR ref (F2) = 0.0514, T = 100 K.

CCDC no.: 2100057

The molecular structure is shown in Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless prism
Size 0.17 × 0.08 × 0.05 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 8.98 mm−1
Diffractometer, scan mode: XtaLAB Synergy, ω
θmax, completeness: 67.1°, >99%
N(hkl)measured, N(hkl)unique, Rint: 27,906, 3862, 0.033
Criterion for Iobs, N(hkl)gt: Iobs > 2σ(Iobs), 3740
N(param)refined: 259
Programs: CrysAlisPRO [1], SHELX [2, 3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Sn 0.500000 0.500000 0.500000 0.01548 (6)
As 0.33355 (2) 0.55829 (2) 0.72391 (2) 0.01507 (7)
Cl1 0.67305 (4) 0.46365 (3) 0.62143 (3) 0.02407 (11)
Cl2 0.37653 (6) 0.06412 (4) 0.41341 (5) 0.04122 (15)
O1 0.36794 (13) 0.51268 (9) 0.61576 (10) 0.0210 (3)
C1 0.45751 (18) 0.35727 (12) 0.48995 (13) 0.0171 (4)
C2 0.55420 (19) 0.29428 (14) 0.47827 (14) 0.0226 (4)
H2 0.637669 0.313991 0.485059 0.027*
C3 0.5292 (2) 0.20371 (14) 0.45695 (15) 0.0259 (4)
H3 0.594780 0.161476 0.448592 0.031*
C4 0.4074 (2) 0.17611 (13) 0.44812 (15) 0.0269 (5)
C5 0.3103 (2) 0.23531 (15) 0.46423 (15) 0.0268 (4)
H5 0.227027 0.214600 0.460999 0.032*
C6 0.33725 (18) 0.32578 (14) 0.48524 (14) 0.0214 (4)
H6 0.271223 0.366939 0.496644 0.026*
C7 0.36874 (17) 0.46888 (13) 0.82239 (14) 0.0197 (4)
C8 0.4180 (2) 0.38646 (14) 0.79338 (16) 0.0293 (5)
H8 0.434378 0.374948 0.726240 0.035*
C9 0.4431 (2) 0.32091 (16) 0.86433 (19) 0.0376 (5)
H9 0.476946 0.263998 0.845540 0.045*
C10 0.4193 (2) 0.33752 (16) 0.96161 (18) 0.0358 (5)
H10 0.436081 0.291896 1.009401 0.043*
C11 0.3709 (3) 0.42069 (18) 0.99009 (18) 0.0401 (6)
H11 0.354660 0.432126 1.057260 0.048*
C12 0.3465 (2) 0.48692 (16) 0.92023 (17) 0.0334 (5)
H12 0.314754 0.544417 0.939288 0.040*
C13 0.42003 (17) 0.66765 (13) 0.76029 (13) 0.0174 (4)
C14 0.35395 (19) 0.74511 (13) 0.78554 (15) 0.0225 (4)
H14 0.265991 0.744577 0.784315 0.027*
C15 0.4185 (2) 0.82360 (14) 0.81269 (15) 0.0257 (4)
H15 0.374187 0.876804 0.830402 0.031*
C16 0.5458 (2) 0.82444 (14) 0.81398 (15) 0.0255 (4)
H16 0.589183 0.878195 0.832411 0.031*
C17 0.61130 (19) 0.74669 (14) 0.78833 (14) 0.0241 (4)
H17 0.699243 0.747830 0.788734 0.029*
C18 0.54907 (18) 0.66756 (13) 0.76218 (14) 0.0200 (4)
H18 0.593701 0.614130 0.745811 0.024*
C19 0.15911 (17) 0.58243 (12) 0.71498 (14) 0.0168 (4)
C20 0.10286 (18) 0.57105 (13) 0.62314 (15) 0.0205 (4)
H20 0.150685 0.555464 0.567744 0.025*
C21 −0.02398 (19) 0.58282 (14) 0.61387 (16) 0.0254 (4)
H21 −0.063742 0.574145 0.551850 0.031*
C22 −0.09342 (19) 0.60717 (14) 0.69434 (16) 0.0255 (4)
H22 −0.180425 0.614961 0.687312 0.031*
C23 −0.03613 (19) 0.62016 (15) 0.78506 (15) 0.0258 (4)
H23 −0.083693 0.638102 0.839770 0.031*
C24 0.09033 (19) 0.60703 (14) 0.79611 (15) 0.0231 (4)
H24 0.129638 0.614766 0.858448 0.028*

Source of material

4-Chlorophenylmagnesium bromide was prepared from the Grignard reaction of magnesium (Merck) and 4-bromochlorobenzene (Fluka) conducted in tetrahydrofuran. Tetra(4-chlorophenyl)tin was synthesised from the reaction of stannic chloride (Fluka) with 4-chlorophenylmagnesium bromide in a 1:4 molar ratio. Subsequently, di(4-chlorophenyl)tin dichloride was synthesised from the comproportionation reaction of tetra(4-chlorophenyl)tin with stannic chloride (Fluka) in a 1:1 molar ratio to obtain a white precipitate. Di(4-chlorophenyl)tin dichloride (0.42 g, 1 mmol) and triphenylarsine oxide (Sigma, 0.65 g, 2 mmol) were dissolved separately in ethanol (50 mL) and mixed to give a white precipitate. The white precipitate was recrystallised from methanol and colourless crystals were obtained from the slow evaporation of the solvent. Yield: 0.71 g (67.2%). M.pt (Stuart SMP30 digital melting point apparatus; uncorrected): 496–499 K. IR (Bruker Vertex 70v FTIR Spectrometer; cm−1): 1085 (m) ν(C–C), 995 (m) ν(As–O), 472 (w) ν(Sn–O). 1 H NMR (Bruker Ascend 400 MHz NMR spectrometer; CDCl3; ppm relative to Me4Si): 7.13–7.61 (m, 34H, Ph–H), 8.02 (d, 4H, Ph–H). 13 C{ 1 H} NMR (as for 1H NMR): 127.4, 127.9, 129.4, 130.9, 131.7, 132.5, 135.3, 137.4 (Ph–C).

Experimental details

The C-bound H atoms were geometrically placed (C–H = 0.95 Å) and refined as riding with Uiso(H) = 1.2–1.5Ueq(C).

Comment

The majority of mononuclear triorganoarsine adducts of organotin halides have been shown by X-ray crystallography to fall into two distinct structural motifs, name-ly five-coordinate, trigonal-bipyramidal for triorganotin mono-halide species (4-MeC6H4CH2)3SnCl(O=AsPh3) [5], (4-ClC6H4CH2)3SnCl(O=AsPh3) [6], Ph3SnCl(O=AsPh3) [7], (4-ClC6H4)3SnCl(O=AsPh3) [7] and Ph3SnBr(O=AsPh3) [8], and a rarer, recently described six-coordinate, distorted octahedral species (4-MeC6H4)2SnCl2(O=AsPh3)2 [9] for a diorganotin dihalide. In continuation of studies in this area, a new six-coordinate species, the title compound (4-ClC6H4)2SnCl2(O=AsPh3)2, hereafter (I), was determined with details described herein.

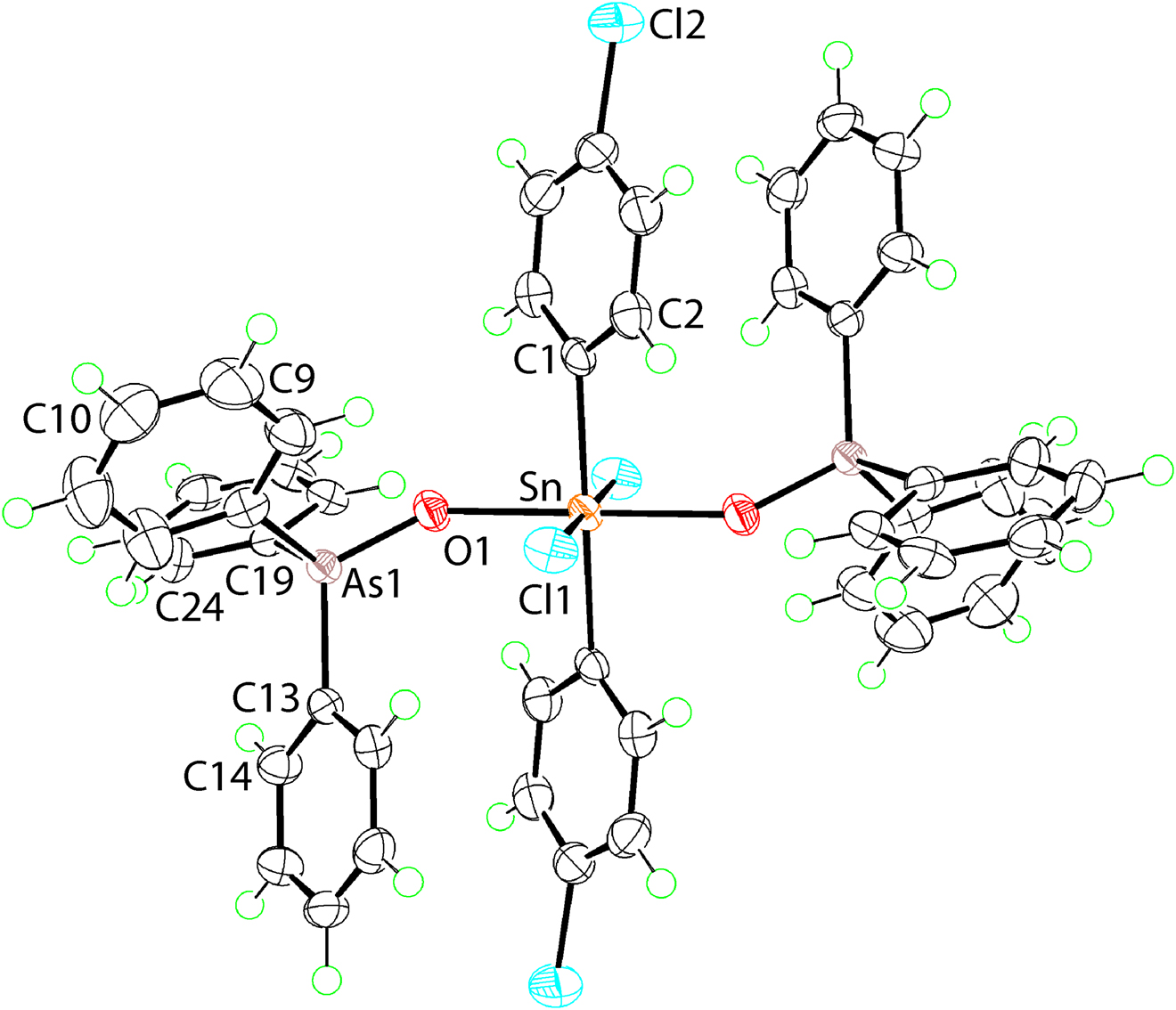

The molecular structure of (I) is shown in the Figure (70% displacement ellipsoids); the tin(IV) centre is located on an inversion centre. The tin atom is coordinated by two chlorido atoms, two oxido atoms of the Ph3As=O molecules and two ipso-carbon atoms derived from the 4-chlorophenyl groups. The, all-trans-C2Cl2O2 donor set defines an approximate octahedral geometry. The Sn–O1–As1 angle, at 147.48(8)°, is bent in accord with expectation. The Sn–Cl1, Sn–O1 and Sn–C1 bond lengths are 2.5321(4), 2.1530(13) and 2.1513(18) Å, respectively. The comparable bond lengths in the isostructural methyl derivative, i.e. (4-MeC6H4)2SnCl2(O=AsPh3)2 [9], are 2.5500(4), 2.1667(14) and 2.139(2) Å, respectively, indicating the Sn–Cl and Sn–O bond lengths are systematically longer, an observation related to the electron-donating nature of the 4-tolyl substituents, compared with the electron-withdrawing nature of the 4-chlorophenyl groups of (I).

The most prominent intermolecular interactions in the crystal of (I) are π(chlorophenyl)⋯π(As-phenyl) [Cg(C1–C6)⋯Cg(C13–C18)i = 3.6455(11) Å, angle = 5.10(9)° and slippage = 1.3 Å for symmetry operation (i) 1 − x, 1 − y, 1 − z] and As-phenyl-C–H⋯π(As-phenyl) [C9–H9⋯Cg(C19–C24)ii = 2.58 Å with angle at H9 = 155°, and C10–H10⋯Cg(C13–C18)iii = 2.94 Å with angle at H10 = 146° for (ii): 1/2 − x, −1/2 + y, 3/2 − z and (iii): 1 − x, 1 − y, 2 − z]. These interactions extend in three-dimensions in the crystal. In isostructural (4-MeC6H4)2SnCl2(O=AsPh3)2 [9], comparable π(4-methylphenyl)⋯π(As-phenyl) and As-phenyl-C–H⋯π(As-phenyl) contacts are evident in the crystal.

To conduct a further comparison between the isostructural compounds (I) and the 4-tolyl analogue [9], the Hirshfeld surface contacts were calculated along with the two-dimensional fingerprint plots (full and delineated into individual contacts) employing Crystal Explorer 17 [10] following literature protocols [11]. The calculations on (I) showed a predominance of H⋯H contacts, contributing 48.2% to the overall surface contacts, followed by C⋯H/H⋯C [32.4%] and Cl⋯H/H⋯Cl [15.6%] contacts. These values compare with 58.7, 33.1 and 7.0%, respectively, calculated for the 4-tolyl analogue [9], showing reduced and enhanced contributions from H⋯H and Cl⋯H/H⋯Cl contacts, respectively. Further reflecting the additional chloride substituents in the crystal of (I), Cl⋯C/C⋯Cl [1.8%] and Cl⋯Cl [1.1%] contacts are also noted.

Corresponding author: Edward R. T. Tiekink, Research Centre for Crystalline Materials, School of Medical and Life Sciences, Sunway University, 47500 Bandar Sunway, Selangor Darul Ehsan, Malaysia, E-mail:

Funding source: Sunway University doi.org/10.13039/501100010798

Award Identifier / Grant number: GRTIN-IRG-08-2021

Acknowledgements

Crystallographic research at Sunway University is supported by Sunway University Sdn Bhd (Grant No. GRTIN-IRG-08-2021).

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Sunway University Sdn Bhd (Grant No. GRTIN-IRG-08-2021).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku Oxford Diffraction: CrysAlisPRO; Rigaku Corporation: Oxford, UK, 2018.Suche in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Suche in Google Scholar

5. Lee, S. M., Lo, K. M., Tiekink, E. R. T. Crystal structure of chlorido-tris(4-methylbenzyl-κC)-(triphenylarsine oxide-κO)tin(IV), C42H42AsClOSn. Z. Kristallogr. NCS 2020, 235, 775–777; https://doi.org/10.1515/ncrs-2019-0888.Suche in Google Scholar

6. Johari, N. H., Lo, K. M., Ng, S. W. Chloridotris(4-chlorobenzyl-κC)(triphenylarsine oxide-κO)tin(IV). Acta Crystallogr. 2009, E65, m815; https://doi.org/10.1107/s1600536809022247.Suche in Google Scholar PubMed PubMed Central

7. Lo, K. M., Niu, J.-Y., Wang, J.-P. Synthesis and structures of coordination compounds of triphenylarsine with triorganotin and triorganolead chlorides. Chin. J. Inorg. Chem. 2000, 16, 763–768.Suche in Google Scholar

8. Lo, K. M., Lee, S. M., Tiekink, E. R. T. Crystal structure of bromido-triphenyl-(triphenylarsine oxide-κO)tin(IV), C36H30AsBrOSn. Z. Kristallogr. NCS 2020, 235, 981–983; https://doi.org/10.1515/ncrs-2020-0138.Suche in Google Scholar

9. Lo, K. M., Lee, S. M., Tiekink, E. R. T. Crystal structure of dichlorido-bis(4-methylphenyl-κC)-bis(triphenylarsine oxide-κO)tin(IV), C50H44As2Cl2O2Sn. Z. Kristallogr. NCS 2020, 235, 183–185; https://doi.org/10.1515/ncrs-2020-0282.Suche in Google Scholar

10. Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Spackman, P. R., Jayatilaka, D., Spackman, M. A.. Crystal Explorer v17; The University of Western Australia: Australia, 2017.Suche in Google Scholar

11. Tan, S. L., Jotani, M. M., Tiekink, E. R. T. Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. 2019, E75, 308–318; https://doi.org/10.1107/s2056989019001129.Suche in Google Scholar
