Crystal structure of dichlorido-bis(4-methylphenyl-κC1)tin(IV), C14H14Cl2Sn

  • Kong Mun Lo , See Mun Lee und Edward R. T. Tiekink ORCID logo EMAIL logo
Veröffentlicht/Copyright: 2. August 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C14H14Cl2Sn, orthorhombic, P212121 (no. 19), a = 8.2912(1) Å, b = 9.6221(1) Å, c = 18.5616(2) Å, V = 1480.82(3) Å3, Z = 4, R gt (F) = 0.0142, wR ref (F2) = 0.0347, T = 100 K.

CCDC no.: 2097904

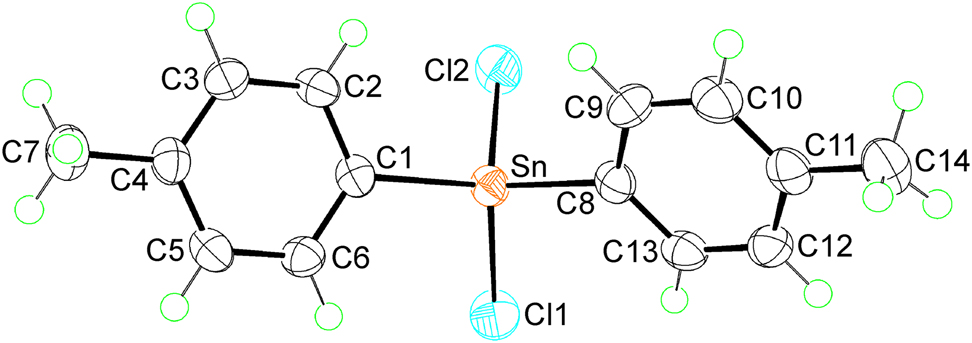

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless prism
Size: 0.09 × 0.07 × 0.05 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 16.8 mm−1
Diffractometer, scan mode: XtaLAB Synergy, ω
θmax, completeness: 67.0°, >99%
N(hkl)measured, N(hkl)unique, Rint: 38312, 2639, 0.040
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2618
N(param)refined: 157
Programs: CrysAlisPRO [1], SHELX [2, 3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Sn 0.55837 (3) 0.53509 (2) 0.34302 (2) 0.02290 (7)
Cl1 0.56232 (15) 0.33157 (8) 0.41163 (5) 0.03720 (19)
Cl2 0.31081 (10) 0.52845 (10) 0.28244 (4) 0.03371 (18)
C1 0.5463 (5) 0.7073 (3) 0.41350 (16) 0.0220 (6)
C2 0.4743 (4) 0.8302 (3) 0.39066 (17) 0.0240 (7)
H2 0.427956 0.835529 0.343940 0.029*
C3 0.4701 (4) 0.9443 (3) 0.43564 (17) 0.0250 (7)
H3 0.421188 1.028018 0.419476 0.030*
C4 0.5369 (4) 0.9382 (3) 0.50481 (16) 0.0243 (7)
C5 0.6073 (4) 0.8141 (4) 0.52696 (18) 0.0265 (7)
H5 0.652294 0.807884 0.573918 0.032*
C6 0.6131 (4) 0.6999 (3) 0.48201 (18) 0.0239 (7)
H6 0.662612 0.616295 0.497929 0.029*
C7 0.5358 (5) 1.0640 (3) 0.55302 (19) 0.0347 (8)
H7A 0.540008 1.034330 0.603490 0.052*
H7B 0.436823 1.117408 0.544716 0.052*
H7C 0.629677 1.122278 0.542248 0.052*
C8 0.7400 (4) 0.5162 (3) 0.26390 (17) 0.0236 (7)
C9 0.7637 (4) 0.6277 (3) 0.21719 (19) 0.0281 (8)
H9 0.698230 0.708345 0.221031 0.034*
C10 0.8830 (4) 0.6206 (3) 0.1652 (2) 0.0296 (7)
H10 0.897950 0.696945 0.133443 0.036*
C11 0.9816 (4) 0.5042 (3) 0.15818 (18) 0.0265 (7)
C12 0.9548 (5) 0.3925 (3) 0.20462 (17) 0.0275 (7)
H12 1.019064 0.311249 0.200175 0.033*
C13 0.8357 (4) 0.3980 (3) 0.25727 (17) 0.0253 (7)
H13 0.819593 0.321236 0.288646 0.030*
C14 1.1155 (4) 0.5018 (4) 0.10386 (19) 0.0347 (9)
H14A 1.080827 0.550186 0.060062 0.052*
H14B 1.142538 0.405248 0.092130 0.052*
H14C 1.210588 0.548329 0.123880 0.052*

Source of material

The title compound was prepared following a multi-step synthesis. Initially, 4-methylphenylmagnesium bromide was prepared from the Grignard reaction, conducted in tetrahydrofuran, of magnesium (Merck) and 4-bromotoluene (Fluka). Subsequently, tetra(4-methylphenyl)tin was synthesised from the reaction of stannic chloride (Fluka) with 4-methylphenylmagnesium bromide in a 1:4 M ratio. Tetra(4-methylphenyl)tin (10.0 g, 20.7 mmol) and anhydrous stannic chloride (Fluka, 5.39 g, 20.7 mmol) were mixed in a round-bottomed flask fitted with a reflux condenser. The reaction mixture was then heated with stirring in an oil bath at 473–493 K for 3 h. The resulting brown viscous liquid was dissolved in chloroform (150 mL) and boiled with activated charcoal for 10 min. After filtration, the chloroform solution was concentrated to a small volume. Slow evaporation of the concentrated solution gave the product as a white crystalline solid. Yield: 5.35 g (69.5%). M.pt (Stuart SMP30 digital melting point apparatus; uncorrected): 321–322 K (Lit. [5]: 322–323 K). IR (Bruker Vertex 70v FTIR Spectrometer; cm−1): 1560 (m) ν(C═C), 794 (w) ν(C–H), 277 (w) ν(Sn–Cl). 1H NMR (Bruker Ascend 400 MHz NMR spectrometer; CDCl3; ppm relative to Me4Si): δ 2.41 (s, 6H, CH3), 7.29–7.47 (m, 4H, Ph–H), 7.54–7.67 (m, 4H, Ph–H). 13 C{ 1 H} NMR (as for 1H NMR): δ 21.7 (CH3), 130.5, 133.5, 134.9, 142.3 (Ph–C).

Experimental details

The C-bound H atoms were geometrically placed (C–H = 0.95–0.98 Å) and refined as riding with Uiso(H) = 1.2–1.5Ueq(C). The crystal was refined as an inversion twin with the minor component = 0.074(7).

Comment

In crystal engineering endeavours, to systematically replace substituents while retaining space group symmetry offers opportunities to tailor chemical and physical properties. This concept is no better illustrated than by the chloro/methyl exchange [6]. As electronegative-chloride and electropositive-methyl groups occupy approximately the same volume, substitution of one by the other in the same crystal symmetry potentially enables control of, for example, electronic properties in the crystalline manifold. In continuation of on-going studies of opportunities offered by the chloro/methyl exchange [7, 8], herein, the crystal and molecular structures of (4–MeC6H4)2SnCl2, hereafter (I) and a known compound [5], was studied and compared with the recently reported crystal structure of the chloro analogue (4–ClC6H4)2SnCl2 [9].

The molecular structure of (I), which lacks crystallographic symmetry, is shown in the figure (70% displacement ellipsoids). The donor set defining an approximate tetrahedral geometry for the tin atom is C2Cl2, with the range of angles subtended at the tin atom being 104.55(4)°, for Cl1–Sn–Cl2, to 122.12(13)° for C1–Sn–C8, in accord with expectation as the rings have a greater steric profile. The Sn–Cl bond lengths are experimentally distinct [Sn–Cl1 = 2.3362(8) Å and Sn–Cl2 = 2.3413(8) Å], whereas the Sn–C distances are equivalent [Sn–C1 = 2.112(3) Å and Sn–C7 = 2.114(3) Å]. The observed molecular geometry for (I) and patterns in bond lengths match very closely that noted for (4–ClC6H4)2SnCl2 [9].

In accord with the distance criteria in PLATON [10], the only directional intermolecular contact in the crystal of (I) is a weak methyl–C–H⃛π(4-tolyl) contact [C14–H14b⃛Cg(C1–C6) i : H14b⃛Cg(C1–C6) i  = 2.90 Å, C14⃛Cg(C1–C6) i  = 3.527(4) Å with the angle at H14b = 123° for symmetry operation (i) 2 − x, −1/2 + y, 1/2 − z] occurring within helical chains along the b-axis. This description of the molecular packing differs significantly from the observed molecular packing in (4–ClC6H4)2SnCl2, which is not isostructural with (I). Prominent in the crystal of (4–ClC6H4)2SnCl2 were Sn⃛Cl secondary-bonding as well as C–Cl⃛π(phenyl) contacts [9].

To gain a further appreciation of the molecular packing, a detailed analysis of all surface contacts in the crystal of (I) was conducted by the calculation, using Crystal Explorer 17 [11], of the Hirshfeld surfaces and two-dimensional fingerprint plots (full and delineated into individual contacts), following established protocols [12]. The analysis revealed the dominance of three types of surface contacts, namely H⃛H [38.4%], Cl⃛H/H⃛Cl [3.7%] and C⃛H/H⃛C [28.2%] with the next most significant contacts being Cl⃛C/C⃛Cl at 1.6%.

Corresponding author: Edward R. T. Tiekink, Research Centre for Crystalline Materials, School of Medical and Life Sciences, Sunway University, 47500 Bandar Sunway, Selangor Darul Ehsan, Malaysia, E-mail:

Funding source: Sunway University

Award Identifier / Grant number: GRTIN–IRG-01–2021

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Crystallographic research at Sunway University is supported by Sunway University Sdn Bhd (Grant No. GRTIN–IRG-01–2021).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku Oxford Diffraction: CrysAlisPRO; Rigaku Corporation: Oxford, UK, 2018.Suche in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Suche in Google Scholar

5. Kozeschkow, K. A., Nadj, M. M. Untersuchungen über metallorganische verbindungen, IV. Mitteil.: Über aromatische stannonsäuren und einige ihrer reaktionen. Chem. Ber. 1934, 67, 717–721; https://doi.org/10.1002/cber.19340670502.Suche in Google Scholar

6. Edwards, M. R., Jones, W., Motherwell, W. D. S., Shields, G. P. Crystal engineering and chloro-methyl interchange – a CSD analysis. Mol. Cryst. Liq. Cryst. 2001, 356, 337–353; https://doi.org/10.1080/10587250108023713.Suche in Google Scholar

7. Yeo, C. I., Tiekink, E. R. T. Crystal structure and molecular packing of O-ethyl (2-chlorophenyl)carbamothioate, C9H10ClNOS. Z. Kristallogr. N. Cryst. Struct. 2018, 233, 651–653; https://doi.org/10.1515/ncrs-2017-0422.Suche in Google Scholar

8. Tan, S. L., Tiekink, E. R. T. Non-covalent interactions involving remote substituents influence the topologies of supramolecular chains featuring hydroxyl–O–H⃛O(hydroxyl) hydrogen bonding in crystals of (HOCH2CH2)2NC(═S)N(H)(C6H4Y-4) for Y = H, Me, Cl and NO2. CrystEngComm 2021, 23, 1723–1743; https://doi.org/10.1039/d0ce01810d.Suche in Google Scholar

9. Lo, K. M., Lee, S. M., Tiekink, E. R. T. Crystal structure of dichloridobis(4-chlorophenyl-κC1)tin(IV), C12H8Cl4Sn. Z. Kristallogr. N. Cryst. Struct. 2021, 236. NCRS-2021–0271.10.1515/ncrs-2021-0271Suche in Google Scholar

10. Spek, A. L. checkCIF validation ALERTS: what they mean and how to respond. Acta Crystallogr. 2020, E76, 1–11; https://doi.org/10.1107/s2056989019016244.Suche in Google Scholar

11. Turner, M. J., Mckinnon, J. J., Wolff, S. K., Grimwood, D. J., Spackman, P. R., Jayatilaka, D., Spackman, M. A. Crystal Explorer v17; The University of Western Australia: Australia, 2017.Suche in Google Scholar

12. Tan, S. L., Jotani, M. M., Tiekink, E. R. T. Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. 2019, E75, 308–318; https://doi.org/10.1107/s2056989019001129.Suche in Google Scholar
Received: 2021-07-12
Accepted: 2021-07-20
Published Online: 2021-08-02
Published in Print: 2021-12-20
