The crystal structure of catena-poly[(1,10-phenanthroline-k2N,N′)-(μ3-tetraoxidomoybdato(VI)-k3O:O′:O″)manganese(II)] C12H8N2O4MoMn

  • Qiu Ze-Hai , Zhang Zhu-Sen and Chen Wu-Hua ORCID logo EMAIL logo
Published/Copyright: October 28, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 6

Abstract

C12H8N2O4MoMn, monoclinic, P21/m (no. 11), a = 8.9812(5) Å, b = 6.5212(3) Å, c = 10.6167(6) Å, β = 100.120(6)°, V = 612.13(6) Å3, Z = 2, R gt (F) = 0.0391, wRref(F2) = 0.0783, T = 293(2) K.

CCDC no.: 2115375

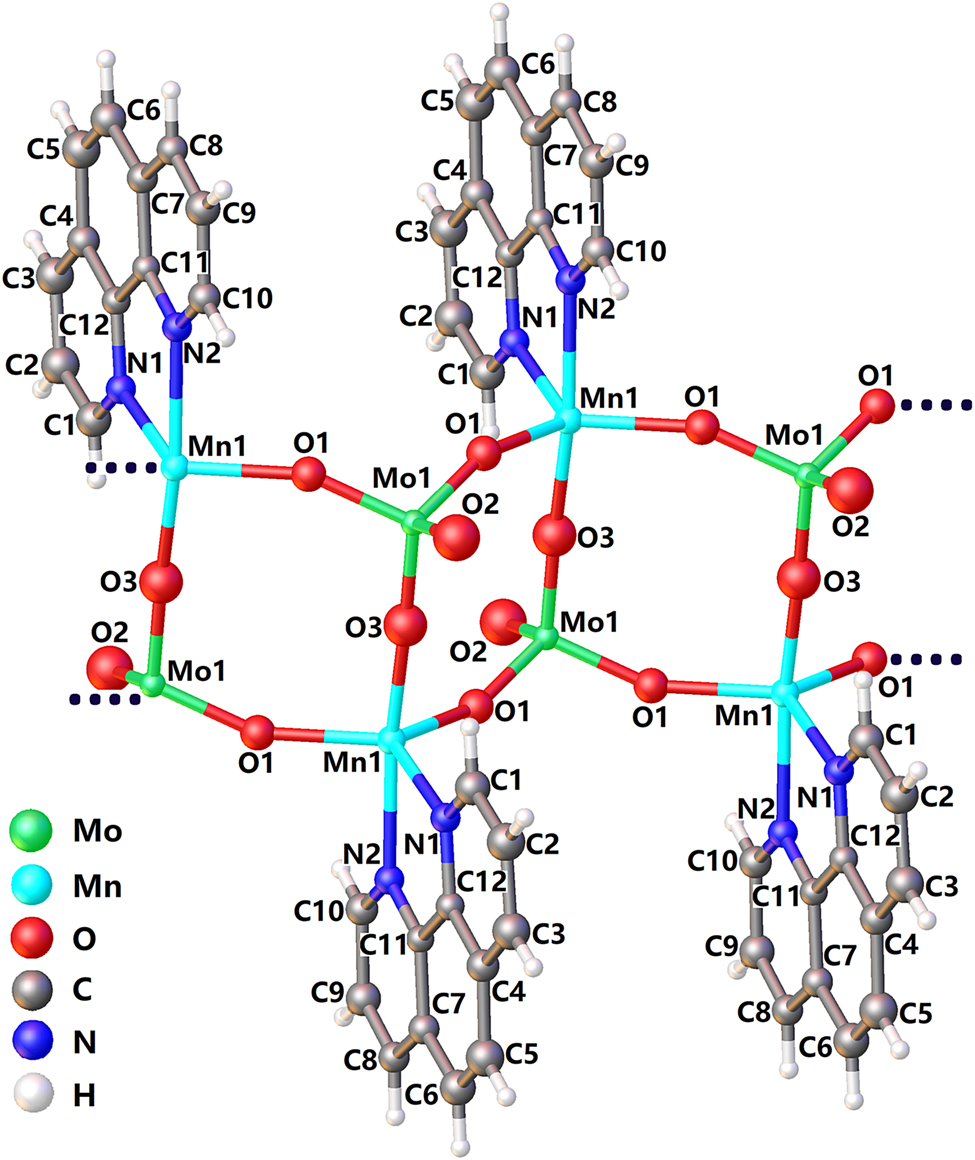

A part of the polymeric title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow cube
Size: 0.40 × 0.31 × 0.22 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 2.07 mm−1
Diffractometer, scan mode: New Xcalibur, ω
θmax, completeness: 29.3°, 99%
N(hkl)measured, N(hkl)unique, Rint: 2729, 1520, 0.029
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1342
N(param)refined: 118
Programs: CrysAlisPRO , Olex2 [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Mn1 0.19766 (9) 0.7500 0.16874 (8) 0.0209 (2)
Mo1 −0.00443 (5) 0.2500 0.17991 (4) 0.01716 (14)
C1 0.4663 (7) 0.7500 0.0065 (6) 0.0307 (14)
H1 0.3891 0.7500 −0.0646 0.037*
C2 0.6170 (8) 0.7500 −0.0123 (6) 0.0371 (16)
H2 0.6377 0.7500 −0.0952 0.044*
C3 0.7336 (8) 0.7500 0.0888 (6) 0.0356 (15)
H3 0.8334 0.7500 0.0760 0.043*
C4 0.6992 (6) 0.7500 0.2142 (6) 0.0266 (13)
C5 0.8112 (7) 0.7500 0.3289 (6) 0.0365 (16)
H5 0.9129 0.7500 0.3217 0.044*
C6 0.7752 (7) 0.7500 0.4441 (6) 0.0332 (15)
H6 0.8513 0.7500 0.5159 0.040*
C7 0.6176 (6) 0.7500 0.4599 (6) 0.0228 (12)
C8 0.5726 (7) 0.7500 0.5803 (6) 0.0249 (12)
H8 0.6447 0.7500 0.6548 0.030*
C9 0.4236 (7) 0.7500 0.5868 (6) 0.0302 (14)
H9 0.3922 0.7500 0.6657 0.036*
C10 0.3172 (7) 0.7500 0.4731 (6) 0.0269 (13)
H10 0.2150 0.7500 0.4788 0.032*
C11 0.5042 (6) 0.7500 0.3515 (5) 0.0202 (11)
C12 0.5446 (6) 0.7500 0.2258 (5) 0.0202 (11)
N1 0.4303 (5) 0.7500 0.1223 (4) 0.0226 (10)
N2 0.3546 (5) 0.7500 0.3588 (5) 0.0212 (10)
O1 0.1094 (3) 0.4728 (4) 0.2096 (3) 0.0303 (5)
O2 −0.1344 (6) 0.2500 0.2788 (5) 0.0580 (16)
O3 −0.1010 (6) 0.2500 0.0217 (4) 0.0483 (13)

Source of material

A mixture containing MnSO4·4H2O (0.480 g), 1,10-phenan-throline monohydrate (0.460 g), (NH4)2MoO4·4H2O (0.740 g), and deionized water (H2O) (15.0 mL), with pH value 7.5, was prepared by mixing these components and sealed in a 25 mL Teflon-lined stainless steel autoclave (70% of the total volume of the autoclave). Then, the resulting slurry was heated to 463 K in an oven and kept at the temperature for a week. Then dark yellow purity-phase crystals of the title compound (about 45% yield based on Mn) were obtained.

Experimental details

The hydrogen atoms were placed at calculated positions with the SHELX program.

Comment

Manganese complexes have been attracting attention for a long time due to the intriguing structures, deriving from its multi-form of oxidation states and multi-coordination modes [4, 5], and the outstanding physicochemical properties, including optical, electric, magnetic, and catalytic performances [6–8]. Therefore, the preparation of a new manganese compound has become an important research orientation [9–11]. The hydrothermal synthesis is known as one of the most efficient methods to obtain new manganese-organic compounds [12, 13]. Nevertheless, the synthetic features of “black box” and “one-pot” lead to the preparation processes being hardly controlled. Some subtle factors, including temperature, pH-value, solvent, ratio of reactants, structure direct-agent, counterion, and so on, will greatly affect reaction processes and experimental results [14]. Based on our previous work, on [Mn(phen)(H2O)MoO4·H2O] n (phen = 1′10-phenanthroline) [15], we obtained the analogous title compound [Mn(phen)MoO4] n , by virtue of somewhat changing the hydrothermal synthesis conditions. By constrast, the requirement of the title compound is under conditions of higher temperature and pH-value of reaction, without CH3COOH (aqueous solution) as pH-value conditioning agent.

Outwardly, the title compound shows the deeper color (yellow) than [Mn(phen)(H2O)MoO4·H2O] n . The single-crystal X-ray diffraction structure analyses indicate that the title compound shows the same one-dimensional configuration. The asymmetric unit contains one half of the emirical formula (Table 2). The [Mn(phen)]2+ moieties are connected by molybdates, MoO 4 2 − . By contrast, the chemical composition of title compound has one crystal water molecule and one coordination water molecule less than [Mn(phen)(H2O)MoO4·H2O] n . Meanwhile, Mn-organic coordination ions [Mn(phen)]2+,and molybdates, MoO 4 2 − , in title compound shows a zigzag arrangement, instead of straight line arrangement, in [Mn(phen)(H2O)MoO4·H2O] n . In [Mn(phen)]2+, the five-coordinated Mn2+ shows bond lengths of 2.230(5) and 2.249(5) Å for Mn–N, bond lengths of 2.051(3) and 2.055(4) Å for Mn–O b . The O/N–Mn–O/N bond angles are within the normal range of 74.60(17)–166.5(2)°. The four-coordinated Mo atom show bond distances of 1.750(4) and 1.773(3) Å for two-bridging oxygen atoms (Mo–O b ) and the bond distance of 1.701(4) Å for terminal oxygen atoms (Mo–O t ). The O–Mo–O bond angles are in the range of 108.3(3)–110.11(13)°. Bond valence sum calculations on the Mo and Mn sites afford values of 6.1 and 2.2.

Corresponding author: Chen Wu-Hua, College of Chemistry and Material Science, Fujian Provincial Colleges and University Engineering Research Center of Solid Waste Resource Utilization (Longyan University), Longyan University, Longyan 364012, Fujian Province, People’s Republic of China, E-mail:

Funding source: Natural Science Foundation of Fujian Province http://dx.doi.org/10.13039/501100003392

Award Identifier / Grant number: 2020J01367

Funding source: Qimai Science and Technology Innovation Foundation of Shanghang County

Award Identifier / Grant number: 2017SHQM02

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: The work was supported by the Natural Science Foundation of Fujian Province (No. 2020J01367) and the Qimai Science and Technology Innovation Foundation of Shanghang County (No. 2017SHQM02).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Meng, Q. G., Dai, F. N., Zhang, L. L., Wang, R. M., Sun, D. F. Synthesis, structure, and magnetism of three manganese-organic framework with PtS topology. Sci. China Chem. 2014, 57, 1507–1513; https://doi.org/10.1007/s11426-014-5153-4.Search in Google Scholar

5. Yin, J., Zhang, F.-J., Tai, X.-S. The crystal of catena-tetraaqua-bis(4-acetyphenoxyacetato-κ1O) manganese(II), C20H26O12Mn. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 45–46.10.1515/ncrs-2020-0467Search in Google Scholar

6. Fu, Z., Yi, J., Chen, Y., Liao, S., Guo, N., Dai, J., Yang, G., Lian, Y., Wu, X. From interwoven to noninterpenetration: crystal structural motifs of two new manganese-organic frameworks mediated by the substituted group of the bridging ligand. Eur. J. Inorg. Chem. 2008, 4, 628–634; https://doi.org/10.1002/ejic.200700818.Search in Google Scholar

7. Sun, Z.-B., Si, Y.-N., Zhao, S.-N., Wang, Q.-Y., Zang, S.-Q. Ozone decomposition by a manganese-organic framework over the entire humidity range. J. Am. Chem. Soc. 2021, 143, 5150–5157; https://doi.org/10.1021/jacs.1c01027.Search in Google Scholar PubMed

8. Li, Y., Ma, D., Chen, C., Chen, M., Li, Z., Wu, Y., Zhu, S., Peng, G. A hydrostable and bromine-functionalized manganese-organic framework with luminescence sensing of Hg2+ and antiferromagnetic properties. J. Solid State Chem. 2019, 269, 257–263; https://doi.org/10.1016/j.jssc.2018.09.034.Search in Google Scholar

9. Tao, P., Liu, S.-J., Wong, W.-Y. Phosphorescent manganese(II) complexes and their emerging applications. Adv. Opt. Mater. 2020, 8, 2000985; https://doi.org/10.1002/adom.202000985.Search in Google Scholar

10. Ali, B., lqbal, M. A. Coordination complexes of manganese and their biomedical applications. ChemistrySelect 2017, 2, 1586–1604; https://doi.org/10.1002/slct.201601909.Search in Google Scholar

11. Mukherjee, A., Milstein, D. Homogenous catalysis by cobalt and manganese pincer complexes. ACS Catal. 2018, 8, 11435–11469; https://doi.org/10.1021/acscatal.8b02869.Search in Google Scholar

12. Qin, Y., She, P., Huang, X., Huang, W., Zhao, Q. Luminescent manganese(II) complexes: synthesis, properties and optoelectronic applications. Coord. Chem. Rev. 2020, 416, 213331; https://doi.org/10.1016/j.ccr.2020.213331.Search in Google Scholar

13. Ali, B., Shakir, M. R., Iqbal, M. A. Techniques in the synthesis of mononuclear manganese complexes: a review. Rev. Inorg. Chem. 2017, 37, 105–130; https://doi.org/10.1515/revic-2017-0004.Search in Google Scholar

14. Chen, W.-H., Zhang, Z.-S., Zhao, J.-H., Qiu, Z.-H., Yuan, Q.-L., Huang, T.-F., Lin, X.-Y., Hu, Z.-B. A little adjustment of synthetic strategy led to a new highly repeated heteropolyblue: structure, characterizations and photocatalytic properties. J. Mol. Struct. 2017, 1138, 192–197; https://doi.org/10.1016/j.molstruc.2017.02.087.Search in Google Scholar

15. Chen, W.-H., Zhou, J., Wang, Y.-F. Redetermination of the crystal structure of catena-poly[aqua-(1,10-phenanthroline-κ2N,N′)-(μ2-tetraoxidomolybdato(VI)-κ2O:O′) manganese(II) monohydrate, C12H12N2O6MoMn. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 865–866.10.1515/ncrs-2020-0065Search in Google Scholar
Received: 2021-08-20
Accepted: 2021-10-14
Published Online: 2021-10-28
Published in Print: 2021-12-20

© 2021 Qiu Ze-Hai et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
