The crystal structure of 6,6′-(((2-(dimethylamino)ethyl)azanediyl)bis(methylene))bis(benzo[d][1,3]dioxol-5-ol ato-κ4N,N′,O,O′)-(pyridine-2,6-dicarboxylato-N,O,O′)-titanium(IV)-dichloromethane(1/1), C27H25N3O10Ti

  • Shanjia Li , Peng Wang , Mingyu Ji , Mingjun Yang , Xiuying Pu und Tiankun Zhao ORCID logo EMAIL logo
Veröffentlicht/Copyright: 16. August 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C27H25N3O10Ti, monoclinic, P21/n (no. 14), a = 11.3366(11) Å, b = 11.0253(11) Å, c = 23.7160(2) Å, β = 100.839(2)°, V = 2911.4(5) Å3, Z = 4, R gt (F) = 0.0615, wR ref (F2) = 0.1411, T = 296(2) K.

CCDC no.: 2088952

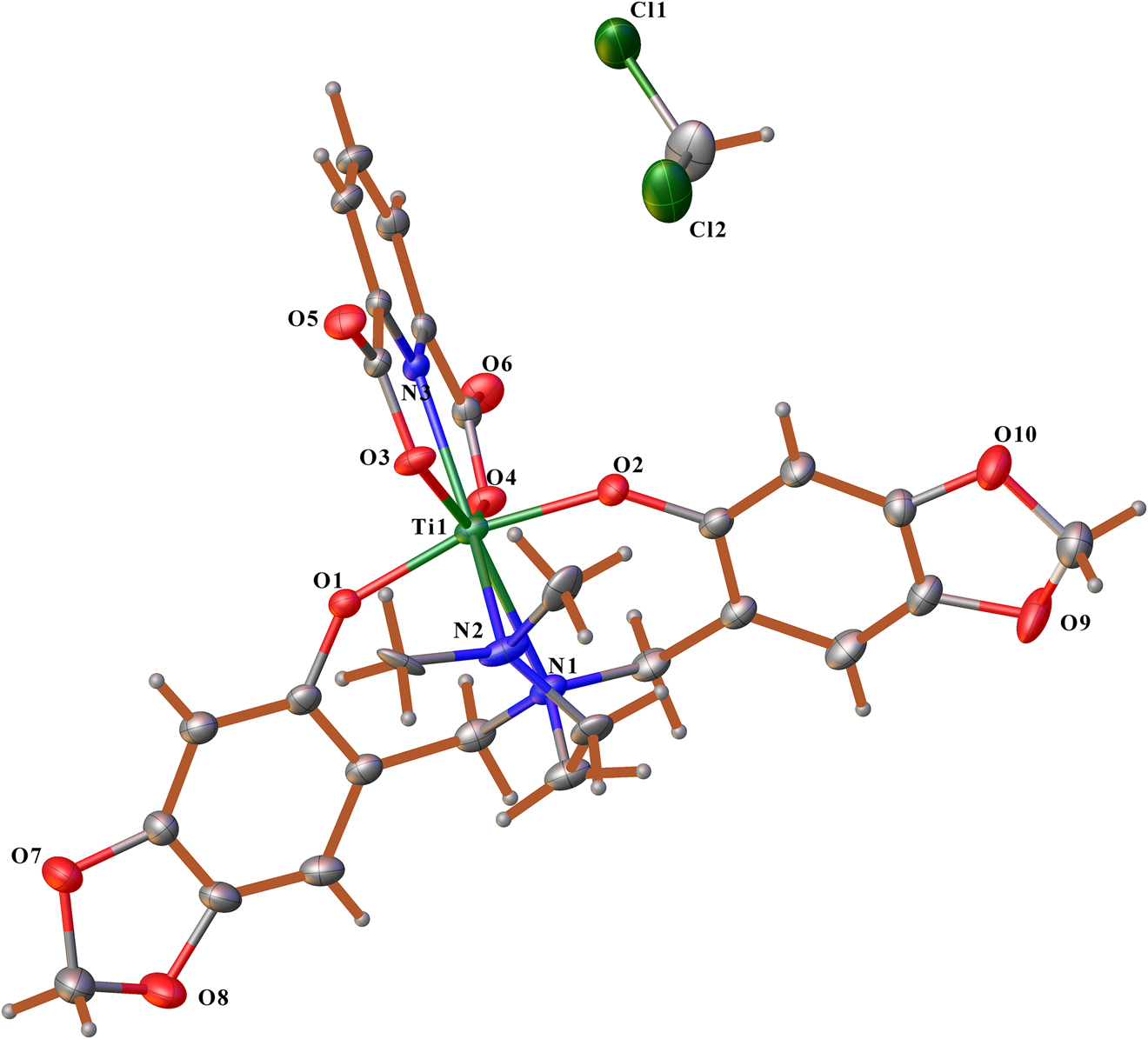

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Brown needle
Size: 0.10 × 0.08 × 0.05 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.54 mm−1
Diffractometer, scan mode: Bruker SMART CCD 6000, ω
θmax, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint: 15,865, 5125, 0.108
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2257
N(param)refined: 433
Programs: Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
C1 −0.4489 (6) 0.7802 (6) 0.2015 (3) 0.081 (2)
H1A −0.429279 0.788647 0.163611 0.098*
H1B −0.535503 0.774862 0.197427 0.098*
C2 −0.2933 (5) 0.7167 (5) 0.2655 (2) 0.0558 (15)
C3 −0.1981 (5) 0.6518 (5) 0.2953 (2) 0.0527 (14)
H3 −0.194986 0.567773 0.292551 0.063*
C4 −0.1058 (5) 0.7172 (5) 0.3299 (2) 0.0439 (13)
C5 −0.1136 (5) 0.8426 (4) 0.3349 (2) 0.0463 (13)
C6 −0.2121 (6) 0.9042 (5) 0.3035 (2) 0.0590 (16)
H6 −0.217843 0.988100 0.305703 0.071*
C7 −0.2999 (6) 0.8383 (6) 0.2694 (3) 0.0643 (16)
C8 −0.0160 (5) 0.9117 (4) 0.3747 (2) 0.0488 (14)
H8A −0.028769 0.997847 0.367904 0.059*
H8B −0.023795 0.895600 0.414085 0.059*
C9 0.1879 (5) 0.9597 (4) 0.4098 (2) 0.0498 (14)
H9A 0.169009 0.945426 0.447518 0.060*
H9B 0.167964 1.043482 0.399791 0.060*
C10 0.3220 (5) 0.9432 (4) 0.4139 (2) 0.0457 (14)
C11 0.3745 (5) 0.8275 (5) 0.41923 (19) 0.0447 (13)
C12 0.4979 (5) 0.8121 (4) 0.4275 (2) 0.0538 (15)
H12 0.532396 0.735278 0.431800 0.065*
C13 0.5662 (5) 0.9132 (5) 0.4291 (2) 0.0510 (14)
C14 0.5184 (6) 1.0273 (5) 0.4232 (2) 0.0591 (16)
C15 0.3965 (6) 1.0456 (5) 0.4157 (2) 0.0607 (16)
H15 0.364303 1.123427 0.411826 0.073*
C16 0.7129 (6) 1.0462 (5) 0.4290 (3) 0.0745 (19)
H16A 0.775256 1.075645 0.459690 0.089*
H16B 0.740544 1.055731 0.392983 0.089*
C17 0.1242 (5) 0.9118 (4) 0.3086 (2) 0.0567 (16)
H17Aa 0.048027 0.899867 0.282679 0.068*
H17Ba 0.145389 0.996851 0.307210 0.068*
H17Cb 0.064704 0.972860 0.293880 0.068*
H17Db 0.202625 0.948521 0.310633 0.068*
C18a 0.2133 (11) 0.8408 (7) 0.2897 (4) 0.055 (3)
H18Aa 0.291428 0.860201 0.312439 0.066*
H18Ba 0.215012 0.859918 0.249936 0.066*
C18Ab 0.113 (2) 0.8161 (11) 0.2686 (5) 0.057 (6)
H18Cb 0.141105 0.842609 0.234408 0.069*
H18Db 0.029491 0.792911 0.257673 0.069*
C19a 0.3086 (11) 0.6529 (13) 0.2931 (10) 0.068 (4)
H19Aa 0.331197 0.673817 0.257277 0.101*
H19Ba 0.305068 0.566204 0.296355 0.101*
H19Ca 0.366915 0.684576 0.324231 0.101*
C19Ab 0.3113 (19) 0.700 (2) 0.2837 (18) 0.068 (4)
H19Db 0.308421 0.695053 0.243092 0.101*
H19Eb 0.350989 0.629200 0.301989 0.101*
H19Fb 0.354719 0.771124 0.298696 0.101*
C20a 0.0959 (17) 0.6547 (14) 0.2497 (8) 0.072 (6)
H20Aa 0.020248 0.693342 0.250341 0.108*
H20Ba 0.088821 0.569168 0.255765 0.108*
H20Ca 0.118098 0.668316 0.213054 0.108*
C20Ab 0.119 (3) 0.613 (2) 0.2563 (13) 0.056 (8)
H20Db 0.036909 0.612454 0.261361 0.083*
H20Eb 0.153606 0.534056 0.265569 0.083*
H20Fb 0.122058 0.632000 0.217161 0.083*
C21 0.1431 (4) 0.5651 (4) 0.50894 (19) 0.0341 (12)
C22 0.1540 (4) 0.4811 (5) 0.5524 (2) 0.0436 (13)
H22 0.139530 0.502514 0.588431 0.052*
C23 0.1867 (4) 0.3652 (5) 0.5414 (2) 0.0519 (15)
H23 0.194805 0.306826 0.570211 0.062*
C24 0.2076 (4) 0.3349 (4) 0.4882 (2) 0.0441 (13)
H24 0.230167 0.256522 0.480406 0.053*
C25 0.1944 (4) 0.4230 (4) 0.4466 (2) 0.0352 (12)
C26 0.1069 (4) 0.6962 (4) 0.5112 (2) 0.0377 (13)
C27 0.2125 (4) 0.4104 (4) 0.3862 (2) 0.0393 (13)
C28c 0.4514 (13) 0.6270 (18) 0.6156 (6) 0.109 (6)
H28Ac 0.387638 0.686930 0.609304 0.130*
H28Bc 0.524684 0.668342 0.633042 0.130*
C28Ad 0.482 (5) 0.630 (6) 0.632 (3) 0.109 (6)
H28Cd 0.499894 0.707729 0.615931 0.130*
H28Dd 0.548003 0.611352 0.662685 0.130*
Cl1c 0.4185 (3) 0.5227 (3) 0.66285 (11) 0.1324 (12)
Cl1Ad 0.3577 (8) 0.6493 (10) 0.6609 (4) 0.1324 (12)
Cl2c 0.4692 (3) 0.5734 (4) 0.55111 (13) 0.1268 (12)
Cl2Ad 0.4827 (11) 0.5253 (13) 0.5800 (4) 0.1268 (12)
N1 0.1101 (4) 0.8806 (3) 0.36802 (16) 0.0427 (11)
N2 0.1882 (5) 0.7057 (3) 0.29519 (19) 0.0578 (13)
N3 0.1622 (3) 0.5363 (3) 0.45716 (15) 0.0332 (10)
O1 −0.0092 (3) 0.6574 (3) 0.35818 (12) 0.0391 (8)
O2 0.3034 (3) 0.7284 (3) 0.41510 (13) 0.0451 (9)
O3 0.1941 (3) 0.5131 (3) 0.35855 (12) 0.0483 (9)
O4 0.1024 (3) 0.7497 (3) 0.46334 (14) 0.0482 (9)
O5 0.2403 (3) 0.3148 (3) 0.36641 (14) 0.0545 (10)
O6 0.0868 (3) 0.7420 (3) 0.55495 (15) 0.0620 (11)
O7 −0.3936 (4) 0.6743 (3) 0.22904 (17) 0.0795 (12)
O8 −0.4049 (4) 0.8802 (4) 0.23612 (19) 0.0918 (14)
O9 0.6077 (4) 1.1132 (3) 0.4277 (2) 0.0884 (14)
O10 0.6894 (4) 0.9221 (3) 0.43814 (17) 0.0746 (12)
Ti1 0.15050 (8) 0.67378 (7) 0.39021 (3) 0.0383 (3)

  1. aOccupancy: 0.630(13), bOccupancy: 0.370(13), cOccupancy: 0.752(3), dOccupancy: 0.248(3).

Source of material

ONON ligand L 1 : (6,6′-(((2-(dimethylamino)ethyl)azanediyl)bis (methylene))bis(benzo[d][1,3]dioxol-5-ol)) was prepared following the literature reported method by raising the reaction temperature (from r.t. to 50 °C) [3]. The corresponding Ti(IV) complex was synthesized according to Lit [4]. Under a nitrogen atmosphere, L1 (1 mmol, 400 mg) was dissolved in anhydrous THF (20 mL), Ti(OiPr)4 (0.98 mmol, 0.29 mL) was then added to the solution. The reaction mixture was heated to 50 °C and kept stirring for 2 h,Dipic (pyridine-2,6-dicarboxylic acid) (0.98 mmol, 163.0 mg) was added and the reaction was left stirring for another 12 h and monitored by TLC. When reaction was complete [L1Ti(IV)(Dipic)] was separated by flash column chromatography (CH2Cl2/CH3OH = 40/1) to obtain a crimson solid (0.84 mmol, 506.2 mg, 86%). Suitable crystals for X-ray measurement were obtained by slow diffusion of n-Hexane to a dichloromethane solution of [L1Ti(IV)(Dipic)] at room temperature.

Experimental details

H atoms bonded to C atoms were positioned geometrically with C–H = 0.95 Å (aromatic), 0.99 Å (methylene) and 0.98 Å (methyl) and refined in a riding mode [Uiso(H) = 1.2UeqC (aromatic and methylene)], 1.5UeqC(methyl).

Comment

The two titanium complexes titanocene dichloride (TDC) and Budotitane (cis-diethoxy-bis(1-phenylbutane-1,3-dionato)titanium(IV)) were found having anti-tumor activities and eventually will enter the clinical trial. Numerous efforts have been made seeking novel titanium molecules with enhanced aqueous stability which led to the failure of TDC and Budotitane [5]. The ONNO Salan ligand stabilized titanium complexes which demonstrated satisfactory anti-tumor activity in both in vitro and in vivo experiments [6]. A new generation of heptacoordinated Salan titanium complexes was found by using pyridine-2,6-dicarboxylic acid as a second chelator [4, 7]. The much enhanced stability amplified the field of complex modification and PET tumor probes [8, 9]. However, ONON ligand coordinated titanium complexes are less explored despite that they exhibit more flexibility because of the difficult ligand synthesis approach [10]. We have previously demonstrated an unexpected Mannich synthetic approach for ONON ligands from naphthalen-2-ol, and its titanium bis-chelates have been be synthesized smoothly. To further expand the substrate scope for this synthetic approach to phenyl containing ONON ligands we used starting materials which can be easily obtained.

The title compound crystallizes in the monoclinic space group P21/n with four formula units in one unit cell. The cental Ti cation is seven-coordinated by three nitrogen atoms and four carboxylate oxygen atoms, forming a distorted penta-dentated bipyramidal geometry. The bond lengths of four Ti–O and three Ti–N are ranging from 1.825(3) to 2.089(3) Å and from 2.181(3) to 2.365(4) Å, respectively. Surprisingly, as for the reaction in which producing the titled compound the Mannich reaction of benzo[d][1,3]dioxol-5-ol gave a rearranged ONON ligand L1, thus giving a novel ONON–Ti(IV) complex.

Corresponding author: Tiankun Zhao, College of Life Science and Engineering, Lanzhou University of Technology, Lanzhou 730050, Gansu, P. R. China, E-mail:

Funding source: Natural Science Foundation of Gansu Province

Award Identifier / Grant number: 20JR5RA470

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Natural Science Foundation of Gansu Province of China (No. 20JR5RA470).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SMART and SAINT for Windows NT Software Reference Manuals (version 5.0); Bruker Analytical X-Ray Systems: Madison, WI, 1997.Suche in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

3. Joshi, D., Field, J., Murphy, J., Abdelrahim, M., Schönherr, H., Sparrow, J. R., Ellestad, G., Nakanishi, K., Zask, A. Synthesis of antioxidants for prevention of age-related macular degeneration. J. Nat. Prod. 2013, 76, 450–454. https://doi.org/10.1021/np300769c.Suche in Google Scholar PubMed PubMed Central

4. Immel, T. A., Grützke, M., Späte, A.-K., Groth, U., Öhlschläger, P., Huhn, T. Synthesis and X-ray structure analysis of a heptacoordinate titanium(IV)-bis-chelate with enhanced in vivo antitumor efficacy. Chem. Commun. 2012, 48, 5790–5792. https://doi.org/10.1039/c2cc31624b.Suche in Google Scholar PubMed

5. Buettner, K. M., Valentine, A. M. Bioinorganic chemistry of titanium. Chem. Rev. 2012, 112, 1863–1881. https://doi.org/10.1021/cr1002886.Suche in Google Scholar PubMed

6. Grützke, M., Zhao, T. K., Immel, T. A., Huhn, T. Heptacoordinate heteroleptic salan (ONNO) and thiosalan (OSSO) titanium(IV) complexes: investigation of stability and cytotoxicity. Inorg. Chem. 2015, 54, 6697–6706. https://doi.org/10.1021/acs.inorgchem.5b00690.Suche in Google Scholar PubMed

7. Zhao, T. K., Grützke, M., Götz, K. H., Druzhenko, T., Huhn, T. Synthesis and X-ray structure analysis of cytotoxic heptacoordinate sulfonamide salan titanium(IV)-bis-chelates. Dalton Trans. 2015, 44, 16475–16485. https://doi.org/10.1039/c5dt01618e.Suche in Google Scholar PubMed

8. Søborg Pedersen, K., Baun, C., Michaelsen Nielsen, K., Thisgaard, H., Ingemann Jensen, A., Zhuravlev, F. Design, synthesis, computational, and preclinical evaluation of natTi/45Ti-labeled urea-based glutamate PSMA ligand. Molecules 2020, 52, 1104. https://doi.org/10.3390/molecules25051104.Suche in Google Scholar PubMed PubMed Central

9. Severin, G. W., Nielsen, C. H., Jensen, A. I., Fonslet, J., Kjar, A., Zhuravlev, F. Bringing radiotracing to titanium-based antineoplastics: solid phase radiosynthesis, PET and ex vivo evaluation of antitumor agent [45Ti](salan)Ti(dipic). J. Med. Chem. 2015, 58, 7591–7595. https://doi.org/10.1021/acs.jmedchem.5b01167.Suche in Google Scholar PubMed

10. Peri, D., Manna, C. M., Shavit, M., Tshuva, E. Y. TiIV complexes of branched diamine bis(phenolato) ligands: hydrolysis and cytotoxicity. Eur. J. Inorg. Chem. 2011, 2011, 4896–4900. https://doi.org/10.1002/ejic.201100725.Suche in Google Scholar
Received: 2021-06-24
Accepted: 2021-07-29
Published Online: 2021-08-16
Published in Print: 2021-12-20

© 2021 Shanjia Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
