The crystal structure of poly[μ2-chlorido-(μ2-1,2-bis(4-pyridyl)ethane-κ2N:N′silver(I)], C12H12AgClN2

  • Jianghua Fang , Minjie Hu , Ying Li und Weihong Xu ORCID logo EMAIL logo
Veröffentlicht/Copyright: 2. September 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C12H12AgClN2, orthorhombic, P212121 (no. 19), a = 9.007(2) Å, b = 9.493(2) Å, c = 13.642(3) Å, V = 1166.5(4) Å3, Z = 4, R gt (F) = 0.0160, wR ref (F2) = 0.0370, T = 295 K.

CCDC no.: 2099479

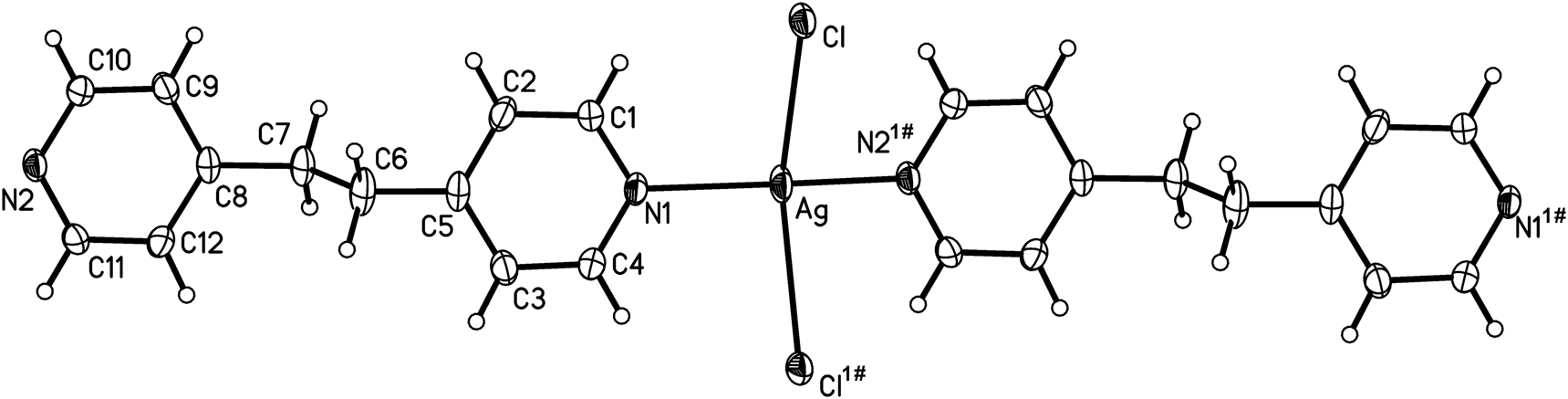

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.55 × 0.52 × 0.24 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.93 mm−1
Diffractometer, scan mode: Rigaku R-AXIS RAPID, ω
θmax, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint: 9156, 2052, 0.019
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ (Iobs), 2020
N(param)refined: 145
Programs: Rigaku [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Ag 0.41144 (3) 0.30479 (3) 0.73973 (2) 0.04277 (9)
Cl 0.36205 (9) 0.01797 (8) 0.74438 (6) 0.04137 (18)
N1 0.4073 (3) 0.3213 (3) 0.57538 (16) 0.0346 (6)
N2 0.3370 (3) 0.3376 (3) −0.10415 (19) 0.0354 (6)
C1 0.3401 (4) 0.2229 (4) 0.5219 (2) 0.0376 (8)
H1A 0.289203 0.151694 0.554422 0.045*
C2 0.3420 (4) 0.2209 (4) 0.4208 (2) 0.0424 (9)
H2A 0.291264 0.151024 0.386823 0.051*
C3 0.4862 (4) 0.4278 (4) 0.4256 (3) 0.0453 (9)
H3A 0.537365 0.500395 0.394731 0.054*
C4 0.4765 (4) 0.4241 (4) 0.5268 (3) 0.0403 (8)
H4A 0.520135 0.496509 0.562488 0.048*
C5 0.4196 (4) 0.3231 (4) 0.3705 (2) 0.0415 (8)
C6 0.4313 (4) 0.3189 (5) 0.2597 (2) 0.0568 (10)
H6A 0.510608 0.381284 0.238941 0.068*
H6B 0.457135 0.224134 0.239352 0.068*
C7 0.2895 (4) 0.3621 (4) 0.2097 (2) 0.0422 (8)
H7A 0.264630 0.457682 0.228685 0.051*
H7B 0.209611 0.300923 0.231172 0.051*
C8 0.3028 (4) 0.3543 (4) 0.0995 (2) 0.0341 (7)
C9 0.2475 (4) 0.2419 (4) 0.0466 (2) 0.0374 (7)
H9A 0.197363 0.169676 0.078608 0.045*
C10 0.2666 (4) 0.2367 (4) −0.0534 (2) 0.0379 (8)
H10A 0.228922 0.159640 −0.087384 0.046*
C11 0.3879 (4) 0.4477 (3) −0.0531 (2) 0.0372 (8)
H11A 0.434919 0.520047 −0.086957 0.045*
C12 0.3740 (4) 0.4591 (4) 0.0468 (2) 0.0381 (8)
H12A 0.412427 0.537317 0.079120 0.046*

Source of material

An amount of 0.1435 g (1.0 mmol) AgCl and 0.1842 g (1.0 mmol) 1,2-bis(4-pyridyl)ethane were successively added to a 25 mL Teflon-lined stainless-steel autoclave charged with 20 mL DMF/H2O (v:v = 1:1) solution. The mixture was heated at 160 °C for three days and subsequently cooled to room at a rate of 5 °C h−1. Colorless block crystals were obtained.

Experimental details

All H-atoms from C atoms were positioned with idealized geometry (Uiso(H) = 1.2Ueq(C) for aromatic and methylene H atoms, respectively), using a riding model with C–H = 0.93 or 0.97 Å.

Comment

In recent years, coordination polymers have attracted extensive attention owing to their structural diversities and potential application as functional materials [4], [5], [6], [7], [8]. Structural properties of the ligands are one of the main factors which influence the topology and composition of the coordination polymers. Bipyridyl-based ligands are effective building blocks for the construction of coordination polymers [9], [10], [11], [12]. Silver is an extremely soft Lewis acid and has a good affinity to N-based ligands. Various coordination polymers can be produced by the self-assembly of silver with pyridine derivative ligands, but the self-assembling process is affected by the solvent system, the ratio of metal to ligand, the template and the presence of counter ions [13], [14], [15], [16], [17], [18]. Here, we report the title two-dimensional coordination polymer, [AgCl(bpe)n] (bpe = 1,2-bis(4-pyridyl)ethane), with (4,4) net topology.

The asymmetric unit of the title compound consists of one Ag(I) cation, one Cl− anion and one bpe ligand. The four-coordinated Ag+ center adopts a distorted tetrahedral geometry, which is completed by two symmetry-related Cl atoms and two N atoms from two dependent bpe ligands (Cl–Ag–Cl = 143.63(2)°; N–Ag–N = 158.09(9)°; N–Ag–Cl = 92.17(8) and 95.11(7)°). The Ag–Cl bond lengths are 2.760(1) and 2.882(1) Å, the Ag–N bond lengths are 2.248(2) and 2.254(2) Å, which are within normal ranges [19]. The interaction between Ag+ and Cl− forms zigzag chains along [100]. The Ag–Cl chains are further linked by bpe ligands to form an order (4,4) net framework parallel to (100). The two-pyridyl rings of the bpe ligand are almost coplanar with the dihedral angle at 6.9(2)°.

Corresponding author: Weihong Xu, College of Material Science and Chemical Engineering, Ningbo University of Technology, Ningbo, 315211, People’s Republic of China, E-mail:

Funding source: Ningbo Natural Science Foundation

Award Identifier / Grant number: 2019A610150

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Ningbo Natural Science Foundation (no. 2019A610150).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku. RAPID–AUTO; Rigaku Corporation: Tokyo, Japan, 1998.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar PubMed PubMed Central

4. Feng, L., Wang, K. Y., Lv, X. L., Yan, T. H., Li, J. R., Zhou, H. C. Modular total synthesis in reticular chemistry. J. Am. Chem. Soc. 2020, 142, 3069–3076; https://doi.org/10.1021/jacs.9b12408.Suche in Google Scholar PubMed

5. Islamoglu, T., Chen, Z., Wasson, M. C., Buru, C. T., Kirlikovali, K. O., Afrin, U., Mian, M. R., Farha, O. K. Metal-organic frameworks against toxic chemicals. Chem. Rev. 2020, 120, 8130–8160; https://doi.org/10.1021/acs.chemrev.9b00828.Suche in Google Scholar PubMed

6. Wu, S., Min, H., Shi, W., Cheng, P. Multicenter metal-organic framework-based ratiometric fluorescent sensors. Adv. Mater. 2020, 32, 1805871; https://doi.org/10.1002/adma.201805871.Suche in Google Scholar PubMed

7. Xu, W., Chen, H., Jie, K. C., Yang, Z. Z., Li, T. T., Dai, S. Entropy-driven mechanochemical synthesis of polymetallic zeolitic imidazolate framework for CO2 fixation. Angew. Chem. Int. Ed. 2019, 58, 5018–5022; https://doi.org/10.1002/anie.201900787.Suche in Google Scholar PubMed

8. Wang, B., Wang, P., Xie, L. H., Lin, R. B., Lv, J., Li, J. R., Chen, B. A stable zirconium based metal-organic framework for specific recognition of representative polychlorinated dibenzo-p-dioxin molecules. Nat. Commun. 2019, 20, 1–8; https://doi.org/10.1038/s41467-019-11912-4.Suche in Google Scholar PubMed PubMed Central

9. Adarsh, N. N., Dastidar, P. Coordination polymers: what has been achieved in going from innocent 4,4′-bipyridine to bis-pydidyl ligands having a non-innocent backbone? Chem. Soc. Rev. 2012, 41, 3039–3060; https://doi.org/10.1039/c2cs15251g.Suche in Google Scholar PubMed

10. Biradha, K., Sarkar, M., Rajput, L. Crystal engineering of coordination polymers using 4,4′-bipyridine as bond between transition metal atoms. Chem. Commun. 2006, 4169–4179; https://doi.org/10.1039/b606184b.Suche in Google Scholar PubMed

11. Jo, J. H., Kim, H. C., Huh, S., Kim, Y., Lee, D. N. Antibacterial activities of Cu–MOFs containing glutarates and bipyridyl ligands. Dalton Trans. 2019, 48, 8084–8093; https://doi.org/10.1039/c9dt00791a.Suche in Google Scholar PubMed

12. Xu, W., Ren, Y. N., Xie, M., Zhou, L. X., Zheng, Y. Q. Six uranyl-organic frameworks with naphthalene dicarboxylic acid and bipyridyl-based spacers: syntheses, structures, and properties. Dalton Trans. 2018, 47, 4236–4250; https://doi.org/10.1039/c7dt04909a.Suche in Google Scholar PubMed

13. Niu, Y. Y., Hou, H. W., Zhu, Y. Self-assembly of d10 metal adduct polymers bridged by bipyridyl-based ligands. J. Cluster Sci. 2003, 14, 483–493; https://doi.org/10.1023/b:jocl.0000010919.75362.ac.10.1023/B:JOCL.0000010919.75362.acSuche in Google Scholar

14. Zhang, L., Li, Z. J., Qin, Y. Y., Zhang, J., Cheng, J. K., Yin, P. X., Yao, Y. G. Homochiral moganite-type metal-organic framework based on unusual (Ag2Cl)n skeletons. CrystEngComm 2008, 10, 655–657; https://doi.org/10.1039/b801310a.Suche in Google Scholar

15. Sun, D., Luo, G. G., Zhang, N., Huang, R. B., Zheng, L. S. catena- Poly[silver(I)-μ2-4,4′-bipyridine-κ2N:N′-μ2-chlorido]: self-assembly of a two-dimensional bilayer silver(I) coordination polymer from AgCl and a bipodal spacer. Acta Crystallogr. 2009, C65, m440–m442; https://doi.org/10.1107/s0108270109042176.Suche in Google Scholar PubMed

16. Dosen, M., Kawada, Y., Shibata, S., Tsuge, K., Sasaki, Y., Kobayashi, A., Kato, M., Ishizaka, S., Kitamura, N. Control of emissive excited state of silver(I) halogenido coordination polymers by a solid solution approach. Inorg. Chem. 2019, 58, 8419–8431; https://doi.org/10.1021/acs.inorgchem.9b00538.Suche in Google Scholar PubMed

17. Etaiw, S. E. H., Badr El-din, A. S. Structural influence of the ligand geometry on construction of coordination polymers formed from silver(I) chloride ribbons and bipodal nitrogen donor ligands. J. Inorg. Organomet. Polym. 2010, 20, 684–691; https://doi.org/10.1007/s10904-010-9366-5.Suche in Google Scholar

18. Chu, H. Y., Fu, H. F., Liu, A., Wang, P., Cao, Y. L., Du, A. F., Wang, C. C. Two silver-based coordination polymers constructed from organic carboxylate acids and 4,4′-bipyridine-like bidentate ligands: synthesis, structure, and antimicrobial performances. Polyhedron 2020, 188, 114684; https://doi.org/10.1016/j.poly.2020.114684.Suche in Google Scholar

19. Zhang, L., Yang, W. B., Kuang, X. F., Wu, X. Y., Lu, C. Z. pH-dependent assembly of two polyoxometalate host-guest structural isomers based on Keggin polyoxoanion templates. Dalton Trans. 2014, 43, 16328–16334; https://doi.org/10.1039/c4dt02050b.Suche in Google Scholar PubMed

Received: 2021-07-27
Accepted: 2021-08-18
Published Online: 2021-09-02
Published in Print: 2021-12-20
