Crystal structure of 1-(2-(4-bromophenyl)-2,3-dihydro-1H-benzo[e]indol-1-yl)-naphthalen-2-ol – dichloromethane – dimethyl sulfoxide (1/1/1), C28H18BrNO·CH2Cl2·C2H6SO

  • Lei Zhu ORCID logo , Jiao Wang , Jingzhe Zhao EMAIL logo and Shaobin Miao ORCID logo EMAIL logo
Published/Copyright: October 1, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 6

Abstract

C28H18BrNO, triclinic, P 1 ‾ (no. 2), a = 11.7627(7) Å, b = 11.8731(9) Å, c = 11.9240(7) Å, α = 76.952(3)°, β = 85.718(6)°, γ = 60.534(3)°, V = 1411.16(16) Å3, Z = 2, R gt (F) = 0.0497, wR ref (F 2) = 0.1365, T = 273 K.

CCDC no.: 2094171

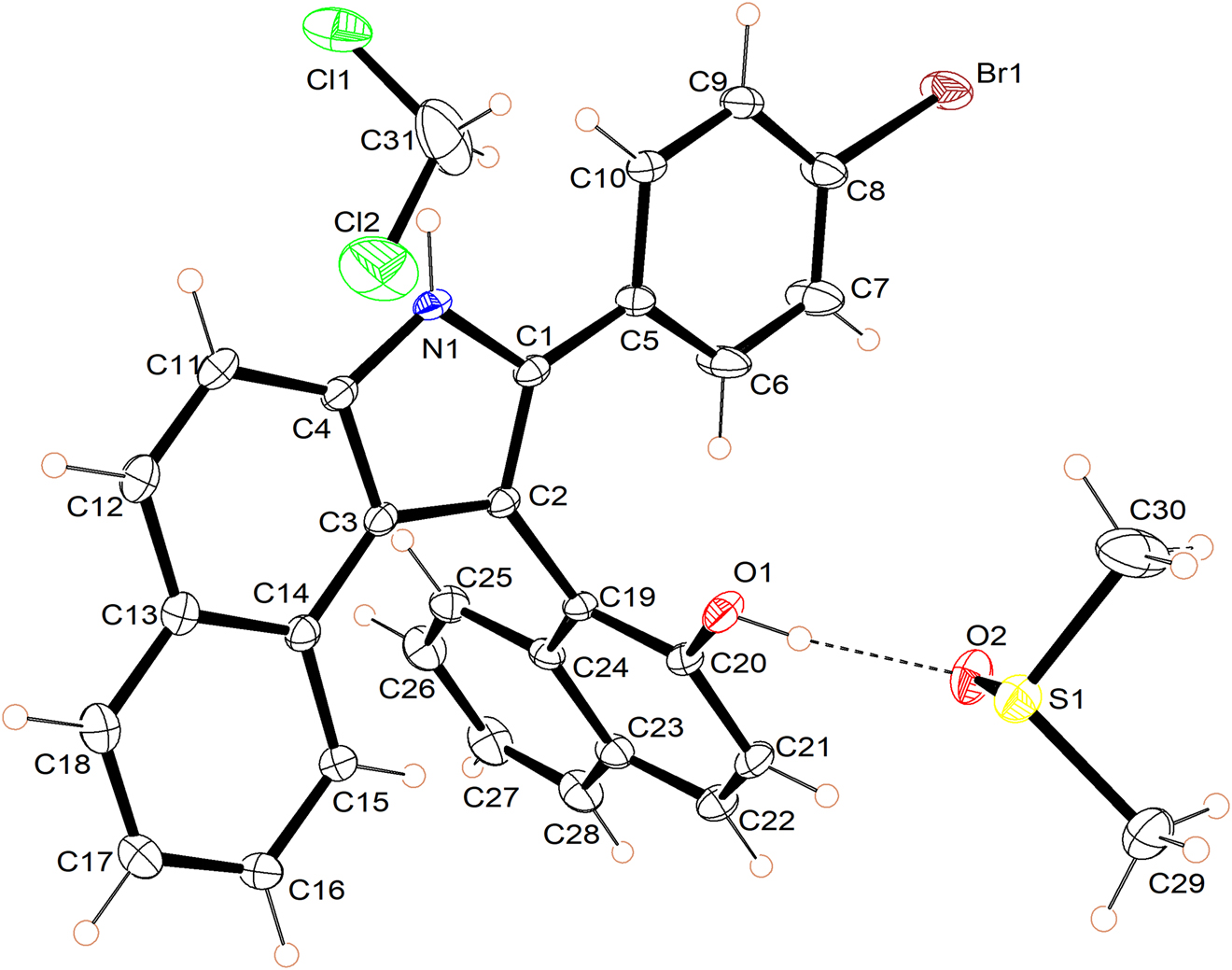

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.10 × 0.08 × 0.08 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.75 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 28.4°, >99%
N(hkl)measured , N(hkl)unique, R int: 29548, 7018, 0.050
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 6502
N(param)refined: 345
Programs: Bruker [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 0.16574 (4) 0.96114 (3) −0.20009 (2) 0.05149 (12)
O1 −0.06193 (14) 0.58713 (16) 0.24543 (13) 0.0314 (3)
H1 −0.119251 0.654832 0.263737 0.047*
N1 0.16185 (16) 0.36401 (17) −0.00787 (14) 0.0228 (3)
H1A 0.158270 0.376514 −0.081713 0.027*
C1 0.16119 (17) 0.45067 (19) 0.05295 (16) 0.0215 (3)
C2 0.16866 (17) 0.39531 (18) 0.16987 (15) 0.0203 (3)
C3 0.17351 (17) 0.27056 (18) 0.17996 (16) 0.0210 (3)
C4 0.16832 (18) 0.2555 (2) 0.06781 (17) 0.0237 (4)
C5 0.15999 (19) 0.5727 (2) −0.00815 (16) 0.0245 (4)
C6 0.1707 (3) 0.6558 (3) 0.0512 (2) 0.0458 (7)
H6 0.176651 0.634042 0.131318 0.055*
C7 0.1726 (4) 0.7695 (3) −0.0060 (2) 0.0554 (8)
H7 0.180460 0.823055 0.035491 0.066*
C8 0.1629 (3) 0.8040 (3) −0.1246 (2) 0.0375 (5)
C9 0.1514 (2) 0.7252 (2) −0.18709 (18) 0.0323 (4)
H9 0.144432 0.748686 −0.267157 0.039*
C10 0.1503 (2) 0.6101 (2) −0.12873 (17) 0.0275 (4)
H10 0.142885 0.556717 −0.170794 0.033*
C11 0.1671 (2) 0.1454 (2) 0.0432 (2) 0.0350 (5)
H11 0.164990 0.137222 −0.032325 0.042*
C12 0.1690 (3) 0.0517 (3) 0.1339 (2) 0.0427 (6)
H12 0.168879 −0.021967 0.119398 0.051*
C13 0.1713 (2) 0.0619 (2) 0.2509 (2) 0.0325 (4)
C14 0.17453 (18) 0.17214 (19) 0.27576 (17) 0.0235 (4)
C15 0.1736 (2) 0.1801 (2) 0.39254 (18) 0.0277 (4)
H15 0.176842 0.250784 0.410530 0.033*
C16 0.1681 (2) 0.0853 (2) 0.4797 (2) 0.0341 (5)
H16 0.167641 0.092440 0.555818 0.041*
C17 0.1632 (3) −0.0221 (2) 0.4550 (2) 0.0389 (5)
H17 0.158625 −0.085502 0.514435 0.047*
C18 0.1653 (3) −0.0333 (2) 0.3428 (2) 0.0420 (6)
H18 0.162594 −0.105189 0.326959 0.050*
C19 0.16789 (18) 0.45365 (19) 0.26792 (16) 0.0210 (3)
C20 0.0518 (2) 0.5467 (2) 0.30344 (16) 0.0244 (4)
C21 0.0492 (2) 0.5992 (2) 0.39974 (19) 0.0316 (4)
H21 −0.030050 0.661940 0.422208 0.038*
C22 0.1619 (3) 0.5585 (2) 0.45970 (19) 0.0344 (5)
H22 0.158653 0.593216 0.523162 0.041*
C23 0.2839 (2) 0.4640 (2) 0.42657 (18) 0.0290 (4)
C24 0.28696 (19) 0.41168 (19) 0.32951 (16) 0.0237 (4)
C25 0.4097 (2) 0.3191 (2) 0.29589 (19) 0.0300 (4)
H25 0.413667 0.283295 0.232959 0.036*
C26 0.5235 (2) 0.2812 (3) 0.3552 (2) 0.0384 (5)
H26 0.603372 0.221116 0.331439 0.046*
C27 0.5197 (3) 0.3328 (3) 0.4516 (2) 0.0431 (6)
H27 0.596831 0.306529 0.491455 0.052*
C28 0.4029 (3) 0.4214 (3) 0.4863 (2) 0.0387 (5)
H28 0.401134 0.454491 0.550364 0.046*
Cl1 0.60361 (10) 0.32222 (11) −0.24122 (7) 0.0686 (3)
Cl2 0.49334 (13) 0.31539 (16) −0.01698 (13) 0.1131 (5)
C31 0.5110 (5) 0.4146 (5) −0.1412 (5) 0.103 (2)
H31A 0.552827 0.460514 −0.120760 0.124*
H31B 0.425249 0.480794 −0.175791 0.124*
S1 −0.38850 (6) 0.82992 (6) 0.28085 (5) 0.03470 (14)
O2 −0.25120 (16) 0.80849 (17) 0.28534 (17) 0.0392 (4)
C29 −0.4708 (3) 0.9238 (3) 0.3857 (3) 0.0480 (6)
H29A −0.460784 1.001257 0.371429 0.072*
H29B −0.434304 0.871026 0.460934 0.072*
H29C −0.561955 0.950058 0.381476 0.072*
C30 −0.4656 (3) 0.9563 (4) 0.1554 (3) 0.0656 (10)
H30A −0.428230 0.922117 0.088076 0.098*
H30B −0.452667 1.029875 0.156417 0.098*
H30C −0.557472 0.985192 0.154022 0.098*

Source of material

In an argon atmosphere, with constant magnetic stirring, the reaction mixture of 3-(4-bromophenyl)-2H-azirine (33 g, 0.17 mol) and 2-naphthol (48 g, 0.34 mol) was heated in dichloromethane solvent at reflux overnight in the presence of a copper catalyst. The product was purified by chromatography to afford the title product as a white solid in 35% yield. Crystals of the title compound were obtained by slow evaporation from a dichloromethane/DMSO/hexanes solvent mixture in a freezer.

Experimental details

The raw area detector data frames were reduced and corrected for absorption effects using the SAINT+ and SADABS programs [1]. Hydrogen atoms were placed in geometrically idealized positions and refined as standard riding atoms.

Comment

Nitrogen containing heterocyclic scaffolds are important molecules which may act as bioactive substances [4] and functional materials [5], [6], [7]. The construction of such molecules has become a long-term concern of synthetic chemists. In order to develop new methods to obtain important heterocyclic compounds, new transition metal catalyzed reactions with multifunctional synthetic intermediates have attracted much attention.

In the structure of the title compound, the asymmetric unit consists of one of the target molecule, one dichloromethane and one dimethyl sulfoxide solvent molecules. As the ORTEP-type figure of the structure shows, the bromophenyl group resides in the same plane as the benzindole ring, but is almost perpendicular to the naphthol ring. There is a hydrogen bond between O2 and H1 with the distance of 1.78 Å and O2–H2–O1 of 172.9°, indicating a strong intermolecular interaction. The angles and bond lengths in all three molecules are in line with previous studies [8], [9], [10].

Corresponding authors: Jingzhe Zhao, College of Chemistry and Chemical Engineering, Hunan University, Changsha, Hunan, 410082, China; and Shaobin Miao, Department of Chemistry and Physics, Augusta University, 1120 15th St., Augusta, GA, 30912, USA, E-mail: (J. Zhao), (S. Miao)

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: NSFC-21271070

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: We gratefully acknowledge the financial support from the National Natural Science Foundation of China (NSFC-21271070).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, Version 2014.9–0, SAINT+ Version 8.34A and sadabs Version 2014/4; Bruker Analytical X-ray Systems, Inc.: Madison, Wisconsin, USA, 2014.Search in Google Scholar

2. Sheldrick, G. M. SHELXL – crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

4. Hu, S., Cui, X., He, W., Chen, X., Gu, Z., Zhao, J., Zeng, G., Shi, Z., Zhu, L., Nie, H. Synthesis, structural characterization and preliminary biological studies of several heterocyclic transition metal carbonyl complexes. Z. Anorg. Allg. Chem. 2015, 641, 2452–2459; https://doi.org/10.1002/zaac.201500592.Search in Google Scholar

5. Zhu, L., Liao, W., Chang, H., Liu, X., Miao, S. A novel fluorescent probe for detection of hydrogen sulfide and its bioimaging applications in living cells. ChemistrySelect 2020, 5, 829–833; https://doi.org/10.1002/slct.201903451.Search in Google Scholar

6. Zhu, L., Chang, H., Vavallo, C. L., Jiang, J., Zeng, Z., Yang, J., Smith, M. D., Miao, S. Synthesis and properties of tetracyanoquinodimethane derivatives. Heterocycl. Commun. 2018, 24, 249–254; https://doi.org/10.1515/hc-2018-0136.Search in Google Scholar

7. Zhu, L., Wen, Y., Liu, H., Zeng, Z., Zhao, J., Jiang, J., Miao, S. New heteropolycyclic structures for fluoride anion sensing by naked-eye visualization. ChemistrySelect 2018, 3, 2336–2342; https://doi.org/10.1002/slct.201702864.Search in Google Scholar

8. Jeffrey, G. A., Gress, M. E., Takagi, S. Some experimental observations on H⃛O hydrogen-bond lengths in carbohydrate crystal structures. J. Am. Chem. Soc. 1977, 99, 609–611; https://doi.org/10.1021/ja00444a050.Search in Google Scholar

9. Li, F., Liu, X. Crystal structure of bis{tetraaqua-[μ3-1-(4-carboxylatophenyl)-5-methyl-1H-pyrazole-3-carboxylate- κ4N,O,O′,O″] [μ2-1-methyl-1H-pyrazole-3,5-dicarboxylate-κ4N,O:O]dicobalt(II)} dihydrate, C36H44Co4N8O26. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 831–833; https://doi.org/10.1515/ncrs-2021-0080.Search in Google Scholar

10. Wei, J., Liu, L., Tang, D.-N., Wu, C.-P., Zhao, X.-J., Hao, W.-J., Jiang, B. Microwave-assisted three-component reactions for regioselective synthesis of functionalized benzo[e]indoles. J. Heterocycl. Chem. 2017, 54, 3403–3409; https://doi.org/10.1002/jhet.2962.Search in Google Scholar
Received: 2021-07-16
Accepted: 2021-09-16
Published Online: 2021-10-01
Published in Print: 2021-12-20

© 2021 Lei Zhu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
