Crystal structure of 2,2′-(butane-1,4-diylbis(azanylylidene))bis(methanylylidene))bis(4-methoxyphenol), C20H24N2O4

  • Daniel M. Orang’o , Martin O. Onani ORCID logo EMAIL logo , Paul K. Tarus , Samuel T. Lutta und Roger A. Lalancette
Veröffentlicht/Copyright: 9. August 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C20H24N2O4, monoclinic, P21/n (no. 14), a = 11.0474(3) Å, b = 6.0853(2) Å, c = 13.9881(4) Å, β = 104.271(2)°, V = 911.36(5) Å3, Z = 2, R gt (F) = 0.0290, wR ref (F 2) = 0.0728, T = 100(2) K.

CCDC no.: 1911767

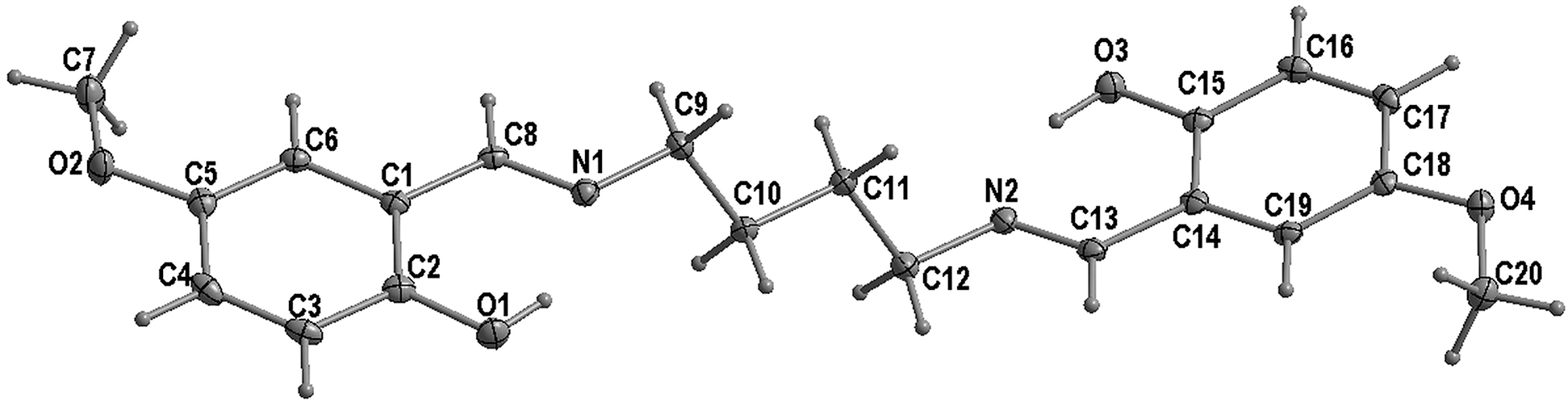

The molecular structure is shown in Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow parallelepiped
Size: 0.35 × 0.16 × 0.09 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 0.74 mm−1
Diffractometer, scan mode: Bruker SMART Apex-II, φ and ω
θ max, completeness: 66.6°, 98%
N(hkl)measured, N(hkl)unique, R int: 9785, 2698, 0.028
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2539
N(param)refined: 241
Programs: Bruker [1], SHELX [2], Diamond [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.64008 (17) 0.9164 (4) 0.13709 (13) 0.0162 (4)
C2 0.57652 (17) 1.1180 (4) 0.12601 (13) 0.0184 (5)
C3 0.59650 (18) 1.2685 (4) 0.05643 (14) 0.0207 (4)
H3A 0.553564 1.405082 0.048317 0.025*
C4 0.67834 (18) 1.2199 (4) −0.00069 (14) 0.0221 (5)
H4 0.690968 1.323514 −0.048090 0.027*
C5 0.74297 (18) 1.0207 (4) 0.01003 (14) 0.0199 (5)
C6 0.72360 (17) 0.8693 (4) 0.07859 (14) 0.0181 (5)
H6 0.766908 0.733040 0.086129 0.022*
C7 0.8705 (2) 0.7766 (4) −0.05657 (15) 0.0302 (5)
H7A 0.920348 0.730498 0.008381 0.045*
H7B 0.923010 0.776059 −0.103758 0.045*
H7C 0.800605 0.674659 −0.078953 0.045*
C8 0.61923 (16) 0.7529 (4) 0.20764 (13) 0.0160 (4)
H8 0.660896 0.615342 0.212042 0.019*
C9 0.52678 (18) 0.6169 (4) 0.33066 (14) 0.0201 (5)
H9A 0.555757 0.668093 0.399719 0.024*
H9B 0.577009 0.486794 0.322409 0.024*
C10 0.39022 (17) 0.5529 (4) 0.31019 (14) 0.0194 (5)
H10A 0.361685 0.500408 0.241300 0.023*
H10B 0.340043 0.683757 0.317511 0.023*
C11 0.36864 (17) 0.3739 (4) 0.37980 (14) 0.0199 (5)
H11A 0.393288 0.428978 0.448467 0.024*
H11B 0.421949 0.245726 0.374869 0.024*
C12 0.23267 (17) 0.3020 (4) 0.35600 (14) 0.0230 (5)
H12A 0.178671 0.431631 0.356440 0.028*
H12B 0.209525 0.236698 0.289134 0.028*
C13 0.15127 (16) 0.2041 (4) 0.49011 (14) 0.0182 (5)
H13 0.115172 0.346668 0.483727 0.022*
C14 0.13610 (16) 0.0626 (4) 0.57031 (13) 0.0166 (4)
C15 0.18869 (17) −0.1481 (4) 0.58234 (14) 0.0179 (5)
C16 0.18253 (17) −0.2721 (4) 0.66495 (13) 0.0192 (5)
H16 0.218728 −0.414604 0.673975 0.023*
C17 0.12403 (17) −0.1884 (4) 0.73355 (14) 0.0192 (5)
H17 0.121833 −0.272869 0.790210 0.023*
C18 0.06823 (17) 0.0180 (4) 0.72087 (14) 0.0179 (4)
C19 0.07448 (16) 0.1445 (4) 0.63968 (13) 0.0171 (4)
H19 0.037210 0.286097 0.630955 0.021*
C20 −0.05252 (18) 0.2871 (4) 0.78128 (15) 0.0239 (5)
H20A 0.009102 0.405347 0.787026 0.036*
H20B −0.098280 0.304664 0.832568 0.036*
H20C −0.111223 0.293737 0.716170 0.036*
N1 0.54579 (14) 0.7912 (3) 0.26385 (11) 0.0188 (4)
N2 0.21211 (14) 0.1411 (3) 0.42787 (11) 0.0201 (4)
O1 0.49423 (13) 1.1699 (3) 0.18013 (10) 0.0244 (4)
H1 0.490835 1.066750 0.219273 0.037*
O2 0.82349 (13) 0.9927 (3) −0.04984 (10) 0.0266 (4)
O3 0.24919 (12) −0.2351 (3) 0.51775 (9) 0.0221 (3)
H3 0.250825 −0.142609 0.473486 0.033*
O4 0.00990 (12) 0.0797 (3) 0.79304 (9) 0.0215 (4)

Source of material

The title compound was prepared from a 2:1 reaction ratio of substituted salicylaldehyde 2-hydroxy-5-methoxybenzaldehyde with 1,4-diaminobutane in dry ethanol under reflux for 1 h. The title compound was obtained as a yellow solid with yield = 96%. Elemental analysis for C20H24N2O4 (256.42 g/mol), Calculated: C, 49.77%; H, 5.64; N, 5.81; Found: C, 50.00%; H, 5.72; N, 5.64. Single crystals suitable for X-ray diffraction (XRD) studies were obtained after four weeks by slow diffusion and evaporation of hexane into a concentrated solution of the compound in DCM.

Experimental details

Crystal evaluation and data collection were done on a Bruker SMART 1000 CCD diffractometer with Mo Kα radiation (λ = 0.71073 Å) equipped with an Oxford Cryostream low temperature apparatus operating at 100(1) K. The structure was solved by direct method using the SHELXS [2] program and refined with SHELXL [2]. All hydrogen atoms were placed in idealized positions and refined in riding models with U iso assigned the values of 1.2 times or 1.5 times those of their parent atoms and the distances of C–H were constrained to 0.95 Å for all the aromatic H atoms and 0.99 for CH2 protons or 0.84 Å for the hydroxy group H atoms, respectively. The idealised tetrahedral OH refined as rotating group. The visual crystal structure information was performed using Diamond [3].

Comment

The salicylaldimine ligands have drawn much interest from many researchers because they can easily bind to many transition metals like nickel, palladium, copper, manganese, iron, zinc and ruthenium [4], [5], [6], [7], [8], [9]. These complexes have found a wide range of applications in catalysis like olefin polymerization and (co)polymerization of substituted norbornene, ethylene polymerization and (co)polymerization [10], [11], [12], [13], ring-opening and ring-closing metathesis polymerization [9, 14–16].

The asymmetric unit of the title compound contains one salicylaldimine molecule. In the structure, the aminomethyl methoxyphenol moieties are on either sides of the butyl linker and are almost co-planar with a dihedral angle of 12.78(3)°.

Corresponding author: Martin O. Onani, Department of Chemistry, Faculty of Natural Sciences, University of the Western Cape, Private Bag X17, Bellville 7535, Republic of South Africa, E-mail:

Acknowledgements

We sincerely appreciate the University of the Western Cape and the National Research Foundation of South Africa (Grant number: 105894) for their financial support for the project.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: University of the Western Cape and the National Research Foundation of South Africa.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEXII; Bruker AXS Inc: Madison, Wisconsin, USA, 2009.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Suche in Google Scholar

4. Li, C., Yu, H., Lin, Z., Wang, F., Zhang, N., Wang, J. Synthesis and application of bidentate nickel complexes bearing hyperbranched salicylaldimine ligands in ethylene oligomerization. J. Coord. Chem. 2017, 70, 1303–1315; https://doi.org/10.1080/00958972.2017.1293822.Suche in Google Scholar

5. Feng, Z. Q., Yang, X. L., Ye, Y. F. Pd(II) and Zn(II) based complexes with Schiff base ligands: synthesis, characterization, luminescence, and antibacterial and catalytic activities. Sci. World J. 2013, 2013, 1–10; https://doi.org/10.1155/2013/956840.Suche in Google Scholar PubMed PubMed Central

6. Tas, E., Kilic, A., Konak, N., Yilmaz, I. The sterically hindered salicylaldimine ligands with their copper(II) metal complexes: synthesis, spectroscopy, electrochemical and thin-layer spectroelectrochemical features. Polyhedron 2008, 27, 1024–1032; https://doi.org/10.1016/j.poly.2007.11.038.Suche in Google Scholar

7. Cheng, S. C., Chang, C. W., Wei, H. H., Lee, G. H., Wang, Y. Mononuclear iron(III) and manganese(III) complexes with substituted salicylaldimine ligands: structure, magnetic properties, and catalytic activity of olefins-epoxidation. J. Chin. Chem. Soc. 2003, 50, 41–46; https://doi.org/10.1002/jccs.200300005.Suche in Google Scholar

8. Bhunora, S., Mugo, J., Luximon, A. B., Mapolie, S., Wyk, J. V., Darkwa, J., Nordlander, E. The use of Cu and Zn salicylaldimine complexes as catalyst precursors in ring opening polymerization of lactides: ligand effects on polymer characteristics. Appl. Organomet. Chem. 2011, 25, 133–145; https://doi.org/10.1002/aoc.1728.Suche in Google Scholar

9. Binder, J. B., Guzei, I. A., Raines, R. T. Salicylaldimine ruthenium alkylidene complexes: metathesis catalysts tuned for protic solvents. Adv. Synth. Catal. 2007, 349, 395–404; https://doi.org/10.1002/adsc.200600264.Suche in Google Scholar PubMed PubMed Central

10. Suo, H., Solan, G. A., Ma, Y., Sun, W. H. Developments in compartmentalized bimetallic transition metal ethylene polymerization catalysts. Coord. Chem. Rev. 2018, 372, 101–116; https://doi.org/10.1016/j.ccr.2018.06.006.Suche in Google Scholar

11. Chen, Z., Yao, E., Wang, J., Gong, X., Ma, Y. Ethylene (co)polymerization by binuclear nickel phenoxyiminato catalysts with cofacial orientation. Macromolecules 2016, 49, 8848–8854; https://doi.org/10.1021/acs.macromol.6b02078.Suche in Google Scholar

12. Rodriguez, B. A., Delferro, M., Marks, T. J. Neutral bimetallic nickel(II) phenoxyiminato catalysts for highly branched polyethylenes and ethylene-norbornene copolymerizations. Organometallics 2008, 27, 2166–2168; https://doi.org/10.1021/om800208f.Suche in Google Scholar

13. Rodriguez, B. A., Delferro, M., Marks, T. J. Bimetallic effects for enhanced polar comonomer enchainment selectivity in catalytic ethylene polymerization. J. Am. Chem. Soc. 2009, 131, 5902–5919; https://doi.org/10.1021/ja900257k.Suche in Google Scholar

14. Chang, S., Jones, L. R., Wang, C., Henling, L. M., Grubbs, R. H. Synthesis and characterization of new ruthenium-based olefin metathesis catalysts coordinated with bidentate schiff-base ligands. Organometallics 1998, 17, 3460–3465; https://doi.org/10.1021/om970910y.Suche in Google Scholar

15. De Clercq, B., Verpoort, F. Activity of a new class of ruthenium based ring-closing metathesis and ring-opening metathesis polymerization catalysts coordinated with a 1,3-dimesityl-4,5-dihydroimidazol-2-ylidene and a Schiff base ligand. Tetrahedron Lett. 2002, 43, 9101–9104; https://doi.org/10.1016/s0040-4039(02)02247-5.Suche in Google Scholar

16. Opstal, T., Verpoort, F. Synthesis of highly active ruthenium indenylidene complexes for atom-transfer radical polymerization and ring-opening-metathesis polymerization. Angew. Chem. Int. Ed. 2003, 42, 2876–2879; https://doi.org/10.1002/anie.200250840.Suche in Google Scholar PubMed
