Crystal structure of bis(4-bromo-2-(((3-bromopropyl)imino)methyl)phenolato-κ2N,O)-oxido-vanadium(IV), C20H20Br4N2O3V

  • Wei Wei , Juan Xia , Wei-Ya Zhang , Heng-Qiang Zhang ORCID logo , Fu-Jian Fang , Yang Xin und Xiu-Jun Zheng EMAIL logo
Veröffentlicht/Copyright: 29. September 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C20H20Br4N2O3V, monoclinic, P21/c (no. 14), a = 12.6011(10) Å, b = 16.5997(8) Å, c = 12.9206(12) Å, β = 119.006(11)°, V = 2363.7(4) Å3, Z = 4, R gt (F) = 0.0518, wR ref (F 2) = 0.1062, T = 153(2) K.

CCDC no.: 2110178

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Green block
Size: 0.21 × 0.20 × 0.18 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 7.21 mm−1
Diffractometer, scan mode: Xcalibur, φ and ω
θ max, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 13114, 4152, 0.062
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2792
N(param)refined: 281
Programs: CrysAlisPRO [1], SHELX [2], WinGX/ORTEP [3], PLATON [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 0.83724 (8) 1.03500 (4) 0.19060 (8) 0.0663 (3)
Br2 0.09345 (6) 0.31912 (4) −0.02620 (7) 0.0533 (2)
Br3Aa 0.1145 (5) 0.8078 (6) 0.3151 (7) 0.0748 (18)
Br3Bb 0.1334 (10) 0.7774 (9) 0.3256 (6) 0.091 (2)
Br4 1.01107 (6) 0.62854 (4) 0.46765 (6) 0.0455 (2)
C1 0.7401 (5) 0.7283 (3) 0.2097 (5) 0.0310 (14)
H1 0.817775 0.721207 0.219818 0.037*
C2 0.6922 (5) 0.8086 (3) 0.1860 (5) 0.0276 (14)
C3 0.7709 (6) 0.8716 (4) 0.1938 (5) 0.0392 (16)
H3 0.850941 0.860512 0.214053 0.047*
C4 0.7290 (6) 0.9491 (4) 0.1717 (5) 0.0407 (17)
C5 0.6100 (7) 0.9674 (4) 0.1380 (5) 0.0432 (18)
H5 0.582808 1.020436 0.122137 0.052*
C6 0.5327 (6) 0.9069 (4) 0.1283 (5) 0.0407 (16)
H6 0.451814 0.918907 0.103447 0.049*
C7 0.5724 (6) 0.8271 (3) 0.1550 (5) 0.0354 (15)
C8 0.7507 (5) 0.5875 (3) 0.2356 (5) 0.0302 (14)
H8A 0.825148 0.596940 0.232740 0.036*
H8B 0.700683 0.551187 0.171465 0.036*
C9 0.7807 (5) 0.5483 (3) 0.3516 (5) 0.0357 (16)
H9A 0.705398 0.535403 0.351216 0.043*
H9B 0.822318 0.497891 0.357560 0.043*
C10 0.8575 (5) 0.5977 (4) 0.4590 (5) 0.0383 (16)
H10A 0.873834 0.567082 0.529135 0.046*
H10B 0.813373 0.645852 0.457699 0.046*
C11 0.2554 (5) 0.6137 (3) 0.1052 (5) 0.0307 (14)
H11 0.174267 0.624504 0.081002 0.037*
C12 0.2836 (5) 0.5337 (3) 0.0807 (5) 0.0281 (14)
C13 0.1914 (5) 0.4760 (3) 0.0390 (5) 0.0316 (14)
H13 0.112924 0.490402 0.020702 0.038*
C14 0.2179 (5) 0.3982 (4) 0.0254 (5) 0.0341 (15)
C15 0.3314 (5) 0.3756 (3) 0.0489 (5) 0.0310 (14)
H15 0.347331 0.321934 0.040746 0.037*
C16 0.4230 (5) 0.4323 (3) 0.0848 (5) 0.0338 (15)
H16 0.499274 0.417173 0.097088 0.041*
C17 0.4013 (5) 0.5122 (3) 0.1028 (5) 0.0301 (14)
C18 0.2788 (6) 0.7455 (4) 0.1776 (7) 0.055 (2)
H18A 0.191134 0.741046 0.139079 0.066*
H18B 0.299095 0.791159 0.143735 0.066*
C19 0.3315 (6) 0.7597 (5) 0.3171 (8) 0.084 (3)
H19A 0.319009 0.711308 0.351806 0.101*
H19B 0.418160 0.769198 0.353641 0.101*
C20 0.2766 (7) 0.8253 (5) 0.3423 (8) 0.086 (3)
H20A 0.275403 0.870800 0.294665 0.104*
H20B 0.327181 0.840010 0.424635 0.104*
N1 0.3306 (4) 0.6709 (3) 0.1568 (4) 0.0323 (12)
N2 0.6856 (4) 0.6650 (3) 0.2184 (4) 0.0260 (11)
O1 0.4910 (3) 0.5647 (2) 0.1400 (3) 0.0335 (10)
O2 0.4935 (3) 0.7703 (2) 0.1468 (3) 0.0372 (11)
O3 0.5665 (4) 0.6648 (2) 0.3545 (3) 0.0445 (11)
V1 0.51793 (9) 0.66669 (6) 0.21604 (9) 0.0291 (3)

  1. aOccupancy: 0.48 (2), bOccupancy: 0.52 (2).

Source of material

In a 250 ml round bottom flask containing 50 ml of absolute methanol were added 5 mmol of 3-bromopropyl-ammonium hydrochloride and 5 mmol of 5–bromo-2-hydroxy-benzaldehyde. Then 5 mmol of NaOH was dissolved in 2 ml H2O, were added to the above solution and the contents were refluxed for 3 h at 343 K. After cooling to room temperature, 12 ml methanol containing 2.5 mmol of vanadyl acetylacetonate were added. To this solution was added 30 ml trichloromethane and filtered off. The contents of the flask were refluxed with stirring for 3 h at 343 K. The green crystals that formed were filtered off after five days at room temperature.

Experimental details

Hydrogen atoms are positioned using the riding models of the SHELX system. Their U iso values were set to 1.2U eq of the parent atoms. One of Br atom is disordered over two positions in a 0.52:0.48 ratio.

Comment

Schiff base ligands play a central role in the coordination chemistry [5]. They have a variety of applications due to its structural features, including catalytic applications, biological roles, iglycogen metabolism, as well as insulin mimicking and organic synthesis [6], [7], [8], [9], [10]. In our previous publications, we studied the Schiff base complexes, which exhibit insulin mimicking, and catalytic activity in the epoxidation reaction [11, 12]. Halogenated organic compounds gives suitable properties for different uses such as synthetic intermediates and starting compounds, designer molecules for material science, industrial chemicals, and bioactive compounds [13]. In order to expand its application to Schiff base, we present in this paper the synthesis of a halogenated schiff base and the crystal structures of the title compound.

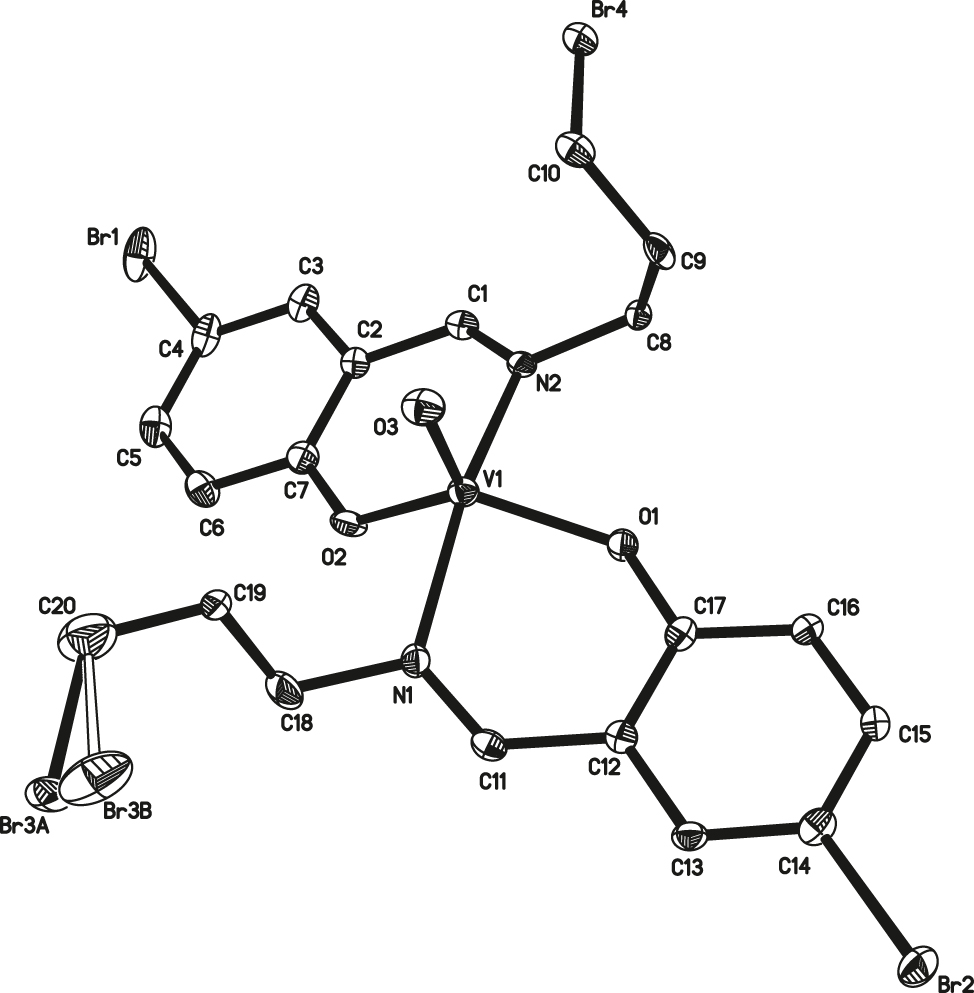

The molecular structure of the title compound with the atom-numbering scheme is illustrated in the figure. The crystallographic data showed that the vanadium (IV) ion was surrounded by two oxygen and two nitrogen atoms from two Schiff base ligands and one oxygen atom from an oxido ligand in the five-coordinated geometry. The geometry around the vanadium(IV) ion is a distorted square pyramidal. The V–O and V–N bond distances of the Schiff base ligand in the equatorial plane (defined by the two organic ligands), V1–O1 = 1.910(5) Å, V1–O2 = 1.898(6) Å, V1–N1 = 2.105(7) Å, V1–N2 = 2.101(7) Å, compare well with the V–O and V–N distances found in similar complexes [14, 15]. The axial V1–O3 = 1.584(6) Å is in good agreement with the V–O distances in related complexes [14, 15]. The O(3)–V(1)–N(2) angle is 85.7(2)°, while O(3)–V(1)–O(2), O(2)–V(1)–N(2), N(2)–V(1)–N(1) angles are 115.8(3), 87.1(2) and 162.2(3)°, respectively.

Corresponding author: Xiu–Jun Zheng, Department of Chemical Engineering, Harbin Institute of Petroleum, Harbin, 150027, People’s Republic of China, E-mail:

Funding source: Natural Science Foundation of Heilongjiang Province of China http://dx.doi.org/10.13039/501100005046

Award Identifier / Grant number: LH2019B029

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: The authors thank the projects of the program for the Department of Science and Technology of Natural Science Foundation of Heilongjiang Province of China (LH2019B029), https://dx.doi.org/10.13039/501100005046.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku OD. CrysAlisP̂RO; Rigaku Oxford Diffraction Ltd: Yarnton, Oxfordshire, England, 2015.Suche in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

3. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Suche in Google Scholar

4. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155; https://doi.org/10.1107/s090744490804362x.Suche in Google Scholar

5. Marchetti, F., Pettinari, C., Di Nicola, C., Tombesi, A., Pettinari, R. Coordination chemistry of pyrazolone-based ligands and applications of their metal complexes. Coord. Chem. Rev. 2019, 401, 213069; https://doi.org/10.1016/j.ccr.2019.213069.Suche in Google Scholar

6. Grivani, G., Ghavami, A., Kučeráková, M., Dušek, M., Khalaji, A. D. Synthesis, characterization, crystal structure determination, thermal study and catalytic activity of a new oxidovanadium Schiff base complex. J. Mol. Struct. 2014, 1076, 326–332; https://doi.org/10.1016/j.molstruc.2014.07.073.Suche in Google Scholar

7. Li, L. Z., Guo, Z. H., Zhang, Q. F., Xu, T., Wang, D. Q. An unexpected oxo vanadium(IV) complex with in situ generated lactone ligand: synthesis, crystal structure and DNA-binding property. Inorg. Chem. Commun. 2010, 13, 1166–1169; https://doi.org/10.1016/j.inoche.2010.06.040.Suche in Google Scholar

8. McLauchlan, C. C., Hooker, J. D., Jones, M. A., Dymon, Z., Backhus, E. A., Greiner, B. A., Dorner, N. A., Youkhana, M. A., Manus, L. M. Inhibition of acid, alkaline, and tyrosine (PTP1B) phosphatases by novel vanadium complexes. J. Inorg. Biochem. 2010, 104, 274–281; https://doi.org/10.1016/j.jinorgbio.2009.12.001.Suche in Google Scholar PubMed

9. Xing, Y. –H., Aoki, K., Bai, F. –Y. Synthesis and crystal structure of a vanadium(V) complex with 1,10-phenanthroline ligand, VO2(acac)(1,10-phen), as an insulin mimic. Synth. React. Inorg. Met. Org. Chem. 2003, 3, 1801–1809.10.1081/SIM-120026549Suche in Google Scholar

10. Ren, D. X., Xing, N., Shan, H., Chen, C., Cao, Y. Z., Xing, Y. H. Novel vanadium(iii) complexes with rigid phenylpolycarboxylate ligands: synthesis, structures and application in C–H bond activation. Dalton Trans. 2013, 42, 5355–5365; https://doi.org/10.1039/c3dt32472a.Suche in Google Scholar PubMed

11. Sun, R. X., Li, J. Z., Zhang, H. Q., Pang, X. Z., Fu, Y. S., Cui, J. Z. Synthesis, crystal structure, characterization and DNA binding studies of novel copper (II) complex based on amino acid Schiff base. Curr. Org. Chem. 2012, 16, 2868–2878; https://doi.org/10.2174/138527212804546912.Suche in Google Scholar

12. Li, X. –C., Zhang, H. –Q., Yang, Q., Zhang, Q. –Y. Synthesis and crystal structure of the two-dimensional coordination compound potassium oxo-bis(hydroxylamido)-pyridine-2, 3-dicarboxylato-vanadate(V). Z. Naturforsch. B 2015, 7, 373–377; https://doi.org/10.1515/znb-2014-0244.Suche in Google Scholar

13. Crans, D. C., Smee, J. J., Gaidamauskas, E., Yang, L. The chemistry and biochemistry of vanadium and the biological activities exerted by vanadium compounds. Chem. Rev. 2004, 104, 849–902; https://doi.org/10.1021/cr020607t.Suche in Google Scholar PubMed

14. Wei, W., Wu, Q., Zhang, H. –Q., Liu, R., Chen, H. –L. Crystal structure of bis(4-bromo-2-(((3-chloropropyl)imino)methyl)phenolato- κ2N,O)-oxidovanadium(IV), C20H20Br2Cl2N2O3V. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 443–444; https://doi.org/10.1515/ncrs-2018-0456.Suche in Google Scholar

15. Yin, N., Wu, Q., Zhang, H. –Q., Zhang, Q. –Y. Crystal structure of (acetylacetonato-κ2O,O′)-(2-amino-6-chlorobenzoato- κO)-oxido(1,10-phenanthroline-κ2N,N′)vanadium(IV)– trichloromethane (1/1). Z. Kristallogr. N. Cryst. Struct. 2017, 232, 1045–1047; https://doi.org/10.1515/ncrs-2017-0195.Suche in Google Scholar
Received: 2021-08-22
Accepted: 2021-09-16
Published Online: 2021-09-29
Published in Print: 2021-12-20

© 2021 Wei Wei et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
