Crystal structure of catena-poly[(4-hydroxyl-5-(methoylcarbonyl)thiophene-2-carboxylato-κ1 O)-(μ2-piperazine-1,4-diylbis(pyridin-4-ylmethanone)-κ2 N:N′)silver(I)] monohydrate, C23H23AgN4O8S

  • Zhao-Hao Li EMAIL logo , Gui-Xian Xie , Chen-Yang Li und Xiao-Ru Dou
Veröffentlicht/Copyright: 22. September 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 6

Abstract

C23H23AgN4O8S, monoclinic, P21/n (no. 14), a = 8.5356(4) Å, b = 27.9494(15) Å, c = 10.3796(6) Å, V = 2474.1(2) Å3, Z = 4, R gt (F) = 0.0347, wR ref(F 2) = 0.0744, T = 289 K.

CCDC no.: 1955157

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.35 × 0.29 × 0.25 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.96 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 25.5°, 99%
N(hkl) measured , N(hkl) unique, R int: 14,043, 4526, 0.026
Criterion for I obs, N(hkl) gt: I obs > 2 σ(I obs), 3860
N(param)refined: 339
Programs: CrysAlisPRO [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Ag1 0.23668 (3) 0.70745 (2) 0.69656 (2) 0.04102 (9)
S1 −0.26145 (8) 0.79146 (3) 0.51422 (7) 0.03459 (18)
O1 0.0101 (2) 0.74194 (9) 0.6123 (2) 0.0568 (6)
O2 −0.0853 (3) 0.66793 (9) 0.6153 (2) 0.0570 (6)
O3 −0.6978 (3) 0.81908 (11) 0.3964 (2) 0.0690 (8)
O4 −0.4886 (3) 0.86761 (9) 0.4300 (2) 0.0530 (6)
O5 −0.6502 (3) 0.72473 (11) 0.4329 (3) 0.0738 (8)
H5 −0.7012 0.7475 0.4046 0.111*
O6 −0.2878 (4) 0.59049 (10) 0.5550 (4) 0.0915 (11)
H2W −0.2292 0.6113 0.5921 0.137*
H1W −0.2376 0.5765 0.4968 0.137*
O7 0.3420 (2) 0.46787 (8) 0.9045 (2) 0.0487 (6)
O8 1.0627 (2) 0.44695 (7) 0.6141 (2) 0.0503 (6)
N1 0.3106 (3) 0.63213 (8) 0.7196 (2) 0.0366 (6)
N2 1.1541 (3) 0.28096 (8) 0.7644 (2) 0.0324 (5)
N3 0.5289 (3) 0.46344 (9) 0.7565 (2) 0.0412 (6)
N4 0.8419 (3) 0.43732 (9) 0.7205 (3) 0.0437 (7)
C1 −0.0957 (4) 0.71145 (12) 0.5960 (3) 0.0395 (7)
C2 −0.2499 (3) 0.73127 (11) 0.5446 (3) 0.0331 (7)
C3 −0.3865 (4) 0.70796 (12) 0.5143 (3) 0.0438 (8)
H3 −0.4009 0.6752 0.5243 0.053*
C4 −0.5025 (3) 0.73927 (13) 0.4664 (3) 0.0450 (8)
C5 −0.4551 (3) 0.78594 (12) 0.4597 (3) 0.0387 (7)
C6 −0.5586 (4) 0.82501 (14) 0.4248 (3) 0.0470 (8)
C7 −0.5859 (5) 0.90856 (15) 0.3963 (4) 0.0785 (13)
H7A −0.6371 0.9034 0.3133 0.118*
H7B −0.5218 0.9367 0.3934 0.118*
H7C −0.6634 0.9127 0.4598 0.118*
C8 0.4377 (3) 0.62033 (11) 0.7927 (3) 0.0438 (8)
H8 0.5034 0.6447 0.8234 0.053*
C9 0.4756 (3) 0.57399 (11) 0.8245 (3) 0.0423 (8)
H9 0.5646 0.5675 0.8763 0.051*
C10 0.3813 (3) 0.53698 (10) 0.7796 (3) 0.0321 (6)
C11 0.2501 (3) 0.54887 (11) 0.7033 (3) 0.0398 (7)
H11 0.1832 0.5251 0.6707 0.048*
C12 0.2197 (3) 0.59638 (11) 0.6761 (3) 0.0400 (7)
H12 0.1312 0.6038 0.6247 0.048*
C13 0.4155 (3) 0.48628 (10) 0.8186 (3) 0.0364 (7)
C14 0.6131 (4) 0.48281 (12) 0.6483 (3) 0.0451 (8)
H14A 0.5747 0.5147 0.6281 0.054*
H14B 0.5936 0.4628 0.5729 0.054*
C15 0.7844 (4) 0.48481 (11) 0.6800 (3) 0.0488 (8)
H15A 0.8392 0.4953 0.6049 0.059*
H15B 0.8053 0.5077 0.7487 0.059*
C16 0.7564 (3) 0.41722 (12) 0.8285 (3) 0.0464 (8)
H16A 0.7759 0.4367 0.9049 0.056*
H16B 0.7940 0.3851 0.8471 0.056*
C17 0.5838 (4) 0.41579 (11) 0.7955 (3) 0.0481 (8)
H17A 0.5627 0.3933 0.7258 0.058*
H17B 0.5280 0.4051 0.8698 0.058*
C18 0.9808 (3) 0.42187 (11) 0.6808 (3) 0.0361 (7)
C19 1.0343 (3) 0.37234 (10) 0.7151 (3) 0.0315 (6)
C20 1.1831 (3) 0.36585 (10) 0.7711 (3) 0.0363 (7)
H20 1.2456 0.3921 0.7931 0.044*
C21 1.2371 (3) 0.32026 (10) 0.7939 (3) 0.0352 (7)
H21 1.3370 0.3165 0.8319 0.042*
C22 1.0117 (3) 0.28756 (10) 0.7101 (3) 0.0361 (7)
H22 0.9521 0.2607 0.6883 0.043*
C23 0.9476 (3) 0.33196 (11) 0.6845 (3) 0.0389 (7)
H23 0.8471 0.3347 0.6470 0.047*

Source of material

All chemicals were used without further purification. The title compound was prepared under the hydrothermal conditions. A mixture of AgOAc (16.7 mg, 0.1 mmol), methyl-3-hydroxy-5-carboxy-2-thiophenecarboxylate (H2L) (20.2 mg, 0.1 mmol), piperazine-1,4-diylbis(pyridin-4-ylmethanone) (29.6 mg, 0.1 mmol) and 8 mL distilled water in a 25 mL L Teflon-lined autoclave was kept under autogenous pressure at 373 K for 3 days. After cooling to room temperature at a rate of 5 Kh−1, colourless block crystals were collected by filtration and washed with distilled water in 43% yield.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Owing to structural diversity, novel topology, distinctive property and potential application in different fields, the syntheses of coordination polymers have been extensively studied [5], [6], [7], [8], [9], [10], [11], [12]. Many synthetic factors, especially the design and judicious selection of organic ligands, could contribute to structural diversities of coordination polymers. Recently, the methyl-3-hydroxy-5-carboxy-2-thiophenecarboxylate (H2L) ligand with multiple potential coordination sites was synthesized and many related coordination polymers structurally characterized [13], [14], [15], [16]. On the other hand, piperazine-1,4-diylbis(pyridin-4-ylmethanone), as a long-spanning, conformationally flexible dipyridyl ligand, has attracted significant attention during the construction of coordination polymers [17], [18], [19], [20].

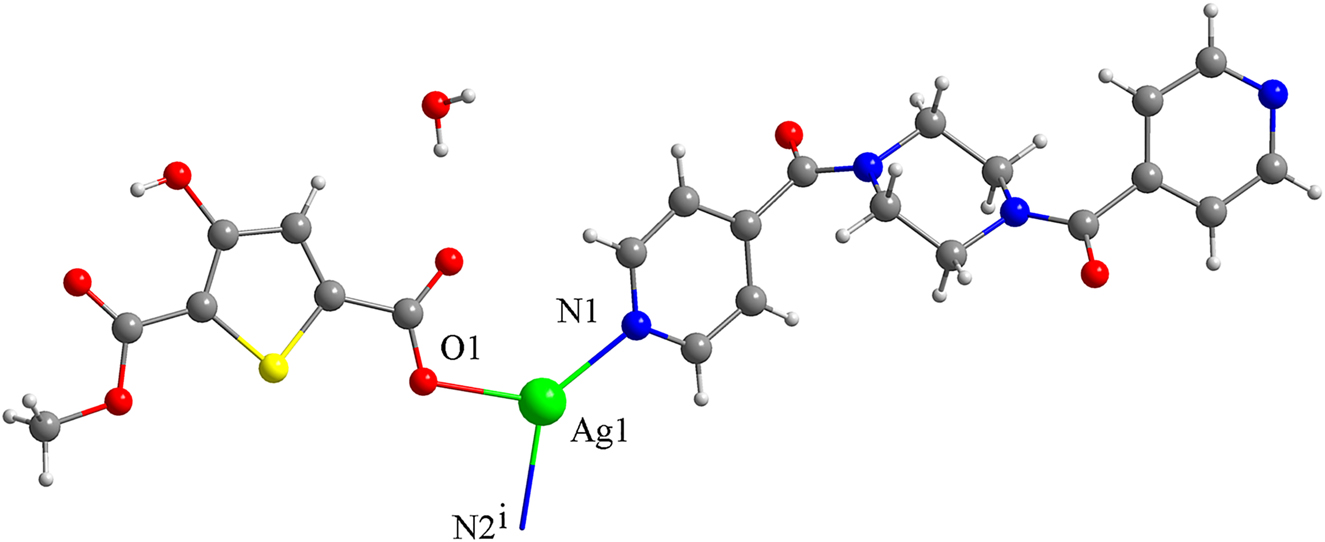

The title compound was prepared under mild hydrothermal conditions. Single crystal X-ray structural analysis shows that the compound is a one-dimensional chain structure and crystallizes in the monoclinic space group P21/n. The asymmetric unit of the title structure consists of a silver ion, one partially deprotonated HL−1 anion, one piperazine-1,4-diylbis(pyridin-4-ylmethanone) molecule and one water molecule. Each Ag(I) atom is coordinated by two nitrogen atoms from two different bpfp ligands, and an oxygen atom from a HL−1 anion with Ag—N, Ag—O bond distances of 2.208 (2), 2.285 (2) and 2.301 (2) Å, respectively. The bond angles about the silver ion range from 91.21 (8) to 132.25 (9)°, which are all within a reasonable range [21, 22]. Thus, the three-coordinated Ag(I) center has a distorted trigonal-planar coordination geometry. The central silver ions are interconnected by two pyridyl groups of μ 2-bridged piperazine-1,4-diylbis(pyridin-4-ylmethanone) ligands with anti conformation, giving a linear [Ag(bpfp)] n chain with a Ag⃛Ag distance of 16.5077(7) Å. Then the one-dimensional chain structure was further decorated by the partially deprotonated HL−1 anions. The one-dimensional chain is further assembled into a two-dimensional supramolecular layer structure through intramolecular hydrogen-bonding interactions involving the carboxylate oxygen atom from HL−1 anion, carboxylate oxygen atom of piperazine-1,4-diylbis(pyridin-4-ylmethanone) molecule and water molecule. Meaningwhile, intermolecular hydrogen-bonding interaction between the hydroxyl oxygen atom and carboxylate oxygen atom is also observed.

Corresponding author: Zhao-Hao Li, College of Chemistry and Chemical Engineering, Henan Key Laboratory of Function-Oriented Porous Materials, Luoyang Normal University, Luoyang 471934, Henan P. R. China, E-mail:

Funding source: Luoyang Normal University

Acknowledgements

This work was supported by the grants from Luoyang Normal University.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Luoyang Normal University.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlisPRO Software System, Version 1.171.38.41r; Agilent Technologies UK Ltd: Oxford, UK, 2015.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8.10.1107/S2053229614024218Suche in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341.10.1107/S0021889808042726Suche in Google Scholar

5. Hu, Z., Deibert, B. J., Li, J. Luminescent metal–organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840.10.1039/C4CS00010BSuche in Google Scholar

6. Silva, P., Vilela, S. M., Tomé, J. P., Paz, F. A. A multifunctional metal–organic frameworks: from academia to industrial applications. Chem. Soc. Rev. 2015, 44, 6774–6803.10.1039/C5CS00307ESuche in Google Scholar PubMed

7. Ma, L., Wang, X., Deng, D., Luo, F., Ji, B., Zhang, J. Five porous zinc(II) coordination polymers functionalized with amide groups: cooperative and size-selective catalysis. J. Mater. Chem. A 2015, 3, 20210–20217.10.1039/C5TA06248ASuche in Google Scholar

8. Li, X.-L., Liu, G.-Z., Xin, L.-Y., Wang, L.-Y. Binuclear and tetranuclear Mn(II) clusters in coordination polymers derived from semirigid tetracarboxylate and N-donor ligands: syntheses, new topology structures and magnetism. J. Solid State Chem. 2017, 246, 252–257.10.1016/j.jssc.2016.11.030Suche in Google Scholar

9. Kang, H., Fu, Y., Xin, L., Li, G., Ma, L., Liu, G. Two coordination polymers containing linear Co(II)-trinuclear and Cu(II)-chain assembled from 4-fluorocinnamic acid and N-donor ligand. Chin. J. Struct. Chem. 2016, 35, 286–293.Suche in Google Scholar

10. Li, Z.-H., Xue, L.-P., Mu, Y.-J., Zhao, B.-T. Viologen-derived material showing photochromic, visually oxygen responsive, and photomodulated luminescence behaviors. CrystEngComm 2021, 23, 1019–1024.10.1039/D0CE01630FSuche in Google Scholar

11. Li, J.-X., Du, Z.-X. A binuclear cadmium(II) cluster based on π⃛π stacking and halogen⃛halogen interactions: synthesis, crystal analysis and fluorescent properties. J. Cluster Sci. 2020, 31, 507–511.10.1007/s10876-019-01666-wSuche in Google Scholar

12. Du, X.-G., Mi, G., Liu, J.-C., Zhang, J. A two-dimensional Zn(II) coordination polymer with a three-dimensional supramolecular architecture comprising 5-dimethylamino-isophthalic acid and 1,3-bis(4-pyridyl)propane. Mol. Cryst. Liq. Cryst. 2016, 624, 44–50.10.1080/15421406.2015.1044155Suche in Google Scholar

13. Li, Z. H., He, S. J., Xue, L. P., Wang, X. N., Zhang, D. D., Zhao, B. T. Exploring methyl-3-hydroxy-5-carboxy-2-thiophenecarboxylate and varying flexible bis(imidazole)-based synthons as building blocks for the construction of diverse cadmium coordination polymers. Dyes Pigments 2018, 149, 498–504.10.1016/j.dyepig.2017.10.036Suche in Google Scholar

14. Xue, L. P., Zhang, Y. G. pH-dependent two Cd(II) coordination architectures with methyl-3-hydroxy-5-carboxy-2-thiophenecarboxylate and 1,3-bis(4-pyridyl)propane mixed ligands: syntheses, crystal structures, and photoluminescent properties. J. Sulfur Chem. 2020, 41, 293–300.10.1080/17415993.2020.1720017Suche in Google Scholar

15. Xue, L. P. A dinuclear Cd(II) cluster-based coordination polymer: synthesis, structure and luminescence property. Chin. J. Struct. Chem. 2018, 37, 119–124.Suche in Google Scholar

16. Xue, L. P., He, S. J., Wang, X. N., Zhang, D. D. Construction of two photoluminescent sulfur containing cadmium(II) coordination polymers with 4-connected topology based on a methyl-3-hydroxy-5-carboxy-2-thiophenecarboxylate ligand. J. Sulfur Chem. 2018, 39, 173–181.10.1080/17415993.2017.1408810Suche in Google Scholar

17. Wang, C. Y., Wilseck, Z. M., Supkowski, R. M., LaDuca, R. L. Metal and ligand binding mode dependent topologies in phthalate coordination polymers with bis(4-pyridylformyl)piperazine co-ligands. CrystEngComm 2011, 13, 1391–1399.10.1039/C0CE00632GSuche in Google Scholar

18. Wang, X., Lin, H., Mu, B., Tian, A., Liu, G., Hu, N. Copper(II) metal–organic networks derived from bis(pyridylformyl)piperazine ligands and aromatic polycarboxylates: 2D layered structures and a novel 3,5-connected binodal 3D topology. CrystEngComm 2011, 13, 1990–1997.10.1039/C0CE00400FSuche in Google Scholar

19. Stone, B. S., LaDuca, R. L. Stacked ring-like coordination complex molecules threaded by infinite water tapes. Inorg. Chem. Commun. 2014, 43, 56–59.10.1016/j.inoche.2014.02.011Suche in Google Scholar

20. Xue, L. P., Li, Z. H., Zhang, T., Cui, J. J., Gao, Y., Yao, J. X. Construction of two Zn(II)/Cd(II) multifunctional coordination polymers with mixed ligands for catalytic and sensing properties. New J. Chem. 2018, 42, 14203–14209.10.1039/C8NJ02055HSuche in Google Scholar

21. Sun, D., Luo, G., Zhang, N., Huang, R., Zheng, L. Simultaneous self-assembly of a cage-like silver(I) complex encapsulating an Ag6 neutral cluster core and carbon dioxide fixation. Chem. Commun. 2011, 47, 1461–1463.10.1002/chin.201116019Suche in Google Scholar

22. Li, Y., Xiao, C., Li, S., Chen, Q., Li, B., Liao, Q., Niu, J. Three new Ag(I)coordination architectures based on mixed ligands: syntheses, structures and photoluminescent properties. J. Solid State Chem. 2013, 200, 251–257.10.1016/j.jssc.2013.01.047Suche in Google Scholar
